Communication

Increased Adsorption of Heavy Metal Ions in Multi-Walled Carbon Nanotubes with Improved Dispersion Stability

by
Carolina Rodríguez
1,
Sebastián Briano
1 and
Eduardo Leiva
1,2,*
1
Departamento de Ingeniería Hidráulica y Ambiental, Pontificia Universidad Católica de Chile, Avenida Vicuña Mackenna 4860, Macul, Santiago 7820436, Chile
2
Departamento de Química Inorgánica, Facultad de Química, Pontificia Universidad Católica de Chile, Avenida Vicuña Mackenna 4860, Macul, Santiago 7820436, Chile
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(14), 3106; https://doi.org/10.3390/molecules25143106
Submission received: 21 May 2020 / Revised: 25 June 2020 / Accepted: 26 June 2020 / Published: 8 July 2020
(This article belongs to the Special Issue Application of Engineered Nanomaterials for Environmental Remediation and Water Treatment)
Browse Figures
Versions Notes

Abstract

:
In recent years, carbon nanotubes (CNTs) have been intensively studied as an effective adsorbent for the removal of pollutants from wastewater. One of the main problems for its use corresponds to the agglomeration of the CNTs due to the interactions between them, which prevents using their entire surface area. In this study, we test the effect of dispersion of oxidized multi-walled carbon nanotubes (MWCNTs) on the removal of heavy metals from acidic solutions. For this, polyurethane filters were dyed with a well-dispersed oxidized MWCNTs solution using chemical and mechanical dispersion methods. Filters were used in column experiments, and the sorption capacity increased more than six times (600%) compared to experiments with suspended MWCNTs. Further, kinetic experiments showed a faster saturation on MWCNTs in column experiments. These results contribute to a better understanding of the effect of dispersion on the use of CNTs as heavy metal ions adsorbent.

1. Introduction

In the last decades, there has been a growing concern about the effect of high concentrations of heavy metal (loids) in the environment. Heavy metal (loids) can contaminate freshwaters with devastating effects on the aquatic ecosystems and can have a toxic effect on human health [1,2,3,4]. For this reason, the development of technologies for the removal of heavy metals (loids) from contaminated water has become an important challenge due to their persistence and recalcitrance in the environment.
The increase in industrial production in the last decades is the main source of heavy metal in wastewaters, air, and soils [5,6]. In northern Chile, mining industries are important sources of heavy metal (loids) that decrease water quality in several rivers [7,8,9]. Particularly, in the northern regions of Chile, mining activity uses more than 50% of the water of this zone and is responsible for the generation of wastewater characterized by a low pH and high concentrations of heavy metals [10,11,12]. This contamination is known as acid mine drainage (AMD), and some of the main heavy metals (loids) found in it are iron (Fe), copper (Cu), manganese (Mn), zinc (Zn), arsenic (As), among others [13,14,15].
In this context, the removal of heavy metal (loids) from contaminated water has become the focus of the development of new technologies where the use of nanomaterials and nanoparticles has shown significant progress. Nanoparticles have many advantages for heavy metal adsorption processes, among them a large surface area per unit mass (specific surface) and high reactivities [16,17]. In addition, a small number of nanoparticles can treat a large volume of water due to its high mobility in aqueous solutions [18].
The study of new carbon structures dates back to the mid-1980s with the laboratory synthesis of the fullerene (C60), a 60 carbon atom superstable structure with never-before-seen characteristics, including its interaction with different types of compounds, such as oxygen and transition metals [19]. Starting from this, a large number of studies were carried out, so much so, that in 1991, multi-walled carbon nanotubes (MWCNT) were synthesized for the first time [20] and in 1993 single-walled carbon nanotubes (SWCNT) [21] with similar characteristics to those reported for fullerene but with other new ones of great importance in the biological, electrical, and environmental fields [22]. This new allotropic form of carbon is made up of cylindrical sheets of graphite rolled into a tube [23]. SWCNTs are those that only have a graphite shell rolled up in a cylindrical form [21], while MWCNTs are made up of multiple layers of graphite sheets [5,20,24].
Recently there have been numerous articles on the adsorption properties of carbon nanotubes highlighting their ability to remove various heavy metals due to its accessible external surface, low mass density, well-developed mesopores (pores between 2 and 50 nm), and an easily modifiable surface [25,26]. This last characteristic is one of the most developed to maximize its absorption capacity of heavy metals [27,28,29]. A large number of surface modification techniques have been studied for this nanomaterial, one of them being acid treatment. It has been shown that the acid treatment can be performed with different types of acids such as HNO3, NaOCl, H2SO4, HCl, among others [27,30]. This type of technique allows introducing different oxygenated functional groups (carboxylic groups) onto the surface of CNTs, which improves their ability to absorb heavy metal by new mechanisms, especially by electrostatic interactions between metal ions towards the modified surface of CNTs [5,31]. The treatment could be carried out successfully due to the hexagonal arrangement of the carbon atoms in each graphite tube, which allows the surface to generate strong interactions with other molecules, even with other CNTs [32].
Other benefits of surface modification using acids are the removal of impurities from untreated CNTs and the higher availability of more adsorption sites [5]. In fact, adding oxygenated functional groups to the surface of the CNT gives them a certain hydrophilic character, which improves the dispersion of the material in aqueous solution due to electrostatic repulsion [23]. Because of mutual attraction, pure CNTs tend to agglomerate in the presence of water due to van der Waals interactions [5,33]. Agglomeration is a problem when working with this type of material, since it makes it impossible to use the entire surface area available for the sorption process, causing large losses in efficiency due to this phenomenon that can be partially solved with the acid treatment [25,31,34].
In this matter, current studies demonstrate the effectiveness of CNTs as adsorbents of different water pollutants for various conditions of pH, contact time, temperature, and adsorbent mass [18,35,36]. However, there are still issues to investigate and improve, such as the large-scale production of CNT [5,36,37] or surface modifications that do not use large amounts of chemicals that may be harmful to the environment [5,18,36]. CNTs can cause cytotoxic effects on microbes and affect aquatic life [38]. Some in vivo studies have shown that CNTs induce lung cell proliferation and lung inflammation [39]. However, the toxicity of CNTs depends on several factors. In general, agglomerated CNTs are more toxic than well-dispersed CNTs [5,40]. In the same line, it is necessary to study treatment techniques for the regeneration of CNTs after water treatment [5,36]. To address this, the use of adsorption columns can be a proper alternative, where the process can be more economical, efficient, and simple compared to batch studies for heavy metal removal, partly because CNT separation after use in a batch process can be more complex and expensive [35].
Our previous study [41] showed that the oxidation processes of MWCNTs improved their adsorption capacity for heavy metal removal. Using nitric acid (HNO3) as an oxidizing agent, the surface oxygen content increased from 4.8% to 14%. Additionally, better dispersion of oxidized MWCNTs in water was observed. However, the tendency of the MWCNTs to agglomerate prevents them from exhibiting their total surface area. With this motivation, the aim of this study was to explore the effect of oxidized MWCNTs dispersion from preliminary treatment column experiments, using a support dyed with a widely dispersed MWCNT ink. The relevance of this work lies in the quantification of the effect of an optimal dispersion of MWCNTs in the removal of contaminants and the preliminary evaluation of the design of a treatment system.

2. Results and Discussion

2.1. Characterization of MWCNTs

Characterization using Brunauer–Emmett–Teller (BET) analysis (Figure 1) showed an increase in the BET surface area (SBET) and the maximum sorption capacity (Qm) of the MWCNTs after the oxidation process. Furthermore, a decrease in pore specific volume (Vp) and pore diameter (Dp) was observed. This same behavior has been reported by other studies [42,43,44] using different oxidizing agents such as nitric acid, hydrogen peroxide, and potassium permanganate. Similarly to our results, Li et al. [44] showed an increase from 122 to 154 m2/g in SBET with CNTs treated with HNO3. The increase in SBET and Qm suggests that oxidized MWCNTs have better potential as an adsorbent material than raw MWCNTs. Additionally, the adsorption isotherms of raw and oxidized MWCNTs exhibited similar patterns to type III and type V adsorption isotherms according to the International Union of Pure and Applied Chemistry (IUPAC) classification, indicating the presence of relatively weak adsorbent-adsorbate interactions [45]. A hysteresis loop type H3 was also observed, characterized by having a very steep adsorption branch near saturation. In general, the loops of this type are given by non-rigid aggregates of plate-like particles [45].
The images obtained by SEM showed a clear structural change in the MWCNTs surface after oxidation (Figure 1). The MWCNTs tips were partially opened by the action of the HNO3, and structural defects were generated due to the attachment of oxygen-containing groups [46,47].
Superficial analyzes using XPS showed an increase in the oxygen percentage (Figure 2). The samples analyzed showed that the surface oxygen content increased from 4.82 to 13.99% after the oxidation process. Other studies show similar percentages in the oxygen content after chemical oxidation [48,49,50]. Some researchers have tested with stronger oxidation processes, which are capable of introducing more oxygen-containing groups such as 34% [41] or 22% [51] of the total mass, but the strong action of oxidizing agents could seriously damage the structure of MWCNTs [52,53]. Additionally, the auger region was studied to evaluate the sp2/sp3 content from carbon KLL spectra (C KLL). For this, the parameter D was determined, corresponding to the distance between the most positive maximum and the most negative minimum of the first derivate of the C KLL spectra [54]. For both, raw and oxidized MWCNTs, the D value was close to 15 eV, so the oxidation process did not significantly affect the sp2/sp3 hybridization ratio. The two small signals on the right-hand side of the primary XPS region of carbon (C1s) in the raw MWCNTs spectrum are attributable to the siloxane signals characteristic of the silicon wafer used to support the samples.

2.2. Qualitative Analysis of Dispersion

Raw and oxidized MWCNTs were dispersed by sonication to observe their affinity and dissemination in an aqueous matrix. In this experiment, the effect of two different dispersion methods was observed. The first is a chemical method corresponding to oxidation that enhances wetting or adhesion characteristics. The second is a mechanical method that separates CNTs from each other but can also fragment them, increasing their aspect ratio [55,56]. Figure 3 shows photographs after 30 min of dispersion and after 24 h of settling. It is possible to observe that the raw MWCNTs were not significantly affected by sonication, remaining agglomerated and easily distinguishable within the solution. Conversely, the oxidation process and the increase of oxygen-containing groups improved the dispersion in water. After 24 h, the oxidized MWCNTs had decanted, but a fraction remained in suspension. The decanted fraction was part of the excess of the added MWCNTs, while another part remained well-dispersed in the solution. Moreover, the oxidized MWCNTs were recovered using a 0.22 μm membrane filter. As shown in Figure 1b, some agglomerations are distinguished. The undispersed MWCNTs powders cannot exhibit their total surface area [31].
Several studies have reported that the oxidation of CNTs can increase their dispersion and solubility in water, forming well-dispersed electrostatically stabilized colloids in water and other organic solvents [57,58,59]. Oxygen-containing groups introduced during the oxidation process formed stronger interactions with the aqueous solvent than solvent/solvent and MWCNTs/MWCNTs interactions, then the oxidized MWCNTs were preferentially enclosed by solvent molecules, which resulted in repulsive interactions between the MWCNTs in the solution that stabilized them against reaggregation [60]. Sezer and Koç [61] reported that MWCNTs treated with HNO3 exhibited excellent dispersion stability with no visual sedimentation for three months. Besides, Lee et al. [62] studied the dispersion of modified CNTs bearing carboxylic acid (CNT-COOH) and carboxylic anion (CNT-COO−), which showed stable dispersion for more than two months in aqueous solution, while pristine CNTs settled down after one day. Therefore, oxygen-containing groups introduced during the oxidation process significantly improve the dispersion in polar solvents [63].

2.3. Effect of the Adsorbent Mass

Since the raw MWCNTs were not effective for metal adsorption [41], oxidized MWCNTs were used for the analyzes and experiments. Adsorption experiments were carried out for different masses of oxidized MWCNTs (5–25 mg), using solutions with constant volumes and metal concentrations. The results for Cu, Mn, and Zn showed that the sorption capacity q (mg/g sorbent) decreases progressively with increasing adsorbent mass (Figure 4). This can be explained because CNTs have a strong tendency to agglomerate and to form aggregates due to van der Waals interactions [5]. Thus, the interactions between CNTs would be promoted with a greater mass of oxidized MWCNTs in a confined space, where a progressive increment in the amount of MWCNTs increases the probability of interaction between MWCNTs particles. Higher mutual attraction forces between CNTs cause them to stick together, thereby reducing their exposed surface [33]. Particularly, this effect is critical for heavy metal removal processes, which depends in part on the availability of the affinity sites on the surface of the CNTs. Therefore, even though the removal rates are higher with increasing MWCNTs mass, the amount of metal removed per gram of adsorbent decreases. Very few studies have reported the effect of the CNTs mass as a function of the sorption capacity (mg/g sorbent). Dehghani [64] investigated the phenol removal using SWCNTs and MWCNTs. They reported that the removal rate increased with increasing adsorbent mass but not linearly, and over the 100 mg of sorbent, the removal became constant. These results correlated with that obtained in this study, in which the sorption capacity was affected by increasing the amount of adsorbent in a constant volume.
For Cu, the results showed that the sorption capacity decreased 52.6% when 25 mg of oxidized MWCNTs was used instead of 5 mg. In the case of Mn and Zn, the decrease was 66.6% and 50.6%, respectively. It can be seen that the removal efficiency increased with increasing MWCNTs mass. However, a better dispersion should improve the sorption capacity of the oxidized MWCNTs in the studied mass range.

2.4. Column Experiments

For this experiment, new dispersion methods were added. In addition to oxidation and ultrasonic bath, ultrasonication was used as a stronger mechanical method. Besides, a surfactant (SDBS) was added to improve the dispersion stability after separation. Li et al. [65] showed that the adsorption capacity using the SDBS surfactant was almost pH-independent for pH values lower than 9.0, while the adsorption capacity using other surfactants such as octyl-phenol-ethoxylate (TX-100) and benzalkonium chloride (BKC) is strongly affected by the pH. Even though in our study it was shown that chemical oxidation improved dispersion, after 24 h, a fraction of MWCNTs had decanted. For this reason, surfactants are very useful for obtaining more stable dispersions over time. Some studies have shown that surfactant-dispersed CNTs can be colloidally stable for weeks [66,67].
The sorption capacity was determined for a filter dyed with an oxidized MWCNTs ink. The filter was used in column experiments for water treatment. These results were compared with those obtained in the adsorption experiments with powdered (suspended) MWCNTs using monometallic and multimetallic waters. For all experiments, the adsorbent mass used was approximately 20 mg. To avoid MWCNTs particles release during the column experiment, the filters were dyed, dried, and washed with deionized water successively until a constant mass was obtained. It should be noted that only about 30% of the ink used for each filter adhered to the polyurethane. To compare the experiments appropriately, the results are summarized in Table 1. It can be seen that the column experiments showed a better sorption capacity compared to the results of the suspended MWCNTs. For Cu, the sorption capacity was increased by around six times (600%) using treatment columns instead of suspended MWCNTs for multimetallic waters. In the case of Mn and Zn, the increase was even greater, reaching an increase of 667% and 4300%, respectively.
Although adsorption assays with powdered nanotubes were carried out after dispersing the samples with an ultrasonic bath for 30 min, it was observed that the oxidized MWCNTs tend to agglomerate and decant in time (Figure 1). Previous studies have reported the effect of the dispersion of CNTs on the capacity of sorption [31,34]. Undispersed CNTs powders cannot exhibit their total surface area, so well-dispersed CNTs may show a greater capacity of sorption for metals than undispersed CNTs based solely on the surface area available for sorption [31]. This could explain the significant increase in the sorption capacity for oxidized MWCNTs in column experiments compared to suspension experiments. The same effect was reported by Wang et al. [68], who used calcium-alginate beads impregnated with functionalized MWCNTs for the removal of methylene blue, where column experiments allowed greater dispersion stability in the treatment filters. They observed that the sorption capacity increased considerably compared to suspended MWCNTs. Likewise, Khan et al. [69] studied the removal of cadmium and bismarck brown R with modified MWCNTs and also obtained better results using treatment columns. They found that the best results in the column experiments could be due to the higher adsorbate concentration onto the adsorption zone, whereas in batch experiments, the adsorbate concentration decreases with time gradient.
For the design of our column experiments, polyurethane filters (commercially known as a sponge) were used because they allow the flow of water through them and do not show interactions with the heavy metals to be removed. This was tested with a control experiment using an undyed sponge, where no removal of Cu, Mn, and Zn was observed (Data not shown). Many authors [31,68] have reported that the main limitations for a large-scale treatment system are to ensure that the CNTs remain fixed on the filters, to avoid agglomeration with other particles, and to prevent the release of CNTs in the treated water, as this would cause serious damage to the environment and the human health. Several studies have reported the possible effects of CNTs on human health and aquatic ecosystems [70,71,72]. Due to the size of the nanoparticles, they can enter cells directly through the cell membrane and cause mainly lung and inflammatory diseases [73,74,75,76]. These limitations are also evidenced in our work, in which MWCNTs nanoparticles that were not retained by the filter were released during the preparation phase of the experiment. Ensuring that the filters only contain well-retained nanoparticles on their surface is a critical step in the design of a treatment system, as well as the potential for filter reuse. Previous studies, including one own work, studied the desorption process as a function of pH in powdered CNTs [29,41,77,78]. In general, at low pH, good desorption rates were obtained. However, there are few desorption studies in filter treatment systems. Thus, the use of a proper and optimized matrix for the CNTs allows recycling the filter for subsequent uses and operations [18].

2.5. Kinetics Experiments

To compare the kinetics of the experiments performed on columns and with suspended MWCNTs, the results are presented as the accumulated sorption capacity (qa) over time, divided by the maximum sorption capacity (qmax) reached at equilibrium (Figure 5). In column and batch experiments, the equilibrium was reached approximately at 1 and 2 h, respectively. It is observed that suspension experiments take longer to reach equilibrium. This could be explained due to MWCNTs in column experiments are more dispersed and exposed so that saturation occurs faster, while the suspended MWCNTs constantly interact with each other, and saturation is slower. Kinetic experiments show another advantage of the design of treatment columns with continuous flow compared to batch treatments, since it requires a shorter contact time for the removal of contaminants [79].

3. Materials and Methods

3.1. Characterization of MWCNTs

The raw and oxidized MWCNTs were characterized by Brunauer–Emmett–Teller analysis (BET) (Micromeritics Instruments Corp., Norcross, GA, USA), Scanning Electron Microscopy (SEM) (JSM-IT300LV, JEOL Ltd., Tokyo, Japan), and X-ray photoelectron spectrometry (XPS, SPECS FlexMod, Berlin, Germany), using MWCNTs dispersed in deionized water on a silicon wafer.

3.2. MWCNTs Oxidation

The MWCNTs were commercially acquired from NanoTechLabs, Inc. (Yadkinville, NC, USA). The oxidation process was carried out by reflux at 120 °C for 4 h using 500 mg of raw MWCNTs in 250 mL of 65% nitric acid, according to the method described in Rodríguez and Leiva [41]. The obtained solution was filtered using a 0.45 µm membrane filter and washed with deionized water until reaching a neutral pH. The filtrate was dried at 60 °C overnight.

3.3. Qualitative Analysis of Dispersion

Samples of raw and oxidized MWCNTs were dispersed in deionized water using an ultrasonic bath (Isolab Laborgerate GmbH, Wertheim, Germany) for 30 min. Then, the samples were allowed to decant for 24 h. Photographs were taken during the process to observe the dispersion of the MWCNTs.

3.4. Adsorption Experiments

Adsorption experiments were performed using 20 mg of oxidized MWCNTs with 30 mL of metal ion solution. For this, different concentrations of Cu (~20 mg/L), Mn (~6 mg/L), and Zn (~3 mg/L) were prepared, as in our previous study [41]. The solutions with oxidized MWCNTs were shaken for 14 h at 350 rpm and room temperature (~25 °C). The metal concentrations in the aqueous phase were measured colorimetrically in a Hach Spectrophotometer DR/2010. The procedure was carried out for monometallic and multimetallic solutions.
The sorption capacity q (mg/g sorbent) for each experimental condition was obtained using the equation
q = ( C 0 − C e ) V m
where:
  • Co: initial concentration of metal in aqueous solution (mg/L).
  • Ce: equilibrium concentration of metal in aqueous solution (mg/L).
  • V: total volume of solution (L).
  • m: the mass of sorbent (g).

3.5. Effect of the Adsorbent Mass

Adsorption experiments were performed using different masses of oxidized MWCNTs (5, 10, 15, 20, and 25 mg). The adsorbent was mixed with 30 mL of a monometallic solution: Cu (~20 mg/L), Mn (~6 mg/L), and Zn (~3 mg/L). The solutions were shaken at 350 rpm for 14 h and subsequently filtered using a 0.45 µm membrane filter. The metal concentrations in the aqueous phase were measured colorimetrically in a Hach Spectrophotometer DR/2010.

3.6. Column Experiments

Treatment columns were designed to evaluate the dispersion effect using polyurethane filters dyed with oxidized MWCNTs ink. The ink was prepared by adding oxidized MWCNTs (1.5 mg/mL) and the surfactant sodium dodecylbenzenesulfonate (SDBS) (10 mg/mL) to deionized water. The mixture was sonicated in an ultrasonic bath (Isolab Laborgerate GmbH, Wertheim, Germany) for 15 min and ultrasonicated using a Fisherbrand™ sonicator Q500 (Fisher Scientific, NH, USA) for 30 min. This oxidized MWCNTs ink has a high dispersion due to the use of ultrasonication. The polyurethane filters were immersed for 5 min in the nanotube ink, then were washed with deionized water and dried at 60 °C for 12 h. This staining process was carried out twice. The number of nanotubes present in each filter was calculated by mass difference before and after staining. Then, continuous flow sorption experiments were carried out to evaluate the metal removal over time and determine the maximum sorption capacity of the nanotubes on a well-distributed support. Sorption experiments were performed on acrylic columns (diameter: 4 cm; height: 40 cm) using continuous flow (30 mL/min). The experiments were carried out using multimetallic water with metal ion content, as described in 3.3. Figure 6 shows a scheme of the experiment.

4. Conclusions

Our results showed that the oxidation using HNO3 increased the surface area and the nitrogen sorption capacity of MWCNTs, according to BET analysis. The insertion of oxygen-containing groups improved the MWCNTs dispersion, but it is still possible to observe agglomerations of oxidized MWCNTs. The ultrasonication and impregnation of oxidized MWCNTs on a support dramatically improved the heavy metal removal. The column experiments with oxidized MWCNTs in polyurethane filters showed an increase of more than 600% for the removal of Cu, Mn, and Zn compared to batch experiments. These findings contribute to a better understanding of the main limitations of CNTs’ use in large-scale treatment systems and the effect of some techniques commonly used to disperse CNTs on the sorption capacity.
Even so, additional efforts should be made in the research and development of appropriate support material for the use of CNTs in large-scale treatment systems.

Author Contributions

The manuscript was written by C.R. and S.B., but all the authors contributed to its preparation and review. Experiments were performed by C.R.; Data analyses were carried out by C.R. in discussion with S.B. and E.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by PIA-UC Eduardo Leiva/DDA-VRA, FIC-R Fondo de Innovación para la Competitividad Gore Coquimbo BIP nos. 30485965-0, CORFO-L2 L2 ISV93456 and FONDECYT 11191154 (2019–2022).

Acknowledgments

Thanks to FONDEQUIP Project EQM150101 and FONDEQUIP Project EQM170087. Thanks are also extended to the reviewers for their corrections and suggestions, who contributed significantly to improving the quality of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mahurpawar, M. Effects of heavy metals on human health. Int. J. Res. Granthaalayah 2015, 530, 1–7. [Google Scholar]
  2. Duruibe, J.O.; Ogwuegbu, M.O.C.; Egwurugwu, J.N. Heavy metal pollution and human biotoxic effects. Int. J. Phys. Sci. 2007, 2, 112–118. [Google Scholar]
  3. Nagajyoti, P.C.; Lee, K.D.; Sreekanth, T.V.M. Heavy metals, occurrence and toxicity for plants: A review. Environ. Chem. Lett. 2010, 8, 199–216. [Google Scholar] [CrossRef]
  4. Tchounwou, P.B.; Yedjou, C.G.; Patlolla, A.K.; Sutton, D.J. Heavy metal toxicity and the environment. EXS 2012, 101, 133–164. [Google Scholar] [PubMed] [Green Version]
  5. Ihsanullah, I.; Abbas, A.; Al-Amer, A.M.; Laoui, T.; Al-Marri, M.J.; Nasser, M.S.; Khraisheh, M.; Atieh, M.A. Heavy metal removal from aqueous solution by advanced carbon nanotubes: Critical review of adsorption applications. Sep. Purif. Technol. 2016, 157, 141–161. [Google Scholar] [CrossRef]
  6. Mohapatra, M.; Mohapatra, L.; Singh, P.; Anand, S.; Mishra, B. A comparative study on Pb(II), Cd(II), Cu(II), Co(II) adsorption from single and binary aqueous solutions on additive assisted nano-structured goethite. Int. J. Eng. Sci. Technol. 2011, 2, 89–103. [Google Scholar] [CrossRef] [Green Version]
  7. Oyarzun, R.; Lillo, J.; Higueras, P.; Oyarzún, J.; Maturana, H. Strong arsenic enrichment in sediments from the Elqui watershed, Northern Chile: Industrial (gold mining at El Indio-Tambo district) vs. geologic processes. J. Geochem. Explor. 2004, 84, 53–64. [Google Scholar] [CrossRef]
  8. Leiva, E.D.; Rámila, C.d.P.; Vargas, I.T.; Escauriaza, C.R.; Bonilla, C.A.; Pizarro, G.E.; Regan, J.M.; Pasten, P.A. Natural attenuation process via microbial oxidation of arsenic in a high Andean watershed. Sci. Total Environ. 2014, 466, 490–502. [Google Scholar] [CrossRef]
  9. Leiva, E.; Leiva-Aravena, E.; Rodríguez, C.; Serrano, J.; Vargas, I. Arsenic removal mediated by acidic pH neutralization and iron precipitation in microbial fuel cells. Sci. Total Environ. 2018, 645, 471–481. [Google Scholar] [CrossRef]
  10. Oyarzún, J.; Oyarzún, R. Sustainable development threats, inter-sector conflicts and environmental policy requirements in the arid, mining rich, northern Chile territory. Sustain. Dev. 2011, 19, 263–274. [Google Scholar] [CrossRef]
  11. Valdés-Pineda, R.; Pizarro, R.; García-Chevesich, P.; Valdés, J.B.; Olivares, C.; Vera, M.; Balocchi, F.; Pérez, F.; Vallejos, C.; Fuentes, R.; et al. Water governance in Chile: Availability, management and climate change. J. Hydrol. 2014, 519, 2538–2567. [Google Scholar] [CrossRef]
  12. Aitken, D.; Rivera, D.; Godoy-Faúndez, A.; Holzapfel, E.; Aitken, D.; Rivera, D.; Godoy-Faúndez, A.; Holzapfel, E. Water Scarcity and the Impact of the Mining and Agricultural Sectors in Chile. Sustainability 2016, 8, 128. [Google Scholar] [CrossRef] [Green Version]
  13. Johnson, D.B.; Hallberg, K.B. Acid mine drainage remediation options: A review. Sci. Total Environ. 2005, 338, 3–14. [Google Scholar] [CrossRef] [PubMed]
  14. Obreque-Contreras, J.; Pérez-Flores, D.; Gutiérrez, P.; Chávez-Crooker, P. Acid Mine Drainage in Chile: An Opportunity to Apply Bioremediation Technology. J. Waste Water Treat. Anal. 2015, 6, 1–8. [Google Scholar] [CrossRef]
  15. Rodríguez, C.; Leiva-Aravena, E.; Serrano, J.; Leiva, E. Occurrence and Removal of Copper and Aluminum in a Stream Confluence Affected by Acid Mine Drainage. Water 2018, 10, 516. [Google Scholar] [CrossRef] [Green Version]
  16. Gehrke, I.; Geiser, A.; Somborn-Schulz, A. Innovations in nanotechnology for water treatment. Nanotechnol. Sci. Appl. 2015, 8, 1–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Westerhoff, P.; Alvarez, P.; Li, Q.; Gardea-Torresdey, J.; Zimmerman, J. Overcoming implementation barriers for nanotechnology in drinking water treatment. Environ. Sci. Nano 2016, 3, 1241–1253. [Google Scholar] [CrossRef]
  18. Khin, M.M.; Nair, A.S.; Babu, V.J.; Murugan, R.; Ramakrishna, S. A review on nanomaterials for environmental remediation. Energy Environ. Sci. 2012, 5, 8075–8109. [Google Scholar] [CrossRef]
  19. Kroto, H.W.; Heath, J.R.; O’Brien, S.C.; Curl, R.F.; Smalley, R.E. C60: Buckminsterfullerene. Nature 1985, 318, 162–163. [Google Scholar] [CrossRef]
  20. Iijima, S. Helical microtubules of graphitic carbon. Nature 1991, 354, 56–58. [Google Scholar] [CrossRef]
  21. Iijima, S.; Ichihashi, T. Single-shell carbon nanotubes of 1-nm diameter. Nature 1993, 363, 603–605. [Google Scholar] [CrossRef]
  22. Ebert, L.B. Science of fullerenes and carbon nanotubes. Carbon N. Y. 1997, 3, 437–438. [Google Scholar] [CrossRef]
  23. Peng, X.; Jia, J.; Luan, Z. Oxidized carbon nanotubes for simultaneous removal of endrin and Cd(Π) from water and their separation from water. J. Chem. Technol. Biotechnol. 2009, 84, 275–278. [Google Scholar] [CrossRef]
  24. Tian, Y.; Gao, B.; Wang, Y.; Morales, V.L.; Carpena, R.M.; Huang, Q.; Yang, L. Deposition and transport of functionalized carbon nanotubes in water-saturated sand columns. J. Hazard. Mater. 2012, 213, 265–272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Liang, J.; Liu, J.; Yuan, X.; Dong, H.; Zeng, G.; Wu, H.; Wang, H.; Liu, J.; Hua, S.; Zhang, S.; et al. Facile synthesis of alumina-decorated multi-walled carbon nanotubes for simultaneous adsorption of cadmium ion and trichloroethylene. Chem. Eng. J. 2015, 273, 101–110. [Google Scholar] [CrossRef]
  26. Ihsanullah, I.; Al-Khaldi, F.A.; Abu-Sharkh, B.; Abulkibash, A.M.; Qureshi, M.I.; Laoui, T.; Atieh, M.A. Effect of acid modification on adsorption of hexavalent chromium (Cr(VI)) from aqueous solution by activated carbon and carbon nanotubes. Desalin. Water Treat. 2016, 57, 7232–7244. [Google Scholar] [CrossRef]
  27. Rao, G.P.; Lu, C.; Su, F. Sorption of divalent metal ions from aqueous solution by carbon nanotubes: A review. Sep. Purif. Technol. 2007, 58, 224–231. [Google Scholar] [CrossRef]
  28. Lu, C.; Liu, C. Removal of nickel(II) from aqueous solution by carbon nanotubes. J. Chem. Technol. Biotechnol. 2006, 81, 1932–1940. [Google Scholar] [CrossRef]
  29. Lu, C.; Chiu, H.; Liu, C. Removal of Zinc(II) from Aqueous Solution by Purified Carbon Nanotubes: Kinetics and Equilibrium Studies. Ind. Eng. Chem. Res. 2006, 45, 2850–2855. [Google Scholar] [CrossRef]
  30. Liu, X.; Wang, M.; Zhang, S.; Pan, B. Application potential of carbon nanotubes in water treatment: A review. J. Environ. Sci. 2013, 25, 1263–1280. [Google Scholar] [CrossRef]
  31. Tian, Y.; Gao, B.; Morales, V.L.; Wu, L.; Wang, Y.; Muñoz-Carpena, R.; Cao, C.; Huang, Q.; Yang, L. Methods of using carbon nanotubes as filter media to remove aqueous heavy metals. Chem. Eng. J. 2012, 210, 557–563. [Google Scholar] [CrossRef] [Green Version]
  32. Stafiej, A.; Pyrzynska, K. Adsorption of heavy metal ions with carbon nanotubes. Sep. Purif. Technol. 2007, 58, 49–52. [Google Scholar] [CrossRef]
  33. Sharma, P.; Ahuja, P. Recent advances in carbon nanotube-based electronics. Mater. Res. Bull. 2008, 43, 2517–2526. [Google Scholar] [CrossRef]
  34. Li, Z.; Chen, J.; Ge, Y. Removal of lead ion and oil droplet from aqueous solution by lignin-grafted carbon nanotubes. Chem. Eng. J. 2017, 308, 809–817. [Google Scholar] [CrossRef]
  35. Sazali, N.; Harun, Z.; Sazali, N. A Review on Batch and Column Adsorption of Various Adsorbent towards the Removal of Heavy Metal. J. Adv. Res. Fluid Mech. Therm. Sci. 2020, 67, 66–88. [Google Scholar]
  36. Ouni, L.; Ramazani, A.; Taghavi Fardood, S. An overview of carbon nanotubes role in heavy metals removal from wastewater. Front. Chem. Sci. Eng. 2019, 13, 274–295. [Google Scholar] [CrossRef]
  37. Mubarak, N.M.; Sahu, J.N.; Abdullah, E.C.; Jayakumar, N.S. Removal of heavy metals from wastewater using carbon nanotubes. Sep. Purif. Rev. 2014, 43, 311–338. [Google Scholar] [CrossRef]
  38. Upadhyayula, V.K.K.; Deng, S.; Mitchell, M.C.; Smith, G.B. Application of carbon nanotube technology for removal of contaminants in drinking water: A review. Sci. Total Environ. 2009, 408, 1–13. [Google Scholar] [CrossRef] [PubMed]
  39. Lam, C.-W.; James, J.T.; McCluskey, R.; Hunter, R.L. Pulmonary toxicity of single-wall carbon nanotubes in mice 7 and 90 days after intratracheal instillation. Toxicol. Sci. 2004, 77, 126–134. [Google Scholar] [CrossRef] [Green Version]
  40. Wick, P.; Manser, P.; Limbach, L.K.; Dettlaff-Weglikowska, U.; Krumeich, F.; Roth, S.; Stark, W.J.; Bruinink, A. The degree and kind of agglomeration affect carbon nanotube cytotoxicity. Toxicol. Lett. 2007, 168, 121–131. [Google Scholar] [CrossRef]
  41. Rodríguez, C.; Leiva, E. Enhanced Heavy Metal Removal from Acid Mine Drainage Wastewater Using Double-Oxidized Multiwalled Carbon Nanotubes. Molecules 2019, 25, 111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Kandah, M.I.; Meunier, J.L. Removal of nickel ions from water by multi-walled carbon nanotubes. J. Hazard. Mater. 2007, 146, 283–288. [Google Scholar] [CrossRef] [PubMed]
  43. Yavari, R.; Huang, Y.D.; Ahmadi, S.J. Adsorption of cesium (I) from aqueous solution using oxidized multiwall carbon nanotubes. J. Radioanal. Nucl. Chem. 2011, 287, 393–401. [Google Scholar] [CrossRef]
  44. Li, Y.H.; Wang, S.; Luan, Z.; Ding, J.; Xu, C.; Wu, D. Adsorption of cadmium(II) from aqueous solution by surface oxidized carbon nanotubes. Carbon N. Y. 2003, 41, 1057–1062. [Google Scholar] [CrossRef]
  45. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  46. Gao, Z.; Bandosz, T.J.; Zhao, Z.; Han, M.; Qiu, J. Investigation of factors affecting adsorption of transition metals on oxidized carbon nanotubes. J. Hazard. Mater. 2009, 167, 357–365. [Google Scholar] [CrossRef]
  47. Martínez, M.T.; Callejas, M.A.; Benito, A.M.; Cochet, M.; Seeger, T.; Ansón, A.; Schreiber, J.; Gordon, C.; Marhic, C.; Chauvet, O.; et al. Sensitivity of single wall carbon nanotubes to oxidative processing: Structural modification, intercalation and functionalisation. Carbon N. Y. 2003, 41, 2247–2256. [Google Scholar] [CrossRef]
  48. Jung, A.; Graupner, R.; Ley, L.; Hirsch, A. Quantitative determination of oxidative defects on single walled carbon nanotubes. Phys. Status Solidi 2006, 243, 3217–3220. [Google Scholar] [CrossRef]
  49. Saleh, T.A. The influence of treatment temperature on the acidity of MWCNT oxidized by HNO 3 or a mixture of HNO 3/H 2 SO 4. Appl. Surf. Sci. 2011, 257, 7746–7751. [Google Scholar] [CrossRef]
  50. Xia, W.; Wang, Y.; Bergsträßer, R.; Kundu, S.; Muhler, M. Surface characterization of oxygen-functionalized multi-walled carbon nanotubes by high-resolution X-ray photoelectron spectroscopy and temperature-programmed desorption. Appl. Surf. Sci. 2007, 254, 247–250. [Google Scholar] [CrossRef]
  51. Liang, S.; Li, G.; Tian, R. Multi-walled carbon nanotubes functionalized with a ultrahigh fraction of carboxyl and hydroxyl groups by ultrasound-assisted oxidation. J. Mater. Sci. 2016, 51, 3513–3524. [Google Scholar] [CrossRef]
  52. Datsyuk, V.; Kalyva, M.; Papagelis, K.; Parthenios, J.; Tasis, D.; Siokou, A.; Kallitsis, I.; Galiotis, C. Chemical oxidation of multiwalled carbon nanotubes. Carbon N. Y. 2008, 46, 833–840. [Google Scholar] [CrossRef]
  53. Shin, Y.R.; Jeon, I.Y.; Baek, J.B. Stability of multi-walled carbon nanotubes in commonly used acidic media. Carbon N. Y. 2012, 50, 1465–1476. [Google Scholar] [CrossRef]
  54. Mezzi, A.; Kaciulis, S. Surface investigation of carbon films: From diamond to graphite. Surf. Interface Anal. 2010, 42, 1082–1084. [Google Scholar] [CrossRef]
  55. Lu, K.L.; Lago, R.M.; Chen, Y.K.; Green, M.L.H.; Harris, P.J.F.; Tsang, S.C. Mechanical damage of carbon nanotubes by ultrasound. Carbon N. Y. 1996, 34, 814–816. [Google Scholar] [CrossRef]
  56. Vaisman, L.; Wagner, H.D.; Marom, G. The role of surfactants in dispersion of carbon nanotubes. Adv. Colloid Interface Sci. 2006, 128, 37–46. [Google Scholar] [CrossRef]
  57. Kim, S.W.; Kim, T.; Kim, Y.S.; Choi, H.S.; Lim, H.J.; Yang, S.J.; Park, C.R. Surface modifications for the effective dispersion of carbon nanotubes in solvents and polymers. Carbon 2012, 50, 3–33. [Google Scholar] [CrossRef]
  58. Zhu, J.; Kim, J.D.; Peng, H.; Margrave, J.L.; Khabashesku, V.N.; Barrera, E.V. Improving the dispersion and integration of single-walled carbon nanotubes in epoxy composites through functionalization. Nano Lett. 2003, 3, 1107–1113. [Google Scholar] [CrossRef]
  59. Vaisman, L.; Marom, G.; Wagner, H.D. Dispersions of Surface-Modified Carbon Nanotubes in Water-Soluble and Water-Insoluble Polymers. Adv. Funct. Mater. 2006, 16, 357–363. [Google Scholar] [CrossRef]
  60. Brandao, S.D.F.; Andrada, D.; Mesquita, A.F.; Santos, A.P.; Gorgulho, H.F.; Paniago, R.; Pimenta, M.A.; Fantini, C.; Furtado, C.A. The influence of oxygen-containing functional groups on the dispersion of single-walled carbon nanotubes in amide solvents. J. Phys. Condens. Matter 2010, 22, 334222. [Google Scholar] [CrossRef]
  61. Sezer, N.; Koç, M. Stabilization of the aqueous dispersion of carbon nanotubes using different approaches. Therm. Sci. Eng. Prog. 2018, 8, 411–417. [Google Scholar] [CrossRef]
  62. Lee, J.; Kim, M.; Hong, C.K.; Shim, S.E. Measurement of the dispersion stability of pristine and surface-modified multiwalled carbon nanotubes in various nonpolar and polar solvents. Meas. Sci. Technol. 2007, 18, 3707. [Google Scholar] [CrossRef]
  63. Naseh, M.V.; Khodadadi, A.A.; Mortazavi, Y.; Sahraei, O.A.; Pourfayaz, F.; Sedghi, S.M. Functionalization of carbon nanotubes using nitric acid oxidation and DBD plasma. World Acad. Sci. Eng. Technol. 2009, 49, 177–179. [Google Scholar]
  64. Dehghani, M.H.; Mostofi, M.; Alimohammadi, M.; McKay, G.; Yetilmezsoy, K.; Albadarin, A.B.; Heibati, B.; AlGhouti, M.; Mubarak, N.M.; Sahu, J.N. High-performance removal of toxic phenol by single-walled and multi-walled carbon nanotubes: Kinetics, adsorption, mechanism and optimization studies. J. Ind. Eng. Chem. 2016, 35, 63–74. [Google Scholar] [CrossRef]
  65. Li, J.; Chen, S.; Sheng, G.; Hu, J.; Tan, X.; Wang, X. Effect of surfactants on Pb(II) adsorption from aqueous solutions using oxidized multiwall carbon nanotubes. Chem. Eng. J. 2011, 166, 551–558. [Google Scholar] [CrossRef]
  66. Chen, S.J.; Qiu, C.Y.; Korayem, A.H.; Barati, M.R.; Duan, W.H. Agglomeration process of surfactant-dispersed carbon nanotubes in unstable dispersion: A two-stage agglomeration model and experimental evidence. Powder Technol. 2016, 301, 412–420. [Google Scholar] [CrossRef]
  67. Tiwari, M.D.; Sagar, G.H.; Bellare, J.R. Flow cytometry-based evaluation and enrichment of multiwalled carbon nanotube dispersions. Langmuir 2012, 28, 4939–4947. [Google Scholar] [CrossRef]
  68. Wang, B.; Gao, B.; Zimmerman, A.R.; Lee, X. Impregnation of multiwall carbon nanotubes in alginate beads dramatically enhances their adsorptive ability to aqueous methylene blue. Chem. Eng. Res. Des. 2018, 133, 235–242. [Google Scholar] [CrossRef]
  69. Khan, T.A.; Nazir, M.; Khan, E.A. Magnetically modified multiwalled carbon nanotubes for the adsorption of bismarck brown R and Cd(II) from aqueous solution: Batch and column studies. Desalin. Water Treat. 2016, 57, 19374–19390. [Google Scholar] [CrossRef]
  70. Muller, J.; Huaux, F.; Moreau, N.; Misson, P.; Heilier, J.F.; Delos, M.; Arras, M.; Fonseca, A.; Nagy, J.B.; Lison, D. Respiratory toxicity of multi-wall carbon nanotubes. Toxicol. Appl. Pharmacol. 2005, 207, 221–231. [Google Scholar] [CrossRef]
  71. Warheit, D.B.; Laurence, B.R.; Reed, K.L.; Roach, D.H.; Reynolds, G.A.M.; Webb, T.R. Comparative pulmonary toxicity assessment of single-wall carbon nanotubes in rats. Toxicol. Sci. 2004, 77, 117–125. [Google Scholar] [CrossRef] [Green Version]
  72. Aschberger, K.; Johnston, H.J.; Stone, V.; Aitken, R.J.; Hankin, S.M.; Peters, S.A.K.; Tran, C.L.; Christensen, F.M. Review of carbon nanotubes toxicity and exposure-appraisal of human health risk assessment based on open literature. Crit. Rev. Toxicol. 2010, 40, 759–790. [Google Scholar] [CrossRef]
  73. Kobayashi, N.; Izumi, H.; Morimoto, Y. Review of toxicity studies of carbon nanotubes. J. Occup. Health 2017, 59, 394–407. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Ong, L.C.; Chung, F.F.L.; Tan, Y.F.; Leong, C.O. Toxicity of single-walled carbon nanotubes. Arch. Toxicol. 2016, 90, 103–118. [Google Scholar] [CrossRef] [PubMed]
  75. Helland, A.; Wick, P.; Koehler, A.; Schmid, K.; Som, C. Reviewing the environmental and human health knowledge base of carbon nanotubes. Environ. Health Perspect. 2007, 115, 1125–1131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Du, J.; Wang, S.; You, H.; Zhao, X. Understanding the toxicity of carbon nanotubes in the environment is crucial to the control of nanomaterials in producing and processing and the assessment of health risk for human: A review. Environ. Toxicol. Pharmacol. 2013, 36, 451–462. [Google Scholar] [CrossRef] [PubMed]
  77. Li, Y.H.; Di, Z.; Ding, J.; Wu, D.; Luan, Z.; Zhu, Y. Adsorption thermodynamic, kinetic and desorption studies of Pb2+ on carbon nanotubes. Water Res. 2005, 39, 605–609. [Google Scholar] [CrossRef] [PubMed]
  78. Liang, P.; Liu, Y.; Guo, L.; Zeng, J.; Lu, H. Multiwalled carbon nanotubes as solid-phase extraction adsorbent for the preconcentration of trace metal ions and their determination by inductively coupled plasma atomic emission spectrometry. J. Anal. At. Spectrom. 2004, 19, 1489–1492. [Google Scholar] [CrossRef]
  79. Sprenger, D.; Anderson, O. Deconvolution of XPS spectra. Fresenius. J. Anal. Chem. 1991, 341, 116–120. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 25 03106 g001 550

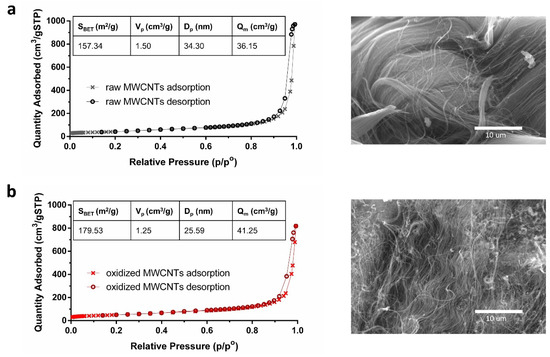

Figure 1. BET adsorption-desorption profiles and SEM images for (a) raw MWCNTs and (b) oxidized MWCNTs. SBET: BET surface area; Vp: pore specific volume; Dp: pore diameter; Qm: maximum adsorption capacity.
Figure 1. BET adsorption-desorption profiles and SEM images for (a) raw MWCNTs and (b) oxidized MWCNTs. SBET: BET surface area; Vp: pore specific volume; Dp: pore diameter; Qm: maximum adsorption capacity.
Molecules 25 03106 g001
Molecules 25 03106 g002 550

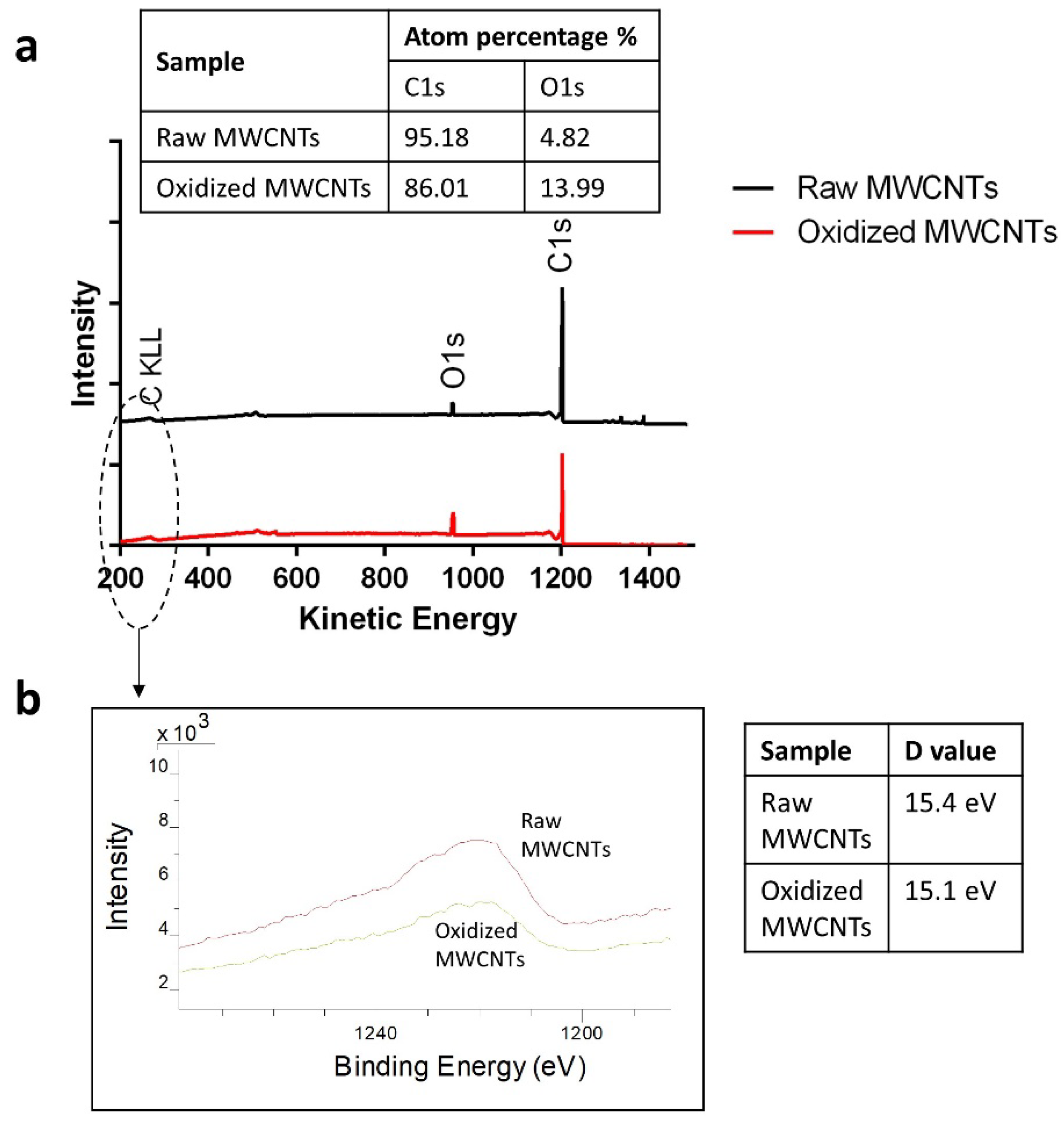

Figure 2. XPS analysis of (a) complete spectra of raw and oxidized MWCNTs and (b) the auger region and parameter D values.
Figure 2. XPS analysis of (a) complete spectra of raw and oxidized MWCNTs and (b) the auger region and parameter D values.
Molecules 25 03106 g002
Molecules 25 03106 g003 550

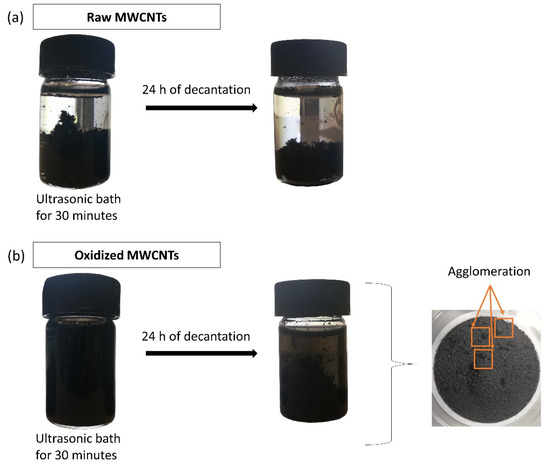

Figure 3. Dispersion experiments of (a) raw and (b) oxidized MWCNTs. Photographs were taken after 30 min of dispersion in an ultrasonic bath and after 24 h of decantation.
Figure 3. Dispersion experiments of (a) raw and (b) oxidized MWCNTs. Photographs were taken after 30 min of dispersion in an ultrasonic bath and after 24 h of decantation.
Molecules 25 03106 g003
Molecules 25 03106 g004 550

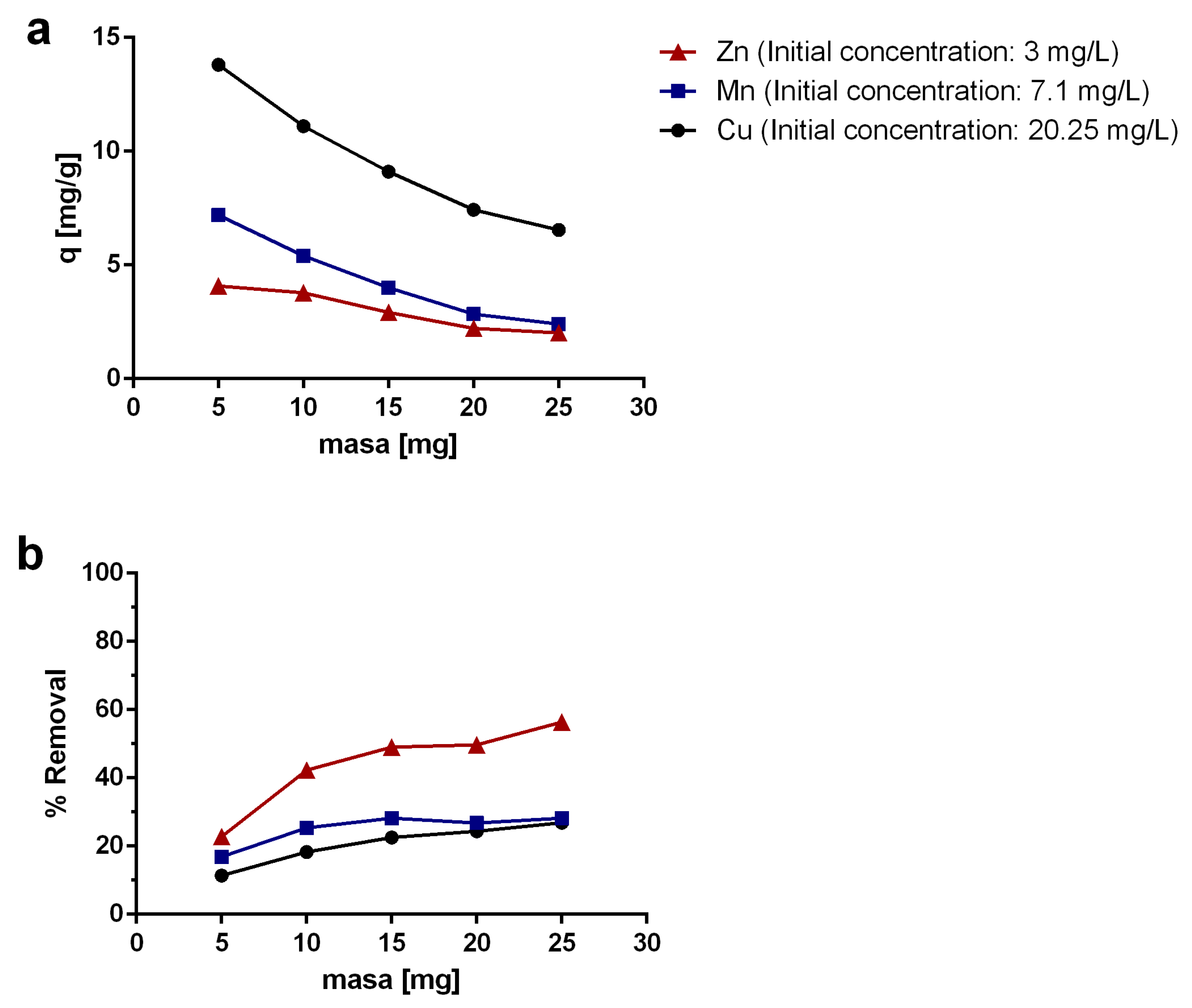

Figure 4. (a) Sorption capacity (q) [mg/g] and (b) removal rate of Cu, Mn, and Zn. Experiments were carried out using a constant adsorbate concentration and a variable mass of oxidized MWCNTs as sorbent material.
Figure 4. (a) Sorption capacity (q) [mg/g] and (b) removal rate of Cu, Mn, and Zn. Experiments were carried out using a constant adsorbate concentration and a variable mass of oxidized MWCNTs as sorbent material.
Molecules 25 03106 g004
Molecules 25 03106 g005 550

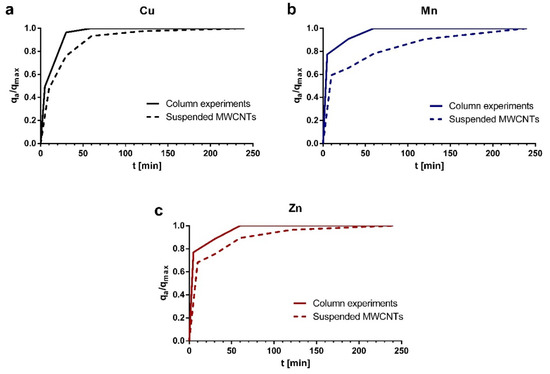

Figure 5. Accumulated sorption capacity (qa) divided by maximum sorption capacity (qmax) of (a) Cu, (b) Mn, and (c) Zn using polyurethane filters dyed with oxidized MWCNTs ink in column experiments (continuous lines) and suspended oxidized MWCNTs in batch experiments (dashed lines).
Figure 5. Accumulated sorption capacity (qa) divided by maximum sorption capacity (qmax) of (a) Cu, (b) Mn, and (c) Zn using polyurethane filters dyed with oxidized MWCNTs ink in column experiments (continuous lines) and suspended oxidized MWCNTs in batch experiments (dashed lines).
Molecules 25 03106 g005
Molecules 25 03106 g006 550

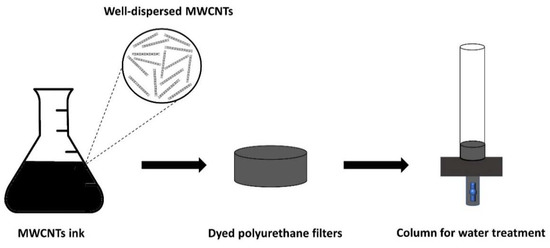

Figure 6. Schematic diagram for sorption experiments using a water treatment column.
Figure 6. Schematic diagram for sorption experiments using a water treatment column.
Molecules 25 03106 g006
Table
Table 1. Comparison of sorption capacities of oxidized MWCNTs in batch experiments (suspended MWCNTs) and columns (filters).
Table 1. Comparison of sorption capacities of oxidized MWCNTs in batch experiments (suspended MWCNTs) and columns (filters).
Sorption Capacity q (mg/g Sorbent)
Cu2+Mn2+Zn2+
Column experiments (MWCNTs on a support (filter), multimetallic water)35.2 ± 1.89.2 ± 0.84.4 ± 0.6
Competition experiments (suspended MWCNTs, multimetallic water)5.0 ± 1.01.2 ± 0.20.1 ± 0.05
Adsorption experiments (suspended MWCNTs, monometallic water)7.3 ± 0.62.8 ± 0.12.2 ± 0.1
Average data are shown with standard deviation.

Share and Cite

MDPI and ACS Style

Rodríguez, C.; Briano, S.; Leiva, E. Increased Adsorption of Heavy Metal Ions in Multi-Walled Carbon Nanotubes with Improved Dispersion Stability. Molecules 2020, 25, 3106. https://doi.org/10.3390/molecules25143106

AMA Style

Rodríguez C, Briano S, Leiva E. Increased Adsorption of Heavy Metal Ions in Multi-Walled Carbon Nanotubes with Improved Dispersion Stability. Molecules. 2020; 25(14):3106. https://doi.org/10.3390/molecules25143106

Chicago/Turabian Style

Rodríguez, Carolina, Sebastián Briano, and Eduardo Leiva. 2020. "Increased Adsorption of Heavy Metal Ions in Multi-Walled Carbon Nanotubes with Improved Dispersion Stability" Molecules 25, no. 14: 3106. https://doi.org/10.3390/molecules25143106

Article Metrics

Back to TopTop
