Article

Synthesis and In Vitro Cytotoxicity and Antibacterial Activity of Novel 1,2,3-Triazol-5-yl-Phosphonates

by
Anna Tripolszky
1,
Emese Tóth
1,
Pál Tamás Szabó
2,
László Hackler, Jr.
3,
Beáta Kari
3,
László G. Puskás
3,* and
Erika Bálint
1,*
1
Department of Organic Chemistry and Technology, Budapest University of Technology and Economics, H-1521 Budapest, Hungary
2
MS Metabolomics Laboratory, Instrumentation Center, Research Centre for Natural Sciences, Hungarian Academy of Sciences, Magyar tudósok krt. 2., 1117 Budapest, Hungary
3
Avidin Ltd., Alsó kikötő sor 11/D, H-6726 Szeged, Hungary
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(11), 2643; https://doi.org/10.3390/molecules25112643
Received: 9 May 2020 / Revised: 3 June 2020 / Accepted: 4 June 2020 / Published: 6 June 2020
(This article belongs to the Special Issue Recent Developments in the Synthesis and Utilization of Organophosphorus Compounds)
Browse Figures
Versions Notes

Abstract

:
Novel 1,2,3-triazol-5-yl-phosphonates were prepared by the copper(I)-catalyzed domino reaction of phenylacetylene, organic azides and dialkyl phosphites. The process was optimized on the synthesis of the dibutyl (1-benzyl-4-phenyl-1H-1,2,3-triazol-5-yl)phosphonate in respect of the catalyst, the base and the solvent, as well as of the reaction parameters (molar ratio of the starting materials, atmosphere, temperature and reaction time). The method elaborated could be applied to a range of organic azides and dialkyl phosphites, which confirmed the large scope and the functional group tolerance. The in vitro cytotoxicity on different cell lines and the antibacterial activity of the synthesized 1,2,3-triazol-5-yl-phosphonates was explored. According to the IC50 values determined, only modest antibacterial effect was detected, while some derivatives showed moderate activity against human promyelocytic leukemia HL-60 cells.

Graphical Abstract

1. Introduction

Heterocyclic scaffolds bearing phosphonate moieties have been attracting continuous interest due to their importance in synthetic- and medicinal chemistry, as well as in the agriculture and plastic industry [1,2,3,4]. One of the most convenient and efficient tools for the preparation of heterocyclic phosphonates are multicomponent reactions [5], which usually utilize simple starting materials, and meet several criteria of a theoretical “ideal synthesis”, such as high atom economy, fast and simple accomplishment, ability to save time and energy and being as environmentally-friendly as possible [6,7]. They may also be feasible for the creation of large libraries of structurally related compounds.
In the last decades, 1,2,3-triazoles have received significant attention due to the wide range of their possible applications in materials science, biochemistry or even in drug design [8,9,10]. Compounds containing the 1,2,3-triazole scaffold may have versatile biological activities, such as antibacterial, antiviral, antifungal, anticancer or anti-inflammatory effects [11,12,13]. Some novel triazole-based heterocycles showed activity against bacterial strains (Bacillus subtilis and Escherichia coli) [14,15,16], and in vitro cytotoxicity against tumor cell lines HL-60 (myeloid leukemia), MCF-7 (breast cancer), A549 (lung cancer) and HCT-116 (colon cancer) [17,18,19]. Furthermore, the unique structural properties of 1,2,3-triazoles enable the introduction of various functional groups obtaining new biologically active molecules.
1,2,3-Triazolyl phosphonates combine the advantages of the triazole- and the phosphonate moieties [20]. Several derivatives showed anti-HIV effect [21,22], were investigated in protein binding assays [23] or could be appropriate for bioconjugation [24,25].
The Huisgen 1,3-dipolar cycloaddition [26,27] between azides and alkynyl phosphonates is one of the most common synthetic routes towards 1,2,3-triazol-5-yl-phosphonates (Table 1). Hall and Trippett studied the cycloaddition of ethyl (diethoxyphosphinyl)propynoate and methyl azidoacetate in the absence of any catalyst in boiling toluene (Table 1, Entry 1) [28]. The reaction was not selective; two regioisomers, 1,2,3-triazol-5-yl-phosphonate (1) and 1,2,3-triazol-4-yl-phosphonate (2), were formed in a ratio of ca. 2:1, respectively. Trifluoromethylated triazolyl phosphonates were also synthesized by the catalyst-free addition of tert-butyl azidoacetate to diisopropyl 3,3,3-trifluoroprop-1-ynylphosphonate at room temperature (Table 1, Entry 2) [29]. The click reaction of benzyl azide and diethyl (ethynyl)phosphonates was also carried out in the presence of copper(II) sulfate pentahydrate and sodium ascorbate in DMF (Table 1, Entry 3) [30]. The corresponding 1,2,3-triazol-5-yl-phosphonates (1) were obtained selectively at 170 °C after 12 h. Odinets and co-workers performed the cycloaddition of ω-phosphorylalkyl azide to tetramethoxy acetylenediphosphonate in water (Table 1, Entry 4) [31]. A microwave-assisted reaction was also reported, in which diethyl (azidomethyl)phosphonate was reacted with diethyl prop-1-ynylphosphonate under catalyst- and solvent-free conditions (Table 1, Entry 5) [32].
Although the 1,3-dipolar cycloaddition is an important synthetic possibility of triazolyl phosphonates, the preparation of the starting alkynyl phosphonate derivatives is a real challenge. By the development of multicomponent approaches for this compound family, utilization of simple building blocks as starting materials may become available.
Several examples were reported on the preparation of 1,2,3-triazol-4-yl-phosphonates by domino or three-component reactions [33,34], however, to the best of our knowledge, only one example mentions the multicomponent synthesis of 1,2,3-triazol-5-yl-phosphonates [20]. Li and co-workers carried out the domino reaction of terminal alkynes, azides, and diethyl-, diisopropyl- or dibenzyl phosphite in the presence of copper(I) chloride as the catalyst (Scheme 1).
The mechanism of the three-component reaction has also been investigated [20]. A detailed proposal in Scheme 2 indicates the three possible pathways (A–C) of the reaction. According to pathway A, the acetylene reacts with the dialkyl phosphite by an oxidative coupling to give alkynylphosphonate 5, which may react with the azide by click reaction to generate the 1,2,3-triazol-5-yl-phosphonate (3). Based on pathway B, the aerobic oxidative coupling of the dialkyl phosphite with the in situ-formed organocopper intermediate (6) may lead to triazol-5-yl-phosphonate (3). While in pathway C, the click reaction of acetylene with azide provides triazole 7, which undergoes an oxidative coupling with the dialkyl phosphite resulting in product 3. It was concluded that the reaction took place through pathway B.
In this paper, we report on the synthesis of novel 1,2,3-triazol-5-yl-phosphonates by the copper(I)-catalyzed three-component domino reaction of phenylacetylene, various organic azides and dialkyl phosphites. The biological activity of the compounds synthesized was also studied in antibacterial activity and in vitro cytotoxicity assays.

2. Results and Discussion

In our prior work, the copper(I)-catalyzed domino reaction of phenylacetylene, benzyl azide and diethyl phosphite was investigated [35]. The results reported herein include a comprehensive optimization of the domino reaction using dibutyl phosphite (DBP) as a phosphorus reagent, in respect of the molar ratio of the starting materials, the atmosphere, the additives (catalyst, base and solvent), and of the temperature and the reaction time as well (Table 2).
At first, the multicomponent reaction was performed in the presence of 10 mol% of CuCl as a catalyst and two equivalents of TEA (triethylamine) as a base at room temperature in acetonitrile under different atmospheres. Reacting the three components at a molar ratio of 1:1.1:1.1 under nitrogen atmosphere, the 1-benzyl-4-phenyl-1H-1,2,3-triazole (9) {[M + H]+found = 236.1165, C15H14N3 requires 236.1188} was obtained as the main product instead of the desired triazol-5-yl-phosphonate (8) (Table 2, Entry 1). Repeating the reaction using continuous air bubbling, the triazol-5-yl-phosphonate (8) was formed in 55%, along with 42% of the “click product” (9) and 3% of dibutyl (phenylethynyl)phosphonate (10) {31P NMR (CDCl3) δ −5.8; [M + H]+found = 295.1440, C16H24O3P requires 295.1463} (Table 2, Entry 2). Applying a continuous oxygen bubbling, the proportion of alkynylphosphonate (10) significantly increased and the 1,2,3-triazol-5-yl-phosphonate (8) was obtained only in 24% (Table 2, Entry 3). After that, the effect of various bases was investigated, thus the domino reaction was also carried out in the presence of DPA (dipropylamine), DIPA (diisopropylamine) or DIPEA (N,N-diisopropylethylamine) (Table 2, Entries 4–6). In terms of the formation of the desired 1,2,3-triazol-5-yl-phosphonate (8), TEA was proved to be the most efficient. The effect of the solvent was also studied, from among the solvents tried out (MeCN, DMF, DCM, THF and EtOH), MeCN turned out as the most suitable (Table 2, Entries 2 and 7–10). In the next step, the counterion of the copper catalyst was varied. The reaction was performed with CuCl, CuBr, CuI or CuSO4·5H2O/NaAsc, and the best result was achieved using CuCl (Table 2, Entries 2,11–13). Increasing the amount of dibutyl phosphite to two equivalents, the proportion of the desired product (8) could be further improved (59%) (Table 2, Entry 14). Applying a larger excess of dibutyl phosphite or more CuCl did not favor the formation of the triazol-5-yl-phosphonate (8) (Table 2, Entries 15 and 16). Finally, the effect of the temperature was investigated. Neither lowering (0 °C) nor raising (50 °C) the temperature caused improvement in the ratio of 1,2,3-triazol-5-yl-phosphonate (8) (Table 2, Entries 17 and 18). The best result was obtained using two equivalents of dibutyl phosphite in the presence of two equivalents of TEA and 10 mol% of CuCl at room temperature in acetonitrile and continuous air bubbling (Table 2, Entry 14).
Applying the optimal parameters, the reaction time was also investigated. It was found that, during the first eight hours, the proportion of the desired dibutyl (1-benzyl-4-phenyl-1H-1,2,3-triazol-5-yl)phosphonate (8) increased, and the proportion of the 1-benzyl-4-phenyl-1H-1,2,3-triazole (9) continuously decreased (Figure 1). It should be noted that the dibutyl (phenylethynyl)phosphonate (10) did not form in a significant amount during the observed 24 h. Based on Figure 1, a reaction time of eight hours was considered as optimal for the domino reactions.
In the next series of experiments, the three-component reaction of phenylacetylene, various benzyl azides and dialkyl phosphites was investigated under the optimized conditions (Scheme 3). First, the domino reaction of phenylacetylene and benzyl azide was carried out with a wide range of dialkyl phosphites. Using dimethyl phosphite, the dimethyl (1-benzyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (11) was isolated in a yield of 53%. Performing the reactions with diethyl- or dipropyl phosphite, the product 12 and 13 was prepared in a yield of 62% and 43%, respectively. Changing for a dialkyl phosphite containing branched alkyl chains, such as diisopropyl phosphite, the desired triazol-5-yl-phosphonate (14) was obtained in a yield of 40% after column chromatography. The dibutyl (1-benzyl-4-phenyl-1H-1,2,3-triazol-5-yl)phosphonate (8) was isolated from the experiments of Table 2, Entry 14 in a yield of 49%. Applying a dialkyl phosphite incorporating long alkyl chains, such as dipentyl phosphite, the corresponding dipentyl (1-benzyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (15) was prepared in a yield of 34%. After that, the domino reaction was performed with substituted benzyl azides (4-methylbenzyl azide 2-, 3- or 4-fluorobenzyl azide or 4-(trifluoromethyl)benzyl azide). Carrying out the reaction of phenylacetylene and 4-methylbenzyl azide with dimethyl-, diethyl- or dibutyl phosphite, the desired triazol-5-yl-phosphonates (16–18) could be isolated in yields of 40%, 52% and 42%, respectively. Finally the domino reaction of phenylacetylene, and dibutyl phosphite was also carried out with 2-, 3- or 4-fluorobenzyl azide or 4-(trifluoromethyl)benzyl azide, and the corresponding dibutyl (1-benzyl-4-phenyl-1H-1,2,3-triazol-5-yl)phosphonate derivatives (19–22) were synthesized in yields of 30–39%.
The CuCl-catalyzed domino reaction was also carried out with aliphatic azides, such as octyl or iso-octyl azide using the optimized conditions (Scheme 4). In the reactions of phenylacetylene, octyl azide and dimethyl-, diethyl- or dibutyl phosphite, the corresponding 1-octyl-4-phenyl-1H-1,2,3-triazolyl phosphonates (23–25) were prepared in yields of 43–58%. Finally, iso-octyl azide was reacted with phenylacetylene and dibutyl phosphite, and the desired product (26) was obtained in a yield of 28%, possibly due to the steric hindrance of the 2-ethylhexyl group.
The multicomponent approach developed is a fast and simple methodology for the synthesis of 1,2,3-triazol-5-yl-phosphonates, which utilizes simple starting materials and applies milder reaction conditions compared to the preparation of these compounds by 1,3-dipolar cycloaddition. In contrast to a previous report dealing with a similar topic [20], besides a comprehensive optimization, we have provided exact product compositions, including the amount of the “click product” and the amount of the (phenylethynyl)phosphonate, respectively. The scope of the reaction was extended for 15 novel derivatives. (Copies of 31P, 1H, and 13C NMR spectra for all compounds synthesized are presented in Supplementary Materials).
Finally, the biological activity of the synthesized 1,2,3-triazol-5-yl-phosphonates (8, 11–26) was investigated. On the one hand, the antibacterial activity of the compounds was tested on GFP producing Gram-positive (Bacillus subtilis) and Gram-negative (Escherichia coli) bacterial cells. The GFP producing bacteria are an effective tool for screening for antibacterial activity since GFP signal measured via fluorimetry is proportional to the number of bacterial cells. Active compounds would kill bacterial cells, which results in the decrease in GFP fluorescence signal, therefore it is suitable for evaluating the antimicrobial effect of different agents. On the other hand, in vitro cytotoxicity assessments were performed on three different cell lines, such as human lung adenocarcinoma (A549), mouse fibroblast (NIH/3T3) as healthy cell line and human promyelocytic leukemia (HL-60). Table 3 contains the determined IC50 values in antimicrobial and cytotoxicity assays. According to the results, only modest antibacterial activity was detected against the more sensitive Bacillus subtilis strain. The IC50 values of triazolyl phosphonates (8, 13, 15, 16, 19–22 and 26), which showed some activity against NIH/3T3 and/or HL-60 cells fall in the range of 9.7 and 27.5 µM. Dimethyl [1-(4-methylbenzyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (16) and dibutyl [1-(4-trifluoromethyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (22) proved to be the most active compounds, which showed activity in the 10 micromolar range against HL-60 cells.

3. Materials and Methods

3.1. General

The reactions under conventional heating were carried out in an oil bath. The microwave-assisted experiments were performed in a 300 W CEM Discover focused microwave reactor (CEM Microwave Technology Ltd., Buckingham, UK) equipped with a pressure controller using 5–10 W irradiation under isothermal conditions.
HPLC-MS measurements were performed with an Agilent 1200 liquid chromatography system coupled with a 6130 quadrupole mass spectrometer equipped with an ESI ion source (Agilent Technologies, Palo Alto, CA, USA). The analysis was performed at 40 °C on a Gemini C18 column (150 mm × 4.6 mm, 3 µm; Phenomenex, Torrance, CA, USA) with a mobile phase flow rate of 0.6 mL/min. The composition of eluent A was 0.1% (NH4)(HCOO) in water; eluent B was 0.1% (NH4)(HCOO) and 8% water in acetonitrile. 0–3 min. 5% B, 3–13 min. gradient, 13–20 min. 100% B. The injection volume was 5 µL. The chromatographic profile was registered at 222 nm. The MSD operating parameters were as follows: positive ionization mode, scan spectra from m/z 120 to 1200, drying gas temperature 300 °C, nitrogen flow rate 10 L/min, nebulizer pressure 60 psi, capillary voltage 4000 V.
High resolution mass spectrometric measurements were performed using a Sciex 5600+ Q-TOF mass spectrometer in positive electrospray mode.
The 31P, 1H, 13C, NMR spectra were taken in CDCl3 solution on a Bruker AV-300 spectrometer operating at 121.5, 300 and 75.5 MHz, respectively. Chemical shifts are downfield relative to 85% H3PO4 and TMS.

3.2. General Procedure for the Synthesis of Organic Azides

3.2.1. Method A

To a stirred solution of 10.0 mmol alkyl halides (1.19 mL of benzyl bromide, 1.85 g of 4-methylbenzyl bromide, 1.21 mL of 2-fluorobenzyl bromide, 1.23 mL of 3-fluorobenzyl bromide, 1.25 mL of 4-fluorobenzyl bromide or 1.55 mL of 4-(trifluoromethyl)benzyl bromide) in 100 mL of acetone/H2O 4:1 (v/v) was added 15.0 mmol (0.98 g) of sodium azide. The reaction mixture was stirred at room temperature for 24 h. After that, the reaction was extracted with Et2O (3 × 50 mL), dried over Na2SO4, and concentrated under reduced pressure to give benzyl azides as pale yellow oils.

3.2.2. Method B

To a stirred solution of 10.0 mmol alkyl halides (1.76 mL of octyl bromide or 1.78 mL of iso-octyl bromide) in 20 mL of DMF, 12.0 mmol (0.78 g) of sodium azide was added. The reaction mixture was stirred at 70 °C for 24 h in an oil bath. After, the reaction was extracted with Et2O (3 × 50 mL), dried over Na2SO4, and concentrated under reduced pressure to give alkyl azides as pale yellow oils.
The following organic azides were prepared using method A or method B (Table 4):

3.3. General Procedure for the Synthesis of Dipropyl and Dipentyl Phosphite

A mixture of 5.0 mmol (0.64 mL) of diethyl phosphite and 25 equivalents, and 150.0 mmol of alcohol (10.0 mL n-propanol or 14.0 mL n-pentanol) was heated at 175 °C in a vial in the MW reactor for 120–135 min. The volatile components were removed in vacuum and the crude product was purified by column chromatography using silica gel as the solid phase and ethyl acetate as the eluent. The following dialkyl phosphites were thus prepared (Table 5):

3.4. General Procedure for the Synthesis of 1,2,3-Triazol-5-yl-Phosphonates

In combination, 1.0 mmol phenylacetylene (0.12 mL), 1.1 mmol organic azide (0.14 g of benzyl azide, 0.17 g of 4-methylbenzyl azide, 0.17 g of 2-fluorobenzyl azide, 0.17 g of 3-fluorobenzyl azide, 0.17 g of 4-fluorobenzyl azide, 0.22 g of 4-(trifluoromethyl)benzyl azide, 0.18 g of octyl azide or 0.18 g of iso-octyl azide) and 2.0 mmol dialkyl phosphite (0.18 mL dimethyl phosphite, 0.26 mL diethyl phosphite, 0.33 g dipropyl phosphite, 0.33 mL diisopropyl phosphite, 0.40 mL dibutyl phosphite, 0.44 g dipentyl phosphite) were dissolved in acetonitrile (20 mL). To this was added 2 mmol (0.28 mL) triethylamine and 0.10 mmol (0.02 g) CuCl. The mixture was stirred at room temperature with continuous air bubbling for 8 h. The resulting solution was extracted with ethyl acetate (3 × 30 mL) and the combined organic layers were dried over Na2SO4. After evaporating the solvent, the crude product was purified by column chromatography using silica gel and ethyl acetate/hexane 1:1 as the eluent and, if it was necessary, by reversed-phase column chromatography using C18-reversed-phase silica gel and the composition of eluent A was 0.1% (NH4)(HCOO) in water; eluent B was 0.1% (NH4)(HCOO) and 8% water in acetonitrile. The following products were thus prepared:
Dimethyl (1-benzyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (11): yield: 53% (0.18 g), colorless oil; 31P NMR (CDCl3) δ 7.5; 1H NMR (CDCl3) δ 3.40 (d, 6H, 3JHP = 11.8, OCH3), 6.01 (s, 2H, CH2Ph), 7.26–7.36 (m, 3H, C3’H, C4’H), 7.36–7.45 (m, 5H, C3H, C4H, C2’H), 7.74 (dd, 2H, 3JHH = 7.4, JHH = 2.2, C2H); 13C NMR (CDCl3) δ 53.0 (d, 2JCP = 5.1, OCH3), 54.3 (CH2Ph), 120.5 (d, 1JCP = 219.4, P(O)C=), 128.2 (C2), 128.3 (C2’), 128.5 (C4’), 128.8 (C3’), 129.1 (C3), 129.2 (C1), 130.0 (C4), 135.9 (C1’), 153.9 (d, 2JCP = 19.5, PhC=); [M + H]+found = 344.1161, C17H19N3O3P requires 344.1164.
Diethyl (1-benzyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (12): yield: 62% (0.23 g), colorless oil; 31P NMR (CDCl3) δ 4.4; δ [20] (CDCl3) δ 4.53; 1H NMR (CDCl3) δ 0.98 (t, 6H, 3JHH = 7.1, OCH2CH3), 3.58–3.72 (m, 2H, OCH2CH3), 3.82–3.95 (m, 2H, OCH2CH3), 6.03 (s, 2H, CH2Ph), 7.26–7.36 (m, 3H, C3’H, C4’H), 7.37–7.44 (m, 5H, C3H, C4H, C2’H), 7.76 (dd, 2H, 3JHH = 7.4, JHH = 2.2, C2H); δ [20] (CDCl3) 0.96 (t, 6H, J = 7.2 Hz), 3.57–3.67 (m, 2 H), 3.81–3.91 (m, 2 H), 6.01 (s, 2 H), 7.30–7.40 (m, 8 H), 7.73–7.75 (m, 2 H); 13C NMR (CDCl3) δ 15.9 (d, 3JCP = 7.0, OCH2CH3), 54.2 (CH2Ph), 63.1 (d, 2JCP = 5.2, OCH2CH3), 121.6 (d, 1JCP = 217.5, P(O)C=), 128.2 (C2), 128.3 (C2’), 128.4(C4’), 128.7 (C3’), 129.1 (C1), 129.3 (C3), 130.3 (C4), 135.9 (C1’), 153.6 (d, 2JCP = 19.0, PhC=); δ [20] (CDCl3) 14.8, 14.9, 53.2, 62.0, 62.1, 119.4, 121.6, 127.2, 127.3, 127.4, 127.7, 128.1, 128.3, 129.2, 134.9, 152.6; [M + H]+found = 372.1479, C19H23N3O3P requires 372.1477.
Dipropyl (1-benzyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (13): yield: 43% (0.17 g), colorless oil; 31P NMR (CDCl3) δ 4.6; 1H NMR (CDCl3) δ 0.68 (t, 6H, 3JHH = 7.4, OCH2CH2CH3), 1.27–1.42 (m, 4H, OCH2CH2CH3), 3.42–3.60 (m, 2H, OCH2CH2CH3), 3.70–3.84 (m, 2H, OCH2CH2CH3), 6.04 (s, 2H, CH2Ph), 7.25–7.35 (m, 3H, C3’H, C4’H), 7.35–7.45 (m, 5H, C3H, C4H, C2’H), 7.77 (dd, 2H, 3JHH = 7.2, JHH = 2.5, C2H); 13C NMR (CDCl3) δ 9.9 (OCH2CH2CH3), 23.4 (d, 3JCP = 7.1, OCH2CH2CH3), 54.2 (CH2Ph), 68.4 (d, 2JCP = 5.6, OCH2CH2CH3), 121.6 (d, 1JCP = 217.9, P(O)C=), 128.2 (C2), 128.4 (C2’), 128.4(C4’), 128.7 (C3’), 129.1 (C1), 129.2 (C3), 130.3 (C4), 136.0 (C1’), 153.6 (d, 2JCP = 19.0, PhC=); [M + H]+found = 400.1778, C21H27N3O3P requires 400.1790.
Diisopropyl (1-benzyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (14): yield: 40% (0.16 g), colorless oil; 31P NMR (CDCl3) δ 2.0; δ [20] (CDCl3) 2.19; 1H NMR (CDCl3) δ 0.83 (d, 6H, 3JHH = 6.2, OCH(CH3)2), 1.19 (d, 6H, 3JHH = 6.2, OCH(CH3)2), 4.23–4.44 (m, 2H, OCH(CH3)2), 6.06 (s, 2H, CH2Ph), 7.24–7.35 (m, 3H, C3’H, C4’H), 7.36–7.45 (m, 5H, C3H, C4H, C2’H), 7.81 (dd, 2H, 3JHH = 7.6, JHH = 2.2, C2H); δ [20] (CDCl3) 0.80 (d, 6H, J = 6.4 Hz), 1.17 (d, 6H, J = 6.0 Hz), 4.27–4.35 (m, 2 H), 6.05 (s, 2 H), 7.27–7.39 (m, 8 H), 7.79 (d, 2 H, J = 5.6 Hz); 13C NMR (CDCl3) δ 23.2 (d, 3JCP = 5.6, OCH(CH3)2), 23.9 (d, 3JCP = 3.9, OCH(CH3)2), 54.2 (CH2Ph), 72.6 (d, 2JCP = 5.5, OCH(CH3)2), 122.6 (d, 1JCP = 218.6, P(O)C=), 128.1 (C2), 128.29 (C4’), 128.32 (C2’), 128.7 (C3’), 128.9 (C1), 129.3 (C3), 130.6 (C4), 136.1 (C1’), 153.2 (d, 2JCP = 18.9, PhC=); δ [20] (CDCl3) 22.1, 22.2, 22.8, 22.9, 53.1, 71.6, 120.5, 122.7, 127.1, 127.3, 127.6, 127.9, 128.3, 129.5, 135.1, 152.2; [M + H]+found = 400.1777, C21H27N3O3P requires 400.1790.
Dibutyl (1-benzyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (8): yield: 49% (0.20 g), colorless oil; 31P NMR (CDCl3) δ 2.2; 1H NMR (CDCl3) δ 0.76 (t, 6H, 3JHH = 7.3, OCH2CH2CH2CH3), 0.99–1.19 (m, 4H, OCH2CH2CH2CH3), 1.22–1.38 (m, 4H, OCH2CH2CH2CH3), 3.46–3.62 (m, 2H, OCH2CH2CH2CH3), 3.72–3.91 (m, 2H, OCH2CH2CH2CH3), 6.03 (s, 2H, CH2Ph), 7.25–7.34 (m, 3H, C3’H, C4’H), 7.36–7.43 (m, 5H, C3H, C4H, C2’H), 7.76 (dd, 2H, 3JHH = 6.6, JHH = 2.9, C2H); 13C NMR (CDCl3) δ 13.5 (OCH2CH2CH2CH3), 18.5 (OCH2CH2CH2CH3), 32.0 (d, 3JCP = 7.0, OCH2CH2CH2CH3), 54.2 (CH2Ph), 66.7 (d, 2JCP = 5.5, OCH2CH2CH2CH3), 121.6 (d, 1JCP = 217.8, P(O)C=), 128.2 (C2), 128.3 (C2’), 128.4 (C4’), 128.7 (C3’), 129.1 (C1), 129.3 (C3), 130.4 (C4), 136.0 (C1’), 153.6 (d, 2JCP = 19.1, PhC=); [M + H]+found = 428.2086, C23H31N3O3P requires 428.2103.
Dipentyl (1-benzyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (15): yield: 34% (0.15 g), colorless oil; 31P NMR (CDCl3) δ 2.4; 1H NMR (CDCl3) δ 0.80 (t, 6H, 3JHH = 7.1, OCH2CH2CH2CH2CH3), 1.00–1.13 (m, 4H, OCH2CH2CH2CH2CH3), 1.13–1.25 (m, 4H, OCH2CH2CH2CH2CH3), 1.25–1.40 (m, 4H, OCH2CH2CH2CH2CH3), 3.47–3.62 (m, 2H, OCH2CH2CH2CH3), 3.74–3.89 (m, 2H, OCH2CH2CH2CH3), 6.03 (s, 2H, CH2Ph), 7.27–7.37 (m, 3H, C3’H, C4’H), 7.37–7.47 (m, 5H, C3H, C4H, C2’H), 7.76 (dd, 2H, 3JHH = 6.6, JHH = 3.0, C2H); 13C NMR (CDCl3) δ 14.0 (OCH2CH2CH2CH2CH3), 22.2 (OCH2CH2CH2CH2CH3), 27.4 (OCH2CH2CH2CH2CH3), 29.7 (d, 3JCP = 7.1, OCH2CH2CH2CH2CH3), 54.2 (CH2Ph), 67.0 (d, 2JCP = 5.5, OCH2CH2CH2CH2CH3), 121.6 (d, 1JCP = 217.8, P(O)C=), 128.2 (C2), 128.3 (C2’), 128.4 (C4’), 128.7 (C3’), 129.1 (C1), 129.3 (C3), 130.3 (C4), 136.0 (C1’), 153.6 (d, 2JCP = 19.1, PhC=); [M + H]+found = 456.2398, C25H35N3O3P requires 456.2416.
Dimethyl [1-(4-methylbenzyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (16): yield: 40% (0.14 g), colorless oil; 31P NMR (CDCl3) δ 7.5; 1H NMR (CDCl3) δ 2.32 (s, 3H, PhCH3), 3.43 (d, 6H, 3JHP = 11.7, OCH3), 5.96 (s, 2H, CH2Ph), 7.15 (d, 2H, 3JHH = 7.8, C3’H), 7.30 (d, 2H, 3JHH = 7.9, C2’H), 7.40–7.44 (m, 3H, C3H, C4H), 7.73 (dd, 2H, 3JHH = 7.3, JHH = 2.4, C2H); 13C NMR (CDCl3) δ 21.3 (CH3Ph), 53.0 (d, 2JCP = 5.3, OCH3), 54.1 (CH2Ph), 120.4 (d, 1JCP = 219.5, P(O)C=), 128.3 (C2, C2’), 129.15 (C3’), 129.17 (C1), 129.4 (C3), 130.1 (C4), 132.8 (C1’), 138.3 (C4’), 153.8 (d, 2JCP = 19.4, PhC=); [M + H]+found = 358.1315, C18H21N3O3P requires 358.1315.
Diethyl [1-(4-methylbenzyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (17): yield: 52% (0.20 g), colorless oil; 31P NMR (CDCl3) δ 4.3; 1H NMR (CDCl3) δ 0.99 (t, 6H, 3JHH = 7.0, OCH2CH3), 2.32 (s, 3H, PhCH3), 3.58–3.72 (m, 2H, OCH2CH3), 3.85–3.95 (m, 2H, OCH2CH3), 6.00 (s, 2H, CH2Ph), 7.14 (d, 2H, 3JHH = 7.8, C3’H), 7.30 (d, 2H, 3JHH = 8.0, C2’H), 7.38–7.44 (m, 3H, C3H, C4H), 7.74 (dd, 2H, 3JHH = 7.7, JHH = 2.0, C2H); 13C NMR (CDCl3) δ 15.9 (d, 3JCP =7.0, OCH2CH3), 21.2 (CH3Ph), 54.0 (CH2Ph), 63.1 (d, 2JCP =5.1, OCH2CH3), 121.5 (d, 1JCP = 217.7, P(O)C=), 128.2 (C2), 128.3 (C2’), 129.0 (C1), 129.3 (C3’), 129.4 (C3), 130.4 (C4), 132.9 (C1’), 138.2 (C4’), 153.5 (d, 2JCP = 19.1, PhC=); [M + H]+found = 386.1633, C20H25N3O3P requires 386.1628.
Dibutyl [1-(4-methylbenzyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (18): yield: 42% (0.19 g), colorless oil; 31P NMR (CDCl3) δ 3.1; 1H NMR (CDCl3) δ 0.69 (t, 6H, 3JHH = 7.3, OCH2CH2CH2CH3), 0.93–1.10 (m, 4H, OCH2CH2CH2CH3), 1.11–1.13 (m, 4H, OCH2CH2CH2CH3), 2.25 (s, 3H, PhCH3), 3.41–3.57 (m, 2H, OCH2CH2CH2CH3), 3.67–3.83 (m, 2H, OCH2CH2CH2CH3), 5.91 (s, 2H, CH2Ph), 7.06 (d, 2H, 3JHH = 7.8, C3’H), 7.22 (d, 2H, 3JHH = 7.7, C2’H), 7.27–7.38 (m, 3H, C3H, C4H), 7.67 (dd, 2H, 3JHH = 6.6, JHH = 3.0, C2H); 13C NMR (CDCl3) δ 13.6 (OCH2CH2CH2CH3), 18.5 (OCH2CH2CH2CH3), 21.3 (CH3Ph), 32.0 (d, 3JCP = 7.1, OCH2CH2CH2CH3), 54.1 (CH2Ph), 66.7 (d, 2JCP = 5.5, OCH2CH2CH2CH3), 121.5 (d, 1JCP = 218.5, P(O)C=), 128.2 (C2), 128.4 (C2’), 129.0 (C1), 129.3 (C3’), 129.4 (C3), 130.4 (C4), 133.1 (C1’), 138.2 (C4’), 153.5 (d, 2JCP = 19.3, PhC=); [M + H]+found = 442.2242, C24H33N3O3P requires 442.2260.
Dibutyl [1-(2-fluorobenzyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (19): yield: 30% (0.13 g), pale yellow oil; 31P NMR (CDCl3) δ 4.6; 1H NMR (CDCl3) δ 0.79 (t, 6H, 3JHH = 7.3, OCH2CH2CH2CH3), 1.07–1.22 (m, 4H, OCH2CH2CH2CH3), 1.29–1.42 (m, 4H, OCH2CH2CH2CH3), 3.59–3.76 (m, 2H, OCH2CH2CH2CH3), 3.83–3.99 (m, 2H, OCH2CH2CH2CH3), 6.10 (s, 2H, CH2Ph), 7.03–7.15 (m, 3H, C3’H, C5’H, C6’H), 7.24–7.35 (m, 1H, C4’H), 7.38–7.47 (m, 3H, C3H, C4H), 7.79 (dd, 2H, 3JHH = 7.2, JHH = 2.6, C2H); 13C NMR (CDCl3) δ 13.5 (OCH2CH2CH2CH3), 18.6 (OCH2CH2CH2CH3), 32.0 (d, 3JCP = 6.9, OCH2CH2CH2CH3), 48.2 (d, 3JCP =4.7, CH2Ph), 66.8 (d, 2JCP = 5.7, OCH2CH2CH2CH3), 115.7 (d, 2JCF = 21.1, C3’), 122.1 (d, 1JCP = 218.6, P(O)C=), 123.4 (d, 2JCF = 14.3, C1’), 124.4 (d, 2JCF = 3.7, C5’), 128.2 (C2), 129.1 (C1), 129.3 (C3), 129.4 (d, 3JCF = 3.2, C4’), 130.1 (d, 3JCF = 8.1, C6’), 130.2 (C4), 153.5 (d, 2JCP = 19.2, PhC=), 160.4 (d, 1JCF = 248.8, C2’); [M + H]+found = 446.1975, C23H30N3O3FP requires 446.2008.
Dibutyl [1-(3-fluorobenzyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (20): yield: 34% (0.15 g), pale yellow oil; 31P NMR (CDCl3) δ 2.1; 1H NMR (CDCl3) δ 0.77 (t, 6H, 3JHH = 7.3, OCH2CH2CH2CH3), 1.03–1.22 (m, 4H, OCH2CH2CH2CH3), 1.22–1.42 (m, 4H, OCH2CH2CH2CH3), 3.53–3.69 (m, 2H, OCH2CH2CH2CH3), 3.81–3.94 (m, 2H, OCH2CH2CH2CH3), 6.03 (s, 2H, CH2Ph), 6.95–7.05 (m, 1H, C4’H), 7.06–7.22 (m, 2H, C2’H, C6’H), 7.25–7.34 (m, 1H, C5’H), 7.36–7.47 (m, 3H, C3H, C4H), 7.76 (dd, 2H, 3JHH = 6.4, JHH = 3.4, C2H); 13C NMR (CDCl3) δ 13.5 (OCH2CH2CH2CH3), 18.5 (OCH2CH2CH2CH3), 32.0 (d, 3JCP = 7.0, OCH2CH2CH2CH3), 53.5 (CH2Ph), 66.8 (d, 2JCP = 5.6, OCH2CH2CH2CH3), 115.3 (d, 2JCF = 21.8, C2’, C4’), 121.6 (d, 1JCP = 218.0, P(O)C=), 124.0 (d, JCF = 3.1, C6’), 128.2 (C2), 129.1 (C1), 129.2 (C3), 130.2 (C4), 130.3 (d, 3JCF = 8.1, C5’), 138.3 (d, 3JCF = 7.5, C1’), 153.5 (d, 2JCP = 18.9, PhC=), 162.3 (d, 1JCF = 247.0, C3’); [M + H]+found = 446.1969, C23H30N3O3FP requires 446.2008.
Dibutyl [1-(4-fluorobenzyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (21): yield: 36% (0.16 g), pale yellow oil; 31P NMR (CDCl3) δ 2.3; 1H NMR (CDCl3) δ 0.77 (t, 6H, 3JHH = 7.3, OCH2CH2CH2CH3), 1.04–1.19 (m, 4H, OCH2CH2CH2CH3), 1.22–1.41 (m, 4H, OCH2CH2CH2CH3), 3.49–3.68 (m, 2H, OCH2CH2CH2CH3), 3.77–3.96 (m, 2H, OCH2CH2CH2CH3), 6.00 (s, 2H, CH2Ph), 7.03 (t, 2H, 3JHH = 3JHF = 8.7, C2’H), 7.34–7.47 (m, 5H, C3H, C4H, C3’H), 7.75 (dd, 2H, 3JHH = 6.7, JHH = 3.0, C2H); 13C NMR (CDCl3) δ 13.5 (OCH2CH2CH2CH3), 18.5 (OCH2CH2CH2CH3), 32.0 (d, 3JCP = 7.0, OCH2CH2CH2CH3), 53.4 (CH2Ph), 66.7 (d, 2JCP = 5.6, OCH2CH2CH2CH3), 115.6 (d, 2JCF = 21.7, C3’), 121.4 (d, 1JCP = 218.0, P(O)C=), 128.2 (C2), 129.1 (C1), 129.2 (C3), 130.4 (d, 3JCF = 8.3, C2’), 130.2 (C4), 131.7 (d, JCF = 3.1, C1’), 153.5 (d, 2JCP = 19.0, PhC=), 162.8 (d, 1JCF = 247.4, C4’); [M + H]+found = 446.1972, C23H30N3O3FP requires 446.2008.
Dibutyl [1-(4-trifluoromethyl)-4-phenyl-1,2,3-triazol-5-yl]phosphonate (22): yield: 39% (0.19 g), pale yellow oil; 31P NMR (CDCl3) δ 2.0; 1H NMR (CDCl3) δ 0.76 (t, 6H, 3JHH = 7.3, OCH2CH2CH2CH3), 0.97–1.18 (m, 4H, OCH2CH2CH2CH3), 1.20–1.40 (m, 4H, OCH2CH2CH2CH3), 3.53–3.67 (m, 2H, OCH2CH2CH2CH3), 3.77–3.95 (m, 2H, OCH2CH2CH2CH3), 6.10 (s, 2H, CH2Ph), 7.37–7.46 (m, 3H, C3H, C4H), 7.51 (d, 2H, 3JHH = 8.0, C2’H), 7.61 (d, 2H, 3JHH = 8.1, C3’H), 7.76 (dd, 2H, 3JHH = 6.8, JHH = 2.9, C2H); 13C NMR (CDCl3) δ 13.4 (OCH2CH2CH2CH3), 18.5 (OCH2CH2CH2CH3), 31.9 (d, 3JCP = 7.0, OCH2CH2CH2CH3), 53.6 (CH2Ph), 66.8 (d, 2JCP = 5.7, OCH2CH2CH2CH3), 124.0 (q, 1JCF = 272.2, CF3), 121.7 (d, 1JCP = 218.2, P(O)C=), 125.7 (q, 3JCF = 3.8, C3’), 128.2 (C2), 128.7 (C3), 129.2 (C1, C2’), 130.1 (C4), 130.7 (q, 2JCF = 32.6, C4’), 139.9 (C1’), 153.6 (d, 2JCP = 18.9, PhC=); [M + H]+found = 496.1936, C24H30N3O3F3P requires 496.1976.
Dimethyl (1-octyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (23): yield: 43% (0.16 g), colorless oil; 31P NMR (CDCl3) δ 8.0; 1H NMR (CDCl3) δ 0.81 (t, 3H, 3JHH = 6.9, NCH2(CH2)6CH3), 1.12–1.37 (m, 10H, NCH2CH2(CH2)5CH3), 1.82–2.02 (m, 2H, NCH2CH2(CH2)5CH3), 3.58 (d, 6H, 3JHP = 11.6, OCH3), 4.68 (t, 2H, 3JHH = 7.5, NCH2(CH2)6CH3), 7.29–7.45 (m, 3H, C3H, C4H), 7.65 (dd, 2H, 3JHH = 6.5, JHH = 3.3, C2H); 13C NMR (CDCl3) δ 14.2 (NCH2(CH2)6CH3), 22.7 (N(CH2)6CH2CH3), 26.7 (N(CH2)5CH2CH2CH3), 29.16 (N(CH2)3CH2CH2(CH2)2CH3), 29.20 (N(CH2)3CH2CH2(CH2)2CH3), 31.1 (N(CH2)2CH2(CH2)4CH3), 31.8 (NCH2CH2(CH2)5CH3), 51.4 (NCH2CH2(CH2)5CH3), 53.2 (d, 2JCP = 5.6, OCH3), 120.6 (d, 1JCP = 221.5, P(O)C=), 128.2 (C2), 129.1 (C1), 129.3 (C3), 130.2 (C4), 153.5 (d, 2JCP = 20.1, PhC=); [M + H]+found = 366.1930, C18H29N3O3P requires 366.1946.
Diethyl (1-octyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (24): yield: 58% (0.23 g), colorless oil; 31P NMR (CDCl3) δ 5.0; 1H NMR (CDCl3) δ 0.88 (t, 3H, 3JHH = 6.6, NCH2(CH2)6CH3), 1.16 (t, 6H, 3JHH = 7.1, OCH2CH2CH2CH3), 1.22–1.47 (m, 10H, NCH2CH2(CH2)5CH3), 1.93–2.06 (m, 2H, NCH2CH2(CH2)5CH3), 3.83–4.01 (m, 2H, OCH2CH3), 4.01–4.19 (m, 2H, OCH2CH3), 4.76 (t, 2H, 3JHH = 7.5, NCH2(CH2)6CH3), 7.34–7.48 (m, 3H, C3H, C4H), 7.75 (dd, 2H, 3JHH = 6.4, JHH = 2.8, C2H); 13C NMR (CDCl3) δ 14.2 (NCH2(CH2)6CH3), 16.0 (d, 3JCP = 7.0, OCH2CH3), 22.7 (N(CH2)6CH2CH3), 26.7 (N(CH2)5CH2CH2CH3), 29.19 (N(CH2)3CH2CH2(CH2)2CH3), 29.21 (N(CH2)3CH2CH2(CH2)2CH3), 31.1 (N(CH2)2CH2(CH2)4CH3), 31.8 (NCH2CH2(CH2)5CH3), 51.3 (NCH2CH2(CH2)5CH3), 63.1 (d, 2JCP = 5.5, OCH2CH3), 121.7 (d, 1JCP = 220.2, P(O)C=), 128.1 (C2), 129.0 (C1), 129.5 (C3), 130.5 (C4), 153.2 (d, 2JCP = 20.0, PhC=); [M + H]+found = 394.2241, C20H33N3O3P requires 394.2259.
Dibutyl (1-octyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (25): yield: 50% (0.22 g), colorless oil; 31P NMR (CDCl3) δ 5.3; 1H NMR (CDCl3) δ 0.75–0.97 (m, 9H, OCH2CH2CH2CH3, NCH2(CH2)6CH3), 1.13–1.55 (m, 18H, OCH2CH2CH2CH3, NCH2CH2(CH2)5CH3), 1.89–2.07 (m, 2H, NCH2CH2(CH2)5CH3), 3.75–3.95 (m, 2H, OCH2CH2CH2CH3), 3.95–4.14 (m, 2H, OCH2CH2CH2CH3), 4.77 (t, 2H, 3JHH = 7.4, NCH2(CH2)6CH3), 7.34–7.51 (m, 3H, C3H, C4H), 7.74 (dd, 2H, 3JHH = 6.7, JHH = 3.1, C2H); 13C NMR (CDCl3) δ 13.6 (OCH2CH2CH2CH3), 14.2 (NCH2(CH2)6CH3), 18.7 (OCH2CH2CH2CH3), 22.8 (N(CH2)6CH2CH3), 26.7 (N(CH2)5CH2CH2CH3), 29.3 (N(CH2)3CH2CH2(CH2)2CH3), 29.8 (N(CH2)2CH2(CH2)4CH3), 31.2 (N(CH2CH2(CH2)5CH3), 32.2 (d, 3JCP = 6.9, OCH2CH2CH2CH3), 51.4 (N(CH2CH2(CH2)5CH3), 66.8 (d, 2JCP = 5.8, OCH2CH2CH2CH3), 121.6 (d, 1JCP = 220.2, P(O)C=), 128.2 (C2), 129.0 (C1), 129.4 (C3), 130.5 (C4), 153.2 (d, 2JCP = 19.9, PhC=); [M + H]+found = 450.2862, C24H41N3O3P requires 450.2885.
Dibutyl (1-isooctyl-4-phenyl-1,2,3-triazol-5-yl)phosphonate (26): yield: 28% (0.13 g), colorless oil; 31P NMR (CDCl3) δ 3.0; 1H NMR (CDCl3) δ 0.77–0.96 (m, 12H, OCH2CH2CH2CH3, NCH2CHCH2CH3, NCH2CH(CH2)3CH3), 1.16–1.53 (m, 16H, OCH2CH2CH2CH3, NCH2CHCH2CH3, NCH2CH(CH2)3CH3), 2.06–2.20 (m, 1H, NCH2CHCH2CH3), 3.77–3.94 (m, 2H, OCH2CH2CH2CH3), 3.97–4.11 (m, 2H, OCH2CH2CH2CH3), 4.69 (d, 2H, 3JHH = 7.5, NCH2CHCH2CH3), 7.34–7.45 (m, 3H, C3H, C4H), 7.75 (dd, 2H, 3JHH = 6.4, JHH = 3.3, C2H); 13C NMR (CDCl3) δ 10.5 (NCH2CHCH2CH3), 13.5 (OCH2CH2CH2CH3), 14.1 (NCH2CH(CH2)3CH3), 18.7 (OCH2CH2CH2CH3), 23.0 (NCH2CH(CH2)2CH2CH3), 23.7 (NCH2CHCH2CH3), 28.5 (NCH2CHCH2CH2CH2CH3), 30.4 (NCH2CHCH2(CH2)2CH3), 32.1 (d, 3JCP = 6.9, OCH2CH2CH2CH3), 40.5 (NCH2CHCH2CH3), 54.8 (NCH2CHCH2CH3), 66.7 (d, 2JCP = 5.8, OCH2CH2CH2CH3), 121.9 (d, 1JCP = 221.1, P(O)C=), 128.1 (C2), 128.9 (C1), 129.4 (C3), 130.5 (C4), 153.2 (d, 2JCP = 19.8, PhC=); [M + H]+found = 450.2855, C24H41N3O3P requires 450.2885.

3.5. Biological Evaluation

3.5.1. Cell Culture

Cells were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA). Human lung adenocarcinoma A549 cells were maintained in Dulbecco's Modified Eagle Medium (DMEM), while mouse fibroblast NIH/3T3 and human promyelocytic leukemia HL-60 cells were maintained in Roswell Park Memorial Institute 1640 medium (RPMI-1640) containing 10% FCS. Media were supplemented with 2 mM GlutaMAX, 100 U/mL penicillin, and 100 µg/mL streptomycin (Life Technologies, Carlsbad, California, USA). Cell cultures were maintained at 37 °C in a humidified incubator in an atmosphere of 5% CO2 (Sanyo, Japan).

3.5.2. Antibacterial Activity

All reagents were purchased from Sigma-Aldrich (Hungary, Budapest). E. coli-GFP and B. subtilis-GFP bacteria were grown in Lysogeny Broth (Luria-Bertani broth, LB, 10 g tryptone, 5 g yeast extract, 10 g/L NaCl, pH 7.0) medium overnight (ON) at 37 °C in an incubator with continuous shaking [44,45]. The ON bacterial culture was diluted (E. coli-GFP: 1:10000, B. subtilis-GFP: 1:1000) in LB medium containing 10 µg/mL ampicillin. Two hundred microliters of diluted E. coli suspension per well were transferred to 96-well plates and different agents were added in the appropriate concentration, then incubated in a shaker (600 rpm) for 3 h at 37 °C. Test compounds were dissolved in 3-fold amounts of dimethyl sulfoxide (DMSO). Cells were treated with an increasing concentration of test compounds (1–30 µM). Doxycyclin (IC50 = 0.10 ± 0.02 and 0.04 ± 0.01 µM for E. coli and B. subtilis) and gentamicin (IC50 = 4.23 ± 0.99 and 0.49 ± 0.14 µM for E. coli and B. subtilis) were used as positive controls. For induction of the GFP expression IPTG (0.1 mM final concentration) was added to each well and incubated for 3 h at 37 °C.
The following incubation samples were centrifuged at 2750 rpm at room temperature (RT) for 5 min and washed twice with 200 µL PBS, with a centrifugation step between the two washes. After a third centrifugation step, the bacterial cells were suspended in 100 µL PBS. The number of bacteria was estimated according to the fluorimetric measurements. The fluorescence of the bacterial cells was measured by the Victor™ 1420 Multilabel Counter (Perkin Elmer, Waltham, MA, USA) at 485/535 nm for 1 sec per well controlled by Wallac 1420 Manager software. Each treatment was repeated in at least 2 wells per plate during the experiments. Percentage fluorescence intensity based on the quantity of E. coli-GFP cells was calculated using untreated control values as 100%. Error was represented by standard deviation (SD). IC50 values (50% inhibiting concentration) were calculated by GraphPad Prism® 5 (La Jolla, CA, USA).

3.5.3. Cytotoxicity Assay

Cytotoxicity of the synthesized molecules was determined on A549, NIH/3T3 and HL-60 cells using the fluorescent Resazurin assay as described previously [46].
Briefly, cells (A549 and NIH/3T3: 6000, HL-60: 120.000 cells/well) were seeded into 96-well plates (Corning Life Sciences) in media and incubated overnight. Test compounds were dissolved in three-fold amounts of dimethyl sulfoxide (DMSO). Cells were treated with an increasing concentration of test compounds (1–30 µM). Positive controls were doxorubicin for A549 and NIH/3T3 (IC50 = 0.31 ± 0.24 µM and 5.65 ± 0.81 µM, respectively), and bortezomib for HL60 (IC50 = 7.42 ± 2.60 nM). Cell viability was determined after 72 h incubation. Resazurin reagent (Sigma-Aldrich) was added at a final concentration of 25 µg/mL. After a 2 h incubation at 37 °C in 5% CO2, fluorescence (530 nm excitation/580 nm emission) was recorded on a multimode microplate reader (Cytofluor4000, PerSeptive Biosytems). Viability was calculated with relation to untreated control cells and blank wells containing media without cells. IC50 values (50% inhibiting concentration) were calculated by GraphPad Prism® 5. A Student’s t test was performed for individual test compound concentrations with relation to untreated control cell viability values.

4. Conclusions

In summary, the synthesis of 1,2,3-triazol-5-yl-phosphonates was studied by the copper(I)-chloride-catalyzed three-component domino reaction of phenylacetylene, azides and dialkyl phosphites. The model reaction of phenylacetylene, benzyl azide and dibutyl phosphite was optimized in details. The effect of the atmosphere, the type of base, the catalyst and the solvent, as well as the molar ratio of the starting materials, the temperature and the reaction time were studied. Applying the approach developed, altogether 17 triazol-5-yl-phosphonate derivatives were synthesized and fully characterized, except two (12 and 14), all of them are new compounds. The biological activity of the compounds prepared was investigated in antibacterial activity and in vitro cytotoxicity assays. None of the synthesized 1,2,3-triazol-5-yl-phosphonates were active against selected Gram-negative bacteria, while the growth of Gram-positive bacteria was somewhat reduced. Several derivatives showed low or modest activity against the tested cell lines, two of them have the IC50 value in the 10 micromolar range against HL-60 cells.

Supplementary Materials

Supplementary data associated with this article are available online. Copies of 31P, 1H, and 13C NMR spectra for all compounds synthesized are presented.

Author Contributions

E.B. and A.T. planned the experiments, A.T. and. E.T. carried out the experiments, P.T.S. performed the high-resolution mass spectrometric measurements, B.K. and L.H.J. performed the biological evaluation (screening), E.B., A.T., L.H.J. and L.G.P. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

The project was supported by the Hungarian Research Development and Innovation Office (FK123961). E.B. was supported by the János Bolyai Research Scholarship of the Hungarian Academy of Sciences (BO/00278/17/7). A.T. was supported by the ÚNKP-19-3-I-BME-391 New National Excellence Program of the Ministry for Innovation and Technology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moonen, K.; Laureyn, I.; Stevens, C.V. Synthetic methods for azaheterocyclic phosphonates and their biological activity. Chem. Rev. 2004, 104, 6177–6216. [Google Scholar] [CrossRef] [PubMed]
  2. Bansal, R.K. (Ed.) Phosphorus Heterocycles II. In Topics in Heterocyclic Chemistry; Springer: Berlin, Germany, 2010; Volume 21, ISBN 978-3-642-12253-8. [Google Scholar]
  3. Tappe, F.M.J.; Trepohl, V.T.; Oestreich, M. Transition-metal-catalyzed CP cross-coupling reactions. Synthesis 2010, 18, 3037–3062. [Google Scholar] [CrossRef]
  4. Ali, T.E.; Abdel-Kariem, S.M. Methods for the synthesis of α-heterocyclic/heteroaryl-α-aminophosphonic acids and their esters. Arkivoc 2015, 2015, 246–287. [Google Scholar] [CrossRef]
  5. Haji, M. Multicomponent Reactions: A simple and efficient route to heterocyclic phosphonates. Beilstein J. Org. Chem. 2016, 12, 1269–1301. [Google Scholar] [CrossRef] [PubMed]
  6. Dömling, A.; Wang, W.; Wang, K. Chemistry and biology of multicomponent reactions. Chem. Rev. 2012, 112, 3083–3135. [Google Scholar] [CrossRef][Green Version]
  7. Müller, T.J.J. (Ed.) Multicomponent Reactions 1. In Science of Synthesis; Thieme: Stuttgart, Germany, 2014; ISBN 978-3-131-66881-3. [Google Scholar]
  8. Katritzky, A.R.; Rees, C.W.; Scriven, C.W.V. (Eds.) Comprehensive Heterocyclic Chemistry; Elsevier Science: Oxford, UK, 1996; Volume 4, pp. 1–126. [Google Scholar]
  9. Thirumurugan, P.; Matosiuk, D.; Jozwiak, K. Click chemistry for drug development and diverse chemical-biology applications. Chem. Rev. 2013, 113, 4905–4979. [Google Scholar] [CrossRef]
  10. Lauria, A.; Delisi, R.; Mingoia, F.; Terenzi, A.; Martorana, A.; Barone, G.; Almerico, A.M. 1,2,3-Triazole in heterocyclic compounds, endowed with biological activity, through 1,3-dipolar cycloadditions. Eur. J. Org. Chem. 2014, 2014, 3289–3306. [Google Scholar] [CrossRef]
  11. Dheer, D.; Singh, V.; Shankar, R. Medicinal attributes of 1,2,3-triazoles: Current developments. Bioorg. Chem. 2017, 71, 30–54. [Google Scholar] [CrossRef]
  12. Bonandi, E.; Christodoulou, M.S.; Fumagalli, G.; Perdicchia, D.; Rastelli, G.; Passarella, D. The 1,2,3-triazole ring as a bioisostere in medicinal chemistry. Drug Discov. Today 2017, 22, 1572–1581. [Google Scholar] [CrossRef]
  13. Rani, A.; Singh, G.; Singh, A.; Maqbool, U.; Kaur, G.; Singh, J. CuAAC-ensembled 1,2,3-triazole-linked isosteres as pharmacophores in drug discovery: Review. RSC Adv. 2020, 10, 5610–5635. [Google Scholar] [CrossRef]
  14. Lal, K.; Yadav, P.; Kumar, A.; Kumar, A.; Paul, A.K. Design, synthesis, characterization, antimicrobial evaluation and molecular modeling studies of some dehydroacetic acid-chalcone-1,2,3-triazole hybrids. Bioorg. Chem. 2018, 77, 236–244. [Google Scholar] [CrossRef] [PubMed]
  15. Kategaonkar, A.H.; Shinde, P.V.; Kategaonkar, A.H.; Pasale, S.K.; Shingate, B.B.; Shingare, M.S. Synthesis and biological evaluation of new 2-chloro-3-((4-phenyl-1H-1,2,3-triazol-1-yl)methyl)quinoline derivatives via click chemistry approach. Eur. J. Med. Chem. 2010, 45, 3142–3146. [Google Scholar] [CrossRef] [PubMed]
  16. Garudachari, B.; Isloor, A.M.; Satyanarayana, M.N.; Fun, H.K.; Hegde, G. Click chemistry approach: Regioselective one-pot synthesis of some new 8-trifluoromethylquinoline based 1,2,3-triazoles as potent antimicrobial agents. Eur. J. Med. Chem. 2014, 74, 324–332. [Google Scholar] [CrossRef] [PubMed][Green Version]
  17. De Souza-Fagundes, E.M.; Delp, J.; Prazeres, P.D.M.; Marques, B.; Maria, A.; Carmo, L.; Henrique, P.; Stroppa, F.; Glanzmann, N.; Kisitu, J.; et al. Correlation of structural features of novel 1,2,3-triazoles with their neurotoxic and tumoricidal properties. Chem.-Biol. Interact. 2018, 291, 253–263. [Google Scholar] [CrossRef]
  18. Wu, M.J.; Wu, D.M.; Chen, J.B.; Zhao, J.F.; Gong, L.; Gong, Y.X.; Li, Y.; Yang, X.D.; Zhang, H. Synthesis and anti-proliferative activity of allogibberic acid derivatives containing 1,2,3-triazole pharmacophore. Bioorg. Med. Chem. Lett. 2018, 28, 2543–2549. [Google Scholar] [CrossRef]
  19. Praveena, K.S.S.; Shivaji Ramarao, E.V.V.; Murthy, N.Y.S.; Akkenapally, S.; Ganesh Kumar, C.; Kapavarapu, R.; Pal, S. Design of new hybrid template by linking quinoline, triazole and dihydroquinoline pharmacophoric groups: A greener approach to novel polyazaheterocycles as cytotoxic agents. Bioorg. Med. Chem. Lett. 2015, 25, 1057–1063. [Google Scholar] [CrossRef]
  20. Li, L.; Hao, G.; Zhu, A.; Fan, X.; Zhang, G.; Zhang, L. A copper(I)-catalyzed three-component domino process: Assembly of complex 1,2,3-triazolyl-5-phosphonates from azides, alkynes, and H-phosphates. Chem. Eur. J. 2013, 19, 14403–14406. [Google Scholar] [CrossRef]
  21. Radi, S.; Lazrek, H.B. Synthesis and biological activity of new 1,2,3-triazole acyclonucleosides analogues of ACV. J. Chem. Res. Synop. 2002, 264–266. [Google Scholar] [CrossRef]
  22. Costa, C.P.C.; Boechat, N.; Bastos, M.M.; da Silva, F.D.C.; Marttorelli, A.; Souza, M.L.T.; Baptista, S.M.; Hoelz, V.B.L.; Cafffarena, R.E. New Efavirenz derivatives and 1,2,3-triazolyl-phosphonates as inhibitors of reverse transcriptase of HIV-1. Curr. Top. Med. Chem. 2018, 2018, 1494–1505. [Google Scholar] [CrossRef]
  23. McAllister, T.E.; Horner, K.A.; Webb, M.E. Evaluation of the interaction between phosphohistidine analogues and phosphotyrosine binding domains. Chem. Bio. Chem. 2014, 15, 1088–1091. [Google Scholar] [CrossRef][Green Version]
  24. Kee, J.M.; Villani, B.; Carpenter, L.R.; Muir, T.W. Development of stable phosphohistidine analogues. J. Am. Chem. Soc. 2010, 132, 14327–14329. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Mukai, S.; Flematti, G.R.; Byrne, L.T.; Besant, P.G.; Attwood, P.V.; Piggott, M.J. Stable triazolylphosphonate analogues of phosphohistidine. Amino Acids. 2012, 43, 857–874. [Google Scholar] [CrossRef] [PubMed]
  26. Huisgen, R. 1,3-Dipolar cycloadditions. Past and future. Angew. Chem. Int. Ed. 1963, 2, 565–632. [Google Scholar] [CrossRef]
  27. Huisgen, R. Kinetics and mechanism of 1,3-dipolar cycloadditions. Angew. Chem. Int. Ed. 1963, 2, 633–696. [Google Scholar] [CrossRef]
  28. Hall, R.G.; Trippet, S. The preparation and Diels-Alder reactivity of ethyl (diethoxyphosphinyl)propynoate. Tetrahedron Lett. 1982, 23, 2603–2604. [Google Scholar] [CrossRef]
  29. Shen, Y.; Zheng, J.; Xin, Y.; Lin, Y.; Qi, M. Synthesis of perfluoroalkylated heterocyclic phosphonates. J. Chem. Soc. Perkin Trans. 1 1995, 8, 997–999. [Google Scholar] [CrossRef]
  30. Huang, P.; Su, Q.; Dong, W.; Zhang, Y.; An, D. BrØnsted/Lewis acids-promoted selective preparations of 3-hetero quinolines or 4/5-hetero triazoles from azides and hetero-alkynes. Tetrahedron 2017, 73, 4275–4284. [Google Scholar] [CrossRef]
  31. Artyushin, O.I.; Matveeva, E.V.; Bushmarinov, I.S.; Odinets, I.L. Water as a promoting media for 1,3-dipolar cycloaddition of phosphorylated azides to internal alkynes. Arkivoc 2012, 4, 252–263. [Google Scholar] [CrossRef][Green Version]
  32. Louërat, F.; Bougrin, K.; Loupy, A.; de Retana, A.M.O.; Pagalday, J.; Palacios, F. Cycloaddition reactions of azidomethyl phosphonate with acetylenes and enamines. Synthesis of triazoles. Heterocycles 1998, 48, 161–170. [Google Scholar] [CrossRef]
  33. Thomas, J.; Jubi, J.; Parekh, N.; Dehaen, W. A metal-free three-component reaction for the regioselective synthesis of 1,4,5-trisubstituted 1,2,3-triazoles. Angew. Chem. Int. Ed. 2014, 53, 10155–10160. [Google Scholar] [CrossRef]
  34. Ahamad, S.; Kant, R.; Mohanan, K. Metal-free three-component domino approach to phosphonylated triazolines and triazoles. Org. Lett. 2016, 18, 280–283. [Google Scholar] [CrossRef] [PubMed]
  35. Tripolszky, A.; Tóth, E.; Bálint, E. Synthesis of 1,2,3-triazolyl-5-diethylphosphonate by domino reaction. Phosphorus Sulfur Silicon Relat. Elem. 2019, 194, 377–378. [Google Scholar] [CrossRef]
  36. Gann, A.W.; Amoroso, J.W.; Einck, V.J.; Rice, W.P.; Chambers, J.J.; Schnarr, N.A. A photoinduced, benzyne click reaction. Org. Lett. 2014, 16, 2003–2005. [Google Scholar] [CrossRef] [PubMed]
  37. Bao, M.; Lu, W.; Su, H.; Qiu, L.; Xu, X. A convergent formal [4 + 2] cycloaddition of 1,6-diynes and benzyl azides: Construction of spiro-polyheterocycles. Org. Biomol. Chem. 2018, 16, 3258–3265. [Google Scholar] [CrossRef]
  38. Wang, X.; Mei, T.S.; Yu, J.Q. Versatile Pd(OTf)2 ∙ 2H2O-catalyzed ortho-fluorination using NMP as a promoter. J. Am. Chem. Soc. 2009, 131, 7520–7521. [Google Scholar] [CrossRef]
  39. Colombano, G.; Albani, C.; Ottonello, G.; Ribeiro, A.; Scarpelli, R.; Tarozzo, G.; Daglian, J.; Jung, K.M.; Piomelli, D.; Bandiera, T. O-(Triazolyl)methyl carbamates as a novel and potent class of fatty acid amide hydrolase (FAAH) inhibitors. Chem. Med. Chem. 2014, 10, 380–395. [Google Scholar] [CrossRef][Green Version]
  40. Tesch, M.; Kudruk, S.; Letzel, M.; Studer, A. Orthogonal click postfunctionalization of alternating copolymers prepared by nitroxide-mediated polymerization. Chem. Eur. J. 2017, 23, 5915–5919. [Google Scholar] [CrossRef]
  41. Colombano, G.; Travelli, C.; Galli, U.; Caldarelli, A.; Chini, M.G.; Canonico, P.L.; Sorba, G.; Bifulco, G.; Tron, G.C.; Genazzani, A.A. A novel potent nicotinamide phosphoribosyltransferase inhibitor synthesized via click chemistry. J. Med. Chem. 2010, 53, 616–623. [Google Scholar] [CrossRef]
  42. Swetha, M.; Ramana, P.V.; Shirodkar, S.G. Simple and efficient method for the synthesis of azides in water- THF solvent system. Org. Prep. Proced. Int. 2011, 43, 348–353. [Google Scholar] [CrossRef]
  43. Bálint, E.; Tajti, Á.; Tóth, N.; Keglevich, G. Continuous flow alcoholysis of dialkyl H-phosphonates with aliphatic alcohols. Molecules 2018, 23, 1618. [Google Scholar] [CrossRef][Green Version]
  44. Csörgő, B.; Fehér, T.; Tímár, E.; Blattner, F.R.; Pósfai, G. Low-mutation-rate, reduced-genome Escherichia coli: An improved host for faithful maintenance of engineered genetic constructs. Microb. Cell Fact. 2012, 11, 11–24. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Phan, T.T.; Tran, L.T.; Schumann, W.; Nguyen, H.D. Development of Pgrac100-based expression vectors allowing high protein production levels in Bacillus subtilis and relatively low basal expression in Escherichia coli. Microb. Cell Fact. 2015, 14, 72–81. [Google Scholar] [CrossRef] [PubMed][Green Version]
  46. Szebeni, G.J.; Balázs, A.; Madarász, I.; Pocz, G.; Ayaydin, F.; Kanizsai, I.; Fajka-Boja, R.; Alföldi, R.; Hackler, L., Jr.; Puskás, L.G. Achiral mannich-base curcumin analogs induce unfolded protein response and mitochondrial membrane depolarization in panc-1 cells. Int. J. Mol. Sci. 2017, 18, 2105. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds 8 and 11–26 are available from the authors.
Molecules 25 02643 sch001 550

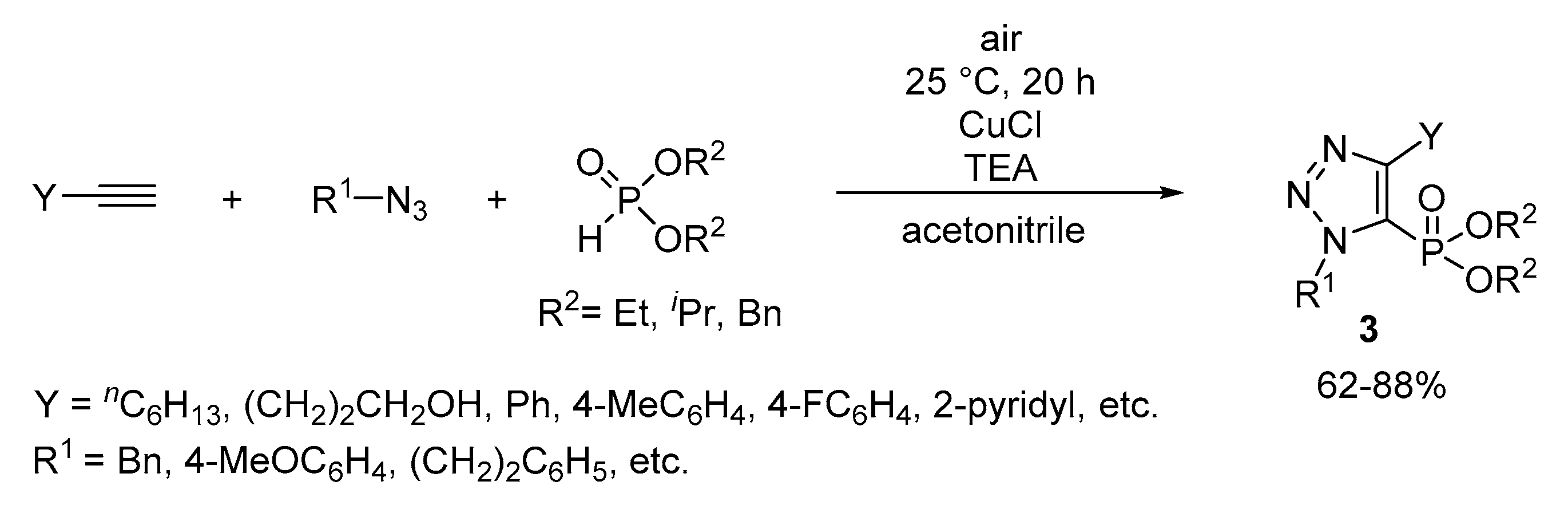

Scheme 1. Synthesis of 1,2,3-triazol-5-yl-phosphonates (3).
Scheme 1. Synthesis of 1,2,3-triazol-5-yl-phosphonates (3).
Molecules 25 02643 sch001
Molecules 25 02643 sch002 550

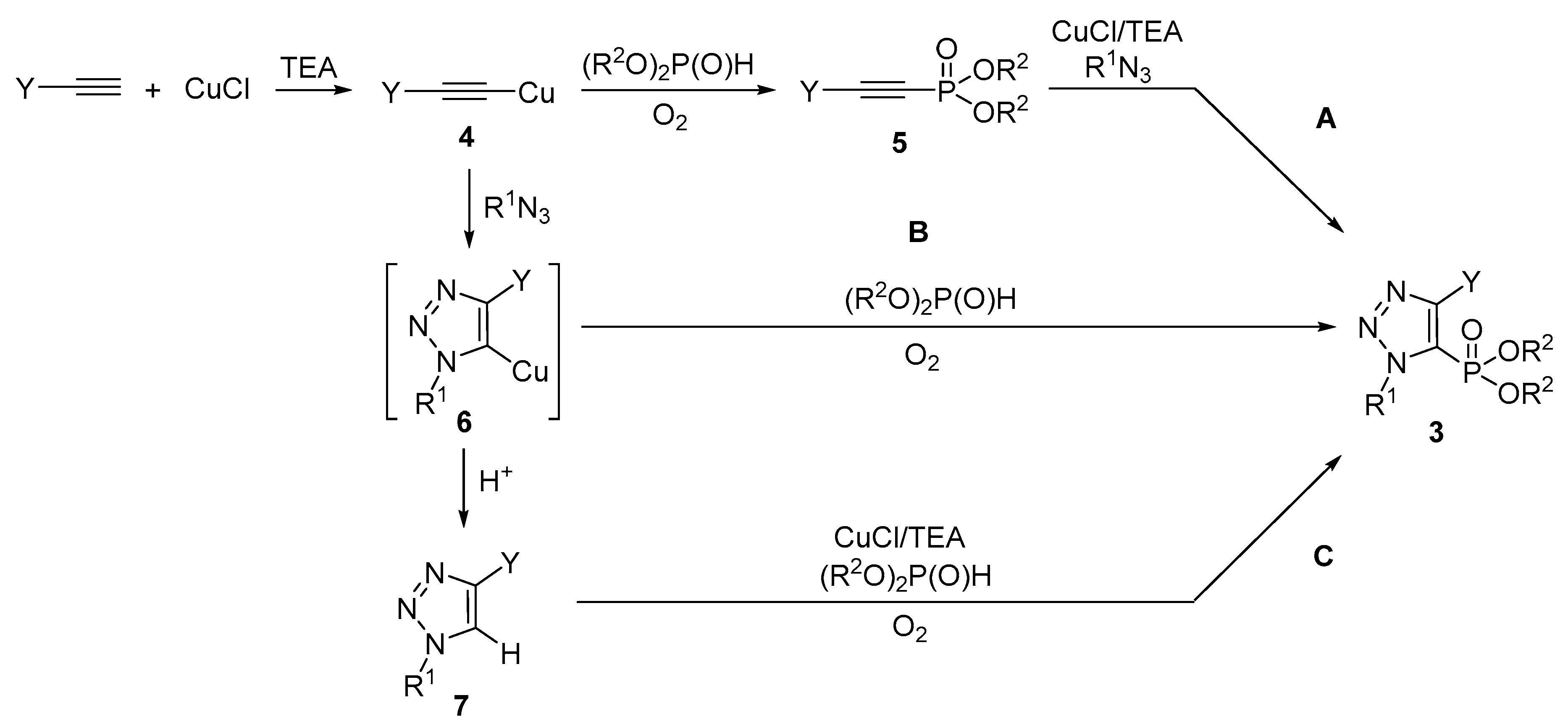

Scheme 2. Proposed reaction mechanism for the Cu(I)-catalyzed domino reaction [20].
Scheme 2. Proposed reaction mechanism for the Cu(I)-catalyzed domino reaction [20].
Molecules 25 02643 sch002
Molecules 25 02643 g001 550

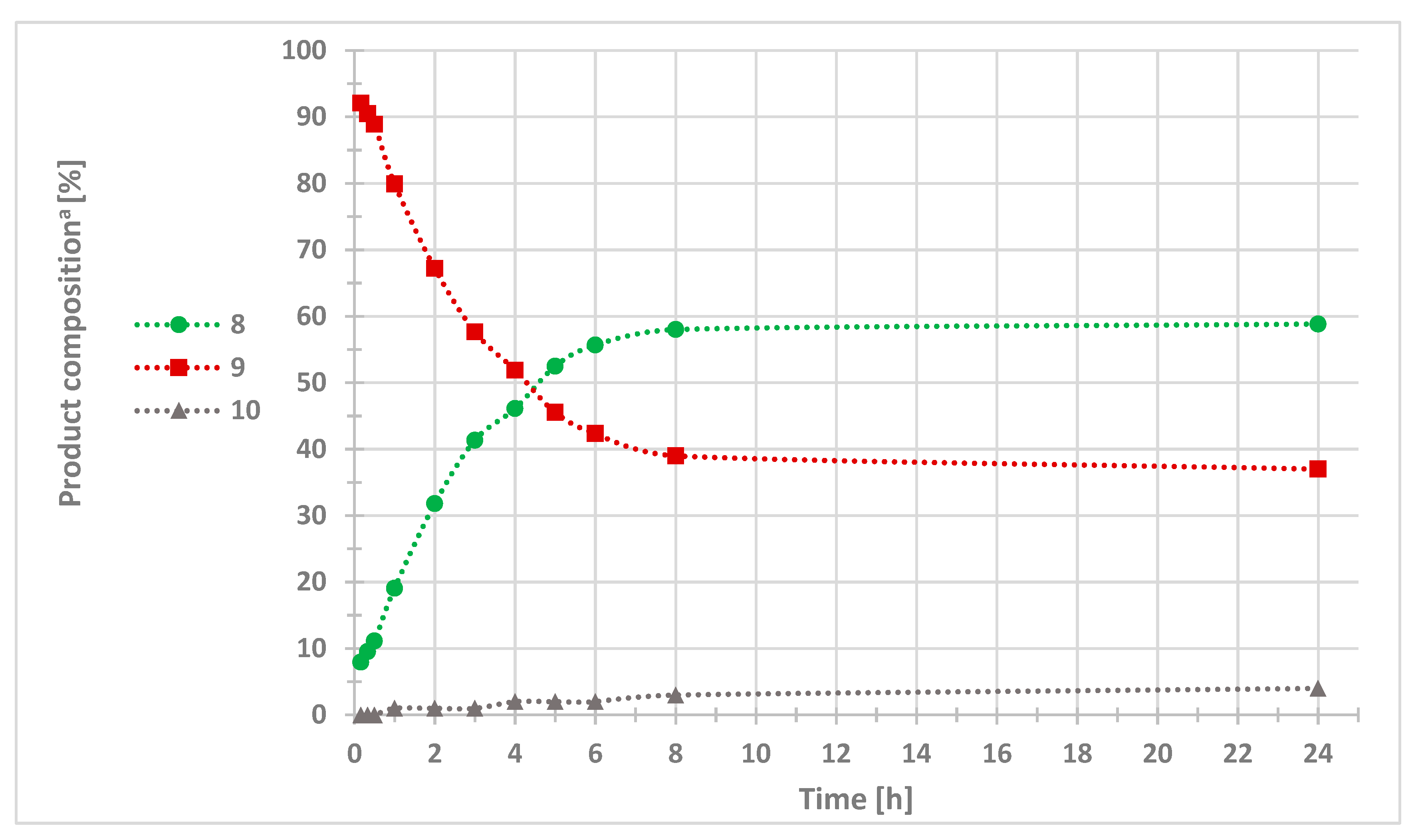

Figure 1. Time dependence of the product composition in the model reaction of phenylacetylene, benzyl azide and dibutyl phosphite. Conditions: phenylacetylene (1 equiv.), benzyl azide (1.1 equiv.), dibutyl phosphite (2 equiv.), CuCl (0.1 equiv.) and TEA (2 equiv.) were stirred in MeCN with continuous air bubbling at 25 °C for 24 h. a Based on HPLC (222 nm).
Figure 1. Time dependence of the product composition in the model reaction of phenylacetylene, benzyl azide and dibutyl phosphite. Conditions: phenylacetylene (1 equiv.), benzyl azide (1.1 equiv.), dibutyl phosphite (2 equiv.), CuCl (0.1 equiv.) and TEA (2 equiv.) were stirred in MeCN with continuous air bubbling at 25 °C for 24 h. a Based on HPLC (222 nm).
Molecules 25 02643 g001
Molecules 25 02643 sch003 550

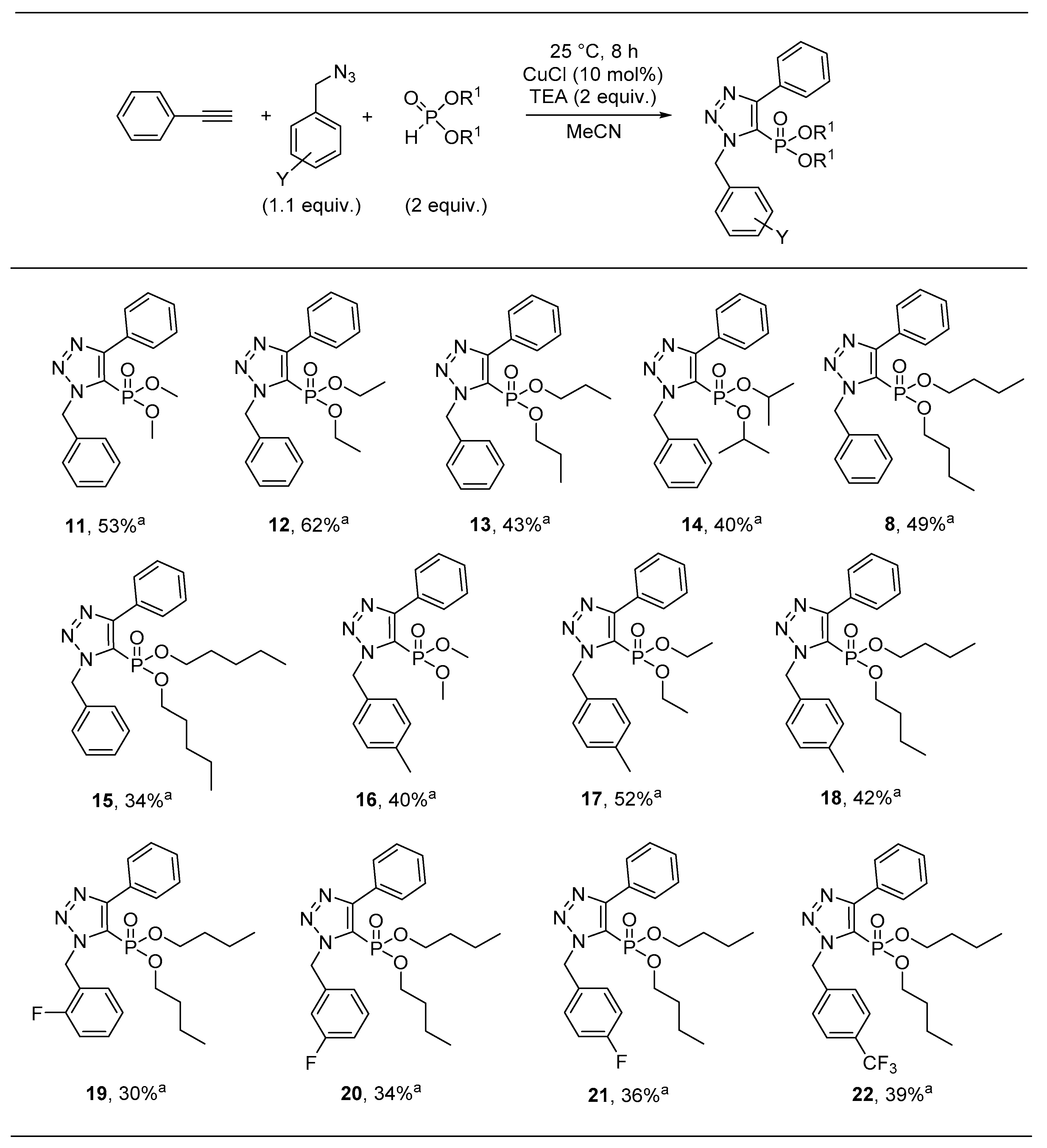

Scheme 3. Domino reaction of phenylacetylene, substituted benzyl azides and dialkyl phosphites. a Isolated yield.
Scheme 3. Domino reaction of phenylacetylene, substituted benzyl azides and dialkyl phosphites. a Isolated yield.
Molecules 25 02643 sch003
Molecules 25 02643 sch004 550

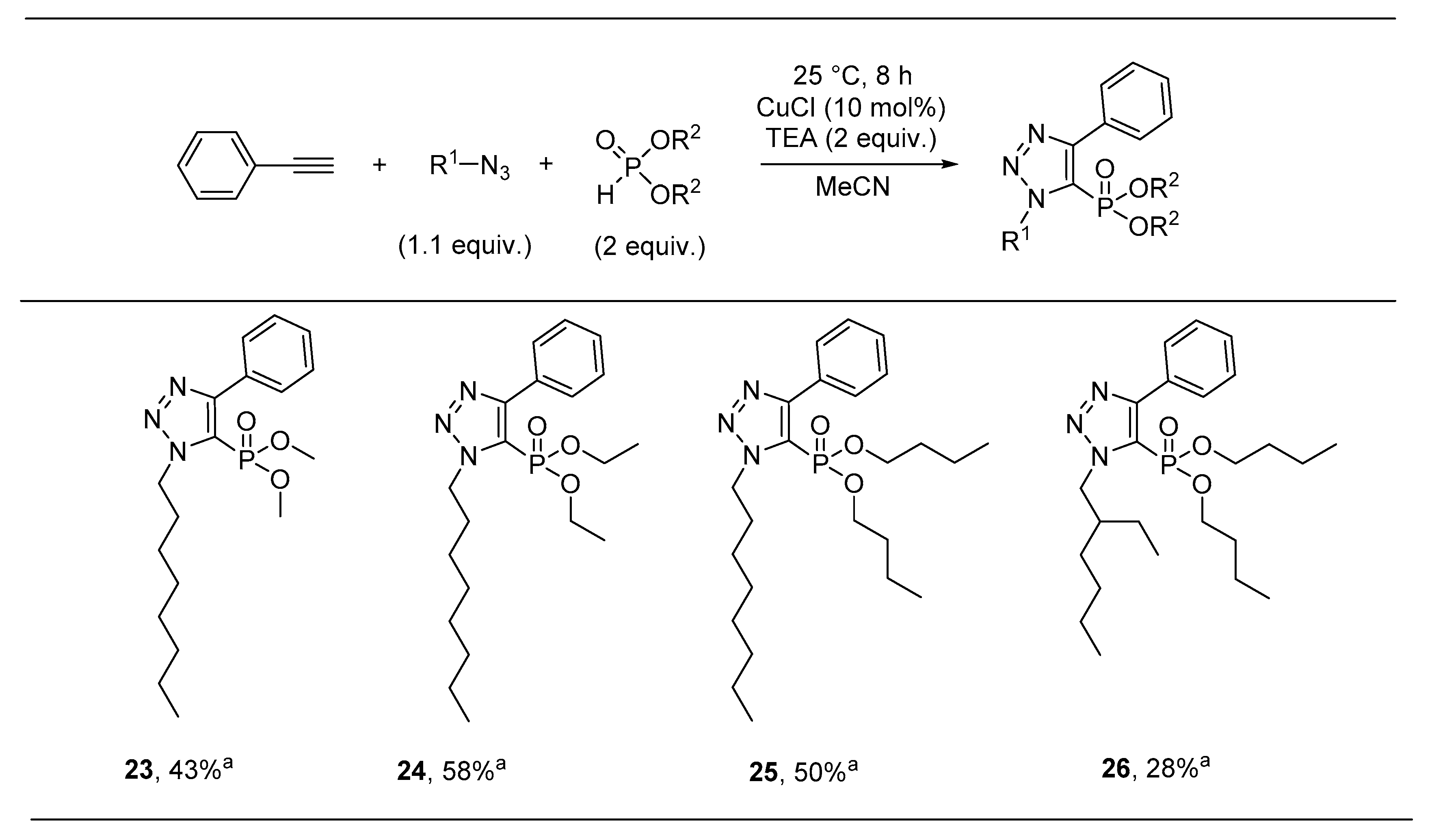

Scheme 4. Domino reaction of phenylacetylene, aliphatic azides and dialkyl phosphites. a Isolated yield.
Scheme 4. Domino reaction of phenylacetylene, aliphatic azides and dialkyl phosphites. a Isolated yield.
Molecules 25 02643 sch004
Table

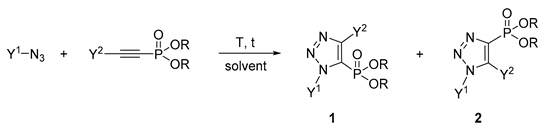

Table 1. Cycloaddition of azides and alkynyl phosphonates.
Table 1. Cycloaddition of azides and alkynyl phosphonates.
Molecules 25 02643 i001
EntryY1Y2RCat.SolventT, tProduct Ratio (%)Yield (%)Ref.
12
1CH2COOMeCOOEtEt-toluene110 °C6436-[28]
2CH2COOtBuCF3iPr-DEE25 °C, 20 h752590[29]
3BnPh, 4-MeC6H4, 4-FC6H4, etc.EtCuSO4·5H2O/NaAscDMF170 °C, 12 h100083–92[30]
4(EtO)2P(O)(CH2)2(MeO)2P(O)Me-water25 °C, 36 h or 60 °C, 2 h10095[31]
5(EtO)2P(O)CH2MeEt--MW, 90 °C, 20 min346678[32]
Table

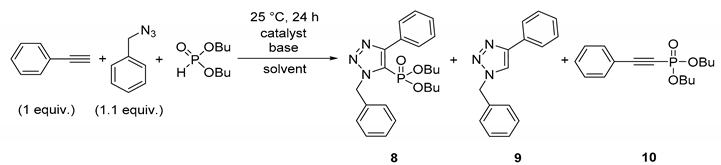

Table 2. Optimization of the domino reaction of phenylacetylene, benzyl azide and dibutyl phosphite.
Table 2. Optimization of the domino reaction of phenylacetylene, benzyl azide and dibutyl phosphite.
Molecules 25 02643 i002
EntryDBP (Equiv.)ConditionCatalyst (10 mol%)Base (2 Equiv.)SolventProduct Composition (%) a
8910
11.1N2 bubblingCuClTEAMeCN22771
21.1air bubblingCuClTEAMeCN55423
31.1O2 bubblingCuClTEAMeCN24706
41.1air bubblingCuClDPAMeCN46495
51.1air bubblingCuClDIPAMeCN54442
61.1air bubblingCuClDIPEAMeCN35632
71.1air bubblingCuClTEADMF41572
81.1air bubblingCuClTEADCM43561
91.1air bubblingCuClTEATHF21781
101.1air bubblingCuClTEAEtOH39592
111.1air bubblingCuBrTEAMeCN42562
121.1air bubblingCuITEAMeCN26722
131.1air bubblingCuSO4·5H2O/NaAscTEAMeCN01000
142air bubblingCuClTEAMeCN59374
153air bubblingCuClTEAMeCN51454
16 b2air bubblingCuClTEAMeCN49492
17 c2air bubblingCuClTEAMeCN36622
18 d2air bubblingCuClTEAMeCN23752
a Based on HPLC (222 nm). b The reaction was performed using 15 mol% of CuCl. c The reaction was carried out at 0 °C. d The reaction was carried out at 50 °C.
Table
Table 3. Summary of biological activity measurements.
Table 3. Summary of biological activity measurements.
Molecules 25 02643 i003
CompoundR1R2Antibacterial Activity (IC50, µM)In Vitro Cytotoxicity (IC50, µM)
B. subtilisE. coliA549NIH/3T3HL-60
8BnBu>30>30>3027.5 ± 1.4>30
11BnMe>30>30>30>30>30
12BnEt>30>30>30>30>30
13BnPr29.3 ± 1.2>30>30>3012.6 ± 1.7
14BniPr>30>30>30>30>30
15BnPn23.9 ± 1.0>30>3026.2 ± 1.115.4 ± 1.2
164-MeC6H4Me>30>30>3019.8 ± 1.211.0 ± 1.2
174-MeC6H4Et>30>30>30>30>30
184-MeC6H4Bu18.2 ± 1.0>30>30>30>30
192-FC6H4Bu19.3 ± 1.0>30>3027.5 ± 1.111.7 ± 1.2
203-FC6H4Bu>30>30>30>3015.4 ± 1.2
214-FC6H4Bu23.2 ± 1.1>30>30>3016.6 ± 1.3
224-CF3C6H4Bu>30>30>3023.1 ± 1.29.7 ± 1.1
23OctMe>30>30>30>30>30
24OctEt>30>30>30>30>30
25OctBu>30>30>30>30>30
26iOctBu29.6 ± 1.0>30>30>3026.7 ± 1.0
Doxycycline0.04 ± 0.010.10 ± 0.02–––
Gentamicin0.49 ± 0.144.23 ± 0.99–––
Doxorubicin––0.31 ± 0.245.65 ± 0.81–
Bortezomib––––7.42 × 10−3 2.60 × 10−3
Data were expressed as mean ± standard deviation.
Table
Table 4. Yield and mass data for the organic azides prepared.
Table 4. Yield and mass data for the organic azides prepared.
R1N3Yield[M + H]+found[M + H]+requires
BnN3 [36]93% (1.24 g)134.0725134.0718
4-Me-BnN3 [37]80% (1.18 g)148.0880148.0874
2-F-BnN3 [38]68% (1.02 g)152.0632152.0624
3-F-BnN3 [39]76% (1.14 g)152.0633152.0624
4-F-BnN3 [37]83% (1.25 g)152.0632152.0624
4-CF3-BnN3 [40]86% (1.72 g)202.0601202.0592
OctN3 [41]67% (1.04 g)156.1514156.1501
iOctN3 [42]55% (0.85 g)156.1514156.1501
Table
Table 5. Yield, 31P NMR and MS data for the dialkyl phosphites prepared.
Table 5. Yield, 31P NMR and MS data for the dialkyl phosphites prepared.
(R2O)2P(O)HYieldδP in CDCl3δP [lit.] in CDCl3[M + H]+found[M + H]+requires
(PrO)2P(O)H65% (0.54 g)7.97.8 [43]167.0833167.0837
(PentO)2P(O)H68% (0.75 g)7.88.1 [43]223.1462223.1463

Share and Cite

MDPI and ACS Style

Tripolszky, A.; Tóth, E.; Szabó, P.T.; Hackler, L., Jr.; Kari, B.; Puskás, L.G.; Bálint, E. Synthesis and In Vitro Cytotoxicity and Antibacterial Activity of Novel 1,2,3-Triazol-5-yl-Phosphonates. Molecules 2020, 25, 2643. https://doi.org/10.3390/molecules25112643

AMA Style

Tripolszky A, Tóth E, Szabó PT, Hackler L Jr., Kari B, Puskás LG, Bálint E. Synthesis and In Vitro Cytotoxicity and Antibacterial Activity of Novel 1,2,3-Triazol-5-yl-Phosphonates. Molecules. 2020; 25(11):2643. https://doi.org/10.3390/molecules25112643

Chicago/Turabian Style

Tripolszky, Anna, Emese Tóth, Pál Tamás Szabó, László Hackler, Jr., Beáta Kari, László G. Puskás, and Erika Bálint. 2020. "Synthesis and In Vitro Cytotoxicity and Antibacterial Activity of Novel 1,2,3-Triazol-5-yl-Phosphonates" Molecules 25, no. 11: 2643. https://doi.org/10.3390/molecules25112643

Article Metrics

Back to TopTop
