Article

Using Sewage Sludge Ash as an Efficient Adsorbent for Pb (II) and Cu (II) in Single and Binary Systems

1
Faculty of Industrial Chemistry and Environmental, Politehnica University of Timisoara, 300006 Timisoara, Romania
2
Westfälische Hochschule, University of Applied Sciences, 45897 Gelsenkirchen, Germany
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(11), 2559; https://doi.org/10.3390/molecules25112559
Submission received: 13 May 2020 / Revised: 28 May 2020 / Accepted: 29 May 2020 / Published: 31 May 2020
(This article belongs to the Section Green Chemistry)

Abstract

:
Incineration of sewage sludge produces every year huge amounts of sewage sludge ash. Due to its porosity and composition, sewage sludge ash can be used as an adsorbent for heavy metal ions removal. The present paper discusses the efficiency and feasibility of its use as an adsorbent for Pb (II) and Cu (II) removal in single and binary systems. Sewage sludge ash dosage, pH influence, equilibrium and kinetic studies were examined. The results show that sewage sludge ash is an effective and environmentally friendly adsorbent. The maximum adsorption capacity was 25.0 mg/g for Pb (II) and 7.5 mg/g for Cu (II). The presence of the competitive metal led to lower adsorption rate. The study concludes that sewage sludge ash is a promising adsorbent for Pb (II) and Cu (II) removal from wastewater presenting both economic and environmental benefits.

Graphical Abstract

1. Introduction

The management of the sewage sludge generated by municipal wastewater plants has become an important issue in the last years [1].
Twenty-seven European Union countries generated more than 11.5 million tons of sewage sludge in 2015, and this quantity is expected to increase up to 13 million tons by 2020 due to industrialization and urbanization [2,3,4,5]. In the past few years, European Union promoted the ecological management of such wastes by introducing directives regarding sewage sludge management and therefore classical methods, such as storage, are being replaced by methods leading to waste stabilization and safe recycling.
There are several methods for sewage sludge management presented in the literature: anaerobic co-digestion [6], composting [7], incineration [8], co-incineration [9] and cementing [10].
Incineration is one of the most used alternatives. Even though this method reduces the volume and stabilizes the sewage sludge, its disposal still represents a significant environmental issue [11]. Therefore, another important aim is to find strategies to manage this waste. Many studies focused on using sewage sludge ash to produce construction materials [12] or to recover phosphorus [13].
Sewage sludge ash is a porous material that commonly contains silicon oxide, calcium phosphates, iron oxide and aluminum oxide. These characteristics make it a potential adsorbent for pollutant removal from aqueous solutions [14,15]. In the literature, there are some studies regarding adsorption of heavy metal ions using wastes such as display panel glasses [16], cotton [17] or fly ash [18]. Management of the waste and wastewater treatment are the benefits of using waste materials as adsorbents. There are few studies regarding the utilization of sewage sludge ash as an adsorbent. Peer reviewed literature has reported that sewage sludge ash was also used as an adsorbent for copper, zinc, cadmium [15,19] and lead removal [14].
Heavy metal ion pollution in water is an important environmental issue due to carcinogenicity and toxicity properties. Both lead and copper are metals that can endanger and poison the human body, and especially children are affected by lead poisoning [20]. Lead and copper contaminations coexist in wastewaters that come from industries such as battery manufacturing, metal plating and electronics [21]. However, to the best of our knowledge, there are no studies regarding adsorption of lead and copper simultaneously using sewage sludge ash as an adsorbent. Therefore, the purpose of this research was to study the applicability of sewage sludge ash as an adsorbent for lead and copper removal from aqueous solutions in single and binary systems by investigating the effects of pH, adsorbent dosage, contact time and initial metal concentration. Additionally, by using chemical analysis, isotherm models and kinetic models the adsorption mechanism was investigated. The proposed method represents a good alternative for the stringent legislation regarding the disposal of sewage sludge and presents a valuable option from both economic and environmental perspectives by using this waste as an efficient adsorbent for water treatment containing two important and toxic heavy metal ions.

2. Results and Discussion

2.1. Characterization of Sewage Sludge Ash

A detailed analysis of the chemical composition of the sewage sludge ash can be found in our previous reported work [22]. The main elements are Ca, Fe, P and Al. The physical properties of the sewage sludge ash are presented in Table 1.

XRD and SEM–EDX Analysis

The XRD pattern of the sewage sludge ash (SSA) before adsorption is presented in Figure 1a. The main crystalline phases identified before adsorption revealed the presence of quartz (SiO2), calcium phosphate (Ca2P2O7) and hematite (Fe2O3).
The morphology of the SSA before adsorption was observed from the SEM image displayed in Figure 1b. It was observed that the SSA had irregular-shaped particles with different sizes. Additionally, the EDX spectra presented in Figure 1c show the presence of the main elements such as Ca, K, P, Si, Fe, Mg and Al.

2.2. Effect of pH

The behavior of heavy metals in solution (such as hydrolysis, complexation or precipitation) is influenced by its pH value. Additionally, the initial pH of the solutions with metal ion content plays an important role in the adsorption process due to the fact that it influences both the species of the metal present in the solution and the surface of the adsorbent. For this reason, the pH effect upon the adsorption performance of the sewage sludge ash in the removal process of lead and copper ions from aqueous solutions were discussed.
At pH higher than 7, the lead ions are efficiently removed from solution, but in this case were not removed due to an adsorption process but were removed due to precipitation process according to the potential–pH diagram for Pb ions in water systems [23,24,25,26]. Dissolved ionic species present at pH values higher than 7 are Pb(OH)+ (aq), Pb4(OH)44+ (aq) and Pb(OH)2. Cu2+ is a copper predominant species at pH < 5.00, and for pH values higher than 5.00, species such as CuOH+ (aq), [Cu2(OH)2]2+ (aq) and Cu(OH)2 (aq) are present [15,26]. The variation in pH between 2 and 7 avoided the precipitation of Pb (II) and Cu (II).
The pH has a strong influence on the sorption of Pb (II) and Cu (II) on the SSA because H+ ions can compete adsorption sites with Pb2+ and Cu2+. The effect of the initial pH on the adsorption capacity and removal rate of Pb (II) and Cu (II) in single system is presented in Figure 2.
The adsorption of Cu (II) at pH = 2 was negligible while for Pb (II) the adsorption capacity was 0.53 mg/g SSA. The adsorption capacity increased for both of Pb (II) and Cu (II) with the increase of the initial pH. For Pb (II) the plateau was reached after pH = 3 when the adsorption capacity was 2.49 mg/g SSA. On the other hand, the adsorption capacity for Cu (II) continued to increase with the increase of the initial pH reaching the maximum of 2.49 mg/g SSA at pH = 7. Therefore, the pH = 6 was considered to deliver the best performance for both metals. Similar results were obtained when the polypyrrole-based activated carbon, sawdust and rice husks were used as adsorbents for the removal of Pb, and the maximum adsorption capacity occurring at pH = 5–6.5 [27,28,29]. Additionally, the removal of copper took place at an initial pH value close to 6 when bottom ash of expired drug incineration, and shells of lentil, wheat and rice were used as adsorbents [30,31,32].

2.3. Effect of Adsorbent Dosage

Figure 3 displays the influence of SSA dosage on the adsorption capacity and on the removal rate of Pb (II) and Cu (II). The adsorption capacity of the heavy metal ions decreased while the removal rate increased with the increasing SSA dosage. It can be noticed that the maximum adsorption capacity was considerably higher for Pb (II) (31.9 mg/g) than for Cu (II) (4.44 mg/g). For Pb (II), the removal rate increased from 80.4% to 96% when the SSA dosage increased from 0.25 g/L to 0.5 g/L, and thereafter the removal rate of Pb (II) reached the plateau and the removal rate was almost 100%. For Cu (II), on the other hand, the removal rate increased constantly with the increasing of dosage from 11.2% to 92.4% when the SSA dosage was increased from 0.25 g/L to 4 g/L.

2.4. Kinetic Studies

Kinetic studies were used to determine the optimum necessary time to establish the equilibrium between SSA and Pb (II) and Cu (II) in single and binary systems. The effect of contact time on the adsorption of Pb (II) and Cu (II) in single and binary systems is presented in Figure 4.
The adsorption process occurred already in the first minutes of contact between SSA and both metals in single and binary systems. After 210 min, the adsorption capacity rate decreased. Comparing the adsorption in single and binary systems, the latter one became slower in the presence of the competitive metal ion. For example, the adsorption capacity for Pb (II) in single system at 210 min was 9.87 mg/g, and the adsorption capacity for Pb (II) in the presence of Cu (II) dropped to 4.80 mg/g. Additionally, the adsorption capacity for Cu (II) in single system at 210 min was 3.49 mg/g and dropped to 1.57 mg/g in the presence of Pb (II).
The adsorption kinetics that describe the removal rate of the studied metal ions is an important feature that defines the efficiency of the adsorption process. In order to determine the mechanism of adsorption of metal ions on the studied material, the experimental data were processed using the pseudo-order kinetic model one, the pseudo-order kinetic model and intraparticle diffusion model. The kinetic models used to stimulate the kinetics of Pb (II) and Cu (II) in single and binary systems on the SSA are presented in Figure 5.
The kinetic parameters together with the obtained correlation coefficients are presented in Table 2. The results showed that the values of correlation coefficient for both single and binary systems were higher for the pseudo-second-order kinetic model than those obtained for pseudo-first-order kinetic model. Additionally, the calculated adsorption capacities for the pseudo-second-order kinetic model remained similar to the experimentally reported ones.
Following the analysis of the plots according to the intraparticle diffusion kinetic model (Figure 5e,f, it can be observed that the straight line does not pass through origin. Therefore, the rate-limiting step for Pb (II) and Cu (II) adsorption is not the intraparticle diffusion model. Additionally, the line presents a discontinuity after a while, suggesting that the adsorption process is more complex. The fast adsorption of Pb (II) and Cu (II) in the first minutes was due to the film diffusion when the sewage sludge ash surface was covered by Pu (II) and Cu (II) ions. The second straight line obtained through the representation of qt versus t1/2 suggested that after the surface coverage, the transport of Pb (II) and Cu (II) ions inside the sewage sludge ash occurred [33].
Therefore, the pseudo-second-order kinetic model can be used to simulate the experimental data regarding Pb (II) and Cu (II) adsorption in single and binary systems using SSA as an adsorbent. Nevertheless, this means that the process is controlled by chemical sorption [34,35].

2.5. Equilibrium Studies

Figure 6 displays the dependence of the adsorption capacities as a function of the Pb (II) and Cu (II) concentrations at equilibrium. Increasing the initial concentration of Pb (II) and Cu (II) increased the active sites available, and therefore the adsorption capacity increased. The maximum qe during Pb (II) and Cu (II) removal was 25 mg/g and 7.5 mg/g, respectively.
In order to achieve the design of this adsorption study, the maximum adsorption capacity of SSA, the equilibrium coefficient and the adsorption mechanism must be considered. Therefore, several isotherms in their linear form were studied: Langmuir, Freundlich, Temkin and Dubinin–Radushkevich (DR). The Langmuir isotherm states that the adsorption process takes place in a single layer on a uniform surface and equivalent sites of the adsorbent. The Freundlich isotherm expresses the affinity of the adsorbent to the metals, while the Temkin isotherm states that the surface of the adsorbent is heterogenous.
In order to design the equilibrium adsorption regarding Pb (II) and Cu (II) removal using sewage sludge ash as an adsorbent, the linear graphs and the equilibrium sorption isotherms were plotted and can be consulted in Figure 7 and Table 3 respectively. By comparing the results from Table 3 it can be concluded that both Pb (II) and Cu (II) removal from aqueous solutions occurred as a monolayer at the uniform surfaces of the SSA because the Langmuir isotherm obtained the highest regression coefficients (0.999 for Pb (II) and 0.998 for Cu (II)). Further, there was no significant difference between the maximum adsorption capacity determined experimentally and those calculated from its plot for both Pb (II) and Cu (II). The lowest regression coefficients were obtained for DR isotherms. Likewise, a difference for the qs parameter can be as well observed when comparing the values of the theoretically determined to the ones experimentally obtained.

2.6. Adsorption Mechanism and Performance

The overlapped XRD spectra of the SSA after Pb (II), Cu (II) and binary adsorption presented in Figure 8 show the formation of new crystalline phases. After Pb (II) and Cu (II) adsorption, quartz and hematite remained in the SSA. Calcium phosphate was also present in the SSA, yet the peak at 2θ = 28° could not be identified anymore.
Furthermore, after Pb (II) adsorption, new peaks associated with lead phosphate (Pb2P2O7) could be identified. After Cu (II) adsorption, new peaks associated with copper oxide (CuO) could be detected. The binary system adsorption led to the identification of the lead silicate (Pb2SiO4) and copper oxide (CuO) peaks. These new crystalline phases identified by XRD confirmed that chemical reactions between SSA and Peb (II) and Cu (II) took place and also suggested that Ca–P bound in the SSA was partially broken.
Wang et al. [14] studied the adsorption of lead using incinerated sewage sludge ash as an adsorbent and identified new crystalline phases, suggesting the precipitation of lead as PbSO4. Nevertheless, the adsorption of copper in single and binary systems (Cu–Zn, Cu–Cd) [15] did not show any new crystalline phases.
The micrographs displayed in Figure 9 show a topographical change following the adsorption of Pb (II) and Cu (II) in both single and binary systems. The surface was much denser, and uniformly sized crystalline phases were formed as agglomerates in a much more regular way. Additionally, the EDX spectra presented in Figure 9 shows the presence of Pb and Cu after adsorption on the surface of the SSA.
The adsorption capacity and concentrations of Ca, K and Mg after sorption experiments for both Pb (II) and Cu (II) for 10, 75 and 150 mg/L are presented in Table 4. The adsorption capacity of Pb (II) was considerably higher than for Cu (II) due to the electronegativity of Pb2+ and Cu2+. Stronger attraction occurred between adsorbent and metal ion with higher electronegativity values (Pb: 2.33 and Cu: 1.95) [36]. Additionally, the smaller the hydrated ionic radius, the greater the affinity of the metal for the adsorption process (Pb: 4.01 Å and Cu: 4.19 Å) [37]. Therefore, it can be stated that the adsorption affinity of Pb (II) is higher than that of Cu (II).
Additionally, another important aspect in order to evaluate the adsorption mechanism is to note that higher adsorption capacities and higher concentrations of Pb (II) and Cu (II) led to higher concentrations of Ca, Mg and K in solutions after sorption experiments. This suggests that the adsorption mechanism of Pb (II) and Cu (II) by SSA is associated with cationic exchange. When the Cu (II) concentration was increased from 10 mg/L to 150 mg/L, the concentrations of Ca, K and Mg increased from 4.80 mg/L, 0.470 mg/L and 0.190 mg/L to 4.92 mg/L, 0.580 mg/L and 0.240 mg/L, respectively. For the same initial concentration of Pb (II) and Cu (II), the adsorption capacity and Ca, K and Mg concentration at equilibrium were higher for Pb (II).
Higher concentration of cations (Ca2+, Mg2+, K+) in solution after sorption experiments led to higher values of final pH (Figure 10). The final pH value at the end of the process led to an increase from 3 to 7.55 for Pb (II) and from 3.1 to 7.2 for Cu (II). The alkali properties of the sewage sludge ash and the neutralization effect on aqueous solutions could be noticed.
Correlating the results from RX diffractograms, SEM images and EDX spectra with the changes in final pH and in cation concentrations in solution after sorption experiments, it can be concluded that the heavy metal ion adsorption process onto SSA is controlled by chemisorption involving cation exchange.
Likewise, the pseudo-second-order kinetic model indicates that the process is controlled by chemisorption involving cation exchange. Wang et al. [15] also indicated that the primary adsorption mechanism of the studied heavy metal ions (Cu, Zn and Cd) by the incinerated SSA (ISSA) was cation exchange.
In order to determine if the SSA is a reliable adsorbent for Pb (II) and Cu (II) removal and to evaluate the potential environmental risk, due to the presence of metals in the sewage sludge ash [22], the influence of pH on the metal leaching of the SSA was investigated. Table 5 presents the results regarding the leaching of metals from SSA under different values of pH. As expected, the lower the pH was, the higher was the concentration of metals leached. For pH = 2, the concentrations of Zn, Mn and Al were 0.98 mg/L, 3.41 mg/L and 13.6 mg/L, respectively. For pH = 3, the concentration of Zn was 0.18 mg/L, and for Mn it was 0.27 mg/L. As the pH increased, the concentrations of leached metals decreased to values lower than 0.15 mg/L. At pH = 6, the amount of metals leached from SSA was negligible. Therefore, the SSA is a reliable adsorbent with low environmental risk.
The adsorption performances of the sewage sludge ash in the removal of process of Pb (II) and Cu (II) from aqueous solutions were compared with the adsorption capacities developed by other wastes reported in the literature. The comparison of the values (Table 6) show that the sewage sludge ash can be efficiently used as a high performance adsorbent for wastewater treatment.

3. Materials and Methods

3.1. Materials

The raw sewage sludge was collected from a municipal wastewater treatment plant from Timis county, Romania. Prior to the process of obtaining the ash, the collected sludge was dried at 105 °C for 20 h. Further, the dried sewage sludge was calcinated at 850 °C for 3 h using a Nabertherm B180 furnace.
All chemicals and reagents used were of analytical grade. Stock solutions (100 mg/L) of Pb (II) and Cu (II) were prepared by dissolving Pb(CH3COO)2 and CuSO4, respectively. Deionized water was used for the analytical method. Hydrochloric acid (HCl) and sodium hydroxide (NaOH) were used for pH adjustment.

3.2. Heavy Metal Ion Adsorption

The adsorption performance of the sewage sludge ash was studied taking into account the influence of the pH, adsorbent dosage, stirring time and initial concentration of Pb (II) and Cu (II).
The experiments were performed by mixing certain amounts of sewage sludge ash with 25 mL aqueous Pb (II) and Cu (II) solutions. The adsorption process was conducted in batch mode using Thermo Scientific Variomag Telesystem equipment for sample shaking at a constant rotation speed of 570 rpm. Further, the samples were centrifuged for measurement of metal concentrations by microwave plasma-atomic emission spectrometer (4210 MP-AES, Agilent Technologies, Melbourne, Australia). The pH was measured using a Metrohm 620 pH-meter (Herisau, Switzerland).
To examine the pH effect on the adsorption process, the experiments were conducted by adding 0.1 g of sewage sludge ash into 25 mL Pb (II) and Cu (II) solutions of 10 mg/L for 210 min. The initial pH of the solutions varied between 2 and 7. Additionally, in order to evaluate the potential environmental risk, for the same range of pH, concentrations of Zn, Ni, Co, Mn, Cr, Al and the final pH were determined.
The effect of the adsorbent dosage was studied by varying the solid:liquid ratio (0.25:1–4:1 g:L) of Pb (II) and Cu (II) solutions (10 mg/L) for 210 min at pH = 6.
Kinetic experiments were also conducted in order to evaluate the adsorbent performance in both single and binary systems. The amount of 0.025 g of sewage sludge ash (solid:liquid ration of 1:1 g:L) was added into 25 mL Pb (II) and Cu (II) solutions of 10 mg/L, at pH = 6 for certain amount of time (5–300 min). Additionally, to investigate the possible competition and to evaluate the adsorption process in the presence of both Pb and Cu, 0.025 g of sewage sludge ash was added into 25 mL Pb (II)+ Cu (II) solutions of 10 mg/L each, at pH = 6 for a time varying between 5 and 300 min.
The effect of initial concentrations was studied by mixing 25 mL of certain concentrations (10–200 mg/L) of each metal with 0.025 g of sewage sludge ash (solid: liquid ratio of 1:1 g: L) at pH = 6 for 210 min.
Equation (1) was used for the calculation of Pb (II) and Cu (II) uptake on 1 g of adsorbent.
q e = ( C 0 C e ) × V m
where qe is the adsorbed quantity of Bb (II) and Cu (II) expressed in milligrams per 1 g of studied adsorbent; C0 and Ce respectively represent the Pb (II) and Cu (II) concentration of the aqueous solutions before adsorption and after the established equilibrium (mg/L); V is the volume of the Pb (II) and Cu (II)-containing aqueous solution (L); and m is the mass of the sewage sludge ash (g) used in the experiments.

3.3. Adsorbent Characterization

The sewage sludge ash was characterized before and after heavy metal ion adsorption by X-ray diffraction (XRD), scanning electron microscopy (SEM) and X-ray dispersion analysis (EDX). The X-ray diffraction (XRD) patterns were recorded using a Philips X‘Pert instrument having a CuKα cathode at 45 kV and 40 mA. Scanning electron microscopy (SEM) images were acquired using Philips XL 30 ESEM equipment at 25 kV and 10 mm working distance. The chemical composition of the materials was determined with the FEI energy dispersive X-ray (EDX) spectroscopy detector of the microscope.
A Micromeritics ASAP 2020 instrument was used in order to determine the specific surface area, pore volume and adsorption average pore diameter of the ash.

4. Conclusions

This paper reports new insights of SSA as a low-cost, efficient and environmentally friendly adsorbent for Pb (II) and Cu (II) removal in single and binary systems. The pH value played a crucial role, the best performances being obtained at pH = 6 for both metals. The amount of metals leached from SSA was negligible at pH = 6, and therefore SSA has low environmental risk. The Langmuir isotherms best described the adsorption process with the maximum capacity of 25 mg/g for Pb (II) and 7.5 mg/g for Cu (II). The presence of competitive metals in binary systems led to lower adsorption capacities for the target metal. A pseudo-second-order kinetic model was found as the best kinetic model. Correlating the experimental results, it can be concluded that the main adsorption mechanism regarding the adsorption of Pb (II) and Cu (II) using SSA as an adsorbent is cation exchange.
Using SSA as an adsorbent presents multiple benefits:
  • capitalization of waste and therefore reduction of waste disposal;
  • low-cost and efficiency;
  • alkaline effects.

Author Contributions

Conceptualization, B.A.M., R.P., L.L., W.S. and A.T.-R.; methodology, B.A.M.; formal analysis, B.A.M. and N.K.; investigation, B.A.M. and N.K.; writing—original draft preparation, B.A.M.; writing—review and editing, L.L., W.S., A.T.-R. and N.K.; visualization, L.L.; supervision, R.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The studies were done during the Ph.D. program from the Doctoral School of the University Politehnica Timisoara.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cieslik, B.M.; Namiesnik, J.; Konieczka, P. Review of sewage sludge management: Standards, regulations and analytical methods. J. Clean. Prod. 2015, 90, 1–15. [Google Scholar] [CrossRef]
  2. Jung, J.M.; Oh, J.I.; Kim, J.G.; Kwon, H.H.; Park, Y.K.; Kwon, E.E. Valorization of sewage sludge via non-catalytic transesterification. Environ. Int. 2019, 131, 105035. [Google Scholar] [CrossRef]
  3. Kelessidis, A.; Stasinakis, A.S. Comparative study of the methods used for treatment and final disposal of sewage sludge in European countries. Waste Manag. 2012, 32, 1186–1195. [Google Scholar] [CrossRef] [PubMed]
  4. Kacprzak, M.; Neczaj, E.; Fijałkowski, K.; Grobelak, A.; Grosser, A.; Worwag, M.; Rorat, A.; Brattebo, H.; Almås, Å. Singh, Sewage sludge disposal strategies for sustainable development. Environ. Res. 2017, 156, 39–46. [Google Scholar] [CrossRef] [PubMed]
  5. Đurđević, D.; Blecich, P.; Jurić, Ž. Energy Recovery from Sewage Sludge: The Case Study of Croatia. Energies 2019, 12, 1927. [Google Scholar] [CrossRef] [Green Version]
  6. Villamil, J.A.; Mohedano, A.F.; San Martín, J.; Rodriguez, J.J.; de la Rubia, M.A. Anaerobic co-digestion of the process water from waste activated sludge hydrothermally treated with primary sewage sludge. A new approach for sewage sludge management. Renew. Energy 2020, 146, 435–443. [Google Scholar] [CrossRef]
  7. Suleiman, H.; Rorat, A.; Grobelak, A.; Grosser, A.; Milczarek, M.; Płytycz, B.; Kacprzak, M.; Vandenbulcke, F. Determination of the performance of vermicomposting process applied to sewage sludge by monitoring of the compost quality and immune responses in three earthworm species: Eisenia fetida, Eisenia andrei and Dendrobaena veneta. Bio-resour. Technol. 2017, 241, 103–112. [Google Scholar] [CrossRef]
  8. Ma, W.; Tang, Y.; Wu, P.; Xia, Y. Sewage sludge incineration ash for coimmobilization of lead, zinc and copper: Mechanisms of metal incorporation and competition. Waste Manage. 2019, 99, 102–111. [Google Scholar] [CrossRef]
  9. Sun, Y.; Chen, G.; Yan, B.; Cheng, Z.; Ma, W. Behaviour of mercury during Co-incineration of sewage sludge and municipal solid waste. J. Clean. Prod. 2020, 253. [Google Scholar] [CrossRef]
  10. Rezaee, F.; Danesh, S.; Tavakkolizadeh, M.; Khatami, M.M. Investigating chemical, physical and mechanical properties of eco-cement produced using dry sewage sludge and traditional raw materials. J. Clean. Prod. 2019, 214, 749–757. [Google Scholar] [CrossRef]
  11. Zhou, Y.F.; Li, J.S.; Lu, J.X.; Cheeseman, C.; Poon, C.S. Recycling incinerated sewage sludge ash (ISSA) as a cementitious binder by lime activation. J. Clean. Prod. 2020, 244. [Google Scholar] [CrossRef]
  12. Chakraborty, S.; Jo, B.W.; Jo, J.H.; Baloch, Z. Effectiveness of sewage sludge ash combined with waste pozzolanic minerals in developing sustainable construction material: An alternative approach for waste management. J. Clean. Prod. 2017, 153, 253–263. [Google Scholar] [CrossRef]
  13. Semerci, N.; Kunt, B.; Calli, B. Phosphorus recovery from sewage sludge ash with bioleaching and electrodialysis. Int. Biodeterior. Biodegrad. 2019, 144. [Google Scholar] [CrossRef]
  14. Wang, Q.; Li, J.S.; Poon, C.S. Using incinerated sewage sludge ash as a high-performance adsorbent for lead removal from aqueous solutions: Performances and mechanisms. Chemosphere 2019, 226, 587–596. [Google Scholar] [CrossRef]
  15. Wang, Q.; Li, J.S.; Poon, C.S. Recycling of incinerated sewage sludge ash as an adsorbent for heavy metals removal from aqueous solutions. J. Environ. Manag. 2019, 247, 509–517. [Google Scholar] [CrossRef]
  16. Tsai, C.K.; Doong, R.; Hung, H.Y. Sustainable valorization of mesoporous aluminosilicate composite from display panel glasses waste for adsorption of heavy metal ions. Sci. Total Environ. 2019, 673, 337–346. [Google Scholar] [CrossRef]
  17. Ma, J.; Liu, Y.; Ali, O.; Wei, Y.; Zhang, S.; Zhang, Y.; Cai, T.; Liu, C.; Luo, S. Fast adsorption of heavy metal ions by waste cotton fabrics based double network hydrogel and influencing factors insight. J. Hazard. Mater. 2018, 344, 1034–1042. [Google Scholar] [CrossRef]
  18. Wang, S.; Terdkiatburana, T.; Tadé, M.O. Single and co-adsorption of heavy metals and humic acid on fly ash. Sep. Purif. Technol. 2008, 58, 353–358. [Google Scholar] [CrossRef]
  19. Pan, S.C.; Lin, C.C.; Tseng, D.H. Reusing sewage sludge ash as adsorbent for copper removal from wastewater. Resour. Conserv. Recycl. 2003, 39, 79–90. [Google Scholar] [CrossRef]
  20. World Health Organization. Available online: https://www.who.int/ipcs/assessment/public_health/lead/en/ (accessed on 5 April 2020).
  21. Onundi, Y.B.; Mamun, A.A.; Al Khatib, M.F.; Ahmed, Y.M. Adsorption of copper, nickel and lead ions from synthetic semiconductor industrial wastewater by palm shell activated carbon. Int. J. Environ. Sci. Tech. 2010, 7, 751–758. [Google Scholar] [CrossRef] [Green Version]
  22. Militaru, B.A.; Pode, R.; Manea, F.; Linul, P.A. Simple and Combined Acidic Extraction of Phosphorus from Sewage Sludge Ash. Rev. Chim. 2019, 70, 133–139. [Google Scholar] [CrossRef]
  23. Nikolaychuk, P.A. The revised potential – pH diagram for Pb – H2O system. Ovidius Univ. Ann. Chem. 2018, 29, 55–67. [Google Scholar] [CrossRef] [Green Version]
  24. Escudero, R.G.; Espinoza Estrada, E.; Miranda, F. Precipitation of Lead Species in a Pb – H 2 O System. Res. J. Recent Sci. 2013, 2, 1–8. [Google Scholar]
  25. Abdullah, S.R.S.; Rahman, R.A.; Mohamad, A.B.; Mustafa, M.M.; Khadum, A.A.H. Removal of Mixed Heavy Metals by Hydroxide Precipitation. J. Kejuruteraan 1999, 11, 85–101. [Google Scholar]
  26. Huang, H.-H. The Eh-pH Diagram and Its Advances. Metals 2016, 6, 23. [Google Scholar] [CrossRef]
  27. Alghamdi, A.A.; Al-Odayni, A.B.; Saeed, W.S.; Al-Kahtani, A.; Alharthi, F.A.; Aouak, T. Efficient Adsorption of Lead (II) from Aqueous Phase Solutions Using Polypyrrole-Based Activated Carbon. Mater. 2020, 12, 12. [Google Scholar] [CrossRef] [Green Version]
  28. Abdel-Ghani, N.T.; Hefny, M.; El-Chaghaby, G.A.F. Removal of lead from aqueous solution using low cost abundantly available adsorbents. Int. J. Environ. Sci. Tech. 2007, 4, 67–73. [Google Scholar] [CrossRef] [Green Version]
  29. Gercel, O.; Gercel, H.F. Adsorption of lead (II) ions from aqueous solutions by activated carbon prepared from biomass plant material of Euphorbia rigida. Chem. Eng. J. 2007, 132, 289–297. [Google Scholar] [CrossRef]
  30. Benzaoui, T.; Selatnia, A.; Djabali, D. Adsorption of copper (II) ions from aqueous solution using bottom ash of expired drugs incineration. Adsorpt. Sci. Technol. 2018, 36, 114–129. [Google Scholar] [CrossRef]
  31. Aydın, H.; Bulut, Y.; Yerlikaya, C. Removal of copper (II) from aqueous solution by adsorption ontolow-cost adsorbents. J. Environ. Manag. 2008, 87, 37–45. [Google Scholar] [CrossRef]
  32. Dong, J.; Du, Y.; Duyu, R.; Shang, Y.; Zhang, S.; Han, R. Adsorption of copper ion from solution by polyethylenemine modified wheat straw. Bioresour. Technol. Rep. 2019, 6, 96–102. [Google Scholar] [CrossRef]
  33. Abdelkader, N.B.-H.; Bentouami, A.; Derriche, Z.; Bettahar, N.; de Ménorval, L.-C. Synthesis and characterization of Mg–Fe layer double hydroxides and its application on adsorption of Orange G from aqueous solution. Chem. Eng. J. 2011, 169, 231–238. [Google Scholar] [CrossRef]
  34. Ertugay, N.; Malkoc, E. Adsorption isotherm, kinetic, and thermodynamic studies for methylene blue from aqueous solution by needles of Pinus sylvestris L. Pol. J. Environ. Stud. 2014, 23, 1995–2006. [Google Scholar]
  35. Golban, A.; Lupa, L.; Cocheci, L.; Pode, R. Synthesis of MgFe Layered Double Hydroxide from Iron-Containing Acidic Residual Solution and Its Adsorption Performance. Crystals 2019, 9, 514. [Google Scholar] [CrossRef] [Green Version]
  36. Ouyang, D.; Zhuo, Y.; Hu, L.; Zeng, Q.; Hu, Y.; He, Z. Research on the Adsorption Behavior of Heavy Metal Ions by Porous Material Prepared with Silicate Tailings. Minerals 2019, 9, 291. [Google Scholar] [CrossRef] [Green Version]
  37. Chen, S.B.; Ma, Y.B.; Chen, L.; Xian, K. Adsorption of aqueous Cd2+, Pb2+, Cu2+ ions by nano-hydroxyapatite: Single- and multi-metal competitive adsorption study. Geochem. J. 2010, 44, 233–239. [Google Scholar] [CrossRef] [Green Version]
  38. Gupta, V.K.; Ali, I. Removal of Pb(II) and chromium from wastewater using bagasse fly ash-a sugar industry waste. J. Colloid Interface Sci. 2004, 271, 321–328. [Google Scholar] [CrossRef]
  39. Feng, Q.; Lin, Q.; Gong, F.; Sugita, S. Adsorption of Pb(II) and mercury by rice husk ash. J. Colloid Interface Sci. 2004, 278, 1–8. [Google Scholar] [CrossRef]
  40. Hequet, V.; Ricou, P.; Lecuyer, I.; Cloirec, P.L. Removal of Cu2+ and Zn2+ in aqueous solutions by sorption onto mixed fly ash. Fuel 2001, 80, 851–856. [Google Scholar] [CrossRef]
  41. Shukla, S.P.; Tiwari, E.M.; Singh, N.B.; Pandey, S.S. Removal of Lead and Copper from Textile Wastewater using Egg Shells. Iran. J. Energy Environ. 2018, 8, 202–209. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Figure 1. (a) XRD pattern of the sewage sludge ash (SSA) before adsorption: quartz, SiO2—COD ID: 01-075-6051, calcium phosphate, Ca2P2O7—COD ID: 00-045-1061, hematite, Fe2O3—COD ID: 01-076-4579; (b) SEM micrograph of the sewage sludge ash; (c) EDX spectra of the sewage sludge ash.
Figure 1. (a) XRD pattern of the sewage sludge ash (SSA) before adsorption: quartz, SiO2—COD ID: 01-075-6051, calcium phosphate, Ca2P2O7—COD ID: 00-045-1061, hematite, Fe2O3—COD ID: 01-076-4579; (b) SEM micrograph of the sewage sludge ash; (c) EDX spectra of the sewage sludge ash.
Molecules 25 02559 g001

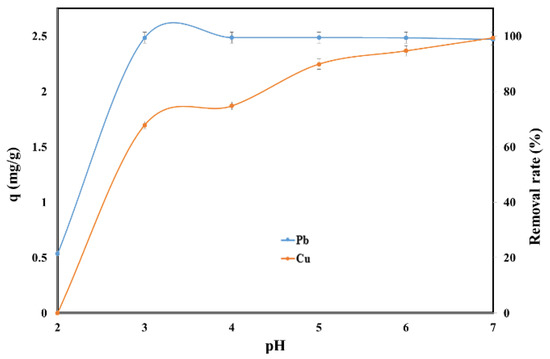

Figure 2. Effect of pH on the adsorption of Pb (II) and Cu (II) by SSA.
Figure 2. Effect of pH on the adsorption of Pb (II) and Cu (II) by SSA.
Molecules 25 02559 g002

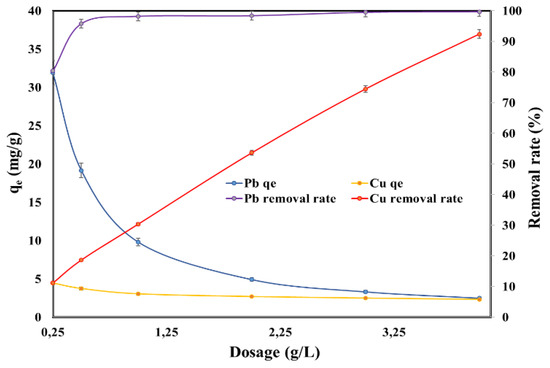

Figure 3. Effect of adsorbent dosage on the adsorption capacity and on the removal rate of Pb (II) and Cu (II).
Figure 3. Effect of adsorbent dosage on the adsorption capacity and on the removal rate of Pb (II) and Cu (II).
Molecules 25 02559 g003

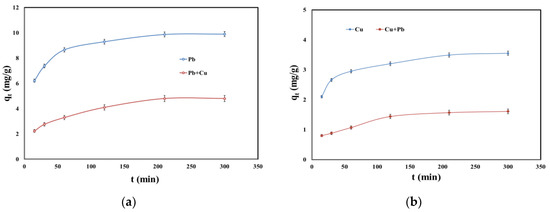

Figure 4. (a) Effect of contact time on the adsorption of Pb (II) and Pb (II) in the presence of Cu (II); (b) effect of contact time on the adsorption of Cu (II) and Cu (II) in the presence of Pb (II).
Figure 4. (a) Effect of contact time on the adsorption of Pb (II) and Pb (II) in the presence of Cu (II); (b) effect of contact time on the adsorption of Cu (II) and Cu (II) in the presence of Pb (II).
Molecules 25 02559 g004

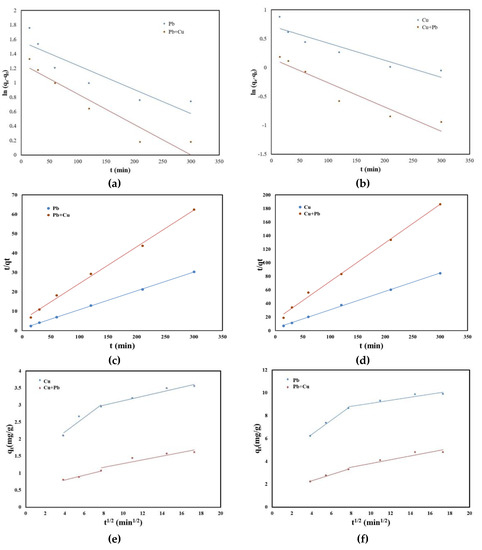

Figure 5. (a) Pseudo-first-order kinetic model of Pb (II) and Pb (II) in the presence of Cu (II) adsorption; (b) pseudo-first-order kinetic model of Cu (II) and Cu (II) in the presence of Pb (II) adsorption; (c) pseudo-second-order kinetic model of Pb (II) and Pb (II) in the presence of Cu (II) adsorption; (d) pseudo-second-order kinetic model of Cu (II) and Cu (II) in the presence of Pb (II) adsorption; (e) intraparticle diffusion model of Pb (II) and Pb (II) in the presence of Cu (II) adsorption; (f) intraparticle diffusion model of Cu (II) and Cu (II) in the presence of Pb (II) adsorption.
Figure 5. (a) Pseudo-first-order kinetic model of Pb (II) and Pb (II) in the presence of Cu (II) adsorption; (b) pseudo-first-order kinetic model of Cu (II) and Cu (II) in the presence of Pb (II) adsorption; (c) pseudo-second-order kinetic model of Pb (II) and Pb (II) in the presence of Cu (II) adsorption; (d) pseudo-second-order kinetic model of Cu (II) and Cu (II) in the presence of Pb (II) adsorption; (e) intraparticle diffusion model of Pb (II) and Pb (II) in the presence of Cu (II) adsorption; (f) intraparticle diffusion model of Cu (II) and Cu (II) in the presence of Pb (II) adsorption.
Molecules 25 02559 g005

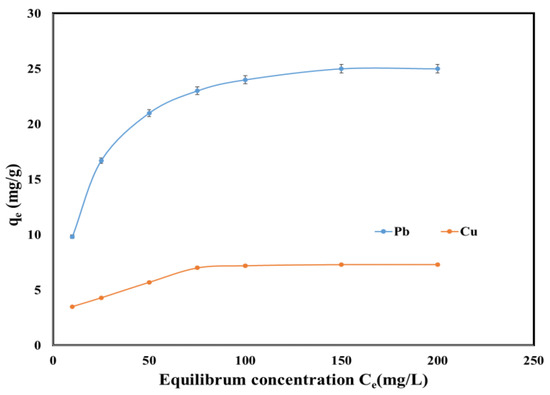

Figure 6. Equilibrium isotherm of Pb (II) and Cu (II) onto SSA.
Figure 6. Equilibrium isotherm of Pb (II) and Cu (II) onto SSA.
Molecules 25 02559 g006

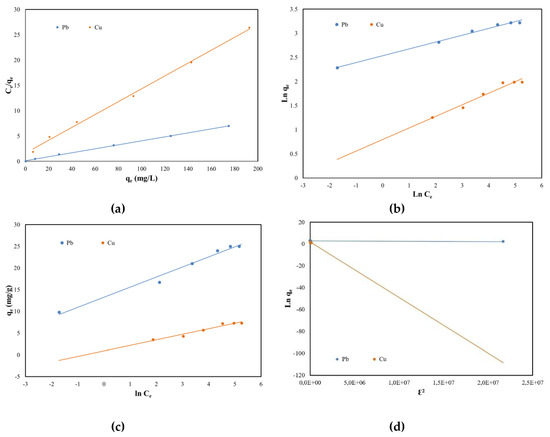

Figure 7. Equilibrium isotherms of Pb (II) and Cu (II) adsorption onto SSA: (a) Langmuir; (b) Freundlich; (c) Temkin and (d) Dubinin–Radushkevich.
Figure 7. Equilibrium isotherms of Pb (II) and Cu (II) adsorption onto SSA: (a) Langmuir; (b) Freundlich; (c) Temkin and (d) Dubinin–Radushkevich.
Molecules 25 02559 g007

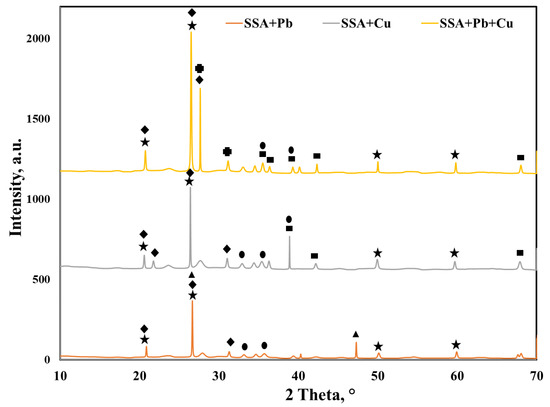

Figure 8. XRD patterns of the SSA after adsorption of heavy metal ions in single and binary systems: Molecules 25 02559 i001 quartz, SiO2—COD ID: 01-075-6051, Molecules 25 02559 i002 calcium phosphate, Ca2P2O7—COD ID: 00-045-1061, Molecules 25 02559 i003 hematite, Fe2O3—COD ID: 01-076-4579, Molecules 25 02559 i004 lead phosphate, Pb2P2O7—COD ID: 00-013-0273, Molecules 25 02559 i005 copper oxide, CuO—COD ID: 00-03-0884, Molecules 25 02559 i006 lead silicate, Pb2SiO4—COD ID: 00-037-0203.
Figure 8. XRD patterns of the SSA after adsorption of heavy metal ions in single and binary systems: Molecules 25 02559 i001 quartz, SiO2—COD ID: 01-075-6051, Molecules 25 02559 i002 calcium phosphate, Ca2P2O7—COD ID: 00-045-1061, Molecules 25 02559 i003 hematite, Fe2O3—COD ID: 01-076-4579, Molecules 25 02559 i004 lead phosphate, Pb2P2O7—COD ID: 00-013-0273, Molecules 25 02559 i005 copper oxide, CuO—COD ID: 00-03-0884, Molecules 25 02559 i006 lead silicate, Pb2SiO4—COD ID: 00-037-0203.
Molecules 25 02559 g008
Figure 9. SEM micrographs and EDX spectra of the (a) SSA after Pb (II) adsorption; (b) SSA after Cu (II) adsorption and (c) SSA after both Pb (II) and Cu (II) adsorption.
Figure 9. SEM micrographs and EDX spectra of the (a) SSA after Pb (II) adsorption; (b) SSA after Cu (II) adsorption and (c) SSA after both Pb (II) and Cu (II) adsorption.
Molecules 25 02559 g009

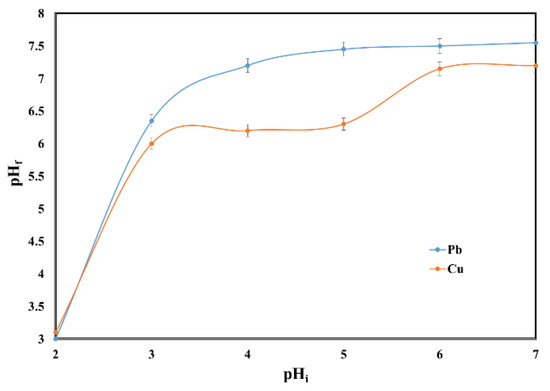

Figure 10. Effect of initial pH on the final pH.
Figure 10. Effect of initial pH on the final pH.
Molecules 25 02559 g010
Table 1. Physical properties of the sewage sludge ash.
Table 1. Physical properties of the sewage sludge ash.
ParametersValues
BET surface area (m2/g)7.24
Adsorption average pore diameter (nm)17.2
Pore volume (cm3/g)0.029
Table 2. Kinetic model parameters for Pb (II) and Cu (II) adsorption in single and binary systems.
Table 2. Kinetic model parameters for Pb (II) and Cu (II) adsorption in single and binary systems.
ModelParameterPbPb + CuCuCu + Pb
Pseudo-first-orderK1, min–10.0030.0040.0030.004
qe calc, mg/g4.813.552.051.17
qe exp, mg/g9.904.803.551.61
R20.8140.9160.8690.910
Pseudo-second-orderK2, min/(mg/g)0.0870.0070.0200.02
qe calc, mg/g10.35.273.691.76
qe exp, mg/g9.904.803.551.61
R20.9990.9970.9990.996
Intraparticle diffusionKint0.6280.2740.2130.071
R20.9950.9910.9240.983
Table 3. Equilibrium sorption isotherm parameters for Pb (II) and Cu (II) onto SSA.
Table 3. Equilibrium sorption isotherm parameters for Pb (II) and Cu (II) onto SSA.
Type of IsothermParameterPb (II)Cu (II)
LangmuirKL, L/mg0.2800.079
qLcalc, mg/g25.57.86
R20.9990.998
FreundlichKF, mg/g12.62.21
1/n0.1420.240
R20.9930.962
TemkinKT, L/g2992.06
bT, J/mol10661949
R20.9820.955
Dubinin–RadushkevichKad, mol2/kJ24 × 10−85 × 10−6
qs, mg/g22.16.36
R20.8250.658
Table 4. Adsorption capacity and concentrations of Ca, K and Mg of contacted solutions after sorption experiments.
Table 4. Adsorption capacity and concentrations of Ca, K and Mg of contacted solutions after sorption experiments.
MetalPbCuPbCuPbCu
Ce (mg/L) 1075150
qe (mg/g)9.633.50196.00257.30
Ca (mg/L)6.204.426.244.486.584.92
K (mg/L)0.5650.4700.7950.5200.8010.580
Mg(mg/L)0.7200.1900.7000.2200.7400.240
Table 5. Effect of pH on metal leaching.
Table 5. Effect of pH on metal leaching.
Initial pHZn (mg/L)Ni (mg/L)Co (mg/L)Mn (mg/L)Cr (mg/L)Al (mg/L)
7UDLUDL0.020.070.060.11
6UDLUDL0.020.080.060.11
5UDLUDL0.020.080.060.06
4UDLUDL0.030.090.060.07
30.18UDL0.020.270.060.1
20.98UDL0.013.410.0613.6
UDL = under detection limit.
Table 6. The comparison between the adsorption capacities of other wastes used as adsorbents for Pb (II) and Cu (II) removal.
Table 6. The comparison between the adsorption capacities of other wastes used as adsorbents for Pb (II) and Cu (II) removal.
Pb RemovalCu Removal
Adsorbentqe (mg/g)ReferencesAdsorbentqe (mg/g)References
SSA, Hong Kong, China62.4[14]SSA, Hong Kong, China7.62[15]
Fly ash2.5[38]SSA4.10[19]
Ash of rice husk10.86[39]Fly ash4.20[40]
Egg shells4.33[41]Egg shells3.54[41]
SSA, Timis County, Romania25.0Present paperSSA, Timis County, Romania7.50Present paper

Share and Cite

MDPI and ACS Style

Militaru, B.A.; Pode, R.; Lupa, L.; Schmidt, W.; Tekle-Röttering, A.; Kazamer, N. Using Sewage Sludge Ash as an Efficient Adsorbent for Pb (II) and Cu (II) in Single and Binary Systems. Molecules 2020, 25, 2559. https://doi.org/10.3390/molecules25112559

AMA Style

Militaru BA, Pode R, Lupa L, Schmidt W, Tekle-Röttering A, Kazamer N. Using Sewage Sludge Ash as an Efficient Adsorbent for Pb (II) and Cu (II) in Single and Binary Systems. Molecules. 2020; 25(11):2559. https://doi.org/10.3390/molecules25112559

Chicago/Turabian Style

Militaru, Bogdan Adrian, Rodica Pode, Lavinia Lupa, Winfried Schmidt, Agnes Tekle-Röttering, and Norbert Kazamer. 2020. "Using Sewage Sludge Ash as an Efficient Adsorbent for Pb (II) and Cu (II) in Single and Binary Systems" Molecules 25, no. 11: 2559. https://doi.org/10.3390/molecules25112559

Article Metrics

Back to TopTop
