Molecules 2019, 24(9), 1837; https://doi.org/10.3390/molecules24091837

Article
Calcium-Dependent Protein Kinase Genes in Glycyrrhiza Uralensis Appear to be Involved in Promoting the Biosynthesis of Glycyrrhizic Acid and Flavonoids under Salt Stress
1
Key Laboratory of Xinjiang Phytomedicine Resource and Utilization of Ministry of Education, College of Life Sciences, Shihezi University, Shihezi 832003, China
2
Ministry of Education Key Laboratory for Ecology of Tropical Islands, College of Life Sciences, Hainan Normal University, Haikou 571158, China
*
Correspondence: [email protected] (X.J.); [email protected] (H.L.); Tel.: +86-898-66961060 (X.J.); +86-993-2057388 (H.L.)
These authors contributed equally to this work.
Received: 11 April 2019 / Accepted: 5 May 2019 / Published: 13 May 2019

Abstract

:
As calcium signal sensors, calcium-dependent protein kinases (CPKs) play vital roles in stimulating the production of secondary metabolites to participate in plant development and response to environmental stress. However, investigations of the Glycyrrhiza uralensis CPK family genes and their multiple functions are rarely reported. In this study, a total of 23 GuCPK genes in G. uralensis were identified, and their phylogenetic relationships, evolutionary characteristics, gene structure, motif distribution, and promoter cis-acting elements were analyzed. Ten GuCPKs showed root-specific preferential expressions, and GuCPKs indicated different expression patterns under treatments of CaCl2 and NaCl. In addition, under 2.5 mM of CaCl2 and 30 mM of NaCl treatments, the diverse, induced expression of GuCPKs and significant accumulations of glycyrrhizic acid and flavonoids suggested the possible important function of GuCPKs in regulating the production of glycyrrhizic acid and flavonoids. Our results provide a genome-wide characterization of CPK family genes in G. uralensis, and serve as a foundation for understanding the potential function and regulatory mechanism of GuCPKs in promoting the biosynthesis of glycyrrhizic acid and flavonoids under salt stress.
Keywords:
Glycyrrhiza uralensis; calcium-dependent protein kinase; biosynthesis of glycyrrhizic acid and flavonoids; salt stress

1. Introduction

Plants have developed a series of transduction pathways to respond to various environmental stresses including salinity, light, water, temperature, and wounding [1,2,3]. Subsequent signal transduction are mediated by the second messengers in cellular and sub-cellular levels, such as enzymes, transcription factors, and cytoskeletal proteins that have evolved finally to be appropriate for physiological responses [4,5]. The calcium ion (Ca2+) is the ubiquitous second messenger that mediates stimuli-response coupling in the variety of physiological process and challenging environments [6,7]. Calcium-dependent protein kinases (CDPKs or CPKs) are important Ca2+ sensors [1,8,9], and contain four functional domains, including highly variable dual leucine-zipper kinase (DLK) motif (N-terminal domain) that consists of N-myristoylation and S-palmitoylation sites for sub-cellular localization, serine (Ser)/threonine (Thr) kinase catalytic domain for the direct modulation of downstream genes in Ca2+-mediated networks [10], the autoinhibitory junction domain as an autoinhibitor for CPK inactivation or activation through the Ca2+ signal [11,12,13], and the calmodulin-like domain for coordinating the Ca2+ [3,14]. Compared to the other Ca2+ sensors, CPKs contain two unique domains—the Ser/Thr kinase domain and effective factor (EF)-hand calmodulin-like domain—that endow their function to phosphorylate downstream genes [14].
CPKs are involved in the response to a broad variety of abiotic and biotic stresses. In Arabidopsis, AtCPK10 can interact with AtHSP1 to regulate Ca2+-mediated stomata movement in response to drought [1,15]. The mutants of AtCPK4 and AtCPK11 enhance the tolerance to salt and drought stresses [16]. The overexpression of AtCPK6 and AtCPK23 decreases the plant tolerance to salt and drought stresses [17,18]; AtCPK4, AtCPK11 [16,19], and AtCPK23 [17] mediate plant salt stress by controlling K+ channels. In Oryza sativa, transgenic plants overexpressing OsCPK7 or OsCPK13 have been proved as positive regulators of resistance to salt, cold, and drought stresses [1,20]; OsCPK21 responds to salt stress by increasing the expression of high salinity-inducible genes in transgenic Oryza [1,21]. Tobacco NtCPK2 interacts with mitogen-activated protein kinases (MAPKs) to regulate the resistant response to abiotic and biotic stresses [1,22]. Additionally, CPK gene family members have been shown to be involved in plant growth and development [23,24]. AtCPK17/34 controls the pollen tube tip elongation [11,23]. OsCPK9 has been found to positively regulate the pollen viability, thus increasing spikelet fertility in rice [25]. The overexpression of OsCPK2 strongly disrupts seed development at an early stage in transgenic rice [11,26].
Glycyrrhiza is an important medicinal plant, for its roots are used as the raw material to extract pharmacodynamic metabolites such as glycyrrhizic acid and flavonoids; it is mainly distributed in the northwest arid, semi-arid, and desert regions of China [27,28]. G. uralensis is the main species of Glycyrrhiza [29], which is also considered as an effective plant to reduce the salt content, promote organic substance, and improve the water retention ability of saline soils [28,30]. Furthermore, G. uralensis can be used as natural spice and food sweeteners in the food industry, and is an important medicinal product because of its abundant pharmacological activities and values [31,32]. In the extractions of G. uralensis roots, glycyrrhizic acid and flavonoids are the major medicinal substances for the therapy of disease [33]. Currently, the G. uralensis CPK gene family members and their potential function in the biosynthesis of glycyrrhizic acid and flavonoids are largely unknown. In this study, we performed a genome-wide investigation and expression profiling of the CPK gene family in G. uralensis. A total of 23 GuCPK genes were identified, and the comprehensive analysis of chromosomal location, phylogenetic relationship, gene structure, and motif distribution were obtained. Cis-element distribution and expression pattern analyses of tissue-specificity and the response to CaCl2 and NaCl suggested that GuCPKs have diverse functions. Particularly, expression analysis coupled with the determination of glycyrrhizic acid and flavonoids under treatments of 2.5 mM of CaCl2 and 30 mM of NaCl revealed that GuCPK may perform an important function in controlling the production of glycyrrhizic acid and flavonoids. These results provide systematic evolutionary and functional information on the GuCPK gene family, and establish the foundation for further understanding of the GuCPKs roles in promoting the biosynthesis of medicinal ingredients of glycyrrhizic acid and flavonoids.

2. Results

2.1. Identification of CPK Family Genes in G. uralensis

CPK protein sequences of Arabidopsis and Glycine max were provided as direct queries against the G. uralensis genome to perform BLASTP and hidden Markov Model (HMM) to identify the GuCPK gene family members. A total of 23 GuCPK genes were identified; hereinto, eight sequences of GuCPK2, GuCPK6, GuCPK9, GuCPK10, GuCPK13, GuCPK16, GuCPK17, and GuCPK22 showed spliced error as the incomplete assembly of the G. uralensis genome. According to the eight partial GuCPK seuqences, we designed gene-specific primers (Supplementary Table S1) to obtain the full-length open reading frame (ORF) by polymerase chain reaction (PCR). All the 23 GuCPK ORF sequences were provided in Supplementary Table S2. The GuCPK ORFs ranged from 1482 to 2097 bp, and the encoded proteins of amino acids (aas) were in the range of 493 to 698 aa with molecular weight (MW) from 55.77 to 78.45 kDa, and the isoelectric points (pI) were from 5.18 to 9.22, and of the subcellular location predictions to the plasma membrane (Supplementary Table S3). Multiple sequence alignment analysis indicated that all of the 23 GuCPKs had high conserved domains, including a DLK motif, an autoinhibitory domain, and four Ca2+-binding EF-hand motifs (Figure 1A), and a three-dimensional structure of these domains was performed to highlight the corresponding regions (Figure 1B). Our bioinformatic analysis revealed that 17 GuCPK proteins (the 23 GuCPKs except GuCPK8, GuCPK11, GuCPK13, GuCPK15, GuCPK18, and GuCPK20) harbored potential N-myristoylation sites, and 12 GuCPK proteins (GuCPK3, GuCPK4, GuCPK6, GuCPK7, GuCPK8, GuCPK10, GuCPK14, GuCPK16, GuCPK18, GuCPK21, GuCPK22, and GuCPK23) contained S-palmitoylation sites (Supplementary Table S3). For genomic location analysis, the 23 GuCPK genes were anchored onto 23 different scaffolds in the G. uralensis genome; four paralogous gene pairs (GuCPK1/GuCPK6, GuCPK4/GuCPK16, GuCPK8/GuCPK23, and GuCPK13/GuCPK15) were found to be segmentally duplicated (Figure 2).

2.2. Phylogenetic Relationship, Gene Structure, and Motif Distribution Analyses of GuCPK Genes

In order to investigate the phylogenetic relationships of GuCPK gene family members, a total of 96 CPK proteins from G. uralensis, Arabidopsis, and G. max were used to construct the phylogenetic tree, which indicated that the CPKs were clustered into four major groups (groups I–IV) (Figure 3). The GuCPK proteins had 12 conserved motifs distributing on different positions (Figure 4A). The exon/intron organization analysis indicated that the GuCPK members of different groups showed diverse gene structures (Figure 4B). This demonstrated that GuCPKs in the same group had highly conserved motif distributions and similar exon/intron structures.

2.3. Duplication Events and Syntenic Analyses of GuCPK Family Gene Members

To investigate the expansion of the CPK gene family in G. uralensis, syntenic analysis of G. uralensis, Arabidopsis, and G. max was performed using the Circos software to visualize the results. Four segmental duplication events were identified, and the paralogue gene pairs were defined as the syntenic genes (GuCPK1/GuCPK6, GuCPK4/GuCPK16, GuCPK8/GuCPK23, and GuCPK13/GuCPK15), while no tandem duplication events were discovered as the incomplete assembly of the G. uralensis genome (Figure 5). The Ka/Ks ratio was used to evaluate the selection pressure for the duplicated GuCPK paralogue gene pairs. The results of the Ka/Ks ratios of the duplicated GuCPKs indicated that they have undergone purifying selection (Table 1). Meanwhile, the evolutionary rates of these duplication pairs were assessed by calculating the Tajima relative rate. The results showed that GuCPK4/GuCPK16 and GuCPK13/GuCPK15 had prominently accelerated evolutionary rates (Table 2).

2.4. Analysis of Cis-Acting Elements in the Promoter Region of GuCPK Genes

To investigate the regulatory feature of GuCPK genes, the isolated 1.5-kb sequence upstream of the translational start site of the GuCPKs was selected to analyze the constitutions of cis-acting elements. Besides the core elements of the putative TATA box and CAAT box, the GuCPK promoters mainly showed the regulatory elements of phytohormone responsiveness and stress responsiveness (Figure 6, Supplementary Table S4). The promoters of GuCPK1, GuCPK13, GuCPK15, GuCPK17, GuCPK19, and GuCPK22 contained an ACGT-containing abscisic acid (ABA) response element (ABRE) involving in the ABA responsiveness, suggesting potential regulation in the ABA-signaling pathway. The ethylene-responsive element (ERE) was detected in the promoter regions of GuCPK3, GuCPK10, GuCPK13, GuCPK15, GuCPK16, and GuCPK19, indicating the function of these genes in the ethylene-signaling pathway. Additionally, the gibberellin (GA) responsive elements (GARE and P-box) were found in seven GuCPK promoters. One or two v-myb avian myeloblastosis viral oncogene homolog (MYB) binding sites involved in flavonoid biosynthetic gene regulation elements (MBSI) were present in more than half of GuCPK promoters, providing a potential regulation function of GuCPK genes in the flavonoid biosynthetic pathway. TC-rich elements that participated in defense and stress responsiveness were discovered in nine GuCPK promoters that were classified in Cluster I and Cluster II. Moreover, the elements of anaerobic induction (ARE) and low-temperature responsiveness (LTR) were also observed in five GuCPK promoters. Several light-responsive elements, including mineralocorticoid response element (MRE), I-box, G-box, Box-I, AE-box, and 3-AF1 were shown in nearly all GuCPK promoters. These results demonstrated that GuCPK genes might perform diverse functions to regulate plant development and respond to environmental stresses through their involvement in hormonal signal transduction.

2.5. Tissue-Specific Expression Pattern Analysis of GuCPKs

Tissue-specific expression patterns of GuCPKs in different G. uralensis tissues were performed by quantitative real-time polymerase chain reaction (qRT-PCR) (Figure 7), with the gene-specific primers listed in Supplementary Table S1. The results that were visualized by qRT-PCR based heatmap showed that GuCPKs exhibited diverse tissue-specific expression features. GuCPK16 and GuCPK8 displayed the most accumulated expressions in roots, and GuCPK1, GuCPK9, GuCPK5, and GuCPK10 indicated higher expression in roots than in leaves and stems, implying their potential important functions in root development and related physiological metabolic process. GuCPK14, GuCPK6, and GuCPK2 demonstrated increased expressions in leaves, suggesting their possible role in leaf developmental and physiological process. In terms of the expressions in stems, GuCPK17, GuCPK9, GuCPK15, GuCPK8, as well as GuCPK1 and GuCPK11 indicated specific or dominant expressions. GuCPK13, GuCPK12, GuCPK7, GuCPK6, and GuCPK2 were enriched in roots and leaves than in stems. GuCPK22, GuCPK3, GuCPK23, and GuCPK21 were preferentially expressed in leaves and stems than in roots (Figure 7). Furthermore, the expression patterns of the GuCPK duplicated paralogous gene pairs were analyzed. The four duplication pairs had diverse expression profiles in different tissues, suggesting the four paralogous gene pairs shared their potential functional divergence after duplication events.

2.6. Expression Profile of GuCPKs in Response to CaCl2 and NaCl Treatments

In the light of CPKs’ important roles in calcium signal transduction and in response to salt stress [34], in order to analyze the GuCPK expression profiles under CaCl2 and NaCl treatments, the relative expression levels of the 23 GuCPKs were detected and visualized by a qRT-PCR based heatmap using the materials treated by CaCl2 and NaCl with different concentrations. The results showed that almost all the GuCPKs demonstrated a prompt upregulation after 2.5 mM of CaCl2 treatment, except for GuCPK20, which showed a significant decrease expression under any concentration point of CaCl2 treatment. In addition, there were four (GuCPK21, GuCPK17, GuCPK22, and GuCPK14) and 10 GuCPKs (GuCPK12, GuCPK4, GuCPK11, GuCPK8, GuCPK10, GuCPK2, GuCPK19, GuCPK18, GuCPK23, and GuCPK3) that indicated significant accumulations after 2.5 mM and 20 mM of CaCl2 treatment, respectively. Three GuCPKs (GuCPK6, GuCPK20, and GuCPK16) displayed decreased expressions after the supplement of CaCl2 (Figure 8A). In terms of NaCl treatment, the expressions of the 23 GuCPKs demonstrated two typical clusters; one contained 14 GuCPKs that showed accumulated expressions after 15 mM or 30 mM of NaCl treatment, and another included the remaining GuCPKs (except GuCPK6) that indicated significant enrichments after 90 mM of NaCl stimulation (Figure 8B).

2.7. Correlation Analysis of GuCPKs Expression and Biosynthesis of Glycyrrhizic Acid and Flavonoids of G. Uralensis under CaCl2 and NaCl Treatments

Considering that the promotions of secondary metabolites by salt stress were observed, and that glycyrrhizic acid and flavonoids were the main medicinal ingredients in G. uralensis [31,32], therefore, the appropriate concentrations of CaCl2 and NaCl were chosen to treat the G. uralensis roots to investigate the correlation between GuCPK expression and the biosynthesis of glycyrrhizic acid and flavonoids. The GuCPKs exhibited predominant expressions and rapid responsiveness under treatments of 2.5 mM of CaCl2 and 30 mM of NaCl (Figure 8, Supplementary Figure S1). In addition, after the supplement of 30 mM of NaCl and different concentrations of CaCl2, the GuCPKs indicated distinct expression patterns, and the content of both the glycyrrhizic acid and flavonoids reached the peak value at the point of 2.5 mM of CaCl2 (Figure 9A,D). When 2.5 mM of CaCl2 was appended, after the addition of different concentrations of NaCl, the GuCPKs showed diverse expression features, and the content of both the glycyrrhizic acid and flavonoids accumulated the highest level at the concentration of 30 mM of NaCl (Figure 9B,E). Interestingly, by the application of the mixture of 2.5 mM of CaCl2 and 30 mM of NaCl, the GuCPKs displayed an obvious expression pattern with the 12 GuCPKs that exhibited significant increased expression. Meanwhile, the content of glycyrrhizic acid and flavonoids were also measured to be the maximum value (Figure 9 C,F). These results suggest that there may exist a close link between the significant accumulation of GuCPKs and the promoted production of glycyrrhizic acid and flavonoids under salt stress.

3. Discussion

CPK gene family members play important roles in many aspects of plant development and particularly in the involvement of stress-induced secondary metabolite production [8], and have been systematically investigated in some plants, including 34 members of Arabidopsis, 39 members of G. max, 31 members of O. sativa, 40 members of Z. mays, and 30 members of H. brasiliensis [3,24,35,36]. In this study, through a genome-wide analysis, we identified 23 GuCPK gene family members that were anchored onto different scaffolds of the G. uralensis genome (Supplementary Table S3, Figure 2). Due to the limitation of the G. uralensis genome that leads to eight incomplete sequences of GuCPKs, we obtained the full-length ORF of the eight GuCPKs by PCR-based sequence amplifying (Supplementary Table S2, Figure 1).
Plant CPKs share typical domains, which endow the CPK enzymatic activity to phosphorylate the substrate and accordingly to transduce the cellular calcium signal [12]. GuCPKs have the similar conserved domains that contain the DLK motif, autoinhibitory domain, and Ca2+-binding EF-hand motifs (Figure 1). The DLK motif is highly variable and includes N-myristoylation and S-palmitoylation sites for sub-cellular localization [19,28]; 21 AtCPKs have two of those sites that decide their localization on the plasma membrane in Arabidopsis [19,37]. ZmCPK1 had a N-myristoylation site and was predominately localized to the cytoplasm and nucleus [38]. A total of 17 and 12 of the GuCPK proteins contained potential N-myristoylation and S-palmitoylation sites, respectively. The prediction of the subcellular distribution of the 23 GuCPK proteins are localized to the plasma membrane (Supplementary Table S3), indicating that the N-myristoylation and S-palmitoylation sites of GuCPK might be functional in membrane targeting and the stability of GuCPK proteins. The number and position of EF-hands had critical roles in activating the CPK by Ca2+-binding affinities [39,40]. All the GuCPKs contained four EF-hands, which were also found in Arabidopsis, rice, and maize, allowing the CPK proteins as a Ca2+ sensor to fulfill the potentially similar biological functions [11].
The expansion and divergence of the CPK gene family could be estimated by the conservation and diversity of the gene structure [19]. GuCPKs were clustered into four major groups (Figure 3). Group IV expanded the first from the evolutionary branch, suggesting that it has the longest evolutionary history [41]. Group I and Group II originated from Group III in the evolutionary history. All the GuCPKs have similar motif distributions, and the GuCPK members in the same or different group have similar or distinct gene structures (Figure 4). Gene family expansion has two main mechanisms: segmental and tandem duplications [24,42]. In this study, no tandem duplication was discovered that contributed to the expansion of the G. uralensis CPK family (Figure 5), which may be caused by the incomplete assembly of the G. uralensis genome. The Ka/Ks ratios of the four duplicated GuCPK paralogue gene pairs (Table 1) indicated a functional constraint with purifying selection on the GuCPK genes [38,43]. Four segmental duplications were identified in the G. uralensis genome. These four duplicated gene pairs shared similar motif distributions (Figure 4), while it is observed that the two GuCPK genes of the same gene pair have different gene structures and diverse cis-acting element constitutions (GuCPK8/GuCPK23 and GuCPK13/GuCPK15) (Figure 4 and Figure 6), suggesting that the potential functional similarity or divergence of the four duplicated gene pairs may occur after duplication events, showing the consistence with the results in H. brasiliensis [3].
Commonly, the similarity of the sequences of CPK family gene members might decide their phylogenetic classifications and possible identical functions. In this study, AtCPK4 and AtCPK11, together with GuCPK11, GuCPK13, and GuCPK15, were classified into Group Ι (Figure 3) with a showing of highly sequence similarity, which have been proven to be involved in the response to abiotic stresses of salt and drought [16], ABA signal transduction, and ROS response [11]. The duplicated gene pair GuCPK13 and GuCPK15 showed similar expression patterns under different treatments (Figure 8 and Figure 9), implying their likely same functions in response to environmental stress. The duplicated gene pair of GuCPK1/GuCPK6 exhibited higher similarity with AtCPK23 that was an opposite regulator in abiotic stresses [18,44] and indicated the ABA sensitivity [45]. GuCPK7, the only G. uralensis CPK member in Group IV, indicated significant accumulation after the stimulation of the mixture of 2.5 mM of CaCl2 and 30 mM of NaCl (Figure 8 and Figure 9), and shared high identity with AtCPK28 that was a negative regulator of Ca2+ burst [45].
CPKs perform important roles as calcium sensors to participate in hormone signaling [46]. In Arabidopsis, AtCPK4 and AtCPK11 phosphorylate two ABA-responsive transcription factors of ABF1 and ABF4 to positively influence the ABA-reduced seed germination, stomatal movement, and seedling growth [16]; AtCPK32 can directly phosphorylate ABF4 in vitro, and the overexpression of AtCPK32 can enhance ABA sensitivity and the expression of ABF4-regulated genes in transgenic Arabidopsis [37]. AtCPK10 plays an essential role in the ABA-mediated and Ca2+-mediated regulation of stomatal closure [47]. OsCPK1 has been found as a GA biosynthesis negative regulator that refines the endogenous GA concentration and reduces drought stress injury in rice [48]. Tomato LeCPK2 controls the ethylene production to modulate the wounding signaling by phosphorylating LeACS2 [11,49]. The expressions of HbCPKs in H. brasiliensis were significantly induced by ethylene stimulation [3]. The promoter regions of G. uralensis GuCPKs contained many hormone responsiveness elements of ABA, ethylene, and GA (Figure 6, Supplementary Table S4), which provides the possibility that the GuCPKs expressions are under the control of these phytohormones.
Plant CPKs have demonstrated the critical roles in response to abiotic stresses [45]. The expressions of CPK genes are reported to indicate tissue-specific features that are involved in plant organ development and secondary metabolite generation, and are regulated by various environmental stimuli. Studies have shown that ZmCPK37 is specifically expressed in root, and the transcript level increased under salt treatment in Z. mays [24]. HbCPK12 and HbCPK28 were involved in rubber latex production upon ethylene stimulation in H. brasiliensis [3]. In this study, GuCPKs exhibited rapid upregulation to the stimulations of CaCl2 and NaCl, or both, with the most significant enriched expressions after the co-supplementation of 2.5 mM of CaCl2 and 30 mM of NaCl (Figure 8 and Figure 9, Supplementary Figure S1), showing similar CPK expression patterns under the treatment of salt stress in S. lycopersicum [15], which supports the notion that GuCPKs are central regulators in the responsiveness of the early stage of salt stress.
Generally, wild G. uralensis is a salt-tolerant medicinal legume, which can be utilized for the bioremediation of salt-affected soils [50]. The salt tolerance of G. uralensis is increased by the plant growth-promoting rhizobacteria to improve shoot nitrogen content [51]. It is also reported that moderate salt stimulation promotes the production of secondary metabolites such as rographolide, deoxyandrographolide, dehydroandrographolide, and total lactones in Andrographis paniculata, and essential oil in Salvia sclarea [52,53]. The contents of glycyrrhizic acid and flavonoids were significantly promoted after appropriate stimulations of 2.5 mM of CaCl2 and 30 mM of NaCl, and reached the peak value by supplementation of the mixture of 2.5 mM of CaCl2 and 30 mM of NaCl (Figure 9), suggesting that moderate environmental stress may be a positive regulator to produce glycyrrhizic acid and flavonoids. Glycyrrhizic acid can act as the scavenger to eliminate the reactive oxygen species (ROS)-induced generation of free radicals under salt and drought stresses [54,55,56]. The production of glycyrrhizic acid and liquiritin were increased significantly in G. uralensis roots under drought stress [57]. On the basis of the above, and given that the significant specific accumulation in roots and the prompt induced expression of GuCPKs under salt stress, it can be inferred that there may be a close correlation between the upregulated expression of GuCPKs and the biosynthesis of glycyrrhizic acid and flavonoids in G. uralensis under salt stress.

4. Materials and Methods

4.1. Genome-Wide Identification of GuCPK Family Genes

Arabidopsis and G. max CPK protein sequences were used to query the G. uralensis genome using BLASTP [25]. All the putative GuCPK candidates were manually verified with the InterProScan program (http://www.ebi.ac.uk/interpro/) to assess the presence of the protein kinase domain (PF00069) and EF-hand_7 domain (PF13499). A careful manual review of these sequences was carried out to amend the underlying mistake of the G. uralensis genome database. A total of eight GuCPKsGuCPK2, GuCPK6, GuCPK9, GuCPK10, GuCPK13, GuCPK16, GuCPK17, and GuCPK22—were misaligned sequences. The misaligned sequences and deleted loci were mainly verified. The full-length primers were designed and used to obtain the correct sequence by PCR assay.

4.2. Analyses of Phylogenetic Relationship and Gene Structural Organization

GuCPKs were mapped to different scaffolds by identifying the genomic location on the basis of the G. uralensis genome database. The amino acid sequences of CPKs in G. uralensis, Arabidopsis, and G. max were used to build a phylogenetic tree according to the neighbor-joining method with 1000 bootstrap tests using the MEGA5.0 program (Hachioji, Tokyo, Japan). Multiple sequence alignments were conducted using Clustal X2.0 (Belfield, Dublin, Ireland). The conserved motif analysis of GuCPK was performed by Multiple Em for Motif Elicitation (MEME) online software (http://meme-suite.org/tools/meme). The relative molecular weight and pI of GuCPKs were predicted by the ExPASy server (http://expasy.org/). The sub-cellular location of GuCPKs was predicted by Softberry (http://linux1.softberry.com/berry.phtml). The N-myristoylation and S-palmitoylation sites of GuCPK were predicted by an updated software, CSS-Palm 2.0 [58].
Gene structure was carried out using the Gene structure display server (GSDS) server (http://gsds.cbi.pku.edu.cn/) by alignment of the ORF against GmCPK genomic sequences. Paralogues was acquired under multiple sequence alignment >70%. Ka and Ks values were calculated by DnaSP 5.0 software (Barcelona, Catalonia, Spain). The Ka/Ks ratios were used to assess the selection pressure; the ratio >1, =1, or <1 indicates positive, neutral, or negative selection, respectively [59]. The amino acid sequences of the duplicated GuCPK pairs were used to analyze the Tajima relative rate tests by MEGA 5.0 [60]. The syntenic relationships of paralogues and/or orthologues among G. uralensis, Arabidopsis, and G. max were identified using the Circos program.

4.3. Cis-Element Analysis in GuCPK Promoter Regions

The 1.5-kb sequence of the genomic sequence upstream to the start codon of each GuCPK was obtained; the cis-element distribution in GuCPK promoter regions was analyzed by the online tool PlantCARE server [61].

4.4. Plant Materials and Salt Treatment

Wild G. uralensis was used as the experimental material. The full granule seeds were treated with 98% concentrated sulfuric acid for 25 min to break the seed dormancy, with a subsequent rinse three times by sterilized distilled water and disinfection by 0.1% of HgCl for 10 min. The sterilized seeds were germinated on vermiculite culture in an automatic climate chamber (200 μmol m−2·s−1 light intensity, 16 h light/8 h dark photoperiod, 50–55% relative humidity, and 28 °C/25 °C day/night culture temperature). Roots, stems, and leaves were collected from 45-day-old G. uralensis seedlings. The 42-day-old G. uralensis seedlings were cultured for three days by hydroponics, and then were treated under different concentrations of salt stress.
Seedlings were removed out and subjected to the liquid mediums containing 0 mM, 15 mM, 30 mM, 45 mM, and 90 mM of NaCl, 0 mM, 2.5 mM, 5 mM, 10 mM, and 20 mM CaCl2, or different concentration combinations of NaCl and CaCl2, respectively. The culture medium was replaced every three days, and the root materials were collected after seven days of continuous stress. All the materials were frozen in liquid nitrogen immediately after collection and stored at −80 °C for further use. There were three independent replicates in each treatment, and 15 seedlings in each group.

4.5. Determination of Glycyrrhizic Acid and Flavonoids

G. uralensis root materials were washed three times with deionized water after seven days of stress treatment, and then were quickly put into an oven at 105 °C for 15 min, with subsequent baking at 70 °C to constant weight. The dried G. uralensis roots were ground into powder. An approximately 50-mg sample was extracted with supplementation of 2.5 mL of extraction solution (methanol: water: 36% glacial acetic acid = 71:28:1) in an ultrasonic crusher for 30 min. The sample mixture was filtered through a filter paper. The extraction procedure was repeated two times, and all the filtered extract solutions were collected and placed into a 10-mL centrifugal tube.
Accurate 3-mg standard monoammonium glycyrrhizinate (MAG) salt was dissolved in 3 mL of methanol to prepare the 1 mg/mL standard storage solution. Volumes of 25 μL, 50 μL, 100 μL, and 200 μL of MAG standard solution were added to 1 mL of extraction solution (methanol: water: 36% glacial acetic acid = 71:28:1), respectively. The peak time and area were determined by high-performance liquid chromatography (HPLC) (Agilent, Santa Clara, CA, USA) at 254 nM to produce the standard curve (Supplementary Figure S2). The glycyrrhizic acid content was carried out at 254 nM with the procedure of 5 μL of injection volume, 1 mL/min flow rate, and a 30 °C column temperature.
An accurate 3-mg standard Naringin was dissolved in 3 mL of chromatographic methanol to obtain the 1 mg/mL standard solution. Volumes of 100 μL, 200 μL, 400 μL, and 800 μL of Naringin standard solution were added to 1 mL of methanol and 0.5 mL of 10% KOH, respectively, and were then diluted with methanol to 10 mL with placement at room temperature for 5 min. The peak time and area were determined by HPLC at 416 nM to prepare the standard curve (Supplementary Figure S2). The 200-μL extract solution from different groups were pipetted into a 96-well plate to measure the total flavonoids at 416 nM.

4.6. Analysis the Expression Pattern of GuCPKs

The total RNA isolated from different G.uralensis tissues using a RNAprep pure plant kit (TIANGEN, Beijing, China) was used as a template to synthetize cDNA that was utilized for RT- and qRT-PCR analyses, with the specific primers designed based on the sequences of the 23 GuCPKs genes (Supplementary Table S1). GuActin (Accession no. GQ404511) was used as internal control. qRT-PCR was performed using 10-fold diluted cDNA and SruperReal PreMix Plus (SYBR Green) (TIANGEN, Beijing, China) on the 96-well plates in a LightCycler® 480 Real-Time PCR System (Roche Diagnostics International, Rotkreuz, Switzerland). The Log102-ΔΔCt method was used for data processing, and the horizontal clustering of heat maps was analyzed by R language.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1420-3049/24/9/1837/s1. Figure S1: Expression profiles of the 23 GuCPK genes in G. uralensis roots under CaCl2 and NaCl stimulations. Figure S2: Standard curves of glycyrrhizic acid and flavonoids determinations. Table S1: Primers used in this work. Table S2: Sequences of nucleic acid and protein of the 23 GuCPK genes. Table S3: Detailed information of GuCPKs. Table S4: Putative cis-acting elements in promoter regions of GuCPK genes.

Author Contributions

Conceptualization, X.J. and H.L.; methodology, H.L.; software, X.T.; validation, X.T. and A.C.; investigation, F.W., X.C., S.X. and H.S; resources, H.L.; data curation, X.T., A.C. and F.W.; writing—original draft preparation, A.C. and X.T.; writing—review and editing, H.L. and X.J.; visualization, X.T., A.C. and F.W.; supervision, H.L.; project administration, X.J. and H.L.; funding acquisition, H.L.

Funding

This work was supported by Scientific and Technological Achievement Transformation Project of Bingtuan (Grant number 2018AB012, 2016AC017) and grant of National Natural Science Foundation of China (Grant number 31660408).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

aaAmino acid
ABAAbscisic acid
ABREABA-responsive element
AREAnaerobic induction
CPKCalcium-dependent protein kinases
DLKDual leucine-zipper kinase
EFEffective factor
ERFEthylene-responsive element
GAGibberellin
GAREGibberellin response element
GSDSGene structure display server
HMMHidden Markov model
HPLCHigh-performance liquid chromatography
LTRLow-temperature responsiveness
MAGMonoammonium glycyrrhizinate
MBSIMYB binding site involving in flavonoid biosynthetic gene regulation
MEMEMultiple expectation-maximization (Em) for motif elicitation
MREMineralocorticoid response element
MYBv-myb avian myeloblastosis viral oncogene homolog
MWMolecular weight
ORFOpen reading frame
pIIsoelectric point
SerSerine
ThrThreonine

References

  1. Xiao, X.H.; Yang, M.; Sui, J.L.; Qi, J.Y.; Fang, Y.J.; Hu, S.N.; Tang, C.R. The calcium-dependent protein kinase (CDPK) and CDPK-related kinase gene families inHevea brasiliensis-comparison with five other plant species in structure, evolution, and expression. FEBS Open Bio 2017, 7, 4–24. [Google Scholar] [CrossRef] [PubMed]
  2. Xiong, L.; Schumaker, K.S.; Zhu, J.K. Cell Signaling during Cold, Drought, and Salt Stress. Plant Cell 2002, 14, 165–183. [Google Scholar] [CrossRef]
  3. Zhu, L.P.; Jin, X.; Xie, Q.L.; Yao, Q.; Wang, X.C.; Li, H.B. Calcium-Dependent Protein Kinase Family Genes Involved in Ethylene-Induced Natural Rubber Production in Different Hevea brasiliensis Cultivars. Int. J. Mol. Sci. 2018, 19, 947. [Google Scholar] [CrossRef]
  4. Mohanta, T.K.; Occhipinti, A.; Atsbaha Zebelo, S.; Foti, M.; Fliegmann, J.; Bossi, S.; Maffei, M.E.; Bertea, C.M. Ginkgo biloba Responds to Herbivory by Activating Early Signaling and Direct Defenses. PLoS ONE 2012, 7, e32822. [Google Scholar] [CrossRef]
  5. Monaghan, J.; Matschi, S.; Romeis, T.; Zipfel, C. The calcium-dependent protein kinase CPK28 negatively regulates the BIK1-mediated PAMP-induced calcium burst. Plant Signal. Behav. 2015, 10, 605–615. [Google Scholar] [CrossRef]
  6. Sanders, D.; Brownlee, C.; Harper, J.F. Communicating with calcium. Plant Cell 1999, 11, 691–706. [Google Scholar] [CrossRef]
  7. Kudla, J.; Oliver, B.; Kenji, H. Calcium signals: The lead currency of plant information processing. Plant Cell 2010, 22, 541–563. [Google Scholar] [CrossRef]
  8. Zhang, H.; Liu, W.Z.; Zhang, Y.; Deng, M.; Niu, F.; Yang, B.; Wang, X.; Wang, B.; Liang, W.; Deyholos, M.K.; et al. Identification, expression and interaction analyses of calcium-dependent protein kinase (CPK) genes in canola (Brassica napus L.). BMC Genom. 2014, 15, 211–229. [Google Scholar] [CrossRef] [PubMed]
  9. Pandey, G.K. Emergence of a novel calcium signaling pathway in plants: CBL-CIPK signaling network. Physiol. Mol. Biol. Plants 2008, 14, 51–70. [Google Scholar] [CrossRef]
  10. McCormack, E.; Tsai, Y.C.; Braam, J. Handling calcium signaling: Arabidopsis CaMs and CMLs. Trends Plant Sci. 2005, 10, 383–389. [Google Scholar] [CrossRef] [PubMed]
  11. Hu, Z.; Lv, X.; Xia, X.; Zhou, J.; Shi, K.; Yu, J.; Zhou, Y. Genome-Wide Identification and Expression Analysis of Calcium-dependent Protein Kinase in Tomato. Front. Plant Sci. 2016, 7, e80818. [Google Scholar] [CrossRef]
  12. Mohanta, T.K.; Mohanta, N.; Mohanta, Y.K.; Bae, H. Genome-Wide Identification of Calcium Dependent Protein Kinase Gene Family in Plant Lineage Shows Presence of Novel D-x-D and D-E-L Motifs in EF-Hand Domain. Front. Plant Sci. 2015, 6, 1146–1161. [Google Scholar] [CrossRef]
  13. Maria, K.; Grazyna, M. Structure and functions of plant calcium-dependent protein kinases. Acta Biochim. Pol. 2007, 54, 219–233. [Google Scholar]
  14. Harmon, A.C.; Gribskov, M.; Harper, J.F. CDPKs—A kinase for every Ca2+ signal? Trends Plant Sci. 2000, 5, 154–159. [Google Scholar] [CrossRef]
  15. Hu, W.; Hou, X.; Xia, Z.; Yan, Y.; Wei, Y.; Wang, L.; Zou, M.; Lu, C.; Wang, W.; Peng, M. Genome-wide survey and expression analysis of the calcium-dependent protein kinase gene family in cassava. Mol. Genet. 2016, 291, 241–253. [Google Scholar] [CrossRef]
  16. Zhu, S.Y.; Yu, X.C.; Wang, X.J.; Zhao, R.; Li, Y.; Fan, R.C.; Shang, Y.; Du, S.Y.; Wang, X.F.; Wu, F.Q.; et al. Two calcium-dependent protein kinases, CPK4 and CPK11, regulate abscisic acid signal transduction in Arabidopsis. Plant Cell 2007, 19, 3019–3036. [Google Scholar] [CrossRef]
  17. Ma, S.Y.; Wu, W.H. AtCPK23 functions in Arabidopsis responses to drought and salt stresses. Plant Mol. Biol. 2007, 65, 511–518. [Google Scholar] [CrossRef]
  18. Franz, S.; Ehlert, B.; Liese, A.; Kurth, J.; Cazalé, A.C.; Romeis, T. Calcium-Dependent Protein Kinase CPK21 Functions in Abiotic Stress Response in Arabidopsis thaliana. Mol. Plant 2011, 4, 83–96. [Google Scholar] [CrossRef]
  19. Zhang, K.; Han, Y.T.; Zhao, F.L.; Hu, Y.; Gao, Y.R.; Ma, Y.F.; Zheng, Y.; Wang, Y.J.; Wen, Y.Q. Genome-wide Identification and Expression Analysis of the CDPK Gene Family in Grape, Vitis spp. BMC Plant Biol. 2015, 15, 164–183. [Google Scholar] [CrossRef]
  20. Saijo, Y.; Hata, S.; Kyozuka, J.; Shimamoto, K.; Izui, K. Over-expression of a single Ca2+-dependent protein kinase confers both cold and salt/drought tolerance on rice plants. Plant J. 2010, 23, 319–327. [Google Scholar] [CrossRef]
  21. Asano, T.; Hakata, M.; Nakamura, H.; Aoki, N.; Komatsu, S.; Ichikawa, H.; Hirochika, H.; Ohsugi, R. Functional characterisation of OsCPK21, a calcium-dependent protein kinase that confers salt tolerance in rice. Plant Mol. Biol. 2011, 75, 179–191. [Google Scholar] [CrossRef]
  22. Romeis, T.; Ludwig, A.A.; Martin, R.; Jones, J.D. Calcium-dependent protein kinases play an essential role in a plant defence response. EMBO J. 2014, 20, 5556–5567. [Google Scholar] [CrossRef]
  23. Candace, M.; Romanowsky, S.M.; Barron, Y.D.; Shilpi, G.; Azuse, C.L.; Amy, C.; Davis, R.M.; Jasmine, H.; Harmon, A.C.; Harper, J.F. Calcium-dependent protein kinases regulate polarized tip growth in pollen tubes. Plant J. Cell Mol. Biol. 2010, 59, 528–539. [Google Scholar]
  24. Kong, X.; Lv, W.; Jiang, S.; Zhang, D.; Cai, G.; Pan, J.; Li, D. Genome-wide identification and expression analysis of calcium-dependent protein kinase in maize. BMC Genom. 2013, 14, 433. [Google Scholar] [CrossRef]
  25. Wei, S.; Wei, H.; Deng, X.; Zhang, Y.; Liu, X.; Zhao, X.; Luo, Q.; Jin, Z.; Yin, L.; Zhou, S. A rice calcium-dependent protein kinase OsCPK9 positively regulates drought stress tolerance and spikelet fertility. BMC Plant Biol. 2014, 14, 133–146. [Google Scholar] [CrossRef]
  26. Morello, L.; Frattini, M.; Gianì, S.; Christou, P.; Breviario, D. Overexpression of the calcium-dependent protein kinase OsCDPK2 in transgenic rice is repressed by light in leaves and disrupts seed development. Transgenic Res. 2000, 9, 453–462. [Google Scholar] [CrossRef]
  27. Salme, T.; Viiu, P.; Tomas, P.; Jonas, B.; Ameraswar, V.; Triin, D.; Eviatar, N. Bacterial distribution in the rhizosphere of wild barley under contrasting microclimates. PLoS ONE 2011, 6, e17968. [Google Scholar]
  28. Barea, J.M.; Pozo, M.J.; Azcón, R.; Azcón-Aguilar, C. Microbial co-operation in the rhizosphere. J. Exp. Bot. 2005, 56, 1761–1778. [Google Scholar] [CrossRef][Green Version]
  29. Rizzato, G.; Scalabrin, E.; Radaelli, M.; Capodaglio, G.; Piccolo, O. A new exploration of licorice metabolome. Food Chem. 2017, 221, 959–968. [Google Scholar] [CrossRef]
  30. Rakesh, S.U.; Patil, P.R.; Mane, S.R. Use of natural antioxidants to scavenge free radicals: A major cause of diseases. Int J. Pharmtech Res. 2010, 2, 1074–1081. [Google Scholar]
  31. Liu, J.; Wu, L.; Wei, S.; Xiang, X.; Su, C.; Peng, J.; Song, Z.; Tao, W.; Yu, Z. Effects of arbuscular mycorrhizal fungi on the growth, nutrient uptake and glycyrrhizin production of licorice (Glycyrrhiza uralensis Fisch). Plant Growth Regul. 2007, 52, 29–39. [Google Scholar] [CrossRef]
  32. Shibata, S. A drug over the millennia: Pharmacognosy, chemistry, and pharmacology of licorice. Yakugaku Zasshi 2010, 32, 849–862. [Google Scholar] [CrossRef]
  33. Yang, R.; Li, W.; Yuan, B.; Ren, G.; Liu, Y. The genetic and chemical diversity in three original plants of licorice, Glycyrriza uralensis Fisch. Glycyrrhiza inflata Bat. and Glycyrrhiza glabra L. Pak. J. Pharm. Sci. 2018, 31, 525–535. [Google Scholar]
  34. Cheng, S.H.; Willmann, M.R.; Chen, H.C.; Sheen, J. Calcium signaling through protein kinases. The Arabidopsis calcium-dependent protein kinase gene family. Plant Physiol. 2002, 129, 469–485. [Google Scholar] [CrossRef]
  35. Liu, H.; Che, Z.; Zeng, X.; Zhou, X.; Sitoe, H.M.; Wang, H.; Yu, D. Genome-wide analysis of calcium-dependent protein kinases and their expression patterns in response to herbivore and wounding stresses in soybean. Funct. Integr. Genom. 2016, 16, 1–13. [Google Scholar] [CrossRef]
  36. Ray, S.; Agarwal, P.; Arora, R.; Kapoor, S.; Tyagi, A.K. Expression analysis of calcium-dependent protein kinase gene family during reproductive development and abiotic stress conditions in rice (Oryza sativa L. ssp. indica). Mol. Gene Genom. 2007, 278, 493–505. [Google Scholar] [CrossRef]
  37. Choi, H.I.; Park, H.J.; Park, J.H.; Kim, S.; Im, M.Y.; Seo, H.H.; Kim, Y.W.; Hwang, I.; Kim, S.Y. Arabidopsis calcium-dependent protein kinase AtCPK32 interacts with ABF4, a transcriptional regulator of abscisic acid-responsive gene expression, and modulates its activity. Plant Physiol. 2005, 139, 1750–1761. [Google Scholar] [CrossRef]
  38. Wang, C.T.; Shao, J.M. Characterization of the ZmCK1 Gene Encoding a Calcium-Dependent Protein Kinase Responsive to Multiple Abiotic Stresses in Maize. Plant Mol. Biol. Report. 2013, 31, 222–230. [Google Scholar] [CrossRef]
  39. Xu, X.; Liu, M.; Lu, L.; He, M.; Qu, W.; Xu, Q.; Qi, X.; Chen, X. Genome-wide analysis and expression of the calcium-dependent protein kinase gene family in cucumber. Mol. Gene Genom. 2015, 290, 1403–1414. [Google Scholar] [CrossRef]
  40. Ma, P.; Liu, J.; Yang, X.; Ma, R. Genome-Wide Identification of the Maize Calcium-Dependent Protein Kinase;Gene Family. Appl. Biochem. Biotechnol. 2013, 169, 2111–2125. [Google Scholar] [CrossRef]
  41. Chen, F.; Fasoli, M.; Tornielli, G.B.; Dal Santo, S.; Pezzotti, M.; Zhang, L.; Cai, B.; Cheng, Z.M. The evolutionary history and diverse physiological roles of the grapevine calcium-dependent protein kinase gene family. PLoS ONE 2013, 8, e80818. [Google Scholar] [CrossRef]
  42. Berberich, T.; Kusano, T. Cycloheximide induces a subset of low temperature-inducible genes in maize. Mol. Gen. Gent. 1997, 254, 275–283. [Google Scholar] [CrossRef]
  43. Ritika, D.; Pandey, G.K. Expressional analysis and role of calcium regulated kinases in abiotic stress signaling. Curr. Genomics 2010, 11, 2–13. [Google Scholar]
  44. Yi, M.; Yichen, Z.; Walker, R.K.; Berkowitz, G.A. Molecular steps in the immune signaling pathway evoked by plant elicitor peptides: Ca2+-dependent protein kinases, nitric oxide, and reactive oxygen species are downstream from the early Ca2+ signal. Plant Physiol. 2013, 163, 1459–1471. [Google Scholar]
  45. Geiger, D.; Scherzer, S.; Mumm, P.; Stange, A.; Marten, I.; Bauer, H.; Ache, P.; Matschi, S.; Liese, A.; Al-Rasheid, K.A.; et al. Activity of guard cell anion channel SLAC1 is controlled by drought-stress signaling kinase-phosphatase pair. Proc. Natl. Acad. Sci. USA 2009, 106, 21425–21430. [Google Scholar] [CrossRef][Green Version]
  46. Ludwig, A.A.; Hiromasa, S.; Georg, F.; Gerald, F.; Otto, M.; Claus, W.; Thomas, B.; Jones, J.D.; Tina, R. Ethylene-mediated cross-talk between calcium-dependent protein kinase and MAPK signaling controls stress responses in plants. Proc. Natl. Acad. Sci. USA 2005, 102, 10736–10741. [Google Scholar] [CrossRef][Green Version]
  47. Zou, J.J.; Wei, F.J.; Wang, C.; Wu, J.J.; Ratnasekera, D.; Liu, W.X.; Wu, W.H. Arabidopsis Calcium-Dependent Protein Kinase CPK10 Functions in Abscisic Acid- and Ca2+-Mediated Stomatal Regulation in Response to Drought Stress. Plant Physiol. 2010, 154, 1232–1243. [Google Scholar] [CrossRef]
  48. Ho, S.L.; Huang, L.F.; Lu, C.A.; He, S.L.; Wang, C.C.; Yu, S.P.; Chen, J.; Yu, S.M. Sugar starvation- and GA-inducible calcium-dependent protein kinase 1 feedback regulates GA biosynthesis and activates a 14-3-3 protein to confer drought tolerance in rice seedlings. Plant Mol. Biol. 2013, 81, 347–361. [Google Scholar] [CrossRef]
  49. Kamiyoshihara, Y.; Iwata, M.; Fukaya, T.; Tatsuki, M.; Mori, H. Turnover of LeACS2, a wound-inducible 1-aminocyclopropane-1-carboxylic acid synthase in tomato, is regulated by phosphorylation/dephosphorylation. Plant J. 2010, 64, 140–150. [Google Scholar] [CrossRef]
  50. Egamberdieva, D.; Li, L.; Kristina, L.; Leena, A. A synergistic interaction between salt-tolerant pseudomonas, and mesorhizobium, strains improves growth and symbiotic performance of liquorice (glycyrrhiza uralensis, fish.) under salt stress. Appl. Microbiol. Biotechnol. 2016, 100, 2829–2841. [Google Scholar] [CrossRef]
  51. Zhang, X.; Zhang, W.; Lang, D.; Cui, J.; Li, Y. Silicon improves salt tolerance of glycyrrhiza uralensis fisch. by ameliorating osmotic and oxidative stresses and improving phytohormonal balance. Environ. Sci. Pollut. Res. Int. 2018, 25, 1–17. [Google Scholar] [CrossRef]
  52. Taarit, M.B.; Mouna; Msaada, K.; Hosni, K.; Marzouk, B. Physiological changes and essential oil composition of clary sage (Salvia sclarea L.) rosette leaves as affected by salinity. Acta Physiol. Plant. 2011, 33, 153–162. [Google Scholar] [CrossRef]
  53. Shao, Y.H.; Gao, J.L.; Wu, X.W.; Qian, L.; Wang, J.G.; Ping, D.; Lai, X.P. Effect of salt treatment on growth, isoenzymes and metabolites of Andrographis paniculata (Burm. f.) Nees. Acta Physiol. Plant. 2015, 37, 35–43. [Google Scholar] [CrossRef]
  54. Pan, Y.; Wu, L.J.; Yu, Z.L. Effect of salt and drought stress on antioxidant enzymes activities and SOD isoenzymes of liquorice (Glycyrrhiza uralensis Fisch). Plant Growth Regul. 2006, 49, 157–165. [Google Scholar] [CrossRef]
  55. Zhao, L.Y.; Deng, X.P.; Lun, S. The Response Mechanism of Active Oxygen Species Removing System to Drought Stress. Acta Bot. Boreali-Occident. Sin. 2005, 25, 413–418. [Google Scholar]
  56. Gandhi, N.M.; Maurya, D.K.; Salvi, V.; Kapoor, S.; Mukherjee, T.; Nair, C.K. Radioprotection of DNA by glycyrrhizic acid through scavenging free radicals. J. Radiat. Res. 2004, 45, 461–468. [Google Scholar] [CrossRef]
  57. Li, W.D.; Hou, J.L.; Wang, W.Q.; Liu, C.L.; Xing, D. Effect of water deficit on biomass production and accumulation of secondary metabolites in roots of Glycyrrhiza uralensis. Russ. J. Plant Physiol. 2011, 58, 538–542. [Google Scholar] [CrossRef]
  58. Ren, J.; Wen, L.; Gao, X.; Jin, C.; Xue, Y.; Yao, X. CSS-Palm 2.0: An updated software for palmitoylation sites prediction. Protein Eng. Des. Sel. 2008, 21, 639–644. [Google Scholar] [CrossRef]
  59. Jin, X.; Zhu, L.; Yao, Q.; Meng, X.; Ding, G.; Wang, D.; Xie, Q.; Tong, Z.; Tao, C.; Yu, L.; et al. Expression Profiling of Mitogen-Activated Protein Kinase Genes Reveals Their Evolutionary and Functional Diversity in Different Rubber Tree (Hevea brasiliensis) Cultivars. Genes 2017, 8, 261. [Google Scholar] [CrossRef]
  60. Xin, S.; Tao, C.; Li, H. Cloning and Functional Analysis of the Promoter of an Ascorbate Oxidase Gene from Gossypium hirsutum. PLoS ONE 2016, 11, e0161695. [Google Scholar] [CrossRef]
  61. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef] [PubMed][Green Version]
Sample Availability: Samples of the Glycyrrhiza uralensis materials are available from the authors.

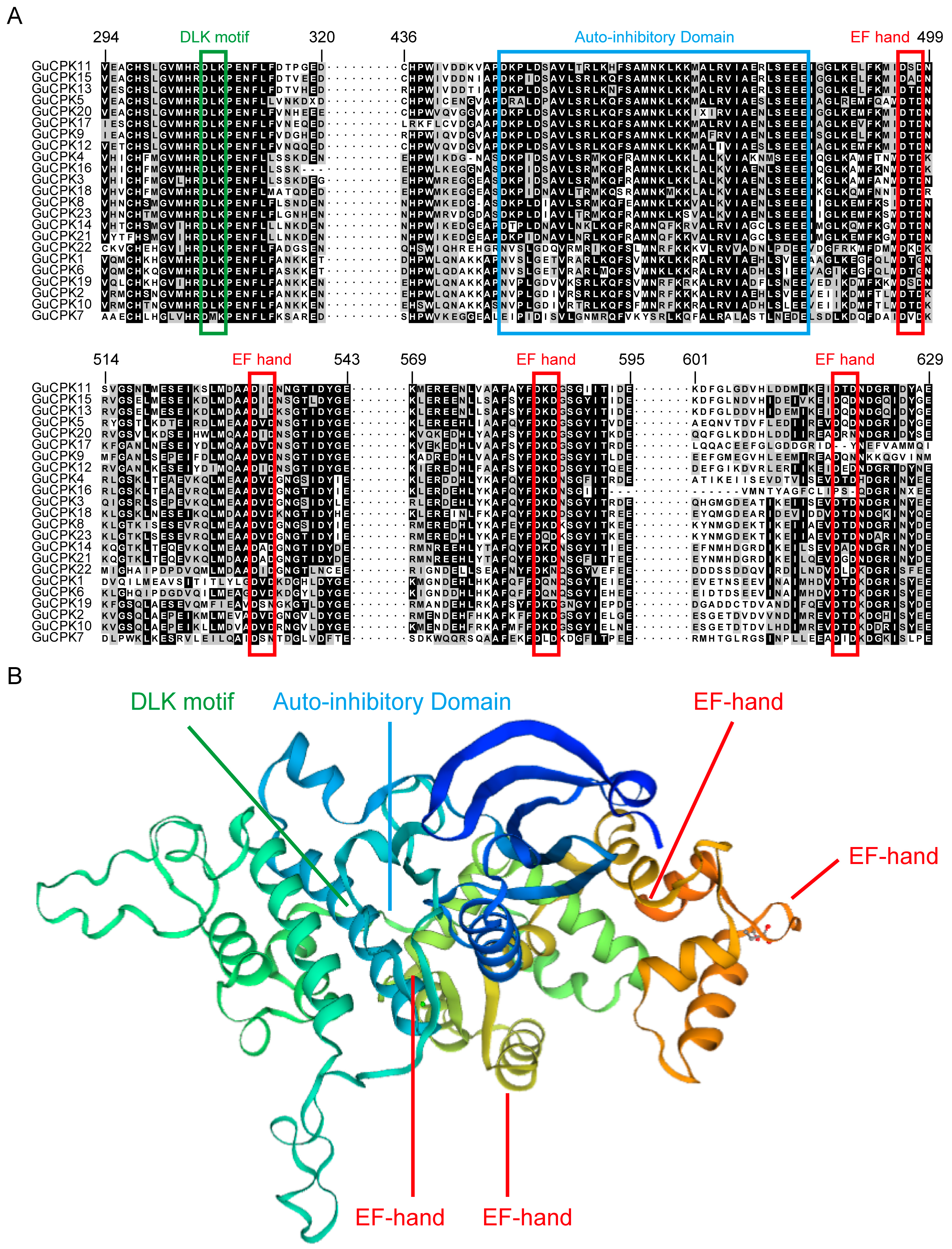

Figure 1. Multiple sequence alignment and conserved domain analysis of the G. uralensis calcium-dependent protein kinases (GuCPKs). (A) Sequence alignment and conserved domain analysis of the 23 GuCPKs. The detailed protein sequence information of the 23 GuCPKs is provided in Supplementary Table S3. The partial GuCPK protein sequences were selected and the corresponding conserved domains were boxed by different colors. (B) Three-dimensional structure of the GuCPK conserved domains. The structure was created using the Swiss-Model workspace (http://swissmodel.expasy.org) for GuCPK12 as a representative sequence. The regions of the conserved domains are indicated.
Figure 1. Multiple sequence alignment and conserved domain analysis of the G. uralensis calcium-dependent protein kinases (GuCPKs). (A) Sequence alignment and conserved domain analysis of the 23 GuCPKs. The detailed protein sequence information of the 23 GuCPKs is provided in Supplementary Table S3. The partial GuCPK protein sequences were selected and the corresponding conserved domains were boxed by different colors. (B) Three-dimensional structure of the GuCPK conserved domains. The structure was created using the Swiss-Model workspace (http://swissmodel.expasy.org) for GuCPK12 as a representative sequence. The regions of the conserved domains are indicated.
Molecules 24 01837 g001

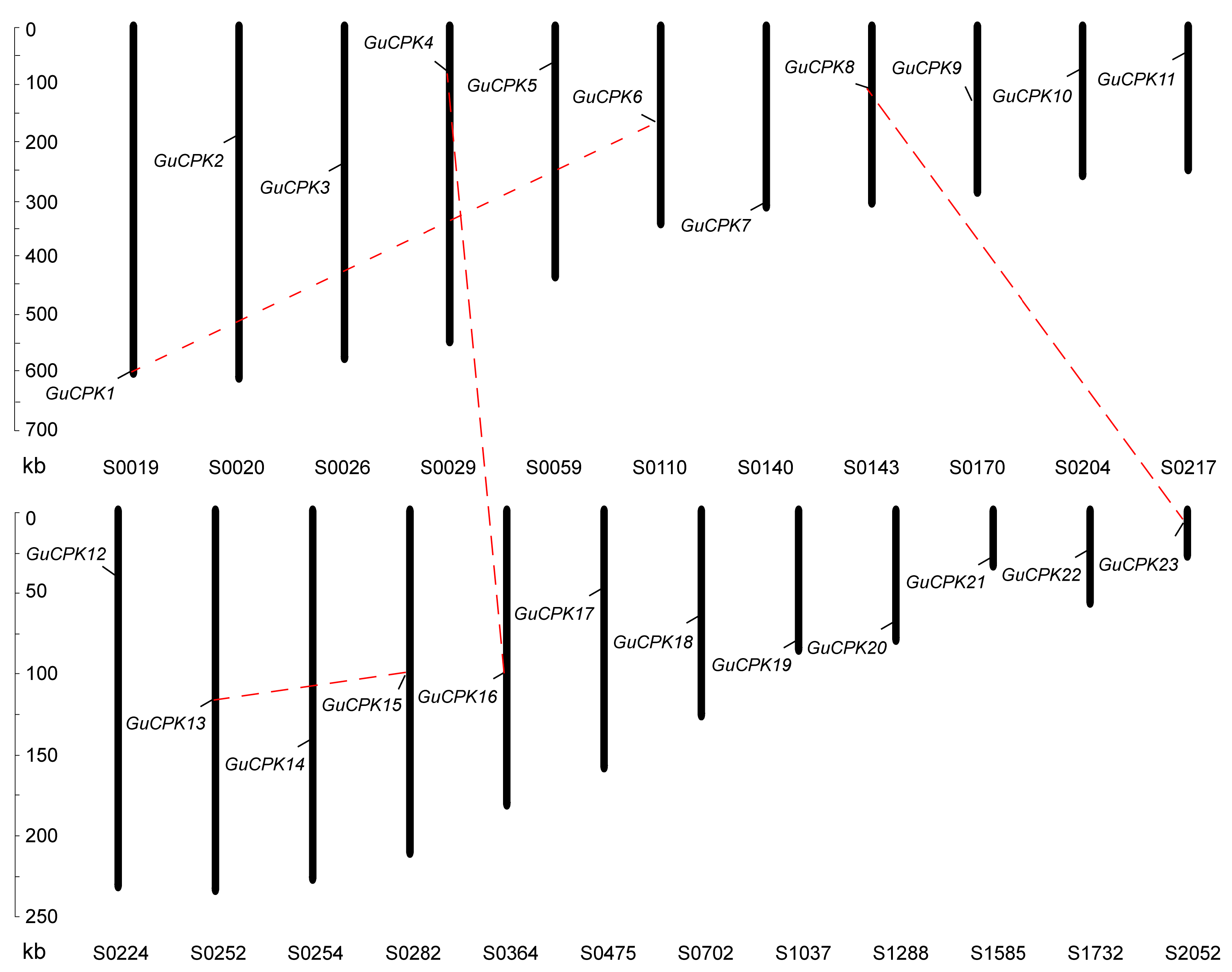

Figure 2. Scaffold distribution of GuCPKs in G. uralensis. GuCPK genes are located on 23 individual scaffolds. Vertical columns represent the scaffolds with scaffold numbers at the bottom and scale bars on the left. Pairs of segmentally duplicated genes are indicated by red dashed lines.
Figure 2. Scaffold distribution of GuCPKs in G. uralensis. GuCPK genes are located on 23 individual scaffolds. Vertical columns represent the scaffolds with scaffold numbers at the bottom and scale bars on the left. Pairs of segmentally duplicated genes are indicated by red dashed lines.
Molecules 24 01837 g002

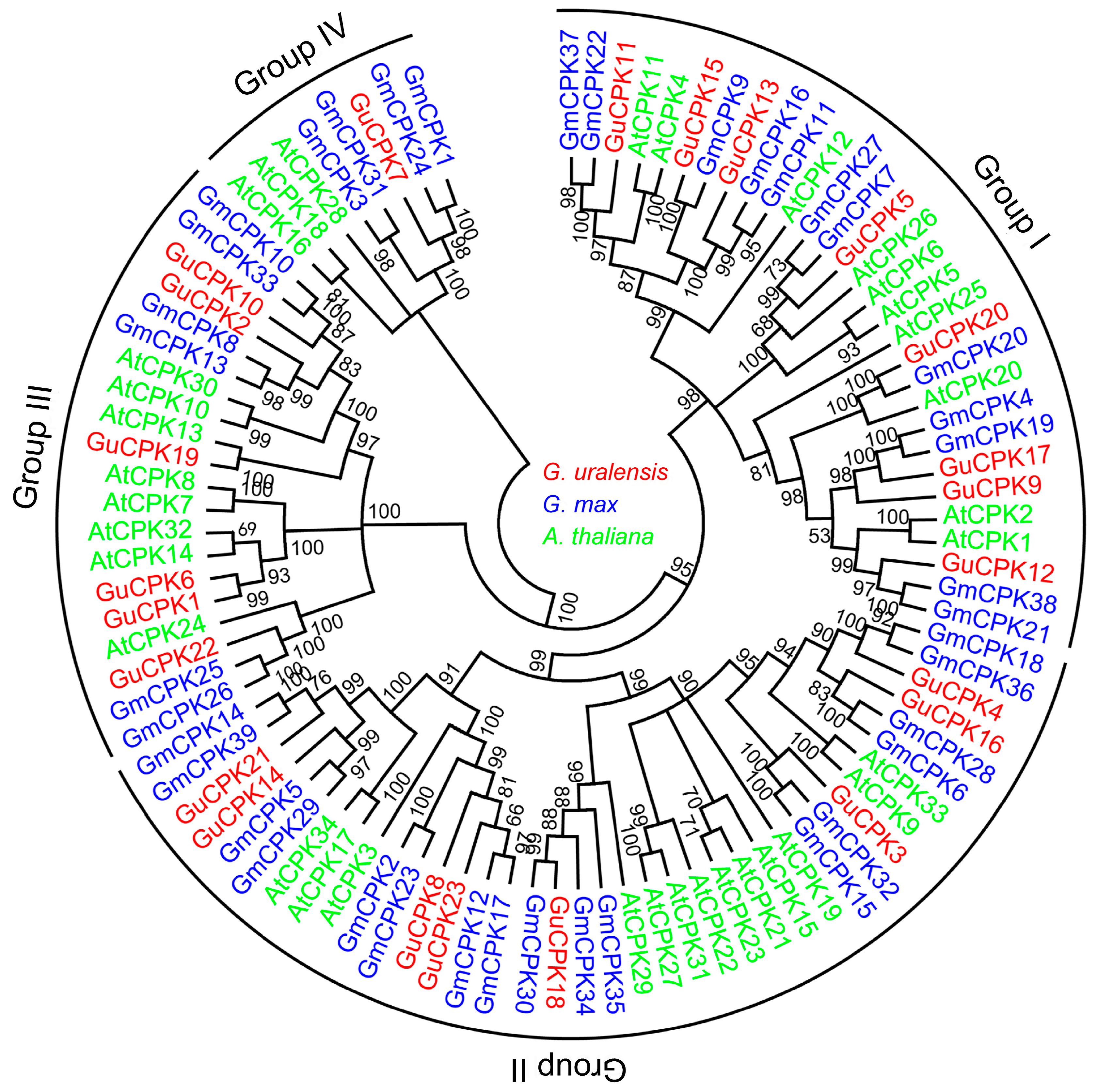

Figure 3. Phylogenetic relationship analysis of the CPK family. A total of 96 CPK proteins from G. uralensis (GuCPK), Arabidopsis (AtCPK) and G. max (GmCPK) were used to constructed a phylogenetic tree by ClustalX 2.0 and MEGA5.0 software with the neighbor-joining (NJ) method of 1000 bootstrap replicates. The CPK proteins of G. uralensis, Arabidopsis, and G. max were shown in red, green, and blue, respectively.
Figure 3. Phylogenetic relationship analysis of the CPK family. A total of 96 CPK proteins from G. uralensis (GuCPK), Arabidopsis (AtCPK) and G. max (GmCPK) were used to constructed a phylogenetic tree by ClustalX 2.0 and MEGA5.0 software with the neighbor-joining (NJ) method of 1000 bootstrap replicates. The CPK proteins of G. uralensis, Arabidopsis, and G. max were shown in red, green, and blue, respectively.
Molecules 24 01837 g003

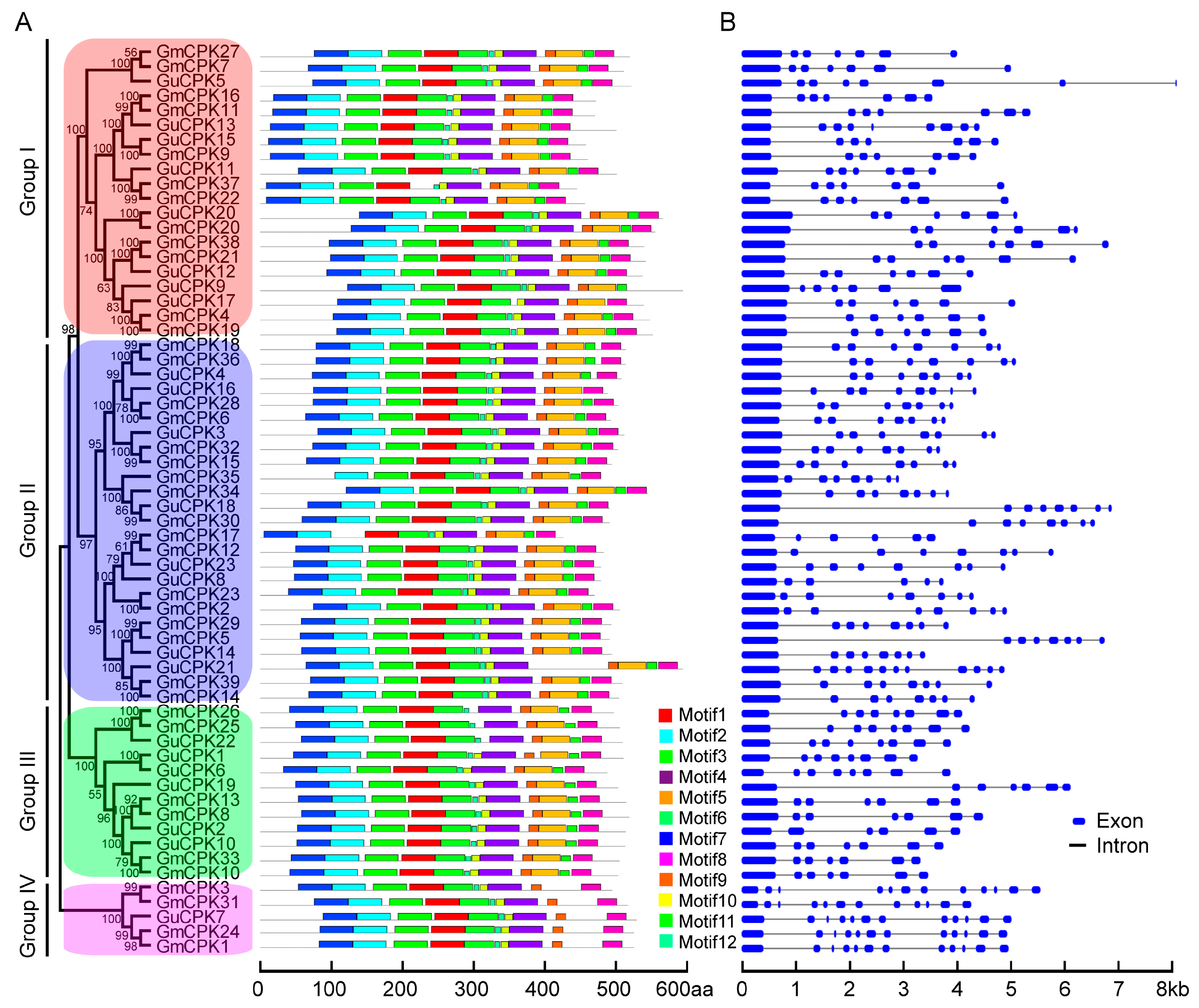

Figure 4. Motif distribution and exon/intron structure analyses of CPK family genes in G. uralensis and G. max. (A) Conserved motif analysis of CPK proteins. The GuCPK and GmCPK protein sequences were used to identify conserved motifs by the MEME program. (B) Exon/intron structure analysis of CPK genes. Blue boxes and black lines represent the exons and introns respectively, and the genomic length is indicated at the bottom.
Figure 4. Motif distribution and exon/intron structure analyses of CPK family genes in G. uralensis and G. max. (A) Conserved motif analysis of CPK proteins. The GuCPK and GmCPK protein sequences were used to identify conserved motifs by the MEME program. (B) Exon/intron structure analysis of CPK genes. Blue boxes and black lines represent the exons and introns respectively, and the genomic length is indicated at the bottom.
Molecules 24 01837 g004

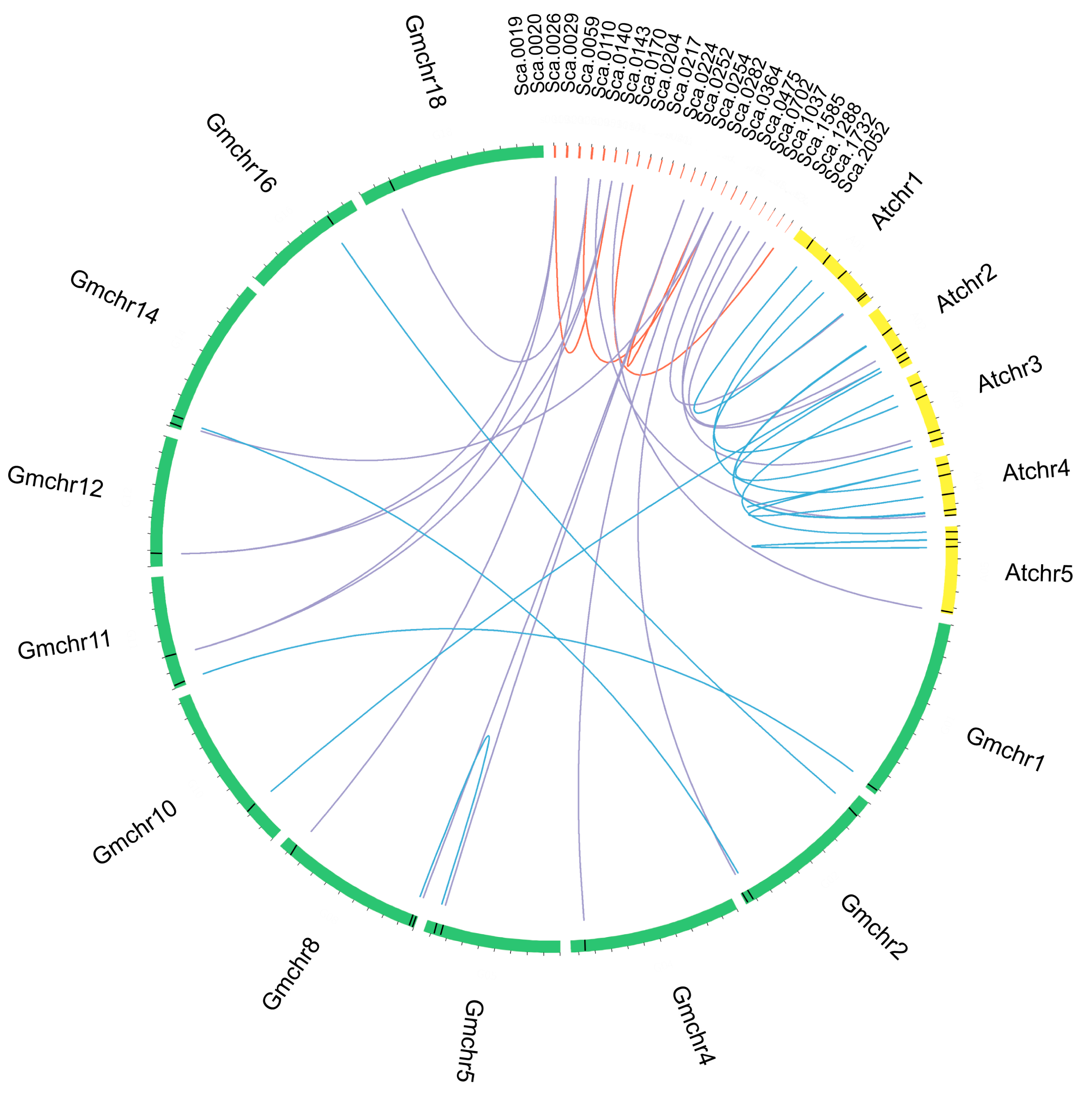

Figure 5. Segmental duplication of GuCPK genes and syntenic analysis of G. uralensis, G. max, and Arabidopsis CPK genes. Chromosomes and scaffolds were shown in different colors with circular form. The positions of the CPK genes were marked with black lines on the circle. The duplicated CPK pairs in G. uralensis were linked by red lines, syntenic relationships between G. uralensis and the other two species were linked by purple lines, and blue lines indicated the CPK pairs between or inside G. max and Arabidopsis.
Figure 5. Segmental duplication of GuCPK genes and syntenic analysis of G. uralensis, G. max, and Arabidopsis CPK genes. Chromosomes and scaffolds were shown in different colors with circular form. The positions of the CPK genes were marked with black lines on the circle. The duplicated CPK pairs in G. uralensis were linked by red lines, syntenic relationships between G. uralensis and the other two species were linked by purple lines, and blue lines indicated the CPK pairs between or inside G. max and Arabidopsis.
Molecules 24 01837 g005

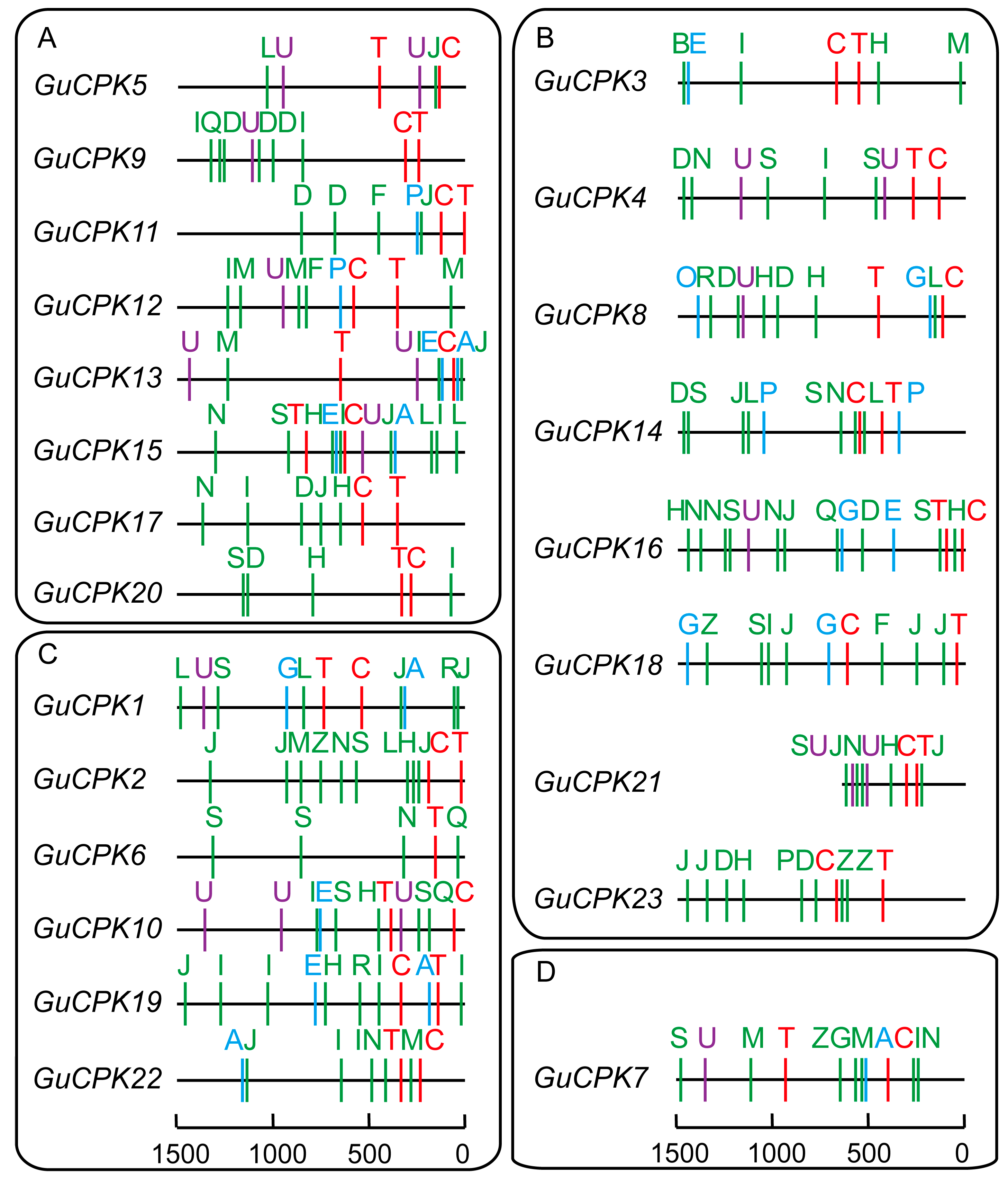

Figure 6. Distribution of cis-elements in GuCPK gene promoter regions. The cis-elements of the 1.5-kb upstream promoter regions of GuCPKs were predicted using PlantCARE software. The GuCPKs were divided into four groups according to the phylogenetic subfamilies (groups I–IV). Colored capital letters represent different cis-elements at corresponding positions. Red, green, purple, and blue letters indicate core elements, phytohormone response, stress response, and the high transcription of cis-elements, respectively. Detailed information for each cis-element is provided in Supplementary Table S4.
Figure 6. Distribution of cis-elements in GuCPK gene promoter regions. The cis-elements of the 1.5-kb upstream promoter regions of GuCPKs were predicted using PlantCARE software. The GuCPKs were divided into four groups according to the phylogenetic subfamilies (groups I–IV). Colored capital letters represent different cis-elements at corresponding positions. Red, green, purple, and blue letters indicate core elements, phytohormone response, stress response, and the high transcription of cis-elements, respectively. Detailed information for each cis-element is provided in Supplementary Table S4.
Molecules 24 01837 g006
Figure 7. Heatmap of expression levels of G. uralensis GuCPKs in different tissues. The expression levels of GuCPKs were determined by qRT-PCR. The GuCPK genes were ordered by the cluster of their expression patterns. Each value denotes the mean relative level of expression of three replicates. Higher or lower expressions of GuCPK genes in different tissues were colored by red or green, respectively. The color bar is shown in the upper apex. The visualized heatmap was generated using R package based on the qRT-PCR data.
Figure 7. Heatmap of expression levels of G. uralensis GuCPKs in different tissues. The expression levels of GuCPKs were determined by qRT-PCR. The GuCPK genes were ordered by the cluster of their expression patterns. Each value denotes the mean relative level of expression of three replicates. Higher or lower expressions of GuCPK genes in different tissues were colored by red or green, respectively. The color bar is shown in the upper apex. The visualized heatmap was generated using R package based on the qRT-PCR data.
Molecules 24 01837 g007

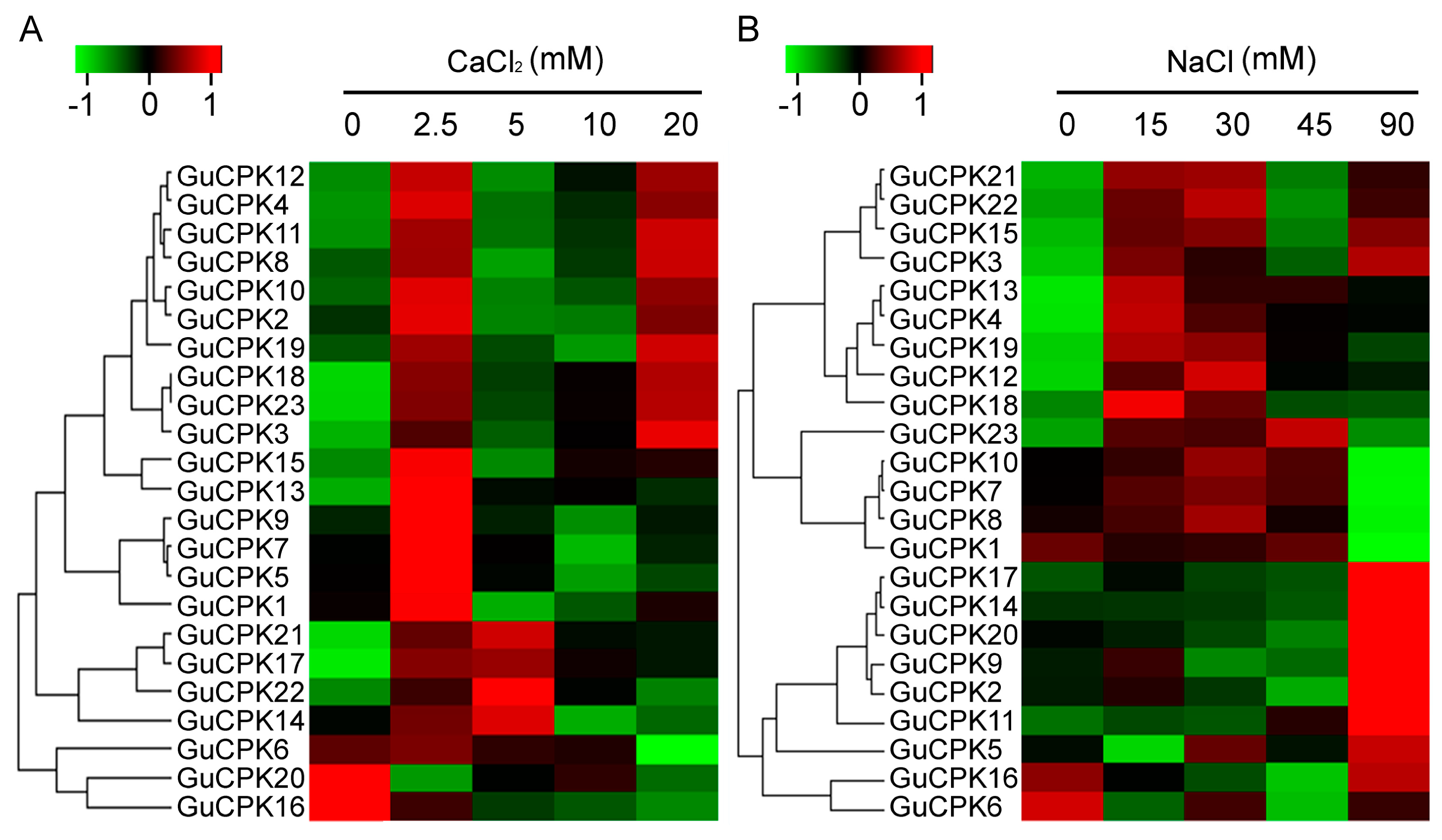

Figure 8. Heatmap of the expression levels of the 23 GuCPK genes in G. uralensis roots under different concentrations of CaCl2 and NaCl treatments. (A) Heatmap of 23 GuCPKs under 0 mM, 2.5 mM, 5 mM, 10 mM, and 20 mM of CaCl2 stimulations. (B) Heatmap of GuCPKs under 0 mM, 15 mM, 30 mM, 45 mM, and 90 mM of NaCl treatments. Each value is the mean of three independent replicates. GuCPK genes that were highly or weakly expressed in different treated materials were colored by red or green, respectively. The color bar was indicated in the upper apex. The visualized heatmap was generated using R package on the basis of the qRT-PCR data.
Figure 8. Heatmap of the expression levels of the 23 GuCPK genes in G. uralensis roots under different concentrations of CaCl2 and NaCl treatments. (A) Heatmap of 23 GuCPKs under 0 mM, 2.5 mM, 5 mM, 10 mM, and 20 mM of CaCl2 stimulations. (B) Heatmap of GuCPKs under 0 mM, 15 mM, 30 mM, 45 mM, and 90 mM of NaCl treatments. Each value is the mean of three independent replicates. GuCPK genes that were highly or weakly expressed in different treated materials were colored by red or green, respectively. The color bar was indicated in the upper apex. The visualized heatmap was generated using R package on the basis of the qRT-PCR data.
Molecules 24 01837 g008

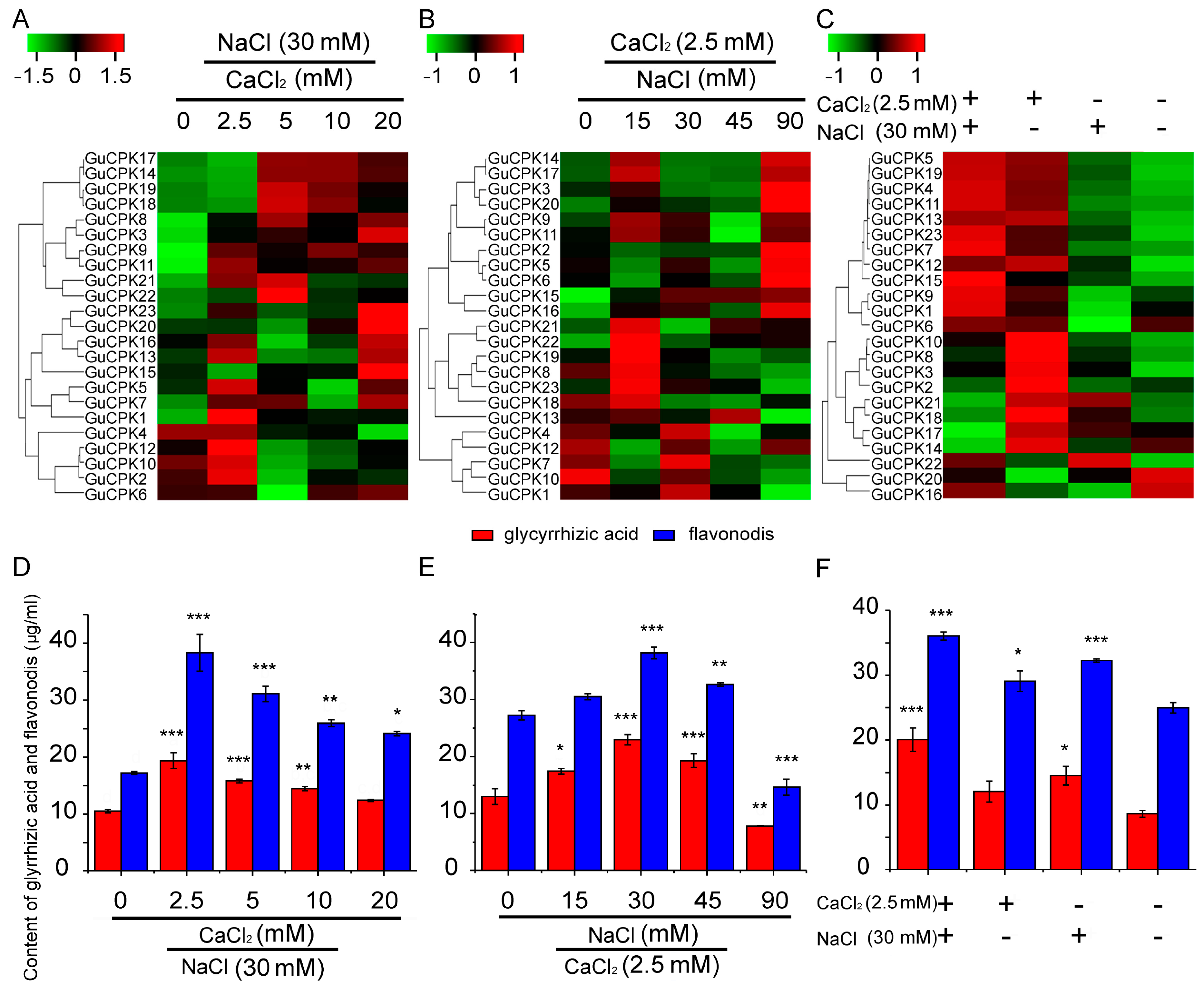

Figure 9. Expression profiles of the GuCPK genes and contents of the glycyrrhizic acid and flavonodis in G. uralensis roots treated by different concentration of CaCl2 and NaCl. (A) Heatmap of GuCPKs expressions at 30 mM of NaCl and different concentration CaCl2 stimulations. (B) Heatmap of GuCPKs expressions at 2.5 mM of CaCl2 and different concentration NaCl stimulations. (C) Heatmap of GuCPKs expressions at different formulations of with or without treatments of 2.5 mM of CaCl2 and 30 of mM NaCl. Each value denotes the mean relative level of the expression of three independent replicates. GuCPK genes with higher or lower expressions in different treated tissues were colored by red or green, respectively. The color bars are shown at the upper apex. The qRT-PCR-based heatmap was visualized by R package. The contents of glycyrrhizic acid and flavonoids were measured under the treatments of 30 mM of NaCl and different concentrations of CaCl2 (D), and 2.5 mM of CaCl2 and different concentrations of NaCl (E), as well as different formulations with or without 2.5 mM of CaCl2 and 30 mM of NaCl (F). Red and blue represent the contents of glycyrrhizic acid and flavonoids, respectively. Each value represents the mean relative level of the expression of three independent experiments. The data are indicated as mean values ± SD. Asterisks indicate significant differences based on Student’s t-test using the materials without any addition of CaCl2 or NaCl as controls, * p < 0.05; ** p < 0.01; *** p < 0.001.
Figure 9. Expression profiles of the GuCPK genes and contents of the glycyrrhizic acid and flavonodis in G. uralensis roots treated by different concentration of CaCl2 and NaCl. (A) Heatmap of GuCPKs expressions at 30 mM of NaCl and different concentration CaCl2 stimulations. (B) Heatmap of GuCPKs expressions at 2.5 mM of CaCl2 and different concentration NaCl stimulations. (C) Heatmap of GuCPKs expressions at different formulations of with or without treatments of 2.5 mM of CaCl2 and 30 of mM NaCl. Each value denotes the mean relative level of the expression of three independent replicates. GuCPK genes with higher or lower expressions in different treated tissues were colored by red or green, respectively. The color bars are shown at the upper apex. The qRT-PCR-based heatmap was visualized by R package. The contents of glycyrrhizic acid and flavonoids were measured under the treatments of 30 mM of NaCl and different concentrations of CaCl2 (D), and 2.5 mM of CaCl2 and different concentrations of NaCl (E), as well as different formulations with or without 2.5 mM of CaCl2 and 30 mM of NaCl (F). Red and blue represent the contents of glycyrrhizic acid and flavonoids, respectively. Each value represents the mean relative level of the expression of three independent experiments. The data are indicated as mean values ± SD. Asterisks indicate significant differences based on Student’s t-test using the materials without any addition of CaCl2 or NaCl as controls, * p < 0.05; ** p < 0.01; *** p < 0.001.
Molecules 24 01837 g009
Table 1. The Ka/Ks ratios for duplicate CPK genes in G. uralensis.
Table 1. The Ka/Ks ratios for duplicate CPK genes in G. uralensis.
Paralogous GenesKaaKsbKa/KsSelective Pressure
GuCPK1–GuCPK60.05840.65180.0895Purifying selection
GuCPK4–GuCPK160.07980.40520.1969Purifying selection
GuCPK8–GuCPK230.07600.54740.1388Purifying selection
GuCPK13–GuCPK150.06270.52450.1195Purifying selection
aKa: nonsynonymous substitution rate; bKs: synonymous substitution rate.
Table 2. Tajima relative rate tests of CPK gene pairs in G. uralensisa.
Table 2. Tajima relative rate tests of CPK gene pairs in G. uralensisa.
Testing GroupMt bM1 cM2 dΧ2Pe
GuCPK4/GuCPK16 with GmCPK639839196.900.00864
GuCPK1/GuCPK6 with GmCPK252969161.960.16151
GuCPK1/GuCPK6 with GmCPK263009161.960.16151
GuCPK8/GuCPK23 with GmCPK2342219240.580.44577
GuCPK13/GuCPK15 with GmCPK9426321110.260.00136
a The Tajima relative rate test was used to examine the equality of evolutionary rate between G. uralensis paralogues; b Mt is the sum of the identical sites in all three sequences tested; c M1 is the number of unique differences in the first paralog; d M2 is the number of unique differences in the second paralog; e If p < 0.05, the test rejects the equal substitution rates between the two duplicates and infers that one of the two duplicates has an accelerated evolutionary rate.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
