Eco-Friendly Ca-Montmorillonite Grafted by Non-Acidic Ionic Liquid Used as A Solid Acid Catalyst in Cellulose Hydrolysis to Reducing Sugars
State Key Laboratory Breeding Base of Green Chemistry Synthesis Technology, Discipline of Industrial Catalysis, College of Chemical Engineering, Zhejiang University of Technology, Hangzhou 310032, China
*
Author to whom correspondence should be addressed.
Academic Editor: Matteo Guidotti
Received: 19 April 2019 / Accepted: 13 May 2019 / Published: 13 May 2019

Abstract

:
An effective and friendly method was developed for the production of reducing sugars (RS) from the hydrolysis of cellulose over the solid catalyst of Ca-montmorillonite (Mt) grafted by non-acidic ionic liquid (Mt-IL) in water. The effect of mass ratio, water dosage, reaction temperature, and time were investigated in a batch reactor. Raw Mt showed only a 7.9% total reducing sugars (TRS) yield for the catalytic hydrolysis of cellulose in water. As the Mt was grafted by -SO3H and IL, the TRS yield greatly increased under the same reaction conditions. The highest TRS yield of 35.7% was obtained on the catalyst of Mt grafted by non-acidic IL at 200 °C with the mass ratio of catalyst to cellulose of 0.2 for 120 min. The high TRS yield for Mt-IL should be attributed to the synergistic effect of the dissolution of cellulose by IL and the exposed metal ions on the layer with water. Although the yield of TRS on Mt-IL decreased gradually with recycling runs, the decrease after the first run was not very serious compared to the fresh catalyst. This work provides a promising strategy for efficient cellulose hydrolysis into fine chemicals by Mt with non-acidic IL.
Keywords:
montmorillonite; ionic liquid; cellulose; hydrolysis; reducing sugars

1. Introduction

The depletion of fossil fuel resources and global climate change have led to more and more attention on developing a series of novel chemicals based on renewable feedstocks. Many studies have been devoted to converting renewable biomass to useful chemicals and clean fuels [1,2,3]. Among the natural biomass, cellulosic biomass is the most abundant inedible biomass resource produced by photosynthesis from CO2 and H2O. Recently, the conversion of cellulose to value-added chemicals has been extensively studied [4,5,6]. Since reducing sugars (RS)—mainly glucose—are platform molecules for production of other chemicals, such as 5-hydroxymethylfurfural (HMF), levulinic acid, and alkylglucosides, depolymerization of cellulose to RS plays a critical role [7,8].
Cellulose is a water-insoluble aggregate of long-chain β-1,4 glucan composed of glucose monomers linked by β-1,4 glycosidic bonds. Hydrolysis of β-1,4 glycosidic bonds and decomposition of hydrogen bonds linking β-1,4 glucan chains into water-soluble saccharides are the main technology to obtain RS [9,10,11,12]. Up to now, several technologies in the hydrolysis of cellulose have been applied, such as enzyme hydrolysis, mineral acid hydrolysis, and supercritical water hydrolysis [13,14,15]. Generally, enzymatic hydrolysis is the most promising approach due to its low temperature and high activity, but the high cost and reuse of the enzyme inhibit its commercialization. Mineral acids are effective for cellulose hydrolysis, however, the catalyst recovery and the waste water treatment are the problems. Supercritical water hydrolysis is also an efficient process, but it has drawbacks, such as harsh conditions and many side-reactions [16,17,18]. On the contrary, due to the advantages of easy separation and recycling, hydrolysis of cellulose over heterogeneous catalysts has received greater attention in recent years [19].
Several groups have reported that cellulose was hydrolyzed in the presence of solid acid catalysts, such as Amberlyst 15 [20], heteropolyacids [21,22], magnetic solid acid catalyst [23,24], and functional carbon materials [25,26]. Among them, porous solid materials modified by the -SO3H groups are extensively investigated for their cheap and easy preparation [27,28]. Although the catalysts supported by -SO3H groups show strong acidity and high activity in the hydrolysis of cellulose, -SO3H groups are easily leaching out and lead to environmental problems. Moreover, the hydrolysis efficiency is also low due to mass transfer resistance between solid acids and insoluble cellulose in water [29]. Consequently, more effort should be devoted to developing the environmentally friendly and efficient solid acid catalysts for the hydrolysis of cellulose.
Clay minerals are a class of phyllosilicates, which are ubiquitous in nature [30]. Depending on their layer structure, high specific surface area, and ion exchange capacity, a great number of new clay-based materials have been developed with fascinating functionalities [31,32,33]. Among clay minerals, montmorillonite (Mt) is one of the most common 2:1 type cationic clay with highly hydrothermal stability and thermal stability [34,35]. Functional Mt has received much attention over the past decades because it is useful in many fields, including adsorption [36], catalysis [37], and separation [38]. In our previous work, acid-activated Mt had been studied for the hydrolysis of cellulose in water, which showed higher activity than that of ZSM-5, but the total reducing sugars (TRS) yield was low [39]. In the past decade, due to the interaction between Cl of the ionic liquid (IL) and hydroxyl groups of the polysaccharides [40], IL had been widely used for the dissolution of cellulose under mild conditions [41,42]. Moreover, the acidic functionalization of IL can directly catalyze the hydrolysis of cellulose with the ability of dissolution. Recently, more and more attention has been focused on the hydrolysis of cellulose in the IL [43,44,45]. However, there are still some problems, such as the high cost, high viscosity, and difficulty in separation of IL [46,47,48]. Therefore, from the view point of green chemistry, more efficient ways should be developed for the utilization of IL.
In this work, a new heterogeneous catalyst was prepared by grafting the 1-(trimethoxy propyl silane)-3-methyl imidazolium chloride groups without acidic groups on the surface of Mt (Mt-IL). The catalytic activity and reuse of Mt-IL were examined by the hydrolysis of cellulose into RS in water. The process provided a green and efficient method for the efficient hydrolysis of cellulose catalyzed by the weakly acidic material grafted by non-acidic IL.

2. Results and Discussion

2.1. Characterization of Catalysts

The X-ray diffraction (XRD) patterns of natural and modified montmorillonites are shown in Figure 1. From Figure 1, the XRD pattern of raw Mt clearly displayed (001) diffraction peak at about 5.65°, indicating the basal spacing is 1.56 nm as calculated by Bragg’s equation, and agrees with that of Ca-montmorillonite (Ca-Mt). The diffraction peaks at 17.23° and 19.77° were corresponding to the (003) and (020) planes, respectively. The diffraction peak at 21.83° was related to the impurities, such as quartz and calcite [49,50]. For HMt, the diffraction peaks were almost similar with that of raw Mt, presenting that the layer structure was not destroyed after the acid treatment [51]. As the Mt was modified by -SO3H groups, the diffraction intensity of the (001) plane weakened, presenting that the crystallinity of Mt decreased after the modification of -SO3H groups on the surface. For Mt-IL, it was obvious that the (001) diffraction peak was shifted to the lower angle, moreover, the diffraction intensity weakened, and the width also became a broad comparison with the raw Mt. This result presented that the interlayer of Mt was intercalated by IL groups and the crystallinity of Mt decreased a lot.
Figure 2 shows the Fourier transform infrared (FT-IR) spectra of IL, raw Mt, and the modified Mt. According to Figure 2, the two adsorption peaks for IL at about 3418 and 3114 cm−1 were ascribed to the aromatic N-H and C-H, respectively. Meanwhile, it also showed the typical bands of the imidazole ring at 1600–1400 cm−1 [52]. For raw Mt, two absorption peaks around 3410 and 3628 cm−1 were ascribed to the stretching vibration of the OH groups. The band at about 1038 cm−1 was due to the stretching vibration of the Si-O. The bands at 525 and 466 cm−1 were attributed to the stretching and bending vibrations of Si-O-Al, respectively [51]. The FT-IR spectra of HMt and Mt-SO3H showed the similar vibration bands with that of Mt. It presented that Al cations in the octahedral layer of Mt were not leached out after the acid treatment and the structure was not destroyed. In addition, because there existed the overlap of the characteristic bands between -SO3H and Mt, the S=O vibration bands at 1140 and 1034 cm−1 were not observed from Mt-SO3H [53]. For Mt-IL, due to the overlap of the characteristic bands between IL and Mt, the characteristic bands belonging to the IL groups were also hardly observed, but it still showed the characteristic vibrations for the polycyclic aromatics in the 1400–1600 cm−1 region. It also presented that the -SO3H and IL groups were grafted on the surface of Mt.
The thermal stability of the materials described above was checked by the thermogravimetric analysis (TGA) technique and their thermogravimetric (TG) and differential thermogravimetric (DTG) curves are shown in Figure 3. These materials generally showed three main peaks for loss of weight in the range 30–800 °C. For Mt, three major weight losses were observed. The maximum weight loss peaks at 70 °C were mainly due to the volatilization of surface adsorbed water. The weight loss around 140 °C was attributed to the dehydration of interlayer water and hydrated cations on the Mt, while the maximum weight loss peak at 640 °C was ascribed to the dehydroxylation processes [54]. When -SO3H and IL groups were introduced into the Mt, two new peaks around 295 and 325 °C were observed on the DTG curves of Mt-SO3H and Mt-IL, which should be contributed to the decomposition of the surface’s -SO3H and IL groups anchored on the surface of Mt. The fourth consecutive peak appearing between 400 and 700 °C might originate from the decomposition of siloxane groups grafted on the surface of Mt and the dehydroxylation on the skeleton of Mt. Obviously, in comparison with the DTG curve of Mt-SO3H, the maximum weight loss peak of the Mt-IL was shifted to the higher temperature in the range 400–700 °C. This might be that there existed the intramolecular hydrogen bond interaction between IL and the surface Si-OH of Mt, which should be favorable to improving the thermal stability.

2.2. Hydrolysis of Cellulose

2.2.1. Effect of Mt Modified by Different Functional Groups in Cellulose Hydrolysis

Table 1 shows the hydrolysis of cellulose in water catalyzed by the Mt and functional Mt. As a reference reaction, cellulose hydrolysis in water under the Mt catalyst had a TRS yield of 7.9% with the 5-HMF yield of 0.4%, which should be attributed to the role of H+ from the surface of Mt. It is well known that acidity is the important factor affecting the performance of the catalysts for the cellulose hydrolysis. It was obvious that the TRS yield was up to 14.4% under the acid activated Mt (entry 2), which should be attributed to the increase of the acidity on the catalyst. It was also interesting that although the acidic sites of HMt were much more than that of Mt-SO3H (entry 3 and 4), Mt-SO3H showed the higher TRS yield than HMt. It might be that the H+ ions of HMt were mainly in the interlayer of Mt and the large cellulose molecules difficultly entered into the layer of Mt, which led to the TRS yield decline. With the increase of the -SO3H amount on Mt-SO3H samples (entry 3, 4, and 5), the TRS yield firstly increased and then changed little, and finally the highest TRS yield of 24.6% was obtained. This phenomenon could be explained by the high acidity of Mt-SO3H associated with the ineffective dissolution of cellulose, which results in a slower hydrolysis of cellulose into RS and then rapid degradation of cellulose to other byproducts. According to Table 1, it was fascinating that the Mt modified by non-acidic IL showed the highest TRS yield with the highest HMF yield for the hydrolysis of cellulose under water in the tested samples. Practically, negligible hydrolysis was observed for non-acidic IL, such as [BMIM][OTF] or [BMIM][Cl] [55]. It had been reported that for clay minerals, the exposed metal ions (Mn+) on the ending of the layer could interact with water and formed the structure of Mn+-OH-H+ [56]. Therefore, in this study, the H+ ions were released from Mn+-OH-H+ in water, and it could be reasonably deduced that the high TRS yield for Mt-IL should be attributed to the synergistic effect of the dissolution of cellulose by IL and the exposed metal ions on the layer with water. Mt is a bio-compatible and eco-friendly material with high hydrothermal stability and thermal stability. Moreover, it is ubiquitous in nature. Thus, the novel catalyst is a promising and environmentally friendly material for cellulose hydrolysis.

2.2.2. Effect of Reaction Conditions on Cellulose Hydrolysis over Mt-IL

The effect of reaction conditions, such as reaction time, temperature, and the ratio of catalyst to cellulose on the catalytic performance of Mt-IL, were investigated in order to maximize the yield of TRS. According to the reports, RS could be further transformed to other products with the increasing of reaction time, such as levulinic acid, formic acid, or coke [57,58]. Thus, the effect of reaction time for cellulose hydrolysis was firstly investigated at 200 °C and the results are shown in Figure 4a. According to Figure 4a, the yield of TRS increased obviously at the initial stage. After reaching the maximum yield of 35.7% in 120 min, the TRS yield slowly reduced from 2.5 to 3.5 h, which might be the conversion of the formed RS. Figure 4b presents the effect of reaction temperature on TRS yield. The yield of TRS increased from 18.3% to 35.7% as the temperature was elevated from 170 to 200 °C. Subsequently, the TRS yield decreased with the increasing temperature. This might be that the RS decomposed to other products or formed the coke on the surface at high temperature [39,59]. Figure 4c shows the effect of the weight ratio of catalyst to cellulose on the TRS yield. The TRS yield firstly increased and then decreased with the increasing of the catalyst amount. The highest yield of TRS was obtained at the mass ratio of catalyst to cellulose being 0.2. However, after the peak, the yield of TRS reduced. It should be that the redundant acid sites with the increasing of the catalyst amount boosted the transformation of the RS to other byproducts. Moreover, the agglomeration of the particles also caused the reduction of catalytic activity in a high catalyst amount. Figure 4d indicates the effect of the amount of water on the TRS yield. When the amount of water was increased to 7 mL, the concentration of hydrogen protons originated from water increased and facilitated the hydrolysis reaction. As the amount of water was further increased to 9 mL, the concentration of hydrogen protons was too high in a short period and led to the conversion of the produced RS to other byproducts or coke.

2.2.3. Reuse of Mt-IL in Cellulose Hydrolysis

Finally, the reuse of Mt-IL catalyst for the hydrolysis of cellulose in water was investigated under the optimum conditions and the results are shown in Figure 5. As shown in Figure 5, the yield of TRS decreased gradually with recycling times, but the decrease after the first run was not very serious compared to the fresh catalyst. In order to explore the deactivation, the structure of the used catalyst was characterized by XRD and FT-IR. The characterization results are shown in Figure 6 and Figure 7. According to Figure 6, the XRD pattern of the used Mt-IL showed the typical diffraction of cellulose with the reflections at 2θ = 15.42° for the (101) plane, 2θ = 22.50° for the (002) plane, and 2θ = 34.50° for the (040) plane [60]. Moreover, the (001) diffraction peak of Mt was further shifted from 5.05° to 4.67°, presenting that the interlayer space increased. This indicated that there existed cellulose on the used Mt-IL and the interlayer of Mt was intercalated by cellulose or the products. From Figure 7, the used Mt-IL also showed the representative bands of cellulose. The absorptions at about 2900 and 1370 cm−1 are related to the stretching and bending vibration of C-H. The band at 1310 cm−1 is assigned to the symmetric bending vibration of CH2. The absorption band at 1158 cm−1 is ascribed to the C-O-C stretching vibration at the β-(1,4)-glycosidic linkages. Furthermore, the new band at 1710 cm−1 was assigned to vibration of the C=O bond [61,62]. Thus, the FT-IR results also proved that cellulose existed on the surface of Mt and there were also some carbonyl compounds formed during the hydrolysis. Relating to the reuse results, it could be deduced that the deposition of cellulose and byproducts might be responsible for the deactivation of Mt-IL, and after the deposition saturation, the TRS yield changed little on the recycled catalyst.

3. Materials and Methods

3.1. Materials

The microcrystalline cellulose powder was purchased from the ShengDeLi Synthetic Leather Material Co., Ltd., Huzhou, China, and obtained from cotton. The cellulose content was above 99 wt %. No physical or chemical pretreatments had been used to increase the non-crystalline cellulose fraction. The Ca-montmorillonite (Ca-Mt) was provided by Zhejiang ChangAn Renheng Science and Technology Co., Ltd., Hangzhou, China. The cation exchange capacity (CEC) of Mt was 80 mmol/100 g. Also, 1-methyl-1H-imidazol, mercaptopropyl trimethoxysilane (MPTMS), and 3-chloropropyl trimethoxy silane were purchased from Aladdin Chemicals Co., Ltd., Shanghai, China. All other chemicals (analytic purity) were commercially available products and were used without further purification.

3.2. Catalyst Preparation

3.2.1. Preparation of Acid-Activated Mt

The purified Ca-Mt (12 g), was dispersed in 120 mL 0.5 wt % H2SO4 and refluxed at 80 °C for 1.5 h. Then the slurry was cooled, filtered, and washed thoroughly with distilled water three times. The product was dried at 80 °C for 12 h. The activated Mt was designated as HMt.

3.2.2. Preparation of Mt-SO3H

In a typical procedure, 12 g Ca-Mt in 360 mL water was stirred for 30 min at room temperature, and then 4 mL MPTMS was added into it. Finally, the mixture was stirred at 80 °C for 2.5 h to obtain thiol functionalized Mt (Mt-SH). Then the slurry was cooled, filtered, and washed thoroughly with anhydrous ethanol two times, and the thiol group was oxidized to sulfonic acid using H2O2 in the presence of ethanol at 60 °C for 4 h (58 mL of 30% H2O2 in 174 mL ethanol for 12 g of Mt-SH). After that, the slurry was cooled, filtered, and washed thoroughly with distilled water three times. The product was dried at 80 °C for 12 h. The amount of -SO3H was adjusted by the concentration of MPTMS and the synthesized samples were designated as Mt-SO3H-1, Mt-SO3H-2, and Mt-SO3H-3, respectively.

3.2.3. Preparation of Mt-IL

Firstly, 1-(trimethoxy propyl silane)-3-methyl imidazolium chloride (Si(MeO)3PMIMCl) was synthesized. Four milliliters of 1-methyl-1H-imidazol and 10 mL of 3-chloropropyl trimethoxy silane were mixed in 100 mL of toluene and the mixture stirred at the reflux temperature of toluene (120 °C) for 12 h. Finally, the toluene was removed by rotary evaporation and an orange viscous liquid Si(MeO)3PMIMCl was obtained.
Then, the Ca-Mt was mixed with Si(MeO)3PMIMCl in anhydrous ethanol (100 mL) at 90 °C for 12 h. After silanization, the precipitate was filtered and washed with distilled water three times. The product was dried at 80 °C for 12 h. The sample was designated as Mt-IL.

3.3. Catalytic Conversion of Cellulose

The hydrolysis reaction was carried out in a Teflon-lined stainless steel autoclave (25 mL). A certain amount of distilled water, cellulose, and catalyst were introduced into the autoclave. The reaction was carried out between 170 and 220 °C under antogenetic pressures. After the reaction, the catalyst and the unreacted cellulose were removed by filtration. The liquid products were analyzed at 540 nm using 3,5-Dinitrosalicylic acid method by visible spectrophotometer manufactured by Shanghai Precision & Science Instruments Co. Ltd. Cellulose conversions were determined by the change of cellulose weight before and after the reaction, with an uncertainty of ±3%. The yield of reducing sugar was calculated from the equation: yield (%) = (weight of reducing sugar in the products)/(weight of cellulose put into the reactor) × 100%. The concentration of 5-HMF was analyzed by a Waters 2695 series HPLC equipped with an ultraviolet detector applying an InertSustain C18 (4.6 mm × 250 mm × 5 μm), and the yield of 5-HMF was calculated based on the calibration curves.

3.4. Catalyst Characterization

The X-ray diffraction (XRD) measurements were collected using a PANAlytical X’Pert PRO diffractometer between 2° and 80° (2θ) with a scanning rate of 0.1 °/s, employing Cu Kα radiation (λ = 1.54056 Å). Fourier transform infrared (FT-IR) spectra were recorded between 4000 and 400 cm−1 using a Nicolet 6700 Fourier transform spectrometer. The samples were dried at 110 °C, mixed with KBr, and exposed to infrared light. The pellets were immediately measured after preparation under ambient conditions in the mid-infrared region. The spectra were the result of averaging 32 scans at wavelengths ranging from 4000 to 400 cm−1. Thermal analysis of nanocomposites was carried out using thermogravimetric-differential thermogravimetric (TG-DTG) methods on a Mettler Toledo thermobalance. TG/DTG curves were recorded with a 10 °C/min heating rate under air atmosphere between 30 and 800 °C.
The measured process for acidic sites on the catalysts was described as follows: a catalyst (0.05 g) was treated with 0.01 mol/L of NaCl solution (20 mL) for 1 h at 20–50 °C under ultrasonic vibration. After centrifugal separation, the supernatant solution was titrated by 0.01 mol/L of NaOH solution using phenolphthalein as an indicative.

4. Conclusions

In summary, an efficient and friendly catalyst was prepared for the hydrolysis of cellulose to reducing sugars in water. The montmorillonite grafted by non-acidic ionic liquid (Mt-IL) catalyst was active for the hydrolysis of cellulose. The highest TRS yield of 35.7% was obtained at 200 °C with the mass ratio of catalyst to cellulose of 0.2 for 120 min on the Mt-IL catalyst. The high TRS yield for Mt-IL should be attributed to the synergistic effect of the dissolution of cellulose by IL and the exposed metal ions on the layer with water. Although the yield of TRS on Mt-IL decreased gradually with recycling runs, its decrease was not very serious after the first run. The deposition of cellulose and byproducts might be responsible for the deactivation of Mt-IL. This work provides a promising strategy for the effective hydrolysis of cellulose into reducing sugars as well as into other chemicals in water with non-acidic IL.

Author Contributions

Conceptualization and Methodology, Y.Z. and D.T.; Data curation and Formal analysis M.Y., Y.Z., K.F., and H.Y.; Software, K.F.; investigation, H.Y.; Writing-Original Draft Preparation, Y.Z. and M.Y.; Writing–Review & Editing, D.T.

Funding

The authors wish to acknowledge the National Natural Scientific Foundation of China (21506188), the Natural Scientific Foundation of Zhejiang Province ZJNSF (LY16B030010), China Postdoctoral Science Foundation (2018M630688), the project from Science and Technology Department of Wenzhou (G20180017), and Project of Zhejiang ″151″ talents project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhou, C.H.; Xia, X.; Lin, C.X.; Tong, D.S.; Beltramini, J. Catalytic conversion of lignocellulosic biomass to fine chemicals and fuels. Chem. Soc. Rev. 2011, 40, 5588–5617. [Google Scholar] [CrossRef]
  2. Sweygers, N.; Alewaters, N.; Dewil, R.; Appels, L. Microwave effects in the dilute acid hydrolysis of cellulose to 5-hydroxymethylfurfural. Sci. Rep. 2018, 8, 11–15. [Google Scholar] [CrossRef]
  3. Yu, J.; Wang, J.Y.; Wang, Z.; Zhou, M.D.; Wang, H.Y. Hydrolysis of cellulose promoted by silicalite-1 modified HY zeolite in 1-ethyl-3-methylimidazolium chloride. Cellulose 2018, 25, 1607–1615. [Google Scholar] [CrossRef]
  4. Chen, Y.D.; Ai, X.L.; Huang, B.; Huang, M.J.; Huang, Y.; Lu, Y. Consecutive preparation of hydrochar catalyst functionalized in situ with sulfonic groups for efficient cellulose hydrolysis. Cellulose 2017, 24, 2743–2752. [Google Scholar] [CrossRef]
  5. Li, O.L.; Ikura, R.; Ishizaki, T. Hydrolysis of cellulose to glucose over carbon catalysts sulfonated via a plasma process in dilute acids. Green Chem. 2017, 19, 4774–4777. [Google Scholar] [CrossRef]
  6. Chu, S.; Yang, L.N.; Guo, X.C.; Dong, L.L.; Chen, X.F.; Li, Y.R.; Mu, X.D. The influence of pore structure and Si/Al ratio of HZSM-5 zeolites on the product distributions of alpha-cellulose hydrolysis. Mol. Catal. 2018, 445, 240–247. [Google Scholar] [CrossRef]
  7. Dutta, S.; Pal, S. Promises in direct conversion of cellulose and lignocellulosic biomass to chemicals and fuels: Combined solvent-nanocatalysis approach for biorefinary. Biomass Bioenerg. 2014, 62, 182–197. [Google Scholar] [CrossRef]
  8. Liu, X.X.; Xu, Q.; Liu, J.Y.; Yin, D.L.; Su, S.P.; Ding, H. Hydrolysis of cellulose into reducing sugars in ionic liquids. Fuel 2016, 164, 46–50. [Google Scholar] [CrossRef]
  9. Song, J.L.; Fan, H.L.; Ma, J.; Han, B.X. Conversion of glucose and cellulose into value-added products in water and ionic liquids. Green Chem. 2013, 15, 2619–2635. [Google Scholar] [CrossRef]
  10. Zhang, M.; Wu, M.H.; Liu, Q.; Wang, X.; Lv, T.; Jia, L.S. Graphene oxide mediated cellulose-derived carbon as a highly selective catalyst for the hydrolysis of cellulose to glucose. Appl. Catal. A-Gen. 2017, 543, 218–224. [Google Scholar] [CrossRef]
  11. Weingarten, R.; Rodriguez-Beuerman, A.; Cao, F.; Luterbacher, J.S.; Alonso, D.M.; Dumesic, J.A.; Huber, G.W. Selective Conversion of cellulose to hydroxymethylfurfural in polar aprotic solvents. Chem. Cat. Chem. 2014, 6, 2229–2234. [Google Scholar] [CrossRef]
  12. Chen, G.Z.; Wang, X.C.; Jiang, Y.J.; Mu, X.D.; Liu, H.C. Insights into deactivation mechanism of sulfonated carbonaceous solid acids probed by cellulose hydrolysis. Catal. Today 2019, 319, 25–30. [Google Scholar] [CrossRef]
  13. Palkovits, R.; Tajvidi, K.; Procelewska, J.; Rinaldi, R.; Ruppert, A. Hydrogenolysis of cellulose combining mineral acids and hydrogenation catalysts. Green Chem. 2010, 12, 972–978. [Google Scholar] [CrossRef]
  14. Hammerer, F.; Loots, L.; Do, J.L.; Therien, J.P.D.; Nickels, C.W.; Friscic, T.; Auclair, K. Solvent-free enzyme activity: Quick, high-yielding mechanoenzymatic hydrolysis of cellulose into glucose. Angew. Chem.-Int. Edit. 2018, 57, 2621–2624. [Google Scholar] [CrossRef]
  15. Buffiere, J.; Ahvenainen, P.; Borrega, M.; Svedstrom, K.; Sixta, H. Supercritical water hydrolysis: A green pathway for producing low-molecular-weight cellulose. Green Chem. 2016, 18, 6516–6525. [Google Scholar] [CrossRef]
  16. Huang, Y.B.; Fu, Y. Hydrolysis of cellulose to glucose by solid acid catalysts. Green Chem. 2013, 15, 1095–1111. [Google Scholar] [CrossRef]
  17. Van, D.V.S.; Geboers, J.; Jacobs, P.A.; Sels, B.F. Recent advances in the catalytic conversion of cellulose. Chem. Cat. Chem. 2011, 3, 82–94. [Google Scholar]
  18. Chang, J.K.W.; Duret, X.; Berberi, V.; Zahedi-Niaki, H.; Lavoie, J.M. Two-Step Thermochemical Cellulose Hydrolysis With Partial Neutralization for Glucose Production. Front. Chem. 2018, 6, 117–128. [Google Scholar] [CrossRef]
  19. Shen, F.; Smith, R.L.; Li, L.Y.; Yan, L.L.; Qi, X.H. Eco-friendly method for efficient conversion of cellulose into levulinic acid in pure water with cellulase-mimetic solid acid catalyst. ACS Sustain. Chem. Eng. 2017, 5, 2421–2427. [Google Scholar] [CrossRef]
  20. Lanzafame, P.; Temi, D.M.; Perathoner, S.; Spadaro, A.N.; Centi, G. Direct conversion of cellulose to glucose and valuable intermediates in mild reaction conditions over solid acid catalysts. Catal. Today 2012, 179, 178–184. [Google Scholar] [CrossRef]
  21. Tian, J.; Wang, J.H.; Zhao, S.; Jiang, C.Y.; Zhang, X.; Wang, X.H. Hydrolysis of cellulose by the heteropoly acid H3PW12O40. Cellulose 2010, 17, 587–594. [Google Scholar] [CrossRef]
  22. Almohalla, M.; Rodriguez-Ramos, I.; Ribeiro, L.S.; Orfao, J.J.; Pereira, M.F.R.; Guerrero-Ruiz, A. Cooperative action of heteropolyacids and carbon supported Ru catalysts for the conversion of cellulose. Catal. Today 2018, 301, 65–71. [Google Scholar] [CrossRef]
  23. Xiong, Y.; Zhang, Z.; Wang, X.; Liu, B.; Lin, J. Hydrolysis of cellulose in ionic liquids catalyzed by a magnetically-recoverable solid acid catalyst. Chem. Eng. J. 2014, 235, 349–355. [Google Scholar] [CrossRef]
  24. Hu, L.; Wu, Z.; Xu, J.; Zhou, S.; Tang, G. Efficient hydrolysis of cellulose over a magnetic lignin-derived solid acid catalyst in 1-butyl-3-methylimidazolium chloride. Korean J. Chem. Eng. 2016, 33, 1232–1238. [Google Scholar] [CrossRef]
  25. Shrotri, A.; Kobayashi, H.; Fukuoka, A. Cellulose Depolymerization over heterogeneous catalysts. Accounts Chem. Res. 2018, 51, 761–768. [Google Scholar] [CrossRef]
  26. Zhang, B.; Chen, B.; Douthwaite, M.; Liu, Q.; Zhang, C.; Wu, Q.; Hutchings, G. Macroporous–mesoporous carbon supported Ni catalysts for the conversion of cellulose to polyols. Green Chem. 2018, 20, 3634–3642. [Google Scholar] [CrossRef]
  27. Li, H.X.; Zhang, X.H.; Wang, Q.; Zhang, K.; Cao, Q.; Jin, L.E. Preparation of the recycled and regenerated mesocarbon microbeads-based solid acid and its catalytic behaviors for hydrolysis of cellulose. Bioresour. Technol. 2018, 270, 166–171. [Google Scholar] [CrossRef]
  28. Shen, F.; Guo, T.M.; Bai, C.X.; Qiu, M.; Qi, X.H. Hydrolysis of cellulose with one-pot synthesized sulfonated carbonaceous solid acid. Fuel Process. Technol. 2018, 169, 244–247. [Google Scholar] [CrossRef]
  29. Su, J.L.; Qiu, M.; Shen, F.; Qi, X.H. Efficient hydrolysis of cellulose to glucose in water by agricultural residue-derived solid acid catalyst. Cellulose 2018, 25, 17–22. [Google Scholar] [CrossRef]
  30. Zhang, D.; Zhou, C.H.; Lin, C.X.; Tong, D.S.; Yu, W.H. Synthesis of clay minerals. Appl. Clay Sci. 2010, 50, 1–11. [Google Scholar] [CrossRef]
  31. Saikia, P.K.; Sarmah, P.P.; Borah, B.J.; Saikia, L.; Saikia, K.; Dutta, D.K. Stabilized Fe3O4 magnetic nanoparticles into nanopores of modified montmorillonite clay: A highly efficient catalyst for the Baeyer-Villiger oxidation under solvent free conditions. Green Chem. 2016, 18, 2843–2850. [Google Scholar] [CrossRef]
  32. Ruiz-Hitzky, E.; Sobral, M.M.C.; Gomez-Aviles, A.; Nunes, C.; Ruiz-Garcia, C.; Ferreira, P.; Aranda, P. Clay-graphene nanoplatelets functional conducting composites. Adv. Funct. Mater. 2016, 26, 7394–7405. [Google Scholar] [CrossRef]
  33. Wang, Q.Y.; Wang, Y.X.; Chen, L.Y. A green composite hydrogel based on cellulose and clay as efficient absorbent of colored organic effluent. Carbohydr. Polym. 2019, 210, 314–321. [Google Scholar] [CrossRef] [PubMed]
  34. Oh, J.M.; Biswick, T.T.; Choy, J.H. Layered nanomaterials for green materials. J. Mater. Chem. 2009, 19, 2553–2563. [Google Scholar] [CrossRef]
  35. Kaur, M.; Arshad, M.; Ullah, A. In-situ nanoreinforced green bionanomaterials from natural keratin and montmorillonite (MMT)/cellulose nanocrystais (CNC). ACS Sustain. Chem. Eng. 2018, 6, 1977–1987. [Google Scholar] [CrossRef]
  36. Zhou, C.H.; Zhang, D.; Tong, D.S.; Wu, L.M.; Yu, W.H.; Ismadji, S. Paper-like composites of cellulose acetate-organo-montmorillonite for removal of hazardous anionic dye in water. Chem. Eng. J. 2012, 209, 223–234. [Google Scholar] [CrossRef]
  37. Bonacci, S.; Nardi, M.; Costanzo, P.; De, N.A.; Di, G.M.L.; Oliverio, M.; Procopio, A. Montmorillonite K10-catalyzed solvent-free conversion of furfural into cyclopentenones. Catalysts 2019, 9, 301. [Google Scholar] [CrossRef]
  38. Mokhtarani, B.; Musavi, J.; Parvini, M. Extraction of toluene from alkane using BMIM NO3 or OMIM NO3 ionic liquid at 298.15 K and atmospheric pressure. Fluid Phase Equilib. 2014, 363, 41–47. [Google Scholar] [CrossRef]
  39. Tong, D.S.; Xia, X.; Luo, X.P.; Wu, L.M.; Lin, C.X.; Yu, W.H.; Zhou, C.H.; Zhong, Z.K. Catalytic hydrolysis of cellulose to reducing sugar over acid-activated montmorillonite catalysts. Appl. Clay Sci. 2013, 74, 147–153. [Google Scholar] [CrossRef]
  40. Nino, D.A.; Merino, P.; Algieri, V.; Nardi, M.; Gioia, D.M.L.; Russo, B.; Tallarida, M.A.; Maiuolo, L. Synthesis of 1,5-functionalized 1,2,3-triazoles using ionic liquid/iron(III) chloride as an efficient and reusable homogeneous catalyst. Catalysts 2018, 8, 364–377. [Google Scholar]
  41. Zhang, Y.T.; Du, H.B.; Qian, X.H.; Chen, E.Y.X. Ionic liquid-water mixtures: Enhanced K-w for efficient cellulosic biomass conversion. Energy Fuels 2010, 24, 2410–2417. [Google Scholar] [CrossRef]
  42. Moreau, C.; Finiels, A.; Vanoye, L. Dehydration of fructose and sucrose into 5-hydroxymethylfurfural in the presence of 1-H-3-methyl imidazolium chloride acting both as solvent and catalyst. J. Mol. Catal. A-Chem. 2006, 253, 165–169. [Google Scholar] [CrossRef]
  43. Vu, A.; Wickramasinghe, S.R.; Qian, X.H. Polymeric solid acid catalysts for lignocellulosic biomass fractionation. Ind. Eng. Chem. Res. 2018, 57, 4514–4525. [Google Scholar] [CrossRef]
  44. Gioia, D.M.L.; Costanzo, P.; Nino, D.A.; Maiuolo, L.; Nardi, M.; Olivito, F.; Procopio, A. Simple and efficient Fmoc removal in ionic liquid. Rsc. Adv. 2017, 7, 36482–36491. [Google Scholar] [CrossRef][Green Version]
  45. Moyer, P.; Smith, M.D.; Abdoulmoumine, N.; Chmely, S.C.; Smith, J.C.; Petridis, L.; Labbe, N. Relationship between lignocellulosic biomass dissolution and physicochemical properties of ionic liquids composed of 3-methylimidazolium cations and carboxylate anions. Phys. Chem. Chem. Phys. 2018, 20, 2508–2516. [Google Scholar] [CrossRef]
  46. Yu, J.L.; Maliutina, K.; Tahmasebi, A. A review on the production of nitrogen-containing compounds from microalgal biomass via pyrolysis. Bioresour. Technol. 2018, 270, 689–701. [Google Scholar] [CrossRef]
  47. Lopes, A.M.D.; Bogel-Lukasik, R. Acidic ionic liquids as sustainable approach of cellulose and lignocellulosic biomass conversion without additional catalysts. ChemSusChem 2015, 8, 947–965. [Google Scholar] [CrossRef]
  48. Shuai, L.; Pan, X.J. Hydrolysis of cellulose by cellulase-mimetic solid catalyst. Energy Environ. Sci. 2012, 5, 6889–6894. [Google Scholar] [CrossRef]
  49. Chipera, S.J.; Bish, D.L. Baseline studies of the clay minerals society source clays: Powder X-ray diffraction analyses. Clay Clay Min. 2001, 49, 398–409. [Google Scholar] [CrossRef]
  50. Viani, A.; Gaultieri, A.F.; Artioli, G. The nature of disorder in montmorillonite by simulation of X-ray powder patterns. Am. Miner. 2002, 87, 966–975. [Google Scholar] [CrossRef]
  51. Zatta, L.; Ramos, L.P.; Wypych, F. Acid-activated montmorillonites as heterogeneous catalysts for the esterification of lauric acid acid with methanol. Appl. Clay Sci. 2013, 80, 236–244. [Google Scholar] [CrossRef]
  52. Zhang, C.; Fu, Z.H.; Liu, Y.C.; Dai, B.H.; Zou, Y.H.; Gong, X.L.; Wang, Y.L.; Deng, X.L.; Wu, H.T.; Xu, Q.; et al. Ionic liquid-functionalized biochar sulfonic acid as a biomimetic catalyst for hydrolysis of cellulose and bamboo under microwave irradiation. Green Chem. 2012, 14, 1928–1934. [Google Scholar] [CrossRef]
  53. Wilson, K.; Lee, A.F.; Macquarrie, D.J.; Clark, J.H. Structure and reactivity of sol-gel sulphonic acid silicas. Appl. Catal. A-Gen. 2002, 228, 127–133. [Google Scholar] [CrossRef]
  54. Cavani, F.; Trifiro, F.; Vaccari, A. Hydrotalcite-type anionic clays: Preparation, properties and applications. Catal. Today 1991, 11, 173–301. [Google Scholar] [CrossRef]
  55. Brandt, A.; Ray, M.J.; To, T.Q.; Leak, D.J.; Murphy, R.J.; Welton, T. Ionic liquid pretreatment of lignocellulosic biomass with ionic liquid-water mixtures. Green Chem. 2011, 13, 2489–2499. [Google Scholar] [CrossRef]
  56. Johns, W.D. Clay mineral catalysis and petroleum generatio. Annu. Rev. Earth Planet Sci. 1979, 7, 183–198. [Google Scholar] [CrossRef]
  57. Ramli, N.A.S.; Amin, N.A.S. Catalytic hydrolysis of cellulose and oil palm biomass in ionic liquid to reducing sugar for levulinic acid production. Fuel Process. Technol. 2014, 128, 490–498. [Google Scholar] [CrossRef]
  58. Chen, T.L.; Xiong, C.R.; Tao, Y.S. Enhanced Hydrolysis of cellulose in ionic liquid using mesoporous ZSM-5. Molecules 2018, 23, 10. [Google Scholar] [CrossRef] [PubMed]
  59. Hu, L.; Wu, Z.; Xu, J.X.; Sun, Y.; Lin, L.; Liu, S.J. Zeolite-promoted transformation of glucose into 5-hydroxymethylfurfural in ionic liquid. Chem. Eng. J. 2014, 244, 137–144. [Google Scholar] [CrossRef]
  60. Sun, Y.; Zhuang, J.P.; Lin, L.; Ouyang, P.K. Clean conversion of cellulose into fermentable glucose. Biotechnol. Adv. 2009, 27, 625–632. [Google Scholar] [CrossRef] [PubMed]
  61. Cao, Y.; Tan, H.M. Structural characterization of cellulose with enzymatic treatment. J. Mol. Struct. 2004, 705, 189–193. [Google Scholar] [CrossRef]
  62. Oh, S.Y.; Yoo, D.I.; Shin, Y.; Kim, H.C.; Kim, H.Y.; Chung, Y.S.; Park, W.H.; Youk, J.H. Crystalline structure analysis of cellulose treated with sodium hydroxide and carbon dioxide by means of X-ray diffraction and FTIR spectroscopy. Carbohydr. Res. 2005, 340, 2376–2391. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are available from the authors.

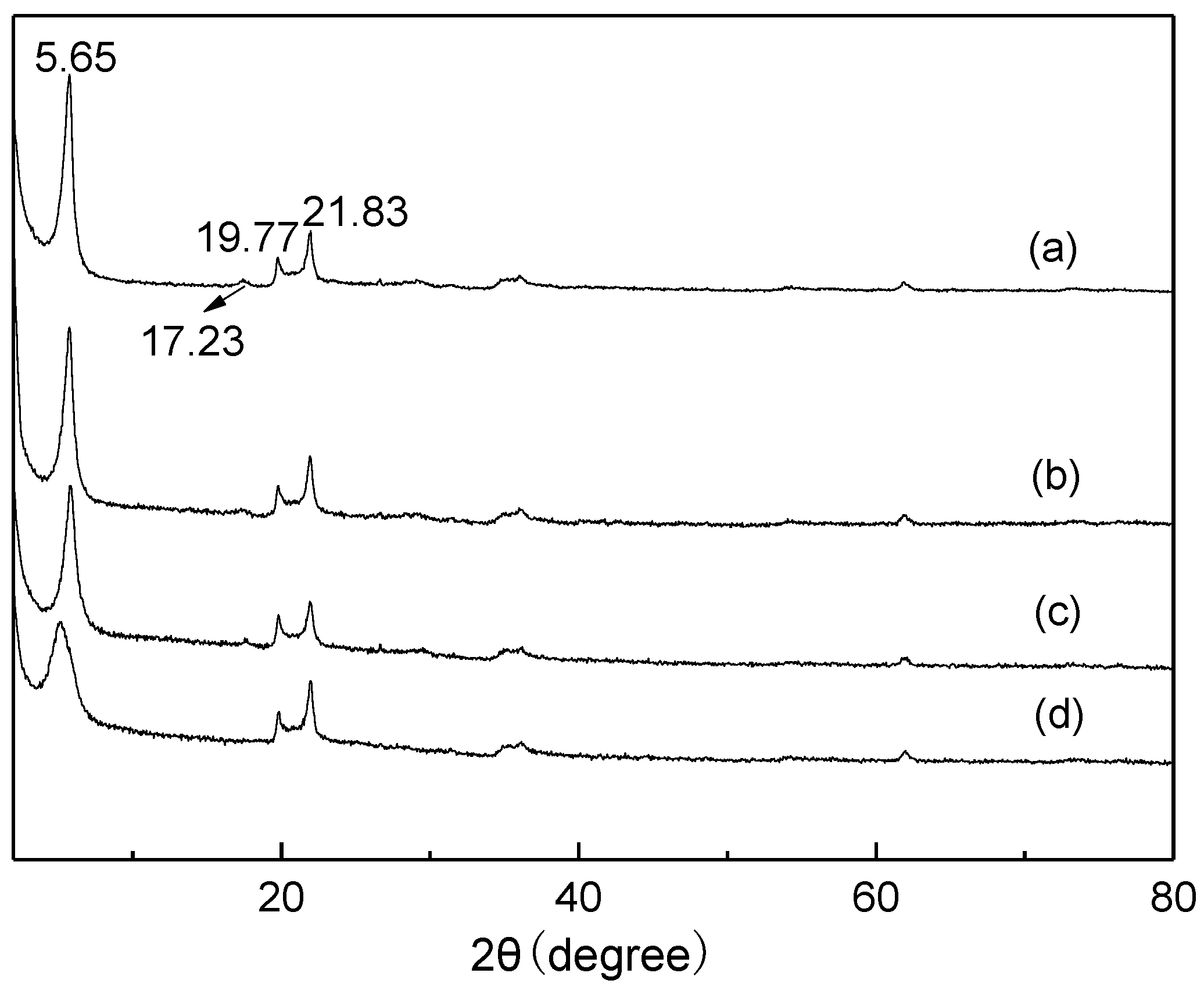

Figure 1. XRD patterns of Mt (a), HMt (b), Mt-SO3H (c), and Mt-IL (d). IL: ionic liquid.
Figure 1. XRD patterns of Mt (a), HMt (b), Mt-SO3H (c), and Mt-IL (d). IL: ionic liquid.
Molecules 24 01832 g001
Figure 2. FT-IR spectra of IL (a), Mt (b), HMt (c), Mt-SO3H (d), and Mt-IL (e).
Figure 2. FT-IR spectra of IL (a), Mt (b), HMt (c), Mt-SO3H (d), and Mt-IL (e).
Molecules 24 01832 g002

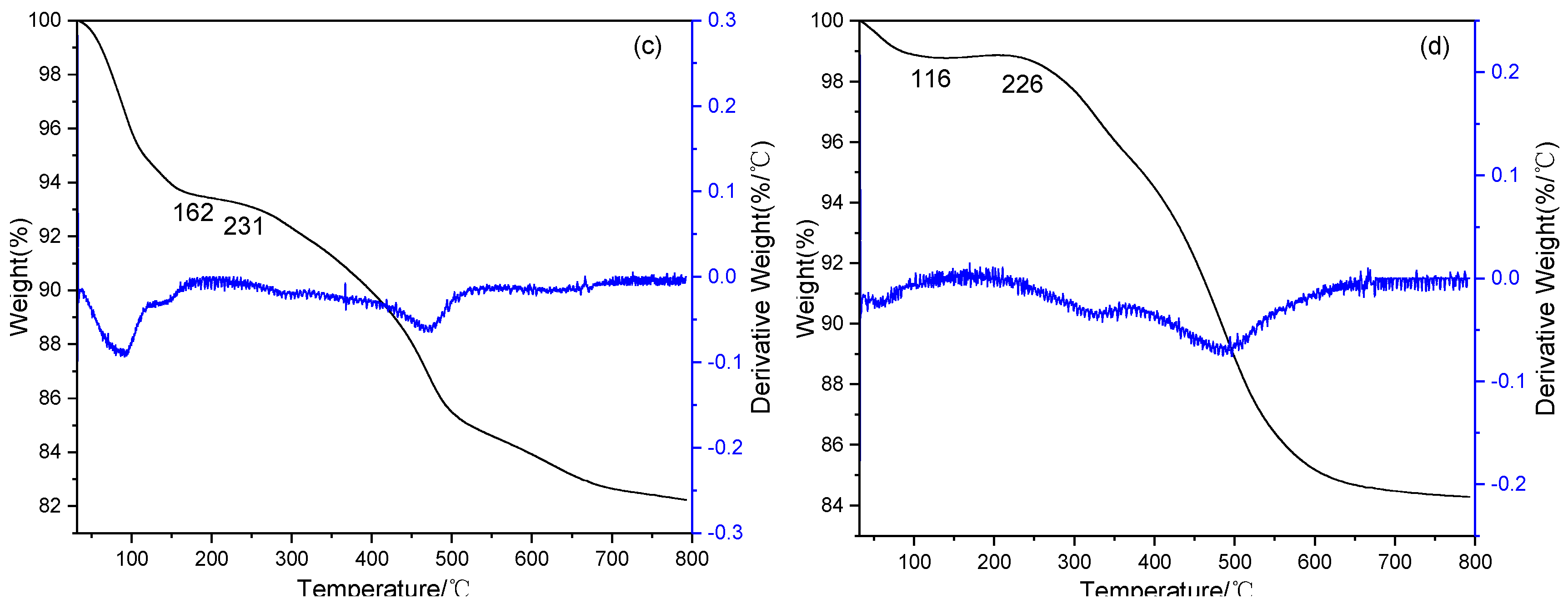

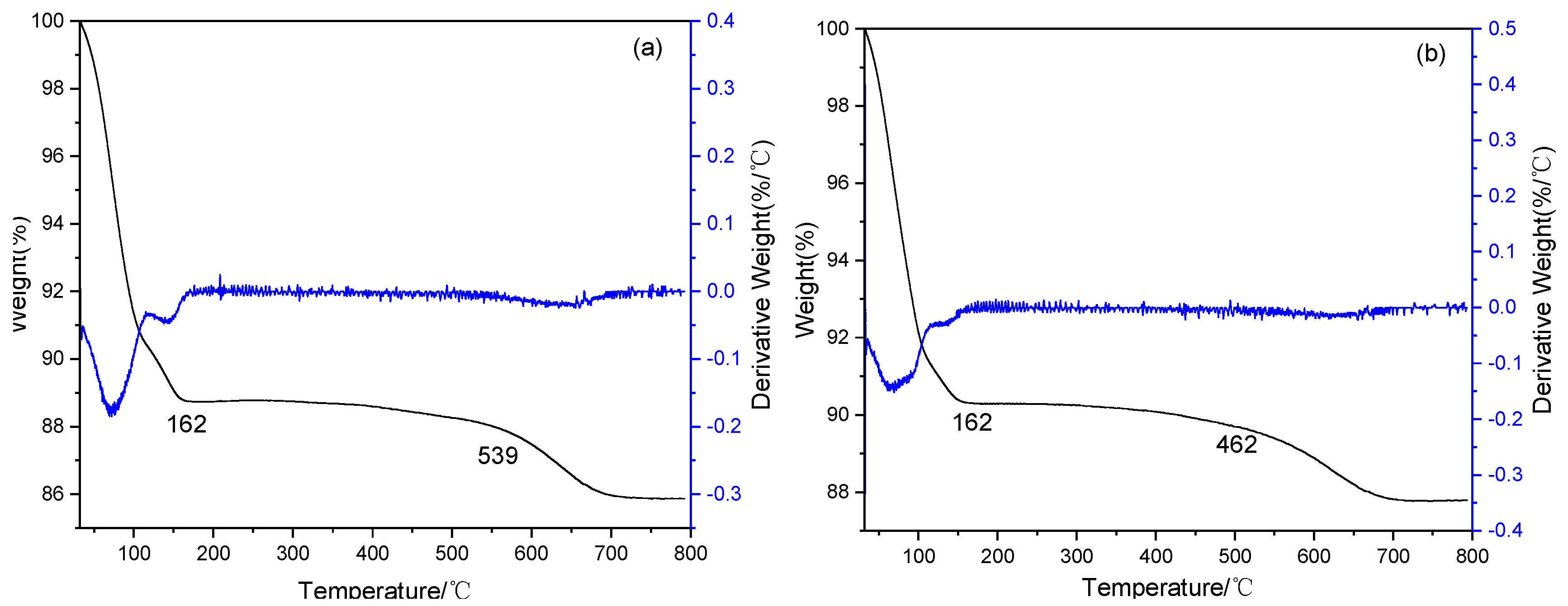

Figure 3. Thermogravimetric-differential thermogravimetric (TG-DTG) curves of Mt (a), HMt (b), Mt-SO3H (c), and Mt-IL(d).
Figure 3. Thermogravimetric-differential thermogravimetric (TG-DTG) curves of Mt (a), HMt (b), Mt-SO3H (c), and Mt-IL(d).
Molecules 24 01832 g003aMolecules 24 01832 g003b

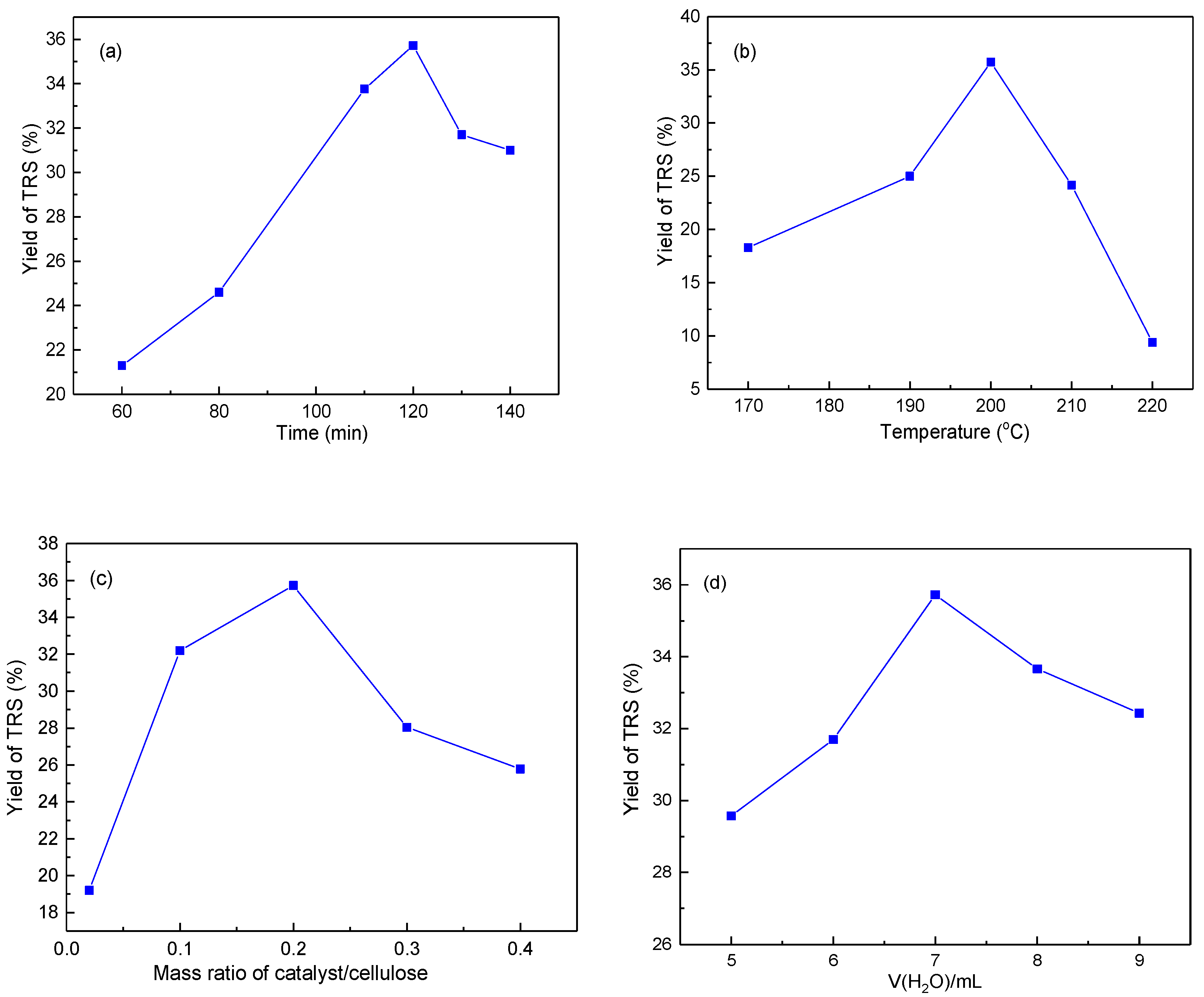

Figure 4. Effect of reaction time (a), temperature (b), weight ratio of catalysts to cellulose (c), and water dosage (d) on TRS yield over Mt-IL.
Figure 4. Effect of reaction time (a), temperature (b), weight ratio of catalysts to cellulose (c), and water dosage (d) on TRS yield over Mt-IL.
Molecules 24 01832 g004

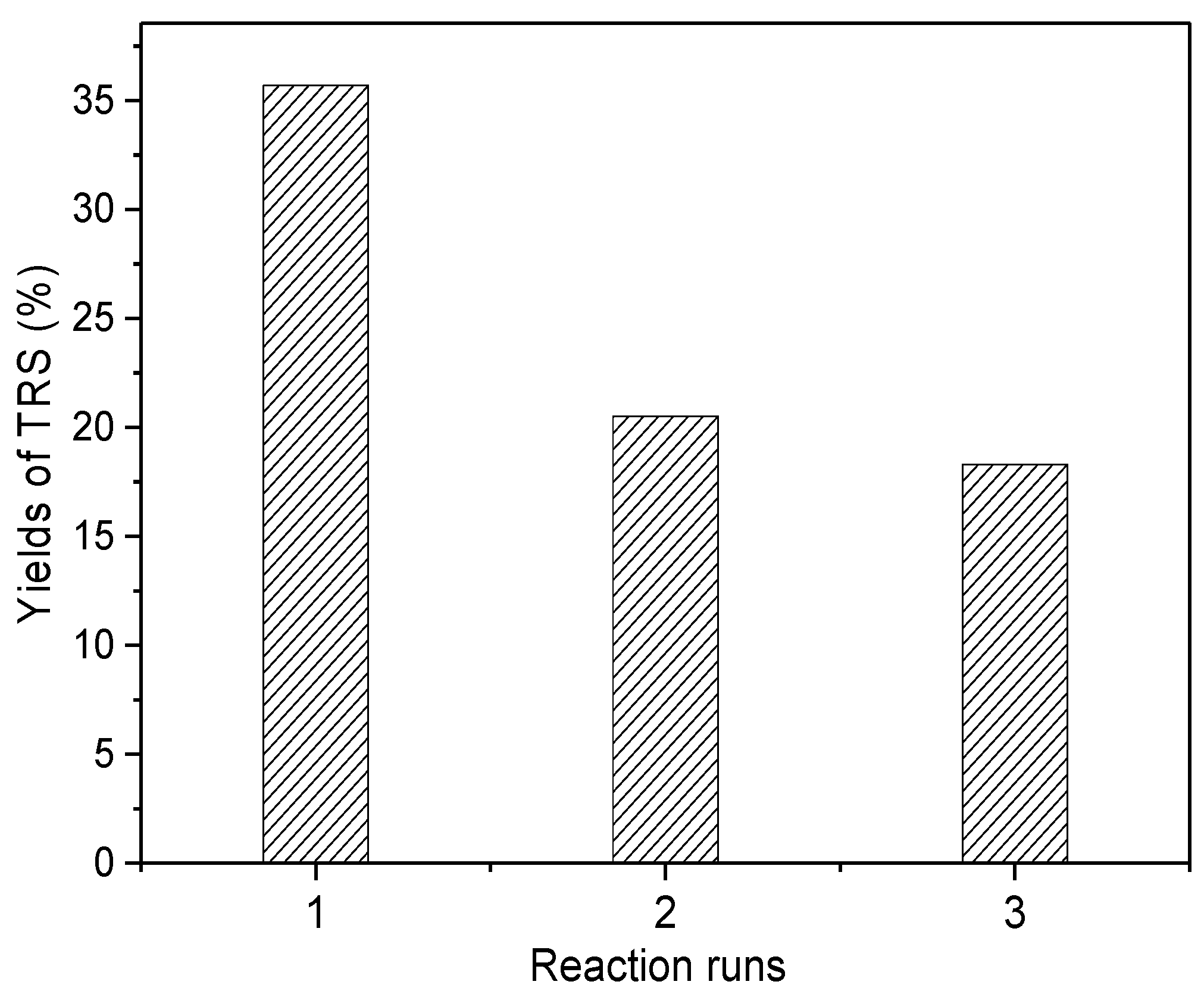

Figure 5. Reuse of Mt-IL catalyst for the cellulose hydrolysis.
Figure 5. Reuse of Mt-IL catalyst for the cellulose hydrolysis.
Molecules 24 01832 g005
Figure 6. XRD patterns of fresh Mt-IL (a) and recycled Mt-IL after the cellulose hydrolysis (b).
Figure 6. XRD patterns of fresh Mt-IL (a) and recycled Mt-IL after the cellulose hydrolysis (b).
Molecules 24 01832 g006

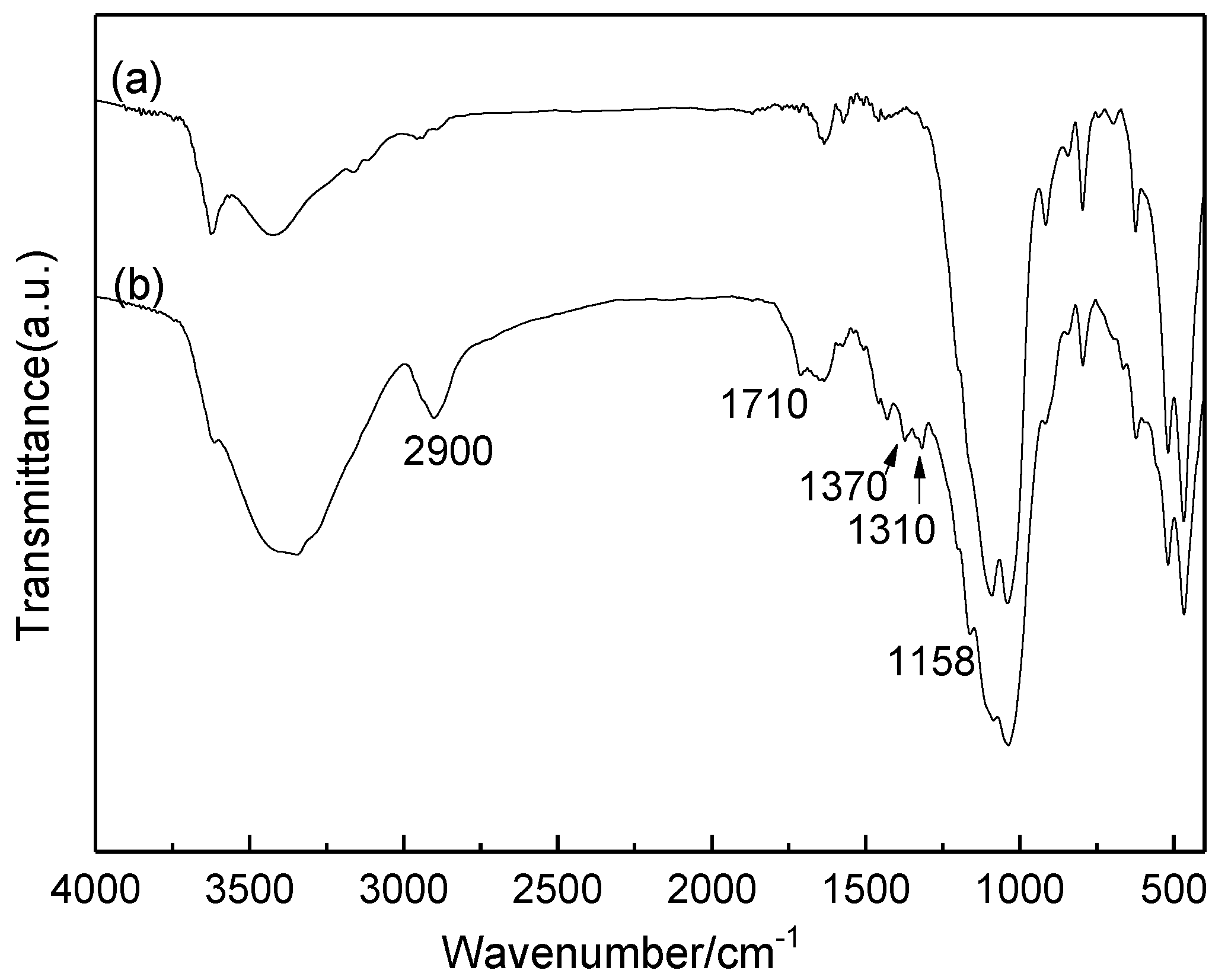

Figure 7. FT-IR spectra of fresh Mt-IL (a) and recycled Mt-IL after the cellulose hydrolysis (b).
