Carbazole- and Triphenylamine-Substituted Pyrimidines: Synthesis and Photophysical Properties

by
Sylvain Achelle
1,*,
Julián Rodríguez-López
2,*,
Massinissa Larbani
1,
Rodrigo Plaza-Pedroche
2 and
Françoise Robin-le Guen
1
1
Université de Rennes, CNRS, Institut des Sciences Chimiques de Rennes-UMR 6226, F 35000 Rennes, France
2
Área de Química Orgánica, Facultad de Ciencias y Tecnologías Químicas, Universidad de Castilla-La-Mancha, Avda. Camillo José Cela 10, 13071 Ciudad Real, Spain
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(9), 1742; https://doi.org/10.3390/molecules24091742
Submission received: 11 April 2019 / Revised: 23 April 2019 / Accepted: 3 May 2019 / Published: 5 May 2019
(This article belongs to the Special Issue Selected Papers from the Scientific Days of the French Chemical Society (SCF)–Western Section (BPL))
Browse Figures
Versions Notes

Abstract

:
A series of pyrimidine derivatives bearing one, two or three triphenylamine/9-ethylcarbazole substituents has been synthesized by Suzuki cross-coupling reaction. All compounds showed absorption bands in the UV region and the emission of violet-blue light upon irradiation. Protonation led to quenching of the fluorescence, although some derivatives remained luminescent with the appearance of a new red-shifted band in the spectra. Accurate control of the amount of acid enabled white photoluminescence to be obtained both in solution and in solid state.

Graphical Abstract

1. Introduction

The pyrimidine (1,3-diazine) core is a π-deficient six-membered heterocycle with two nitrogen atoms. Consequently, the pyrimidin-4-yl and the pyrimidin-2-yl fragments act as relatively strong electron-withdrawing groups [1]. With regard to pyridyl analogues, the presence of an appropriately positioned second nitrogen atom significantly enhances their electron-attracting character [2]. The pyrimidine ring has therefore been extensively used as an acceptor unit in push-pull structures in which significant intramolecular charge transfer (ICT) occurs [1,3,4]. In this respect, 4,6-di(arylvinyl)pyrimidines are now well established two-photon absorption chromophores for biological imaging [5,6,7,8], 3D lithographic microfabrication [9], and 3D data storage [10]. Appropriately substituted 2,4,6-triarylpyrimidines have also been developed as efficient emitters for OLEDs due to their thermally activated delayed fluorescence (TADF) properties [11,12,13,14,15]. Pyrimidine push-pull chromophores have also been developed as second order nonlinear optic (NLO) materials [16,17] and as dyes for photovoltaic applications [18,19].
When compared to their arylvinyl- and arylethynyl- analogues, arylpyrimidines generally exhibit a blue-shifted emission with a higher emission quantum yield [1,20]. Arylpyrimidines can be easily obtained by Suzuki cross-coupling reaction from halogenopyrimidines [21,22,23,24]. The electron-withdrawing character of the pyrimidinyl fragments allows this reaction to be performed from chloro-derivatives [25].
The emission properties of pyrimidine fluorophores are highly sensitive to the environment. As a consequence, a strong emission solvatochromism, which is typical of ICT chromophores [26,27,28,29], is observed: a polarity increase provides a significant bathochromic shift of the emission band [30,31,32,33]. On the other hand, protonation of the pyrimidine ring (pKa1 = 1.1) significantly enhances its electron-withdrawing character and leads to a red-shift of both absorption and emission bands. These shifts are generally accompanied by emission quenching, but in some cases, particularly with weak electron-donating groups such as methoxy fragments, red-shifted emission with increased intensity is observed [32,34,35]. White photoluminescence can be obtained both in solution and in doped polystyrene films when the neutral and protonated forms are present in the appropriate ratio [34,35].
Triphenylamine and 9-ethylcarbazole have been extensively used as electron-donating units in push-pull structures [36,37,38,39]. Although these units are weaker electron-donors than N,N-dialkylanilines [40], derivatives that incorporate these moieties generally have stronger luminescence properties [41,42,43]. Nevertheless, only a few pyrimidine derivatives bearing triphenylamine or 9-ethylcarbazole fragments have been described in the literature [9,19,44,45].
We report here the synthesis of a series of pyrimidine chromophores with one, two or three triphenylamine/9-ethylcarbazole substituents. The photophysical properties of the new materials were carefully studied and the luminescence behaviour in the presence of acid was evaluated. In some cases, the protonated pyrimidines remained emissive, which enabled white luminescence to be obtained by accurate control of the amount of acid.

2. Results and Discussion

2.1. Synthesis

Compounds 1 and 2 were obtained in moderate to good yield by Suzuki cross-coupling reaction from the corresponding chloropyrimidines and boronic acids according to a known methodology for similar pyrimidine structures (Scheme 1) [21,22,23,24]. All compounds were identified by 1H and 13C-NMR, and all previously unknown molecules were also characterized by high resolution mass spectroscopy (HRMS).

2.2. Photophysical Properties in Solution

The UV-Vis and photoluminescence (PL) spectroscopic data for compounds 1 and 2 in dichloromethane are presented in Table 1. The analyses were carried out using low concentration solutions (1.0–2.0 × 10−5 M). Self-absorption effects were not observed under the conditions employed. As representative examples, the spectra of compounds 1a–c are shown in Figure 1 (see Figure S1 in the Supporting Information for spectra of compounds 2a–c).
Compounds 1, which contain triphenylamine substituents, exhibited red-shifted absorption and emission bands with respect to their 9-ethylcarbazole analogues 2. This finding indicates that the 9-ethyl-9H-carbazol-3-yl fragment is a weaker electron-donating group than triphenylamine. Triphenylamine derivatives 1 also displayed higher fluorescence quantum yields (up to 0.86 for 1b). The 4,6-disubstituted pyrimidines 1b and 2b showed a red-shifted emission and an enhanced fluorescence quantum yield in comparison with their C2-monosubstituted analogues 1a and 2a. In contrast, the addition of a third substituent (2,4,6-triarylpyrimidines) led to a slight blue shift in the emission and a decrease in the quantum yield. A similar phenomenon has previously been observed in tristyrylpyrimidines and was attributed to a decrease in the electron-withdrawing character of the pyrimidine central core due to the C2 electron-donating substituent, which decreases the ICT along the C4 and C6 arms [32].
In an effort to gain further insights into the photophysical properties of these push-pull molecules, in particular to evaluate the ICT upon excitation, the emission behaviour of compounds 1 and 2 was studied in a variety of different aprotic solvents. The data obtained are summarized in Table 2. The position of the longest wavelength absorption maximum was not affected significantly but an increase in the solvent polarity, estimated by the Dimroth–Reichardt polarity parameters [46,47], resulted in a red-shifted emission (see Figure 2 for compound 1b and Figures S2–S6 in the Supporting Information for compounds 1a, 1c, and 2a–c). This bathochromic shift in the emission band is consistent with stabilization of the highly polar emitting excited state by polar solvents. The solvatochromic shift of the emission band can be used to evaluate the ICT upon excitation. For all compounds, the emission maxima were plotted versus the Dimroth–Reichardt polarity parameter, and in all cases good linearity was found (see Figure S7 in the Supporting Information). The slopes of the corresponding regression lines indicate a stronger ICT for triphenylamine derivatives 1 with respect to their 9-ethylcarbazole analogues 2. In the triphenylamine series, the slope increased in the order 1a < 1c < 1b, thus indicating that the strongest ICT was obtained for the 4,6-disubstituted pyrimidine 1b. In a similar way, the slope increased in the order 2a < 2c < 2b for the 9-ethylcarbazole derivatives.
Photophysical measurements were also performed on a 10−2 M solution of camphorsulfonic acid (CSA) in dichloromethane. The results are summarized in Table 3. As one would expect, a bathochromic shift of the charge transfer absorption band was observed for all compounds due to the protonation of the pyrimidine ring [45,48]. This was associated with a dramatic quenching of the fluorescence for the triphenylamine derivatives. As a consequence, emission bands could not be identified for compounds 1a and 1c, whereas for 1b a low intensity emission in the red region was detected (λmax = 651 nm, ΦF < 0.01). It is worth noting that the protonated form of 1b was more emissive in chloroform solution (λabs = 493 nm, λem = 625 nm, ΦF = 0.11). In contrast, the 9-ethylcarbazole derivatives 2b and 2c remained fluorescent and they emitted green-yellow light with high emission quantum yields (ΦF = 0.63 and 0.45, respectively). The decay lifetimes (τ) were determined to be 3.6 ns and 4.2 ns (τ values for the neutral molecules were 1.8 ns and 1.7 ns, respectively). Surprisingly, 2a was not emissive in acidified dichloromethane. The effect of protonation was studied in a more detailed way by titration of solutions of compounds 1b, 2b and 2c with CSA. The changes observed in the UV-vis and emission spectra for 2b are illustrated in Figure 3 and Figure 4, respectively (see the Supporting Information for data for compounds 1b and 2c). The absorption spectra showed the progressive disappearance of the charge transfer absorption band of the neutral form, whereas a red-shifted charge transfer absorption band for the protonated form progressively appeared. The presence of an isosbestic point is evident and this is characteristic of an equilibrium between two species (Figure 3). The same trend was observed in the emission spectra: the addition of CSA led to the progressive disappearance of the emission band of the neutral form and this was associated with the enhancement of a new red-shifted band corresponding to the emission of the protonated form with an isoemissive point (Figure 4).
The coexistence of both neutral and protonated species with complementary emitting colors in the solution enabled white light emission to be achieved under UV-irradiation. Thus, compound 2c emitted violet light at λmax = 398 nm and this turned to green-yellow at λmax = 552 nm upon protonation. Excitation at 370 nm led to the observation of white light after the addition of 45 equivalents of CSA to a 1.25 × 10−5 M solution of 2c in dichloromethane (Figure 5). The same phenomenon was also observed for compounds 1b and 2b (Figures S11 and S12 of the Supporting Information, respectively). For 1b and 2c, the calculated CIE chromaticity coordinates (Table 4) were close to those of pure white light (0.33, 0.33).

2.3. Photophysical Properties in Solid State

Filter paper pieces covered with 2b and 2c in the absence and presence of different amounts of CSA were prepared by immersion of the filter paper into a dichloromethane solution of the appropriate compound (1 wt% doped on polystyrene). The samples were dried in air. The fluorescence spectra of the samples were acquired and emission maxima in the violet region at λmax = 405 nm and 406 nm, respectively, were determined in the absence of acid. The intensities of these bands gradually decreased on increasing the amount of CSA, whereas a distinctly novel enhanced emission appeared in the green-yellow region (λmax = 544 nm for 2b and λmax = 554 nm for 2c). After careful tuning of the number of equivalents of CSA, white light was observed due to the simultaneous emission from both the neutral and protonated compounds. These significant emission changes were easily followed by the naked eye under UV irradiation (Figure 6 and Figure S13 in the Supporting Information). Energy transfer between neutral and protonated molecules has been suggested for related systems [49].

3. Materials and Methods

3.1. General Information

All solvents were reagent grade for synthesis and spectroscopic grade for photophysical measurements. The starting materials were purchased from Sigma-Aldrich (St Louis, MO, USA) or Alfa Aesar (Haverhill, MA, USA) and were used without further purification. For air- and moisture-sensitive reactions, all glassware was flame-dried and cooled under nitrogen. NMR spectra were recorded in CDCl3 on a Bruker Avance 300 spectrometer (1H at 300 MHz and 13C at 75 MHz, Billerica, MA, USA). The chemical shifts δ are reported in ppm and are referenced to the residual protons of the deuterated solvent or carbon nuclei (1H, δ = 7.27 ppm; 13C, δ = 77.0 ppm). The coupling constants J are given in Hz. In the 1H-NMR spectra, the following abbreviations are used to describe the peak patterns: s (singlet), d (doublet), dd (doublet of doublets), t (triplet), m (multiplet). In the 13C-NMR spectra, the nature of the carbons (C, CH, CH2 or CH3) was determined by performing a JMOD experiment. Melting points (°C) were measured on a Kofler hot-stage with a precision of 2 degrees (±2 °C). High-resolution mass analyses were performed at the ‘Centre Régional de Mesures Physiques de l’Ouest’ (CRMPO, Université de Rennes 1, Rennes, France) using a Bruker MicroTOF-Q II apparatus. Analytical thin layer chromatography (TLC) was performed on 60 F254 silica gel plates (Merck, Darmstadt, Germany), and compounds were visualized by irradiation with UV light at 254 and 365 nm. Flash chromatography was performed using silica SI 60 (60–200 mesh ASTM, Acros, Waltham, MA, USA). UV-visible and fluorescence spectroscopy studies were conducted on a Spex Fluoromax-3 spectrophotometer (Jobin-Yvon Horiba, Kyoto, Japan). Compounds were excited at their absorption maxima (band of lowest energy) to record the emission spectra. All solutions were measured with optical densities below 0.1. Fluorescence quantum yields (±10%) were determined relative to 9,10-bis(phenylethynyl)anthracene in cyclohexane (ΦF = 1.00). Stokes shifts were calculated considering the lowest energetic absorption band.

3.2. General Procedure for Suzuki Cross-coupling Reactions

A stirred mixture of the chloropyrimidine derivative (1 mmol), arylboronic acid (1.2 mmol per chlorine atom), Pd(PPh3)4 (0.05 mmol per chlorine atom), 1 M aqueous sodium carbonate (1.2 mmol, 1.2 mL per chlorine atom), and ethanol (1.5 mL) in degassed toluene (15 mL) was heated at reflux under nitrogen for 15 h in a Schlenk tube. The reaction mixture was cooled, filtered, and dissolved with a mixture of AcOEt and water 1:1 (50 mL) and the organic layer was separated. The aqueous layer was extracted with AcOEt (2 × 25 mL). The combined organic extracts were dried with MgSO4 and the solvents were evaporated.
2-(4-Diphenylaminophenyl)pyrimidine (1a). The title compound was obtained according to the general procedure and purified by column chromatography (SiO2, AcOEt/petroleum ether, 3:7). Beige solid. Yield: 75% (241 mg). Mp: 173–174 °C (lit.: 168–169 °C) [50]. 1H-NMR (300 MHz, CDCl3): δ 7.17–7.05 (m, 9H), 7.31–7.27 (m, 4H), 8.28 (d, 2H, J = 9.0 Hz), 8.74 (d, 2H, J = 4.8 Hz). 13C-NMR (75 MHz, CDCl3): δ 118.2, 122.1, 123.6, 125.2, 129.2, 129.4, 130.9, 147.3, 150.3, 157.1, 164.5.
4,6-bis(4-Diphenylaminophenyl)pyrimidine (1b). The title compound was obtained according to the general procedure and purified by column chromatography (SiO2, AcOEt/petroleum ether, 3:7). Yellow solid. Yield: 87% (492 mg). Mp: 230–231 °C. 1H-NMR (300 MHz, CDCl3): δ 7.17–7.07 (m, 16H), 7.33–7.27 (m, 8H), 7.93 (d, 1H, J = 1.2 Hz), 7.99 (d, 4H, J = 9.0 Hz), 9.17 (d, 1H, J = 1.2 Hz). 13C-NMR (75 MHz, CDCl3): δ 110.9, 122.0, 123.9, 125.3, 128.1, 129.5, 129.9, 147.1, 150.4, 159.0, 163.7. HRMS (ESI/ASAP), m/z calculated for C40H31N4 [M + H]+ 567.2543, found 567.2546.
2,4,6-tris(4-Diphenylaminophenyl)pyrimidine (1c). The title compound was obtained according to the general procedure and purified by column chromatography (SiO2, AcOEt/petroleum ether, 3:7). Yellow solid. Yield: 65% (526 mg). Mp: >260 °C. 1H-NMR (300 MHz, CDCl3): δ 7.11–7.06 (m, 6H), 7.18–7.15 (m, 18H), 7.32–7.27 (m, 12H), 7.78 (s, 1H), 8.11 (d, 4H, J = 8.7 Hz), 8.51 (d, 2H, J = 8.7 Hz). 13C-NMR (75 MHz, CDCl3): δ 107.9, 122.2, 122.4, 123.3, 123.7, 124.9, 125.2, 128.1, 129.3, 129.4, 130.8, 132.1, 147.2, 147.4, 149.9, 150.2, 163.7, 164.0 HRMS (ESI/ASAP), m/z calculated for C58H44N5 [M + H]+ 810.3591, found 810.3591.
2-(9-Ethyl-9H-carbazol-3-yl)pyrimidine (2a). The title compound was obtained according to the general procedure and purified by column chromatography (SiO2, AcOEt/petroleum ether, 3:7). Beige solid. Yield: 87% (238 mg). Mp: 136–137 °C. 1H-NMR (300 MHz, CDCl3): δ 1.47 (t, 3H, J = 7.2 Hz), 4.41 (q, 6H, J = 7.2 Hz), 7.14 (t, 1H, J = 4.8 Hz), 7.30–7.27 (m, 1H), 7.52–7.42 (m, 3H), 8.22 (d, 1H, J = 7.8 Hz), 8.61 (d, 1H, J = 7.8 Hz), 8.82 (d, 2H, J = 5.1 Hz), 9.22 (s, 2H). 13C-NMR (75 MHz, CDCl3): δ 13.9, 37.7, 108.4, 108.7, 118.1, 119.5, 120.8, 121.0, 123.3, 123.5, 126.0, 126.2, 128.6, 140.6, 141.8, 157.2, 165.6. HRMS (ESI/ASAP), m/z calculated for C18H16N3 [M + H]+ 274.1338, found 274.1343.
4,6-bis(9-Ethyl-9H-carbazol-3-yl)pyrimidine (2b). The title compound was obtained according to the general procedure and purified by column chromatography (SiO2, AcOEt/petroleum ether, 1:1). Pale yellow solid. Yield: 76% (352 mg). Mp: 170–171 °C (lit.: 176–177 °C) [45]. 1H-NMR (300 MHz, CDCl3): δ 1.45 (t, 6H, J = 6.9 Hz), 4.33 (q, 4H, J = 6.9 Hz), 7.53–7.30 (m, 8H), 8.32–8.24 (m, 5H), 8.99 (s, 2H), 9.36 (s, 1H). 13C-NMR (75 MHz, CDCl3): δ 13.8, 37.7, 108.6, 108.8, 111.5, 119.6, 119.7, 120.8, 123.2, 123.5, 124.9, 126.2, 127.9, 140.6, 141.6, 159.0, 164.8.
2,4,6-tris(9-Ethyl-9H-carbazol-3-yl)pyrimidine (2c). The title compound was obtained according to the general procedure and purified by column chromatography (SiO2, AcOEt/petroleum ether, 3:7) followed by recrystallization from CH2Cl2/n-heptane. Pale yellow solid. Yield: 51% (330 mg). Mp: 176–177 °C. 1H-NMR (300 MHz, CDCl3): δ 1.52 (t, 9H, J = 6.3 Hz), 4.46 (q, 6H, J = 7.2 Hz), 7.37–7.33 (m, 3H), 7.62–7.47 (m, 9H), 8.22 (d, 1H, J = 2.4 Hz), 8.38–8.33 (m, 3H), 8.59 (2H, d, J = 8.7 Hz), 9.04 (1H, dd, J1 = 8.7 Hz, J2 = 1.2 Hz), 9.14 (s, 2H), 9.59 (s, 1H). 13C-NMR (75 MHz, CDCl3): δ 13.9, 37.8, 108.2, 108.7, 108.8, 119.2, 119.4, 119.8, 120.8, 120.9, 121.2, 123.2, 123.4, 123.5, 123.8, 125.4, 125.7, 126.1, 126.8, 129.1, 130.0, 140.6, 141.6. HRMS (ESI/ASAP), m/z calculated for C46H38N5 [M + H]+ 660.3122, found 660.3122.

4. Conclusions

Push-pull pyrimidines substituted with a different number of either triphenylamine or 9-ethylcarbazole groups were prepared by Suzuki cross-coupling reaction from the corresponding chloropyrimidines and boronic acids. The molecules presented absorption wavelengths in the UV region and emitted violet-blue light in dichloromethane solution with a higher fluorescence quantum yield and a stronger ICT observed for the triphenylamine derivatives. The addition of acid was accompanied by a dramatic quenching of the fluorescence except for the 9-ethylcarbazole derivatives 2b and 2c (and partially for 1b). In these cases, protonation led to the progressive disappearance of the emission band and the appearance of a new red-shifted complementary emitting band. Thus, white photoluminescence could be obtained by controlled protonation. White emission was also achieved in solid state.

Supplementary Materials

The following material is available online: Figure S1: absorption and emission spectra of compounds 2a–c in dichloromethane solution; Figures S2–S6: emission spectra of 1a, 1c, and 2a–c in different aprotic solvents; Figure S7: emission maxima as a function of the Dimroth–Reichardt polarity parameter ET(30) for compounds 1 and 2; Figures S8–S10: changes in the absorption and emission spectra of a solution of 1b and 2b upon addition of CSA; Figures S11 and S12: changes in the color of a solution of 1b and 2b after the addition of CSA; Figure S13: fluorescence spectra and changes in the color of 2b in solid state after the addition of CSA; Figures S14–S23: 1H, 13C-NMR and HRMS spectra of compounds 1 and 2.

Author Contributions

Conceptualization, S.A. and J.R.-L.; Formal analysis, S.A. and J.R.-L.; Funding acquisition, J.R.-L. and F.R.-l.G.; Investigation, S.A., J.R.-L., M.L. and R.P.-P.; Supervision, S.A. and J.R.-L.; Writing—original draft, S.A.; Writing—review & editing, J.R.-L. and F.R.-l.G.

Funding

This research was funded by the Junta de Comunidades de Castilla-La Mancha/FEDER (project SBPLY/17/180501/000214) and the Ministerio de Economía y Competitividad/Agencia Estatal de Investigación/FEDER (project CTQ2017-84561-P).

Acknowledgments

Olivier Mongin, Institut des Sciences Chimiques de Rennes, is acknowledged for helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Achelle, S.; Rodríguez-López, J.; Robin-le Guen, F. Photoluminescence properties of aryl- arylvinyl- and arylethynylpyrimidine derivatives. ChemistrySelect 2018, 3, 1852–1885. [Google Scholar] [CrossRef]
  2. Aranda, A.I.; Achelle, S.; Hammerer, F.; Mahuteau-Betzer, F.; Teulade-Fichou, M.-P. Vinyl-diazine triphenylamines and their N-methylated derivatives: synthesis, photophysical properties and application for staining DNA. Dyes Pigm. 2012, 95, 400–407. [Google Scholar] [CrossRef]
  3. Lipunova, G.N.; Nosova, E.V.; Charushin, V.N.; Chupakhin, O.N. Functionalized quinazolines and pyrimidines for optoelectronics. Curr. Org. Synth. 2018, 15, 793–814. [Google Scholar] [CrossRef]
  4. Achelle, S.; Plé, N. Pyrimidine ring as building block for the synthesis of functionalized π-conjugated materials. Curr. Org. Synth. 2012, 9, 163–187. [Google Scholar] [CrossRef]
  5. Li, L.; Ge, J.; Wu, H.; Xu, Q.-H.; Yao, S.Q. Organelle-specific detection of phosphatase activities with two-photon fluorogenic probes in cells and tissues. J. Am. Chem. Soc. 2012, 134, 12157–12167. [Google Scholar] [CrossRef] [PubMed]
  6. Na, Z.; Li, L.; Uttamchandani, M.; Yao, S.Q. Microarray-guided discovery of two-photon (2P) small molecule probes for live-cell imaging of cysteinyl cathepsin activities. Chem. Commun. 2012, 48, 7304–7306. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, Q.; Tian, X.; Hu, Z.; Brommesson, C.; Wu, J.; Zhou, H.; Yang, J.; Sun, Z.; Tian, Y.; Uvdal, K. Nonlinear optical response and two-photon biological applications of a new family of imidazole-pyrimidine derivatives. Dyes Pigm. 2016, 126, 286–295. [Google Scholar] [CrossRef]
  8. Liu, B.; Zhang, H.-L.; Liu, J.; Zhao, Y.-D.; Luo, Q.-M.; Huang, Z.-L. Novel pyrimidine-based amphiphilic molecules: synthesis, spectroscopic properties and applications in two-photon fluorescence imaging. J. Mater. Chem. 2007, 17, 2921–2929. [Google Scholar] [CrossRef]
  9. Malval, J.-P.; Achelle, S.; Bodiou, L.; Spangenberg, A.; Gomez, L.C.; Soppera, O.; Robin-le Guen, F. Two-photon absorption in a conformationally twisted D-π-A oligomer: a synergic photosensitizing approach for multiphoton lithography. J. Mater. Chem. C 2014, 4, 7869–7880. [Google Scholar] [CrossRef]
  10. Li, L.; Tian, Y.; Yang, J.-X.; Sun, P.-P.; Wu, J.-Y.; Zhou, H.-P.; Zhang, S.-Y.; Jin, B.-K.; Xing, X.-J.; Wang, C.-K.; et al. Facile synthesis and systematic investigations of a series of novel bent-shaped two-photon absorption chromophores based on pyrimidine. Chem. Asian J. 2009, 4, 668–680. [Google Scholar] [CrossRef]
  11. Serevičius, T.; Bučiūnas, T.; Bucevičius, J.; Dodonova, J.; Tumkevičius, S.; Kazlauskas, K.; Juršėnas, S. Room-temperature phosphorescence vs. thermally activated delayed fluorescence in cabazole pyrimidine cored compounds. J. Mater. Chem. C 2018, 6, 11128–11136. [Google Scholar] [CrossRef]
  12. Li, B.; Li, Z.; Hu, T.; Zhang, Y.; Wang, Y.; Yi, Y.; Guo, F.; Zhao, L. Highly efficient blue organic light-emitting diodes from pyrimidine-based thermally activated delayed fluorescence emitters. J. Mater. Chem. C 2018, 6, 2351–2359. [Google Scholar] [CrossRef]
  13. Komatsu, R.; Sasabe, H.; Kido, J. Recent progress of pyrimidine derivatives for high-performance organic light-emitting devices. J. Photonics Energy 2018, 8, 032108. [Google Scholar] [CrossRef]
  14. Komatsu, R.; Ohsawa, T.; Sasabe, H.; Nakao, K.; Hayasaka, Y.; Kido, J. Manipulating the electronic excited state energies of pyrimidine-based thermally activated delayed fluorescence emitters to realize efficient deep-blue emission. ACS Appl. Mater. Interfaces 2017, 9, 4742–4749. [Google Scholar] [CrossRef] [PubMed]
  15. Nakao, K.; Sasabe, H.; Komatsu, R.; Hayasaka, Y.; Ohsawa, T.; Kido, J. Unlocking the potential of pyrimidine conjugate emitters to realize high-performance organic light-emitting devices. Adv. Opt. Mater. 2017, 5, 1600843. [Google Scholar] [CrossRef]
  16. Durand, R.J.; Gauthier, S.; Achelle, S.; Groizard, T.; Kahlal, S.; Saillard, J.-Y.; Barsella, A.; le Poul, P.; Robin-le Guen, F. Push-pull D-π-Ru-π-A chromophores: synthesis and electrochemical, photophysical and second-order nonlinear optical properties. Dalton Trans. 2018, 47, 3965–3975. [Google Scholar] [CrossRef] [PubMed]
  17. Achelle, S.; Kahlal, S.; Barsella, A.; Saillard, J.-Y.; Che, X.; Vallet, J.; Bureš, F.; Caro, B.; Robin-le Guen, F. Improvement of the quadratic non-linear optical properties of pyrimidine chromophores by N-methylation and tungsten pentacarbonyl complexation. Dyes Pigm. 2015, 113, 562–570. [Google Scholar] [CrossRef] [Green Version]
  18. Sun, H.; Liu, D.; Wang, T.; Li, P.; Bridgmohan, C.N.; Li, W.; Lu, T.; Hu, W.; Wang, L.; Zhou, X. Charge-separated sensitizers with enhanced intramolecular charge transfer for dye-sensitized solar cells: Insight from structure-performance relationships. Org. Electron. 2018, 61, 35–45. [Google Scholar] [CrossRef]
  19. Verbitskiy, E.V.; Cheprakova, E.M.; Subbotina, J.O.; Schepochkin, A.V.; Slepukhin, P.A.; Rusinov, G.L.; Charushin, V.N.; Chupakhin, O.N.; Makarova, N.I.; Metelitsa, A.V.; et al. Synthesis, spectral and electrochemical properties of pyrimidine-containing dyes as photosensitizers for dye-sensitized solar cells. Dyes Pigm. 2014, 100, 201–204. [Google Scholar] [CrossRef]
  20. Achelle, S.; Robin-le Guen, F. Emission properties of diazine chromophores: structure-properties relationship. J. Photochem. Photobiol. A 2017, 348, 281–286. [Google Scholar] [CrossRef]
  21. Schomaker, J.M.; Delia, T.J. Arylation of halogenated pyrimidines via a Suzuki coupling reaction. J. Org. Chem. 2001, 66, 7125–7128. [Google Scholar] [CrossRef] [PubMed]
  22. Anderson, S.C.; Handy, S.T. One-pot double Suzuki couplings of dichloropyrimidines. Synthesis 2010, 2721–2724. [Google Scholar]
  23. Delia, T.J.; Schomaker, J.M.; Kalinda, A.S. The synthesis of substituted phenylpyrimidines via Suzuki coupling reactions. J. Heterocycl. Chem. 2006, 43, 127–131. [Google Scholar] [CrossRef]
  24. Achelle, S.; Ramondenc, Y.; Marsais, F.; Plé, N. Star- and banana-shaped oligomers with a pyrimidine core: synthesis and light-emitting properties. Eur. J. Org. Chem. 2008, 3129–3140. [Google Scholar] [CrossRef]
  25. Littke, A.F.; Fu, G.C. Palladium-catalyzed coupling reactions of aryl chlorides. Angew. Chem. Int. Ed. 2002, 41, 4176–7211. [Google Scholar] [CrossRef]
  26. Lartia, R.; Allain, C.; Bordeau, G.; Schmidt, F.; Fiorini-Debuisschert, C.; Charra, F.; Teulade-Fichou, M.-P. Synthetic strategies to derivatizable triphenylamine displaying high two-photon absorption. J. Org. Chem. 2008, 73, 1732–1744. [Google Scholar] [CrossRef]
  27. Katan, C.; Charlot, M.; Mongin, O.; Le Droumaguet, C.; Jouikov, V.; Terenziani, F.; Badaeva, E.; Tretiak, S.; Blanchard-Desce, M. Simultaneous control of emission localization and two-photon absorption efficiency in dissymmetrical chromophores. J. Phys. Chem. B 2010, 114, 3152–3169. [Google Scholar] [CrossRef]
  28. Merkt, F.K.; Höwedes, S.P.; Gers-Panther, C.F.; Gruber, I.; Janiak, C.; Müller, T.J.J. Three-component activation/alkynylation/cyclocondensation (AACC) synthesis of enhanced emission solvatochromic 3-ethynylquinoxalines. Chem. Eur. J. 2018, 24, 8114–8125. [Google Scholar] [CrossRef]
  29. Panthi, K.; Adhikari, R.M.; Kinstle, T.H. Aromatic fumaronitrile core-based donor-linker-acceptor-linker-donor (D-pi-A-pi-D) compounds: synthesis and photophysical properties. J. Phys. Chem. A 2010, 114, 4542–4549. [Google Scholar] [CrossRef]
  30. Itami, K.; Yamazaki, D.; Yoshida, J.-I. Pyrimidine-core extended π-systems: general synthesis and interesting fluorescent properties. J. Am. Chem. Soc. 2004, 126, 15396–15397. [Google Scholar] [CrossRef]
  31. Muraoka, H.; Obara, T.; Ogawa, S. Systematic synthesis, comparative studies of the optical properties, and the ICT-based sensor properties of a series of 2,4,6-tri(5-aryl-2-thienyl)pyrimidines with the D-π-A system. Tetrahedron Lett. 2016, 57, 3011–3015. [Google Scholar] [CrossRef]
  32. Fecková, M.; le Poul, P.; Robin-le Guen, F.; Roisnel, T.; Pytela, O.; Klikar, M.; Bureš, F.; Achelle, S. 2,4-Distyryl- and 2,4,6-tristyrylpyrimidines: synthesis and photophysical properties. J. Org. Chem. 2018, 83, 11712–11726. [Google Scholar] [CrossRef] [PubMed]
  33. Rodríguez-Aguilar, J.; Vidal, M.; Pastenes, C.; Aliaga, C.; Caroli Rezende, M.; Domínguez, M. The solvatofluorochromism of 2,4,6-triarylpyrimidine derivatives. Photochem. Photobiol. 2018, 94, 1100–1108. [Google Scholar] [CrossRef] [PubMed]
  34. Achelle, S.; Rodríguez-López, J.; Katan, C.; Robin-le Guen, F. Luminescence behavior of protonated methoxy-substituted diazine derivatives: toward white light emission. J. Phys. Chem. C 2016, 120, 26986–26995. [Google Scholar] [CrossRef]
  35. Achelle, S.; Rodríguez-López, J.; Cabon, N.; Robin-le Guen, F. Protonable pyrimidine derivative for white light emission. RSC Adv. 2015, 5, 107396–107399. [Google Scholar] [CrossRef]
  36. Telore, R.D.; Satam, M.A.; Sekar, N. Push-pull fluorophores with viscosity dependent and aggregation induced emissions insensitive to polarity. Dyes Pigm. 2015, 122, 359–367. [Google Scholar] [CrossRef]
  37. Cvejn, D.; Michael, E.; Polyzos, I.; Almonasy, N.; Pytela, O.; Klikar, M.; Mikysek, T.; Giannetas, V.; Fakis, M.; Bureš, F. Modulation of (non)linear optical properties in tripodal molecules by variation of the peripheral cyano acceptor moieties and the π-spacer. J. Mater. Chem. C 2015, 3, 7345–7355. [Google Scholar] [CrossRef] [Green Version]
  38. Le Droumaguet, C.; Sourdon, A.; Genin, E.; Mongin, O. Blanchard-Desce Two-photon polarity probes from octupolar fluorophores: synthesis, structure-properties relationships, and use in cellular imaging. Chem. Asian J. 2013, 8, 2984–3001. [Google Scholar] [CrossRef]
  39. Dumat, B.; Bordeau, G.; Faurel-Paul, E.; Mahuteau-Betzer, F.; Saetel, N.; Metge, G.; Fiorini-Debuisschert, C.; Charra, F.; Teulade-Fichou, M.-P. DNA switches on the two-photon efficiency of an ultrabright triphenylamine fluorescent probe specific of AT regions. J. Am. Chem. Soc. 2013, 135, 12697–12706. [Google Scholar] [CrossRef]
  40. Kwon, O.; Barlow, S.; Odom, S.A.; Beverina, L.; Thompson, N.J.; Zojer, E.; Brédas, J.-L.; Marder, S.R. Aromatic amines: a comparison of electron-donor strengths. J. Phys. Chem. A 2005, 109, 9346–9352. [Google Scholar] [CrossRef]
  41. Tydlitát, J.; Achelle, S.; Rodríguez-López, J.; Pytela, O.; Mikýsek, T.; Cabon, N.; Robin-le Guen, F.; Miklík, D.; Růžičková, Z.; Bureš, F. Photophysical properties of acid-responsive triphenylamine derivatives bearing pyridine fragments: towards white light emission. Dyes Pigm. 2017, 146, 467–478. [Google Scholar] [CrossRef]
  42. Parthasarathy, V.; Fery-Forgues, S.; Campioli, E.; Recher, G.; Terenziani, F.; Blanchard-Desce, M. Dipolar versus octupolar triphenylamine-based fluorescent organic nanoparticles as brillant one- and two-photon emitters for (bio)imaging. Small 2011, 7, 3219–3229. [Google Scholar] [CrossRef] [PubMed]
  43. Zhu, H.; Huang, J.; Kong, L.; Tian, Y.; Yang, J. Branched triphenylamine luminophores: aggregation-induced fluorescence emission, and tunable near-infrared solid-state fluorescence characteristics via external mechanical stimuli. Dyes Pigm. 2018, 151, 140–149. [Google Scholar] [CrossRef]
  44. Weng, J.; Mei, Q.; Fan, Q.; Ling, Q.; Tong, B.; Huang, W. Bipolar luminescent materials containing pyrimidine terminals: synthesis, photophysical properties and a theoretical study. RSC Adv. 2013, 3, 21877–21887. [Google Scholar] [CrossRef]
  45. Kato, S.-I.; Yamada, Y.; Hiyoshi, H.; Umezu, K.; Nakamura, Y. Series of carbazole-pyrimidine conjugates: syntheses and electronic, photophysical, and electrochemical properties. J. Org. Chem. 2015, 80, 9076–9090. [Google Scholar] [CrossRef] [PubMed]
  46. Reichardt, C. Solvatochromic dyes as solvent polarity indicators. Chem. Rev. 1994, 94, 2319–2358. [Google Scholar] [CrossRef]
  47. Cerón-Carrasco, J.P.; Jacquemin, D.; Laurence, C.; Planchat, A.; Reichardt, C.; Sraïdi, K. Solvent polarity scales: determination of new Et(30) values for 84 organic solvents. J. Phys. Org. Chem. 2014, 27, 512–518. [Google Scholar] [CrossRef]
  48. Achelle, S.; Nouira, I.; Pfaffinger, B.; Ramondenc, Y.; Plé, N.; Rodríguez-López, J. V-shaped 4,6-bis(arylvinyl)pyrimidine oligomers: synthesis and optical properties. J. Org. Chem. 2009, 74, 3711–3717. [Google Scholar] [CrossRef]
  49. Liu, D.; Zhang, Z.; Zhang, H.; Wang, Y. A novel approach towards white photoluminescence and electroluminescence by controlled protonation of a blue fluorophore. Chem. Commun. 2013, 49, 10001–10003. [Google Scholar] [CrossRef]
  50. Liu, C.; Wu, Y.; Qiu, J. Efficient synthesis of 4-heteroaryl-substituted triphenylamine derivatives via a ligand-free Suzuki reaction. Appl. Organomet. Chem. 2011, 25, 862–866. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 1 and 2 are available from the authors.
Molecules 24 01742 sch001 550
Scheme 1. Preparation of pyrimidines 1 and 2. (i) Toluene, Pd(PPh3)4, Na2CO3 aq., EtOH, Δ, 15 h.
Scheme 1. Preparation of pyrimidines 1 and 2. (i) Toluene, Pd(PPh3)4, Na2CO3 aq., EtOH, Δ, 15 h.
Molecules 24 01742 sch001
Molecules 24 01742 g001 550

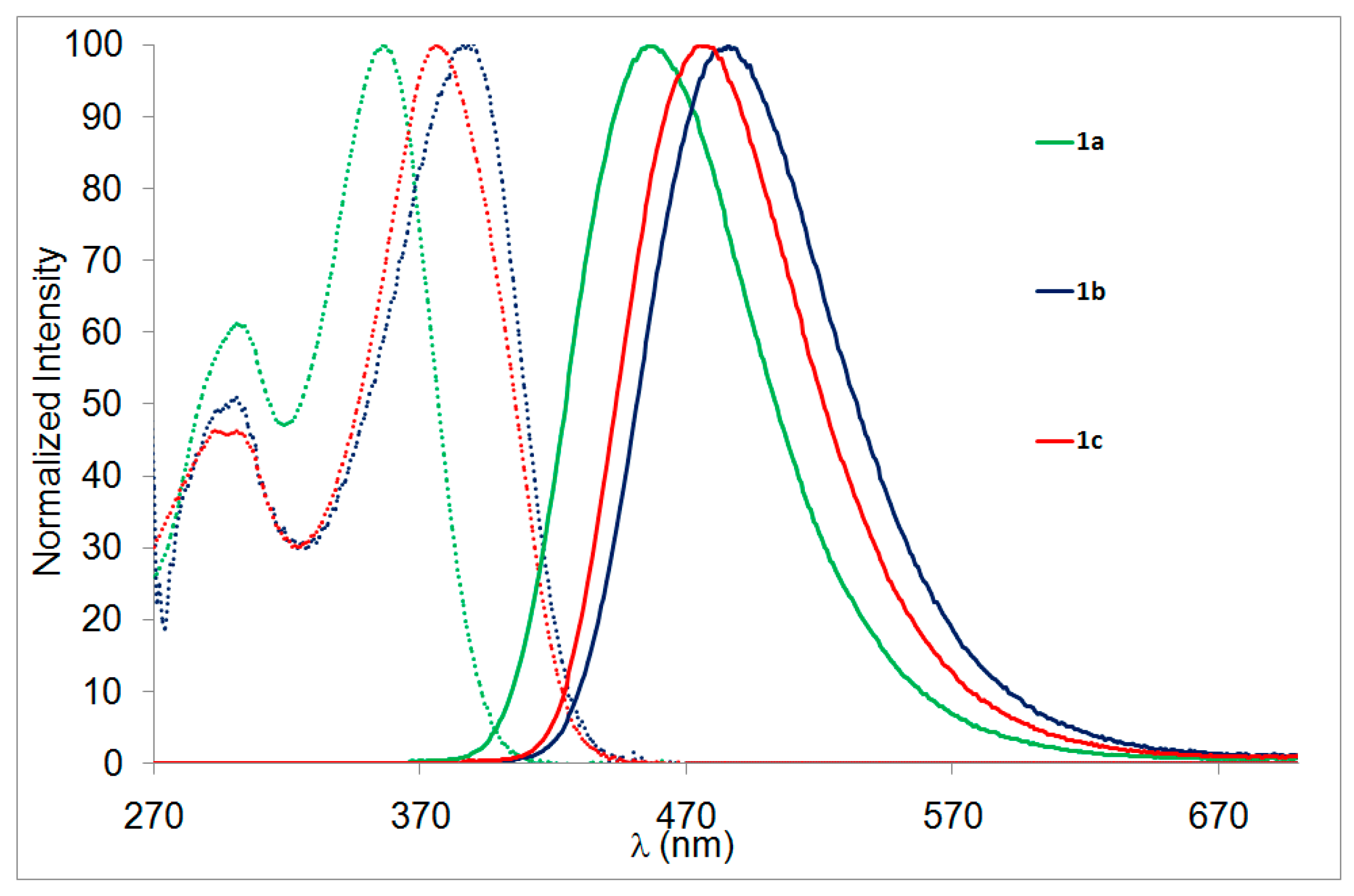

Figure 1. Normalized absorption (dashed lines) and emission (solid lines) spectra of compounds 1a (green), 1b (blue) and 1c (red) in dichloromethane solution.
Figure 1. Normalized absorption (dashed lines) and emission (solid lines) spectra of compounds 1a (green), 1b (blue) and 1c (red) in dichloromethane solution.
Molecules 24 01742 g001
Molecules 24 01742 g002 550

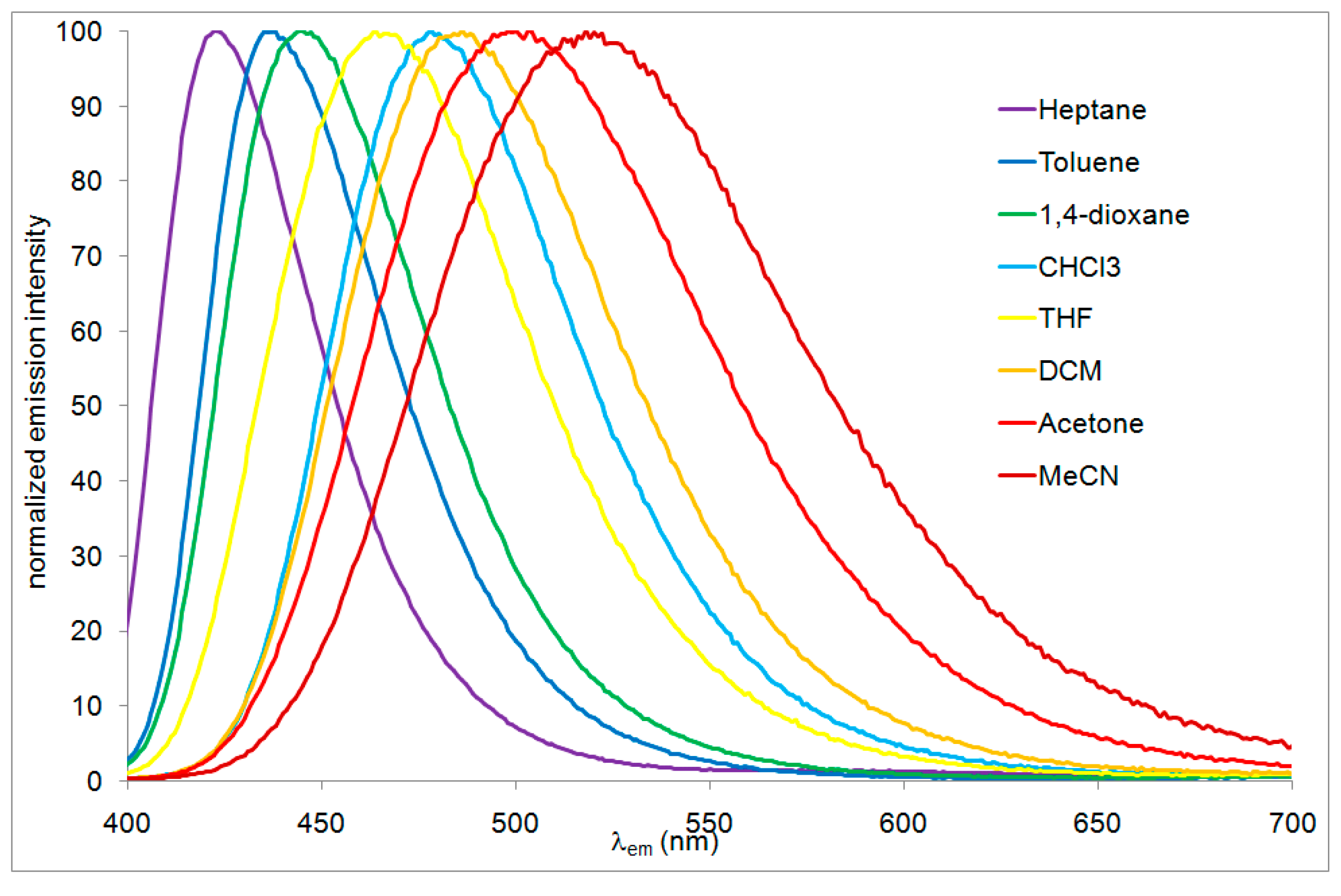

Figure 2. Normalized emission spectra of 1b in different aprotic solvents.
Figure 2. Normalized emission spectra of 1b in different aprotic solvents.
Molecules 24 01742 g002
Molecules 24 01742 g003 550

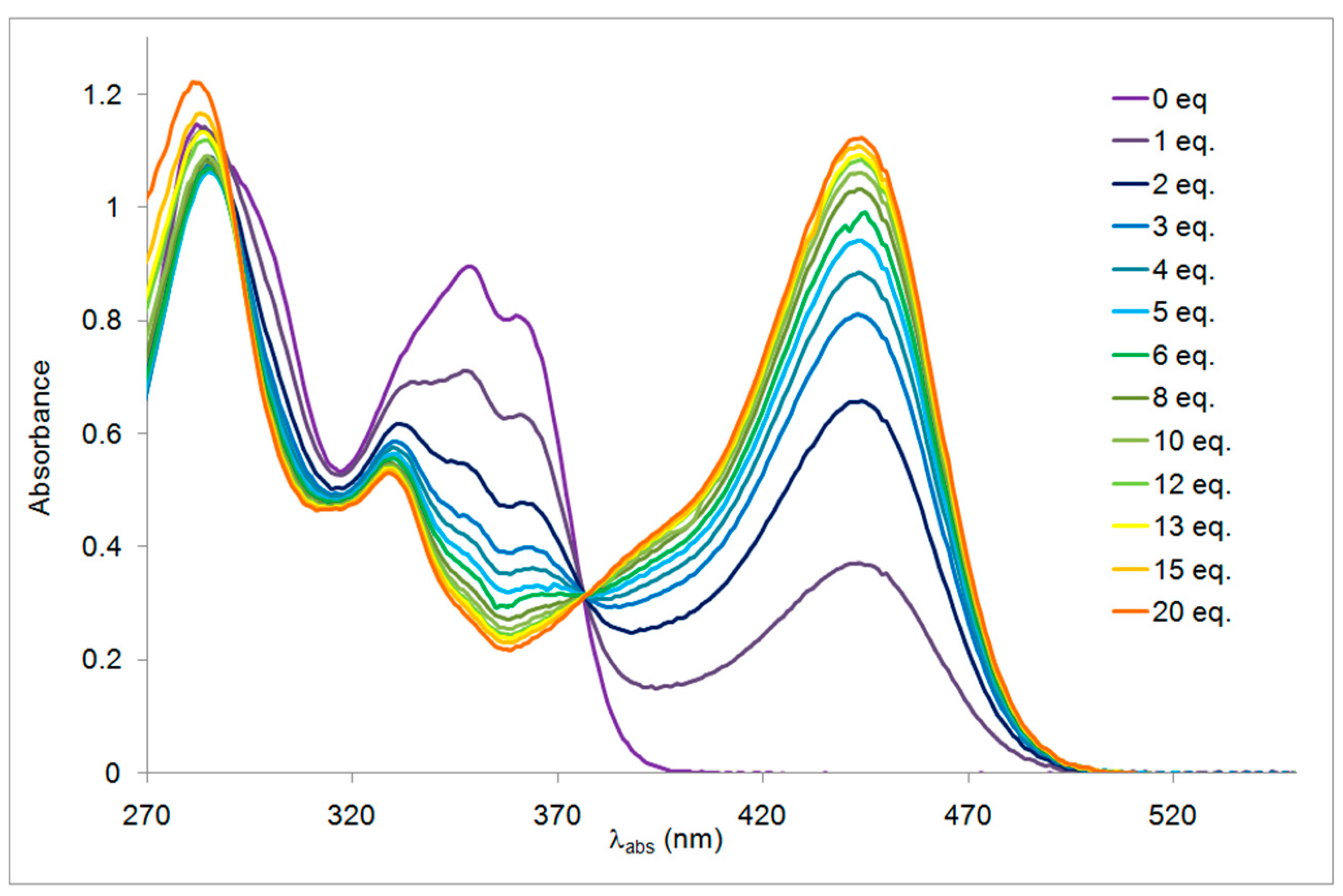

Figure 3. Changes in the absorption spectra of a dichloromethane solution of 2b (c = 1.87 × 10−5 M) upon addition of CSA (0–20 equivalents).
Figure 3. Changes in the absorption spectra of a dichloromethane solution of 2b (c = 1.87 × 10−5 M) upon addition of CSA (0–20 equivalents).
Molecules 24 01742 g003
Molecules 24 01742 g004 550
Figure 4. Changes in the emission spectra of a dichloromethane solution of 2b (c = 1.97 × 10−5 M) upon addition of CSA (0–40 equivalents), λexc = 370 nm.
Figure 4. Changes in the emission spectra of a dichloromethane solution of 2b (c = 1.97 × 10−5 M) upon addition of CSA (0–40 equivalents), λexc = 370 nm.
Molecules 24 01742 g004
Molecules 24 01742 g005 550
Figure 5. Changes in the color of a dichloromethane solution of 2c (c = 1.25 × 10−5 M) after the addition of 45 equivalents (middle) and in 10−2 M CSA (right). Photographs were taken in the dark upon irradiation with a hand-held UV lamp (λem = 366 nm).
Figure 5. Changes in the color of a dichloromethane solution of 2c (c = 1.25 × 10−5 M) after the addition of 45 equivalents (middle) and in 10−2 M CSA (right). Photographs were taken in the dark upon irradiation with a hand-held UV lamp (λem = 366 nm).
Molecules 24 01742 g005
Molecules 24 01742 g006 550

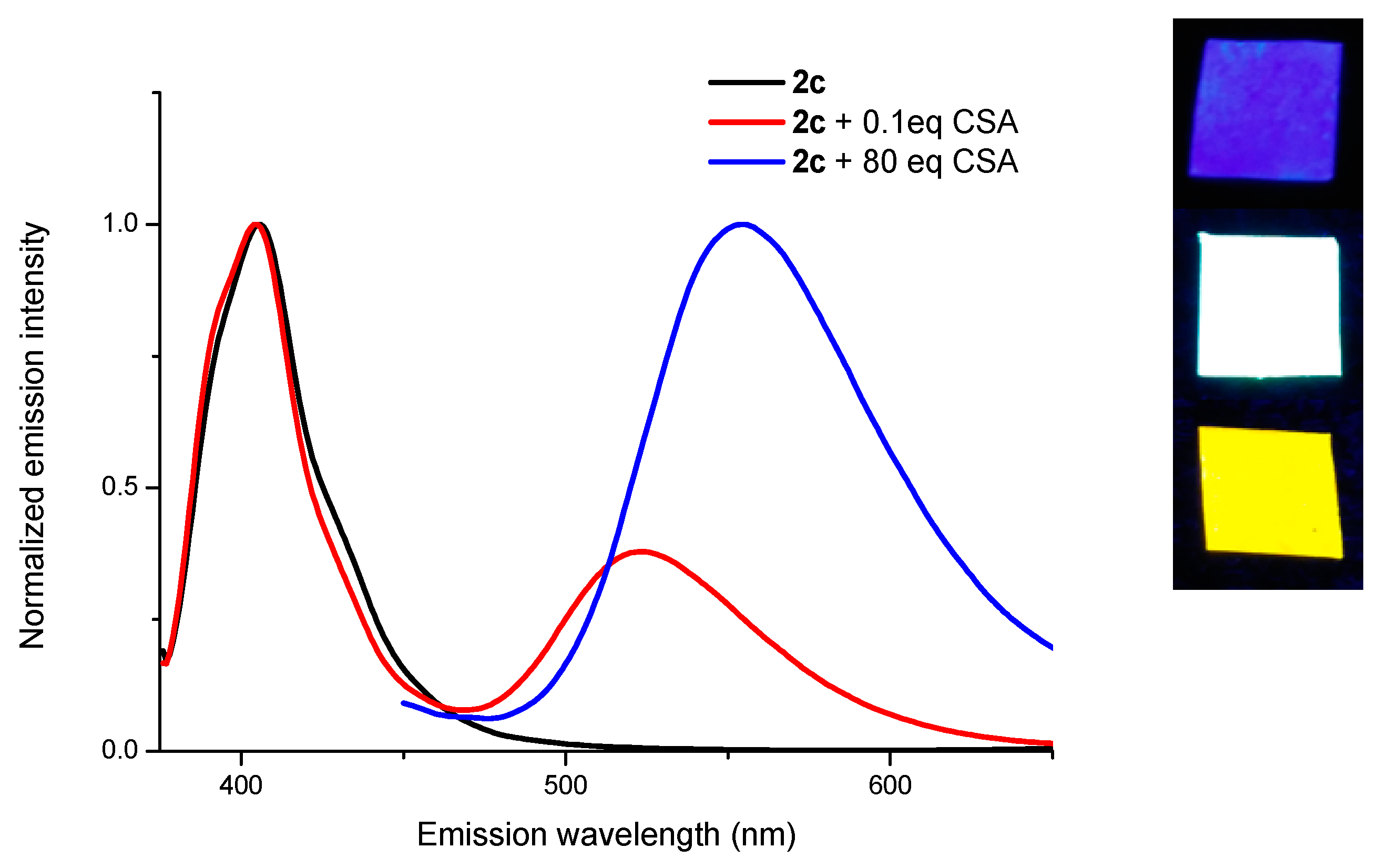

Figure 6. Fluorescence spectra (λexc = 365 nm) and changes in the colour of filter paper samples after immersion into a dichloromethane solution of polystyrene doped with 2c (1 wt%) in the absence (top) and presence of 0.1 equivalents (middle) and 80 equivalents (bottom) of CSA. Photographs were taken in the dark upon irradiation with a hand-held UV lamp (λem = 366 nm).
Figure 6. Fluorescence spectra (λexc = 365 nm) and changes in the colour of filter paper samples after immersion into a dichloromethane solution of polystyrene doped with 2c (1 wt%) in the absence (top) and presence of 0.1 equivalents (middle) and 80 equivalents (bottom) of CSA. Photographs were taken in the dark upon irradiation with a hand-held UV lamp (λem = 366 nm).
Molecules 24 01742 g006
Table
Table 1. UV-Vis and photoluminescence (PL) data for compounds 1 and 2 in CH2Cl2 solution.
Table 1. UV-Vis and photoluminescence (PL) data for compounds 1 and 2 in CH2Cl2 solution.
Compdλabs (nm)ε (mM−1 cm−1)λem (nm)ΦFStokes Shift (cm−1)
1a356, 30121.7, 13.34560.836160
1b388, 30152.0, 26.44860.865200
1c376, 299, 29376.6, 36.7, 36.94750.525540
2a323, 284, 276 (sh)22.6, 51.6, 33.83820.324780
2b360, 348, 28443.2, 48.2, 50.14070.773210
2c367 (sh) 339, 299, 282 (sh)20.4, 69.2, 84.2, 64.13980.352120
Table
Table 2. Emission solvatochromism of compounds 1 and 2 in various aprotic solvents.
Table 2. Emission solvatochromism of compounds 1 and 2 in various aprotic solvents.
Compdn-Heptane 30.9 aToluene 33.9 a1,4-Dioxane 36.0 aTHF 37.4 aCHCl3 39.1 aCH2Cl2 40.7 aAcetone 42.2 aMeCN 45.6 a
1a406420429449450456462477
1b418437444464478486498518
1c413432438466466475492508
2a354/373361/378362/379379383382382389
2b371383384395406407413424
2c379384386385398398407415
a ET(30) Dimroth–Reichardt polarity parameter in kcal mol−1.
Table
Table 3. UV/Vis and PL data for compounds 1 and 2 in acid solution (10−2 M CSA in CH2Cl2).
Table 3. UV/Vis and PL data for compounds 1 and 2 in acid solution (10−2 M CSA in CH2Cl2).
Compdλabs (nm)ε (mM−1 cm−1)λem (nm)ΦFStokes Shift (cm−1)
1a424, 373 (sh), 26817.2, 9.3, 30.5---
1b48848.3651<0.015130
1c486, 375, 27468.2, 30.4, 88.5---
2a39627.3---
2b444, 390, 28563.9, 28.0, 64.35190.633250
2c443, 33041.9, 29.05520.454460
Table
Table 4. CIE coordinates for compounds 1 and 2 in solution.
Table 4. CIE coordinates for compounds 1 and 2 in solution.
CompdChromaticity Coordinates (x, y)
Neutral FormProtonated FormMixture of Neutral and Protonated Forms
1aa(0.15, 0.15)--
1bb(0.18, 0.33)(0.62, 0.37)(0.32, 0.34) c
1ca(0.16, 0.25)--
2aa(0.18, 0.04)--
2ba(0.16, 0.03)(0.29, 0.59)(0.24, 0.39) d
2ca(0.17, 0.04)(0.42, 0.56)(0.30, 0.34) e
a In dichloromethane solution (c = 1.0–2.0 × 10−5 M). b In chloroform solution (c = 9.76 × 10−6 M). c 50 equivalents of CSA, λexc = 400 nm. d 2 equivalents of CSA, λexc = 370 nm. e 45 equivalents of CSA, λexc = 370 nm.
