Article

Synthesis and Stereostructure-Activity Relationship of Novel Pyrethroids Possessing Two Asymmetric Centers on a Cyclopropane Ring

Department of Chemistry, School of Science and Technology, Kwansei Gakuin University, 2-1 Gakuen, Sanda, Hyogo 669-1337, Japan
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(6), 1023; https://doi.org/10.3390/molecules24061023
Received: 14 February 2019 / Revised: 7 March 2019 / Accepted: 9 March 2019 / Published: 14 March 2019
(This article belongs to the Section Organic Chemistry)

Abstract

:
2-Methylcyclopropane pyrethroid insecticides bearing chiral cyanohydrin esters or chiral ethers and two asymmetric centers on the cyclopropane ring, were synthesized. These compounds were designed using a “reverse connection approach” between the isopropyl group in Fenvalerate, and between two dimethyl groups in an Etofenprox analogue (the methyl, ethyl form), respectively. These syntheses were achieved by accessible ring opening reactions of commercially available (±)-, (R)-, and (S)-propylene oxides using 4-chlorobenzyl cyanide anion as the crucial step, giving good overall yield of the product with >98% ee. The insecticidal activity against the common mosquito (Culex pipiens pallens) was assessed for pairs of achiral diastereomeric (1R*,2S*)-, (1R*,2R*)-cyanohydrin esters, and (1R*,2S*)-, (1R*,2R*)-ethers; only the (1R*,2R*)-ether was significantly effective. For the enantiomeric (1S,2S)-ether and (1R,2R)-ether, the activity was clearly centered on the (1R,2R)-ether. The present stereostructure‒activity relationship revealed that (i) cyanohydrin esters derived from fenvalerate were unexpectedly inactive, whereas ethers derived from etofenprox were active, and (ii) apparent chiral discrimination between the (1S,2S)-ether and the (1R,2R)-ether was observed. During the present synthetic study, we performed alternative convergent syntheses of Etofenprox and novel 4-EtO-type (1S,2S)- and (1R,2R)-pyrethroids from the corresponding parent 4-Cl-type pyrethroids, by utilizing a recently-developed hydroxylation cross-coupling reaction.

Graphical Abstract

1. Introduction

Chiral discrimination between the diastereomers and enantiomers is a pivotal subject [1,2] concerning the development of synthetic pyrethroid insecticides [1,2,3,4,5,6]. The original natural chrysanthemic acid components possess cyclopropane structures with 1R,3R (or 3S) chiral centers as the insecticidally-active ingredient. Fenvalerate was the first distinctive non-cyclopropane-type synthetic pyrethroid to be reported, and the active S-enantiomer is commercially available as esfenvalerate (Figure 1) [7]. This concept on this discovery was interpreted by using the disconnection approach on the cyclopropane bond in natural chrysanthemic acids. The development of the ether-type pyrethroid etofenprox, on the other hand, overturned the prevailing belief that pyrethroids are composed of common ester-type moieties. In an independent investigation, the CSIRO (Commonwealth Scientific and Industrial Research Organisation, Australia) group disclosed pyrethroids containing a gem-dihalocyclopropane, cycloprothrin [8,9] the S-enantiomer of which is the active ingredient and is likely superimposable on esfenvalarate (Figure 2).
In our continuing synthetic studies of cyclopropane chemistry [10,11], we previously reported three synthetic designs and the structure activity relationships (SARs) of cyclopropane pyrethroids I, II, and III with three chiral centers (Figure 2) [12,13,14,15]. Apparent chiral discrimination among three sets of eight stereoisomers revealed that each enantiomer (1R,2S,3S) was an insecticidally-active form. Taking this background into account, we envisaged a further investigation of the synthesis of simpler and more accessible novel cyclopropane-type pyrethroids with two chiral centers: cyanohydrin ester-type 1 and ether-type 2 (Scheme 1). The design of 1 and 2 involved a “reverse connection approach” between the a and b positions in fenvalerate and between the c and d positions in an etofenprox analogue (methyl and ethyl form). Furthermore, the present work was performed using an accessible chiral synthetic method, eliminating the tedious optical resolution and elaborated asymmetric cyclopropanation procedures used for IIII. Convergent synthesis of etofenprox and the present 4-EtO-type pyrethroids from the parent 4-Cl-type pyrethroids utilizing a recently developed hydroxylation cross-coupling reaction is also described.

2. Results and Discussion

2.1. Syntheses of Novel Pyrethroids Possessing two Asymmetric Centers on the Cyclopropane Ring

Synthetic routes for key cyclopropane precursors 4 are outlined in Scheme 2. Ring-opening reactions of commercially available (±)-, (R)-, and (S)-propylene oxides by 4-chlorobenzyl cyanide anion give the corresponding secondary alcohol intermediates. Tosylation of the intermediates produces 2-(4-chlorophenyl)-4-tosyloxynitriles (±)-3, (4R)-3, and (4S)-3. An SN2-type ring-closing reaction using mixtures of (4R)-3 and (4S)-3 produces the key cyclopropane nitriles (1R*,2S*)-4 and (1R*,2R*)-4 as diastereomers. In a similar manner, two sets of nitriles (1R,2S)-4/(1S,2S)-4 and (1S,2R)-4/(1R,2R)-4 can be prepared from (4R)- and (4S)-3, respectively.
The successful accessible cyclopropane formation steps are shown in Scheme 3. The LHMDS-mediated ring-opening reaction of 4-chlorobenzyl cyanide with (±)-propylene oxide gave intermediary alcohol (±)-5 with a yield of 70% with ca. 6:4 diastereoselectivity according to the reported method [16]. Alcohol (±)-5 was converted to tosylate (±)-2 with excellent yield using TsCl/Et3N/cat.Me3N•HCl reagent [17] (96%, dr = 65:35). We then investigated the crucial cyclopropane ring-closing reaction. Hiyama and Takehara’s group reported a relevant study on stereoselective reactions of 4-methoxybenzyl cyanide with chiral epoxyoctane using three different bases (NaH, tBuOK, and LDA) [16]. To intentionally obtain diastereomers (1R*,2S*)-4 and (1R*,2R*)-4 in equal amounts, we applied non-stereoselective conditions using tBuOLi, as shown in Table 1. The relative stereochemical assignment of cyclopropanes 4 was determined according to the reported method [16]. Based on the criterion for the deshielding effect of a cis-located benzene ring, methyl protons (0.83 ppm) in (1R*,2R*)-4 appeared at a higher chemical shift than those (1.47 ppm) in (1R*,2S*)-4.
Hydrolysis and successive reduction of (1R*,2S*)-4 and (1R*,2R*)-4 were next examined (Scheme 4). Conventional hydrolysis of (1R*,2R*)-4 using NaOH/MeOH‒H2O gave carboxylic acid (1R*,2R*)-6 with a yield of 84%, whereas (1R*,2S*)-4 resisted these conditions and was only produced with a yield of 30‒35%, probably due to the higher cis-methyl group stereocongestion. To address this issue, DIBAL reduction and a Pinnick oxidation reaction sequence were applied to (1R*,2S*)-4 to successfully produce acid (1R*,2S*)-6 with an overall yield of 76%. LAH reduction of carboxylic acids (1R*,2S*)-6 and (1R*,2R*)-6 gave alcohol intermediates (1R*,2S*)-7 and (1R*,2R*)-7 with yields of 92% and 94%, respectively.

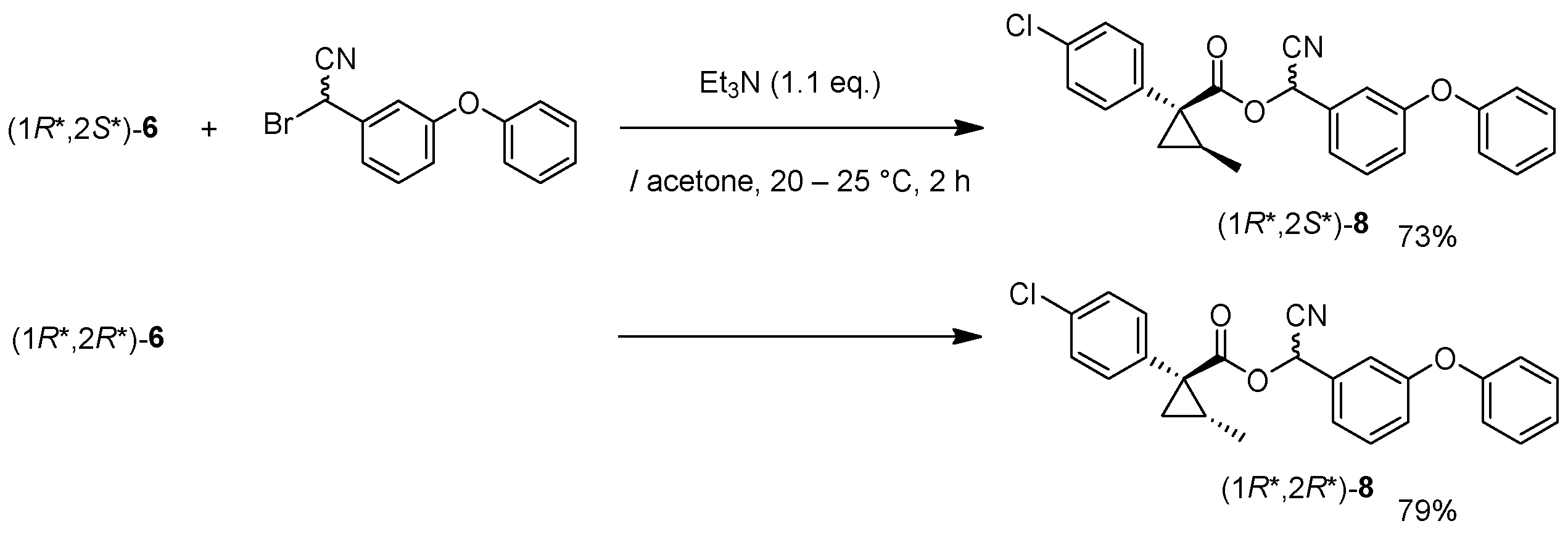

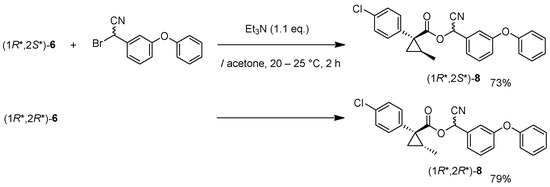

Based on these results, cyanohydrin ester formation using acids (1R*,2S*)-6 and (1R*,2R*)-6 was carried out. Conventional condensation reactions of (1R*,2S*)-6 and (1R*,2R*)-6 with bromo(3-phenoxyphenyl)acetonitrile [9] produced target cyanohydrin esters (1R*,2S*)-8 and (1R*,2R*)-8 in yields of 73% and 79%, respectively (Scheme 5). As addressed in the bioassay section (vide infra), neither cyanohydrin ester (1R*,2S*)-8 nor (1R*,2R*)-8 exhibited significant insecticidal activity. Accordingly, we abandoned further synthesis of the corresponding chiral compounds.

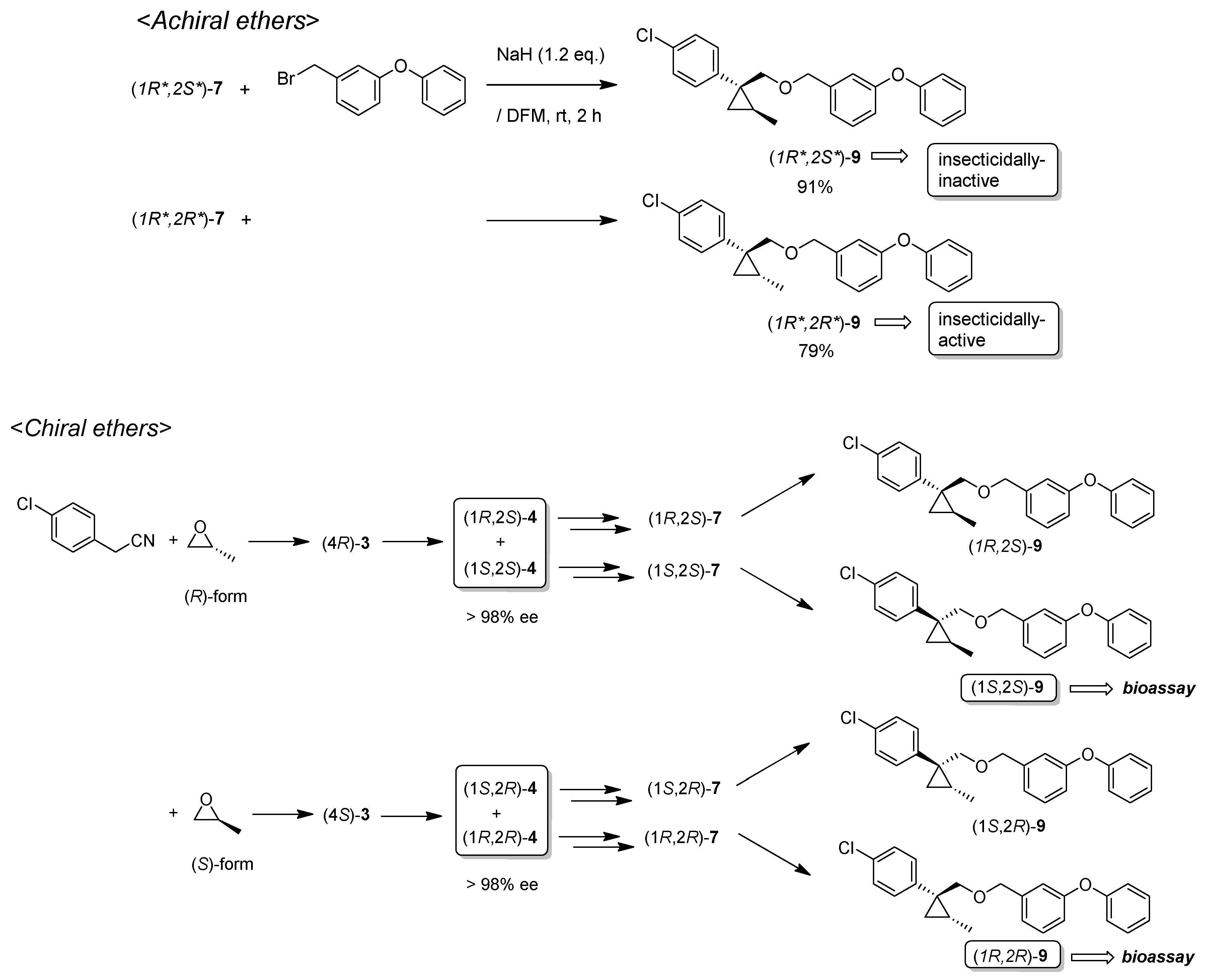

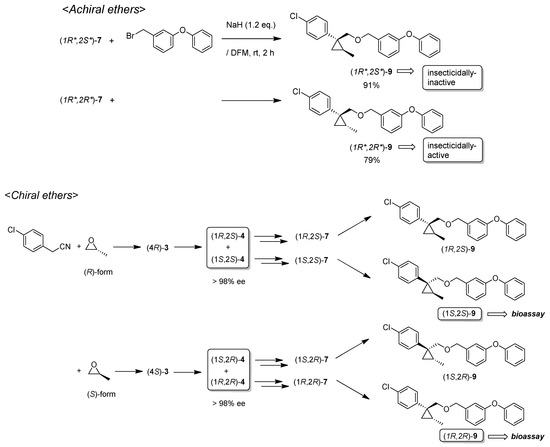

We next turned our attention to the synthesis of all stereoisomers of achiral and chiral ether-type pyrethroids 9 (Scheme 6). Conventional ether formation of alcohols (1R*,2S*)-7 and (1R*,2R*)-7 with 3-phenoxybenzyl bromide produced a pair of achiral ethers, (1R*,2S*)-9 and (1R*,2R*)-9, with good yield. Based on the pilot approach, all four sets of chiral ethers, (1R,2S)-9, (1S,2S)-9, (1S,2R)-9, and (1R,2R)-9, were successfully synthesized. It is noteworthy that clean SN2 reactions using tosylates (4R)-3 and (4S)-3 proceeded smoothly to produce four key cyclopropane carbonitrile nitrile precursors, (1R,2S)-4, (1S,2S)-4, (1S,2R)-4, and (1R,2R)-4, with excellent optical purities (all 98% ee, as determined by HPLC analysis). Related chirality-induced cyclopropane-forming reactions have been addressed in previous reports, namely a representative review [18], syntheses of liquid crystals [16], and syntheses of dihydroxy vitamin D3 analogues [19], petrosterol [20], chiral cyclobutanes [21], bicifadin [22], norchrysanthemic acid [23], and grandisol [23].
Because the bioassay section indicated that only the achiral ether (1R*,2R*)-9 exhibited significant insecticidal activity (vide infra), chiral ethers (1S,2S)-9 and (1R,2R)-9 were synthesized to evaluate chiral discrimination.

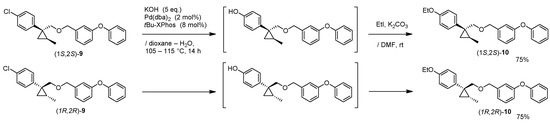

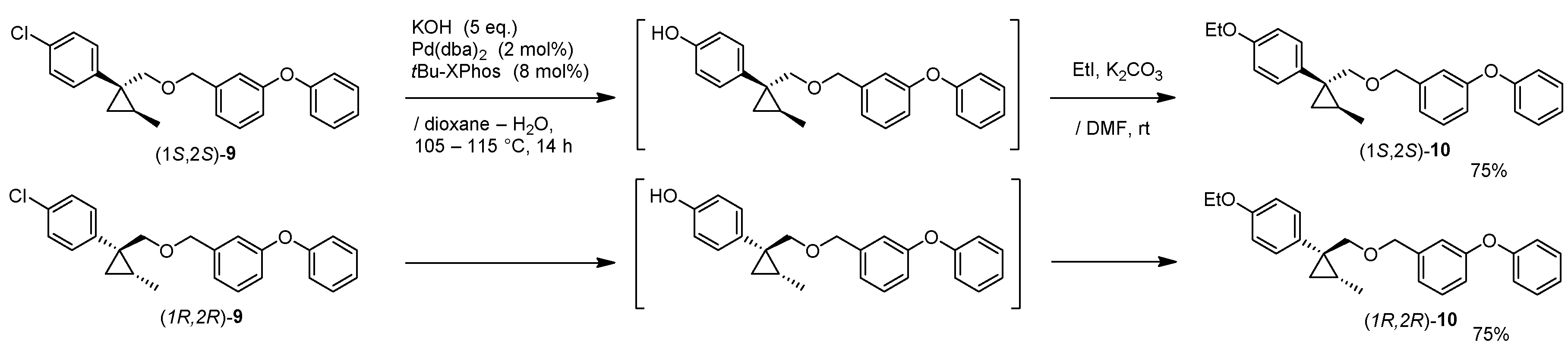

To obtain EtO-type parent etofenprox analogues, we designed convergent syntheses of chiral ethers (1S,2S)-10 and (1R,2R)-10 from (1S,2S)-9 and (1R,2R)-9, respectively (Scheme 7). Fortuitously, a hydroxylation cross-coupling procedure [24] developed by Buchwald’s group fulfilled this purpose; the reaction using KOH/Pd(dba)2/tBu-XPhos catalysis and successive ethylation furnished the desired ethers (1S,2S)-10 and (1R,2R)-10 with a good overall yield. Despite the relatively large molecules (Molecular wight = 346.9), hydroxylation using 13 proceeded smoothly with a 94% yield without loss of the cyclopropane and ether functional groups.

2.2. Alternative Synthesis of Achiral Etofenprox Analogues for Reference Compounds

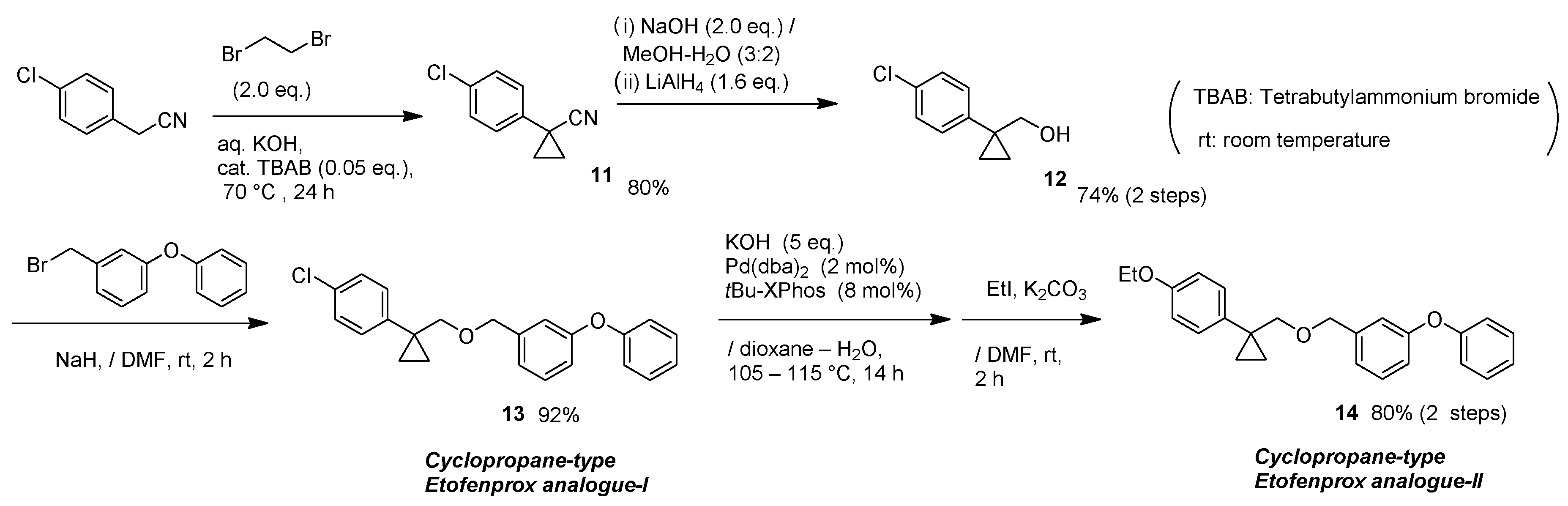

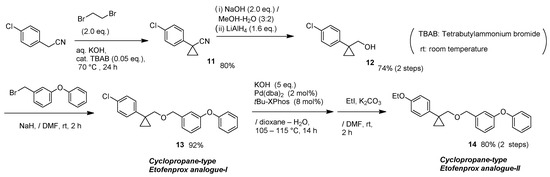

Two reported cyclopropane-type etofenprox analogues, I (13) [25] and II (14) [25], the parent compounds of 9, were synthesized as reasonable reference compounds for comparing the insecticidal activity (Scheme 8). The KOH/cat. tetrabutylammonium bromide (TBAB)-mediated reaction of 4-chlorobenzyl cyanide with 1,2-dibromoethane gave cyclopropane carbonitrile 11 with an 80% yield. The aforementioned conventional stepwise reactions starting from 11 led to the production of etofenprox analogue-I (13) through alcohol 12 with an overall yield of 68%. Hydroxylation cross-coupling using analogue I (13) also proceeded smoothly in this case to produce analogue II (14) with an 80% yield (2 steps).
This successful outcome prompted us to apply the conversion process in Scheme 8 to the concise synthesis of etofenprox itself, starting from readily available methyl 4-chlorophenylacetate (15) (Scheme 9).

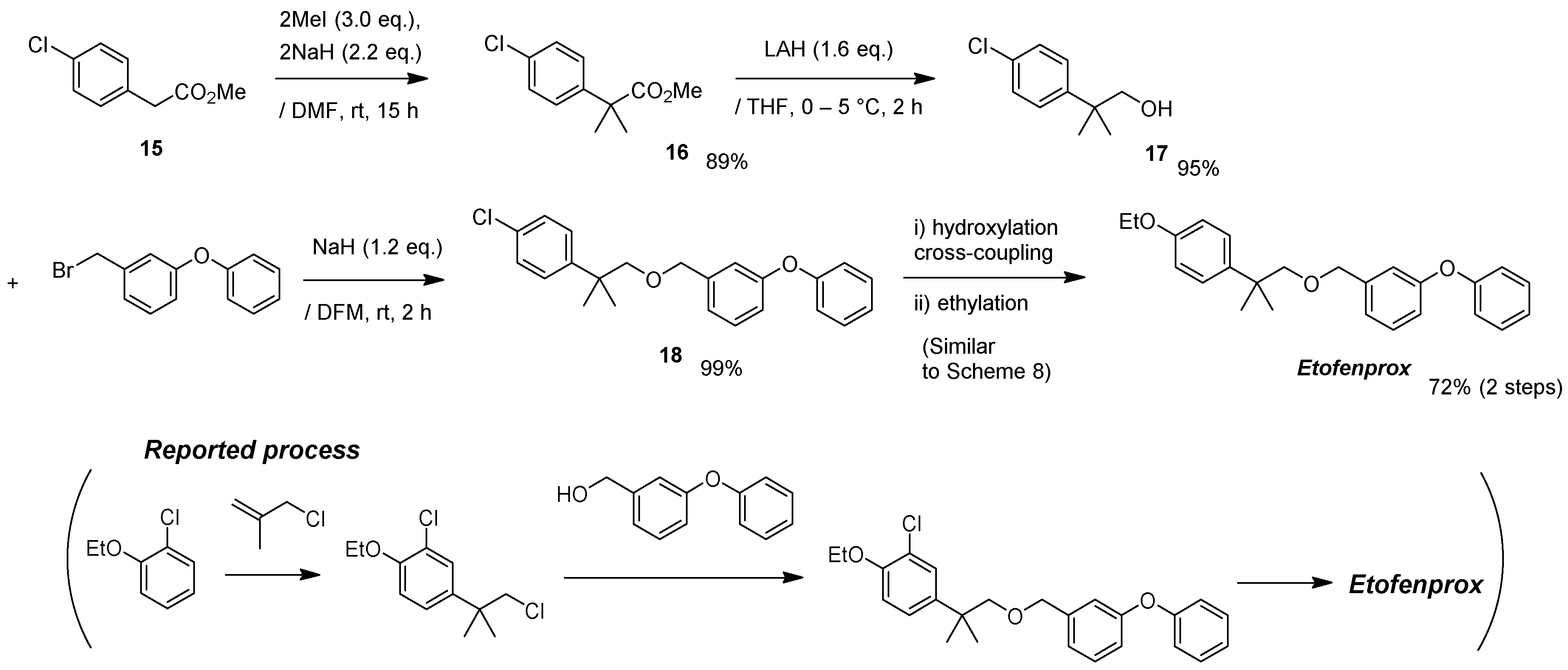

Dimethylation of 15 using 2MeI/2NaH reagent, followed by LAH-reduction, gave chloro-type precursor 17 with an 85% yield (2 steps). Conventional etherification of 17 with 3-phenoxybenzyl bromide afforded precursor 18 (99%). Following the aforementioned hydroxylation and ethylation sequence, etofenprox was produced with a 72% yield (two steps). The reported method utilized meta-Cl-surrogate for Friedel‒Crafts alkylation and dechlorination [26]. The present method represents an alternative synthetic method for etofenprox.

2.3. Insecticidal Activity and Stereostructure‒Activity Relationship

Insecticidal activity against the common mosquito (Culex pipiens pallens) was assessed for pairs of achiral diastereomeric cyanohydrin esters (1R*,2S*)-8, (1R*,2R*)-8, and ethers (1R*,2S*)-9, (1R*,2R*)-9 using fenvalerate as a reference compound (Table 2). The salient results are as follows: (i) neither cyanohydrin esters (1R*,2S*)-8 nor (1R*,2R*)-8 exhibited significant insecticidal activity, even at 500 ppm. This result did not support our initial hypothesis, described in the introduction section, i.e., imaginary cyclopropane formation of fenvalerate (“reverse connection approach”) decreased the activity. Compared with fenvalerate, the solid cyclopropane conformation in 8 may inhibit flexible-induced fitting for a conceivable “pyrethroid receptor”. (ii) In contrast, ethers (1R*,2S*)-9 and (1R*,2R*)-9 exhibited significant activities at 500 ppm, and (1R*,2R*)-9 was apparently more active than (1R*,2S*)-9 at 250 ppm. With these promising results in our hand, we focused our attention on chiral discrimination between enantiomeric ether compounds (1R,2R)-9 and (1S,2S)-9.
Table 3 lists the results of insecticidal activities of pairs of chiral ethers (1S,2S)-9, (1R,2R)-9, and EtO-analogues (1S,2S)-10, (1R,2R)-10, in which achiral ethers 13, 14, and 18, and etofenprox are selected as reference compounds. The salient features are as follows; (i) Regarding Cl-analogues, (1R,2R)-9 exhibited higher activity than (1S,2S)-9 at 250 ppm; (ii) both (1S,2S)-9 and (1R,2R)-9 were inactive at 50 ppm; (iii) EtO-analogues (1R,2R)-10 exhibited a significant activity compared with (1S,2S)-10 at 50 ppm – this clear chiral discrimination between the enantiomers (1S,2S)-9 or -10 and (1R,2R)-9 or -10 is noteworthy; (iv) both the reported isosteric cyclopropane compounds 13 and 14 [25] ande exhibited nearly equal activities; (v) All the EtO-analogues were stronger than the Cl-analogues.
To summarize the results, all of the presented 2-methylcyclopropane pyrethroids with two asymmetric centers exhibited clear chiral discrimination between the enantiomers, although the insecticidal activity was slightly weaker than that of the reported parent reported achiral cyclopropane and dimethyl pyrethroids. Notably, in contrast to our expectations based on a couple of three asymmetric-center cyclopropane pyrethroids previously reported by our group [13,14], the ether-type, not the cyanohydrin ester type, was the active form.

3. Materials and Methods

All reactions were carried out in oven-dried glassware under an argon atmosphere. Flash column chromatography was performed with silica gel 60 (230–400 mesh ASTM, Merck, Darmstat, Germany). TLC analysis was performed on Merck 0.25 mm Silicagel 60 F254 plates. Melting points were determined on a hot stage microscope apparatus (ATM-01, AS ONE, Osaka, Japan) and were uncorrected. NMR spectra were recorded on a JEOLRESONANCE EXC-400 or ECX-500 spectrometer (JEOL, Akishima, Japan) operating at 400 MHz or 500 MHz for 1H-NMR, and 100 MHz and 125 MHz for 13C-NMR. Chemical shifts (δ ppm) in CDCl3 were reported downfield from TMS (= 0) for 1H-NMR. For 13C-NMR, chemical shifts were reported in the scale relative to CDCl3 (77.00 ppm) as an internal reference. IR Spectra were recorded on FT/IR-5300 spectrophotometer (JASCO, Akishima, Japan). Mass spectra were measured on a JMS-T100LC spectrometer (JEOL). HPLC data were obtained on a SHIMADZU (Kyoto, Japan) HPLC system (consisting of the following: LC-20AT, CMB20A, CTO-20AC, and detector SPD-20A measured at 254 nm) using Chiracel AD-H or Ad-3 column (Daicel, Himeji, Japan, 25 cm) at 25 °C. Optical rotations were measured on a JASCO DIP-370 (Na lamp, 589 nm). The synthetic procedure of 11, 12, 13, 14, 16, 17, 18, and etofenprox are available in the supplementary information. 1H-, 13C-NMR spectra for compounds (±)-5, (±)-3, (1R*,2S*)-4, (1R*,2R*)-4, (1R*,2S*)-6, (1R*,2R*)-6, (1R*,2S*)-8, (1R*,2R*)-8, (1R*,2S*)-7, (1R*,2R*)-7, (1R*,2S*)-9, (1R*,2R*)-9, (1R,2R)-10 can see in the supplementary information.
(±)-2-(4-Chlorophenyl)-4-hydroxypentanenitrile: (±)-5 (diastereo mixtures)
Molecules 24 01023 i001
LHMDS (1.1 M in THF, 10 mL, 11 mmol) was added to a stirred suspension of 4-chlorobenzyl cyanide (1.52 g, 10 mmol) in THF (13 mL) at 0–5 °C under an Ar atmosphere, and the mixture was stirred at that temperature for 1 h. (±)-Propylene oxide (2.1 mL, 30 mmol) was added to the mixture, which was stirred for 1 h. The mixture was quenched with 1M-HCl aq., which was extracted three times with AcOEt. The combined organic phase was washed with brine, dried (Na2SO4) and concentrated. The obtained crude oil was purified by SiO2-gel column chromatography (hexane/AcOEt = 10:1 to 1:2) to give the desired product (±)-3 (1.48 g, 70%, dr = 65:35). Pale yellow oil; 1H-NMR (400 MHz, CDCl3) δ = 1.23 (d, J = 6.4 Hz, 3H × 7/20), 1.29 (d, J = 6.0 Hz, 3H × 13/20), 1.50–1.70 (brs, 1H), 1.79–1.86 (m, 1H × 13/20), 1.89–2.01 (m, 1H), 2.10–2.17 (m, 1H × 7/20), 3.56–3.67 (m, 1H × 13/20), 4.04 (dd, J = 5.5 Hz, J = 9.6 Hz, 1H × 7/20), 4.14–4.21 (m, 1H), 7.28–7.38 (m, 4H); 13C-NMR (125 MHz; CDCl3) δ = 23.6, 23.8, 32.7, 33.7, 43.8, 44.7, 63.9, 65.0, 120.4, 121.1, 128.4, 129.0, 129.2 (2C), 133.7, 133.8, 134.0, 134.4; νmax (neat)/cm−1 3424, 2968, 2241, 1493, 1410, 1375, 1130, 1093, 1014, 953, 932, 845, 822, 791, 779, 718; HRMS (DART) calcd for C11H12ClNO [M + H]+ 210.0686, found 210.0688.
(4R)-2-(4-Chlorophenyl)-4-hydroxypentanenitrile: (R)-5 (diastereo mixtures)
Molecules 24 01023 i002
Following the similar procedure for the preparation of (±)-3, the reaction of chlorobenzyl cyanide (758 mg, 5.0 mmol), (R)-propylene oxide (1.05 mL, 15 mmol), and LHMDS (1.1 M in THF, 5.0 mL, 5.5 mL), and the successive SiO2-gel column chromatographic purification gave the desired product (R)-5 (813 mg, 78%, dr = 65:35). Pale yellow oil.
(4S)-2-(4-Chlorophenyl)-4-hydroxypentanenitrile: (S)-5 (diastereo mixtures)
Molecules 24 01023 i003
Following the similar procedure for the preparation of (±)-3, the reaction of chlorobenzyl cyanide (1.52 g, 10 mmol), (S)-propylene oxide (2.1 mL, 30 mmol) and LHMDS (1.1 M in THF, 8.46 mL, 1.1 mL), and the successive SiO2-gel column chromatographic purification gave the desired product (S)-5 (1.57 g, 75%, dr = 65:35). Pale yellow oil.
(±)-4-(4-Chlorophenyl)-4-cyanobutan-2-yl 4-methylbenzenesulfonate: (±)-3 (diastereo mixtures)
Molecules 24 01023 i004
TsC1 (286 mg, 1.5 mmol) in MeCN (1.0 mL) was added to a stirred solution of (±)-3 (210 mg, 1.0 mmol, dr = 65:35), Et3N (202 mg, 2.0 mmol), and Me3N·HC1 (10 mg, 0.1 mmol) in MeCN (1.0 mL) at 0–5 °C, and the mixture was stirred for 1 h. Water was added to the mixture, which was extracted twice with EtOAc. The combined organic phase was washed with water and brine, dried (Na2SO4) and concentrated. The obtained crude oil was purified by SiO2-gel column chromatography (hexane/AcOEt = 30:1 to 10:1) to give the desired product (±)-3 (350 mg, 96%, dr = 65:35). Pale yellow oil; 1H-NMR (400 MHz, CDCl3) δ = 1.27 (d, J = 6.4 Hz, 3H × 7/20), 1.32 (d, J = 6.4 Hz, 3H × 13/20), 1.99–2.11 (m, 2H,), 2.47 (s, 3H), 3.81 (dd, J = 5.5 Hz, J = 10.1 Hz, 1H × 13/20), 3.90 (dd, J = 5.5 Hz, J = 8.7 Hz, 1H × 7/20), 4.51–4.59 (m, 1H × 7/20), 4.77–4.85 (m, 1H × 13/20), 7.20–7.40 (m, 6H), 7.77–7.79 (m, 2H × 7/20), 7.85–7.87 (m, 2H × 13/20); 13C-NMR (125 MHz; CDCl3) δ = 20.3, 20.6, 21.3 (2C), 31.9, 33.0, 41.4, 42.3, 75.7, 76.6, 119.1, 119.8, 127.3, 127.5, 128.2, 128.8, 129.0, 129.1, 129.7, 129.8, 132.8, 133.1, 133.2, 133.4, 133.8, 134.0, 144.8, 145.0.; νmax (neat)/cm−1 3022, 2984, 2243, 1597, 1493, 1362, 1188, 1175, 1096, 1059, 1016, 924, 891, 816, 750, 687, 662.
(2R)-4-(4-Chlorophenyl)-4-cyanobutan-2-yl 4-methylbenzenesulfonate: (R)-3 (diastereo mixtures)
Molecules 24 01023 i005
Following the similar procedure for the preparation of (±)-3, the reaction of (R)-5 (629 mg, 3.0 mmol, dr = 50:50), TsCl (858 mg, 4.5 mmol), Et3N (607 mg, 6.0 mmol), and Me3N·HCl (29 mg, 0.3 mmol), and the successive SiO2-gel column chromatographic purification gave the desired product (R)-3 (980 mg, 90%, dr = 65:35). Pale yellow oil.
(2S)-4-(4-Chlorophenyl)-4-cyanobutan-2-yl 4-methylbenzenesulfonate: (S)-3 (diastereo mixtures)
Molecules 24 01023 i006
Following the similar procedure for the preparation of (±)-3, the reaction of (S)-5 (1.54 g, 7.34 mmol, dr = 50:50), TsCl (2.10 g, 11.0 mmol), Et3N (1.49 g, 14.7 mmol), and Me3N·HCl (70 mg, 0.7 mmol), and the successive SiO2-gel column chromatographic purification gave the desired product (S)-3 (2.45 g, 92%, dr = 65:35). Pale yellow oil.
(1R*,2S*)- and (1R*,2R*)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-carbonitrile: (1R*,2S*)-4 and (1R*,2R*)-4
Molecules 24 01023 i007
Tosylate (±)-3 (65:35: diastereo mixtures) (942 mg, 2.59 mmol) in Et2O (13 mL) was added to a stirred suspension of tBuOLi (249 mg, 3.11 mmol) in Et2O (13 mL) at −78 °C under Ar atmosphere, followed by being stirred at the same temperature for 0.5 h. The mixture was allowed to warm to 0–5 °C, and was stirred for 2 h. The mixture was quenched with water, which was extracted three times with AcOEt. The combined organic phase was washed with brine, dried (Na2SO4) and concentrated. The obtained crude oil was purified by SiO2-gel column chromatography (hexane/AcOEt = 50:1) to give (1R*,2S*)-4 (175mg, 35%) and (1R*,2R*)-4 (161 mg, 32%).
(1R*,2S*)-4: Colorless oil; 1H-NMR (400 MHz, CDCl3) δ = 1.41 (dd, J = 10.1 Hz, J = 11.9 Hz, 1H), 1.47–1.49 (m, 3H), 1.56–1.60 (m, 2H), 7.18–7.21 (m, 2H), 7.29–7.33 (m, 2H); 13C-NMR (125 MHz, CDCl3): δ 15.9, 20.0, 25.3(2C), 120.4, 126.8, 128.8, 133.1, 135.2.; νmax (neat)/cm−1 2968, 2934, 2234, 1495, 1445, 1402, 1369, 1121, 1096, 1015, 889, 849, 827, 764, 727.; HRMS (DART) calcd for C11H10OClN [M + H]+ 192.0580, found 192.0573.
(1R*,2R*)-4: Colorless oil; 1H-NMR (400 MHz, CDCl3) δ = 0.83 (d, J = 6.5 Hz, 3H), 1.26 (dd, J = 5.5 Hz, J = 6.9 Hz, 1H), 1.74 (dd, J = 5.5 Hz, J = 9.3 Hz, 1H), 1.83–1.94 (m, 1H), 7.25–7.38 (m, 4H); 13C-NMR (125 MHz; CDCl3): δ 13.6, 17.4, 19.9, 23.2, 123.2, 128.9, 130.7, 131.0, 134.1.; νmax (neat)/cm−1 2966, 2230, 1493, 1445, 1396, 1366, 1315, 1124, 1094, 1043, 1014, 997, 908, 862, 827, 789, 729.
(1R,2S)- and (1S,2S)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-carbonitrile: (1R,2S)-4 and (1S,2S)-4
Molecules 24 01023 i008
Following the similar cyclization procedure described abave, (1R,2S)-4 (45%) and (1S,2S)-4 (39%) were prepared from (2R)-3.
(1R,2S)-4: Colorless oil; [α] D 21 +64.9 (c 1.00, CHCl3); 98% ee, HPLC analysis (Daicel Chiralcel OD-H column, solvent: hexane/ethanol = 150:1, flow rate 0.80 mL/min, 254 nm UV detector), tR(racemate) = 10.38 min and 11.18 min. tR[(1R,2S)-form] = 9.74 min
(1S,2S)-4: White colored solid; m.p. 73–75 °C, [α] D 17 +36.6 (c 0.7, CHCl3); >98% ee, HPLC analysis (Daicel Chiralcel OD-H column, solvent: hexane/ethanol = 300:1, flow rate 0.80 mL/min, 254 nm UV detector), tR(racemate) = 17.41 min and 18.55 min. tR[(1S,2S)-form] = 19.01 min.
(1S,2R) and (1R,2R)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-carbonitrile: (1S,2R)-4, (1R,2R)-4
Molecules 24 01023 i009
Following the similar cyclization procedure described above, (1S,2R)-4 (40%) and (1R,2R)-4 (38%) were prepared from (2S)-3.
(1S,2R)-3: Colorless oil; [α] D 23 −62.6 (c 0.25, CHCl3); 98% ee, HPLC analysis (Daicel Chiralcel OD-H column, solvent: hexane/ethanol = 150:1, flow rate 0.80 mL/min, 254 nm UV detector), tR(racemate) = 10.38 min and 11.18 min. tR[(1S,2R)-form] = 11.36 min.
(1R,2R)-4: White colored solid; m.p. 73-74 °C; [α] D 20 −33.4 (c 0.33, CHCl3); >98% ee, HPLC analysis (Daicel Chiralcel OD-H column, solvent: hexane/ethanol = 300:1, flow rate 0.80 mL/min, 254 nm UV detector), tR(racemate) = 17.41 min and 18.55 min. tR[(1R,2R)-form] = 15.01 min.
(1R*,2S*)-1-(4-chlorophenyl)-2-methylcyclopropane-1-carboxylic acid: (1R*,2S*)-6
Molecules 24 01023 i010
DIBAL (1.01 M in toluene, 1.98 mL, 2.0 mmol) was added slowly to a stirred solution of (1R*,2S*)-4 (192 mg, 1.0 mmol) in toluene (10 mL) at −78 °C under an Ar atmosphere. The mixture was allowed to warm to 20–25 °C over 1 h, and then the mixture was quenched with MeOH. Then, potassium sodium tartrate tetrahydrate solution was added to the mixture. After stirring for 0.5 h, the mixture was extracted three times with EtOAc. The combined organic phase was washed with brine, dried (Na2SO4) and concentrated. The obtained crude aldehyde product (140 mg) was used for the next step without purification. To a stirred solution of the obtained aldehyde (140 mg), 2-methyl-2-butene (561 mg, 8.0 mmol) in tBuOH (9 mL), water (4 mL) were added NaH2PO4 (480 mg, 4.0 mmol) in water (4 mL) and NaClO2 (217 mg, 2.4 mmol) in water (4 mL) at 20–25 °C, and the mixture was stirred at that temperature for 1 h. The reaction mixture was quenched with water and extracted with AcOEt three times. The combined organic phase was washed with brine, dried (Na2SO4) and concentrated. Sat. NaHCO3 aq. was added to the residue, which was wasehd with Et2O two times. The separated aqueous phase was acidified with 1M HCl aq. solution, which was extracted with AcOEt three times. The combined organic phase was washed with brine, dried (Na2SO4) and concentrated to give the desired product (1R*,2S*)-6 (160 mg, 76% for two steps). White colored solid; m.p. 136–137 °C; 1H-NMR (400 MHz, CDCl3) δ = 1.33 (dd, J = 4.5 Hz, 8.9 Hz, 1H), 1.37 (d, J = 6.2 Hz, 3H), 1.56 (dd, J = 4.5 Hz, 7.6 Hz, 1H), 1.59–1.69 (m, 1H), 7.26–7.27 (m, 4H); 13C-NMR (125 MHz; CDCl3): δ 12.7, 22.6, 25.3, 33.7, 128.3, 131.6, 133.0, 139.0, 178.6.; νmax (neat)/cm−1 3011, 2880, 2598, 2363, 1686, 1495, 1420, 1312, 1213, 1092, 1013, 889, 829, 754, 719.
(1R,2S)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-carboxylic acid: (1R,2S)-6
Molecules 24 01023 i011
Following the similar DIDAL-reduction and Pinnick oxidation procedure described above, (1R,2S)-6 was prepared from (1R,2S)-4 (80%, two steps). White colored crystal; m.p. 104–106 °C; [α] D 16 +120.6 (c 0.16, CHCl3).
(1S,2R)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-carboxylic acid: (1S,2R)-6
Molecules 24 01023 i012
Following the similar DIDAL-reduction and Pinnick oxidation procedure described above, (1S,2R)-6 (79%, 2 steps) was prepared from (1S,2R)-4 (79%, two steps). White colored crystals; m.p. 102–105 °C; [α] D 17 −116.4 (c 0.97, CHCl3).
(1R*,2R*)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-carboxylic acid: (1R*,2R*)-6
Molecules 24 01023 i013
A mixture of (1R*,2R*)-4 (381 mg, 2.0 mmol) and NaOH (1.6 g, 40 mmol) in MeOH (10.0 mL) and H2O (6.6 mL) was heated at 100 °C for 16 h. After cooling down, the mixture was quenched with water, which was washed with Et2O two times. The separated aqueous phase was acidified with 1M HCl aq. solution, which was extracted with EtOAc three times. The combined organic phase was washed with brine, dried (Na2SO4) and concentrated to give the desired product (1R*,2R*)-6 (358 mg, 84%). White colored crystals: m.p. 130–133 °C; 1H-NMR (400 MHz, CDCl3) δ = 0.83 (d, J = 6.4 Hz, 3H), 1.09 (dd, J = 4.6 Hz, J = 6.9 Hz, 1H), 1.80 (dd, J = 4.6 Hz, J = 9.2 Hz, 1H), 1.90–1.98 (m, 1H), 7.18–7.22 (m, 2H), 7.28–7.32 (m, 2H); 13C-NMR (125 MHz; CDCl3): δ 12.7, 22.6, 25.3, 33.7, 128.3, 131.6, 133.0, 139.0, 178.6.; νmax (neat)/cm−1 3011, 2880, 2598, 2363, 1686, 1495, 1420, 1312, 1213, 1092, 1013, 943, 889, 829, 754, 719; HRMS (DART) calcd for C11H11ClO2 [M + H]+ 211.0526, found 211.0523.
(1R,2R)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-carboxylic acid: (1R,2R)-6
Molecules 24 01023 i014
Following the similar hydroxylation procedure described above, (1S,2S)-6 was prepared from (1S,2S)-4 (92%). White colored crystals; m.p. 103–104 °C; [α] D 18 −19.0 (c 1.06, CHCl3)
(1S,2S)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-carboxylic acid: (1S,2S)-6
Molecules 24 01023 i015
Following the similar hydroxylation procedure described above, (1S,2S)-6 was prepared from (1S,2S)-4 (92%). White colored crystals; m.p. 101–104 °C; [α] D 20 +17.8 (c 1.00, CHCl3).
Cyano(3-phenoxyphenyl)methyl(1R*,2S*)-1-(4-chlorophenyl)-2-methylcyclopropane-1-carboxylate: (1R*,2S*)-8
Molecules 24 01023 i016
Et3N (0.06 mL, 0.40 mmol) was added to a stirred mixture of (1R*,2S*)-6 (77 mg, 0.36 mmol) and bromo(3-phenoxyphenyl)acetonitrile (104 mg, 0.36 mmol) in acetone (0.72 mL) at 0–5 °C, and the mixture was stirred at 20–25 °C for 2 h. 1M HCl aq. solution was added to the mixture, which was extracted twice with ether. The combined organic phase was washed with water, brine, dried (Na2SO4) and concentrated. The obtained crude oil was purified by SiO2-gel columm chromatography (hexane/EtOAc = 30:1) to give the desired product (1R*,2S*)-8 (110 mg, 73%). Yellow colored oil; 1H-NMR (400 MHz, CDCl3) δ = 1.26 (d, J = 6.0 Hz, 3H × 1/2), 1.32 (d, J = 6.0 Hz, 1H × 1/2), 1.32 (dd, J = 4.1 Hz, 4.6 Hz, 1H × 1/2), 1.36 (dd, J = 4.6 Hz, 8.7 Hz, 1H × 1/2), 1.58 (dd, J = 4.6 Hz, 5.0 Hz, 1H × 1/2), 1.60 (dd, J = 4.6 Hz, 5.0 Hz, 1H × 1/2), 1.63–1.73 (m, 1H), 6.31 (s, 1H × 1/2), 6.34 (s, 1H × 1/2), 6.87–7.49 (m, 13H); 13C-NMR (125 MHz) δ = 12.8, 12.9, 22.5, 22.7, 25.0, 25.2, 33.8, 33.9, 62.6, 62.7, 115.7, 116.0, 116.9, 117.0, 119.2, 119.4, 120.1, 120.2, 121.4, 121.6, 124.0, 124.1, 128.5 (2C), 123.0 (2C), 130.5, 130.6, 131.4 (2C), 133.3 (2C), 133.4, 133.6, 138.0 (2C), 156.2, 156.3, 158.0, 158.2, 170.2 (2C); νmax (neat)/cm−1 2931, 2360, 1734, 1585, 1487, 1155, 1244, 1090, 1015, 692. HRMS (DART) calcd for C25H20ClNO3 [M + H]+ 418.1210, found 418.1192.
Cyano(3-phenoxyphenyl)methyl (1R*,2R*)-1-(4-chlorophenyl)-2-methylcyclopropane-1-carboxylate: (1R*,2R*)-8
Molecules 24 01023 i017
Following the similar esterification procedure described above, (1R*,2R*)-8 was prepared from (1R*,2R*)-6 (79%). Yellow colored oil; 1H-NMR (400 MHz, CDCl3) δ = 0.83 (d, J = 5.8 Hz, 3H × 1/2), 0.84 (d, J = 4.8 Hz, 3H × 1/2), 1.13 (dd, J = 4.5 Hz, 4.8 Hz, 1H × 1/2), 1.16 (dd, J = 4.1 Hz, 4.8 Hz, 1H × 1/2), 1.81 (dd, J = 4.5 Hz, 9.3 Hz, 1H × 1/2), 1.84 (dd, J = 4.5 Hz, 9.3 Hz, 1H × 1/2), 1.89–2.00 (m, 1H), 6.29 (s, 1H × 1/2), 6.32 (s, 1H × 1/2), 6.92–7.49 (m, 13H); 13C-NMR (125 MHz) δ = 15.2, 15.2, 23.6(2C), 24.1, 24.3, 32.7(2C), 62.6(2C), 115.8, 115.9, 116.8, 116.9, 119.3(2C), 119.3(2C), 120.0, 120.1, 121.4, 121.5, 124.0(2C), 128.4(2C), 129.9(2C), 130.5(2C), 132.7(2C), 133.1(2C), 133.4, 133.4, 133.5(2C), 156.2, 156.2, 158.1(2C), 172.2, 172.2; νmax (neat)/cm−1 2960, 2359, 1738, 1585, 1487, 1207, 1163, 1112, 1074, 1045, 745, 690.
(1R*,2S*)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methanol: (1R*,2S*)-7
Molecules 24 01023 i018
Acid (1R*,2R*)-7 (126 mg, 0.6 mmol) in THF (3.0 mL) was added to a stirred suspension of LiAlH4 (36 mg) in THF (1.0 mL) at 0–5 °C under an Ar atmosphere, and the mixture was stirred at 20–25 °C for 2 h. Sat. NH4Cl aqueous solution was added to the mixture, which was filtered through Celite® using EtOAc. The separated organic phase was washed with water, brine, dried (Na2SO4), and concentrated. The obtained crude oil was purified by SiO2-gel column chromatography (hexane/EtOAc = 10:1) to give the desired product (1R*,2R*)-7 (102 mg, 92%). Colorless oil; 1H-NMR (400 MHz) δ = 0.57 (dd, J = 5.0 Hz, 5.0 Hz, 1H), 1.01 (dd, J = 5.0 Hz, 8.2 Hz, 1H), 1.19–1.27 (m, 2H), 1.31 (d, J = 6.0 Hz, 3H), 3.74 (d, J = 11.9 Hz, 1H), 3.91 (d, J = 11.9 Hz, 1H), 7.21–7.36 (m, 4H); 13C-NMR (125 MHz) δ = 13.9, 19.0, 19.2, 31.2, 66.7, 128.4, 130.3, 132.1, 143.1; νmax (neat)/cm−1 3402, 2930, 1493, 1036, 1016, 831. HRMS (DART) calcd for C11H13ClO [M + H]+ 196.0655, found 196.0651.
(1R*,2R*)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methanol: (1R*,2R*)-7
Molecules 24 01023 i019
Following the similar reduction procedure described above, (1R*,2R*)-7 was prepared from (1R*,2R*)-6 (94%). Colorless oil; 1H-NMR (400 MHz, CDCl3) δ = 0.61 (dd, J = 4.8 Hz, J = 4.8 Hz, 1H), 0.80 (d, J = 6.2 Hz, 3H), 0.97 (dd, J = 4.8 Hz, J = 8.7 Hz, 1H), 1.06–1.14 (m, 1H), 1.25-1.45 (s, 1H), 3.38 (d, J = 11.2 Hz, 1H), 3.77 (d, J = 11.2 Hz, 1H), 7.24–7.32 (m, 4H); 13C-NMR (125 MHz) δ = 15.4, 16.1, 16.7, 32.8, 71.7, 128.3, 132.0, 132.2, 138.3; νmax (neat)/cm−1 3347, 2868, 1492, 1091, 1015, 827, 737.
(1R,2S)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methanol: (1R,2S)-7
Molecules 24 01023 i020
Following the similar reduction procedure described above, (1R,2S)-7 was prepared from (1R,2S)-6 (93%). Colorless oil; [α] D 19 +56.6 (c 1.12, CHCl3).
(1S,2R)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methanol: (1S,2R)-7
Molecules 24 01023 i021
Following the similar reduction procedure described above, (1S,2R)-7 was prepared from (1S,2R)-6 (92%). Colorless oil; [α] D 19 −54.9 (c 0.46, CHCl3).
(1R,2R)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methanol: (1R,2R)-7
Molecules 24 01023 i022
Following the similar reduction procedure described above, (1R,2R)-7 was prepared from (1R,2R)-6 (92%). White colored crystals; m.p. 56‒57 °C; [α] D 19 −31.9 (c 0.95, CHCl3).
(1S,2S)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methanol: (1S,2S)-7
Molecules 24 01023 i023
Following the similar reduction procedure described above, (1S,2S)-7 was prepared from (1S,2S)-6 (93%). White colored crystals; m.p. 51‒53 °C; [α] D 19 +32.4 (c 0.52, CHCl3).
(1R*,2S*)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methyl 3-phenoxybenzyl ether: (1R*,2S*)-9
Molecules 24 01023 i024
A mixture of (1R*,2S*)-7 (183 mg, 0.93 mmol) and 3-phenoxybenzyl bromide (295 mg, 1.12 mmol) in DMF (0.9 mL) was added to a stirred suspension of NaH (60% dispersion; 45 mg, 1.12 mmol) at at 0–5 °C under an Ar atmosphere, and the mixture was stirred at 20–25 °C for 2 h. The mixture was quenched by water, which was extracted by EtOAc twice. The combined organic phase was washed with water, brine, dried (Na2SO4), and concentrated. The obtained crude oil was purified by SiO2-gel column chromatography (hexane/EtOAc = 30:1) to give the desired product (1R*,2S*)-9 (322 mg, 91%). Colorless oil; 1H-NMR (400 MHz, CDCl3) δ = 0.53 (dd, J = 4.6 Hz, J = 4.6 Hz, 1H), 1.01 (dd, J = 4.6 Hz, J = 8.2 Hz, 1H), 1.14–1.28 (m, 4H), 3.51 (d, J = 10.1 Hz, 1H), 3.73 (d, J = 10.1 Hz, 1H), 4.39 (d, J = 12.4 Hz, 1H), 4.44 (d, J = 12.4 Hz, 1H), 6.90–7.01 (m, 5H), 7.10–7.27 (m, 6H), 7.32–7.36 (m, 2H); 13C-NMR (125 MHz) δ = 14.1, 19.5, 19.7, 28.8, 72.4, 73.9, 117.6, 117.8, 119.0, 122.1, 123.3, 128.1, 129.5, 129.7, 129.8, 131.5, 140.6, 143.9, 157.1, 157.4.; νmax (neat)/cm−1 2859, 1584, 1445, 1213, 1092, 1076, 957, 831, 748; HRMS (DART) calcd for C24H23ClO2 [M + H]+ 379.1465, found 379.1447.
(1R*,2R*)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methyl 3-phenoxybenzyl ether: (1R*,2R*)-9
Molecules 24 01023 i025
Following the similar etherification procedure described above, (1R*,2R*)-9 was synthesized from (1R*,2R*)-7 (79%). Colorless oil; 1H-NMR (400 MHz, CDCl3) δ = 0.62 (dd, J = 4.8 Hz, J = 4.8 Hz, 1H), 0.76 (d, J = 6.2 Hz, 3H), 0.94 (dd, J = 4.8 Hz, J = 8.7 Hz, 1H,), 1.03–1.11 (m, 1H), 3.33 (d, J = 9.9 Hz, 1H), 3.53 (d, J = 9.9 Hz, 1H), 4.38 (dd, J = 12.4 Hz, J = 14.7 Hz, 2H), 6.86–6.91 (m, 3H), 6.98–7.01 (m, 2H), 7.09–7.14 (m, 1H), 7.22–7.24 (m, 5H), 7.31–7.37 (m, 2H); 13C-NMR (125 MHz) δ = 15.4, 16.3, 17.0, 30.5, 72.1, 78.9, 117.4, 117.7, 118.9, 121.9, 123.2, 128.0, 129.5, 129.7, 131.9, 132.0, 138.9, 140.6, 157.0, 157.3; νmax (neat)/cm−1 2855, 1584, 1445, 1250, 1213, 1092, 1015, 743.
(1R,2S)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methyl 3-phenoxybenzyl ether: (1R,2S)-9
Molecules 24 01023 i026
Following the similar etherification procedure described above, (1R,2S)-9 was synthesized from (1R,2S)-7 (85%). Colorless oil; [α] D 22 +25.8 (c 1.19, CHCl3).
(1S,2R)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methyl 3-phenoxybenzyl ether: (1S,2R)-9
Molecules 24 01023 i027
Following the similar etherification procedure described above, (1S,2R)-9 was synthesized from (1S,2R)-7 (72%). Colorless oil; [α] D 23 ‒24.5 (c 0.50, CHCl3).
(1R,2R)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methyl 3-phenoxybenzyl ether: (1R,2R)-9
Molecules 24 01023 i028
Following the similar etherification procedure described above, (1R,2R)-9 was synthesized from (1R,2R)-7 (91%). Colorless oil; [α] D 23 −31.8 (c 0.84, CHCl3).
(1S,2S)-1-(4-Chlorophenyl)-2-methylcyclopropane-1-methyl 3-phenoxybenzyl ether: (1S,2S)-9
Molecules 24 01023 i029
Following the similar etherification procedure described above, (1S,2S)-9 was synthesized from (1S,2S)-7 (97%). Colorless oil; [α] D 23 +32.4 (c 0.65, CHCl3).
1-((((1R,2R)-1-(4-Ethoxyphenyl)-2-methylcyclopropyl)methoxy)methyl)-3-phenoxybenzene: (1R,2R)-10
Molecules 24 01023 i030
A mixture of (1R,2R)-9 (108 mg, 0.29 mmol), Pd2(dba)3 (5.3 mg, 2 mol%), tBu-XPhos (10 mg, 8 mol%) and KOH (81 mg, 5.0 eq.) in 1,4-dioxane (0.3 mL) and H2O (0.3 mL) was stirred at 100–105 °C for 16 h under an Ar atmosphere. The mixture was cooled down to room temperature, and quenched with water, which was extracted twice with EtOAc. The combined organic phase was washed with water, brine, dried (Na2SO4) and concentrated. The obtained crude oil was purified by SiO2-gel column chromatography (hexane/EtOAc = 20:1) to give the desired phenol product (95 mg, 90%).
K2CO3 (43 mg, 0.31 mmol) and EtI (122 mg, 0.78 mmol) was successively added to a stirred solution of phenol (92 mg, 0.26 mmol) in DMF (0.5 mL) at 0–5 °C under an Ar atmosphere. The mixture was stirred at 20–25 °C for 16 h. The mixture was quenched with water, which was extracted three times with EtOAc. The combined organic phase was washed with water, brine, dried (Na2SO4) and concentrated. The obtained crude oil was purified by SiO2-gel column chromatography (hexane/EtOAc = 20:1) to give the desired product (1R,2R)-10 (84 mg, 83%).
(1R,2R)-10: Colorless oil; [α] D 21 −23.4 (c 0.95, CHCl3); 1H-NMR (400 MHz, CDCl3) δ = 0.60 (dd, J = 4.8 Hz, J = 4.8 Hz, 1H), 0.77 (d, J = 6.2 Hz, 3H), 0.90 (dd, J = 4.8 Hz, J = 8.2 Hz, 1H), 0.99–1.07 (m, 1H), 1.40 (t, J = 7.1 Hz, 3H), 3.34 (d, J = 9.9 Hz, 1H), 3.54 (d, J = 9.9 Hz, 1H), 4.00 (q, J = 7.1 Hz, 2H), 4.39 (t, J = 13.3 Hz, 2H), 6.78–6.82 (m, 2H), 6.86–6.88 (m, 2H), 6.93 (d, J = 8.0 Hz, 1H), 6.98–7.00 (m, 2H), 7.08–7.12 (m, 1H), 7.19–7.22 (m, 2H), 7.23–7.25 (m, 1H), 7.31–7.35 (m, 2H); 13C-NMR (125 MHz) δ = 14.9, 15.4, 16.2, 17.0, 30.2, 63.2, 72.1, 79.3, 113.9, 117.6, 117.7, 118.9, 122.0, 123.2, 129.5, 129.7, 131.5, 132.2, 140.9, 157.2, 157.2, 157.4; νmax (neat)/cm−1 2980, 2868, 1611, 1584, 1514, 1487, 1445, 1393, 1354, 1288, 1242, 1215, 1175, 1140, 1107, 1074, 1049, 959, 924, 835, 789, 735, 692; HRMS (ESI): m/z calcd for C26H28O3 [M + Na]+ 411.1936; found: 411.1936.
(1R,2R)-10: Pale yellow oil; [α] D 23 +24.7 (c 0.21, CHCl3).

4. Conclusions

We envisaged syntheses of simple and accessible novel cyclopropane-type pyrethroids with two chiral centers on the cyclopropane ring: cyanohydrin ester-type 1 and ether-type 2. The design of 1 and 2 involved a “reverse connection approach” derived from fenvalerate and etofenprox, respectively. The synthesis of chiral 2-methylcyclopropanes 1 and 2 were performed by accessible ring-opening reactions of 4-chlorobenzyl cyanide with commercially available (±)-, (R)-, and (S)-propylene oxides as the crucial step, and provided the products in good overall yield with every >98% ee. During the synthetic study, we also performed alternative convergent syntheses of etofenprox and 4-EtO-type cyclopropane analogues from the parent 4-Cl-type pyrethroids utilizing a hydroxylation cross-coupling reaction that was recently developed by Stradiotto’s group.
The bioassay using common mosquito revealed that none of the four cyanohydrin ester-type 1 compounds exhibited insecticidal activity, whereas among the four ether-type compounds 2, only the (1R,2R)-2 enantiomer had significantly more activity than (1S,2S)-2. The present clear chiral discrimination was also observed for the previously reported “cyanohydrin ester-type cyclopropane” pyrethroids with three chiral centers. The subtle nature of the stereostructure-activity relationships is likely a privileged trend in pyrethroid chemistry, and the present finding will contribute to future discovery in this field.

Supplementary Materials

The following are available online. All starting materials and reagents in this work are commercially available. All starting materials and reagents in this work are commercially available. The synthetic procedure of 11, 12, 13, 14, 16, 17, 18, and etofenprox are available in the supplementary information. Copies of the 1H-, 13C-NMR spectra for compounds (±)-5, (±)-3, (1R*,2S*)-4, (1R*,2R*)-4, (1R*,2S*)-6, (1R*,2R*)-6, (1R*,2S*)-8, (1R*,2R*)-8, (1R*,2S*)-7, (1R*,2R*)-7, (1R*,2S*)-9, (1R*,2R*)-9, (1R,2R)-10 are available in the supplementary information.

Author Contributions

T.T., Y.T. (Yasuaki Taketomo), and M.M. contributed the majority of experiments. N.M. gave helpful suggestion for the pyrethroid chemistry. Y.T. (Yoo Tanabe) conceived and designed the project, and prepared the whole manuscript.

Funding

This research was partially supported by Grant-in-Aids for Scientific Research on Basic Area (B) “18350056”, Basic Areas (C) 15K05508, and Priority Areas (A) “17035087” and “18037068”, and Exploratory Research “17655045” from the Ministry of Education, Culture, Sports, Science and Technology (MEXT).

Acknowledgments

We thank Sumika Technoservice Corporation for the supply of all the insecticidal assay data.

Conflicts of Interest

The authors declare no conflict of interest.

Dedication

This article is dedicated to the late professor Teruaki Mukaiyama who died in 2018. Two authors (Yoo Tanabe and Noritada Matsuo) offer his warmest congratulations to Professor Ben L. Feringa (University of Groningen, The Netherlands) on being awarded the 2016 Nobel Prize in Chemistry.

References

  1. Elliot, M.; Janes, N.F. Pyrethrum: The Natural Insecticides; Academic Press: New York, NY, USA, 1973. [Google Scholar]
  2. Soderlund, D.M.; Casida, J.E. Synthetic Pyrethroids; Elliot, M., Ed.; ACS Symposium Series 42; American Chemical Society: Washington, DC, USA, 1977; p. 173. [Google Scholar]
  3. Naumann, K. Chemistry of Plant Protection 5, Synthetic Pyrethroid Insecticides; Springer: Berlin, Germany, 1990. [Google Scholar]
  4. Matsui, M.; Yamamoto, I. Naturally Occurring Insecticides; Marcel Dekker: New York, NY, USA, 1971. [Google Scholar]
  5. Chamberlain, K.; Matsuo, N.; Kaneko, H.; Khambay, B.P.S. Chirality in Agrochemicals; Kurihara, N., Miyamoto, J., Eds.; Wiley: New York, NY, UDA, 1998; p. 9. [Google Scholar]
  6. Jeanmart, S. Trends in chrysanthemic acid chemistry: A survey of recent Pyrethrum syntheses. Aust. J. Chem. 2003, 56, 559–566. [Google Scholar] [CrossRef]
  7. Ohno, N.; Fujimoto, K.; Okuno, Y.; Mizutani, M.; Hirano, Y.; Itaya, N.; Honda, T.; Yoshioka, H. 2-Arylalkanoates, a New Group of Synthetic Pyrethroid Esters not Containing Cyclopropanecarboxylates. Pestic. Sci. 1976, 7, 241–246. [Google Scholar] [CrossRef]
  8. Holan, G.; O’Keefe, D.F.; Virgona, C.; Walser, R. Structural and biological link between pyrethroids and DDT in new insecticides. Nature 1978, 272, 734–736. [Google Scholar] [CrossRef]
  9. Holan, G.; Johnson, W.M.P.; Rihs, K.; Virgona, C.T. Structural and biological link between pyrethroids and DDT in new insecticides. Pestic. Sci. 1984, 15, 361–368. [Google Scholar] [CrossRef]
  10. Nishii, Y.; Wakasugi, K.; Koga, K.; Tanabe, Y. Chirality Exchange from sp3 Central Chirality to Axial Chirality: Benzannulation of Optically Active Diaryl-2,2-dichrolocyclopropylmethanols to Axially Chiral α-Arylnaphthalenes. J. Am. Chem. Soc. 2004, 126, 5358–5359. [Google Scholar] [CrossRef] [PubMed]
  11. Nishii, Y.; Yoshida, T.; Asano, H.; Wakasugi, K.; Morita, J.; Aso, Y.; Yoshida, E.; Motoyoshiya, J.; Aoyama, H.; Tanabe, Y. Regiocontrolled Benzannulation of Diaryl(gem-dichlorocyclopropyl)methanols for the Synthesis of Unsymmetrically Substituted α-Arylnaphthalenes: Application to Total Synthesis of Natural Lignan Lactones. J. Org. Chem. 2005, 70, 2667–2678. [Google Scholar] [CrossRef] [PubMed]
  12. Nishii, Y.; Matsumura, H.; Muroya, Y.; Tsuchiya, T.; Tanabe, Y. Novel Synthetic Pyrethroid Containing a Halocyclopropane Structure. Biosci. Biotech. Biochem. 1995, 59, 1355–1357. [Google Scholar] [CrossRef]
  13. Nishii, Y.; Wakimura, K.; Tsuchiya, T.; Nakamura, S.; Tanabe, Y. Synthesis and Stereostructure-Activity Relationship of a Synthetic Pyrethroid, 2-Chloro-1-methyl-3-phenylcyclopropylmethyl 3-Phenoxybenzyl Ether. J. Chem. Soc. Perkin Trans. 1 1996, 1243–1249. [Google Scholar] [CrossRef]
  14. Nishii, Y.; Maruyama, N.; Wakasugi, K.; Tanabe, Y. Synthesis and Stereostructure-activity Relationship of Three Asymmetric Center Pyrethroids [2]: 2-Methyl-3-phenylcyclopropylmethyl 3-Phenoxybenzyl Ether and Cyanohydrin Ester. Bioorg. Med. Chem. 2001, 9, 33–39. [Google Scholar] [CrossRef]
  15. Yasukochi, H.; Atago, T.; Tanaka, A.; Yoshida, E.; Kakehi, A.; Nishii, Y.; Tanabe, Y. Practical, general, and systematic method for optical resolution of gem-dihalo- and monohalo-cyclopropanecarboxylic acids utilizing chiral 1,1′-binaphthol monomethyl ethers: Application to the synthesis of three chiral pesticides. Org. Biomol. Chem. 2008, 6, 540–547. [Google Scholar] [CrossRef] [PubMed]
  16. Kusumoto, T.; Nakayama, A.; Sato, K.; Hiyama, T.; Takehara, S.; Shoji, T.; Osawa, M.; Kuriyama, T.; Nakamura, K.; Fujisawa, T. Synthesis of new optically active cyanocyclopropanes as chiral dopants for ferroelectric liquid crystals. Tetrahedron Lett. 1991, 32, 939–942. [Google Scholar] [CrossRef]
  17. Yoshida, Y.; Sakakura, Y.; Aso, N.; Okada, S.; Tanabe, Y. Practical and Efficient Methods for Sulfonylation of Alcohols Using Ts(Ms)Cl/Et3N and Catalytic Me3N.HCl as Combined Base: Promising Alternative to Traditional Pyridine. Tetrahedron 1999, 55, 2183–2192. [Google Scholar] [CrossRef]
  18. Lebel, H.; Marcoux, J.-F.; Molinaro, C.; Charette, A.B. Stereoselective Cyclopropanation Reactions. Chem. Rev. 2003, 103, 977–1050. [Google Scholar] [CrossRef] [PubMed]
  19. Huang, P.; Sabbe, K.; Pottie, M.; Vandewalle, M. A Novel Synthesis of 19-Nor 1α,25-dihydroxyvitamin D3 and Related Analogues. Tetrahedron Lett. 1995, 36, 8299–8302. [Google Scholar] [CrossRef]
  20. Honda, T.; Katoh, M.; Yamane, S. Stereoselective synthesis of petrosterol and a formal synthesis of aragusterols. J. Chem. Soc. Perkin Trans. 1 1996, 2291–2296. [Google Scholar] [CrossRef]
  21. Man, H.-W.; Hiscox, W.C.; Matteson, D.S. A Highly Enatioselective and Diastereoselective Synthesis of Cyclobutanes via Boronic Esters. Org. Lett. 1999, 1, 379–381. [Google Scholar] [CrossRef] [PubMed]
  22. Xu, F.; Murry, J.A.; Simmons, B.; Corley, E.; Fitch, K.; Karady, S.; Tschaen, D. Stereocontrolled Synthesis of Trisubstituted Cyclopropanes: Expedient, Atom-Economical, Asymmetric Syntheses of (+)-Bicifadine and DOV21947. Org. Lett. 2006, 8, 3885–3888. [Google Scholar] [CrossRef] [PubMed]
  23. Fujiwara, T.; Okabayashi, T.; Takahama, Y.; Matsuo, N.; Tanabe, Y. Ring-Closing Strategy Utilizing Nitrile α-Anions: Chiral Synthesis of (+)-Norchrysanthemic Acid and Expeditious Asymmetric Total Synthesis of (+)-Grandisol. Eur. J. Org. Chem. 2018, 6018–6027. [Google Scholar] [CrossRef]
  24. Anderson, K.W.; Ikawa, T.; Tundel, R.E.; Buchwald, S.L. The Selective Reaction of Aryl Halides with KOH: Synthesis of Phenols,” Aromatic Ethers, and Benzofurans. J. Am. Chem. Soc. 2006, 128, 10694–10695. [Google Scholar] [CrossRef]
  25. Nishida, S.; Matsuo, N.; Tsushima, K.; Hatakoshi, M.; Hirano, M. Certain phenoxy-benzyloxy ether derivatives and an insecticidal and/or acaricidal composition containing the same and methods of use. U.S. Patent 4,562,213, 31 December 1985. [Google Scholar]
  26. Umemoto, M.; Asano, T.; Nagata, T.; Numata, S. Process for producing 3-phenoxybenzyl 2-(4-alkoxyphenyl)-2-methylpropyl ethers. U.S. Patent 4,542,243, 17 September 1985. [Google Scholar]
Sample Availability: Samples of the compounds all four acahiral and chiral cyclopropanes 4 are available from the authors.

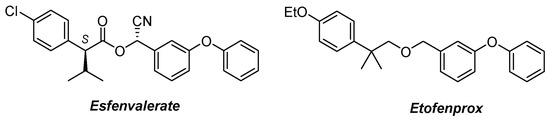

Figure 1. Two representative non-cyclopropane-type pyrethroids.
Figure 1. Two representative non-cyclopropane-type pyrethroids.
Molecules 24 01023 g001

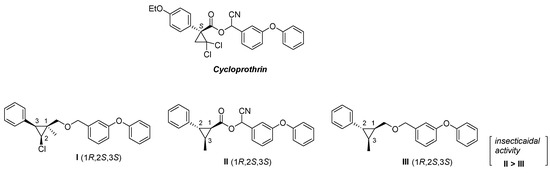

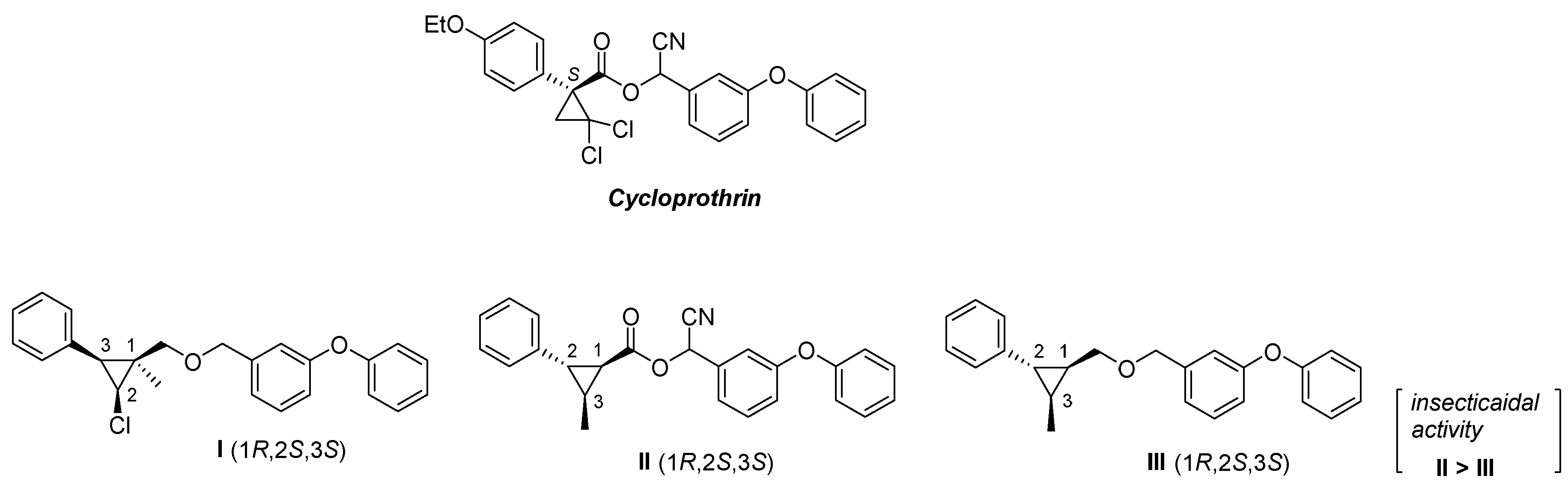

Figure 2. Chiral synthetic cyclopropane-type pyrethroids with one and three chiral centers on the cyclopropane ring.
Figure 2. Chiral synthetic cyclopropane-type pyrethroids with one and three chiral centers on the cyclopropane ring.
Molecules 24 01023 g002

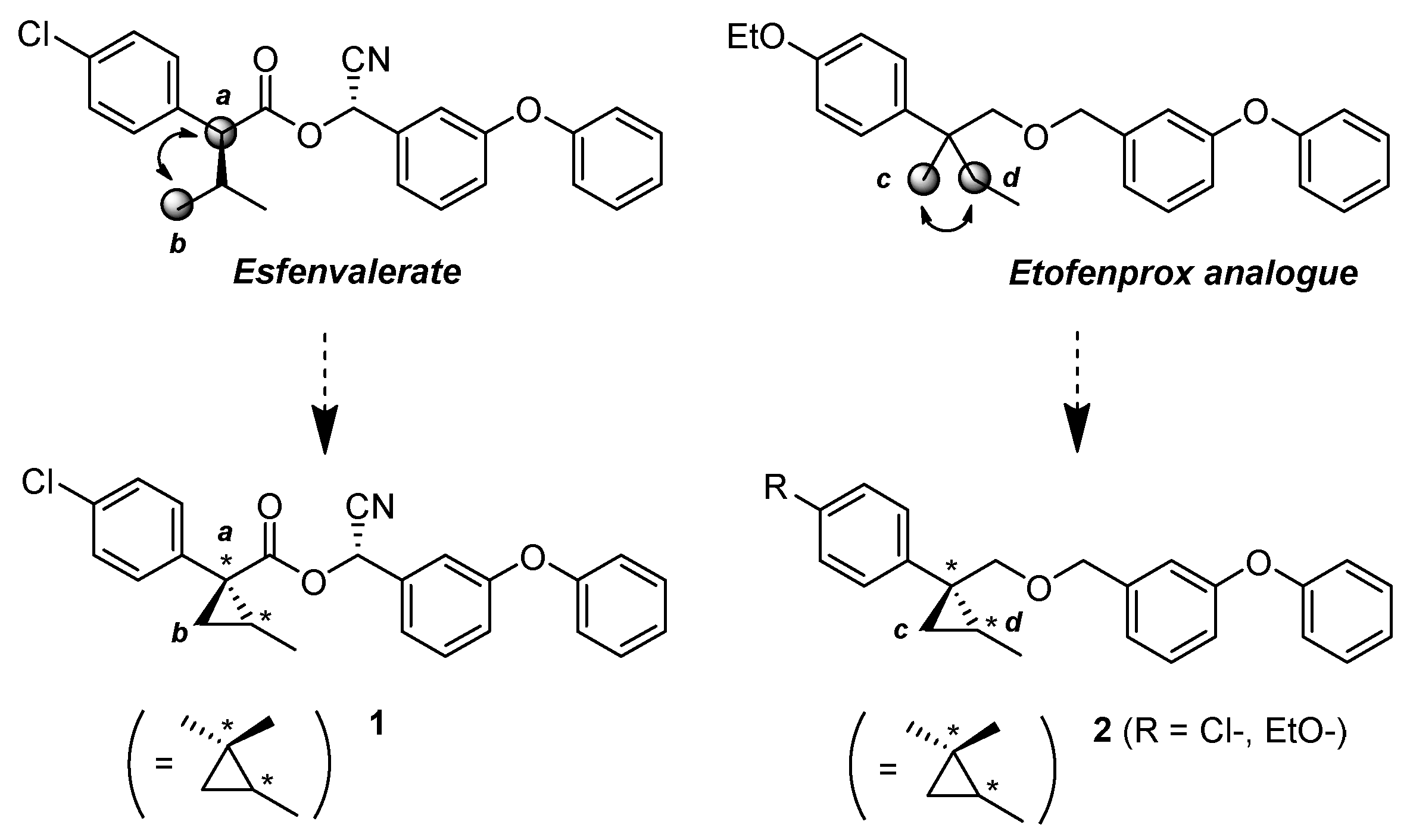

Scheme 1. Our synthetic design for novel pyrethroids with two chiral centers 1 and 2, both with two chiral centers on the cyclopropane ring.
Scheme 1. Our synthetic design for novel pyrethroids with two chiral centers 1 and 2, both with two chiral centers on the cyclopropane ring.
Molecules 24 01023 sch001

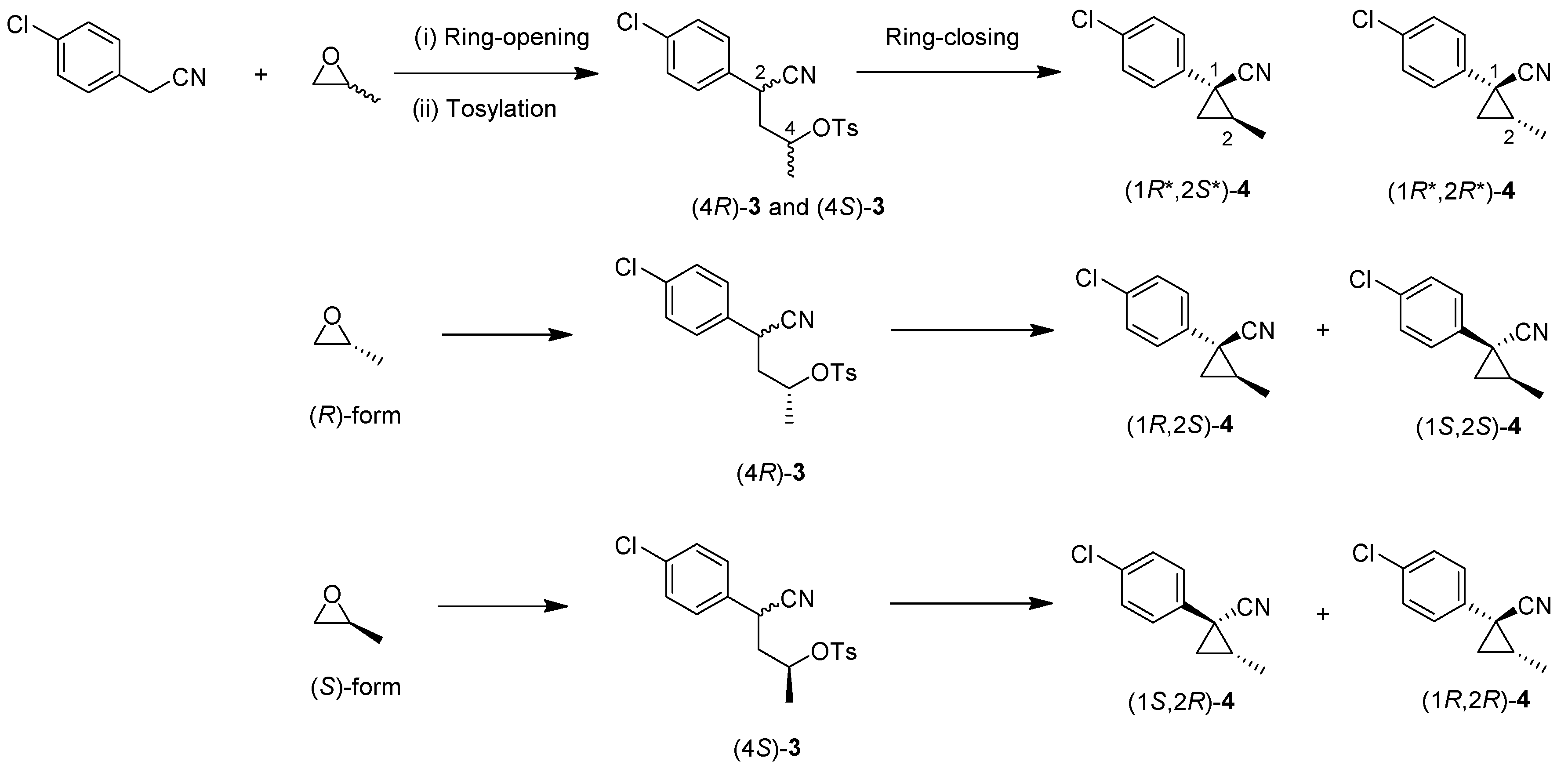

Scheme 2. Synthetic plan for key stereodefined intermediate 4.
Scheme 2. Synthetic plan for key stereodefined intermediate 4.
Molecules 24 01023 sch002

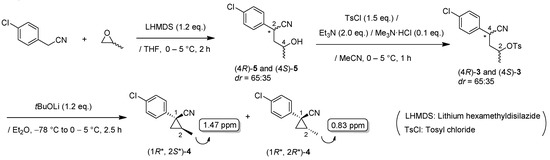

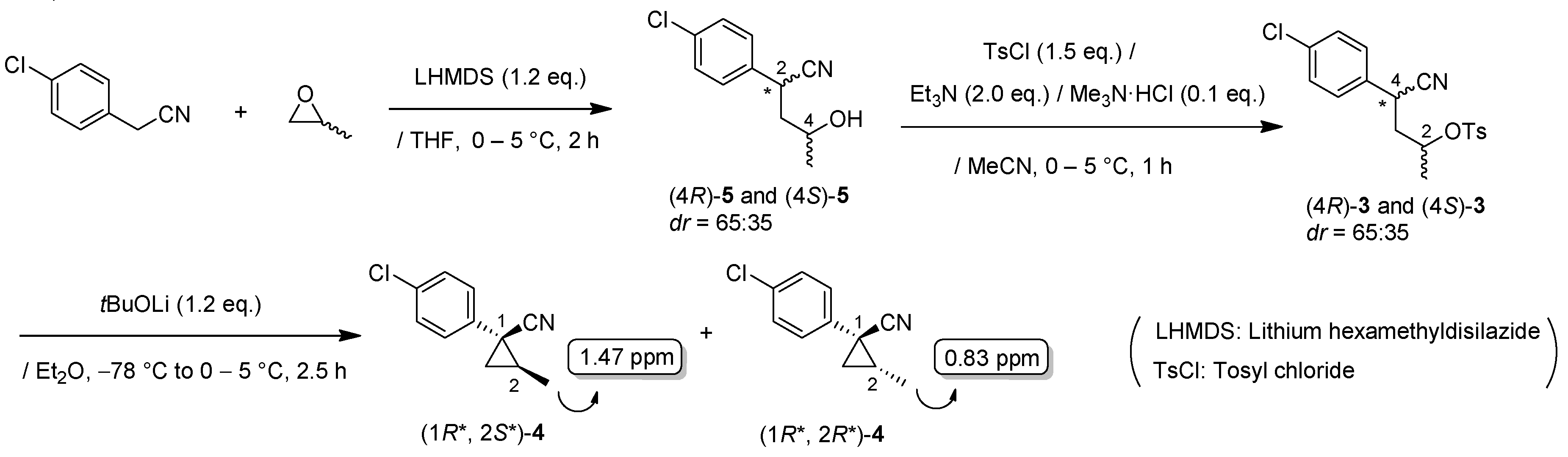

Scheme 3. Ring-closing reaction leading to racemic cyclopropane nitriles 4.
Scheme 3. Ring-closing reaction leading to racemic cyclopropane nitriles 4.
Molecules 24 01023 sch003

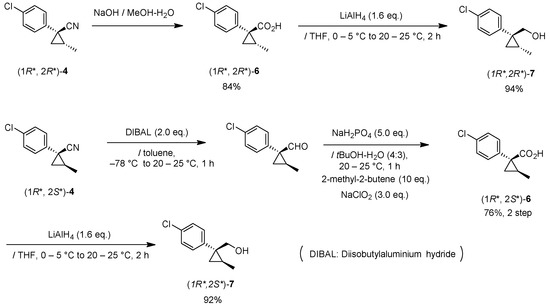

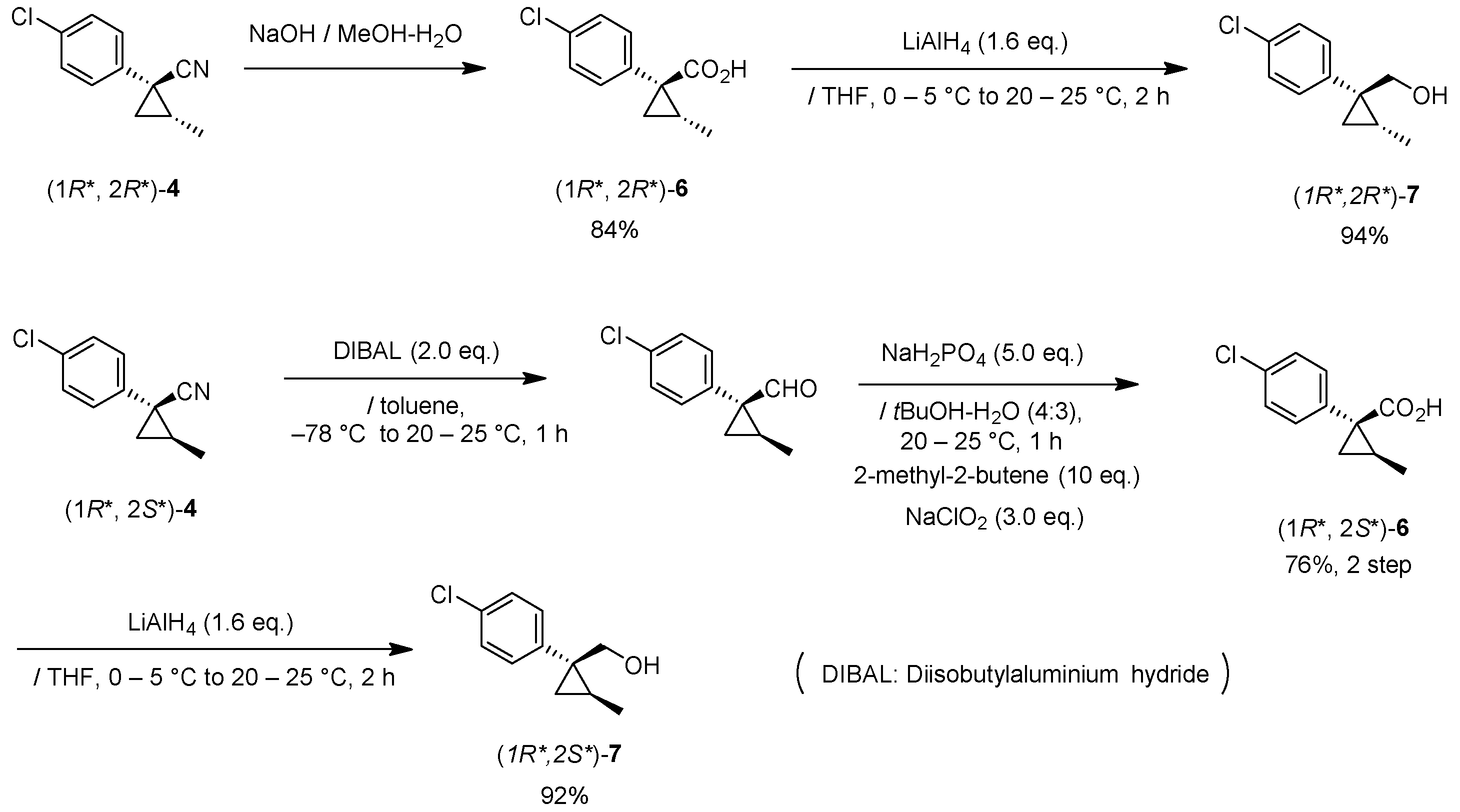

Scheme 4. Conversion of racemic nitriles 4 to carboxylic acids 6 and alcohols 7.
Scheme 4. Conversion of racemic nitriles 4 to carboxylic acids 6 and alcohols 7.
Molecules 24 01023 sch004
Scheme 5. Synthesis of cyanohydrin esters (1R*,2S*)-8 and (1R*,2R*)-8.
Scheme 5. Synthesis of cyanohydrin esters (1R*,2S*)-8 and (1R*,2R*)-8.
Molecules 24 01023 sch005
Scheme 6. Syntheses of achiral and chiral ethers 9.
Scheme 6. Syntheses of achiral and chiral ethers 9.
Molecules 24 01023 sch006
Scheme 7. Convergent syntheses of EtO-type etofenprox analogues (1S,2S)-10 and (1R,2R)-10.
Scheme 7. Convergent syntheses of EtO-type etofenprox analogues (1S,2S)-10 and (1R,2R)-10.
Molecules 24 01023 sch007
Scheme 8. Concise synthesis of cyclopropane-type etofenprox analogues-I (13) and -II (14).
Scheme 8. Concise synthesis of cyclopropane-type etofenprox analogues-I (13) and -II (14).
Molecules 24 01023 sch008
Scheme 9. Alternative concise synthesis of etofenprox.
Scheme 9. Alternative concise synthesis of etofenprox.
Molecules 24 01023 sch009
Table 1. Stereoselectivity of the ring-closing reaction leading to racemic cyclopropane nitriles 4.
Table 1. Stereoselectivity of the ring-closing reaction leading to racemic cyclopropane nitriles 4.
EntrySolventTotal Yield of 4/% a(1R*,2S*)-4/(1R*,2R*)-4 a
1Et2O91 (83 b)45/55
2 cEt2O8449/51
3MTBE (Methyl t-butyl ether)7219/81
4CPME (Cyclopentyl methyl ether)8339/61
a Determined by 1H-NMR of the crude products. Internal standard: ethylene carbonate. b Isolated. c The reaction was conducted at 0–5 °C.
Table 2. Insecticidal activity of achiral cyanohydrin esters (1R*,2S*)-8, (1R*,2R*)-8 and achiral ethers (1R*,2S*)-9, (1R*,2R*)-9. a
Table 2. Insecticidal activity of achiral cyanohydrin esters (1R*,2S*)-8, (1R*,2R*)-8 and achiral ethers (1R*,2S*)-9, (1R*,2R*)-9. a
CompoundStructureMortality (%) Common Mosquito b
500 ppm250 ppm
(1R*,2S*)-8 Molecules 24 01023 i031CC
(1R*,2R*)-8 Molecules 24 01023 i032CC
(1R*,2S*)-9 Molecules 24 01023 i033BC
(1R*,2R*)-9 Molecules 24 01023 i034AA
Fenvalerate Molecules 24 01023 i035AA
a The bioassay method is described in the Materials and Methods section. b Criteria of the mortality: A, > 90%; B, 10–90%; C, <10%.
Table 3. Insecticidal activity of chiral ethers (1S,2S)-9, (1R,2R)-9 and achiral reference compounds 13, 14, and 18, and etofenprox. a
Table 3. Insecticidal activity of chiral ethers (1S,2S)-9, (1R,2R)-9 and achiral reference compounds 13, 14, and 18, and etofenprox. a
CompoundStructureMortality (%) Common Mosquito b
250 ppm50 ppm10 ppm
(1S,2S)-9 Molecules 24 01023 i036CCC
(1R,2R)-9 Molecules 24 01023 i037ACC
(1S,2S)-10 Molecules 24 01023 i038ACC
(1R,2R)-10 Molecules 24 01023 i039AAC
13 Molecules 24 01023 i040ABC
14 Molecules 24 01023 i041AAB
18 Molecules 24 01023 i042ABC
Etofenprox Molecules 24 01023 i043AAB
a The bioassay method is described in the Materials and Methods section. b Criteria of the mortality: A, > 90%; B, 10–90%; C, <10%.

Share and Cite

MDPI and ACS Style

Taniguchi, T.; Taketomo, Y.; Moriyama, M.; Matsuo, N.; Tanabe, Y. Synthesis and Stereostructure-Activity Relationship of Novel Pyrethroids Possessing Two Asymmetric Centers on a Cyclopropane Ring. Molecules 2019, 24, 1023. https://doi.org/10.3390/molecules24061023

AMA Style

Taniguchi T, Taketomo Y, Moriyama M, Matsuo N, Tanabe Y. Synthesis and Stereostructure-Activity Relationship of Novel Pyrethroids Possessing Two Asymmetric Centers on a Cyclopropane Ring. Molecules. 2019; 24(6):1023. https://doi.org/10.3390/molecules24061023

Chicago/Turabian Style

Taniguchi, Takashi, Yasuaki Taketomo, Mizuki Moriyama, Noritada Matsuo, and Yoo Tanabe. 2019. "Synthesis and Stereostructure-Activity Relationship of Novel Pyrethroids Possessing Two Asymmetric Centers on a Cyclopropane Ring" Molecules 24, no. 6: 1023. https://doi.org/10.3390/molecules24061023

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
