Molecules 2019, 24(3), 609; https://doi.org/10.3390/molecules24030609

Article
Transport and Optical Gaps in Amorphous Organic Molecular Materials
1
Departamento de Química Física, Universidad de Alicante, 03080 Alicante, Spain
2
Departamento de Física Aplicada, Universidad de Alicante, 03080 Alicante, Spain
3
Departamento de Teoría y Simulación de Materiales, Instituto de Ciencia de Materiales de Madrid (CSIC), Cantoblanco, 28049 Madrid, Spain
*
Correspondence: [email protected]
These authors contributed equally to this work.
Received: 21 January 2019 / Accepted: 7 February 2019 / Published: 9 February 2019

Abstract

:
The standard procedure to identify the hole- or electron-acceptor character of amorphous organic materials used in OLEDs is to look at the values of a pair of basic parameters, namely, the ionization potential (IP) and the electron affinity (EA). Recently, using published experimental data, the present authors showed that only IP matters, i.e., materials with IP > 5.7 (<5.7) showing electron (hole) acceptor character. Only three materials fail to obey this rule. This work reports ab initio calculations of IP and EA of those materials plus two materials that behave according to that rule, following a route which describes the organic material by means of a single molecule embedded in a polarizable continuum medium (PCM) characterized by a dielectric constant ε . PCM allows to approximately describe the extended character of the system. This “compound” system was treated within density functional theory (DFT) using several combinations of the functional/basis set. In the preset work ε was derived by assuming Koopmans’ theorem to hold. Optimal ε values are in the range 4.4–5.0, close to what is expected for this material family. It was assumed that the optical gap corresponds to the excited state with a large oscillator strength among those with the lowest energies, calculated with time-dependent DFT. Calculated exciton energies were in the range 0.76–1.06 eV, and optical gaps varied from 3.37 up to 4.50 eV. The results are compared with experimental data.
Keywords:
transport gap; optical gap; OLED; TD-DFT

1. Introduction

The standard procedure to identify the hole- or electron-acceptor character of amorphous organic materials (AOM) is to look at the values of a pair of basic parameters, namely, the ionization potential (IP) and the electron affinity (EA). It is then widely accepted that those having high IP, EA will mainly act as an electron-acceptor, whereas those with low IP, EA are expected to behave as hole-acceptors [1,2], albeit, this rule of thumb is based upon rather solid grounds, its key drawback is a technical one; while IP is easily measured by means of direct ultraviolet photoelectron spectroscopy (UPS), EA requires inverse UPS, a technique not that simple and/or accessible. These difficulties force many researchers to derive EA indirectly through the measurement of the optical gap, a procedure that may introduce an error as high as 1 eV (actually, the exciton binding energy) in organic materials. Recently, using previously published experimental data [1], the present authors showed that, actually, only the ionization potential matters to identify the hole- or electron-acceptor character [3]. Data of IP were plotted against EA for up to 50 AOM (25 electron-acceptors and 25 hole-acceptors). Such a plot indicated that, except for three molecules, all others are separated into two groups: those having an IP > 5.7 eV corresponding to electron-acceptors, while hole-acceptors are confined to the region IP < 5.7 eV. Moreover, density functional theory (DFT)/polarizable continuum medium (PCM) calculations with ε = 4 for all molecules and a single functional/basis set combination, displace those three molecules to their respective correct region. These results indicate that, apparently, the EA plays a minor role, if any, in defining the two groups of charge transporter AOM.
In order to provide further support to the proposal of reference [3] we have undertaken the calculation of IP, EA and the exciton’s binding energy [4,5], and thus, the transport G t r a n s and the optical gaps G o p t (see below) by means of DFT/PCM, or time-dependant (TD)-DFT/PCM in the calculations of the exciton’s energy, of the three materials that fail to have the IP corresponding to their hole or electron character, plus two additional materials that do actually lie in their respective correct regions. Albeit there are alternative methods for the calculation of excited states, in particular we mention here the perturbative method GW [6,7,8,9,10] and the combination of these formalisms with a discrete polarizable model of atomistic resolution [11,12], methods similar to the approach adopted here are still used by many authors [4,5]. The extended character of AOM was taken into account incorporating a polarized continuum model [13] (the integral equation formalism variant of PCM used in the Gaussian09 [14] package). PCM are characterized by a dielectric constant ε that in most cases is only known to vary in a given range [15]. Thus, in the present calculations it was derived by requiring the fulfilment of Koopmans’ theorem. The optical gap was assumed to be determined by the excited state with the largest oscillator strength among those with the lowest energies. This methodology has several interesting aspects; (i) it provides a method to calculate the dielectric constant in cases where experimental data are lacking or not sufficiently precise and/or trustable, (ii) investigate how the different combinations of functional/basis sets affect the fulfillment of Koopmans’ theorem and, thus, the calculation of the dielectric constant, and (iii) provide a route for the calculation of IP, EA and transport and optical gaps of AOM.
At this point it is worth precisely defining some magnitudes used throughout this paper. The so called “fundamental gap” is given by the difference of the ionization potential and the electron affinity, i.e., G = IP − EA, which in turn are defined as IP = E + E 0 and EA = E 0 E , where E 0 is the ground state energy of the neutral molecule, while E ± , are the molecule ground states with plus or minus one electron. Both are usually calculated with the geometry of the neutral molecule (assumption that is supported by the very different time scales of vibrons and electrons). When dealing with extended systems the fundamental gap is renamed as “band gap”, or more graphically as the “transport gap” as it amounts to the minimum energy required to create mobile charges either in the conduction band (electrons) and/or in the valence band (holes). In many cases the fundamental gap is identified with E H O M O E L U M O . However, this is only an approximation that, in cases, can be very rude, as the latter difference can significantly depend on the details of the specific methodology used in their calculations. Finally, the “optical gap” ( G o p t ) defined as the energy of the lowest electronic transition promoted by absorption of a single photon. The exciton binding energy is thus given by E e x c i t o n = G o p t G t r a n s . This binding energy is very small in inorganic compounds (of the order of meV) and larger in organic materials (around one eV). This large difference cannot be solely ascribed to the dielectric constant ( ε ), which is at most 20 in inorganic systems and 3–5 in most organic materials, but rather it is surely due to differences in many-body interactions (see below). A more detailed discussion of these issues can be found in references [2,3].
The paper is organized as follows. The first section deals with the methods and numerical procedures, starting with a subsection devoted to comment general aspects of the theoretical and computational framework followed here to calculate gaps and exciton binding energies. Specific features of our methods are described in the next subsection. Results of our calculations are discussed thereafter and compared to available experimental data. The last section is devoted to comment on the main conclusions of our work.

2. Methods and Numerical Computations

2.1. General Considerations

The optical transition with the lowest energy and a significant oscillator strength, produced by photon absorption in molecules or materials, defines the optical gap. This transition creates a bound electron-hole pair more or less localized depending on the characteristics of the molecule or material. The electron-hole pair can be considered as a quasiparticle, usually called exciton, as it can move from molecule to molecule. The difference between the ground state and the lowest excited state (see below), or, equivalently, between the transport gap and the optical gap, defines the exciton binding energy E e x c i t o n . A standard method to calculate the exciton binding energy E e x c i t o n of a molecule consists of: (i) computing the transport gap G t r a n s defined as the difference IP-EA (see above) or, alternatively, one may derive both magnitudes from the results of the DFT calculation for the highest occupied molecular orbital (HOMO) and lowest occupied molecular orbital (LUMO) levels and, assuming Koopmans’ theorem to be valid (see below), write IP = E H O M O and EA = E L U M O , (ii) calculating the excited states by means of a suitable method (see next section) from which, by taking into account the oscillator strengths, the optical gap G o p t is derived, and, as already pointed out, the exciton binding energy is given by E e x c i t o n = G o p t G t r a n s .
Koopmans’ theorem [16] states that in closed-shell Hartree–Fock (HF), the first ionization energy of a molecular system is equal to the energy of the HOMO, with its sign changed. The main sources of error are well known: (a) the lack of orbital relaxation; and (b) the fact that, being HF a single determinant method, the electronic correlation is poorly described. A similar theorem exists in density functional theory (Janak’s theorem [17]) for relating the first vertical ionization energy and the electron affinity to the HOMO and LUMO energies, respectively, obtained with an exact exchange-correlated density functional [17,18,19,20,21,22]. The error in the DFT counterpart of Koopmans’ theorem is a result of the approximation employed for the exchange-correlation energy functional so that, unlike in HF theory, it is possible to improve the results with the development of better approximations or, particularly, better functionals. At this point, it is worth noting that when an electron is removed or added to an extended systems (as the AOM here studied), both orbital relaxation and electron correlation decrease significantly with respect to a localized media, and thus, one may expect IP = E H O M O and EA = E L U M O to be a reasonable approximation.
In the present case the extended character of AOM was introduced using a polarized continuum model (PCM) [13], which has been, and still is being, profusely utilized by many authors [23,24,25,26]. Incorporating PCM into traditional DFT amounts to actually solving a “compound system” formed by a single molecule immersed into a continuum polarizable medium. Although recent efforts to incorporate solid state effects more accurately have been made [27,28,29], it is obvious that a continuum model is more appropriate to describe amorphous solids [30]. The PCM is characterized by a dielectric constant ε (the ratio of the permittivity of a substance to the permittivity of free space). Calculations were done for a dielectric constant varying in the range 1–80 ( ε = 1 corresponds to a single molecule in vacuum). However, as the dielectric constant of molecular materials is known to vary in the range 3–6 [2,30,31,32,33]. Results for ε in the range 1–10 are only displayed in the Figures. The optimal value of ε is that at which the curves IP(EA)-vs.- ε and E H O M O (LUMO)-vs.- ε cross, or in other words, that at which Koopmans’ theorem holds.
Several published works take the dielectric constant from either experimental data or approximate expressions and, subsequently, attempt to optimize the exchange and correlation functional by requiring the fulfillment of Koopmans’ theorem (see, for instance, [34,35,36,37]). In particular, some authors seek a relation between the amount of HF exchange included in their calculations and the dielectric constant [24]. We believe that our approach is more transparent as it is only based upon Koopmans’ theorem and the dielectric constant, whereas that followed in [24,34,35,36,37] incorporates changes in the functional.

2.2. Specific Procedures

DFT calculations were carried out using six functionals, two generalized gradient approximation (GGA) exchange-correlation functionals, BLYP [38,39] and PBEPBE [40,41], two hybrid functionals, B3LYP [42,43] and PBE0 [44,45] and one meta-GGA functional, τ HCTH [46] with three basis sets, Def2SV, Def2TZV and Def2TZVPP [47,48]. As some of the excited states can be of global electron density transfer (GEDT) nature, we have checked the performance of a few long range corrected functionals (for instance CAM-B3LYP [49] and LC- ω PBE [50]). However, as these functionals reproduce Koopmans’ theorem for ε close to 1 [51], well below that expected for the molecules studied here, we have discarded all long range functionals. This does not imply that these functionals can be used for the calculation of gaps in solids, for which the relationship of the long-range exact exchange has been found with the dielectric constant (See reference [52] and their references). Calculations have been made for the different functionals with each basis set and varying the values of the dielectric constant used in the PCM. In all cases the geometry of the neutral ground state has been optimized.
According to the present analysis, the basis set may vary the value of ε at which the curves IP(EA)-vs.- ε and E H O M O (LUMO)-vs.- ε cross for a given molecule, albeit, crossing occurs in any case. However, not all functionals lead to such a crossing (see below).
Finally, using the PBE0/Def2TZVPP, vertical excitation energies have been calculated with TD-DFT [53,54,55,56] method. The dielectric constant ε used in these calculations was the average of those for which IP = E H O M O , or EA = E L U M O (both are usually very similar). A self-consistent evaluation of the effects of solvent on the excited state has been made. The linear response formalism [57,58] was used to calculate the ground state optimized geometry (frequencies have been calculated to confirm its nature), and the vertical excitation was estimated with a non-equilibrium solvation linear response calculation. Finally, for the chosen excited states, the effects of solvation have been improved with a state-specific calculation [59,60,61]. All calculations were done with the Gaussian09 package [14], using Jmol [62], Gabedit [63] or Molden [64] for displaying and analyzing the results.

3. Results

3.1. Transport Gap

Calculations have been carried out for the systems studied in the previous paper (See reference [3]), three electron-acceptors: 1,3,5-tris(phenyl-2-pyridylamino)benzene (E1), 2,4,6-tris[di(2-pyridyl)-amino1,3,5-triazine (E2) and 2,4,6-tris(carbazolo)-1,3,5-triazine (TRZ2) (E3), (with numbers 40, 169 and 170, respectively, as assigned in reference [1]) and two hole-acceptors: N,N′-Bis(3-methylphenyl)-N,N′-diphenylbenzidine (TPD) (H1) and 4,4′-di(N-carbazolyl)biphenyl (CBP) (H2) (molecules 86 and 91 in reference [1]). (See Figure 1). Hereafter we first consider how the optimal dielectric constant was determined and, subsequently, the transport gap.
DFT plus PCM calculations were carried out for the IP, EA, E H O M O and E L U M O , versus the dielectric constant ( ε ). Figure 2, Figure 3 and Figure 4 show the results for the molecule E1, although similar results are obtained for the rest of the studied molecules. It is noted that the polarizable character of PCM is manifested clearly in the stronger effects it has on the parameters of the charged system (IP and EA) than on those of the neutral system ( E H O M O and E L U M O ). These calculations have been made using the best basis set (Def2TZVPP) and three functionals, B3LYP (Figure 2), PBE0 (Figure 3) and PBEPBE (Figure 4). The first two hybrid functionals show a crossing of the IP-vs- ε and E H O M O -vs.- ε curves, and, the EA-vs.- ε and E L U M O -vs.- ε curves. The crossing of the IP- E H O M O and EA- E L U M O curves occurred at very similar values of the dielectric constant, namely, ε = 7.8 and ε = 7.2 for B3LYP and ε = 4.7 and at ε = 4.6 for PBE0 (see Figure 2 and Figure 3 and Table 1). Although both functionals show crossing, thus allowing us to derive an optimal dielectric constant from this analysis, we chose PBE0 for the majority of the calculations presented here for two reasons; most theoretical analyses support PBE0 as the most suitable functional for organic materials and molecules [4], and the dielectric constant derived from the use of this functional gives ε values well within the range 3–6, which is the expected range for the materials at hand [2]. Note that the rather popular B3LYP functional gives dielectric constants as high as 9.4 (see molecule E2 in Table 1). On the other hand, with the PBEPBE functional (Figure 4) no crossing was found over a rather wide range (1–80). In fact, this is not the only functional that did not show crossing, rather at least two additional functionals were identified (BLYP and τ HCTH). For the long range corrected functionals, these crossing occur at values close to ε = 1 , as it was indicated previously.
The qualitative effect that the choice of the functional may have had on the results for the optimal dielectric constant was not seen when the basis set was changed. The use of a different basis set may have varied the values of ε at which the curves IP(EA)-vs.- ε and E H O M O (LUMO)-vs.- ε cross, albeit for the molecules investigated here crossing occured no matter the basis. This is illustrated by the results reported in Table 1 for the optimal dielectric constant, obtained with the PBE0 functional and the three previously indicated basis sets. It is noted that the maximum difference was always smaller than 15%, being in most cases smaller than 5%. In the following, the dielectric constant introduced in the PCM will be the average of those at which the curves IP(EA)-vs.- ε and E H O M O (LUMO)-vs.- ε , obtained with the combination PBE0/Def2TZVPP.

3.2. Optical Gap and Exciton Binding Energies

Energies of the excited states for each of the five organic molecular materials investigated here were calculated within TD-DFT framework with the hybrid exchange-correlation functional PBE0 and using the Def2TZVPP basis set and with a procedure similar to that of reference [4]. The dielectric constant was calculated as explained in the previous subsection and incorporated into the PCM. The calculated energies for the four lowest lying excited states are reported in Table 2. Their oscillator strengths are also given. It is noted that while the energies of the four excited states of each molecule did not differ much, their oscillator strengths may have been significantly different, determining, for molecules H1 and H2 (hole-acceptors) the main transition and thus, the first excited state. Nevertheless, for molecules E1, E2 and E3 (electron-acceptors), the first excited state was not that one which shows the larger oscillator strength. Then, for the first excited state of H1 and H2 together with the first three excited states of the systems E1, E2 and E3, state-specific (SS) solvation calculations were carried out, within the non-equilibrium solvation-linear response approximation (See references [13,65]). The results for the most important implicated excitations and their oscillator strengths are shown in Table S6 of the electronic supporting information (ESI). A summary which includes the results of the excited states of less energy having a considerable oscillator strength is shown in Table 3. As expected, solvation calculations slightly decreased the energy of the excited states, and significantly modified the value of the oscillator strengths.
Table 4 reports experimental data collected in reference [1] for the IP, EA and the optical gap (all in eV). Theoretical results (last five columns) were obtained by means of PBE0/Def2TZVPP and incorporating the PCM with the dielectric constant ε derived as explained succinctly in Table 1 and extensively in the main text. G t r a n s and G o p t stand for transport and optical gap, respectively. It is noted that theoretical results for G o p t , albeit slightly larger than the experimental data, are not that different. Some hints that may help to understand this discrepancy are outlined in the following paragraph. As regards the exciton binding energies, they are of the order of the expected values for these materials. However, it is likely that due to overestimation of G o p t , our calculations underestimated their actual values. As remarked above, solvation calculations reduce in a small amount (less than 0.2 eV) the excited state energy and, thus, the optical gap.
Exciton binding energies in organic materials are usually much larger than those currently observed in inorganic compounds, namely, i.e., meV, as compared to tenths of eV typical of organic materials. However, it is unlikely that this large difference in E e x c i t o n may be solely understood in terms of differences in the dielectric constants. Instead, it is widely accepted that electron-electron and electron-phonon interactions may also play a substantial role. Both interactions are commonly larger in inorganic materials, contributing appreciably to the reduction of the optical gap and, thus, the exciton binding energy. The no-consideration of electron-phonon interactions in the present calculations, the incomplete treatment of electron-electron interactions, and the different nature of their electronic transition may surely be the reasons of the difference in the results showed above.
In order to attain an understanding of the nature of the electronic transitions in these systems, it is worth drawing iso-contour plots of the difference between the local electron densities in ground- and excited-states (Figure 5 and Figure 6). Thus, calculations of the GEDT between the ground- and the excited-states have been carried out using the procedure of Le Bahers et al. [66]. Table 5 shows the results (see full results in Table S7 of ESI) for the charge transferred ( C T ): q C T = ρ + ( r ) d r = ρ ( r ) d r , r being the position vector in three-dimensions. In this expression ρ + ( r ) and ρ ( r ) stand for positive or negative differences between densities of the excited and ground state wave-functions that can be quantified by the spatial distance between the barycenters of these density distributions d C T = r ρ + ( r ) d r ρ + ( r ) d r r ρ ( r ) d r ρ ( r ) d r and the difference between the dipole moments computed for the ground and the excited states μ C T = d C T q C T .
It is readily noted in Figure 6 that, in hole-acceptor systems, the excitation localizes on the central part of the molecule backbone (see reference [4]) and the spatial distance between the barycenters of the two density distributions d C T has values that are far from the range within which GEDT excitations usually lie ( 1.5 Å) Then, they should be considered as local excitations. The three electron-acceptor systems E1 and E2, in turn, show a second and a third excited state with considerably higher oscillator strengths, such that, albeit having higher energies, may compete with the first excited state. Actually, the very small oscillator strength of the latter makes more probable the excitation to the second excited state.
A consequence of what has been pointed out in the preceding paragraph is that the excited states of systems E1 and E3 can be safely considered as GEDT excited states, with d C T approximately equal to 1.95 and 2.40 Å. Instead, material E2, albeit having a first excited state with d C T of 2.25 Å, its small oscillator strength indicates that the intensity of the excitation might be small compared to the transition to the second excited state, that, with d C T of only 0.57 Å, should be considered as a local excitation. These remarks are better illustrated by Figure 5 that shows iso-contour plots of ground- and excited-state density difference for the three electron-acceptor systems. Figures S1–S5 of the ESI show iso-contour plots of some of the molecular orbitals likely involved in the transitions that define the optical gap.

4. Concluding Remarks

The aim of the present work was to calculate the optical gap and exciton binding energies of five AOM used frequently in the fabrication of OLEDs, by means of methods of quantum chemistry commonly used for these purposes. The minimal requirements that a method should have to deal with this system with a reasonable probability of success are the following:
  • Calculation of the ground state wave-function and the excitation energy within time independent DFT framework and using high performance combinations of a functional/basis set.
  • Incorporate the extended character of the system implemented in the present work by means of a polarized continuum model.
  • Find a way to determine the dielectric constant, the key parameter of PCM. Measurements or estimation with simplified models are commonly used [1,30,67]. Here we have adopted a different approach that allowed to obtain an optimal value of ε imposing the fulfillment of Koopmans’ theorem.
  • Our results reveal the importance of considering the exact exchange energy in the calculation of the optimal value of ε .
Altogether, we believe our procedures to be a feasible path to follow in handling a system as complicated as the one here studied. Hereafter, we summarize the main results. Calculations were carried out for five AOM used in OLEDs either as electron- (three of them) or hole-acceptors. Optimal dielectric constants varied in the range 4.4–5.0, exciton energies from 0.71 up to 1.06 eV, and optical gaps from 3.37 up to 4.50 eV.
The latter were in all cases larger than experimental data in amounts that vary from 0.2 to 0.8 eV, probably due to several factors, namely, an incomplete treatment of the electron-electron interaction, the use of polarized continuum models, experimental errors, etc.
A direct exciton energy calculation requires the calculation of the two-particle spectrum by solving the Bethe–Salpeter equation. The development of time-dependent DFT has paved the road [68]. Thus, albeit the discussion concerning the suitability of TD-DFT for a proper description of excitonic matter is still alive, we have followed this approach as a pragmatic choice. It is pertinent to mention here that in a very recent work [69] it has been shown how to merge the Bethe–Salpeter equation with the PCM formalism.
Finally, it is worth noting that the present results not only do not contradict the analysis of our previous work [3], in which calculations were carried out with ε = 4 for all molecules, while in the present case a different ε was used for each molecule, (see Table 1). But rather, in all cases but one, they reinforce our conclusions concerning the character of AOM, namely, those with IP > 5.7 expected to be electron-acceptors, while those having IP < 5.7 predicted to be hole-acceptors. Specifically, for the electron-acceptor materials E1, E2 and E3, the present calculations give IP values of 5.77, 6.56 and 6.37 eV, respectively, while in our previous work we reported 5.77, 6.49 and 6.3 eV, respectively. In turn, in the case of hole-acceptors, the IP increases in both molecules albeit slightly, namely, for H1 we previously reported 5.19 eV, versus a value of 5.23 eV in the present work. For molecule H2 here we obtained 5.87 eV, quite close to the value reported previously 5.83 eV [3] (both near the critical value of 5.7 eV).

Supplementary Materials

The Supplementary Materials are available online.

Author Contributions

Conceptualization, E.S.-F., E.L., M.A.D.-G., G.C. and J.A.V.; methodology, E.S.-F., E.L. and J.A.V.; validation, E.S.-F., E.L., M.A.D.-G., G.C. and J.A.V.; formal analysis, E.S.-F., E.L., M.A.D.-G., G.C. and J.A.V.; investigation, E.S.-F. and E.L.; resources, E.S.-F.; writing—original draft preparation, E.S.-F., E.L., M.A.D.-G., G.C. and J.A.V.; visualization, E.S.-F.; supervision, E.S.-F., E.L., M.A.D.-G., G.C. and J.A.V.

Funding

This research was funded by Ministerio de Economía y Competitividad MINECO and the European Union through FEDER funds (grants FIS2012-35880, FIS2015-64222-C2-1-P, FIS2015-64222-C2-2-P and MAT2015-66586-R).

Acknowledgments

Financial support by the Spanish “Ministerio de Economía y Competitividad MINECO” and the European Union through FEDER funds (grants FIS2012-35880, FIS2015-64222-C2-1-P, FIS2015-64222-C2-2-P and MAT2015-66586-R) and the Universidad de Alicante, is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
AOMAmorphous organic materials
B3LYPHybrid BLYP functional
BLYPBecke-Lee-Yang-Parr exchange correlation functional
CAM-B3LYPLong-range-corrected version of B3LYP functional
CTCharge transferred
DFTDensity functional theory
EAElectron affinity
GEDTGlobal electron density transfer
GGAGeneralized gradient approximation
GFundamental gap
G t r a n s Transport gap
G o p t Optical gap
HOMOHighest occupied molecular orbital
IPIonization potential
LC- ω PBELong-range-corrected ω PBE functional
LUMOLowest unoccupied molecular orbital
OLEDOrganic light-emitting diode
PCMPolarizable continuum medium
PBEPBEPerdew, Burke and Ernzerhof exchange correlation functional
PBE0Hybrid PBEPBE functional
TD-DFTTime-dependent DFT
τ HCTHThe τ -dependent Handy’s functional

References

  1. Shirota, Y.; Kageyama, H. Charge carrier transporting molecular materials and their applications in devices. Chem. Rev. 2007, 107, 953–1010. [Google Scholar] [CrossRef] [PubMed]
  2. Brédas, J.L. Mind the gap! Mater. Horiz. 2014, 1, 17–19. [Google Scholar] [CrossRef]
  3. Louis, E.; San-Fabián, E.; Díaz-García, M.A.; Chiappe, G.; Vergés, J.A. Are electron affinity and ionization potential intrinsic parameters to predict the electron or hole acceptor character of amorphous molecular materials? J. Phys. Chem. Lett. 2017, 8, 2445–2449. [Google Scholar] [CrossRef] [PubMed]
  4. Hernández-Verdugo, E.; Sancho-García, J.C.; San-Fabián, E. The application of TD-DFT to excited states of a family of TPD molecules interesting for optoelectronic use. Theor. Chem. Acc. 2017, 136, 77. [Google Scholar] [CrossRef]
  5. Becke, A.D. Communication: Optical gap in polyacetylene from a simple quantum chemistry exciton model. J. Chem. Phys. 2018, 149, 081102. [Google Scholar] [CrossRef] [PubMed]
  6. Onida, G.; Reining, L.; Rubio, A. Electronic excitations: Density-functional versus many-body Green’s-function approaches. Rev. Mod. Phys. 2002, 74, 601–659. [Google Scholar] [CrossRef]
  7. Blase, X.; Attaccalite, C.; Olevano, V. First-principles GW calculations for fullerenes, porphyrins, phtalocyanine, and other molecules of interest for organic photovoltaic applications. Phys. Rev. B 2011, 83, 115103. [Google Scholar] [CrossRef]
  8. Faber, C.; Boulanger, P.; Attaccalite, C.; Duchemin, I.; Blase, X. Excited states properties of organic molecules: From density functional theory to the GW and Bethe-Salpeter Green’s function formalisms. Philos. Trans. R. Soc. A Math. Phys. Eng. Sci. 2014, 372, 20130271. [Google Scholar] [CrossRef]
  9. Jacquemin, D.; Duchemin, I.; Blase, X. Is the Bethe–Salpeter formalism accurate for excitation energies? Comparisons with TD-DFT, CASPT2, and EOM-CCSD. J. Phys. Chem. Lett. 2017, 8, 1524–1529. [Google Scholar] [CrossRef]
  10. Lange, M.F.; Berkelbach, T.C. On the relation between equation-of-motion coupled-cluster theory and the GW approximation. J. Chem. Theory Comput. 2018, 14, 4224–4236. [Google Scholar] [CrossRef]
  11. Li, J.; D’Avino, G.; Duchemin, I.; Beljonne, D.; Blase, X. Accurate description of charged excitations in molecular solids from embedded many-body perturbation theory. Phys. Rev. B 2018, 97, 035108. [Google Scholar] [CrossRef]
  12. Duchemin, I.; Jacquemin, D.; Blase, X. Combining the GW formalism with the polarizable continuum model: A state-specific non-equilibrium approach. J. Chem. Phys. 2016, 144, 164106. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Tomasi, J.; Mennucci, B.; Cammi, R. Quantum mechanical continuum solvation models. Chem. Rev. 2005, 105, 2999–3094. [Google Scholar] [CrossRef] [PubMed]
  14. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09 Revision D.01.; Gaussian Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  15. Berleb, S.; Brütting, W.; Paasch, G. Interfacial charges and electric field distribution in organic hetero-layer light-emitting devices. Org. Electron. 2000, 1, 41–47. [Google Scholar] [CrossRef]
  16. Koopmans, T. Über die zuordnung von wellenfunktionen und eigenwerten zu den einzelnen elektronen eines atoms. Physica 1934, 1, 104–113. [Google Scholar] [CrossRef]
  17. Janak, J.F. Proof that E n i = ϵ in density-functional theory. Phys. Rev. B 1978, 18, 7165–7168. [Google Scholar] [CrossRef]
  18. Perdew, J.P.; Parr, R.G.; Levy, M.; Balduz, J.L. Density-functional theory for fractional particle number: Derivative discontinuities of the energy. Phys. Rev. Lett. 1982, 49, 1691–1694. [Google Scholar] [CrossRef]
  19. Perdew, J.P.; Levy, M. Physical content of the exact kohn-sham orbital energies: Band gaps and derivative discontinuities. Phys. Rev. Lett. 1983, 51, 1884–1887. [Google Scholar] [CrossRef]
  20. Jones, R.O.; Gunnarsson, O. The density functional formalism, its applications and prospects. Rev. Mod. Phys. 1989, 61, 689–746. [Google Scholar] [CrossRef]
  21. Levy, M.; Perdew, J.P.; Sahni, V. Exact differential equation for the density and ionization energy of a many-particle system. Phys. Rev. A 1984, 30, 2745–2748. [Google Scholar] [CrossRef]
  22. Baerends, E.J. Density functional approximations for orbital energies and total energies of molecules and solids. J. Chem. Phys. 2018, 149, 054105. [Google Scholar] [CrossRef] [PubMed]
  23. Sun, H.; Ryno, S.; Zhong, C.; Ravva, M.K.; Sun, Z.; Körzdörfer, T.; Brédas, J.L. Ionization energies, electron affinities, and polarization energies of organic molecular crystals: Quantitative estimations from a polarizable continuum model (PCM)-tuned range-separated density functional approach. J. Chem. Theory Comput. 2016, 12, 2906–2916. [Google Scholar] [CrossRef] [PubMed]
  24. Zheng, Z.; Brédas, J.L.; Coropceanu, V. Description of the charge transfer states at the pentacene/C60 interface: Combining range-separated hybrid functionals with the polarizable continuum model. J. Phys. Chem. Lett. 2016, 7, 2616–2621. [Google Scholar] [CrossRef] [PubMed]
  25. Zheng, Z.; Egger, D.A.; Brédas, J.L.; Kronik, L.; Coropceanu, V. Effect of solid-state polarization on charge-transfer excitations and transport Levels at organic interfaces from a screened range-separated hybrid functional. J. Phys. Chem. Lett. 2017, 8, 3277–3283. [Google Scholar] [CrossRef] [PubMed]
  26. Nayak, P.K.; Periasamy, N. Calculation of electron affinity, ionization potential, transport gap, optical band gap and exciton binding energy of organic solids using ‘solvation’ model and DFT. Org. Electron. 2009, 10, 1396–1400. [Google Scholar] [CrossRef]
  27. Tsiper, E.V.; Soos, Z.G. Charge redistribution and polarization energy of organic molecular crystals. Phys. Rev. B 2001, 64, 195124. [Google Scholar] [CrossRef]
  28. Yoshida, H.; Yamada, K.; Tsutsumi, J.; Sato, N. Complete description of ionization energy and electron affinity in organic solids: Determining contributions from electronic polarization, energy band dispersion, and molecular orientation. Phys. Rev. B 2015, 92, 075145. [Google Scholar] [CrossRef][Green Version]
  29. Li, J.; Duchemin, I.; Roscioni, O.M.; Friederich, P.; Anderson, M.; Da Como, E.; Kociok-Köhn, G.; Wenzel, W.; Zannoni, C.; Beljonne, D.; et al. Host dependence of the electron affinity of molecular dopants. Mater. Horiz. 2019, 6, 107–114. [Google Scholar] [CrossRef]
  30. Schwenn, P.; Burn, P.; Powell, B. Calculation of solid state molecular ionisation energies and electron affinities for organic semiconductors. Org. Electron. 2011, 12, 394–403. [Google Scholar] [CrossRef]
  31. Madigan, C.; Bulović, V. Exciton energy disorder in polar amorphous organic thin films: Monte Carlo calculations. Phys. Rev. B 2007, 75, 081403. [Google Scholar] [CrossRef]
  32. Meredith, P.; Bettinger, C.J.; Irimia-Vladu, M.; Mostert, A.B.; Schwenn, P.E. Electronic and optoelectronic materials and devices inspired by nature. Rep. Prog. Phys. 2013, 76, 034501. [Google Scholar] [CrossRef]
  33. D’Avino, G.; Muccioli, L.; Castet, F.; Poelking, C.; Andrienko, D.; Soos, Z.G.; Cornil, J.; Beljonne, D. Electrostatic phenomena in organic semiconductors: Fundamentals and implications for photovoltaics. J. Phy. Condens. Matter 2016, 28, 433002. [Google Scholar] [CrossRef] [PubMed]
  34. Stein, T.; Kronik, L.; Baer, R. Reliable prediction of charge transfer excitations in molecular complexes using time-dependent density functional theory. J. Am. Chem. Soc. 2009, 131, 2818–2820. [Google Scholar] [CrossRef]
  35. Refaely-Abramson, S.; Sharifzadeh, S.; Govind, N.; Autschbach, J.; Neaton, J.B.; Baer, R.; Kronik, L. Quasiparticle spectra from a nonempirical optimally tuned range-separated hybrid density functional. Phys. Rev. Lett. 2012, 109, 226405. [Google Scholar] [CrossRef] [PubMed]
  36. Kronik, L.; Stein, T.; Refaely-Abramson, S.; Baer, R. Excitation gaps of finite-sized systems from optimally tuned range-separated hybrid functionals. J. Chem. Theory Comput. 2012, 8, 1515–1531. [Google Scholar] [CrossRef] [PubMed]
  37. Haitao, S.; Jochen, A. Influence of the delocalization error and applicability of optimal functional tuning in density functional calculations of nonlinear optical properties of organic donor-acceptor chromophores. Chem. Phys. Chem. 2013, 14, 2450–2461. [Google Scholar] [CrossRef]
  38. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef]
  39. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef]
  40. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef]
  41. Perdew, J.P.; Burke, K.; Ernzerhof, M. Erratum: Generalized gradient approximation made simple. Phys. Rev. Lett. 1997, 78, 1396. [Google Scholar] [CrossRef]
  42. Becke, A.D. Density functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  43. Stephens, P.J.; Devlin, F.J.; Chabalowski, C.F.; Frisch, M.J. Ab initio calculation of vibrational absorption and circular dichroism spectra using density functional force fields. J. Phys. Chem. 1994, 98, 11623–11627. [Google Scholar] [CrossRef]
  44. Adamo, C.; Barone, V. Toward reliable density functional methods without adjustable parameters: The PBE0 model. J. Chem. Phys. 1999, 110, 6158–6170. [Google Scholar] [CrossRef]
  45. Ernzerhof, M.; Scuseria, G.E. Assessment of the Perdew-Burke-Ernzerhof exchange-correlation functional. J. Chem. Phys. 1999, 110, 5029–5036. [Google Scholar] [CrossRef]
  46. Boese, A.D.; Handy, N.C. New exchange-correlation density functionals: The role of the kinetic-energy density. J. Chem. Phys. 2002, 116, 9559–9569. [Google Scholar] [CrossRef]
  47. Schäfer, A.; Horn, H.; Ahlrichs, R. Fully optimized contracted Gaussian basis sets for atoms Li to Kr. J. Chem. Phys. 1992, 97, 2571–2577. [Google Scholar] [CrossRef]
  48. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef] [PubMed]
  49. Yanai, T.; Tew, D.P.; Handy, N.C. A new hybrid exchange-correlation functional using the Coulomb-attenuating method (CAM-B3LYP). Chem. Phys. Lett. 2004, 393, 51–57. [Google Scholar] [CrossRef]
  50. Vydrov, O.A.; Scuseria, G.E. Assessment of a long-range corrected hybrid functional. J. Chem. Phys. 2006, 125, 234109. [Google Scholar] [CrossRef]
  51. Tsuneda, T.; Song, J.W.; Suzuki, S.; Hirao, K. On Koopmans’ theorem in density functional theory. J. Chem. Phys. 2010, 133, 174101. [Google Scholar] [CrossRef]
  52. Perdew, J.P.; Yang, W.; Burke, K.; Yang, Z.; Gross, E.K.U.; Scheffler, M.; Scuseria, G.E.; Henderson, T.M.; Zhang, I.Y.; Ruzsinszky, A.; et al. Understanding band gaps of solids in generalized Kohn-Sham theory. Proc. Natl. Acad. Sci. USA 2017, 114, 2801–2806. [Google Scholar] [CrossRef] [PubMed]
  53. Runge, E.; Gross, E.K.U. Density-functional theory for time-dependent systems. Phys. Rev. Lett. 1984, 52, 997–1000. [Google Scholar] [CrossRef]
  54. Casida, M.E. Time-dependent density-functional theory for molecules and molecular solids. Theochem-J. Mol. Struct. 2009, 914, 3–18. [Google Scholar] [CrossRef]
  55. Ullrich, C.A. Time-Dependent Density-Functional Theory: Concepts and Applications; Oxford University Press: Oxford, UK, 2011; p. 536. [Google Scholar]
  56. Marques, M.A.L.; Maitra, N.T.; Nogueira, F.M.S.; Gross, E.K.U.; Rubio, A. (Eds.) Fundamentals of Time-Dependent Density Functional Theory; Springer: Berlin, Germany, 2012. [Google Scholar]
  57. Cammi, R.; Mennucci, B. Linear response theory for the polarizable continuum model. Chem. Phys. 1999, 110, 9877–9886. [Google Scholar] [CrossRef]
  58. Lucke, A.; Ankerhold, J. Dissipative wave-packet dynamics and electron transfer. Chem. Phys. 2001, 115, 4696–4707. [Google Scholar] [CrossRef]
  59. Shelton, D.P. Ferroelectric domains in nitrobenzene-nitromethane solutions measured by hyper-Rayleigh scattering. Chem. Phys. 2006, 124, 124509. [Google Scholar] [CrossRef] [PubMed]
  60. Yamamoto, S.; Tatewaki, H.; Watanabe, Y. Gaussian-type function set without prolapse for the Dirac-Fock-Roothaan equation (II): Hg80 through Lr103. Chem. Phys. 2006, 125, 054106. [Google Scholar] [CrossRef] [PubMed]
  61. Marenich, A.V.; Cramer, C.J.; Truhlar, D.G.; Guido, C.A.; Mennucci, B.; Scalmani, G.; Frisch, M.J. Practical computation of electronic excitation in solution: Vertical excitation model. Chem. Sci. 2011, 2, 2143–2161. [Google Scholar] [CrossRef]
  62. Jmol. An Open-Source Java Viewer for Chemical Structures in 3D. Available online: http://www.jmol.org (accessed on 8 February 2019).
  63. Allouche, A.R. Gabedit—A graphical user interface for computational chemistry softwares. J. Comput. Chem. 2011, 32, 174–182. [Google Scholar] [CrossRef]
  64. Schaftenaar, G.; Noordik, J. Molden: A pre- and post-processing program for molecular and electronic structures. J. Comput.-Aided Mol. Des. 2000, 14, 123–134. [Google Scholar] [CrossRef]
  65. Lipparini, F.; Scalmani, G.; Mennucci, B.; Cancés, E.; Caricato, M.; Frisch, M.J. A variational formulation of the polarizable continuum model. J. Chem. Phys. 2010, 133, 014106. [Google Scholar] [CrossRef] [PubMed][Green Version]
  66. Le Bahers, T.; Adamo, C.; Ciofini, I. A qualitative index of spatial extent in charge-transfer excitations. J. Chem. Theory Comput. 2011, 7, 2498–2506. [Google Scholar] [CrossRef]
  67. Bässler, H.; Köhler, A. Charge transport in organic semiconductors. In Unimolecular and Supramolecular Electronics I: Chemistry and Physics Meet at Metal-Molecule Interfaces; Metzger, R.M., Ed.; Springer: Berlin/Heidelberg, Germany, 2012; pp. 1–65. [Google Scholar]
  68. Turkowski, V.; Din, N.U.; Rahman, T.S. Time-dependent density-functional theory and excitons in bulk and two-dimensional semiconductors. Computation 2017, 5, 39. [Google Scholar] [CrossRef]
  69. Duchemin, I.; Guido, C.A.; Jacquemin, D.; Blase, X. The Bethe–Salpeter formalism with polarisable continuum embedding: Reconciling linear-response and state-specific features. Chem. Sci. 2018, 9, 4430–4443. [Google Scholar] [CrossRef] [PubMed]

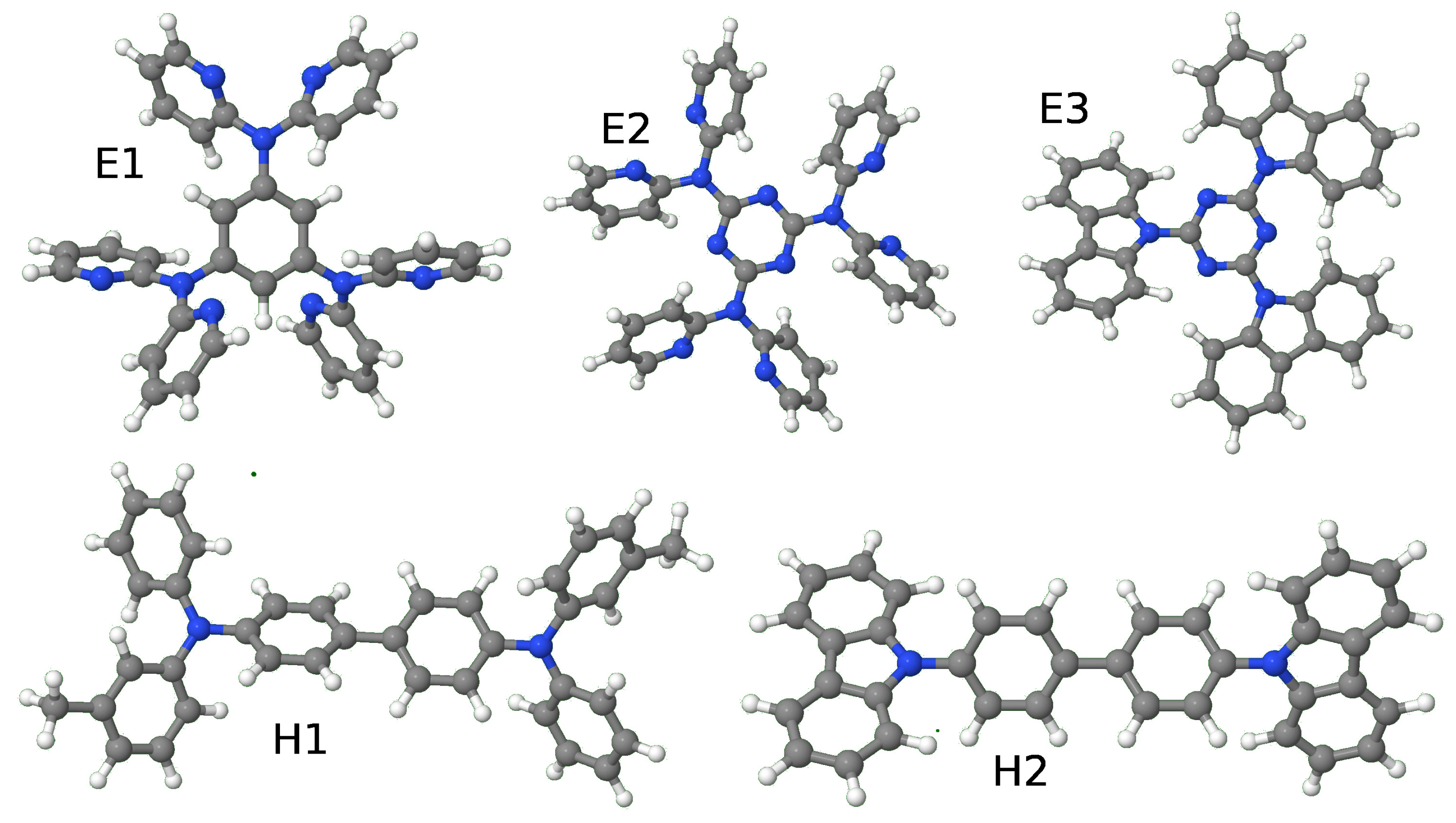

Figure 1. Schematic representation of the systems here studied, three electron-acceptors: 1,3,5-tris(phenyl-2-pyridylamino)benzene (E1) 2,4,6-tris[di(2-pyridyl)-amino]-1,3,5-triazine (E2) and 2,4,6-tris(carbazolo)-1,3,5-triazine (E3) plus two hole-acceptors: N,N′-Bis(3-methylphenyl)-N,N′-diphenylbenzidine (H1) and 4,4′-di(N-carbazolyl)biphenyl (H2).
Figure 1. Schematic representation of the systems here studied, three electron-acceptors: 1,3,5-tris(phenyl-2-pyridylamino)benzene (E1) 2,4,6-tris[di(2-pyridyl)-amino]-1,3,5-triazine (E2) and 2,4,6-tris(carbazolo)-1,3,5-triazine (E3) plus two hole-acceptors: N,N′-Bis(3-methylphenyl)-N,N′-diphenylbenzidine (H1) and 4,4′-di(N-carbazolyl)biphenyl (H2).
Molecules 24 00609 g001

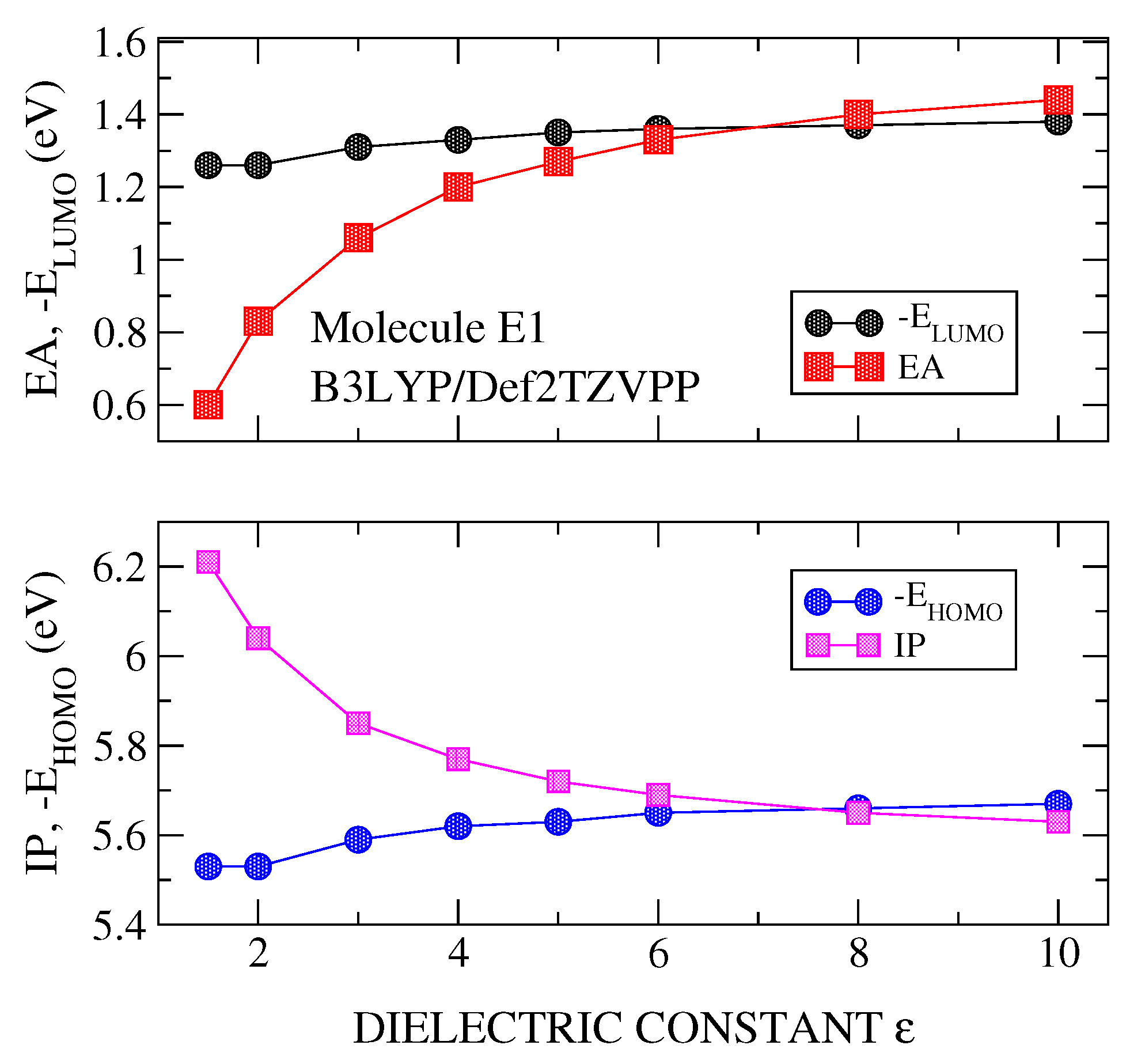

Figure 2. Calculated values of ionization potential (IP) and E H O M O (lower panel) and electron affinity (EA) and E L U M O (upper panel) for molecule E1. Calculations were carried out with B3LYP/Def2TZVPP method and using polarizable continuum medium (PCM) with a dielectric constant ε varying in the range 1–10.
Figure 2. Calculated values of ionization potential (IP) and E H O M O (lower panel) and electron affinity (EA) and E L U M O (upper panel) for molecule E1. Calculations were carried out with B3LYP/Def2TZVPP method and using polarizable continuum medium (PCM) with a dielectric constant ε varying in the range 1–10.
Molecules 24 00609 g002

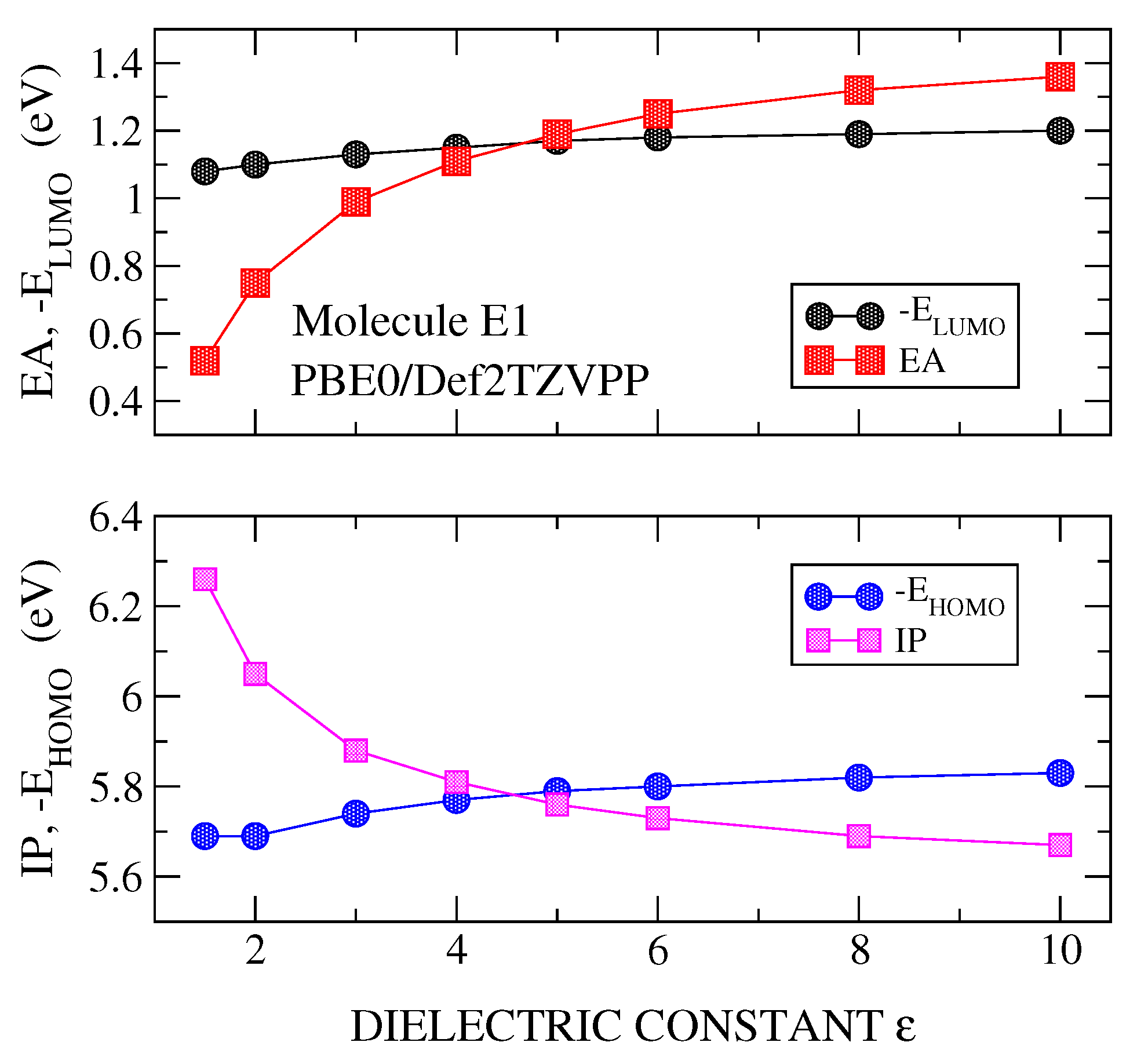

Figure 3. Calculated values of IP and E H O M O (lower panel) and EA and E L U M O (upper panel) for molecule E1. Calculations were carried out with PBE0/Def2TZVPP method and using PCM with a dielectric constant ε varying in the range 1–10.
Figure 3. Calculated values of IP and E H O M O (lower panel) and EA and E L U M O (upper panel) for molecule E1. Calculations were carried out with PBE0/Def2TZVPP method and using PCM with a dielectric constant ε varying in the range 1–10.
Molecules 24 00609 g003

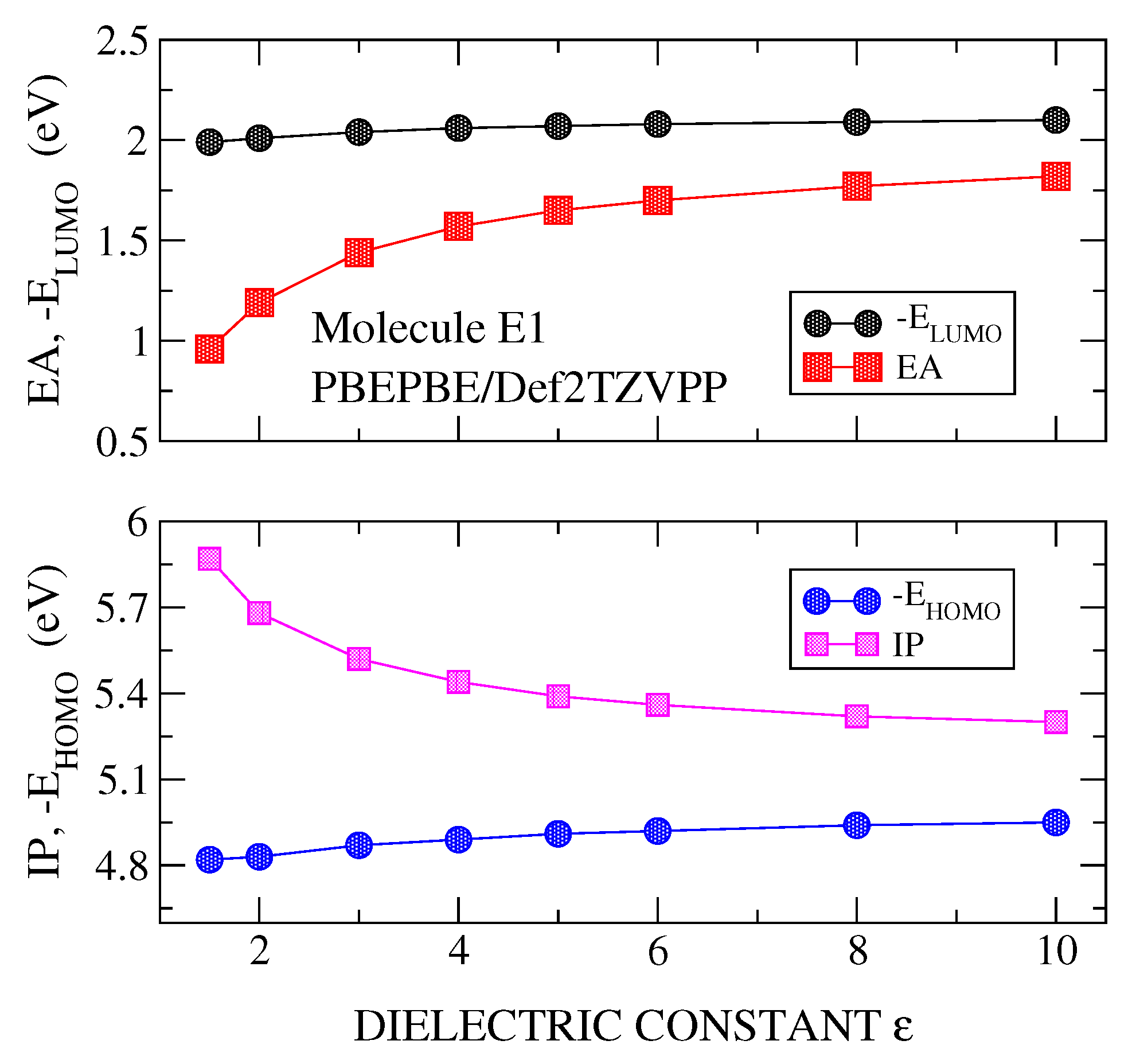

Figure 4. Calculated values of IP and E H O M O (lower panel) and EA and E L U M O (upper panel) for molecule E1. Calculations were carried out with PBEPBE/Def2TZVPP method and using PCM with a dielectric constant ε varying in the range 1–10.
Figure 4. Calculated values of IP and E H O M O (lower panel) and EA and E L U M O (upper panel) for molecule E1. Calculations were carried out with PBEPBE/Def2TZVPP method and using PCM with a dielectric constant ε varying in the range 1–10.
Molecules 24 00609 g004

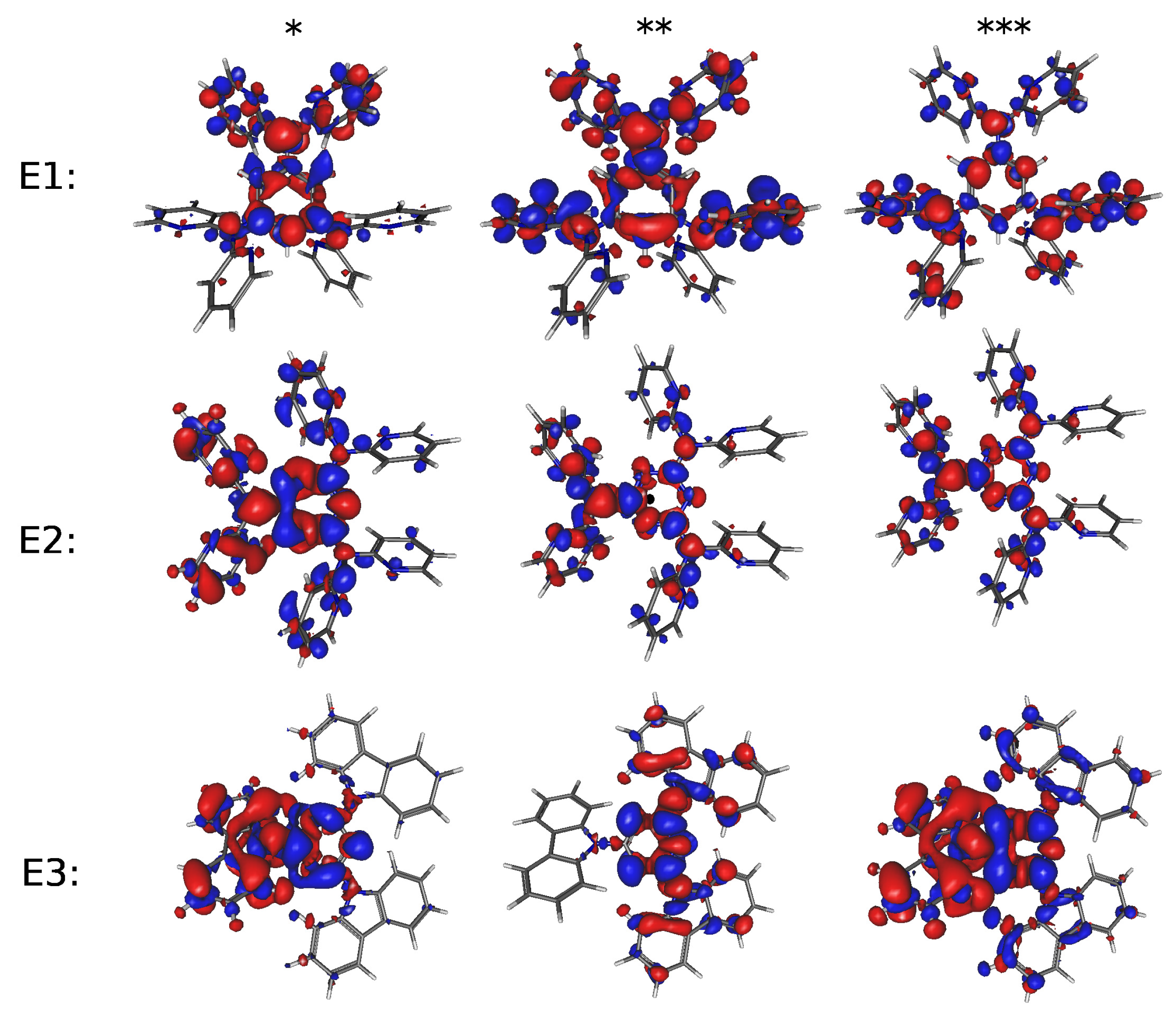

Figure 5. Iso-contour plots (cutoff value of 0.001 au.) of ground- and excited-state density difference for the electron-acceptor systems here studied (E1, E2 and E3). *, ** and *** refer to the first, second and third excited-states, respectively.
Figure 5. Iso-contour plots (cutoff value of 0.001 au.) of ground- and excited-state density difference for the electron-acceptor systems here studied (E1, E2 and E3). *, ** and *** refer to the first, second and third excited-states, respectively.
Molecules 24 00609 g005

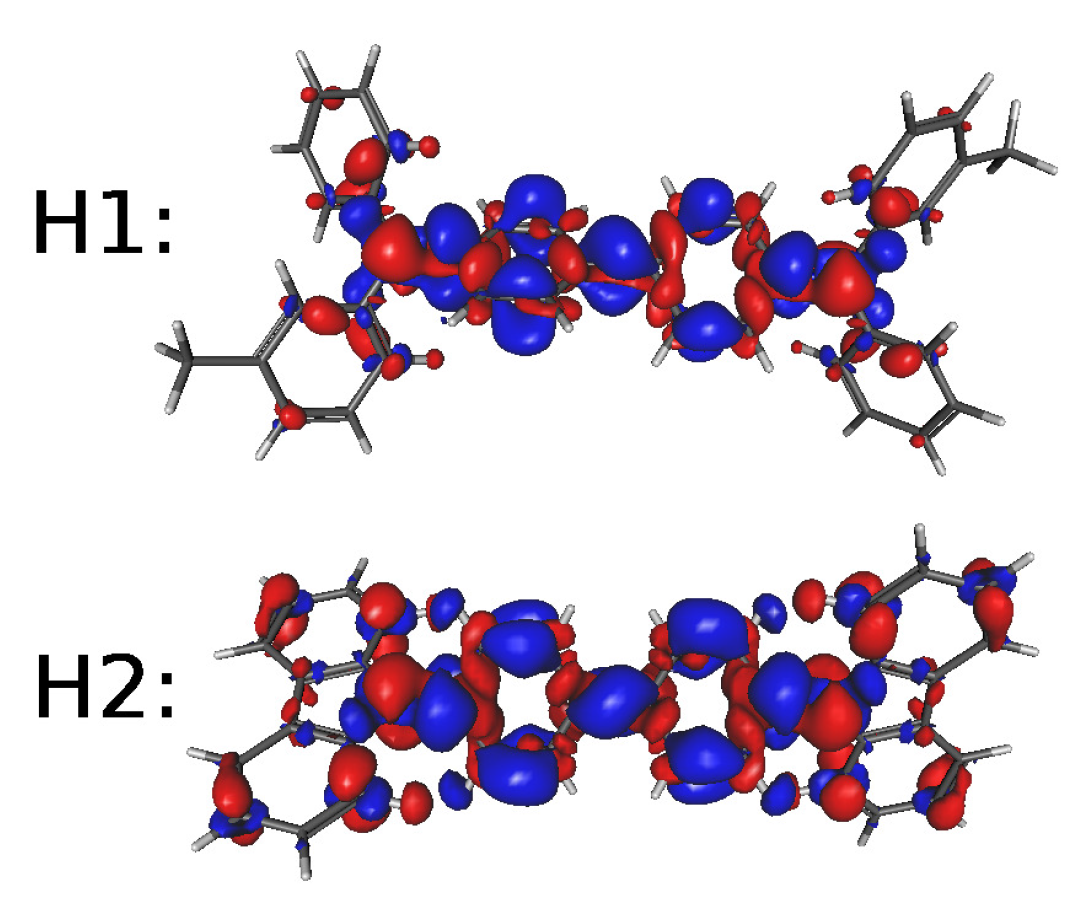

Figure 6. Iso-contour plots (cutoff value of 0.001 au.) of ground- and the first excited-state density difference for the hole-acceptor systems H1 and H2.
Figure 6. Iso-contour plots (cutoff value of 0.001 au.) of ground- and the first excited-state density difference for the hole-acceptor systems H1 and H2.
Molecules 24 00609 g006
Table 1. Ionization potential (IP) and electron affinity (EA) both in eV, of three electron-acceptor (E1, E2 and E3) and two hole-acceptors (H1 and H2) in amorphous organic materials (AOM) calculated using DFT with four functional/basis-set combinations, and polarizable continuum medium (PCM). The reported dielectric constants ε (used also in the calculations of IP and EA) are those at which IP = E H O M O , or EA = E L U M O (see Figure 2 and Figure 3).
Table 1. Ionization potential (IP) and electron affinity (EA) both in eV, of three electron-acceptor (E1, E2 and E3) and two hole-acceptors (H1 and H2) in amorphous organic materials (AOM) calculated using DFT with four functional/basis-set combinations, and polarizable continuum medium (PCM). The reported dielectric constants ε (used also in the calculations of IP and EA) are those at which IP = E H O M O , or EA = E L U M O (see Figure 2 and Figure 3).
MoleculeE1E2E3H1H2
Functional/Basis Set ε IP ε IP ε IP ε IP ε IP
B3LYP/Def2TZVPP7.85.669.46.409.06.148.05.078.05.70
PBE0/Def2TZVPP4.65.784.86.555.06.364.75.224.85.86
PBE0/Def2TZV4.75.814.86.555.26.394.85.225.05.88
PBE0/Def2SV4.95.794.86.555.56.395.05.255.25.91
MoleculeE1E2E3H1H2
Functional/Basis Set ε EA ε EA ε EA ε EA ε EA
B3LYP/Def2TZVPP7.21.368.11.378.21.788.11.288.41.52
PBE0/Def2TZVPP4.71.164.81.134.41.594.61.124.91.38
PBE0/Def2TZV4.71.104.81.194.81.694.81.025.21.29
PBE0/Def2SV5.01.085.11.125.01.645.01.125.61.43
Table 2. Calculated energies of the lowest excited states E e x c s t a , and their respective oscillator strengths, in the AOM investigated in this work. Calculations were carried out within the time-dependent density functional theory (DFT) framework using the combination PBE0/Def2TZVPP and polarizable continuum medium (PCM) with the dielectric constant ε derived as explained in the main text (see also Table 1).
Table 2. Calculated energies of the lowest excited states E e x c s t a , and their respective oscillator strengths, in the AOM investigated in this work. Calculations were carried out within the time-dependent density functional theory (DFT) framework using the combination PBE0/Def2TZVPP and polarizable continuum medium (PCM) with the dielectric constant ε derived as explained in the main text (see also Table 1).
No.Molecule E exc sta (eV)Oscillator Strength
E11,3,5-tris(phenyl-2-pyridylamino)benzene3.7450.024
3.8910.094
3.9440.211
4.0260.023
E22,4,6-tris[di(2-pyridyl)-amino]-1,3,5-triazine4.4800.207
4.5110.352
4.5250.226
4.6460.092
E32,4,6-tris(carbazolo)-1,3,5-triazine (TRZ2)3.9110.326
4.0230.011
4.0400.421
4.1490.015
H1N,N′-Bis(3-methylphenyl)-N,N′-diphenylbenzidine (TPD)3.4051.122
3.6550.000
3.7380.025
3.9100.001
H24,4′-di(N-carbazolyl)biphenyl (CBP)3.7720.714
3.9740.000
3.9990.093
4.0180.000
Table 3. Calculated energies (in eV) of the lowest excited states with a large oscillator strengths ( > 0.1 ), in the amorphous materials based on the five organic molecules investigated in this work. Calculations were carried out within the time-dependent DFT framework using the combination PBE0/Def2TZVPP and a state-specific solvation calculation, with the dielectric constant ε derived as explained in the main text and reported in Table 1.
Table 3. Calculated energies (in eV) of the lowest excited states with a large oscillator strengths ( > 0.1 ), in the amorphous materials based on the five organic molecules investigated in this work. Calculations were carried out within the time-dependent DFT framework using the combination PBE0/Def2TZVPP and a state-specific solvation calculation, with the dielectric constant ε derived as explained in the main text and reported in Table 1.
MoleculeExcited State E exc sta (eV)Oscillator Strength
E123.8070.116
E224.5050.354
E313.7520.301
H113.3731.109
H213.6040.632
Table 4. Experimental data (superscript e x p ) collected in reference [1] for the IP, EA, and optical gap (all in eV) of the five AOM investigated in this work. Theoretical results (last five columns) were obtained by means of DFT with the combination PBE0/Def2TZVPP and using PCM with the dielectric constant ε derived as explained extensively in the main text. G t r a n s and G o p t stand for transport and optical gap, respectively. The expression E A = I P e x p G o p t e x p is only exact when the optical and transport gap coincide, it i.e., the exciton binding energy is null (see beginning of Section 1).
Table 4. Experimental data (superscript e x p ) collected in reference [1] for the IP, EA, and optical gap (all in eV) of the five AOM investigated in this work. Theoretical results (last five columns) were obtained by means of DFT with the combination PBE0/Def2TZVPP and using PCM with the dielectric constant ε derived as explained extensively in the main text. G t r a n s and G o p t stand for transport and optical gap, respectively. The expression E A = I P e x p G o p t e x p is only exact when the optical and transport gap coincide, it i.e., the exciton binding energy is null (see beginning of Section 1).
MoleculeIP exp G opt exp EA = IP exp G opt exp ε IPEA G trans G opt E exciton
E15.093.451.644.625.781.164.623.810.81
E25.073.721.354.806.561.145.424.500.92
E36.03.42.604.726.371.564.813.751.06
H15.503.22.34.655.231.134.13.370.73
H26.33.13.24.885.871.394.483.600.88
Table 5. Charge-transfer parameters computed using the density for the main excited state (second column) of each molecule here considered (first column). Units used for the calculated magnitudes are given in parenthesis.
Table 5. Charge-transfer parameters computed using the density for the main excited state (second column) of each molecule here considered (first column). Units used for the calculated magnitudes are given in parenthesis.
MoleculeExcited State q CT (Electron-Charge) d CT (Å) μ CT (Debye)
E120.7681.9157.068
E220.4720.5711.293
E310.8322.4009.597
H110.5720.3961.088
H210.8570.0140.056

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
