Communication
Synthesis and Properties of a Bay-Annulated-Indigo Tetramer Based on Low-Cost Spiro[Fluorene-9,9′-Xanthene] Core
1
College of Applied Chemistry, Shenyang University of Chemical Technology, Shenyang 110142, China
2
Key Laboratory for Organic Electronics and Information Displays & Institute of Advanced Materials (IAM), Nanjing University of Posts and Telecommunications, 9 Wenyuan Road, Nanjing 210023, China
*
Author to whom correspondence should be addressed.
Received: 9 September 2019 / Accepted: 28 September 2019 / Published: 8 October 2019

Abstract

:
A three-dimensional bay-annulated-indigo (BAI) tetramer has been prepared by appending BAI units onto a low-cost spiro[fluorene-9,9′-xanthene] (SFX) core. The target compound 4BAI-SFX exhibits strong and broad absorption in the visible region covering the range of 450~700 nm. The electrochemical measurement illuminates the characteristics of a deep lowest unoccupied molecular orbital (LUMO) level and multiple redox states of 4BAI-SFX. These results suggest that 4BAI-SFX should be a selectable electron-transporting material for eco-friendly organic semiconductors.
Keywords:
bay-annulated indigo; spiro[fluorene-9,9′-xanthene]; synthesis; properties

1. Introduction

Currently, organic semiconductors are dynamic areas which are attracting intensive interest from both academia and industry due to their rosy prospects for next-generation display, lighting and photovoltaic applications [1,2]. To develop novel building blocks, design high-performance molecules and reduce synthetic costs, researchers have made enormous efforts and achieved remarkable successes. For instance, non-fullerene electron-transporting [3,4] and low-cost hole-transporting materials [5,6] have been rapidly emerging in the last five years for highly efficient photoelectric devices. It is universal and effective pathway for manipulating the electronic structures of organic molecular semiconductors that precisely assemble p-type and n-type units: the so-called donor-acceptor (D-A) structures. However, relative to the abundant p-type units, much less attention has been paid to exploiting new n-type building-blocks [7].
Indigo, widely known as an ancient dye, has been used for thousands of years and is produced in amounts of thousands of tons per year. There is a fascinating prospect of improving the processability and electron-transport property of indigo by chemical modification and then transforming it into a novel and inexpensive building block for organic electronics. Inspired by the Cibalackrot, an indigo derivative created by Ciba Specialty Chemicals, Liu and co-workers altered the phenyl groups with thiophene groups; bay-annulated indigo (BAI), as a new form of the old natural dye, was first synthesized with the characteristics of two-dimensional conjugation and electron deficiency [8,9]. Using BAIs as versatile electron accepting units, a wide variety of high-performance polymers were designed and prepared for organic electronics and photovoltaic applications [10,11,12,13,14]. Nevertheless, BAI-based small molecules have only been explored in terms of side-chains and conjugated structures [15,16].
For planar fused-ring units, arranging them onto three-dimensional (3D) cores has become a successful strategy with the advantages of weak intermolecular aggregation, morphology stability, and homogeneous isotropic charge transport and optical properties [17]. Spiro[fluorene-9,9′-xanthene] (SFX) is a new class of 3D aromatic compound which has drawn great interest recently as a core backbone for “eco-friendly green organic semiconductors” due to its merits of “one-pot” preparation and the binary conjugation of fluorene moiety and xanthene moiety [18,19]. In our previous work, two BAI-dimers (2,7-BAI-SFX and 2′,7′-BAI-SFX), appending BAI units on the 2,7- and 2′,7′-positions of SFX, were prepared and studied [20]. Herein, we would like to present the design, synthesis and properties of a BAI tetramer (denoted as 4BAI-SFX; see Scheme 1 for structure) constructed on the SFX core; the results of photophysical, electrochemistry, and computational study imply that 4BAI-SFX possesses great potential as a low-cost and n-type 3D organic semiconductor.

2. Results and Discussion

2.1. Synthesis and Cost Analysis

The synthetic route for the preparation of 4BAI-SFX is shown in Scheme 1. The 3D core of 2,3′,6′,7-tetrabromo-spiro(fluorene-9,9′-xanthene), named 4Br-SFX, was smoothly synthesized utilizing 2,7-dibromo-9H-fluoren-9-one and 3-bromophenol as starting materials through a full-fledged one-pot, non-solvent procedure [18]. Compared with the classical spirobifluorene (SBF), the synthetic cost of 4Br-SFX is only about one-ninth as much as brominated SBF (3.2 $/g for 4Br-SFX; see Table S1, see SI). Furthermore, the tetrabromo-derivatives of SFX are more diverse in substituted positions than monotonous 2,2′,7,7′-tetrabromo-SBF; that is, the 2,2′,7,7′- and 2,3′,6′,7-positions of SFX can all be functionalized expediently by bromine atoms. Then, 4Br-SFX was converted to 4Bpin-SFX by Miyaura borylation. Using bromo-BAI [8] as the coupling partner with 4Bpin-SFX, the target compound 4BAI-SFX was successfully prepared via the Suzuki–Miyaura reaction. In view of the low cost of indigo (several US dollars per kilogram), we also estimated the synthetic cost of bromo-BAI to be about 5.49 $/g (see Table S2, SI). Therefore, the 4BAI-SFX can be considered as an inexpensive 3D organic semiconductor.
The structure of 4BAI-SFX was characterized by 1H NMR and MALDI-TOF MS (see Figure S1−S5). In the 1H NMR spectrum of 4BAI-SFX (Figure S4), the double peak at a 4.03 chemical shift was assigned to the eight protons of methylene adjoined with the oxygen atom of 2-ethylhexyloxy side-chains, indicating the successful coupling between BAI and SFX. 4BAI-SFX exhibits good solubility in common organic solvents such as chloroform, chlorobenzene and dichlorobenzene, presumably attributed to the 3D molecular geometry and the flexible 2-ethylhexyl chains. The decomposition temperature Td of 4BAI-SFX is measured to be about 389 °C (see the TGA curves in Figure S6), indicating that the compound possesses excellent thermal stability.

2.2. Photophysical Properties

The absorption spectra of 4BAI-SFX in dilute chloroform solution and spin-coated film are shown in Figure 1. Both of the spectra exhibit two groups of featureless absorption bands. In the short-wavelength region (below 400 nm), the absorption bands can be ascribed to the n→π* and π→π* transitions of the SFX core; long-wavelength absorptions (above 450 nm) can be attributed to the intramolecular charge-transfer (ICT) transitions of acceptor–donor–acceptor (A-D-A) structures [21], which are BAI–fluorene–BAI and BAI–xanthene–BAI arrangements. The maximum absorption peaks are located at 596 nm for the solution with a large molar absorption coefficient of 1.5 × 105 M−1 cm−1 and at 593 nm for the film, respectively. The almost identical peak positions of maximum absorptions imply weakened intermolecular interactions of 4BAI-SFX benefiting from the 3D molecular geometry [3,20]. According to the absorption edge of 4BAI-SFX in CHCl3 solution, the band gap was calculated to be 1.80 eV.

2.3. Electrochemical and Computational Studies

To investigate the electrochemical property of 4BAI-SFX, cyclic voltammetry (CV) was performed using a conventional three-electrode setup and ferrocene as an internal potential standard (Figure 2). It can be noted that 4BAI-SFX exhibits two quasi-reversible oxidation peaks and reduction peaks in the range of 1.22~1.68 V. The cathodic peak potentials (Epc) of the reduction peaks are −1.35 and −1.68 V, and the anodic peak potentials (Epa) of the oxidation peaks are 0.91 and 1.22 V. The existence of multiple redox states of 4BAI-SFX would be favorable to charge carrier transporting when utilized in organic electronic devices. According to the onset oxidation and reduction potentials, we calculate that the highest occupied molecular orbital (HOMO)and LUMO levels of 4BAI-SFX are −5.34 and −3.59 eV, respectively. Hence, the bandgap determined by electrochemical measurement is 1.75 eV, which is very close to the optical bandgap (1.80 eV). The properties of the lowered LUMO level and multiple redox states imply that 4BAI-SFX should be an appropriate semiconductor material for electron acceptance and transport.
To understand the frontier molecular orbital (FMO) distribution of 4BAI-SFX, the 3D geometries were calculated at the B3LYP/6-31G* level, as shown in Figure 3. The orbital distributions suggest that the HOMO is assigned on the A-D-A conjugated segment, and the LUMO is mainly distributed on the π orbital of BAI units. It indicates that the combination of planar and 3D structures would be a rational strategy to exert the respective advantages of BAI and SFX units simultaneously. The full results of the photophysics, electrochemistry, and calculations based on density function theory are summarized in Table S3.

3. Materials and Methods

3.1. General Information

The solvents were collected from an activated alumina column purification system, and all starting materials were used as received from commercial sources. The 1H NMR spectra were recorded on a Bruker Avance 500 II. Chemical shifts (δ) of the signals were expressed in ppm relative to the locked deuterated solvent using tetramethylsilane (TMS) as an internal standard, and coupling constants (J) were given in Hertz (Hz). The matrix-assisted laser desorption ionization (MALDI-TOF) mass spectra were measured on a Bruker Autoflex III RF200-CID instrument. Thermogravimetric analysis (TGA) was undertaken with a Shimadzu thermogravimeter at a heating rate of 10 °C/min under N2. UV-vis absorption spectra were measured on a Cary 5000 UV-Vis-NIR spectrometer in a quartz cell. Cyclic voltammetry (CV) was performed using a LK98B II Microcomputer-based Electrochemical Analyzer, wherein glassy carbon, platinum and a silver wire act as the working electrode, the counter electrode and the pseudo-reference electrode, respectively. Samples were prepared in CHCl3 solution with tetrabutylammonium hexafluorophosphate (NBu4PF6, 0.1 M) as the electrolyte at a scan rate of 100 mV s−1, using a ferrocene/ferrocenium (Fc/Fc+) redox couple as an internal standard. The HOMO and LUMO energy levels (eV) of the two compounds are calculated according to the formula − [4.8 eV + Eox/red (vs. EFc/Fc+)]. All the density functional theory (DFT) calculations were performed using the Gaussian 09 suite of programs at the B3LYP/6-31G* level.

3.2. Synthetic Procedure

The starting material 4Br-SFX was synthesized according to the procedure in the literature [18]. The crude product was dried and purified by column chromatography (petroleum ether/ethyl acetate, 6:1) to obtain a white solid (1.91 g, yield = 66%). 1H NMR (500 MHz, CDCl3) δ 7.63 (d, J = 8.1 Hz, 2H), 7.52 (d, J = 8.1 Hz, 2H), 7.42 (s, 2H), 7.21 (s, 2H), 6.97 (d, J = 8.4 Hz, 2H), 6.23 (d, J = 8.4 Hz, 2H).
Regarding 2,2′,2″,2″′-(spiro[fluorene-9,9′-xanthene]-2,3′,6′,7-tetrayl)tetrakis(4,4,5,5-tetramethyl-1,3,2-dioxaborolane) (4Bpin-SFX), 4Br-SFX (1.00 g, 1.54 mmol), bis(pinacolato)diboron (2.35 g, 9.24 mmol, 1,1′-bis (diphenylphosphino)ferrocene)dichloro-palladium(II) (230.00 mg, 0.31 mmol), potassium acetate (1.81 g, 18.48 mmol) and 1,4-dioxane 20 mL were placed in a flask and stirred for 24 h under a nitrogen atmosphere at 90 °C. After the completion of heating, the mixture was cooled to room temperature, water was added and transferred to a separating funnel, and the mixture was extracted with chloroform. The organic layer was concentrated under reduced pressure and the concentrate was purified by silica gel column chromatography (petroleum ether/ethyl acetate, 10:1) and then recrystallized from ethanol. A total of 0.61 g of 4Bpin-SFX was obtained (yield = 47%). 1H NMR (500 MHz, CDCl3) δ 7.82 (t, J = 1.1 Hz, 4H), 7.65 (d, J = 1.2 Hz, 2H), 7.50 (t, J = 0.9 Hz, 2H), 7.14 (dd, J = 7.7, 1.2 Hz, 2H), 6.32 (d, J = 7.7 Hz, 2H), 1.32 (s, 24H), 1.26 (d, J = 6.0 Hz, 24H).
Bromo-BAI (7-(5-bromothiophen-2-yl)-14-(4-((2-ethylhexyl)oxy)phenyl)-7,7a,14,14a-tetrahydrodiindolo[3,2,1-de:3′,2′,1′-ij][1,5]naphthyridine-6,13-dione) was synthesized according to previous reporting [8] and was obtained as a purple solid with an overall yield of 52% (0.15 g). 1H NMR (500 MHz, CDCl3) δ 8.52 (dd, J = 14.1, 8.1 Hz, 2H), 8.21 (d, J = 8.0 Hz, 1H), 7.68 (dd, J = 17.9, 8.2 Hz, 3H), 7.62–7.51 (m, 4H), 7.32 (t, J = 7.8 Hz, 1H), 7.28–7.20 (m, 1H), 7.10 (d, J = 8.7 Hz, 2H), 3.97 (dd, J = 5.7, 2.0 Hz, 2H), 1.80 (hept, J = 6.3 Hz, 1H), 1.61–1.20 (m, 8H), 0.98 (t, J = 7.5 Hz, 3H), 0.94 (dd, J = 33.7, 7.0 Hz, 1H).
Regarding 14,14′-(spiro[fluorene-9,9′-xanthene]-2,7-diylbis(thiophene-5,2-diyl))bis(7-(4-((2-ethylhexyl)oxy)phenyl)diindolo[3,2,1-de:3′,2′,1′-ij][1,5]naphthyridine-6,13-dione) (4BAI-SFX), Bromo-BAI (170 mg, 0.24 mmol), 4Bpin-SFX (45 mg, 53.5 µmol), palladium tetrakistriphenylphosophine (10 mg, 9.0 µmol) and solvent (toluene/THF, 1:1, 4 mL) were added to a round-bottomed flask with a stir bar. After adding the solution of K2CO3/KF (2 M, 0.4 mL), the solution was degassed by bubbling argon while stirring for 10 min. Then, the flask was placed in a 90 °C oil bath overnight. Upon completion by TLC, the product was purified by column chromatography (CHCl3 eluent) to provide a dark-blue solid of 67 mg; 46% yield; m.p. decomposed at 275 °C in air; 1H NMR (500 MHz, C2D2Cl4, 358 K) δ 8.56 (t, J = 8.6 Hz, 8H), 8.29 (d, J = 8.2 Hz, 4H), 8.00 (d, J = 9.2 Hz, 2H), 7.95 (d, J = 6.3 Hz, 2H), 7.83 (s, 2H), 7.79–7.75 (m, 4H), 7.69 (t, J = 8.1 Hz, 12H), 7.63–7.53 (m, 12H), 7.39–7.32 (m, 6H), 7.30–7.22 (m, 6H), 7.14 (dd, J = 8.6, 5.2 Hz, 8H), 6.77–6.73 (m, 2H), 4.03 (d, J = 5.6 Hz, 8H), 1.88–1.82 (m, 4H), 1.37 (d, J = 57.7 Hz, 32H), 1.08–0.95 (m, 24H). HRMS (MALDI-TOF) for C177H136N8O13S4 ([M]+): 2709.9143, found: 2709.9170.

4. Conclusions

In summary, the BAI-based tetramer 4BAI-SFX, appending BAI units onto the 2,3′,6′,7-positions of the SFX core, has been successfully synthesized using a low-cost route. The photophysical and electrochemistry investigations as well as theoretical calculation indicate that the tetramer exhibits strong absorption in the visible region and n-type characteristics with multiple redox states. All these features suggest 4BAI-SFX to be a promising and eco-friendly electron-transport candidate for applications in organic electronics.

Supplementary Materials

The following are available online. The cost estimations of intermediates 4BrSFX and bromoSFX (Tables S1 and S2); 1H NMR spectra and MALDI-TOF spectra of intermediates and target compound (Figures S1–S5); thermogravimetric analysis (TGA) curves of 4BAI-SFX (Figure S6); summary of UV-vis, CV, and DFT calculations (Table S3).

Author Contributions

B.-Y.R. and Y.-M.T. completed the experiments of the synthesis of compounds and analyzed the data; B.-Y.R. and Y.-G.S. evaluated the data and wrote the paper; C.-L.S. performed the experiment for DFT calculation and analyzed the data.

Funding

This work was financially supported by the Supporting Project for Innovative Talents of Higher Education Institutions in Liaoning Province (LR2018018), the Natural Science Foundation of Liaoning Province (20180550539), the Science and Technology Innovation Program for Middle-aged and Young Talents of Shenyang (RC180086), and the Science and Technology project of Shenyang (Grant 18-013-0-26).

Acknowledgments

B.R. and Y.T. acknowledge continuing guidance of Yi Liu, the facility director of Organic and Macromolecular Synthesis in the Molecular Foundry, Lawrence Berkeley National Laboratory.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, J.; Zhang, H.; Dong, H.; Meng, L.; Jiang, L.; Jiang, L.; Wang, Y.; Yu, J.; Sun, Y.; Hu, W.; et al. High mobility emissive organic semiconductor. Nat. Commun. 2015, 6, 10032. [Google Scholar] [CrossRef] [PubMed]
  2. Qian, Y.; Zhang, X.; Xie, L.; Qi, D.; Chandran, B.K.; Chen, X.; Huang, W. Stretchable organic semiconductor devices. Adv. Mater. 2016, 28, 9243–9265. [Google Scholar] [CrossRef] [PubMed]
  3. Sun, H.; Song, X.; Xie, J.; Sun, P.; Gu, P.; Liu, C.; Chen, F.; Zhang, Q.; Chen, Z.-K.; Huang, W. PDI derivative through fine-tuning the molecular structure for fullerene-free organic solar cells. Acs Appl. Mater. Interfaces 2017, 9, 29924–29931. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, H.; Sun, P.; Zhang, C.; Yang, Y.; Gao, X.; Chen, F.; Xu, Z.; Chen, Z.-K.; Huang, W. High-performance organic solar cells based on a non-fullerene acceptor with a spiro core. Chem. Asian. J. 2017, 12, 721–725. [Google Scholar] [CrossRef] [PubMed]
  5. Maciejczyk, M.; Ivaturi, A.; Robertson, N. SFX as a low-cost “spiro” hole-transport material for efficient perovskite solar cells. J. Mater. Chem. A 2016, 4, 4855–4863. [Google Scholar] [CrossRef]
  6. Xu, B.; Bi, D.; Hua, Y.; Liu, P.; Cheng, M.; Grätzel, M.; Kloo, L.; Hagfeldt, A.; Sun, L. A low-cost spiro [fluorene-9, 9′-xanthene]-based hole transport material for highly efficient solid-state dye-sensitized solar cells and perovskite solar cells. Energ. Environ. Sci. 2016, 9, 873–877. [Google Scholar] [CrossRef]
  7. Anthony, J.E.; Facchetti, A.; Heeney, M.; Marder, S.R.; Zhan, X. n-type organic semiconductors in organic electronics. Adv. Mater. 2010, 22, 3876–3892. [Google Scholar] [CrossRef]
  8. Kolaczkowski, M.A.; He, B.; Liu, Y. Stepwise bay annulation of indigo for the synthesis of desymmetrized electron acceptors and donor-acceptor constructs. Org. Lett. 2016, 18, 5224–5227. [Google Scholar] [CrossRef]
  9. He, B.; Pun, A.B.; Zherebetskyy, D.; Liu, Y.; Liu, F.; Klivansky, L.M.; McGough, A.M.; Zhang, B.A.; Lo, K.; Russell, T.P. New form of an old natural dye: bay-annulated indigo (bai) as an excellent electron accepting unit for high performance organic semiconductors. J. Am. Chem. Soc. 2014, 136, 15093–15101. [Google Scholar] [CrossRef]
  10. Kolaczkowski, M.A.; Liu, Y. Functional organic semiconductors based on bay-annulated indigo (BAI). Chem. Rec. 2019, 19, 1062–1077. [Google Scholar] [CrossRef]
  11. He, B.; Neo, W.T.; Chen, T.L.; Klivansky, L.M.; Wang, H.; Tan, T.; Teat, S.J.; Xu, J.; Liu, Y. Low bandgap conjugated polymers based on a nature-inspired bay-annulated indigo (BAI) acceptor as stable electrochromic materials. ACS Sustain. Chem. Eng. 2016, 4, 2797–2805. [Google Scholar] [CrossRef]
  12. Fallon, K.J.; Wijeyasinghe, N.; Manley, E.F.; Dimitrov, S.D.; Yousaf, S.A.; Ashraf, R.S.; Duffy, W.; Guilbert, A.A.; Freeman, D.M.; Al-Hashimi, M. Indolo-naphthyridine-6, 13-dione thiophene building block for conjugated polymer electronics: molecular origin of ultrahigh n-type mobility. Chem. Mater. 2016, 28, 8366–8378. [Google Scholar] [CrossRef]
  13. Yang, J.; Jiang, Y.; Tu, Z.; Zhao, Z.; Chen, J.; Yi, Z.; Li, Y.; Wang, S.; Yi, Y.; Guo, Y.; et al. High-performance ambipolar polymers based on electron-withdrawing group substituted bay-annulated indigo. Adv. Funct. Mater. 2019, 29, 1804839. [Google Scholar] [CrossRef]
  14. Stahl, T.; Bofinger, R.; Lam, I.; Fallon, K.J.; Johnson, P.; Ogunlade, O.; Vassileva, V.; Pedley, R.B.; Beard, P.C.; Hailes, H.C. Tunable semiconducting polymer nanoparticles with indt-based conjugated polymers for photoacoustic molecular imaging. Bioconjugate Chem. 2017, 28, 1734–1740. [Google Scholar] [CrossRef] [PubMed]
  15. Li, J.; Ding, D.; Tao, Y.; Wei, Y.; Chen, R.; Xie, L.; Huang, W.; Xu, H. A significantly twisted spirocyclic phosphine oxide as a universal host for high-efficiency full-color thermally activated delayed fluorescence diodes. Adv. Mater. 2016, 28, 3122–3130. [Google Scholar] [CrossRef] [PubMed]
  16. Furuyama, T.; Tamura, D.; Maeda, H.; Segi, M. Synthesis and peripheral substituent effects of bay-annulated indigo derivatives. Tetrahedron Lett. 2018, 59, 2913–2916. [Google Scholar] [CrossRef]
  17. Yan, Q.; Zhou, Y.; Zheng, Y.-Q.; Pei, J.; Zhao, D. Towards rational design of organic electron acceptors for photovoltaics: A study based on perylenediimide derivatives. Chem. Sci. 2013, 4, 4389–4394. [Google Scholar] [CrossRef]
  18. Xie, L.-H.; Liu, F.; Tang, C.; Hou, X.-Y.; Hua, Y.-R.; Fan, Q.-L.; Huang, W. Unexpected one-pot method to synthesize spiro[fluorene-9,9′-xanthene] building blocks for blue-light-emitting materials. Org. Lett. 2006, 8, 2787–2790. [Google Scholar] [CrossRef] [PubMed]
  19. Sun, M.; Xu, R.; Xie, L.; Wei, Y.; Huang, W. Toward eco-friendly green organic semiconductors: Recent advances in spiro[fluorene-9,9′-xanthene](sfx)-based optoelectronic materials and devices. Chin. J. Chem. 2015, 33, 815–827. [Google Scholar] [CrossRef]
  20. Ren, B.-Y.; Xu, Q.; Kolaczkowski, M.; Sun, C.-L.; Ou, C.-J.; Sun, Y.-G.; Xie, L.-H.; Huang, W. Bay-annulated indigo derivatives based on a core of spiro[fluorene-9,9′-xanthene]: Synthesis, photophysical, and electrochemical properties. Dye. Pigment. 2019, 160, 25–27. [Google Scholar] [CrossRef]
  21. Tsang, S.W.; Chen, S.; So, F. Energy level alignment and sub-bandgap charge generation in polymer: Fullerene bulk heterojunction solar cells. Adv. Mater. 2013, 25, 2434–2439. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds 4Br-SFX and 4Bpin-SFX are available from the authors.
Scheme 1. Synthetic route of 4BAI-SFX.
Scheme 1. Synthetic route of 4BAI-SFX.
Molecules 24 03623 sch001

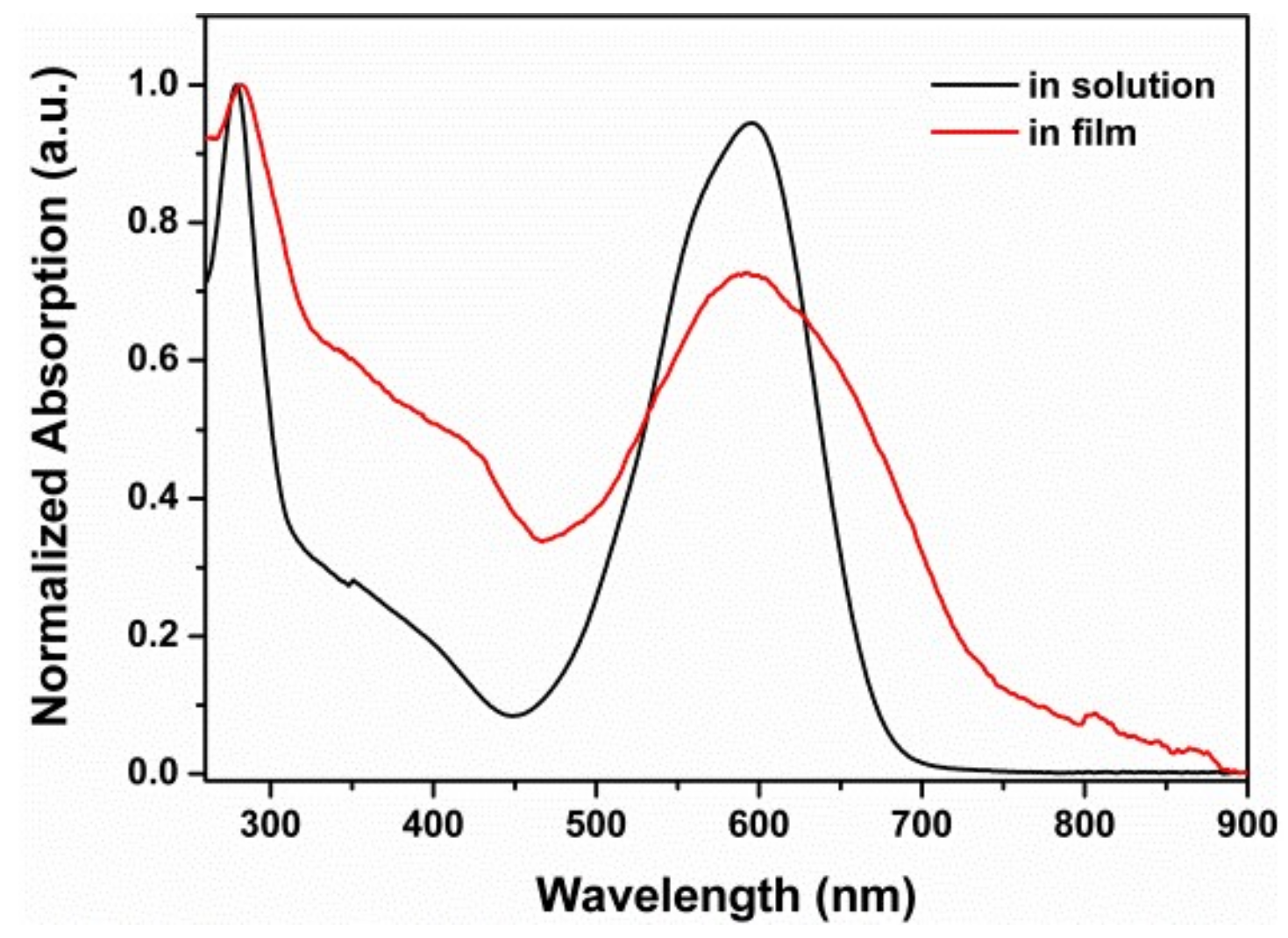

Figure 1. UV-vis absorption spectra of 4BAI-SFX in CHCl3 solution and in film.
Figure 1. UV-vis absorption spectra of 4BAI-SFX in CHCl3 solution and in film.
Molecules 24 03623 g001
Figure 2. Cyclic voltammogram (CHCl3, 1.0 mM NBu4PF6, r.t., scan rate 100 mV·s−1) of 4BAI-SFX.
Figure 2. Cyclic voltammogram (CHCl3, 1.0 mM NBu4PF6, r.t., scan rate 100 mV·s−1) of 4BAI-SFX.
Molecules 24 03623 g002

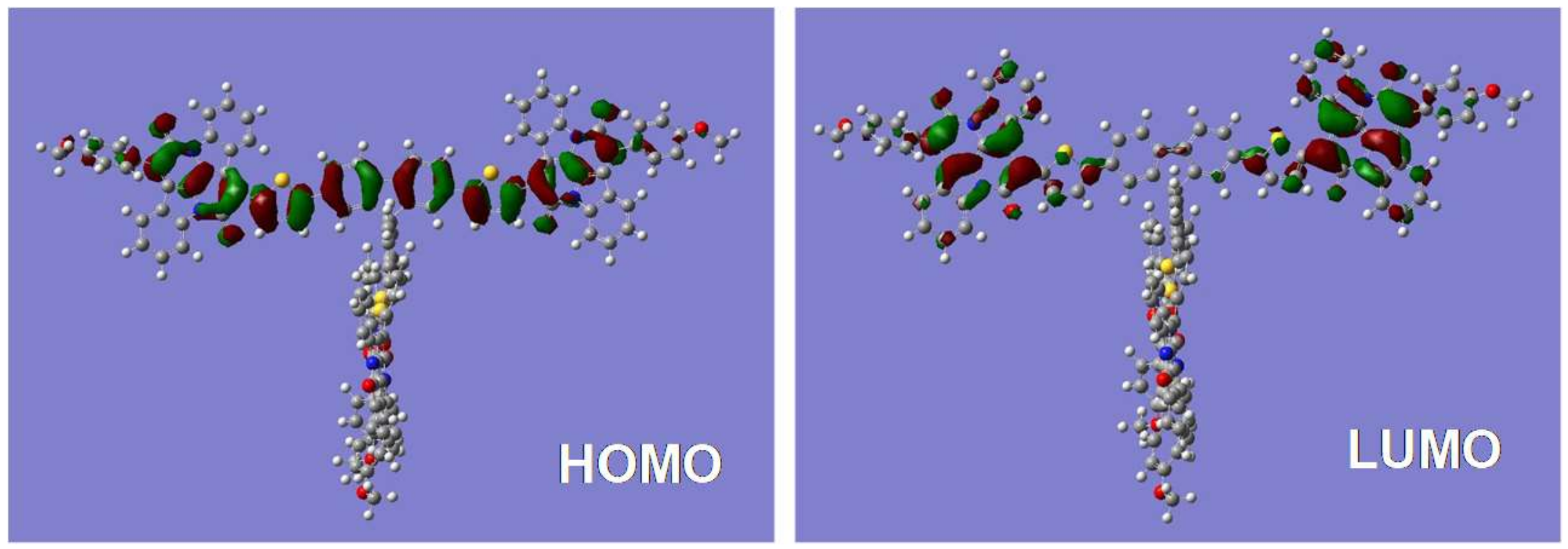

Figure 3. The calculated HOMO and LUMO orbital plots of 4BAI-SFX.
