Abstract

In this report, a facile solution casting technique was used to fabricate polymer blend electrolytes of chitosan (CS):poly (ethylene oxide) (PEO):NH4SCN with high electrochemical stability (2.43V). Fourier transform infrared (FTIR) spectroscopy was used to investigate the polymer electrolyte formation. For the electrochemical property analysis, cyclic voltammetry (CV), linear sweep voltammetry (LSV), and electrochemical impedance spectroscopy (EIS) techniques were carried out. Referring to the FTIR spectra, a complex formation between the added salt and CS:PEO was deduced by considering the decreasing and shifting of FTIR bands intensity in terms of functional groups. The CS:PEO:NH4SCN electrolyte was found to be electrochemically stable as the applied voltage linearly swept up to 2.43V. The cyclic voltammogram has presented a wide potential window without showing any sign of redox peaks on the electrode surface. The proved mechanisms of charge storage in these fabricated systems were found to be double layer charging. The EIS analysis showed the existence of bulk resistance, wherein the semicircle diameter decreased with increasing salt concentration. The calculated maximum DC conductivity value was observed to be 2.11 × 10−4 S/cm for CS:PEO incorporated with 40 wt% of NH4SCN salt. The charged species in CS:PEO:NH4SCN electrolytes were considered to be predominantly ionic in nature. This was verified from transference number analysis (TNM), in which ion and electron transference numbers were found to be tion = 0.954 and tel = 0.045, respectively. The results obtained for both ion transference number and DC conductivity implied the possibility of fabricating electrolytes for electrochemical double layer capacitor (EDLC) device application. The specific capacitance of the fabricated EDLC was obtained from the area under the curve of the CV plot.
Keywords: polymer blend electrolytes; FTIR study; impedance study; TNM and LSV analysis; EDLC fabrication; cyclic voltammetry polymer blend electrolytes; FTIR study; impedance study; TNM and LSV analysis; EDLC fabrication; cyclic voltammetry

1. Introduction

A deep understanding of polymer electrolytes is vital for researchers, because they are useful in highly specialized interdisciplinary fields, such as electrochemistry, polymer science, organic chemistry, and inorganic chemistry [1]. Dry solid polymer electrolytes (SPEs) have captured the attention and interest of many research groups as safer alternatives to liquid electrolytes [2]. The advantages of dry solid polymer electrolytes are reflected in their reasonable mechanical strength, straightforward thin film fabrication with desirable sizes, and electrode/electrolyte contact [3,4,5,6]. SPEs are required to exhibit higher thermal and electrochemical stabilities [7]. The preparation of SPEs comprises dissolving salts in a polymeric matrix where salt provides cations and anions. Consequently, the polymers are conductive ionically and thereby usable widely in a wide range of electrochemical devices, for instance fuel cells, batteries, and capacitors [8]. To scale up to the industrial level, the polymer electrolytes need to be cheap, ionically highly conductive, and dimensionally and mechanically stable. All these are challenges that are associated with these interesting polymer electrolytes. However, apparently, the polymer electrolytes have shown to have relatively low ionic conductivity and high crystallinity [9]. As it is known, polymer electrolytes consist of two main structures, crystalline and amorphous phases. It is confirmed that amorphous region is mainly responsible for the ion transport in polymer electrolytes. To strength this structure, semi-crystalline polymers are often used as host materials in polymer electrolytes [10]. Therefore, the growing need for sufficient conductivity has encouraged researchers to consider a reasonable method, which comprises polymer blending [11,12].
Natural polymers have attracted substantial interest recently due to their unique chemical and physics properties, making them possible to be used widely as matrices for SPEs in electrochemical devices. In particular, they have been used in applications of electrochromic devices, high energy density batteries, sensors, and fuel cells [13]. Natural polymers have significant potential as alternative materials for synthetic polymer counterparts. Biodegradability, non-toxicity, and cost effective are among the most important properties of some natural polymers, such as starch, cellulose, chitosan, carrageenan, and agarose, which made them to be intensively examined [14]. Herein, among these polymers, chitosan (CS) is the most popular one. CS as deacetylated product, i.e., one of derivatives of chitin, is abundant in nature [15]. It is mainly obtainable from shrimp wastes and used in a number of applications [16]. It is reported that the enrichment of CSchains with the polar groups (NH2 and OH), which serve as conjunction sites with high affinity for transition metal ions, make CS a common sorbent [17]. Moreover, another impressive characteristic of CS is the ability to mold into different forms ranging from hydrogels and porous scaffolds to films [18]. To make a polymer with dominated structure, a 70 wt% CS and 30 wt% PEO produce an optimum ratio [19] and thereby the same ratio was chosen for this work with various concentration of ammonium thiocyanate(NH4SCN). Therefore, a reasonable polymer electrolyte with a relatively high conductivity can be obtained as electrode separators in electrochemical double layer capacitor (EDLC), which can be used to some extent as an alternative for conventional batteries. It is well-known that, based on the charge storing existence, there are two electrochemical energy storage devices; batteries and electrochemical capacitors [20]. In the former, there is an electron transfer at the interfacial region between the electrode surface and the ions in the electrolyte region, which is called Faradaic process. In the latter, there is no charge transfer, i.e., no electron transfer but instead there is a charge accumulation occurrence. This process is known as non-Faradaic process. In EDLC devices, the energy storage mechanism is based on the non-Faradaic process, where ions make a doublelayer at the interfacial region [21]. There are several advantages that make EDLC devices a viable option over supercapacitors (or pseudocapacitors), such as the relatively higher power density, durability, better thermal stability, higher reversibility, cheap cost, safety, and straightforward fabrication methodology of EDLC devices [22,23,24]. Over the last 20 years, many research groups invested efforts into the invention of polymer electrolytes (PEs) with plausible conductivity and electrochemical stability [25]. PEs are characterized by a safe behavior and promising choice to assemble as a separator in avoiding short circuits between anode and cathode during operation [26]. Recent studies discovered that ammonium salts are good proton donors [27,28,29,30]. Ammonium thiocyanate (NH4SCN) has low lattice energy of 605 kJ/mol compared to other ammonium salts, such as NH4NO3 (646 kJ/mol) and NH4I (634 kJ/mol), that can easily be dissociated into cation and anion once dissolved in the host polar polymers. Therefore, NH4SCN provides more ammonium ions to the polymer matrix [28,29]. According to a study reported by Srivastava et al. [30], in which a coulombmetric study on a PEO–NH4SCN system was carried out, H+ is considered to be the only contributed cation to the ionic transport. In a polymer ammonium salt system, the conducting species is H+ ion, which originates from one of the loosely bound protons from the ammonium ion, as already reported in the literature [31,32].Despite the fact that various energy storage systems such as lithium ion batteries, lead acid batteries, etc., are accessible; the development of new low-cost, safe, and environmentally friendly electrochemical devices is required. Proton-based devices (EDLC and batteries) may be considered a good alternative, owing to the small ionic radii of H+ ions. Furthermore, the cost-effectiveness of the electrode and electrolyte materials, as well as no associated safety issues, are the key advantages that make the proton-based devices more attractive for applications, and thus stimulate further fundamental research. On the basis of this review, the current work aimed to investigate the suitability of CS:PEO based polymer electrolyte for EDLC applications.

2. Results and Discussion

2.1. FTIR Analysis

The formation of polymeric blends has been extensively confirmed by Fourier transform infrared (FTIR) spectroscopy. The principle of this technique is based on providing information on the functional groups and intermolecular interaction. This can be ensured via the analysis of FTIR spectra, which correspond to stretching or bending vibrations of particular bonds [33]. The analysis of the obtained spectra contains observation of the shifting and change in intensity of the functional groups bands occurring in pure CS:PEO and CS:PEO:NH4SCN electrolyte samples. The FTIR spectra for the pure CS:PEO and CS:PEO:NH4SCN complexes at different regions of IR radiations are shown in Figure 1a,b. It should be noted that, to show a desired polymer host formation, it is required to obtain the existence of heteroatoms (e.g., O and N) with lone pair electrons [34]. From the results obtained in this study, a strong peak was centered at around 2900 cm−1, which is correlated to the C-H stretching modes [35,36,37]. However, it can be noted that the peak intensity is declined with increasing salt concentration. Another observation from the literature is that polymer chains containing electronegative atoms (i.e., O or N) in the repeating units could behave as solvents for particular salts [38]. This is evidenced by the attractive interaction occurring between the cations and the chains. Moreover, it was shown that CS polymer is characterized by a single NH2 group and a pair of OH groups in each repeating unit [10,39]. In a previous report [35], observations of a broad peak at around 3559 cm−1 and a strong peak at 2900 cm−1 have been recorded. These peaks were attributed to -OH stretching and C-H stretching modes of PEO, respectively, which indicate a high influence of material doping. It can be seen from Figure 1b that a peak at around 2904 cm−1, as a result of C-H stretching, is broadened as the concentration of NH4SCN salt increases and almost disappears at 40 wt%. The peak at around 1100–1200 cm−1 can be associated to C-O-C stretching mode [35,40]. As evidence, both intensity changing and peak shifting provide strong information about the complex formation between the dopant salt and CS:PEO. Each sample is characterized by the main features of absorption peaks, for example vibration of amino group (NH2), O=C-NHR, and hydroxyl (OH) functional groups of CS. From Figure 1a, it is seen that shifts occur towards the lower wave numbers in the bands of amino (NH2), O=C-NHR, and (OH) groups. This provides more insight into the formation of complexation between the NH4SCN salt and CS:PEO [41,42]. Another interesting observation is the change of relative band intensity (i.e., decrease, broadening, and shifting), indicating the occurrence of electrostatic interaction between the functional groups of the CS:PEO polymer blends and the ions from the salt [43]. More insights can be obtained from the shift of vibrational bands in the direction of lower wave numbers, suggesting an increase in the weakness of intermolecular and intramolecular hydrogen bonds between polymer chains. Consequently, an amorphous phase characteristic is a possible result. It is apparent that cation ions are attracted to both nitrogen and oxygen atoms at the polymer chains, resulting in lowering vibration intensity of the N–H or O=C–NHR bonds and thus a higher molecular mass is resulted [10].

2.2. Impedance Study

The use of SPEsin electrochemical devices has become important. In solid-state electrochemistry, a large number of research groups are devoted to develop high ion-conducting materials for applications in both the conversion and storage of energy [44]. In electrochemical impedance spectroscopy (EIS), the result is a plot between the imaginary part and the real part of the impedance. One can extract the expected model of equivalent circuit from this plot [45]. In the case of applying electric field to a system, the cations can transport from one coordinated site to another, owing to the interruption of weakly coordinated cation to the sites along the polymer chain. In order to understand the chemistry and ionic transport property of these technologically impressive materials, more efforts are required in this field [46].
The impedance plot of the blended electrolyte samples at room temperature is presented in Figure 2. At the high frequency region, it can be clearly seen that there is an incomplete semicircle, whereas at the low frequency region, there is a spike shape appearance. The former appearance is attributed to the bulk responses, i.e., electrolyte, and the latter case is attributed to the capacitor formed at the double layer in the electrode/electrolyte interface region, owing to accumulation of free charges [47,48,49]. The diameter of the semicircular portion is reduced as the salt content increases. This implies that charge carriers, which are the ions, can move throughout the sample, considering the sample body as a resistor parallel to a constant phase element in the equivalent circuit model [49]. At low frequencies, the impedance plot response is expected to be a straight line, parallel to the imaginary axis. However, double layer capacitance causes the curvature as a consequence of the electrode polarization effect at the blocking electrodes [50,51,52]. To determine the DC conductivities (σdc), complex impedance (Z*) comprising the imaginary (Zi) and real (Zr) parts can be employed using the following relationship:
σ d c = ( 1 R b ) × ( t A )
where t, A, and Rb represent the thickness, area, and bulk resistance of the film, respectively. All these can be obtained from the intercept of the impedance plot on the real axis. The schematic diagram for impedance measurement is shown in Figure 3. Table 1 shows the DC conductivity values of pure CS:PEO and CS:PEO:NH4SCN electrolyte systems at room temperature. An obvious increase in the DC conductivity from 6.87 × 10−10 S/cm for pure CS: PEO to 2.1 × 10−4 S/cm for CS:PEO incorporated with 40 wt% of NH4SCN can be seen. Several research data results revealed that the polymer electrolytes of relatively high DC conductivity ranging from 10−5 to 10−3 S/cm are crucial for electrochemical device applications, including both batteries and electrical double layer capacitors (EDLCs).

2.3. Electrochemical EDLC Study

2.3.1. TNM Analysis

To determine the main or dominant charge carrier species in polymer electrolytes, it is the best choice to use transference number measurement (TNM) using DC polarization technique. As mentioned in Section 2.3, the measurement technique was comprised of applying DC voltage to the samples with a characteristic potential window, and followed by plotting the resulting current versus time [53]. Figure 4 shows the current with respect to time plot for the CSPX4 blend electrolyte film with highest conductivity. It should be noted that the plot reveals the formation of the relatively highest conducting electrolyte, where the polarization curve shows a recording of the current that raised from 0.8 V until reaching saturation state. Accordingly, the current decayed drastically prior to reaching the steady state. At the steady state, when the polarization of the electrochemical cell is taking place, the remaining current flow can be a reflection of electron transfer rather than ion transport. This is also explained in terms of the blockage, resulting from ion accumulation at the interfacial region of stainless steel electrode/electrolyte, where only electrons can transfer between the electrolyte and solid electrode phases [54]. The relatively high conductive electrolyte connected the two stainless steel electrodes (SS) can perform facilitating charge transport and electron transfer at the interfacial region. The following equations were used to calculate both the ion (tion) transport and the electron (tel) transference number:
t i o n =   I i I s s I i
t i o n = 1   t e l
where Iss is the steady-state current and Ii is the initial current. The large value of Ii observed at 2.2 μA is a result of the contribution of both ion and electron at the initial stage. This phenomenon reveals the behavior of an ionic conductor that accompanies electron transfer [55]. The obtained transfer numbers tion = 0.954 and tel = 0.045 indicate the contribution of ions as dominant charge carriers within the polymer electrolyte. The proximity of tion to 1—the ideal value—is a worthy result, confirming the nature of the conduction mechanism of the prepared electrolyte films by ions [53]. This is caused by the possibility of Li+ cations’ departure from the coordinating sites of polymer chains of PEO polymer; thereby, charge transport within the polymer blend is mainly due to cationic motion only [56]. The data results obtained in the current report are higher than those documented for the carboxylmethylcellulose-NH4Fsystem [57]. Ultimately, it seems that in the chitosan-dextran-NH4F system, ions are mainly responsible for charge carrying.

2.3.2. LSV Study

Along with TNM analysis, it is also of great importance to study linear sweep voltammetry (LSV) of the samples to determine the application suitability, in which the electrochemical stability of the samples can be investigated. From Figure 5, the LSV plot for the CSPX4 sample with highest conductivity is shown. The potential window, where the electrochemical stability is examined, is another crucial parameter that has to be evaluated before being used in the electrochemical devices (e.g., supercapacitors) [58]. In the recording LSV, two stainless steel electrodes were used to check the electrochemical stability of the polymer electrolyte as schematically presented in Figure 6. Within the potential window from 0 V to 3 V, a relatively large current is recorded at a certain potential at a sweep rate of 5 mV s−1. From an EDLC application perspective, the results revealed a satisfactory finding that the potential window of the blend is electrochemically stable within 2.43 V [59]. Monisha et al. [60] have shown a threshold potential during the current flowing through the cells. Shukur et al. [61] have documented a decomposition potential at 2.10 V for lithium salt-based biopolymer electrolyte. It is concluded that the obtained potential stability (potential window) of the relatively high conducting electrolyte in the present work is suitable for energy storage device applications. However, in our work, the increase in current beyond 2.43V was attributed to the electrolyte decomposition at the inert electrode surface [62]. In comparison to ammonium salt-based polymer electrolytes, the data results are quite close. Likewise, in another work, a plasticized system of chitosan-polyvinyl alcohol-NH4NO3 showed an electrochemical stability up to 1.70 V as documented by Kadir and Arof [63]. Noor and Isa [64], have also examined the cellulose-NH4SCN system, which was electrochemically stable up to 1.70 V.

2.3.3. CV and Capacitance Study

The fabricated EDLC is characterized in terms of a double layer using cyclic voltammetry (CV) at a sweep rate of 50 mV s−1, as shown in Figure 7. The characteristic feature of the fabricated EDLC is clearly seen in the CV profile which appears in a rectangular shape. The cyclic voltammetry can also observe the nature of charge storage at the interfaces between electrodes and electrolytes in EDLC studies. In other words, there is an insight into distinguishing between Faradaic and non-Faradaic processes from the CV [65]. From Figure 7, the performance of assembled cells at room temperature can be seen in the CV, indicating the absence of any oxidation-reduction reaction (redox) peak. This suggests the presence of a perfect capacitor without any contribution of redox process at the interfacial region [66]. Consequently, the rectangular shaped CV feature is considered as a strong evidence of a rapid current response to the applied voltage. This characteristic shape of our CV of the EDLC is quite similar to those reported in the literature [67,68,69]. The appearance of a non-rectangular shape is evidenced by two factors; firstly, fast build-up of the electric double layer, and secondly, internal resistance of EDLC. In addition to double layer formation, there is no hump feature in the CV, indicating the absence of any Faradaic reaction [70]. All these emphasize the EDLC formation at the interfacial region, using the accumulation mechanism of ion adsorption at the activated carbon [71]. Dealing with the mechanism of energy storage in microporous materials can be of great importance for both fundamental and industrial aspects. The great advance in designing supercapacitors with a relatively high performance enables researchers to develop this technology for industry applications in the near future. It is also considered as a breakthrough to some extent in the field of supercapacitor fabrication. Additionally, encouraging researchers to verify that the mechanism of charge storing—in terms of experimentation and theory—is necessary [72]. Eftekhari A. [73] has, however, shown a review where the energy storage mechanism is based on accommodation of ions within microporous and mesoporoes rather than the formation of a double layer capacitor. Accordingly, this mechanism is different to some extent from the classical model in which the ions facilitate the charge separation and storage in energy storage devices. On the other hand, the classical models are based on the inner layer which is formed due to the electrostatic forces; thereby the charged species are accumulated on the surface of the electrode without any real chemical interaction. Therefore, the double layer charging on the electrode surface should be ideally polarizable [74]. The schematic configuration of the EDLC cell is illustrated in Figure 8. The specific capacitance ( C s ) of the EDLC can be calculated from the CV plot, which can be calculated using the following equation:
C s =   v i v f I ( V ) d V 2 m v   ( V f V i )
where Vf and Vi are the final and initial voltage, respectively. m is the mass of active material, v is the scan rate and ( V ) d V is the area of the CV plot, which is obtained via OriginPro 8.5 software. The value of C s , calculated for a scan rate of 50 mV s−1, is 3.80 F/g. This value is higher than other proton-based EDLC studies. Shukur [75] reported a range of C s from 1.14 to 3.64 F/g as the scan rate varied from 2 to 20 mV/s for a CS:starch:NH4Cl glycerol system. The author stated that the scan rate may affect the value of specific capacitance of the EDLC. Low scan rate causes the ions to properly conduct and form a charged double layer, and thus results in a higher capacitance value. An EDLC cell by Shuhaimi [76] with methylcellulose-NH4NO3 electrolyte obtained a C s value of 1.67 F/g. Liew et al. [77] reported a value of 0.14 F/g for PVA-NH4C2H3O2 based EDLC.

3. Materials and Methods

3.1. Materials and Sample Preparation

Chitosan (CS) as a natural biomolecule (average molecular weight 310,000–375,000g/mol) and poly (ethylene oxide) (PEO) powder (average molecular weight 300,000 g/mol) materials were purchased from Sigma-Aldrich (Sigma-Aldrich, Warrington, PA, USA). In this work, 1 g of CS was dissolved in 50 mL of 1% acetic acid for 90 min at room temperature, and separately 30 wt% (0.4285 g) of PEO was then dissolved in 50 mL of 1% acetic acid. Subsequently, the solutions were mixed together and stirred for 3h to obtain CS:PEO (70:30) polymer blends. Then, for the solution of CS:PEO, various amounts of NH4SCN, from 10 to 40 wt% in steps of 10 wt.%, were added separately under continuous stirring to fabricate CS:PEO: NH4SCN electrolytes. The final solutions were coded as CSPX0, CSPX1, CSPX2, CSPX3, and CSPX4 for CS:PEO incorporated with 0, 10, 20, 30, and 40 wt% of NH4SCN, respectively. The obtained electrolytes were put in the labeled Petri dishes and left at room temperature in a desiccator to obtain dried films. By this, the obtained films were free of solvent and the resulted polymers were utilized as raw materials. The thickness of the electrolyte samples werein the ranges 123–125 μm.

3.2. Structural and Impedance Characterizations

Fourier transforms infrared (FTIR, Thermo Scientific, Nicolet iS10,Perkin Elmer, Waltham, MA, USA) spectroscopy measurements were carried out via a Spotlight 400 Perkin-Elmer system with a resolution of 1 cm−1 (450–4000 cm−1). The electrical impedance properties of the prepared SPE films were analyzed at room temperature, using a HIOKI 3532–50 LCR HiTESTER controlled by a computer via software over the frequency range of 42 Hz to 5000 kHz. From the computer, the measurements as well as the analysis of both the imaginary and real parts of the impedance spectra could be performed. Discs with a diameter of 20 mm were prepared from the SPE films, and then sandwiched between a pair of stainless steel electrodes under spring pressure.

3.3. TNM and LSV Measurements

V&A Instrument (Neware, Shenzhen, China) DP3003 digital DC power supply was employed to perform the transference number (TNM) analysis using DC polarization technique.Prior to the measurement, the high conducting electrolyte samples were sandwiched between blocking stainless steel electrodes in a Teflon holder. The polarization was carried out at 0.8 V and the DC current was monitored as a function of time at the room temperature. The potential window, i.e., stable potential, of the electrolyte was also recorded using linear sweep voltammetry (LSV) analysis (DY2300 potentiostat, Neware, Shenzhen, China) at a sweep rate of 5 mV/s.

3.4. EDLC Preparation

The electrode for EDLC study was fabricated using polyvinylidene fluoride (PVdF), activated carbon and carbon black materials. Under moderate stirring, 0.50 g of PVdF was added into 15 mL N-methyl pyrrolidone (NMP). Activated carbon and carbon black powder of 3.25 g and of 0.25 g, respectively, were mixed using planetary ball miller to gain a homogeneous solution. This dispersed solution was then poured into the PVdF solution. The mixture was then cast on an aluminum foil using a doctor blade technique and heated at 60 °C for a certain time. The electrodes were placed in a desiccators containing silica gel to obtain acceptable dryness state. As usual, the resulting relatively high conducting electrodes were sandwiched between two carbon electrodes and packed in CR2032 coin cells. The thickness of the electrodes was optimized to 0.0025 cm.Digi-IVY DY2300 Potentiostat was employed to perform cyclic voltammetry (CV) of the EDLC system at the potential window of 0 to 0.9 V and at a sweep rate of 50 mV/s.

4. Conclusions

In conclusion, we have shown the suitability of the various properties of polymer blend electrolytes of chitosan (CS):poly (ethylene oxide) (PEO):NH4SCN systems for energy storage devices. The complex formation via the FTIR study was confirmed by observing the shift and the decrease in intensity of FTIR bands corresponding to functional groups. The EIS analysis showed the existence of bulk resistance in which the semicircle diameter shrunk with increasing salt concentration. The calculated maximum DC conductivity value was found to be 2.11 × 10−4 S/cm. The preliminary results from CV, LSV, and EIS techniques revealed the mechanism of storage is double layer charging. The electrochemical stability of the system exceeded the aqueous counterpart and a relatively high DC conductivity was obtained for CS:PEO incorporated with 40 wt% of NH4SCN salt, respectively. The rectangular response in the CV, a high ionic nature of charge transfer, and a relatively high electrochemical stability provide strong evidence for applying these systems as capacitors. The value of C s for the fabricated EDLC at a scan rate of 50 mV s−1 was found to be 3.80 F/g.

Author Contributions

Conceptualization, S.B.A. and M.F.Z.K.; investigation, S.B.A., R.T.A. and M.H.H.; methodology, S.B.A., R.T.A., M.H.H., M.A.B. and R.M.A.; project administration, S.B.A., M.F.Z.K. and S.K.M.; writing—original draft, S.B.A.; writing—review & editing, R.T.A., M.H.H., M.A.B., R.M.A., M.F.Z.K. and S.K.M.

Funding

This research was funded by the Ministry of Higher Education and Scientific Research-Kurdish National Research Council (KNRC), Kurdistan Regional Government/Iraq. The financial support from the University of Sulaimani and Komar Research Center (KRC) andKomar University of Science and Technology is greatly appreciated.

Acknowledgments

The authors gratefully acknowledge the financial support for this study from the Ministry of Higher Education and Scientific Research-Kurdish National Research Council (KNRC), Kurdistan Regional Government/Iraq. The financial support from the University of Sulaimani and Komar Research Center (KRC) andKomar University of Science and Technology are greatly appreciated.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Aziz, S.B. Li+ ion conduction mechanism in poly (ε-caprolactone)-based polymer electrolyte. Iran Polym. J. 2013, 91, 877–883. [Google Scholar] [CrossRef]
  2. Itoh, T.; Mitsuda, Y.; Ebina, T.; Uno, T.; Kubo, M. Solid polymer electrolytes composed of polyanionic lithium salts and polyethers. J. Power Sources 2009, 189, 531–535. [Google Scholar] [CrossRef]
  3. Aziz, S.B.; Abidin, Z.H.Z.; Kadir, M.F.Z. Innovative method to avoid the reduction of silver ions to silver nanoparticles (Ag+→Ago) in silver ion conducting based polymer electrolytes. Phys. Scr. 2015, 90, 35808. [Google Scholar] [CrossRef]
  4. Aziz, S.B.; Abidin, Z.H.Z.; Arof, A.K. Influence of silver ion reduction on electrical modulus parameters of solid polymer electrolyte based on chitosan-silver triflate electrolyte membrane. Express Polym. Lett. 2010, 4, 300–310. [Google Scholar] [CrossRef]
  5. Aziz, S.B.; Abidin, Z.H.Z.; Arof, A.K. Effect of silver nanoparticles on the DC conductivity in chitosan-silver triflate polymer electrolyte. Phys. B Condens. Matter. 2010, 405, 4429–4433. [Google Scholar] [CrossRef]
  6. Hema, M.; Selvasekerapandian, S.; Hirankumar, G.; Sakunthala, A.; Arunkumar, D.; Nithya, H. Structural and thermal studies of PVA:NH4I. J. Phys. Chem. Solids 2009, 70, 1098–1103. [Google Scholar] [CrossRef]
  7. Chinnam, P.R.; Zhang, H.; Wunder, S.L. Blends of pegylatedpolyoctahedralsilsesquioxanes (POSS-PEG) and methyl cellulose as solid polymer electrolytes for lithium batteries. Electrochim. Acta 2015, 170, 191–201. [Google Scholar] [CrossRef]
  8. Kim, J.H.; Won, J.; Kang, Y.S. Olefin-induced dissolution of silver salts physically dispersed in inert polymers and their application to olefin/paraffin separation. J. Membr. Sci. 2004, 241, 403–407. [Google Scholar] [CrossRef]
  9. Borgohain, M.M.; Joykumar, T.; Bhat, S.V. Studies on a nanocomposite solid polymer electrolyte with hydrotalcite as a filler. Solid State Ion. 2010, 181, 964–970. [Google Scholar] [CrossRef]
  10. Aziz, S.B.; Abidin, Z.H.Z. Electrical Conduction Mechanism in Solid Polymer Electrolytes: New Concepts to Arrhenius Equation. J. Soft Matter 2013, 2013, 1–8. [Google Scholar] [CrossRef]
  11. Mohd, F.H.; Nur, S.N.A. Conductivity and transport properties of starch/glycerin-MgSO4 solid polymer electrolytes. Int. J. Adv. Appl. Sci. 2019, 5, 38–43. [Google Scholar]
  12. Koduru, H.K.; Kondamareddy, K.K.; Iliev, M.T.; Marinov, Y.G.; Hadjichristov, G.B.; Karashanova, D.; Scaramuzza, N. Synergetic effect of TiO2nano filler additives on conductivity and dielectric properties of PEO/PVP nanocomposite electrolytes for electrochemical cell applications. J. Phys. Conf. Ser. 2017, 780, 1–8. [Google Scholar] [CrossRef]
  13. Salleh, N.S.; Aziz, S.B.; Aspanut, Z.; Kadir, M.F.Z. Electrical impedance and conduction mechanism analysis of biopolymer electrolytes based on methyl cellulose doped with ammonium iodide. Ionics (Kiel) 2016, 22, 2157–2167. [Google Scholar] [CrossRef]
  14. Aziz, S.B.; Muhamad, H.H.; Mohd, F.Z.K.; Wrya, O.K.; Ranjdar, M.A. Development of Polymer Blend Electrolyte Membranes Based on Chitosan: Dextran with High Ion Transport Properties for EDLC Application. Int. J. Mol. Sci. 2019, 20, 3369. [Google Scholar] [CrossRef] [PubMed]
  15. Hirase, R.; Higashiyama, Y.; Mori, M.; Takahara, Y.; Yamane, C. Hydrated salts as both solvent and plasticizer for chitosan. Carbohydr. Polym. 2010, 80, 993–996. [Google Scholar] [CrossRef]
  16. Trung, S.T.; WW, T.-h.; Thi, N.; Ng, C.-H.; Stevens, W. Functional characteristics of shrimp chitosan and its membranes as affected by the degree of deacetylation. Bioresour. Technol. 2006, 97, 659–663. [Google Scholar] [CrossRef] [PubMed]
  17. Bai, P.; Cao, F.; Lan, X.; Zhao, F.; Ma, Y.; Zhao, C. Chitosan gel beads immobilized Cu (II) for selective adsorption of amino acids. J. Biochem. Biophys. Methods 2008, 70, 903–908. [Google Scholar] [CrossRef]
  18. Lu, G.; Kong, L.; Sheng, B.; Wang, G.; Gong, Y.; Zhang, X. Degradation of covalently cross-linked carboxymethyl chitosan and its potential application for peripheral nerve regeneration. Eur. Polym. J. 2007, 43, 3807–3818. [Google Scholar] [CrossRef]
  19. Aziz, S.B.; Abdullah, R.M. Crystalline and amorphous phase identification from the tanδ relaxation peaks and impedance plots in polymer blend electrolytes based on CS:AgNt.x:PEO(x-1)(10 ≤ x ≤ 50). Electrochim. Acta 2018, 285, 30–46. [Google Scholar] [CrossRef]
  20. Costentin, C.; Porter, T.R.; Savéant, J.M. How Do Pseudocapacitors Store Energy? Theoretical Analysis and Experimental Illustration. ACS Appl. Mater. Interfaces 2017, 9, 8649–8658. [Google Scholar] [CrossRef]
  21. Iro, Z.S.; Subramani, C.; Dash, S.S. A Brief Review on Electrode Materials for Supercapacitor. Int. J. Electrochem. Sci. 2016, 11, 10628–10643. [Google Scholar] [CrossRef]
  22. Inagaki, M.; Konno, H.; Tanaike, O. Carbon materials for electrochemical capacitors. J. Power Sources 2010, 195, 7880–7903. [Google Scholar] [CrossRef]
  23. Zhang, D.; Zhang, X.; Chen, Y.; Yu, P.; Wang, C.; Ma, Y. Enhanced capacitance and rate capability of graphene/polypyrrole composite as electrode material for supercapacitors. J Power Sources 2011, 196, 5990–5996. [Google Scholar] [CrossRef]
  24. Pell, W.G.; Conway, B.E. Peculiarities and requirements of asymmetric capacitor devices based on combination of capacitor and battery-type electrodes. J. Power Sources 2004, 136, 334–345. [Google Scholar] [CrossRef]
  25. Muldoon, J.; Bucur, C.B.; Boaretto, N.; Gregory, T.; Di Noto, V. Polymers: Opening doors to future batteries. Polym. Rev. 2015, 55, 208–246. [Google Scholar] [CrossRef]
  26. Yao, T.; Genier, F.S.; Biria, S.; Hosein, I.D. A solid polymer electrolyte for aluminum ion conduction. Results Phys. 2018, 10, 529–531. [Google Scholar] [CrossRef]
  27. Ramya, C.S.; Selvasekarapandian, S.; Savitha, T.; Hirankumar, G.; Baskaran, R.; Bhuvaneswari, M.S.; Angelo, P.C. Conductivity and thermal behavior of proton conducting polymer electrolyte based on poly (N-vinyl pyrrolidone). Eur. Polym. J. 2006, 42, 2672–2677. [Google Scholar] [CrossRef]
  28. Moniha, V.; Alagar, M.; Selvasekarapandian, S.; Sundaresan, B.; Hemalatha, R.; Boopathi, G. Synthesis and characterization of bio-polymer electrolyte based on iota-carrageenan with ammonium thiocyanate and its applications. J. Solid State Electrochem. 2018, 22, 3209–3223. [Google Scholar] [CrossRef]
  29. Hemalatha, R.; Alagar, M.; Selvasekarapandian, S.; Sundaresan, B.; Moniha, V. Studies of proton conducting polymer electrolyte based on PVA, amino acid proline and NH4SCN. J. Sci. Adv. Mater. Devices 2019, 4, 101–110. [Google Scholar] [CrossRef]
  30. Srivastava, N.; Chandra, A.; Chandra, S. Dense branched growth of (SCN)x and ion transport in the poly(ethyleneoxide) NH4SCN polymer electrolyte. Phys. Rev. B 1995, 52, 225. [Google Scholar] [CrossRef]
  31. Hema, M.; Selvasekerapandian, S.; Sakunthala, A.; Arunkumar, D.; Nithya, H. Structural, vibrational and electrical characterization of PVA-NH4Br polymer electrolyte system. Phys. B Condens. Matter 2008, 403, 2740–2747. [Google Scholar] [CrossRef]
  32. Samsudin, A.S.; Aziz, M.I.A.; Isa, M.I.N. Natural Polymer Electrolyte System Based on Sago: Structural and Transport Behavior Characteristics. Int. J. Polym. Anal. Charact. 2012, 17, 600–607. [Google Scholar] [CrossRef]
  33. Dumitraşcu, M.; Meltzer, V.; Sima, E.; Vîrgolici, M.; Albu, M.G.; Ficai, A.; Moise, V.; Minea, R.; Vancea, C.; Scărişoreanu, A.; et al. Characterization of electron beam irradiated collagen-polyvinylpyrrolidone (PVP) and collagen-dextran (DEX) blends. Dig. J. Nanomater. Biostruct. 2011, 6, 1793–1803. [Google Scholar]
  34. Aziz, S.B.; Hamsan, M.H.; Brza, M.A.; Kadir, M.F.Z.; Abdulwahid, R.T.; Ghareeb, H.O.; Woo, H.J. Fabrication of energy storage EDLC device based on CS:PEO polymer blendelectrolytes with high Li+ion transference number. Results Phys. 2019, 15, 102584. [Google Scholar] [CrossRef]
  35. Aziz, S.B.; Marif, R.B.; Brza, M.A.; Hassan, A.N.; Ahmad, H.A.; Faidhalla, Y.A.; Kadir, M.F.Z. Structural, thermal, morphological and optical properties of PEO filled with biosynthesized Ag nanoparticles: New insights to band gap study. Results Phys. 2019, 13, 102220. [Google Scholar] [CrossRef]
  36. Ramesh, S.; Yuen, T.F.; Shen, C.J. Conductivity and FTIR studies on PEO-LiX X: CF3SO3-, SO42-. polymer electrolytes. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2008, 69, 670–675. [Google Scholar] [CrossRef] [PubMed]
  37. Wen, S.J.; Richardson, T.J.; Ghantous, D.I.; Striebel, K.A.; Ross, P.N.; Cairns, E.J. FTIR characterization of PEO + LiN(CF3SO2)2 electrolytes. J. Electroanal. Chem. 1996, 408, 113–118. [Google Scholar] [CrossRef]
  38. Hamsan, M.H.; Shukur, M.F.; Aziz, S.B.; Kadir, M.F.Z. Dextran from Leuconostocmesenteroides-doped ammonium salt-based green polymer electrolyte. Bull. Mater. Sci. 2019, 42, 42–57. [Google Scholar] [CrossRef]
  39. Agrawal, P.; Strijkers, G.J.; Nicolay, K. Chitosan-based systems for molecular imaging. Adv. Drug Deliv. Rev. 2010, 62, 42–58. [Google Scholar] [CrossRef] [PubMed]
  40. Senak, L.; Davies, M.A.; Mendelsohn, R.A. Quantitative IR study of hydrocarbon chain conformation in alkanes and phospholipids: CH2 wagging modes in disordered bilayer and HII phases. J. Phys. Chem. 1991, 95, 2565–2571. [Google Scholar] [CrossRef]
  41. Buraidah, M.H.; Arof, A.K. Characterization of chitosan/PVA blended electrolyte doped with NH4I. J. Non-Cryst. Solids 2011, 357, 3261–3266. [Google Scholar] [CrossRef]
  42. Kadir, M.F.Z.; Aspanut, Z.; Majid, S.R.; Arof, A.K. FTIR studies of plasticized poly (vinyl alcohol)—Chitosan blend doped with NH4NO3 polymer electrolyte membrane. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2011, 78, 1068–1074. [Google Scholar] [CrossRef] [PubMed]
  43. Wei, D.; Sun, W.; Qian, W.; Ye, Y.; Ma, X. The synthesis of chitosan-based silver nanoparticles and their antibacterial activity. Carbohydr. Res. 2009, 344, 2375–2382. [Google Scholar] [CrossRef] [PubMed]
  44. Aziz, S.B.; Ranjdar, M.A.; Mohd, F.Z.K.; Hameed, M.A. Non suitability of silver ion conducting polymer electrolytes based on chitosan mediated by barium titanate (BaTiO3) for electrochemical device applications. Electrochim. Acta 2019, 296, 494–507. [Google Scholar] [CrossRef]
  45. Aziz, S.B.; Thompson, J.W.; Kadir, M.F.Z.; Hameed, M.A. A conceptual review on polymer electrolytes and ion transport models. J. Sci. Adv. Mater. Devices 2018, 3, 1–17. [Google Scholar] [CrossRef]
  46. Edman, L.; Doeff, M.M.; Ferry, A.; Kerr, J.; Jonghe, L.D. Transport Properties of the Solid Polymer Electrolyte System P(EO)nLiTFSI. J. Phys. Chem. B 2000, 104, 3476–3480. [Google Scholar] [CrossRef]
  47. Polu, A.R.; Kumar, R. Impedance spectroscopy and FTIR studies of PEG - Based polymer electrolytes. E-J. Chem. 2011, 8, 347–353. [Google Scholar] [CrossRef]
  48. Aziz, S.B.; Kadir, M.F.Z.; Hamsan, M.H.; Woo, H.J.; Brza, M.A. Development of Polymer Blends Based on PVA:POZ with Low Dielectric Constant for Microelectronic Applications. Sci. Rep. 2019, 9, 13163. [Google Scholar] [CrossRef]
  49. Tamilselvi, P.; Hema, M. Impedance studies of polymer electrolyte based on PVA: PVdF: LiCF3SO3. Int. J. ChemTech. Res. 2014, 6, 1864–1866. [Google Scholar]
  50. Baskaran, R.; Selvasekarapandian, S.; Hirankumar, G.; Bhuvaneswari, M.S. Vibrational, ac impedance and dielectric spectroscopic studies of poly(vinylacetate)-N,N-dimethylformamide-LiClO4 polymer gel electrolytes. J. Power Sources 2004, 134, 235–240. [Google Scholar] [CrossRef]
  51. Jacob, M.M.E.; Prabaharan, S.R.S.; Radhakrishna, S. Effect of PEO addition on the electrolytic and thermal properties of PVDF-LiClO4 polymer electrolytes. Solid State Ion. 1997, 104, 267–276. [Google Scholar] [CrossRef]
  52. Ibrahim, S.; Yasin, S.M.M.; Ng, M.N.; Ahmad, R.; Johan, M.R. Impedance spectroscopy of carbon nanotube/solid polymer electrolyte composites. Solid State Commun. 2011, 151, 1828–1832. [Google Scholar] [CrossRef]
  53. Tripathi, M.; Tripathi, S.K. Electrical studies on ionic liquid-based gel polymer electrolyte for its application in EDLCs. Ionics (Kiel) 2017, 23, 2735–2746. [Google Scholar] [CrossRef]
  54. Rani, M.S.A.; Ahmad, A.; Mohamed, N.S. Influence of nano-sized fumed silica on physicochemical and electrochemical properties of cellulose derivatives-ionic liquid biopolymer electrolytes. Ionics (Kiel) 2018, 24, 807–814. [Google Scholar] [CrossRef]
  55. Diederichsen, K.M.; Mcshane, E.J.; Mccloskey, B.D. Promising Routes to a High Li+ Transference Number Electrolyte for Lithium Ion Batteries. ACS Energy Lett. 2017, 2, 2563–2575. [Google Scholar] [CrossRef]
  56. Amudha, S.; Suthanthiraraj, S.A. Silver ion conducting characteristics of a polyethylene oxide-based composite polymer electrolyte and application in solid state batteries. Adv. Mater. Lett. 2015, 6, 874–882. [Google Scholar] [CrossRef]
  57. Ramlli, M.A.; Isa, M.I.N. Structural and ionic transport properties of protonic conducting solid biopolymer electrolytes based on carboxymethyl cellulose doped with ammonium fluoride. J. Phys. Chem. B 2016, 120, 11567–11573. [Google Scholar] [CrossRef]
  58. Pande, G.P.; Kumar, Y.; Hashmi, S.A. Ionic liquid incorporated polymer electrolytes for supercapacitor application. Indian J. Chem. 2010, 49A, 743–751. [Google Scholar]
  59. Sampathkumar, L.; Selvin, P.C.; Selvasekarapandian, S.; Perumal, P.; Chitra, R.; Muthukrishnan, M. Synthesis and characterization of biopolymer electrolyte based on tamarind seed polysaccharide, lithium perchlorate and ethylene carbonate for electrochemical applications. Ionics (Kiel) 2019, 25, 1067–1082. [Google Scholar] [CrossRef]
  60. Monisha, S.; Mathavan, T.; Selvasekarapandian, S.; Benial, A.M.; Latha, M.P. Preparation and characterization of cellulose acetate and lithium nitrate for advanced electrochemical devices. Ionics (Kiel) 2016, 23, 2697–2706. [Google Scholar] [CrossRef]
  61. Shukur, M.F.; Ithnin, R.; Kadir, M.F.Z. Electrical characterization of corn starch-LiOAc electrolytes and application in electrochemical double layer capacitor. Electrochim. Acta 2014, 136, 204–216. [Google Scholar] [CrossRef]
  62. TianKhoon, L.; Ataollahi, N.; Hassan, N.H.; Ahmad, A. Studies of porous solid polymeric electrolytes based on poly (vinylidene fluoride) and poly (methyl methacrylate) grafted natural rubber for applications in electrochemical devices. J. Solid State Electrochem. 2016, 20, 203–213. [Google Scholar] [CrossRef]
  63. Kadir, M.F.Z.; Arof, A.K. Application of PVA-chitosan blend polymer electrolyte membrane in electrical double layer capacitor. Mater. Res. Innov. 2011, 15, 217–220. [Google Scholar] [CrossRef]
  64. Noor, N.; Isa, M. Investigation on transport and thermal studies of solid polymer electrolyte based on carboxymethyl cellulose doped ammonium thiocyanate for potential application in electrochemical devices. Int. J. Hydrogen Energy 2019, 44, 8298–8306. [Google Scholar] [CrossRef]
  65. Pandey, G.P.; Kumar, Y.; Hashmi, S.A. Ionic liquid incorporated PEO based polymer electrolyte for electrical double layer capacitors: A comparative study with lithium and magnesium systems. Solid State Ion. 2011, 190, 93–98. [Google Scholar] [CrossRef]
  66. Shuhaimi, N.E.A.; Teo, L.P.; Woo, H.J.; Majid, S.R.; Arof, A.K. Electrical double-layer capacitors with plasticized polymer electrolyte based on methyl cellulose. Polym. Bull. 2012, 69, 807–826. [Google Scholar] [CrossRef]
  67. Fattah, N.F.A.; Ng, H.M.; Mahipal, Y.K.; Numan, A.; Ramesh, S.; Ramesh, K. An approach to solid-state electrical double layer capacitors fabricated with graphene oxide-doped, ionic liquid-based solid copolymer electrolytes. Materials 2016, 9, 450. [Google Scholar] [CrossRef] [PubMed]
  68. Chong, M.Y. Development of Biodegradable Solid Polymer Electrolytes Incorporating Different Nanoparticles for Electric Double Layer Capacitor. Ph.D. Thesis, University of Malaya, Malaysia, 2017. [Google Scholar]
  69. Wang, J.; Zhao, Z.; Song, S.; Ma, Q.; Liu, R. High performance poly(vinyl alcohol)-based Li-ion conducting gel polymer electrolyte films for electric double-layer capacitors. Polymers 2018, 10, 1179. [Google Scholar] [CrossRef] [PubMed]
  70. Kumar, Y.; Pandey, G.P.; Hashmi, S.A. Gel Polymer Electrolyte Based Electrical Double Layer Capacitors: Comparative Study with Multiwalled Carbon Nanotubes and Activated Carbon Electrodes. J. Phys. Chem. C 2012, 116, 26118–26127. [Google Scholar] [CrossRef]
  71. Virya, A.; Lian, K. Lithium polyacrylate-polyacrylamide blend as polymer electrolytes for solid-state electrochemical capacitors. Electrochem. Commun. 2018, 97, 77–81. [Google Scholar] [CrossRef]
  72. Eftekhari, A. On the mechanism of microporous carbon supercapacitors. Mater. Today Chem. 2018, 7, 1–4. [Google Scholar] [CrossRef]
  73. Eftekhari, A. Surface Diffusion and Adsorption in Supercapacitors. ACS Sustain. Chem. Eng. 2019, 7, 3692–3701. [Google Scholar] [CrossRef]
  74. Eftekhari, A. The mechanism of ultrafast supercapacitors. J. Mater. Chem. A 2018, 6, 2866–2876. [Google Scholar] [CrossRef]
  75. Shukur, M.F. Characterization of Ion Conducting Solid Biopolymer Electrolytes Based on Starch-Chitosan Blend and Application in Electrochemical Devices. Ph.D. Thesis, University of Malaya, Kuala Lumpur, Malaysia, 2015. [Google Scholar]
  76. Shuhaimi, N.E.A. Ionic Conductivity and Related Studies in Methyl Cellulose Based Polymer Electrolytes and Application in Supercapacitors. Ph.D. Thesis, University of Malaya, Kuala Lumpur, Malaysia, 2011. [Google Scholar]
  77. Liew, C.-W.; Ramesh, S.; Arof, A.K. Characterization of ionic liquid added poly(vinyl alcohol)-based proton conducting polymer electrolytes and electrochemical studies on the supercapacitors. Int. J. Hydrogen Energy 2015, 40, 852–862. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds studied in the present work are available from the authors.

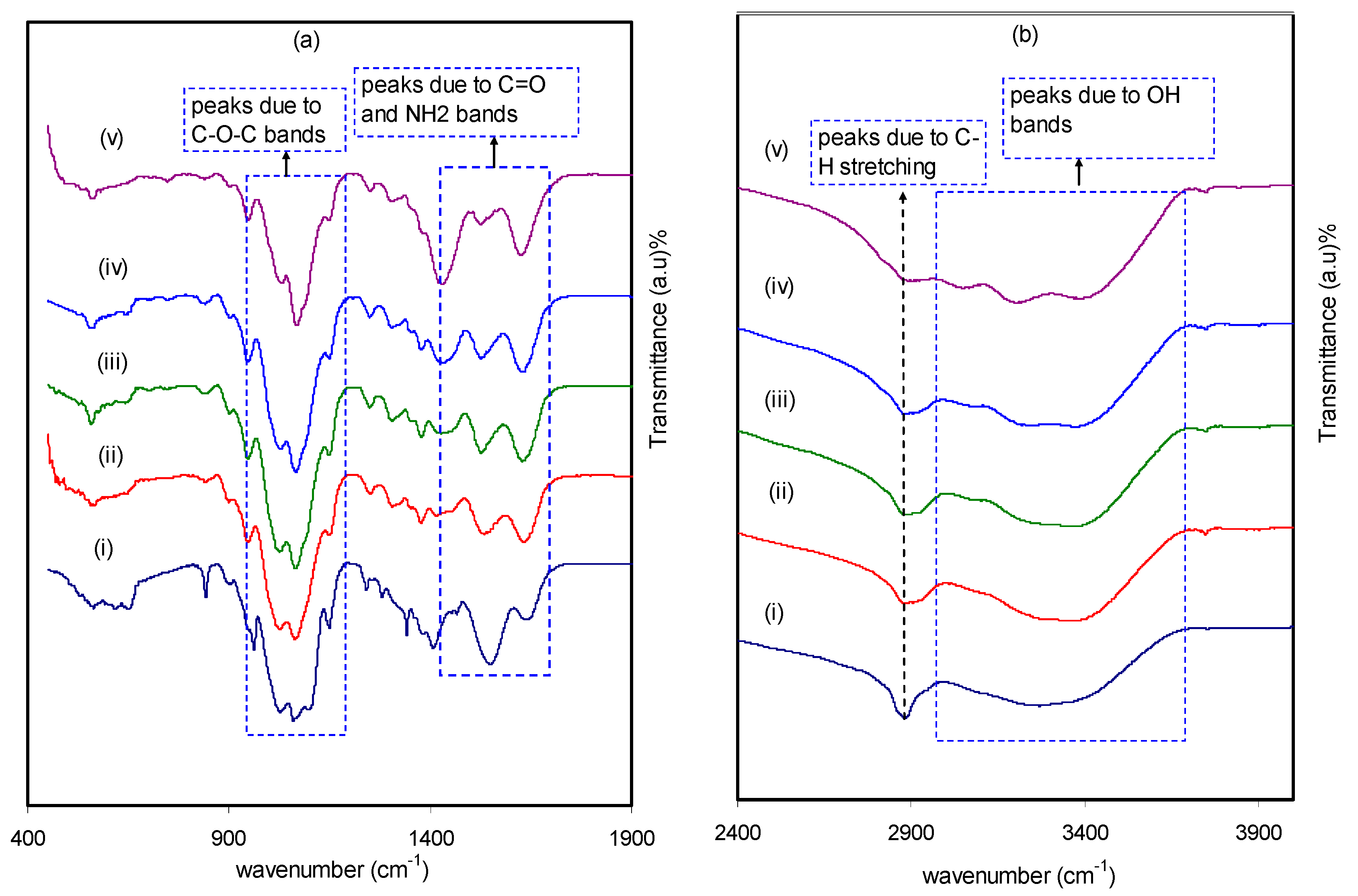

Figure 1. Spectrum of (i) CSPX0 (pure CS:PEO), (ii) CSPX1, (iii) CSPX2, (iv) CSPX3, and (v) CSPX4 in the range (a) 400 cm−1 to 1900 cm−1, and (b) 2400 cm−1 to 3900 cm−1.
Figure 1. Spectrum of (i) CSPX0 (pure CS:PEO), (ii) CSPX1, (iii) CSPX2, (iv) CSPX3, and (v) CSPX4 in the range (a) 400 cm−1 to 1900 cm−1, and (b) 2400 cm−1 to 3900 cm−1.
Molecules 24 03508 g001

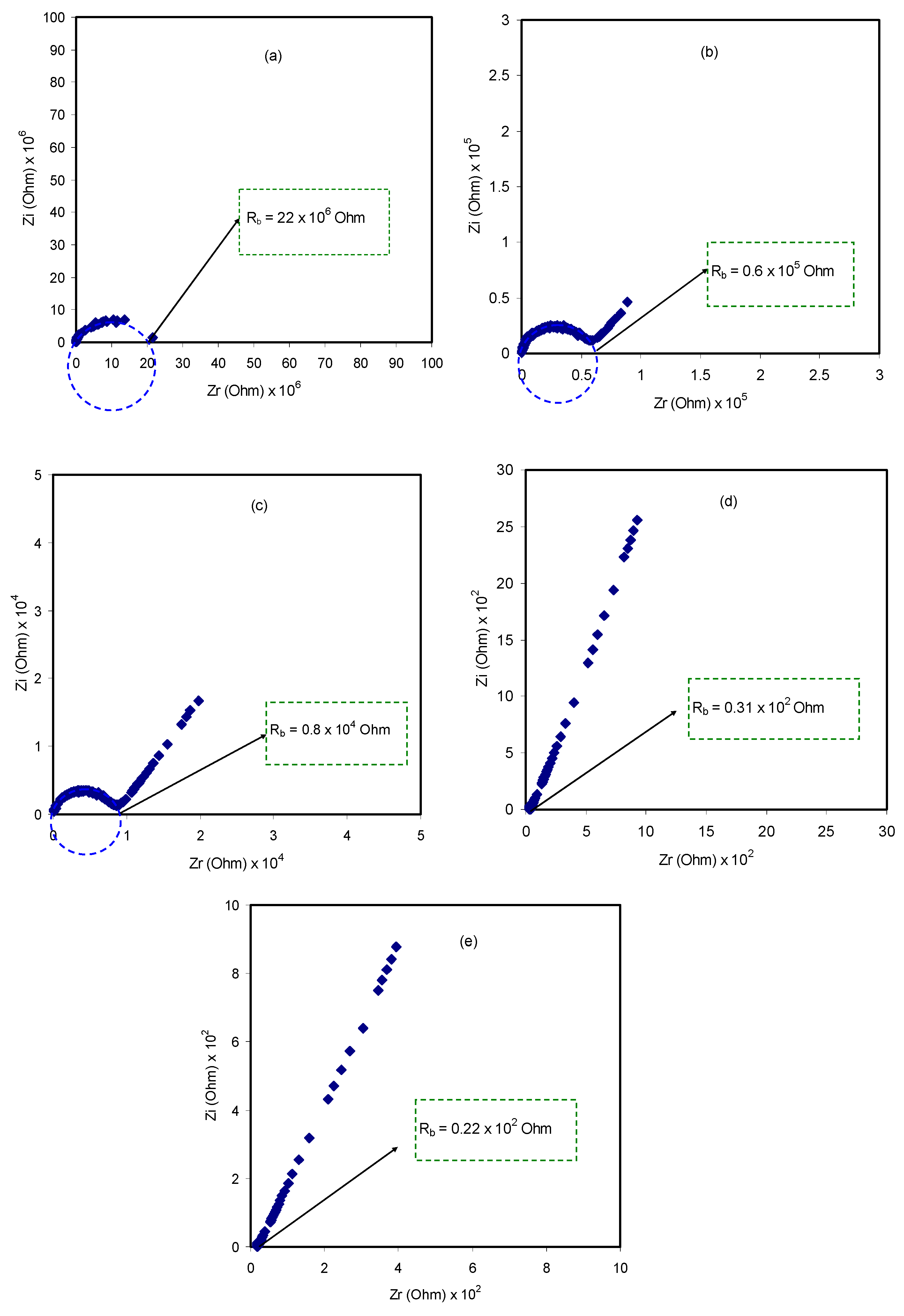

Figure 2. Impedance plots at ambient temperature for (a) Pure CS:PEO (CSPX0);(b) CSPX1, (c) CSPX2, (d) CSPX3, and(e) CSPX4 samples.
Figure 2. Impedance plots at ambient temperature for (a) Pure CS:PEO (CSPX0);(b) CSPX1, (c) CSPX2, (d) CSPX3, and(e) CSPX4 samples.
Molecules 24 03508 g002

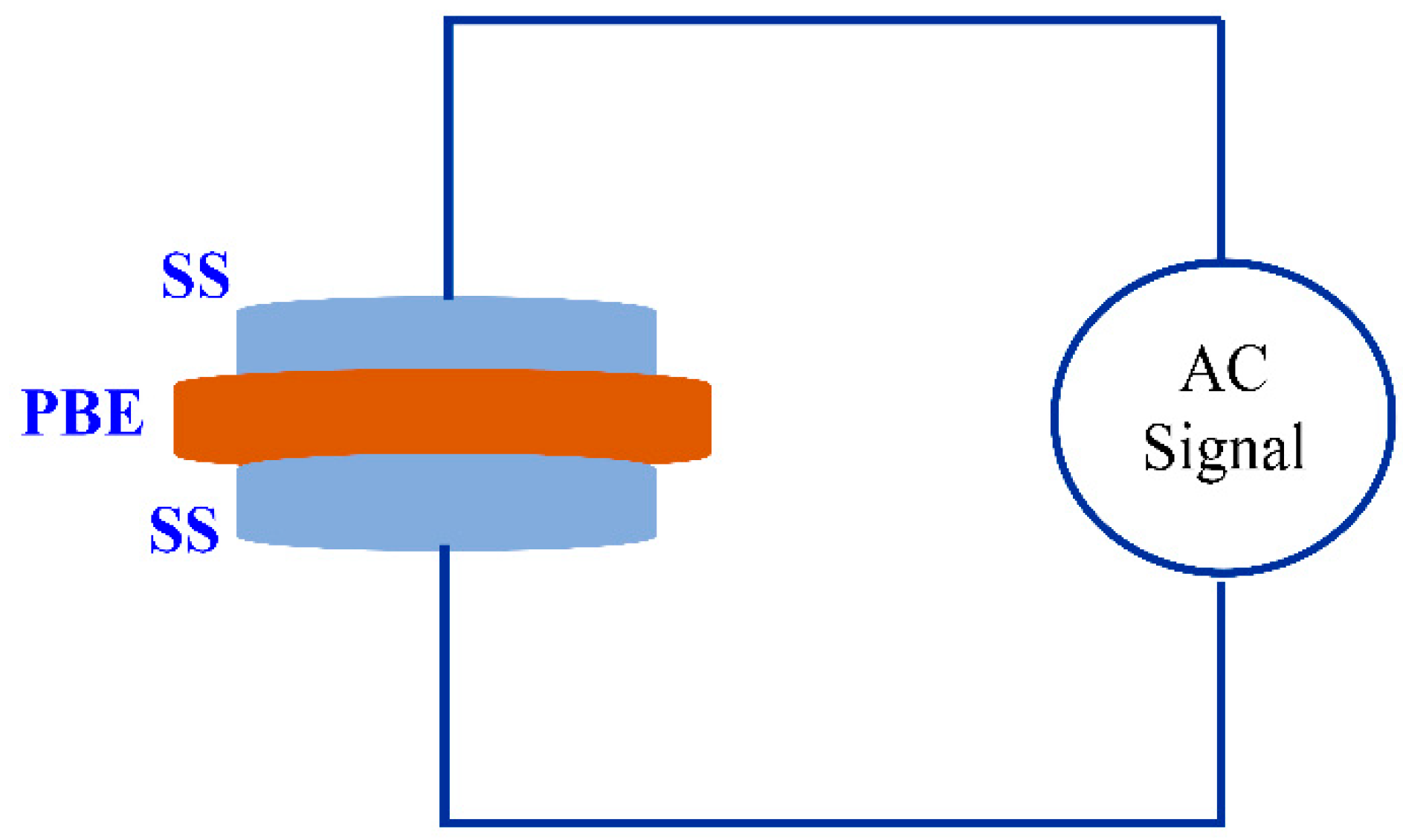

Figure 3. Schematic diagram of impedance measurement which consists of two identical stainless steel (SS) electrodes. The inserted sample is a polymer blend electrolyte (PBE).
Figure 3. Schematic diagram of impedance measurement which consists of two identical stainless steel (SS) electrodes. The inserted sample is a polymer blend electrolyte (PBE).
Molecules 24 03508 g003

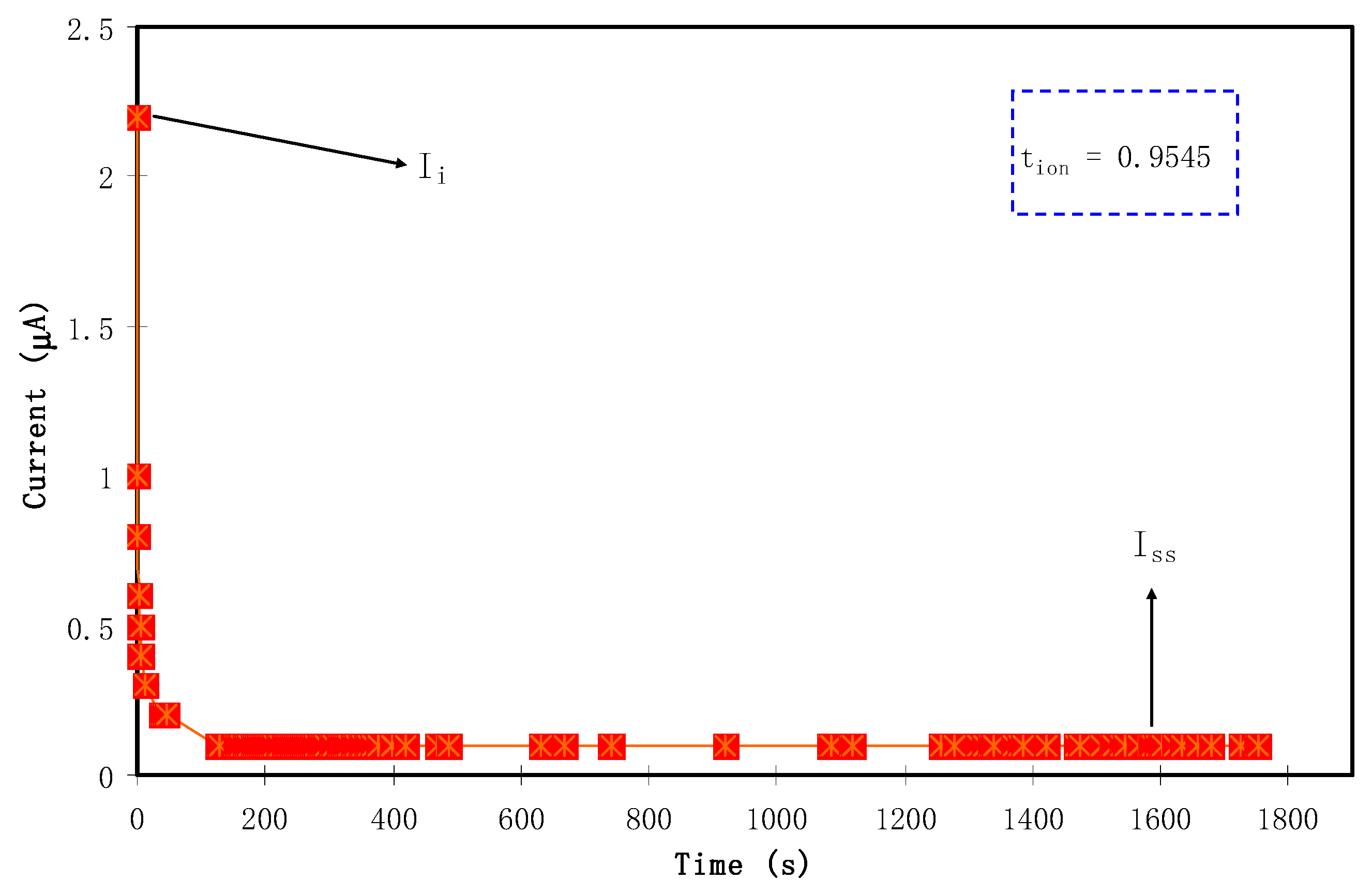

Figure 4. Current with respect to time plot for theCSPX4 blend electrolyte film.
Figure 4. Current with respect to time plot for theCSPX4 blend electrolyte film.
Molecules 24 03508 g004

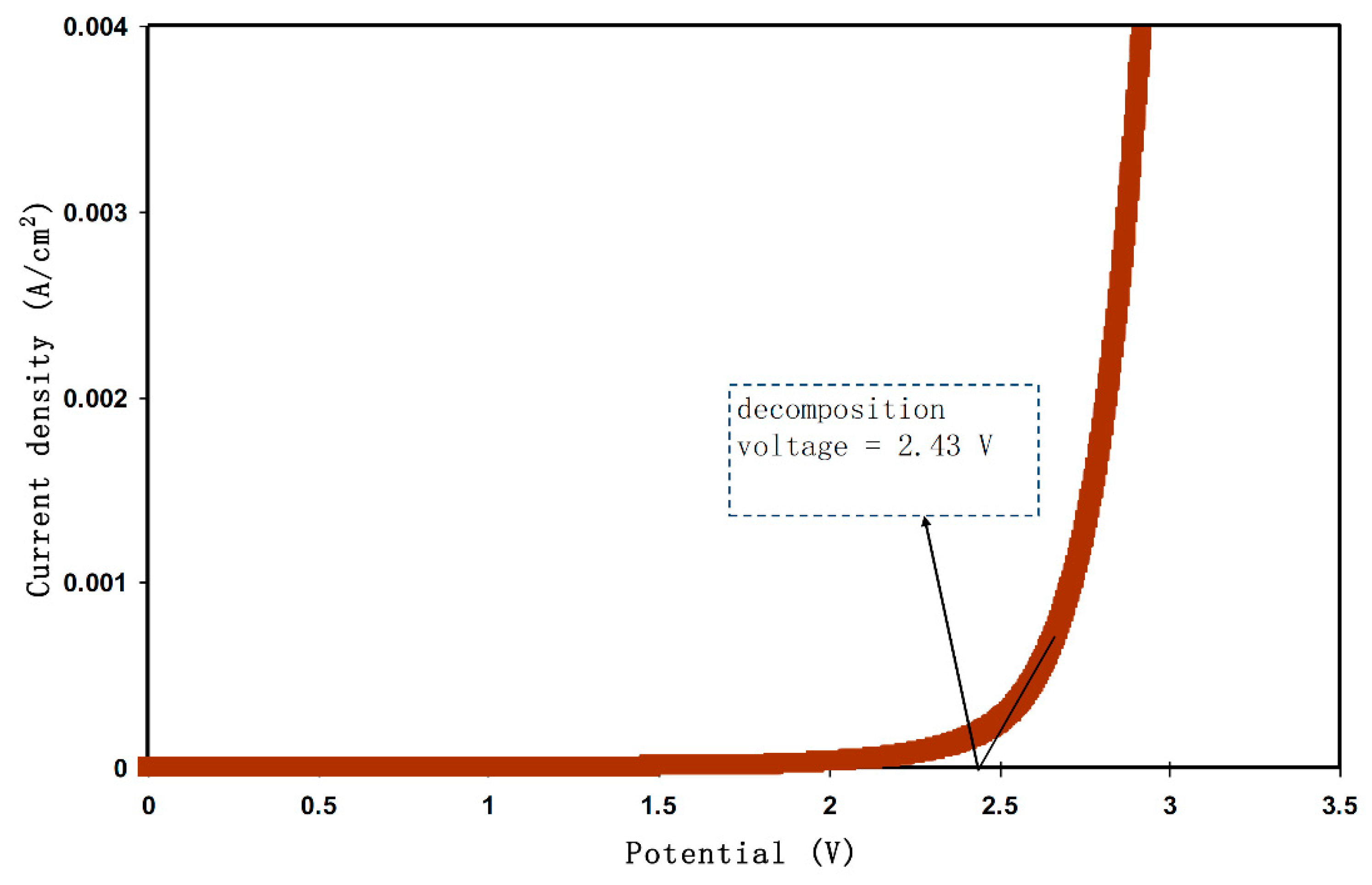

Figure 5. LSV curve for the CSPX4 sample with highest conductivity.
Figure 5. LSV curve for the CSPX4 sample with highest conductivity.
Molecules 24 03508 g005

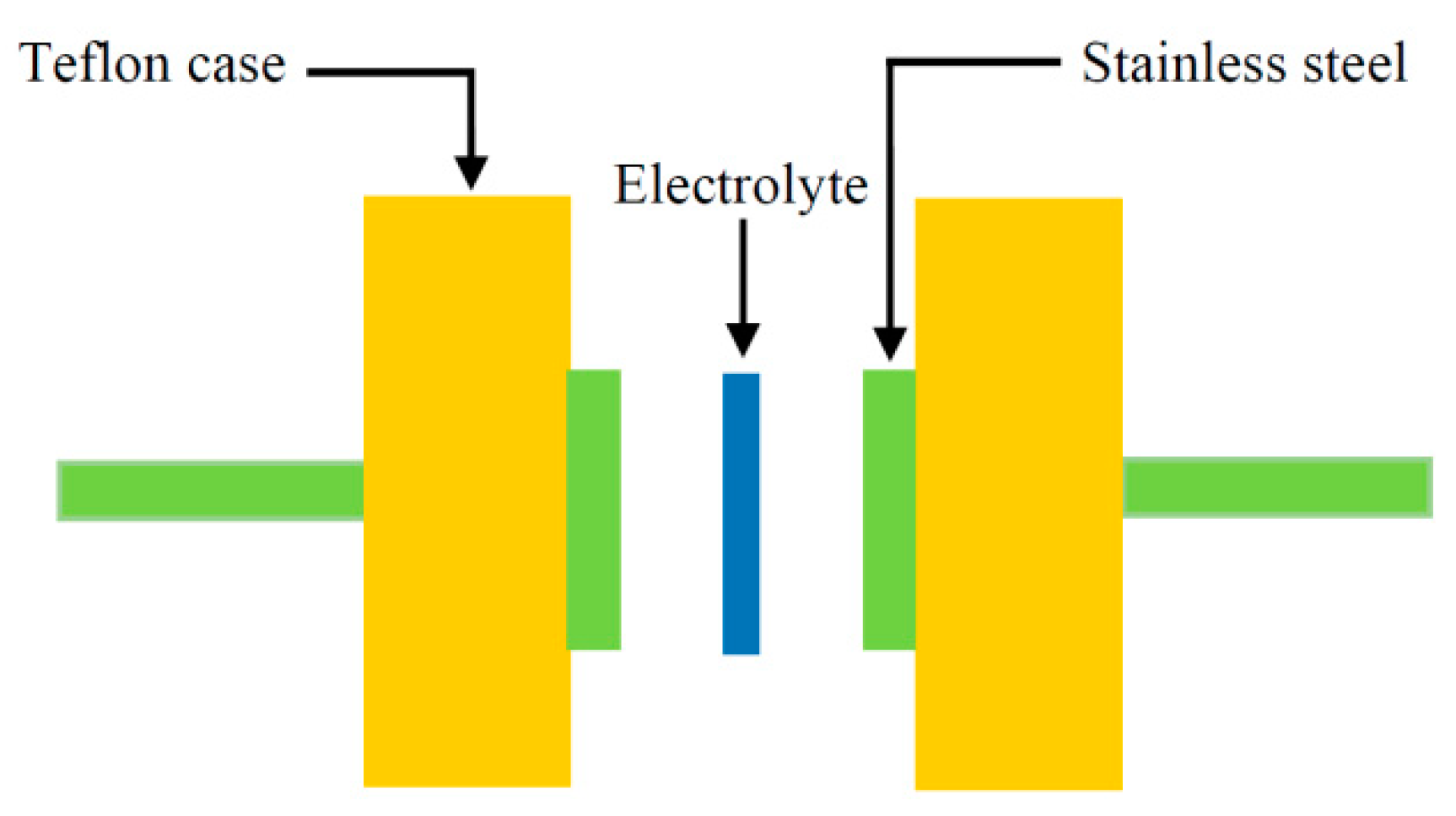

Figure 6. Schematic diagram for TNM and LSV measurements.
Figure 6. Schematic diagram for TNM and LSV measurements.
Molecules 24 03508 g006

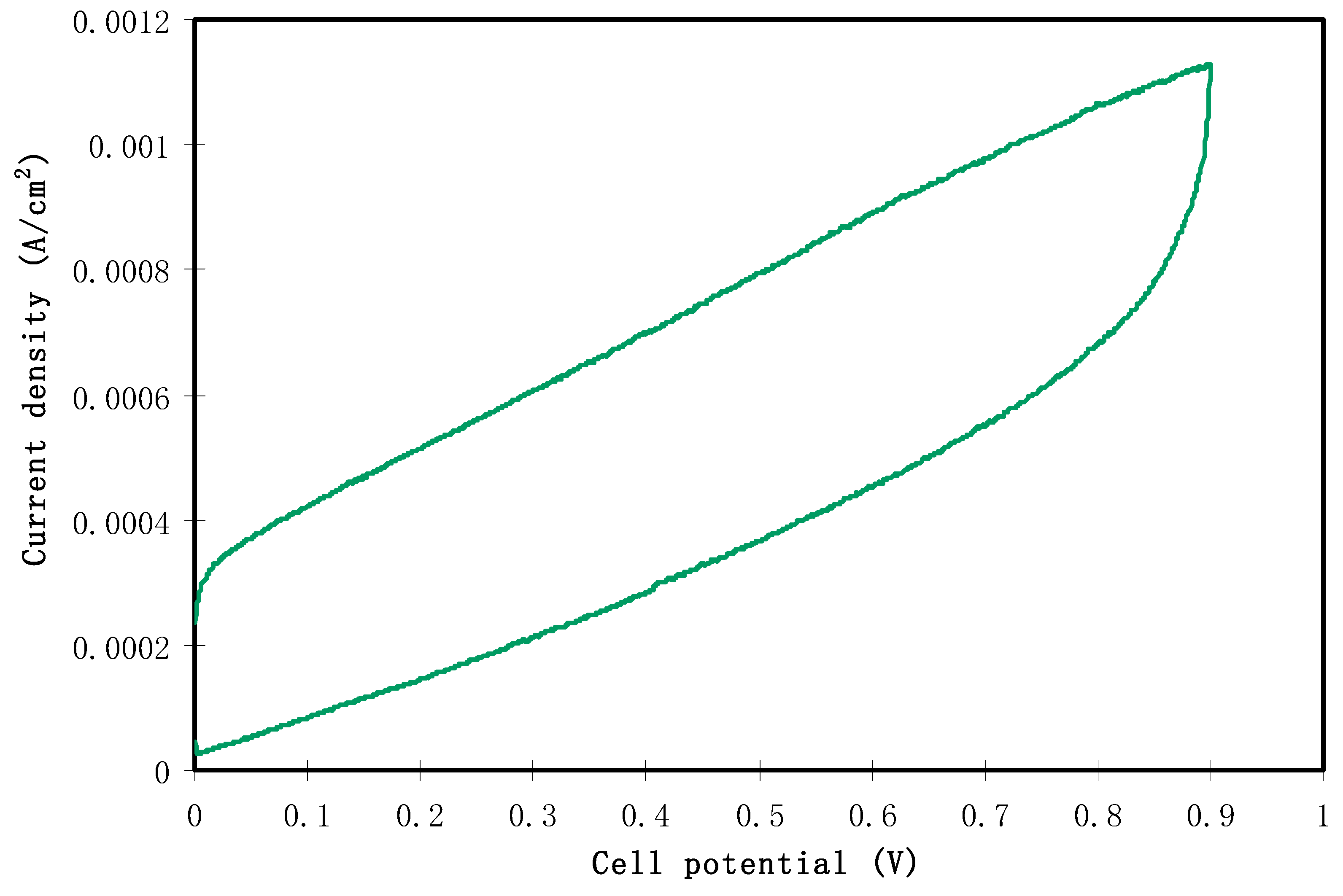

Figure 7. Cyclic voltammetric plot of the constructed EDLC in the potential range from 0 to 0.9 V at 50 mV s−1.
