Review

Chemical and Biocatalytic Routes to Arbutin

1
State Key Laboratory of Biocatalysis and Enzyme Engineering, Hubei Collaborative Innovation Center for Green Transformation of Bio-Resources, Hubei Key Laboratory of Industrial Biotechnology, School of Life Sciences, Hubei University, Wuhan 430062, China
2
Max-Planck-Institut für Kohlenforschung, Kaiser-Wilhelm-Platz 1, 45470 Mülheim, Germany
3
Chemistry Department, Philipps-University, Hans-Meerwein-Str. 4, 35032 Marburg, Germany
*
Authors to whom correspondence should be addressed.
Dedicated to Professor Dieter Schinzer on the occasion of his 65th birthday.
These authors contributed equally to this work.
Molecules 2019, 24(18), 3303; https://doi.org/10.3390/molecules24183303
Submission received: 3 August 2019 / Revised: 4 September 2019 / Accepted: 9 September 2019 / Published: 11 September 2019

Abstract

:
Arbutin (also called β-arbutin) is a natural product occurring in the leaves of a variety of different plants, the bearberries of the Ericaceae and Saxifragaceae families being prominent examples. It is a β-glucoside derived from hydroquinone (HQ; 1,4-dihydroxybenzene). Arbutin has been identified in traditional Chinese folk medicines as having, inter alia, anti-microbial, anti-oxidant, and anti-inflammatory properties that useful in the treatment of different ailments including urinary diseases. Today, it is also used worldwide for the treatment of skin ailments by way of depigmenting, which means that arbutin is a component of many products in the cosmetics and healthcare industries. It is also relevant in the food industry. Hundreds of publications have appeared describing the isolation, structure determination, toxicology, synthesis, and biological properties of arbutin as well as the molecular mechanism of melanogenesis (tyrosinase inhibition). This review covers the most important aspects with special emphasis on the chemical and biocatalytic methods for the production of arbutin.

1. Introduction

The natural product arbutin is the β-d-glucopyranoside of hydroquinone (HQ; 1,4-dihydroxybenzene) (Figure 1A), which occurs in the leaves of a number of medicinal plants, for example, in “bearberries” of the Ericaceae and Saxifragaceae families [1,2,3,4,5,6]. (Figure 1B).
The leaves of these plants have been used traditionally for hundreds/thousands of years as folk medicines by the native inhabitants of China and the American continents (e.g., Cherokee Indians), especially for wound healing and the treatment of urinary tract infections [1,2,3,4,5,6]. Therapeutic applications of arbutin are still relevant today [7,8,9,10,11,12], not just in China, where it is applied inter alia in the treatment of asthma [13]. Due to its (mildly) anti-microbial, anti-oxidant, and anti-inflammatory activity, it is also widely used in the cosmetic and healthcare industries worldwide, and is also of relevance in the food industry [1,2,3,4,5,6,7,8,9,10,11,12]. For example, since arbutin inhibits the melanogenesis process by the inhibition of tyrosinase, it is used as a depigmenting agent on skin, preventing and eliminating the growth of dark spots [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15]. A possible mechanism of tyrosinase-inhibition by arbutin has been proposed on the basis of molecular dynamics (MD) computations, leading to the identification of crucial protein-arbutin interactions (Figure 2), which are different from those exhibited by other inhibitors [11]. Relevant to this issue is another study concerning the discrimination between alternative substrates and inhibitors of tyrosinase [12].
It has also been found that the really active component of arbutin is actually HQ, which is formed in small amounts by (enzymatic) hydrolysis on or in the skin, and that when HQ is used alone, toxic effects may arise [16]. This is probably due to tyrosinase-mediated HQ-oxidation [3,17]. It has been reported that arbutin inhibits tyrosinase-activity without influencing its biosynthesis in human melanocyte cultures [18,19]. Recent studies on biological effects of arbutin have focused on the reassessment of its antioxidant activity [15] and its function as an attenuator of LPS-induced lung injury via the Sirt1/Nrf2/NF-kBp65 pathway [20].
Historically, arbutin was first isolated by A. Kawalier in 1852 [21], and its rough composition was determined in 1858 by A. Strecker, who identified hydrolysis glucose and HQ [22]. C. Mannich was the first to obtain pure arbutin by synthesis and careful purification [23] (see Section 2). Its precise structure was determined during the last half of the 20th century, culminating in the recent complete characterization on the basis of Nuclear Magnetic Resonance-, Infrared- and UV/Vis-spectroscopic measurements as well as circular dichroism (CD) data and x-ray structure determination [24,25]. Arbutin is sometimes called β-arbutin to distinguish it from the diastereomeric form α-arbutin (α-configuration at the anomeric center), which is not a natural product. Syntheses of α-arbutin have been reported, and it has similar, but not identical biological properties [1,2,3,4,5,6,26,27,28]. In this review, the β-arbutin designation is not used, and we refer to compound 1 (Figure 1A) simply as arbutin.
The synthesis of arbutin is not particularly challenging. Retrosynthetic analysis suggests the coupling of two components, HQ and glucose. Any synthesis using man-made reagents and/or catalysts can be expected to require a routine multi-step process where the protection and deprotection of the OH-groups are involved. Enzymatic glycosylation appears to be even easier because protection/deprotection is not necessary. Nevertheless, both chemical and enzymatic arbutin-syntheses continue to be published to the present day, some with novel twists. This review covers the most important developments.

2. Chemical Syntheses of Arbutin

The multi-step arbutin synthesis starting from glucose by C. Mannich in 1912 resulted in a poor overall yield, but for the first-time, care was taken to purify the compound [23]. Glucose was first treated with an excess of acetyl bromide in the absence of a solvent, resulting in the per-acylated form with Br at the anomeric center. This glycosyl bromide was then treated with HQ under basic conditions (NaOH), leading to tetra-acetyl arbutin. Finally, hydrolytic deprotection was achieved by treatment with a barium hydroxide solution (“Barytwasser”), followed by acidification using CO2 [23]. Subsequent reports appeared in which the Koenigs-Knorr reaction was applied, specifically on the basis of the Helferich variant utilizing phenol-type donors, which proved to be more efficient. A more recent study was published in 2004 that featured a multi-step process including the protection and deprotection of HO-groups in glucose [29]. In yet another study, rather than utilizing the glycosyl bromide, the respective acetate was employed, which offers additional advantages (Scheme 1) [30]. The glycosylation reaction was performed with the Lewis acid BF3·OEt2 (55–62% yield) followed by complete deprotection (92%) [30].
A successful variation of this theme, where the hydroxyl group of HQ is not protected, was subsequently reported in 2008 (Scheme 2) [31]. In this case, the same Lewis acid was applied, but instead of refluxing, microwave conditions were chosen.
Organic chemists may wonder why the glycosyl trichloroacetimidates, so successfully developed by R. R. Schmidt for many transformations [32], have not been used in the synthesis of arbutin. The reason is that a 2,3,4,6-tetra-benzyl protected trichloroacetimidate was shown to react with HQ under catalysis by trimethylsilyltriflate (TMSOTf) with the aformation of diastereomeric α-arbutin derivative [26], which is not the protected form of the natural product arbutin (β-arbutin). Several other selected key papers of unnatural α-arbutin are listed here [27,28].

3. Biosyntheses of Arbutin

A number of biosyntheses of arbutin have been published; only a few key papers are considered here. In systematic studies of the biosynthesis of plant glycosides, it was reported as early as 1960 that an enzyme from wheat germ catalyzes the reaction of uridine diphosphate glucose [UDPG,(6)] with HQ (5) to form arbutin (1) and uridine diphosphate [UDP, (7)] (Scheme 3) [2].

3.1. Biocatalytic Syntheses of Arbutin Using 4-Hydroxybenzoic Acid as the Starting Substrate

More recently, upon exploiting the shikimate pathway [33], an enhanced biosynthesis of arbutin was achieved [34]. A plasmid-free biosynthetic pathway was constructed in Pseudomonas chlororaphis P3, which is a mutant strain derived from P. chlororaphis HT66 following multiple rounds of chemical mutagenesis and selection. It has been widely used for phenazine production. The P. chlororaphis P3-Ar5 strain was constructed using the native promoter Pphz by way of chromosomal integration (Figure 3) [34]. Mixed fed-batch fermentation of glucose and 4-hydroxybenzoic acid (4-HBA) as a precursor enabled arbutin production of 6.79 g/L with a productivity of 0.094 g/L/h, which constitutes a 54-fold improvement relative to the starting strain. A different biosynthetic pathway for arbutin production starting from glycerol was also reported [34].
Other approaches especially include the use of sugar-nucleotide-dependent (Leloir-type) glycosyltransferases, which enable a wide range of synthetically important transformations in carbohydrate chemistry, as recently reviewed [35]. Leloir glycosyltransferases utilize activated sugar donors, typically sugar nucleotides, as substrates. In a 2019 review, the metabolic engineering of microorganisms for the production of structurally different aromatic compounds was critically analyzed [33]. This review summarized the latest metabolic engineering strategies and tools applied to the biosynthesis of aromatic chemicals, many derived from shikimate and aromatic amino acids including arbutin. For example, arbutin production was enhanced by engineering the shikimate pathway and optimizing the initial glucose concentrations. In principle, all of these methods can be applied for the production of arbutin.

3.2. Biocatalytic Syntheses of Arbutin Using Benzene as the Starting Substrate

Recently, a conceptionally different biocatalytic synthesis of arbutin was reported [36]. It is unusual because it does not require HQ as a starting material. The motivation for using benzene as the starting substrate has to do with the operational difficulty that chemists face when synthesizing HQ. The current industrial process for producing this compound involves several steps starting from benzene, which includes the formation of a potentially explosive di-alkylperoxide and acetone as a side product, which needs to be separated (Figure 4A). Alternative syntheses involving the transformation of benzene into phenol followed by hydroxylation poses problems due to overoxidation and lack of strict regioselectivity at the para-position [37]. Thus, we set out to devise a biocatalytic ecologically viable (green) route to HQ (Figure 4B), and to develop a cascade sequence stretching from benzene all the way to arbutin in a one-pot process (Figure 4B and Figure 5) [36].
The basic challenge was the transformation of benzene into HQ (Figure 4B), for which we considered the cytochrome P450 monooxygenase from Bacillus megaterium (P450-BM3), an enzyme that mediates the hydroxylation of fatty acids as natural substrates, and that has been engineered many times by rational design or directed evolution [38]. Unfortunately, it does not readily accept “small” compounds such as propane, cyclohexane, or benzene. Based on an earlier directed evolution study of P450-BM3 as a catalyst in the oxidative hydroxylation of small molecules, mutational “hotspots” have been identified [39]. On the basis of this information, we first semi-rationally designed and tested three mutants in the reaction of benzene, namely A82F, A82F/A328F, and V78F/A82F/A328F. In particular, the double and triple mutants proved to be excellent biocatalysts (Table 1). The double mutant A82F/A328F was then tested in upscaled reactions using whole E. coli cells, starting from either benzene or phenol as the substrates, which led to 55–76% isolated yields of pure HQ with essentially no undesired overoxidation [36].
We then focused on the one-pot cascade conversion of benzene to arbutin (Figure 5). In the quest to find an active glucosyltransferase for the selective mono-glycosylation of HQ, we turned to the UDP-glucose dependent glucosyltranserase from Rauvolfia serpentina as the arbutin synthase (AS). It had previously been demonstrated that it showed high activity for HQ and only 5% activity for the glucosylation of phenol [40,41]. This was ideal for our aim, because glucosylation of the intermediate phenol in our cascade sequence would have inhibited arbutin production. Therefore, this glucosyltransferase (AS) was cloned and expressed in E. coli. Upon testing whole cell activity for HQ acceptance, 95% conversion was observed for arbutin formation within 5 h. The designed whole cell system was tested for the entire sequence starting with benzene (5 mM). As anticipated, high yields of arbutin amounting to 80–83% were observed [36].
Finally, the remarkable regioselectivity deserves comment, because the transformation of mono-substituted benzene derivatives is known to be ortho-selective. In order to shed light on the mechanism of the oxidative hydroxylation of phenol, quantum mechanics/molecular mechanics (QM/MM) simulations were performed, suggesting that the C3–C4 double bond rather than the C2–C3 double bond of phenol becomes selectively epoxidized, and then the intermediate characterized by a C3–C4 epoxy function leaves the binding pocket and undergoes the expected rapid non-catalyzed H2O-assisted fragmentation [36].

3.3. Biocatalytic Syntheses of Arbutin Derivatives and α-Arbutin

Arbutin precursors in which some or all of the hydroxyl groups are protected can be considered to be arbutin derivatives with different biological properties. A different and useful concept involves the enzymatic regioselective acylation of arbutin itself. A prominent example is the acylation of arbutin, catalyzed by the lipase from Candida antarctica B (CALB) in organic solvents, with regioselective formation of feruloyl arbutin and lipoyl arbutin without the necessity to employ vinyl ferulate or vinyl lipoate, respectively [42]. Additionally, biocatalytically and chemically controlled polymerizations of arbutin have been reported a number of times, the novel properties of these polymers being of special interest, as in the case of a Cu-mediated process [43]. Finally, natural arbutin analogs also deserve attention because they open many new doors for a variety of different applications [44].
It is interesting to compare the biocatalytic steps to arbutin with biosynthetic routes to the unnatural diastereomeric α-arbutin [1,2,3,4,5,6,26,27,28]. For example, the amylosucrase encoding gene from Deinococcus geothermalis DSM 11300 was engineered and expressed in E. coli, leading to an efficient platform for constructing the biosynthesis of catechol glucosides, resorcinol glucosides, and hydroquinone glucosides (α-arbutin) from 1,2-, 1,3-, and 1,4-dihydroxybenzene (HQ), respectively [45]. The example relevant to α-arbutin production utilizes sucrose as the glucose donor source and HQ, which enables a molar yield of the product amounting to 325.6 mM (88.6 g/L).

4. Conclusions

The natural product arbutin, a glucoside derived from hydroquinone (HQ, 1,4-dihydroxybenzene) occurring in the leaves of certain plants, has a long history dating back to a report by A. Kawalier in 1852 [21]. Following a short historical account, this review covered the recent essential developments concerning its structure, biological properties, and in particular, the synthesis of arbutin, which can be performed by modern chemical methods or by biocatalytic processes. Until recently, all of them have been based on the use of hydroquinone (HQ, 1,4-dihydroxybenzene). Modern chemical syntheses utilize the Koenigs-Knorr glycosylation method, but require multi-steps due to the necessity of protecting and deprotecting the respective hydroxyl moieties. In contrast, the advantage of biosynthetic approaches concerns the fact that such protection/deprotection steps are not necessary. Nevertheless, they require the use HQ, which in turn is still being produced industrially by a multi-step process that is no longer considered to be a green technique.
The most recent one-pot biocatalytic production of arbutin circumvents the use of HQ because it starts with benzene as the feedstock. In this unusual approach, benzene is first chemo- and regioselectively dihydroxylated in a process that is catalyzed by a mutant of cytochrome P450-BM3 accessible by directed evolution. The in situ formation of HQ is followed by the required glucosylation, catalyzed by an appropriate glucosyltransferase. The one-pot whole cell cascade reaction sequence in E. coli starting from benzene leads to an 80–83% yield of arbutin. It is important to note that the selective whole cell dihydroxylation of benzene can be stopped at the stage of HQ. This means that the stage is set for using these designer cells in the biocatalytic production of other higher-value products based on benzene, also in one-pot cascade sequences.

Author Contributions

Conceptualization, M.T.R. and A.L.; Investigation, A.L.; Visualization, H.Z.; Writing—original draft preparation, M.T.R.; Writing—review and editing, A.L., H.Z., and J.Z.

Funding

This research was funded by the Max-Planck-Society and State Key Laboratory of Biocatalysis and Enzyme Engineering.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lindpaintner, E. Arbutin und Methylarbutin und ihre Bestimmung in Drogen. Arch. Pharm. 1939, 277, 398–415. [Google Scholar] [CrossRef]
  2. Yamaha, T.; Cardini, C.E. The biosynthesis of plant glycosides. I. Monoglucosides. Arch. Biochem. Biophys. 1960, 86, 127–132. [Google Scholar] [CrossRef]
  3. Garrett, J.T. The Cherokee Herbal: Native Plant Medicine from the Four Directions; Bear & Company: Rochester, VT, USA, 2003. [Google Scholar]
  4. Garcia-Jimenez, A.; Teruel-Puche, J.A.; Berna, J.; Rodriguez-Lopez, J.N.; Tudela, J.; Garcia-Canovas, F. Action of tyrosinase on alpha and beta-arbutin: A kinetic study. PLoS ONE 2017, 12, e0177330. [Google Scholar] [CrossRef]
  5. Carmen, P.; Vlase, L.; Tamas, M. Natural resources containing arbutin. Determination of arbutin in the leaves of Bergenia crassifolia (L.) Fritsch. acclimated in Romania. Not. Bot. Horti Agrobot. Cluj-Napoca. 2009, 37, 129–132. [Google Scholar]
  6. Xu, W.; Liang, Q.; Zhang, Y.; Zhao, P. Naturally occurring arbutin derivatives and their bioactivities. Chem. Biodivers. 2015, 12, 54–81. [Google Scholar] [CrossRef]
  7. Migas, P.; Krauze-Baranowska, M. The significance of arbutin and its derivatives in therapy and cosmetics. Phytochem. Lett. 2015, 13, 35–40. [Google Scholar] [CrossRef]
  8. Maeda, K.; Fukuda, M. Arbutin: Mechanism of its depigmenting action in human melanocyte culture. J. Pharmacol. Exp. Ther. 1996, 276, 765–769. [Google Scholar]
  9. Spanos, G.A.; Wrolstad, R.E. Phenolics of apple, pear, and white grape juices and their changes with processing and storage. A review. J. Agric. Food Chem. 1992, 40, 1478–1487. [Google Scholar] [CrossRef]
  10. Hori, I.; Nihei, K.I.; Kubo, I. Structural criteria for depigmenting mechanism of arbutin. Phytother. Res. 2004, 18, 475–479. [Google Scholar] [CrossRef]
  11. Tang, H.-C.; Chen, Y.-C. Identification of tyrosinase inhibitors from traditional Chinese medicines for the management of hyperpigmentation. Springerplus. 2015, 4, 184. [Google Scholar] [CrossRef]
  12. Ortiz-Ruiz, C.V.; Garcia-Molina, M.d.M.; Serrano, J.T.; Tomas-Martinez, V.; Garcia-Canovas, F. Discrimination between alternative substrates and inhibitors of tyrosinase. J. Agric. Food Chem. 2015, 63, 2162–2171. [Google Scholar] [CrossRef]
  13. Wang, Y.F.; Zhou, Y.H.; Zhang, J.J. Pharmacodynamics of arbutin on relieving cough, dispelling phlegm and preventing asthma. Chin. Tradit. Herbal Drugs 2003, 34, 739–741. [Google Scholar]
  14. Masum, M.N.; Choodej, S.; Yamauchi, K.; Mitsunaga, T. Isolation of phenylpropanoid sucrose esters from the roots of Persicaria orientalis and their potential as inhibitors of melanogenesis. Med. Chem. Res. 2019, 28, 623–632. [Google Scholar] [CrossRef]
  15. Takebayashi, J.; Ishii, R.; Chen, J.; Matsumoto, T.; Ishimi, Y.; Tai, A. Reassessment of antioxidant activity of arbutin: Multifaceted evaluation using five antioxidant assay systems. Free Radical Res. 2010, 44, 473–478. [Google Scholar] [CrossRef]
  16. De Arriba, S.G.; Naser, B.; Nolte, K.-U. Risk assessment of free hydroquinone derived from arctostaphylos Uva-ursi folium. Int. J. Toxicol. 2013, 32, 442–453. [Google Scholar]
  17. Blaut, M.; Braune, A.; Wunderlich, S.; Sauer, P.; Schneider, H.; Glatt, H. Mutagenicity of arbutin in mammalian cells after activation by human intestinal bacteria. Food Chem. Toxicol. 2006, 44, 1940–1947. [Google Scholar] [CrossRef]
  18. Chakraborty, A.K.; Funasaka, Y.; Komoto, M.; Ichihashi, M. Effect of arbutin on melanogenic proteins in human melanocytes. Pigm. Cell Res. 1998, 11, 206–212. [Google Scholar] [CrossRef]
  19. Briganti, S.; Camera, E.; Picardo, M. Chemical and instrumental approaches to treat hyperpigmentation. Pigm. Cell Res. 2003, 16, 101–110. [Google Scholar] [CrossRef]
  20. Ye, J.; Guan, M.; Lu, Y.; Zhang, D.; Li, C.; Zhou, C. Arbutin attenuates LPS-induced lung injury via Sirt1/Nrf2/NF-κBp65 pathway. Pulm. Pharmacol. Ther. 2019, 54, 53–59. [Google Scholar] [CrossRef]
  21. Kawalier, A. Ueber die Blätter von Arctostaphylos uva ursi. Liebigs Ann. Chem. 1852, 82, 241–243. [Google Scholar] [CrossRef]
  22. Strecker, A. Über das Arbutin und seine Verwandlungen. Liebigs Ann. Chem. 1858, 107, 228–234. [Google Scholar] [CrossRef]
  23. Mannich, C. Ueber Arbutin und seine Synthese. Liebigs Ann. Chem. 1912, 250, 547–560. [Google Scholar] [CrossRef] [Green Version]
  24. Nycz, J.E.; Malecki, G.; Morag, M.; Nowak, G.; Ponikiewski, L.; Kusz, J.; Switlicka, A. Arbutin: Isolation, X-ray structure and computational studies. J. Mol. Struct. 2010, 980, 13–17. [Google Scholar] [CrossRef]
  25. Dietrich, C.; Munzert, V.; Zeller, K.-P.; Siehl, H.-U.; Berger, S.; Sicker, D. Abwarten und Bärentraubenblätter-Tee trinken—mit Arbutin. Chem. unserer Zeit. 2018, 52, 100–110. [Google Scholar] [CrossRef]
  26. Wang, Z.-X.; Shi, X.-X.; Chen, G.-R.; Ren, Z.-H.; Luo, L.; Yan, J. A new synthesis of α-arbutin via Lewis acid catalyzed selective glycosylation of tetra-O-benzyl-α-d-glucopyranosyl trichloroacetimidate with hydroquinone. Carbohydr. Res. 2006, 341, 1945–1947. [Google Scholar] [CrossRef]
  27. Zhu, L.; Jiang, D.; Zhou, Y.; Lu, Y.; Fan, Y.; Chen, X. Batch-feeding whole-cell catalytic synthesis of α-arbutin by amylosucrase from Xanthomonas campestris. J. Ind. Microbiol. Biotechnol. 2019, 46, 759–767. [Google Scholar] [CrossRef]
  28. Yu, S.; Wang, Y.; Tian, Y.; Xu, W.; Bai, Y.; Zhang, T.; Mu, W. Highly efficient biosynthesis of α-arbutin from hydroquinone by an amylosucrase from Cellulomonas carboniz. Process Biochem. 2018, 68, 93–99. [Google Scholar] [CrossRef]
  29. Huang, S.L.; Zhu, Y.L.; Pan, Y.J.; Wu, S.H. Synthesis of arbutin by two-step reaction from glucose. J. Zhejiang Univ. Sci. 2004, 5, 1509–1511. [Google Scholar] [CrossRef]
  30. Cepanec, I.; Litvić, M. Simple and efficient synthesis of arbutin. ARKIVOC 2008, 2, 19–24. [Google Scholar]
  31. Xue, J.-L.; Yang, J.-W.; Deng, Q.; He, X.-P.; Chen, G.-R. A shortcut to the preparation of naturally occurring arbutin. Bull. Korean Chem. Soc. 2010, 31, 1825–1826. [Google Scholar] [CrossRef]
  32. Schmidt, R.R. New methods for the synthesis of glycosides and oligosaccharides—are there alternatives to the Koenigs-Knorr method? Angew. Chem. Int. Ed. Engl. 1986, 25, 212–235. [Google Scholar] [CrossRef]
  33. Huccetogullari, D.; Luo, Z.W.; Lee, S.Y. Metabolic engineering of microorganisms for production of aromatic compounds. Microb. Cell Fact. 2019, 18, 41. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, S.; Fu, C.; Bilal, M.; Hu, H.; Wang, W.; Zhang, X. Enhanced biosynthesis of arbutin by engineering shikimate pathway in Pseudomonas chlororaphis P3. Microb. Cell Fact. 2018, 17, 174. [Google Scholar] [CrossRef] [PubMed]
  35. Nidetzky, B.; Gutmann, A.; Zhong, C. Leloir glycosyltransferases as biocatalysts for chemical production. ACS Catal. 2018, 8, 6283–6300. [Google Scholar] [CrossRef]
  36. Zhou, H.; Wang, B.; Wang, F.; Yu, X.; Ma, L.; Li, A.; Reetz, M.T. Chemo- and regioselective dihydroxylation of benzene to hydroquinone enabled by engineered cytochrome P450 monooxygenase. Angew. Chem. Int. Ed. 2019, 58, 764–768. [Google Scholar] [CrossRef]
  37. Wang, X.; Wang, F.; Bo, C.; Cheng, K.; Wang, J.; Zhang, J.; Song, H. Promotion of phenol photodecomposition and the corresponding decomposition mechanism over g-C3N4/TiO2 nanocomposites. Appl. Surf. Sci. 2018, 453, 320–329. [Google Scholar] [CrossRef]
  38. Whitehouse, C.J.; Bell, S.G.; Wong, L.-L. P450 BM3 (CYP102A1): Connecting the dots. Chem. Soc. Rev. 2012, 41, 1218–1260. [Google Scholar] [CrossRef]
  39. Li, A.; Ilie, A.; Sun, Z.; Lonsdale, R.; Xu, J.H.; Reetz, M.T. Whole-cell-catalyzed multiple regio- and stereoselective functionalizations in cascade reactions enabled by directed evolution. Angew. Chem. Int. Ed. 2016, 55, 12026–12029. [Google Scholar] [CrossRef]
  40. Arend, J.; Warzecha, H.; Hefner, T.; Stöckigt, J. Utilizing genetically engineered bacteria to produce plant-specific glucosides. Biotechnol. Bioeng. 2001, 76, 126–131. [Google Scholar] [CrossRef]
  41. Shen, X.; Wang, J.; Wang, J.; Chen, Z.; Yuan, Q.; Yan, Y. High-level de novo biosynthesis of arbutin in engineered Escherichia coli. Metab. Eng. 2017, 42, 52–58. [Google Scholar] [CrossRef]
  42. Ishihara, K.; Katsube, Y.; Kumazawa, N.; Kuratani, M.; Masuoka, N.; Nakajima, N. Enzymatic preparation of arbutin derivatives: Lipase-catalyzed direct acylation without the need of vinyl ester as an acyl donor. J. Biosci. Bioeng. 2010, 109, 554–556. [Google Scholar] [CrossRef] [PubMed]
  43. Hashimoto, M.; Iwabuchi, S.; Oishi, Y.; Shibasaki, Y. Water-soluble polyphenol synthesis via oxidative coupling polymerisation of β-arbutin with copper catalyst in alkaline media. Eur. Polym. J. 2016, 81, 152–160. [Google Scholar] [CrossRef]
  44. Matsumoto, T.; Nakajima, T.; Iwadate, T.; Nihei, K.-i. Chemical synthesis and tyrosinase-inhibitory activity of isotachioside and its related glycosides. Carbohydr. Res. 2018, 465, 22–28. [Google Scholar] [CrossRef] [PubMed]
  45. Lee, H.S.; Kim, T.-S.; Parajuli, P.; Pandey, R.P.; Sohng, J.K. Sustainable production of dihydroxybenzene glucosides using immobilized amylosucrase from Deinococcus geothermalis. J. Microbiol. Biotechnol. 2018, 28, 1447–1456. [Google Scholar] [PubMed]

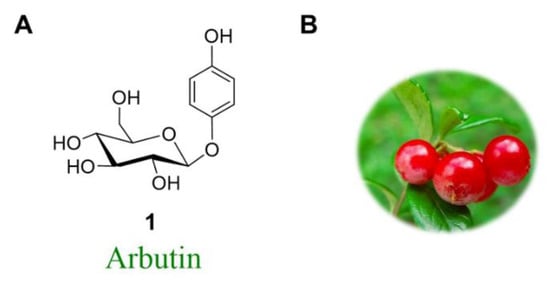

Figure 1. (A) Structural formula of arbutin (1); (B) Isolated from the bearberry plant in the genus.
Figure 1. (A) Structural formula of arbutin (1); (B) Isolated from the bearberry plant in the genus.
Molecules 24 03303 g001
Figure 2. Molecular interactions of arbutin with tyrosinase based on Molecular Dynamics computations [11]. Reprinted with permission from ref. [11]. Copyright 2015 Springer.
Figure 2. Molecular interactions of arbutin with tyrosinase based on Molecular Dynamics computations [11]. Reprinted with permission from ref. [11]. Copyright 2015 Springer.
Molecules 24 03303 g002

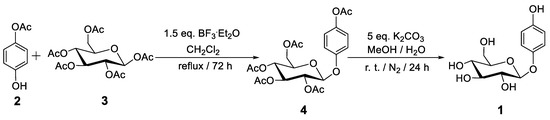

Scheme 1. An efficient chemical synthesis of arbutin (1) [30].
Scheme 1. An efficient chemical synthesis of arbutin (1) [30].
Molecules 24 03303 sch001

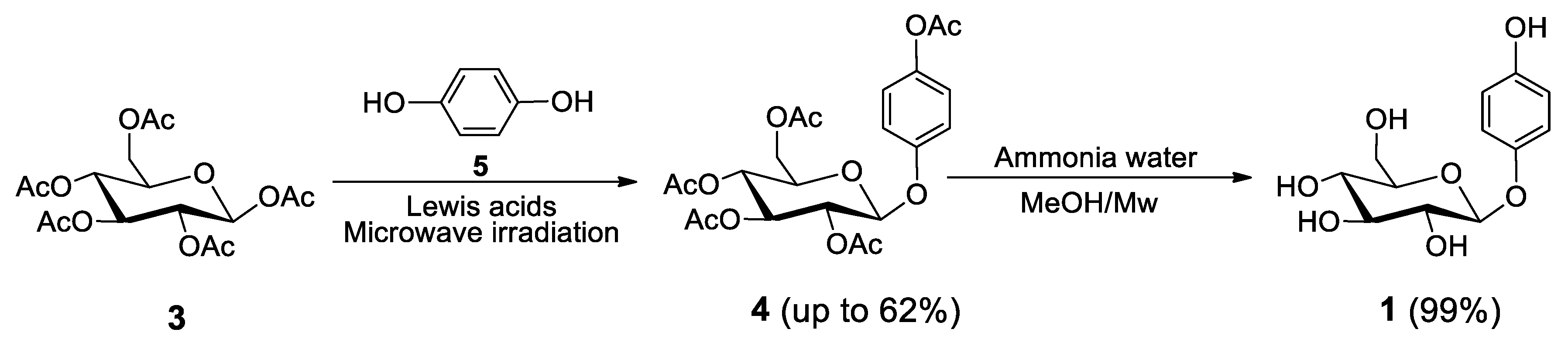

Scheme 2. Alternative synthesis of arbutin (1), likewise starting with compound 3 as the glyco-donor [31].
Scheme 2. Alternative synthesis of arbutin (1), likewise starting with compound 3 as the glyco-donor [31].
Molecules 24 03303 sch002

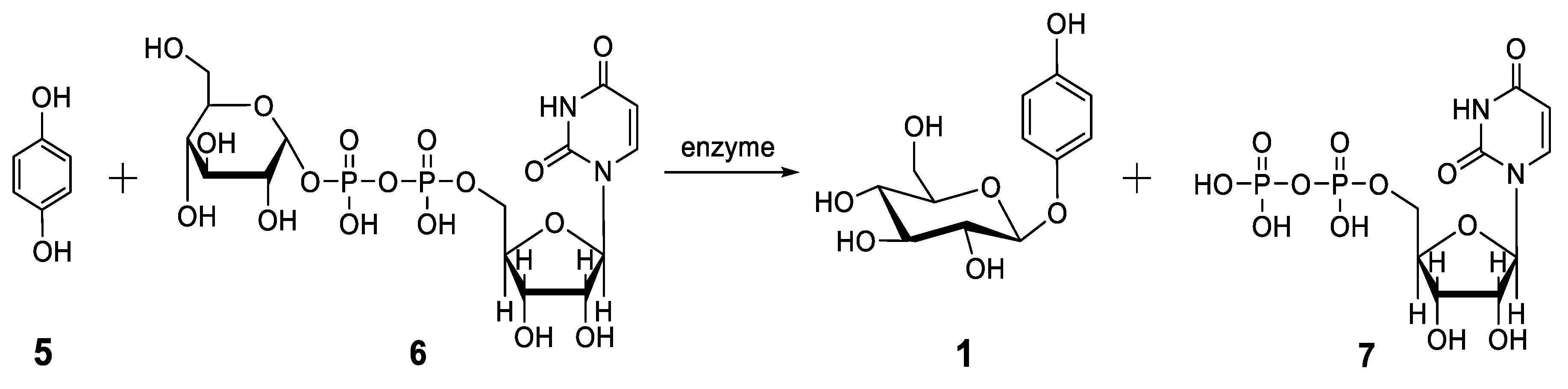

Scheme 3. Biosynthesis of arbutin (1) by reaction of uridine diphosphate glucose (6) with HQ (5) catalyzed by an enzyme from wheat germ [2].
Scheme 3. Biosynthesis of arbutin (1) by reaction of uridine diphosphate glucose (6) with HQ (5) catalyzed by an enzyme from wheat germ [2].
Molecules 24 03303 sch003
Figure 3. A schematic representation of modular engineering approaches for arbutin biosynthesis in P.chlororaphis P3.G6P, glucose 6-phosphate; PEP, phosphoenolpyruvate; DAHP, 3-deoxy-d-arabino-heptulosonate-7-phosphate; 4-HBA, 4-hydroxybenzoate acid; HQ (5), hydroquninone; XanB2, chorismate-pyruvate lyase; MNX1, 4-hydroxybenzoate 1-hydroxylase; AS, glucosyltransferase [34].
Figure 3. A schematic representation of modular engineering approaches for arbutin biosynthesis in P.chlororaphis P3.G6P, glucose 6-phosphate; PEP, phosphoenolpyruvate; DAHP, 3-deoxy-d-arabino-heptulosonate-7-phosphate; 4-HBA, 4-hydroxybenzoate acid; HQ (5), hydroquninone; XanB2, chorismate-pyruvate lyase; MNX1, 4-hydroxybenzoate 1-hydroxylase; AS, glucosyltransferase [34].
Molecules 24 03303 g003

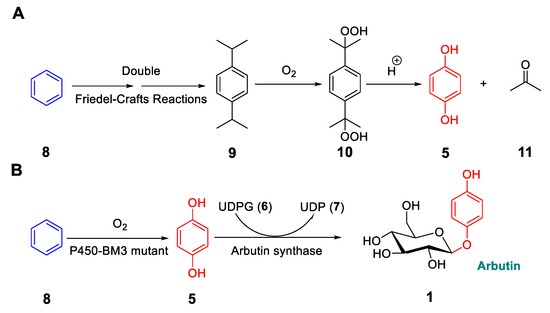

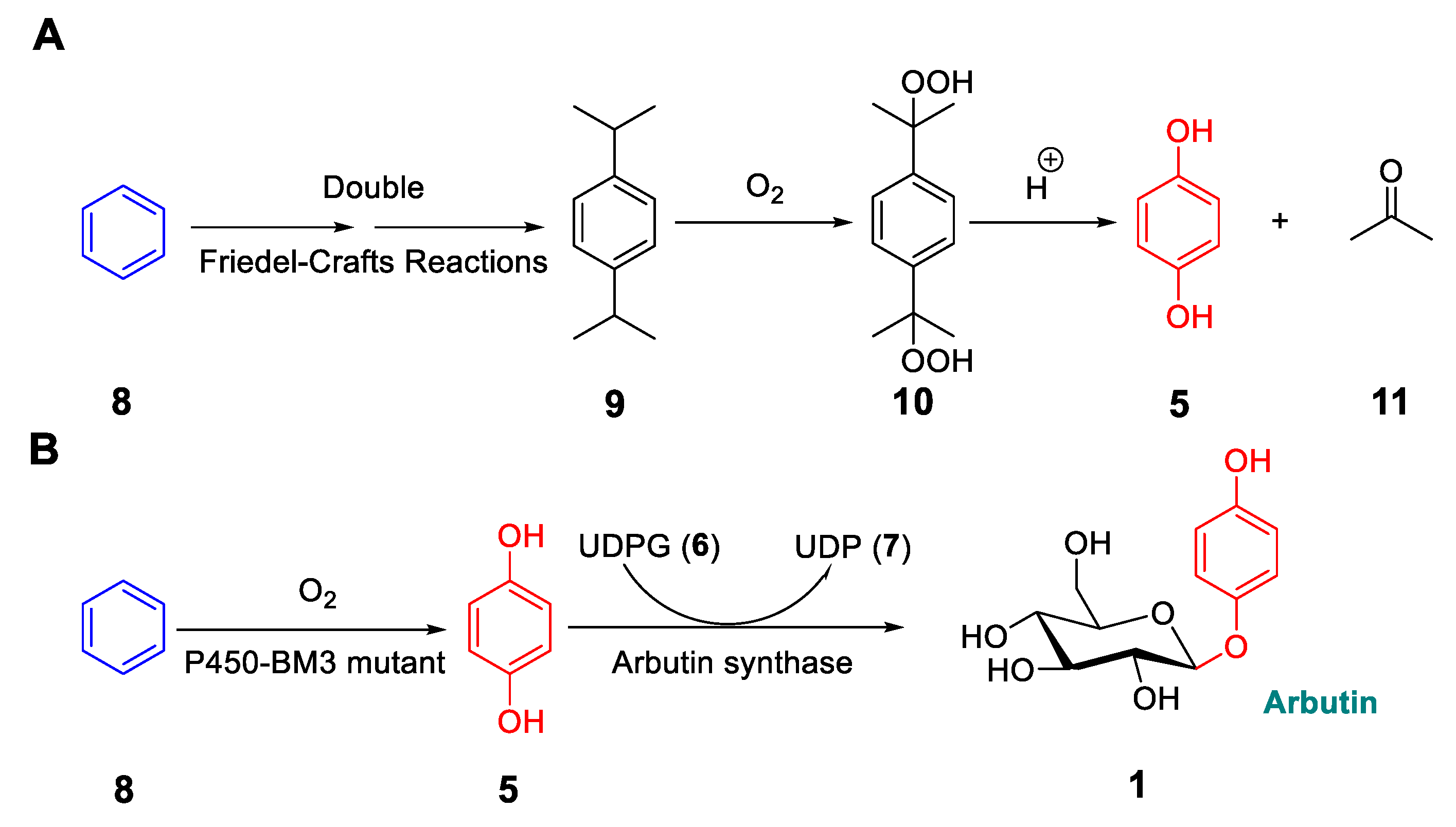

Figure 4. Synthesis of hydroquinone (HQ) from benzene by the conventional chemical route (A), and biocatalytic synthesis of arbutin from benzene in a one-pot cascade using designed E. coli cells (B). Figure adapted with permission from [36]. Copyright 2018 Wiley-VCH.
Figure 4. Synthesis of hydroquinone (HQ) from benzene by the conventional chemical route (A), and biocatalytic synthesis of arbutin from benzene in a one-pot cascade using designed E. coli cells (B). Figure adapted with permission from [36]. Copyright 2018 Wiley-VCH.
Molecules 24 03303 g004
Figure 5. Biosynthesis of arbutin versus construction of the designed E. coli whole cell catalyst for the one-pot production of arbutin (1) starting from benzene (8) [36]. Green arrows: Natural endogeneous metabolic pathway; blue arrows: artificial pathway. P450 mutant: Engineered mutants of P450-BM3 A82F/A328F; GCK: Glucokinase; PGM1: Phosphoglucomutase; UGP1: UDP-glucose pyrophosphorylase; AS: Arbutin synthase. Figure adapted with permission from [36]. Copyright 2018 Wiley-VCH.
Figure 5. Biosynthesis of arbutin versus construction of the designed E. coli whole cell catalyst for the one-pot production of arbutin (1) starting from benzene (8) [36]. Green arrows: Natural endogeneous metabolic pathway; blue arrows: artificial pathway. P450 mutant: Engineered mutants of P450-BM3 A82F/A328F; GCK: Glucokinase; PGM1: Phosphoglucomutase; UGP1: UDP-glucose pyrophosphorylase; AS: Arbutin synthase. Figure adapted with permission from [36]. Copyright 2018 Wiley-VCH.
Molecules 24 03303 g005
Table 1. Chemo- and regioselective dihydroxylation of benzene with almost exclusive formation of HQ using the respective P450-BM3-containing E. coli resting cells.
Table 1. Chemo- and regioselective dihydroxylation of benzene with almost exclusive formation of HQ using the respective P450-BM3-containing E. coli resting cells.
CatalystsConv. [%] [a]Product Distribution [%] [b]
HQ (5)Phenol (12)Catechol
WT- [c]- [c]- [c]- [c]
A82F8786104
A82F/A328F979361
V78F/A82F/A328F929343
[a] Conditions: 10 mM substrate, 30 °C, 200 rpm, 5 h. Conversion was determined by HPLC-analysis and is based on the amount of converted substrate. For detailed conditions, see the Supporting Information. [b] Relative amounts based on the concentrations of products formed as analyzed by HPLC-analysis. [c] Not determined due to low activity. Mean values are given, standard deviation for conversion is ± 5%, and for product distribution ± 1%. Reprinted with permission from [36]. Copyright 2018 Wiley-VCH.
