Determination of Flavonoid Glycosides by UPLC-MS to Authenticate Commercial Lemonade

School of Pharmacy, Chengdu Medical College, Chengdu 610500, China
Chengdu Institute of Biology, Chinese Academy of Sciences, Chengdu 610041, China
Sichuan Provincial Center for Disease Control and Prevention, Chengdu 610041, China
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Molecules 2019, 24(16), 3016;
Submission received: 31 July 2019 / Revised: 16 August 2019 / Accepted: 16 August 2019 / Published: 20 August 2019


So far, there is no report on the quality evaluation of lemonade available in the market. In this study, a sample preparation method was developed for the determination of flavonoid glycosides by ultra-performance liquid chromatography–mass spectrometry (UPLC-MS) based on vortex-assisted dispersive liquid-liquid microextraction. First, potential flavonoids in lemonade were scanned and identified by ultra-performance liquid chromatography–time of flight mass spectrometry (UPLC-TOF/MS). Five flavonoid glycosides were identified as eriocitrin, narirutin, hesperidin, rutin, and diosmin according to the molecular formula provided by TOF/MS and subsequent confirmation of the authentic standard. Then, an ultra-performance liquid chromatography–triple quadrupole mass spectrometry (UPLC-QqQ/MS) method was developed to determine these five flavonoid glycosides in lemonade. The results showed that the content of rutin in some lemonade was unreasonably high. We suspected that many illegal manufacturers achieved the goal of low-cost counterfeiting lemonade by adding rutin. This suggested that it was necessary for relevant departments of the state to make stricter regulations on the quality standards of lemonade beverages.

1. Introduction

Lemon (Citrus limon L.) is considered the third most important citrus species in the world [1], with a large spectrum of biological activities that include antioxidant, antimicrobial, antiviral, antifungal, and antidiabetic activities [2,3], generating a large variety of healthy foods. Flavonoids are widely contained in lemon, conferring the typical taste and biological activities to lemon. According to the aglycone structures, flavonoids are divided into four classes: flavanones, flavones, flavonols, and flavans. Flavanones are the most abundant flavonoids, which are usually present in the 7-O-diglycoside form. Lemon flavanones are present in glycoside or aglycone forms. Among the phytochemicals, hesperetin and eriodictyol are the most abundant types of aglycones and rutinoside is the most abundant types of glycoside forms [4,5]. It has been reported that hesperidin and eriocitrin were the most abundant flavonoids in all the lemon juices studied and far exceed others [6,7,8].
Due to the high cost of fruit, counterfeiting of fruit juice has become a common problem in the industry. The three most common forms of counterfeiting are: (1) When a kind of cheaper fruit is used to replace all or part of it, (2) when a monomeric compound contained in the fruit with another cheaper source is added, and (3) when it is completely made up of additives such as artificial sweeteners, preservatives, and colors [9]. As the products produced with the first two counterfeiting methods contain some natural characteristic ingredients, they can generally meet the national testing standards [10]. However, such kinds of counterfeit juice not only seriously affect consumer confidence in the juice market, but may also cause a series of food safety problems. In addition to pure lemon juice, lemonade containing lemon ingredients occupies an increasing market share in the beverage market. Thus, it is of great scientific significance and commercial value to identify the authenticity of lemonade available in the market.
Some methods for analyzing lemon juice have been reported, such as nuclear magnetic resonance [11], 13C/12C isotope ratios [12], capillary electrochromatography (CEC) [13], and HPLC [6,7,14]. Among them, HPLC was considered as the most reliable method for determining flavonoids with high selectivity and sensitivity. Lemonade beverages currently available in the market contain a large number of additives besides a small amount of lemon juice. Therefore, a new sample preparation method is required to selectively separate and enrich low-content flavonoids from lemonade, so as to identify the authenticity of lemonade.
At present, sample preparation methods of flavonoids can be divided into liquid-liquid extraction (LLE) and solid phase extraction (SPE) [15,16,17]. However, they have some inherent disadvantages. For example, LLE needs a substantial amount of toxic solvents and is time-consuming. SPE materials are expensive and have poor reusability [18]. The dispersive liquid-liquid microextraction (DLLME) method developed in recent years can make up for these disadvantages [19,20,21]. DLLME can not only separate and enrich target analyte from aqueous solution, but also reduce or even eliminate the matrix interference of samples. Therefore, DLLME is considered to be an effective pretreatment method for food samples with the advantages of less solvent consumption, simple operation, high enrichment factor, etc. In order to improve the work efficiency by speeding up the mass transfer process and reducing the balance time, some assistant emulsification methods were also applied to improve the performance of DLLME, such as ultrasound-assisted [22], vortex-assisted [23], air-assisted [24], and microwave-assisted [25] DLLME. Currently, there are some studies on sample preparation of flavonoids by DLLME. However, as far as we know, there is no research on flavonoids in lemonade.
In this work, the sample preparation of flavonoids in lemonade was firstly performed by the vortex-assisted dispersive liquid-liquid microextraction (VA-DLLME) method. Then, the structure and content of flavonoids in lemonade available on the market from eight different manufacturers were identified and determined by ultra-performance liquid chromatography–time of flight mass spectrometry (UPLC-TOF/MS) and ultra-performance liquid chromatography–triple quadrupole mass spectrometry (UPLC-QqQ/MS), respectively. Finally, the counterfeiting phenomenon of lemonade was evaluated according to the determination results of flavonoids. As far as we know, this study was the first determination of flavonoid glycosides by UPLC-MS to authenticate commercial lemonade available in the market.

2. Results and Discussion

2.1. Identification of Flavonoid Glycosides by UPLC-TOF/MS

The time of flight mass spectrometer (TOF MS) was used to scan and identify potential flavonoids in lemonade for the first time in this work. As one of the most common high-resolution MS, TOF MS can determine the exact molecular formula of the target compound, thus identifying the structure in a complex matrix. After the target compound was located and identified, the triple quadrupole mass spectrometer (QqQ MS) was an excellent choice for subsequent quantitative analysis [26].
In this study, according to the calculation based on the molecular formula by TOF and the subsequent confirmation of the authentic standard under the same chromatographic conditions, 5 flavonoid glycosides in lemonade available in the market were located and identified (Figure 1), which were eriocitrin, narirutin, hesperidin, rutin, and diosmin, respectively. As shown in Table 1, the error of each compound in high-resolution MS is within ±5 ppm, which is the acceptable error limit for structure confirmation [27].

2.2. The Selection of VA-DLLME Conditions

Since the extraction conditions have a crucial influence on the performance of VA-DLLME, single-factor experiments were carried out to select the extraction conditions of the amount of ethyl acetate and acetonitrile. In the present study, recoveries of 5 flavonoid glycosides were assessed by means of fixing one variable and changing the other two variables. The results are shown in Figure 2. Due to structural differences, the recoveries of the 5 flavonoid glycosides were different, but the overall trend was relatively consistent. Based on the investigation of single-factor experiments, the VA-DLLME condition was set as 1 mL of lemonade, 500 µL acetonitrile, and 1.5 mL ethyl acetate.

2.3. Determination of Flavonoid Glycosides by UPLC–QqQ/MS

All 5 flavonoid glycosides are acidic compounds. Therefore, acid mobile phase could increase the separating degree, symmetry factor, and the number of theoretical plates. Considering the ion suppression induced by a high concentration of acid, 0.2% formic acid was finally added into the mobile phase [28]. In order to optimize the MS condition of 5 flavonoid glycosides in the present study, all of these target analytes were tested in direct infusion mode using the full-scan MS method, respectively. It was found that the negative mode was more sensitive and selective than the positive mode. By optimizing mass spectrum variables, including the vaporizer temperature, sheath gas pressure, aux gas pressure, the parent/product ion pairs, collision energy, and S-Lens value, two stable product ions with high sensitivity were selected for MRM analysis (Table 1). The representative mass spectra of lemonade samples are shown in Figure 3.

2.4. Speculation on the Possible Counterfeiting Means of Lemonade

A total of 8 batches of lemonade samples purchased from local supermarkets was determined by the proposed UPLC-QqQ/MS method. The contents of 5 flavonoid glycosides are shown in Table 2. The content of total flavonoid glycosides in lemonade varies greatly. On the surface, it seems that the higher the content of total flavones, the higher the amount of lemon juice added in lemonade, which means the better the quality of the product. However, after further analysis of the content of monomeric compounds, it was found that the main ingredients in S1–S4 were flavanone glycosides (mainly hesperidin and eriocitrin) and the content of flavonol glycosides (mainly rutin) was relatively low. This result is consistent with the distribution characteristics of flavonoid glycosides in Citrus L. With regard to S5–S8, the content of rutin is extremely high and hesperidin as a characteristic ingredient of Citrus L. is not detected (nd). Hesperidin was the predominant flavonoid glycoside in lemon reported by the previous study. For example, Mannan et al. reported values of 67 ± 15 mg/L for hesperidin in 38 natural lemon juices, showing that the absence of this compound in lemonade shows it to be a possible counterfeit [29]. Under normal circumstances, the content of rutin in lemon should not exceed the content of hesperidin. Xi reported the contents of hesperidin and rutin in juice varied from 105.5 to 210.3 µg/g and nd to 3.82 µg/g, respectively [30]. Due to the abnormal phenomenon in our work, we have reason to suspect that S5–S8 were counterfeited as there was no or only a small trace of lemon juice and had instead a large amount of rutin added to meet the national testing standards (colorimetric assay by UV-Vis) of fruit juice products. Rutin is widely distributed in the plant kingdom. It was reported that its content in Sophora japonica L. was up to 37.8% [31]. Therefore, only with a simple separation process the commercialized low-cost supply of rutin can be realized [32]. For example, the price of rutin reagent supplied by Aladdin is ¥368/100 g and if it is a crude extract of food-grade, the price will be even lower. According to the testing method of total flavonoids in fruit juice beverage specified by national standard, rutin also has an obvious response in the colorimetric assay by UV-Vis at a wavelength of 420 nm. Therefore, illegal businessmen achieved the goal of low-cost counterfeiting lemonade by adding rutin.

3. Material and Methods

3.1. Chemicals and Reagents

A total of eight lemonade samples were purchased from local supermarkets. A total of five authentic standards of eriocitrin, narirutin, hesperidin, rutin, and diosmin were obtained from Chengdu Push Bio-technology Co., Ltd. (Chengdu, China). The Milli-Q water purification system was used to prepare ultra-pure water for UPLC analysis (Millipore, Bedford, MA, USA). Formic acid and acetonitrile of LC/MS grade for UPLC-MS analysis were purchased from Sigma-Aldrich. Ethyl acetate, ether, dichloromethane, methanol, acetone, and acetonitrile of analytical grade were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China).

3.2. Preparation of Standard Solution

Stock solutions of five target analytes (eriocitrin, narirutin, hesperidin, rutin, and diosmin) were prepared by dissolving each 10 mg authentic standard in 10 mL of methanol. Then, 250 μL of each of the five stock solutions was transferred to a 50-mL volumetric flask and diluted with 20% methanol to obtain the mixed stock solution. Next, 500 μL of mixed stock solution was transferred to a 50-mL volumetric flask and diluted with 20% methanol to obtain the working solution I with a concentration of approximately 50 ng/mL. Finally, mixed working solutions II–V were obtained by diluting working solution I with respective concentrations of about 20.0 ng/mL, 10.0 ng/mL, 5.0 ng/mL, and 2 ng/mL. All the solutions were stored in a refrigerator at 4 °C before use.

3.3. Sample Preparation by the VA-DLLME Procedure

Accurately add 1 mL of lemonade to a 4 mL centrifuge tube, then add 500 µL of acetonitrile and 1.5 mL ethyl acetate, then vortex for 30 s. After centrifugation, the upper organic phase was transferred. The extraction was repeated once using another 1.5 mL of ethyl acetate and the combined solvent of the upper organic phase was removed by a Termovap Sample Concentrator. The resulting residue was re-dissolved in 1 mL of 20% methanol and filtered through a 0.22 µm filter for UPLC-MS analysis.

3.4. UPLC–MS Analysis

3.4.1. Identification of Flavonoid Glycosides by UPLC-TOF/MS

The Shimadzu UPLC ((Shimadzu, Kyoto, Japan) system consists of an online degasser (DGU-20A5R), an auto-sampler (SIL-30AC), two pumps (LC-30AD), and a column oven (CTO-30aHE). Chromatographic separation was performed on a Waters BEHC18 analytical column (2.1 × 100 mm, 1.7 μm, Waters, Milford, MA, USA) at 40 °C. The mobile phase consisted of 0.2% formic acid and acetonitrile. The linear gradient elution with a constant flow rate of 0.2 mL/min was 10%~10%~40%~95%~10% acetonitrile at 0~1~10~13~15 min. The sample solution and mixed working solutions of 5 µL were injected into the UPLC system by the auto-sampler.
TOF/MS measurements in negative ion mode were performed on a 4600 Q-TOF mass spectrometer (AB Sciex, Concord, CA, USA) equipped with an electrospray ionization (ESI) source with the following parameters: Ion source gas 1 (GS1) at 50 psi, ion source gas 1 (GS1) (N2) at 50 psi, curtain gas at 35 psi, temperature at 500 °C, and ionspray voltage floating at −4500 V. The mass range was set to m/z 100–800. The system was operated under Analyst 1.6 and Peak 2.0 (AB Sciex, Concord, CA, USA) and used an APCI negative calibration solution to calibrate the instrument’s mass accuracy in real-time.

3.4.2. Determination of Flavonoid Glycosides by UPLC-QqQ/MS

Chromatographic separation was the same as that used in UPLC-TOF/MS analysis described above. QqQ/MS measurements in negative ion mode were accomplished by a triple quadrupole mass spectrometer equipped with an ESI source (Thermo Fisher Scientific, San Jose, CA, USA). The determination of the target analytes was performed in a multi-reaction monitoring mode. The MS parameters were as follows: Vaporizer temperature and capillary temperature both 350 °C, aux gas pressure of 10 Arb, sheath gas pressure of 40 Arb, ion sweep gas pressure of 2 Arb, discharge current of 4.0 µA, and spray voltage of −2000 V. Data collection and processing were conducted with Thermo Xcalibur Workstation (Version 2.2, Thermo).

3.5. Analytical Figures of Merit

Method validation was performed according to the above UPLC–QqQ/MS conditions. After it was determined by the mixed working solutions I–V, the calibration curves of five analytes were obtained as shown in Table 3 by taking the concentration of each authentic standard as the abscissa (x) and the corresponding peak area as the ordinate (y), respectively. The limit of detection (LOD) and the limit of quantification (LOQ) were measured by a gradual dilution process of the standard stock solutions until the signal-to-noise ratio of 3:1 and 10:1, respectively. The precision was evaluated by standard working solution III, which was tested within one day to determine the intra-day precision and was tested within 3 days to determine the inter-day precision. The repeatability was evaluated by analyzing six independent portions of sample S4 with parallel running. The recovery was carried out by spiking an amount of about 1:1 of authentic standards to six independent portions of sample S4 with parallel running. The validation results are summarized in Table 3, which show that the present developed UPLC–QqQ/MS method meets the requirements of quantitative analysis and was appropriate for the determination of five flavonoid glycosides in lemonade. The analytical figures of merit were compared with those of several other quantitative methods reported for flavonoid glycosides in lemon as shown in Table 4.

4. Conclusions

In this study, five flavonoid glycosides of eriocitrin, narirutin, hesperidin, rutin, and diosmin in lemonade were identified and determined by UPLC-TOF/MS and UPLC-QqQ/MS, respectively. By estimating the content characteristics of flavonoid glycosides in the samples, we highly suspected that some lemonade available in the market was counterfeited: Cheap rutin was added to increase the content of “total flavonoids of lemon”. This indicates that besides using total flavonoids, the content of multiple flavonoid compounds should be included in the quality standard of lemonade in the future.

Author Contributions

Conceptualization, L.-S.Q. and J.X.; Data curation, Y.X.; Formal analysis, Y.X. and M.-Q.T.; Funding acquisition, L.-S.Q.; Methodology, Y.X.; Project administration, J.X.; Resources, L.Y., B.H., and X.-S.X.; Supervision, L.Y., B.H., X.-S.X., and J.X.; Validation, Y.X.; Writing—original draft, L.-S.Q.; Writing—review & editing, J.X.


Financial support was provided by the West Light Foundation of The Chinese Academy of Sciences (No. 2018XBZG_XBQNXZ_A_005).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Papoutsis, K.; Pristijono, P.; Golding, J.B.; Stathopoulos, C.E.; Scarlett, C.J.; Bowyer, M.C.; Vuong, Q.V. Impact of different solvents on the recovery of bioactive compounds and antioxidant properties from lemon (Citrus limon L.) pomace waste. Food Sci. Biotechnol. 2016, 25, 971–977. [Google Scholar] [CrossRef] [PubMed]
  2. Kim, J.; Jayaprakasha, G.K.; Patil, B.S. Lemon (Citrus lemon L. Burm) as a source of unique bioactive compounds. Acta Hortic. 2014, 1040, 377–380. [Google Scholar] [CrossRef]
  3. Proteggente, A.R.; Pannala, A.S.; Paganga, G.; Buren, L.v.; Wagner, E.; Wiseman, S.; Put, F.v.d.; Dacombe, C.; Rice-Evans, C.A. The antioxidant activity of regularly consumed fruit and vegetables reflects their phenolic and vitamin C composition. Free Radic. Res. 2002, 36, 217–233. [Google Scholar] [CrossRef] [PubMed]
  4. Tripoli, E.; Guardia, M.L.; Giammanco, S.; Majo, D.D.; Giammanco, M. Citrus flavonoids: Molecular structure, biological activity and nutritional properties: A review. Food Chem. 2007, 104, 466–479. [Google Scholar] [CrossRef]
  5. Del Rı́o, J.A.; Fuster, M.D.; Gómez, P.; Porras, I.; Garcı́a-Lidón, A.; Ortuño, A. Citrus limon: A source of flavonoids of pharmaceutical interest. Food Chem. 2004, 84, 457–461. [Google Scholar] [CrossRef]
  6. Abad-García, B.; Garmón-Lobato, S.; Sánchez-Ilárduya, M.B.; Berrueta, L.A.; Gallo, B.; Vicente, F.; Alonso-Salces, R.M. Polyphenolic contents in Citrus fruit juices: Authenticity assessment. Eur. Food Res. Technol. 2014, 238, 803–818. [Google Scholar] [CrossRef]
  7. Abad-García, B.; Berrueta, L.A.; Garmón-Lobato, S.; Urkaregi, A.; Gallo, B.; Vicente, F. Chemometric characterization of fruit juices from spanish cultivars according to their phenolic compound contents: I. Citrus fruits. J. Agric. Food Chem. 2012, 60, 3635–3644. [Google Scholar] [CrossRef]
  8. Kawaii, S.; Tomono, Y.; Katase, E.; Ogawa, K.; Yano, M. Quantitation of flavonoid constituents in citrus fruits. J. Agric. Food Chem. 1999, 47, 3565–3571. [Google Scholar] [CrossRef]
  9. Zhang, M.; Li, X.X.; Jia, H.F.; Wang, X. The research on detection techniques of adulteration about fruit juice in China. Food Res. Dev. 2016, 37, 205–208. [Google Scholar]
  10. National Standards of China. General Analytical Methods for Beverage; National Standards of China: GB/T 12143-2008; Standards Press of China: Beijin, China, 2009.
  11. Salazar, M.O.; Pisano, P.L.; González Sierra, M.; Furlan, R.L.E. NMR and multivariate data analysis to assess traceability of argentine citrus. Microchem. J. 2018, 141, 264–270. [Google Scholar] [CrossRef]
  12. Guyon, F.; Auberger, P.; Gaillard, L.; Loublanches, C.; Viateau, M.; Sabathié, N.; Salagoïty, M.H.; Médina, B. 13C/12C isotope ratios of organic acids, glucose and fructose determined by HPLC-co-IRMS for lemon juices authenticity. Food Chem. 2014, 146, 36–40. [Google Scholar] [CrossRef] [PubMed]
  13. Desiderio, C.; De Rossi, A.; Sinibaldi, M. Analysis of flavanone-7-O-glycosides in citrus juices by short-end capillary electrochromatography. J. Chromatogr. A 2005, 1081, 99–104. [Google Scholar] [CrossRef] [PubMed]
  14. Vaclavik, L.; Schreiber, A.; Lacina, O.; Cajka, T.; Hajslova, J. Liquid chromatography–mass spectrometry-based metabolomics for authenticity assessment of fruit juices. Metabolomics 2012, 8, 793–803. [Google Scholar] [CrossRef]
  15. Qing, L.S.; Xiong, J.; Xue, Y.; Liu, Y.M.; Guang, B.; Ding, L.S.; Liao, X. Using baicalin-functionalized magnetic nanoparticles for selectively extracting flavonoids from Rosa chinensis. J. Sep. Sci. 2011, 34, 3240–3245. [Google Scholar] [CrossRef] [PubMed]
  16. Qing, L.S.; Xue, Y.; Liu, Y.M.; Liang, J.; Xie, J.; Liao, X. Rapid magnetic solid-phase extraction for the selective determination of isoflavones in soymilk using baicalin-functionalized magnetic nanoparticles. J. Agric. Food Chem. 2013, 61, 8072–8078. [Google Scholar] [CrossRef] [PubMed]
  17. Qing, L.S.; Xue, Y.; Zhang, J.G.; Zhang, Z.F.; Liang, J.; Jiang, Y.; Liu, Y.M.; Liao, X. Identification of flavonoid glycosides in Rosa chinensis flowers by liquid chromatography–tandem mass spectrometry in combination with 13C nuclear magnetic resonance. J. Chromatogr. A 2012, 1249, 130–137. [Google Scholar] [CrossRef] [PubMed]
  18. Andrade-Eiroa, A.; Canle, M.; Leroy-Cancellieri, V.; Cerdà, V. Solid-phase extraction of organic compounds: A critical review. part II. TrAC Trends Anal. Chem. 2016, 80, 655–667. [Google Scholar] [CrossRef]
  19. Mousavi, L.; Tamiji, Z.; Khoshayand, M.R. Applications and opportunities of experimental design for the dispersive liquid–liquid microextraction method—A review. Talanta 2018, 190, 335–356. [Google Scholar] [CrossRef] [PubMed]
  20. Sajid, M.; Alhooshani, K. Dispersive liquid-liquid microextraction based binary extraction techniques prior to chromatographic analysis: A review. TrAC Trends Anal. Chem. 2018, 108, 167–182. [Google Scholar] [CrossRef]
  21. Rykowska, I.; Ziemblińska, J.; Nowak, I. Modern approaches in dispersive liquid-liquid microextraction (DLLME) based on ionic liquids: A review. J. Mol. Liq. 2018, 259, 319–339. [Google Scholar] [CrossRef]
  22. Homem, V.; Alves, A.; Alves, A.; Santos, L. Ultrasound-assisted dispersive liquid–liquid microextraction for the determination of synthetic musk fragrances in aqueous matrices by gas chromatography–mass spectrometry. Talanta 2016, 148, 84–93. [Google Scholar] [CrossRef] [PubMed]
  23. Xue, Y.; Xu, X.S.; Yong, L.; Hu, B.; Li, X.D.; Zhong, S.H.; Li, Y.; Xie, J.; Qing, L.S. Optimization of vortex-assisted dispersive liquid-liquid microextraction for the simultaneous quantitation of eleven non-anthocyanin polyphenols in commercial blueberry using the multi-objective response surface methodology and desirability function approach. Molecules 2018, 23, 2921. [Google Scholar]
  24. Li, G.; Row, K.H. Air assisted dispersive liquid–liquid microextraction (AA-DLLME) using hydrophilic–hydrophobic deep eutectic solvents for the isolation of monosaccharides and amino acids from kelp. Anal. Lett. 2019, 1–15. [Google Scholar] [CrossRef]
  25. Mahmoudpour, M.; Mohtadinia, J.; Mousavi, M.M.; Ansarin, M.; Nemati, M. Application of the microwave-assisted extraction and dispersive liquid–liquid microextraction for the analysis of PAHs in smoked rice. Food Anal. Methods 2017, 10, 277–286. [Google Scholar] [CrossRef]
  26. Chen, C.; Xue, Y.; Li, Q.M.; Wu, Y.; Liang, J.; Qing, L.S. Neutral loss scan - based strategy for integrated identification of amorfrutin derivatives, new peroxisome proliferator-activated receptor gamma agonists, from Amorpha Fruticosa by UPLC-QqQ-MS/MS and UPLC-Q-TOF-MS. J. Am. Soc. Mass Sp. 2018, 29, 685–693. [Google Scholar] [CrossRef] [PubMed]
  27. Gross, M.L. Accurate masses for structure confirmation. J. Am. Soc. Mass Sp. 1994, 5, 57. [Google Scholar] [CrossRef]
  28. Xie, J.; Li, J.; Liang, J.; Luo, P.; Qing, L.S.; Ding, L.S. Determination of contents of catechins in oolong teas by quantitative analysis of multi-components via a single marker (QAMS) method. Food Anal. Methods 2017, 10, 363–368. [Google Scholar] [CrossRef]
  29. Hajimahmoodi, M.; Moghaddam, G.; Mousavi, S.; Sadeghi, N.; Oveisi, M.; Jannat, B. Total antioxidant activity, and hesperidin, diosmin, eriocitrin and quercetin contents of various lemon juices. Trop. J. Pharm. Res. 2014, 13, 951–956. [Google Scholar] [CrossRef]
  30. Xi, W.; Lu, J.; Qun, J.; Jiao, B. Characterization of phenolic profile and antioxidant capacity of different fruit part from lemon (Citrus limon Burm.) cultivars. J. Food Sci. Technol. 2017, 54, 1108–1118. [Google Scholar] [CrossRef] [PubMed]
  31. Tan, J.; Li, L.Y.; Wang, J.R.; Ding, G.; Xu, J. Study on quality evaluation of Flos Sophorae Immaturus. Nat. Prod. Res. Dev. 2018, 30, 138–146+174. [Google Scholar]
  32. Chua, L.S. A review on plant-based rutin extraction methods and its pharmacological activities. J. Ethnopharmacol. 2013, 150, 805–817. [Google Scholar] [CrossRef] [PubMed]
  33. Kanaze, F.I.; Gabrieli, C.; Kokkalou, E.; Georgarakis, M.; Niopas, I. Simultaneous reversed-phase high-performance liquid chromatographic method for the determination of diosmin, hesperidin and naringin in different citrus fruit juices and pharmaceutical formulations. J. Pharm. Biomed. Anal. 2003, 33, 243–249. [Google Scholar] [CrossRef]
  34. Belajová, E.; Suhaj, M. Determination of phenolic constituents in citrus juices: Method of high performance liquid chromatography. Food Chem. 2004, 86, 339–343. [Google Scholar] [CrossRef]
  35. Tu, X.; Yang, S.; Wu, Z.; Wu, C.; Zhang, L.; Lü, X. Simultaneous determination of eleven flavonoids in different lemon (Citrus limon) varieties by HPLC. J. Hunan Agric. Univ. 2016, 42, 543–548. [Google Scholar]
  36. Zheng, J.; Zhao, Q.Y.; Zhang, Y.H.; Jiao, B.N. Simultaneous determination of main flavonoids and phenolic acids in citrus fruit by ultra performance liquid chromatography. Sci. Agric. Sin. 2014, 47, 4706–4717. [Google Scholar]
Sample Availability: Samples of the compounds are available from the authors.

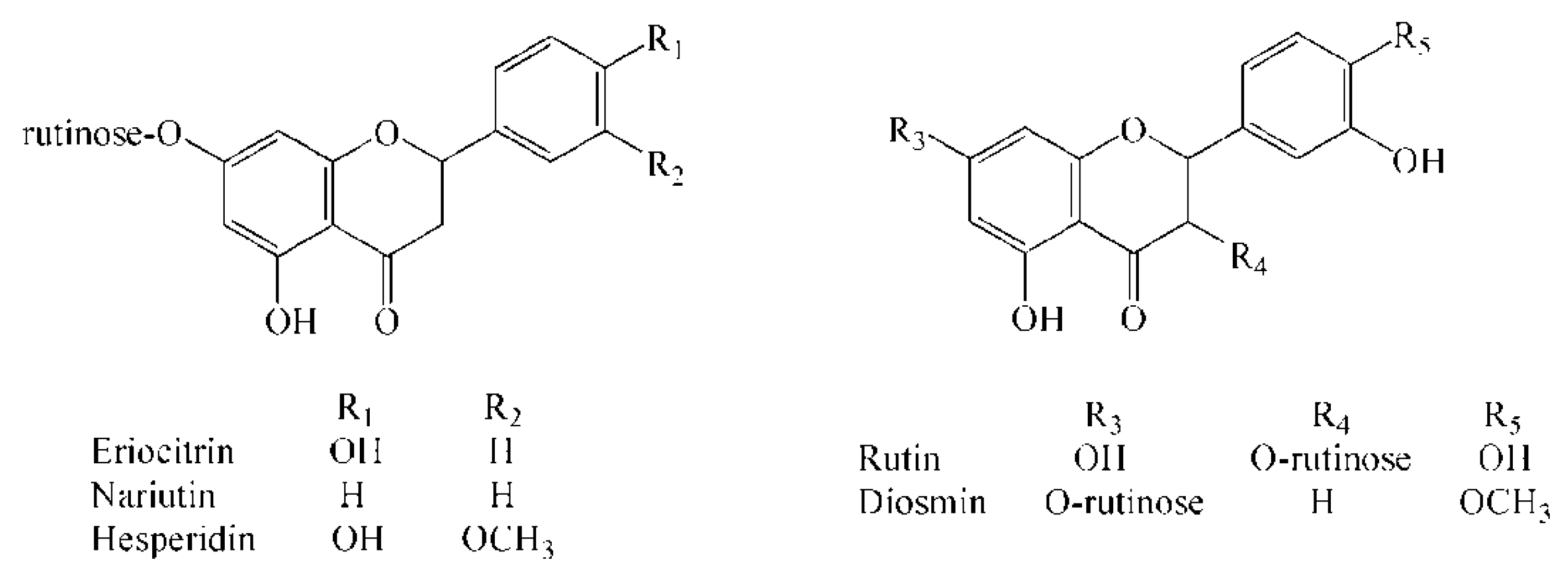

Figure 1. Chemical structures of eriocitrin, narirutin, hesperidin, rutin, and diosmin.
Figure 1. Chemical structures of eriocitrin, narirutin, hesperidin, rutin, and diosmin.
Molecules 24 03016 g001

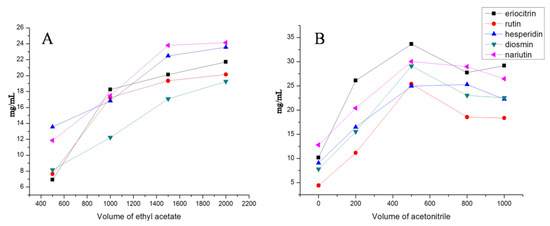

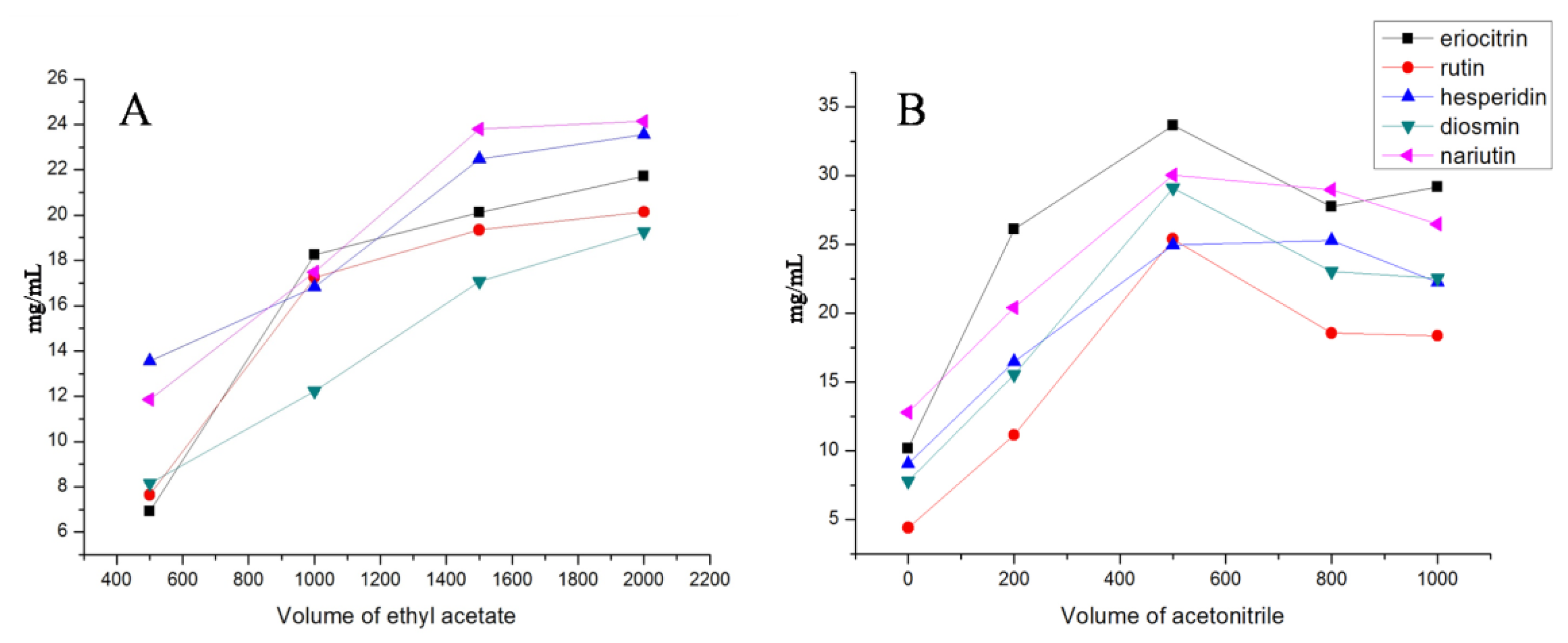

Figure 2. The evaluation of extraction conditions of the amount of ethyl acetate (A) and acetonitrile (B).
Figure 2. The evaluation of extraction conditions of the amount of ethyl acetate (A) and acetonitrile (B).
Molecules 24 03016 g002

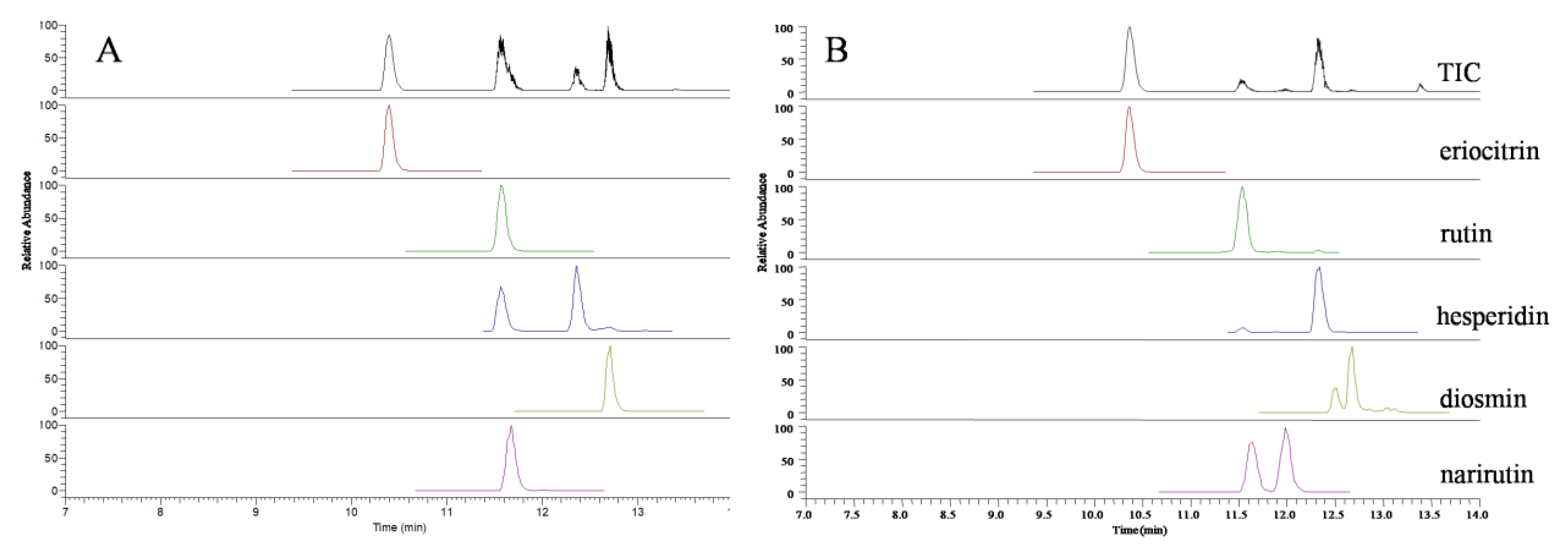

Figure 3. UPLC–QqQ/MS total ion count chromatograms of five flavonoid glycosides standards (A) and commercial lemonade sample (B).
