The effect of the counteranion of hexadecyltrimethylammonium salts on the physico-chemical properties of organoclays was investigated, using a selected natural clay mineral with a cation exchange capacity of 95 meq/100 g. The uptake amount of C16 cations was dependent on the hexadecyltrimethylammonium (C16) salt solution used, the organoclay prepared from C16Br salt solution exhibited a value of 1. 05 mmole/g higher than those prepared from C16Cl and C16OH salt solutions. The basal spacing of these organoclays was in the range of 1.81 nm to 2.10 nm, indicating a similar orientation of the intercalated surfactants, and could indicated that the excess amount of surfactants, above the cation exchange capacity of 0.95 meq/g could be adsorbed on the external surface of the clay mineral sheets. These organoclays were found to be stable in neutral, acidic, and basic media. The thermal stability of these organoclays was carried out using thermogravimetric analysis and in-situ X-ray diffraction (XRD) techniques. The decomposition of the surfactant occurred at a maximum temperature of 240 °C, accompanied with a decrease of the basal spacing value close to 1.42 nm. The application of these organoclays was investigated to remove an acidic dye, eosin. The removal amount was related to the initial used concentrations, the amount of the surfactants contents, and to the preheated temperatures of the organoclays. The removal was found to be endothermic process with a maximum amount of 55 mg of eosin/g of organoclay. The value decreased to 25 mg/g, when the intercalated surfactants were decomposed. The reuse of these organoclays was limited to four regeneration recycles with a reduction of 20 to 30%. However, noticeable reduction between 35% to 50% of the initial efficiency, was achieved after the fifth cycle, depending of the used organoclays.

Graphical Abstract

1. Introduction

The demand for water, especially fresh water for the comfort of human society, is sharply increasing due to the rapid increase in population and industrial activities [1,2,3]. Some industrial sectors use tremendous amounts of water in their daily activities, leading to generation of huge amount of wastewaters polluted with different kinds of pollutants, among them inorganic and organic materials such as heavy metals, dyes, aromatic, and phenolic compounds, depending on the type of their activities [4]. During the years, the use of dyes has increased and nowadays immense amounts are used in various sectors like the textile, pulp and paper, paint, pharmaceutical, cosmetics, food, printing inductries, etc. [5,6]. The discharge from these industries is highly colored, as enormous amount of dyes remain unfixed (reaching up to 50%) during coloring and washing, and are discharged in the effluents [7]. The dye effluent if discharged untreated can affect the photosynthesis of aquatic plants and thus, the oxygen levels necessary for the survival of the aquatic fauna and flora [8,9].
To solve this problem, the reclamation, recycling, and reuse of wastewater were proposed to meet the water requirements for industry and irrigation uses, where 75% of total consumption can be attributed to agriculture [10]. Different techniques are proposed to treat dye-contaminated wastewaters, and generally different factors must be considered such as safety, efficiency and budget. The merits and demerits of each of these techniques were presented in a review by Ashfaq and Khatoon [11].
Currently, the removal of dyes by adsorption techniques is proved to be an effective and attractive process for the treatment of dye-contaminated effluents [11,12]. This method is simple and easy to operate, and it has an edge over other methods due to its sludge-free clean operation and complete removal of dyes, even from dilute solutions [13,14]. Activated carbon is the most widely used in this process due to its promising physico-chemical properties such as extended surface area, microporous structure, and exceptional surface reactivity. However, the high cost and regeneration difficulties have increased the need to explore lower cost and reusable materials [15,16]. Many cheaper adsorbents were proposed by different researchers, ranging from natural to synthetic materials, and many reviews were published regarding these materials [17,18,19,20]. Among the natural materials, clay minerals were proposed as good candidates due to their outstanding adsorption properties [21,22]. However, these clay minerals are typically subjected to many modifications prior their use, depending of the target pollutant and its charge [23,24]. The clay minerals are efficient at removing cationic metals and positively charged organic pollutants such as basis dyes [23], due to their negatively charged and hydrophilic surface, however, in case of nonpolar hydrophobic contaminants or negatively charged pollutants such as acid dyes or anions, clays are largely ineffective due to the electrostatic repulsion; and their hydrophilic character as mentioned above [25,26]. Thus adequate modifications are generally proposed. The most common modification consists of the use of cationic surfactant solutions that generate organoclay adsorbents that combine both the properties of the inorganic layered material and hydrophobic environment with the intercalation of the organic cations. Indeed, these materials adsorb a large range of pollutants, such as pesticides [27], phenolic compounds [28], various pharmaceutical products [29] and acidic dyes [23,24]. The removal efficiency of these organoclays mainly depends on both the chemical nature and the structural organization of the intercalated surfactants [30,31]. Thus, surfactants possessing long alkyl chains such as hexadecyltrimethylammonium (C16) create an appropriate organic environment within the inorganic frame for the adsorption of alkanes and aromatic compounds [29]. Based on the studies of Ma et al., where the removal properties of organoclays were closely related to the length of the alkyl chains, numerous studies were devoted to modify the raw clay minerals by longer alkyl chains such as hexadecyltrimethylammonium cations [32]. The density of C16 surfactants in the interlayer spacing affects the removal properties. A maximum amount equivalent to 1 time the cation exchange capacity (CEC) of the clay mineral allows the creation of a hydrophobic environment without any strong steric effects that may restrict the removal of pollutants, while the uptake of surfactants at high concentration (i.e., > 1 CEC) creates a large hydrophobic network with an arrangement of the organic cations in the bilayer within the interlayer space that may enhance or reduce the removal properties [29]. The removal of acidic dyes was improved when the content of C16 cations was increased and exceeded the CEC values, due to favourable interactions arising with the R groups of the quaternary ammonium ions [24,33], which made the acidic dyes more easily attracted into the expanded interlayer space of the clay [33].
The properties of organoclays strongly depend on the structure and the molecular arrangement of the organic surfactants within the interlayer spacing of the clay minerals [34,35]. However, in other cases, the origin of clay minerals and the type of C16 salt used to modify the clay mineral was crucial and it has to be taken in consideration during the preparation of the organoclays [33,36,37]. The commonly used C16 modifiers are prepared by dissolving their solid salt with bromide anion in water solutions [24,33]. Few studies using chloride or hydroxide C16TAM salts are reported [33,36,38,39,40,41,42]. The type of anion was found to affect the critical micelle concentration (cmc) of the surfactant solution, for instance, C16Cl solution has a cmc value of 1.4 mM, higher than the cmc of C16Br (0.94 mM) in deionized water, due to the smaller size of the Clcounterion compared to the Br counterion. [43,44], and the shape of the micelles. Indeed, the micellar form changes from globular to highly elongated for C16Br solutions, while, the micelles from C16Cl solution tend to remain nearly spherical over all the concentrations range [45]. The C16Br salt led to the highest intercalated amount, resulting to an organoclay with a basal spacing varying from 3.80 nm to 4.1 nm, and with good removal capacity of the acidic dye eosin, using a polymer grade montmorillonite [33]. For other modifications, the origin of the clay mineral has an interesting effect of the properties of resulting modified clays [46,47]. For example, in case of acid activation processes, two clay minerals from different origins were examined and they found to behave differently towards the acid activation process, thus leading to materials with different C16 cation uptake properties [46,47]. The removal of a basic dye from an aqueous solution was thus also dependent on the origin of the clay used to prepare the absorbent [48].
This study was carried out to test the hypothesis that the nature of the C16 solutions (in term of their anions) might affect the uptake amount of C16 cations for another type of clay mineral, thus, leading to organoclays with different physiochemical properties, and determine if the resulting materials would be effective in the removal of the acidic dye eosin. The thermal stability of organoclays was examined using in-situ x-ray diffraction (means at real temperatures during the collection of the patterns, without cooling down the samples). This part will provide an idea how the pre-heated oranoclays might affect the removal properties of the eosin dye. Eosin was chosen as model pollutant because it has been known for a long time, and it has a variety of usages, mainly as a biological stain, as a pH indicator, and a dye in the wool, silk, modified acrylic, cosmetic and pharmaceutical industries, etc. [49,50,51,52].
Different techniques were used to characterize the organoclay materials prior their application in the removal of a selected anionic dye, eosin. Regeneration tests were carried out to study further valorization of these organoclays, and an economical and friendly method was used in this regard [33,48].

2. Results and Discussion

2.1. Characterization of Organoclays

2.1.1. Elemental Analysis

The CHN elemental provides an estimation of the uptake of organic cations in the prepared organoclays [33,53,54,55,56,57]. The data are summarized in Table 1. For an initial loading concentration of 2.40 mmole (corresponded to an initial CEC/mmole of C16 ratio of 2.95), the highest content (28.12%) was achieved when C16Br solution was used, and the lowest one (18.90%) was attained starting from C16OH solution. Using a chloride solution, a value of 20.47% was obtained. Hence, the organic carbon in the organoclays was almost entirely derived from the exchanged organic cations.
The ratio of C/N for modified-cloisites, obtained from elemental analysis data, was 18.35 to 18.89, the calculated value of the C/N ratio for C16 was 18.87 close to the theoretical value of 19. This value was higher than the reported value of 16.29 [58]. These results confirm that the modification of cloisite clay mineral was successfully achieved with C16 cations [58].
The uptake C16 cations was close to the CEC value, as indicated by the ratios (uptake amount/CEC) values of 1, using C16Cl or OH solutions. However, it was higher than the CEC, when the organoclay was prepared from C16Br solution, with a ratio value of 1.44. Similar observations were reported when using different clay minerals [33]. Attempts have been carried out to tune the content of C16+ cations in chloride solutions, by varying the initial loading concentrations from 0.2 mM to 2.4 mM. The uptake was improved by increasing concentration of the loaded C16Cl solutions from 0.22 mmole/g to 0.90 mmole/g, and it was slightly affected by further increase of the C16Cl concentrations, and a maximum uptake of 1.04 mmol/g was achieved (Table 2). Similar data were obtained when C16OH solution was used, for another type of clay mineral with low cation exchange capacity (CEC) [59].
The obtained data indicated that the uptake of C16 cations followed two trends; the first one was below or close to the cation exchange capacity (CEC) values, and the second one was higher than CEC values. The first trend confirmed that the uptake of C16 cations occurred mainly via cation exchange reactions, where the exchangeable Na cations were replaced by C16 ones, when C16OH or C16Cl solutions were used [33]. An additional mechanism took place when a C16Br solution atinitial loading concentrations higher than 1.5 mmole/g was used. It could be related to the hydrophobic bonding which includes the mutual attraction between the alkyl chains of surfactant molecules, or to the formation of organocation aggregates on the used clay surfaces [59,60,61].

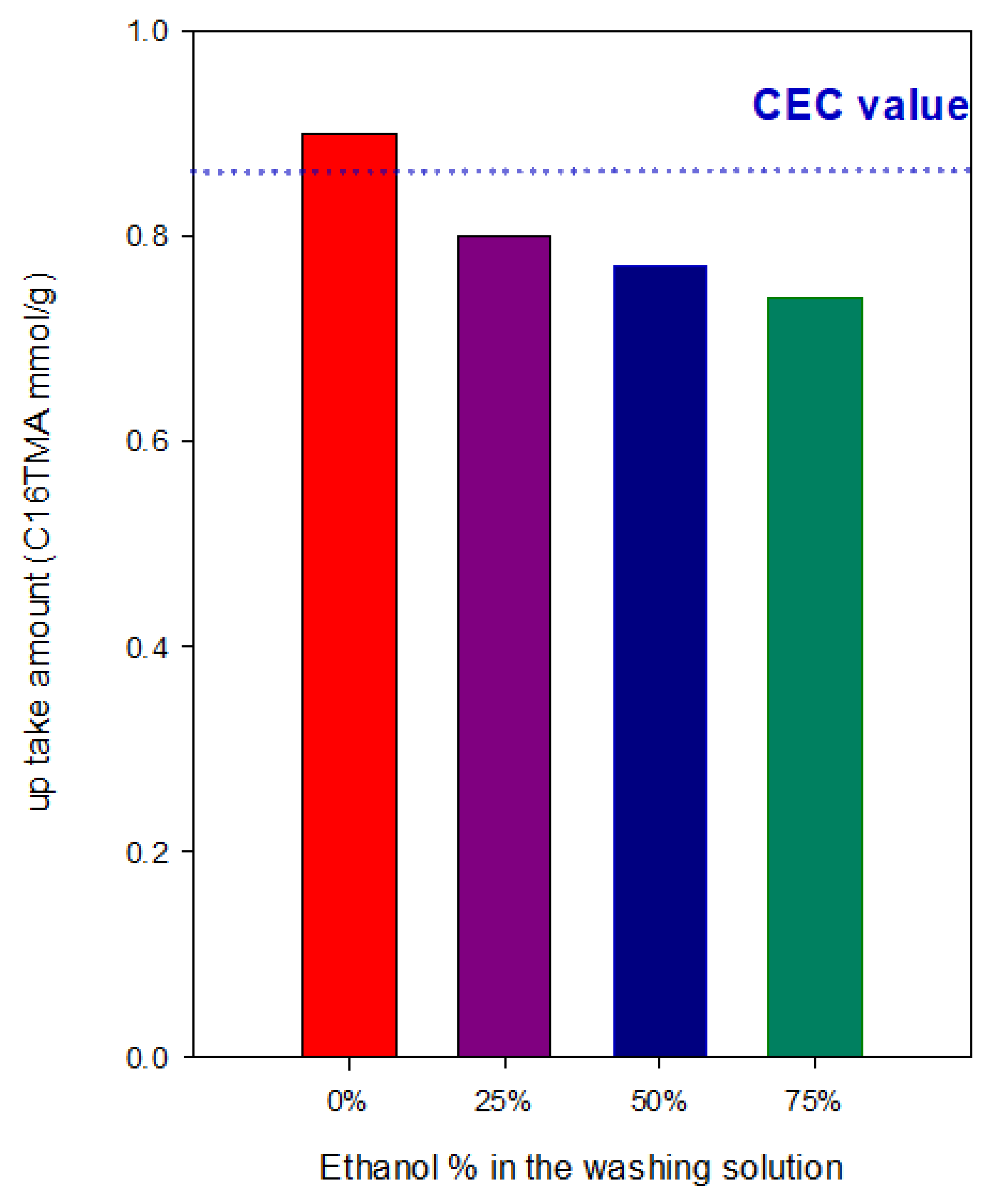

The reported mechanism could be modified by the type of washing solution used, as reported in previous studies [33]. In the present case, the C16Cl-CN-2.4 sample was prepared in pure deoinized water, however it was washed with different mixtures of ethanol and water (in volume). Figure 1 indicates that the content of up take C16 cations was slightly modified even by using a percentage of ethanol to water of 75%, it varied from 0.82 mmole/g to 0.75 mmole/g. Different results were reported when the uptake amount exceeded largely the CEC values and using different C16Br solutions [33]. It was reported that the addition of alcohols into C16Br solutions considerably affected the critical micelle concentration (CMC) value and the degree of counterions bound to its micelles [62,63,64], in other words, the CMC of C16Br solution increased with the increasing content of alcohol in the solution because of the stronger interactions of C16Br hydrophobic tail with ethanol than with water which made micellization more difficult. Moreover, ethanol molecules act as solvent structure modifiers, reducing the hydrophobic effect in the solution and therefore increasing the cmc [62,63].
The CHN analysis indicated that the C16ClCN-2.4 material was stable, after treatment of the solid organo-clay in different solutions of NaCl, NaOH and HCl. These data implied that intercalated C16 cations were difficult to exchange either by Na cations or by protons [64,65]. These data were different when the intercalated cations were located between other layered silicates such as magadiite and kenyates [54,65]. This difference could be related to the different orientations of the intercalated surfactant cations in the interlayer spacing.

2.1.2. Powder XRD Data

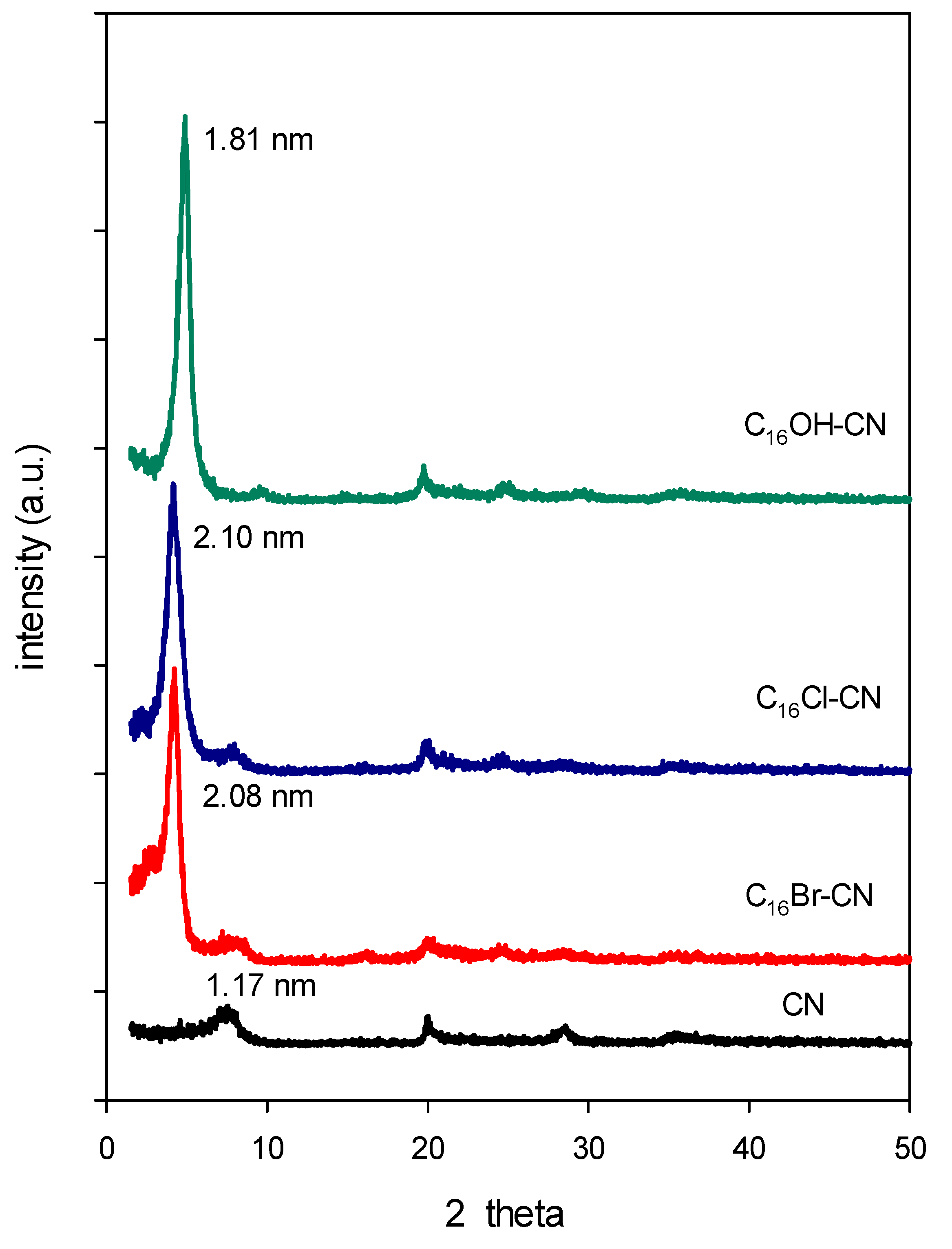

Because of its easiness and its availability, XRD is most commonly used to probe the success of cloisite modification and its structure, by monitoring the position of the basal reflections. The obtained data are presented in Figure 2. The cloisite clay exhibited a basal distance of 1.17 nm, assigned to the (001) basal spacing of the clay, as reported by Bertuoli et al. [66]. After reaction with C16 surfactant solutions at a fixed loading, the position of the first reflection (001) of the resulting organoclays shifted to lower 2θ angular values, corresponded to an expansion of the basal spacing, varying from 1.81 nm to 2.10 nm. These data confirmed the success of the modification of the raw cloisite, and the intercalation of surfactants between the starting cloisite sheets [67].
The basal spacing values were close to each other, by taking in account the error of measurement, and were independent of the C16 solutions used, and it could indicate that the type of solution used had no effect on the intercalated amounts and thus the orientation of the C16 cations within the basal spacing, in good agreement with the CHN analysis. However, using a different clay from another source, different basal spacings were obtained in the range of 2.00 nm to 4.20 nm [33].
The measured value for C16Cl-CN clay was close to that reported for other organoclays using the same C16 solutions [36]. Attempts have been carried out to increase the basal spacing by varying the initial loading concentrations of C16Cl solution. An average expansion the basal spacing of 2.00 nm was obtained for initial loading greater than 0.6 mM (Supplementary Material 1). These data were different when using another starting clay from a different source, as reported in previous study [33].
The lack of variation of the basal spacing indicated that the C16 contents did not have an effect on the basal spacing expansion, and the uptake amount that exceeded the CEC value could be adsorbed on the external surface of the clay sheets.
Similar results were obtained using C16OH solution at different initial concentrations. In this case, the basal spacing was independent of the used concentrations greater than 0.60 mM. An average of basal spacing of 1.89 nm was obtained. Similar data were obtained using clays from different sources, and it could be related to the chemistry of C16OH solution [33,68]. However, in a particular case when a high loading concentration was used at above 25 mmole, further extension of the basal spacing was achieved and reached a maximum of 3.56 nm [68].
When a mixture of water and ethanol was used to wash the organoclay, the basal spacing of the organoclay of 2.02 nm was not affected and it remained unchanged, in good agreement with the CHN analysis, and with other reported studies for organoclays with the same basal spacing of 2.02 nm. However, in case of higher expansion value of 3.91 nm, the effect of the ethanol-water mixture was noticed and led to a shrinkage of the basal spacing at 2.02 nm, either by using as a medium reaction or washing solutions [33]. However, Gates showed that clays exchanged with a substituted alkylammonium cations swelled substantially in mixed solutions of ethanol-water, which was not the present case [64].
The PXRD data indicated that no variation of the basal spacing at 2.02 nm was observed after a contact of overnight within different environments such neutral, base or acid solutions. Owing that the intercalated C16 cations were difficult to exchange with smaller cations such Na cations and protons, and might indicate that the intercalated organic cations were strongly attached to the clay layers. Different results were obtained from an organo-magadiites or organo-kenyaites [53,65] with different silicate layered structures.

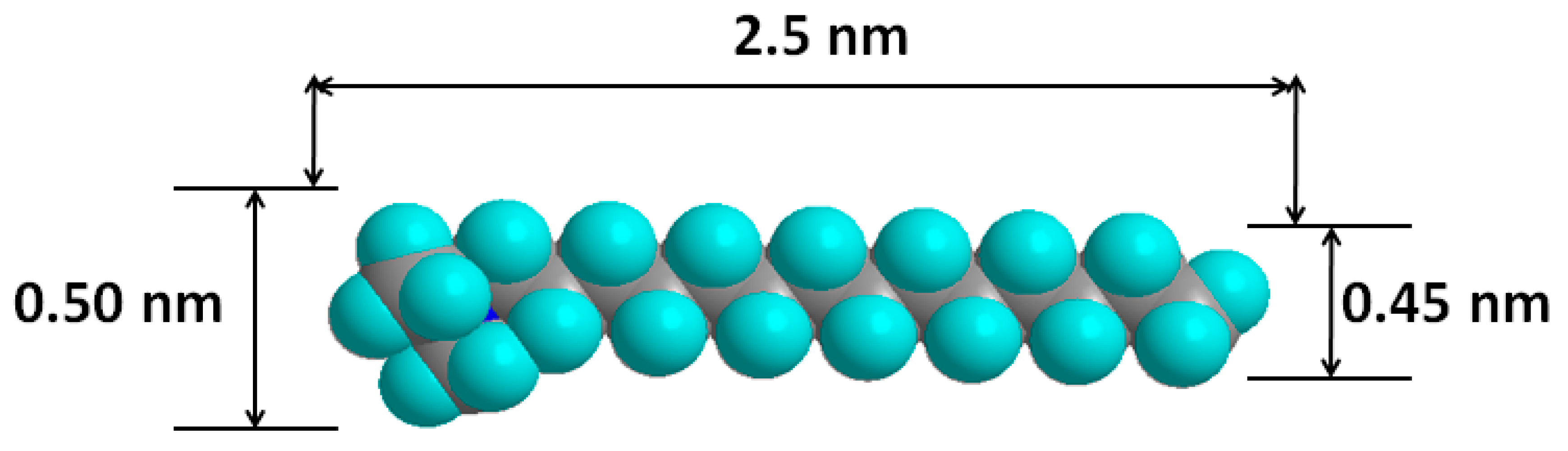

C16 cations have a 16-carbon as a long tail and an ammonium head group with three methyl groups attached. It has a length is about 2.3–2.5 nm and a thickness of 0.50 to 0.45 nm [69], as presented in Figure 3.
Theoretical calculations could be used to predict and to confirm the results about intercalation of organic cations in clay minerals. They were based on the length of the main carbon chain of the compound and the basal spacing of the unmodified clay mineral. Equation (1) can be used to calculate the theoretical basal spacing of an organoclay.
d(001) = k(n − 1) + dc + dm
where: n = number of carbon atoms in the surfactant chain, dc = basal spacing of the unmodified clay mineral, dm = the van der Waals radius of the terminal methyl group (0.4 nm), k (constant) = 0.126 (calculated from the increase, in length, for each C-C bond in the chain). This equation assumes that the alkyl group of the organic cations adopts a totally extended molecular conformation or a trans-trans chain conformation perpendicular to the clay surface [70].
The theoretical basal spacing is expected to be at 3.25 nm, the experimental basal spacing values (of 1.88 to 2.02 nm) were lower than the theoretical one, suggesting that the chains of C16 cations exhibited a bilayer of flat surfactants lying parallel the clay layers, instead of being perpendicular to the surface as assumed by the theoretical model. These data were in good agreement with those reported for similar basal spacing of C16 organoclays.

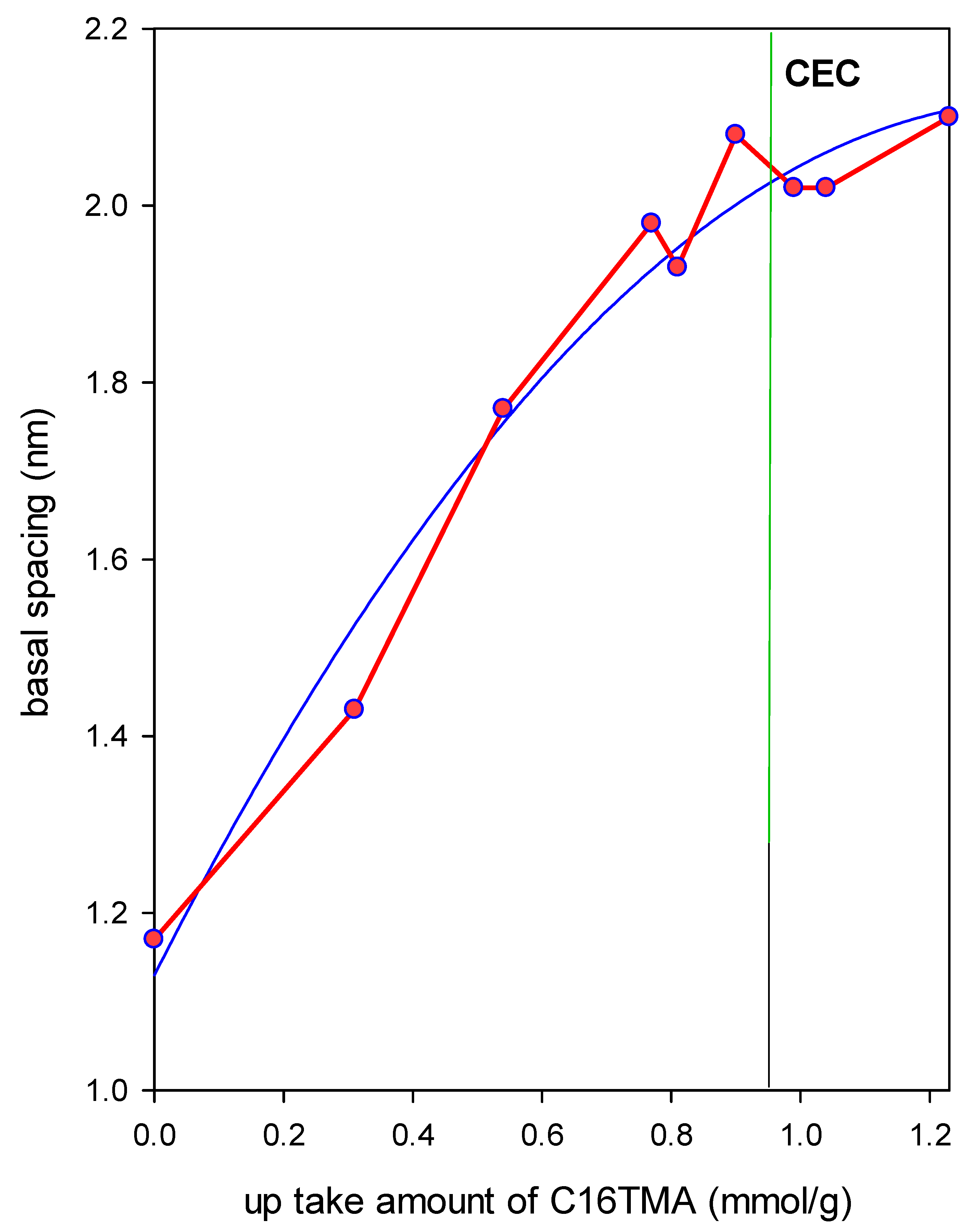

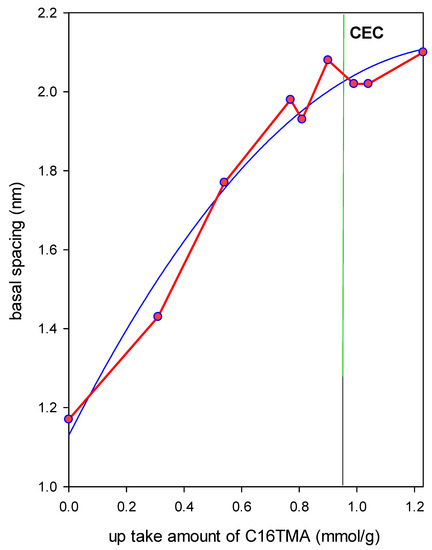

Attempts were made to relate the expansion of the basal spacing with the up take amount of C16 cations, and the data confirmed that the up take amount exceeding the CEC value was indeed adsorbed onto the surface of clay layers and they were not located in the interlayer spacing (Figure 4). The data fitted well the best Equation (2):
d(nm) = 1.129 + 1.439U − 0.523U2
with a regression coefficient r2 of 0.9730, where U represents the uptake of C16 cations (mmole/g).

2.1.3. FTIR Data

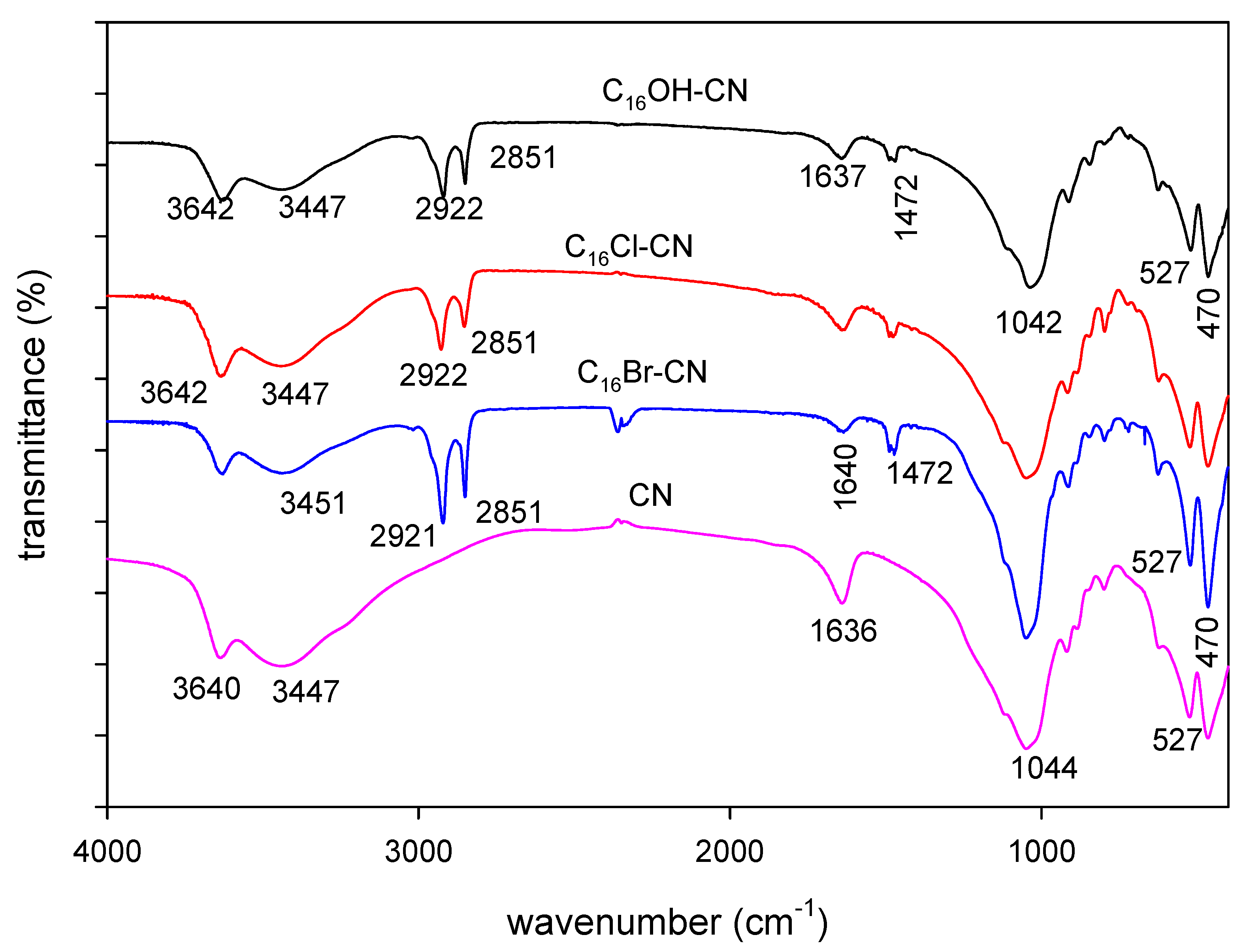

The FTIR technique was employed to confirm the presence of the C16 cations and their conformation between the clay layers [71,72,73]. The spectra of pure cloisite and organo-derivatives are presented in Figure 5. The cloisite Na+ exhibited bands in the 3100–3700 cm−1 range, attributed to the stretching vibrations of the hydroxyl groups bonded to aluminium atoms of the clay mineral [74]. The broad band at 3440 cm−1 and a sharp band at 1636 cm−1 are assigned to hydroxyl stretching and H-O-H bending vibrations, respectively, of the free and interlayer water molecules in cloisite [75,76]. The band observed at 1040 cm−1 was assigned to Si-O stretching mode of the Si–O and Si–O–Si groups, with Si-O and Al-O bending bands at 400–600 cm−1. The Mg-O bending band was observed at 470 cm−1 [74]. These bands were also observed in FTIR spectra of all modified cloisites, indicating that the structure of the clay layers were not altered. However, a decrease of the bands intensities of 3440 and 1630 cm−1 reflects that the amount of hydrogen bonded H2O molecules present in the organoclays was less than those with the starting cloisite. This could indicate that the H2O content was reduced with the exchange of Na hydrated cations by C16 ions (see TGA section), and supported the hydrophobic character of the organoclays (Figure 5) [76].
In addition some new bands were recognized in the FTIR spectra in the range of 2800–3000 cm−1which belonged to the organic part of the organoclays. The spectrum of powdered C16Br salt (Supplementary Material 2) exhibited the asymmetric and symmetric stretching bands of the N+(CH3)3 group at 3016 and 2945 cm−1. When C16 cations are intercalated between clay sheets, the motion of the methyl groups are strongly restricted by the strong interactions between the silica framework and the quaternary ammonium moiety. As a result, the asymmetric stretching bands of the N+(CH3)3 group disappeared or decreased in intensity, while the symmetric stretching bands (2959 cm−1) were still present [77]. Two intense two bands at 2918 cm−1 and 2850 cm−1 were assigned to the CH2 asymmetric stretching mode (νas (CH2)) and symmetric stretching mode (νs(CH2)), respectively [71]. However, in C16Br aqueous solution, νas (CH2) shifted from 2919 cm−1 to 2932 cm−1 and νs (CH2) shifted from 2850 cm−1 to 2864 cm−1. This shift was related to the changes of conformation of the alkyl chains (Supporting Material 2). In case of organoclays, these two bands were clearly observed at 2921 cm−1 and 2851 cm−1. Their positions were close to that of C16 solid salt, and indicated that the alkyl chains adopted a similar conformation compared to the solid C16Br salt.
Previous studies have reported that the position of these two bands was related to the content of the surfactants in the organoclays [76,78,79]. It is well established that the wavenumbers of the CH2 stretching bands of hydrocarbon chains are extremely sensitive to the conformational ordering and change in the gauche-trans conformer ratio of the chains [71,80] which can be used as probe, in correlation with the d001 spacing variation, for the surfactant arrangement within the silicate layers. Here, the wavenumbers of both symmetric and antisymmetric CH2 stretching vibrations indicated that the organic cations located in the internal structure show an all trans conformation. In the present case, it was difficult to observe a change in position, though there was a variation in the surfactant content. This fact could indicate the actual variation in C16 cations was not enough to affect the position on these two bands.
The C16Br salt exhibited additional bands in the range of 1400–1600 cm−1, as a single band, or doublet, or triplet, depending of the origin of the used salt and the technique used to collect the spectrum [73,81]. These bands appeared at 1480, 1473, and 1462 cm−1, and were assigned to methylene scissoring mode, or to N+-CH3 symmetric stretching vibrations. The split of 10 cm−1 was due to the intermolecular interaction between two adjacent hydrocarbon chains in a perpendicular orthorhombic subcell [82]. The frequency of these two bands at 1473 and 1462 cm−1 in the organoclays are almost independent of the C16 cations, and indicated that the intercalated surfactants adopted similar chain conformations, and similar changes in the methyl deformation (Figure 5). The methyl groups were probably linked into the siloxane surface and hence the free rotation of the methyl groups is lost [83], in addition to interchain interaction between contiguous CH2 groups of adjoining chains could result in the non-variation of the positions of these bands [84].

2.1.4. Solid 13C-CP NMR

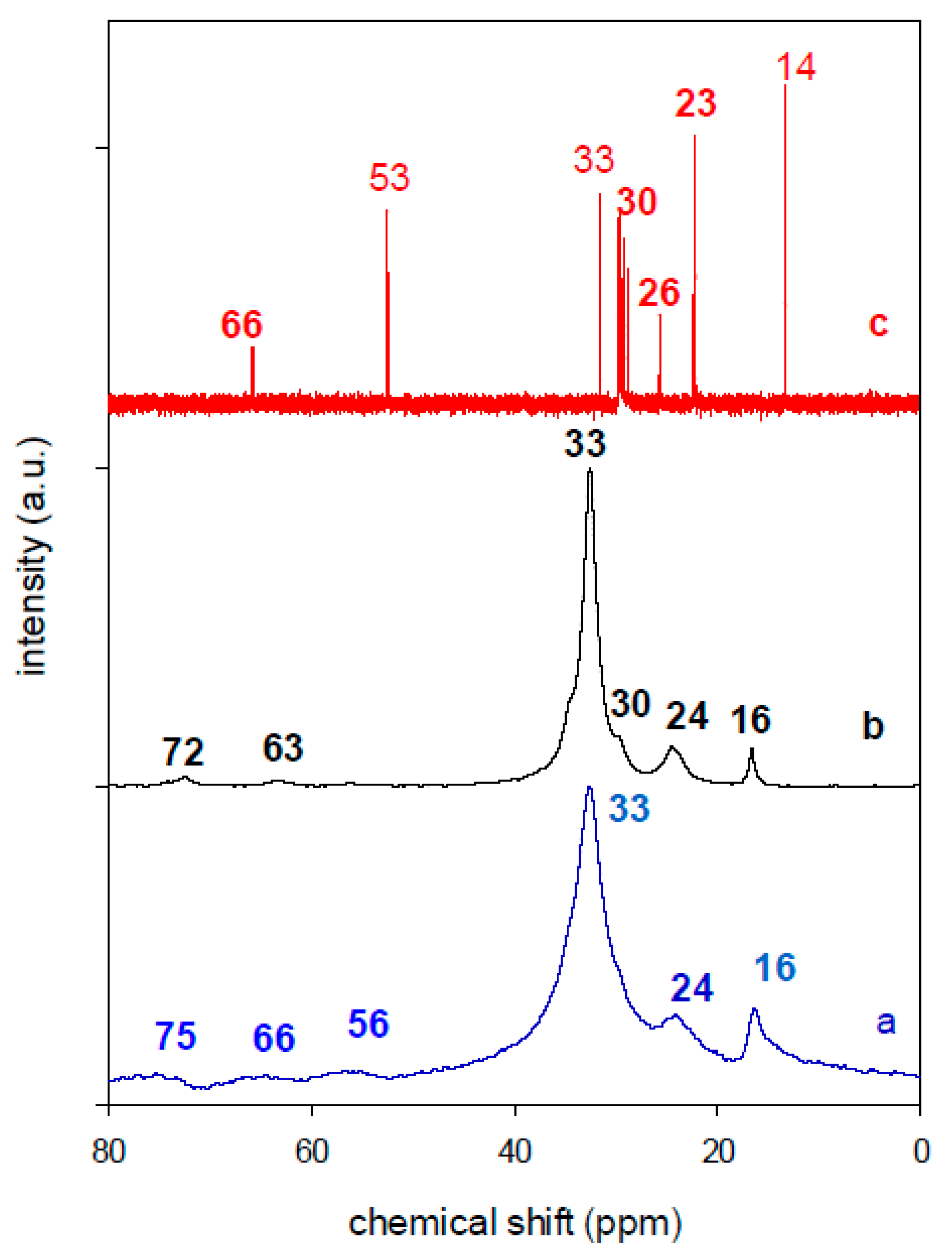

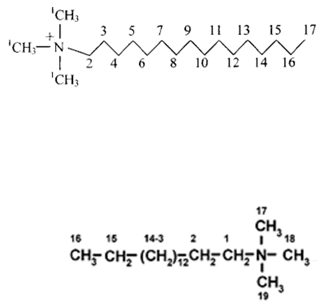

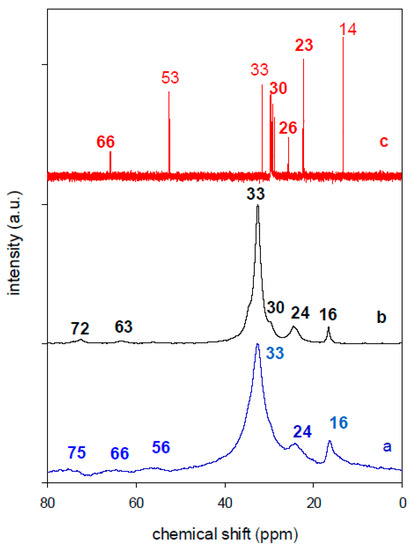

The solid 13C-CP-NMR technique was used to detect the conformation of the intercalated C16 cations in the interlayer spacing of the organoclays [72,85,86]. In general, the 13C-CP-NMR spectra were compared to the one of the crystalline salt. In this study, the spectrum of an aqueous solution was also reported for comparison, and they are presented in Figure 6. The chemical shifts of C16Br in solution can be easily distinguished and labelled according to the structural formula. The different assignments were related to the numbering of the carbon atoms in the surfactant structure, as presented in Table 3. The extremely narrow peaks for all the carbon groups in the surfactant solution indicate that surfactants are free-moving molecules in a liquid phase (highly mobile). As the mobility and the environment of the carbon atoms in different situations are very influential, broader resonances with slight shifts were observed for C16Br in the crystalline powder compared to the solution, which is due to the higher packing density in the solid [87].
The presence of C16 cations in the organoclays (for example C16Cl-CN) was evidenced by resonance bands summarised in Table 3, with an intense band at 33 ppm, related to internal methylenes (C4-C14). There is a marked difference between the spectra of C16-clays and those of the surfactant solution [86]. All peaks for the surfactant solution are much narrower than those for the surfactant-clays. Peaks C3 and C15 are completely resolved from the main C4-C14 peak in surfactant solutions. The electrostatic binding between the surfactant and the clay sheets causes a downfield shift for the methyl groups next to the head group (C1) and substantial broadening for all the peaks [87].
The peak corresponding to the methylene group exhibited the largest broadening among all carbon groups. Upon intercalation, the spectra exhibited broader lines. The line broadening can be attributed to a reduced mobility of the alkyl chain, which in turn should result from a changed hydrocarbon chain packing [88]. The broader and weaker C2peak in the surfactant clays relative to those of other carbon groups indicated that the motion of the surfactant head group adsorbed onto a clay sheets was strongly hindered [89,90].
The different organoclays exhibited similar features, with an intense resonance band at 33 ppm, indicating that the intercalated surfactants exhibited ordered conformation, with a significant degree of trans conformation. Similar data were reported for other organoclays [33,91] (Figure 7). The packing and the conformation of the surfactants were reported to be affected by the amount of C16 intercalation and its orientation between the clay sheets, indeed, trans conformation occurred for higher organic contents above the CEC values [33,47,86]. In this study, even though, the content of C16 cations was close to the CEC value, the bilayer orientation of the C16 cations, lying parallel to the clay sheets made the trans conformation more possible. Some degree of gauche conformation was observed only for C16Br-CN, and could be caused by the C16 cations adsorbed on the external surface of the clay sheets, as indicated by CHN and XRD data.

2.1.5. TGA Data

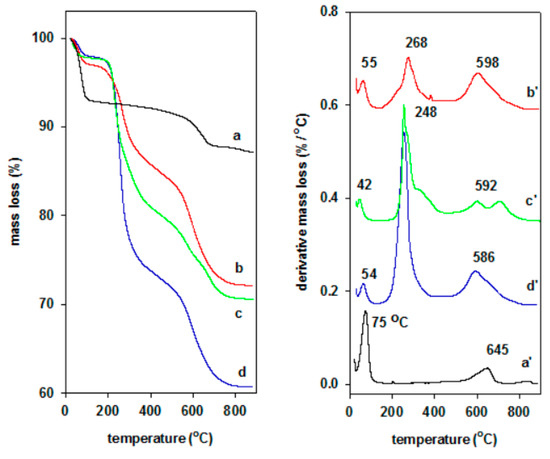

Another useful technique for the characterization of the organoclays is the thermal analysis technique (TGA). This method examines the thermal stability and thermal decomposition mechanism of the modified clays [92]. In addition, it could be used to estimate the organic contents in the modified organoclays [93,94].
The maximum rate decomposition temperature was determined using the first-order derivative of weight loss-temperature plot. The thermal decomposition expressed in terms of mass loss as a function of temperature (DTG). TGA and differential thermal (DTG) features of pristine clay were divided in two steps, one in the range of 25 °C to 150 °C, associated with a peak in DTG curve at 75 °C, attributed to the mass loss of free water molecules and interlayer water, and the second one was detected in the range of 500 °C to 700 °C with a peak of maximum loss mass at 660 °C, related to structural water (bonded OH that underwent dehydration, Figure 7). The TGA feature was close to those reported in the literature for similar clay types [85,95]
However, the TGA and DTG curves of organoclays exhibited additional mass losses as presented in Figure 7. The first part corresponds to free water region in the temperatures below 100 °C, with a maximum temperature mass loss at 60 °C. The peak shifted to low temperature range, and the decrease in intensity of the corresponding peak was related to the conversion of the environment towards the organophilic of the organoclays [96,97] The second mass loss occurred as the organic surfactants were evolved in the temperature range 150–400 °C, and was a characteristic of defragmentation/oxidation of surfactant cations, which form different arrangements. The third step could be associated to the organic carbon that reacted with inorganic oxygen (combustion reaction) in the range of 570 to 700 °C [97]. The temperature of this peak shifted to lower temperatures as reported in previous studies [33,97,98], and was a consequence of the expansion of the aluminosilicate framework and the resultant easy disconnection of hydroxyl groups from the structural skeleton of host clay mineral [98].
The cloisite Na (CN) did not undergo thermally induced changes in the temperature range of 150 to 600 °C. Thus, the mass loss in this temperature range was attributed to the presence of C16 cations in the organoclays. TGA features of the organoclays prepared from different solutions were similar in shape, indicating similar decomposition process of organic surfactants occurred. In comparison to solid C16Br salt, the presence of the clays sheets affected its decomposition process, due to the intrinsic effect of the clay sheets, and the maximum temperature loss shifted to higher temperatures [33].
Cloisite-Na is hydrated due to hydrophilic internal surface, and attained a total mass loss of 13%. The dehydration peaks appeared smaller in the DTG curves of organoclays, and the corresponding mass loss percentages at temperatures below 100 °C, was about 3.5%, 3% and 2.7%, respectively. The decrease of mass loss was due to the exchange of Na cations by the C16 surfactants and to the oroganophilic character of the organoclays. The loss of organic surfactants occurred mainly in one step as indicated by the DTG curves with shift of the maximum decomposition temperature from 260 °C to 270 °C, for the C16OH-CN sample. This effect could be related to the low value of the basal spacing, that made difficult to lose the organic surfactants (Table 4).
The thermal stability of C16-organoclays depended on whether the concentration of surfactant cations was below or above the cation exchange capacity of the clay minerals. In the former case, the high temperatures of surfactant oxidation and mineral dehydration resulted from the ionic interaction between the clay sheets and surfactant forming monolayers in the interlayer gallery [97], whereas in the latter case these evidently lower temperatures are a reflection of predominantly physical sorption of surfactant forming bilayers in the interior and on the surface of the mineral [99,100]. In the present stage, the first explanation was the most plausible.
To calculate the amount of C16 intercalated in organoclays, different methods were proposed by different authors, some of them have taken in account the mass loss of the pristine clay in the studied range of temperature, and others without taking in account such mass loss [101,102,103,104]. The different models were used, and there was a difference between the estimated amounts of C16 cations. However, the highest amount of C16 surfactants was calculated for C16Br-CN clay and the lowest was for the C16OH-CN. The C16Cl-CN exhibited an intermediate value, in good agreement with the C.H.N elemental analysis data.

2.1.6. Nitrogen Adsorption

The nitrogen adsorption experiments were used to support the existence of C16 cations between the interlayer spacing of cloisite Na clay. The cationic surfactant head groups carry positive charge and are tightly bonded to the clay surfaces. Consequently, all cationic surfactants are expected to cover some/all of the mineral surface and decrease the apparent surface area of the surfactant/clay hybrid [105]. The isotherms exhibited type II forms, corresponding to no porous materials, and indicated that the adsorbed amount of nitrogen gas decreased when the C16 cations were intercalated in the organoclays. The adsorbed values at higher relative pressures higher than 0.95, was due to the condensation of nitrogen molecules in the interparticle spacing. Besides, cationic surfactant head groups reduce the inter-particle repulsive forces, can cause particles to aggregate, and therefore can also reduce the surface area [106,107]. The SBET of cloisite Na was estimated to 24.6 m2/g. this value was in the reported range of similar clay minerals [108] and lower in some cases to the reported ones [109,110]. After intercalation of C16 cations, the SBET values of the resulting organoclays decreased and reached a value of 5 to 9 m2/g. close to that reported for similar materials [110,111]. These data indicated that the expansion of the basal spacing with organoclays did not lead to an improvement of the surface areas as reported by [112]. This fact could be related to the orientation of the C16 cations that lay parallel to the clay layers and thus blocked the passage of N2 molecules, occupying active clay sites which might be available for N2 molecules. [112,113,114,115,116]. In addition, the pore volume was decreased, due to the presence of the surfactants in the pores available between the clay particles [117]. These surfactants were adsorbed on the exterior surface of the organoclays, as reported in the CHN and XRD paragraphs.

2.1.7. SEM Studies

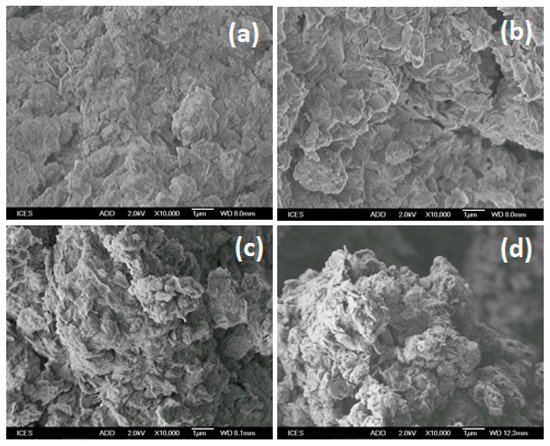

Typically SEM can provide images at micron scale. The SEM micrographs for cloisite Na and organoclay derivative are presented in Figure 8. The particles of the parent clay were agglomerated and compact, while, the particles of the organophilic cloisites were less compact than those of the Na cloisite. The micrographs do not permit us to conclude whether the expansion of the layers is uniform in the whole mass of the modified clay, the morphology of organoclays was moderately affected by the presence of surfactant cations.
The EDX analysis of cloisite Na indicates significant Si (67% in atomic weight) and Al (20.88% in atomic weight) are present with a percentage of Na about 5.22%, indicating the Na character of the cloisite clay. After reaction with C16 surfactant solutions, the Na percentage decreased significantly, indicating that most Na cations have been exchanged by C16 cations, and were eliminated during the filtration and washing process.

2.1.8. Thermal Stability

The organoclays were used to remove acid dyes from polluted water, in this part, the in-situ XRD was used to investigate the structural changes of the organoclays and to identify the appropriate temperature at which the organoclays could be thermally treated without losing their performance in the eosin removal process [29,33].
For comparison, the thermal stability of the C16Br salt used was investigated. Previous studies indicated that the solid C16Br exhibited a layered structure with a length of the C16 chain about 2.6 nm, this value was close to that reported in the literature [24,116]. By heating the salt, the in-situ the PXRD study indicated that the layered structure expanded from 2.60 nm to 3.32 nm, in the temperature range of 25 °C to 210 °C, then it collapsed, due the melting of the solid salt [33,47] (Supplementary Material 3).

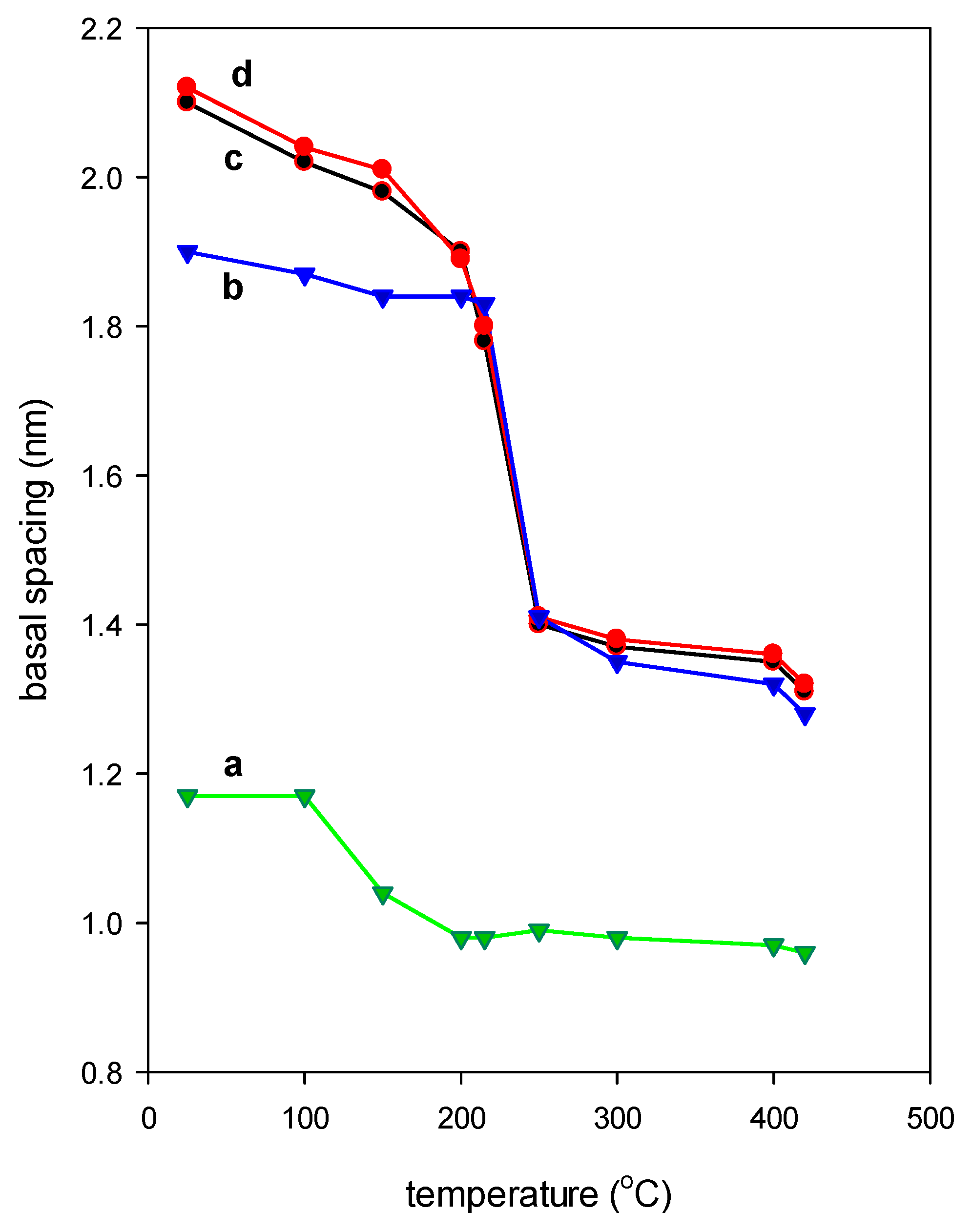

The in-situ PXRD of the C16Cl-CN precursor showed that the basal spacing of 2.00 nm was maintained at temperatures up to 150 °C, and indicating that the removal of water molecules did not affect the layered expansion, and the water molecules were mainly adsorbed onto the external surface of the organoclays, as described in the TGA section. The basal spacing of 2.10 nm decreased slightly in this range, and it varied from 2.10 to 1.95 nm (Figure 9). At a temperature of 250 °C, a dramatic decrease of the basal spacing occurred from 1.95 nm to 1.41 nm. This temperature value coincided with the maximum temperature loss in the DTG curve. The decrease could be related to the release of one layer of C16 cations, and the value of 1.41 nm was close to an intercalated monolayer of C16 cations between the clay sheets. The basal spacing of 1.41 nm decreased continuously from 1.40 nm to 1.35 nm, indicating that the C16 cations were not completely destroyed at the heated temperatures. The maximum in-situ temperature was 420 °C, and no further change was observed due to the limitation of the operational temperature.
In general two sets of basal spacinga were observed for the different organoclays, one up to 2.02 nm and the second one started from 1.40 nm due to a possible loss of one monolayer of surfactant cations, or to the presence of residual carbon materials between the clay layers. The intercalated C16 cations behave differently than the C16Br salt used (Figure 9). This difference could be associated to the confined space of the clay layers, or to the conformation of the C16 cations in the bromide salt used. The calcination of the organoclays at temperatures higher than 500 °C led to further decrease of the basal spacing up to 1.28 nm, and indicated the presence of residual carbon materials [47], compared to the value 0.96 nm for pristine clay mineral calcined at 500 °C.

2.2. Removal of Eosin Dye

The prepared organoclays and their calcined products were tested in the removal of the acidic dye eosin.

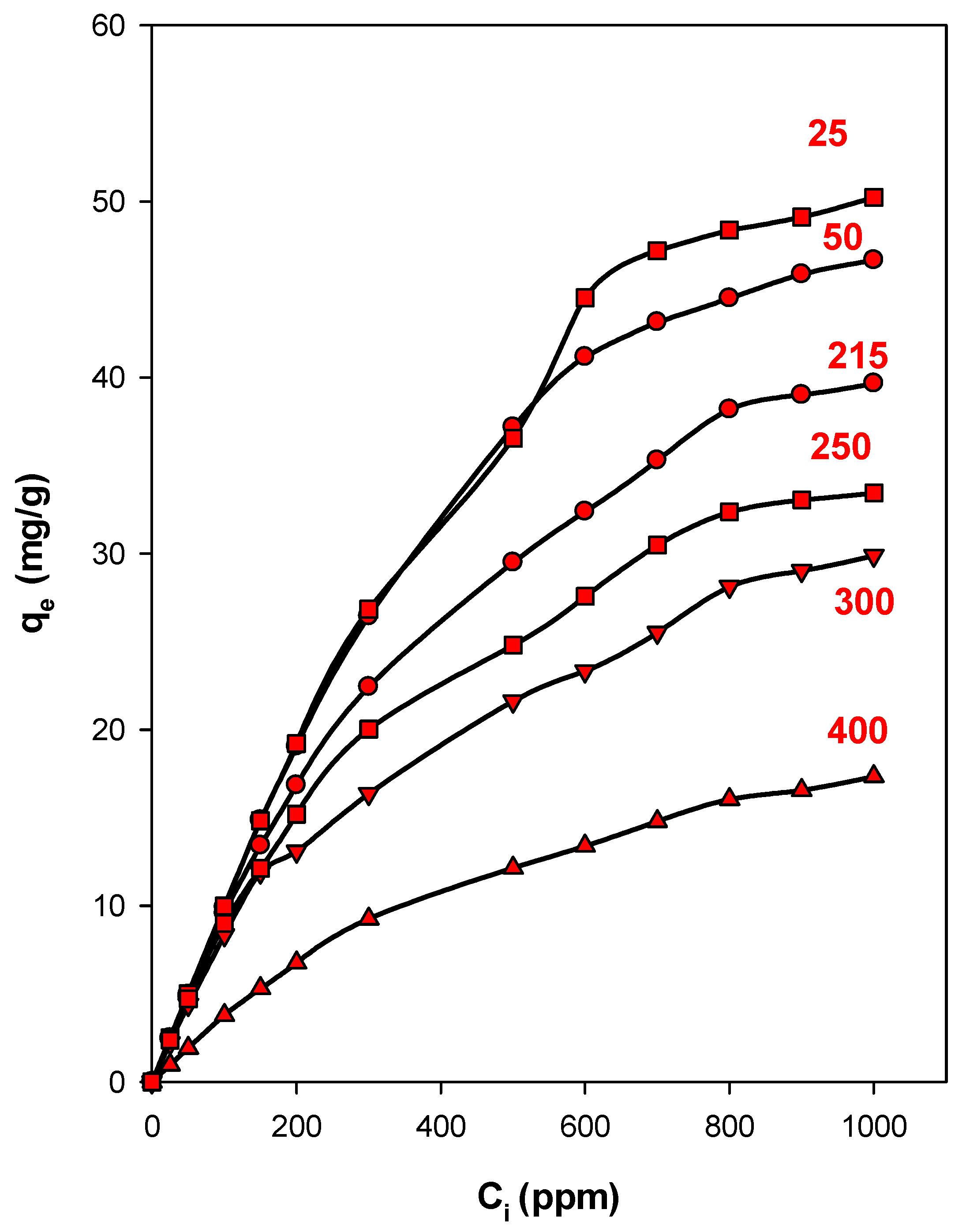

2.2.1. Effect of Initial Concentration

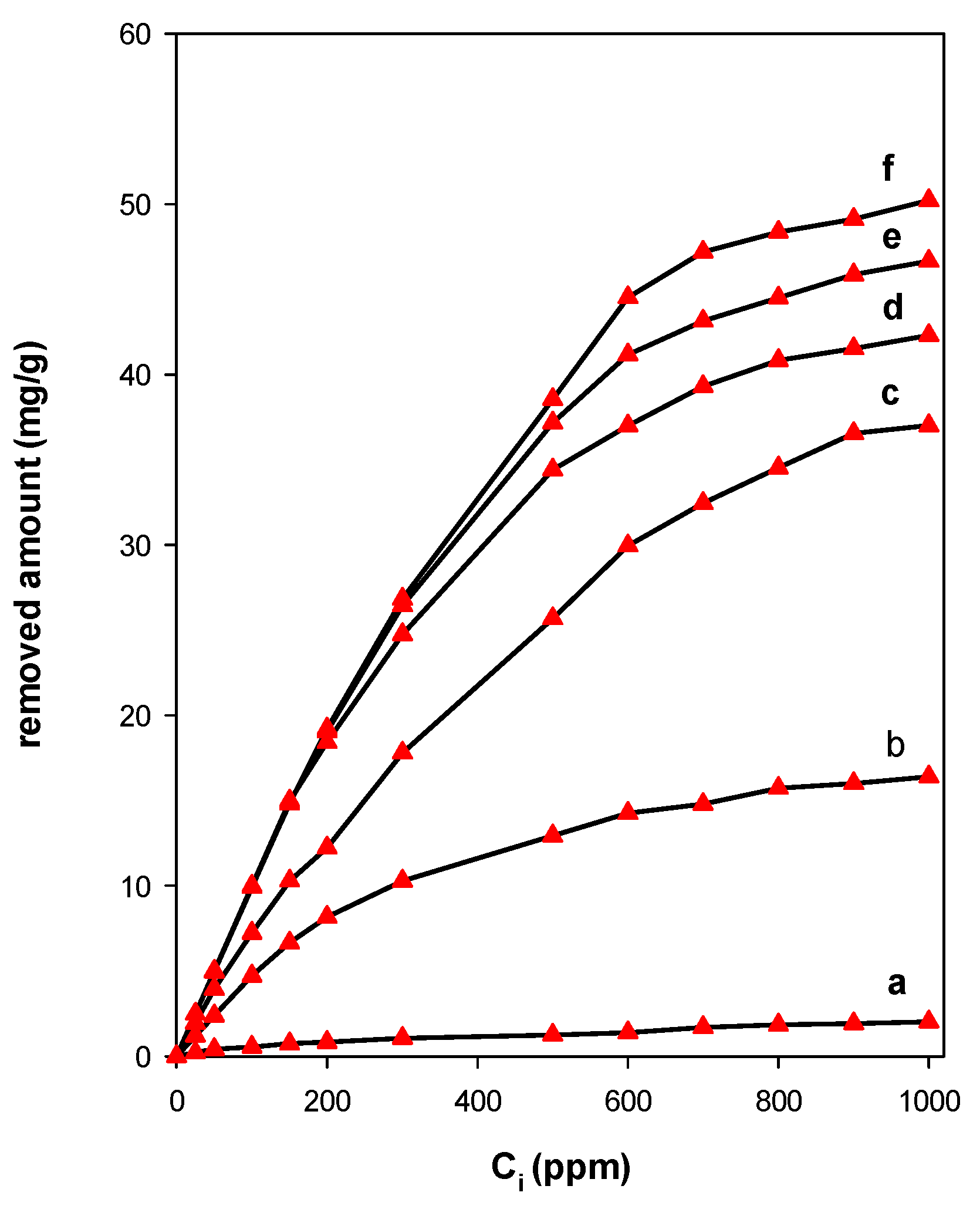

In this part, different initial concentrations (Ci) were used in the range of 25 ppm to 1000 ppm, for the sample C16Br-CN. At a constant amount of organoclay, the removal percentage of eosin decreased from 100% to 58%. as the Ci values were varied from 25 ppm to 1000 ppm (Supplementary Material 4). This indicated that the concentration gradient is an important driving force to overcome the mass transfer resistances between the liquid and solid phase [118]. At lower eosin concentrations, the ratio of solute connecting to the organoclay sites is higher, which caused the increase in color removal efficiency, while at higher dye concentration, the lower adsorption percentage was caused by the saturation of active removal sites on the organoclay surface. On the other hand by increasing the eosin initial concentration, the actual amount of eosin removed per unit mass of organoclay increased from 2.5 mg/g to 50 mg/g (Supplementary Material 4). The effect of used Ci of eosin was examined for the other two organoclays, and the removed amount was depended on the initial concentration and it was improved from 25 ppm to 1000 ppm with a maximum at 40 to 45 mg/g, for C16Cl-CN and C16OH-CN materials. The high removal efficiency at lower concentrations may be due to the existence of more available vacant sites on the organoclay than the number of eosin ions existed in the solution. At higher concentrations, the eosin anions are comparatively higher than the available vacant sites for the removal [33,85].

2.2.2. Effect of Surfactant Content

The content of intercalated C16 cations were investigated using 0.1 g of solid material and varying the initial concentrations from 25 ppm to 1000 ppm. The starting CN clay exhibited a low removal capacity of about 3 mg/g. This low value was related to the nature of the negatively clay surface, per consequent a repulsion between the surface clay and the eosin anions in solution [23,78]. Similar data were reported for other acidic dyes using different negative charged solids [32,119,120]
When the CN was modified by cationic surfactants, an improvement of the removal capacity was observed, especially at higher Ci values. The C16Br-CN exhibited the highest removal capacity. This fact was related to its highest content of surfactants as mentioned in Table 1. Meanwhile, C16OH-CN exhibited the lowest removal capacity value. The structure of Si-O groups and hydration of Na+ ions in the clay establishes a hydrophilic structure on the mineral surface. However, the anionic surface properties of the clay can be changed using positively charged organic compounds such as alkyl ammonium ions. Thus, an improvement of removal efficiency was related to the complete covering of the negative charge on CN clay by the surfactant, which means that the electrical repulsion was overcame [120]. Similar data were achieved using other clay minerals and layered silicates [33,66].
In case of C16Cl-CN loaded with different C16 contents, similar trends were observed (Figure 10). At lower Ci values below 100 ppm, the removed amount was not affected by C16 loadings. However, a continuous improvement of eosin removal efficiency was observed, and maximum value of 52 mg/g was obtained for Ci value close to 1000 ppm. At intermediate C16 loadings below the CEC values, the clay surfaces still exhibited a negative charge character that affected the eosin removal properties. However, at loading close to the CEC value, the negative charge was totally overcame by the C16 cations, and thus made easy the removal of the anionic dyes. Previous studies indicated that the accumulation of quaternary ammonium cations in the interlayer and on surfaces largely in excess of the CEC of the clay mineral leads to a build-up of net positive charges. This charge reversal consequently improves the material’s affinity to negatively charged contaminants such as metalloids (e.g., chromate, arsenate) [121] surfactants [122], and herbicides [123].

2.2.3. Effect of Removal Temperature

The removal properties of a selected organoclay (C16Br-CN), was investigated at three different temperatures from 25, 40 and 50 °C. The selected value of 50 °C was chosen because the organoclays were stable at this temperature as mentioned above. The effect of the temperature was clearly noticed at Ci values greater than 300 ppm. Al lower Ci values, a removal of 100% was achieved, independently of the operational temperatures (Supplementary Material 5). However, at higher initial concentration of 1000 ppm, a value of 65 mg/g was achieved at 50 °C. The improvement of the removal efficiency of eosin with an increase in temperature was owed to the strength of the attractive force between the removal sites and eosin, and demonstrates an endothermic process [33].

2.2.4. Effect of Heating Temperature of Organoclays

This study was focused on the C16Cl-CN organoclay, and the material was pre-heated at selected temperatures deduced from Figure 9. The Ci values of the eosin were varied from 25 ppm to 1000 ppm. The data are presented in Figure 11, and indicate that the removed amount of eosin was independent of the preheated temperatures lower than 215 °C for Ci values less than 200 ppm. However, as the preheating temperatures increased, for example above 215 °C, a decrease of the removed amounts was observed for used Ci values above 200 ppm. This variation was related to the shrinkage of basal spacing from 1.91 nm to 1.41 nm, and thus reduced accessibility of eosin anions to the removal sites. Interestingly, the removal amounts were comparable to other organoclays with similar basal spacing. As reported previously, the decrease of the basal spacing was related to the decomposition of organic surfactants, as showed by the TGA and in-situ XRD studies, and thus affected the removal properties of the preheated materials. At preheated temperatures of 300 °C, the removal efficiency of derived material was reduced due to the complete destruction of the intercalated surfactants, and to the loss of the removal sites. However, it was higher than the starting CN clay. This difference was attributed to the remaining of the carbon materials between the clay layers. Similar data were reported for different organo-clays and organo-silicates materials, such as magadiite or kenyaites, for the removal of eosin and nitrobenzene [33,53,65,123].

2.2.5. Maximum Removal Amount

The determination of the maximum removal capacity and the development of an equation that could be accurately used for design purpose are important factors for economical purposes. Langmuir model is among the most common isotherm that can be used for the description of solid–liquid sorption system [124].
The well-known expression of the Langmuir model is given in Equation (3):
C e q e = 1 q max · K L + C e q max
where qe (mg/g) and Ce (mg/L) are the amounts of adsorbed dye per unit weight of adsorbent and unadsorbed dye concentration in solution at equilibrium, respectively. qmax (mg/g) and KL (L/mg) are the Langmuir constants, representing the maximum adsorption capacity for the solid phase loading and the energy constant related to the heat of adsorption respectively
The data are presented in Table 5. The application of the Langmuir model to the adsorption isotherm showed that the Langmuir isotherm model turned out to be extremely satisfactory with higher R2 value greater than 0.99.
The results indicated that the modification of cloisite clay by surfactant cations improved its eosin removal properties compared to the starting clay. In overall, the organoclays exhibited close to maximum removal amounts varying from 46 to 55 mg/g of clay. This fact could be related to the amount of intercalated C16 cations. From the values in Table 5, the surface area and pore volume were not important factors in terms of controlling the affinity between organoclays and dye anions [116], and the loaded surfactant was highly important for determining the removal capacity of the organoclays.
The pre-heating of the organoclay also affected the removal properties, and an average value of 47 mg/g was maintained at temperatures below 210 °C, then it dramatically decreased to 30 mg/g after that temperature. This fact was related to the destruction of the intercalated C16 cations, and thus the unavailability of removal sites to this process. These data confirmed the idea that the surfactant content was the most important factor for the determination of the removal capacity.
The Langmuir constants were related to the affinity of the surface clay towards the eosin anions, and in overall, these values were improved as the removal amount increased, in good agreement with the previous studies [33,67].
In comparison to other organoclays and adsorbents (Table 6), the organoclays prepared from cloisite exhibited reasonable removal properties and could be used for temperatures less than 200 °C without significant loss of their capacities. In comparison to organo-polymer grade montmorillonites (organo-PG clays), the later exhibited higher removal capacities than the organocloisites, this fact was related to the higher CEC of the polymer grade (PG) clay (about 1.40 meq/g) [33], per consequent, a higher up take amount of C16 cations was achieved. In case of magadiite, it exhibited a large CEC value above 2 meq/g [53], nevertheless, its uptake of C16 cations was lower than that of the PG clay. The magadiite was prepared in the laboratory and it was difficult to exfoliate it in pure dionized water, thus, the up take amount was limited and close to CEC value, due to the cation exchange reaction between the Na+ cations and the C16 ones. In case of cloisite-Na clay, the challenging problem consists of improving the up take amount of C16 cations, above the CEC value. This target will be investigated separately.

2.3. Regeneration Tests

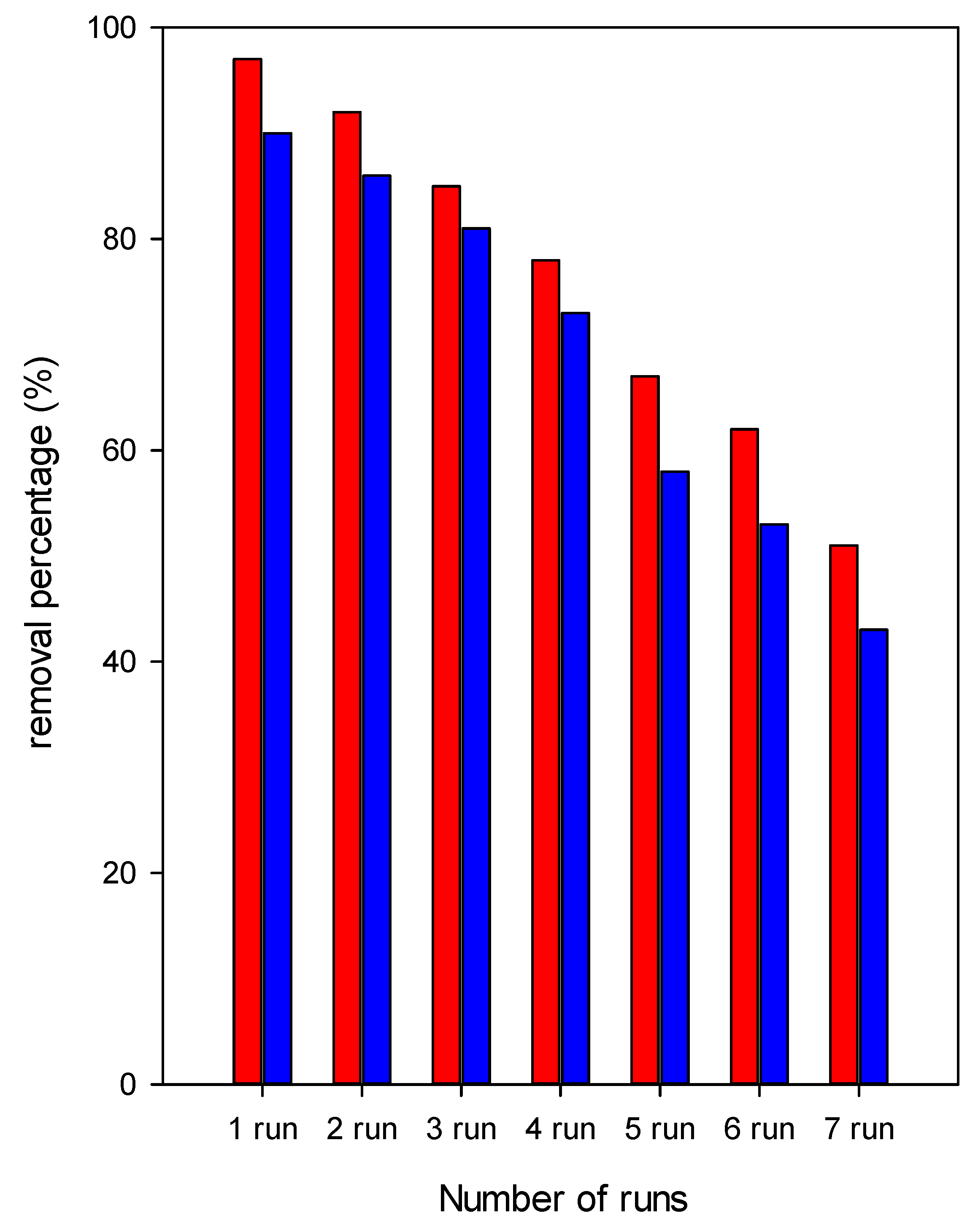

The processes of regeneration and reuse of these clay materials are of high interest; a cost-effective and feasible regeneration methods could be developed to make use of the organoclays with real industrial dye effluents economically viable [130]. In this case, a regeneration process based on the oxidation reaction of the removed dye was adopted, using a minimum of oxidant agent and chemicals [33]. This method was reported to be effective and easy to use. Two samples were selected, the C16Br-CN and C16OH-CN clays. The data are presented in Figure 12 and it can be seen that the removal capacity of the decreased continuously with an increase in the number of regenerations of the used organoclays, during the first four runs, a decrease of about 20% was obtained for C16Br-CN and of 30% for C16OH-CN. After the fifth run, C16OH-CN material exhibited a significant reduction above 50%, however, the C16Br-CN still maintained a reasonable 65% removal. The decrease in the eosin removal efficiency suggested that the availability of the number of removal sites decreased with the increase in numbers of runs on the organoclays, and could indicated that the removed eosin anions were strongly attached to removal sites and thus were difficult to be removed during the regeneration process. In previous study, the regeneration efficiency was related to the C16 contents in the organoclays. Organoclays with higher C16 contents exhibited a slight decrease after four runs of 20%, and still maintained a removal efficiency of 70% after five reuse cycles [34].

2.4. Alternative Approach

The removal agent cost is important parameter for comparing the industrial applicability of materials. The overall cost of the adsorbent is governed by several factors, including its availability, the processing required, and its reuse. The clay mineral is available in abundance everywhere, near the local communities. The transformation of the raw clay mineral to homoionic derivative is not compulsory, and it saves water and chemical consumptions. In mean time, the modification of clay mineral by alkyl ammonium cations will add extra processing cost. This cost will be compensated by its better pollutant removal efficiency. In addition, the preparation of organoclays requires a much larger amount of water and surfactants, and results in much larger quantity of wastewater and surfactant with excess inorganic quaternary ammonium anions. Thus, a balance between a proper amount of added water and surfactant in the preparation of organoclays should be established. Solid state intercalation is easy to perform and is one of the most suitable techniques for intercalation processing. This technique, which consists of grinding a clay mineral and a dry surfactant, at room temperature for a short period of time could be used. Some literature indicates that the surfactants can exhibit significant harmful effects to living organisms including bacteria, protists and animals. However, once intercalated into clay minerals, the surfactants will not be released into the water, and materials containing organoclays have almost zero leaching, making them completely safe to use outdoors, with no or low impact on the environment.

3. Experimental Section

3.1. Materials

The starting cloisite clay (CN) was supplied by Nanocor Company (city, state abbrev USA) with a cation exchange capacity (CEC) of 95 meq/100 g, as reported by the supplier. The clay was used as received [131]. Hexadecyltrimethyl ammonium bromide (C16Br), hexadecyltrimethyl ammonium chloride (C16Cl), and hexadecyltrimethyl ammonium hydroxide (C16OH) were purchased from TCI Chemical Company (TCI, Singapore), they were of analytical grade. Eosin (99.9%) was purchased from Acros Organics (Loughborough, UK). The structure is presented in Figure 13. Oxone (2KHSO5×KHSO4×K2SO4, 4.7% active oxygen) and cobalt nitrate hexahydrate were purchased from Alfa Chemicals (Binfield, Berkshire, UK). All the chemicals were used as received.

3.2. Modification of Organo-Clays

The organocloisite was prepared by a cation exchange reaction as reported in a previous study [33]. In a typical preparation, a known amount of C16Br salt (corresponds to 2.44 mmole) was dissolved into 50 mL of deionized water, then two grams of cloisite clay (CN) were added to this solution. The dispersion was stirred overnight at room temperature. The resulting material was separated by filtration, and washed repeatedly with deionized water for 6 to 7 times. The sample was dried at 40 °C for overnight in a statistical oven.
When C16 solution was used with different anions such chloride and hydroxide, and at same concentration of 2.40 mmole, the corresponding mass of the surfactants was dissolved into 50 mL of deionized water, and then similar procedure was followed as for the C16Br salt.
The sample will be identified as C16X-CN, where X corresponds to the used anion of C16 salt. For example, C16Br-CN indicates that cetyltrimethylammonium Br salt was used to prepare the organoclay.

3.3. Effect of Washing Solution

This study concerns the C16Br-CN organoclay, after its preparation as reported in Section 3.2, and during the filtration process, ethanolic solutions with different ratios of ethanol to water (% in volume) were used, instead of pure deionized water. The samples were washed several times with the solution, then dried at room temperature [33].

3.4. Chemical Stability

The C16Br-CN was used as a model sample, and the experiments were conducted as reported in previous study. 50 mL of aqueous solutions of NaCl, HCl and NaOH with concentrations of 0.5 M were prepared, then 0.5 g of solid C16Br-CN were added to each solution, separately. The suspension was stirred for overnight, the solids were collected by filtration, washed with deionized water for several times, then dried at room temperature [33].

3.5. Eosin Removal

The removal experiments of eosin dye were performed as reported previously [54]. A stock solution of 1000 mg/L was prepared by dissolving 1 g of eosin dye into 1000 mL of deionized water. The dilution process was carried out to get the desired concentrations. 100 mg of solid materials were added to 10 mL of different initial concentrations (50 to 1000 mg/L) of eosin in separated glass vials of 12 mL capacity. The sealed vials were shacked into on a water-bath shaker at fixed temperature of 25 °C and for overnight, to ensure that the equilibrium was attained. The solutions were centrifuged at 4000 rpm for 10 min, and the residual concentrations of eosin in the filtrates were determined from the calibration curve at absorbance maxima, λmax of 516 nm. The effect of temperature on the eosin removal efficiency was performed at different temperatures from 25 °C to 50 °C, following the same procedure described above.
Blank experiments were performed using neat dye solutions (without solids) to ensure that no dye was adsorbed onto the glass tubes. All removal experiments were performed in duplicate and the mean values were used in data analysis, the percentages of the errors were about 5%. The methods to estimate the amount of removed eosin (qe, in mg/g) and the removal efficiency (%) of the dye at equilibrium were reported in previous study [33].

3.6. Regeneration Process

Regeneration studies on the spent organoclays were studied to determine possible reusability of the organoclays after batch adsorption experiment. Organoclay was first added to 50 mL of eosin (200 mg/L) at 25 °C. The eosin-loaded organoclay was separated by centrifugation, washed with water and then treated into 10 mL of a cobalt nitrate solution of (10 mM) and 12 mg of oxone, for 30 min. The oxone was added into the mixture to degrade the removed eosin [33,48]. The regeneration process was repeated for seven cycles, following the same procedure.

3.7. Characterization

CHN elemental analysis was performed using an EURO EA elemental analyser (Waltham, MA, USA) for the different organoclays. Two parallel runs for each sample were performed. Powder X-ray diffraction (PXRD) patterns were collected on a D8 Advance powder diffractometer (Bruker, Germany) using monochromatic Cu Kα radiation (λ = 0.15406 nm). Fourier-transform infrared (FTIR) spectra of the samples were recorded by KBr disk method on a Shimadzu FTIR spectrometer (Tokyo, Japan) over the spectral region of 400–4000 cm−1. Thermo-Gravimetric Analysis (TGA) was performed on a model SDT2960 TA instrument (New Castle, DE, USA solid 13C-CP-NMR technique was performed to investigate the conformation of the intercalated C16 cations. The detail analysis was reported in a previous work [33]. The morphology was observed by a model JSM-6700F field scanning electron microscope (Jeol, Japan) equipped with an EDX system. N2 adsorption isotherms were collected at 77 K on a ASAP 2040 system (Micromeritics, Ottawa, ON, Canada) and the pore volume was estimated at a relative pressure of P/Po at 0.95. The specific surface area was determined by the Brunauer–Emmett–Teller (BET) method. The samples were degassed to 120 °C for overnight.
The powder in-situ x-ray diffraction patterns were collected using a HTK 16 high temperature chamber (Anton Paar, Ostfildern-Scharnhausen, Germany) mounted on a Bruker AXS, D8 Advance diffractometer [54]. The temperature was varied in the range of 25 °C to 420 °C. A UV-VIS spectrophotometer (Cary 100 model, Varian, Australia) was used to estimate the absorbance at maximum wavelength (λmax = 610 nm) in the supernatant, and the concentration at equilibrium was estimated from the calibration curve.

4. Conclusions

The removal capacity by cloisite Na clay was improved to a huge extent due to the organic modification by cetyltrimethylammonium cations, Actually, the C16 cations impart organophilicity to the starting cloisite, due to cation exchange of Na cations by the surfactant cations. As a result, the resulting organocloisites removed more eosin than the unmodified clay. The removal amount was related to the content of the C16 surfactants, initial concentrations of eosin, and the preheating temperature of the organoclay prior its use.
Overall, the type of the anion used for the surfactant salt did not significantly affect its intercalated amount, and the values were in the range of 0.95 mmol/g to 1.04 mmol/g, with an expansion of the basal spacing that it did not exceed 2.05 nm, and associated with a bilayer arrangement of C16 cations parallel to the clay clays. The preheat treatment of two selected OCs affected their eosin removal properties at temperatures higher than 215 °C. The regeneration process indicated that the removal property was maintained up to four cycles, depending of the used organoclays. The prepared organoclays can be safely used with low or no impact on environment. Since, the intercalated cations were not exchanged with smaller cations such as Na or protons for a longer contact time with the corresponding solutions, compared to their quaternary ammonium salts on their owns.

Supplementary Materials

The following are available online.

Author Contributions

Conceptualization, R.A.-F., F.K. and Y.L.; Data curation, F.K., Y.L., S.R.; M.A., H.O.H., R.A.-F. and F.A.W.; Formal analysis, M.A., F.K., S.R. and H.O.H.; Funding acquisition, F.K. and Y.L.; Investigation, F.K., Y.L., M.A., H.O.H. and R.A.-F.; Methodology, F.K., S.R., R.A.-F., Y.L., H.O.H. and F.A.W.; Project administration, F.K.; Resources, F.K., Y.L., R.A.-F., M.A., S.R., S.M.I. and F.A.W.; Supervision, F.K., L.Y.; Validation, F.K., R.A.-F. and M.A.; Visualization, F.K., H.O.H., M.A., S.R. and S.M.I.; Writing-Original Draft Preparation, F.K., H.O.H., S.M.I. and F.A.W.; Project Administration, F.K. and Y.L.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Goswami, K.B.; Bisht, P.S. The Role of water resources in socio-economic development. Int. J. Res. Appl. Sci. Eng. Technol. 2017, 5, 1669–1674. [Google Scholar]
  2. Somlyody, L.; Varis, O. Freshwater under pressure. Int. Rev. Environ. Strateg. 2006, 6, 181–204. [Google Scholar]
  3. Brown, C.; Lall, U. Water and economic development: The role of interannual variability and a framework for resilience. Nat. Resour. Forum. 2006, 30, 306–317. [Google Scholar] [CrossRef]
  4. Bisschops, I.; Spanjers, H. Literature review on textile wastewater characterization. Environ. Technol. 2003, 24, 1399–1411. [Google Scholar] [CrossRef] [PubMed]
  5. Zollinger, H. Color Chemistry: Syntheses, Properties and Applications of Organic Dyes and Pigments; VCH Publications: New York, NY, USA, 1991. [Google Scholar]
  6. Ramesh Babu, B.; Parande, A.K.; Raghu, S.; Prem Kumar, T. Textile technology. Cotton Textile Processing: Waste Generation and Effluent Treatment. J. Cotton Sci. 2007, 11, 141–153. [Google Scholar]
  7. Rearick, W.A.; Farias, L.T.; Goettsch, H.B.G. Water and salt reuse in the dyehouse. Text. Chem. Color. 1997, 29, 10–19. [Google Scholar]
  8. Kant, R. Textile dyeing industry an environmental hazard. J. Nat. Sci. 2012, 4, 22–26. [Google Scholar] [CrossRef] [Green Version]
  9. Gita, S.; Hussan, H.; Choudhury, T.G. Impact of Textile Dyes Waste on Aquatic Environments and its Treatment. Environ. Ecol. 2017, 35, 2349–2353. [Google Scholar]
  10. Thomas, J.S.; Durham, B. Integrated water resource management: Looking at the whole picture. Desalination 2003, 156, 21–28. [Google Scholar] [CrossRef]
  11. Ashfaq, A.; Khatoon, A. Waste management of textiles: A solution to the environmental pollution. Int. J. Curr. Microbiol. Appl. Sci. 2014, 3, 780–787. [Google Scholar]
  12. Devi Saini, R. Textile Organic Dyes: Polluting effects and Elimination Methods from Textile Waste Water. Int. J. Chem. Eng. Res. 2017, 9, 121–136. [Google Scholar]
  13. Anjaneyulu, Y.; Sreedhara Chary, N.; Suman Raj, D.S. Decolourization of industrial effluents—Available methods and emerging technologies—A review. Rev. Environ. Sci. Biotech. 2005, 4, 245–273. [Google Scholar] [CrossRef]
  14. Yagub, M.T.; Sen, T.K.; Afroze, S.; Ang, H.M. Dye and its removal from aqueous solution by adsorption: A review. Adv. Colloid Interface Sci. 2014, 209, 172–184. [Google Scholar] [CrossRef]
  15. Suteu, D.; Zaharia, C.; Bilba, D.; Muresan, A.; Muresan, R.; Popescu, A. Decolorization wastewaters from the textile industry—Physical methods, chemical methods. Ind. Text. 2009, 60, 254–263. [Google Scholar]
  16. Kant, R. Adsorption of dye eosin from an aqueous solution on two different samples of activated carbon by static batch method. J. Water Resour. Prot. 2012, 4, 93–98. [Google Scholar] [CrossRef]
  17. Bharathi, K.S.; Ramesh, S.T. Removal of dyes using agricultural waste as low-cost adsorbents: A review. Appl. Water Sci. 2013, 3, 773–790. [Google Scholar] [CrossRef]
  18. Gupta, V.K.; Carrott, P.J.M.; Ribeiro Carrott, M.M.L.; Suhas. Low-Cost Adsorbents: Growing Approach to Wastewater Treatment—A Review. Crit. Rev. Environ. Sci. Technol. 2009, 39, 783–788. [Google Scholar] [CrossRef]
  19. Katheresan, V.; Kansedo, J.; Lau, S.Y. Efficiency of various recent wastewater dye removal methods: A review. J. Environ. Chem. Eng. 2018, 6, 4676–4697. [Google Scholar] [CrossRef]
  20. Kumar, P.; Agnihotri, R.; Wasewar, K.L.; Uslu, H.; Yoo, C.K. Status of adsorptive removal of dye from textile industry effluent. Desalin. Water Treat. 2012, 50, 226–244. [Google Scholar] [CrossRef]
  21. Kausar, A.; Iqbal, M.; Javed, A.; Aftab, K.; Nazli, Z.H.; Bhatti, H.N.; Nouren, S. Dyes adsorption using clay and modified clay: A review. J. Mol. Liq. 2018, 256, 395–407. [Google Scholar] [CrossRef]
  22. Ngulube, T.; Gumbo, J.R.; Masindi, V.; Maity, A. An update on synthetic dyes adsorption onto clay based minerals: A state-of-art review. J. Environ. Manag. 2017, 191, 35–57. [Google Scholar] [CrossRef]
  23. Adeyemo, A.A.; Adeoye, I.O.; Bello, O.S. Adsorption of dyes using different types of clay: A review. Appl. Water Sci. 2017, 7, 543–568. [Google Scholar] [CrossRef]
  24. Sarkar, B.; Rusmin, R.; Ugochukwu, U.C.; Mukhopadhyay, R.; Manjaiah, K.M. Modified clay minerals for environmental applications. In Modified Clay and Zeolite Nanocomposite Materials; Mercurio, M., Sarkar, B., Langell, A., Eds.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 113–127. [Google Scholar]
  25. Ramakrishna, K.R.; Viraraghavan, T. Dye removal using low cost adsorbents. Water Sci. Technol. 1997, 36, 189–196. [Google Scholar] [CrossRef]
  26. Chitrakar, R.; Makita, Y.; Sonoda, A.; Hirotsu, T. Adsorption of trace levels of bromate from aqueous solution by organo-montmorillonite. Appl. Clay Sci. 2011, 51, 375–379. [Google Scholar] [CrossRef]
  27. Rodriguez-Cruz, M.; Sanchez-Martin, M.; Andrades, M.; Sanchez-Camazano, M. Modification of clay barriers with a cationic surfactant to improve the retention of pesticides in soils. J. Hazard. Mater. 2007, 139, 363–372. [Google Scholar] [CrossRef]
  28. Nafees, M.; Waseem, A. Organoclays as Sorbent Material for Phenolic Compounds: A Review. Clean Soil Air Water 2014, 42, 1500–1508. [Google Scholar] [CrossRef]
  29. Guegan, R. Organoclay applications and limits in the environment. Comptes Rendus Chim. 2019, 22, 132–141. [Google Scholar] [CrossRef]
  30. De Paiva, L.B.; Morales, A.R.; Valenzuela Diaz, F.R. Organoclays: Properties, preparation and applications. Appl. Clay Sci. 2008, 42, 8–24. [Google Scholar] [CrossRef]
  31. Park, Y.; Ayoko, G.A.; Frost, R.L. Application of organoclays for the adsorption of recalcitrant organic molecules from aqueous media. J. Colloid Interface Sci. 2011, 354, 292–305. [Google Scholar] [CrossRef]
  32. Ma, J.; Cui, B.; Li, D. Mechanism of adsorption of anionic dye from aqueous solutions onto organobentonite. J. Hazard. Mater. 2011, 186, 1758–1765. [Google Scholar] [CrossRef]
  33. Kooli, F.; Liu, Y.; Abboudi, M.; Rakass, S.; Oudghiri Hassani, H.; Ibrahim, S.M.; Al-Faze, R. Removal properties of anionic dye eosin by cetyltrimethylammonium organo-clays: The effect of counter-ions and regeneration studies. Molecules 2018, 23, 2364. [Google Scholar] [CrossRef]
  34. Elemen, S.; Perrin, E.; Kumbasar, A.; Yapar, S. Modeling the adsorption of textile dye on organoclay using an artificial neural network. Dyes. Pigments. 2012, 95, 102–111. [Google Scholar] [CrossRef]
  35. Guégan, R.; Giovanela, M.; Warmont, F.; Motelica-Heino, M. Nonionic organoclay: A ‘Swiss Army knife’ for the adsorption of organic micro-pollutants? J. Colloid Interface Sci. 2015, 437, 71–79. [Google Scholar] [CrossRef]
  36. Kooli, F.; Qin, L.S.; Kiat, Y.Y.; Weirong, Q.; Hian, P.C. Effect of hexadecyltrimethylammonium (C16) counteranions on the intercalation properties of different montmorillonites. Clay Sci. 2006, 12, 325–330. [Google Scholar]
  37. Li, Z.; Gallus, L. Surface configuration of sorbed hexadecyltrimethylammonium on kaolinite as indicated by surfactant and counterion sorption, cation desorption, and FTIR. Colloids Surf. A Physicochem. Eng. Asp. 2005, 264, 61–67. [Google Scholar] [CrossRef]
  38. Heinz, H.; Vaia, R.A.; Krishnamoorti, R.; Farmer, B.L. Self-assembly of alkylammonium chains on montmorillonite: Effect of chain length, head group structure, and cation exchange capacity. Chem. Mater. 2007, 19, 59–68. [Google Scholar] [CrossRef]
  39. Baskaralingam, P.; Pulikesi, M.; Elango, D.; Ramamurthi, V.; Sivanesan, S. Adsorption of acid dye onto organobentonite. J. Hazard. Mater. 2006, 128, 138–144. [Google Scholar] [CrossRef]
  40. Gonzaga, A.C.; Sousa, B.V.; Santana, L.N.L.; Neves, G.A.; Rodrigues, M.G.F. Study of different methods in the preparation of organoclays from the bentonite with application in the petroleum industry. Braz. J. Pet. Gas 2007, 1, 16–25. [Google Scholar]
  41. Kooli, F. Effect of C16 contents on the thermal stability of organo-bentonites: In situ X-ray diffraction analysis. Thermochim. Acta 2013, 551, 7–13. [Google Scholar] [CrossRef]
  42. Nafees, M.; Waseem, A.; Khan, A.R. Comparative study of laterite and bentonite based organoclays: Implications of hydrophobic compounds remediation from aqueous solutions. Sci. World J. 2013, 2013, 681769. [Google Scholar] [CrossRef]
  43. Cifuentes, A.; Bernat, J.L.; Diez-Masa, J.C. Determination of critical micelle concentration values using capillary electrophoresis instrumentation. Anal. Chem. 1997, 69, 4271–4274. [Google Scholar] [CrossRef]
  44. Goronja, J.M.; Ležaić, A.M.; Janošević; Dimitrijević, B.M.; Malenović, A.M.; Stanisavljev, R.; Pejić, N.D. Determination of critical micelle concentration of cetyltrimethyl-ammonium bromide: Different procedures for analysis of experimental data. Chem. Ind. 2016, 70, 485–492. [Google Scholar]
  45. Ulmius, J.; Lindman, B.; Lindblom, G.; Drakenberg, T. 1H, 13C, 35CI, and 79Br NMR of Aqueous Hexadecyltrimethylammonium Salt Solutions: Solubilization, Viscoelasticity, and Counterion Specificity. J. Colloid Interface Sci. 1978, 65, 66–97. [Google Scholar] [CrossRef]
  46. Kooli, F.; Yan, L. Chemical and thermal properties of organoclays derived from highly stable bentonite in sulfuric acid. Appl. Clay Sci. 2013, 83–84, 349–356. [Google Scholar] [CrossRef]
  47. Kooli, F.; Khimyak, Y.Z.; Alshahateet, S.F.; Chen, F. Effect of the acid activation levels of montmorillonite clay on the cetyltrimethylammonium cations adsorption. Langmuir 2005, 21, 8717–8723. [Google Scholar] [CrossRef]
  48. Kooli, F.; Liu, Y.; Abboudi, M.; Oudghiri Hassani, H.; Rakass, S.; Ibrahim, S.M.; Al-Wadaani, F. Waste bricks applied as removal agent of Basic Blue 41 from aqueous solution: Base treatment and their regeneration efficiency. Appl. Sci. 2019, 9, 1237. [Google Scholar] [CrossRef]
  49. Selsted, M.E.; Becker, H.W. Eosin Y: A reversible stain for detecting electrophoretically resolved protein. Anal. Biochem. 1986, 155, 270–274. [Google Scholar] [CrossRef]
  50. Chatterjee, S.; Chatterjee, S.; Chatterjee, B.P.; Das, A.R.; Guha, A.K. Adsoprtion of a model anionic dye, eosin Y, from aqueous solution by chitosan hydrobeads. J. Colloid Interface Sci. 2006, 288, 30–35. [Google Scholar] [CrossRef]
  51. Ye, C.H.; Bando, Y.; Shen, G.Z.; Golberg, D. Thickness-Dependent Photocatalytic Performance of ZnO Nanoplatelets. J. Phys. Chem. B 2006, 110, 15146–15151. [Google Scholar] [CrossRef]
  52. Cooksey, C. Quirks of dye nomenclature. 10. Eosin Y and its close relatives. Biotech. Histochem. 2018, 93, 211–219. [Google Scholar] [CrossRef]
  53. Kooli, F.; Liu, Y.; Abboudi, M.; Rakass, S.; Oudghiri Hassani, H.; Ibrahim, S.M.; Al-Faze, R. Application of Organo-Magadiites for the Removal of Eosin Dye from Aqueous Solutions: Thermal Treatment and Regeneration. Molecules 2018, 23, 2280. [Google Scholar] [CrossRef]
  54. Ramos Vianna, M.M.G.; Dweck, J.F.J.; Kozievitch, V.F.; Valenzuela-Diaz, F.R.; Büchler, P.M. Characterization and study of sorptive properties of differently prepared organoclays from a Brazilian natural bentonite. J. Therm. Anal. Calorim. 2005, 82, 595–602. [Google Scholar] [CrossRef]
  55. Wisam, H.; Hoidy, M.B.A.; Jaffar Al Mulla, E.A.; Bt Ibrahim, N.A. Synthesis and Characterization of Organoclay from Sodium Montmorillonite and Fatty Hydroxamic Acids. Am. J. Appl. Sci. 2009, 6, 1567–1572. [Google Scholar]
  56. Cervantes-Uc, J.M.; Cauich-Rodrıguez, J.V.; Vazquez-Torres, H.; Garfias-Mesıas, L.F.; Paul, D.R. Thermal degradation of commercially available organoclays studied by TGA–FTIR. Thermochim. Acta 2007, 457, 92–102. [Google Scholar] [CrossRef]
  57. Sasai, R.; Hotta, Y.; Itoh, H. Preparation of organoclay having titania nano-crystals ininterlayer hydrophobic field and its characterization. J. Ceram. Soc. Jpn. 2008, 116, 205–211. [Google Scholar] [CrossRef]
  58. Ikhtiyarova, G.A.; Özcan, A.S.; Gök, Ö.; Özcan, A. Characterization of natural- and organobentonite by XRD, SEM, FT-IR and thermal analysis techniques and its adsorption behaviour in aqueous solutions. Clay Miner. 2012, 47, 31–44. [Google Scholar] [CrossRef]
  59. He, H.; Ma, Y.; Zhu, J.; Yuan, P.; Qing, Y. Organoclays prepared from montmorillonites with different cation exchange capacity and surfactant configuration. Appl. Clay Sci. 2010, 48, 67–72. [Google Scholar] [CrossRef]
  60. Narine, D.R.; Guy, R.D. Interactions of some large organic cations with bentonite in dilute aqueous systems. Clays Clay Miner. 1981, 29, 205–212. [Google Scholar] [CrossRef]
  61. De Oliveira, T.; Guégan, R.; Thiebault, T.; Le Milbeau, C.; Muller, F.; Teixeira, V.; Giovanela, M.; Boussafir, M. Adsorption of diclofenac onto organoclays: Effects of surfactant and environmental (pH and temperature) conditions. J. Hazard. Mater. 2017, 323, 558–566. [Google Scholar] [CrossRef]
  62. Li, W.; Han, Y.C.; Zhang, J.L.; Wang, L.X.; Song, J. Thermodynamic modeling of CTAB aggregation in water-ethanol mixed solvents. Colloid J. 2006, 68, 304–310. [Google Scholar] [CrossRef]
  63. Li, W.; Han, Y.C.; Zhang, J.L.; Wang, B.G. Effect of ethanol on the aggregation properties of cetyltrimethylammonium bromide surfactant. Colloid J. 2005, 67, 159–163. [Google Scholar] [CrossRef]
  64. Gates, P.W. Crystalline swelling of organo-modified clays in ethanol–water solutions. Appl. Clay Sci. 2004, 27, 1–12. [Google Scholar] [CrossRef]
  65. Kooli, F.; Liu, Y.; Hbaieb, K.; Ching, O.Y.; Al-Faze, R. Characterization of organo-kenyaites: Thermal stability and their effects on eosin removal characteristics. Clay Miner. 2018, 53, 91–104. [Google Scholar] [CrossRef]
  66. Bertuoli, P.T.; Piazza, D.; Scienza, L.C.; Zattera, A.J. Preparation and characterization of montmorillonite modified with 3-aminopropyltriethoxysilane. Appl. Clay Sci. 2014, 87, 46–51. [Google Scholar] [CrossRef]
  67. Paul, D.R.; Zeng, Q.H.; Yu, A.B.; Lu, G.Q. The interlayer swelling and molecular packing in organoclays. J. Colloid Interface Sci. 2005, 292, 462. [Google Scholar] [CrossRef]
  68. Kooli, F. Organo-bentonites with improved cetyltrimethylammonium contents. Clay Miner. 2014, 49, 683–692. [Google Scholar] [CrossRef]
  69. Patel, H.A.; Rajesh, S.; Somani, R.S.; Hari, C.; Bajaj, H.C.; Jasra, R.V. Synthesis of organoclays with controlled particle size and whiteness from chemically created indian bentonite. Ind. Eng. Chem. Res. 2010, 49, 1677–1683. [Google Scholar] [CrossRef]
  70. Ke, Y.C.; Stroeve, P. Polymer-Layered Silicate and Silica Nanocomposites; Elsevier: Amsterdam, The Netherlands, 2005. [Google Scholar]
  71. Vaia, R.A.; Teukolsky, R.K.; Giannelis, E.P. Interlayer structure and molecular environment of alkylammonium layered silicates. Chem. Mater. 1994, 6, 1017–1022. [Google Scholar] [CrossRef]
  72. Venkataraman, N.V.; Vasudevan, S. Conformation of Methylene Chains in an Intercalated Surfactant Bilayer. J. Phys. Chem. B 2001, 105, 1805–1812. [Google Scholar] [CrossRef]
  73. Li, Y.; Ishida, H. Concentration-dependent conformation of alkyl tail in the nanoconfined space: Hexadecylamine in the silicate galleries. Langmuir 2003, 19, 2479–2484. [Google Scholar] [CrossRef]
  74. Madejova, J. FT-IR techniques in clay mineral studies. Vibrat. Spectrosc. 2003, 31, 110. [Google Scholar] [CrossRef]
  75. Xu, W.Z.; Johnston, C.T.; Parker, P.; Agnew, S.F. Infrared study of water sorption on Na-, Li-, Caand Mg- Exchanged (SWy-1and SAz-1) montmorillonite. Clays Clay Miner. 2000, 48, 120–131. [Google Scholar] [CrossRef]
  76. El Messabeb-Ouali, A.; Benna-Zayani, M.; Kbir-Ariguib, N.; Trabelsi-Ayadi, M. Physicochimical characterisation of organophilic clay. Phys. Procedia 2009, 2, 1031–1037. [Google Scholar] [CrossRef]
  77. Wong, T.C.; Wong, N.B.; Tanner, P.A. A Fourier Transform IR Study of the Phase Transitions and Molecular Order in the Hexadecyltrimethylammonium Sulfate/Water System. J. Colloid Interface Sci. 1997, 186, 325–331. [Google Scholar] [CrossRef] [PubMed]
  78. Ozcana, A.; Omero glu, C.; Erdogan, Y.; Ozcana, A.S. Modification of bentonite with a cationic surfactant: And adsorption study of textile dye Reactive Blue 19. J. Hazard. Mater. 2009, 140, 173–179. [Google Scholar] [CrossRef] [PubMed]
  79. Zhu, J.; He, H.; Zhu, L.; Wen, X.; Deng, F. Characterization of organic phase in the interlayer of montmorillonite using FTIR and 13C NMR. J. Colloid Interface Sci. 2005, 286, 239–244. [Google Scholar] [CrossRef] [PubMed]
  80. Rožić, M.; Miljanić, S. Sorption of HDTMA cations on Croatian natural mordenite tuff. J. Hazard. Mater. 2011, 185, 423–429. [Google Scholar] [CrossRef] [PubMed]
  81. Elfeky, S.A.; Mahmoud, S.E.; Youssef, A.F. Applications of CTAB modified magnetic nanoparticles for removal of chromium (VI) from contaminated water. J. Adv. Res. 2017, 8, 435–443. [Google Scholar] [CrossRef] [PubMed]
  82. Casal, H.L.; Mantsch, H.H.; Cameron, D.G.; Snyder, R.G. Interchain vibrational coupling in phase II (hexagonal) n-alkanes. J. Chem. Phys. 1982, 77, 2825–2830. [Google Scholar] [CrossRef]
  83. Vahedi-Faridi, A.; Guggenheim, S. Crystal Structure of Tetramethylammonium-Exchanged Vermiculite. Clays Clay Miner. 1997, 45, 859–866. [Google Scholar] [CrossRef]
  84. He, H.; Frost, L.R.; Zhu, J. Infrared study of HDTAM+ intercalated montmorillonite. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2004, 60, 2853–2859. [Google Scholar]
  85. Wang, L.Q.; Liu, J.; Exarhos, G.J.; Flanigan, K.Y.; Bordia, R. Conformation heterogeneity and mobility of surfactant molecules in intercalated clay minerals studied by Solid-State NMR. J. Phys. Chem. B 2000, 104, 2810–2816. [Google Scholar] [CrossRef]
  86. Kooli, F.; Magussin, P.C.M.M. Adsorption Studies of cetyltrimethylammonium ions on an acid-activated smectite, and their thermal stability. Clay Miner. 2005, 40, 233–243. [Google Scholar] [CrossRef]
  87. Wang, L.Q.; Liu, J.; Exarhos, G.J.; Bunker, B.C. Investigation of the structure and dynamics of surfactant molecules in mesophase silicates using solid-state13C NMR. Langmuir 1996, 12, 2663–2669. [Google Scholar] [CrossRef]
  88. Kumar, R.; Chen, H.T.; Escoto, J.L.V.; Lin, V.S.Y.; Pruski, M. Template removal and thermal stability of organically functionalized mesoporous silica nanoparticles. Chem. Mater. 2006, 18, 4319–4327. [Google Scholar] [CrossRef]
  89. Simonutti, R.; Comotti, A.; Bracco, S.; Sozzani, P. Surfactant Organization in MCM-41 Mesoporous Materials As Studied by 13C and 29Si Solid-State NMR. Chem. Mater. 2001, 13, 771–777. [Google Scholar] [CrossRef]
  90. Xu, D.; Feng, J.; Che, S. An insight into the role of the surfactant CTAB in the formation of microporous molecular sieves. Dalton Trans. 2014, 43, 3612–3617. [Google Scholar] [CrossRef]
  91. He, H.; Frost, R.L.; Deng, F.; Zhu, J.; Wen, X.; Yuan, P. Conformation of surfactant molecules in the interlayer of montmorillonite studied by 13C MAS NMR. Clays Clay Miner. 2004, 52, 350–356. [Google Scholar] [CrossRef]
  92. Lapides, I.; Borisover, M.; Yariv, S. Thermal analysis of hexadecyltrimethylammonium-montmorillonites: Part 2. Thermo-XRD spectroscopy- analysis. J. Therm. Anal. Calorim. 2011, 105, 39–51. [Google Scholar] [CrossRef]
  93. Dweck, J. Qualitative and quantitative characterization of Brazilian natural and organophilic clays by thermal analysis. J. Therm. Anal. Calorim. 2008, 92, 129–135. [Google Scholar] [CrossRef]
  94. Xi, Y.; Zhou, Q.; Frost, R.L.; He, H. Thermal stability of octadecyltrimethylammonium bromide modified montmorillonite organoclay. J. Colloid Interface Sci. 2007, 311, 347–353. [Google Scholar] [CrossRef] [Green Version]
  95. Onal, M.; Sarikaya, Y. Thermal behavior of a bentonite. J. Therm. Anal. Calorim. 2007, 90, 167–172. [Google Scholar] [CrossRef]
  96. Kozaka, M.; Domka, L. Adsorption of the quaternary ammonium salts on montmorillonite. J. Phys. Chem. Solids 2004, 65, 441–445. [Google Scholar] [CrossRef]
  97. Kooli, F. Thermal stability investigation of organo-acid-activated clays by TGMS and in situ XRD techniques. Thermochim. Acta 2009, 486, 71–76. [Google Scholar] [CrossRef]
  98. Sternik, D.; Gładysz-Płaska, A.G.; Grabias, E.; Majdanl, M.; Knauer, W. A thermal, sorptive and spectral study of HDTMA-bentonite loaded with uranyl phosphate. J. Therm. Anal. Calorim. 2017, 129, 1277–1289. [Google Scholar] [CrossRef] [Green Version]
  99. Park, Y.; Ayoko, G.A.; Kristof, J.; Horvath, E.; Frost, R.L. A thermoanalytical assessment of an organoclay. J. Therm. Anal. Calorim. 2012, 107, 1137–1142. [Google Scholar] [CrossRef]
  100. Bu, H.; Yuan, P.; Liu, H.; Liu, D.; Zhou, X. Thermal decomposition of long-chain fatty acids and its derivative in the presence of montmorillonite: A thermogravimetric (TG/DTG) investigation. J. Therm. Anal. Calorim. 2016. [Google Scholar] [CrossRef]
  101. Liu, B.; Wang, X.; Yang, B.; Sun, R. Rapid modification of montmorillonite with novel cationic Gemini surfactants and its adsorption for methyl orange. Mater. Chem. Phys. 2011, 130, 1220–1226. [Google Scholar] [CrossRef]
  102. Xi, Y.F.; Mallavarapu, M.; Naidu, R. Preparation, characterization of surfactants modified clay minerals and nitrate adsorption. Appl. Clay Sci. 2010, 48, 92–96. [Google Scholar] [CrossRef] [Green Version]
  103. Mallakpour, S.; Dinari, M. Preparation and characterization of new organoclays using natural amino acids and Cloisite Na+. Appl. Clay Sci. 2011, 51, 353–359. [Google Scholar] [CrossRef]
  104. Xi, Y.; Frost, R.L.; He, H. Modification of the surfaces of Wyoming montmorillonite by the cationic surfactants alkyl trimethyl, dialkyl dimethyl and trialkylmethylammonium bromides. J. Colloid Interface Sci. 2007, 305, 150–158. [Google Scholar] [CrossRef]
  105. Zhao, Q.; Choo, H.; Bhatt, A.; Burns, S.E.; Bate, B. Review of the fundamental geochemical and physical behaviors of organoclays in barrier applications. Appl. Clay Sci. 2017, 142, 2–20. [Google Scholar] [CrossRef]
  106. Soule, N.M.; Burns, S.E. Effects of organic cation structure on behavior of organobentonites. J. Geotech. Geoenviron. 2001, 127, 363–370. [Google Scholar] [CrossRef]
  107. Bate, B.; Choo, H.; Burns, S. Dynamic properties of fine-grained soils engineered with a controlled organic phase. Soil Dyn. Earthq. Eng. 2013, 53, 176–186. [Google Scholar] [CrossRef]
  108. Ribeiro, S.P.S.; Estevão, L.R.M.; Nascimento, R.S.V. Effect of clays on the fire-retardant properties of a polyethylenic copolymer containing intumescent formulation. Sci. Technol. Adv. Mater. 2008, 9, 024408. [Google Scholar] [CrossRef]
  109. Le Forestier, L.; Muller, F.; Villieras, F.; Pelletier, M. Textural and hydration properties of a synthetic montmorillonite compared with a natural Na-exchanged clay analogue. Appl. Clay Sci. 2010, 48, 18–25. [Google Scholar] [CrossRef] [Green Version]
  110. He, H.P.; Frost, R.L.; Bostrom, T.; Yuan, P.; Duong, L.; Yang, D.; Yun, X.F.; Kloprogge, J.T. Changes in the morphology of organoclays with HDTMA+ surfactant loading. Appl. Clay Sci. 2006, 31, 262–271. [Google Scholar] [CrossRef]
  111. Chen, C.; Zhou, W.; Yang, Q.; Zhu, L.; Zhu, L. Sorption characteristics of nitrosodiphenylamine (NDPhA) and diphenylamine (DPhA) onto organo-bentonite from aqueous solution. Chem. Eng. J. 2014, 240, 487–493. [Google Scholar] [CrossRef]
  112. Wang, C.; Juang, L.C.; Lee, C.K.; Hsu, T.C.; Lee, J.F.; Chao, H.P. Effects of exchanged surfactant cations on the pore structure and adsorption characteristics of montmorillonite. J. Colloid Interface Sci. 2004, 280, 27–35. [Google Scholar] [CrossRef]
  113. He, H.; Zhou, Q.; Martens, W.N.; Kloprogge, T.J.; Yuan, P.; Xi, Y.; Frost, R.L. Microstructure of HDTMA+-modified montmorillonite and its influence on sorption characteristics. Clays Clay Miner. 2006, 54, 689–696. [Google Scholar] [CrossRef]
  114. Bertagnolli, C.; Silva, M.G.C. Characterization of Brazilian Bentonite Organoclays as sorbents of petroleum-derived fuels. Mater. Res. 2012, 15, 253–259. [Google Scholar] [CrossRef] [Green Version]
  115. Burris, D.R.; Antworth, C.P. In situ modification of an aquifer material by a cationic surfactant to enhance retardation of organic contaminants. J. Contam. Hydrol. 1992, 10, 325–337. [Google Scholar] [CrossRef]
  116. Juang, R.S.; Lin, S.H.; Tsao, K.H. Mechanism of sorption of phenols from aqueous solutions onto surfactant-modified montmorillonite. J. Colloid Interface Sci. 2002, 254, 234–241. [Google Scholar] [CrossRef]
  117. Bezrodna, T.; Puchkovska, G.; Styopkin, V.; Baran, J.; Drozd, M.; Danchuk, V.; Kravchuk, A. IR-study of thermotropic phase transitions in cetyltrimethylammonium bromide powder and film. J. Mol. Struct. 2010, 973, 47–55. [Google Scholar] [CrossRef]
  118. Zohra, B.; Aicha, K.; Fatima, S.; Nourredine, B.; Zubir, D. Adsoprtion of Direct Red 2 on bentonite modified by cetyltrimethylammonium bromide. Chem. Eng. J. 2008, 136, 295–305. [Google Scholar] [CrossRef]
  119. Akl Ma, Y.A.M.; Al-Awadhi, M.M. Adsorption of acid dyes onto bentonite and surfactant-modified bentonite. J. Anal. Bioanal. Tech. 2013, 4, 3–7. [Google Scholar]
  120. Wang, L.; Wang, A. Adsorption properties of Congo Red from aqueous solution onto surfactant-modified montmorillonite. J. Hazard. Mater. 2008, 160, 173–180. [Google Scholar] [CrossRef]
  121. Sarkar, B.I.; Xi, Y.; Megharaj, M.; Krishnamurti, G.S.; Bowman, M.; Rose, H.; Naidu, R. Bioreactive organoclay: A new technology for environmental remediation. Crit. Rev. Environ. Sci. Technol. 2102, 42, 435–488. [Google Scholar] [CrossRef]
  122. Zhou, Q.; Pan, G.; Shen, W. Enhanced sorption of perfluorooctane sulfonate and Cr (VI) on organo montmorillonite: Influence of solution pH and uptake mechanism. Adsorption 2013, 19, 709–715. [Google Scholar] [CrossRef]
  123. Borisover, M.; Bukhanovsky, N.; Lapides, I.; Yariv, S. Mild pre-heating of organic cation-exchanged clays enhances their interactions with nitrobenzene in aqueous environment. Adsorption 2010, 16, 223–232. [Google Scholar] [CrossRef]
  124. Kumar, K.V.; Sivanesan, S. Isotherm parameters for basic dyes onto activated carbon: Comparison of linear and non-linear method. J. Hazard. Mater. 2006, 129, 147–150. [Google Scholar] [CrossRef]
  125. Al-Faze, R.; Kooli, F. Eosin removal properties of organo-local clay from aqueous solution. Orient. J. Chem. 2014, 30, 675–680. [Google Scholar] [CrossRef]
  126. Elhami, S.; Abrishamkar, M.; Esmaeilzadeh, L. Preparation and Characterization of Diethylenetriamine-montmorillonite and its application for the removal of Eosin Y dye: Optimization, kinetic and isotherm studies. J. Sci. Ind. Res. India 2013, 72, 461–466. [Google Scholar]
  127. Bello, O.S.; Olusegun, O.A.; Njoku, V.O. Fly ash; an alternative to powdered activated carbon for the removal of eosin dye from aqueous solutions. Bull. Chem. Soc. Ethiop. 2013, 27, 191–204. [Google Scholar] [CrossRef]
  128. Thabet, M.S.; Ismaiel, A.M. Sol-gel-gamma alumina nanoparticles assessment of the removal of eosin yellow using: Adsoprtion, kinetic and thermodynamic parameters. J. Encapsul. Adsorp. Sci. 2016, 6, 70–90. [Google Scholar]
  129. Oyelude, E.O.; Awudza, J.A.M.; Twumasi, S.K. Equilibrium, kinetic and thermodynamic study ofremoval of Eosin yellow from aqueous solution using teak leaf litter powder. Sci. Rep. 2017, 7, 12198. [Google Scholar] [CrossRef]
  130. Shahadat, M.M.; Ismail, S. Regeneration performance of clay-based adsorbents for the removal of industrial dyes: A review. RSC Adv. 2018, 8, 24571–24587. [Google Scholar]
  131. Nanocor. Technical Data, General Information about Nanocore Nanoclay; G-100 (12/04); Nanocor Inc.: Hoffman Estates, IL, USA, 2014. [Google Scholar]
Sample Availability: Samples of the compounds are not available from the authors.
Figure 1. Effect of the ethanol content in the washing solution of the organoclay.
Figure 1. Effect of the ethanol content in the washing solution of the organoclay.
Molecules 24 03015 g001
Figure 2. Powder XRD patterns of cloisite clay (CN) exchanged with different C16 solutions.
Figure 2. Powder XRD patterns of cloisite clay (CN) exchanged with different C16 solutions.
Molecules 24 03015 g002
Figure 3. Model structure of the C16 cation and its dimensions.
Figure 3. Model structure of the C16 cation and its dimensions.
Molecules 24 03015 g003
Figure 4. Variation of the basal spacing expansion with the up take amount of the surfactants (mmole/g, red line), blue line corresponds to the fitting curve.
Figure 4. Variation of the basal spacing expansion with the up take amount of the surfactants (mmole/g, red line), blue line corresponds to the fitting curve.
Molecules 24 03015 g004
Figure 5. FTIR spectra of starting cloisite clay (CN) exchanged with different C16 solutions.
Figure 5. FTIR spectra of starting cloisite clay (CN) exchanged with different C16 solutions.
Molecules 24 03015 g005
Figure 6. Solid 13C-CP-NMR of the (a) organoclay C16Cl-CN, (b) the C16Br solid salt, and (c) C16Br liquid.
Figure 6. Solid 13C-CP-NMR of the (a) organoclay C16Cl-CN, (b) the C16Br solid salt, and (c) C16Br liquid.
Molecules 24 03015 g006
Figure 7. TGA (left) and DTG (right) fetaures of (a,a’) cloisite raw clay exchanged with different C16 solutions (b,b’) C16OH, (c,c’) C16Cl, and (d,d’) C16Br.
Figure 7. TGA (left) and DTG (right) fetaures of (a,a’) cloisite raw clay exchanged with different C16 solutions (b,b’) C16OH, (c,c’) C16Cl, and (d,d’) C16Br.
Molecules 24 03015 g007
Figure 8. SEM micrographs of (a) cloisite Na exchanged with C16 solutions. (b) C16Br, (c) C16Cl, and (d) C16OH solutions.
Figure 8. SEM micrographs of (a) cloisite Na exchanged with C16 solutions. (b) C16Br, (c) C16Cl, and (d) C16OH solutions.
Molecules 24 03015 g008
Figure 9. Variation of the basal spacing of starting (a) cloisite-Na clay and derived organoclays (b) C16OH-CN, (c) C16Br-CN, and (d) C16Cl-CN preheated at different temperatures.
Figure 9. Variation of the basal spacing of starting (a) cloisite-Na clay and derived organoclays (b) C16OH-CN, (c) C16Br-CN, and (d) C16Cl-CN preheated at different temperatures.
Molecules 24 03015 g009
Figure 10. Eosin Removal properties of cloisite-Na loaded with different C16 cations, (a) 0 mmol/g; (b) 0.32 mmol/g. (c) 0.54 mmol/g, (d) 0.90 mmol/g. (e) 0.99 mmol/g, and (f) 1.05 mmol/g.
Figure 10. Eosin Removal properties of cloisite-Na loaded with different C16 cations, (a) 0 mmol/g; (b) 0.32 mmol/g. (c) 0.54 mmol/g, (d) 0.90 mmol/g. (e) 0.99 mmol/g, and (f) 1.05 mmol/g.
Molecules 24 03015 g010
Figure 11. Eosin removal properties of C16Cl-CN organoclay preheated at different temperatures (°C).
Figure 11. Eosin removal properties of C16Cl-CN organoclay preheated at different temperatures (°C).
Molecules 24 03015 g011
Figure 12. Regeneration properties of C16Br-CN (red) and C16OH-CN (blue) organoclays.
Figure 12. Regeneration properties of C16Br-CN (red) and C16OH-CN (blue) organoclays.
Molecules 24 03015 g012

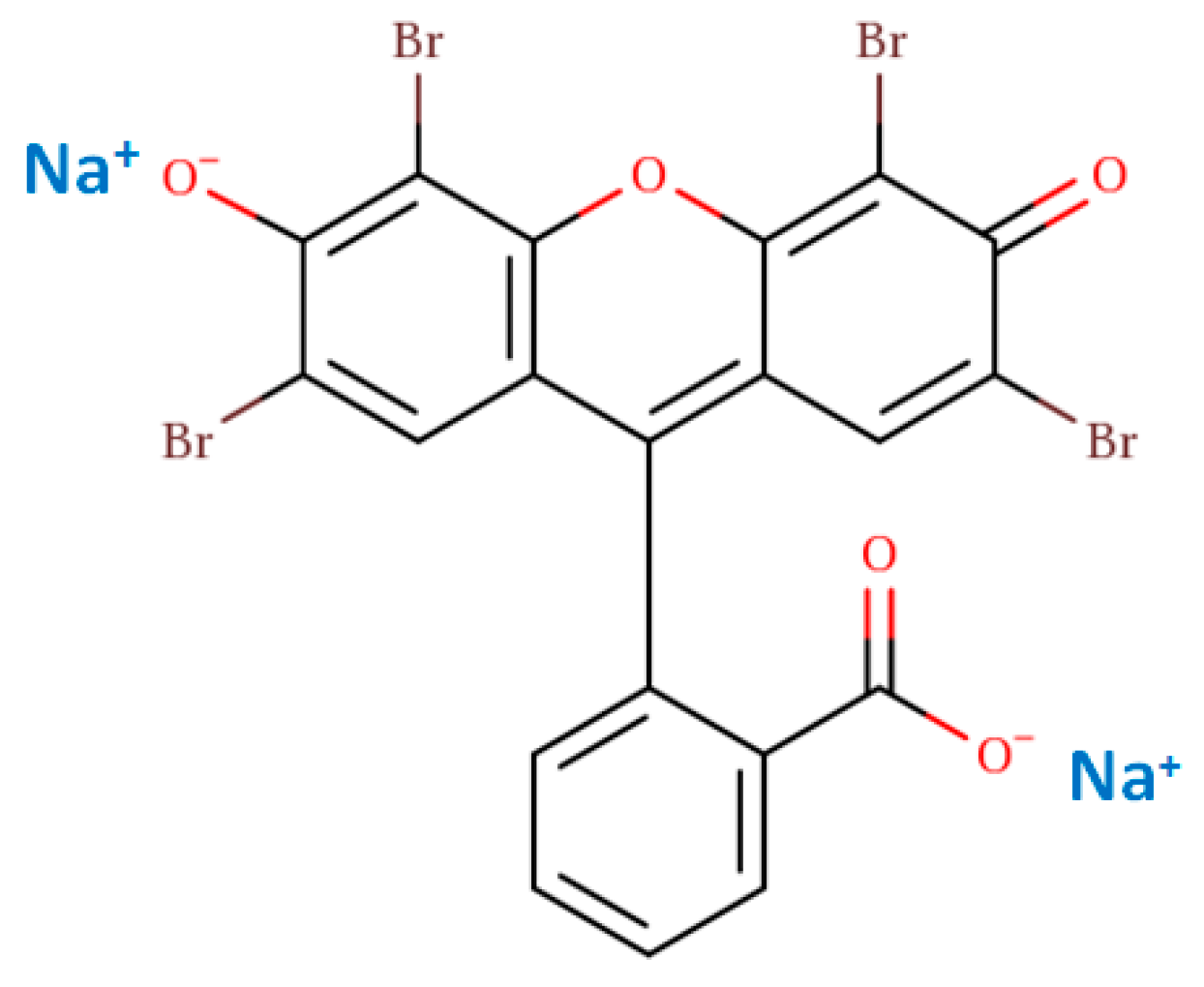

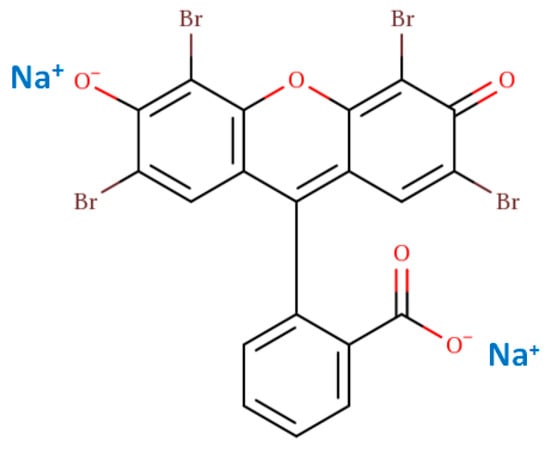

Figure 13. The chemical structure of the used eosin dye.
Figure 13. The chemical structure of the used eosin dye.
Molecules 24 03015 g013
Table 1. CHN elemental analysis of different OCs prepared from different solutions.
Table 1. CHN elemental analysis of different OCs prepared from different solutions.
SamplesC%H%N%C/N *Uptake Amount (mmole/g) +
C16Br salt62.6211.673.8718.87-
C16BrCN-2.4028.124.631.80 1.23 (1.44)
C16ClCN-2.4020.474.361.30 0.90 (1.05)
C16OHCN-2.4018.563.601.16 0.81(0.95)
* molar ratio; + Uptake amount = C(%)/[(12 × (number of carbon atom in CTMA)] × 1000; - Not applicable.
Table 2. C, H, N elemental analysis of different C16Cl-CN prepared from C16Cl solutions with different initial loadings.
Table 2. C, H, N elemental analysis of different C16Cl-CN prepared from C16Cl solutions with different initial loadings.
SamplesC%H%N%C/N *Uptake Amount (mmol/g) +
C16ClCN-0.417.212.480.4618.280.32 (0.34)
C16ClCN-0.8312.292.650.7618.820.54 (0.64)
C16ClCN-1.2017.663.781.0918.900.77 (0.91)
C16ClCN-2.4020.474.361.2718.800.90 (1.05)
C16ClCN-3.3022.634.641.4118.330.99 (1.16)
C16ClCN-4.8023.794.811.4718.881.04 (1.22)
* molar ratio; + Uptake amount = C(%)/[(12 × (number of carbon atoms in C16)] × 1000.
Table 3. Solid 13C-CP-NMR resonance signals and their assignments for the C16 surfactant used.
Table 3. Solid 13C-CP-NMR resonance signals and their assignments for the C16 surfactant used.
SampleSpectral Assignment (Shift in ppm)Structure
Solid C16Br [88]C1: 68; C2: 32; C3-C14: 30; C15: 27, C16: 24; C17-C19: 54 Molecules 24 03015 i001
Solid C16Cl [89]C2: 67.05 (66.80) *; C1: 54.61 (53.14); C15: 36.40 (31.92); C5-C14: 34.70 (29.44); C3: (26.24); C4:27-24 (23.25); C16: 27-24 (22.68); C17: 18.22, 17.10, 16.56, 16.14 (14.12) Molecules 24 03015 i002
C16Cl-CNC17: 14.9; 23.7 (C16); 33.2 (C15); 27.4 (C3); 67.8 (N-methyl group (C1); 31.1 (C4-C14)
* Values between brackets (in solution).
Table 4. Thermal properties of cloisite and derived organoclays.
Table 4. Thermal properties of cloisite and derived organoclays.
SamplesTmax (°C) of H2O MoleculesTmax (°C) of C16+Tmax (°C) of Residual C16 and DehydrationW (%)
CN75 -69085.5
Tmax: maximum rate decomposition temperature; W: remaining mass after heating at 900 °C; - non applicable.
Table 5. Langmuir parameters of eosin removal by the different organoclays.
Table 5. Langmuir parameters of eosin removal by the different organoclays.
Samplesqmax (mg/g)KL (L/mg)R2
* uptake of C16 cations.
Table 6. Removal capacities of various adsorbents for eosin dye.
Table 6. Removal capacities of various adsorbents for eosin dye.
Samplesqm (mg/g)References
Organo-CN clays34.96 to 51.81 This study
Organo-PG clays75.11 to 94.20[33]
Organo-local clays48.66[125]
Raw fly ash43.48[127]
Alumina nanoparticles47.78[128]
Teak leaf litter powder31.64[129]

Share and Cite

MDPI and ACS Style

Kooli, F.; Rakass, S.; Liu, Y.; Abboudi, M.; Oudghiri Hassani, H.; Muhammad Ibrahim, S.; Al Wadaani, F.; Al-Faze, R. Eosin Removal by Cetyl Trimethylammonium-Cloisites: Influence of the Surfactant Solution Type and Regeneration Properties. Molecules 2019, 24, 3015.

AMA Style

Kooli F, Rakass S, Liu Y, Abboudi M, Oudghiri Hassani H, Muhammad Ibrahim S, Al Wadaani F, Al-Faze R. Eosin Removal by Cetyl Trimethylammonium-Cloisites: Influence of the Surfactant Solution Type and Regeneration Properties. Molecules. 2019; 24(16):3015.

Chicago/Turabian Style

Kooli, Fethi, Souad Rakass, Yan Liu, Mostafa Abboudi, Hicham Oudghiri Hassani, Sheikh Muhammad Ibrahim, Fahd Al Wadaani, and Rawan Al-Faze. 2019. "Eosin Removal by Cetyl Trimethylammonium-Cloisites: Influence of the Surfactant Solution Type and Regeneration Properties" Molecules 24, no. 16: 3015.

Article Metrics

Back to TopTop
