Article

Synthesis and Spectroscopic Identification of Certain Imidazole-Semicarbazone Conjugates Bearing Benzodioxole Moieties: New Antifungal Agents

by
Reem I. Al-Wabli
1,*,
Alwah R. Al-Ghamdi
1,
Hazem A. Ghabbour
2,
Mohamed H. Al-Agamy
3,4 and
Mohamed I. Attia
1,5,*
1
Department of Pharmaceutical Chemistry, College of Pharmacy, King Saud University, P.O. Box 2457, Riyadh 11451, Saudi Arabia
2
Department of Medicinal Chemistry, Faculty of Pharmacy, Mansoura University, Mansoura 35516, Egypt
3
Department of Pharmaceutics, College of Pharmacy, King Saud University, P.O. Box 2457, Riyadh 11451, Saudi Arabia
4
Microbiology and Immunology Department, Faculty of Pharmacy, Al-Azhar University, Cairo 11884, Egypt
5
Medicinal and Pharmaceutical Chemistry Department, Pharmaceutical and Drug Industries Research Division, National Research Centre (ID: 60014618), El Bohooth Street, Dokki, Giza 12622, Egypt
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(1), 200; https://doi.org/10.3390/molecules24010200
Submission received: 28 November 2018 / Revised: 24 December 2018 / Accepted: 3 January 2019 / Published: 7 January 2019
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
During the last three decades the extent of life-threatening fungal infections has increased remarkably worldwide. Synthesis and structure elucidation of certain imidazole-semicarbazone conjugates 5a–o are reported. Single crystal X-ray analysis of compound 5e unequivocally confirmed its assigned chemical structure and the (E)-configuration of its imine double bond. Compound 5e crystallized in the triclinic system, P-1, a = 6.3561 (3) Å, b = 12.5095 (8) Å, c = 14.5411 (9) Å, α = 67.073 (4)°, β = 79.989 (4)°, γ =84.370 (4)°, V = 1048.05 (11) Å3, Z = 2. In addition, DIZ and MIC assays were used to examine the in vitro antifungal activity of the title conjugates 5a–o against four fungal strains. Compound 5e, bearing a 4-ethoxyphenyl fragment, showed the best MIC value (0.304 µmol/mL) against both C. tropicalis and C. parapsilosis species, while compounds 5c (MIC = 0.311 µmol/mL), 5k, and 5l (MIC = 0.287 µmol/mL) exhibited the best anti-C. albicans activity.

1. Introduction

The extent of life-threatening fungal infections has increased remarkably during the last three decades. Drug-resistance to the available antifungal agents and increasing morbidity due to life-threatening fungal infections have become a global health burden, particularly among individuals with organ transplants, AIDS, autoimmune diseases or those receiving anticancer chemotherapeutic agents [1,2,3,4]. Therefore, there is an urgent therapeutic need to develop new broad spectrum safe antifungal candidates with excellent activity toward various pathogenic fungi.
Azoles are the mainstay of antifungal therapy against different invasive fungal species owing to their broad antifungal spectrum and good pharmacokinetic profile [5]. Imidazole and 1,3,4-triazole moieties are the most common azole fragments in the therapeutically used antifungal azoles [6]. Azoles inhibit the fungal biosynthesis of ergosterol through inhibiting lanosterol 14α-demethylase (CYP51) which leads to accumulation of lanosterol and depletion of ergosterol along with the inability for normal growth of the fungi [7]. A two-carbon bridge separating the imidazole pharmacophore moiety and the aromatic portion of the molecule is prevalent in the available antifungal agents, while a three-carbon bridge is present in few antifungal candidates [8,9,10]. Thus, it was of interest to focus on the design of new imidazole-bearing compounds having a three-carbon bridge between the imidazole fragment and the aromatic moiety to examine their antifungal potential.
Semicarbazones are the products of an addition–elimination reaction between aldehydes or ketones with certain semicarbazides. In the solid state, semicarbazones principally exist in the keto-like form, while they manifest a keto-enol like tautomerism in the solution state giving rise to an effective electron delocalization along the semicarbazone fragment [11]. The presence of nitrogen and oxygen atoms as donor atoms in the core structure of semicarbazones gave them a special importance in both organic and medicinal chemistry due to their ability to coordinate with many metal ions [12]. Therefore, the research has recently focused on the biological importance of this type of compounds. An extensive literature review revealed that semicarbazones have exhibited a prominent antibacterial, anticonvulsant, antitumor, antioxidant, and antifungal activities [13,14,15,16].
The abovementioned premises persuaded us to design a series of imidazole-semicarbazone conjugates bearing 1,3-benzodioxole fragments. The incorporation of 1,3-benzodioxole moiety as an aromatic pharmacophore part in the title compounds 5a–o could potentiate their antifungal potential [17,18]. Compounds 5a–o feature a three-carbon spacer separating the imidazole pharmacophore and the aromatic 1,3-benzodioxole pharmacophore part. The assigned chemical structures of the target compounds 5a–o were assured with the aid of various spectroscopic approaches. In addition, single crystal X-ray analysis of compound 5e confirmed unequivocally the assigned chemical structures of the title compounds 5a–o and established the (E)-configuration of their imine functionality.

2. Results and Discussion

2.1. Chemistry

Scheme 1 presents the pathway which was adopted to prepare the target compounds 5a–o. The reaction sequence commenced using the commercially available acetophenone derivative 1 to afford the ketone 3 according to the previously reported procedure [19]. The appropriate semicarbazides 4a–o were added to the ketone 3 with water elimination under mild conditions to furnish the respective semicarbazones 5a–o in moderate yields. The mild synthetic conditions used to obtain the target semicarbazones 5a–o plays the pivotal role to get the pure geometrical (E)-isomers of compounds 5a–o as confirmed by the single crystal X-ray analysis of compound 5e as a representative example of this type of compounds. The assigned chemical structures of the title compounds 5a–o were assured via different spectroscopic tools. Thus, they displayed IR bands in the range of 3390–3209, 1793–1645, 1664–1506 cm−1, corresponding to NH, C=O, and C=N, respectively. The 1H-NMR spectra of compounds 5a–o showed triplets in the δ = 3.19–3.53 ppm range which were assigned to the two protons of the methylenes of (CH2–CH2–N) and other triplets appeared at δ = 4.02–4.30 ppm for the protons of the other methylenes (CH2–CH2–N). The benzodioxole protons (–O–CH2–O–) were observed as singlets in the range of δ = 6.05–6.09 (ppm). The imidazole protons (–N–CH=CH–N=) were noticed as singlet signals in the range of δ = 6.85–6.97 ppm, another singlet signals appeared in the range of δ = 7.17–7.37 ppm for the imidazole protons (–N–CH=CH–N=), while the third imidazole protons (–N–CH=N–) were noted as singlet signals in the range of δ = 7.61–7.86 ppm. The aromatic protons appeared in the region of δ = 6.61–8.25 ppm. Additionally, two singlet signals in the range of δ = 7.44–9.73 and 9.76–10.63 ppm were assigned for the two protons of the semicarbazone (NH) groups. The amine protons (NH₂) of compound 5o were observed as a singlet at δ = 6.56 ppm.
The 13C-NMR spectra of the semicarbazones 5a–o exhibited signals in the δ = 28.5–28.9, 42.6–43.1, 101.7–101.9, 119.9–120.8, 131.4–136.8, and 137.3–137.8 ppm range indicating (CH2-CH2-N), (CH2-CH2-N), (O–CH2–O–), (-N–CH=CH–N=), (–N–CH=CH–N=), and (–N–CH=N–) carbons, respectively. While the aromatic carbons appeared in the δ = 106.3–148.3 ppm range, the carbonyl (C=O) carbons were noted in the range of δ = 148.2–152.1 ppm and the (C=N) carbons were observed in the δ = 148.8–155.7 ppm range.
The mass (ESI) spectra of compounds 5a–o displayed their anticipated molecular ion peaks in the protonated forms [M + 1]+, except for compounds 5a, 5k, 5m, and 5o which showed their anticipated molecular ion peaks in the deprotonated forms [M − 1]− due to their measurement in the negative (ESI) mode.

2.2. Crystal Structure of Compound 5e

The crystallographic data and refinement information of compound 5e (C22H23N5O4,) are summarized in Table S1. The selected bond lengths and bond angles are listed in Table 1. The asymmetric unit is containing one independent molecule as shown in Figure 1.
All the bond lengths and angles are within normal ranges [20]. Compound 5e was found in the (E)-configuration regarding its imine double bond C8=N3 as shown in Figure 1. The molecules are packed together in the crystal structure along the b axis by one classical hydrogen bond between N4-H1N1.....O3 and three non-classical hydrogen bonds, where C5, C9 and C21 atoms act as H-donors and O1, O3 and N2 act as H- acceptors. In addition, one intra-molecular hydrogen bond between N5-H1NB.....N3 which stabilizes the configuration of the molecule (Figure S1 and Table 2). The 1,3-benzodioxole plane forms dihedral angles of 64.76° and 23.43° with the ethoxyphenyl ring and imidazole ring, respectively.

2.3. Antifungal Activity of the Target Semicarbazones 5a–o

Table 3 presents the antifungal potential of the target semicarbazones 5a–o against the four tested fungal strains measured as the diameter of the inhibition zone (DIZ) and minimum inhibitory concentration (MIC) assay results. Compounds 5a–o manifested moderate to good activity in the DIZ assay toward the four tested fungi, with DIZ values in the range of 11–23 mm. Compound 5e, bearing a 4-ethoxyphenyl fragment, showed the best MIC value (0.304 µmol/mL) against both C. tropicalis and C. parapsilosis species. Moreover, compound 5b, bearing a 4-bromophenyl moiety, is the most active congener among the synthesized semicarbazones 5a–o toward A. niger, with a MIC value of 0.561 µmol/mL, followed by the equipotent dichlorinated compounds 5l and 5m with MIC values of 0.574 µmol/mL. Compounds 5b and 5f are the weakest compounds among the tested semicarbazones 5a–o against both C. albicans and C. tropicalis, with MIC values of more than 1.12 and 1.30 µmol/mL, respectively, whereas, compound 5d is the weakest one against both C. parapsilosis and A. niger with a MIC value of more than 1.12 µmol/mL. It seems that the antifungal activity of the semicarbazones 5a–o was not favorable in the cyclohexane-bearing semicarbazone, compound 5n, or in the unsubstituted semicarbazone, compound 5o. Moreover, the para-substitution with halogen, methyl, or alkoxy groups (compounds 5b, 5d–g and 5j) did not give good anti-C. albicans activity in the synthesized semicarbazones 5a–o, whereas, the meta-substitution with electron withdrawing groups (compounds 5c and 5k) or the dichlorinated analogue (compound 5l) displayed the best anti-C. albicans activity.

3. Experimental

3.1. General Information

Melting points were measured using Gallenkamp melting point device, and are uncorrected. A Perkin Elmer BX FT-IR spectrometer (Perkin Elmer, Shelton, CT, USA) was used to record the infrared (IR) spectra from KBr disks. A Bruker NMR spectrometer (Bruker, Reinstetten, Germany) was used to carry out the NMR measurements of the prepared samples in DMSO-d6 at 500 MHz for 1H and 125.76 MHz for 13C. Chemical shifts are indicated in δ-values (ppm) in relation to TMS used as an internal standard. Elemental analyses of the target compounds were obtained using a Vario EL III analyzer (Langenselbold, Darmstadt, Germany) and the results agreed favorably with the proposed structures within ± 0.4% of the theoretical values. Mass spectra were obtained using an Agilent Quadrupole 6120 LC/MS (Agilent Technologies, Palo Alto, CA, USA) with an ESI (electrospray ionization) source. Silica gel TLC (thin layer chromatography) fluorescent plates were secured from Merck (Darmstadt, Germany) and visualization was achieved by illumination with a UV light source (254 nm).

3.2. Synthesis

3.2.1. General Procedure for the Synthesis of Semicarbazones 5a–n

A reaction mixture containing the appropriate semicarbazide 4a–n [21,22] (10 mmol), the ketone 3 (0.24 g, 10 mmol), and few drops of glacial acetic acid in absolute ethanol (15 mL) was stirred at room temperature for 18 h. The reaction mixture was evaporated under reduced pressure and the residue was purified by re-crystallization from ethanol to furnish the corresponding semicarbazones 5a–n.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-phenylhydrazinecarboxamide (5a). Yield 0.26 g (26%); white powder m.p. 162–164 °C; IR (KBr): ν (cm−1) 3385 (NH), 3198, 2968, 1793 (C=O), 1621 (C=N), 1521, 1262, 756; 1H-NMR (DMSO-d6): δ (ppm) 3.29 (s, 2H, –CH2–CH2–N), 4.14 (s, 2H, –CH2–CH2–N), 6.07 (s, 2H, –O–CH2–O–), 6.90 (d, J = 8.0 Hz, 1H, Ar–H), 6.97 (s, 1H, –N–CH=CH–N=), 7.04 (t, J =6.5 Hz, 1H, Ar–H), 7.27–7.33 (m, 3H, Ar–H, –N–CH=CH–N=), 7.38 (s, 1H, Ar–H), 7.61–7.63 (m, 3H, Ar–H), 7.86 (s, 1H, –N–CH=N–), 8.98 (s, 1H, NH), 10.18 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.6 (–CH2–CH2–N), 43.1 (–CH2–CH2–N), 101.7 (–O–CH2–O–), 107.1, 108.3 (Ar-CH), 120.4 (–N–CH=CH–N=), 120.6, 121.2, 123.0, 127.5, 128.9, 131.6 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.6 (–N–CH=N–), 139.5, 145.1, 148.2, 148.5, 154.0 (Ar–C, C=O, C=N); MS m/z (ESI): 376.0 [M − H]−.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(4-bromophenyl)hydrazine carboxamide (5b). Yield 0.37 g (37%); white powder m.p. 193–195 °C; IR (KBr): ν (cm−1) 3342 (NH), 3211, 2968, 1751 (C=O), 1664 (C=N), 1442, 1251, 755; 1H-NMR (DMSO-d6): δ (ppm) 3.28 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 4.09 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 6.07 (s, 2H, -O-CH2-O-), 6.86 (s, 1H, –N–CH=CH–N=), 6.90 (d, J = 8.5 Hz, 1H, Ar–H), 7.26 (d, J = 1.5 Hz, 1H, Ar-H), 7.27 (s, 1H, –N–CH=CH–N=), 7.44 (d, J = 3.5 Hz, 1H, Ar–H), 7.47 (d, J = 8.5 Hz, 2H, Ar-H), 7.62 (s, 1H, –N–CH=N–), 7.65 (d, J = 8.5 Hz, 2H, Ar-H), 9.01 (s, 1H, NH), 10.20 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.7 (–CH2–CH2–N), 42.7 (–CH2–CH2–N), 101.7 (-O-CH2-O-), 107.3, 108.2 (Ar-CH), 119.9 (–N–CH=CH–N=), 120.7, 121.4, 122.6, 128.7, 131.5, 132.0 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.8 (–N–CH=N–), 140.0, 145.7, 148.1, 148.5, 154.0 (Ar–C, C=O, C=N); MS m/z (ESI): 456.0 [M + H]+, 457.0 [(M + 1) + H]+, 458.0 [(M + 2) + H]+, 459.0 [(M + 3) + H]+, 478.0 [M + 23]+, 494.0 [M + 39]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(3-chlorophenyl)hydrazine carboxamide (5c). Yield 0.36 g (36%); white powder m.p. 182–184 °C; IR (KBr): ν (cm−1) 3367 (NH), 3086, 2935, 1676 (C=O), 1525 (C=N), 1448, 1236, 750; 1H-NMR (DMSO-d6): δ (ppm) 3.35 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 4.10 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 6.07 (s, 2H, –O–CH2–O–), 6.86 (s, 1H, –N–CH=CH–N=), 6.90 (d, J = 8.0 Hz, 1H, Ar–H), 7.08 (d, J = 6.5 Hz, 1H, Ar–H), 7.27 (br.s, 2H, –N–CH=CH–N=, Ar-H), 7.33 (t, J = 8.0 Hz, 1H, Ar–H), 7.63 (s, 3H, Ar-H, –N–CH=N–), 7.85 (s, 1H, Ar-H), 9.05 (s, 1H, NH), 10.23 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.7 (–CH2–CH2–N), 42.7 (–CH2–CH2–N), 101.7 (-O-CH2-O-), 107.3, 108.2, 119.0 (Ar-CH), 119.9 (–N–CH=CH–N=), 121.4, 122.6, 128.7, 130.5, 131.5, 133.3 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.8 (–N–CH=N–), 141.1, 145.9, 148.1, 148.5, 154.0 (Ar-C, C=O, C=N); MS m/z (ESI): 412.0 [M + H]+, 413.0 [(M + 1) + H]+, 414.1 [(M + 2) + H]+, 434.1 [M + 23]+, 450.1 [M + 39]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(4-chlorophenyl)hydrazine carboxamide (5d). Yield 0.21 g (21%); white powder m.p. 198–200 °C; IR (KBr): ν (cm−1) 3344 (NH), 3209, 2904, 1676 (C=O), 1533 (C=N), 1490, 1232, 753; 1H-NMR (DMSO-d6): δ (ppm) 3.27 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 4.09 (t, J = 6.5 Hz, 2H, –CH2–CH2–N), 6.07 (s, 2H, –O–CH2–O–), 6.86 (s, 1H, –N–CH=CH–N=), 6.90 (d, J = 8.0 Hz, 1H, Ar–H), 7.26–7.27 (m, 2H, Ar–H, –N–CH=CH–N=), 7.36 (d, J = 9.0 Hz, 2H, Ar–H), 7.62 (br.s, 2H, Ar–H, –N–CH=N–), 7.70 (d, J = 8.5 Hz, 2H, Ar-H ), 9.01 (s, 1H, NH), 10.20 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.7 (–CH2–CH2–N), 42.7 (–CH2–CH2–N), 101.7 (-O-CH2-O-), 107.3, 108.2 (Ar-CH), 119.9 (–N–CH=CH–N=), 121.4, 122.1, 122.2, 126.7, 128.7, 131.5 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.8 (–N–CH=N–), 138.5, 145.7, 148.1, 148.5, 154.1 (Ar-C, C=O, C=N); MS m/z (ESI): 412.1 [M + H]+, 413.0 [(M + 1) + H]+, 414.1 [(M + 2) + H]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(4-ethoxyphenyl)hydrazine carboxamide (5e). Yield 0.42 g (42%); white powder m.p. 135–140 °C; IR (KBr): ν (cm−1) 3367 (NH), 3086, 2889, 1676 (C=O), 1525 (C=N), 1448, 1236, 754; 1H-NMR (DMSO-d6): δ (ppm) 1.33 (t, J = 6.9 Hz, 3H, CH2-CH3), 3.26 (t, J = 6.9 Hz, 2H, –CH2–CH2–N), 4.09 (q, J = 6.9 Hz, 2H, CH2–CH3), 4.30 (t, J = 6.6 Hz, 2H, –CH2–CH2–N), 6.06 (s, 2H, -O-CH2-O-), 6.86 (s, 1H, –N–CH=CH–N=), 6.89–6.91 (m, 3H, Ar–H), 7.26 (d, J = 8.1 Hz, 1H, Ar–H), 7.28 (s, 1H, –N–CH=CH–N=), 7.49 (d, J = 8.9 Hz, 2H, Ar–H), 7.63–7.65 (m, 2H, Ar-H, –N–CH=N–), 8.76 (s, 1H, NH), 10.05 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 15.2 (-CH2-CH3), 28.7 (–CH2–CH2–N), 42.7 (–CH2–CH2–N), 63.6 (–CH2–CH3), 101.7 (–O–CH2–O–), 107.8, 108.6, 114.6 (Ar-CH), 119.9 (–N–CH=CH–N=), 121.2, 122.9, 128.7, 131.7, 132.3 (Ar–CH, Ar–C, –N–CH=CH–N=), 137.8 (–N–CH=N–), 144.9, 148.2, 148.3, 152.1, 154.8 (Ar–C, C=O, C=N); MS m/z (ESI): 422.2 [M + H]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(4-fluorophenyl)hydrazine carboxamide (5f). Yield 0.51 g (51%); white powder m.p. 172–174 °C; IR (KBr): ν (cm−1) 3390 (NH), 3194, 2904, 1683 (C=O), 1517 (C=N), 1442, 1211, 750; 1H-NMR (DMSO-d6): δ (ppm) 3.27 (t, J = 6.8 Hz, 2H, –CH2–CH2–N), 4.09 (t, J = 6.9 Hz, 2H, –CH2–CH2–N), 6.09 (s, 2H, –O–CH2–O–), 6.86 (s, 1H, –N–CH=CH–N=), 6.91 (d, J = 8.2 Hz, 1H, Ar–H), 7.13–7.17 (m, 2H, Ar–H, –N–CH=CH–N=), 7.62–7.27 (m, 2H, Ar–H), 7.63–7.66 (m, 4H, Ar–H, –N–CH=N–), 8.95 (s, 1H, NH), 10.14 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.7 (–CH2–CH2–N), 42.7 (–CH2–CH2–N), 101.7 (–O–CH2–O–), 107.3, 108.2 (Ar–CH), 115.4 (d, JC-3′, F& C-5′, F = 21.6 Hz, C-3′ and C-5′), 119.9 (–N–CH=CH–N=), 121.3, 128.7, 131.6 (Ar–CH, Ar–C, –N–CH=CH–N=), 122.8 (d, JC-2′, F& C-6′, F = 7.8 Hz, C-2′ and C-6′), 135.8 (d, JC-1′, F = 2.3 Hz, C-1′), 137.8 (–N–CH=N–), 145.3, 148.2, 148.5, 154.3 (–N–CH=N–, Ar-C, C=O, C=N), 158.4 (d, JC-4′, F = 238.7 Hz, C-4′); MS m/z (ESI): 396.2 [M + H]+, 397.1 [(M + 1) + H]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(4-methoxyphenyl)hydrazine carboxamide (5g). Yield 0.51 g (51%); white powder m.p. 161–163 °C. The spectral data of compound 5g are consistent with previously reported data [23].
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(2-methylphenyl)hydrazine carboxamide (5h). Yield 0.65 g (65%); white powder m.p. 177–179 °C; IR (KBr): ν (cm−1) 3257 (NH), 2939, 2827, 1645 (C=O), 1562 (C=N), 1450, 1236, 751; 1H-NMR (DMSO-d6): δ (ppm) 2.28 (s, 3H, CH3), 3.28 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 4.11 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 6.07 (s, 2H, –O–CH2–O–), 6.87 (s, 1H, –N–CH=CH–N=), 6.91 (d, J = 8.0 Hz, 1H, Ar–H), 7.03–7.06 (m, 1H, Ar–H ), 7.20–7.26 (m, 3H, Ar–H), 7.29 (s, 1H, –N–CH=CH–N=), 7.55 (s, 1H, Ar–H), 7.64 (s, 1H, –N–CH=N–), 7.74 (d, J = 7.5 Hz, 1H, Ar–H), 8.63 (s, 1H, NH), 10.25 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 17.9 (–CH3), 28.8 (–CH2–CH2–N), 42.7 (–CH2–CH2–N), 101.8 (–O–CH2–O–), 106.7, 108.3 (Ar-CH), 119.9 (–N–CH=CH–N=), 121.1, 123.2, 124.2, 126.6, 128.7, 130.2, 130.6, 131.6 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.3 (–N–CH=N–), 137.8, 144.8, 148.3, 148.5, 154.2 ( Ar–C, C=O, C=N); MS m/z (ESI): 392.2 [M + H]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(3-methylphenyl)hydrazine carboxamide (5i). Yield 0.54 g (54%); white powder m.p. 176–179 °C; IR (KBr): ν (cm−1) 3367 (NH), 3099, 2893, 1687 (C=O), 1546 (C=N), 1433, 1236, 750; 1H-NMR (DMSO-d6): δ (ppm) 2.31 (s, 3H, CH3), 3.27 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 4.10 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 6.07 (s, 2H, -O-CH2-O-), 6.86 (s, 2H, –N–CH=CH–N=, Ar–H), 6.91 (d, J = 8.5 Hz, 1H, Ar–H), 7.17–7.21 (m, 1H, Ar–H), 7.25 (d, J = 1.5 Hz, 1H, Ar-H), 7.28 (s, 1H, –N–CH=CH–N=), 7.45 (s, 2H, Ar–H ), 7.60 (d, J = 1.5 Hz, 1H, Ar–H), 7.63 (s, 1H, –N–CH=N–), 8.80 (s, 1H, NH), 10.11 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 21.6 (CH3), 28.7 (–CH2–CH2–N), 42.7 (–CH2–CH2–N), 101.7 (–O–CH2–O–), 107.2, 108.3, 117.8 (Ar–CH), 119.9 (–N–CH=CH–N=), 121.1, 121.3, 123.8, 128.7, 128.8, 131.6 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.8 (–N–CH=N–), 138.1, 139.3, 145.3, 148.1, 148.5, 154.0 (Ar–C, C=O, C=N); MS m/z (ESI): 392.2 [M + H]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(4-methylphenyl)hydrazine carboxamide (5j). Yield 0.43 g (43%); white powder m.p. 149–151 °C; IR (KBr): ν (cm−1) 3219 (NH), 3105, 2904, 1664 (C=O), 1506 (C=N), 1446, 1307, 752; 1H-NMR (DMSO-d6): δ (ppm) 2.28 (s, 3H, CH3) 3.27 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 4.09 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 6.07 (s, 2H, –O–CH2–O–), 6.86 (s, 1H, –N–CH=CH–N=), 6.90 (d, J = 8.5 Hz, 1H, Ar–H), 7.12 (d, J = 8.0 Hz, 2H, Ar–H), 7.26 (d, J = 8.5 Hz, 1H, Ar–H), 7.28 (s, 1H, –N–CH=CH–N=), 7.51 (d, J = 8.0 Hz, 2H, Ar–H), 7.61 (s, 1H, Ar-H), 7.63 ( s, 1H, –N–CH=N–), 8.79 (s, 1H, NH), 10.07 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 20.9 (CH3), 28.7 (–CH2–CH2–N), 42.7 (–CH2–CH2–N), 101.7 (-O-CH2-O-), 107.2, 108.3 (Ar-CH), 119.9 (–N–CH=CH–N=), 120.8, 121.2, 128.7, 129.3, 131.6, 131.9, 136.8 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.8 (–N–CH=N–), 145.1, 148.2, 148.4, 154.1 (Ar-C, C=O, C=N); MS m/z (ESI): 392.2 [M + H]+, 414.1 [M + 23]+, 430.1 [M + 39]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(3-(trifluoromethyl)phenyl) hydrazinecarboxamide (5k). Yield 0.51 g (51%); white powder m.p. 192–194 °C; IR (KBr): ν (cm−1) 3209 (NH), 3088, 2904, 1670 (C=O), 1543 (C=N), 1448, 1236, 750; 1H-NMR (DMSO-d6): δ (ppm) 3.31 (t, J = 6.6 Hz, 2H, –CH2–CH2–N), 4.13 (t, J = 6.5 Hz, 2H, –CH2–CH2–N), 6.07 (s, 2H, -O-CH2-O-), 6.92 (d, J = 8.2 Hz, 1H, Ar–H), 6.94 (s, 1H, –N–CH=CH–N=), 7.29 (dd, J = 1.2, 8.5 Hz, 1H, Ar–H), 7.35–7.37 (m, 2H, Ar–H, –N–CH=CH–N=), 7.53–7.56 (m, 1H, Ar–H), 7.64 (s, 1H, –N–CH=N–), 7.80 (s, 1H, Ar-H), 7.96 (d, J = 7.4 Hz, 1H, Ar–H), 8.12 (s, 1H, Ar-H), 9.30 (s, 1H, NH), 10.31 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.7 (–CH2–CH2–N), 43.0 (–CH2–CH2–N), 101.8 (-O-CH2-O-), 107.3, 108.3 (Ar-CH), 116.5, 119.2 120.3, 121.4, 123.7, 124.1, 125.8, 127.8, 129.9, 131.5 (Ar-CH, Ar–C, –N–CH=CH–N=, –N–CH=CH–N=), 137.7 (–N–CH=N–), 140.5, 145.9, 148.1, 148.6, 154.1 (Ar-C, C=O, C=N); MS m/z (ESI): 444.0 [M − H]−, 445.0 [(M + 1) − H]−.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(2,4-dichlorophenyl)hydrazine carboxamide (5l). Yield 0.52 g (52%); white powder m.p. 215–217 °C; IR (KBr): ν (cm−1) 3338 (NH), 3089, 2910, 1691 (C=O), 1523 (C=N), 1440, 1232, 751; 1H-NMR (DMSO-d6): δ (ppm) 3.36 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 4.09 (t, J = 7.5 Hz, 2H, –CH2–CH2–N), 6.08 (s, 2H, –O–CH2–O–), 6.85 (s, 1H, –N–CH=CH–N=), 6.94 (d, J = 8.0 Hz, 1H, Ar–H), 7.24 (d, J = 8.0 Hz, 1H, Ar–H), 7.27 (s, 1H, –N–CH=CH–N=), 7.40 (s, 1H, Ar–H), 7.44 (dd, J = 2.0, 9.0 Hz, 1H, Ar-H), 7.62 (s, 1H, –N–CH=N–), 7.70 (d, J = 2.0 Hz, 1H, Ar–H), 8.24 (d, J = 9.0 Hz, 1H, Ar–H), 9.13 (s, 1H, NH), 10.63 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.9 (–CH2–CH2–N), 42.8 (–CH2–CH2–N), 101.9 (-O-CH2-O-), 106.3, 108.5 (Ar-CH), 119.9 (–N–CH=CH–N=), 121.2, 122.4, 123.9, 127.3, 128.4, 128.7, 129.0, 131.3, 134.9 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.8 (–N–CH=N–), 146.3, 148.3, 148.8, 153.5 (Ar–C, C=O, C=N); MS m/z (ESI): 446.0 [M + H]+, 447.0 [(M + 1) + H]+, 448.1 [(M + 2) + H]+.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(3,4-dichlorophenyl)hydrazine carboxamide (5m). Yield 0.37 g (37%); white powder m.p. 174–176 °C; IR (KBr): ν (cm−1) 3365 (NH), 3197, 3082, 1685 (C=O), 1521 (C=N), 1475, 1238, 750; 1H-NMR (DMSO-d6): δ (ppm) 3.30 (s, 2H, –CH2–CH2–N), 4.13 (s, 2H, –CH2–CH2–N), 6.07 (s, 2H, –O–CH2−O−), 6.90 (d, J = 8.0 Hz, 1H, Ar–H), 6.97 (s, 1H, –N–CH=CH–N=), 7.28 (dd, J = 1.5, 8.0 Hz, 1H, Ar–H), 7.29 (s, 1H, –N–CH=CH–N=), 7.53 (d, J = 9.0 Hz, 1H, Ar–H), 7.62 (s, 1H, –N–CH=N–), 7.68 (d, J = 7.5 Hz, 1H, Ar–H), 7.85–7.86 (m, 1H, Ar–H), 8.04 (d, J = 1.5 Hz, 1H, Ar–H), 9.25 (s, 1H, NH), 10.33 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.6 (–CH2–CH2–N), 43.1 (–CH2–CH2–N), 101.7 (–O–CH2–O–), 107.3, 108.2 (Ar–CH), 120.4, 120.5, 121.4, 124.3, 127.3, 127.4, 130.7, 131.1, 131.4 (Ar–CH, Ar–C, –N–CH=CH–N=, –N–CH=CH–N=), 137.6 (–N–CH=N–), 139.9, 145.9, 148.1, 148.6, 153.9 (Ar–C, C=O, C=N); MS m/z (ESI): 444.0 [M − H]−, 445.0 [(M + 1) − H]−, 446.0 [(M + 2) − H]−.
(2E)-2-[1-(1,3-Benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-cyclohexylhydrazine carboxamide (5n). Yield 0.33 g (33%); white powder m.p. 174–176 °C; IR (KBr): ν (cm−1) 3402 (NH), 3203, 2933, 1672 (C=O), 1527 (C=N), 1460, 1251, 752; 1H-NMR (DMSO-d6): δ (ppm) 1.16–1.40 (m, 5 H, cyclohexyl), 1.58–1.99 (m, 5 H, cyclohexyl), 3.19 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 3.56–3.57 (m, 1H, cyclohexyl), 4.02 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 6.05 (s, 2H, –O–CH2–O–), 6.61 (d, J = 8.0 Hz, 1H, Ar–H), 6.85 (s, 1H, –N–CH=CH–N=), 6.88 (d, J = 8.0 Hz, 1H, Ar–H), 7.18 (dd, J = 1.0, 8.0 Hz, 1H, Ar–H), 7.26 (s, 1H, –N–CH=CH–N=), 7.44 (s, 1H, NH), 7.61 (s, 1H, –N–CH=N–), 9.76 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 25.4 (–CH2–CH2–), 25.7 (–CH2–CH2–), 28.5 (–CH2–CH2–N), 33.3 (–CH2–CH2–), 42.6 (–CH2–CH2–N), 48.6 (–CH2–CH–CH2), 101.7 (-O-CH2-O-), 106.8, 108.3, 119.9 (Ar-CH), 120.8 (–N–CH=CH–N=), 128.7 (Ar–CH), 131.9 ( –N–CH=CH–N=), 137.8 (–N–CH=N–), 143.6, 148.1, 148.2, 155.7 (Ar–C, C=O, C=N); MS m/z (ESI): 384.2 [M + H]+, 406.2 [M + 23]+, 422.2 [M + 39]+.

3.2.2. Synthesis of (2E)-2-[1-(1,3-benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]hydrazine Carboxamide (5o)

A reaction mixture containing the ketone 3 (0.49 g, 2.0 mmol), semicarbazide hydrochloride (4o, 0.22 g, 2.0 mmol) and anhydrous sodium acetate (0.16 g, 2.0 mmol) in absolute ethanol (15 mL) was stirred at ambient temperature for 18 hrs. The reaction mixture was filtered and the filtrate was evaporated under vacuum. The residue was crystallized from ethanol to give 0.5 g (50%) of the semicarbazone 5o as a white solid m.p. 177–179 °C. IR (KBr): ν (cm−1) 3442 (NH₂), 3215 (NH), 3105, 2914, 1695 (C=O), 1593 (C=N) 1499, 1269, 757; 1H-NMR (DMSO-d6): δ (ppm) 3.53 (t, J = 6.5 Hz, 2H, –CH2–CH2–N), 4.06 (t, J = 7.0 Hz, 2H, –CH2–CH2–N), 6.04 (s, 2H, –O–CH2–O–), 6.56 (br.s, 2H, NH₂), 6.86 (d, J = 8.0 Hz, 1H, Ar–H), 6.92 (s, 1H, –N–CH=CH–N=), 7.20 (dd, J = 1.5, 8.0 Hz, 1H, Ar–H), 7.32 (s, 1H, –N–CH=CH–N=), 7.54 (d, J = 1.5 Hz, 1H, Ar-H), 7.75 (s, 1H, –N–CH=N–), 9.73 (s, 1H, NH); 13C-NMR (DMSO-d6): δ (ppm) 28.2 (–CH2–CH2–N), 42.8 (–CH2–CH2–N), 101.6 (–O–CH2–O–), 106.8, 108.2 (Ar–CH), 120.2 (–N–CH=CH–N=),120.8, 127.9, 131.8 (Ar-CH, Ar–C, –N–CH=CH–N=), 137.6 (–N–CH=N–), 143.2, 148.1, 148.2, 157.8 ( Ar–C, C=O, C=N); MS m/z (ESI): 300.7 [M − H]−.

3.3. Crystal Structure Determination of Compound 5e

Compound 5e was obtained as single crystals by slow evaporation from the ethanolic solution of the pure compound at room temperature. Data were collected on a Bruker APEX-II D8 Venture area diffractometer, equipped with graphite monochromatic Cu Kα radiation, λ = 1.542 Å at 293 (2) K. Cell refinement and data reduction were carried out by Bruker SAINT. SHELXT [24] was used to solve structure. The final refinement was carried out by full-matrix least-squares techniques with anisotropic thermal data for non-hydrogen atoms on F. CCDC 1879726 contains the supplementary crystallographic data for this compound can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.

3.4. Antifungal Activity of the Title Semicarbazones 5a–o

The title compounds 5a–o were evaluated for their in vitro antifungal activity using diameter of the inhibition zone (DIZ) and minimum inhibitory concentration (MIC) assays against Candida albicans, Candida tropicalis and Aspergillus niger according to the literature protocols [25].

4. Conclusions

The synthesis of certain new imidazole-semicarbazone conjugates 5a–o bearing benzodioxole moieties is reported. The assigned chemical structures of the title semicarbazones 5a–o have been verified with the aid of several spectroscopic approaches. The X-ray crystal structure of compound 5e confirmed the designated chemical structure of the target compounds 5a–o and confirmed the (E)-configuration of their imine fragments. The antifungal potential of the conjugates 5a–o was assessed against four fungal strains with the aid of DIZ and MIC assays. It seems that the antifungal activity was not favored in the cyclohexane-bearing semicarbazone, compound 5n, or in the unsubstituted semicarbazone, compound 5o. The meta-substitution (compounds 5c and 5k) with electron withdrawing groups or the dichlorinated analogue (compound 5l) showed the best anti-C. albicans activity. Our efforts are continued aiming to get new potent, broad spectrum and safe azole-bearing antifungal drug-like candidates.

Supplementary Materials

The following are available online, Figure S1: Molecular packing of compound 5e viewed hydrogen bonds which are drawn as dashed lines along b axis, Table S1: The refinement information and crystallographic data of the semicarbazone 5e.

Author Contributions

R.I.A.-W. and A.R.A.-G. synthesized and carried out the spectroscopic identification of the title compounds 5a–o. H.A.G. conducted the X-ray analysis of compound 5e. M.H.A.-A. performed the in vitro antifungal examination of the synthesized compounds 5a–o. M.I.A. proposed the work, prepared the single crystals of compound 5e and prepared the manuscript for publication. All authors discussed the contents of the manuscript.

Funding

This research received no external funding

Acknowledgments

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for its funding of this research through the Research Group Project No. RGP-196.

Conflicts of Interest

The authors have declared that there is no conflict of interests.

References

  1. Groll, A.H.; Lumb, J. New developments in invasive fungal disease. Future Microbiol. 2012, 7, 179–184. [Google Scholar] [CrossRef]
  2. Crunkhorn, S. Fungal infection: Protecting from Candida albicans. Nat. Rev. Drug Discov. 2016, 15, 604. [Google Scholar] [CrossRef]
  3. Vandeputte, P.; Ferrari, S.; Coste, A.T. Antifungal resistance and new strategies to control fungal infections. Int. J. Microbiol. 2012, 2012, 713687. [Google Scholar] [CrossRef] [PubMed]
  4. Wu, J.; Ni, T.; Chai, X.; Wang, T.; Wang, H.; Chen, J.; Jin, Y.; Zhang, D.; Yu, S.; Jiang, Y. Molecular docking, design, synthesis and antifungal activity study of novel triazole derivatives. Eur. J. Med. Chem. 2018, 143, 1840–1846. [Google Scholar] [CrossRef] [PubMed]
  5. Jiang, Z.; Wang, Y.; Wang, W.; Wang, S.; Xu, B.; Fan, G.; Dong, G.; Liu, Y.; Yao, J.; Miao, Z. Discovery of highly potent triazole antifungal derivatives by heterocycle-benzene bioisosteric replacement. Eur. J. Med. Chem. 2013, 64, 16–22. [Google Scholar] [CrossRef] [PubMed]
  6. Gonzalez-Lara, M.F.; Sifuentes-Osornio, J.; Ostrosky-Zeichner, L. Drugs in clinical development for fungal infections. Drugs 2017, 77, 1505–1518. [Google Scholar] [CrossRef] [PubMed]
  7. Aoyama, Y.; Yoshida, Y.; Sato, R. Yeast cytochrome P-450 catalyzing lanosterol 14 α-demethylation. II. Lanosterol metabolism by purified P-450(14)DM and by intact microsomes. J. Biol. Chem. 1984, 259, 1661–1666. [Google Scholar] [PubMed]
  8. Aboul-Enein, M.N.; El-Azzouny, A.A.; Attia, M.I.; Saleh, O.A.; Kansoh, A.L. Synthesis and anti-Candida potential of certain novel 1-[(3-substituted-3-phenyl)propyl]-1H-imidazoles. Arch. Pharm. 2011, 344, 794–801. [Google Scholar] [CrossRef]
  9. Roman, G.; Mares, M.; Nastasa, V. A novel antifungal agent with broad spectrum: 1-(4-biphenylyl)-3-(1H-imidazol-1-yl)-1-propanone. Arch. Pharm. 2013, 346, 110–118. [Google Scholar] [CrossRef] [PubMed]
  10. Attia, M.I.; Radwan, A.A.; Zakaria, A.S.; Almutairi, M.S.; Ghoneim, S.W. 1-Aryl-3-(1H-imidazol-1-yl)propan-1-ol esters: Synthesis, anti-Candida potential and molecular modeling studies. Chem. Cent. J. 2013, 7, 168. [Google Scholar] [CrossRef] [PubMed]
  11. Chia, T.S.; Quah, C.K.; Ooi, C.W.; Garudachari, B.; Isloor, N.A.; Isloor, A.M.; Fun, H.-K. Syntheses, crystal structures and antimicrobial studies of two new semicarbazone derivatives. J. Chem. Cryst. 2014, 44, 51–56. [Google Scholar] [CrossRef]
  12. Venkatachalam, T.K.; Bernhardt, P.V.; Noble, C.J.; Fletcher, N.; Pierens, G.K.; Thurecht, K.J.; Reutens, D.C. Synthesis, characterization and biological activities of semicarbazones and their copper complexes. J. Inorg. Biochem. 2016, 162, 295–308. [Google Scholar] [CrossRef] [PubMed]
  13. Patel, H.D.; Divatia, S.M.; Clercq, E. de. Synthesis of some novel thiosemicarbazone derivatives having anti-cancer, anti-HIV as well as anti-bacterial activity. Indian J. Chem. Sec. B 2013, 52B, 535–545. [Google Scholar]
  14. Afrasiabi, Z.; Sinn, E.; Lin, W.; Ma, Y.; Campana, C.; Padhye, S. Nickel (II) complexes of naphthaquinone thiosemicarbazone and semicarbazone: Synthesis, structure, spectroscopy, and biological activity. J. Inorg. Biochem. 2005, 99, 1526–1531. [Google Scholar] [CrossRef] [PubMed]
  15. Verma, K.; Pandeya, S.; Singh, U.; Gupta, S.; Prashant, P.; Anurag Gautam, B. Synthesis and pharmacological activity of some substituted menthone semicarbazone and thiosemicarbazone derivatives. Int. J. Pharm. Sci. Nanotechnol. 2009, 1, 357–362. [Google Scholar]
  16. Ahsan, M.J.; Amir, M.; Bakht, M.A.; Samy, J.G.; Hasan, M.Z.; Nomani, M.S. Synthesis and antimicrobial activity of N1-(3-chloro-4-fluorophenyl)-N4-substituted semicarbazone derivatives. Arab. J. Chem. 2016, 9, S861–S866. [Google Scholar] [CrossRef] [Green Version]
  17. Leite, A.C.L.; da Silva, K.P.; de Souza, I.A.; de Araújo, J.M.; Brondani, D.J. Synthesis, antitumour and antimicrobial activities of new peptidyl derivatives containing the 1,3-benzodioxole system. Eur. J. Med. Chem. 2004, 39, 1059–1065. [Google Scholar] [CrossRef]
  18. Attia, M.I.; El-Brollosy, N.R.; Kansoh, A.L.; Ghabbour, H.A.; Al-Wabli, R.I.; Fun, H.-K. Synthesis, single crystal X-ray structure, and antimicrobial activity of 6-(1,3-benzodioxol-5-ylmethyl)-5-ethyl-2-{[2-(morpholin-4-yl)ethyl]sulfanyl}pyrimidin-4(3H)-one. J. Chem. 2014, 2014, 457430. [Google Scholar] [CrossRef]
  19. Al-Wabli, R.I.; Al-Ghamdi, A.R.; Ghabbour, H.A.; Al-Agamy, M.H.; Monicka, J.C.; Joe, I.H.; Attia, M.I. Synthesis, X-ray single crystal structure, molecular docking and DFT computations on N-[(1E)-1-(2H-1,3-benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]hydroxylamine: A new potential antifungal agent precursor. Molecules 2017, 22, 373. [Google Scholar] [CrossRef]
  20. Allen, F.H.; Kennard, O.; Watson, D.G.; Brammer, L.; Orpen, A.G.; Taylor, R. Tables of bond lengths determined by X-ray and neutron diffraction. Part 1. Bond lengths in organic compounds. J. Chem. Soc. Perkin Trans. 1987, 2, S1–S19. [Google Scholar] [CrossRef]
  21. Aboul-Enein, M.N.; El-Azzouny, A.A.; Attia, M.I.; Maklad, Y.A.; Amin, K.M.; Abdel-Rehim, M.; El-Behairy, M.F. Design and synthesis of novel stiripentol analogues as potential anticonvulsants. Eur. J. Med. Chem. 2012, 47, 360–369. [Google Scholar] [CrossRef] [PubMed]
  22. Yogeeswari, P.; Ragavendran, J.; Thirumurugan, R.; Induja, S.; Sriram, D.; Stables, J. Synthesis and structure-activity relationship on anticonvulsant aryl semicarbazones. Med. Chem. 2006, 2, 55–62. [Google Scholar] [PubMed]
  23. Al-Wabli, R.I.; Al-Ghamdi, A.R.; Primsa, I.; Ghabbour, H.A.; Al-Agamy, M.H.; Joe, I.H.; Attia, M.I. (2E)-2-[1-(1,3-benzodioxol-5-yl)-3-(1H-imidazol-1-yl)propylidene]-N-(4-methoxy phenyl)hydrazinecarboxamide: Synthesis, crystal structure, vibrational analysis, DFT computations, molecular docking and antifungal activity. J. Mol. Struct. 2018, 1166, 121–130. [Google Scholar] [CrossRef]
  24. Sheldrick, G.M. A short history of SHELX. Acta Cryst. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  25. Al-Wabli, R.I.; Al-Ghamdi, A.R.; Ghabbour, H.A.; Al-Agamy, M.H.; Attia, M.I. Synthesis, single crystal X-ray analysis, and antifungal profiling of certain new oximino ethers bearing imidazole nuclei. Molecules 2017, 22, 1895. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the synthesized compounds are available from the corresponding authors.
Molecules 24 00200 sch001 550

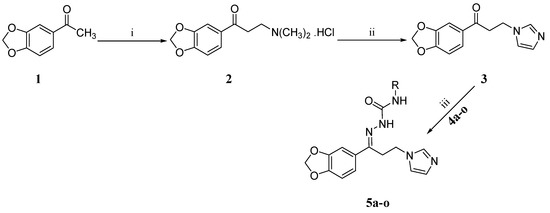

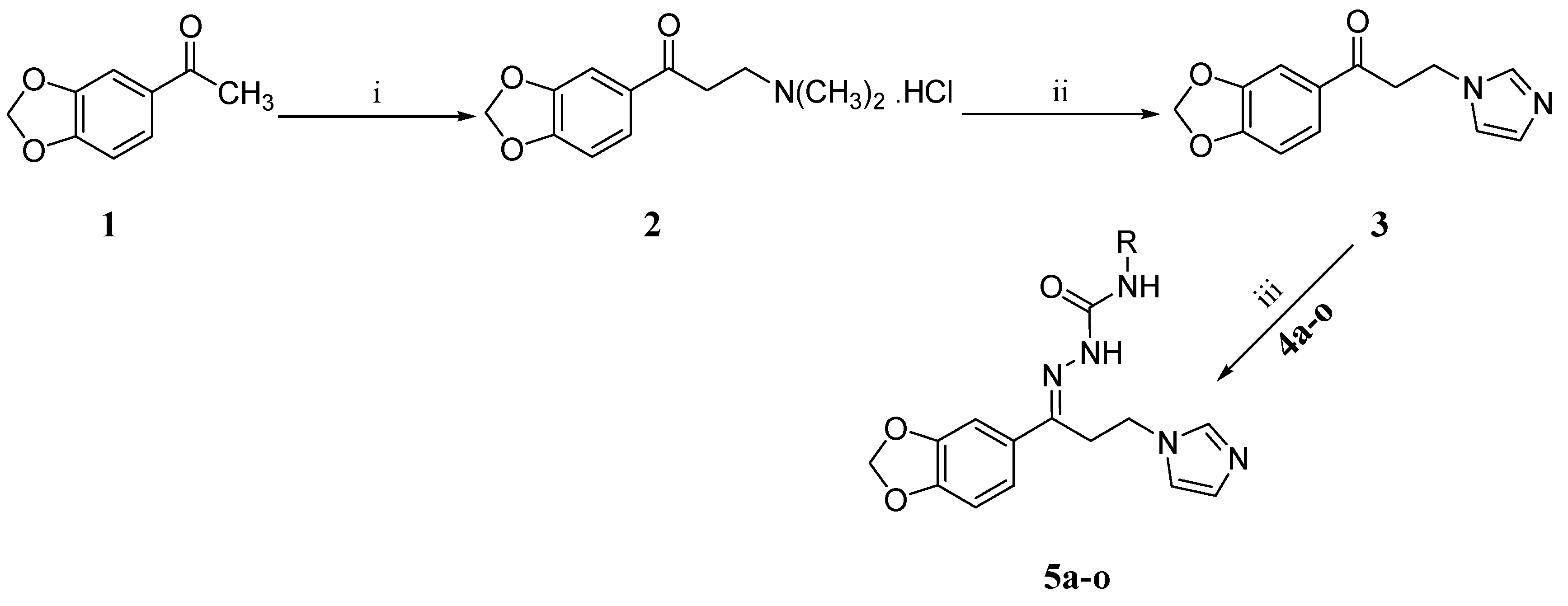

Scheme 1. Synthesis of the target semicarbazones 5a–o. Reagents and conditions: (i) HN(CH3)2·HCl, (CH2O)n, conc. HCl, ethanol, reflux, 2 h; (ii) Imidazole, water, reflux, 5 h; (iii) Appropriate semicarbazide 4a–n, ethanol, acetic acid, rt, 18 h or semicarbazide hydrochloride (4o), anhydrous sodium acetate, ethanol, rt, 18 h for 5o.
Scheme 1. Synthesis of the target semicarbazones 5a–o. Reagents and conditions: (i) HN(CH3)2·HCl, (CH2O)n, conc. HCl, ethanol, reflux, 2 h; (ii) Imidazole, water, reflux, 5 h; (iii) Appropriate semicarbazide 4a–n, ethanol, acetic acid, rt, 18 h or semicarbazide hydrochloride (4o), anhydrous sodium acetate, ethanol, rt, 18 h for 5o.
Molecules 24 00200 sch001

Compound No.RCompound No.RCompound No.RCompound No.R
5aC6H55e4-OC2H5-C6H45i3-CH3-C6H45m3,4-Cl2-C6H3
5b4-Br-C6H45f4-F-C6H45j4-CH3-C6H45nC6H9
5c3-Cl-C6H45g4-OCH3-C6H45k3-CF3-C6H45oH
5d4-Cl-C6H45h2-CH3-C6H45l2,4-Cl2-C6H3
Molecules 24 00200 g001 550

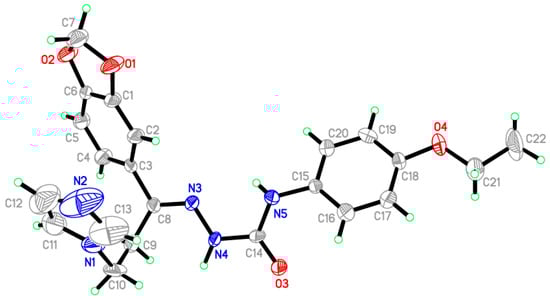

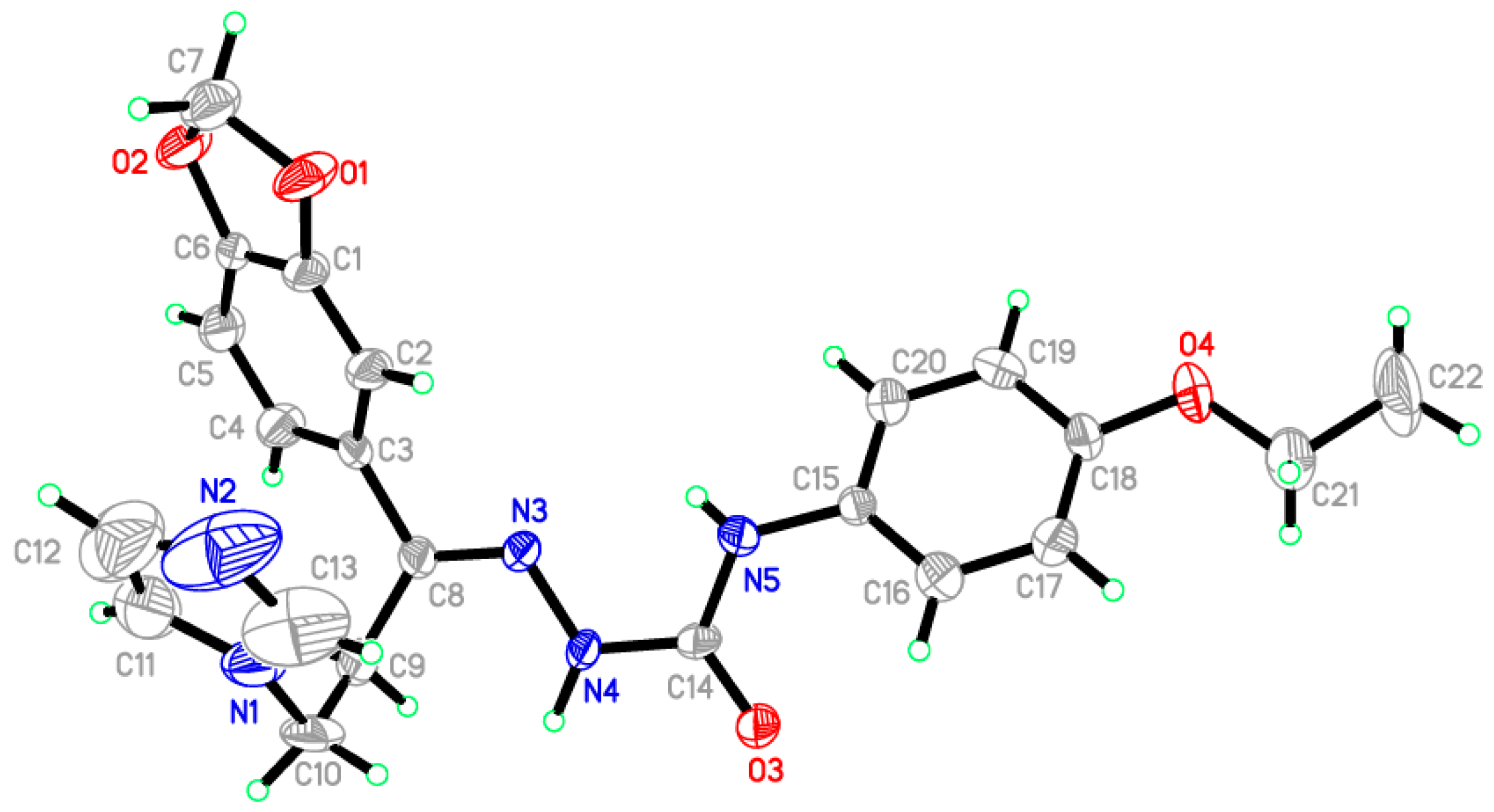

Figure 1. ORTEP diagram of compound 5e. Displacement ellipsoids are plotted at the 40% probability level for non-H atoms.
Figure 1. ORTEP diagram of compound 5e. Displacement ellipsoids are plotted at the 40% probability level for non-H atoms.
Molecules 24 00200 g001
Table
Table 1. Selected geometric parameters (Å, °) of compound 5e.
Table 1. Selected geometric parameters (Å, °) of compound 5e.
O1—C11.362 (7)N1—C131.366 (14)
O1—C71.425 (7)N2—C121.399 (18)
O2—C61.376 (7)N2—C131.293 (17)
O2—C71.427 (6)N3—N41.380 (7)
O3—C141.229 (8)N3—C81.294 (7)
O4—C181.372 (7)N4—C141.372 (8)
O4—C211.430 (7)N5—C141.345 (9)
N1—C101.443 (11)N5—C151.431 (8)
N1—C111.366 (14)
C1—O1—C7105.0 (4)N3—C8—C3115.0 (4)
C6—O2—C7105.1 (4)N3—C8—C9125.8 (5)
C18—O4—C21118.5 (4)N1—C10—C9112.8 (5)
C10—N1—C11126.2 (8)N1—C11—C12107.5 (10)
C10—N1—C13128.4 (8)N2—C12—C11109.4 (12)
C11—N1—C13105.2 (9)N1—C13—N2113.3 (11)
C12—N2—C13104.5 (11)N4—C14—N5116.4 (6)
N4—N3—C8118.3 (4)O3—C14—N4119.5 (6)
N3—N4—C14117.6 (5)O3—C14—N5124.1 (6)
C14—N5—C15125.7 (6)N5—C15—C20117.9 (5)
O1—C1—C6110.4 (5)N5—C15—C16122.4 (6)
O1—C1—C2128.1 (4)O4—C18—C17126.2 (5)
O2—C6—C5129.5 (4)O4—C18—C19114.6 (5)
O2—C6—C1109.0 (4)O4—C21—C22106.5 (5)
O1—C7—O2107.8 (5)
Table
Table 2. The geometry of hydrogen-bonding (Å, °) of compound 5e.
Table 2. The geometry of hydrogen-bonding (Å, °) of compound 5e.
D—H···AD—HH···AD···AD—H···A
N4—H1NA···O3 i1.01(6)1.87(6)2.857(6)167(5)
N5—H1NB···N30.68(7)2.21(7)2.611(7)120(7)
C5—H5A···O1 ii0.93002.55003.454(6)164.00
C9—H9A···O3 i0.97002.42003.182(7)135.00
C21—H21A···N2 iii0.97002.57003.500(13)160.00
Symmetry codes: (i) −x, −y + 2, −z; (ii) x − 1, y, z; (iii) x + 1, y − 1, z.
Table
Table 3. Antifungal potential of the target semicarbazones 5a–o against C. albicans, C. tropicalis, C. parapsilosis, and A. niger.
Table 3. Antifungal potential of the target semicarbazones 5a–o against C. albicans, C. tropicalis, C. parapsilosis, and A. niger.
Compound No.Candida albicansCandida tropicalisCandida parapsilosisAsperagillus niger
DIZ ± SD * (mm)MIC (µmol/mL)DIZ ± SD * (mm)MIC (µmol/mL)DIZ ± SD * (mm)MIC (µmol/mL)DIZ ± SD * (mm)MIC (µmol/mL)
5a14 ± 0.600.67820 ± 0.900.33911 ± 0.800.67815 ± 0.500.678
5b12 ± 0.70> 1.1218 ± 0.50> 1.1215 ± 0.58>1.1214 ± 0.400.561
5c14 ± 0.580.31120 ± 0.900.31116 ± 1.100.62215 ± 0.500.622
5d14 ± 0.60 0.62217 ± 0.50> 1.2414 ± 0.40>1.240.0 ± 0.0 >1.24
5e13 ± 0.400.60722 ± 0.800.30416 ± 0.120.30413 ± 1.000.607
5f14 ± 0.600.64817 ± 1.00> 1.3014 ± 0.600.64816 ± 1.100.648
5g14 ± 0.580.62822 ± 0.500.31412 ± 1.200.62815 ± 0.500.628
5h14 ± 1.000.65419 ± 0.500.65418 ± 0.900.32714 ± 1.000.654
5i13 ± 0.400.65421 ± 1.000.32717 ± 0.580.65413 ± 0.400.654
5j13 ± 1.000.65422 ± 1.000.32717 ± 0.900.32715 ± 0.580.654
5k12 ± 0.430.28723 ± 0.500.28715 ± 0.600.57514 ± 0.800.575
5l14 ± 0.58 0.28721 ± 1.000.57414 ± 0.600.57413 ± 0.400.574
5m11 ± 0.30 0.57417 ± 0.80>1.1516 ± 0.58>1.1516 ± 0.800.574
5n14 ± 0.400.66819 ± 1.00 1.3419 ± 0.50 >1.2413 ± 1.000.668
5o14 ± 0.580.85020 ± 0.900.85015 ± 0.900.85014 ± 0.100.850
Fluconazole18 ± 1.100.05119 ± 1.000.04519 ± 0.900.047NDND
KetoconazoleNDNDNDNDNDND29 ± 0.600.02
* The arithmetic mean of the inhibition zone diameters in mean ± standard deviation; ND: not determined.
