Synthesis and Cytotoxicity Studies of Novel NHC*-Gold(I) Complexes Derived from Lepidiline A

by
Danielle Curran
1,
Oyinlola Dada
1,
Helge Müller-Bunz
1,
Matthias Rothemund
2,
Goar Sánchez-Sanz
1,3,
Rainer Schobert
2,
Xiangming Zhu
1 and
Matthias Tacke
1,*
1
School of Chemistry, University College Dublin, Belfield, Dublin 4, Ireland
2
Organic Chemistry Laboratory, University of Bayreuth, Universitätsstr. 30, 95440 Bayreuth, Germany
3
Irish Centre of High-End Computing, Grand Canal Quay, Dublin 2, Ireland
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(8), 2031; https://doi.org/10.3390/molecules23082031
Submission received: 3 August 2018 / Revised: 7 August 2018 / Accepted: 13 August 2018 / Published: 14 August 2018
(This article belongs to the Special Issue Metal Complexes of Biological Ligands)
Browse Figures
Versions Notes

Abstract

Ten novel N-heterocyclic carbene gold(I) complexes derived from lepidiline A (1,3-dibenzyl-4,5-dimethylimidazolium chloride) are reported here with full characterisation and biological testing. (1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (NHC*-AuCl) (1) was modified by substituting the chloride for the following: cyanide (2), dithiocarbamates (3–5), p-mercaptobenzoate derivatives (12–14) and N-acetyl-l-cysteine derivatives (15–17). All complexes were synthesised in good yields of 57–78%. Complexes 2, 12, 13, and 14 were further characterised by X-ray crystallography. Initial evaluation of the biological activity was conducted on all ten complexes against the multidrug resistant MCF-7topo breast cancer, HCT-116wt, and p53 knockout mutant HCT-116−/− colon carcinoma cell lines. Across the three cell lines tested, mainly single-digit micromolar IC50 values were observed. Nanomolar activity was exhibited on the MCF-7topo cell line with 3 displaying an IC50 of 0.28 μM ± 0.03 μM. Complexes incorporating a Au–S bond resulted in higher cytotoxic activity when compared to complexes 1 and 2. Theoretical calculations, carried out at the MN15/6–311++G(2df,p) computational level, show that NHC* is the more favourable ligand for Au(I)-Cl when compared to PPh3.

1. Introduction

Metal-based drugs are an important tool in the development of new therapeutic drugs. Auranofin, the successful gold(I)-based drug, exhibits both high potency antiarthritic and antitumour properties [1,2]. Auranofin analogues have since been investigated for their interesting coordination to both a phosphine and a thioglucoside. In many cases, N-heterocyclic carbenes (NHCs) have been utilized as an alternative to the phosphine ligand [3,4,5]. NHCs have proved to be suitable ligands for stabilizing the highly active gold(I) species, due to their good electron donating ability and their highly stable carbene from π-backbonding [6,7]. As a result, several metal NHC complexes have reported strong anticancer activity [8,9,10].
Lepidiline A (Figure 1), a naturally occurring imidazolium compound extracted from the root of Lepidium meyenii, has presented many biological properties, including cytotoxicity [11]. Lepidiline A exhibits activity against the human ovarian cancer cell line FDIGROV, with an ED50 of 7.39 μg/mL [11]. Furthermore, this biologically active imidazolium compound acts as a promising structural motif for NHC derivatives [12], and more effective applications of lepidiline A may lie in the development of metal-based complexes with lepidiline A as the coordinating ligand.
Gold(I) complexes are an important class of anticancer drugs, due to their unique mechanism of action. It has been shown that gold(I) complexes can elicit tumour cell death through targeting members of the intracellular redox-homeostasis system, such as the mitochondria associated thioredoxin reductase (TrxR), whose inhibition leads to reactive oxygen species formation [13,14,15]. A selenocysteine–cysteine bridge at the C-terminal of the TrxR enzyme acts as the target for gold(I) [9,16]. Gold(I) has a high affinity for thiols, due to their soft nature, resulting in strong Au–S bonds. However, gold(I) also binds strongly to blood thiols such as serum albumin or glutathione, reducing the amount of drug arriving at cancer cells [17]. Therefore, there is a desire to design a gold(I)-NHC complex that has a suitably strong Au–S bond incorporated to lessen the chance of blood thiol conjugation.
The effectiveness of these gold(I)-NHC complexes are still restricted by cell selectivity. Introducing targeting biomolecules to the complex could ensure the drug is delivered directly to the cancer cells, thus minimizing the death of normal cells and increasing the drug’s efficacy [18]. Modifying the coordinating ligand of the NHC-gold(I) complex to include a carboxylic acid would allow increased functionality, such as esters or amides.
Herein we present a structural assessment of NHC-Au(I) complexes, based on (1,3-dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (NHC*-AuCl), (1) Figure 1. The synthesis, characterisation, and biological testing of ten new NHC*-gold(I) complexes is reported. The effect of altering the coordinating ligands of the NHC*-gold(I) on the cytotoxicity is investigated via MTT-based proliferation assays. The cytotoxicity studies of these novel compounds have been conducted in vitro against three different tumour cell lines: MCF-7topo (multidrug-resistant breast cancer), HCT-116wt, and the p53 knockout mutant HCT-116−/− (colon cancer). These cytotoxicity studies, compared to that of 1, can provide information on the ideal structures of future gold(I) chemotherapeutic complexes. Additionally, a computational study of 1 can highlight the advantages of employing an NHC ligand, as opposed to a phosphine.

2. Results and Discussion

2.1. Synthesis and Characterisation

The synthetic route for the ten NHC*-gold(I) complexes described in this paper are shown in Scheme 1, Scheme 2, Scheme 3 and Scheme 4. NHC*-Au(I)-Cl (1) was synthesised according to a procedure previously published [3]. The preparation of 1, p-mercaptobenzoate derivatives 7 and 8, and N-acetyl-l-cysteine (NAC) derivatives 10 and 11 (Scheme 3), were confirmed with 1H and 13C-NMR spectra. Novel complexes 2–5 and 12–17 were characterised with elemental analysis, high resolution mass spectrometry, IR spectroscopy, and melting point. See Supplementary Material for 1H and 13C spectra of complexes 2–5 and 12–17.
Complex 2 was formed in a 66% yield from the anion exchange of chloride to cyanide (Scheme 1). The precursor 1 was reacted with potassium cyanide in dry dichloromethane at reflux for 48 h to produce complex 2. The reaction does not form the desired product when conducted in a biphasic solvent system with ethyl acetate and water. Upon reaction in the presence of water, the carbene is protonated to form the corresponding imidazolium dicyanoaurate(I), confirmed by a signal at δ = 8.66 ppm, representing the protonated carbene.
The 1H-NMR spectrum of 2 shows a slight shift of the CH2 protons of the benzyl groups, from δ = 5.44 ppm to 5.37 ppm, when compared to the 1H-NMR of 1. The quaternary carbon of the cyanide ligand appears in the 13C-NMR spectra at δ = 152.6 ppm. An absorption band at 2144 cm−1 in the IR spectra of 2 represents the C≡N stretch.
Complexes 3–5 were prepared by reacting complex 1 with the corresponding sodium carbamate salt (Scheme 2). This was performed under biphasic conditions by stirring at room temperature in ethyl acetate and water for 48 h, with relatively good yields of 61–69%. Complexes 3–5 were also synthesised in dichloromethane at reflux for 24 h, this, however, gave lower yields.
Similar to 2, the CH2 signal in the 1H-NMR of complexes 3–5 is shifted to δ = 5.57–5.55 ppm upon coordination to the dithiocarbamates. The addition of a new 1H-NMR singlet at δ = 3.51 ppm corresponding to the two methyl groups of the dimethyldithiocarbamate moiety (3) confirms its coordination to the NHC*-Au(I). Similarly, the CH2 and CH3 peaks of the diethyldithiocarbamate complex 4 appear at δ = 3.96 ppm and 1.31 ppm, respectively. The pyrrolidine CH2 peaks of 5 appear at δ = 3.85 and 1.97 ppm, with a triplet and pentet distinguishing these two peaks.
Previous metal-dialkyldithiocarbamate complexes reported the IR stretch of the carbon sulphur bond from 820–1050 cm−1 [19,20]. The IR spectra of 3, 4 and 5 show a medium band at 971, 910, and 949 cm−1, respectively, corresponding to the C=S stretch. A nickel(II) dimethyldithiocarbamate complex exhibited a carbon–sulphur bond stretch at 975 cm−1 [19,21], which correlates well with the dimethyldithiocarbamate complex 3. IR spectra of 3, 4, and 5 show bands at 1447, 1411, and 1406 cm−1, respectively, which correspond to the carbon–nitrogen stretching of the carbamate. Interestingly, these IR values account for an intermediate bond in the 1450–1550 cm−1 range [20]. This indicates a resonance structure is present where the carbon–nitrogen bond exhibits more double bond character than the carbon–sulphur bonds. Furthermore, the presence of only one band for the C=S bond implies the molecule is symmetrical, and therefore, in the resonant structure shown in Figure 2 [19].
The synthetic route to ester formation is highlighted below in Scheme 3. The esters 7, 8, 10, and 11 were made with Fischer esterification, by refluxing 4-mercaptobenzoic acid (6) and N-acetyl-l-cysteine (NAC) (9) (both commercially available) in methanol and ethanol with a catalytic amount of sulphuric acid, to make their corresponding methyl and ethyl esters. Compounds 6–11 were conjugated with complex 1, under basic conditions, to obtain complexes 12–17, in relatively good yields of 57–78% (Scheme 4).
Compounds 6 and 9 were initially conjugated to 1 to make the corresponding NHC*-Au-S-linker molecules 12 and 15. Esterification of the acid ends of 12 and 15 was unsucessful. Attempts were made to synthesise complexes 13, 14, 16, 17 by reacting 12 and 15 with methanol or ethanol; however, this also proved to be unsucessful. Due to the lack of success via the linear synthesis, we moved to convergent synthesis, which was successful.
The most diagnostic feature in the 1H-NMR spectra of complexes 12–17 is the disappearance of the SH signal of the thiols once coordinated to the gold. This appears in the δ = 3.64–2.48 ppm range for the p-mercaptobenzoate compounds (12–14) ,and δ = 1.33–1.31 ppm range for the NAC compounds (15–17). In the NAC series, the acetyl protons on the nitrogen atom of compounds 10 and 11 are observed at δ = 2.07 and 2.09 ppm, respectively. However, once linked to the NHC*-Au(I) centre, there is an observed upfield chemical shift of the acetyl protons to δ = 1.95 and 1.94 ppm in compounds 16 and 17, respectively. For complexes 13 and 16 there is a slight upfield shift of the CH3 singlet of the methyl compounds upon coordination to the gold; however, in the ethyl compounds, a downfield shift is noted.

2.2. Structural Discussion

X-ray crystallography data was obtained for four of the complexes synthesised. The crystal of complex 2 was developed from the slow diffusion of pentane into a saturated dichloromethane solution at −18 °C. Complex 2 crystallised in the monoclinic space group P21/m (#11) (Figure 3). The crystals of 12 and 13 were formed in a saturated solution of ethyl acetate with the slow infusion of pentane (Figure 4 and Figure 5). Both crystallised in the triclinic space group P 1 ¯ (#2), in the absence of any solvent molecules. Crystal 14 was formed in a saturated solution of dichloromethane with slow infusion of diethyl ether (Figure 6). Complex 14 crystallized in the monoclinic space group C2/c (#15), also in the absence of any solvent molecules. The X-ray crystal data and structure refinement of complexes 2, 12, 13, and 14 are found in Table 1, with the selected bond lengths and bond angles compiled in Table 2 and Table 3.
The Au–C(8) bond lengths of 2.031(8) Å for 2, 2.012(3) Å for 12, 2.008(2) Å for 13 and 2.008(3) Å for 14 suggest that the gold is strongly bound to the carbene in all four complexes. Additionally, the Au–S bond distance of 2.2856(7) Å in 12, 2.2851(6) Å in 13 and 2.3012(8) Å in 14 is within the range of reported Au–S bond lengths [22,23]. The C(30)–N(3) bond of 2 of 1.113 Å is indicative of the triple bond of the cyanide ligand [24]. The X-ray structures of all four compounds show an almost linear bond angle of 179.6(4)° for 2, 177.48(8)° for 12, 175.20(6)° for 13, and 173.45(9)° for 14 for the C(8)–Au–C(30) and C(8)–Au–S angles, respectively. Bond angles of 108.40(10)° for 12, 109.44(8)° for 13, and 108.83(12)° for 14 are observed for the Au–S–C(30) angle. These values are in good agreement with similar compounds reported earlier by the Tacke group [25,26].

2.3. Biological Evaluation

The in vitro anticancer activity of 2–5 and 12–17 was tested via MTT-based proliferation assays against the human colon carcinoma cell line HCT-116wt, the p53 knockout mutant HCT-116−/−, and the multidrug-resistant (mdr) human breast cancer cell line MCF-7topo (Table 4). Bar 2 and 13, all complexes reached low single-digit micromolar IC50 values against the tested cell lines after 72 h of treatment. These two complexes exhibit only moderate toxicities with IC50 values up to 20 µM. While the IC50 values of the dithiocarbamate complexes 3–5 and the p-mercaptobenzoate complexes 12–14 vary depending on the nitrogen substitution, and the respective esterification, the complexes carrying NAC, 15–17, show single-digit IC50 values in the low micromolar range for all tested cell lines, with almost similar cytotoxic activities throughout. Esterification of NAC with methanol or ethanol slightly increased the antitumor activity against all three cell lines. Amongst the three types of thiolated complexes, the dithiocarbamate complexes 3–5 showed the highest activity against the mdr MCF-7topo breast cancer cells, with complex 3 being the most active complex in total, with IC50 values of 1.5 ± 0.1 µM against the HCT-116wt or 0.28 ± 0.03 µM against the MCF-7topo cells. To test the complexes for their dependency on fully functional p53, one activator of the apoptotic cascade, the complexes were tested for their toxicity against a HCT-116 p53 knockout mutant. Surprisingly, only a few of the tested complexes showed similar or higher IC50 values against the knockout mutant than against the wildtype cells. Complexes 4, 5, 12, and 13 exert a higher toxicity against the HCT-116−/− than against the wildtype HCT-116wt. Overall, the herein presented complexes exhibit high to moderate antitumoral activity against colon carcinoma cells and a mdr breast cancer cell line. Dithiocarbamate complex 3 shows the overall highest activity in all tested cell lines.

2.4. Computational Results

The enthalpy of formation has been obtained at the MN15/6-311++G(2df,p)/LANL2TZ(f) level for both NHC*-AuCl and Ph3P-AuCl compounds (Figure 7). The results show that NHC*-AuCl presents a more negative enthalpy (−315.0 kJ/mol) than Ph3P-AuCl (−274.3 kJ/mol), which indicates that the formation of NHC*-AuCl is more favourable. Natural bond orbital (NBO) analysis shows that the AuCl unit in NHC*-AuCl is slightly less negative (−0.32e−) than in Ph3P-AuCl (−0.35e−), and displays slightly shorter Au–Cl distances in NHC*-AuCl (2.291 Å) than in Ph3P-AuCl (2.299 Å). This is indicative of a stronger bond between the gold and the carbene due to the higher σ-donating effect of the nucleophilic NHC* ligand.

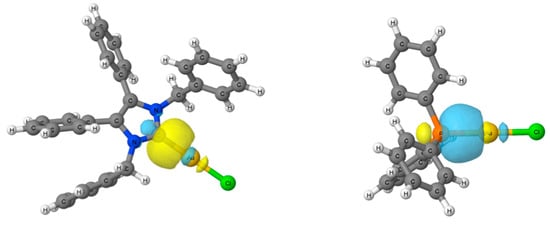

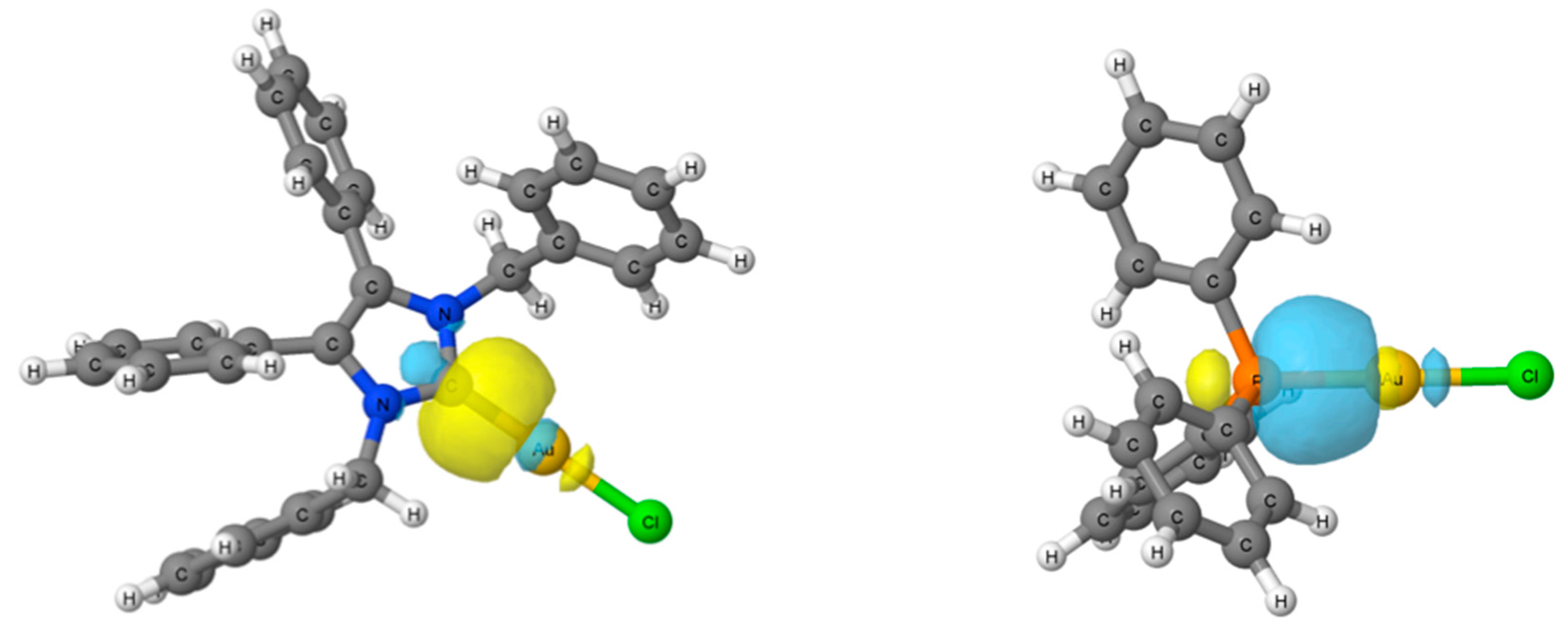

Also, for NHC*-AuCl, two backbonding donations from the gold into the π* C–N antibonding orbitals are observed, E(2) = 15.9 and 16.1 kJ/mol; while in Ph3P-AuCl, three backbonding donations are observed from the Au atom into the π* P–C antibonding orbitals with E(2) = 16.2, 16.0, and 14.9 kJ/mol. The additional backbonding in the Ph3P-AuCl molecule reduces its bond strength, resulting in a weaker donating ligand. Conclusively, these results give credence to NHCs being the more favourable ligand than phosphines.

3. Materials and Methods

3.1. General Conditions

All chemicals were purchased and used as received, unless otherwise stated. Solvents were dried according to the standard procedures, when necessary. 1H and 13C spectra were recorded on either a 300 or 400 MHz Varian spectrometer at room temperature (rt). Both chloroform (CDCl3) and dimethyl sulfoxide (DMSO) were used as deuterated solvents. The residual solvent peak or tetramethylsilane (TMS) were used as the internal standard. All chemical shifts are reported as δ values in parts per million (ppm). Infrared spectra were recorded on a Bruker ALPHA PLATINUM ATR spectrometer (Millerica, MA, USA). High resolution accurate mass data were obtained on a Waters/Micromass LCT TOF spectrometer (Milford, MA, USA). under electrospray ionisation technique. Melting points were measured on a Stuart™ (Stone, UK). melting point apparatus SMP10. Elemental analysis was conducted on an Exeter Analytical CE-440 elemental analyser (Coventry, UK). X-ray crystallography data was collected on a Rigaku Oxford Diffraction (Chalgrove, UK) SuperNova A diffractometer. Absorbance measurements were done with a TECAN (Männedorf, Switzerland) Infinite F200 plate reader.

3.2. Synthesis

3.2.1. (1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) Chloride (1)

Prepared according to literature method [3]. 1H-NMR (300 MHz, CDCl3, δ ppm): 7.30 (t, J = 7.4 Hz, 2H, CHbenzyl), 7.25–7.16 (m, 10H, CHbenzyl + CHphenyl), 7.06–6.92 (m, 8H, CHphenyl), 5.44 (s, 4H, CH2). 13C-NMR (101 MHz, CDCl3, δ ppm): 171.6 (NCN), 135.8, 132.2, 130.9, 129.5, 128.8, 128.7, 128.2, 127.6, 127.4 (CHimidazol + CHphenyl + CHbenzyl), 53.2 (CH2).

3.2.2. (1,3-Dibenzyl-4,5-diphenyl-2-ylidene)gold(I) Cyanide (2)

(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (65 mg, 0.10 mmol) and potassium cyanide (7.5 mg, 0.12 mmol) were stirred in dichloromethane (15 mL) under reflux for 48 h. The reaction was washed with deionised water (2 × 10 mL). The organic solution was extracted and dried over anhydrous MgSO4. This was filtered, and the excess solvent reduced under pressure to 3 mL. Pentane (40 mL) was added to precipitate a white solid. The product was filtered, washed with pentane (15 mL), and dried in vacuo. Yield: 40.8 mg, 66%. 1H-NMR (400 MHz, CDCl3, δ ppm): 7.32 (t, J = 7.4 Hz, 2H, CHbenzyl), 7.25–7.20 (m, 10H, CHbenzyl + CHphenyl), 6.99 (t, J = 5.9 Hz, 8H, CHphenyl), 5.37 (s, 4H, CH2). 13C-NMR (101 MHz, CDCl3, δ ppm): 182.9 (NCN), 152.6 (CN), 135.7, 132.6, 130.9, 129.7, 128.9, 128.8, 128.4, 127.6, 127.2 (Cimidazol + Cphenyl + Cbenzyl), 53.0 (CH2). IR (ATR): 3058 (w), 3030 (w), 2143 (w), 1594 (w), 1488 (m), 1447 (m), 1348 (m), 1026 (m), 758 (m), 696 (s). MS (ESI+) m/z: 624.2 [M + H]+. Melting point range: 264–268 °C. Anal. calcd for C30H24AuN3 (623.51): C, 57.79; H, 3.88; N, 6.74. Found: C, 61.08; H, 4.04; N, 6.90. Although these elemental results are outside the acceptable range to establish purity, they demonstrate the best results yet obtained.

3.2.3. General Procedure for NHC-Au(I) Complexes 3–5

(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (65 mg, 0.10 mmol) and the corresponding sodium carbamate salt (0.12 mmol) were stirred in a biphasic solution of ethyl acetate (7 mL) and deionised water (6 mL) at rt for 48 h. The reaction mixture was washed with deionised water (2 × 10 mL) and an aqueous saturated solution of NaCl (10 mL). The combined organic phase was dried over anhydrous MgSO4, filtered, and reduced to approximately 3 mL under reduced pressure. Pentane (40 mL) was added to precipitate a solid. The product was filtered, washed with pentane (15 mL), and dried in vacuo.
(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) Dimethyldithiocarbamate (3)
A white solid was formed. Yield: 50.4 mg, 69%. 1H-NMR (300 MHz, CDCl3, δ ppm): 7.32–7.27 (m, 2H, CH), 7.24–7.16 (m, 10H, CH), 7.10–7.04 (m, 4H, CH), 6.95 (d, J = 7.1 Hz, 4H, CH), 5.55 (s, 4H, CH2), 3.51 (s, 6H, CH3). 13C-NMR (101 MHz, CDCl3, δ ppm): 136.9, 132.4, 131.2, 131.1, 129.6, 129.1, 128.9, 128.3, 127.1 (Cimidazol + Cphenyl + Cbenzyl), 53.0 (CH2), 45.4 (CH3). MS (ESI+) m/z: 718.2 [M + H]+. IR (ATR): 3025 (w), 2910 (w), 1603 (w), 1496 (m), 1447 (m), 1248 (m), 1140 (m), 971 (m), 726 (m), 695 (s). Melting point range: 186–187 °C. Anal. calcd for C32H30N3S2Au (717.71): C, 53.55; H, 4.21; N, 5.85; S, 8.94. Found: C, 53.50; H, 4.17; N, 5.77; S, 8.64.
(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) Diethyldithiocarbamate (4)
A white solid was formed. Yield: 49.5 mg, 65%. 1H-NMR (300 MHz, CDCl3, δ ppm): 7.27 (t, J = 7.3 Hz, 2H, CH), 7.25–7.14 (m, 15H, CH), 7.08–7.04 (m, 3H, CH), 6.93 (d, J = 7.2 Hz, 3H, CH), 5.57 (s, 4H, CH2-Bz), 3.96 (q, J = 7.1 Hz, 4H, CH2-ethyl), 1.31 (t, J = 7.0 Hz, 6H, CH3). 13C-NMR (101 MHz, CDCl3, δ ppm): 205.8 (SCS), 180.1 (NCN), 136.3, 132.1, 130.9, 129.2, 128.6, 128.5, 127.9, 127.8 (CHimidazol + CHphenyl + CHbenzyl), 53.1 (CH2-benzyl), 49.3 (CH2-ethyl), 12.4 (CH3). MS (ESI+) m/z: 746.2 [M + H]+. IR (ATR): 3025 (w), 2925 (w), 1603 (w), 1495 (w), 1411 (m), 1260 (m), 1133 (m), 981 (m), 910 (m), 733 (s), 694 (s). Melting point range: 187–188 °C. Anal. calcd for C34H34N3S2Au (745.75): C, 54.76; H, 4.60; N, 5.63; S, 8.60. Found: C, 54.58; H, 4.52; N, 5.53; S, 8.72.
(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) Pyrrolidinedithiocarbamate (5)
A white solid was formed. Yield: 46.6 mg, 61%. 1H-NMR (300 MHz, CDCl3, δ ppm): 7.29 (d, J = 7.5 Hz, 1H, CH), 7.24–7.14 (m, 10H, CH), 7.12–7.03 (m, 4H, CH), 6.95 (d, J = 7.0 Hz, 4H, CH), 5.56 (s, 4H, CH2-Bz), 3.85 (t, 4H, CH2), 1.97 (p, 4H, CH2). 13C-NMR (101 MHz, CDCl3, δ ppm): 202.8 (SCS), 180.2 (NCN), 136.3, 132.1, 130.9, 129.3, 128.6, 128.5, 128.0, 127.9, 127.8 (CHimidazol + CHphenyl + CHbenzyl), 54.43 (CH2), 53.08 (CH2-benzyl), 26.30 (CH2). MS (ESI+) m/z: 744.2 [M + H]+. IR (ATR): 3027 (w), 2961 (w), 1602 (w), 1494 (w), 1406 (m), 1165 (m), 949 (m), 733 (m), 695 (s). Melting point range: 188–189 °C. Anal. calcd for C34H32N3S2Au (743.73): C, 54.91; H, 4.34; N, 5.65; S, 8.63. Found: C, 54.48; H, 4.26; N, 5.52; S, 8.85.

3.2.4. General Procedure for 7–8, 10–11

Esters 7–8 and 10–11 were prepared according to modified literature methods [27,28]. The carboxylic acid (6 or 9) was dissolved in either methanol (30 mL) or ethanol (30 mL), with 2 drops of concentrated sulfuric acid added to the solution before refluxing at 90 °C for 24 h. The reaction progress was monitored by TLC (cyclohexane-ethyl acetate; 1:1). The reaction was concentrated under reduced pressure to yield a white solid.
Methyl-p-mercaptobenzoate (7)
The residue was purified with column chromatography (cyclohexane-ethyl acetate; 3:1) to produce a white solid. Yield: 319 mg, 95%. The NMR data were in agreement with those reported in literature [27,28]. 1H-NMR (400 MHz, CDCl3, δ ppm): 7.88 (d, J = 8.6 Hz, 2H, CH), 7.27 (d, J = 8.6 Hz, 2H, CH), 3.89 (s, 3H, CH3), 3.60 (s, 1H, SH). 13C-NMR (101 MHz, CDCl3, δ ppm): 166.9 (C=O), 138.3 (CH), 130.2 (CH), 128.1 (CH), 127.1 (CH), 52.0 (CH3).
Ethyl-p-mercaptobenzoate (8)
The residue was purified with column chromatography (cyclohexane-ethyl acetate; 3:1) to produce a white solid. Yield: 319 mg, 95%. The NMR data were in agreement with those reported in literature [29]. 1H-NMR (400 MHz, DMSO-d6, δ ppm): 7.77 (d, J = 8.5 Hz, 2H, CH), 7.40 (d, J = 8.5 Hz, 2H, CH), 4.26 (q, J = 7.1 Hz, 2H, CH2), 2.48 (s, 2H, SH), 1.28 (t, J = 7.1 Hz, 3H, CH3). 13C-NMR (101 MHz, DMSO-d6, δ ppm): 165.4 (C=O), 141.7 (CH), 130.5 (CH), 129.1 (CH), 126.5 (CH), 61.2 (CH2), 14.5 (CH3).
N-Acetyl-l-cysteine Methyl Ester (10)
The crude product was used without further purification as a white solid. Yield: 618 mg, 88%. The NMR data were in agreement with those reported in literature [30]. 1H-NMR (400 MHz, CDCl3, δ ppm): 4.89 (dt, J = 7.8, 4.1 Hz, 1H, CH), 3.79 (s, 3H, OCH3), 3.01 (ddd, J = 9.0, 4.1, 2.7 Hz, 2H, CH2), 2.07 (s, 3H, CH3), 1.33 (t, J = 9.0 Hz, 1H, SH). 13C-NMR (101 MHz, CDCl3, δ ppm): 170.5 (C=O), 170.0 (C=O), 53.5 (CH), 52.8 (OCH3), 26.8 (CH2), 23.1 (CH3).
N-acetyl-l-cysteine Ethyl Ester (11)
The crude product used without further purification as a white solid. Yield: 650 mg, 85%. The NMR data were in agreement with those reported in literature [31]. 1H-NMR (400 MHz, DMSO-d6, δ ppm): 4.91–4.82 (m, 2H, CH2), 4.32–4.19 (m, 2H, OCH2), 3.15–2.94 (m, 3H, CH3), 2.09 (s, 3H, CH3), 1.31 (t, J = 7.1 Hz, 1H, SH). 13C-NMR (101 MHz, DMSO-d6, δ ppm): 172.1 (C=O), 169.8 (C=O), 61.9 (OCH2), 54.7 (CH), 51.7 (CH3), 26.0 (CH2), 22.8 (CH3).

3.2.5. (1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) p-Mercaptobenzoic Acid (12)

(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (63 mg, 0.10 mmol) and p-mercaptobenzoic acid (31 mg, 0.20 mmol) were dissolved in ethyl acetate (5 mL), and K2CO3 (27 mg, 0.20 mmol) was dissolved in water (5 mL). Both solutions were mixed and stirred vigorously at rt for 24 h. The two phases were separated, and the aqueous phase was re-extracted twice with ethyl acetate (10 mL). The combined organic phase was washed with 8% HCl (2 × 10 mL), before drying over MgSO4 and filtered. The filtrate was concentrated to approximately 3 mL before the addition of pentane (40 mL). The solution was cooled down to −26 °C to allow the product to precipitate out of the solution before filtering and drying in vacuo. An off-white product was isolated. Yield: 55 mg, 70%. 1H-NMR (400 MHz, CDCl3, δ ppm): 7.63 (d, J = 8.4 Hz, 2H, Hb), 7.47 (d, J = 8.4 Hz, 2H, Ha), 7.34–7.18 (m, 12H, CH), 7.09–6.96 (m, 8H, CH), 5.45 (s, 4H, CH2-benzyl). 13C-NMR (101 MHz, CDCl3, δ ppm): 182.3 (NCN), 171.7 (C=O), 153.7, 135.8, 132.0, 131.8, 130.6, 129.4, 129.3, 128.6, 128.6, 128.1, 127.3, 127.2, 123.1 (CHimidazol + CHphenyl + CHbenzyl), 52.6 (CH2). MS (QMS-MS/MS) m/z: 773.15 [M + Na]+. IR (ATR): 3056 (w), 1668 (w), 1580 (w), 1487 (m), 1446 (w), 1025 (m), 764 (m), 729 (s), 694 (s), 628(w), 518 (w). Melting point range: 177–179 °C. Anal. calcd for C36H29N2O2SAu (750.70): C, 57.59; H, 3.90; N, 3.73; S, 4.27; Found: C, 57.33; H, 3.72; N, 3.60; S, 4.59.

3.2.6. (1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I)-methyl-p-mercaptobenzoate (13)

(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (253 mg, 0.40 mmol) and methyl-p-mercaptobenzoate (218 mg, 1.60 mmol) were dissolved in ethyl acetate (20 mL), and potassium carbonate (222 mg, 1.60 mmol) was dissolved in water (20 mL). Both solutions were mixed and stirred vigorously at rt for 24 h. The two phases were separated, and the aqueous phase was washed with ethyl acetate (2 × 20 mL). The organic phases were combined and washed with 8% HCl (20 mL), an aqueous saturated solution of NaHCO3 (20 mL) and an aqueous saturated solution of NaCl (20 mL). The organic phase was dried over MgSO4, filtered, and concentrated to approximately 5 mL before the addition of pentane (40 mL). The solution was cooled down to −20 °C to allow the product to precipitate out of the solution before filtering and drying in vacuo. An off-white product was isolated. Yield: 202 mg, 65%. 1H-NMR (400 MHz, CDCl3, δ ppm): 7.62–7.57 (m, 2H, Hb), 7.51–7.46 (m, 2H, Ha), 7.34–7.28 (m, 2H, CH), 7.27–7.21 (m, 10H, CH), 7.08–7.04 (m, 4H, CH), 7.03–6.98 (m, 4H, CH), 5.46 (s, 4H, CH2), 3.84 (s, 3H, OCH3). 13C-NMR (101 MHz, CDCl3, δ ppm): 182.3 (NCN), 167.9 (C=O), 135.8, 132.0, 131.8, 130.6, 129.3, 128.8, 128.6, 128.6, 128.1, 127.3, 127.2, 124.1 (CHimidazol + CHphenyl + CHbenzyl), 52.6 (CH2), 51.6 (OCH3). MS (QMS-MS/MS) m/z: 765.18 [M + H]+. IR (ATR): 3057 (w), 1705 (s), 1584 (s), 1432 (m), 1279 (s), 1270 (s), 1172 (w), 1107 (m), 1085 (m), 1021 (w), 760 (s), 696 (s), 526 (w). Melting point range: 149–152 °C. Anal. calcd for C37H31N2O2AuS (764.73): C, 58.11; H, 4.09; N, 3.66; S, 4.19. Found: C, 58.28; H, 4.02; N, 3.41; S, 4.20.

3.2.7. (1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I)-ethyl-p-mercaptobenzoate (14)

(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (254 mg, 0.40 mmol) and ethyl-p-mercaptobenzoate (291 mg, 1.60 mmol) were dissolved in ethyl acetate (20 mL), and potassium carbonate (221 mg, 1.60 mmol) was dissolved in water (20 mL). Both solutions were mixed and stirred vigorously at rt for 24 h. The two phases were separated, and the aqueous phase was re-extracted twice with ethyl acetate (20 mL). The organic phases were combined and washed with 8% HCl (20 mL), an aqueous saturated solution of NaHCO3 (20 mL), and an aqueous saturated solution of NaCl (20 mL). The organic phase was dried over MgSO4, filtered, and concentrated to approximately 5 mL before the addition of pentane (40 mL). The solution was cooled down to −20 °C to allow the product to precipitate out of the solution before filtering and drying in vacuo. An off-white product was isolated. Yield: 178 mg, 57%. 1H-NMR (300 MHz, CDCl3, δ ppm): 7.61 (d, J = 8.4 Hz, 2H, Hb), 7.48 (d, J = 8.4, 2H, Ha), 7.35–7.27 (m, 2H, CH), 7.25–7.17 (m, 10H, CH), 7.09–6.93 (m, 8H, CH), 5.44 (s, 4H, CH2-benzyl), 4.30 (q, J = 7.1 Hz, 2H, CH2-ethyl), 1.35 (t, J = 7.1 Hz, 3H, CH3). 13C-NMR (101 MHz, CDCl3), δ ppm): 166.9 (C=O), 135.6, 132.0, 131.8, 130.6, 129.3, 128.8, 128.5, 128.0, 127.4, 127.2 (CHimidazol + CHphenyl + CHbenzyl), 60.3 (CH2-ethyl), 52.7 (CH2-benzyl), 14.3 (CH3). MS (QMS-MS/MS) m/z: 779.20 [M + H]+. IR (ATR): 3056 (w), 1698 (m), 1585 (m), 1445 (m), 1277 (m), 1267 (m), 1105 (m), 1092 (m), 763 (m), 729 (s), 694 (s), 527 (m). Melting point range: 163–166 °C. Anal. calcd for C38H33N2O2AuS (778.76): C, 58.60; H, 4.28; N, 3.60; S, 4.11. Found: C, 58.45; H, 4.01; N, 3.74; S, 4.32.

3.2.8. (1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I)-N-acetyl-l-cysteine (15)

(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (63 mg, 0.10 mmol) and N-acetyl-l-cysteine (18 mg, 0.11 mmol) were dissolved in ethyl acetate (5 mL), and potassium carbonate (15 mg, 0.11 mmol) was dissolved in water (5 mL). Both solutions were mixed and stirred vigorously at rt for 24 h. The two phases were separated, and the aqueous phase was washed with ethyl acetate (2 × 10 mL). The combined organic phase was washed with 8% HCl (2 × 10 mL), then dried over MgSO4 and filtered. The filtrate was concentrated to approximately 3 mL before the addition of pentane (40 mL). The solution was cooled down to −20 °C to allow the product to precipitate out of the solution before filtering and drying in vacuo. An off-white product was isolated. Yield: 45 mg, 60%. 1H-NMR (300 MHz, CDCl3, δ ppm): 7.35–7.08 (m, 12H, CH), 7.04–6.88 (m, 8H, CH), 5.44–5.28 (m, 4H, CH2-benzyl), 4.51 (q, J = 4.1 Hz, 1H, CH), 3.91 (s, 2H, CH2-NAC), 1.88 (s, 3H, CH3). 13C-NMR (101 MHz, CDCl3, δ ppm): 178.0 (NCN), 172.1 (C=O), 169.6 (C=O), 136.2, 132.0, 130.6, 129.2, 128.5, 128.4, 127.8, 127.5, 127.2 (CHimidazol + CHphenyl + CHbenzyl), 56.8 (CH2-NAC), 52.5 (CH2-benzyl), 23.6 (CH3). MS (QMS-MS/MS) m/z: 760.59 [M + H]+. IR (ATR): 3057 (w), 3030 (w), 1665 (m), 1495 (m), 1447 (w), 1075 (w), 1022 (), 764 (m), 730 (m), 696 (s), 518 (w). Melting point range: 102–105 °C. Anal. calcd for C34H32N3O3AuS (759.72): C, 53.75; H, 4.25; N, 5.53; S, 4.22. Found: C, 53.42; H, 4.34; N, 5.13; S, 3.94.

3.2.9. (1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I)-N-acetyl-l-cysteine Methyl Ester (16)

(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (253 mg, 0.40 mmol) and N-acetyl-l-cysteine methyl ester (285 mg, 1.60 mmol) were dissolved in ethyl acetate (20 mL), and potassium carbonate (223 mg, 1.60 mmol) was dissolved in water (20 mL). Both solutions were mixed and stirred vigorously at rt for 24 h. The two phases were separated, and the aqueous phase was washed with ethyl acetate (2 × 20 mL). The organic phases were combined and washed with 8% HCl (20 mL), an aqueous saturated solution of NaHCO3 (20 mL), and an aqueous saturated solution of NaCl (20 mL). The organic phase was dried over MgSO4, filtered, and concentrated to approximately 5 mL before the addition of pentane (40 mL). The solution was cooled down to −20 °C to allow the product to precipitate out of the solution before filtering and drying in vacuo. An off-white product was isolated. Yield: 242 mg, 78%. 1H-NMR (300 MHz, CDCl3, δ ppm): 7.34–7.26 (m, 2H, CH), 7.25–7.18 (m, 10H, CH), 7.06–6.93 (m, 8H, CH), 5.43 (s, 4H, CH2-benzyl), 4.73 (dt, J = 7.5, 4.7 Hz, 1H, CH), 3.65 (s, 3H, OCH3), 3.36 (dd, J = 13.1, 5.5 Hz, 1H, CH2), 3.23 (dd, J = 13.1, 4.7 Hz, 1H, CH2), 1.95 (s, 3H, CH3-NAC). 13C-NMR (101 MHz, CDCl3, δ ppm): 171.8 (C=O), 169.9 (C=O), 135.9, 131.9, 130.6, 129.2, 128.7, 128.5, 128.0, 127.4, 127.3, 126.5 (CHimidazol + CHphenyl + CHbenzyl), 55.0 (CH), 52.6 (CH2-benzyl), 52.1 (CH3), 30.0 (CH2-NAC), 23.1 (CH3-NAC). MS (QMS-MS/MS) m/z: 774.20 [M + H]+. IR (ATR): 3058 (w), 1740 (m), 1670 (m), 1496 (m), 1447 (m), 1207 (w), 1022 (w), 764 (m), 733 (m), 698 (s), 518 (w). Melting point range: 77–78 °C. Anal. calcd for C35H34N3O3AuS (773.75): C, 54.33; H, 4.44; N, 5.43; S, 4.14. Found: C, 54.61; H, 4.26; N, 5.21; S, 4.44.

3.2.10. (1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I)-N-acetyl-l-cysteine Ethyl Ester (17)

(1,3-Dibenzyl-4,5-diphenylimidazol-2-ylidene)gold(I) chloride (254 mg, 0.40 mmol) and N-acetyl-l-cysteine ethyl ester (306 mg, 1.60 mmol) were dissolved in ethyl acetate (20 mL), and potassium carbonate (221 mg, 1.60 mmol) was dissolved in water (20 mL). Both solutions were mixed and stirred vigorously at rt for 24 h. The two phases were separated, and the aqueous phase was washed with ethyl acetate (2 × 20 mL). The organic phases were combined and washed with 8% HCl (20 mL), an aqueous saturated solution of NaHCO3 (20 mL), and an aqueous saturated solution of NaCl (20 mL). The organic phase was dried over MgSO4, filtered, and concentrated to approximately 5 mL before the addition of pentane (40 mL). The solution was cooled down to −20 °C to allow the product to precipitate out of the solution before filtering and drying in vacuo. An off-white product was isolated. Yield: 245 mg, 78%. 1H-NMR (400 MHz, CDCl3, δ ppm): 7.32–7.26 (m, 2H, CH), 7.24–7.18 (m, 10H, CH), 7.05–6.94 (m, 8H, CH), 5.43 (s, 4H, CH2-benzyl), 4.69 (dd, J = 8.4, 4.0 Hz, 1H, CH), 4.18–4.07 (m, 2H, CH2), 3.29–3.19 (m, 2H, CH2), 1.94 (s, 3H, CH3-NAC), 1.21 (t, J = 7.1 Hz, 3H, CH3-methyl). 13C-NMR (101 MHz, CDCl3, δ ppm): 171.3 (NCN), 170.3 (C=O), 169.9 (C=O), 135.9, 131.9, 130.6, 129.2, 128.7, 128.5, 128.5, 127.9, 127.4, 127.4 (CHimidazol + CHphenyl + CHbenzyl), 61.0 (CH2-ethyl), 55.1 (CH), 52.9 (CH2-benzyl), 40.9 (CH2-NAC), 23.1 (CH3-NAC), 14.2 (CH3-ethyl). MS (QMS-MS/MS) m/z: 788.21 [M + H]+. IR (ATR): 3030 (w), 1743 (m), 1660 (m), 1496 (m), 1446 (m), 1202 (m), 1178 (m), 1022 (m), 764 (m), 732 (m), 697 (s), 517 (m). Melting point range: 65–68 °C. Anal. calcd for C36H36N3O3AuS (787.78): C, 54.88; H, 4.62; N, 5.33; S, 4.07. Found: C, 54.83; H, 4.61; N, 5.27; S, 4.15.

3.3. Structure Determination

X-ray crystallography data was collected on a Rigaku Oxford Diffraction SuperNova A diffractometer. Complex 12 was measured with Mo-Kα (0.71073 Å), while complexes 2, 13, and 14 were measured with Cu-Kα (1.54184 Å). A complete dataset was collected, assuming that the Friedel pairs are not equivalent. An analytical absorption correction based on the shape of the crystal was performed [32]. The structures were solved by direct methods using SHELXS [33] and refined by full matrix least-squares on F2 for all data using SHELXL [33]. Hydrogen atoms were added at calculated positions and refined using a riding model. Their isotropic temperature factors were fixed to 1.2 times (1.5 times for methyl and OH groups) the equivalent isotropic displacement parameters of the parent atom. Anisotropic thermal displacement parameters were used for all non-hydrogen atoms. CCDC 1854008 (2), CCDC 1850909 (12), CCDC 1850910 (13), CCDC 1850908 (14) contain the supplementary crystallographic data for this paper, available free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/structures.

3.4. MTT-Based Proliferation Assay

The cytotoxic activity of al gold complexes was determined via MTT-based proliferation assays for the colon carcinoma cell line HCT-116wt, its p53 knockout mutant HCT-116−/−, and the multidrug-resistant MCF-7topo breast cancer cell line. The cells, kept in Dulbecco’s Modified Eagle Medium (1% anti-anti, 10% FBS), were seeded into the wells of a clear 96 well plate (5 × 104 cells/well) and incubated for 24 h at standard cell culture conditions (37 °C, 5% CO2, 95% humidity). Appropriate pre-dilutions of freshly made stock solutions (10 mM in DMSO) of 2–5, 12–15, and DMSO as negative control, were added into the wells of the pre-incubated cells. After 72 h, the medium was exchanged for a MTT solution (0.05% in PBS) and the cells were further incubated for 2 h. Thereupon, the MTT solution was again discarded, and the cells and violet formazan were dissolved in an SDS/DMSO solution (1% SDS, 0.6% AcOH). After another incubation time of 1 h at 37 °C, the absorbance of formazan at 570 nm, and the background at 630 nm, were measured. Means and SDs are calculated from four independent measurements.

3.5. Computational Details

All compounds have been optimized at the MN15 [34] computational level with the 6–311++G(2df,p) basis set [35] applied to the lighter elements inclusive chlorine. The LANL2TZ(f) basis set [36] is used throughout for the gold atoms. Frequency calculations have been performed at the same level in order to confirm that the structures obtained correspond to energetic minima. The effect of water solvation was then accounted for using the SMD approach implemented in the Gaussian16 [37] package including dispersing, repulsing, and cavitation energy terms of the solvent in the optimisation. Orbitals have been calculates using NBO 6.0 [38] and plotted using Jmol software [39].

4. Conclusions

In summary, a novel NHC*-Au(I)-cyanide complex (2), three NHC*-Au(I)-dithiocarbamates (3–5), three NHC*-Au(I)-p-mercaptobenzoates (12–14), and three NHC*-Au(I)-NAC (15–17) complexes, were synthesised and characterised.
Complexes 2–5 and 12–17 were based on the NHC* ligand system, as NHCs have been shown to be stronger σ-donors than phosphines. DFT calculations, carried out at the MN15/6-311++G(2df,p)/LANL2TZ(f) level, show the formation of NHC*-AuCl is more desired than the phosphine alternative, Ph3P-AuCl. A more negative ΔH and concurrent NBO analysis favours the NHC* ligand. Furthermore, calculated Au–Cl bond distances reveal the bond is shorter in the NHC*-AuCl compound, and therefore, stronger than in the phosphine compound.
Cytotoxicity studies conducted against the human colon carcinoma cell lines HCT-116wt, its p53 knockout mutant HCT-116−/−, and the mdr human breast cancer cell line MCF-7topo, show low micromolar and even nanomolar activity. Complex 3 exhibited the best activity with IC50 values of 1.5 ± 0.1 μM and 0.28 ± 0.03 μM, against HCT-116wt and MCF-7topo cell lines, respectively. Overall, the NHC*-Au(I)-thiolates proved to be more biologically active than complex 1 or 2, which lack the influential Au–S bond.
Furthermore, the series of complexes with the NAC derivative (15–17) were the most successful series of compounds tested. Complexes 15–17 displayed consistently high cytotoxic activity when compared to the other sets, strongly suggesting the benefit of conjugating the NHC*-Au(I) to a biological vector. These encouraging results may be valuable in the development of new anticancer drugs that incorporate amino acid derivatives.

Supplementary Materials

See attached for 1H and 13C-NMR spectra of all novel compounds.

Author Contributions

Conceptualization, M.T. and X.Z.; Software, G.S.-S.; Formal Analysis, H.M.-B. and G.S.-S.; Investigation, D.C., O.D. and M.R.; Resources, R.S.; Writing-Original Draft Preparation, D.C.; Writing-Review & Editing, M.T., X.Z., G.S.-S., H.M.-B., M.R., and R.S.; Supervision, M.T., X.Z. and R.S.

Funding

We thank the University College Dublin College of Science and the School of Chemistry [R16002] for funding this research.

Acknowledgments

We thank Ibon Alkorta for helping with the NBO 6.0 calculations and many useful discussions and to the Irish Centre for High-End Computing (ICHEC) for the provision of computational facilities.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Brown, D.H.; Smith, W.E. The chemistry of the gold drugs used in the treatment of rheumatoid arthritis. Chem. Soc. Rev. 1980, 9, 217–240. [Google Scholar] [CrossRef]
  2. Eisler, R. Chrysotherapy: A synoptic review. Inflamm. Res. 2003, 52, 487–501. [Google Scholar] [CrossRef] [PubMed]
  3. Hackenberg, F.; Muller-Bunz, H.; Smith, R.; Streciwilk, W.; Zhu, X.; Tacke, M. Novel ruthenium(II) and gold(I) NHC complexes: Synthesis, characterization, and evaluation of their anticancer properties. Organometallics 2013, 32, 5551–5560. [Google Scholar] [CrossRef]
  4. Baker, M.V.; Barnard, P.J.; Berners-Price, S.J.; Brayshaw, S.K.; Hickey, J.L.; Skelton, B.W.; White, A.H. Synthesis and structural characterisation of linear Au(I) N-Heterocyclic carbene complexes: New analogues of the Au(I) phosphine drug auranofin. J. Organomet. Chem. 2005, 690, 24–25. [Google Scholar] [CrossRef]
  5. Zhao, W.; Ferro, V.; Baker, M.V. Carbohydrate-N-heterocyclic carbene metal complexes: Synthesis, catalysis and biological studies. Coord. Chem. Rev. 2007, 339, 1–16. [Google Scholar] [CrossRef]
  6. Hopkinson, M.N.; Richter, C.; Schedler, M.; Glorius, F. An overview of N-heterocyclic carbenes. Nature 2014, 510, 485–496. [Google Scholar] [CrossRef] [PubMed]
  7. Patil, S.A.; Patil, S.A.; Patil, R.; Keri, R.S.; Balakrishna, G.R.; Tacke, M. N-heterocylic carbene metal complexes as bio-organometallic antimicrobial and anticancer drugs. Future Med. Chem. 2015, 7, 1305–1333. [Google Scholar] [CrossRef] [PubMed]
  8. Marinelli, M.; Santini, C.; Pellei, M. Recent advances in medicinal applications of coinage-metal (Cu and Ag) N-heterocyclic carbene complexes. Curr. Top. Med. Chem. 2016, 16, 2995–3017. [Google Scholar] [CrossRef] [PubMed]
  9. Rubbiani, R.; Kitanovic, I.; Alborzinia, H.; Can, S.; Kitanovic, A.; Onambele, L.A.; Stefanopoulou, M.; Geldmacher, Y.; Sheldrick, W.S.; Wolber, G.; et al. Benzimidazol-2-ylidene gold(I) complexes are thioredoxin reductase inhibitors with multiple antitumor properties. J. Med. Chem. 2010, 53, 8608–8618. [Google Scholar] [CrossRef] [PubMed]
  10. Muenzner, J.K.; Biersack, B.; Albrecht, A.; Rehm, T.; Lacher, U.; Milius, W.; Casini, A.; Zhang, J.; Ott, I. Ferrocenyl-coupled N-heterocyclic carbene complexes of gold (I): A successful approach to multinuclear anticancer drugs. Chem. Eur. J. 2016, 22, 18953–18962. [Google Scholar] [CrossRef] [PubMed]
  11. Cui, B.; Zheng, B.L.; He, K.; Zheng, Q.Y. Imidazole alkaloids from lepidium meyenii. J. Nat. Prod. 2003, 66, 1101–1103. [Google Scholar] [CrossRef] [PubMed]
  12. Riduan, S.N.; Zhang, Y. Imidazolium salts and their polymeric materials for biological applications. Chem. Soc. Rev. 2013, 42, 9055–9070. [Google Scholar] [CrossRef] [PubMed]
  13. Rubbiani, R.; Can, S.; Kitanovic, I.; Alborzinia, H.; Stefanopoulou, M.; Kokoschka, M.; Mönchgesang, S.; Sheldrick, W.S.; Wölfl, S.; Ott, I. Comparative in vitro evaluation of N-heterocyclic carbene gold(I) complexes of the benzimidazolylidene type. J. Med. Chem. 2011, 54, 8646–8657. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, W.; Gust, R. Update on metal N-heterocyclic carbene complexes as potential anti-tumor metallodrugs. Coord. Chem. Rev. 2016, 329, 191–213. [Google Scholar] [CrossRef]
  15. Ott, I. On the Medicinal chemistry of gold complexes as anticancer drugs. Coord. Chem. Rev. 2009, 253, 1670–1681. [Google Scholar] [CrossRef]
  16. Zou, T.; Lum, C.T.; Lok, C.N.; To, W.P.; Low, K.H.; Che, C.M. A binuclear gold(I) complex with mixed bridging diphosphine and bis(N-heterocyclic carbene) ligands shows favorable thiol reactivity and inhibits tumor growth and angiogenesis in vivo. Angew. Chem. Int. Ed. 2014, 53, 5810–5814. [Google Scholar] [CrossRef] [PubMed]
  17. Zou, T.; Lum, C.T.; Lok, C.; Zhang, J.; Che, C. Chemical biology of anticancer gold(III) and gold(I) complexes. Chem. Soc. Rev. 2015, 44, 8786–8801. [Google Scholar] [CrossRef] [PubMed]
  18. Gutiérrez, A.; Marzo, I.; Cativiela, C.; Laguna, A.; Gimeno, M.C. Highly cytotoxic bioconjugated gold(I) complexes with cysteine-containing dipeptides. Chem. Eur. J. 2015, 21, 11088–11095. [Google Scholar] [CrossRef] [PubMed]
  19. Sathyanarayana, D.N. Vibrational Spectroscopy: Theory and Applications, 1st ed.; New Age International (P) Ltd.: New Delhi, India, 2004. [Google Scholar]
  20. Jamaluddin, N.A.; Baba, I. Synthesis and structural characterization of new dithiocarbamate complexes from Sb(III) and Bi(III). AIP Conf. Proc. 2013, 1571, 789–794. [Google Scholar]
  21. Durgaprasad, G.; Sathyanarayana, D.N.; Patel, C.C. Normal coordinate analysis of dialkylditlhioearbamate and its selenium analogue. Can. J. Chem. 1969, 47, 631–635. [Google Scholar] [CrossRef]
  22. Pakiari, A.H.; Jamshidi, Z. Nature and strength of M−S Bonds (M = Au, Ag, and Cu) in binary alloy gold clusters. J. Phys. Chem. A 2010, 114, 9212–9221. [Google Scholar] [CrossRef] [PubMed]
  23. Kokkin, D.L.; Zhang, R.; Steimle, T.C.; Wyse, I.A.; Pearlman, B.W.; Varberg, T.D. Au–S bonding revealed from the characterization of diatomic gold sulfide, AuS. J. Phys. Chem. A 2015, 119, 11659–11667. [Google Scholar] [CrossRef] [PubMed]
  24. Hormann, A.L.; Bennett, D.W.; Shaw, C.F.; Reiff, W.M. Solid-state structure and solution equilibria of cyano(Triethylphosphine)gold(I). Inorg. Chem. 1986, 25, 3953–3957. [Google Scholar] [CrossRef]
  25. Tacke, M.; Dada, O.; O’Beirne, C.; Zhu, X.; Müller-Bunz, H. The non-isomorphous crystal structures of NHC–Au–Cl and NHC–Au–Br (NHC is 1,3-dibenzyl-4,5-diphenylimidazol-2-ylidene). Acta Crystallogr. Sect. C Struct. Chem. 2016, 72, 857–860. [Google Scholar] [CrossRef] [PubMed]
  26. Dada, O.; Curran, D.; O’Beirne, C.; Müller-Bunz, H.; Zhu, X.; Tacke, M. Synthesis and cytotoxicity studies of novel NHC–gold(I) pseudohalides and thiolates. J. Organomet. Chem. 2017, 840, 30–37. [Google Scholar] [CrossRef]
  27. Novoa, A.; Eierhoff, T.; Topin, J.; Varrot, A.; Barluenga, S.; Imberty, A.; Roemer, W.; Winssinger, N. A LecA ligand identified from a galactoside-conjugate array inhibits host cell invasion by Pseudomonas aeruginosa. Angew. Chem. 2014, 53, 8885–8889. [Google Scholar] [CrossRef] [PubMed]
  28. Martin, D.P.; Cohen, S.M. Nucleophile recognition as an alternative inhibition mode for benzoic acid based carbonic anhydrase inhibitors. Chem. Commun. 2012, 48, 5259–5261. [Google Scholar] [CrossRef] [PubMed]
  29. Sala, O.; Santschi, N.; Jungen, S.; Lüthi, H.P.; Iannuzzi, M.; Hauser, N.; Togni, A. S-trifluoromethylation of thiols by hypervalent iodine reagents: A joint experimental and computational study. Chem. Eur. J. 2016, 22, 1704–1713. [Google Scholar] [CrossRef] [PubMed]
  30. Bernardes, G.J.L.; Grayson, E.J.; Thompson, S.; Chalker, J.M.; Errey, J.C.; El Oualid, F.; Claridge, T.D.W.; Davis, B.G. From disulfide-to thioether-linked glycoproteins. Angew. Chem. 2008, 47, 2244–2247. [Google Scholar] [CrossRef] [PubMed]
  31. Uhrig, R.K.; Picard, M.A.; Beyreuther, K.; Wiessler, M. Synthesis of antioxidative and anti-inflammatory drugs glucoconjugates. Carbohydr. Res. 2000, 325, 72–80. [Google Scholar] [CrossRef]
  32. Clark, R.C.; Reid, J.S. The analytical calculation of absorption in multifaceted crystals. Acta Crystallogr. Sect. A 1995, 51, 887–897. [Google Scholar] [CrossRef]
  33. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A 2008, A64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  34. Yu, H.S.; He, X.; Li, S.L.; Truhlar, D.G. MN15: A Kohn-Sham global-hybrid exchange-correlation density functional with broad accuracy for multi-reference and single-reference systems and noncovalent interactions. Chem. Sci. 2016, 7, 5032–5051. [Google Scholar] [CrossRef]
  35. Frisch, M.J.; Pople, J.A.; Binkley, J.S. Self-consistent molecular orbital methods 25. supplementary functions for gaussian basis sets. J. Chem. Phys. 1984, 80, 3265–3269. [Google Scholar] [CrossRef]
  36. Hay, P.J.; Wadt, W.R. Ab Initio effective core potentials for molecular calculations: Potentials for the transition metal atoms Sc to Hg. J. Chem. Phys. 1985, 82, 270–283. [Google Scholar] [CrossRef]
  37. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision B.01; Gassian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  38. Glendening, E.D.; Badenhoop, J.K.; Reed, A.E.; Carpenter, J.E.; Bohmann, J.A.; Morales, C.M.; Landis, C.R.; Weinhold, F. NBO 6.0; Theoretical Chemistry Institute, University of Wisconsin: Madison, WI, USA, 2013. [Google Scholar]
  39. Jmol: An Open-Source Java Viewer for Chemical Structures in 3D. Available online: http://www.jmol.org/ (accessed on 15 April 2018).
Sample Availability: Samples of the compounds 1–5 and 12–17 are available from the authors.
Molecules 23 02031 g001
Figure 1. Structure of lepidiline A (1,3-dibenzyl-4,5-dimethylimidazolum chloride) (a) and NHC*-Au(I)-Cl (1) (b).
Figure 1. Structure of lepidiline A (1,3-dibenzyl-4,5-dimethylimidazolum chloride) (a) and NHC*-Au(I)-Cl (1) (b).
Molecules 23 02031 g001
Molecules 23 02031 sch001

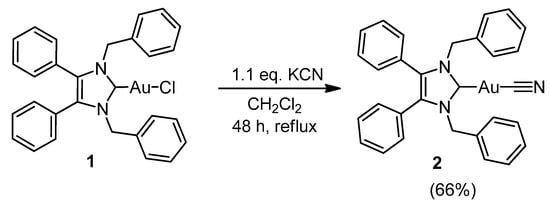

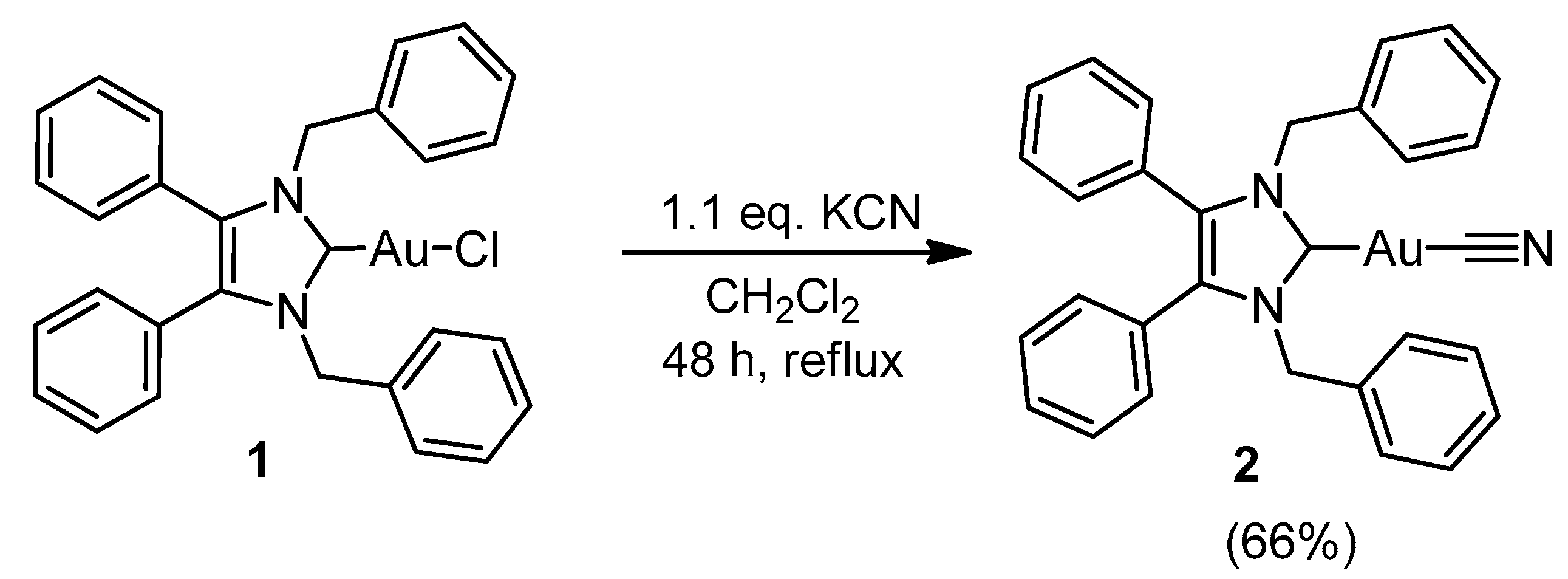

Scheme 1. General reaction scheme for the synthesis of NHC*-Au-CN (2).
Scheme 1. General reaction scheme for the synthesis of NHC*-Au-CN (2).
Molecules 23 02031 sch001
Molecules 23 02031 sch002

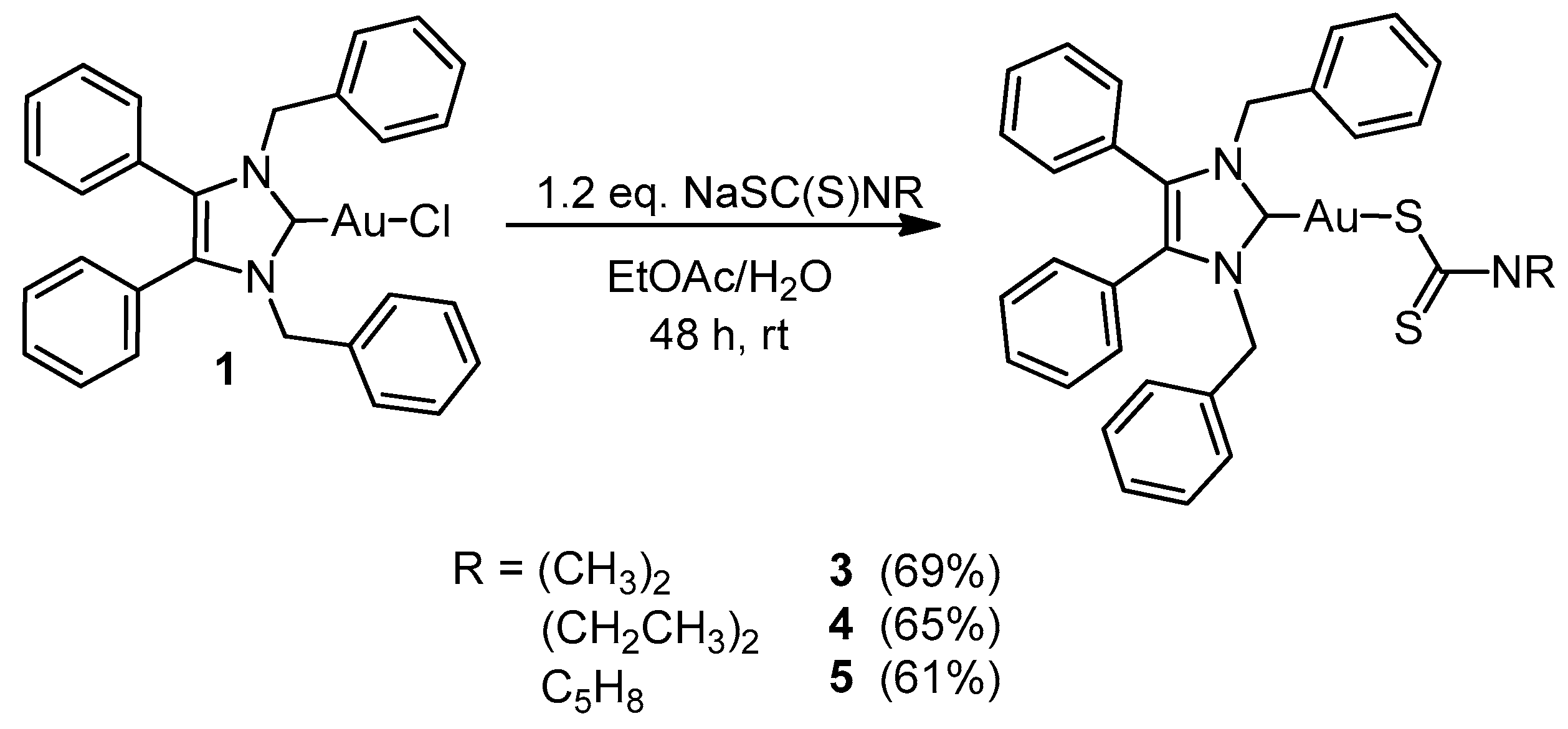

Scheme 2. General reaction scheme for the synthesis of NHC*-Au(I) dithiocarbamate complexes 3–5.
Scheme 2. General reaction scheme for the synthesis of NHC*-Au(I) dithiocarbamate complexes 3–5.
Molecules 23 02031 sch002
Molecules 23 02031 g002

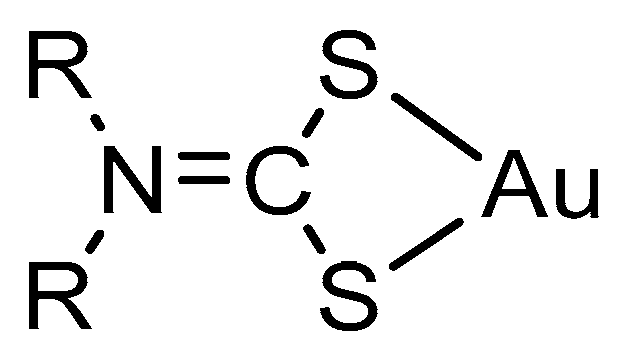

Figure 2. The dominant resonance form of a dithiocarbamate complex.
Figure 2. The dominant resonance form of a dithiocarbamate complex.
Molecules 23 02031 g002
Molecules 23 02031 sch003

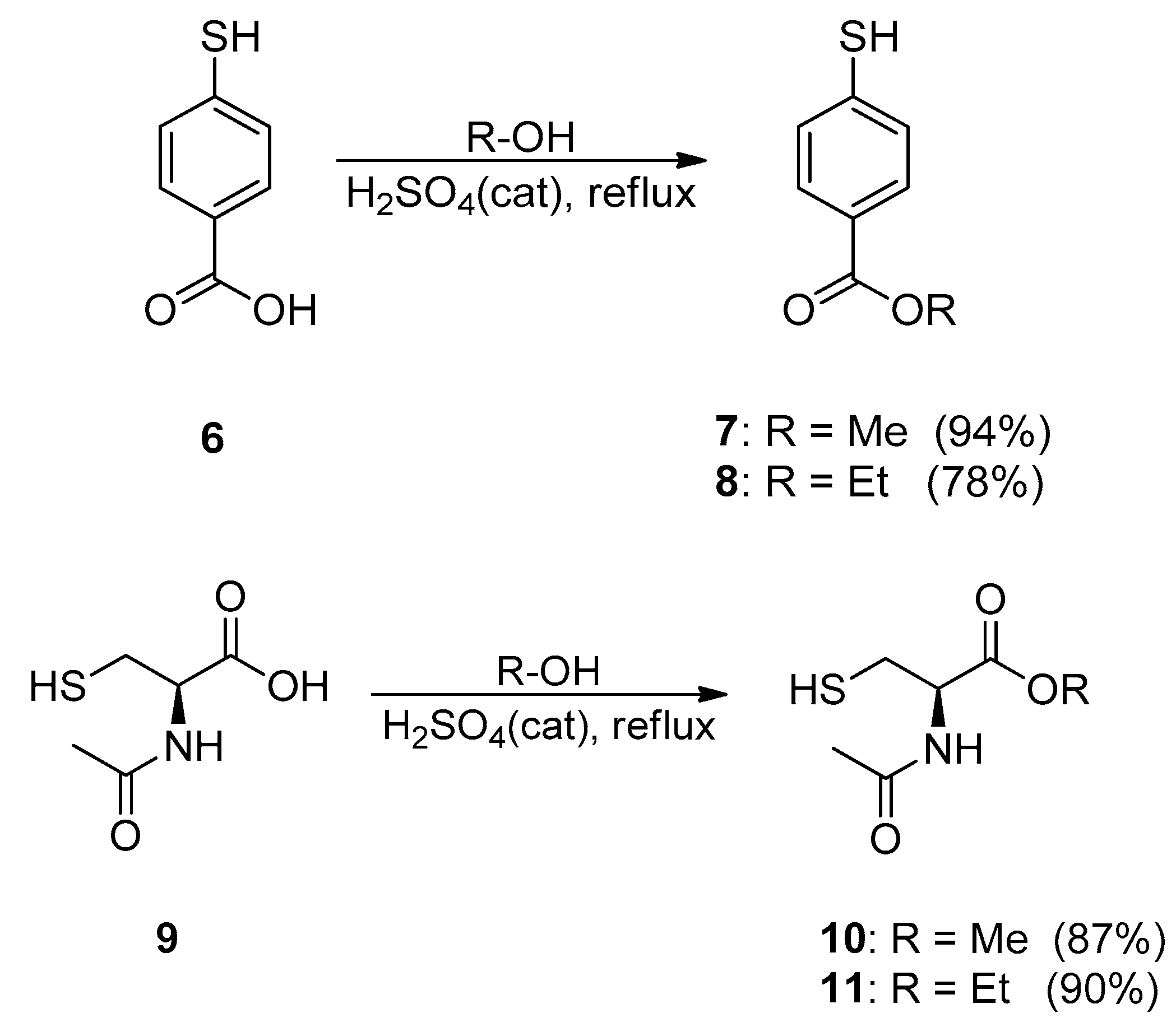

Scheme 3. General reaction scheme for the synthesis of esters 7, 8, 10, and 11.
Scheme 3. General reaction scheme for the synthesis of esters 7, 8, 10, and 11.
Molecules 23 02031 sch003
Molecules 23 02031 sch004

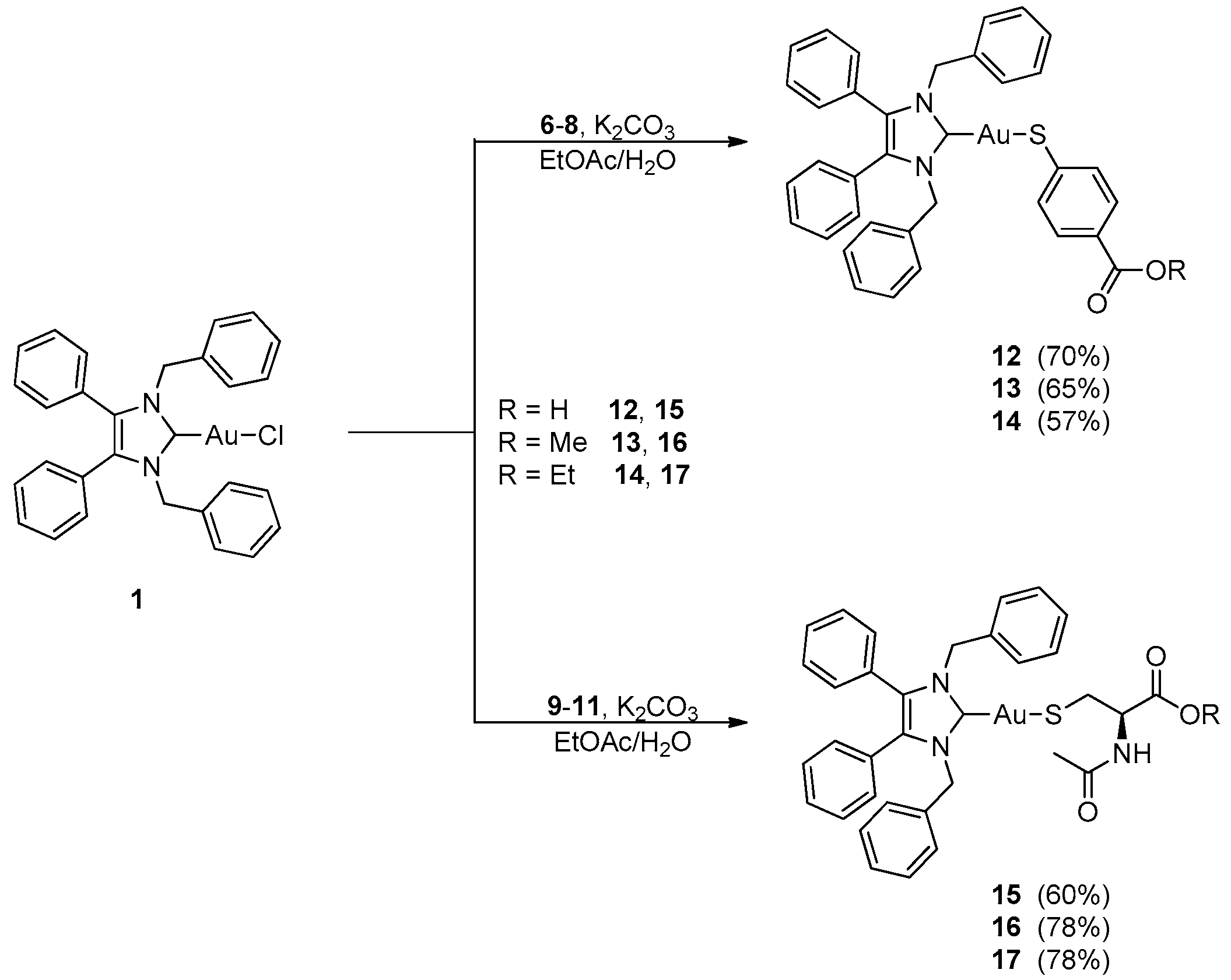

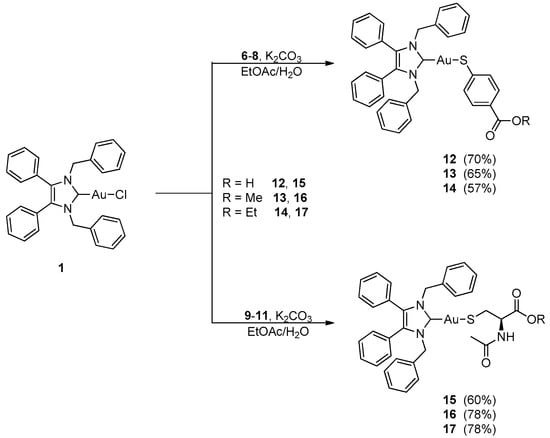

Scheme 4. General reaction scheme for the synthesis of NHC*-Au-S-linker (12–17).
Scheme 4. General reaction scheme for the synthesis of NHC*-Au-S-linker (12–17).
Molecules 23 02031 sch004
Molecules 23 02031 g003

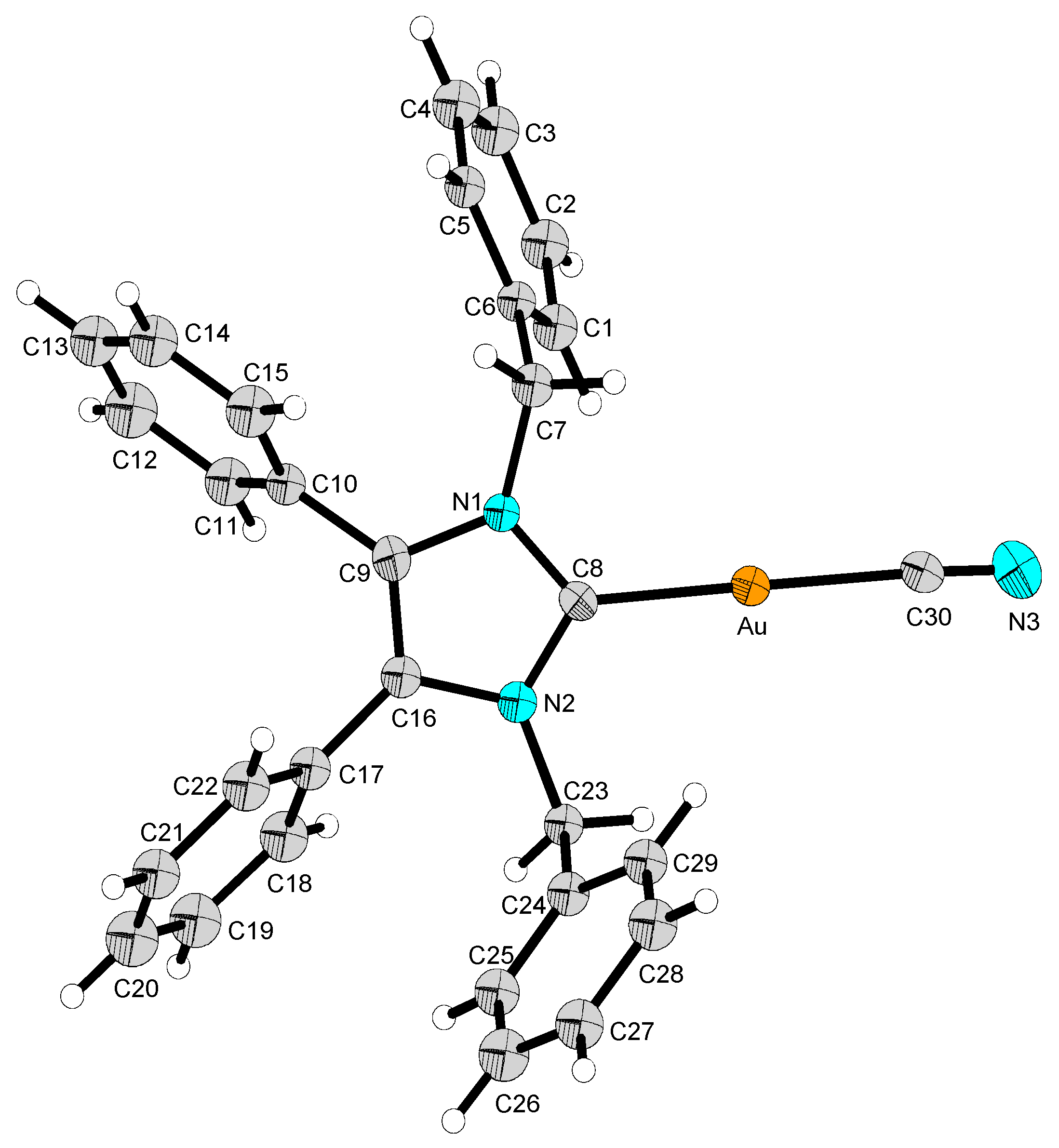

Figure 3. X-ray diffraction structure of NHC*-Au-CN (2); thermal ellipsoids are drawn on the 50% probability level.
Figure 3. X-ray diffraction structure of NHC*-Au-CN (2); thermal ellipsoids are drawn on the 50% probability level.
Molecules 23 02031 g003
Molecules 23 02031 g004

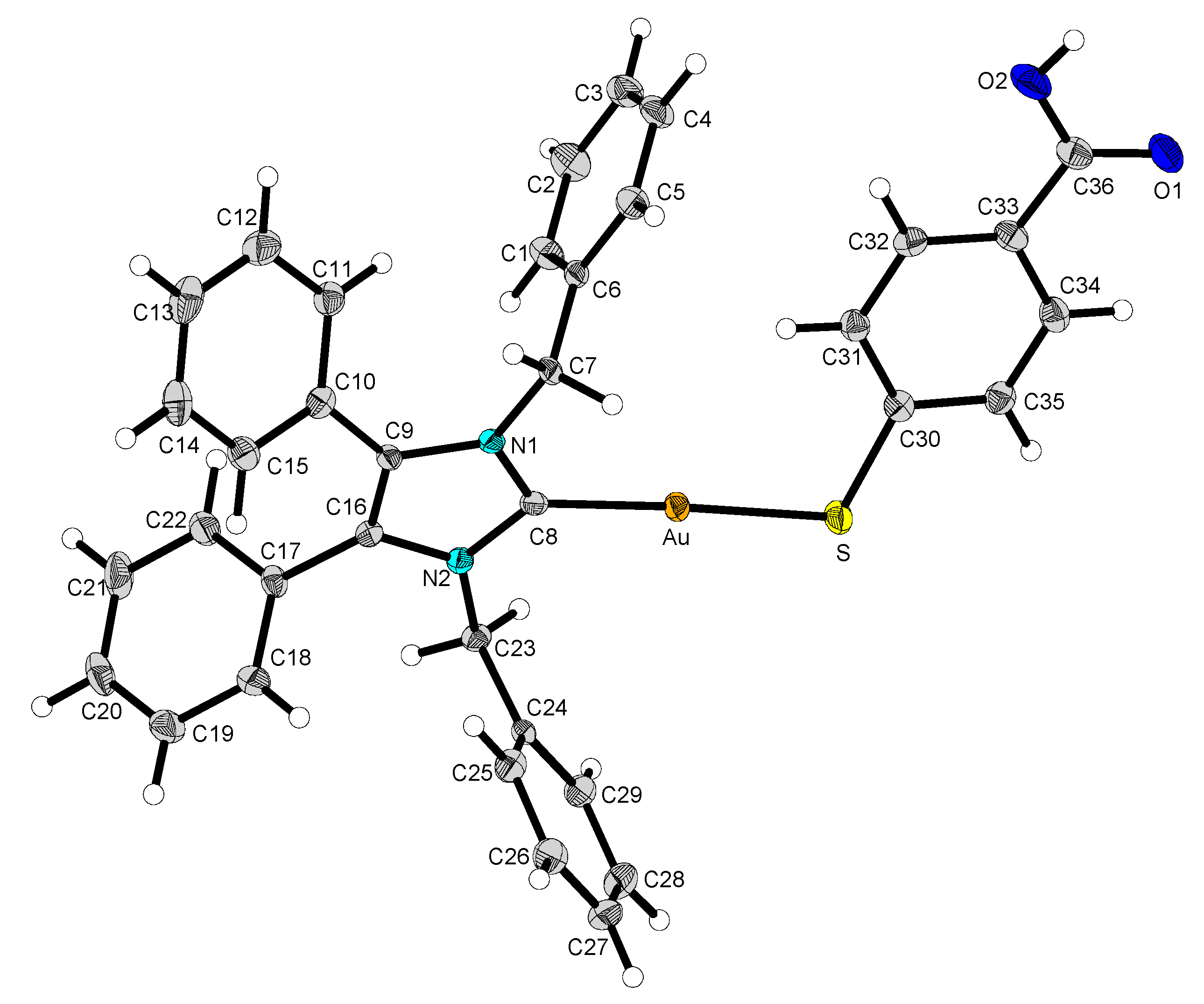

Figure 4. X-ray diffraction structure of 12; thermal ellipsoids are drawn on the 50% probability level.
Figure 4. X-ray diffraction structure of 12; thermal ellipsoids are drawn on the 50% probability level.
Molecules 23 02031 g004
Molecules 23 02031 g005

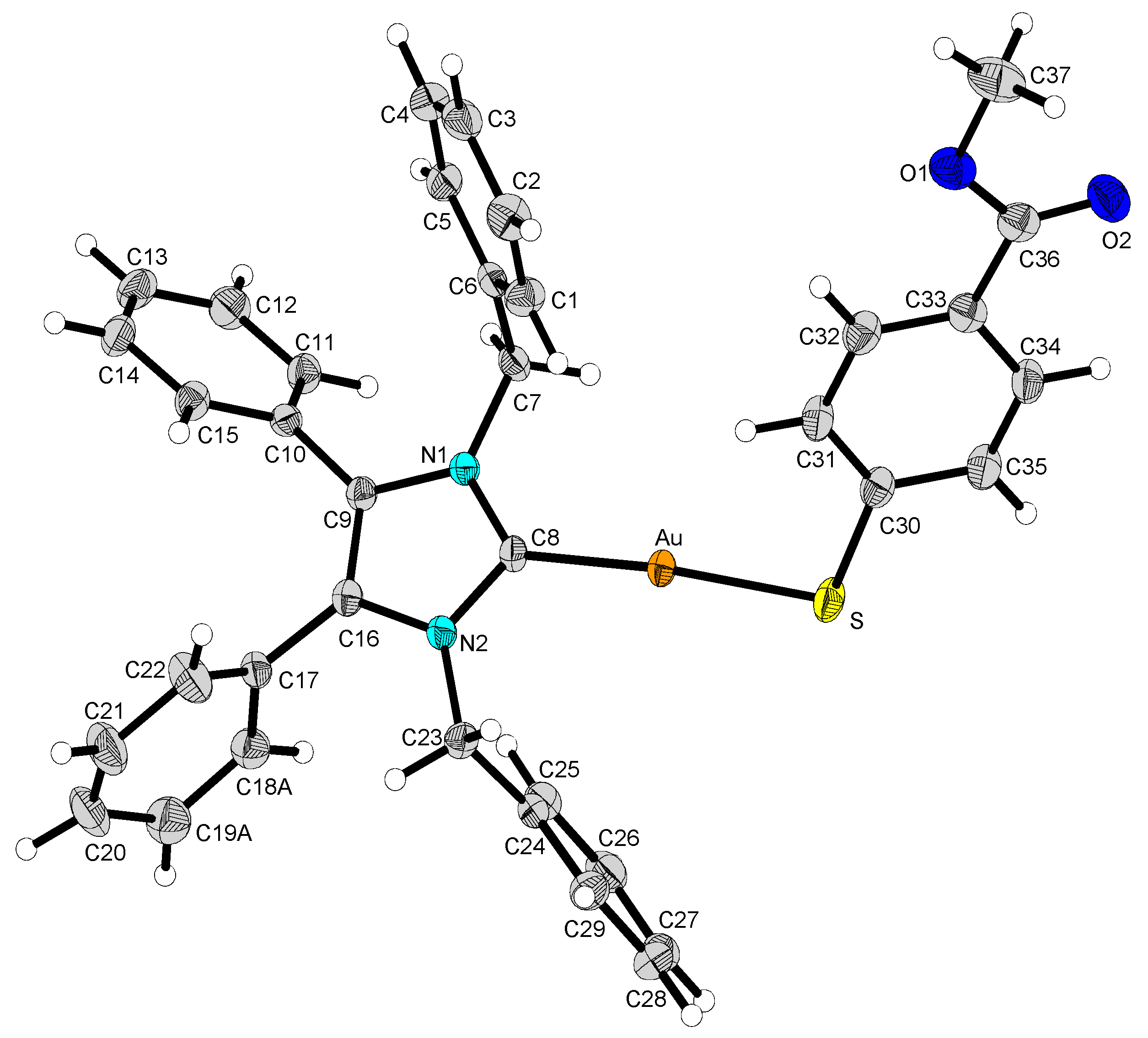

Figure 5. X-ray diffraction structure of 13; thermal ellipsoids are drawn on the 50% level, disorder neglected.
Figure 5. X-ray diffraction structure of 13; thermal ellipsoids are drawn on the 50% level, disorder neglected.
Molecules 23 02031 g005
Molecules 23 02031 g006

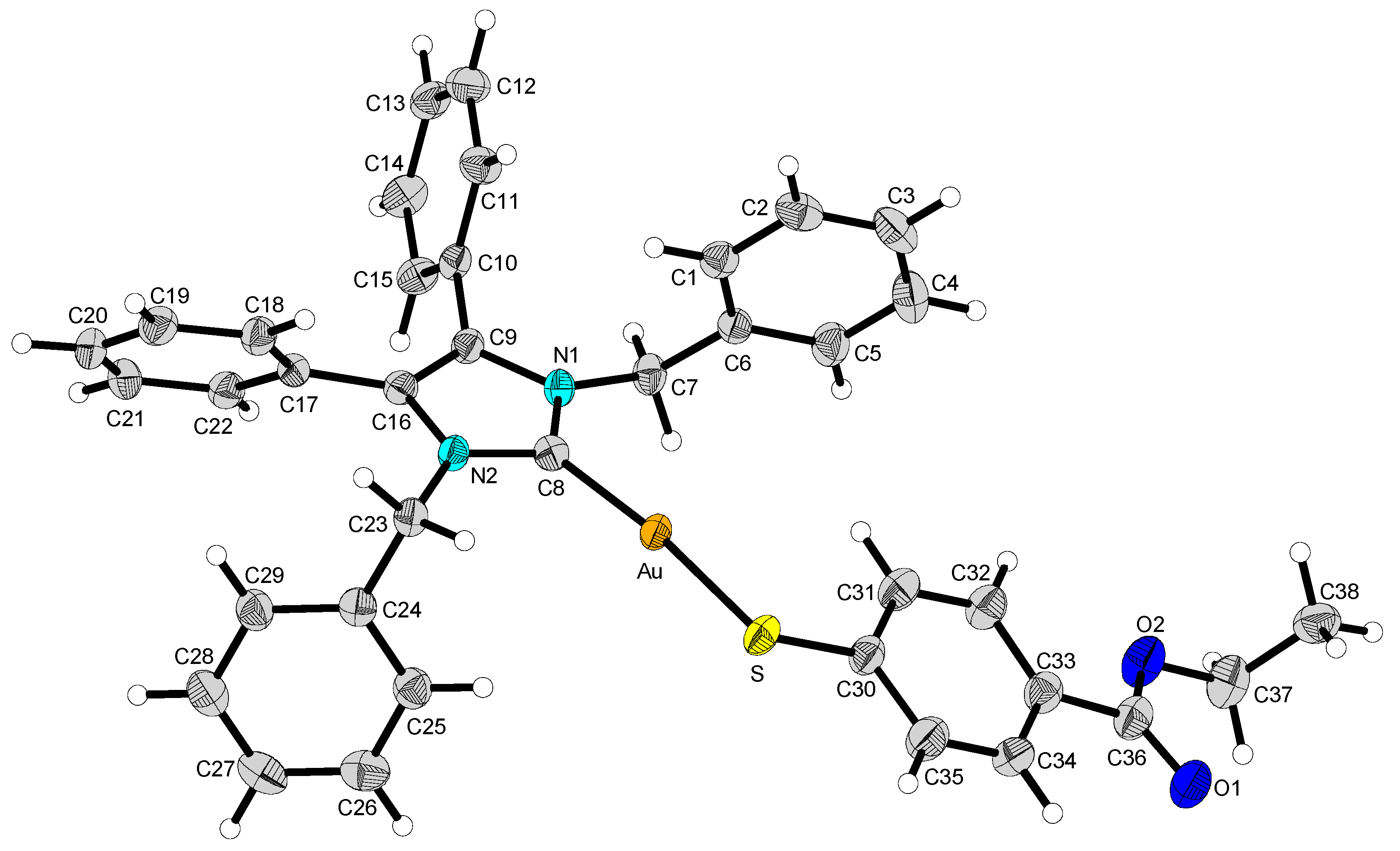

Figure 6. X-ray diffraction structure of 14; thermal ellipsoids are drawn on the 50% probability level.
Figure 6. X-ray diffraction structure of 14; thermal ellipsoids are drawn on the 50% probability level.
Molecules 23 02031 g006
Molecules 23 02031 g007
Figure 7. Molecular orbital corresponding to the σ-C–Au and σ-P–Au bonds of NHC*-AuCl and Ph3P-AuCl respectively.
Figure 7. Molecular orbital corresponding to the σ-C–Au and σ-P–Au bonds of NHC*-AuCl and Ph3P-AuCl respectively.
Molecules 23 02031 g007
Table 1. Crystal data and structure refinement for complexes 2, 12, 13, and 14.
Table 1. Crystal data and structure refinement for complexes 2, 12, 13, and 14.
2121314
Empirical FormulaC30H24AuN3C36H29N2O2SAuC37H31N2O2SAuC38H33N2O2SAu
Formula Weight (g·mol−1)623.49750.54764.66778.69
Temperature (K)100(2)100(2)100(2)100(2)
Crystal systemMonoclinicTriclinicTriclinicMonoclinic
Space groupP21/m (#11)P 1 ¯ (#2)P 1 ¯ (#2)C2/c (#15)
Unit cell dimensions
a (Å)12.8150(7)9.3234(3)8.89830(6)26.1234(3)
b (Å)6.4797(3)10.4210(3)12.12378(8)10.2154(1)
c (Å)15.6802(8)16.0388(5)15.5000(1)23.9038(3)
α (°)9075.663(3)103.1637(6)90
β (°)112.268(6)85.553(2)105.3420(6)100.387(1)
γ (°)9083.264(3)98.8340(6)90
Volume (Å3)1204.94(12)1497.46(8)1528.942(19)6274.45(12)
Z2228
Density (calcd) (mg/m3)1.7181.6651.6611.649
Absorption coefficient (mm−1)11.6415.0189.9649.723
F (000)6087407563088
Crystal size (mm3)0.255 × 0.034 × 0.0260.194 × 0.121 × 0.0820.248 × 0.193 × 0.1200.113 × 0.035 × 0.010
θ (°)3.727 to 77.1962.90 to 29.593.845 to 76.8763.44 to 76.91
Index ranges−16 ≤ h ≤ 15−12 ≤ h ≤ 12−11 ≤ h ≤ 11−32 ≤ h ≤ 32
−8 ≤ k ≤ 8−13 ≤ k ≤ 13−15 ≤ k ≤ 15−12 ≤ k ≤ 12
−19 ≤ l ≤ 19−21 ≤ l ≤ 21−19 ≤ l ≤ 19−30 ≤ l ≤ 28
Reflections collected24,42020,27634,26839,269
Independent reflections Rint2760(0.1335)7306(0.0341)6409(0.0268)6584(0.0339)
Completeness to θmax (%)99.899.2100.099.4
Absorption correctionGaussianGaussianGaussianGaussian
Max and min transmission0.788 and 0.2910.714 and 0.4720.455 and 0.2270.913 and 0.516
Refinement methodFull-matrix
Least-squares on F2		Full-matrix
Least-squares on F2		Full-matrix
Least-squares on F2		Full-matrix
Least-squares on F2
Data/restraints/parameters2760/0/1477306/0/3806409/0/3896584/0/398
Goodness-of-fit on F21.1391.0461.0851.041
Final R indices [I > 2σ(I)]R1 = 0.0442,
wR2 = 0.0983		R1 = 0.0255,
wR2 = 0.0437		R1 = 0.0178,
wR2 = 0.0439		R1 = 0.0266,
wR2 = 0.0674
R indices (all data)R1 = 0.0464,
wR2 = 0.0998		R1 = 0.0324,
wR2 = 0.0465		R1 = 0.0187,
wR2 = 0.0442		R1 = 0.0305,
wR2 = 0.0701
Largest diff. peak and hole1.982 and −1.4111.009 and −0.7620.639 and −0.8591.508 and −1.500
Table 2. Selected bond angles for 2, 12, 13, and 14.
Table 2. Selected bond angles for 2, 12, 13, and 14.
2121314
Au–C(8)2.031(8)2.012(3)2.008(2)2.008(3)
Au–C(30)2.026(9)
C(30)–N(3)1.113(12)
Au–S(1) 2.2856(7)2.2851(6)2.3012(8)
S(1)–C(30) 1.751(3)1.755(2)1.735(3)
C(36)–O(1) 1.249(3)1.211(3)1.215(5)
C(36)–O(2) 1.304(3)1.349(3)1.337(5)
O(2)–C(37) 1.442(3)1.450(5)
Bond lengths (Å).
Table 3. Selected bond angles for 2, 12, 13, and 14.
Table 3. Selected bond angles for 2, 12, 13, and 14.
2121314
C(8)–Au–S 177.48(8)175.20(6)173.45(9)
C(8)–Au–C(30)179.6(4)
Au–S–C(30) 108.40(10)109.44(8)108.83(12)
Au–C(30)–N(3)177.0(8)
S(1)–C(30)–S(2)
O(1)–C(36)–O(2) 122.8(3)122.9(2)123.4(3)
O(1)–C(36)–C(33) 120.8(3)125.2(2)124.2(4)
O(2)–C(36)–C(33) 116.4(3)111.9(2)112.4(3)
C(36)–O(2)–C(37) 115.4(2)117.0(3)
Bond angle (°).
Table 4. IC50 values (μM) of compounds 2, 3, and 12–17 against MCF-7topo, HCT-116wt, and HCT-116 p53−/− cells after 72 h of incubation.
Table 4. IC50 values (μM) of compounds 2, 3, and 12–17 against MCF-7topo, HCT-116wt, and HCT-116 p53−/− cells after 72 h of incubation.
HCT-116wtHCT-116 p53−/−MCF-7topo
214.8 ± 1.9-10.8 ± 0.9
31.5 ± 0.1-0.28 ± 0.03
48.0 ± 0.13.8 ± 0.40.36 ± 0.03
56.2 ± 0.32.0 ± 0.61.5 ± 0.3
125.5 ± 0.12.7 ± 0.25.4 ± 0.5
1318.1 ± 6.59.5 ± 0.621.3 ± 3.4
146.8 ± 0.27.9 ± 0.213.2 ± 3.7
154.5 ± 1.26.6 ± 0.37.1 ± 0.3
162.8 ± 0.14.5 ± 0.66.3 ± 0.5
172.9 ± 0.13.7 ± 0.25.4 ± 0.5

Share and Cite

MDPI and ACS Style

Curran, D.; Dada, O.; Müller-Bunz, H.; Rothemund, M.; Sánchez-Sanz, G.; Schobert, R.; Zhu, X.; Tacke, M. Synthesis and Cytotoxicity Studies of Novel NHC*-Gold(I) Complexes Derived from Lepidiline A. Molecules 2018, 23, 2031. https://doi.org/10.3390/molecules23082031

AMA Style

Curran D, Dada O, Müller-Bunz H, Rothemund M, Sánchez-Sanz G, Schobert R, Zhu X, Tacke M. Synthesis and Cytotoxicity Studies of Novel NHC*-Gold(I) Complexes Derived from Lepidiline A. Molecules. 2018; 23(8):2031. https://doi.org/10.3390/molecules23082031

Chicago/Turabian Style

Curran, Danielle, Oyinlola Dada, Helge Müller-Bunz, Matthias Rothemund, Goar Sánchez-Sanz, Rainer Schobert, Xiangming Zhu, and Matthias Tacke. 2018. "Synthesis and Cytotoxicity Studies of Novel NHC*-Gold(I) Complexes Derived from Lepidiline A" Molecules 23, no. 8: 2031. https://doi.org/10.3390/molecules23082031

APA Style

Curran, D., Dada, O., Müller-Bunz, H., Rothemund, M., Sánchez-Sanz, G., Schobert, R., Zhu, X., & Tacke, M. (2018). Synthesis and Cytotoxicity Studies of Novel NHC*-Gold(I) Complexes Derived from Lepidiline A. Molecules, 23(8), 2031. https://doi.org/10.3390/molecules23082031

Article Metrics

Back to TopTop
