Abstract

:
A novel 36-metallacrown-6 complex [CuL(N(CN)2)(PF6)]6∙0.5H2O 1 was achieved using a tridendate ligand, 1,4,7-triisopropyl-1,4,7-triazacyclononane (L), and a flexible ligand, dicyanamide in MeOH. The μ1,5 bridging models of the dicyanamide ligand linked the macrocycle to form in a specific size with the chair conformation. The anion was important to form this 36-metallacrown-6 complex, as change was obtained with the larger anion BPh4, binuclear copper compound 2. The magnetic property indicates that slightly ferromagnetic interactions resulted from a superexchange mechanism. DNA binding properties were also studied. UV and fluorescence spectra showed that complex 1 could bind with DNA.
Keywords:
metallacrown; 1,4,7-triazacyclononane; dicyanamide; DNA binding properties

1. Introduction

The control of ligand–field and metal–metal interactions in coordination chemistry has great effects for the development of novel magnetic and biologically active molecules. To optimize the properties, it is helpful to predict the relative arrangement of the metal ions, their geometry, and their stoichiometry within the molecular polynuclear complexes, in order to control the electronic and magnetic exchange interactions. The metallacrown strategy has led to advances in relevant areas, such as molecular magnetism [1,2,3,4,5] and luminescent complexes for biological imaging [6,7,8]. Metallacrowns have also been investigated for their multinuclear structures and interesting molecular architecture [9,10,11,12,13,14,15,16]. Many single-molecule-magnets (SMMs) are constructed by metallacrown complexes, such as DyX4M 12-Metallacrown-4 [17], Gd2Mn4 [3], Mn6(Ishz)6 [18], etc. The size of the metallamacrocycles can be determined by the nature of the bridging ligands and metal ions involved, such as the coordination geometries of the metal ions, the length of a bridging group between the metal centers, or the number of repeating units. Proper strategies are required to control the nuclear number of metallacrowns and obtain the desired compounds.
Most reported metallacrowns have been prepared using hydroxamic acids and/or ketonoximic acids as constructing ligands [19,20]. Previously, we reported a hexanuclear metallamacrocycle Ni complex which was obtained by using the tridentate ligand 1,4,7-triisopropyl-1,4,7-triazacyclononane and the flexible ligand dicyanamide (dca) [21]. Herein, we report a nonplanar metallacrown copper compound: [CuL(N(CN)2)(PF6)]6∙0.5H2 (L = 1,4,7-triisopropyl-1,4,7-triazacyclononane), using tridentate ligand L and a long bridging ligand dicyanamide for the construction of metallacrowns.
Reaction of LCuCl2 species, NaN(CN)2 as bridging ligand, and KPF6 as anion in CH3OH solvent gave the hexanuclear complexes [22]. Single crystal X-ray analysis [23] of the compound illustrated that the compound is isomorphous and crystallized in the rhombohedral group R 3 ¯ . The crystal data and structure refinement are summarized in Table 1, and selected bond lengths (Å) and angles (°) are summarized in Table 2. Figure 1 gives a perspective view of compound 1. The structure presents a regular hexagon from the c axis (Figure 1a). The copper atom was five coordinated with three N atoms from the L ligand and two N atoms from N(CN)2. Actually, the six copper atoms adopted a chair confirmation from the a axis (Figure 1b), where three Cu atoms were in the same plane and the other three Cu atoms were in another plane. N(CN)2 anions bridged LCu2+ species, which formed a hexahydric Cu ring adopting the chair conformation. Cu···Cu···Cu angles and the Cu···Cu distances were the same, with 72.95° and 7.70 Å, respectively. The angles of N-Cu-N in the ring were 79.17°, while the C-N-C angle in the N(CN)2 anion was 121.8(5)°. The packing diagram shows a regular array of hexahydric Cu rings and PF6 anions along the c axis, with a regular honeycomb-like structure (Figure 2). PF6 looks like blooming flowers on the ipr3tacn rings, forming cycles with 12 PF6 anions. These values for the angles of the geometry demonstrate that the formation of hexahydric rings in this reaction is strongly favored.
The distance from the center to the closest non-hydrogen atom of the ligand was 4.455 Å in 1, thus the inner cavity had an estimated volume of ca. 80 Å−3 (Figure 3). Note that the anion was found to have a pronounced effect on the hexanuclear structure. When we changed the anion PF6 to the larger anion BPh4 with a similar nickel complex. A similar structure could not be obtained, but a binuclear NiII complex 2 was obtained (Figure 4) [24]. In complex 2, the Ni ions were five-coordinated with the N(1), N(2), N(3) from L ligands and N(4), N(6) from dicyanamide ligands. Two Ni ions were bridged by dicyanamides, forming slightly distorted square-pyramidal geometry. The distances of Ni-N bonds were almost equal and amounted on average to 2.072 Å. The nearly planar dicyanamide utilized two of three possible N-donors to coordinate Ni ions, resulting in the formation of a twelve-membered, slightly puckered ring. The bond angle inside the ring, N(4)-Ni1-N(6), was 84.72(9)°. The intramolecular Ni···Ni separation was 7.386 Å.
Although we performed the reactions in absolute CH3OH, water molecules were observed in compound 1 probably due to non-removed or osmotic water from surroundings. We speculate that the cavity of the two compounds might show abilities to absorb and store H2O molecules. The powder X-ray diffraction technique was used. The compound was immersed in water for 24 h, and the XRD patterns of the bibulous solid showed the main reflections remaining nearly identical with the pristine samples, which supported the notion that the crystal lattice of the compound would remain intact after absorbing the water molecules (Figure 5).
The magnetic susceptibilities were measured under a 1000 Oe applied magnetic field in the 2−300 K temperature range. As illustrated in Figure 6, the value of χmT increased with decreasing temperature from 300 K to 2 K, showing the presence of an antiferromagnetic interaction between the Cu(II) ions. The slightly ferromagnetic interactions resulted from a superexchange mechanism of adjacent Cu(II) ions. With decreasing temperature, the χmT increased slightly from 300 K to 24 K and then increased rapidly from 25 K to 2 K.

2. DNA Binding

In order to investigate whether DNA was the biological target of the compound, its interactions with Calf-thymus DNA (CT-DNA) were studied by UV-Vis and fluorescence spectroscopy. CT-DNA was prepared with Tris-HCl/NaCl buffer with pH of 7.5. The absorption spectra of compound 1 with absence and presence CT-DNA at various concentrations are shown in Figure 7a. The potential CT-DNA binding ability of complexes was studied by UV spectroscopy by following the intensity changes of the intraligand π–π* transition band at 232 nm and 298 nm. Upon the addition of an increasing amount of CT-DNA (from 10−5 to 10−4 M) to the complexes (10−5 M), 20% hypochromism and slight red shift (7–12 nm) were observed, indicating that interactions between the DNA phosphate groups and Cu cations, or Cu coordination to guanine bases, might have happened.
As a fluorescence spectral method, the relative binding of the complex to CT-DNA was studied though an ethidium bromide (EB)-bound CT-DNA solution with Tris-HCl/NaCl buffer (pH = 7.5). Fluorescence intensities at 610 nm were measured with various complex concentrations. Fluorescence titration spectra are shown in Figure 7b. The emission intensity showed a reduction with increasing concentration of complex 1, suggesting that the compound can replace EB from CT-DNA and intercalate into the DNA double helix [25]. Ethidium bromide is an intercalator that gives a significant increase in fluorescence emission [26].

3. Conclusions

In summary, using ipr3tacn copper complex with dicyanamide as bridge ligand, we successfully synthesized and characterized a novel Cu(II)36-metallacrown-6 complex which contained regular hexacyclic metal rings adopting the chair conformation. Anion choice in preparation of the title compounds might play a significant role in the assembly of this metallacrown. The results in this article may provide an incremental advancement to the field of metallacrown chemistry.

Author Contributions

Y.-S.Y. designed the research and wrote the manuscript. L.-J.L. and H.-Y.J. performed the experiments. X.-Y.L. and Y.-G.L. participated in analyzing data. S.-P.Y. contributed to the revisions of the manuscript.

Acknowledgments

We are grateful for the financial support from the fund of Wuhan Textile University (017/165006), Natural Science Foundation of Hubei Province (2016CFB334) and National Natural Science Foundation of China (No. 21204087).

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Chow, C.Y.; Bolvin, H.; Campbell, V.E.; Guillot, R.; Kampf, J.W.; Wernsdorfer, W.; Gendron, F.; Autschbach, J.; Pecoraro, V.L.; Mallah, T. Assessing the exchange coupling in binuclear lanthanide(III) complexes and the slow relaxation of the magnetization in the antiferromagnetically coupled Dy2 derivative. Chem. Sci. 2015, 6, 4148–4159. [Google Scholar] [CrossRef] [PubMed]
  2. Boron, T.T.; Kampf, J.W.; Pecoraro, V.L. A mixed 3d−4f 14-metallacrown-5 complex that displays slow magnetic relaxation through geometric control of magnetoanisotropy. Inorg. Chem. 2010, 49, 9104–9106. [Google Scholar] [CrossRef] [PubMed]
  3. Deb, A.; Boron, T.T., III; Itou, M.; Sakurai, Y.; Mallah, T.; Pecoraro, V.L.; Penner-Hahn, J.E. Understanding spin structure in metallacrown single-molecule magnets using magnetic compton scattering. J. Am. Chem. Soc. 2014, 136, 4889–4892. [Google Scholar] [CrossRef] [PubMed]
  4. Chow, C.Y.; Guillot, R.; Riviere, E.; Kampf, J.W.; Mallah, T.; Pecoraro, V.L. Synthesis and magnetic characterization of Fe(III)-based 9-metallacrown-3 complexes which exhibit magnetorefrigerant properties. Inorg. Chem. 2016, 55, 10238–10247. [Google Scholar] [CrossRef] [PubMed]
  5. Escuer, A.; Mayans, J.; Font-Bardia, M. Linked nickel metallacrowns from a phosphonate/2-pyridyloximate blend of ligands: Structure and magnetic properties. Inorg. Chem. 2016, 55, 3161–3168. [Google Scholar] [CrossRef] [PubMed]
  6. Jankolovists, J.; Andolina, C.M.; Kampf, J.W.; Raymond, K.N.; Pecoraro, V.L. Assembly of near-infrared luminescent lanthanide host(host–guest) complexes with a metallacrown sandwich motif. Angew. Chem. Int. Ed. 2011, 50, 9660–9664. [Google Scholar] [CrossRef] [PubMed]
  7. Trivedi, E.R.; Eliseeva, S.V.; Jankolovist, J.; Olmstead, M.M.; Petoud, S.; Pecoraro, V.L. Highly emitting near-infrared lanthanide “encapsulated sandwich” metallacrown complexes with excitation shifted toward lower energy. J. Am. Chem. Soc. 2014, 136, 1526–1534. [Google Scholar] [CrossRef] [PubMed]
  8. Chow, C.Y.; Eliseeva, S.V.; Trivedi, E.R.; Nguyen, T.N.; Kampf, J.W.; Petoud, S.; Pecoraro, V.L. Ga3+/Ln3+ metallacrowns: A promising family of highly luminescent lanthanide complexes that covers visible and near-infrared domains. J. Am. Chem. Soc. 2016, 138, 5100–5109. [Google Scholar] [CrossRef] [PubMed]
  9. Lah, M.S.; Pecoraro, V.L. Isolation and characterization of {MnII[MnIII(salicylhydroximate)]4(acetate)2(DMF)6}.2DMF: An inorganic analog of M2+(12-crown-4). J. Am. Chem. Soc. 1989, 111, 7258–7259. [Google Scholar] [CrossRef]
  10. Cutland, A.D.; Malkani, R.G.; Kampf, J.W.; Pecoraro, V.L. Lanthanide [15]metallacrown-5 complexes form nitrate-selective chiral cavities. Angew. Chem. Int. Ed. 2000, 39, 2689–2692. [Google Scholar] [CrossRef]
  11. Jian, F.F.; Jiao, K.; Li, Y.; Zhao, P.S.; Lu, L.D. [Ni6(SCH2CH2OH)12]: A double crown [12]metallacrown-6 nickel(II) cluster. Angew. Chem. Int. Ed. 2003, 42, 5722–5724. [Google Scholar] [CrossRef] [PubMed]
  12. Guillerm, V.; Kim, D.; Liu, X.; Adil, K.; Luebke, R.; Eubank, J.F.; Lah, M.S.; Eddaoudi, M. A supermolecular building approach for the design and construction of metal-organic frameworks. Chem. Soc. Rev. 2014, 43, 6141–6172. [Google Scholar] [CrossRef] [PubMed]
  13. Mezei, G.; Baran, P.; Raptis, R.G. Anion encapsulation by neutral supramolecular assemblies of cyclic CuII complexes: A series of five polymerization isomers, [{cis-CuII(μ-OH)(μ-pz)}n], n=6, 8, 9, 12, and 14. Angew. Chem. Int. Ed. 2004, 43, 574–577. [Google Scholar] [CrossRef] [PubMed]
  14. Pereira, C.L.M.; Pedroso, E.F.; Tumpf, H.O.S.; Novak, M.A.; Richard, L.; Garcia, R.R.; Riviere, E.; Journaux, Y. A CuIICoII metallacyclophane-based metamagnet with a corrugated brick-wall sheet architecture. Angew. Chem. Int. Ed. 2004, 43, 956–958. [Google Scholar] [CrossRef] [PubMed]
  15. Zaleski, C.M.; Depperman, E.C.; Dendrinou-Samara, C.; Alexiou, M.; Kampf, J.W.; Kessissoglou, D.P.; Kirk, M.L.; Pecoraro, V.L. Metallacryptate single-molecule magnets: Effect of lower molecular symmetry on blocking temperature. J. Am. Chem. Soc. 2005, 127, 12862–12872. [Google Scholar] [CrossRef] [PubMed]
  16. Zaleski, C.M.; Depperman, E.C.; Kampf, J.W.; Kirk, M.L.; Pecoraro, V.L. Using LnIII[15-MCCuII(N)(S)-pheHA−5]3+ complexes to construct chiral single-molecule magnets and chains of single-molecule magnets. Inorg. Chem. 2006, 45, 10022–10024. [Google Scholar] [CrossRef] [PubMed]
  17. Boron, T.T., III; Lutter, J.C.; Daly, C.I.; Chow, C.Y.; Davis, A.H.; Nimthong-Roldan, A.; Zeller, M.; Kampf, J.W.; Zaleski, C.M.; Pecoraro, V.L. The nature of the bridging anion controls the single-molecule magnetic properties of DyX4M 12-metallacrown-4 complexes. Inorg. Chem. 2016, 55, 10597–10607. [Google Scholar] [CrossRef] [PubMed]
  18. Moon, D.; Song, J.; Kim, B.J.; Suh, B.J.; Lah, M.S. Three-dimensional helical coordination networks of a hexanuclear manganese metallamacrocycle as a helical tecton. Inorg. Chem. 2004, 26, 8230–8232. [Google Scholar] [CrossRef] [PubMed]
  19. Samara, C.D.; Psomas, G.; Iordanidis, L.; Tangoulis, V.; Kessissoglou, D.P. Host–guest interaction of 12-MC-4, 15-MC-5, and fused 12-MC-4 metallacrowns with mononuclear and binuclear carboxylato complexes: Structure and magnetic behavior. Chem. Eur. J. 2001, 7, 5041–5051. [Google Scholar] [CrossRef]
  20. Gibney, B.G.; Stemmler, A.J.; Pilotek, S.; Kampf, J.W.; Pecoraro, V.L. Generalizing the metallacrown analogy: Ligand variation and solution stability of the VVO 9-metallacrown-3 structure type. Inorg. Chem. 1993, 32, 6008–6015. [Google Scholar] [CrossRef]
  21. Chen, G.J.; Wang, Z.G.; Yang, Y.S.; Tian, J.L.; Yan, S.P. A nickel(II) metallamacrocycle complex with antiferromagnetic properties. Z. Anorg. Allg. Chem. 2013, 639, 475–477. [Google Scholar] [CrossRef]
  22. Synthesis of complexes 1: 0.0578 g (0.15 mmol) of LCuCl2 was dissolved in 20 mL of methanol, 0.0134 g (0.15 mmol) of NaN(CN)2 was added as solid to the nickel solution, stirred, after all the solid was dissolved, 0.0276 g (0.15 mmol) of KPF6 was added. Single crystals of 1 was obtained by slow evaporation of a methanol solution of the power containing a very small amount of water. Anal. Calcd (%) for 1, C102H199Cu6F36N36O0.5P6: C, 38.95; H, 6.73; N, 15.97. Found: C, 38.88; H, 6.33; N, 16.00. IR for 1 (KBr, cm−1): 3446s, 2972s, 2333s, 2259s, 2206vs, 2178vs, 1383s, 1146m, 942m, 840vs, 551s. Crystal data: 1, Mr = 3189.06, Rhombohedral, R 3 ¯ , a = 28.417(3) Å, b = 28.417(3) Å, c = 15.6781(19) Å, α = 90°, β = 90°, γ = 120°, V = 0964(2) Å3, Z = 3, ρcalcd = 1.449 g cm−3, 2θmax = 25.02° (−33 ≤ h ≤ 17, −33 ≤ k ≤ 33, −18 ≤ l ≤ 18), T = 294(2) K, F(000) = 4965. GOF = 1.066. R1 (wR2) = 0.0421 (0.1133). 18801 reflections were collected, 4320 were unique (Rint = 0.0511). CCDC-626300.
  23. Crystal data: [LNi(N(CN)2)]2(BPh4)2, Mr = 1398.83, Triclinic, P 1 ¯ , a = 10.2350(17) Å, b = 10.8420(19) Å, c = 18.055(3) Å, α = 74.422(3)°, β = 88.842(3)°, γ = 78.520(3)°, V = 1890.2(6) Å3, Z = 1, ρcalcd = 1.229 g cm−3, 2θmax = 26.40° (−12 ≤ h ≤ 12, −5 ≤ k ≤ 13, −22 ≤ l ≤ 22), T = 294(2) K, F(000) = 748. R1 (wR2) = 0.0442 (0.0860). GOF = 1.006. 10744 reflections were collected, 7607 were unique [Rint = 0.0255]. CCDC-629545.
  24. Meyer, A.; Gleizes, A.; Girerd, J.J.; Verdaguer, M.; Kahn, O. Crystal structures, magnetic anisotropy properties and orbital interactions in catena-(.mu.-nitrito)-bis(ethylenediamine)nickel(II) perchlorate and triiodide. Inorg. Chem. 1982, 21, 1729–1739. [Google Scholar] [CrossRef]
  25. Tjioe, L.; Meininger, A.; Joshi, T.; Spiccia, L.; Graham, B. Efficient plasmid DNA cleavage by copper(II) complexes of 1,4,7-triazacyclononane ligands featuring xylyl-linked guanidinium groups. Inorg. Chem. 2011, 50, 4327–4339. [Google Scholar] [CrossRef] [PubMed]
  26. Reichmann, M.E.; Rice, S.A.; Thomas, C.A.; Doty, P. A further examination of the molecular weight and size of desoxypentose nucleic acid. J. Am. Chem. Soc. 1954, 76, 3047–3053. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 1 and 2 are available from the authors.

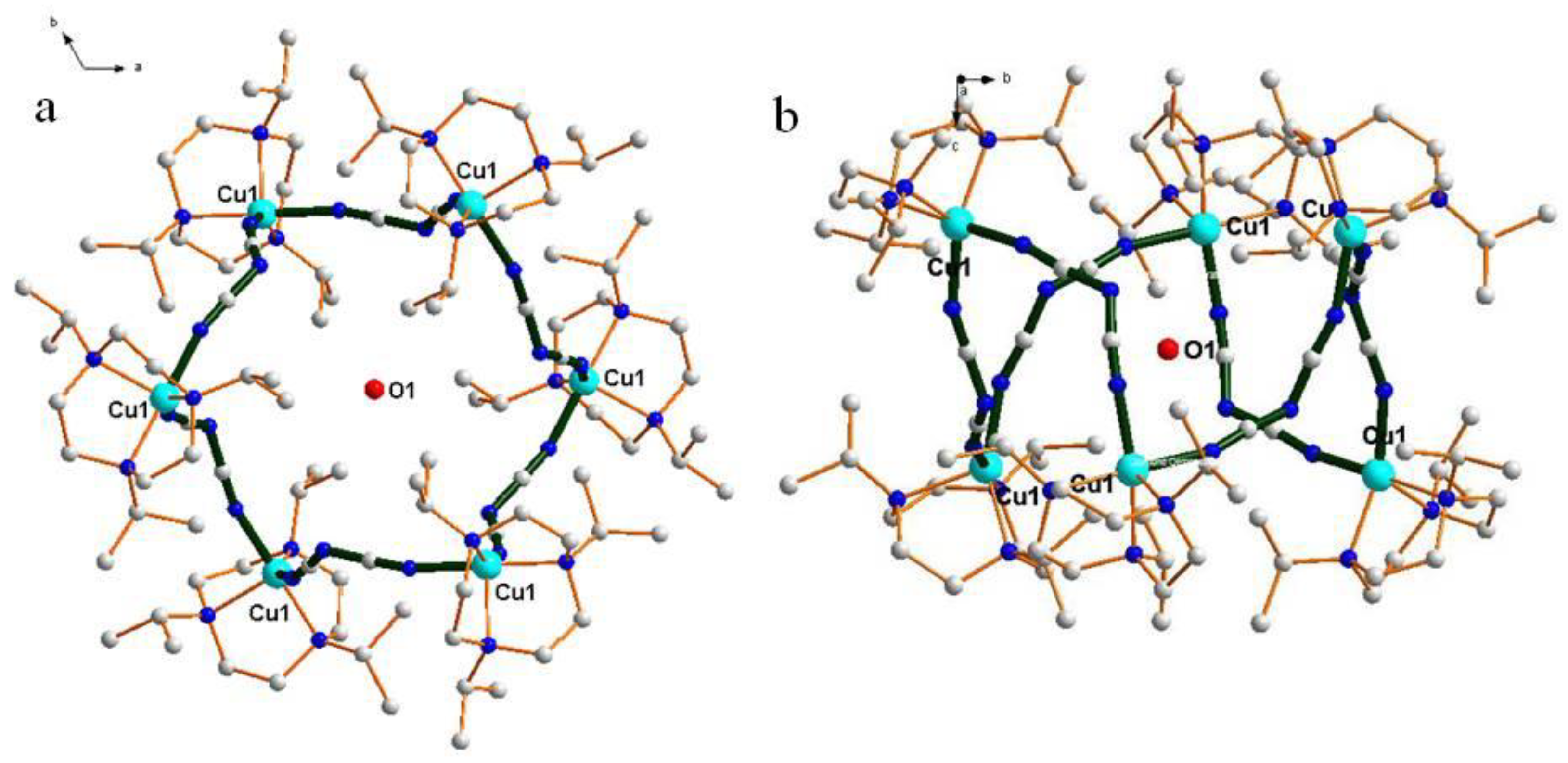

Figure 1. Diagram showing the perspective view of complex 1 with atom labels (a) from c axis and (b) from a axis.
Figure 1. Diagram showing the perspective view of complex 1 with atom labels (a) from c axis and (b) from a axis.
Molecules 23 01269 g001

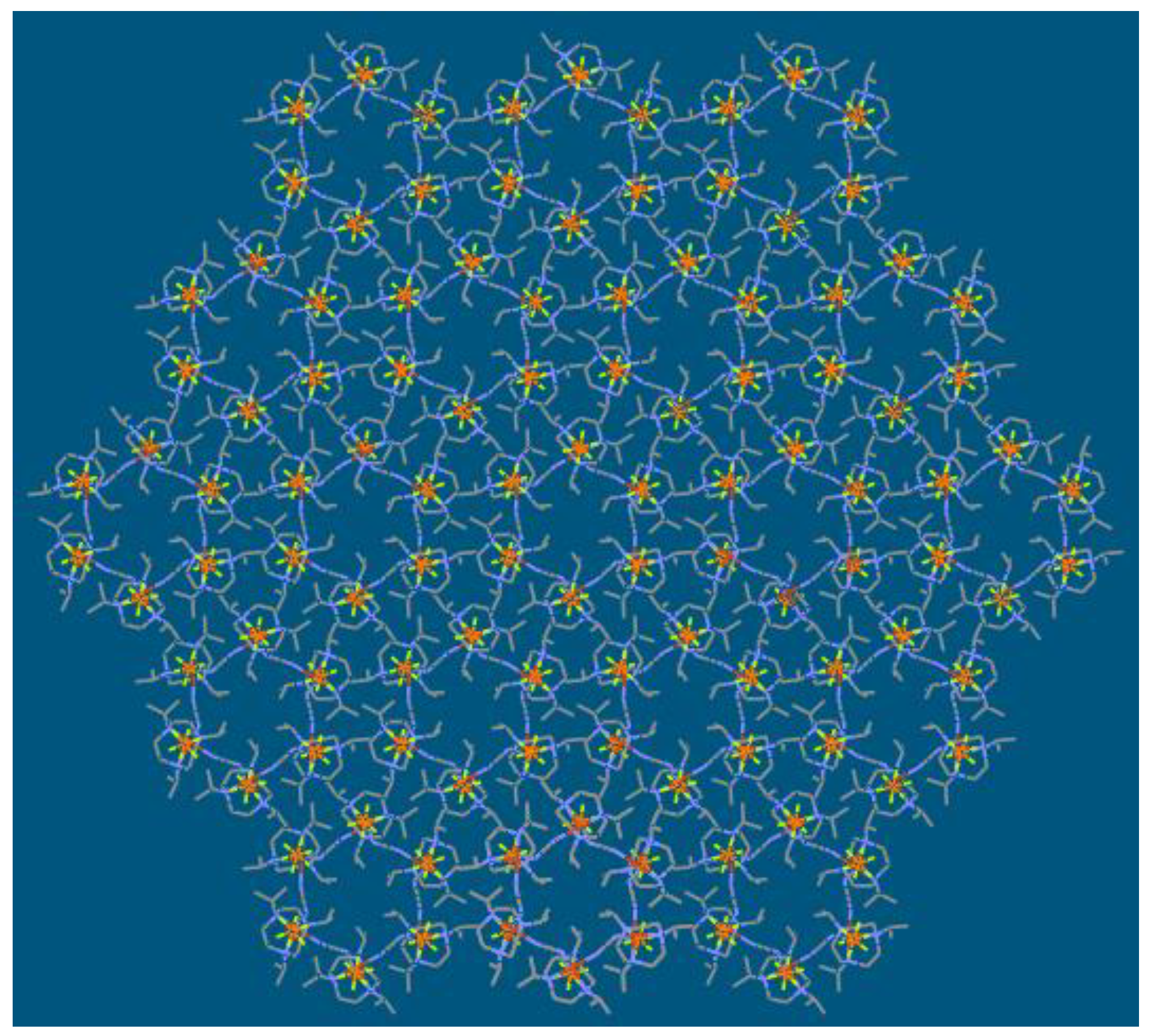

Figure 2. Stacking diagram of 1 along the c axis showing the regular array of hexahydric rings and the PF6 anions.
Figure 2. Stacking diagram of 1 along the c axis showing the regular array of hexahydric rings and the PF6 anions.
Molecules 23 01269 g002
Figure 3. Molecular structure of the cyclic hexanuclear cation of 1 showing the cavity.
Figure 3. Molecular structure of the cyclic hexanuclear cation of 1 showing the cavity.
Molecules 23 01269 g003

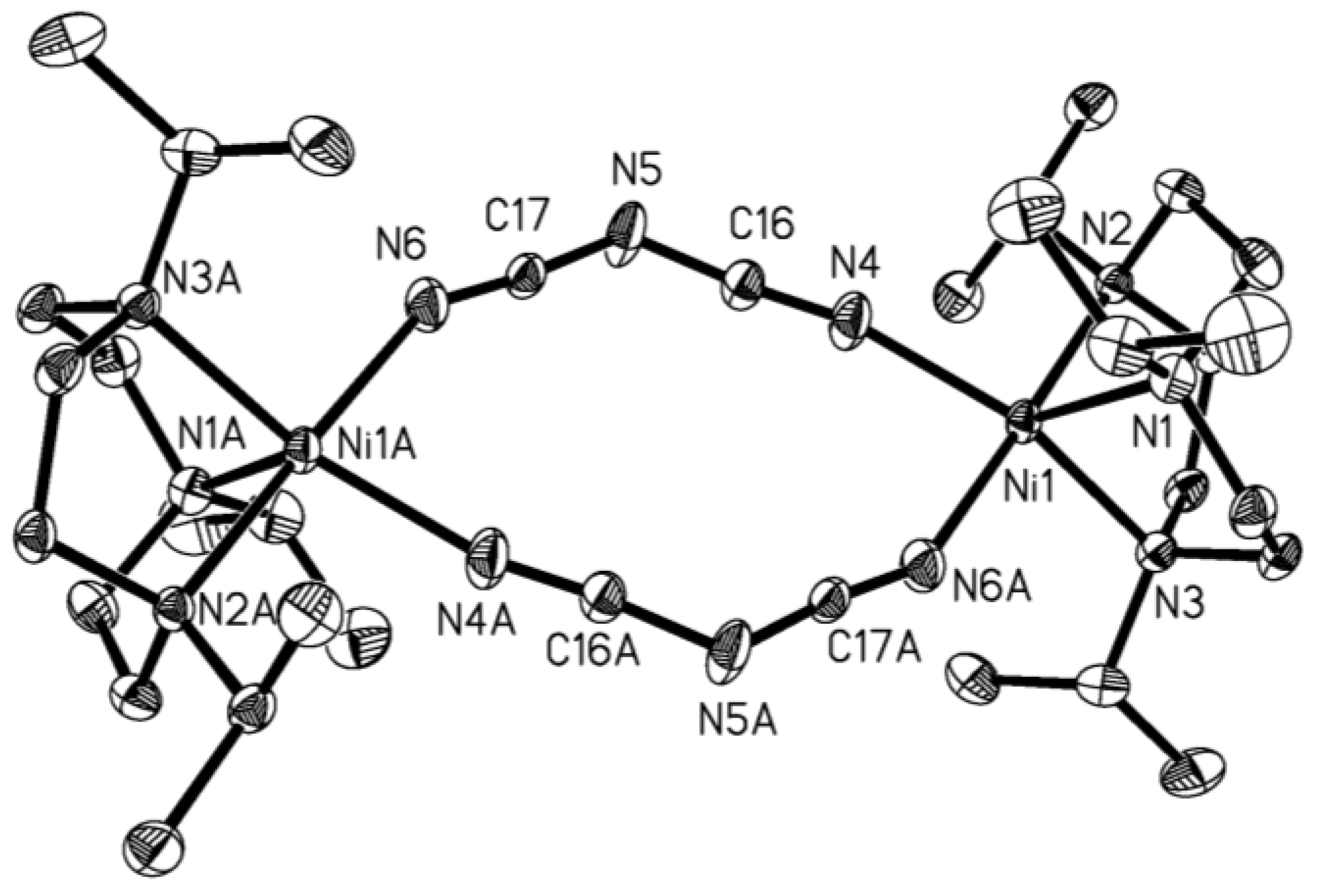

Figure 4. Perspective view of the binuclear NiII complex [LNi(N(CN)2)]2(BPh4)2 2 with the atom-numbering scheme.
Figure 4. Perspective view of the binuclear NiII complex [LNi(N(CN)2)]2(BPh4)2 2 with the atom-numbering scheme.
Molecules 23 01269 g004

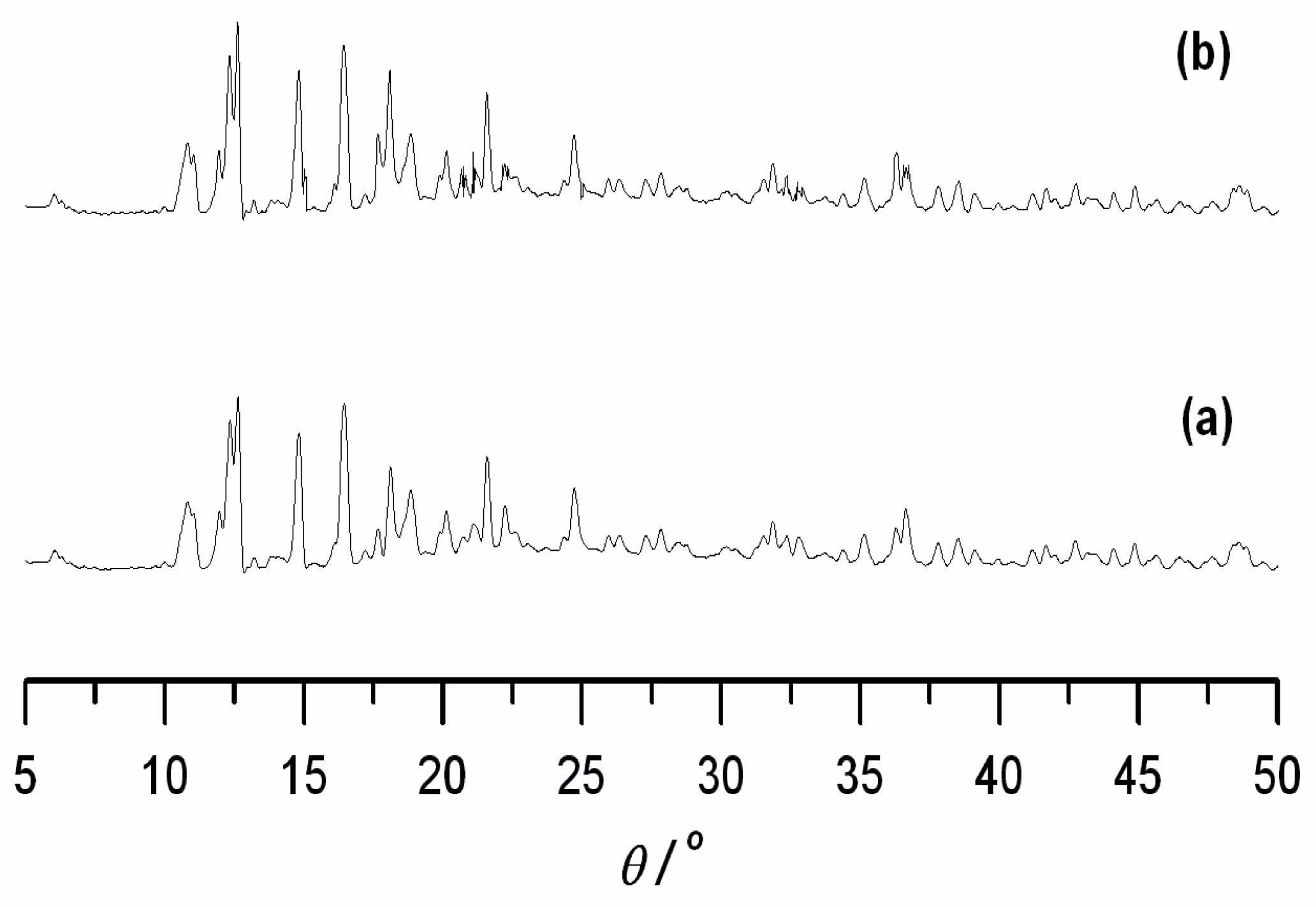

Figure 5. XRD patterns for compound 2. (a) No adsorption of water molecules; (b) After adsorption of water molecules.
Figure 5. XRD patterns for compound 2. (a) No adsorption of water molecules; (b) After adsorption of water molecules.
Molecules 23 01269 g005

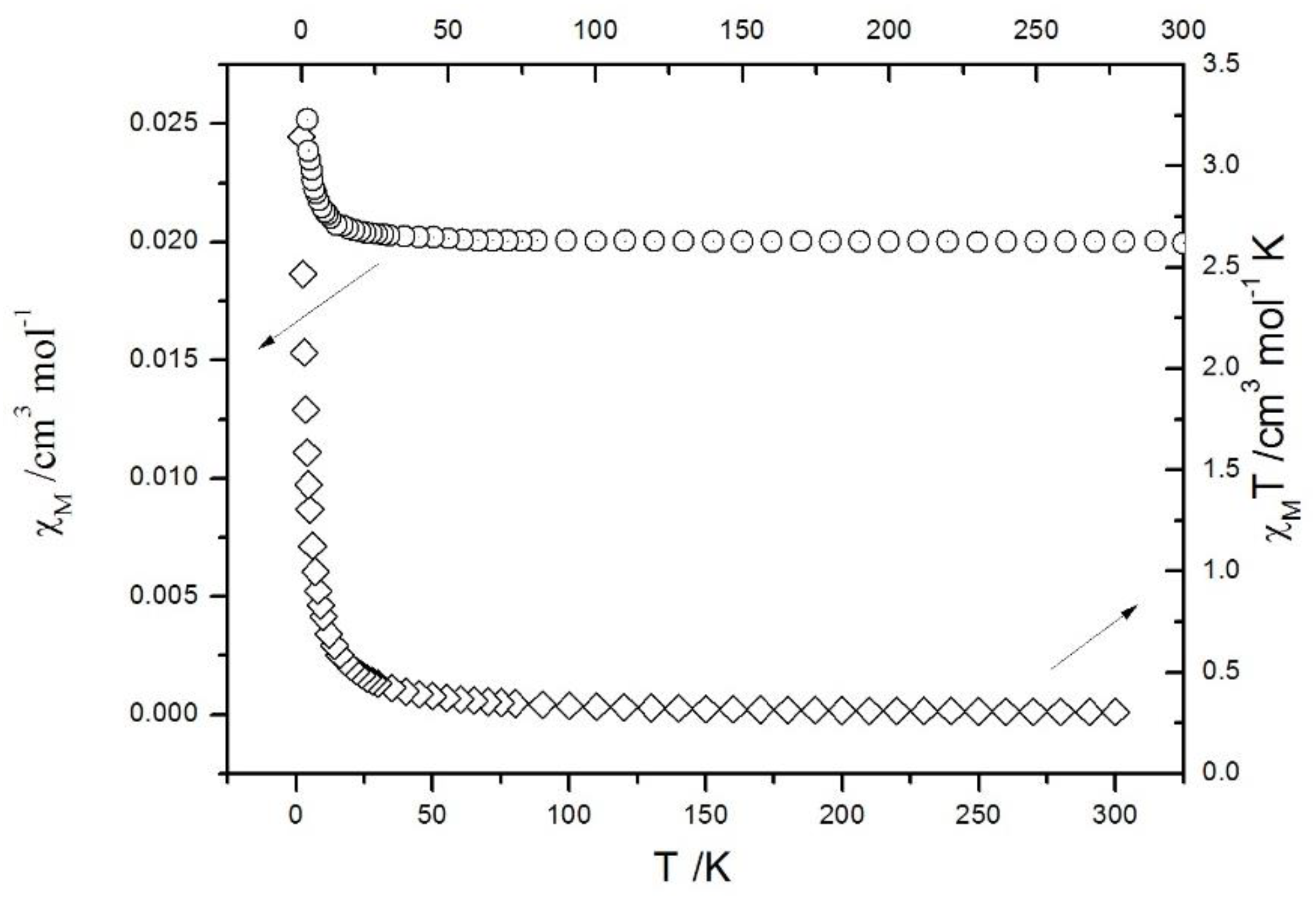

Figure 6. Plots of the magnetic susceptibility of complex 1.
Figure 6. Plots of the magnetic susceptibility of complex 1.
Molecules 23 01269 g006

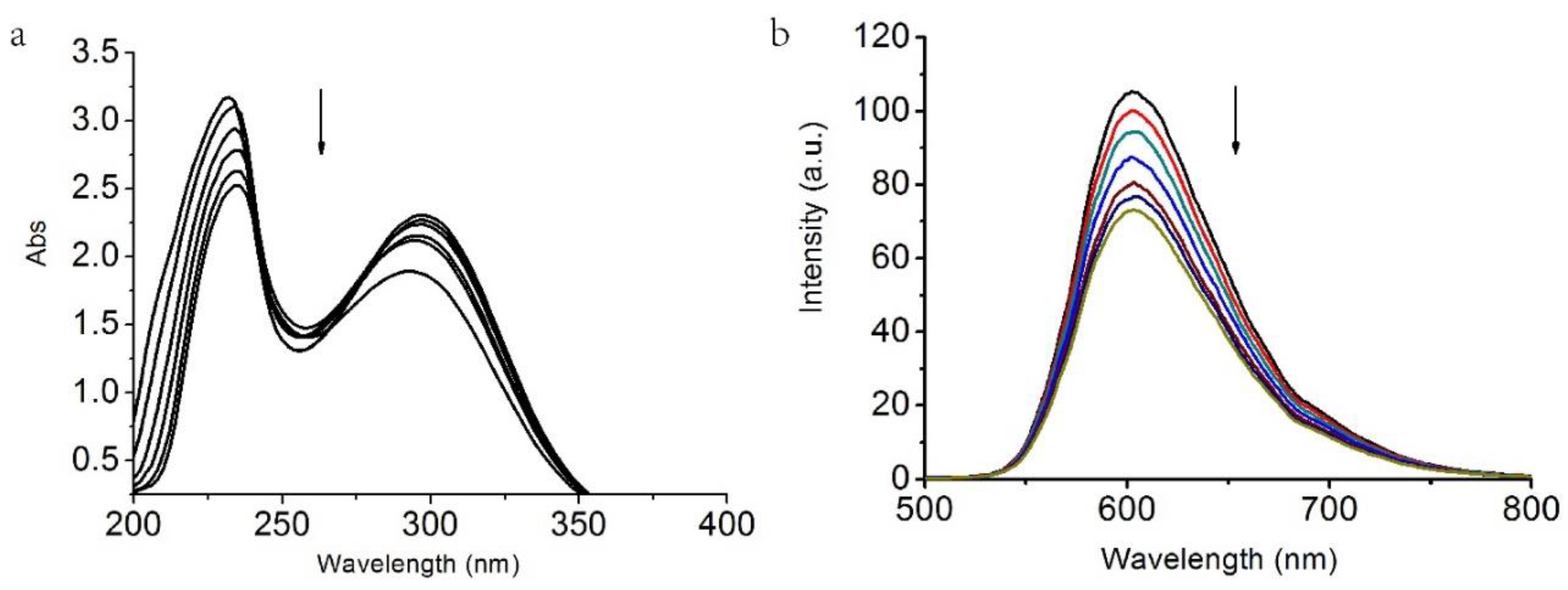

Figure 7. (a) Absorbtion spectra of complex 1 with increasing Calf-thymus DNA (CT-DNA). The arrow shows the absorbance changes with increasing DNA concentration. The concentration of the compound was 2.0 × 10−5 M, r = [CT-DNA]/[compound] = 0–0.6. (b) Fluorescence emission spectra (excited at 305 nm) of the CT-DNA-EB (ethidium bromide) system (2.5 μM EB, 100 μM CT-DNA) in the absence and presence of 1 × 10–4 M complex 1 with increasing concentrations of complex with 0 to 4 μM (from top to bottom).
