Article

Complexes of CO2 with the Azoles: Tetrel Bonds, Hydrogen Bonds and Other Secondary Interactions

by
Janet E. Del Bene
1,*,
José Elguero
2 and
Ibon Alkorta
2,*
1
Department of Chemistry, Youngstown State University, Youngstown, OH 44555, USA
2
Instituto de Química Médica (IQM-CSIC), Juan de la Cierva, 3, E-28006 Madrid, Spain
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(4), 906; https://doi.org/10.3390/molecules23040906
Submission received: 31 March 2018 / Revised: 9 April 2018 / Accepted: 11 April 2018 / Published: 14 April 2018
(This article belongs to the Special Issue Tetrel Bonds)
Browse Figures
Versions Notes

Abstract

:
Ab initio MP2/aug’-cc-pVTZ calculations have been performed to investigate the complexes of CO2 with the azoles pyrrole, pyrazole, imidazole, 1,2,3- and 1,2,4-triazole, tetrazole and pentazole. Three types of complexes have been found on the CO2:azole potential surfaces. These include ten complexes stabilized by tetrel bonds that have the azole molecule in the symmetry plane of the complex; seven tetrel-bonded complexes in which the CO2 molecule is perpendicular to the symmetry plane; and four hydrogen-bonded complexes. Eight of the planar complexes are stabilized by Nx···C tetrel bonds and by a secondary interaction involving an adjacent Ny-H bond and an O atom of CO2. The seven perpendicular CO2:azole complexes form between CO2 and two adjacent N atoms of the ring, both of which are electron-pair donors. In three of the four hydrogen-bonded complexes, the proton-donor Nz-H bond of the ring is bonded to two C-H bonds, thereby precluding the planar and perpendicular complexes. The fourth hydrogen-bonded complex forms with the strongest acid pentazole. Binding energies, charge-transfer energies and changes in CO2 stretching and bending frequencies upon complex formation provide consistent descriptions of these complexes. Coupling constants across tetrel bonds are negligibly small, but 2hJ(Ny-C) across Nz-H···C hydrogen bonds are larger and increase as the number of N atoms in the ring increases.

Graphical Abstract

1. Introduction

Carbonic anhydrases belong to a family of enzymes that catalyze the reversible reaction that converts carbon dioxide and water to bicarbonate ion and a proton [1,2]. The proposed mechanism of action involves hydrogen-bond formation between the threonine N-H (Thr199) and a CO2 oxygen atom [3,4,5,6,7,8,9,10,11]. It is also known than azoles are good inhibitors of carbonic anhydrase [1,5,8,12,13,14]. Azoles are five-membered heteroaromatic compounds that contain in their rings from one nitrogen atom (pyrrole) to five nitrogen atoms (pentazole) [15]. The X-ray crystal structure of 1H-1,2,4-triazole bound through N2 to the N-H of Thr199 has been reported [16]. The interaction of CO2 with azoles is also important in carbon dioxide capture by metal-organic frameworks [17,18,19,20], zeolitic tetrazolate frameworks [21] and microporous organic polymers [22,23].
It is of interest to explore interactions that are important in biochemical reactions, such as those between azines and azoles with CO2. In a previous paper, we presented the structures, binding energies and other properties of CO2: azine complexes stabilized by N···C tetrel bonds [24]. The azoles have pyridine-like N atoms in positions 2, 3, 4 and 5 that may act as electron-pair donors as do the azines. However, the azoles also have pyrrole-like N atoms in positions 1, 2 and 4, as illustrated in Scheme 1. These N-H bonds may act as proton donors for hydrogen-bond formation.
A series of papers have reported experimental data on complexes relevant to those investigated in the present study. The structures of these complexes are illustrated in Scheme 2. The X-ray crystal structure of the complex between 3-amino-1H-1,2,4-triazole and CO2 (1) shows a tetrel bond between the N of the amino group and the carbon of CO2 (CSD refcodes: WALBOC and YUZCED) [25,26]. A Zn-1,2,4-triazole derivative forms a tetrel-bonded complex with CO2 in the solid state using the free N2 atom of the triazole (2) (CSD refcodes: PEGBUA, PEGCAH, and PEGCEL) [27]. The hydrogen-bonded complex between a 2H-tetrazole and CO2 has been proposed to explain the behavior of a microporous organic polymer (CSD refcode: TZPIM) [22]. Finally, complex 3 is stabilized by an N-C covalent bond (CSD refcode: EPIVOQ) [28]. A related transition structure has been proposed that is stabilized by an N···C tetrel bond.
There are also three papers in the literature that report theoretical studies of complexes related to those investigated in this paper. Vogiatzis, Mavrandonakis, Klopper and Froudakis have reported MP2/aug-cc-pVTZ structures of complexes of CO2 with 1H-imid-23 and 2H-tet-34, with the CO2 molecule lying in the plane of the azole [29]. These authors noted the presence of stabilizing interactions involving an Hα atom of the azole and CO2. Prakash, Mathivon, Benoit, Chambaud and Hochlaf studied 1H-imid-23 and 1H-imid with CO2 and also investigated π stacking of imidazole [30]. Hernández-Marín and Lemus-Santana studied the complexes between CO2 and imidazole, 2-methylimidazole, benzimidazole and pyrazine using DFT methods [31]. Finally, Vidal-Vidal, Nieto Faza and Silva López extended studies of π-complexes to those with 1H-pyrrole, 1H-pyrazole, 1H-1,2,3-triazole, 2H-1,2,3-triazole, 4H-1,2,4-triazole, 2H-tetrazole and 1H-pentazole [32].
As a continuation of our work on intermolecular interactions, we present in this paper the results of a systematic study of complexes of the ten azoles with CO2. These include two types of tetrel-bonded complexes and a set of hydrogen-bonded complexes. We report the structures of these complexes, their binding energies and charge-transfer energies, selected IR stretching and bending frequencies and changes in these frequencies upon complexation, as well as spin-spin coupling constants across tetrel and hydrogen bonds. It is the purpose of this paper to present and discuss these results.

2. Methods

The structures of the isolated CO2 monomer, the azoles pyrrole, pyrazole, imidazole, 1,2,3- and 1,2,4-triazole, tetrazole and pentazole, and the complexes CO2:azole were optimized at second-order Møller–Plesset perturbation theory (MP2) [33,34,35,36] with the aug’-cc-pVTZ basis set [37]. This basis set was derived from the Dunning aug-cc-pVTZ basis set [38,39] by removing diffuse functions from H atoms. Frequencies were computed to establish that these optimized structures correspond to equilibrium structures on their potential surfaces and to examine the changes in selected vibrational frequencies upon complex formation. Optimization and frequency calculations were performed using the Gaussian 09 program [40]. The binding energies (−ΔE) of the complexes were computed as the negative of the reaction energy for the formation of the complex from CO2 and the corresponding azole.
The electron density properties at bond critical points (BCPs) of complexes have been analyzed using the atoms in molecules (AIM) methodology [41,42,43,44] employing the AIMAll [45] program. The topological analysis of the electron density produces the molecular graph of each complex that identifies the location of electron density features of interest, including the electron density (ρ) maxima associated with the various nuclei and saddle points that which correspond to BCPs. The zero gradient line that connects a BCP with two nuclei is the bond path. The natural bond orbital (NBO) method [46] has been employed to obtain the stabilizing charge-transfer interactions in complexes using the NBO-6 program [47]. Since MP2 orbitals are nonexistent, charge-transfer interactions have been computed using the B3LYP functional with the aug’-cc-pVTZ basis set at the MP2/aug’-cc-pVTZ complex geometries. This allows for the inclusion of at least some electron correlation effects.
Equation of motion coupled-cluster singles and doubles (EOM-CCSD) spin-spin coupling constants were evaluated in the CI (configuration interaction)-like approximation [48,49] with all electrons correlated. For these calculations, the Ahlrichs [50] qzp basis set was placed on 13C, 15N and 17O, and the qz2p basis set on the 1H atom bonded to N. The Dunning cc-pVDZ basis was used for the remaining H atoms. Total coupling constants were evaluated as the sum of the paramagnetic spin orbit (PSO), diamagnetic spin orbit (DSO), Fermi contact (FC) and spin dipole (SD) terms. Coupling constant calculations were performed using ACES II [51] on the HPC cluster Oakley at the Ohio Supercomputer Center.

3. Results and Discussion

3.1. Overview of the CO2:Azole Complexes

Table 1 contains the names of the complexes, their binding energies and symmetries. The azoles are listed in Table 1 according to increasing number of nitrogen atoms. For each azole, the complexes are listed in order of decreasing binding energy. Three types of complexes have been found on the CO2:azole surfaces, namely tetrel-bonded complexes in which the CO2 molecule lies in the symmetry plane of the complex; tetrel-bonded complexes in which the CO2 molecule is perpendicular to the symmetry plane; and hydrogen-bonded complexes. Planar tetrel-bonded complexes are identified as zH-azole-xy, where z refers to the location of the Nz-H covalent bond in the ring, azole identifies the particular azole molecule and xy indicates the N atom that forms the tetrel bond and an adjacent N-H or C-H that may interact with CO2. The 2H-123tri-12 complex illustrated in Figure 1 is representative of planar tetrel-bonded complexes. For complexes in which the CO2 molecule is perpendicular to the symmetry plane, the designation is similar, with xy referring to adjacent N atoms that have lone pairs of electrons and p indicating a perpendicular complex. 4H-124tri-12p in which N1 and N2 donate lone pairs for tetrel-bond formation is typical of these complexes and is also illustrated in Figure 1. Complexes in the third set are not tetrel-bonded, but hydrogen bonded, and are identified as zH-azole. The N1-H···O hydrogen-bonded complex 1H-imid is illustrated in Figure 1.

3.2. Planar Complexes Stabilized by Tetrel Bonds

The structures, total energies and molecular graphs of planar complexes stabilized by tetrel bonds are reported in Table S1 of the Supporting Information. Table 2 reports their binding energies, charge-transfer energies and Nx-C, Ny-O’ and O’-H, or Cy-O’ and O’-H distances, with O’ the adjacent atom of CO2. The binding energies of these complexes vary by less than 5 kJ·mol−1, from 17.9 kJ·mol−1 for 1H-124tri-45 to 22.7 kJ·mol−1 for 1H-pyra-12. The Nx-C distances range from 2.781 Å in 1H-imid-23 to 3.027 Å in 1H-pent-12. However, the binding energies do not correlate with the Nx-C distances, as can be seen from the scattergram of Figure 2. To gain insight into Figure 2, it is advantageous to subdivide the planar tetrel-bonded complexes into three groups: those in which Cy-H is adjacent to Nx; those in which Ny-H is adjacent to Nx and have an Nx-C distance that is shorter than the Ny-O’ distance; and those that also have Ny-H adjacent Nx, but have an Ny-O’ distance that is shorter than the Nx-C distance.
The complexes 1H-imid-23 and 1H-124tri-45 are the two complexes that have a Cy-H bond adjacent to Nx. From Table 2 and Figure 2, it can be seen that although 1H-imid-23 has the shortest Nx-C distance, its binding energy is less than the binding energies of the planar tetrel-bonded complexes with pyrazole and the triazoles that have an Ny-H bond adjacent Nx. 1H-124tri-45 has the smallest binding energy among the planar tetrel-bonded complexes, even though its Nx-C distance is shorter than this distance in the complexes with the remaining triazoles, tetrazole and pentazole. The Cy-O’ distances in these two complexes are long, and the H-Cy-O’ angles are about 57°. These data suggest that Cy-H does not significantly interact with O’. This is consistent with the primary and secondary charge-transfer energies of these two complexes which are also reported in Table 2. Primary refers to the interaction associated with the tetrel bond. Figure 3 provides an orbital representation of the primary charge-transfer interaction in 1H-imid-23. The Nx lone pair donates charge to the σ antibonding C-O orbital in both 1H-imid-23 and 1H-124-tri-45. The σ antibonding C-O’ orbital is the local in-plane C-O π* orbital of CO2. The charge-transfer energies in these two complexes are greater than they are in the other planar tetrel-bonded complexes, except for 1H-pyra-12. The plot of Figure 4 shows that the primary charge-transfer energies correlate exponentially with the Nx-C distance, with a correlation coefficient of 0.978, and that these energies decrease as the number of nitrogen atoms in the ring increases. Thus, the charge-transfer energies reflect the relative strengths of the tetrel bonds in these complexes. The secondary charge-transfer energy in 1H-imid-23, which is also depicted in Figure 3, indicates that there is no Cy-H-O’ interaction in this complex. Thus, it is reasonable to conclude that 1H-imid-23 and 1H-124tri-45 are stabilized solely by tetrel bonds.
The second group of planar complexes is also stabilized by Nx···C tetrel bonds and by a secondary interaction between Ny-H and O’ and have Nx-C distances that are shorter than Ny-O’ distances. This set is composed of complexes with pyrazole and the triazoles. As evident from Figure 2, they have the largest binding energies which a range from 20.3 to 22.7 kJ·mol−1 and Nx-C distances between 2.801 and 2.859 Å. The secondary interaction between Ny-H and O’ may be described as a distorted hydrogen bond with H-Ny-O’ angles of about 40°. Nevertheless, the interaction between Ny-H and O’ must play a role in stabilizing these complexes, since the binding energies of the complexes with the triazoles are greater than the binding energy of 1H-imid-23, which has a much shorter Nx-C distance and no stabilizing secondary interaction. Figure 3 provides an orbital description of the primary and secondary charge-transfer interactions in 1H-pyra-12. The primary charge-transfer is Nxlp→σ*C-O, with charge-transfer energies of 10.7 kJ·mol−1 for 1H-pyra-12 and about 7.5 kJ·mol−1 for the complexes with the triazoles. These charge-transfer energies are greater than the energies of secondary back-donations of charge O’lp→σ*Ny-H associated with the distorted hydrogen bond, which are 6 kJ·mol−1 for 1H-pyra-12 and about 2 kJ·mol−1 for the complexes with the triazoles. These data suggest that the tetrel bond is primarily responsible for the large binding energies of these complexes, with the Ny-H-O’ interaction playing a secondary role.
The final group of planar complexes with tetrel bonds and Ny-H-O’ interactions includes complexes of CO2 with tetrazole and pentazole, which have Ny-O’ distances that are shorter than Nx-C distances, as evident from Figure 2. These four complexes have the smallest binding energies, and the longest Nx-C distances. While the Nx-C and Ny-O’ distances are similar for the tetrazole complexes, they are very different for 1H-pent-12. It may well be that the Ny-H-O’ interaction in the latter complex is the stronger interaction. This interaction could be described as a distorted Ny-H···O’ hydrogen bond, with H-Ny-O’ angles of about 40°. The primary charge transfer associated with the tetrel bond arises from electron donation from Nx to the σ antibonding C-O orbital, while the secondary charge transfer involves back-donation of charge from O’ to the antibonding σ Ny-H orbital. The secondary charge-transfer energy is greater than the primary charge transfer energy in 2H-tet-23 and 1H-pent-12. These data are consistent with the increased importance of the Ny-H-O’ interaction in these complexes. In all of the planar complexes with Ny-H bonds interacting with O’, the Nx-C and Ny-O’ distances are the best compromise to produce a stable equilibrium complex.
Harmonic symmetric and asymmetric stretching and in-plane and out-of-plane bending frequencies of isolated CO2 and of CO2 in planar tetrel-bonded complexes are reported in Table S2 of the Supporting Information. The symmetric and asymmetric stretching frequencies and the out-of-plane bending frequencies of CO2 change by less than 5 cm−1 upon complex formation. It is the in-plane CO2 bending frequency that is most sensitive to complexation, since changes in this frequency most directly affect both the Nx···C tetrel bond and the Ny-H···O interaction. This frequency decreases by 9 to 31 cm−1 in the complexes, as evident from Table 3. Figure 5 illustrates that the in-plane bending frequency of the planar tetrel-bonded complexes decreases as the number of nitrogen atoms in the azole ring increases. The correlation coefficient of the exponential trend line is 0.951. It is interesting to note that the Ny-H stretching frequency is also changed by complex formation, thereby giving another property that supports the importance of the Ny-H-O’ interaction in these complexes. This frequency is red-shifted by 22 to 30 cm−1 upon complexation, as evident from the plot of Figure S1 of the Supporting Information.
Table 3 also reports the one-bond coupling constants 1tJ(Nx-C) across the tetrel bonds and J(Ny-O’) for the planar complexes. Only the FC term contributes to 1tJ(Nx-C), and this term has values between 0.0 and 0.6 Hz. These small values may be attributed to the nature of the FC term, which depends on s electron densities in the ground and excited states of the coupled nuclei. Since the tetrel bond basically forms through the π system of CO2, there is little s-electron density at C in the direction of the Nx-C bond. Yet, despite the small values, 1tJ(Nx-C) exhibits a second-order correlation with the Nx-C distance, with a correlation coefficient of 0.978. A plot of 1tJ(Nx-C) versus the Nx-C distance is included as Figure S2 of the Supporting Information. Values of J(Ny-O’) are reported in Table 2 and are also small, ranging from 0.8 to 1.5 Hz. These are plotted against the Ny-O’ distance in Figure S3 of the Supporting Information. The correlation coefficient of the second-order trend line is not as good, with a value of 0.877. However, what is most interesting is a comparison of Figures S2 and S3. It is evident that as the number of N atoms in the azole ring increases, 1tJ(Nx-C) decreases because the Nx-C distance increases, but J(Ny-O’) increases because the Ny-O’ distance decreases.

3.3. Perpendicular Complexes Stabilized by Tetrel Bonds

Table S3 of the Supporting Information provides the structures, total energies and molecular graphs of the perpendicular tetrel-bonded complexes, and Figure 1 illustrates the structure of 4H-124tri-12p, which has C2v symmetry. Table 4 reports the binding energies, charge-transfer energies and Nx-C and Ny-C distances of these complexes. The most stable 4H-124tri-12p complex has a binding energy of 18.1 kJ·mol−1 and N1-C and N2-C distances of 2.922 Å. The least stable complex is 1H-pent-23p, which has a binding energy of 11.2 kJ·mol−1 and N3-C and N2-C distances of 2.939 and 3.113 Å, respectively. Since there are two different N-C distances in five of the seven perpendicular complexes, the binding energies have been plotted against the average of the Nx-C and Ny-C distances. This plot has an exponential trend line with a correlation coefficient of 0.916. However, what is more informative is Figure 6, in which the binding energies of the complexes are plotted against the number of nitrogen atoms in the ring. This plot illustrates very well that the binding energies of perpendicular complexes decrease as the number of nitrogen atoms in the ring increases.
Charge-transfer energies for the perpendicular complexes are also reported in Table 4. These arise from electron donation from the lone pairs on Nx and Ny to the in-plane antibonding π* O-C-O orbital of CO2. The NBO method describes charge-transfer in these complexes as two charge-transfer interactions, and it is the sum that is reported in Table 3. The total charge-transfer energies vary from 2.5 kJ·mol−1 for 1H-pent-23p to 5.6 kJ·mol−1 for 4H-124tri-12p. Figure 6 presents a plot of the total charge-transfer energies versus the number of nitrogen atoms in the azole ring.
In the perpendicular complexes, there are four vibrational frequencies associated with the CO2 molecule, two stretching and two bending vibrations, with the bending modes illustrated in Figure 7. Bending Vibration 1 may be roughly described as a bending motion that occurs in a plane perpendicular to the Nx-Ny bond, while Vibration 2 is a bending vibration in a plane that is parallel to the Nx-Ny bond. The stretching frequencies and bending frequency 2 are not very sensitive to complex formation, since the changes in these do not exceed 2.5 cm−1, but bending vibration 1 is sensitive to complexation. As evident from Table 4, this frequency decreases by about 14 cm−1 in complexes with the triazoles, by 11 or 12 cm−1 with the tetrazoles and by 8 or 9 cm−1 with pentazole. The decrease in this frequency exhibits a linear dependence on the number of nitrogen atoms, with a correlation coefficient of 0.971.
Coupling constants 1tJ(Nx-C) and 1tJ(Ny-C) have been evaluated for these complexes. Only the FC term contributes to these coupling constants. However, because the carbon atom of CO2 lies in the nodal plane, the computed FC terms are either 0.0 or 0.1 Hz.

3.4. Complexes Stabilized by Hydrogen Bonds

There are only four CO2:azole complexes that are stabilized by Nz-H···O hydrogen bonds, 1H-pyrr, 1H-imid, 4H-124tri and 1H-pent. Table S4 of the Supporting Information provides their structures, total energies and molecular graphs, and 1H-imid is illustrated in Figure 1. Table 5 presents their binding energies, charge-transfer energies and Nz-O and Nz-H distances. The Nz-O distances are rather long, varying from 2.988 Å in 1H-pent to 3.175 Å in 1H-pyrr. The binding energies range from 10.1 kJ·mol−1 for 1H-pyrr to 17.6 kJ·mol−1 for 1H-pent, while the charge-transfer energies Olp→σ*Nz-H range from 8.7 to 22.7 kJ·mol−1 in these same two complexes. Plots of these two properties versus the Nz-O distance are given in Figure 8. The correlation coefficients of the exponential trend lines are 0.987 for the binding energies and 0.999 for the charge-transfer energies. From Table 5 and Figure 8, it is apparent that the binding energies and charge-transfer energies increase as the number of N atoms in the ring increases, unlike the tetrel-bonded complexes for which the binding energies tend to decrease as the number of nitrogen atoms increases. As the number of nitrogen atoms in the ring increases, the azole molecule becomes more acidic and Nz-H becomes a better proton donor, while the azole molecule becomes a weaker base and a poorer electron-pair donor.
Table 5 also reports IR and NMR spectroscopic data for these complexes including the change in the Nz-H stretching frequency upon complex formation and the two-bond NMR coupling constant 2hJ(Nz-O) across the hydrogen bond. For a typical X-H···Y hydrogen bond, there is a red shift, that is a shift to lower energy of the X-H stretching frequency. The data of Table 5 show that this frequency decreases in the CO2:azole complexes relative to the corresponding isolated azole. The red shifts range from 5 to 47 cm−1 and increase as the number of nitrogen atoms in the ring and the Nz-H distance in the complexes increase. The linear trend line that relates the Nz-H stretching frequency to the Nz-H distance has a correlation coefficient of 0.996. The second spectroscopic property of interest is the NMR coupling constant 2hJ(Nz-O) across the hydrogen bond. This coupling constant varies from 10.1 Hz in 1H-pyrr to 17.6 Hz in 1H-pent. The second-order trend line that relates 2hJ(Nz-O) to the Nz-O distance has a correlation coefficient of 0.9997.
As evident from Table 5, there are only four CO2:azole complexes that are stabilized by hydrogen bonds. However, since there are ten different azoles, namely pyrrole, pyrazole, imidazole and pentazole, and two tautomers each of 1,2,3-triazole, 1,2,4-triazole and tetrazole, which differ in the position of the Nz-H bond, it would not be unreasonable to expect that there might be 10 hydrogen-bonded complexes. Why are there only four? Some insight into the answer to this question comes from the structures of the complexes 1H-pyrr, 1H-imid and 4H-124tri. In these, Nz-H is bonded to two C-H groups in the ring. Without an adjacent N atom with a lone pair of electrons available to form a tetrel bond, only an essentially linear Nz-H···O hydrogen bond can form. In contrast, pentazole does have N atoms with lone-pairs adjacent to Nz-H, and it does form one planar tetrel-bonded complex. However, the basicity of the azoles decreases and the acidity increases as the number of N atoms in the ring increases [52]. As a result, pentazole also forms a hydrogen-bonded complex with CO2, and it is the most stable among these complexes.

4. Conclusions

Ab initio MP2/aug’-cc-pVTZ calculations have been performed to investigate complexes of CO2 with the azoles pyrrole, pyrazole, imidazole, 1,2,3- and 1,2,4-triazole, tetrazole and pentazole. The results of these calculations support the following statements.
  • Three types of complexes have been found on the potential surfaces. These include ten complexes stabilized by tetrel bonds in which the azole molecule lies in the symmetry plane of the complex and seven complexes also stabilized by tetrel bonds, but which have the azole molecule perpendicular to the symmetry plane. In addition, there are four hydrogen-bonded complexes.
  • The ten complexes stabilized by tetrel bonds that have the azole molecule in the symmetry plane of the complex have some common characteristics.
    • Those complexes that have an Ny-H group bonded to Nx are stabilized primarily by Nx···C tetrel bonds and by a secondary interaction between Ny-H and O’, which assumes increased importance as the number of N atoms in the ring increases.
    • The binding energies of the planar complexes do not correlate with the Nx-C distance, but the primary charge-transfer energies do.
    • The IR in-plane bending frequency of CO2 is most sensitive to complex formation. The change in this frequency decreases as the number of N atoms increases. NMR spin-spin coupling constants 1tJ(Nx-C), which are FC dominated, are less than 1 Hz, since there is little s-electron density at C in the direction of the tetrel bond.
  • There are seven perpendicular tetrel-bonded complexes that arise when there are two adjacent N atoms in the ring, and each has a lone pair of electrons.
    • The binding energies of perpendicular complexes decrease as the number of nitrogen atoms in the ring decreases.
    • The IR bending mode of CO2 that moves the C atom toward and away from the Nx-Ny bond is most sensitive to complex formation. The change in its frequency upon complex formation decreases in the order triazole > tetrazole > pentazole.
    • The NMR coupling constants 1tJ(Nx-C) and 1tJ(Ny-C) are negligibly small since there is a node at C in the complex symmetry plane.
  • The four hydrogen-bonded complexes involve pyrrole, imidazole, 1,2,4-triazole and pentazole. Three of these form when the ring Nz-H is bonded to two C-H groups, thereby eliminating the possibility of tetrel-bond formation. The fourth forms with pentazole, which is the strongest acid.
    • The binding energies of these complexes and their charge-transfer energies increase as the number of N atoms in the ring increases.
    • Hydrogen bonding produces a red-shift of the IR Nz-H stretching band. The magnitude of the red shift increases as the number of N atoms in the ring increases.
    • The NMR coupling constant 2hJ(Nz-O) across the hydrogen bond increases as the number of nitrogen atoms in the ring increases.

Supplementary Materials

Structures, total energies and molecular graphs of CO2:azole complexes; bending and stretching frequencies of CO2 in planar complexes; plots of stretching frequencies and coupling constants versus distances and/or the number of N atoms in the ring.

Acknowledgments

This work was carried out with financial support from the Ministerio de Economía, Industria y Competitividad (Project No. CTQ2015-63997-C2-2-P) and Comunidad Autónoma de Madrid (S2013/MIT2841, Fotocarbon). Thanks are also given to the Ohio Supercomputer Center and Centro Técnico de Informática (CTI-CSIC) for their continued computational support.

Author Contributions

I.A. and J.E.D.B. did the calculations. J.E.D.B., J.E. and I.A. contributed equally to the writing of this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Supuran, C.T.; Scozzafava, A.; Conway, J. (Eds.) Carbonic Anhydrase: Its Inhibitors and Activators; CRC Press Book: Boca Raton, FL, USA, 2004. [Google Scholar]
  2. Frost, S.C.; McKenna, R. (Eds.) Carbonic Anhydrase: Mechanism, Regulation, Links to Disease, and Industrial Applications; Springer: Dordrecht, The Netherlands, 2014. [Google Scholar]
  3. Vedani, A.; Dunitz, J.D. Lone-Pair Directionality in Hydrogen Bond Potential Functions for Molecular Mechanics Calculations: The Inhibition of Human Carbonic Anhydrase II by Sulfonamides. J. Am. Chem. Soc. 1985, 107, 7653–7658. [Google Scholar] [CrossRef]
  4. Eriksoon, A.E.; Jones, T.A.; Liljas, A. Refined Structure of Human Carbonic Anhydrase II at 2.0 Å Resolution. Proteins 1988, 4, 274–282. [Google Scholar] [CrossRef] [PubMed]
  5. Liljas, A.; Hakansoon, K.; Jonsson, B.H.; Xue, Y. Inhibition and Catalysis of Carbonic Anhydrase. Recent Crystallographic Analyses. Eur. J. Biochem. 1994, 219, 1–10. [Google Scholar] [CrossRef] [PubMed]
  6. Kiefer, L.L.; Paterno, S.A.; Fierke, C.A. Hydrogen Bond Network in the Metal Binding Site of Carbonic Anhydrase Enhances Zinc Affinity and Catalytic Efficiency. J. Am. Chem. Soc. 1995, 117, 6831–6837. [Google Scholar] [CrossRef]
  7. Thoms, S. Hydrogen Bonds and the Catalytic Mechanism of Human Carbonic Anhydrase II. J. Theor. Biol. 2002, 215, 399–404. [Google Scholar] [CrossRef] [PubMed]
  8. Supuran, C.T.; Vullo, D.; Manole, G.; Casini, A.; Scozzafava, A. Designing of Novel Carbonic Anhydrase Inhibitors and Activators. Curr. Med. Chem. 2004, 2, 49–68. [Google Scholar] [CrossRef]
  9. Domsic, J.F.; Avvaru, B.S.; Kim, C.U.; Gruner, S.M.; Agbandje-McKenna, M.; Silverman, D.N.; McKenna, R. Entrapment of Carbon Dioxide in the Active Site of Carbonic Anhydrase II. J. Biol. Chem. 2008, 283, 30766–30771. [Google Scholar] [CrossRef] [PubMed]
  10. Sjöblom, B.; Polentarutti, M.; Djinović-Carugo, K. Structural Study of X-ray Induced Activation of Carbonic Anhydrase. PNAS 2009, 106, 10609–10613. [Google Scholar] [CrossRef] [PubMed]
  11. Avvaru, B.S.; Kim, C.U.; Sippel, K.H.; Gruner, S.M.; Agbandje-McKenna, M.; Silverman, D.N.; McKenna, R. A Short, Strong Hydrogen Bond in the Active Site of Human Carbonic Anhydrase II. Biochemistry 2010, 49, 249–251. [Google Scholar] [CrossRef] [PubMed]
  12. Alberti, G.; Bertini, I.; Luchinat, C.; Scozzafava, A. A New Class of Inhibitors Capable of Binding Both the Acidic and Alkaline Forms of Carbonic Anhydrase. Biochim. Biophys. Acta Protein Struct. Mol. 1981, 668, 16–26. [Google Scholar] [CrossRef]
  13. Ilies, M.; Banciu, M.D.; Ilies, M.A.; Scozzafava, A.; Caproiu, M.T.; Supuran, C.T. Carbonic Anhydrase Activators:  Design of High Affinity Isozymes I, II, and IV Activators, Incorporating Tri-/Tetrasubstituted-Pyridinium-Azole Moieties. J. Med. Chem. 2002, 45, 504–510. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, D.; Oezguen, N.; Urvil, P.; Ferguson, C.; Dann, S.M.; Savidge, T.C. Regulation of Protein-Ligand Binding Affinity by Hydrogen Bond Pairing. Sci. Adv. 2016, 2, e1501240. [Google Scholar] [CrossRef] [PubMed]
  15. Schofield, K.; Grimmett, M.R.; Keene, B.R.T. The Azoles; Cambridge University Press: Cambridge, UK, 1976. [Google Scholar]
  16. Mangani, S.; Liljas, A. Crystal Structure of the Complex Between Human Carbonic Anhydrase II and the Aromatic Inhibitor 1,2,4-Triazole. J. Mol. Biol. 1993, 232, 9–14. [Google Scholar] [CrossRef] [PubMed]
  17. Sumida, K.; Rogow, D.L.; Mason, J.A.; McDonald, T.M.; Bloch, E.D.; Herm, Z.R.; Bae, T.-H.; Long, J.R. Carbon Dioxide Capture in Metal–Organic Frameworks. Chem. Rev. 2012, 112, 724–781. [Google Scholar] [CrossRef] [PubMed]
  18. Saha, S.; Chandra, S.; Garai, B.; Banerjee, R. Carbon Dioxide Capture by Metal Organic Frameworks. Indian J. Chem. 2012, 51A, 1223–1230. [Google Scholar]
  19. Seth, S.; Savitha, G.; Moorthy, J.N. Carbon Dioxide Capture by a Metal–Organic Framework with Nitrogen-Rich Channels Based on Rationally Designed Triazole-Functionalized Tetraacid Organic Linker. Inorg. Chem. 2015, 54, 6829–6835. [Google Scholar] [CrossRef] [PubMed]
  20. Li, P.-Z.; Wang, X.-J.; Liu, J.; Lim, J.S.; Zou, R.; Zhao, Y. A Triazole-Containing Metal–Organic Framework as a Highly Effective and Substrate Size-Dependent Catalyst for CO2 Conversion. J. Am. Chem. Soc. 2016, 138, 2142–2145. [Google Scholar] [CrossRef] [PubMed]
  21. Panda, T.; Pachfule, P.; Chen, Y.; Jiang, J.; Banerjee, R. Amino Functionalized Zeolitic Tetrazolate Framework (Ztf) with High Capacity for Storage of Carbon Dioxide. Chem. Commun. 2011, 47, 2011–2013. [Google Scholar] [CrossRef] [PubMed]
  22. Du, N.; Park, H.B.; Robertson, G.P.; Dal-Cin, M.M.; Visser, T.; Scoles, L.; Guiver, M.D. Polymer Nanosieve Membranes for CO2-Capture Applications. Nat. Mater. 2011, 10, 372–375. [Google Scholar] [CrossRef] [PubMed]
  23. Kenarsari, S.D.; Yang, D.; Jiang, G.; Zhang, S.; Wang, J.; Russell, A.G.; Wei, Q.; Fan, M. Review of Recent Advances in Carbon Dioxide Separation and Capture. RSC Adv. 2013, 3, 22739–22773. [Google Scholar] [CrossRef]
  24. Alkorta, I.; Elguero, J.; Del Bene, J.E. Azines as Electron-Pair Donors to CO2 for N···C Tetrel Bonds. J. Phys. Chem. A 2017, 121, 8017–8025. [Google Scholar] [CrossRef] [PubMed]
  25. Vaidhyanathan, R.; Iremonger, S.S.; Shimizu, G.K.H.; Boyd, P.G.; Alavi, S.; Woo, T.K. Direct Observation and Quantification of CO2 Binding within an Amine-Functionalized Nanoporous Solid. Science 2010, 330, 650–653. [Google Scholar] [CrossRef] [PubMed]
  26. Liao, P.-Q.; Zhang, W.-X.; Zhang, J.-P.; Chen, X.-M. Efficient Purification of Ethene by an Ethane-Trapping Metal-Organic Framework. Nat. Commun. 2015, 6, 8697. [Google Scholar] [CrossRef] [PubMed]
  27. Liao, P.-Q.; Zhou, D.-D.; Zhu, A.-X.; Jiang, L.; Lin, R.-B.; Zhang, J.-P.; Chen, X.-M. Strong and Dynamic CO2 Sorption in a Flexible Porous Framework Possessing Guest Chelating Claws. J. Am. Chem. Soc. 2012, 134, 17380–17383. [Google Scholar] [CrossRef] [PubMed]
  28. Theuergarten, E.; Schlosser, J.; Schluns, D.; Freytag, M.; Daniliuc, C.G.; Jones, P.G.; Tamm, M. Fixation of Carbon Dioxide and Related Small Molecules by a Bifunctional Frustrated Pyrazolylborane Lewis Pair. Dalton Trans. 2012, 41, 9101–9110. [Google Scholar] [CrossRef] [PubMed]
  29. Vogiatzis, K.D.; Mavrandonakis, A.; Klopper, W.; Froudakis, G.E. Ab Initio Study of the Interactions between CO2 and N-Containing Organic Heterocycles. ChemPhysChem 2009, 10, 374–383. [Google Scholar] [CrossRef] [PubMed]
  30. Prakash, M.; Mathivon, K.; Benoit, D.M.; Chambaud, G.; Hochlaf, M. Carbon Dioxide Interaction with Isolated Imidazole or Attached on Gold Clusters and Surface: Competition between σ H-Bond and π-Stacking Interaction. PCCP 2014, 16, 12503–12509. [Google Scholar] [CrossRef] [PubMed]
  31. Hernández-Marín, E.; Lemus-Santana, A.A. Theoretical Study of the Formation of Complexes between CO2 and Nitrogen Heterocycles. J. Mex. Chem. Soc. 2015, 59, 36–42. [Google Scholar]
  32. Vidal-Vidal, Á.; Faza, O.N.; Silva López, C. CO2 Complexes with Five-Membered Heterocycles: Structure, Topology, and Spectroscopic Characterization. J. Phys. Chem. A 2017, 121, 9118–9130. [Google Scholar] [CrossRef] [PubMed]
  33. Pople, J.A.; Binkley, J.S.; Seeger, R. Theoretical Models Incorporating Electron Correlation. Int. J. Quantum Chem. Quantum Chem. Symp. 1976, 10, 1–19. [Google Scholar] [CrossRef]
  34. Krishnan, R.; Pople, J.A. Approximate Fourth-Order Perturbation Theory of the Electron Correlation Energy. Int. J. Quantum Chem. 1978, 14, 91–100. [Google Scholar] [CrossRef]
  35. Bartlett, R.J.; Silver, D.M. Many−Body Perturbation Theory Applied to Electron Pair Correlation Energies. I. Closed-Shell First Row Diatomic Hydrides. J. Chem. Phys. 1975, 62, 3258–3268. [Google Scholar] [CrossRef]
  36. Bartlett, R.J.; Purvis, G.D. Many-Body Perturbation Theory, Coupled-Pair Many-Electron Theory, and the Importance of Quadruple Excitations for the Correlation Problem. Int. J. Quantum Chem. 1978, 14, 561–581. [Google Scholar] [CrossRef]
  37. Del Bene, J.E. Proton Affinities of Ammonia, Water, and Hydrogen Fluoride and Their Anions: A Quest for the Basis-Set Limit Using the Dunning Augmented Correlation-Consistent Basis Sets. J. Phys. Chem. 1993, 97, 107–110. [Google Scholar] [CrossRef]
  38. Dunning, T.H. Gaussian Basis Sets for Use in Correlated Molecular Calculations. I. The Atoms Boron through Neon and Hydrogen. J. Chem. Phys. 1989, 90, 1007–1023. [Google Scholar] [CrossRef]
  39. Woon, D.E.; Dunning, T.H. Gaussian Basis Sets for Use in Correlated Molecular Calculations. V. Core-Valence Basis Sets for Boron Through Neon. J. Chem. Phys. 1995, 103, 4572–4585. [Google Scholar] [CrossRef]
  40. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian09; revision D.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  41. Bader, R.F.W. A Quantum Theory of Molecular Structure and its Applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  42. Bader, R.F.W. Atoms in Molecules: A Quantum Theory; Oxford University Press: Oxford, UK, 1990. [Google Scholar]
  43. Popelier, P.L.A. Atoms in Molecules: An Introduction; Prentice Hall: Harlow, UK, 2000. [Google Scholar]
  44. Matta, C.F.; Boyd, R.J. The Quantum Theory of Atoms in Molecules: From Solid State to DNA and Drug Design; Wiley-VCH: Weinheim, Germany, 2007. [Google Scholar]
  45. Keith, T.A. AIMAll; Version 17.11.14; TK Gristmill Software: Overland Park, KS, USA, 2017; Available online: aim.tkgristmill.com (accessed on 1 March 2018).
  46. Reed, A.E.; Curtiss, L.A.; Weinhold, F. Intermolecular Interactions from a Natural Bond Orbital, Donor–Acceptor Viewpoint. Chem. Rev. 1988, 88, 899–926. [Google Scholar] [CrossRef]
  47. Glendening, E.D.; Badenhoop, J.K.; Reed, A.E.; Carpenter, J.E.; Bohmann, J.A.; Morales, C.M.; Landis, C.R.; Weinhold, F. NBO 6.0; University of Wisconsin: Madison, WI, USA, 2013. [Google Scholar]
  48. Perera, S.A.; Nooijen, M.; Bartlett, R.J. Electron Correlation Effects on the Theoretical Calculation of Nuclear Magnetic Resonance Spin-Spin Coupling Constants. J. Chem. Phys. 1996, 104, 3290–3305. [Google Scholar] [CrossRef]
  49. Perera, S.A.; Sekino, H.; Bartlett, R.J. Coupled-Cluster Calculations of Indirect Nuclear Coupling Constants: The Importance of Non-Fermi Contact Contributions. J. Chem. Phys. 1994, 101, 2186–2196. [Google Scholar] [CrossRef]
  50. Schäfer, A.; Horn, H.; Ahlrichs, R. Fully Optimized Contracted Gaussian Basis Sets for Atoms Li to Kr. J. Chem. Phys. 1992, 97, 2571–2577. [Google Scholar] [CrossRef]
  51. Stanton, J.F.; Gauss, J.; Watts, J.D.; Nooijen, M.; Oliphant, N.; Perera, S.A.; Szalay, P.S.; Lauderdale, W.J.; Gwaltney, S.R.; Beck, S.; et al. ACES II; University of Florida: Gainesville, FL, USA, 1991. [Google Scholar]
  52. Catalan, J.; Elguero, J. Basicity and Acidity of Azoles. Adv. Heterocycl. Chem. 1987, 41, 187–274. [Google Scholar]
Molecules 23 00906 sch001 550

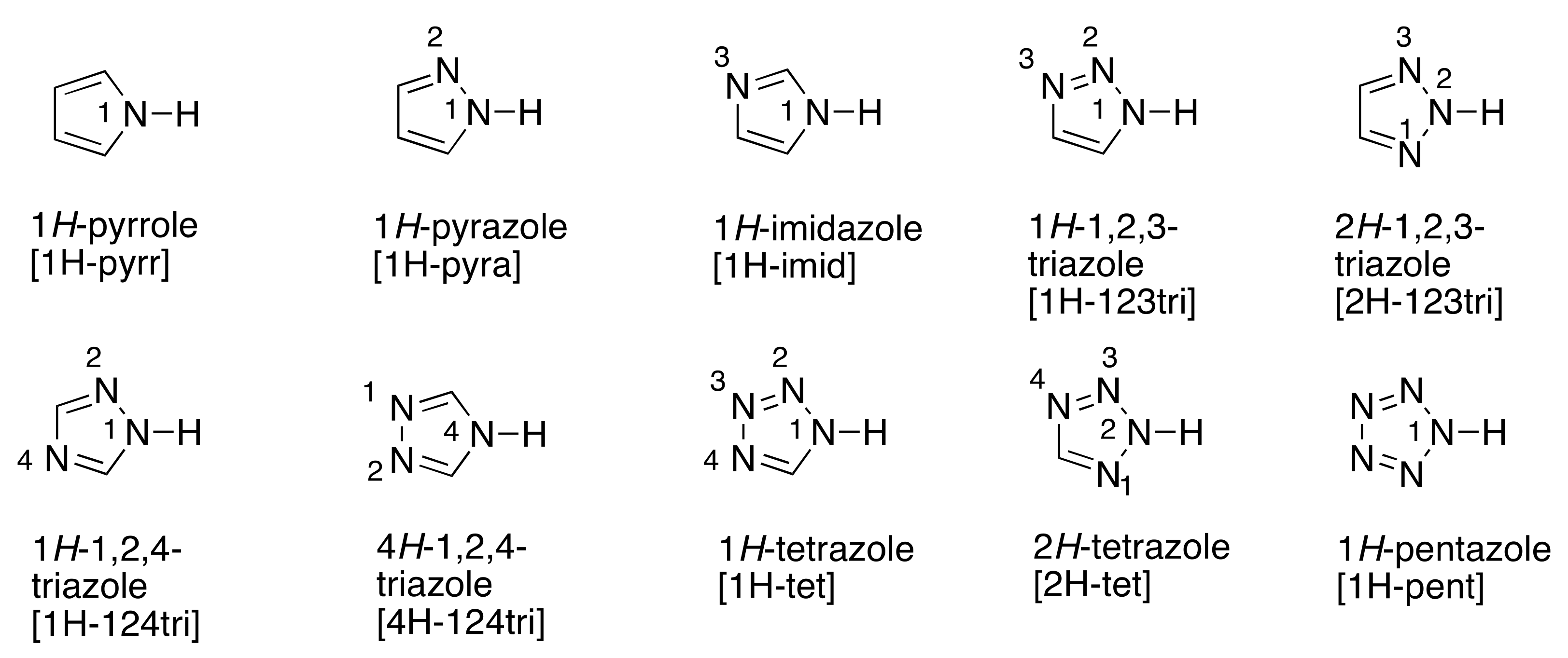

Scheme 1. The ten azoles and their codes.
Scheme 1. The ten azoles and their codes.
Molecules 23 00906 sch001
Molecules 23 00906 sch002 550

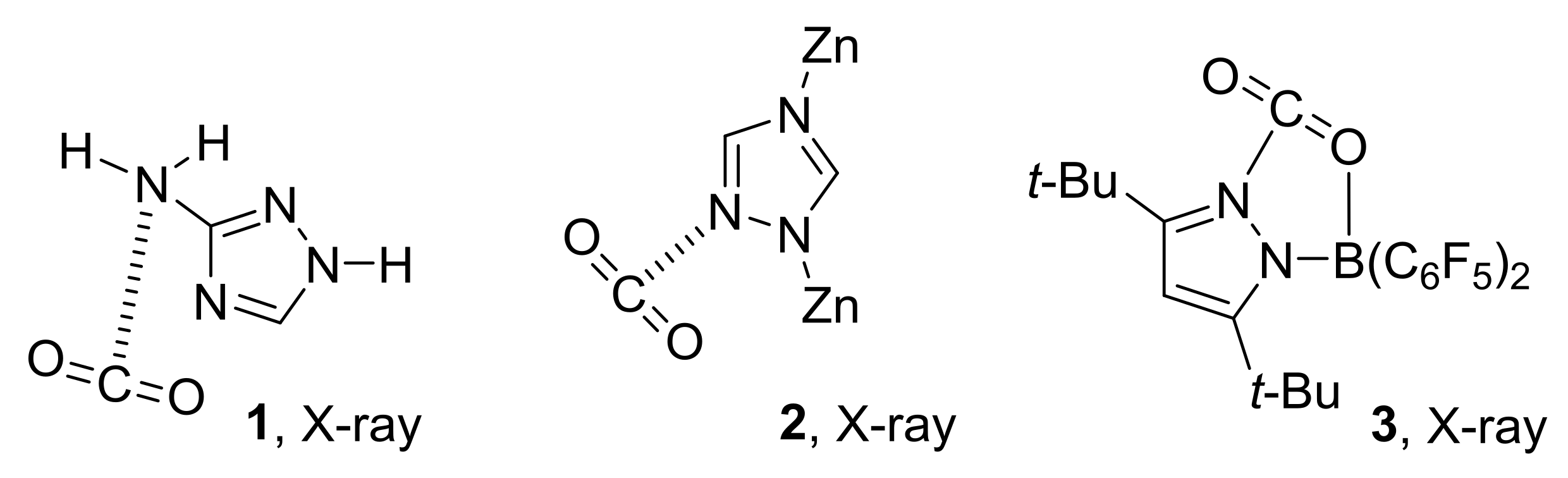

Scheme 2. Relevant experimentally-determined complexes.
Scheme 2. Relevant experimentally-determined complexes.
Molecules 23 00906 sch002
Molecules 23 00906 g001 550

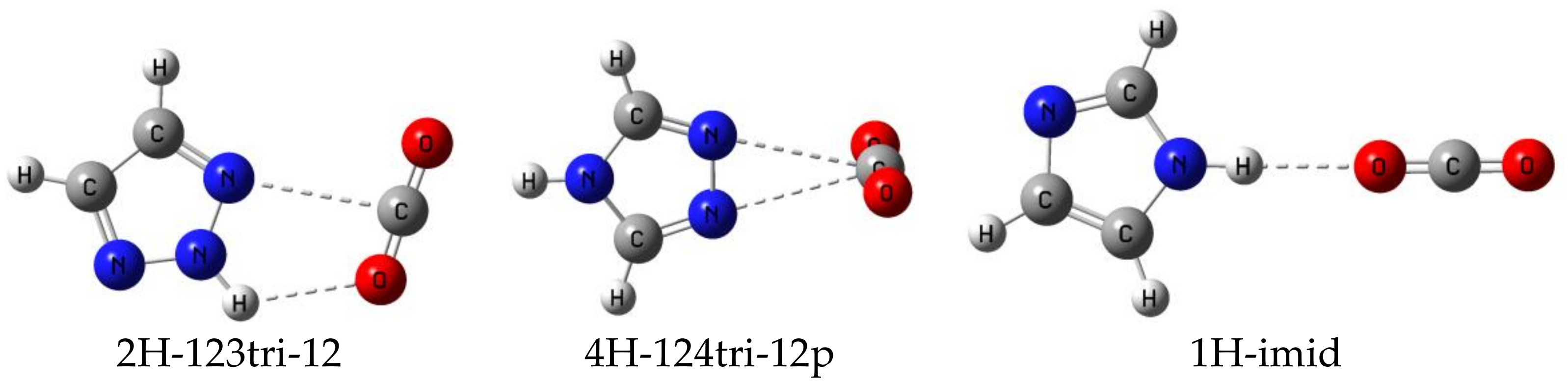

Figure 1. Representative tetrel- and hydrogen-bonded CO2:azole complexes.
Figure 1. Representative tetrel- and hydrogen-bonded CO2:azole complexes.
Molecules 23 00906 g001
Molecules 23 00906 g002 550

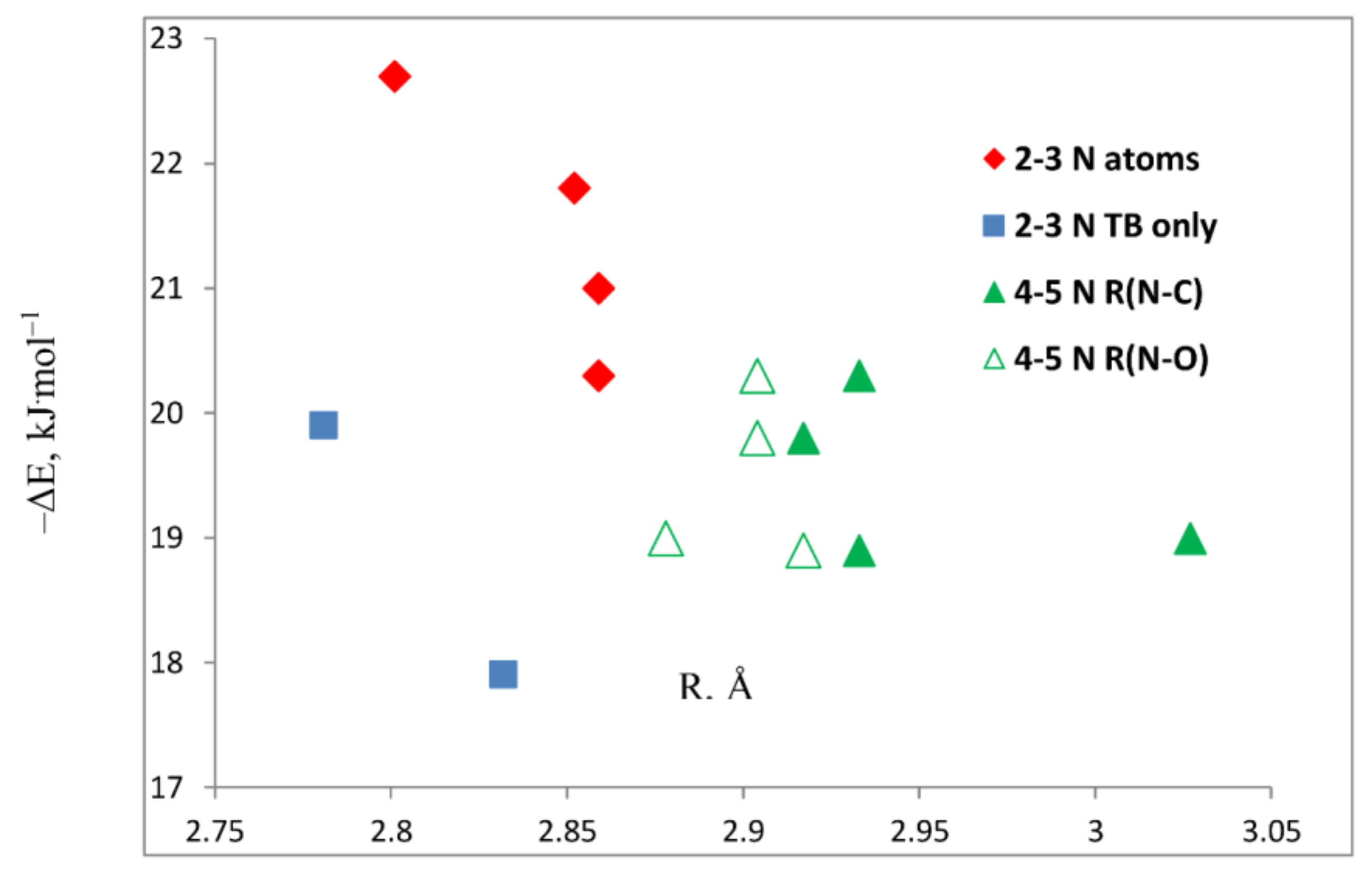

Figure 2. Binding energies versus distance for the planar tetrel-bonded CO2:azole complexes. The solid symbols refer to the Nx-C distance; open symbols refer to the Ny-O’ distance in complexes with tetrazole and pentazole.
Figure 2. Binding energies versus distance for the planar tetrel-bonded CO2:azole complexes. The solid symbols refer to the Nx-C distance; open symbols refer to the Ny-O’ distance in complexes with tetrazole and pentazole.
Molecules 23 00906 g002
Molecules 23 00906 g003 550

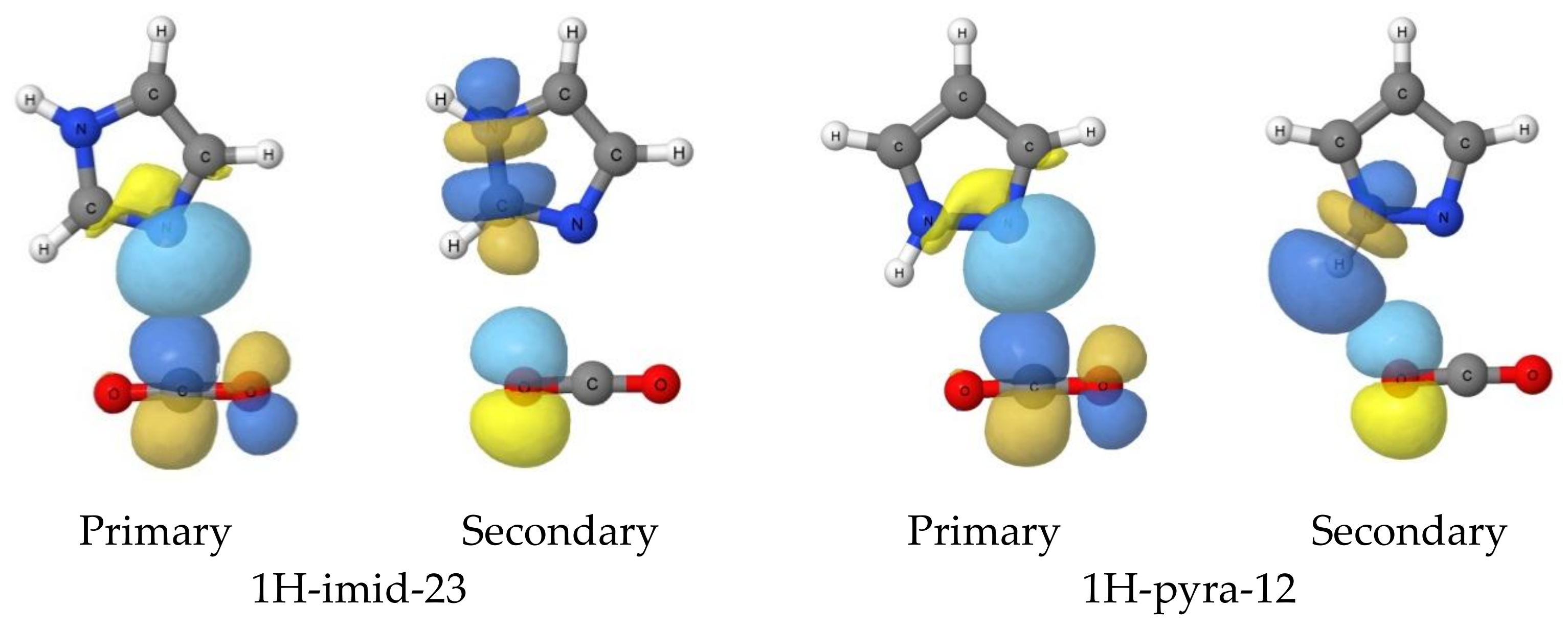

Figure 3. Orbital descriptions of the primary and secondary charge-transfer interactions in 1H-imid-23 and 1H-pyra-12.
Figure 3. Orbital descriptions of the primary and secondary charge-transfer interactions in 1H-imid-23 and 1H-pyra-12.
Molecules 23 00906 g003
Molecules 23 00906 g004 550

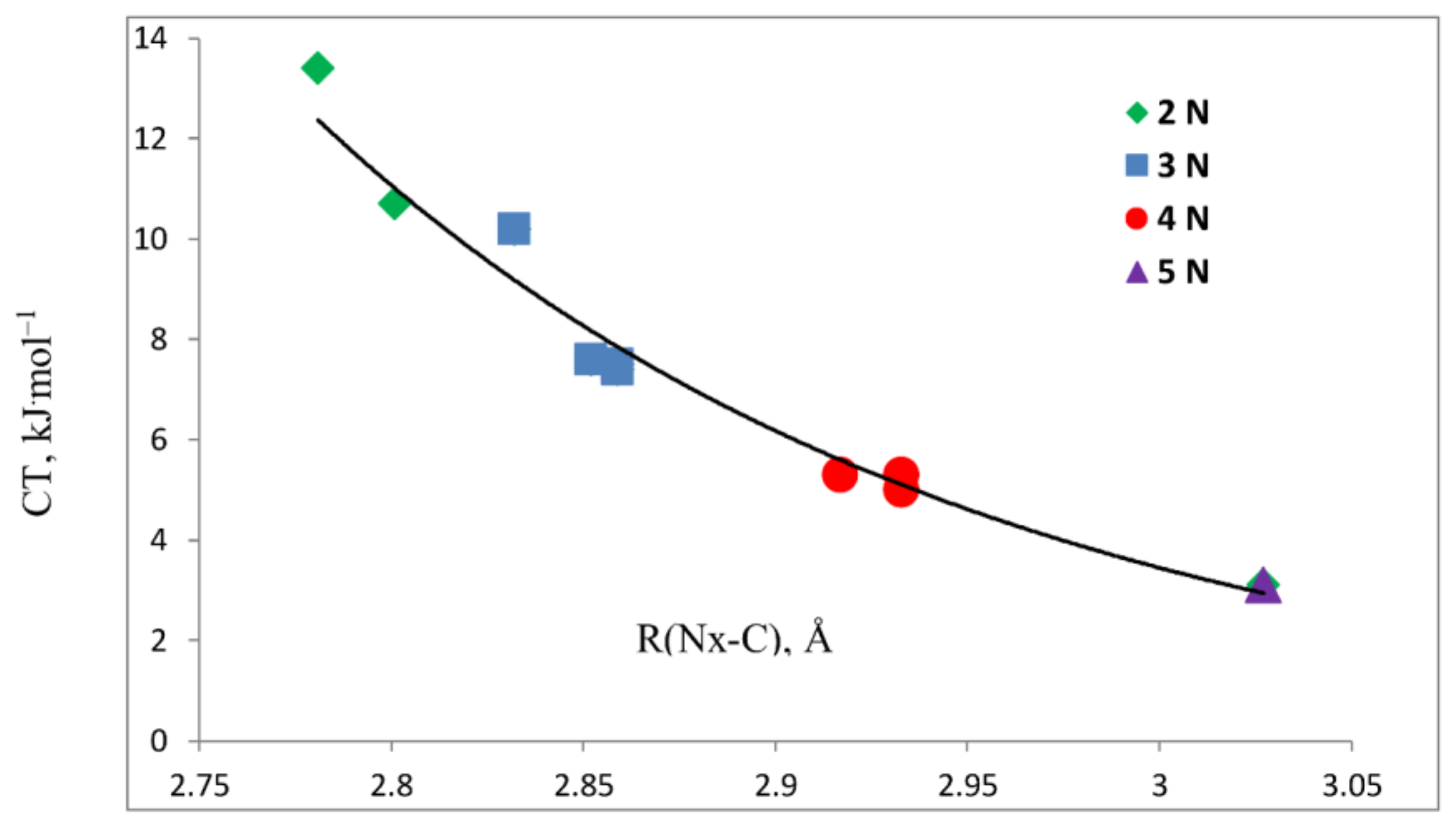

Figure 4. Primary Nxlp→σ*C-O charge-transfer energies versus the Nx-C distance. The legend indicates the number of nitrogen atoms in the azole ring.
Figure 4. Primary Nxlp→σ*C-O charge-transfer energies versus the Nx-C distance. The legend indicates the number of nitrogen atoms in the azole ring.
Molecules 23 00906 g004
Molecules 23 00906 g005 550

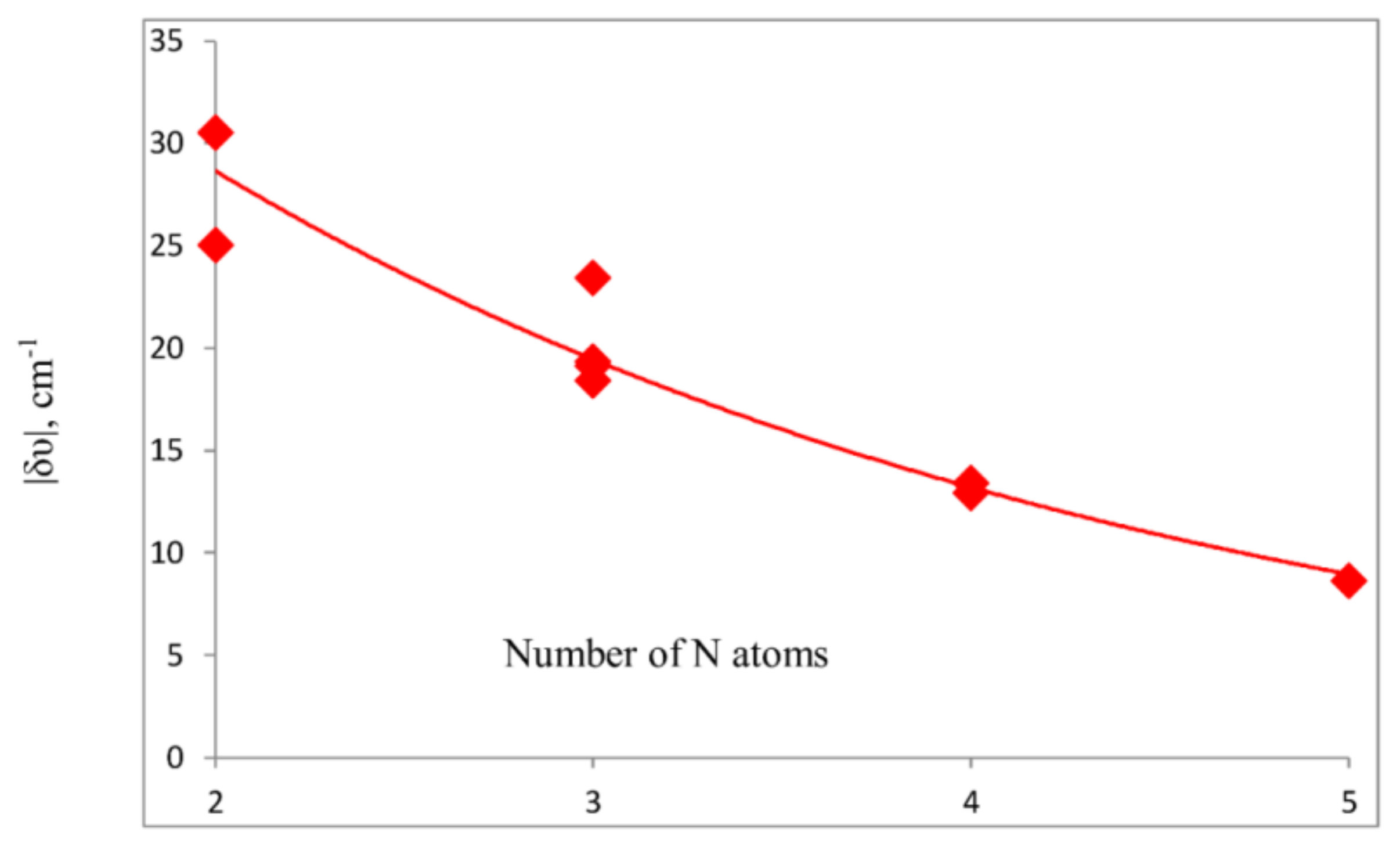

Figure 5. Absolute value of the change in the CO2 in-plane bending frequency upon complex formation versus the number of nitrogen atoms in the azole ring.
Figure 5. Absolute value of the change in the CO2 in-plane bending frequency upon complex formation versus the number of nitrogen atoms in the azole ring.
Molecules 23 00906 g005
Molecules 23 00906 g006 550

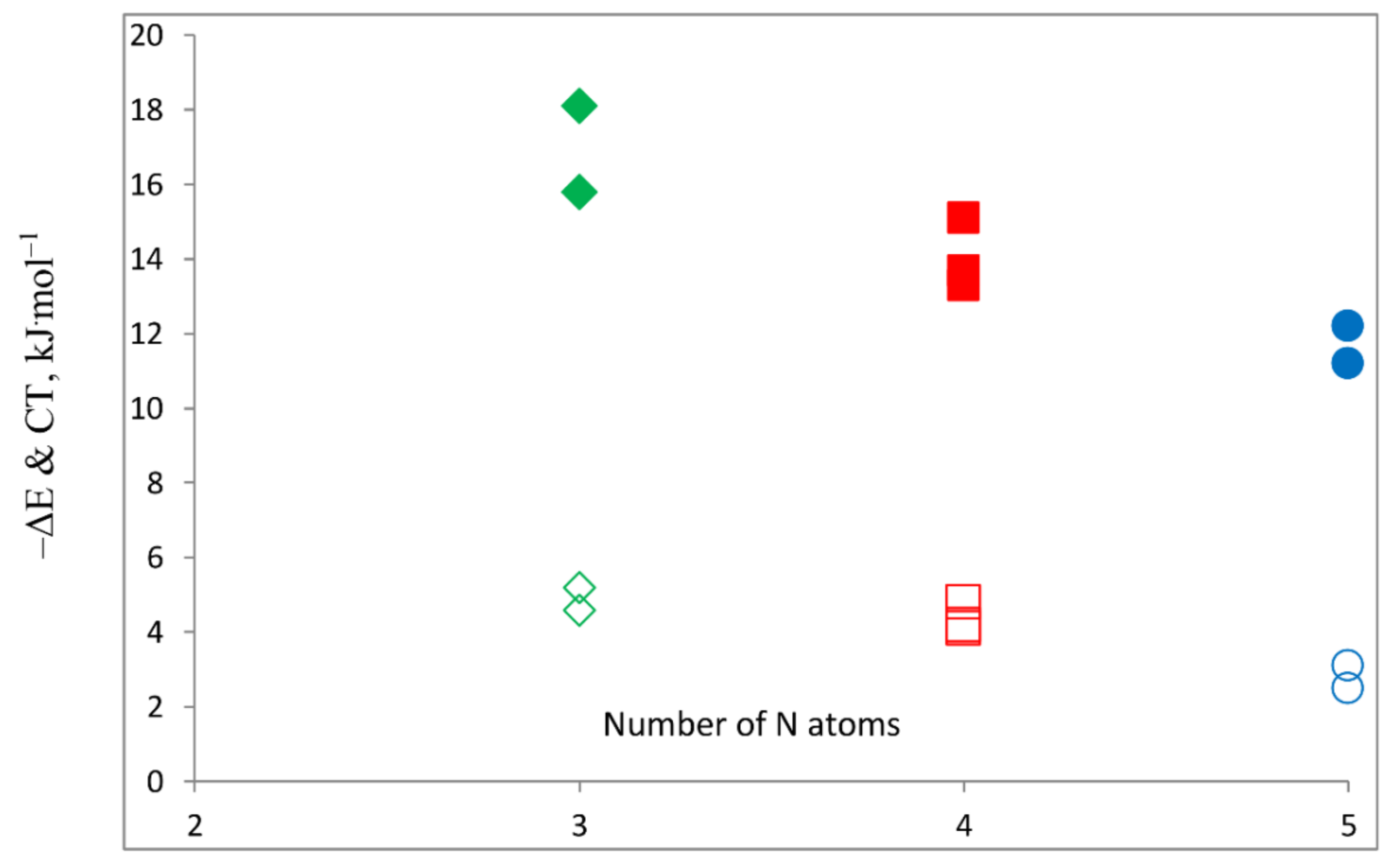

Figure 6. Binding energies (solid symbols) and charge-transfer energies (open symbols) versus the number of N atoms in the azole rings.
Figure 6. Binding energies (solid symbols) and charge-transfer energies (open symbols) versus the number of N atoms in the azole rings.
Molecules 23 00906 g006
Molecules 23 00906 g007 550

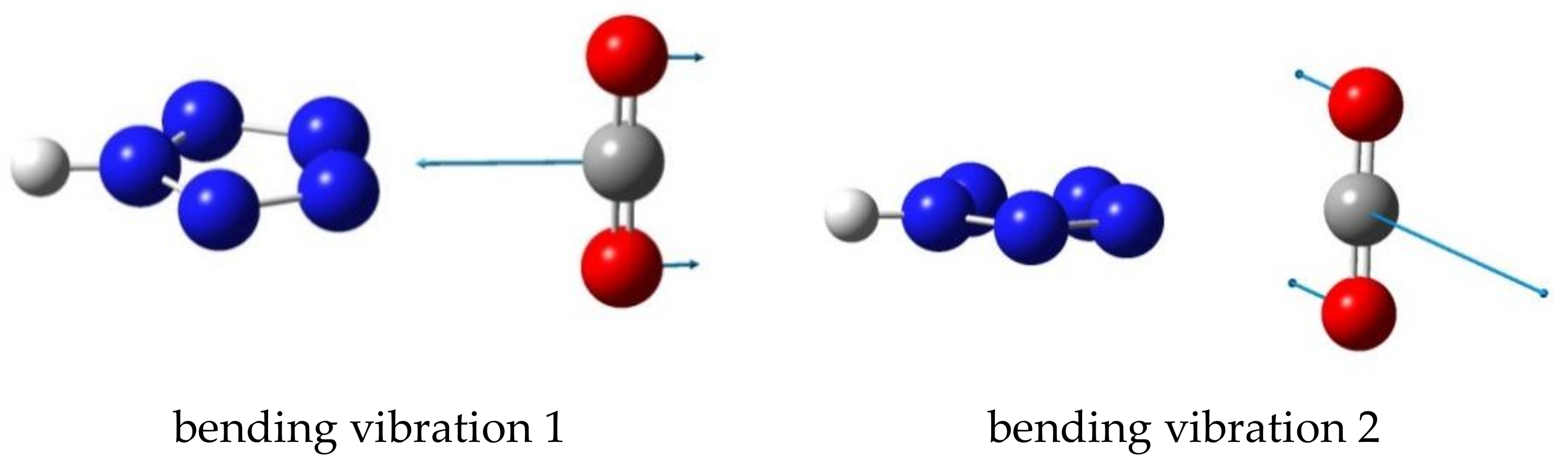

Figure 7. Representation of the two bending vibrations in the 1H-pent-34p complex.
Figure 7. Representation of the two bending vibrations in the 1H-pent-34p complex.
Molecules 23 00906 g007
Molecules 23 00906 g008 550

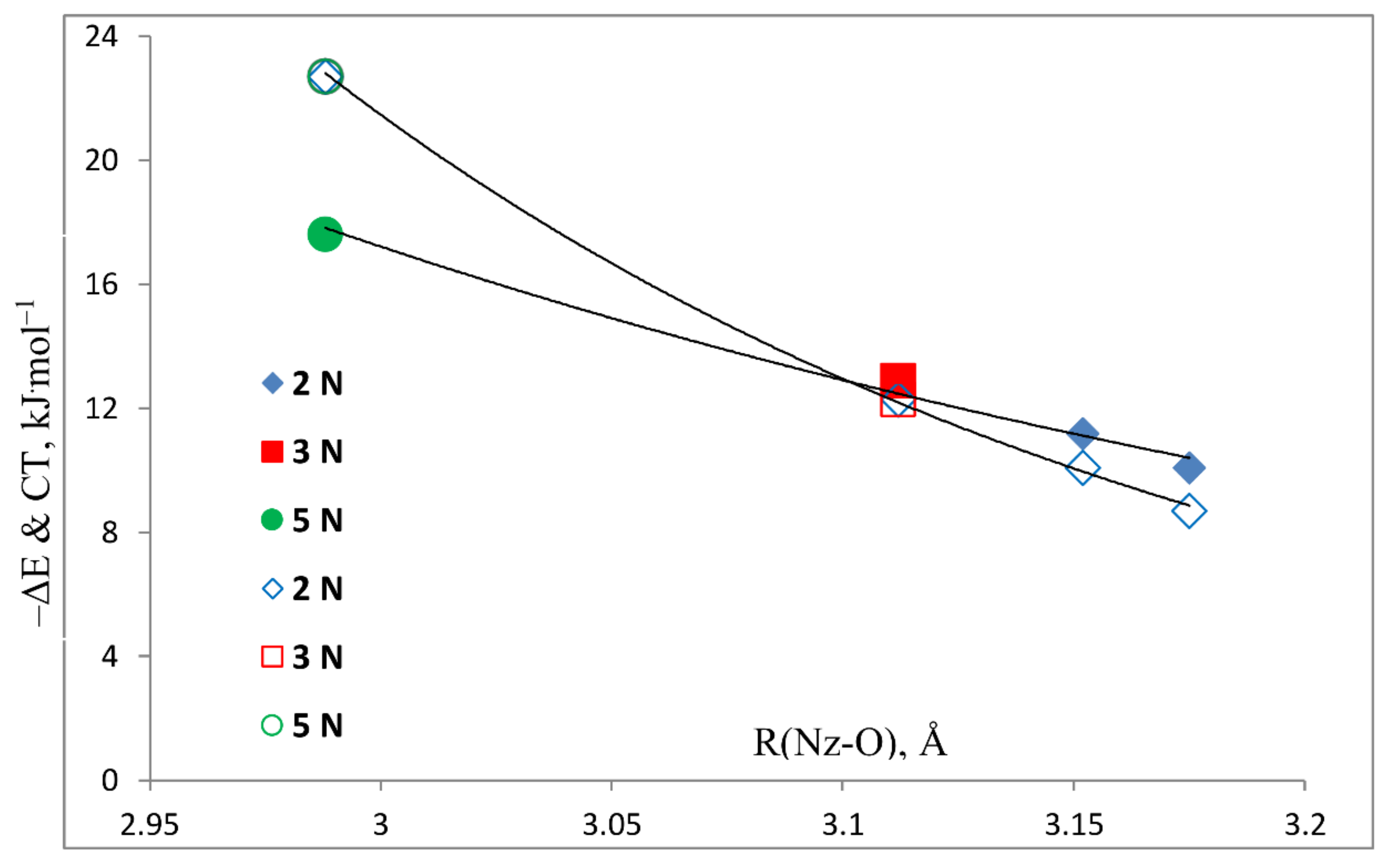

Figure 8. Binding energies (solid symbols) and charge-transfer energies (open symbols) versus the Nz-O distance.
Figure 8. Binding energies (solid symbols) and charge-transfer energies (open symbols) versus the Nz-O distance.
Molecules 23 00906 g008
Table
Table 1. Names of CO2:azole complexes, their binding energies (−ΔE, kJ·mol−1) and symmetries.
Table 1. Names of CO2:azole complexes, their binding energies (−ΔE, kJ·mol−1) and symmetries.
AzoleComplex−ΔESym
pyrrole1H-pyrr10.1C2v
pyrazole1H-pyra-1222.7Cs
imidazole1H-imid-2319.9Cs
1H-imid11.2Cs
triazoles1H-123tri-1221.8Cs
2H-123tri-1220.3Cs
1H-123tri-23p15.8Cs
1H-124tri-1221.0Cs
4H-124tri-12p18.1C2v
1H-124tri-4517.9Cs
4H-124tri12.9C2v
tetrazoles1H-tet-1220.3Cs
2H-tet-2319.8Cs
2H-tet-1218.9Cs
1H-tet-34p15.1Cs
2H-tet-34p13.7Cs
1H-tet-23p13.3Cs
pentazole1H-pent-1219.0Cs
1H-pent17.6C2v
1H-pent-34p12.2C2v
1H-pent-23p11.2Cs
Table
Table 2. Binding energies (−ΔE) and charge-transfer energies (kJ·mol−1), Nx-C, Ny-O’, Cy-O’ and H-O’ distances (R, Å) for planar CO2:azole complexes stabilized by Nx···C tetrel bonds.
Table 2. Binding energies (−ΔE) and charge-transfer energies (kJ·mol−1), Nx-C, Ny-O’, Cy-O’ and H-O’ distances (R, Å) for planar CO2:azole complexes stabilized by Nx···C tetrel bonds.
AzoleComplex−ΔER(Nx-C)R(Ny-O’); R(Cy-O’) aR(NyH-O’); R(CyH-O’) a,bPrimary CT cSecondary CT d
pyrazole1H-pyra-1222.7N2: 2.801N1: 2.9392.28510.72.0
imidazole1H-imid-2319.9N3: 2.781C2: 3.1712.73213.41.0 d
triazoles1H-123tri-1221.8N2: 2.852N1: 2.9182.2507.66.1
2H-123tri-1220.3N1: 2.859N2: 2.9362.2987.52.1
1H-124tri-1221.0N2: 2.859N1: 2.9332.2757.42.3
1H-124tri-4517.9N4: 2.832C5: 3.1562.70710.21.1 e
tetrazoles1H-tet-1220.3N2: 2.933N1: 2.0942.2225.04.5
2H-tet-2319.8N3: 2.917N2: 2.9042.2525.36.3
2H-tet-1218.9N1: 2.933N2: 2.9172.2645.32.6
pentazole1H-pent-1219.0N2: 3.027N1: 2.8782.1973.14.7
a Ny-H or Cy-H is adjacent to Nx. b H-O’ distances involving Cy-H are given in italics. c Nxlp→σ*C-O. d O’lp→σ*Ny-H. e The charge-transfer is O’lp→σ*Cy-N1.
Table
Table 3. CO2 in-plane bending frequencies (ν), changes in these frequencies upon complexation (δν, cm−1), and spin-spin coupling constants 1tJ(Nx-C) and J(Ny-O’) (Hz) for planar CO2:azole complexes stabilized by Nx···C tetrel bonds.
Table 3. CO2 in-plane bending frequencies (ν), changes in these frequencies upon complexation (δν, cm−1), and spin-spin coupling constants 1tJ(Nx-C) and J(Ny-O’) (Hz) for planar CO2:azole complexes stabilized by Nx···C tetrel bonds.
AzoleComplexν aδν1tJ(Nx-C)J(Ny-O’)
pyrazole1H-pyra-12634−25.00.50.8
imidazole1H-imid-23628−30.50.6
triazoles1H-123tri-12640−19.10.40.9
2H-123tri-12641−18.40.31.0
1H-124tri-12640−19.30.30.9
1H-124tri-45636−23.40.4
tetrazoles1H-tet-12646−13.40.21.1
2H-tet-23646−13.40.21.2
2H-tet-12646−12.90.11.1
pentazoles1H-pent-12650−8.60.01.5
a The degenerate bending frequency of isolated CO2 is 659 cm−1.
Table
Table 4. Binding energies (−ΔE) and charge-transfer energies (CT, kJ·mol−1), Nx-C and Ny-C distances (Å) and frequencies of bending vibration 1 (ν, cm−1) in perpendicular azole:CO2 complexes with tetrel bonds.
Table 4. Binding energies (−ΔE) and charge-transfer energies (CT, kJ·mol−1), Nx-C and Ny-C distances (Å) and frequencies of bending vibration 1 (ν, cm−1) in perpendicular azole:CO2 complexes with tetrel bonds.
AzoleComplex−ΔER(Nx-C); R(Ny-C) aCT bυ c,d
triazoles1H-123tri-23p15.8N2: 2.994; N3: 2.9384.4645
4H-124tri-12p18.1N1: 2.922; N2: 2.9225.6644
tetrazoles1H-tet-34p15.1N3: 2.959; N4: 2.9814.9648
2H-tet-34p13.7N3: 3.021; N4: 2.9674.2647
1H-tet-23p13.3N2: 3.088; N3:2.9544.1647
pentazoles1H-pent-34p12.2N3: 3.016; N4: 3.0163.0651
1H-pent-23p11.2N2: 3.113; N3: 2.9392.5650
a Two electron-donor N atoms that form the tetrel bond. b The charge transfer is (Nxlp + Nylp)→π*O-C-O. In the natural bond orbital (NBO) scheme, this is the sum of two charge-transfer interactions. c The degenerate bending vibrational frequency of isolated CO2 is 659 cm−1. d The bending vibrations are illustrated in Figure 7.
Table
Table 5. Binding energies (−ΔE) and charge-transfer energies (kJ·mol−1), Nz-O and Nz-H distances (Å), changes in Nz-H stretching frequencies (δν, cm−1) and spin-spin coupling constants 2hJ(Nz-O) (Hz) for CO2:azole complexes stabilized by Nz-H···O hydrogen bonds.
Table 5. Binding energies (−ΔE) and charge-transfer energies (kJ·mol−1), Nz-O and Nz-H distances (Å), changes in Nz-H stretching frequencies (δν, cm−1) and spin-spin coupling constants 2hJ(Nz-O) (Hz) for CO2:azole complexes stabilized by Nz-H···O hydrogen bonds.
AzoleComplex−ΔER(Nz-O)Olp→σ*Nz-H2hJ(Nz-O)R(Nz-H)Δν(Nz-H)
pyrrole1H-pyrr10.13.1758.72.11.006−5.1
imidazole1H-imid11.23.15210.12.21.007−8.8
124-triazole4H-124tri12.93.11212.32.61.008−17.1
pentazole1H-pent17.62.98822.74.61.014−47.0

Share and Cite

MDPI and ACS Style

Del Bene, J.E.; Elguero, J.; Alkorta, I. Complexes of CO2 with the Azoles: Tetrel Bonds, Hydrogen Bonds and Other Secondary Interactions. Molecules 2018, 23, 906. https://doi.org/10.3390/molecules23040906

AMA Style

Del Bene JE, Elguero J, Alkorta I. Complexes of CO2 with the Azoles: Tetrel Bonds, Hydrogen Bonds and Other Secondary Interactions. Molecules. 2018; 23(4):906. https://doi.org/10.3390/molecules23040906

Chicago/Turabian Style

Del Bene, Janet E., José Elguero, and Ibon Alkorta. 2018. "Complexes of CO2 with the Azoles: Tetrel Bonds, Hydrogen Bonds and Other Secondary Interactions" Molecules 23, no. 4: 906. https://doi.org/10.3390/molecules23040906

Article Metrics

Back to TopTop
