Open AccessArticle
Molecules 2018, 23(4), 713; https://doi.org/10.3390/molecules23040713

Utilizing a Spiro Core with Acridine- and Phenothiazine-Based New Hole Transporting Materials for Highly Efficient Green Phosphorescent Organic Light-Emitting Diodes

1
Division of Bio-Nanochemistry, College of Natural Sciences, Wonkwang University, Iksan City, Chonbuk 570-749, Korea
2
Nano-Convergence Research Center, Korea Electronics Technology Institute, Jeonju 54853, Korea
*
Authors to whom correspondence should be addressed.
Academic Editor: László Somsák
Received: 19 February 2018 / Revised: 9 March 2018 / Accepted: 19 March 2018 / Published: 21 March 2018
(This article belongs to the Special Issue Advances in Spiro Compounds)
Full-Text   |   PDF [4063 KB, uploaded 3 May 2018]   |

Abstract

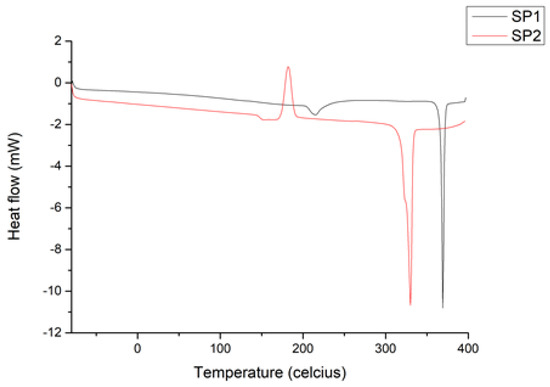

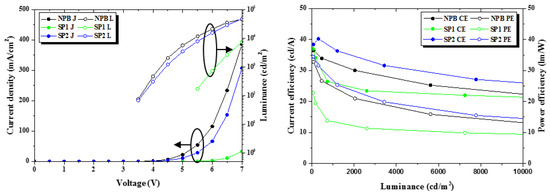

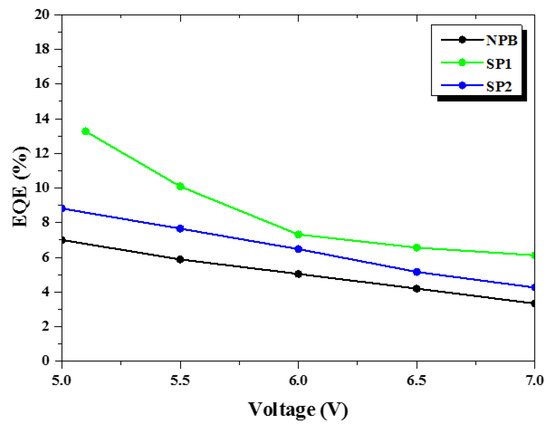

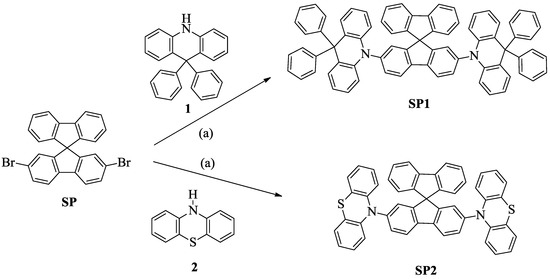

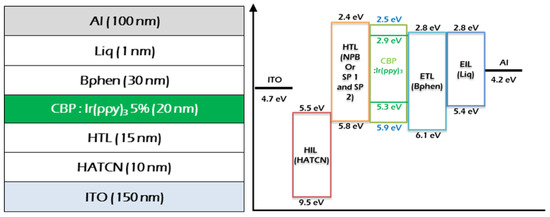

Two new hole transporting materials, 2,7-bis(9,9-diphenylacridin-10(9H)-yl)-9,9′ spirobi[fluorene] (SP1) and 2,7-di(10H-phenothiazin-10-yl)-9,9′-spirobi[fluorene] (SP2), were designed and synthesized by using the Buchwald–Hartwig coupling reaction with a high yield percentage of over 84%. Both of the materials exhibited high glass transition temperatures of over 150 °C. In order to understand the device performances, we have fabricated green phosphorescent organic light-emitting diodes (PhOLEDs) with SP1 and SP2 as hole transporting materials. Both of the materials revealed improved device properties, in particular, the SP2-based device showed excellent power (34.47 lm/W) and current (38.41 cd/A) efficiencies when compare with the 4,4′-bis(N-phenyl-1-naphthylamino)biphenyl (NPB)-based reference device (30.33 lm/W and 32.83 cd/A). The external quantum efficiency (EQE) of SP2 was 13.43%, which was higher than SP1 (13.27%) and the reference material (11.45%) with a similar device structure. The SP2 hole transporting material provides an effective charge transporting path from anode to emission layer, which is explained by the device efficiencies. View Full-Text
Keywords: organic light-emitting diodes; spirobifluorene; hole transporting materials; green phosphorescence; phenothiazine; acridine organic light-emitting diodes; spirobifluorene; hole transporting materials; green phosphorescence; phenothiazine; acridine
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Braveenth, R.; Bae, I.-J.; Han, J.-H.; Qiong, W.; Seon, G.; Raagulan, K.; Yang, K.; Park, Y.H.; Kim, M.; Chai, K.Y. Utilizing a Spiro Core with Acridine- and Phenothiazine-Based New Hole Transporting Materials for Highly Efficient Green Phosphorescent Organic Light-Emitting Diodes. Molecules 2018, 23, 713.
