Open AccessFeature PaperArticle
Molecules 2018, 23(2), 479; https://doi.org/10.3390/molecules23020479

Recognition of AMP, ADP and ATP through Cooperative Binding by Cu(II) and Zn(II) Complexes Containing Urea and/or Phenylboronic—Acid Moieties

1
Departamento de Química, Facultade de Ciencias, Universidade da Coruña, Centro de Investigacións Científicas Avanzadas (CICA), 15071 A Coruña, Galicia, Spain
2
Departamento de Química, Facultad de Ciencias, Universidad de Burgos, 09001 Burgos, Spain
*
Author to whom correspondence should be addressed.
Received: 25 January 2018 / Revised: 16 February 2018 / Accepted: 20 February 2018 / Published: 22 February 2018
(This article belongs to the Special Issue Coordination Chemistry for Devices and Functional Materials)
Full-Text   |   PDF [7042 KB, uploaded 25 February 2018]   |

Abstract

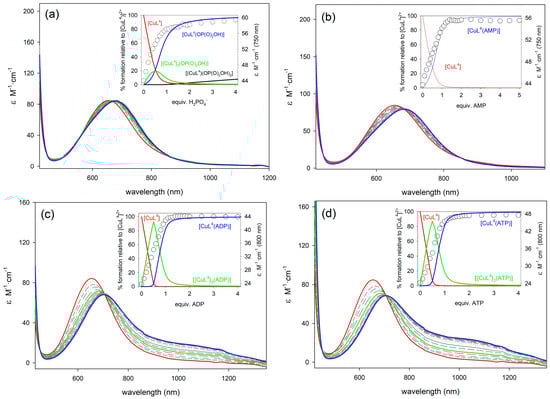

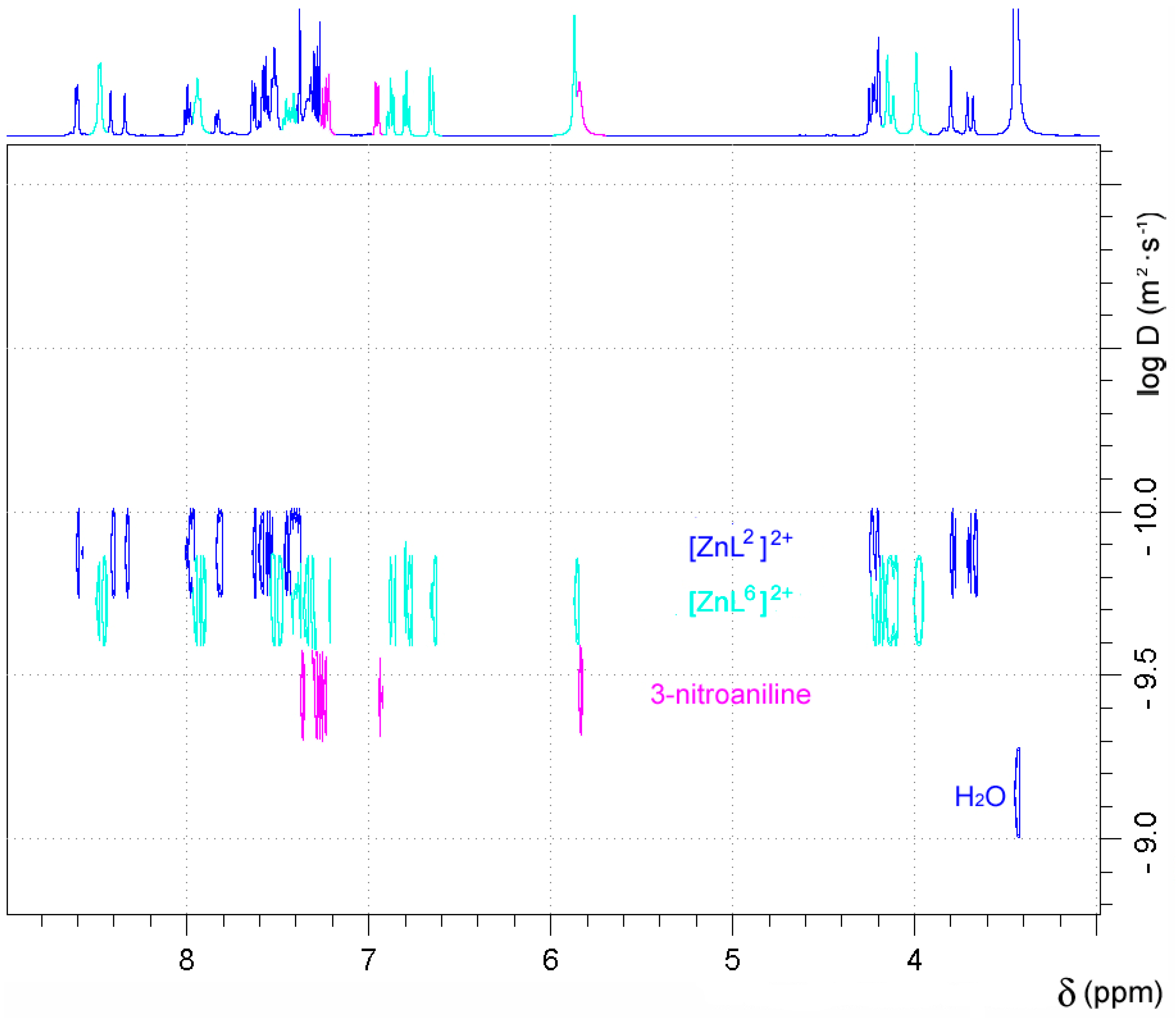

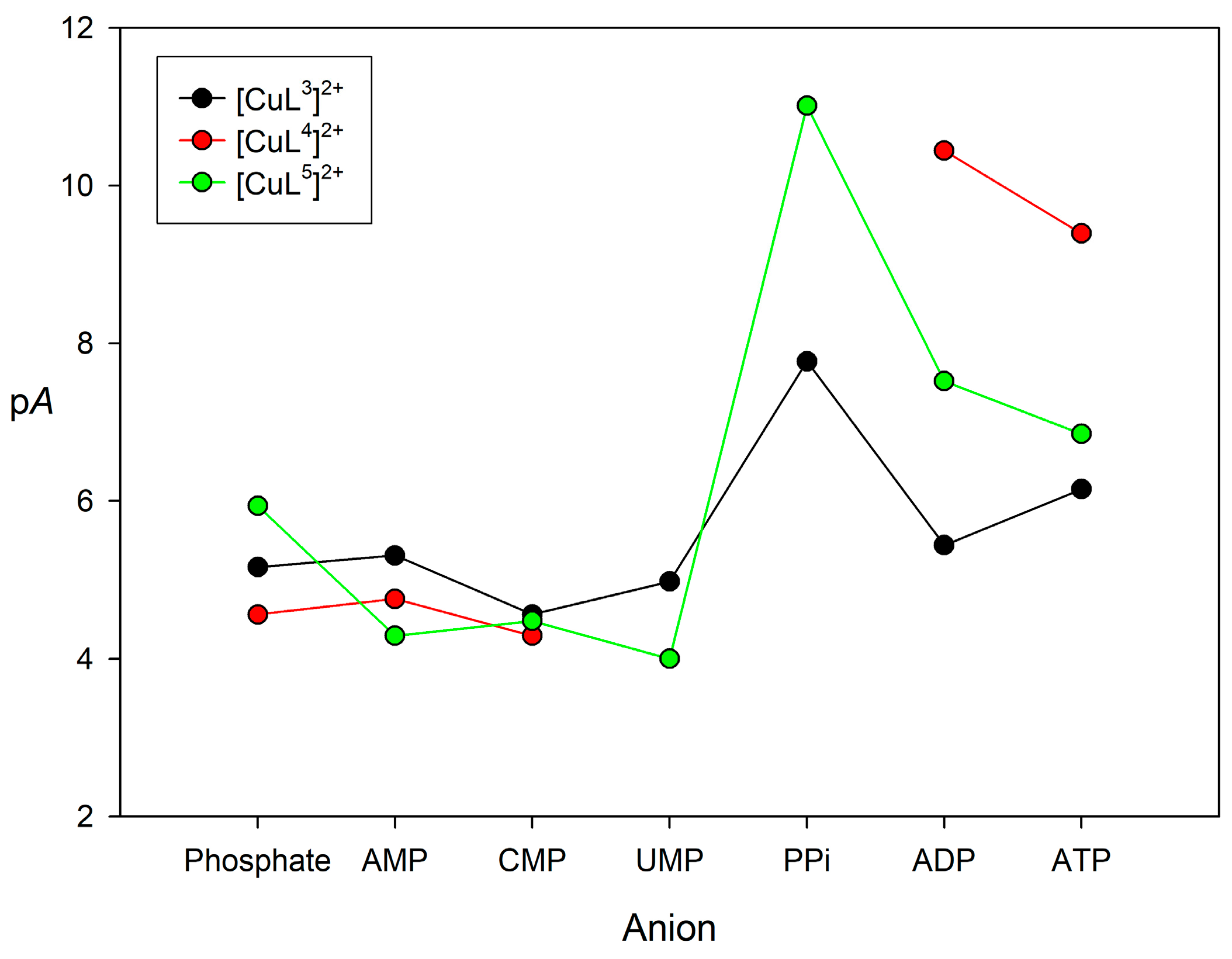

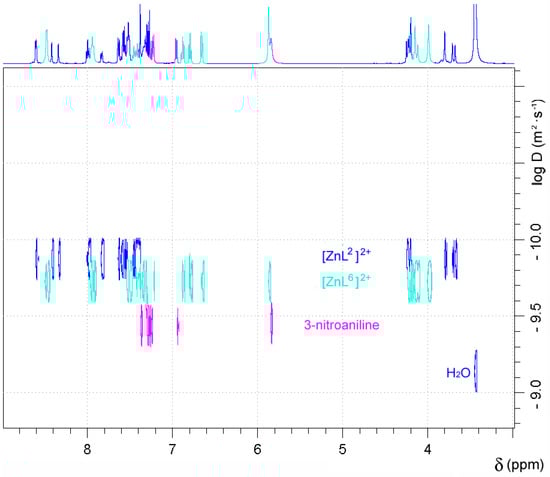

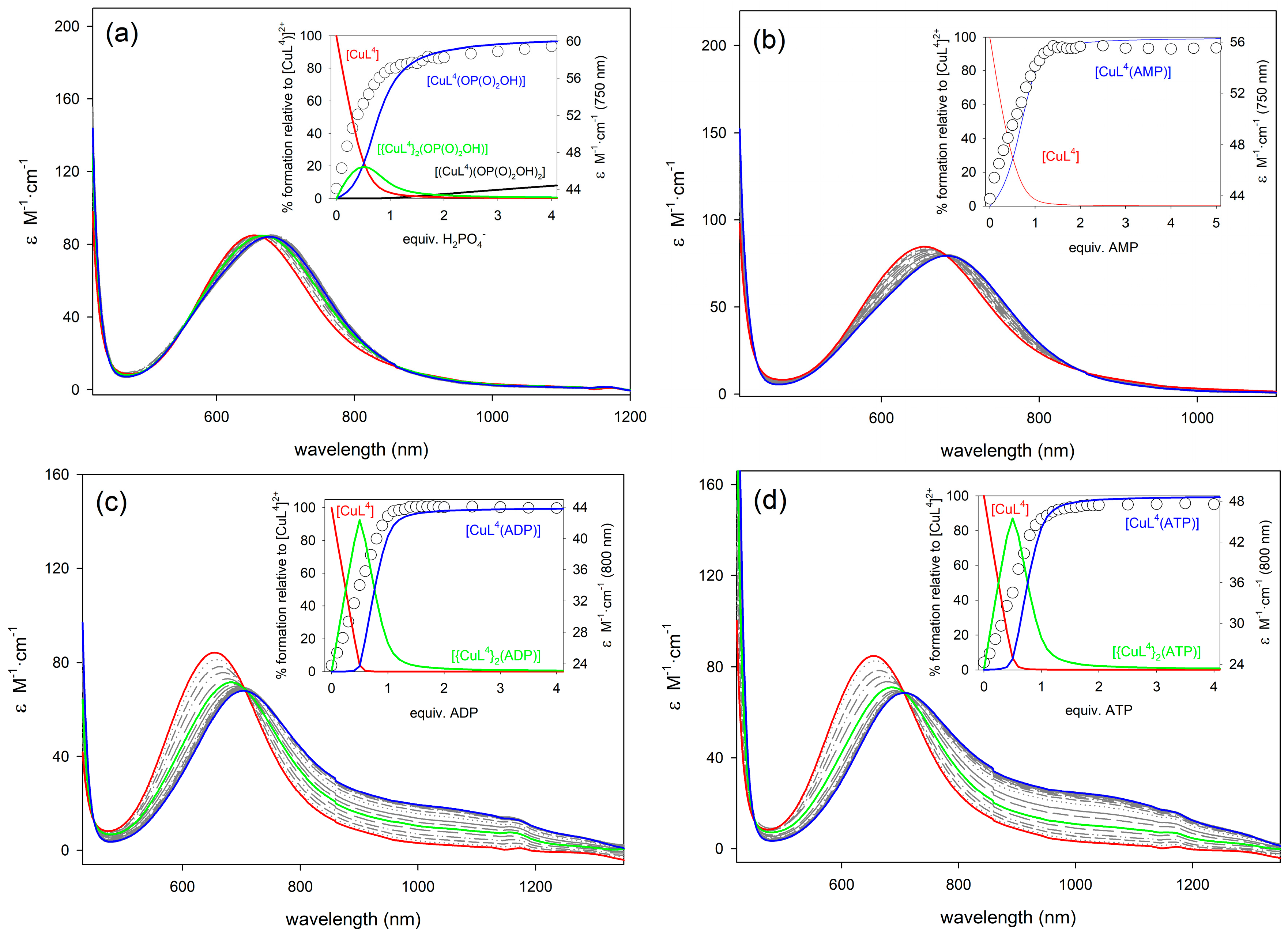

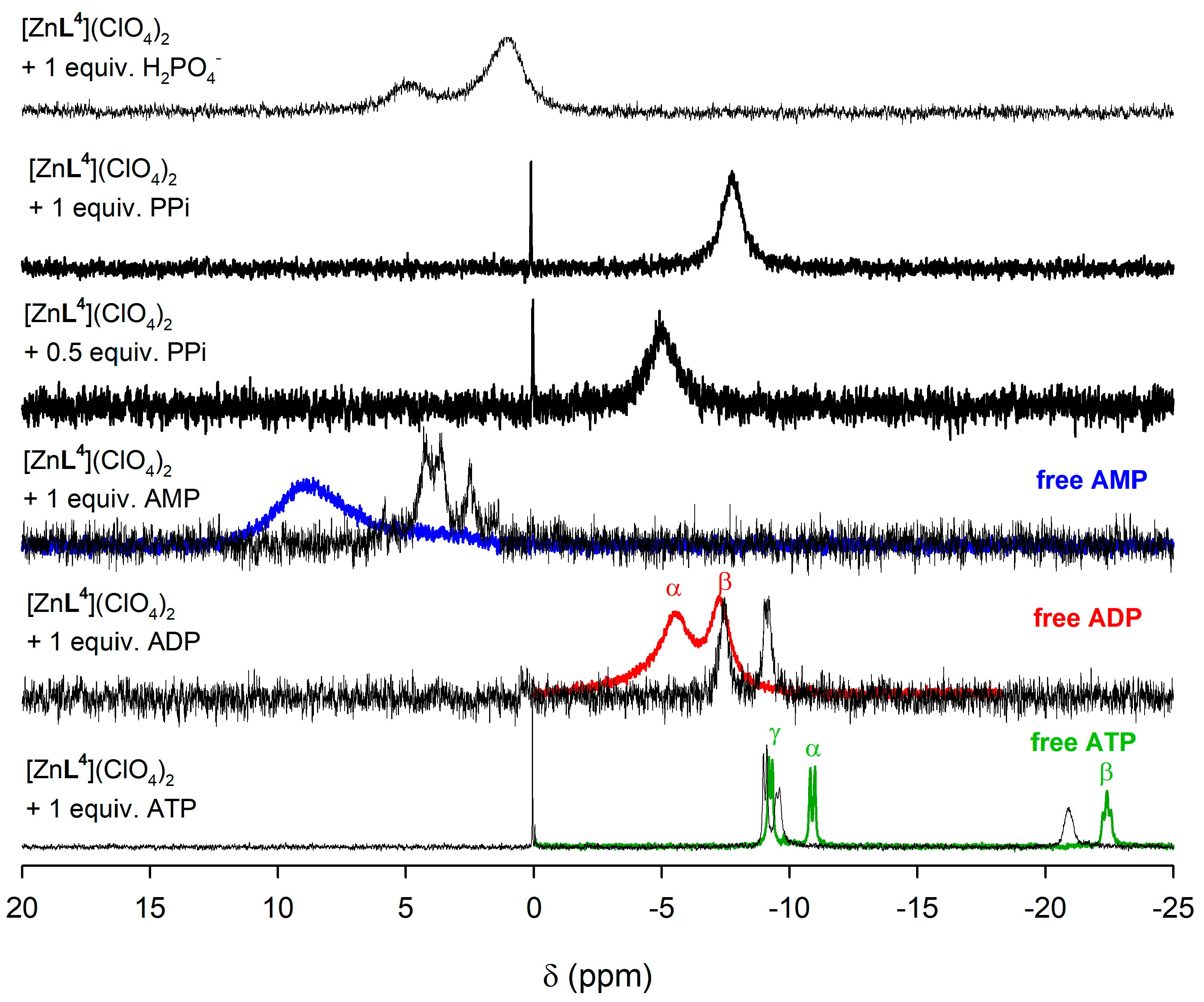

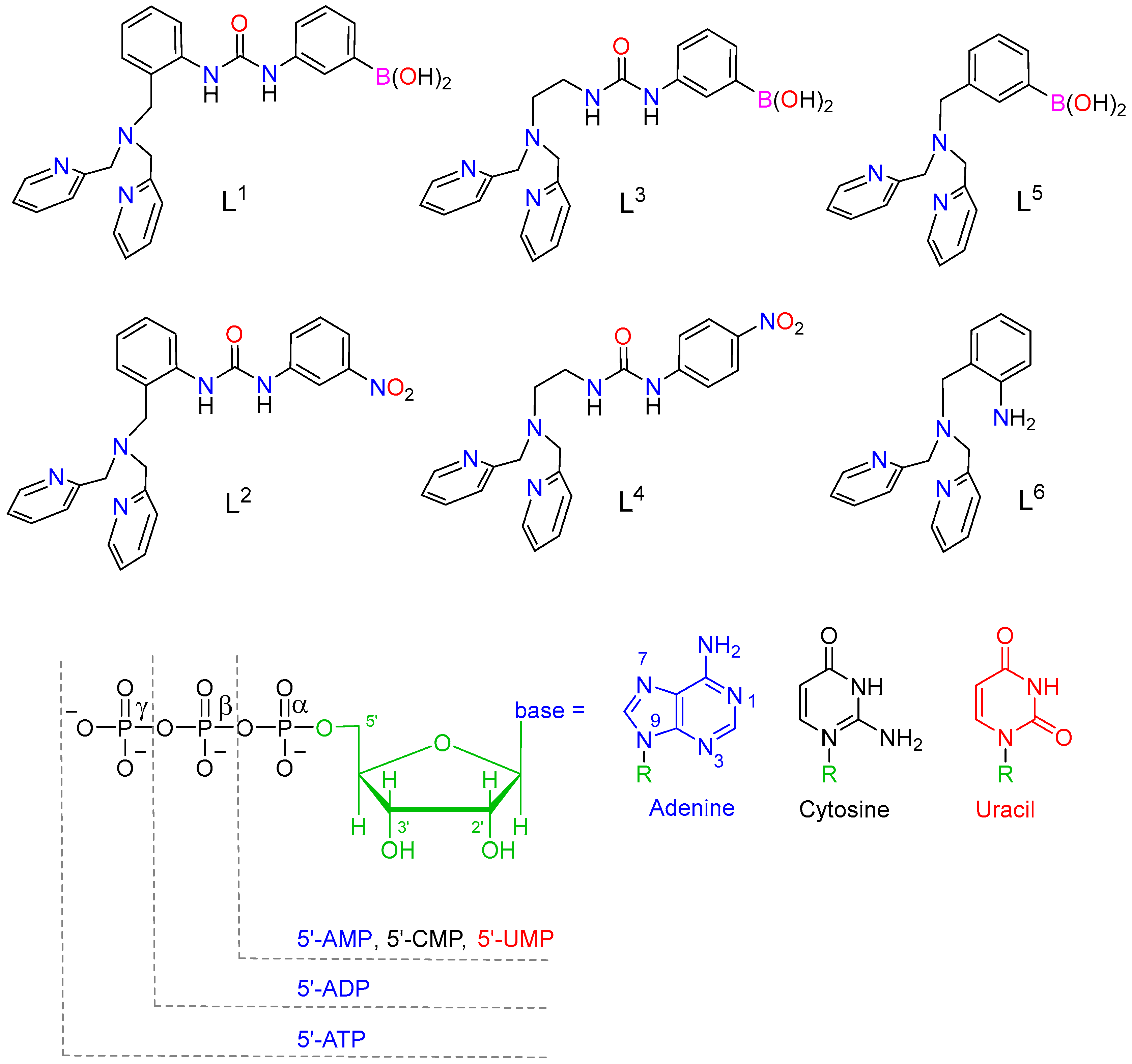

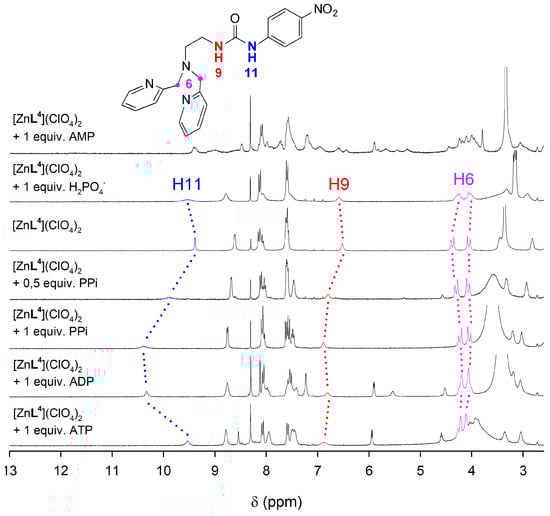

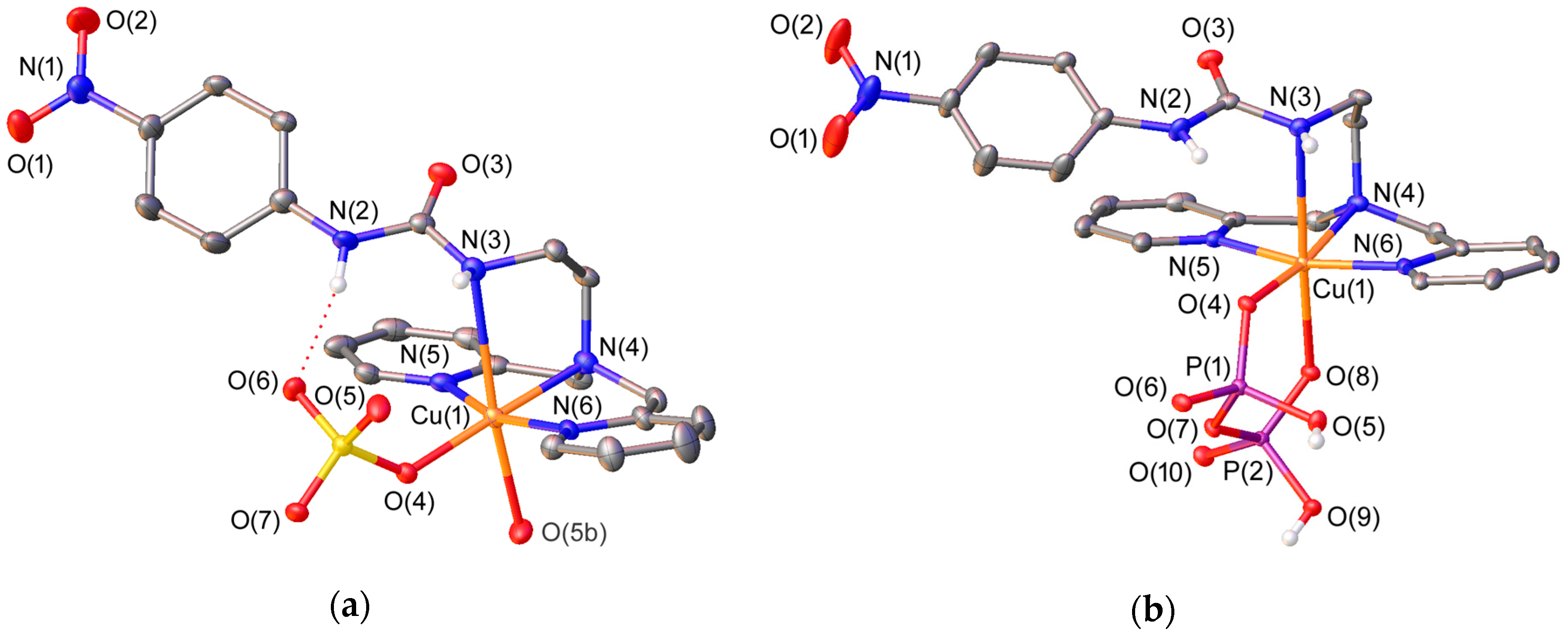

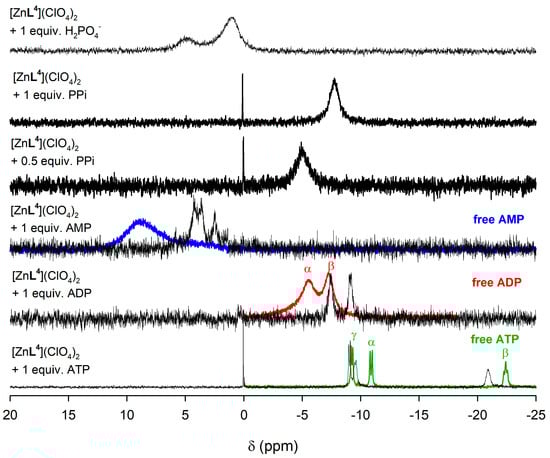

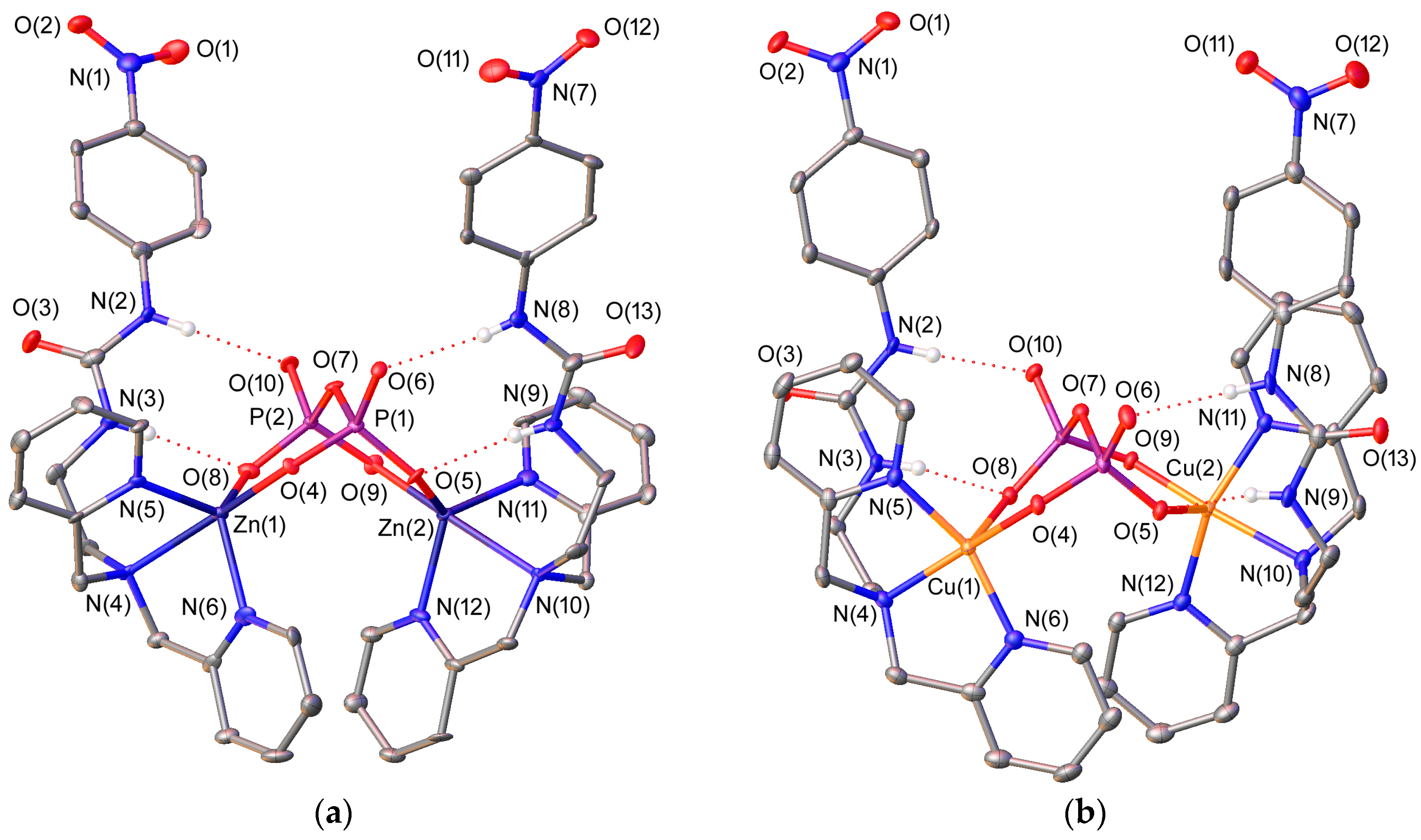

We report a series of Cu(II) and Zn(II) complexes with different ligands containing a dipicolyl unit functionalized with urea groups that may contain or not a phenylboronic acid function. These complexes were designed for the recognition of phosphorylated anions through coordination to the metal ion reinforced by hydrogen bonds involving the anion and NH groups of urea. The complexes were isolated and several adducts with pyrophosphate were characterized using X-ray diffraction measurements. Coordination of one of the urea nitrogen atoms to the metal ion promoted the hydrolysis of the ligands containing 1,3-diphenylurea units, while ligands bearing 1-ethyl-3-phenylurea groups did not hydrolyze significantly at room temperature. Spectrophotometric titrations, combined with 1H and 31P NMR studies, were used in investigating the binding of phosphate, pyrophosphate (PPi), and nucleoside 5′-polyphosphates (AMP, ADP, ATP, CMP, and UMP). The association constants determined in aqueous solution (pH 7.0, 0.1 M MOPS) point to a stronger association with PPi, ADP, and ATP as compared with the anions containing a single phosphate unit. The [CuL4]2+ complex shows important selectivity for pyrophosphate (PPi) over ADP and ATP. View Full-Text
Keywords: molecular sensors; metal complexes; cooperative binding; multitopic receptor; hydrogen bonding; urea group; phenylboronic moiety molecular sensors; metal complexes; cooperative binding; multitopic receptor; hydrogen bonding; urea group; phenylboronic moiety
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Carreira-Barral, I.; Fernández-Pérez, I.; Mato-Iglesias, M.; de Blas, A.; Platas-Iglesias, C.; Esteban-Gómez, D. Recognition of AMP, ADP and ATP through Cooperative Binding by Cu(II) and Zn(II) Complexes Containing Urea and/or Phenylboronic—Acid Moieties. Molecules 2018, 23, 479.
