Molecules 2017, 22(6), 876; doi:10.3390/molecules22060876

Article
Identification of Anthocyanin Composition and Functional Analysis of an Anthocyanin Activator in Solanum nigrum Fruits
1
State Key Laboratory of Crop Biology, Shandong Provincial Key Laboratory for Biology of Vegetable Diseases and Insect Pests, Shandong Agricultural University, Taian 271018, Shandong, China
2
Shaoxing Entry-Exit Inspection and Quarantine Bureau, Shaoxing 312000, Zhejiang, China
3
Anhui Biothun Biotechnology Company, Hefei 230088, Anhui, China
4
Institute of Plant Protection, Yantai Academy of Agricultural Science, Yantai 265500, Shandong, China
*
Correspondence: xhding@sdau.edu.cn; Tel.: +86-53-8824-5569; Fax: +86-53-8824-9913
These authors contributed equally to this work.
Academic Editor: Thomas J. Schmidt
Received: 3 May 2017 / Accepted: 22 May 2017 / Published: 25 May 2017

Abstract

:
Solanum nigrum fruits have been conventionally used in beverages due to their nutritional substances such as minerals, vitamins, amino acids, proteins, sugars, polyphenols, and anthocyanins. The characterization of components and regulatory mechanism of anthocyanins in S. nigrum fruits have rarely been reported. In this study, we determined that the peel and flesh of S. nigrum fruits shared similar HPLC profiles but different contents and total antioxidant activities for anthocyanins. After an efficient purification method, mainly including extraction with pH 1.0 distilled water and then desorption with pH 1.0 95% ethanol after a DM-130 resin adsorption step to obtain more pure anthocyanin extracts, the purity of anthocyanins extracted from S. nigrum fruits reached 56.1%. Moreover, eight anthocyanins from S. nigrum fruit were identified with HPLC-MS/MS for the first time. A typical R2R3-MYB transcription factor gene, SnMYB, was also cloned for the first time by rapid amplification of cDNA ends (RACE)-PCR from S. nigrum. Moreover, the contents of anthocyanins were shown to correlate well (r = 0.93) with the expression levels of SnMYB gene during the fruit’s developmental stages. Most significantly, SnMYB gene successfully produced high anthocyanin content (1.03 mg/g) when SnMYB gene was transiently expressed in tobacco leaves. Taken together, S. nigrum fruits are a promising resource for anthocyanin extraction, and SnMYB gene is an activator that positively regulates anthocyanin biosynthesis in S. nigrum.
Keywords:
Solanum nigrum; anthocyanin; HPLC-MS/MS; antioxidant capacity; SnMYB transcription factor

1. Introduction

As a group of natural pigments, anthocyanins are water-soluble and provide many flowers and fruits with their purple, blue, and red colors, which promotes pollination and seed distribution [1]. Natural anthocyanins have the ability to protect plants from biotic and abiotic stress [2]. For example, anthocyanins can provide plants with increased resistance to some fungal diseases and insect damage [3,4]. Furthermore, anthocyanins are capable of protecting plants from cold damage and UV irradiation [5]. In addition to the physiological effects in plants, a healthy diet rich in anthocyanins has a variety of notable health-promoting effects. Anthocyanins offer protection against certain chronic illnesses including hyperglycemia [6] and inhibit the growth of tumor cells in humans [7,8]. Anthocyanins also have been shown to improve vision [9]. Due to these benefits, anthocyanins are becoming increasingly commercial and have been utilized for use in beverages [10] and in therapy for many human diseases [6,7,8].
As an herbal plant, S. nigrum is known as “Black nightshade” or “Black stars”. In China, people have extensively used the plant for its therapeutic effects of inflammation due to its antipyretic and diuretic effects [11]. Furthermore, the S. nigrum fruits are rich in a variety of nutritional substances including minerals such as K, Na, Ca, Zn, and vitamins, amino acids, protein, sugars, polyphenols, and anthocyanins [12,13], so they are widely processed into edible products, such as juice, beverages, jam, fruit wine, and so on [10]. Mature fruits of S. nigrum are usually made into drinks to relieve tension and anxiety in Mexico [14]. The S. nigrum plant also plays a vital role in the remediation of soils contaminated with heavy metals, such as Cd and As [15].
Although there are many studies concerning anthocyanins in berries (cherry, blueberry, and blackcurrant) with red, blue, or purple colors, studies on the anthocyanins of S. nigrum fruits are rare. Furthermore, there are few studies regarding the purification and identification of anthocyanins in S. nigrum fruits. The purification of anthocyanins was investigated in different studies with different procedures. Strathearn et al. (2014) [16] increased the purity of anthocyanin extracts to 20.6% after an enrichment step in a C18 solid-phase extraction of blueberries. Liu et al. (2012) [17] utilized an Amberlite XAD-7 column and a Sephadex LH20 column to obtain a 31% purity of anthocyanin crude extracts of blueberries. Nonetheless, the purities of these abovementioned anthocyanin extracts were all below 40% in most studies.
Some endogenous MYB-bHLH-WD40 (MBW) complexes composed of R2R3-MYB, basic-Helix--Loop-Helix (bHLH), and WD40 transcription factors (TFs) are considered to participate in the regulation of anthocyanin biosynthesis [18]. Among them, R2R3-MYB TFs are thought to combine directly to the promoter regions of many structural genes related to anthocyanin biosynthesis [19]. However, intense anthocyanin accumulation occurred when exogenous R2R3-MYB was individually expressed in other plants. For example, kiwifruit AcMYB110 individually induced anthocyanin accumulation when ectopically expressed in tobacco leaves without ectopic expression of any other bHLH or WD40 as a partner [20]. Several R2R3-MYB anthocyanin activators have also been identified in Solanaceae plants. Ectopic expression of NtAn2 induced whole-plant anthocyanin production in tobacco and Arabidopsis [21]. Moreover, StAN1, StMYBA1, and StMYB113 were also found to be able to individually induce intense anthocyanin pigments when they were transiently expressed in tobacco leaves [22]. This evidence verifies that R2R3-MYB TFs are critically important for anthocyanin production. However, no MYB transcription factor associated with anthocyanin regulation has been cloned from S. nigrum.
Herein, we explored an efficient purification method to obtain purer anthocyanin extracts and identified the anthocyanin compositions of S. nigrum fruits with HPLC-MS/MS. In order to investigate the molecular mechanism of anthocyanin biosynthesis, we cloned an R2R3-MYB by rapid amplification of cDNA ends (RACE)-PCR and revealed the function of SnMYB gene by determining the relationship between SnMYB gene transcript levels and anthocyanin contents at different developmental stages of fruits, and we transiently expressed SnMYB gene to produce anthocyanins in tobacco leaves.

2. Results

2.1. Analyses of Anthocyanins and their Antioxidant Activity in S. nigrum Fruits

It has been reported that the peels of apples have greater antioxidant activity than does the flesh due to the presence of more anthocyanins and quercetin glycosides [23]. Therefore, we determined anthocyanin content and antioxidant activities of the peel, flesh, and whole fruit of S. nigrum. It was obvious that there were the same anthocyanin HPLC profiles among the peel, flesh, and whole fruit. The retention time of anthocyanin peaks were spread from 10 min to 25 min, approximately. Among them, peak five had the highest peak area (Figure 1a). The peel of S. nigrum fruit contains the highest anthocyanin content (18.215 mg/g Fresh Weight (FW)). In contrast, the anthocyanin content was the lowest (1.263 mg/g FW) in the flesh. Anthocyanin content in the whole fruit (3.954 mg/g FW) of S. nigrum was between that of the peel and the flesh (Figure 1b). Corresponding to the anthocyanin contents, there was the same trend of antioxidant activities in the peel, flesh, and whole fruit with the Trolox equivalent antioxidant capacity (TEAC) measurements of 113.47 ± 2.48, 12.12 ± 0.79, and 63.74 ± 0.34 mmol/kg FW, respectively (Figure 1c). It it worth noting that the anthocyanin content in the peel, flesh, and whole fruit are also strongly linearly related to the TEAC measurements, as shown by the Pearson coefficient, S. nigrum r = 0.93, which is consistent with reports in many plants with high anthocyanin content [24,25,26].

2.2. Purification of Anthocyanins from S. nigrum Fruits

In light of abovementioned analyses of anthocyanin content and antioxidant activities of S. nigrum fruits, we applied a purification method to obtain purer anthocyanin extracts. HPLC profiles indicate that there are no obvious changes in anthocyanin HPLC profiles, but there is a higher HPLC signal for the purified than for that of the unpurified anthocyanin extract from S. nigrum fruits (Figure 2a). Next, the purities of both purified and unpurified anthocyanin extracts were determined by spectroscopic scanning. The spectral character of the unpurified sample demonstrates the highest peak at 520 nm (peak 2) which is confirmed as the anthocyanin absorption peak, and a lower peak at 320 nm (peak 1) which is recognized as the hydroxycinnamate absorption peak [27]. After the purification steps, however, the absorption peak at 520 nm of purified anthocyanin extract is higher than that of unpurified anthocyanin extract, and the peak at 325 nm is lower in the opposite manner (Figure 2b), which means our method is conducive to eliminating non-anthocyanin components. The purity of purified anthocyanin extract powder (5.99 g) from S. nigrum fresh fruits (1 kg) is increased to 56.1% from 0.395% of the whole fresh fruit. Accordingly, the antioxidant capacity of the purified anthocyanin extract is increased to 773.54 mmol/kg Dry Weight (DW) from 63.74 mmol/kg FW of the whole fresh fruit. These results suggest our purification method is promising for obtaining high-purity anthocyanins from S. nigrum fruits.

2.3. Identification of Anthocyanin Composition by Mass Spectrometry

After HPLC separation, eight peaks (Figure 2a) of anthocyanin compounds were subsequently characterized by monitoring the molecular ion characteristics and referring to other literature [28,29,30,31]. The m/z ratio and HPLC-MS/MS ion graphs of each parent ion and their daughter fragments are shown in Table 1 and Figure 3. Four aglycones were determined as cyanidin aglycone (Cyd, m/z 287) [28], delphinidin aglycone (Dpd, m/z 303), petunidin aglycone (Ptd, m/z 317), and malvidin aglycone (Mv, m/z 331) [29]. Petunidin was the richest detected aglycone with five derivatives (peaks 3, 4, 5, 6, and 7) (Figure 2a; Table 1). Among them, peaks 4 and 5 (m/z 933) were different isomers, with two of the same daughter fragments (m/z 771 and m/z 479) (Table 1). The transitions 933–771 and 933–479 indicated a loss of glucose (m/z 162) and p-coumaroyl (m/z 454) [30] in peaks four and five, respectively. In addition, because the cis-p-coumaroyl derivative had higher polarity, it was eluted earlier than its trans configuration [29]. Therefore, peak four (Figure 3d) was tentatively recognized as petunidin-3-(cis-p-coumaroyl)-rutinoside-5-glucoside, and peak five (Figure 3e) was tentatively identified as petunidin-3-(trans-p-coumaroyl)-rutinoside-5-glucoside. Due to the petunidin aglycone (Ptd, m/z 317) and other two fragments (m/z 787 and m/z 479) identified in previous research [29], we supposed that peak three was petunidin-3-O-rutinoside-(caffeoyl)-5-O-glucoside. Transitions 963–801 and 963–479 indicated glucose (m/z 162) and feruloyl (m/z 484) [30] existed at peak six (m/z 963) (Figure 3f). Therefore, with a fragment of petunidin aglycone (Ptd, m/z 317), peak six was considered petunidin-3-(feruloyl)-rutinoside-5-glucoside. Peak seven (m/z 641) (Figure 3g) was the fifth peak with petunidin aglycone (Ptd, m/z 317). Along with the transition 641–479 leading to the loss of glucose (m/z 162), peak seven was identified as petunidin-3-O-glucoside-5-O-glucoside [31]. For the first anthocyanin elution component, peak one (m/z 757) (Figure 3a) was a unique anthocyanin with a cyanidin aglycone (m/z 287) fragment. In addition, transition 757–595 indicated a loss of glucose (m/z 162). This evidence suggests that peak one was cyanidin-3-rutinoside-5-glucoside [28]. By that analogy, transitions 919–757 and 919–465 implied a loss of glucose (m/z 162) and p-coumaroyl (m/z 454) at peak two (m/z 919) (Figure 3b), and the delphinidin aglycone (Dpd, m/z 303) revealed that peak two was delphinidin-3-(p-coumaroyl)-rutinoside-5-glucoside. As the last eluted anthocyanin, peak eight (m/z 947) (Figure 3g) should have a loss of glucose (m/z 162) and p-coumaroyl (m/z 454) due to its two daughter ions (m/z 785 and m/z 493) (Figure 3g). Like peaks one and two, peak eight was also unique, having the fragment of malvidin aglycone (Mv, m/z 331), which indicated that peak eight was malvidin-3-(p-coumaroyl)-rutinoside-5-glucoside.

2.4. Cloning of SnMYB from S. nigrum

To clarify the regulatory mechanism of anthocyanin biosynthesis in S. nigrum fruts, we intended to clone an R2R3-MYB transcription factor which functions in anthocyanin regulation. Therefore, the degenerate primers SnMYB-D-F/R were used for generating a 115-bp-conserved-region fragment (Figure 4a). Then, the conserved fragment was sequenced and used to design the gene-specific primers SnMYB-5′RACE-R and SnMYB-3′RACE-F to obtain a 564-bp 5′ cDNA fragment and an 844-bp 3′ cDNA fragment by rapid amplification of cDNA ends (RACE) following the manufacturer’s instructions of the SMART RACE cDNA amplification kit (Figure 4a). Finally, after the 5′-RACE and 3′-RACE fragments were assembled, SnMYB-FL-F and SnMYB-FL-R primers were designed to amplify a 792-bp coding sequence named SnMYB (Figure 4a). Subsequently, protein sequences of SnMYB and other R2R3-MYB TFs related to accumulation of anthocyanins in some Solanaceae plants were aligned with each other. It was discovered that there were highly conserved R2 and R3 MYB domains (Figure 4b) in the N-terminal region. Moreover, they all had other conserved motifs in the C-terminal region, such as the [D/E]Lx2[R/K]x3Lx6Lx3R motif (Box-A in Figure 4b), which is important for interaction with bHLH proteins [32], and the conserved ANDV motif (Box-B in Figure 4b) identified from MYB activators of the anthocyanins pathway in Rosaceae species [33]. In addition, the motif [R/K]Px[P/A/R]xx[F/Y] (Box-C in Figure 4b) is highly conserved in the anthocyanin-promoting MYBs of some plant species [34]. Furthermore, the phylogenetic analysis revealed that SnMYB was closely clustered with other anthocyanin-related MYBs from other Solanaceae species (Figure 4c).

2.5. Expression Analysis of SnMYB in Different Developmental Stages of S. nigrum Fruits

To identify the relationship between color deposition and transcript levels of SnMYB, we determined the anthocyanin contents and expression levels of SnMYB in different developmental stages. In addition, due to the highest anthocyanin content being in the peel, the experiment was carried out using the peel. Four different developmental stages, including the green, turn, purple, and mature stages, are found during fruit maturation. The green stage is a green color since it has few anthocyanins. However, other stages gradually become a deeper purple color with fruit maturation (Figure 5a). The mature stage has the highest anthocyanin content of all stages. The expression pattern of SnMYB displays a similar trend as the anthocyanin content in the four stages, except that the mature stage shows a slightly decreasing trend from the purple stage (Figure 5b).

2.6. Transient Expression of SnMYB in Tobacco Leaves

To further investigate the function of SnMYB as an anthocyanin regulator, we transiently expressed SnMYB in tobacco leaves. Four days after infiltration, red pigmentation was evident, and it developed into a dark red patch after 10 days (Figure 6a). Accordingly, the anthocyanins reached up to the maximum contents (1.03 mg/g) at 10 days after infiltration, which was even higher than that of blueberry in other reports (0.41–0.83 mg/g) [35]. Moreover, the anthocyanin contents and relative expression levels of SnMYB were both measured after infiltration. Both displayed a sharply rising trend after 4 days, except there was a slightly descending trend of SnMYB expression beginning 8 days after infiltration (Figure 6b,c).

3. Discussion

In our study, the peel of S. nigrum fruits displayed the same HPLC profiles and higher anthocyanin content and antioxidant activity than that of the flesh and whole fresh fruit (Figure 1), which is consistent with other reports [23,36]. Moreover, it is worth noting that the HPLC profile and content of anthocyanins in S. nigrum fruits were different and higher than those of other report [12]. These differences were most likely caused by different extraction methods [37] and raw materials used [35]. We found that there existed a strong positive correlation, with correlation coefficient: r = 0.93, between anthocyanin content and antioxidant capacities of the peel, flesh, and whole fresh fruit. These results indicate that anthocyanins are the major contributor to the total antioxidant capacity of S. nigrum fruit, which is consistent with previous reports [25,26]. Until now, most anthocyanin extractions and purifications have been carried out with blueberries or blackcurrants but not with S. nigrum fruits, and most purities were all below 40% [16,17], which were also lower than our result of purified anthocyanins from S. nigrum fruits. This evidence indicates that our purification method provided a fair chance of extracting anthocyanins from S. nigrum fruits with no change in composition but a large increase in purity.
In our study, we succeeded in identifying four anthocyanin aglycones by HPLC-MS/MS, including cyanidin (Cy, peak 1), malvidin (Mv, peak 8), petunidin (Pt, peaks 3, 4, 5, 6, and 7) and delphinidin (Dp, peak 2), in S. nigrum fruits (Table 1). Among the four anthocyanin aglycones, petunidin (Pt) aglycone was the most abundant component, with five derivatives (peaks 3, 4, 5, 6, and 7) (Table 1). The highest peak, five, was identified as petunidin-3-(trans-p-coumaroyl)-rutinoside-5-glucoside, which was in agreement with results in Lycium ruthenicum Murr [29] and tomato [30], also belonging to the Solanaceae genus. Interestingly, a cyanidin anthocyanin aglycone (peak 1) (Table 1) was firstly obtained in our result but not in other research on anthocyanins from S. nigrum fruits or other Solanaceae species [12]. It may be that the mass spectrometer used in this study has a higher sensitivity.
For the first time, we cloned an anthocyanin-related R2R3-MYB gene with RACE-PCR in the case of unknown genome sequences of S. nigrum. Three motifs including [D/E]Lx2[R/K]x3Lx6Lx3R [32], ANDV [33], and [R/K]Px[P/A/R]xx[F/Y] [34] displayed in the SnMYB protein sequence. With analysis of the phylogenetic relationship between SnMYB and other anthocyanin-activating MYBs of Solanaceae plants, we concluded that SnMYB probably has the capability of being an R2R3-MYB which could activate anthocyanin production in S. nigrum fruits.
In addition, there was a positive correlation, with r = 0.93, between the SnMYB transcript levels and anthocyanin accumulation (Figure 5), which was consistent with the result of MYB genes and anthocyanin accumulation in apples [38]. More importantly, the SnMYB gene can produce anthocyanins when transiently expressed in tobacco leaves at four days after infiltration (Figure 6a). The anthocyanin content reached the maximum content (1.03 mg/g) at 10 days after infiltration with SnMYB, which was even higher than that of blueberries (0.41–0.83 mg/g) [35] and was similar to the anthocyanin content of AcMYB110 (0.6–1.4 mg/g) [39] and StAN1-R1 (0.75–1.63 mg/g) [22] expressed in tobacco leaves. This result revealed that SnMYB most likely possesses a similarly strong function as AcMYB110 and StAN1-R1 in activating anthocyanin production when SnMYB was expressed in other plants to produce anthocyanins.

4. Materials and Methods

4.1. Plant Materials

Fruits of S. nigrum cultivar SN-0013 were harvested in a greenhouse. Whole fruits of different developmental stages were integrally harvested, frozen in liquid nitrogen, and stored at −80 °C until used for extraction of anthocyanins and RNA for further experiments.

4.2. HPLC and Mass Spectrometric Identification of Anthocyanins

Samples were ground into powders (approximately 0.2 g) in a mortar filled with liquid nitrogen. Next, the extraction method of Butelli et al. (2008) [40], with slight modifications, was used. The powder was extracted with 2 mL of 100% MeOH (Sigma, St. Louis, MI, USA). The powder/solvent mixture was stored at 4 °C for 12 h and shaken every 15 min in the first 2 h, avoiding light exposure. Samples were centrifuged at 2800 rpm for 30 min, and the supernatant was filtered through a 0.22 μm membrane filter. Then, samples were analyzed using an Agilent Technologies 1200 series HPLC (Agilent Technologies, Santa Clara, CA, USA) equipped with a diode array detector and a Zorbax Stablebond Analytical SB-C18 column (4.6 mm × 250 mm, 5 μm, Agilent Technologies, CA, USA). The mobile phase was as follows: solvent A consisted of 87% water, 11% acetonitrile (ACN), and 2% acetic acid, and solvent B consisted of 40% water, 58% ACN, and 2% acetic acid. The gradient elution was as follows: 0 min 4% B, 20 min 20% B, 35 min 40% B, 40 min 60% B, 45 min 90% B, and 55 min 4% B at a flow rate of 1 mL/min. The detection was recorded at 520 nm, and the column oven temperature was set to 30 °C. The anthocyanin standard (petunidin-3-(trans-coumaroyl)-rutinoside-5-glucoside) was obtained from the Anhui Biothun biotechnology company (Biothun, Anhui, China).
Purified anthocyanin extracts were dissolved in 100% MeOH and the mass spectrometric analysis was carried out on Q-TOF 5600 (Applied Biosystems, CA, USA) system in positive mode with m/z values ranging from 300 to 1000. Other Mass Spectrometry (MS) conditions were all as follows: nitrogen gas temperature, 550 °C; drying gas flow rate, 11 L/min; nebulization pressure, 35 psi; cone voltage, 40 V; capillary voltage, 3.5 kV.

4.3. Purification of Anthocyanins from S. nigrum Fruits

Whole frozen fruits (1 kg) were thawed and chopped into pieces. Then, they were extracted with 3 L of pH 1.0 distilled water adjusted with HCl overnight. The fruit juice supernatant was filtered with 200-mesh gauze to obtain the first crude juice. The precipitation of the pomace was then extracted using the above extraction solvent with ultrasonic wave treatment (500–700 W) three times every 30 min to obtain the second crude juice. Next, the two crude juices were loaded onto a DM-130 resin purchased from Amicogen (China) Biopham Co., Ltd. (Jining, China) (http://www.lksz.cn/). After the crude extracts were completely absorbed by the resin, pH 1.0 distilled water adjusted by HCl was applied to wash away impurities, such as free sugars and organic acids. Then, washing of the resin was stopped when the drip became clear. Afterwards, 95% ethanol (pH 3.0, adjusted by HCl) was used for eluting the purple anthocyanins from the resin until the drops were of achromatic color. At the end, the purple anthocyanin elution was dried into powder using a rotary evaporator (EYELA, OSB-2100-CE, Tokyo, Japan).

4.4. Purity Detection of Purified Anthocyanin Extracts

The method to determine the purity of anthocyanin extracts described by Chandra et al. (2001) [41] was used with modifications. Petunidin-3-(trans-coumaroyl)-rutinoside-5-glucoside as a standard and the purified anthocyanin powders were both dissolved in a pH 1.0 buffer solution containing 50 mM KCl and 150 mM HCl. Those solutions were added to a 10-mm path length cell to measure the absorbance at 520 nm and to generate a five-point calibration curve, with pH 1.0 buffer solution as a reference. However, beyond that, the absorption spectra of purified and unpurified anthocyanin extracts were recorded in the visible wavelength range from 300 to 600 nm [42]. All determinations were performed in triplicate using a Shimadzu UV-2401 PC spectrophotometer (Shimadzu, Kyoto, Japan).

4.5. Total Antioxidant Activity Assay

Samples were ground into powders (50 mg) in a mortar filled with liquid nitrogen. Then, the samples were both extracted with 70% MeOH. A stock solution was composed of 5 mL of 7 mmol/L ABTS (2.2′-azinobis [3-ethylbenzothiazoline-6-sulfonic acid]) and 88 µL of 140 mmol/L K2S2O8. Then, the stock solution was preincubated for at least 12 h in darkness to generate ABTS radical cations (ABTS+). ABTS+/Trolox (6-hydroxy-2,3,7,8-tetramethylchroman-2-carboxylic acid; Sigma) equivalent antioxidant capacity (TEAC) assays were performed to analyze the ability of samples to scavenge the ABTS radical cation (ABTS+) in relation to Trolox. We used different concentrations of Trolox to generate a calibration curve. All of the experiments were performed on a SpectraMax M2 (Molecular Devices, Sunnyvale, CA, USA) by measuring the absorbance at 735 nm. The results were expressed as millimole of Trolox equivalent antioxidant capacity (TEAC) per kilogram of fresh or dry weight [43].

4.6. RNA Extraction and Quantitative Real Time PCR

Different samples frozen at −80 °C were ground into powders with liquid nitrogen. Then, the total RNA was isolated from the powder using a Plant RNA Kit (OMEGA Bio-tek, Doraville, GA, USA). Subsequently, RNA samples were reverse-transcribed into complementary DNA using the Super-Quick RT MasterMix (CWBio, Beijing, China) following the manufacturer’s instructions. A CFX96 Real-Time System (Bio-Rad, Hercules, CA, USA) with SYBR Premix Ex Taq (TaKaRa, Dalian, China) were used for qRT-PCR. Reactions were performed in triplicate and contained 10 μL of master mix and each primer at 0.5 μM, 2 μL of diluted cDNA, and DNase-free water to a final volume of 20 μL. The PCR procedure was as follows: 1 cycle of 3 min at 95 °C, 40 cycles of denaturation for 15 s at 95 °C, annealing for 30 s at 60 °C, and elongation for 15 s at 72 °C. Afterwards, a melting curve analysis with continual fluorescence data acquisition during the 60–95 °C melting period was used to confirm there was only one product for each gene primer reaction [43]. The qRT-PCR primers of SnMYB and an internal standard SnEF1α are designed by Primer Premier 5, which are the primer pairs of SnMYB qRT-F/R (TCGAAACTTCTCAAACGCTAAGAA; TGTTGCTTTCGTCATCTTTGTCTAA) and SnEF1α qRT-F/R (TTTCACTGCCCAGGTCATCA; CAAACTTGACAGCAATGTGGGA). All experiments were carried out from three biological replicates and technical replicates.

4.7. SnMYB Gene Cloning and Protein Sequence Alignment

We queried different MYB genes involved in anthocyanin production from different Solanaceae plants to create degenerate primers named SnMYB-D-F/R (GAAGT(A/G/T)AG(A/G)AAAGG(A/G/T)CC(A/C)TGGA; GACCAGA(A/G/T)(A/G)TC(C/T)TCCAT(A/G)CTCCA), which were designed from the highly conserved regions of those MYB genes. Degenerate primers were used for amplifying partially conserved fragments of SnMYB from the first-strand cDNA synthesized using a HiFiScript cDNA Synthesis Kit (CWBio, Beijing, China). Then, the partially conserved fragment was sequenced, and gene-specific primers named SnMYB-5′RACE-R/SnMYB-3′RACE-F (TTTACCAGCTCTAGCAGGAATAAGATGC; CGAAAAAGTTGTAGACTGAGGTGGTTGA) were designed to amplify the cDNAs of SnMYB by rapid amplification of cDNA ends (RACE) in both the 5′ and 3′ directions following the manufacturer’s instructions of the SMARTer® RACE 5′/3′ Kit (TaKaRa, Dalian, China). The fragments of the 5′-RACE and 3′-RACE of SnMYB were assembled and used to generate primers SnMYB-FL-F/SnMYB-FL-R (CCATCGATATGAATACTCCTATAATGTGTACGTCG; TTGCGGCCGCTTAATTAAGTAGATTCCATAGGTCAAT) to amplify the full-length coding sequence of SnMYB. The following PCR procedure was carried out with Lamp DNA polymerase (CWBio, Beijing, China) at 94 °C for 3 min, 35 cycles of 94 °C for 30 s, 55 °C for 30 s, 72 °C for 40 s, and a 10 min extension at 72 °C. All of the PCR products were cloned into a TA cloning vector named as pUC-T (CWBio, Beijing, China) for validation of DNA sequences. DNAMAN version 4.0 was used for aligning SnMYB amino acid sequences with some MYB anthocyanin activators from Solanaceae plants. The phylogenetic and molecular evolutionary analyses were carried out with MEGA version 5.1.

4.8. Transient Assays of SnMYB Function

We utilized the following processes to generate plasmids for transient expression assays in tobacco leaves. The amplification product of the primers SnMYB-FL-F/SnMYB-FL-R was digested with ClaI and NotI and then inserted into the plasmid pGR106 [44], which was digested with the same restriction enzymes and harbors the cauliflower mosaic virus (CaMV) 35S promoter. The recombinant vector was transformed into Agrobacterium tumefaciens GV3101 for infiltration into Nicotiana tabacum leaves which were grown in the greenhouse at 25 °C and 16/8 h light/dark. Details of the infiltration were the same as those described by Lim et al. (2012) [45]. In brief, Agrobacterium tumefaciens GV3101 with recombinant vector was grown at 28 °C and 220 rpm in luria-bertani (LB) medium including 50 µg/mL kanamycin, 10 mM 2-(4-Morpholino)ethanesulfonic acid (MES), and 20 µM Acetosyringone (AS). The bacteria were collected by 5000 rpm centrifugation at room temperature for 15 min. Then they were resuspended in MMA (10 mM MES, 10 mM MgCl2, 200 µM AS) solution to OD600 = 1.5 and then incubated at 28 °C for 3–5 h. The color change was monitored by digital images when the purple color appeared. In addition, three independent replicates of each infiltration were collected and frozen at −80 °C for subsequent analyses of anthocyanin content and relative SnMYB expression [39].

5. Conclusions

S. nigrum fruits are usually used as edible food for their nutritional substances such as minerals, vitamins, amino acids, proteins, sugars, polyphenols, and anthocyanins. In our study, we determined the anthocyanin content and identified the anthocyanin compositions by HPLC-MS/MS in S. nigrum fruits for the first time. High-purity anthocyanin extracts were obtained by establishing an efficient purification method, which is helpful for using S. nigrum fruits as a natural resource for anthocyanin extraction. It is most meaningful that we also isolated an anthocyanin-activating MYB transcription factor from S. nigrum for the first time, which is promising for breeding high anthocyanin-containing S. nigrum or other plant species with transgenic technology in the future.

Acknowledgments

This study was supported by the Agriculture Major Application Technology Innovation Projects of Shandong Province, Funds of Shandong “Double Tops” Program, the Natural Science Foundation of Shandong Province (ZR2015CM004), and the Taishan Industrial Experts Programme (No. tscy20150621).

Author Contributions

X.D. and Z.C. designed the experiments. S.W., M.R., R.J., C.Z., D.F., H.S., X.F., and X.Z. performed the experiments. S.W., Y.L., and Y.W. analyzed the data. S.W. and X.D. wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shang, Y.; Venail, J.; Mackay, S.; Bailey, P.C.; Schwinn, K.E.; Jameson, P.E.; Martin, C.R.; Davies, K.M. The molecular basis for venation patterning of pigmentation and its effect on pollinator attraction in flowers of Antirrhinum. New Phytol. 2011, 189, 602–615. [Google Scholar] [CrossRef] [PubMed]
  2. Ballaré, C.L. Stress under the sun: Spotlight on ultraviolet-B responses. Plant Physiol. 2003, 132, 1725–1727. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, Y.; Butelli, E.; de Stefano, R.; Schoonbeek, H.J.; Magusin, A.; Pagliarani, C.; Wellner, N.; Hill, L.; Orzaez, D.; Granell, A.; et al. Anthocyanins double the shelf life of tomatoes by delaying overripening and reducing susceptibility to gray mold. Curr. Biol. 2013, 23, 1094–1100. [Google Scholar] [CrossRef] [PubMed]
  4. Karageorgou, P.; Manetas, Y. The importance of being red when young: Anthocyanins and the protection of young leaves of Quercus coccifera from insect herbivory and excess light. Tree Physiol. 2006, 26, 613–621. [Google Scholar] [CrossRef] [PubMed]
  5. Sui, Y.H.; Zhang, Z.X.; Xing, S.Z.; Lu, X.M.; Guo, Z.M. Effect of temperature on some physiologic indexes and germination of purple chili line YN 99007. Seed 2005, 24, 19–23. [Google Scholar]
  6. Tsuda, T.; Horio, F.; Uchida, K.; Aoki, H.; Osawa, T. Dietary cyanidin 3-O-β-d-glucoside-rich purple corn color prevents obesity and ameliorates hyperglycemia in mice. J. Nutr. 2003, 133, 2125–2130. [Google Scholar] [PubMed]
  7. Wang, L.S.; Kuo, C.T.; Cho, S.J.; Seguin, C.; Siddiqui, J.; Stoner, K.; Weng, Y.I.; Huang, T.H.; Tichelaar, J.; Yearsley, M.; et al. Black raspberry-derived anthocyanins demethylate tumor suppressor genes through the inhibition of DNMT1 and DNMT3B in colon cancer cells. Nutr. Cancer 2013, 65, 118–125. [Google Scholar] [CrossRef] [PubMed]
  8. Zhao, J.G.; Yan, Q.Q.; Lu, L.Z.; Zhang, Y.Q. In vivo antioxidant, hypoglycemic, and anti-tumor activities of anthocyanin extracts from purple sweet potato. Nutr. Res. Pract. 2013, 7, 359–365. [Google Scholar] [CrossRef] [PubMed]
  9. Kalt, W.; McDonald, J.E.; Fillmore, S.A.; Tremblay, F. Blueberry Effects on Dark Vision and Recovery after Photobleaching: Placebo-Controlled Crossover Studies. J. Agric. Food Chem. 2014, 62, 11180–11189. [Google Scholar] [CrossRef] [PubMed]
  10. Zhang, H.; Xu, X.; Zhang, J. Nutrition ingredient and exploitation of Solanum nigrum L. Chin. Wild Plant Resour. 2003, 23, 44–46. [Google Scholar]
  11. Zakaria, Z.A.; Gopalan, H.K.; Zainal, H.; Mohd Pojan, N.H.; Morsid, N.A.; Aris, A.; Sulaiman, M.R. Antinociceptive, anti-inflammatory and antipyretic effects of Solanum nigrum chloroform extract in animal models. Yakugaku Zasshi 2006, 126, 1171–1178. [Google Scholar] [CrossRef] [PubMed]
  12. Jing, Y.; Song, C.; Jin, C.A.; Qi, J.S. Determination and Analysis of Nutritional Ingredient in Solanum nigrum Fruit. Spec. Wild Econ. Anim. Plant Res. 2013, 2, 019. [Google Scholar]
  13. Huang, H.C.; Syu, K.Y.; Lin, J.K. Chemical composition of Solanum nigrum linn extract and induction of autophagy by leaf water extract and its major flavonoids in AU565 breast cancer cells. J. Agric. Food Chem. 2010, 58, 8699–8708. [Google Scholar] [CrossRef] [PubMed]
  14. Perez, G.R.M.; Perez, L.J.A.; Garcia, D.L.M.; Sossa, M.H. Neuropharmacological activity of Solanum nigrum fruit. J. Ethnopharmacol. 1998, 62, 43–48. [Google Scholar] [CrossRef]
  15. Sun, Y.; Zhou, Q.; Diao, C. Effects of cadmium and arsenic on growth and metal accumulation of Cd-hyperaccumulator Solanum nigrum L. Bioresour. Technol. 2008, 99, 1103–1110. [Google Scholar] [CrossRef] [PubMed]
  16. Strathearn, K.E.; Yousef, G.G.; Grace, M.H.; Roy, S.L.; Tambe, M.A.; Ferruzzi, M.G.; Wu, Q.M.; Simon, J.E.; Lila, M.A.; Rochet, J.C. Neuroprotective effects of anthocyanin-and proanthocyanidin-rich extracts in cellular models of Parkinson’s disease. Brain Res. 2014, 1555, 60–77. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, Y.; Song, X.; Zhang, D.; Zhou, F.; Wang, D.; Wei, Y.; Gao, F.; Xie, L.; Jia, G.; Wu, W.; et al. Blueberry anthocyanins: Protection against ageing and light-induced damage in retinal pigment epithelial cells. Br. J. Nutr. 2012, 108, 16–27. [Google Scholar] [CrossRef] [PubMed]
  18. Hichri, I.; Barrieu, F.; Bogs, J.; Kappel, C.; Delrot, S.; Lauvergeat, V. Recent advances in the transcriptional regulation of the flavonoid biosynthetic pathway. J. Exp. Bot. 2011, 62, 2465–2483. [Google Scholar] [CrossRef] [PubMed]
  19. Zhang, Y.; Butelli, E.; Alseekh, S.; Tohge, T.; Rallapalli, G.; Luo, J.; Kawar, P.G.; Hill, L.; Santino, A.; Fernie, A.R.; et al. Multi-level engineering facilitates the production of phenylpropanoid compounds in tomato. Nat. Commun. 2015, 6, 8635. [Google Scholar] [CrossRef] [PubMed]
  20. Fraser, L.G.; Seal, A.G.; Montefiori, M.; McGhie, T.K.; Tsang, G.K.; Datson, P.M.; Hilario, E.; Marsh, H.E.; Dunn, J.K.; Hellens, R.P.; et al. An R2R3 MYB transcription factor determines red petal colour in an Actinidia (kiwifruit) hybrid population. BMC Genom. 2013, 14, 28. [Google Scholar] [CrossRef] [PubMed]
  21. Pattanaik, S.; Kong, Q.; Zaitlin, D.; Werkman, J.R.; Xie, C.H.; Patra, B.; Yuan, L. Isolation and functional characterization of a floral tissue-specific R2R3 MYB regulator from tobacco. Planta 2010, 231, 1061–1076. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, Y.; Lin-Wang, K.; Espley, R.V.; Wang, L.; Yang, H.; Yu, B.; Dare, A.; Varkonyi-Gasic, E.; Wang, J.; Zhang, J.; et al. Functional diversification of the potato R2R3 MYB anthocyanin activators AN1, MYBA1, and MYB113 and their interaction with basic helix-loop-helix cofactors. J. Exp. Bot. 2016, 67, 2159–2176. [Google Scholar] [CrossRef] [PubMed]
  23. Yuri, J.A.; Neira, A.; Quilodran, A.; Motomura, Y.; Palomo, I. Antioxidant activity and total phenolics concentration in apple peel and flesh is determined by cultivar and agroclimatic growing regions in Chile. J. Food Agric. Environ. 2009, 7, 3–4. [Google Scholar]
  24. Sellappan, S.; Akoh, C.C.; Krewer, G. Phenolic compounds and antioxidant capacity of Georgia-grown blueberries and blackberries. J. Agric. Food Chem. 2002, 50, 2432–2438. [Google Scholar] [CrossRef] [PubMed]
  25. Prior, R.L.; Cao, G.; Martin, A.; Sofic, E.; McEwen, J.; O'Brien, C.; Lischner, N.; Ehlenfeldt, M.; Kalt, W.; Krewer, G.; et al. Antioxidant capacity as influenced by total phenolic and anthocyanin content, maturity, and variety of Vaccinium species. J. Agric. Food Chem. 1998, 46, 2686–2693. [Google Scholar] [CrossRef]
  26. Moyer, R.A.; Hummer, K.E.; Finn, C.E.; Frei, B.; Wrolstad, R.E. Anthocyanins, phenolics, and antioxidant capacity in diverse small fruits: Vaccinium, Rubus, and Ribes. J. Agric. Food Chem. 2002, 50, 519–525. [Google Scholar] [CrossRef] [PubMed]
  27. Oszmianski, J.; Kolniak-Ostek, J.; Wojdyło, A. Characterization of phenolic compounds and antioxidant activity of Solanum scabrum and Solanum burbankii berries. J. Agric. Food Chem. 2014, 62, 1512–1519. [Google Scholar] [CrossRef] [PubMed]
  28. Kirakosyan, A.; Seymour, E.M.; Wolforth, J.; McNish, R.; Kaufman, P.B.; Bolling, S.F. Tissue bioavailability of anthocyanins from whole tart cherry in healthy rats. Food Chem. 2015, 171, 26–31. [Google Scholar] [CrossRef] [PubMed]
  29. Zheng, J.; Ding, C.; Wang, L.; Li, G.; Shi, J.; Li, H.; Wang, H.; Suo, Y. Anthocyanins composition and antioxidant activity of wild Lycium ruthenicum Murr. from Qinghai-Tibet Plateau. Food Chem. 2011, 126, 859–865. [Google Scholar] [CrossRef]
  30. Su, X.; Xu, J.; Rhodes, D.; Shen, Y.; Song, W.; Katz, B.; Tomich, J.; Wang, W. Identification and quantification of anthocyanins in transgenic purple tomato. Food Chem. 2016, 202, 184–188. [Google Scholar] [CrossRef] [PubMed]
  31. Liang, Z.; Wu, B.; Fan, P.; Yang, C.; Duan, W.; Zheng, X.; Liu, C.; Li, S. Anthocyanin composition and content in grape berry skin in Vitis germplasm. Food Chem. 2008, 111, 837–844. [Google Scholar] [CrossRef]
  32. Zimmermann, I.M.; Heim, M.A.; Weisshaar, B.; Uhrig, J.F. Comprehensive identification of Arabidopsis thaliana MYB transcription factors interacting with R/B-like BHLH proteins. Plant J. 2004, 40, 22–34. [Google Scholar] [CrossRef] [PubMed]
  33. Lin-Wang, K.; Bolitho, K.; Grafton, K.; Kortstee, A.; Karunairetnam, S.; McGhie, T.K.; Espley, R.V.; Hellens, R.P.; Allan, A.C. An R2R3 MYB transcription factor associated with regulation of the anthocyanin biosynthetic pathway in Rosaceae. BMC Plant Biol. 2010, 10. [Google Scholar] [CrossRef] [PubMed]
  34. Hichri, I.; Heppel, S.C.; Pillet, J.; Léon, C.; Czemmel, S.; Delrot, S.; Lauvergeat, V.; Bogs, J. The basic helix-loop-helix transcription factor MYC1 is involved in the regulation of the flavonoid biosynthesis pathway in grapevine. Mol. Plant 2010, 3, 509–523. [Google Scholar] [CrossRef] [PubMed]
  35. Gavrilova, V.; Kajdzanoska, M.; Gjamovski, V.; Stefova, M. Separation, Characterization and Quantification of Phenolic Compounds in Blueberries and Red and Black Currants by HPLC-DAD-ESI-MSn. J. Agric. Food Chem. 2011, 59, 4009–4018. [Google Scholar] [CrossRef] [PubMed]
  36. Drogoudi, P.D.; Michailidis, Z.; Pantelidis, G. Peel and flesh antioxidant content and harvest quality characteristics of seven apple cultivars. Sci. Hortic. 2008, 115, 149–153. [Google Scholar] [CrossRef]
  37. Lapornik, B.; Prošek, M.; Wondra, A.G. Comparison of extracts prepared from plant by-products using different solvents and extraction time. J. Food Eng. 2005, 71, 214–222. [Google Scholar] [CrossRef]
  38. Ban, Y.; Honda, C.; Hatsuyama, Y.; Igarashi, M.; Bessho, H.; Moriguchi, T. Isolation and functional analysis of a MYB transcription factor gene that is a key regulator for the development of red coloration in apple skin. Plant Cell Physiol. 2007, 48, 958–970. [Google Scholar] [CrossRef] [PubMed]
  39. Montefiori, M.; Brendolise, C.; Dare, A.P.; Lin-Wang, K.; Davies, K.M.; Hellens, R.P.; Allan, A.C. In the Solanaceae, a hierarchy of bHLHs confer distinct target specificity to the anthocyanin regulatory complex. J. Exp. Bot. 2015, 66, 1427–1436. [Google Scholar] [CrossRef] [PubMed]
  40. Butelli, E.; Titta, L.; Giorgio, M.; Mock, H.P.; Matros, A.; Peterek, S.; Schijlen, E.G.W.M.; Hall, R.D.; Bovy, A.G.; Luo, J.; et al. Enrichment of tomato fruit with health-promoting anthocyanins by expression of select transcription factors. Nat. Biotechnol. 2008, 26, 1301–1308. [Google Scholar] [CrossRef] [PubMed]
  41. Chandra, A.; Rana, J.; Li, Y. Separation, identification, quantification, and method validation of anthocyanins in botanical supplement raw materials by HPLC and HPLC-MS. J. Agric. Food Chem. 2001, 49, 3515–3521. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, E.; Yin, Y.; Xu, C.; Liu, J. Isolation of high-purity anthocyanin mixtures and monomers from blueberries using combined chromatographic techniques. J. Chromatogr. A 2014, 1327, 39–48. [Google Scholar] [CrossRef] [PubMed]
  43. Li, Y.; Tang, W.; Chen, J.; Jia, R.; Ma, L.; Wang, S.; Wang, J.; Shen, X.; Chu, Z.; Zhu, C.; et al. Development of marker-free transgenic potato tubers enriched in caffeoylquinic acids and flavonols. J. Agric. Food Chem. 2016, 64, 2932–2940. [Google Scholar] [CrossRef] [PubMed]
  44. Lu, R.; Malcuit, I.; Moffett, P.; Ruiz, M.T.; Peart, J.; Wu, A.J.; Rathjen, J.P.; Bendahmane, A.; Day, L.; Baulcombe, D.C. High throughput virus-induced gene silencing implicates heat shock protein 90 in plant disease resistance. EMBO J. 2003, 22, 5690–5699. [Google Scholar] [CrossRef] [PubMed]
  45. Lim, S.H.; Sohn, S.H.; Kim, D.H.; Kim, J.K.; Lee, J.Y.; Kim, Y.M.; Ha, S.H. Use of an anthocyanin production phenotype as a visible selection marker system in transgenic tobacco plant. Plant Biotechnol. Rep. 2012, 6, 203–211. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compound petunidin-3-(trans-coumaroyl)-rutinoside-5-glucoside is available from the authors.

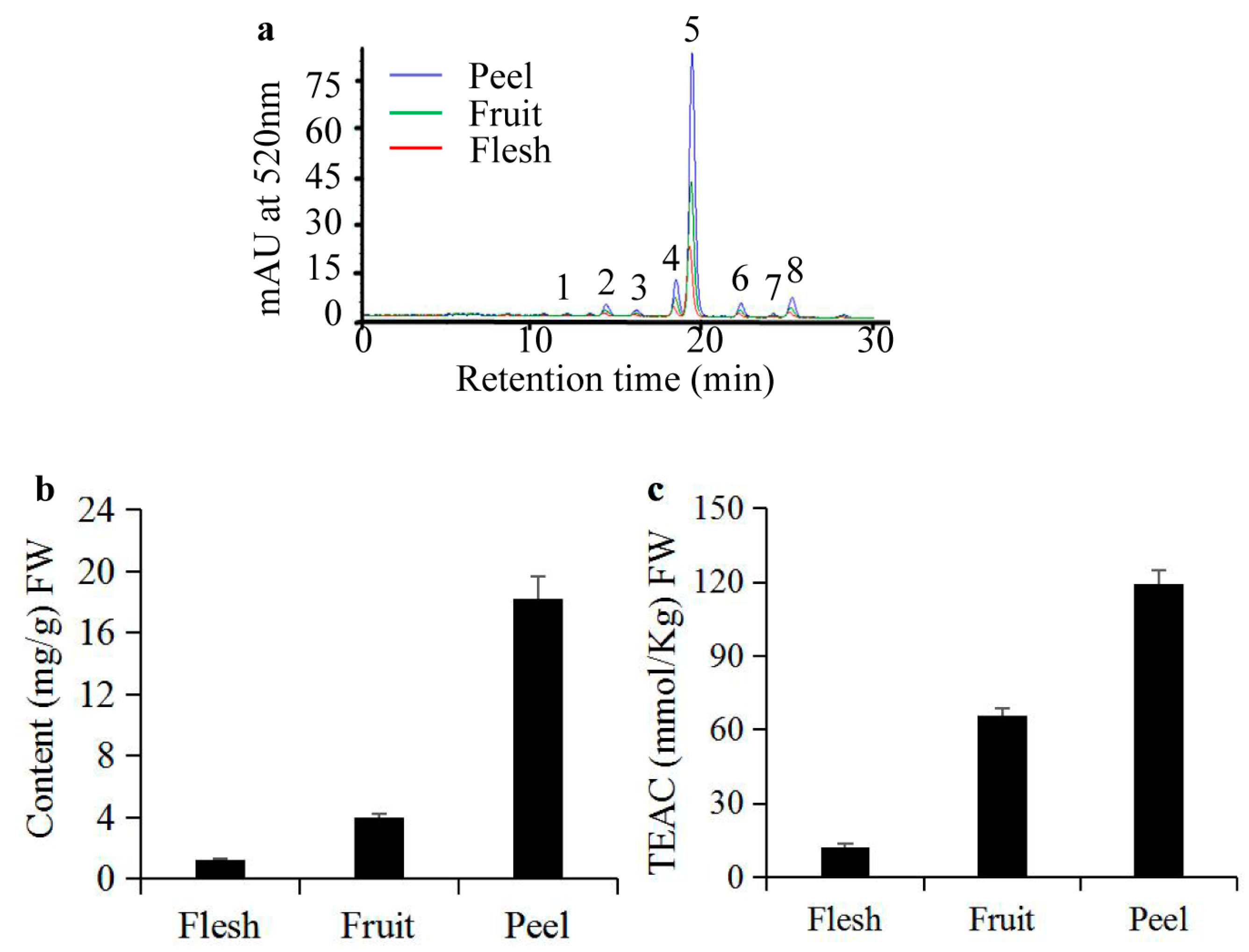

Figure 1. Different characteristics of anthocyanins from S. nigrum fruits. (a) HPLC chromatograms of anthocyanins in the peel, flesh, and the whole fresh fruit of S. nigrum; (b) Anthocyanin content; and (c) total antioxidant activities in the peel, flesh, and the whole fresh fruit of S. nigrum.
Figure 1. Different characteristics of anthocyanins from S. nigrum fruits. (a) HPLC chromatograms of anthocyanins in the peel, flesh, and the whole fresh fruit of S. nigrum; (b) Anthocyanin content; and (c) total antioxidant activities in the peel, flesh, and the whole fresh fruit of S. nigrum.
Molecules 22 00876 g001
Figure 2. Different characteristics of purified and unpurified anthocyanin extracts from S. nigrum fruits. (a) HPLC chromatograms of purified and unpurified anthocyanins from S. nigrum fruits; (b) Spectral characters of purified and unpurified anthocyanins from S. nigrum fruits. 1: absorption peak of hydroxycinnamate; 2: absorption peak of anthocyanins.
Figure 2. Different characteristics of purified and unpurified anthocyanin extracts from S. nigrum fruits. (a) HPLC chromatograms of purified and unpurified anthocyanins from S. nigrum fruits; (b) Spectral characters of purified and unpurified anthocyanins from S. nigrum fruits. 1: absorption peak of hydroxycinnamate; 2: absorption peak of anthocyanins.
Molecules 22 00876 g002
Figure 3. Mass spectrometric data of eight anthocyanins in S. nigrum fruits. (a) Peak 1: Cyanidin-3-rutinoside-5-glucoside; (b) Peak 2: Delphinidin-3-(p-coumaroyl)-rutinoside-5-glucoside; (c) Peak 3: Petunidin-3-O-rutinoside-(caffeoyl)-5-O-glucoside; (d) Peak 4: Petunidin-3-(cis-p-coumaroyl)-rutinoside-5-glucoside; (e) Peak 5: Petunidin-3-(trans-p-coumaroyl)-rutinoside-5-glucoside; (f) Peak 6: Petunidin-3-(feruloyl)-rutinoside-5-glucoside; (g) Peak 7: Petunidin-3-O-glucoside-5-O-glucoside; (h) Peak 8: Malvidin-3-(p-coumaroyl)-rutinoside-5-glucoside. Note: the black box indicates molecular weight of parent ion.
Figure 3. Mass spectrometric data of eight anthocyanins in S. nigrum fruits. (a) Peak 1: Cyanidin-3-rutinoside-5-glucoside; (b) Peak 2: Delphinidin-3-(p-coumaroyl)-rutinoside-5-glucoside; (c) Peak 3: Petunidin-3-O-rutinoside-(caffeoyl)-5-O-glucoside; (d) Peak 4: Petunidin-3-(cis-p-coumaroyl)-rutinoside-5-glucoside; (e) Peak 5: Petunidin-3-(trans-p-coumaroyl)-rutinoside-5-glucoside; (f) Peak 6: Petunidin-3-(feruloyl)-rutinoside-5-glucoside; (g) Peak 7: Petunidin-3-O-glucoside-5-O-glucoside; (h) Peak 8: Malvidin-3-(p-coumaroyl)-rutinoside-5-glucoside. Note: the black box indicates molecular weight of parent ion.
Molecules 22 00876 g003

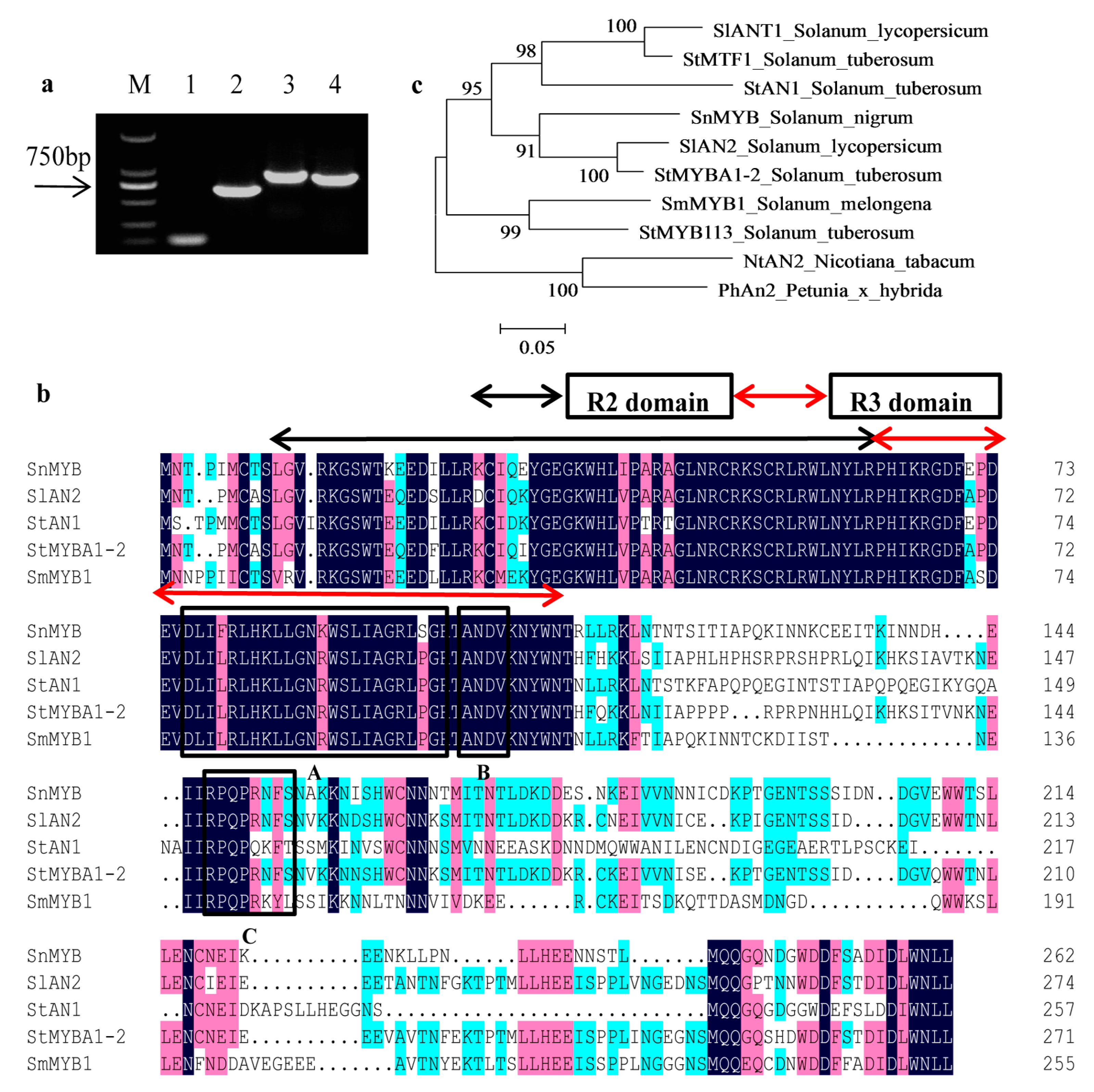

Figure 4. Isolation of SnMYB and sequence alignment with other anthocyanin R2R3-MYB regulators from Solanaceae plants. (a) Cloning of SnMYB gene with rapid amplification of cDNA ends (RACE)-PCR. M: DL2000 DNA marker; lane 1: a 115-bp fragment of conserved region; lane 2: a 564-bp 5′ cDNA fragment with 5′RACE; lane 3: an 844-bp 3′ cDNA fragment with 3′RACE; lane 4: a 792-bp full-length coding sequence of SnMYB; (b) Protein sequence alignment of SnMYB with other anthocyanin-related MYB regulators from Solanaceae plants. The R2 and R3 repeat domains are indicated by black and red arrows, respectively. Box-A indicates the conserved region of the basic-Helix-Loop-Helix (bHLH) interacting motif ([DE]Lx2[RK]x3Lx6Lx3R). Box-B indicates a conserved motif [A/S/G]NDV in the R2R3 domain for dicot anthocyanin-promoting MYBs. Box-C indicates a C-terminal-conserved motif [R/K] Px[P/A/R]xx[F/Y] for anthocyanin-regulating MYBs; (c) Phylogenetic relationship analysis of SnMYB and known anthocyanin-related MYB regulators from other Solanaceae species. Sequences were aligned using DNAMAN version 4.0. Phylogenetic and molecular evolutionary analysis was carried out using MEGA version 5.1. The evolutionary history was inferred using the neighbor-joining method and 1000 bootstrap replicates.
Figure 4. Isolation of SnMYB and sequence alignment with other anthocyanin R2R3-MYB regulators from Solanaceae plants. (a) Cloning of SnMYB gene with rapid amplification of cDNA ends (RACE)-PCR. M: DL2000 DNA marker; lane 1: a 115-bp fragment of conserved region; lane 2: a 564-bp 5′ cDNA fragment with 5′RACE; lane 3: an 844-bp 3′ cDNA fragment with 3′RACE; lane 4: a 792-bp full-length coding sequence of SnMYB; (b) Protein sequence alignment of SnMYB with other anthocyanin-related MYB regulators from Solanaceae plants. The R2 and R3 repeat domains are indicated by black and red arrows, respectively. Box-A indicates the conserved region of the basic-Helix-Loop-Helix (bHLH) interacting motif ([DE]Lx2[RK]x3Lx6Lx3R). Box-B indicates a conserved motif [A/S/G]NDV in the R2R3 domain for dicot anthocyanin-promoting MYBs. Box-C indicates a C-terminal-conserved motif [R/K] Px[P/A/R]xx[F/Y] for anthocyanin-regulating MYBs; (c) Phylogenetic relationship analysis of SnMYB and known anthocyanin-related MYB regulators from other Solanaceae species. Sequences were aligned using DNAMAN version 4.0. Phylogenetic and molecular evolutionary analysis was carried out using MEGA version 5.1. The evolutionary history was inferred using the neighbor-joining method and 1000 bootstrap replicates.
Molecules 22 00876 g004

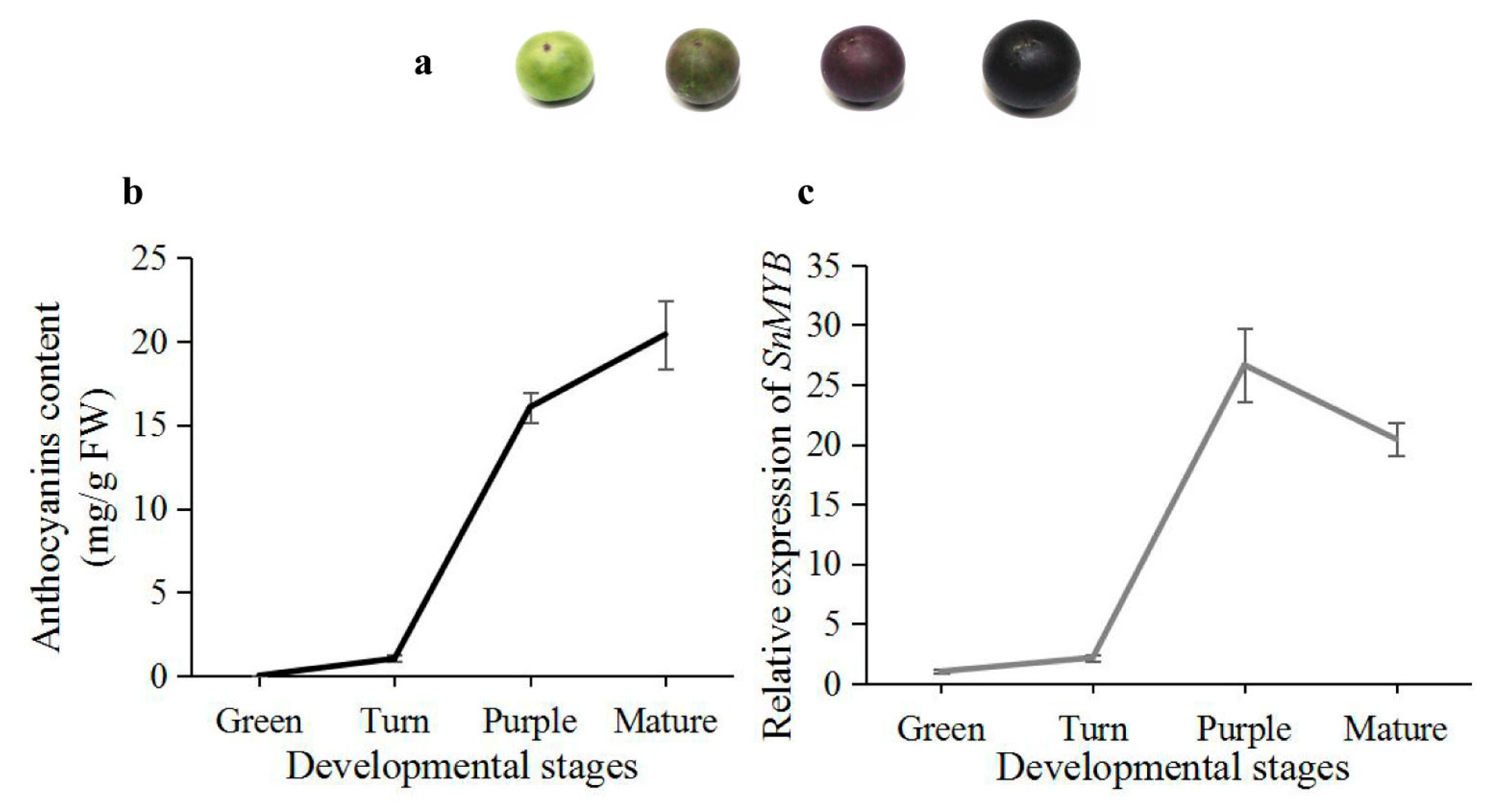

Figure 5. Correlation analysis of SnMYB expression with anthocyanin content in different developmental stages of the S. nigrum peel. (a) Color change with S. nigrum fruit maturation; (b) Determination of anthocyanin content; and (c) SnMYB expression levels in four developmental stages of the S. nigrum peel.
Figure 5. Correlation analysis of SnMYB expression with anthocyanin content in different developmental stages of the S. nigrum peel. (a) Color change with S. nigrum fruit maturation; (b) Determination of anthocyanin content; and (c) SnMYB expression levels in four developmental stages of the S. nigrum peel.
Molecules 22 00876 g005

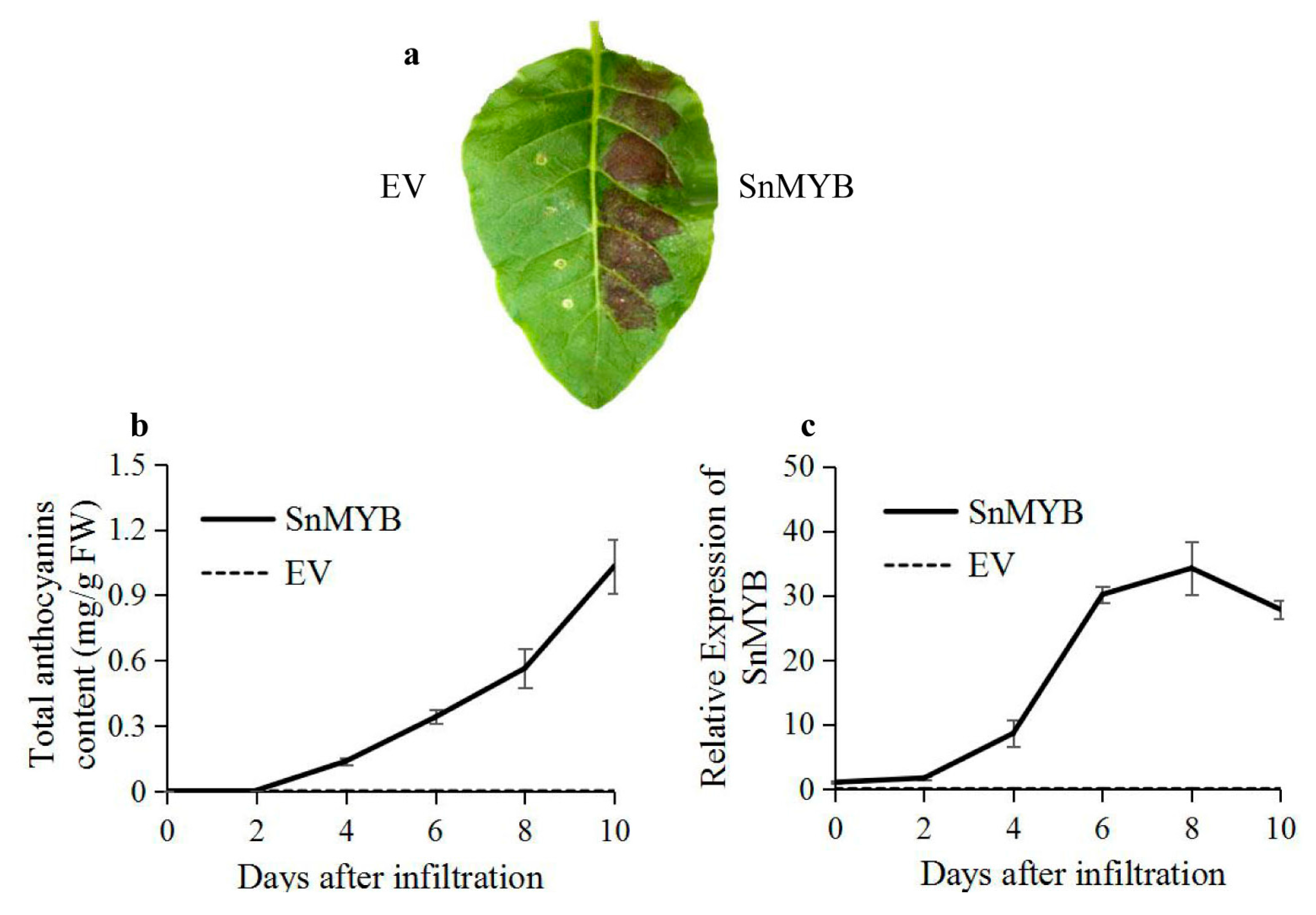

Figure 6. Transient activation of SnMYB in tobacco leaves. (a) Patch of anthocyanin production at the 8th day after infiltration; (b) Anthocyanin content; and (c) SnMYB expression levels in tobacco leaves infiltrated by Agrobacterium. The black solid line indicates infiltration with SnMYB, and the black dotted line indicates infiltration with the pGR106 empty vector (EV).
Figure 6. Transient activation of SnMYB in tobacco leaves. (a) Patch of anthocyanin production at the 8th day after infiltration; (b) Anthocyanin content; and (c) SnMYB expression levels in tobacco leaves infiltrated by Agrobacterium. The black solid line indicates infiltration with SnMYB, and the black dotted line indicates infiltration with the pGR106 empty vector (EV).
Molecules 22 00876 g006
Table 1. Tentative identification of anthocyanin compositions in S. nigrum fruits.
Table 1. Tentative identification of anthocyanin compositions in S. nigrum fruits.
Peak No.Retention Time (min)Anthocyanins[M + H]+ (m/z)Detected Fragments
111.921Cyanidin-3-rutinoside-5-glucoside757.2595.22; 449.15; 287.08
214.109Delphinidin-3-(p-coumaroyl)-rutinoside-5-glucoside919.3521757.27; 465.15; 303.08
316.093Petunidin-3-O-rutinoside-(caffeoyl)-5-O-glucoside949.2482787.26; 479.15; 317.08
418.191Petunidin-3-(cis-p-coumaroyl)-rutinoside-5-glucoside933.3681771.29; 479.16; 317.09
519.240Petunidin-3-(trans-p-coumaroyl)-rutinoside-5-glucoside933.3677771.29; 479.17; 317.09
622.093Petunidin-3-(feruloyl)-rutinoside-5-glucoside963.3784801.30; 479.16; 317.09
724.139Petunidin-3-O-glucoside-5-O-glucoside641.2479.16; 317.09
825.242Malvidin-3-(p-coumaroyl)-rutinoside-5-glucoside947.3831785.31; 493.18; 331.11
