Molecules 2017, 22(5), 712; doi:10.3390/molecules22050712
4-Hydroxy-7-methyl-3-phenylcoumarin Suppresses Aflatoxin Biosynthesis via Downregulation of aflK Expressing Versicolorin B Synthase in Aspergillus flavus
School of Applied Biosciences, Kyungpook National University, Daegu 41566, Korea
Advanced Food Safety Research Group, BK21 Plus, School of Food Science and Technology, Chung-Ang University, Anseong 17546, Korea
Correspondence: [email protected]
Authors equally contributed to this paper as first authors.
Authors equally contributed to this paper as corresponding authors.
Academic Editor: Philippe Jeandet
Received: 17 December 2016 / Accepted: 27 April 2017 / Published: 29 April 2017
Naturally occurring coumarins possess antibacterial and antifungal properties. In this study, these natural and synthetic coumarins were used to evaluate their antifungal activities against Aspergillus flavus, which produces aflatoxins. In addition to control antifungal activities, antiaflatoxigenic properties were also determined using a high-performance liquid chromatography in conjunction with fluorescence detection. In this study, 38 compounds tested and 4-hydroxy-7-methyl-3-phenyl coumarin showed potent antifungal and antiaflatoxigenic activities against A. flavus. Inhibitory mode of antiaflatoxigenic action by 4-hydroxy-7-methyl-3-phenyl coumarin was based on the downregulation of aflD, aflK, aflQ, and aflR in aflatoxin biosynthesis. In the cases of coumarins, antifungal and aflatoxigenic activities are highly related to the lack of diene moieties in the structures. In structurally related compounds, 2,3-dihydrobenzofuran exhibited antifungal and antiaflatoxigenic activities against A. flavus. The inhibitory mode of antiaflatoxigenic action by 2,3-dihydrobenzofuran was based on the inhibition of the transcription factor (aflS) in the aflatoxin biosynthesis pathway. These potent inhibitions of 2,3-dihydrobenzofuran and 4-hydroxy-7-methyl-3-phenyl coumarin on the Aspergillus growth and production of aflatoxins contribute to the development of new controlling agents to mitigate aflatoxin contamination.
Keywords:4-hydroxy-7-methyl-3-phenyl coumarin; 2,3-dihydrobenzofuran; aflatoxin production; Aspergillus flavus; reverse transcription polymerase chain reaction
Aflatoxins including AFB1, AFB2, AFG1, and AFG2 are mycotoxins produced by Aspergillus flavus and A. parasiticus, with potent carcinogenic activity, especially on human liver . Aflatoxins can be accumulated in humans and livestock through diet of aflatoxin-contaminated foods and feed [2,3]. Outbreaks of aflatoxicosis are notably dependent on the crop species and seasonal changes of a given region [4,5]. Additionally, they are also related to poor agricultural practices . Therefore, alternative agricultural practices may be needed to develop mitigating aflatoxin contamination in crops.
Chemical control of fungal growth and aflatoxin production has been successfully documented using propionic acid in unshelled peanuts on the laboratory scale . In the crop field, usage of fungicides is critical to control fungal growth and mycotoxins with good efficacy . Recently, phytopathogens develop resistance to various fungicides [9,10]. With this reason, alternatives for controlling Aspergillus infection and aflatoxin contamination are highly needed, and natural products could be considered as candidate compounds.
Coumarins are naturally occurring compounds produced after cyclization of cinnamic acid via formation of phenylpropanoids through the shikimic acid pathway . Recently, plant-specific coumarins such as umbelliferone and scopoletin have been produced in E. coli due to their various applications after enzyme-engineered conversion with or without inexpensive precursors, 4-coumaric acid and ferulic acid . Coumarins possess antibacterial activity against Ralstonia solanacearum , antimicrobial activity against Staphylococcus aureus , and antifungal activities against clinically important fungal pathogens . Coumarins with antioxidant activities inhibit aflatoxin formation because aflatoxin formation occurs when fungal species are subject to oxidative stress [16,17,18]. In addition to this finding, a structure–activity relationship (SAR) study of 24 coumarin derivatives showed that O-substitutions seem to be essential for antifungal activity against A. flavus and A. fumigatus . However, the authors did not study the relationship between the structure of coumarins and the antiaflatoxigenic activity generated by A. flavus. In the shikimic pathway, indole is generated and its derivative has shown antifungal activity .
In our previous studies, we have found that methylenedioxy-containing natural and synthetic compounds possessed antifungal and antiaflatoxigenic properties against A. flavus . In this study, 1-(2-methylpiperidin-1-yl)-3-phenylprop-2-en-1-one showed potent antifungal and antiaflatoxigenic activities against A. flavus among the tested 22 compounds, and its mode of inhibitory action on aflatoxin production was caused by inhibition on the expression of some genes involved in aflatoxin biosynthesis such as aflD, aflK, aflQ, aflR, and aflS . Other reports have shown that natural products are good candidates as preservatives to suppress aflatoxin contamination in cereals and feedstuffs [22,23,24].
In the present study, 26 coumarins were assessed to determine their antifungal activities against A. flavus and the inhibitory effects on aflatoxin production. The mode of inhibitory action on the aflatoxin production was disclosed using real-time PCR. Further studies for antifungal and antiaflatoxigenic activities were undertaken using structurally closed compounds including 2,3-dihydrobenzofuran, indole, 1-methyl indole, 2-methyl indole, 3-methyl indole, and 2-phenyl indole to coumarins for understating relationships between the structure of tested compounds and antifungal and antiaflatoxigenic activities. These antifungal and antiaflatoxigenic substances can be used for controlling A. flavus and reducing aflatoxin contamination in agricultural fields before harvest given their ability to decrease aflatoxin production.
2. Results and Discussion
The inhibitory effects of the 32 tested compounds on A. flavus growth and aflatoxin production were measured and the results are expressed in Table 1. A currently used fungicide thiabendzole (Figure 1) was used as a positive control and all data were calculated on the basis of the inhibition rate (%) in comparison to the solvent-treated controls . Among the tested coumarins, five compounds showed antifungal activities against A. flavus. Among them, 4-hydroxy-7-methoxy-3-phenylcoumarin (1) and 4-hydroxy-6,7-dimethylcoumarin (2) exhibited about 50% inhibition on the fungal growth at the concentration of 100 μg/mL. However, this inhibitory effect of (2) disappeared after exposure to 10-fold diluted concentration (Table 1). 6,7-Dimethoxycoumarin (3) also possessed inhibitory effects on the fungal growth at concentrations of 1000 μg/mL. However, this inhibition was no longer evident following treatment with a 10-fold lower concentration of the compound. At the concentration of 10 μg/mL, there was no inhibitory effect by Compound 3 (Table 1).
4-(Bromomethyl)-6,7-dimethoxycoumarin (4) and 2,3-dihydrobenzofuran (5) showed potent antifungal activities at concentrations of 1000 μg/mL. At the concentration of 100 μg/mL, Compound 4 reduced 63% of fungal growth and Compound 5 completely lost its inhibitory effect. The inhibitory effect of 4 on the A. flavus growth was not found at the concentration of 10 μg/mL (Table 1).
The inhibition of aflatoxin production by coumarins was remarkable (Table 2). At a concentration of 10 μg/mL, 1 and 2 showed almost complete inhibition of aflatoxin production. This inhibition was no longer evident following treatment with a 10-fold lower concentration of the compound (Table 2). Compound 1 exhibited potent inhibitory effects on AFB1 and AFB2 production until treatment with the compound at a concentration of 1 μg/mL. This compound significantly enhanced production of AFG1 after the treatment of 100 μg/mL (Table 2). Compound 2 exhibited potent inhibitory effects on AFB1 and AFB2 production until treatment with the compound at a concentration of 10 μg/mL. At a concentration of 1 μg/mL, the antiaflatoxigenic activity of 5 was observed to be 40% inhibition of AFB1 production (Table 2).
The fungicidal and bactericidal activities of coumarin and coumaric acid have been tested against A. flavus and o-coumaric acid inhibited aflatoxin production, but no correlation with fungal growth was found . In that report, the authors found the complete inhibition of coumarin on fungal growth against A. flavus at the level of 10 mmol/L, equivalent to about 1460 μg/mL . This is similar to our result, where most coumarins possessed potent antifungal activities at a concentration of 1000 μg/mL (Table 1).
Coumarins showed similar inhibitory patterns on aflatoxin production, enhancing the production of AFG1 (Table 2). It is likely that coumarins inhibit the production of AFB1, AFB2, and AFG2, but promote that of AFG1. Various coumarins generally use similar target enzymes involved in the aflatoxin biosynthesis pathway to inhibit aflatoxin production; however, the pathway for production of AFG1 escapes inhibition.
Other report using three natural furanocoumarins such as xanthotoxin, bergapten, and psoralen exhibited potent antiaflatoxigenic activities at the 5 mM concentration, but not for antifungal activities due to only 20% inhibition on fungal growth . Holmes et al.  reviewed diverse biomolecules for their inhibitory effects on aflatoxin biosynthesis. Coumarins containing bergapten, p-coumaric acid, psoralene, and xanthotoxin possessed strong antiaflatoxigenic activities with IC50 values below 0.1 mM. Among the known biomolecules, α-ionone (IC50 value, 0.4 μM) was the strongest compound to suppress aflatoxin production .
In a recent report, authors demonstrated that AFG2 production in A. flavus was enhanced after exposure to piperonal, a methylenedioxy-containing compound . In the same report, methyleugenol, a monoterpene, suppressed AFB1 and AFB2 generation, while AFG1 production increased in A. flavus. Taken together, chemicals can change the AFB biosynthesis pathway. In contrast, Compound 5 exhibited potent antifungal and antiaflatoxigenic activity in comparison to the positive control, thiabendazole. At concentrations of 1 μg/mL, thiabendazole showed more than 80% inhibition, and Compound 5 showed about 40% inhibition of AFB1 production. These findings are notable, as Compound 5 is a natural product that has potential for use as a major compound in the synthesis of new antiaflatoxigenic compounds.
RT-PCR results showed that Compound 1 downregulated aflR, aflD, aflK, and aflQ, thereby inhibiting the expression of several genes involved directly in the biosynthesis of aflatoxins (Figure 2). However, Compound 5 suppressed the expression of aflS only, which plays an important role in the transcription of genes involved in the biosynthesis of aflatoxins (Figure 3). The gene aflD expresses reductase mediating norsolorinic acid (NOR) to averantin (AVN), while aflK expresses versicolorin B (VERB) synthase to form VERB from versiconal (VAL). aflQ is responsible for oxidoreductase expression, which mediates the formation of aflatoxins.
The expression of aflO and aflQ is positively correlated to the production of AFB1 in A. flavus . This finding is similar to the results of 1, which suppressed aflQ expression. Recent reports support that the expression pattern of aflS gene is related to aflatoxin B1 in A. flavus [30,31]. However, the expression of aflS varied with aflatoxin-producing ability . Therefore, this finding is related to the non-changeable expression pattern on aflS by (1), even it possessed inhibitory effects on expression of some genes involved in aflatoxin biosynthesis.
Conclusively, Compounds 1 and 5 among 32 tested compounds exhibited their potent inhibitory effects on A. flavus growth and aflatoxin production. The inhibitory effect of Compounds 1 and 5 on fungal growth was observed at a concentration of 100 μg/mL. Compound 1 decreased aflatoxin production at the concentration of 100 μg/mL via downregulation of aflD, aflK, and aflQ genes, while Compound 5 downregulated only the expression of the aflS gene. The potent inhibition of Compound 1 was related to downregulation of aflK gene responsible for VERB synthase expression to form versicolorin B, a key intermediate in aflatoxin biosynthesis. Taken together, Compound 1 can be developed as an antifungal and antiaflatoxigenic agent to control A. flavus and aflatoxin contamination in crop plants and stored products.
3. Materials and Methods
The following compounds (26 compounds) were all purchased from Sigma-Aldrich Co. (St. Louise, MO, USA). Tested coumarins were 8-acetyl-7-hydroxycoumarin, 3-acetyl-6-bromocoumarin, 6-bromo-3-cyano-4-methyl-coumarin, 4-(bromomethyl)-6,7-dimethoxycoumarin, 3-cyano-7-hydroxy-4-methylcoumarin, 3-cyano-4,6-dimethyl-coumarin, coumarin, 4,6-dichloro-3-formylcoumarin, 6,7-dimethoxy-4-methylcoumarin, 5,7-dimethoxycoumarin, 7-ethoxy-4-methylcoumarin, 7-ethoxycoumarin, 4-hydroxy-6,7-dimethyl-coumarin, 7-methoxy-4-methylcoumarin, 6-methoxy-4-methylcoumarin, 7-methoxycoumarin, 7-hydroxy-6-methoxycoumarin, 4-hydroxy-7-methoxy-3-phenyl-coumarin, 6-methoxycoumarin, 5,6,7-trimethoxycoumarin, 6,7-dimethoxycoumarin, 6-methoxy-[7,8-(1-methoxy)methylenedioxy]coumarin, 6,7-(1-methoxy)methylenedioxy coumarin, 6,7,8-trimethoxycoumarin, 7-hydroxycoumarin, and dihydrocoumarin. In addition to these coumarin derivatives, some benzene-fused compounds were also tested for the evaluation of fungal and antiaflatoxigenic activities. 2,3-Dihydrobenzofuran, indole, 1-methyl indole, 2-methyl indole, 3-methyl indole, and 2-phenyl indole were also purchased from Sigma-Aldrich Co. (Figure 1).
3.2. Microorganisms and Preparation of the Spore Solution
Aspergillus flavus ATCC 22546 was purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA) and was grown on malt extract agar (MEA: Difco Laboratories, Sparks, MD, USA). This isolate during the development generated aflatoxin B1 and B2, but not for G1 and G2 . It was grown on MEA medium at 30 °C for 5 days until fungal spores were formed. After spore formation, they were collected from slants by shaking under 0.05% (v/v) Tween 80 and finally stored at −70 °C in a 20% glycerol solution (v/v).
3.3. Aflatoxin Analysis Using an HPLC-FLD
Fungal spore suspension adjusted to 106 population was inoculated to the liquid culture media consisting of potato dextrose broth (25 mL) (PDB, Difco Laboratories). All tested compounds were spiked to the corresponding liquid media with a serial basis, and the culture was incubated at 25 °C for 5 days under shaking conditions. All experiments were triplicates for each concentration of the tested compound.
Following liquid medium cultivation for 5 days, the fungal growth was measured using filter paper to weigh the mycelial and sclerotial residues with overnight dryness in a dry oven. Separately, the mycelia from each treatment were subjected to the extraction procedure using an ultrasonic cleaner, and analyses of aflatoxin B (AFB) and G (AFG) was undertaken using an HPLC-FLD . The average of the three replicates were calculated with standard deviation, and the data were compared with a control using one-way ANOVA at a p < 0.05 significance level .
3.4. Real-Time qPCR (RT-qPCR) after Isolation of Total RNA
RT-qPCR was employed to understand the mode of the inhibitory effect on fungal growth and aflatoxin production. Fungal mycelia in liquid media were carefully collected and total RNA was extracted using the QIAzol Lysis reagent supplied by QIAGEN Inc. (Dusseldorf, Germany) after grinding to a fine powder under an appropriate amount of liquid nitrogen. Total RNAs extracted from the treated fungi were quantified by a μDrop™ Plate (Thermo Fisher Scientific Inc., Waltham, MA, USA), and the extracted RNAs were qualitatively checked using 1% agarose gel with ethidium bromide. Complementary DNA (cDNA) for extracted RNAs (2 μg) was synthesized using Maxima First Strand cDNA Synthesis Kit (Thermo Fisher Scientific Inc., Waltham, MA, USA).
RT-qPCR was undertaken by a Rotor-Gene SYBR Green PCR Kit (QIAGEN Inc.) with an proper amount of cDNA (100 ng). Primers for genes such as yap, aflR, aflS, aflK, aflD, aflQ, and 18S rRNA were synthesized by Genotech (Daejeon, Korea), and they were used to understand the relationship between aflatoxin biosynthesis and the active compound . Forty cycles of thermal cycling parameters were performed for amplification as follows: denaturation at 95 °C for 30 s, annealing at 60 °C for 20 s, and elongation at 72 °C for 30 s, followed by an additional step at 95 °C for 5 min. RT-qPCR was done triplicates for each treatment. Significant differences in gene expression were calculated using double delta Ct methods . Data were standardized with 18S rRNA, and gene expressions between the treatment and controls were compared using Prism 6 software (GraphPad, San Diego, CA, USA). Statistically significant differences between experimental groups were analyzed by a Student’s t-test (p < 0.05).
This research was supported by a grant (15162MFDS044) from Ministry of Food and Drug Safety in 2015.
Hyang Sook Chun and Sung-Eun Lee conceived and designed all experiments; Young-Sun Moon performed the experiments; Hyang Sook Chun and Sung-Eun Lee analyzed the results; Leesun Kim and Sung-Eun Lee wrote the paper.
Conflicts of Interest
The authors declare no conflict of interest.
- Marin, S.; Ramos, A.J.; Cano-Sancho, G.; Sanchis, V. Mycotoxins: Occurrence, toxicology, and exposure assessment. Food Chem. Toxicol. 2013, 60, 218–237. [Google Scholar] [CrossRef] [PubMed]
- Stroka, J.; Anklam, E. Analysis of aflatoxins in various food and feed matrices-results of international validation studies. Mycotoxin Res. 2000, 16 (Suppl. S2), 224–226. [Google Scholar] [CrossRef] [PubMed]
- Chen, A.J.; Jiao, X.; Hu, Y.; Lu, X.; Gao, W. Mycobiota and mycotoxins in traditional medicinal seeds from China. Toxins 2015, 7, 3858–3875. [Google Scholar] [CrossRef] [PubMed]
- Fountain, J.C.; Scully, B.T.; Ni, X.Z.; Kemerait, R.C.; Lee, R.D.; Chen, Z.Y.; Guo, B. Environmental influences on maize-Aspergillus flavus interactions and aflatoxin production. Front. Microbiol. 2014, 5, 40. [Google Scholar] [CrossRef] [PubMed]
- Atehnkeng, J.; Donner, M.; Ojiambo, P.S.; Ikotun, B.; Augusto, J.; Cotty, P.J.; Bandyopadhyay, R. Environmental distribution and genetic diversity of vegetative compatibility groups determine biocontrol strategy to mitigate aflatoxin contamination of maize by Aspergillus flavus. Microb. Biotechnol. 2015, 9, 75–88. [Google Scholar] [CrossRef] [PubMed]
- Diedhiou, P.M.; Bandyopadhyay, R.; Atehnkeng, J.; Ojiambo, P.S. Aspergillus colonization and aflatoxin contamination of maize and sesame kernels in two agro-ecological zones in Senegal. J. Phytopathol. 2011, 159, 268–275. [Google Scholar] [CrossRef]
- Calori-Domingues, M.A.; Fonseca, H. Laboratory of chemical control of aflatoxin production in unshelled peanuts (Arachis hypogaea L.). Food Addit. Contam. 1995, 12, 347–350. [Google Scholar] [CrossRef] [PubMed]
- D’Mello, J.P.F.; Macdonald, A.M.C.; Postel, D.; Dijksma, W.T.P.; Dujardin, A.; Plancinta, C.M. Pesticide use and mycotoxin production in Fusarium and Aspergillus phytopathogens. Eur. J. Plant Path. 1998, 104, 741–751. [Google Scholar]
- Deising, H.B.; Reimann, S.; Pascholati, S.F. Mechanisms and significance of fungicide resistance. Braz. J. Microbiol. 2008, 39, 286–295. [Google Scholar] [CrossRef] [PubMed]
- Kanafani, Z.A.; Perfect, J.R. Resistance to antifungal agents: Mechanisms and clinical impact. Clin. Infect. Dis. 2008, 46, 120–128. [Google Scholar] [CrossRef] [PubMed]
- Bourgaud, F.; Hehn, A.; Larbat, R.; Doerper, S.; Gontier, E.; Kellner, S.; Matern, U. Biosynthesis of coumarins in plants: A major pathway still to be unraveled for cytochrome P450 enzymes. Phytochem. Rev. 2006, 5, 293–308. [Google Scholar] [CrossRef]
- Lin, Y.; Sun, X.; Yuan, Q.; Yan, Y. Combinatorial biosynthesis of plant-specific coumarins in bacteria. Metab. Eng. 2013, 18, 69–77. [Google Scholar] [CrossRef] [PubMed]
- Chen, J.; Yu, Y.; Li, S.; Ding, W. Resvertrol and coumarin: Novel agricultural antibacterial agent against Ralstonia solanacearum in vitro and in vivo. Molecules 2016, 21, 1501. [Google Scholar] [CrossRef] [PubMed]
- Li, Z.P.; Li, J.; Qu, D.; Hou, Z.; Yang, X.H.; Zhang, Z.D.; Wang, Y.K.; Luo, X.X.; Li, M.K. Synthesis and pharmacological evaluations of 4-hydroxycoumarin derivatives as a new class of anti-Staphylococcus aureus agent. J. Pharm. Pharmacol. 2015, 67, 573–582. [Google Scholar] [CrossRef] [PubMed]
- Ji, Q.; Ge, Z.; Ge, Z.; Chen, K.; Wu, H.; Liu, X.; Huang, Y.; Yuan, L.; Yang, X.; Liao, F. Synthesis and biological evaluation of novel phosphoramidate derivatives of coumarin as chitin synthase inhibitors and antifungal agents. Eur. J. Med. Chem. 2016, 108, 166–176. [Google Scholar] [CrossRef] [PubMed]
- Zhang, L.; Hua, Z.; Song, Y.; Feng, C. Monoterpenoid indole alkaloids from Alstonia rupestris with cytotoxic, antibacterial and antifungal activities. Fitoterapia 2014, 97, 142–147. [Google Scholar] [CrossRef] [PubMed]
- Roze, L.V.; Laivenieks, M.; Hong, S.Y.; Wee, J.; Wong, S.S.; Vanos, B.; Awad, D.; Ehrlich, K.C.; Linz, J.E. Aflatoxin Biosynthesis Is a Novel Source of Reactive Oxygen Species—A Potential Redox Signal to Initiate Resistance to Oxidative Stress? Toxins 2015, 7, 1411–1430. [Google Scholar] [CrossRef] [PubMed]
- Singh, L.K.; Priyanka; Singh, V.; Katiyar, D. Design, synthesis and biological evaluation of some new coumarin derivatives as potential antimicrobial agents. Med. Chem. 2015, 11, 128–134. [Google Scholar] [CrossRef] [PubMed]
- De Araújo, R.S.A.; Guerra, F.Q.S.; de, O.; Lima, E.; de Simone, C.A.; Tavares, J.F.; Scotti, L.; Scotti, M.T.; de Aquino, T.M.; de Moura, R.O.; Mendonça, F.J.B., Jr.; et al. Synthesis, structure–activity relationships (SAR) and in Silico studies of coumarin derivatives with antifungal activity. Int. J. Mol. Sci. 2013, 14, 1293–1309. [Google Scholar]
- Hussein, K.A.; Joo, J.H. Isolation and characterization of rhizomicrobial isolates for phosphate solubilization and indole acetic acid production. J. Korean Soc. Appl. Biol. Chem. 2015, 58, 847–855. [Google Scholar] [CrossRef]
- Moon, Y.S.; Choi, W.S.; Park, E.S.; Bae, I.K.; Choi, S.D.; Paek, O.; Kim, S.H.; Chun, H.S.; Lee, S.E. Antifungal and antiaflatoxigenic methylenedioxy-containing compounds and piperine-like synthetic compounds. Toxins 2016, 8, 240. [Google Scholar] [CrossRef] [PubMed]
- Lee, S.E.; Mahoney, N.E.; Campbell, B.C. Inhibition of aflatoxin B1 biosynthesis by piperlongumine isolated from Piper longum L. J. Microbiol. Biotechnol. 2002, 12, 679–682. [Google Scholar]
- Kohiyama, C.Y.; Yamamoto, R.M.M.; Mossini, S.A.; Bando, E.; Bomfim Nda, S.; Nerilo, S.B.; Rocha, G.H.; Grespan, R.; Mikcha, J.M.; Machinski, M., Jr. Antifungal properties and inhibitory effects upon aflatoxin production of Thymus vulgaris L. by Aspergillus flavus Link. Food Chem. 2015, 173, 1006–1010. [Google Scholar] [CrossRef] [PubMed]
- Park, E.S.; Bae, I.K.; Kim, H.J.; Lee, S.E. Novel regulation of aflatoxin B1 biosynthesis in Aspergillus flavus by piperonal. Nat. Prod. Res. 2016, 30, 1854–1857. [Google Scholar] [CrossRef] [PubMed]
- Paster, N.; Juven, B.J.; Harshemesh, H. Antimicrobial activity and inhibition of aflatoxin B1 formation by olive plant tissue constituents. J. Appl. Bacteriol. 1988, 64, 293–297. [Google Scholar] [CrossRef] [PubMed]
- Mabrouk, S.S.; El-Shayeb, N.M.A. Inhibition of aflatoxin production in Aspergillus flavus by natural coumarins and chromones. World J. Microbiol. Biotechnol. 1992, 8, 60–62. [Google Scholar] [CrossRef] [PubMed]
- Holmes, R.A.; Boston, R.S.; Payne, G.A. Diverse inhibitors of aflatoxin biosynthesis. Appl. Bmicrobiol. Biotechnol. 2008, 78, 559–572. [Google Scholar] [CrossRef] [PubMed]
- Norton, R.A. Inhibition of aflatoxin B1 synthesis by Aspergillus flavus. Phytopathology 1997, 87, 814–821. [Google Scholar] [CrossRef] [PubMed]
- Jamali, M.; Karimipour, M.; Shams-Ghahfarokhi, M.; Amani, A.; Razzaghi-Abyaneh, M. Expression of aflatoxin genes aflO (omtB) and aflQ (ordA) differentiates levels of aflatoxin production by Aspergillus flavus strains from soils of pistachio orchards. Res. Microbiol. 2013, 164, 293–299. [Google Scholar] [CrossRef] [PubMed]
- Schmidt-Heydt, M.; Rüfer, C.E.; Abdel-Hadi, A.; Magan, N.; Geisen, R. The production of aflatoxin B1 or G1 by Aspergillus parasticus at various combinations of temperature and water activity is related to the ratio of aflS to aflR expression. Mycotoxin Res. 2010, 26, 241–246. [Google Scholar] [CrossRef] [PubMed]
- Mo, H.Z.; Zhang, H.; Wu, Q.H.; Hu, L.B. Inhibitory effects of tea extract on aflatoxin production by Aspergillus flavus. Lett. Appl. Microbiol. 2013, 56, 462–466. [Google Scholar] [PubMed]
- Scherm, B.; Palomba, M.; Serra, D.; Marcello, A.; Migheli, Q. Detection of transcripts of the aflatoxin genes aflD, aflO, and aflP by reverse transcription-polymerase chain reaction allows differentiation of aflatoxin-producing and non-producing isolates of Aspergillus flavus and Aspergillus parasiticus. Int. J. Food Microbiol. 2005, 98, 201–210. [Google Scholar] [CrossRef] [PubMed]
- SAS. SAS User’s Guide, 4th ed.; SAS Institute: Cary, NC, USA, 2001. [Google Scholar]
- Rao, X.; Huang, X.; Zhou, Z.; Lin, X. An improvement of the 2ˆ(−delta delta CT) method for quantitative real-time polymerase chain reaction data analysis. Biostat. Bioinform. Biomath. 2013, 3, 71–85. [Google Scholar]
- Sample Availability: Samples of the tested compounds are available from the authors.
Figure 1. Molecular structure of thiabendazole used as a positive control in this study.

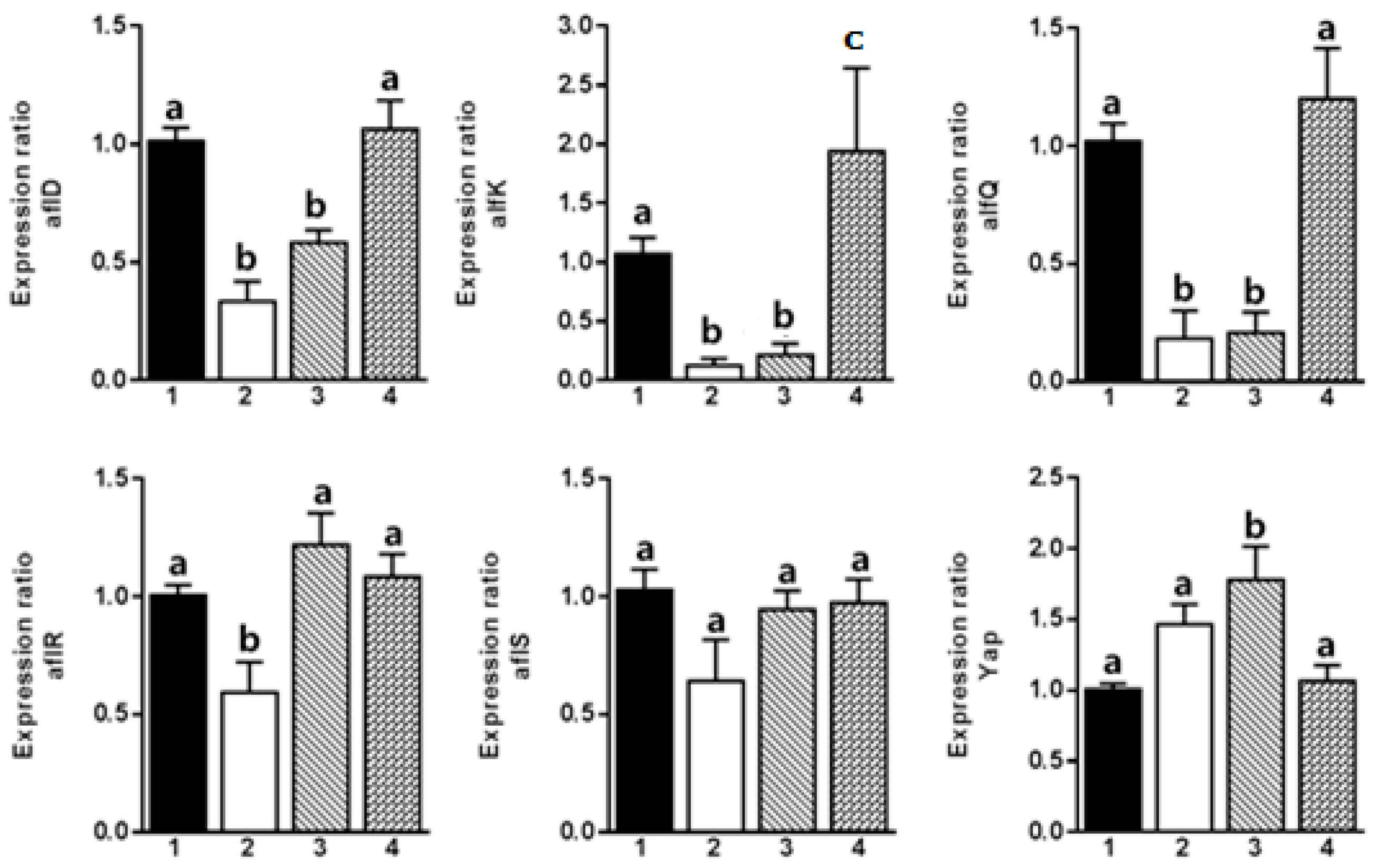

Figure 2. RT-PCR results of aflatoxin biosynthesis using six genes (aflD, aflK, aflQ, aflR, aflS, and yap) regulated by 4-hydroxy-7-methyl-3-phenyl coumarin (1). 1: control; 2: 1000 μg/mL of 1; 3: 100 μg/mL of 1; 4: 10 μg/mL of 1). Different letters indicate statistically significant differences between experimental groups analyzed by a Student’s t-test (p < 0.05).
Figure 3. RT-PCR results of aflatoxin biosynthesis using six genes (aflD, aflK, aflQ, aflR, aflS, and yap) regulated by 2,3-dihydrobenzofuran (5). 1: control; 2: 1000 μg/mL of 5; 3: 100 μg/mL of 5; 4: 10 μg/mL of 5). Different letters indicate statistically significant differences between experimental groups analyzed by a Student’s t-test (p < 0.05).
Table 1. Mycelial growth of Aspergillus flavus treated with various coumarins.
|Compounds||Treated Concentration (μg/mL)||Mycelial Growth (mg)|
|Thiabendazole (Positive control)||10||1.2 ± 2.1 (1.0%)|
|5||6.3 ± 10.1 (5.0%)|
|1||96.3 ± 2.4 (77.0%)|
|4-Hydroxy-6,7-dimethylcoumarin||1000||0.0 ± 0.00 (0%)|
|100||22.5 ± 3.7 (18.0%)|
|10||73.9 ± 17.4 (59.1%)|
|4-Hydroxy-7-methoxy-3-phenylcoumarin||1000||0.0 ± 0.00 (0%)|
|100||41.1 ± 27.1 (32.8%)|
|10||61.9 ± 14.1 (49.5%)|
|6,7-Dimethoxycoumarin||1000||0.0 ± 0.00 (0%)|
|100||63.0 ± 44.3 (50.4%)|
|10||93.7 ± 8.3 (74.9%)|
|2,3-dihydrobenzofuran||1000||0.0 ± 0.00 (0%)|
|100||152.3.0 ± 45.1 (124%)|
|4-(Bromomethyl)-6,7-dimethoxycoumarin||1000||0.0 ± 0.00 (0%)|
|100||46.4 ± 3.7 (37.1%)|
|10||120.9 ± 18.5 (96.7%)|
Mycelial growth for the negative control was 124.0 ± 23.0 mg obtained from three experiments.
Table 2. Inhibitory effects of coumarins on aflatoxin production in Aspergillus flavus.
|Compounds||Treated Conc. (μg/mL)||Aflatoxin Production (ng/mL)|
|Aflatoxin B1||Aflatoxin B2||Aflatoxin G1||Aflatoxin G2|
|Control||-||1928.9 ± 403.4 a||37.2 ± 6.3 a||184.3 ± 66.5 a||29.5 ± 5.3 a|
|Thiabendazole||5||ND *,b||ND b||64.4 ± 2.6 b||ND b|
|1||−||−||239.2 ± 65.7 a||−|
|3-Acetyl-6-bromocoumarin||10||ND b||ND b||92.6 ± 25.7 b||ND b|
|4-Hydroxy-6,7-dimethyl-coumarin||10||ND b||ND b||ND b||ND b|
|1||−||ND b||−||ND b|
|4-Hydroxy-7-methoxy-3-phenyl-coumarin||100||ND b||ND b||ND b||ND b|
|10||158.8 ± 25.6 c||ND b||192.6 ± 32.4 a||ND b|
|1||1025.4 ± 329.9 d||19.3 ± 3.4 c||137.8 ± 39.0 a||5.3 ± 1.0 c|
|Dihydrocoumarin||1000||ND b||ND b||ND b||ND b|
|10||1397.5 ± 675.9 a||28.8 ± 7.8 b||99.6 ± 62.0 b||ND b|
|1||2517.9 ± 199.8 a||49.7 ± 36.5 a||164.6 ± 120.8 a||5.1 ± 1.7 c|
|2,3-Dihydrobenzofuran||1000||ND b||ND b||ND b||ND b|
|100||ND b||ND b||ND b||ND b|
|1||1140.0 ± 342.1 c||21.8 ± 5.1 c||123.3 ± 33.7 c||5.8 ± 2.6 c|
|4-(Bromomethyl)-6,7-dimehtoxycoumarin||1000||ND b||ND b||ND b||ND b|
|100||ND b||ND b||ND b||ND b|
* ND: Not detectable; −: means more than 150% aflatoxin production in comparison to that of the control. Statistical analysis performed and different letters in the same column indicate significantly different from the control group (p < 0.05).
