Molecules 2016, 21(6), 789; https://doi.org/10.3390/molecules21060789

Article
Synthesis of a Conjugated D-A Polymer with Bi(disilanobithiophene) as a New Donor Component
1
Department of Applied Chemistry, Graduate School of Engineering, Hiroshima University, 1-4-1 Kagamiyama, Higashi-Hiroshima 739-8527, Japan
2
Department of Physics and Electronics, Graduate School of Engineering, Osaka Prefecture University, 1-1 Gakuen-cho, Naka-ku, Sakai, Osaka 599-8531, Japan
*
Authors to whom correspondence should be addressed.
Academic Editor: Mitsuo Kira
Received: 30 April 2016 / Accepted: 13 June 2016 / Published: 17 June 2016

Abstract

:
A new conjugated donor-acceptor (D-A) polymer pDSBT2-BT containing bi(disilano-bisthiophene) and benzothiadiazole as donor and acceptor units, respectively, was prepared. The polymer showed a broad UV-vis absorption band at λmax = 599 nm in chlorobenzene. The absorption band was shifted to λmax = 629 nm when the polymer was measured as a film, indicating enhanced interchain interactions of the polymer. Bulk hetero-junction polymer solar cells (BHJ-PSCs) were fabricated using pDSBT2-BT and PC71BM as host and guest materials, respectively. Optimization of cell fabrication conditions provided a maximal power conversion efficiency of 3.3% and the following cell parameters: Voc = 0.86 V, Jsc = 7.56 mA/cm2, and FF = 0.51. Although the efficiency still leaves much to be desired, these data underscore the potential of pDSBT2-BT as a high-voltage polymer solar cell material.
Keywords:
bulk heterojunction; polymer solar cell; D-A polymer; disilanobithiophene

1. Introduction

Bulk heterojunction polymer solar cells (BHJ-PSCs) are of current interest because of their potential applications in lightweight and flexible modules and simple fabrication by a solution process. In this system, a blend film of an electron-donating host polymer and an electron-accepting guest material, such as PC61BM and PC71BM, is employed as the active layer. As the host polymer, conjugated donor-acceptor (D-A) polymers have been extensively studied [1,2]. D-A polymers usually show red-shifted broad absorptions arising from rather strong intramolecular D-A electronic interactions, making it possible to utilize the wide wavelength range of sunlight. Intermolecular D-A interactions are also expected in the solid state, which enhances the carrier-transport properties of the polymers. Dithienosiloles [3,4,5,6,7] and dithienogermoles [8,9,10] have been studied as the donor components of D-A polymers. These highly planar tricyclic systems show extended conjugation. The flexibility of the substituents on the Si and Ge atoms with C-Si and C-Ge bonds that are longer than C-C and C-N bonds provides sufficient solubility, without suppressing the intermolecular interactions significantly. Recently, it has been also demonstrated that D-A polymers with bi(dithienosilole) [5] and bi(dithienogermole) [11] as donor units (pDTS2-BT and pDTG2-BT, Figure 1) show higher carrier-transport properties than the corresponding dithienosilole- and dithienogermole-containing analogs (pDTS-BT [3] and pDTG-BT [9], Figure 1), rendering them applicable as active materials for organic transistors and PSCs with enhanced performance.
Recently, we reported the synthesis of conjugated D-A polymers with disilanobithiophene (DSBT) as the new donor unit and demonstrated the potential applications of these polymers to high-voltage polymer solar cells [12,13]. In these polymers, twisting of the bithiophene unit in DSBT and between the DSBT donor and acceptor units lowers the HOMO energy levels of the polymers. In this work, we prepared a bis(disilanobithiophene)-benzothiadiazole (pDTBT2-BT) alternating polymer and examined its potential as a host material for BHJ-PSCs. The open-circuit voltage of the cell was higher than that based on a similar alternating polymer pDSBT-BT [12,13], reported previously.

2. Results

2.1. Synthesis

For the preparation of pDSBT2-BT, distannylbi(disilanobithiophene) (DSBT2Sn) was employed as the monomer (Scheme 1). Monobromination of disilyldisilanobithiophene DSBTSi with one equiv of NBS proceeded selectively to provide bromo(trimethylsilyl)disilanobithiophene DSBTBrSi. Stannylation of DSBTBrSi gave DSBTSiSn, and subsequent Stille coupling of DSBTSiBr with DSBTSiSn in toluene under reflux yielded bis(trimethylsilyl)disilanobithiophene DSBT2Si. DSBT2Si underwent bromination and then stannylation to afford DSBT2Sn in 24% yield in five steps from DSBTSi.
The Stille coupling of DSBT2Sn with dibromobenzothiadiazole in toluene at 70 °C for 5 days, followed by reprecipitation of the resulting organic products gave pDSBT2-BT as a dark purple solid in 53% yield (Scheme 2). The polymer pDSBT2-BT was soluble in toluene, chloroform, and chlorobenzene, and slightly soluble in THF and hexane, but insoluble in ethyl acetate, methanol, and ethanol. The polymer molecular weight was determined by gel permeation chromatography (GPC) to be Mn = 13,000 (Mw/Mn = 1.9), relative to polystyrene standards. The polymer structure was confirmed from its 1H- and 13C-NMR spectra. As can be seen in Figure S2, the 1H-NMR spectrum has three singlets due to the aromatic CH protons, together with those of butyl groups on silicon atoms. The proton integration ratio was in good agreement with the regular structure shown in Scheme 2.

2.2. Optical and Electrochemical Properties of pDSBT2-BT

Figure 2 shows the UV absorption spectra of pDSBT2-BT in solution and film, and Table 1 summarizes the data of pDSBT2-BT and those of pDSBT-BT [12] and homopolymer pDSBT [14] reported previously (Figure 3).
The absorption was shifted to the longer wavelength region when the spectrum was measured as a film, suggesting enhanced interchain interaction and/or planarity of the polymer in film. Compared with the data of pDSBT-BT and pDSBT, pDSBT2-BT has a HOMO-LUMO energy gap in between those of pDSBT and pDSBT-BT in both solution and film. The degree of tendency to form aggregates could be also estimated from the UV-vis spectra. For pDSBT-BT, a shoulder peak ascribed to the aggregated polymer chains was observed even in the solution spectrum, and this peak was enhanced in the film spectrum. The present pDSBT2-BT showed a peak for the polymer aggregation only in the film spectrum. pDSBT, in contrast, showed no polymer aggregation peaks even in the film spectrum, but the peak in the film spectrum was broadened and slightly red-shifted compared with that in solution. These results indicate that the formation of aggregates is enhanced in the order of pDSBT < pDSBT2-BT < pDSBT-BT.
A polymer film containing tetrabutylammonium perchlorate (TBAP) was cast on a platinum working electrode and its cyclic voltammogram (CV) was measured in acetonitrile with TBAP as the electrolyte. The HOMO energy level of pDSBT2-BT, which was estimated on the basis of the CV oxidation onset (EHOMO/eV = −4.8 − [EonsetE1/2(Fc/Fc+)]/V), was the same as that of pDSBT-BT, as listed in Table 1 [12,13], thus indicating that the larger HOMO-LUMO gap of pDSBT2-BT than that of pDSBT-BT was primarily ascribed to the higher-lying LUMO. This is likely due to the low content of acceptor BT units in pDSBT2-BT.
To understand the electronic state of pDSBT2-BT, we carried out crystal orbital (CO) calculations on the polymer model that was simplified by replacing the butyl groups on the silicon atoms by methyl groups at the level of B3LYP/6-31G(d,p) on the Gaussian 09 program. The optimized geometry of the unit cell and the profiles and the energy levels of the highest occupied crystal orbital (HOCO) and the lowest unoccupied crystal orbital (LUCO) are presented in Figure 4. The geometry possesses an almost planar structure, with the small twisting angles between the DSBT and BT units, leading to the efficient conjugation in the polymer backbone. This is in contrast to that previously reported for pBSBT-BT that was computed using a DSBT-BT unit cell to have a lager twisting angle of 84.8° between DSBT and BT units [13]. We therefore recalculated the pDSBT-BT model with the use of a lager unit cell of DSBT-BT-DSBT-BT and obtained a more planar structure similar to that of the pDSBT2-BT model (Figure 4). This is likely due to rather flat potential surface of the polymers with respect to the twisting angles and the planarity readily changes depending on the computation conditions. For both the pDSBT2-BT and pDSTB-BT models, the HOCOs are delocalized over the bithiophene and phenylene units, but the thiadiazole rings exert little contribution. On the other hand, the LUCOs are rather localized on the BT units, suggesting possible charge separation at the photo excited states. Disilane σ- and σ*-orbitals are not obviously included in the HOCOs and LUCOs. The model of pDSBT-BT possesses a smaller HOCO-LUCO energy gap, in accordance with the experimental observations described above.

2.3. Device Fabrication

BHJ-PSCs were fabricated with the structure of ITO/PEDOT:PSS/pDSBT2-BT:PC71BM/ETL/Al (ETL = electron transport layer) and the active area of 0.04 cm2. First, we examined the dependence of cell performance on the ratio of pDSBT2-BT:PC71BM in the active layer.
As shown in Figure 5a (ETL = Ca), the 1:2 ratio gave the best performance. Next, the effects of ETL were investigated in cells with pDSBT2-BT:PC71BM = 1:2. Ca and LiF with different layer thicknesses were examined as ETL (Table 2, runs 1–5).
The best performance was obtained for the cell with LiF (0.5 nm) (run 3), although use of Ca (5 nm) as ETL gave similar results (run 1) with a slightly higher Voc and a lower Jsc. Attempts to improve cell performance by annealing the active layer (runs 6 and 7) and using 1,8-diiodooctane as the processing additive (runs 8 and 9) were unsuccessful. Finally, the thickness of the active layer was optimized (runs 10–12) to give a maximal PCE of 3.3% (run 10, Figure 5b). The introduction of an inverted structure of ITO/ZnO/PEI/pDSBT2-BT: PC71BM/MnO3/Al (PEI = polyethyleneimine) resulted in a decrease of both current density and voltage of the cell (run 13). When the performance of the present PSCs with pDSBT2-BT was compared with that of pDSBT-BT-based PSCs reported previously (Voc = 0.74 V, Jsc = 7.30 mA/cm2 for ETL = Ca [12]; Voc = 0.82 V, Jsc = 12.69 mA/cm2 for ETL = LiF [13]), the present PSCs with pDSBT2-BT showed a higher Voc and a lower Jsc. The lower Jsc was likely due to the weaker polymer interchain interaction of pDSBT2-BT than that of pDSBT-BT, although the reason for the higher Voc was not clearly understood. This contrasted the fact that pDTG2-BT-based PSCs showed higher Jsc and lower Voc than those of pDTG-BT, as reported in the literature [11].

3. Materials and Methods

3.1. General

The polymerization was carried out under a dry argon atmosphere. Toluene used as reaction solvent was distilled from calcium hydride and stored over activated molecular sieves before use. NMR spectra were measured on Varian 400-MR and Varian System 500 spectrometers (Agilent Technologies, Santa Clara, CA, USA). UV-vis absorption spectra were measured on a SHIMADZU-UV-3150 spectrometer (Shimadzu, Kyoto, Japan). GPC was carried out using serially connected Shodex KF2001 and KF2002 columns (Showa Denko, Tokyo, Japan) and THF as the eluent.

3.2. Device Fabrication

For the fabrication of BHJ-PSCs, patterned ITO glasses were washed sequentially with acetone and 2-propanol under ultrasonication and the glasses were further cleaned by exposure to UV/ozone. A PEDOT-PSS layer (Clevios P VP AI 4083, Heraeus Precious Metals, Leverkusen, Germany) was then formed by spin-coating at 3000 rpm on the ITO glasses followed by baking at 130 °C for 10 min in air. The substrates were transferred to a glove box under a dried nitrogen atmosphere (dew point: −80 °C), and a chlorobenzene solution of pDSBT2-BT:PC71BM blend was spin-coated on the PEDOT-PSS layer at 1500 rpm for 60 s. After drying in vacuo, Ca or LiF, and Al (50 nm) were vapor-deposited through a shadow mask (active area was 0.04 cm2) on the organic active layer at the base pressure of 6 × 10−4 Pa. BHJ-PSCs were encapsulated under nitrogen. The vapor deposition and the encapsulation were successively carried out in the glove box. BHJ-PSCs were tested in air with a computer-programmed Keithley 2611 source meter (TFF, Tokyo, Japan) under a solar simulator (Asahi Spectra HAL-320, Asahi Spectra, Tokyo, Japan) that simulated AM1.5 solar irradiance with the power density of 100 mW/cm2.

3.3. Preparation of pDSBT2-BT

A mixture of DSBT2Sn (0.242 g, 0.198 mmol), 4,7-dibromo-2,1,3-benzothiadiazole (5.83 × 10−2 g, 0.198 mmol), Pd2(dba)3 (9.10 × 10−3 g, 9.90 × 10−3 mmol), (o-tolyl)3P (1.21 × 10−2 g, 3.96 × 10−2 mmol), and toluene (18 mL) was stirred at 70 °C for 5 days. The resulting mixture was allowed to cool to room temperature and an aqueous solution (30 mL) of sodium N,N-diethyldithiocarbamate trihydrate (3.1 g) was added. The mixture was heated to 80 °C for 2 h. The organic layer was separated and washed with water, 3 vol % acetic acid aqueous solution, and then water again, in that order. The organic layer was dried over anhydrous magnesium sulfate and the solvent was removed under vacuum. The residue was reprecipitated using a sequence of solvent mixtures: toluene/methanol, toluene/ethanol, and toluene/ethyl acetate, to provide 108 mg (53% yield) of pDSBT2-BT as a dark purple solid: m.p. >300 °C; 1H-NMR (δ in C6D4Cl2, 500 MHz) 0.87–0.93 (m, 24H), 0.96–1.20 (m, 16H), 1.34–1.46 (m, 16H), 1.50–1.62 (m, 16H), 7.48 (s, 2H), 7.74 (s, 2H), 8.39 (s, 2H); 13C-NMR (δ in CDCl3, 125 MHz) 12.87, 13.49, 13.57, 26.55, 26.62, 27.26, 27.32, 125.28, 134.38, 135.39, 135.63, 136.34, 137.86, 144.78, 146.96, 152.54; GPC Mn 13,000, Mw 24,700, Mw/Mn 1.9; UV-vis abs λmax 599 nm (in C6H5Cl).

4. Conclusions

We prepared pDSBT2-BT as the first D-A polymer with bi(disilanobithiophene) as the donor. The polymer showed photovoltaic applications in BHJ-PSCs. Although the cell PCE was not very high, the relatively high Voc of the cell seemed to indicate the high potential of the polymer. Studies to improve Jsc by optimizing the polymer structure through changing of the substituents of the silicon atoms and the acceptor structure are in progress, and the results will be reported elsewhere.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/21/6/789/s1.

Acknowledgments

This work was supported by a Grant-in-Aid for Scientific Research on Innovative Areas “New Polymeric Materials Based on Element Blocks (No.2401)” (JSPS Kakenhi Grant No. JP24102005 and JP24102011) and a Grant-in-Aid for Scientific Research (B) (JSPS Kakenhi Grant No. JP26288094).

Author Contributions

H.N. and J.O. conceived and designed the experiments; M.N. and T.S. performed the experiments; Y.O., H.N., and J.O. analyzed the data; and M.N., H.N., and J.O. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dou, L.; Jingbi, Y.; Hong, Z.; Xu, Z.; Li, G.; Street, R.A.; Yang, Y. 25th Anniversary Article: A Decade of Organic/Polymeric Photovoltaic Research. Adv. Mater. 2013, 25, 6642–6671. [Google Scholar] [CrossRef] [PubMed]
  2. Li, Y.-F. Molecular design of photovoltaic materials for polymer solar cells: Toward suitable electronic energy levels and broad absorption. Acc. Chem. Res. 2012, 45, 723–733. [Google Scholar] [CrossRef] [PubMed]
  3. Hou, J.; Chen, H.Y.; Zhang, S.; Li, G.; Yang, Y. Synthesis, characterization, and photovoltaic properties of a low band gap polymer based on silole-containing polythiophenes and 2,1,3-benzothiadiazole. J. Am. Chem. Soc. 2008, 130, 16144–16145. [Google Scholar] [CrossRef] [PubMed]
  4. Ohshita, J. Conjugated oligomers and polymers containing dithienosilole units. Macromol. Chem. Phys. 2009, 210, 1360–1370. [Google Scholar] [CrossRef]
  5. Beaujuge, P.M.; Pisula, W.; Tsao, H.N.; Ellinger, S.; Müllen, K.; Reynolds, J.R. Tailoring structure-property relationships in dithienosilole-benzothiadiazole donor-acceptor copolymers. J. Am. Chem. Soc. 2009, 131, 7514–7515. [Google Scholar] [CrossRef] [PubMed]
  6. Chu, T.Y.; Lu, J.P.; Beaupré, S.; Zhang, Y.; Pouliot, J.R.; Zhou, J.; Najari, A.; Leclerc, M.; Tao, Y. Effects of the molecular weight and the side-chain length on the photovoltaic performance of dithienosilole/thienopyrrolodione copolymers. Adv. Funct. Mater. 2012, 22, 2345–2341. [Google Scholar] [CrossRef]
  7. Subramaniyan, S.; Xin, H.; Kim, F.S.; Shoaee, S.; Durrant, J.R.; Jenekhe, S.A. Effects of side chains on thiazolothiazole-based copolymer semiconductors for high performance solar cells. Adv. Energy Mater. 2011, 1, 854–860. [Google Scholar] [CrossRef]
  8. Ohshita, J.; Hwang, Y.M.; Mizumo, T.; Yoshida, H.; Ooyama, Y.; Harima, Y.; Kunugi, Y. Synthesis of dithienogermole-containing π-conjugated polymers and applications to photovoltaic cells. Organometallics 2011, 12, 3233–3236. [Google Scholar] [CrossRef]
  9. Small, C.E.; Chen, S.; Subbiah, J.; Amb, C.M.; Tsang, S.W.; Lai, T.H.; Reynolds, J.R.; So, F. High-efficiency inverted dithienogermole-thienopyrrolodione-based polymer solar cells. Nat. Photonics 2012, 6, 115–120. [Google Scholar] [CrossRef]
  10. Amb, C.M.; Chen, S.; Graham, K.R.; Subbiah, J.; Samll, C.E.; So, F.; Reynorlds, J.R. Dithienogermole as a fused electron donor in bulk heterojunction solar cells. J. Am. Chem. Soc. 2011, 133, 10062–10065. [Google Scholar] [CrossRef] [PubMed]
  11. Ohshita, J.; Miyazaki, M.; Nakashima, M.; Tanaka, D.; Ooyama, Y.; Sasaki, T.; Kunugi, Y.; Morihara, Y. Synthesis of conjugated D-A polymers bearing bi(dithienogermole) as a new donor component and their applications to polymer solar cells and transistors. RSC Adv. 2015, 5, 12686–12691. [Google Scholar] [CrossRef]
  12. Ohshita, J.; Nakashima, M.; Tanaka, D.; Morihara, Y.; Fueno, H.; Tanaka, K. Preparation of a D-A polymer with disilanobithiophene as a new donor component and application to high-voltage bulk heterojunction polymer solar cells. Polym. Chem. 2014, 5, 346–349. [Google Scholar] [CrossRef]
  13. Nakashima, M.; Otsura, T.; Naito, H.; Ohshita, J. Synthesis of new D-A polymers containing disilanobithiophene donor and application to bulk heterojunction polymer solar cells. Polym. J. 2015, 47, 733–738. [Google Scholar] [CrossRef]
  14. Ohshita, J.; Adachi, Y.; Tanaka, D.; Nakashima, M.; Ooyama, Y. Synthesis of D-A polymers with a disilanobithiophene donor and a pyridine or pyrazine acceptor and their applications to dyesensitized solar cells. RSC Adv. 2015, 5, 36673–36679. [Google Scholar] [CrossRef]
  • Sample Availability: Not available.
Figure 1. Dithienosilole- and dithienogermole-containing D-A polymers.
Figure 1. Dithienosilole- and dithienogermole-containing D-A polymers.
Molecules 21 00789 g001
Scheme 1. Synthesis of bis(disilanobithiophene) monomer.
Scheme 1. Synthesis of bis(disilanobithiophene) monomer.
Molecules 21 00789 sch001
Scheme 2. Polymer synthesis.
Scheme 2. Polymer synthesis.
Molecules 21 00789 sch002

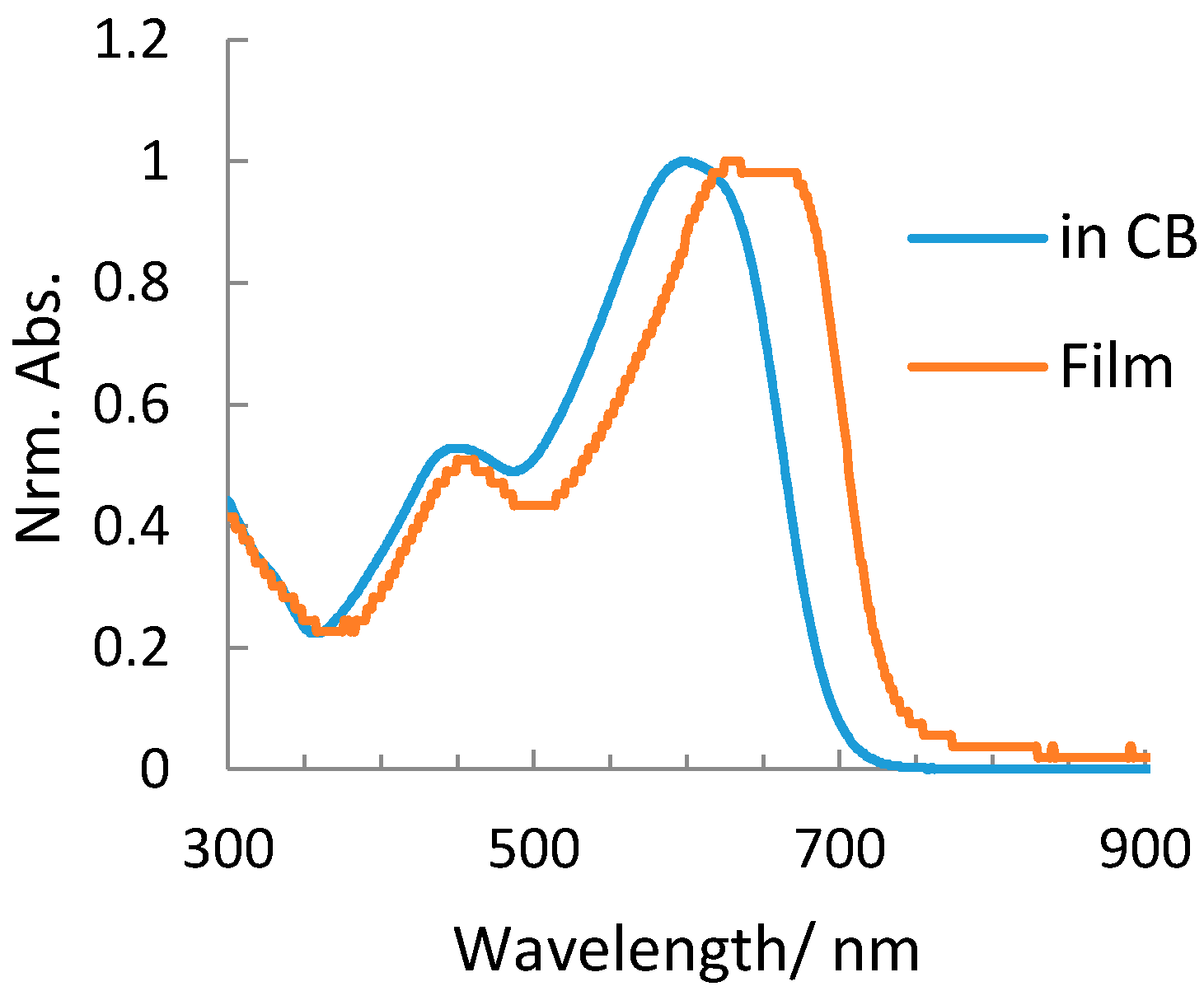

Figure 2. UV absorption spectra of pDSBT2-BT in chlorobenzene and in film form.
Figure 2. UV absorption spectra of pDSBT2-BT in chlorobenzene and in film form.
Molecules 21 00789 g002

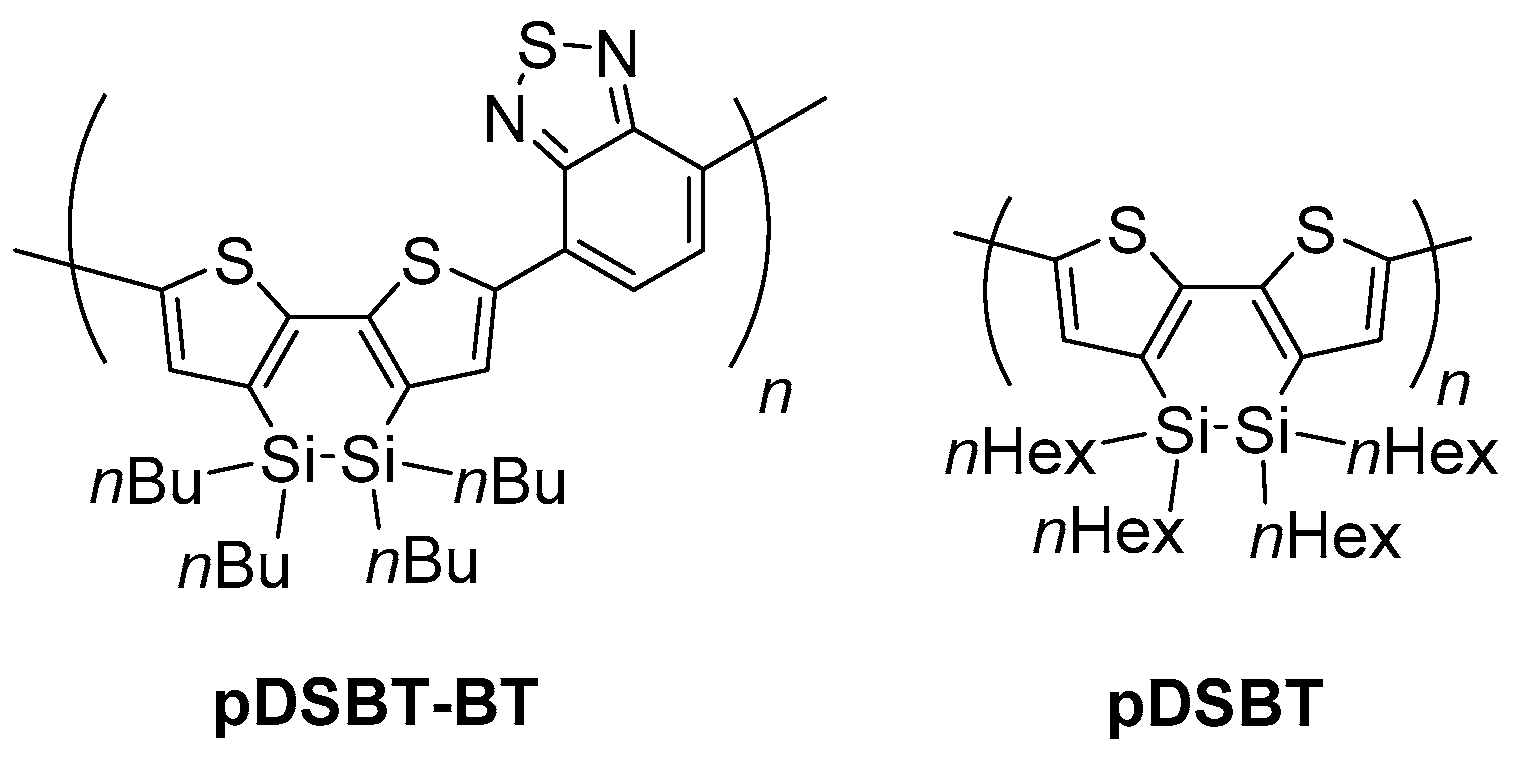

Figure 3. Structures of DSBT- and DTG-containing polymers.
Figure 3. Structures of DSBT- and DTG-containing polymers.
Molecules 21 00789 g003

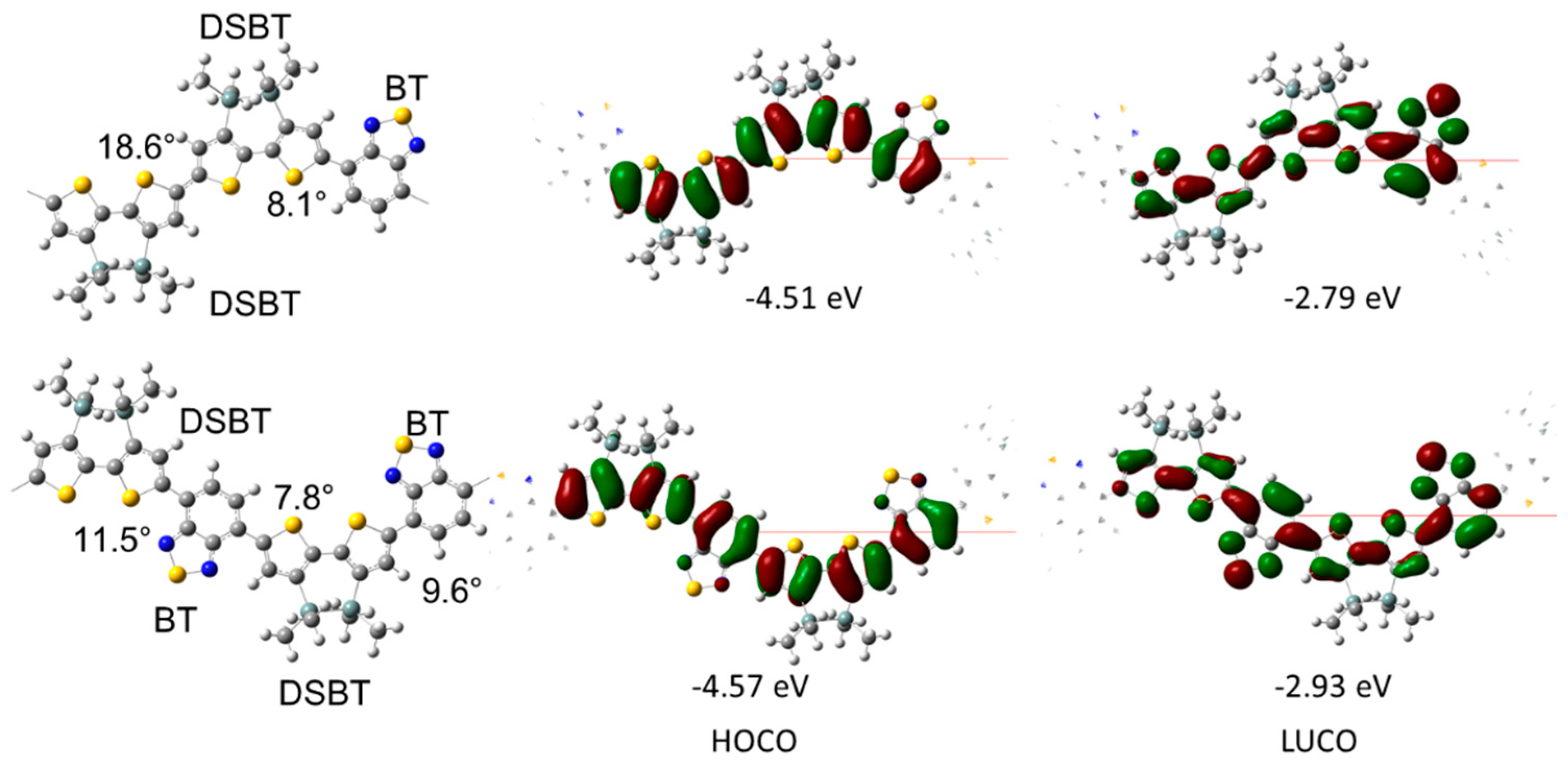

Figure 4. Optimized geometries of the unit cells with interunit twisting angles and HOCO and LUCO profiles and their energy levels for pDSBT2-BT (top) and pDSBT-BT (bottom).
Figure 4. Optimized geometries of the unit cells with interunit twisting angles and HOCO and LUCO profiles and their energy levels for pDSBT2-BT (top) and pDSBT-BT (bottom).
Molecules 21 00789 g004
Figure 5. Plots of PCE of pDSBT2-BT-based PSCs vs. pDSBT2-BT:PC71BM ratio (a); and J-V plots of PSC that yielded the best performance in the present study (b).
Figure 5. Plots of PCE of pDSBT2-BT-based PSCs vs. pDSBT2-BT:PC71BM ratio (a); and J-V plots of PSC that yielded the best performance in the present study (b).
Molecules 21 00789 g005
Table 1. Polymer properties a.
Table 1. Polymer properties a.
PolymerMn (Mw/Mn) b/gmol−1UV-vis abs λmax/nmEg c/eVEHOMO d/eVELUMO e/eV
SolutionFilm
pDSBT f7200 (2.0)542nd g1.9nd g
pDSBT-BT h20,000 (1.9)633, 680650, 6891.7−5.2−3.5
pDSBT2-BT13,000 (1.9)599629, 6681.8−5.2−3.4
a After reprecipitation; b Determined by GPC relative to polystyrene standards; c Optical HOMO-LUMO gap; d Estimated from CV onset; e Eg + EHOMO; f Reference [14]; g Not determined; h Reference [12].
Table 2. Performance of pDSBT2-BT-based BHJ-PSCs.
Table 2. Performance of pDSBT2-BT-based BHJ-PSCs.
RunCell Type aETL (Thickness/nm)Annealing Temp/°CAdditive (/vol %)Active Layer Thickness/nmVoc/VJsc /mAcm−2FFPCE/%
1ConCa (5)nonnon700.866.910.482.8
2ConCa (25)nonnon700.814.040.351.2
3ConLiF (0.5)nonnon700.857.030.492.9
4ConLiF (1.0)nonnon700.855.630.401.9
5ConLiF (1.5)nonnon700.856.290.452.4
6ConLiF (0.5)50non700.855.570.432.0
7ConLiF (0.5)80non700.845.470.421.9
8ConLiF (1.5)nonDIO b (1)700.525.140.401.1
9ConLiF (1.5)nonDIO b (2.5)700.332.060.260.2
10ConLiF (0.5)nonnon600.867.560.513.3
11ConLiF (0.5)nonnon500.877.140.483.0
12ConLiF (0.5)nonnon400.886.330.462.6
13Inv 0.795.990.422.0
a Con: ITO/PEDOT:PSS/pDSBT2-BT:PC71BM (1:2)/ETL/Al (ETL = electron transport layer); Inv: ITO/ZnO/PEI/pDSBT2-BT:PC71BM (1:2)/MnO3/Al (PEI = polyethyleneimine); b 1,8-Diiodooctane, used as a processing additive in pDSBT2-BT:PC71BM solutions in chlorobenzene/THF.
