Molecules 2016, 21(2), 203; doi:10.3390/molecules21020203

Article
Biochemical Characteristics of Three Laccase Isoforms from the Basidiomycete Pleurotus nebrodensis
1
State Key Laboratory for Agrobiotechnology and Department of Microbiology, China Agricultural University, Beijing 100193, China
2
Institute of Biotechnology and Germplasmic Resource, Yunnan Academy of Agricultural Science, Kunming 650223, China
3
College of Food Science and Technology, Nanjing Agricultural University, Weigang, Nanjing 210095, China
4
School of Biomedical Sciences, Faculty of Medicine, The Chinese University of Hong Kong, Shatin, New Territories, Hong Kong, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Isabel C. F. R. Ferreira
Received: 10 December 2015 / Accepted: 3 February 2016 / Published: 6 February 2015

Abstract

:
The characterization of three laccase isoforms from Pleurotus nebrodensis is described. Isoenzymes Lac1, Lac2 and Lac3 were purified to homogeneity using ion exchange chromatography on DEAE-cellulose, CM-cellulose and Q-Sepharose and a gel filtration step on Superdex 75. The molecular weights of the purified laccases were estimated to be 68, 64 and 51 kDa, respectively. The isoenzymes demonstrated the same optimum pH at 3.0 but slightly different temperature optima: 50–60 °C for Lac1 and Lac3 and 60 °C for Lac2. Lac2 was always more stable than the other two isoforms and exposure to 50 °C for 120 min caused 30% loss in activity. Lac2 was relatively less stable than the other two isoforms when exposed to the pH range of 3.0–8.0 for 24 h, but inactivation only occurred initially, with around 70% residual activity being maintained during the whole process. Oxidative ability towards aromatic compounds varied substantially among the isoforms and each of them displayed preference toward some substrates. Kinetic constants (Km, Kcat) were determined by using a 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt (ABTS) assay, with Lac3 showing the best affinity and Lac2 displaying the highest catalytic efficiency. Amino acid sequences from peptides derived from digestion of isoenzymes showed great consistency with laccases in the databases.
Keywords:
laccase isoenzymes; enzyme characterization; biochemical properties comparison; Pleurotus nebrodensis

1. Introduction

Laccases (EC 1.10.3.2, p-diphenol: dioxygen oxidoreductase) are copper-containing enzymes that catalyze the oxidation of a broad spectrum of phenolic compounds and non-phenolic substrates using molecular oxygen as the electron acceptor [1]. Laccases are common in Nature and exist extensively in plants, fungi, bacteria as well as insects [2]. However, the fact that a large number of oxidative enzymes exists in plants and many of them have low enzymic activity make purification of plant laccases difficult [3]. Meanwhile, only a limited number of bacterial laccases has been found [4], therefore, fungal laccases are of tremendous importance. Actually most characterized laccases are from fungi, and only fungal laccases have been put into biotechnological applications [5].
Purification requires a series of steps to remove contaminants; precipitation using ammonium sulphate, ultrafiltration, ion-exchange chromatography and size exclusion chromatography are the most frequently used techniques [4]. Most ligninolytic fungi produce at least one laccase isoenzyme and in fact, more than one isoenzyme are produced in most white-rot fungi [6]. There are several laccase genes in fungal genomes encoding isoenzymes and they have been suggested to be differentially regulated [7], meaning both constitutive and inductive forms can be produced. The well-studied white-rot fungus, Pleurotus ostreatus, produces at least eight different laccase isoenzymes, and six have been isolated and characterized [8,9,10]. The relative levels of isoenzymes are greatly dependent on physiological factors [1,7,11]. Copper was the most efficient inducer of P. ostreatus laccase activities [11], while C/N ratio, aromatic compounds and copper all influenced Coprinus comatus laccase isoenzyme profiles and their activities [1].
Laccases have attracted much attention from researchers during the past decades with regard to their potential to oxidize phenolic subunits of lignin, non-phenolic compounds and even some highly recalcitrant environmental pollutants [12], such as pesticides [13], polycyclic aromatic hydrocarbons [14] and chlorophenols [15]; and compared with chemical methods, enzymatic oxidation is specific, efficient and ecologically sustainable. Due to these advantages for biotechnological applications, laccases are already used in large scale in food, pharmaceutical and chemical industries and their applications in bioremediation are studied extensively [4].
Pleurotus nebrodensis is widely cultivated in many countries as a delicious and nutritious edible mushroom. P. nebrodensis is an efficient laccase producer and one isoform has been characterized [16]. The fact that laccases are complex and their biotechnological applications raise our interest to further investigate the laccase family of P. nebrodensis. In this study, we successfully purified three novel laccase isoenzymes showing great similarities to previous laccases. The biochemical properties of these laccase isoenzymes were tested. The aim of this work was to expand our knowledge of individual laccase isoenzymes in fungi.

2. Results

2.1. Purification of Laccases

The steps for purification and the enzyme yields are summarized in Table 1. Laccase isoforms from P. nebrodensis were purified by using continuous ion-exchange chromatography on DEAE-cellulose, CM-cellulose and Q-Sepharose and a final step of gel filtration by FPLC on a Superdex 75 column. All the active fractions could be adsorbed in ion-exchange chromatography. In the first step using DEAE-cellulose, a yellowish pigment D1 from crude extract was removed and then two fractions (D2 and D3), which were almost colorless but with strong laccase activity, were collected separately (Figure 1A). After the second step on a CM-cellulose column, two active peaks (D2C1 and D2C2) were found in the only adsorbed fraction from D2 by elution with a salt gradient (0–1.0 M NaCl). The second peak showed much stronger activity than that of the first peak (Figure 1B). However, there was only one active peak (D3C) derived from D3 after D3 had been loaded onto CM-cellulose (Figure 1C). Subsequently ion-exchange chromatography on Q-Sepharose (Figure 1D) followed by gel filtration (Superdex 75) was carried out for each isoform separately resulting in electrophoretically homogeneous preparations of three forms of laccase, which were designated as Lac1 (D2C1Q), Lac2 (D2C2Q) and Lac3 (D3CQ), respectively. This procedure produced 1.575 mg purified Lac1, and for Lac2 and Lac3, the yields were 1.125 mg and 0.131 mg, respectively. The fold of purification for the three isoforms was surprisingly high, attaining 55.32, 183.55 and 1378.95 fold for Lac1, Lac2 and Lac3, respectively (Table 1). Molecular weights estimated by FPLC on Superdex 75 were 70 kDa, 70 kDa and 50 kDa for Lac1, Lac2 and Lac3, respectively. Based on SDS-PAGE, the molecular weights of denatured laccases, Lac1, Lac2 and Lac3, were estimated to be 68 kDa, 64 kDa and 51 kDa, respectively (Figure 2). This indicated that these isoforms were all monomeric proteins.

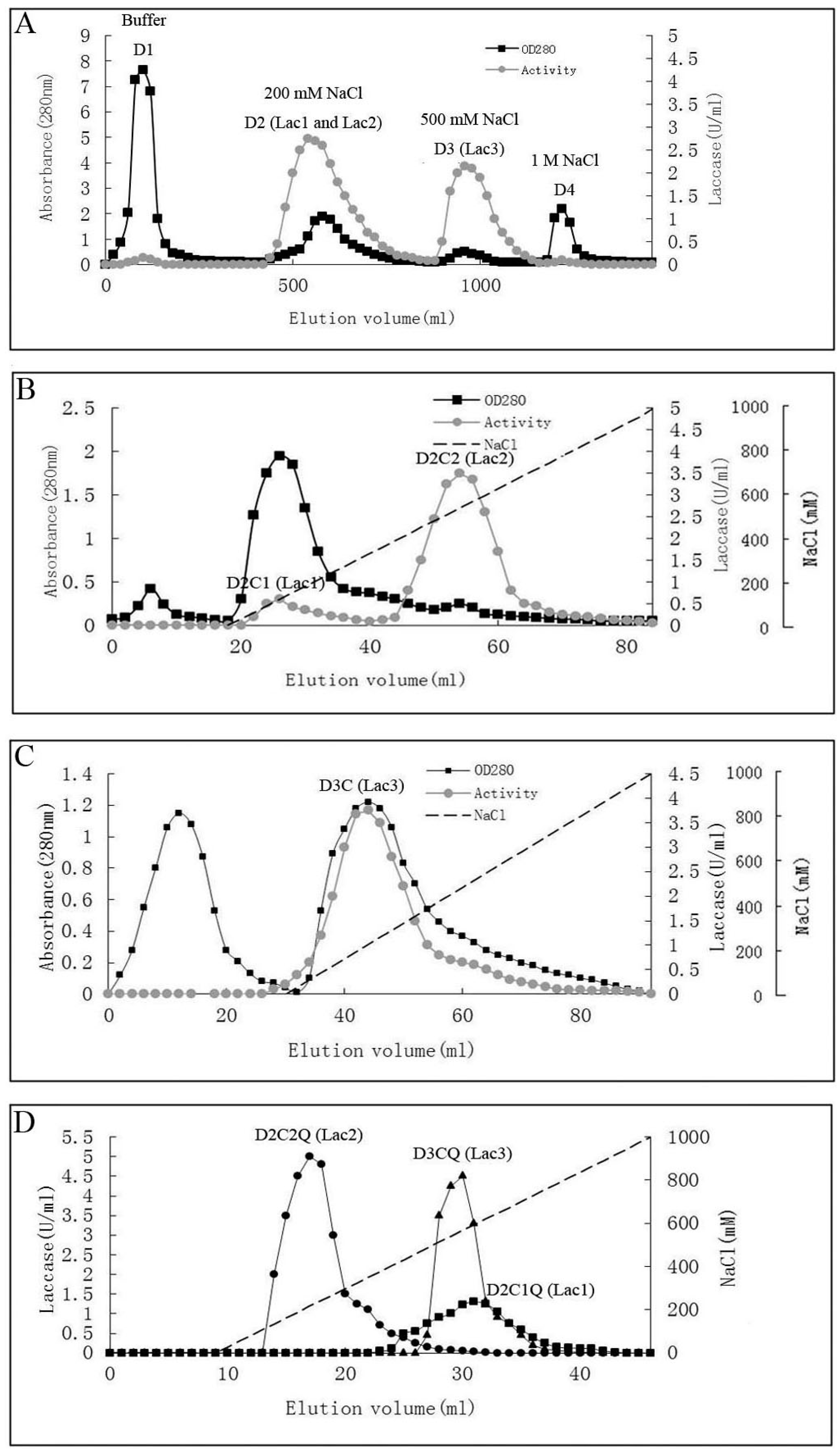

Figure 1. Chromatographic profiles of laccase isoforms. Black dotted line: absorbance at 280 nm; grey dotted line: activity of laccase isoforms; dashed line: NaCl gradient. (A) Ion exchange charomatography on DEAE-cellulose column. Lac1 and Lac2 resided in fraction D2 and Lac3 resided in D3; (B) Ion exchange chromatography of fraction D2 on CM-cellulose column. Two peaks with activity: Lac1 resided in peak D2C1 and Lac2 resided in peak D2C2; (C) Ion exchange chromatography of fraction D3 on CM-cellulose column. Lac3 resided in the only peak with activity; (D) Ion exchange chromatography of fractions Lac1 (D2C1), Lac2 (D2C2) and Lac3 (D3C) on Q-Sepharose column (showing in the same figure, results of three separate fractionation experiments for Lac1, Lac2 and Lac3, respectively).
Figure 1. Chromatographic profiles of laccase isoforms. Black dotted line: absorbance at 280 nm; grey dotted line: activity of laccase isoforms; dashed line: NaCl gradient. (A) Ion exchange charomatography on DEAE-cellulose column. Lac1 and Lac2 resided in fraction D2 and Lac3 resided in D3; (B) Ion exchange chromatography of fraction D2 on CM-cellulose column. Two peaks with activity: Lac1 resided in peak D2C1 and Lac2 resided in peak D2C2; (C) Ion exchange chromatography of fraction D3 on CM-cellulose column. Lac3 resided in the only peak with activity; (D) Ion exchange chromatography of fractions Lac1 (D2C1), Lac2 (D2C2) and Lac3 (D3C) on Q-Sepharose column (showing in the same figure, results of three separate fractionation experiments for Lac1, Lac2 and Lac3, respectively).
Molecules 21 00203 g001
Table 1. Summary of the results obtained during the process of purification of the three laccases from P. nebrodensis.
Table 1. Summary of the results obtained during the process of purification of the three laccases from P. nebrodensis.
Chromatographic MethodChromatographic Fraction by StepsYield (mg)Total Activity (U) aSpecific Activity (U/mg) bRecovery of Activity (%)Purification Fold c
NoneCrude extract2304028530.121001
DEAE-cellulose anion exchangeD2 (Lac 1 and Lac2)320013230.4146.383.3
D3 (Lac3)1756893.9424.1432
CM-cellulose cation exchangeD2C1 (Lac1)62330.531.164.2
D2C2 (Lac2)322979.3110.4275
D3C (Lac3)29642.242.2418
Q-Sepharose anion exchangeD2C1Q (Lac1)3118.60.590.654.8
D2C2Q (Lac2)4.249.811.851.7496
D3CQ (Lac3)9.6272.810.9523
Superdex 75 size exclusionD2C1QS (Lac1)1.5810.86.860.3855
D2C2QS (Lac2)1.1325.622.760.90183
D3CQS (Lac3)0.1322.41710.791379
a Total activity: laccase activity (U/mL) in each step × volume (mL); b Specific activity: total activity/yield; c Purification fold: specific activity of each step/specific activity of the first step.
Figure 2. SDS-PAGE of isolated laccases. Lane 1: Molecular markers (GE Healthcare). From top to bottom: phosphorylase b (94 KD), bovine serum albumin (67 KD), ovalbumin (43 KD), carbonic anhydrase (30 KD), soybean trypsin inhibitor (20 KD) and lactalbumin (14.4 KD; Lane 2: Lac1; Lane 3: Lac2; Lane 4: Lac3).
Figure 2. SDS-PAGE of isolated laccases. Lane 1: Molecular markers (GE Healthcare). From top to bottom: phosphorylase b (94 KD), bovine serum albumin (67 KD), ovalbumin (43 KD), carbonic anhydrase (30 KD), soybean trypsin inhibitor (20 KD) and lactalbumin (14.4 KD; Lane 2: Lac1; Lane 3: Lac2; Lane 4: Lac3).
Molecules 21 00203 g002

2.2. Effects of pH and Temperature on Laccase Activity and Stability

The effect of temperature on laccase activity of Lac1 and Lac3 was similar, while Lac2 showed some differences from the other two isoforms (Figure 3). Activity increased with rise in the temperature and reached its maximum level at 50–60 °C (for Lac1 and Lac3) and 60 °C (for Lac2). When the temperature increased further, enzyme activity of Lac1 and Lac3 declined faster than that of Lac2, ensuing in only 43% and 36% of the maximum level remaining at 80 °C for Lac1 and Lac3, respectively. However, Lac2 lost only around 30% of its maximum activity at the same temperature (80 °C). Interestingly, at lower temperatures, for instance, 30 °C or 40 °C, Lac1 and Lac3 displayed a higher activity (10%) compared with Lac2 (Figure 3).
Thermostability of the laccase isoforms varied greatly. Lac2 was found to be the most thermostable and Lac1 demonstrated better thermostability compared with Lac3 in the temperature range from 30 °C to 70 °C (Figure 4A–C). After exposure Lac2 to 50 °C for 120 min, 70% of its original activity remained. A higher temperature of 70 °C, however, caused rapid inactivation (60% and 80% activity loss within 30 min and 60 min, respectively) (Figure 4B). In contrast, Lac3 was not stable even at 30 °C. Incubation for 60 min at 30 °C caused a 40% activity loss and at 50 °C, incubation for 60 min resulted in an activity loss of 70%. The enzyme was completely inactivated at 70 °C after 40 min (Figure 4C).
The effects of pH on laccase activity were similar among all laccase isoforms. The pH optimum for all of them was found to be around 3.0; with an increase in pH, the reaction rate declined until it became too low to be detected at pH 8.0, 7.0 and 8.0 for Lac1, Lac2 and Lac3, respectively. Besides, Lac3 had a wider activity curve compared with the other two (Figure 5).
The residual activities after laccase isoenzymes had been incubated in McIlvaine buffer (pH 3.0–8.0) for 24 h are shown in Figure 6. Lac3 was the most stable among the three isoforms. Preliminary results showed that Lac3 lost almost no activity when it was stored in McIlvaine buffer (pH 3.0–8.0) for 6 h (data not shown). When the incubation time was extended to 24 h, still, no obvious activity loss was observed in the range between pH 5.0 and pH 8.0 (Figure 6); though an acidic pH of 3.0 caused the greatest inactivation, the residual activity still amounted to 70% of the initial activity (Figure 6). In contrast, Lac2 was by comparison the least stable when subjected to pH values from 3.0 to 8.0; however, around 70% residual activity was detectable even after the enzyme had been treated for 24 h (Figure 6), indicating the slowing down of the inactivation process. Lac1 was more stable in acidic pH (3.0–6.0) than in neutral and alkaline pH (6.0–8.0) after treatment for a short duration. However, this enzyme was most stable at pH 6.0: exposure for 24 h brought about only 8% inactivation (Figure 6).

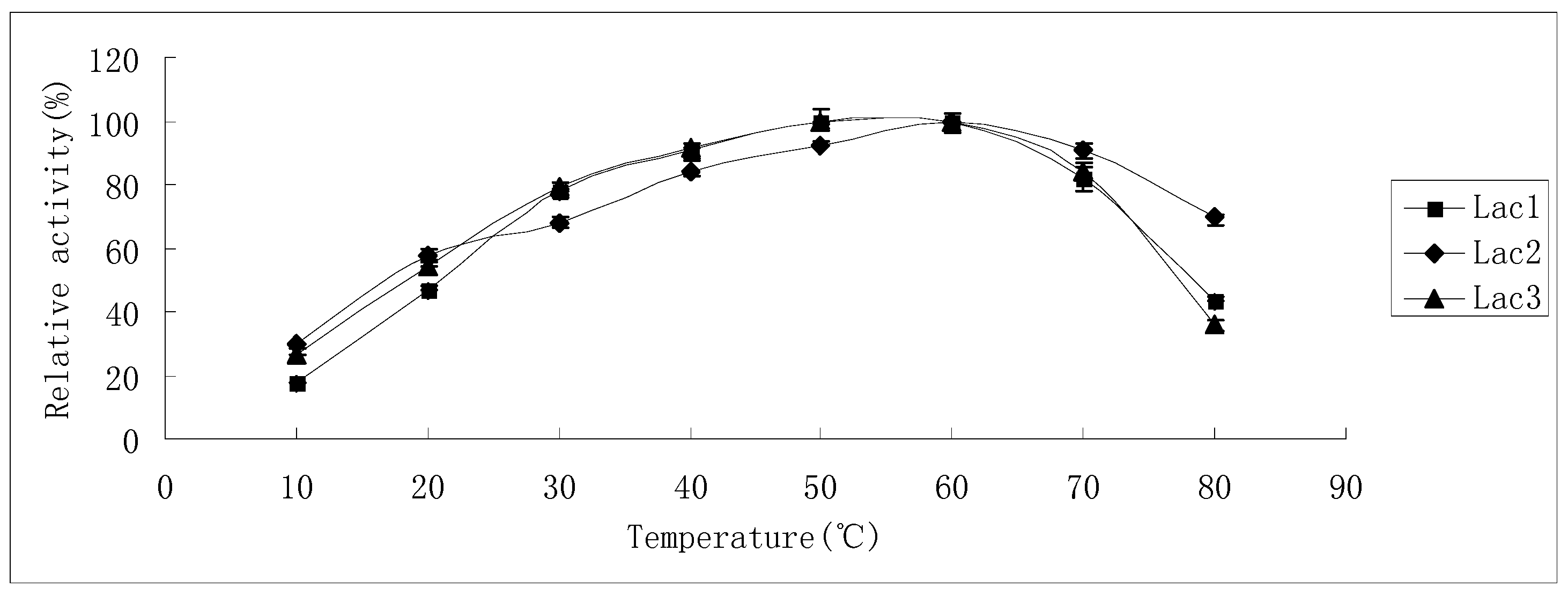

Figure 3. Effect of temperature on the activities of purified P. nebrodensis laccase isoforms. Measurements were carried out in triplicate (standard deviations for all data points < 5%).
Figure 3. Effect of temperature on the activities of purified P. nebrodensis laccase isoforms. Measurements were carried out in triplicate (standard deviations for all data points < 5%).
Molecules 21 00203 g003

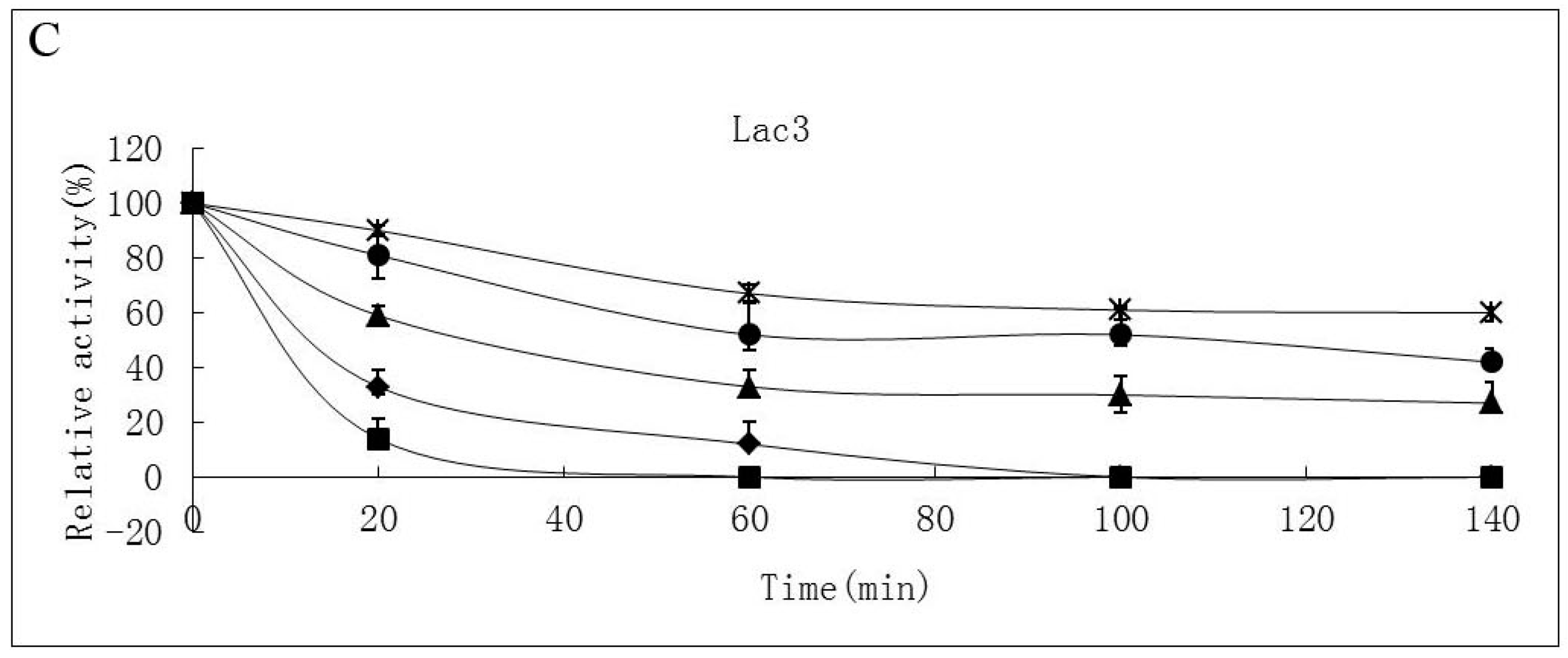

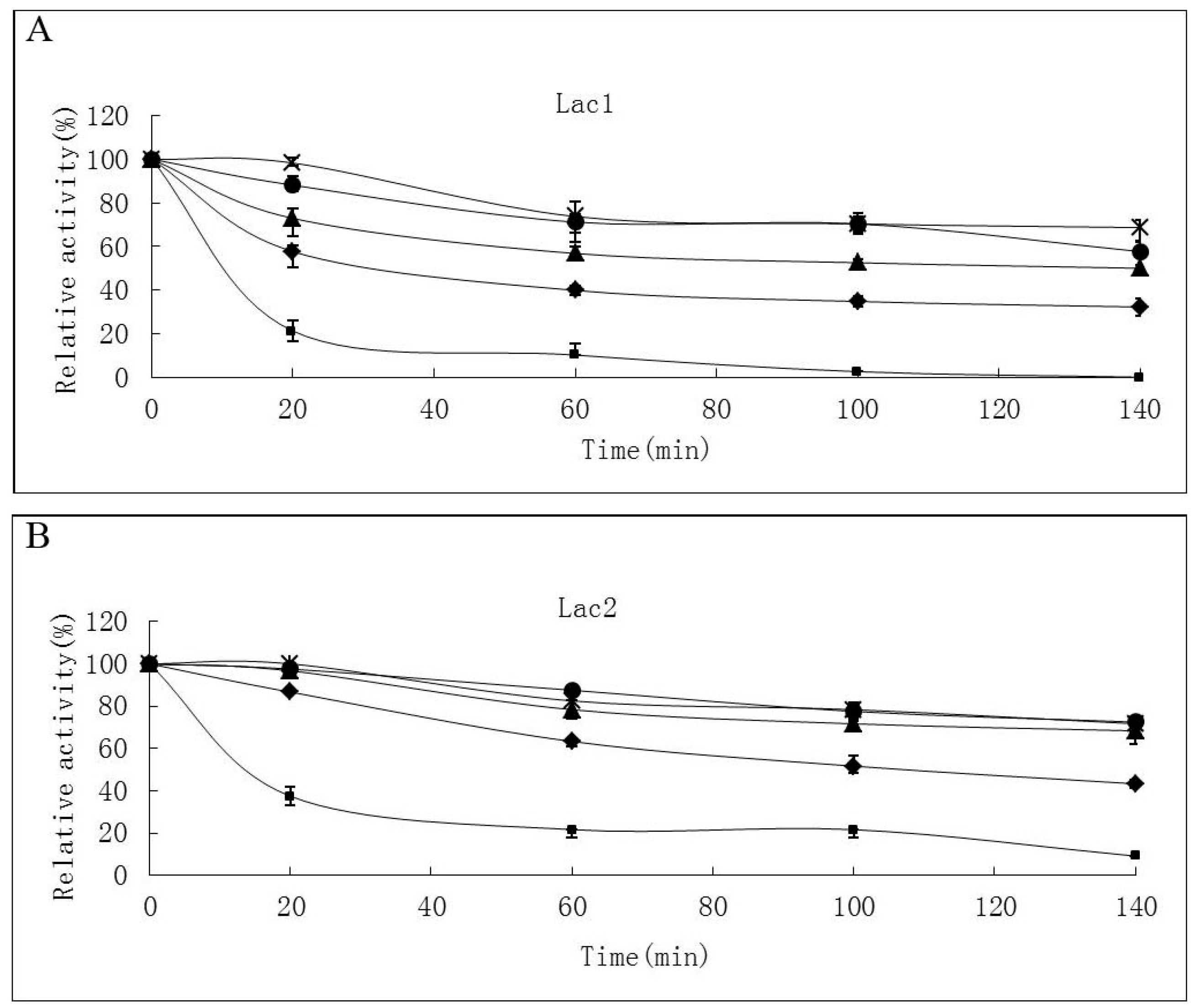

Figure 4. Stability of purified P. nebrodensis laccases at different temperatures (A) Effect on Lac1; (B) Effect on Lac2; (C) Effect on Lac3. “-x-” curves: treatment at 30 °C; “-●-” curves: treatment at 40 °C; “-▲-” curves: treatment at 50 °C; “-♦-” curves: treatment at 60 °C; “-■-” curves: treatment at 70 °C. Measurements were carried out in triplicate (standard deviations for all data points < 5%).
Figure 4. Stability of purified P. nebrodensis laccases at different temperatures (A) Effect on Lac1; (B) Effect on Lac2; (C) Effect on Lac3. “-x-” curves: treatment at 30 °C; “-●-” curves: treatment at 40 °C; “-▲-” curves: treatment at 50 °C; “-♦-” curves: treatment at 60 °C; “-■-” curves: treatment at 70 °C. Measurements were carried out in triplicate (standard deviations for all data points < 5%).
Molecules 21 00203 g004aMolecules 21 00203 g004b
Figure 5. Effect of pH on the activities of purified P. nebrodensis laccase isoforms. Measurements were carried out in triplicate (standard deviations for all data points < 5%).
Figure 5. Effect of pH on the activities of purified P. nebrodensis laccase isoforms. Measurements were carried out in triplicate (standard deviations for all data points < 5%).
Molecules 21 00203 g005

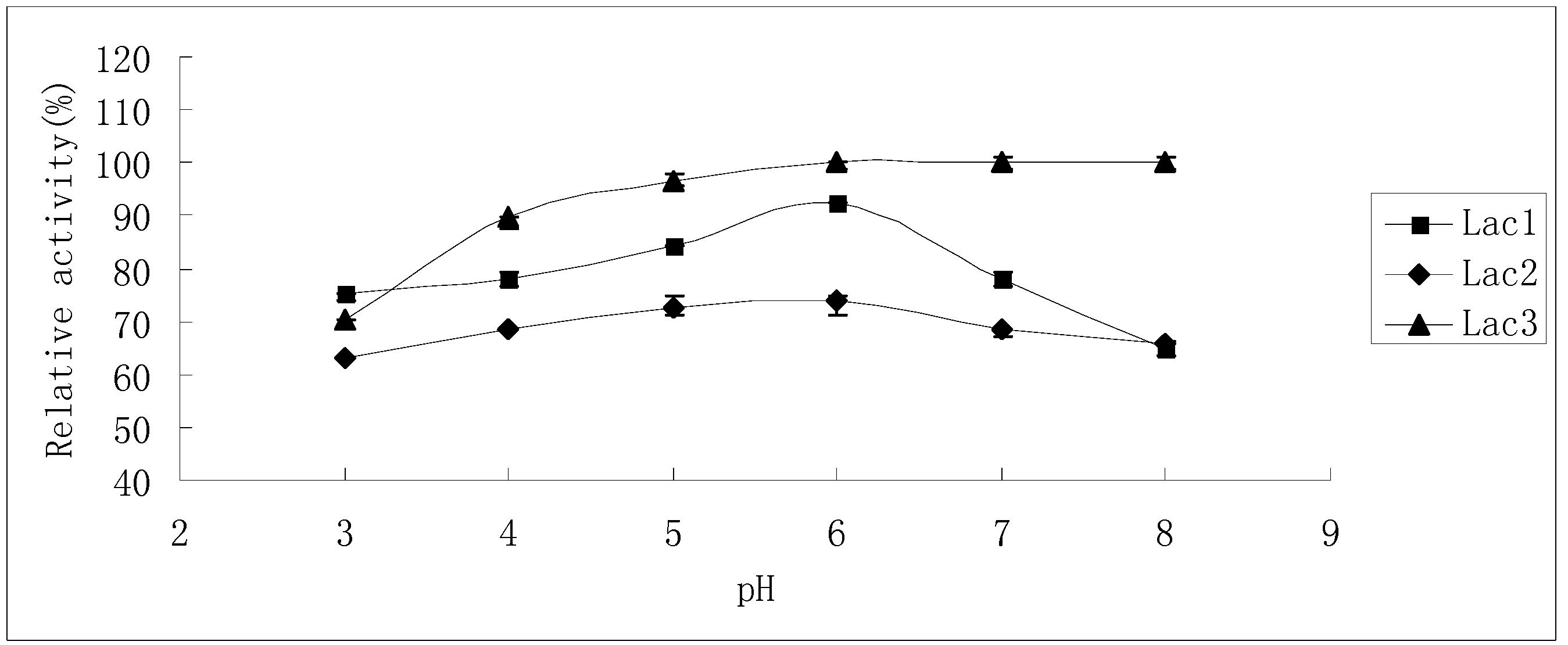

Figure 6. Stability of purified P. nebrodensis laccases after exposure to different pH values for 24 h. Measurements were carried out in triplicate (standard deviations for all data points < 5%).
Figure 6. Stability of purified P. nebrodensis laccases after exposure to different pH values for 24 h. Measurements were carried out in triplicate (standard deviations for all data points < 5%).
Molecules 21 00203 g006

2.3. Substrate Specificity of Isolated Laccases

The specificity toward various phenolic compounds as substrates is shown in Table 2. The amount of each isoform applied in this assay was that showing the same activity to ABTS (0.05 U/mL). All the laccases readily oxidized syringaldazine and catechol, with the reactions taking place within 5 min; but virtually negligible activity was found toward l-DOPA, vanillic acid and p-coumaric acid, even when the reaction time was extended to 1 h. However, totally different results were obtained when the other six substrates were used. Lac3 exhibited stronger activity toward ferulic acid, caffeic acid and hydroquinone than Lac1 did (showing 27.27%, 65.45% and 75% higher activity, respectively), whereas only very weak activity could be detected when Lac2 came into contact with these substrates. Similarly, the reaction was facilitated when Lac3 was added to guaiacol or p-phenylenediamine, but Lac2 showed greater potential than Lac1 in oxidizing the two abovementioned substances. Intriguingly, when dimethyl phthalate was oxidized, Lac2 and Lac3 showed relatively higher activities; with Lac2 and Lac3 demonstrating comparable activities.
Table 2. Substrate specificities of purified P. nebrodensis laccases.
Table 2. Substrate specificities of purified P. nebrodensis laccases.
SubstrateWavelength (nm)Relative Laccase Activity (%)
Lac1Lac2Lac3
ABTS420100 ± 1.0100 ± 0.0100 ± 1.5
Guaiacol46016 ± 0.0824 ± 0.08100 ± 0.04
Dimethylphthalate47022.83 ± 2.17100 ± 3.092.39 ± 3.26
Syringaldazine525100 ± 4.2389.44 ± 4.9384.51 ± 1.41
l-DOPA4700.0 ± 0.00.0 ± 0.00.0 ± 0.0
Ferulic acid31872.73 ± 3.643.64 ± 0.0100 ± 1.82
Caffeic acid31834.55 ± 1.8212.5 ± 0.0100 ± 1.82
Vanillic acid2610.0 ± 0.00.0 ± 0.00.0 ± 0.0
p-Coumaric acid3180.0 ± 0.00.0 ± 0.00.0 ± 0.0
Hydroquinone28925 ± 1.566.25 ± 0.0100 ± 3.125
Catechol276100 ± 0.1492.86 ± 0.5642.86 ± 0.28
p-Phenylenediamine25018.2 ± 0.054.55 ± 0.27100 ± 0.09
Rate of substrate oxidation was determined by using the molar extinction coefficients of various substrates. The relative activity (%, mean ± standard deviation) for each substrate refers to the ratio of the activity of each laccase isoform to the maximum activity. Measurements were carried out in triplicate (standard deviations for all data points < 5%).

2.4. Kinetic Constants for Laccases

ABTS was used as substrate to determine the kinetic constants of purified laccases. The kinetic constants were quite different among the three purified laccases (Table 3). For example, Km value of Lac2 was more than three- and four- fold higher than those of Lac1 and Lac3. However, the Km value of Lac3 was somewhat lower than those of Lac1 and Lac2, indicating a slightly higher affinity of Lac3 to ABTS. Interestingly, though Lac2 showed the lowest affinity to typical substrate (ABTS), it possessed the highest Kcat value at the same time, suggesting a high catalytic efficiency.
Table 3. Kinetic constants of purified P. nebrodensis laccases for ABTS.
Table 3. Kinetic constants of purified P. nebrodensis laccases for ABTS.
Laccase IsoformsKm (mM)Kcat (min−1)Kcat/Km (min−1·mM−1)
Lac10.160.9585.99
Lac20.551.653.00
Lac30.1040.2642.54

2.5. Peptides Identified by Gel-Fractionation LC-LTQ-Orbitrap-MS

According to the data from LC-LTQ, Nine peptides, twelve peptides and three peptides obtained from Lac1, Lac2 and Lac3, respectively, closely matched previously reported laccases (Table 4). There were no identical peptides among the three purified laccases (Table 4), and Lac1, Lac2 and Lac3 showed the greatest consistency with laccases from Pleurotus ostreatus (gi: 15594026), Pleurotus ostreatus (gi: 291461620) and Lentinus sajor-caju (gi: 11036962), respectively (Figure S1a–c). These matched sequences exhibited high homology with other Pleurotus laccases but still, delicate differences such as Asp (D) in the peptide “RANPNLGSTGFDGGINSAILRY” from Lac3, made this protein different from other closest laccases (Figure S1c).
Table 4. Peptide sequences matching reported laccases after HPLC-LTQ-Orbitrap-MS following trypsin digestion.
Table 4. Peptide sequences matching reported laccases after HPLC-LTQ-Orbitrap-MS following trypsin digestion.
Laccaes Isoforms
Lac1Lac2Lac3
PeptidesRNDVVSPDGFERRKVIQPDGFSRSKGDNFQLNVVNQLSDTTMLKD
RRAITVNGIFPGTPVILQKNSAVLAGGSYPGPLIKGRYAGGPTSPLAIINVESNKRY
KNDKVQINTINELTDPGMRRRLYDVDDESTVLTVGDWYHAPSLSLTGVPHPDSTLFNGLGRSRANPNLGSTGFDGGINSAILRY
RSTSIHWHGLFQHKTSLNGPASPLYVMNVVK
RYKGAPAVEPTTVATTGGHKLRYSLVLNANQAVGNYWIRA
RKPQDFLPSEQVIILPANKLANPNSGDPGFANQMNSAILRY
RTSNSDVVNLVNPPRRREYNLRPLIKK
RDVLPINGGNTTFRFRDAHDLAPAGSIYDIKL
RTLCPAYDGLAPEFQLGDVVEITMPALVFAGPHPLHLQWHTFAVVRS
SAGSSTYNYENPVRRD
DVVSIGDDPTDNVTIRF

3. Discussion

Many laccases from Pleurotus spp. have been purified and characterized [10,17,18]. However, to date, there has been no study on the laccase isoenzymes from P. nebrodensis. Therefore, an attempt was made in the present study to demonstrate the profile of laccase isoenzymes from P. nebrodensis. Steps of purification led to the isolation of three homogeneous isoenzymes.
The purification techniques employed in this study, including ion exchange and gel filtration column chromatography, successfully purified three isoenzymes to homogeneity confirmed by a single laccase peak after Superdex 75 column chromatography and also single bands in SDS-PAGE gel confirm that the isoenzymes were purified to homogeneity. The purification folds (55.32, 183.55 and 1378.95 for Lac1, Lac2 and Lac3, respectively) are relatively high among laccases which have been purified from fungi [10,17,18] and bacteria [19,20]. Three purified laccases are all monomeric proteins with apparent molecular weights of 68 kDa, 64 kDa and 51 kDa. This means these molecular masses agree well with the values reported for other fungal laccases (around 50–80 kDa), e.g., Pleurotus ostreatus (61 kDa and 67 kDa) [10] and Pleurotus florida (77 kDa and 82 kDa) [17]. The zymogram analysis in this study showed three forms of laccase with partly different physico-chemical and catalytic properties, which is typical of many basidiomycetes, whereas, previous study reported only one isoform [16]. It has been shown that laccase occurs in both inducible and constitutive forms [21]. The variation in production of isoforms between different strains might be attributed to the ecological origin of the strains [22]. The C/N ratio, together with aromatic compounds and copper, significantly influenced the consitution of total laccase of Coprinus comatus [1]; being cultivated in high-nitrogen low carbon culturea, Coprinus comatus could produce six laccase isoforms, but fewer isoenzymes were detected in low-nitrogen high-carbon cultures[1]. A strain of Pleurotus ostreatus was also selected to investigate the effects of inducer and nitrogen concentration on laccase activity and laccase isoform patterns [23]. It’s highly likely that different strains and different culture conditions lead to the expression of more isoenzymes.
Temperature optima for Lac1 and Lac3 (50–60 °C) were slightly lower than that for Lac2 (60 °C); Lac1 and Lac3 exhibit their activities under mild conditions (<40 °C) more readily than Lac2; however, when the reaction has to proceed at higher temperatures (>55 °C), Lac2 will perform better (Figure 3). Many fungal laccases, which have been previously reported, show maximum activity at 50 °C [17,18,24,25], hence laccases reported in this study need relative higher temperatures to display their best oxidation capacity; but temperature optima were much less extreme compared with some bacterial laccases [19,26]. Lac2 could tolerate higher temperatures as compared to the other two isoforms (Figure 4A–C) and Lac1 demonstrated better thermostability than Lac3 did in the temperature range from 30 °C to 70 °C (Figure 4A–C). Lac3 was susceptible to thermal inactivation, as exposure to mild conditions (<40 °C) for only an hour engendered 50% loss in activity (Figure 4C). Because of the high thermostability and other desirable features of Lac2, this isoenzyme was selected as the purified laccase for subsequent degradation of dyes. Compared with the slight difference among temperature dependence of ABTS, the optimum pH values for ABTS were found to be all around 3.0 (Figure 5). The reaction rate reduced when pH decreased or increased. This is in consistence with the fact that fungal laccases typically exhibit pH optima for the oxidation of ABTS lower than 4.0 [6]. Lac3 was the most stable and almost no activity loss was detected when pH varied from 4.0 to 8.0 (Figure 6). The other two were relatively less stable, as inactivation became obvious once pH value was over 6.0 (Figure 6). This falls within the conclusion that the stability of fungal laccases is generally higher at acidic pH [6]. But the fact that the inactivation process for Lac2 can be slowed down offers Lac2 the possibility to be used for decolorization assay. In one word, all the laccases were stable despite with various characteristics and no drastic activity loss was found after 24-hour treatment. The results demonstrate that there is, despite the high biochemical similarity of most laccases, a diversity of physico-chemical proterties, which may not only differs from species to species but also from strain to strain within one fungal species [22].
The study of substrate specificity suggested that purified laccases can oxidize most of typical laccase substrates. All isoenzymes prefer ABTS, syringaldazine and catechol as substrates; however, virtually no discernible activity was found towards l-DOPA, vanillic acid and p-coumaric acid. Lac3 elicited a higher affinity than Lac1 and Lac2 did (except for syringaldazine and catechol), signifying considerable variability of substrate specificity among the laccase isoforms. Oxidation of ABTS gave rise to a cation-radical, whereas the process of oxidation of phenolic compounds is accompanied by proton release and this may help to explain why the isoforms manifest the same activity to ABTS but display a distinctly different affinity when aromatic compounds are introduced [27]. In laccases, substrate oxidation involves the “outer-sphere” mechanism in which the redox potential difference between substrate and T1 Cu site determines the electron transfer and thus, the oxidation rate [28]. Meanwhile, other factors, for instance, the composition, structure or pKa of substrates, are also known to play a pivotal role in determining the oxidation rates [29,30,31,32].
ABTS, a conventional laccase substrate, was employed to determine the kinetic constants for laccase isoforms. The three isoforms demonstrated relatively high Km values compared with many other fungal laccases [33,34]. Nevertheless, when compared to some bacterial laccases [19], all three isoenzymes evinced a higher affinity toward ABTS. As the Km value for Lac3 was lower than those of Lac1 and Lac2, ABTS is a better substrate for Lac3. Though Lac2 showed the lowest affinity to typical substrates (ABTS), it possessed the highest Kcat value at the same time, suggesting a higher catalytic efficiency. However, this catalytic efficiency was still lower than the majority of laccases [19,33,34], even though laccases in this study possessed good thermal and pH tolerance. Hopefully future studies can bring about an enhancement of the substrate affinity and catalytic efficiency by locating and modifying the substrate binding sites. Site-directed mutagenesis and fusing amino acids tags were feasible solutions to improve laccase activities and properties [35,36]. Our findings indicate some variations among laccase isoforms and the importance of these differences can only be clarified in future investigations of the catalytic mechanisms.
Many researchers deploy MALDI-TOF MS/MS to obtain short de novo sequenced peptides and partial amino acid sequence analyses were conducted to disclose homology with related laccases [19,37,38]; the ratios are comparable to the BLAST search results (from NCBI). We utilized gel-fractionation LC-LTQ-Orbitrap-MS, a similar technique, to compare sequence homology between isoenzymes purified in this study and related laccases in NCBI database. In contrast to two laccases from Coprinus comatus, which show 70% sequence identity with each other [35], peptides obtained from P. nebrodensis laccase isoforms shared no identical sequences. Meanwhile, the multiple peptides showing high consistency with laccases in the databases furnished evidence that three proteins belong to the laccase family. Nearly one-third of peptides from Lac1 and Lac2 were homologous to published laccases. Though only three peptides were detected from Lac3, they matched pretty well with many Pleurotus laccases. Many peptides not only exist in Pleurotus laccases, but also can be found in other species, for example, peptide “RKPQDFLPSEQVIILPANKL” and “RTSNSDVVNLVNPPRR” from Lac1 have pronounced homology to both Lentinus sajor-caju laccase (gi: 32399645) and Hypsizygus marmoreus laccase (gi: 166025441) (unpublished). More importantly, these two peptides are part of domain 1 and domain 2 interfaces of laccase that are responsible for interact with substrates (black bar in Figure S1a). Peptide “RTSNSDVVNLVNPPRR” is bifunctional that it is also part of type I (T1) Cu binding site and trinuclear Cu binding site (grey bar in Figure S1a).
Lac1 showed the greatest consistency with a laccase from P. ostreatus (gi: 15594026). The P. ostreatus laccase was purified from a 10-day culture instead of fruit bodies. The molecular mass of P. ostreatus laccase was determined as 67 kDa, which was comparable as the molecular mass of Lac1. Both P. ostreatus laccase and Lac1 performed their maximum activities under acid condition, with pH 3.6 and pH 3.0 as their optimum pH, respectively. Taking ABTS as substrate, 0.07 mM was determined as the Km of P. ostreatus laccase, a value which was smaller than that of Lac1 (0.16 mM), meaning P. ostreatus laccase had a better affinity towards ABTS than Lac1 did; however, the Kcat value of P. ostreatus laccase (4.4 × 10−6 min−1) was much smaller than that of Lac1 (0.958 min−1), illustrating a much higher catalytic ability harbored by Lac1 [9]. For Lac2, P. florida laccase (gi: 3005981) was the best hit that had been fully characterized. The molecular mass (62 kDa) was similar as that of Lac2 (64 kDa), as well as their optimum pH, both exhibiting their maximum activity at pH 3.0. P. florida laccase had a boarder range to display maximum activity (20–50 °C), while optimum temperature of Lac2 was 50 °C to 60 °C. Compared with the best hit laccase, Lac2 exhibited less affinity but better catalytic ability: Km and Kcat were 0.55 mM and 1.65 min−1 for Lac2, and 0.37 mM and 9 × 10−4 min−1 were determined as Km and Kcat for P. florida laccase, respectively [8].
Peptides obtained from Lac3 also showed good consistency with laccases in the databases. However, there has been hardly report about the characterization about the best hits of Lac3. One report was about the recombinant laccase precursor of P. eryngii (gi: 56384217). The molecular mass of P. eryngii laccase precursor was estimated to be 58 kDa, which was larger than Lac3 (51 kDa). Both P. eryngii laccase precusor and Lac3 showed higher rates at acid condition, but in terms of pH stability, Lac3 was more stable across the pH range between pH 3.0 to pH 8.0. Like P. eryngii laccase precusor, laccase activity was remained well at 30 °C, but a temperature more than 45 °C caused more than 50% activity loss [39].

4. Experimental Section

4.1. Chemical Reagents and Microorganism

The P. nebrodensis strain was obtained from Agricultural Culture Collection of China (ACCC, Beijing, China), with “ACCC 50867” as collection number. Fruit bodies were cultured and purchased from Green Resource (Beijing) Organic Agricultural Technology Development Co., Ltd., Beijing, China. DEAE-cellulose and CM-cellulose were obtained from Sigma Chemical Co. (St. Louis, MO, USA). Q-Sepharose, Superdex 75 HR 10/30 and AKTA Purifier were from GE Healthcare (Wauwatosa, WI, USA). All other chemicals used were of analytical grade unless otherwise stated.

4.2. Enzyme Activity Assay

Laccase activity was routinely assayed using 2, 2′-azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt (ABTS; Sigma) as the substrate. The reaction mixture for the standard assay contained 1 mM ABTS, McIlvaine buffer (pH 4.0), and the enzyme solution in a total volume of 200 μL. After incubation at 30 °C for 15 min, the reaction was stopped by adding 200 μL 5% trichloroacetic acid. The formation of the cation radical was detected by measuring the absorbance increase at 420 nm (ε420 = 36,000 M−1·cm−1). One unit of laccase activity was defined as the amount of enzyme that catalyzed the oxidation of 1 μmol of ABTS in 200 μL reaction mixture at 30 °C in 1 min.

4.3. Purification of Laccase isoforms

A water extract of P. nebrodensis fruit bodies (500 g) was prepared by homogenizing them in distilled water (1:4, w/v) at 4 °C overnight, followed by centrifugation at 12,000 g for 15 min. Subsequently, the supernatant obtained was subjected to anion exchange chromatography on a 2.5 cm × 20 cm DEAE-cellulose column (Sigma) previously equilibrated in 10 mM Tris-HCl buffer (pH 7.4), yielding a flowthrough fraction (D1) and three adsorbed fractions D2, D3 and D4, eluted with 0.2 M, 0.5 M and 1.0 M NaCl in the same Tris-HCl buffer, respectively. Using the enzyme assay described above, fraction D2 and D3 which contained enzyme activity were collected after dialysis against distilled water, and then fraction D2 and fraction D3 were further purified separately. D2 was loaded on a column of CM-cellulose (1.5 cm × 20 cm) which had previously been equilibrated with 10 mM HAc-NaAc (acetic acid/sodium acetate) buffer (pH 4.0). After removing unadsorbed fraction with the same buffer, adsorbed materials were eluted with a gradient of NaCl. Two fractions with activity, D2C1 and D2C2, were eluted separately. D3 was further purified in a similar way as D2, only using a smaller column (1.5 cm × 10 cm). One eluted fraction (D3C) showed laccase activity. After all three active fractions (D2C1, D2C2 and D3C) had been dialyzed, they were passed through another anion exchange column (Q-Sepharose, 1 cm × 10 cm) that had previously been equilibrated with 10 mM Tris-HCl buffer (pH 7.0). After elution with a NaCl gradient, the three active proteins (D2C1Q, D2C2Q and D3CQ) were subjected to gel filtration by fast protein liquid chromatography (FPLC) on a Superdex 75 HR 10/30 column using an AKTA Purifier (GE Healthcare) in 0.2 M NH4HCO3 buffer (pH 8.5).

4.4. Biochemical Characterization of the Purified Laccase Isoforms

4.4.1. Effects of Temperature and pH on Laccase Activity and Stability

Temperature optimum and stability of each purified laccase were determined by using ABTS as substrate in McIlvaine buffer (pH 4.0). The effects of temperature on their activity were determined at different temperatures (10–80 °C). For determination of thermal stability, laccases were incubated for 2 h at different temperatures (30–70 °C); then the residual activities were measured. To determine the pH optima of the isoforms, a series of ABTS solution (1 mM) in McIlvaine buffers were used; the pH of McIlvaine buffer was changed in the pH range 2.2–8.0; pH stability was tested by storing the purified enzymes for 24 h at pH 3.0 to 8.0 in McIlvaine buffers. The optimum temperature was used as the control to determine the effect of pH on laccases, and the optimum pH was employed when searching the optimum temperature. For the temperature or pH stability experiments, the test system without manipulations at these conditions was used as the control.

4.4.2. Assay for Substrate Specificity

Substrate specificity was studied using ABTS, guaiacol, dimethylphthalate (DMP), syringaldazine, l-DOPA, ferulic acid, caffeic acid, vanillic acid, p-coumaric acid, hydroquinone, catechol and p-phenylenediamine as substrates. The reaction mixture contained 5 mM substrate in 10 mM sodium acetate buffer (pH 4.0). Reaction was started by adding 10 μL enzyme solution to the mixture. According to molar extinction coefficient (ε) obtained from the literature, substrate oxidation rates were tested by measuring the absorbance change.

4.4.3. Kinetic Constants of Laccase Isoforms

Michaelis-Menten constants (Km) and catalytic constants (Kcat) of purified laccases were determined with various ABTS concentrations (125 μM–5000 μM) in McIlvaine buffer at the optimum pH of each isoform. Lineweaver-Burke plots were drawn from the initial rates obtained at various substrate concentrations while the amount of enzyme was kept constant.

4.5. Molecular Weight Determination and Peptide Identification with Gel-Fractionation LC-LTQ-Orbitrap-MS

Denaturing sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS–PAGE) was carried out on vertical polyacrylamide slab gel as described by Laemmli and Favre [40], using a 12% separating gel and a 5% stacking gel. The buffer solutions for the separating gel and stacking gel were 0.5 M Tris-HCl (pH 8.8) and 1.5 M Tris-HCl (pH 6.8), respectively. Marker proteins (10 μL) were loaded onto the gel and subjected to electrophoresis in Tris-glycine buffer (pH 8.3) at 180 V. At the end of electrophoresis, the gel was stained with 0.1% Coomassie Brilliant Blue R-250. lgMr-migrate rate curve was then obtained based on the SDS-PAGE standard molecular mass marker proteins. Besides, FPLC gel filtration was previously performed using a Superdex 75 column (GE Healthcare); by using the elution volume of FPLC molecular mass markers, an elution volume-lgMr curve could be obtained. Based on these two curves, the molecular weights of the three purified laccase isoforms were calculated.
The single band of each laccase was then excised. Firstly a rapid standard SDS-PAGE step was used for protein pre-fractionation, and then detergents and other contaminants were removed. After protein extraction, trypsin digestion and peptide desalting, sequences of peptides were identified using a nano HPLC system coupled to a LTQ-Orbitrap mass spectrometer. Original data were transformed by BIWORKS and then a search through zooepidemicus database (including 10, 317 peptides) was conducted to determine the kind of protein each peptide belonged to. Searching indexes included mass values, fixed modifications, variable modifications, maximum missed cleavages, significance threshold and so on. Meanwhile, the peptides obtained by LTQ-MS could indicate the homology between the target laccase and laccases in the databases.

5. Conclusions

In this study, three monomeric laccase isoenzymes were isolated from fruit bodies of P. nebrodensis. Peptides from LC-LTQ furnished evidence that three proteins belong to the laccase family. The three laccase isoforms shared no identical peptide sequences although they showed similar physicochemical properties. Lac2 was the dominant laccase isoform and was thermostable as well as pH-stable.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/21/2/203/s1.

Acknowledgments

This work was financially supported by Special Fund for Agro-scientific Research in the Public Interest (No. 201303080) and collaborative project of Scientific Research and Graduate Training of Beijing Municipal Education Commission (No. 201502911110426).

Author Contributions

X.Y. performed the experiments and collected the data. X.Y. and G.T. analysed the data. Y.Z. and L.Z. contributed materials and reagents. H.W. conceived and designed the study. X.Y. and T.B.N. wrote the manuscript.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Jiang, M.; Ten, Z.; Ding, S. Decolorization of synthetic dyes by crude and purified laccases from Coprinus comatus grown under different cultures: The role of major isoenzyme in dyes decolorization. Appl. Biochem. Biotechnol. 2013, 169, 660–672. [Google Scholar] [CrossRef] [PubMed]
  2. Mayer, A.M.; Staples, R.C. Laccase: New functions for an old enzyme. Phytochemistry 2002, 60, 551–565. [Google Scholar] [CrossRef]
  3. Ranocha, P.; McDougall, G.; Hawkins, S.; Sterjiades, R.; Borderies, G.; Stewart, D.; Cabanes-Macheteau, M.; Boudet, A.M.; Goffner, D. Biochemical characterization, molecular cloning and expression of laccases—A divergent gene family—In poplar. Eur. J. Biochem. 1999, 259, 485–495. [Google Scholar] [CrossRef] [PubMed]
  4. Viswanath, B.; Rajesh, B.; Janardhan, A.; Kumar, A.P.; Narasimha, G. Fungal laccases and their applications in bioremediation. Enzym. Res. 2014, 2014, 1–21. [Google Scholar] [CrossRef] [PubMed]
  5. Pant, D.; Adholeya, A. Concentration of fungal ligninolytic enzymes by ultrafiltration and their use in distillery effluent decolorization. World J. Microbiol. Biotechnol. 2009, 25, 1793–1800. [Google Scholar] [CrossRef]
  6. Baldrian, P. Fungal laccases—Occurrence and properties. FEMS Microbiol. Rev. 2006, 30, 215–242. [Google Scholar] [CrossRef] [PubMed]
  7. Collins, P.J.; Dobson, A. Regulation of laccase gene transcription in Trametes versicolor. Appl. Environ. Microbiol. 1997, 63, 3444–3450. [Google Scholar] [PubMed]
  8. Giardina, P.; Palmieri, G.; Scaloni, A.; Fontanella, B.; Faraco, V.; Cennamo, G.; Sannia, G. Protein and gene structure of a blue laccase from Pleurotus ostreatus1. Biochem. J. 1999, 341, 655–663. [Google Scholar] [CrossRef] [PubMed]
  9. Palmieri, G.; Cennamo, G.; Faraco, V.; Amoresano, A.; Sannia, G.; Giardina, P. Atypical laccase isoenzymes from copper supplemented Pleurotus ostreatus cultures. Enzym. Microb. Technol. 2003, 33, 220–230. [Google Scholar] [CrossRef]
  10. Palmieri, G.; Giardina, P.; Bianco, C.; Scaloni, A.; Capasso, A.; Sannia, G. A novel white laccase from Pleurotus ostreatus. J. Biol. Chem. 1997, 272, 31301–31307. [Google Scholar] [CrossRef] [PubMed]
  11. Palmieri, G.; Giardina, P.; Bianco, C.; Fontanella, B.; Sannia, G. Copper induction of laccase isoenzymes in the ligninolytic fungus Pleurotus ostreatus. Appl. Environ. Microbiol. 2000, 66, 920–924. [Google Scholar] [CrossRef] [PubMed]
  12. Couto, S.R.; Herrera, J.L.T. Industrial and biotechnological applications of laccases: A review. Biotechnol. Adv. 2006, 24, 500–513. [Google Scholar] [CrossRef] [PubMed]
  13. Torres-Duarte, C.; Roman, R.; Tinoco, R.; Vazquez-Duhalt, R. Halogenated pesticide transformation by a laccase–mediator system. Chemosphere 2009, 77, 687–692. [Google Scholar] [CrossRef] [PubMed]
  14. Pickard, M.A.; Roman, R.; Tinoco, R.; Vazquez-Duhalt, R. Polycyclic aromatic hydrocarbon metabolism by white rot fungi and oxidation by Coriolopsis gallica UAMH 8260 laccase. Appl. Environ. Microbiol. 1999, 65, 3805–3809. [Google Scholar] [PubMed]
  15. Jia, J.; Zhang, S.; Wang, P.; Wang, H. Degradation of high concentration 2,4-dichlorophenol by simultaneous photocatalytic–enzymatic process using TiO2/UV and laccase. J. Hazard. Mater. 2012, 205, 150–155. [Google Scholar] [CrossRef] [PubMed]
  16. Tian, G.-T.; Zhang, G.-Q.; Wang, H.-X.; Ng, T.B. Purification and characterization of a novel laccase from the mushroom Pleurotus nebrodensis. Acta Biochim. Pol. 2012, 59, 407–412. [Google Scholar] [PubMed]
  17. Das, N.; Chakraborty, T.K.; Mukherjee, M. Purification and characterization of laccase-1 from Pleurotus florida. Folia Microbiol. 2000, 45, 447–451. [Google Scholar] [CrossRef]
  18. Marques de Souza, C.G.; Peralta, R.M. Purification and characterization of the main laccase produced by the white-rot fungus Pleurotus pulmonarius on wheat bran solid state medium. J. Basic Microbiol. 2003, 43, 278–286. [Google Scholar] [CrossRef] [PubMed]
  19. Sondhi, S.; Sharma, P.; Saini, S.; Puri, N.; Gupta, N. Purification and characterization of an extracellular, thermo-alkali-stable, metal tolerant laccase from Bacillus tequilensis SN4. PLoS ONE 2014, 9, e96951. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, C.; Zhang, S.; Diao, H.; Zhao, H.; Zhu, X.; Lu, F.; Lu, Z. Purification and characterization of a temperature-and pH-stable laccase from the spores of Bacillus vallismortis FMB-103 and its application in the degradation of malachite green. J. Agric. Food Chem. 2013, 61, 5468–5473. [Google Scholar] [CrossRef] [PubMed]
  21. Leonowicz, A.; Trojanowski, J.; Orlicz, B. Induction of laccase in Basidiomycetes: Apparent activity of the inducible and constitutive forms of the enzyme with phenolic substrates. Acta Biochim. Pol. 1978, 25, 369–378. [Google Scholar] [PubMed]
  22. Murugesan, K.; Arulmani, M.; Nam, I.-H.; Kim, Y.-M.; Chang, Y.-S.; Kalaichelvan, P.T. Purification and characterization of laccase produced by a white rot fungus Pleurotus sajor-caju under submerged culture condition and its potential in decolorization of azo dyes. Appl. Microbiol. Biotechnol. 2006, 72, 939–946. [Google Scholar] [CrossRef] [PubMed]
  23. Karp, S.G.; Faraco, V.; Amore, A.; Birolo, L.; Giangrande, C.; Soccol, V.T.; Pandey, A.; Soccol, C.R. Characterization of laccase isoforms produced by Pleurotus ostreatus in solid state fermentation of sugarcane bagasse. Bioresour. Technol. 2012, 114, 735–739. [Google Scholar] [CrossRef] [PubMed]
  24. Chowdhury, P.; Hari, R.; Chakraborty, B.; Mandal, B.; Naskar, S.; Das, N. Isolation, culture optimization and physico-chemical characterization of laccase enzyme from Pleurotus fossulatus. Pak. J. Biol. Sci. 2014, 17, 173–181. [Google Scholar] [PubMed]
  25. Eichlerová, I.; Homolka, L.; Nerud, F. Decolorization of orange G by Pleurotus ostreatus monokaryotic isolates with different laccase activity. Folia Microbiol. 2003, 48, 775–779. [Google Scholar] [CrossRef]
  26. Reiss, R.; Ihssen, J.; Thöny-Meyer, L. Bacillus pumilus laccase: A heat stable enzyme with a wide substrate spectrum. BMC Biotechnol. 2011, 11. [Google Scholar] [CrossRef] [PubMed]
  27. Stepanova, E.V.; Pegasova, T.V.; Gavrilova, V.P.; Landesman, E.O.; Koroleva, O.V. Extracellular laccases from Cerrena unicolor 059, Cerrena unicolor 0784, and Pleurotus oastreatus 0432: A comparative assay. Appl. Biochem. Microbiol. 2003, 39, 375–381. [Google Scholar] [CrossRef]
  28. Solomon, E.I.; Sundaram, U.M.; Machonkin, T.E. Multicopper oxidases and oxygenases. Chem. Rev. 1996, 96, 2563–2606. [Google Scholar] [CrossRef] [PubMed]
  29. Almansa, E.; Kandelbauer, A.; Pereira, L.; Cavaco-Paulo, A.; Guebitz, G.M. Influence of structure on dye degradation with laccase mediator systems. Biocatal. Biotransformation 2004, 22, 315–324. [Google Scholar] [CrossRef]
  30. Kandelbauer, A.; Erlacher, A.; Cavaco-Paulo, A.; Guebitz, G.M. Laccase-catalyzed decolorization of the synthetic azo-dye diamond black PV 200 and of some structurally related derivatives. Biocatal. Biotransform. 2004, 22, 331–339. [Google Scholar] [CrossRef]
  31. Tadesse, M.A.; D'Annibale, A.; Galli, C.; Gentili, P.; Sergi, F. An assessment of the relative contributions of redox and steric issues to laccase specificity towards putative substrates. Org. Biomol. Chem. 2008, 6, 868–878. [Google Scholar] [CrossRef] [PubMed]
  32. Xu, F.; Kulys, J.J.; Duke, K.; Li, K.; Krikstopaitis, K.; Deussen, H.-J.W.; Abbate, E.; Galinyte, V.; Schneider, P. Redox chemistry in laccase-catalyzed oxidation of N-hydroxy compounds. Appl. Environ. Microbiol. 2000, 66, 2052–2056. [Google Scholar] [CrossRef] [PubMed]
  33. Li, K.; Xu, F.; Eriksson, K.-E.L. Comparison of fungal laccases and redox mediators in oxidation of a nonphenolic lignin model compound. Appl. Environ. Microbiol. 1999, 65, 2654–2660. [Google Scholar] [PubMed]
  34. Lisova, Z.A.; Lisov, A.V.; Leontievsky, A.A. Two laccase isoforms of the basidiomycete Cerrena unicolor VKMF-3196. Induction, isolation and properties. J. Basic Microbiol. 2010, 50, 72–82. [Google Scholar] [CrossRef] [PubMed]
  35. Gu, C.; Zheng, F.; Long, L.; Wang, J.; Ding, S. Engineering the expression and characterization of two novel laccase isoenzymes from Coprinus comatus in Pichia pastoris by fusing an additional ten amino acids tag at N-terminus. PLoS ONE 2014, 9, e93912. [Google Scholar] [CrossRef] [PubMed]
  36. Sherif, M.; Waung, D.; Korbeci, B.; Mavisakalyan, V.; Flick, R.; Brown, G.; Abou-Zaid, M.; Yakunin, A.F.; Master, E.R. Biochemical studies of the multicopper oxidase (small laccase) from Streptomyces coelicolor using bioactive phytochemicals and site-directed mutagenesis. Microb. Biotechnol. 2013, 6, 588–597. [Google Scholar] [CrossRef] [PubMed]
  37. Deng, Y.; Zhu, Y.; Wang, P.; Zhu, L.; Zheng, J.; Li, R.; Ruan, L.; Peng, D.; Sun, M. Complete genome sequence of Bacillus subtilis BSn5, an endophytic bacterium of Amorphophallus konjac with antimicrobial activity for the plant pathogen Erwinia carotovora subsp. carotovora. J. Bacteriol. 2011, 193, 2070–2071. [Google Scholar] [CrossRef] [PubMed]
  38. Sitarz, A.K.; Mikkelsen, J.D.; Højrup, P.; Meyer, A.S. Identification of a laccase from Ganoderma lucidum CBS 229.93 having potential for enhancing cellulase catalyzed lignocellulose degradation. Enzym. Microb. Technol. 2013, 53, 378–385. [Google Scholar] [CrossRef] [PubMed]
  39. Rodriguez, E.; Ruiz-Duenas, F.; Kooistra, R.; Ram, A.; Martinez, A. Isolation of two laccase genes from the white-rot fungus Pleurotus eryngii and heterologous expression of the pel3 encoded protein. J. Biotechnol. 2008, 134, 9–19. [Google Scholar] [CrossRef] [PubMed]
  40. Laemmli, U.K.; Favre, M. Maturation of the head of bacteriophage T4: I. DNA packaging events. J. Mol. Biol. 1973, 80, 575–599. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are not available from the authors.
