Geometry Constrained N-(5,6,7-Trihydroquinolin-8-ylidene)arylaminopalladium Dichloride Complexes: Catalytic Behavior toward Methyl Acrylate (MA), Methyl Acrylate-co-Norbornene (MA-co-NB) Polymerization and Heck Coupling

by
Yanning Zeng
1,2,*,
Qaiser Mahmood
1,3,
Tongling Liang
1 and
Wen-Hua Sun
1,2,3,*
1
Key Laboratory of Engineering Plastics, Beijing National Laboratory for Molecular Sciences, Institute of Chemistry, Chinese Academy of Sciences, Beijing 100190, China
2
State Key Laboratory for Oxo Synthesis and Selective Oxidation, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, Lanzhou 730000, China
3
International School, University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Molecules 2016, 21(12), 1686; https://doi.org/10.3390/molecules21121686
Submission received: 11 November 2016 / Revised: 2 December 2016 / Accepted: 3 December 2016 / Published: 7 December 2016
(This article belongs to the Special Issue Palladium Catalysts 2016)
Browse Figures
Versions Notes

Abstract

:
A new pair of plladium complexes (Pd4 and Pd5) ligated with constrained N-(5,6,7-trihydroquinolin-8-ylidene)arylamine ligands have been prepared and well characterized by 1H-, 13C-NMR and FTIR spectroscopies as well as elemental analysis. The molecular structure of Pd4 and Pd5 in solid state have also been determined by X-ray diffraction, showing slightly distorted square planar geometry around the palladium metal center. All complexes Pd1–Pd5 are revealed highly efficient catalyst in methyl acrylate (MA) polymerization as well as methyl acrylate/norbornene (MA/NB) copolymerization. In the case of MA polymerization, as high as 98.4% conversion with high molecular weight up to 6282 kg·mol−1 was achieved. Likewise, Pd3 complex has good capability to incorporate about 18% NB content into MA polymer chains. Furthermore, low catalyst loadings (0.002 mol %) of Pd4 or Pd5 are able to efficiently mediate the coupling of haloarenes with styrene affording up to 98% conversion.

Graphical Abstract

1. Introduction

The abundant chemistry of palladium-based complex catalysts has attracted considerable attention, particularly in the field of C–C bond formation, C–H functionalization, hydrocarbon oxidation, as well as radical insertion and addition reaction in polymerization, indicating that palladium is one of the most catalytically versatile transition metals [1,2,3].
The Mizoroki–Heck reaction [4,5,6,7,8,9,10,11] using palladium catalyst has been extensively utilized in the synthesis of natural products [12], pharmaceuticals, bioactive compounds [13], fine chemical substances [14], as well as polymeric materials [15]. Besides mild reaction conditions, Mizoroki–Heck reactions also tolerate various functional groups including amino [16], hydroxyl [17], aldehyde [18], ketone [19], carboxylic acid [20], ester [21], cyano [22], and nitro groups [23] within both the aryl or vinyl halides and alkenes. The extensive use have driven the price of palladium higher and higher, making it is necessary to enhance the catalytic efficiency by designing simpler and general palladium catalyst systems which can work under accessible reaction conditions.
On the other hand, commercial copolymerization processes plays a key role in the production of new materials, which is indispensable in all fields of human life [24,25,26,27,28,29,30]. For instance, the copolymerization of polar monomers, particularly methyl acrylate (MA), with olefins confers novel properties on the resulting polymers: improved thermal stability, superior etch resistance, good adhesion due to the ester groups and a hydrophobic character derived from the C–C backbone [31,32,33]. Although recent progress in polymerization based on palladium catalysts allows the efficient copolymerization of polar and nonpolar monomers, the catalyst activity and second monomer insertion ratio remain quite low [34,35,36,37]. Subsequently, the design of suitable catalyst systems for efficient copolymerization of polar and non-polar monomers viz. acrylate and norbornene (NB) is still a great challenge [38,39,40,41,42,43].
In view of the aforementioned perspectives and targeting higher efficiency catalysts, many newfangled ligand frameworks have been reported to provide subtle control over the palladium driven catalysis of either coupling reactions or polymerization. For instance; Nozaki et al. developed a highly efficient organic palladium catalyst framework for copolymerization of polar and nonpolar monomers [44]. Similarly, Chen et al. reported highly robust palladium(II) α-diimine catalysts for copolymerization of α-olefins with MA [45]. Besides, our group successfully established highly efficient nickel complexes comprising constrained cycloalkyl-fused pyridine ligands, viz N-(5,6,7-trihydroquinolin-8-ylidene)arylamine ligands [46] (Figure 1, A) and 9-arylimino-5,6,7,8-tetrahydro-cyclohepta[b]pyridine [47] (Figure 1, B). Meanwhile, recently highly efficient palladium complexes ligated with the same N-(5,6,7-trihydroquinolin-8-ylidene)arylamine ligands were reported for Heck and Suzuki coupling reactions [48]. Owing to these encouraging result, we were interested in extending the scope of N-(5,6,7-trihydroquinolin-8-ylidene)arylamine ligand-containing palladium complexes (Figure 1, C). In this research, we have prepared a pair of new palladium complexes Pd4 and Pd5 along with recently reported Pd1–Pd3 complexes. Owing to the simplicity and ease of preparation of the title palladium complexes, we have employed them in MA polymerization and copolymerization of MA with NB under mild conditions. The resultant PMA has high molecular weight, up to 6282 kg·mol−1, and gave 98.4% conversion. The incorporation of NB was improved up to 18%. Additionally Pd4 and Pd5 were also used in the coupling of haloarenes with styrene substrates. Full characterization of new complexes and structural features of PMA and PM-co-NB polymer are reported.

2. Results and Discussion

2.1. Synthesis and Characterization of Palladium Complexes

In order to explore the catalytic potential of palladium complexes, a series of ligands L1–L5 and their corresponding palladium complexes Pd1–Pd5 have been prepared. Complexes Pd1–Pd3 have already been reported as highly active catalysts for Heck and Suzuki coupling reactions [48]. On the basis of these encouraging results, we extended the scope of the reported Pd1–Pd3 complexes and additionally synthesized the new compounds Pd4 and Pd5 for homopolymerization of MA and copolymerization of MA and NB. Additionally Pd4 and Pd5 were also employed in Heck coupling reactions. Ligands L4 and L5 and their complexes Pd4 (51%) and Pd5 (89%) have been prepared according to the same procedure reported in our previous work [46] as shown in Scheme 1. The new synthesized complexes were fully characterized by 1H-, 13C-NMR and FTIR spectroscopies as well as elemental analysis. All the distinctive peaks for proton and carbon atoms in the 1H- and 13C-NMR are consistent with the proposed structures of the palladium complexes. Moreover, the VC=N stretching vibration absorption underwent a blue shift at around 1577 cm−1 in the FT-IR spectra of the palladium complexes, which is consistent with the reported data [49,50]. The palladium complexes are highly stable in the solid state as well as for several months in their solutions in haloalkanes (dichloromethane and chloroform), dimethylacetamide (DMA), dimethylformamide (DMF), toluene and acetonitrile. In addition, the molecular structures of both newly synthesized palladium complexes Pd4 and Pd5 have been determined by single crystal X-ray diffraction studies.

2.2. Single Crystal X-ray Diffraction Study

The crystals of complexes Pd4 and Pd5 were grown by layering diethyl ether on their dichloromethane solutions. Both complexes Pd4 and Pd5 displayed a similar molecular structure that adopts a distorted square planar geometry around the palladium metal center and the square plane is comprised of two nitrogen atoms from the ligand as forming a chelate ring with Pd metal center and two chloride atoms. The structural features correspond to classical N,N-bidentate palladium complexes [51,52,53,54,55,56]. The molecular structures of Pd4 and Pd5 are shown in Figure 2 and the selected bond lengths and bond angles are listed in Table S1 (ESI). The N2–C8 bond length shows double bonding features characteristic of imino groups: 1.292(3) Å in Pd4 and 1.287(3) Å in Pd5, whilst the C8–C7 bond length characteristically revealed single bonding features: 1.494(3) Å (Pd4) and 1.497(3) Å (Pd5) contrary to the ligand which shows single as well as double bonding features [46]. The bite angle N(2)–Pd(1)–N(1): 80.31(7) for Pd4 and 80.37(7) for Pd5 was observed to be smaller than 90° which is accompanied by opening of the other three angles attributed to the non-aromatic six membered framework. In addition, the C2 atoms in the non-aromatic six membered framework fused with the pyridine ring are constrained from planarity, possibly due to minimization of the angle ring strain. The Nimine aryl ring is inclined nearly perpendicular with respect to the plane of the chelate ring N1–C9–C8–N2–Pd1 in Pd4 (87.98°), while, slightly less twisting of the Nimine aryl ring is observed in case of Pd5 (80.30°). Both bond lengths and bond angles are in good agreement with previously reported analogy palladium complexes [57].

2.3. Polymerization of MA and Copolymerization of MA/NB

To establish the optimal conditions for polymerization using a catalyst system composed of Pd3 and (C6F5)4BC6H5NH(CH3)2, reaction temperature and run time were systematically investigated; the results are summarized in Table 1. Generally, N2PdCl2 type palladium complexes are sensitive to the temperature and easily dissociate at elevated temperature, subsequently affecting the catalytic activity of polymerization, hence homopolymerization of MA was conducted at different temperatures to explore the best catalyst activity. It was observed that when the temperature was increased from 80 °C to 120 °C, the highest conversion (95%) was obtained at 100 °C. In contrast, in polymerization either at lower or higher temperatures than 100 °C, Pd3 exhibited lower activities, illustrating that partial deactivation started at elevated temperature. From the perspective of polymer microstructure, the raising temperature also causes in increase of the molecular weight of the polymers, consistent with the literature [58] and even higher than the corresponding polymerization data catalyzed by other late transition metals viz. Fe(II) and Co(II)pyridyl bis(imine)/MAO α-diimine Ni(II)/MAO systems [59]. Besides, the obtained PMAs show a broad bimodal molecular weight distribution with a high molecular weight tail at 100 °C as shown in the GPC traces in Figure 3.
To check the efficiency of the catalyst regarding the reaction time, the homopolymerization of MA has been performed for different time durations such as 1, 2, 3 and 4 h: conversion was increased from 24.2 to 95.0% as the reaction duration was prolonged from 1 to 4 h (Runs 2, 4, 5 and 6, Table 1). Interestingly, the molecular weight of the polymers increased regularly with the prolonged reaction time; a maximum molecular weight of 2252 kg·mol−1 was observed after 4 h reaction run time (Run 2, Table 1).
Under the optimized polymerization conditions, the catalytic behavior of additional complexes (Pd1, Pd2, Pd4 and Pd5) was also examined. The order of catalytic efficiency observed was: Pd5 > Pd4 > Pd3 > Pd2 > Pd1. By examining the data in Table 1, complexes Pd5 and Pd4 showed improved conversion (Runs 9 and 10, Table 1) when compared with their analogous complexes Pd2 and Pd1, respectively (Runs 7 and 8 Table 1). Likewise Pd5 showed slightly higher conversion of MA as compared to Pd4 and a similar correlation was observed by comparing the complexes Pd3 with Pd2 or Pd1. Contrary to Wu et al.’s observations [35,36], sterically hindered Pd5 gave improved conversion, so it seemed a ligand effect was involved during the initial insertion of the MA monomer. Considering the molecular weight of the obtained polymers (Figure 3), Pd5 gave the highest molecular weight, up to 6282 kg∙mol−1. However, Pd1, Pd2, Pd4 and Pd5 showed narrow polydispersity (Mw/Mn = 3.21–3.98) while Pd3 exhibited a broad polydispersity of 11.5.
In order to verify either a free radical or coordination mechanism, MA polymerization was performed in the absence of ambient light under optimized reaction conditions (Run 11, Table 1). Polymerization was totally hindered in the absence of ambient light, confirming the free radical mechanism of our catalytic system. According to the mechanistic studies of Albéniz et al., free radicals were produced by light induced-homolytic cleavage of the Pd–C bond after the incorporation of one MA unit into the Pd–C6F5 bond of 1 [60]. A similar mechanistic pathway was also proposed by Ye et al. [35]. Although at this stage less experimental evidence is available, we reason that radicals were similarly produced from the light induced-decomposition of the palladium complex intermediate after initial incorporation of MA monomer into the palladium active species. Herein the palladium active specie could be formed only after the addition of (C6F5)4BC6H5NH(CH3)2 initiator followed by insertion of one MA monomer. In fact no polymerization was observed in the absence of initiator. Furthermore, 13C-NMR measurements of representative samples (Run 2, Table 1) indicated that the obtained PMAs are atactic. Similar results were also observed by Sen et al. and established a radical mechanism for such type of PMAs [61,62].
Polyolefins functionalized with polar and non-polar monomers remain an area of great interest for providing hybrid polymeric properties which afford useful polymeric materials in industry as well as academia. However, it remains a great challenge to design suitable catalyst systems for efficient copolymerization of MA with NB [34,39,40,41,42,43,59]. In this essence, we employed the Pd3/(C6F5)4BC6H5NH(CH3)2 catalytic system for copolymerization of MA with NB under the aforementioned optimum conditions for homopolymerization of MA (Run 2, Table 1). Various feed ratios of MA/NB (9:1–5:5) were used and results are tabulated in Table 2.
It was observed that the incorporation of NB monomer gradually increased with an increase of feed ratio and a maximum 18% conversion was observed at a 5:5 feed ratio. The homopolymerization of NB did not give polymer using same Pd3/(C6F5)4BC6H5NH(CH3)2 catalytic system under similar reaction conditions. Conversely, 18% NB was incorporated during copolymerization of MA with NB, which assured the copolymerization was happened instead of simple physical mixing of both polymers. Further confirmation of copolymer formation was obtained from the by 1H- and 13C-NMR spectrum (vide infra, Figure 4 and Figure 5) [37,38]. As mentioned in Table 2, increasing the MA/NB feed ratio caused a substantial decrease in molecular weight of the obtained MA/NB copolymer from 2252 kg·mol−1 to 152 kg·mol−1. The molecular structure of PMA and MA-co-NB polymer was characterized by 1H- and 13C-NMR measurements. According to the 1H-NMR spectrum the methoxy peak appeared at 3.67 ppm and the methine and methylene protons of acrylate units as well as norbornene units appeared as broad resonances between 0.9–2.5 ppm illustrating the copolymerization was successful. The methylene protons for the acrylate units appeared around 1.98 ppm and overlapped with the methine protons from the norbornene as well as MA units. Furthermore, an intense methoxy group peak showed the MA enriched polymer was formed. All the assigned peaks are in agreement with the literature [61,63,64]. Moreover, as expected, no vibration for the C=C bond appeared at 1680–1620 cm−1 in FT IR spectrum indicating the absence of ring opening polymerization of NB [31].
Similarly, for comparison 13C-NMR spectra of PMA and MA-co-NB copolymer with different feed ratios (9/1, 7/3 and 5/5) are compiled together in Figure 5 and interpreted according to the literature [65]. The peaks for the carbonyl (–C(O)OMe), methoxy (–OCH3), methine (–CH) and methylene (–CH2–) carbons of PMA appear at 175.0 ppm, 51.8 ppm, 41.8 ppm and 35.0 ppm, respectively. On the other hand, in spectra (b) and (c), the methine and methylene carbon peaks became slightly less intense as well as broader. A clearer difference was observed in spectrum (c), where even the methylene carbon peaks of both monomer units emerge in the range of 34.0–44.1 ppm. Furthermore, the methoxy (–OCH3), methine (–CH) and methylene (–CH2–) signals in spectrum (b), (c) and (d) were slightly shifted toward higher field as compared to spectrum (a), verifying that the copolymerization had happened. A similar observation was reported by Wu and his co-workers [35,36]: NB are highly non-polar units which act as inert diluent that would be responsible for slightly shifting the chemical shift of MA segments to higher field. Such a shifting of peaks would not possible in a physic mixture of both polymers because no specific interaction between MA and NB monomers is possible. Moreover, some additional peaks was observed at 25.1 ppm, 30.2 ppm and 48.3 ppm which was assigned to the MA and NB sequence and the appearance of the peak intensity indicated a random sequence of co-monomers; such a sequence of MA and NB in polymer chains mostly occurs by a radical polymerization mechanism in agreement with the literature [34,39,40,41,42,43,59]. Though, a precise mechanism is unknown, like MA homopolymerization, MA free radicals are produced from the palladium intermediates, followed by propagation of MA-co-NB polymer chain by reacting with MA as well as NB monomers.

2.4. Heck Coupling Reaction

Generally the catalytic efficiency for Heck coupling reaction is highly influenced by the reaction conditions namely inorganic base, organic solvent, temperature and reaction time. In this context, firstly, the reaction conditions were optimized. The optimized reaction conditions were investigated by employing 0.002 mol% loading of Pd5 complex for Heck coupling of classical substrates; p-bromo-toluene with 1.2 equivalents of styrene and explored the effect of base, temperature, solvent and reaction duration. The data are compiled in Table 3.
On careful inspection of the data, the best conversion was found when the coupling was performed in dimethylacetamide at 150 °C in the presence of K2CO3 for 12 h, which resulted in 98% conversion (Run 13, Table 3). Other bases including Na2CO3, NaHCO3, NaOAc and NaOH were also tested but showed lower efficiency (Runs 2–5, Table 3). In considering the crucial rule of the solvent in Heck coupling reactions, various polar and non-polar solvents were employed: the polar aprotic solvent N,N-dimethylformamide (DMF) exhibited similar activity as DMA and the coupling product could be obtained in 92% yield after 8 h reaction run time (Run 6, Table 3). An the other hand, due to lower boiling points of the solvents toluene and acetonitrile, the reaction was conducted at 100 °C and 60 °C respectively, but no conversion was observed (Runs 6–8, Table 3). In order to distinguish the effect of solvent or/and temperature, the coupling reaction was performed at lower temperature (60 °C and 100 °C) using the optimal solvent (DMA), and still no conversion was obtained, illustrating the dynamic role of temperature in the coupling reactions (Runs 9 and 10, Table 3). On the inspection of the reaction run time, surprisingly, slightly less conversion (93%) was observed after 8 h reaction run time (Run 1, Table 3). Less reaction time, namely 2 and 4 h, gave less conversion (Runs 12 and 13, Table 3), while 12 h reaction gave slightly more conversion, but considering good the ToF values we used eight hour reaction time to explore the scope for further reaction substrates.
Using the optimum reaction conditions as established for Pd5, Pd4, PdCl2 and Pd(OAc)2 were additionally employed to evaluate the catalytic efficiency for the coupling of p-bromotoluene and styrene. According to the results as mentioned in Table 3, Pd4 like Pd5 exhibited excellent conversion (93%) and high ToF value (Run 14, Table 3). In contrast, PdCl2 and Pd(OAc)2 showed only 22% and 41% conversion, respectively, albeit at higher catalyst loading, illustrating the role of the ligand in the catalytic efficiency (Runs 15 and 16, Table 3). Complexes Pd4 and Pd5 have additional methyl groups on the para-position, which showed a detrimental effect that led to a slightly lower conversion rate as compared to analogous complexes [48].
Furthermore, keeping the optimal conditions in mind, the scope of the catalytic system Pd5 was further investigated in the coupling of styrene with a variety of haloarene substrates as listed in Table 4. High catalytic efficiency was achieved in the case of bromobenzene (Run 1, Table 4), but the efficiency abruptly dropped in the case of 2,4,6-trimethylbromobenzene (Run 2, Table 4), being attributed to the steric crowding of both ortho-methyl substituents.
However, 1,4-dibromobenzene gave 43% conversion in the first coupling stage and but second coupling of styrene seemed more difficult as it gave only 21% conversion caused of the high steric hindrance (Run 3, Table 4). Meanwhile, introducing electron donating groups, namely –NH2 and –OMe at the para-position of bromobenzene gave slightly less conversion as compared to bromobenzene: 77% and 76%, respectively (Runs 4 and 5, Table 4). In comparison with the self-encapsulated Pd-diimine catalyst reported by Ye et al., Pd5 is an efficient catalyst showing high values of ToF (4000 and 3847 h−1) [66]. In the case of 3-methoxybromobenzene, the catalytic efficiency was further decreased up to 53% (Run 6, Table 4) consistent with the literature [67]. On comparison with our earlier reported work [48], the current catalytic system exhibited similar efficiency viz electron withdrawing groups positively enhanced the catalytic efficiency and electron donating groups showed contrasting results. At the same time, the coupling reaction of highly inert 2-bromopyridine substrates were also investigated with styrene (Runs 7 and 8, Table 4) but lower activity was exhibited, possibly due to coordination of Npyridine with Pd metal center leading to lower efficiency. This indicated that it is worthy to explore more efficient catalyst systems for the coupling of less reactive substrates, albeit a plethora of highly efficient catalysts are available. The structures of the isolated products were elucidated by 1H- and 13C-NMR spectroscopy and interpreted according to the literature [68,69,70].

3. Experimental Section

3.1. General Information

All the manipulations of air and/or moisture sensitive compounds were conducted under a nitrogen atmosphere by standard Schlenk techniques. All the reagents were purchased from Aldrich (Beijing, China). NMR spectra were recorded on a DMX 400 MHz instrument (Bruker, Karlsruhe, Germany) at ambient temperature with TMS as an internal standard. FTIR spectra were determined on a System 2000 FTIR spectrometer (Perkin-Elmer, Shanghai, China). Elemental analysis was performed by an HPMOD 1106 microanalyzer (Thermo Electron SPA, Beijing, China).

3.2. Synthesis of Ligands L1–L5

Ligands L1–L5 have been prepared according to the procedure as reported in our previous study [47].

3.3. Synthesis of Palladium Complexes

A similar procedure was used as described for the synthesis of Pd1–Pd3 in our previous study [48]. A solution of (CH3CN)2PdCl2 (2 mmol) in CH2Cl2 (20 mL) was added with the corresponding ligand (2 mmol) at room temperature. After overnight stirring, the color of the reaction mixture turned from light yellow to dark yellow, then the complex was precipitated by adding an excess of diethyl ether, filtered and washed with diethyl ether (3 × 5 mL). Finally, the precipitate was dried under vacuum afforded a yellow microcrystalline powder in high yield.
N-(5,6,7-Trihydroquinolin-8-ylidene)-2,4,6-trimethylphenyliminopalladium(II) dichloride (Pd4): Yellow microcrystalline solid, 51% yield. 1H-NMR (CDCl3): 9.33 (d, J = 8.0 Hz, 1H); 7.92 (d, J = 8.0 Hz, 1H); 7.66 (t, J = 6.0 Hz, 1H); 6.91 (s, 2H), 3.03 (t, J = 8.0 Hz, 2 H); 2.45 (t, J = 4.0 Hz, 2H); 1.99 (t, J = 6.0 Hz, 2H); 1.67 (s, 9H). 13C-NMR (CDCl3): δ 178.8, 152.3, 149.5, 142.7, 140.4, 140.2, 140.1, 129.0, 128.5, 123.7, 31.7, 28.8, 28.1, 23.6, 21.8. FTIR (KBr, disk, cm−1): 3074, 2965, 2906, 2876, 1604, 1577, 1453, 1376, 1288, 1190, 1128, 1035, 956, 851, 789, 660. Anal. calcd for C18H20Cl2N2Pd (442): C, 48.95; H, 4.56; N, 6.34. Found: C, 49.35; H, 4.68; N, 6.36.
N-(5,6,7-Trihydroquinolin-8-ylidene)-2,6-diethyl-4-methylphenyliminopalladium(II) dichloride (Pd5): Yellow microcrystalline solid, 89% yield: 1H-NMR (CDCl3): 9.35 (d, J = 4.0 Hz, 1H); 7.95 (d, J = 8.0 Hz, 1H); 7.68 (t, J = 6.0 Hz, 1H); 6.69 (s, 1H), 3.03 (t, J = 6.0 Hz, 2 H); 2.84-2.74 (m, 2H); 2.52–2.43 (m, 4H); 1.79 (t, J = 6.0 Hz, 2H), 1.29 (t, J = 6.0 Hz, 6H). 13C-NMR (CDCl3): δ 178.4, 152.4, 150.0, 142.3, 140.4, 139.5, 137.9, 134.7, 129.1, 126.8, 31.3, 28.4, 24.6, 22.1, 21.6, 13.7. FTIR (KBr, disk, cm−1): 3073, 2967, 2928, 2871, 1604, 1579, 1456, 1375, 1286, 1188, 1128, 934, 854, 791, 668. Anal. calcd for C18H20Cl2N2Pd (442): C, 51.14; H, 5.15; N, 5.96. Found: C, 50.97; H, 5.11; N, 5.93.

3.4. Homopolymerization of MA

Typical procedure (Run 2, Table 1): A 50 mL oven-dried Schlenk flask was charged with Pd3 complex (9.2 mg, 20 μmol) and (C6F5)4BC6H5NH(CH3)2 (0.017 mg, 24 μmol, 1.2 equiv.) under nitrogen, then MA (8.6 g, 100 mmol) was injected into the reaction mixture by syringe. The reaction was stirred for 4 h at 80 °C. After the required time of polymerization, methanol was added to quench the polymerization. After filtering the polymer was dried under vacuum in an oven for 12 h at 45 °C.

3.5. Copolymerization of MA and NB

Typical procedure: A 50 mL oven-dried Schlenk flask was charged with Pd3 complex (9.2 mg, 20 μmol) and (C6F5)4BC6H5NH(CH3)2 (0.017 mg, 24 μmol, 1.2 equiv.) under nitrogen. Then the required molar ratio of MA and NB were added into the reaction mixture by syringe. After 4 h reaction time at 100 °C, methanol was added to quench the polymerization. The polymer was obtained by filtration and dried under vacuum in an oven for 12 h at 45 °C.

3.6. Heck Reaction

In a typical procedure for Run 1 in Table 3, a 50 mL oven-dried Schlenk flask was charged with p-bromotoluene (342 mg, 2.0 mmol), styrene (254 mg, 2.4 mmol), anhydrous K2CO3 (304 mg, 2.2 mmol) and dimethylacetamide (DMA, 4.0 mL) under nitrogen. A 4 µmol Pd5 solution in DMA solvent was added into reaction mixture using a syringe, and then the reaction tube was kept stirring at 150 °C for 8 h. After cooling to room temperature, the reaction mixture was diluted with water and EtOAc. The combined organic extract was washed with brine, dried over Na2SO4 and concentrated. The crude product was purified by flash chromatography on silica gel to afford the desired product 1-methyl-4-styrylbenzene.

3.7. X-ray Crystallographic Study

Single crystals of Pd4 and Pd5 suitable for X-ray diffraction analysis were obtained from their dichloromethane solution using diethyl ether at room temperature. X-ray diffraction study were conducted on a Saturn 724 + CCD diffractometer (Rigaku, Tokyo, Japan) with graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å) at 173(2) K. Cell parameters were obtained by global refinement of the positions of all collected reflections. Intensities were corrected for Lorentz and polarization effects and empirical absorption. The structures were solved by direct methods and refined by full-matrix least squares on F2. All hydrogen atoms were placed in calculated positions. Structure solution and refinement were performed by using the SHELXL–97 package [71]. Details of the X-ray structure determinations and refinements are provided in Table S2.

4. Conclusions

Along with reported complexes Pd1–Pd3, a pair of new complexes Pd4 and Pd5 have been prepared and fully characterized by 1H-NMR, 13C-NMR and FT-IR spectroscopies as well as elemental analysis. The molecular structures of Pd4 and Pd5 in the solid state have also been determined by X-ray diffraction, showing slightly distorted square planar geometry around the palladium metal center. All complexes Pd1–Pd5 displayed excellent catalytic activity, with as high as 98% conversion, for MA polymerization. From the perspective of PMA microstructure, a high molecular weight (6282 kg·mol−1) was achieved. Moreover, Pd3 has good capability in copolymerization of MA with NB and exhibted up to 18% incorporation. Additionally Pd4 and Pd5 was employed for the coupling of halorenes with styrene and gave almost quantitative conversions. In summary, the reported complexes are easy to prepare and are highly efficient catalysts for different applications. Further research on modification of these palladium complexes by changing the spectator ligands is undergoing.

Supplementary Materials

CCDC 1507785 and 1507784 contain the supplementary crystallographic data for Pd4 and Pd5. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif. Table S1: the selected bond lengths and bond angles of Pd4 and Pd5. Table S2: Crystal data and structure refinement for complexes Pd4 and Pd5. Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/21/12/1686/s1.

Acknowledgments

This work was supported by National Natural Science Foundation of China (No. 51273202 and U1362204). QM’s doctoral studies were supported by a CAS-TWAS President’s Fellowship administered by University of Chinese Academy of Sciences (UCAS) and the World Academy of Sciences (TWAS).

Author Contributions

W.-H.S. and Y.Z. were the principle investigators of the project and designed the experiments. Y.Z. performed the experiments. T.L. interpreted the data obtained from the single crystal X-ray diffraction. Q.M. and Y.Z. interpreted the results and wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sivaramakrishna, A.; Clayton, H.S.; Mogorosi, M.M.; Moss, J.R. Hydrocarbon (π- and δ-) complexes of nickel, palladium and platinum: Synthesis, reactivity and applications. Coord. Chem. Rev. 2010, 254, 2904–2932. [Google Scholar] [CrossRef]
  2. Budagumpi, S.; Haque, R.A.; Salman, A.W. Stereochemical and structural characteristics of single- and double-site Pd(II)–N-heterocyclic carbene complexes: Promising catalysts in organic syntheses ranging from C–C coupling to olefin polymerizations. Coord. Chem. Rev. 2012, 256, 1787–1830. [Google Scholar] [CrossRef]
  3. Mirica, L.M.; Khusnutdinova, J.R. Structure and electronic properties of Pd(III) complexes. Coord. Chem. Rev. 2013, 257, 299–314. [Google Scholar] [CrossRef]
  4. Alonso, F.; Beletskaya, I.P.; Yus, M. Non-conventional methodologies for transition-metal catalysed carbon–carbon coupling: A critical overview. Part 1: The Heck reaction. Tetrahedron 2005, 61, 11771–11835. [Google Scholar] [CrossRef]
  5. Whitcombe, N.J.; Hii, K.K.; Gibson, S.E. Advances in the hecking chemistry of aryl bromides and chlorides. Tetrahedron 2001, 57, 7449–7476. [Google Scholar] [CrossRef]
  6. Beletskaya, I.P.; Cheprakov, A.V. The Heck Reaction as a Sharpening Stone of Palladium Catalysis. Chem. Rev. 2000, 100, 3009–3066. [Google Scholar] [CrossRef] [PubMed]
  7. Crisp, G.T. Variations on a theme-recent developments on the mechanism of the Heck reaction and their implications for synthesis. Chem. Soc. Rev. 1998, 27, 427–436. [Google Scholar] [CrossRef]
  8. Cabri, W.; Candiani, I. Recent developments and new Perspectives in the Heck Reaction. Acc. Chem. Res. 1995, 28, 2–7. [Google Scholar] [CrossRef]
  9. Mizoroki, T.; Mori, K.; Ozaki, A. Arylation of olefin with aryl iodide catalyzed by palladium. Bull. Chem. Soc. Jpn. 1971, 44, 581. [Google Scholar] [CrossRef]
  10. Dieck, H.A.; Heck, R.F. Organophosphinepalladium complexes as catalysts for vinylic hydrogen substitution reactions. J. Am. Chem. Soc. 1974, 96, 1133–1136. [Google Scholar] [CrossRef]
  11. Dieck, H.A.; Heck, R.F. A palladium-catalyzed conjugated diene synthesis from vinylic halides and olefinic compounds. J. Org. Chem. 1975, 40, 1083–1090. [Google Scholar] [CrossRef]
  12. Minto, R.E.; Blacklock, B.J. Biosynthesis and function of polyacetylenes and allied natural products. Prog. Lipid Res. 2008, 47, 233–306. [Google Scholar] [CrossRef] [PubMed]
  13. Goa, K.L.; Wagstaff, A. A review of its pharmacology, clinical efficacy and tolerability in the management of hypertension. J. Drugs 1996, 51, 820–845. [Google Scholar] [CrossRef]
  14. Vries, J.G. The heck reaction in the production of fine chemicals. Can. J. Chem. 2001, 79, 1086–1092. [Google Scholar] [CrossRef]
  15. Sun, L.; Zou, Y.; Liang, Z.; Yu, J.; Xu, R. A one-pot synthetic strategy via tandem Suzuki–Heck reactions for the construction of luminescent microporous organic polymers. Polym. Chem. 2014, 5, 471–478. [Google Scholar] [CrossRef]
  16. Rafiee, E.; Ataei, A.; Nadri, S.; Joshaghani, M.; Eavani, S. Combination of palladium and oleic acid coated-magnetite particles: Characterization and using in Heck coupling reaction with magnetic recyclability. Inorg. Chim. Acta 2014, 409, 302–307. [Google Scholar] [CrossRef]
  17. Chaudhari, T.Y.; Hossian, A.; Manna, M.K.; Jana, R. Chemo-, regio-, and stereoselective Heck–Matsuda arylation of allylic alcohols under mild conditions. Org. Biomol. Chem. 2015, 13, 4841–4845. [Google Scholar] [CrossRef] [PubMed]
  18. Sabouncheia, S.J.; Ahmadia, M.; Panahimehra, M.; Bagherjeria, F.A.; Nasri, Z. Phosphine mono- and bis-ylide palladacycles as homogeneous molecular precatalysts: Simple and efficient protocol greatly facilitate Suzuki and Heck coupling reactions. J. Mol. Catal. A Chem. 2014, 383–384, 249–259. [Google Scholar] [CrossRef]
  19. Hajipour, A.R.; Azizi, G. Immobilized Pd nanoparticles on Tris-modified SiO2: Synthesis, characterization, and catalytic activity in Heck cross-coupling reactions. Chin. J. Catal. 2014, 35, 1547–1554. [Google Scholar] [CrossRef]
  20. Bachmann, D.G.; Wittwer, C.C.; Gillingham, D.G. Stereoselective Heck Reactions with Vinyl Sulfoxides, Sulfides and Sulfones. Adv. Synth. Catal. 2013, 355, 3703–3707. [Google Scholar] [CrossRef]
  21. Potier, J.; Menuel, S.; Rousseau, J.; Tumkevicius, S.; Hapiot, F.; Monflier, E. Multifunctional cyclodextrin-based N,N-bidentate ligands for aqueous Heck arylation. Appl. Catal. A 2014, 479, 1–8. [Google Scholar] [CrossRef]
  22. Quinteros, G.J.; Uberman, P.M.; Martín, S.E. Bulky monodentate biphenylarsine ligands: Synthesis and evaluation of their structure effects in the palladium-catalyzed heck reaction. Eur. J. Org. Chem. 2015, 2015, 2698–2705. [Google Scholar] [CrossRef]
  23. Chou, C.; Yang, C.; Syu, H.; Kuo, T. Monomeric Pd(II) complexes with trans-chelated pyrazole ligands as effective pre-catalysts for Heck cross-coupling reaction under mild aerobic conditions. J. Organomet. Chem. 2013, 745–746, 387–392. [Google Scholar] [CrossRef]
  24. Ye, J.; Ye, Z.; Zhu, S. Synthesis and characterization of hyperbranched polyethylenes containing cross-linking structures by chain walking copolymerization of ethylene with diacrylate comonomer. Polymer 2008, 49, 3382–3392. [Google Scholar] [CrossRef]
  25. Dong, Z.; Ye, Z. Hyperbranched polyethylenes by chain walking polymerization: Synthesis, properties, functionalization, and applications. Polym. Chem. 2012, 3, 286–301. [Google Scholar] [CrossRef]
  26. Ye, Z.; Xu, L.; Dong, Z.; Xiang, P. Designing polyethylenes of complex chain architectures via Pd–diimine-catalyzed “living” ethylene polymerization. Chem. Commun. 2013, 49, 6235–6255. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, J.; Zhang, K.; Ye, Z. One-Pot Synthesis of Hyperbranched Polyethylenes Tethered with Polymerizable Methacryloyl Groups via Selective Ethylene Copolymerization with Heterobifunctional Comonomers by Chain Walking Pd-Diimine Catalysis. Macromolecules 2008, 41, 2290–2293. [Google Scholar] [CrossRef]
  28. Wang, J.; Ye, Z.; Joly, H. Synthesis and characterization of hyperbranched polyethylenes tethered with polyhedral oligomeric sSilsesquioxane (POSS) nanoparticles by chain walking ethylene copolymerization with acryloisobutyl-POSS. Macromolecules 2007, 40, 6150–6163. [Google Scholar] [CrossRef]
  29. Morgan, S.; Ye, Z.; Zhang, K.; Subramanian, R. One-pot synthesis of hyperbranched polyethylenes tethered with pendant acryloyl functionalities by chain walking copolymerizations. Macromol. Chem. Phys. 2008, 209, 2232–2240. [Google Scholar] [CrossRef]
  30. Zhang, K.; Wang, J.; Subramanian, R.; Ye, Z.; Lu, J.; Yu, Q. Chain walking ethylene copolymerization with an ATRP inimer for one-Pot synthesis of hyperbranched polyethylenes tethered with ATRP initiating sites. Macromol. Rapid Commun. 2007, 28, 2185–2191. [Google Scholar] [CrossRef]
  31. Boffa, L.S.; Novak, B.M. Copolymerization of polar monomers with olefins using transition-metal complexes. Chem. Rev. 2000, 100, 1479–1494. [Google Scholar] [CrossRef] [PubMed]
  32. Gibson, V.C.; Sptzmesser, S.K. Advances in non-metallocene olefin polymerization catalysis. Chem. Rev. 2003, 103, 283–316. [Google Scholar] [CrossRef] [PubMed]
  33. Berkefeld, A.; Mecking, S. Coordination Copolymerization of Polar Vinyl Monomers H2C=CHX. Angew. Chem. Int. Ed. 2008, 47, 2538–2542. [Google Scholar] [CrossRef] [PubMed]
  34. Huang, C.F.; Wang, S.K.; Kuo, S.W.; Huang, W.J.; Chang, F.C. Homopolymerization and copolymerization of tert-butyl methacrylate and norbornene with nickel-based methylaluminoxane catalysts. J. Appl. Polym. Sci. 2004, 92, 1824–1833. [Google Scholar] [CrossRef]
  35. Liu, S.; Elyashiv, S.; Sen, A. Copper-mediated controlled copolymerization of methyl acrylate with 1-alkenes under mild conditions. J. Am. Chem. Soc. 2001, 123, 12738–12739. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, L.Y.; Li, Y.F.; Zhu, F.M.; Wu, Q. Copolymerization of norbornene and methyl acrylate by β-ketoiminato Palladium complexes/MAO. Polym. Bull. 2006, 57, 73–81. [Google Scholar] [CrossRef]
  37. Gao, H.; Liu, X.; Pei, L.; Wu, Q. Bis(b-ketoamino)copper(II)/methylaluminoxane systems for homo- and copolymerizations of methyl acrylate and 1-Hexene. J. Polym. Sci. Part A Polym. Chem. 2010, 48, 1113–1121. [Google Scholar] [CrossRef]
  38. Chen, B.; Fang, J.; Cong, Y.; Shao, D.; Hu, M.; Wang, J.; Yang, J.; Gao, H. Copolymerization of norborene and methyl acrylate catalyzed by Nd(naph)3-Al(i-Bu)3. Polym. Bull. 2011, 67, 975–983. [Google Scholar] [CrossRef]
  39. Gu, B.; Liu, S.; Leber, J.D.; Sen, A. Nitroxide-mediated copolymerization of methyl acrylate with 1-alkenes and norbornenes. Macromoleculars 2004, 37, 5142–5144. [Google Scholar] [CrossRef]
  40. Morris, J.R. Substituted Norbornene Compounds. U.S. Patent 3,536,681, 27 October 1970. [Google Scholar]
  41. Goodall, B.L.; McIntosh, H.L., III. Polycyclic Copolymer Compositions. U.S. Patent 6,303,724, 16 October 2001. [Google Scholar]
  42. Hennis, A.D.; Sen, A. Palladium(II) Catalyzed Copolymerization of Norbornene with Polar Vinyl Monomers. Am. Chem. Soc. Polym. Prepr. 2000, 41, 1383. [Google Scholar]
  43. Hennis, A.D.; Hilt, D.C.; Kacker, S.; Sen, A. Palladium(II) Catalyzed Copolymerization of Norbornene and Methyl Acrylate. Am. Chem. Soc. Polym. Prepr. 1998, 39, 412. [Google Scholar]
  44. Nakano, R.; Nozaki, K. Copolymerization of propylene and polar monomers using Pd/IzQO catalysts. J. Am. Chem. Soc. 2015, 137, 10934–10937. [Google Scholar] [CrossRef] [PubMed]
  45. Dai, S.; Sui, X.; Chen, C. Highly robust palladium(II) a-diimine catalysts for slow-chain walking polymerization of ethylene and copolymerization with methyl acrylate. Angew. Chem. Int. Ed. 2015, 54, 9948–9953. [Google Scholar] [CrossRef] [PubMed]
  46. Yu, J.; Zeng, Y.; Huang, W.; Hao, X.; Sun, W.-H. N-(5,6,7-trihydroquinolin-8-ylidene)arylaminonickel dichlorides as highly active single-site pro-catalysts in ethylene polymerization. Dalton Trans. 2011, 40, 8436–8443. [Google Scholar] [CrossRef] [PubMed]
  47. Huang, F.; Sun, Z.; Du, S.; Yue, E.; Ba, J.; Hu, X.; Liang, T.; Galland, G.B.; Sun, W.-H. Ring-tension adjusted ethylene polymerization by aryliminocycloheptapyridyl nickel complexes. Dalton Trans. 2015, 44, 14281–14292. [Google Scholar] [CrossRef] [PubMed]
  48. Tang, Y.; Zeng, Y.; Hu, Q.; Huang, F.; Jin, L.; Mo, W.; Sun, N.; Hu, B.; Shen, Z.; Hu, X.; et al. Efficient catalyst for both suzuki and heck cross-coupling reactions: Synthesis and catalytic behaviour of ceometry constrained iminopyridylpalladium chlorides. Adv. Synth. Catal. 2016, 358, 2642–2651. [Google Scholar] [CrossRef]
  49. Lavery, A.; Nelson, S.M. Dinuclear intermediates in the oxidation of pendant olefinic groups of palladium(II)—co-ordinated schiff-base ligands. Dalton Trans. 1984, 4, 615–620. [Google Scholar] [CrossRef]
  50. Chen, R.; Bacsa, J.; Mapolie, S.F. {N-alkyl-N-[pyridin-2-ylmethylene] amine}dichloro palladium(II) complexes: Synthesis, crystal structures and evaluation of their catalytic activities for ethylene polymerization. Polyhedron 2003, 22, 2855–2861. [Google Scholar] [CrossRef]
  51. Mahdavi, H.; Zirakzadeh, A.; Amani, J. Modified cross-linked polyacrylamide supported palladium salts as a new heterogeneous catalyst for Heck reaction. React. Funct. Polym. 2007, 67, 716–722. [Google Scholar] [CrossRef]
  52. Chen, W.; Xi, C.; Yang, K. 2-Iminopyridylpalladium dichloride as highly active catalyst for the Heck reaction. Appl. Organomet. Chem. 2007, 21, 641–644. [Google Scholar] [CrossRef]
  53. Ban, Q.; Zhang, J.; Liang, T.; Redshaw, C.; Sun, W.-H. 2,6-Dibenzhydryl-N-(2-aryliminoacenaphthylenylidene)-4-chlorobenzenaminopalladium dichlorides: Synthesis, characterization, and use as catalysts in the Heck-reaction. J. Organomet. Chem. 2012, 713, 151–156. [Google Scholar] [CrossRef]
  54. Ye, B.; Wang, L.; Hu, X.; Redshaw, C.; Sun, W.-H. 2-(1-Aryliminoethyl)cycloheptapyridylpalladium complexes: Synthesis, characterization and the use in the Heck-reaction. Inorg. Chim. Acta 2013, 407, 281–288. [Google Scholar] [CrossRef]
  55. Kong, S.; Liu, Q.; Sun, W.-H.; Redshaw, C. Dichloropalladium complexes ligated by 4,5-bis(arylimino)pyrenylidenes: Synthesis, characterization, and catalytic behavior towards Heck-reaction. J. Organomet. Chem. 2014, 751, 453–457. [Google Scholar]
  56. Zhao, T.; Xing, Q.; Song, K.; Ban, Q.; Liang, T.; Liu, Q.; Sun, W.-H. Enhancing catalytic activity towards Heck-reaction by using 4,5,9,10-tetra(arylimino)-pyrenylidenyldipalladium tetrachlorides. RSC Adv. 2015, 5, 14228–14234. [Google Scholar] [CrossRef]
  57. Laine, T.V.; Klinga, M.; Leskelä, M. Synthesis and X-ray Structures of New mononuclear and dinuclear diimine complexes of late transition metals. Eur. J. Inorg. Chem. 1999, 6, 959–964. [Google Scholar] [CrossRef]
  58. Nagel, M.; Paxton, W.F.; Sen, A.; Zakharov, L.; Rheingold, A.L. Metal-mediated polymerization of acrylates: Relevance of radical traps? Macromolecules 2004, 37, 9305–9307. [Google Scholar] [CrossRef]
  59. Elyashiv, S.; Greinert, N.; Sen, A. Copolymerization of methyl acrylate with Nnorbornene derivatives by atom transfer radical polymerization. Macromolecules 2002, 35, 7521–7526. [Google Scholar] [CrossRef]
  60. Lopez-Fernandez, R.; Carrera, N.; Albeniz, A.C.; Espinet, P. Dual behavior of cationic palladium pentafluorophenyl complexes as catalysts for the homopolymerization of acrylates and of nonpolar olefins. Organometallics 2009, 28, 4996–5001. [Google Scholar] [CrossRef]
  61. Xiang, P.; Ye, Z. Homo- and Co-polymerization of norbornene and methyl acrylate with Pd-diimine catalysts. J. Organomet. Chem. 2015, 798, 429–436. [Google Scholar] [CrossRef]
  62. Tian, G.; Novak, B.M. Neutral palladium complexes as catalysts for olefin–methyl acrylate copolymerization: A cautionary tale. Macromolecules 2001, 34, 7656–7663. [Google Scholar] [CrossRef]
  63. Matsuzaki, K.; Uryu, T.; Ishida, A. Stereoregularity of poly(methy1 acrylate) stereoregularity of poly(methy1 Acrylate). J. Polym. Sci. Part A Polym. Chem. 1967, 5, 2167–2177. [Google Scholar] [CrossRef]
  64. Uryu, T.; Shiroki, H.; Okada, M.; Hosonuma, K.; Matsuzaki, K. Stereoregularity of radically polymerized poly(alkyl acrylates) and poly(trimethylsilyl acrylates) and the preparation of syndiotactic poly(methyl acrylate). J. Polym. Sci. Part A Polym. Chem. 1971, 9, 2335–2342. [Google Scholar] [CrossRef]
  65. Kawamura, T.; Toshima, N.; Matsuzaki, K. Assignment of finely resolved l3C-NMR spectra of polyacrylates. Macromol. Chem. Phys. 1995, 196, 3415–3424. [Google Scholar] [CrossRef]
  66. Dong, Z.; Ye, Z. Heterogeneous palladium catalyst constructed with cross-linked hyperbranched poly(phenylacetylene) as polymer support: A reusable highly active ppm-level catalyst for multiple cross-coupling reactions. Appl. Catal. A Gen. 2015, 489, 61–71. [Google Scholar] [CrossRef]
  67. Mahmood, Q.; Yue, E.; Zhang, W.; Solan, G.A.; Liang, T.; Sun, W.-H. Bisimino-functionalized dibenzo[a,c]acridines as highly conjugated pincer frameworks for palladium(II): Synthesis, characterization and catalytic performance in Heck coupling. Org. Chem. Front. 2016, 3, 1668–1679. [Google Scholar] [CrossRef]
  68. Wang, Z.; Ding, Q.; He, X.; Wu, J. Palladium-catalyzed decarboxylative cross-coupling reaction of cinnamic acid with aryl iodide. Org. Biomol. Chem. 2009, 7, 863–865. [Google Scholar] [CrossRef] [PubMed]
  69. Sawant, D.; Wagh, Y.; Bhatte, K.; Panda, A.; Bhanage, B. Palladium polyether diphosphinite complex anchored in polyethylene glycol as an efficient homogeneous recyclable catalyst for the Heck reactions. Tetrahedron Lett. 2011, 52, 2390–2393. [Google Scholar] [CrossRef]
  70. Kantam, M.L.; Reddy, P.V.; Srinivas, P.; Bhargava, S. Ligand and base-free Heck reaction with heteroaryl halides. Tetrahedron Lett. 2011, 52, 4490–4493. [Google Scholar] [CrossRef]
  71. Sheldrick, G.M. SHELXTL-97, Program for the Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  • Sample Availability: Samples of the Pd1–Pd5 complexes and polymers are available from the authors.
Molecules 21 01686 g001 550

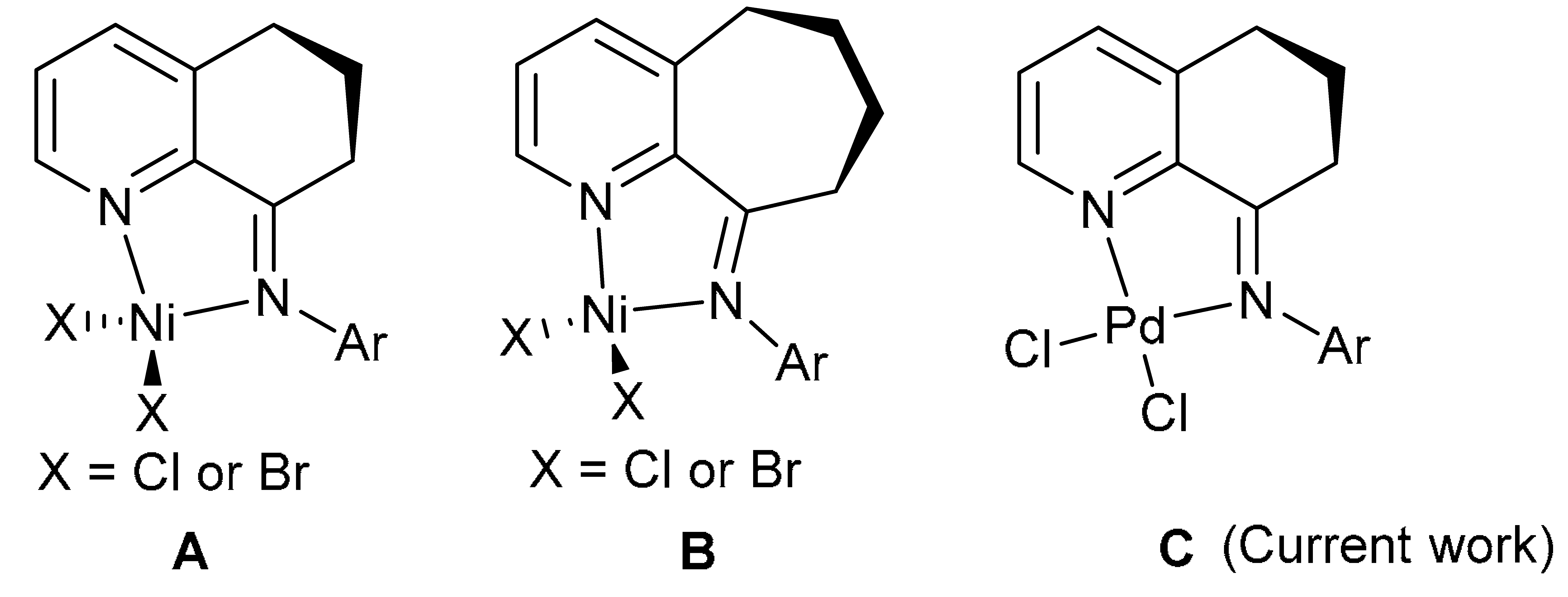

Figure 1. Geometry-constrained iminopyridylmetal halide complexes.
Figure 1. Geometry-constrained iminopyridylmetal halide complexes.
Molecules 21 01686 g001
Molecules 21 01686 sch001 550

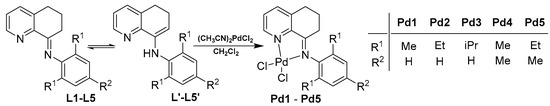

Scheme 1. Synthesis of palladium complexes Pd1–Pd5.
Scheme 1. Synthesis of palladium complexes Pd1–Pd5.
Molecules 21 01686 sch001
Molecules 21 01686 g002 550

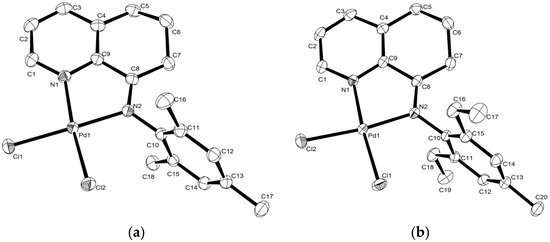

Figure 2. ORTEP diagrams of Pd4 (a) and Pd5 (b). Thermal ellipsoids set at the 30% probability level. Hydrogen atoms are omitted for clarity.
Figure 2. ORTEP diagrams of Pd4 (a) and Pd5 (b). Thermal ellipsoids set at the 30% probability level. Hydrogen atoms are omitted for clarity.
Molecules 21 01686 g002
Molecules 21 01686 g003 550

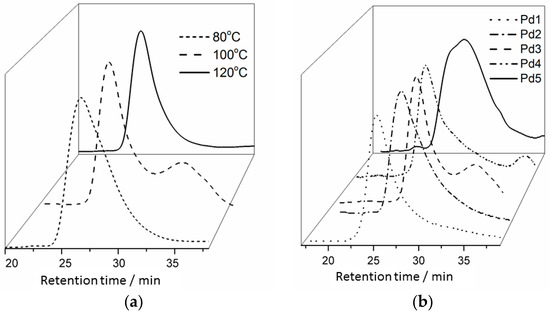

Figure 3. GPC traces of PMA produced by complex Pd3 at different polymerization temperature (a) and by different complexes Pd1–Pd5 (b).
Figure 3. GPC traces of PMA produced by complex Pd3 at different polymerization temperature (a) and by different complexes Pd1–Pd5 (b).
Molecules 21 01686 g003
Molecules 21 01686 g004 550

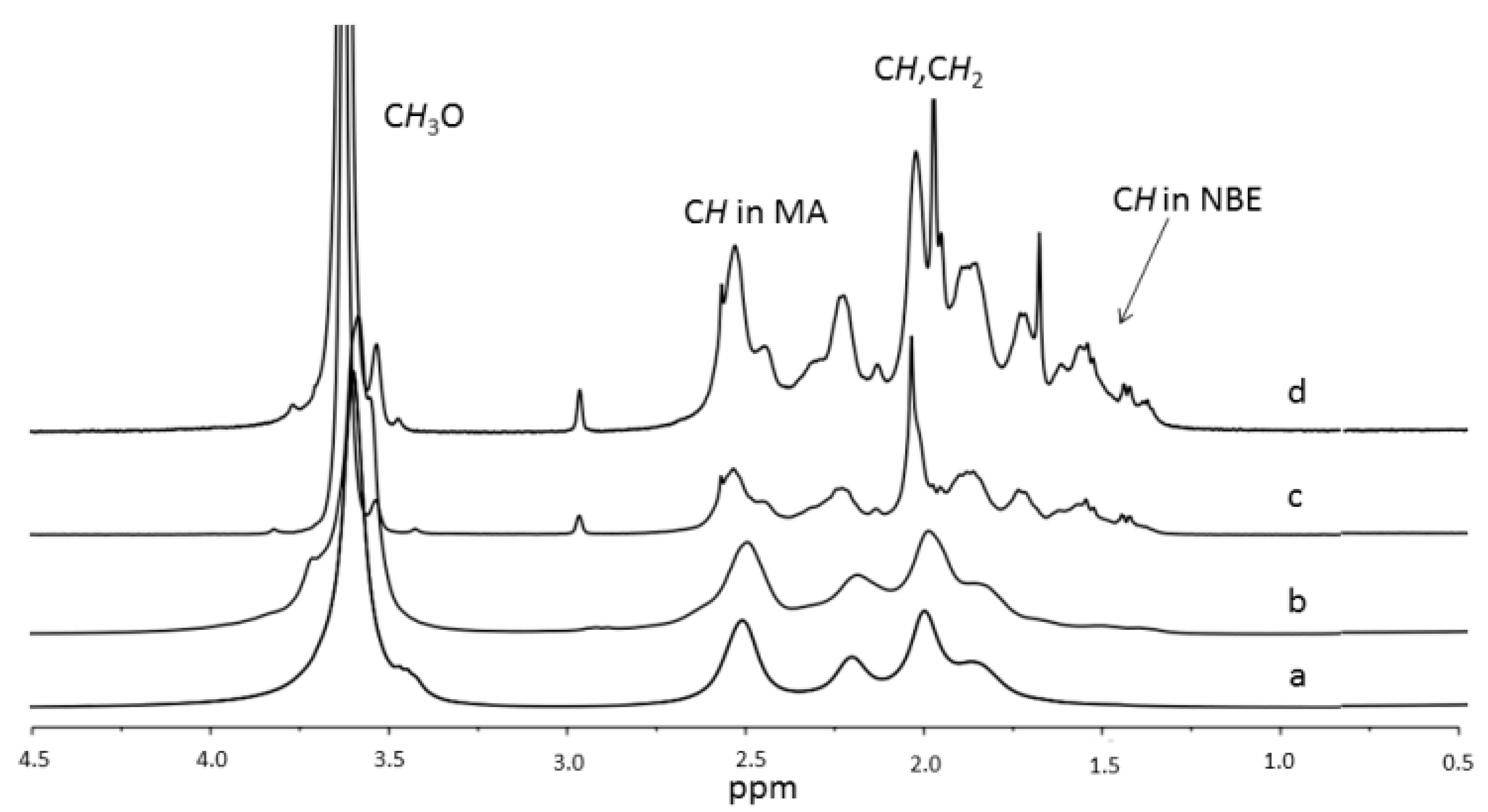

Figure 4. 1H-NMR spectra of polymer: PMA (a), MA-co-NB originated from copolymerization with feed ratios of MA: NB = 9:1 (b), MA:NB = 7:3 (c), MA:NB = 5:5 (d).
Figure 4. 1H-NMR spectra of polymer: PMA (a), MA-co-NB originated from copolymerization with feed ratios of MA: NB = 9:1 (b), MA:NB = 7:3 (c), MA:NB = 5:5 (d).
Molecules 21 01686 g004
Molecules 21 01686 g005 550

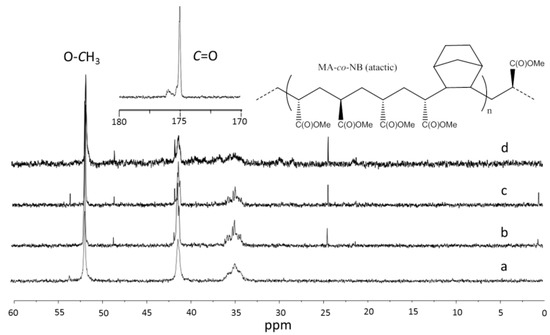

Figure 5. 13C-NMR spectra of polymer: PMA (a), MA-co-NB originated from copolymerization with feed ratios of MA:NB = 9:1 (b), MA:NB = 7:3 (c), MA:NB = 5:5 (d).
Figure 5. 13C-NMR spectra of polymer: PMA (a), MA-co-NB originated from copolymerization with feed ratios of MA:NB = 9:1 (b), MA:NB = 7:3 (c), MA:NB = 5:5 (d).
Molecules 21 01686 g005
Table
Table 1. The catalytic properties of Pd complexes for MA homopolymerization a.
Table 1. The catalytic properties of Pd complexes for MA homopolymerization a.
RunPre-CatalystT (°C)Time (h)Yield (g)Conversion (%) bMw c (kg∙mol−1)Mw/Mn c
1Pd38047.3077.014982.33
2Pd310049.0195.0225211.5
3Pd312046.0163.410911.74
4Pd310012.2124.215343.54
5Pd310025.2256.117342.39
6Pd310037.4479.418303.46
7Pd110047.7082.019363.21
8Pd210048.7693.411633.79
9Pd410049.1597.215963.98
10Pd510049.2898.462823.73
11 dPd31004----
a Conditions: 10.0 μmol of Pd complexes activated with 1.2 eq (C6F5)4BC6H5NH(CH3)2; 10 mL MA. b Calculated by 1H-NMR. c Determined by GPC. d Polymerization in absence of light.
Table
Table 2. Copolymerization of MA and NB by complexes Pd3 a.
Table 2. Copolymerization of MA and NB by complexes Pd3 a.
Run aMA/NBE Yield (g)Conversion of MA (%) bNB/MA bMw c/kg∙mol−1Mw/Mn c
11:09.0195-22521.74
29:17.3868816992.69
37:35.2149162025.74
45:53.4930181524.59
50:1-----
a General conditions: 10.0 μmol of Pd3 activated with 1.2 eq (C6F5)4BC6H5NH(CH3)2 at 100 °C. b Calculated by 1H-NMR. c Determined by GPC.
Table
Table 3. Optimization of reaction conditions using Pd1 as catalyst a.
Table 3. Optimization of reaction conditions using Pd1 as catalyst a.
Molecules 21 01686 i001
RunCatalystBaseT (°C)SolventTime (h)Conversion (%) bToF c
1Pd5K2CO3150DMA8935813
2Pd5Na2CO3150DMA8724500
3Pd5NaHCO3150DMA8744625
4Pd5NaOAc150DMA8825125
5Pd5NaOH150DMA8704375
6Pd5K2CO3150DMF8925750
7Pd5K2CO3100Toluene8--
8Pd5K2CO360CH3CN8--
9Pd5K2CO3100DMA8--
10Pd5K2CO360DMA8--
11Pd5K2CO3150DMA28621500
12Pd5K2CO3150DMA48811000
13Pd5K2CO3150DMA12984083
14Pd4K2CO3150DMA08935813
15 dPdCl2K2CO3150DMA082228
16 dPd(OAc)2K2CO3150DMA084150
a Conditions: 4 × 10−5 mmol Pd5 as catalyst, 2.0 mmol p-bromotoluene, 2.4 mmol styrene, 2.2 mmol base, 4.0 mL solvent. b GC yield. c ToF = product/(catalyst × time), d Conditions: 2 × 10−3 mmol Pd, 2.2 mmol Na2CO3 as a base [56].
Table
Table 4. Heck reaction of various aryl bromides and styrene using complex Pd5 a.
Table 4. Heck reaction of various aryl bromides and styrene using complex Pd5 a.
RunAr–XYield (%) bConversion (%) cToF d
1 Molecules 21 01686 i00274813905
2 Molecules 21 01686 i003-3.6225
3 Molecules 21 01686 i00431 (15)43 (21)1938 (938)
4 Molecules 21 01686 i00564774000
5 Molecules 21 01686 i00665763847
6 Molecules 21 01686 i00737532312
7 Molecules 21 01686 i008-6375
8 Molecules 21 01686 i009-8500
a Conditions: 4 × 10−5 mmol Pd complex as the catalyst, 2.0 mmol p-bromotoluene, 2.4 mmol styrene, 2.2 mmol base, 4.0 mL DMA, 150 °C for 8 h. b Isolated yield. c GC yield. d ToF = product/(catalyst × time).

Share and Cite

MDPI and ACS Style

Zeng, Y.; Mahmood, Q.; Liang, T.; Sun, W.-H. Geometry Constrained N-(5,6,7-Trihydroquinolin-8-ylidene)arylaminopalladium Dichloride Complexes: Catalytic Behavior toward Methyl Acrylate (MA), Methyl Acrylate-co-Norbornene (MA-co-NB) Polymerization and Heck Coupling. Molecules 2016, 21, 1686. https://doi.org/10.3390/molecules21121686

AMA Style

Zeng Y, Mahmood Q, Liang T, Sun W-H. Geometry Constrained N-(5,6,7-Trihydroquinolin-8-ylidene)arylaminopalladium Dichloride Complexes: Catalytic Behavior toward Methyl Acrylate (MA), Methyl Acrylate-co-Norbornene (MA-co-NB) Polymerization and Heck Coupling. Molecules. 2016; 21(12):1686. https://doi.org/10.3390/molecules21121686

Chicago/Turabian Style

Zeng, Yanning, Qaiser Mahmood, Tongling Liang, and Wen-Hua Sun. 2016. "Geometry Constrained N-(5,6,7-Trihydroquinolin-8-ylidene)arylaminopalladium Dichloride Complexes: Catalytic Behavior toward Methyl Acrylate (MA), Methyl Acrylate-co-Norbornene (MA-co-NB) Polymerization and Heck Coupling" Molecules 21, no. 12: 1686. https://doi.org/10.3390/molecules21121686

Article Metrics

Back to TopTop
