Molecules 2016, 21(10), 1359; doi:10.3390/molecules21101359

Article
Chemical Compositions of Ligusticum chuanxiong Oil and Lemongrass Oil and Their Joint Action against Aphis citricola Van Der Goot (Hemiptera: Aphididae)
1
Research and Development Center of Biorational Pesticide, Northwest Agriculture & Forestry University, Yangling 712100, Shaanxi, China
2
Shaanxi Research Center of Biopesticide Engineering & Technology, Yangling 712100, Shaanxi, China
*
Author to whom correspondence should be addressed.
Academic Editor: Isabel C. F. R. Ferreira
Received: 6 September 2016 / Accepted: 10 October 2016 / Published: 12 October 2016

Abstract

:
In order to develop novel botanical insecticides, the joint action of Ligusticum chuanxiong oil (LCO) and lemongrass oil (LO) against Aphis citricola van der Goot was determined systematically indoors and outdoors. The chemical profiles of LCO and LO as determined by gas chromatography–mass spectrometry (GC-MS) analysis revealed that the main compounds from LCO were (Z)-ligustilide (44.58%) and senkyunolide A (26.92%), and that of LO were geranial (42.16%) and neral (32.58%), respectively. The mixture of LCO and LO showed significant synergy against A. citricola, with a common-toxicity coefficient (CTC) value of 221.46 at the optimal ratio of LCO to LO (4:1, w:w). Based on the results of solvents and emulsifiers screening, L. chuanxiong oil·Lemongrass oil 20% emulsifiable concentrate (20% LCO·LO EC) was developed, and its stability was confirmed with tests of cold and thermal storage. Field trials indicated that the insecticidal activity of the diluted 20% LCO·LO EC (1000 fold dilution) was comparable to conventional pesticide (20% imidacloprid EC) on A. citricola seven days after application. Thus, the mixture of LCO and LO has the potential to be further developed as a botanical pesticide.
Keywords:
lemongrass oil; Ligusticum chuanxiong oil; Aphis citricola van der Goot; botanical aphicides

1. Introduction

Aphids (Hemiptera: Aphididae) are among the most destructive pests, widely classified in more than 4300 described species [1]. Aphids threat crops by aphids through feeding on plants, transmitting plant pathogenic viruses, and secreting honeydew. This could lead to secondary fungal infection and inhibits photosynthesis [2,3,4]. Aphids have become one group of the most serious pests in agriculture production because of rapid reproduction and specific feeding habits. Approximately, hundreds of millions of dollars in crop losses are caused by aphids annually [5].
In the past few decades, various insecticides have been used to control aphids [6]. As a result of frequent chemical applications, aphids have developed a high resistance to numerous commonly used insecticides in many agricultural areas. For example, the green peach aphid, Myzus persicae (Hemiptera: Aphididae), has developed resistance to at least 70 different synthetic compounds [7], and cotton aphid, Aphis gossypii Glover (Hemiptera: Aphididae), is resistant to carbamate, organophosphorus (OP), pyrethroid, and neonicotinoid insecticides [8,9].
Certain plant essential oils are widely used in the flavoring and fragrance industries and in aromatherapy. They can be obtained by expression, fermentation, enfleurage, or extraction, while steam distillation is most commonly used in commercial production. Moreover, some aromatic plants have traditionally been used to protect stored products, and the development potential of plant essential oils for broad-spectrum pest management has been realized for several decades [10]. Both antimicrobial efficacy and insecticidal effects of the essential oils have been reported [11,12,13]. Recent investigations in several countries have confirmed that some plant essential oils not only repel insects, but also have contact and fumigant activities against specific pests and fungicidal actions against some important plant pathogens [14]. Essential oils of cumin (Cuminum cyminum L.), anise (Pimpinella ansium L.), oregano (Origanum syriacum L.), and eucalyptus (Eucalyptus dives) were confirmed to be effective as fumigants against two greenhouse pests, the cotton aphid (Aphis gossypii) and the carmine spider mite (Tetranychus cinnabarinus) [15].
Ligusticum chuanxiong Hort. (Apiaceae), Chinese lovage, has been employed as a traditional Chinese medicine in folk remedies for long [16]. Twenty compounds have been identified in the essential oil from L. chuanxiong, and the major compounds are phenolics [17]. As a consequence, it is widely applied in food preparation as an antioxidant [16]. Moreover, L. chuanxiong oils (LCO) have been found to possess insecticidal activity against maize weevils, Sitophilus zeamais (Coleoptera: Curculionidae) [18].
Cymbopogon citratus (Poaceae), lemongrass, is one of the most commonly used plants for the treatment of nervous and gastrointestinal disturbances, and the antibacterial properties of its essential oil have been studied [19]. Lemongrass oil (LO), an important oil, has been shown to reduce aflatoxin formation and impede fungal growth of Aspergillus flavus Link. in stored rice [19,20]. The quality of LO is generally determined by its citral content, and citral (3,7-dimethyl-2,6-octadienal) consists of cis-isomer geranial and the trans-isomer neral [21,22].
However, little research in field trials and formulation preparations of plant essential oils for aphid management has been reported. The objective of this study was to assess in more detail the potential of LCO and LO to control Aphis citricola (Hemiptera: Aphididae). This study is mainly focused on the bioactivities and the synergistic effect of LCO and LO against A. citricola indoors and outdoors. A LCO·LO 20% emulsifiable concentrate (LCO·LO 20% EC) was successfully used in field trials with a significant effect against A. citricola.

2. Results

2.1. Toxicity of LCO and LO against Aphis citricola

Bioassays of 20% LCO EC and 20% LO EC against A. citricola were conducted, and the results are shown in Table 1. Both LCO and LO showed high toxicity against A. citricola, with LC50 values of 128.8 and 169.6 mg/L, respectively, 24 h after treatment.

2.2. Identification and Quantification of Compounds from LCO and LO

The list of principal compounds identified from LCO and LO is given in Table 2. By comparing the mass spectra data of the sample with literature data, eight main compounds of LCO were identified as (Z)-ligustilide (Figure 1A), senkyunolide A (Figure 1B), neocnidilide, 3-n-butylphthalide, butylidenephthalide, β-selinene, 1,3,5-undecatriene, and (E)-ligustilide. Meanwhile, eight main compounds of LO were identified as (Z)-geranial (Figure 1C), (E)-neral (Figure 1D), β-myrcene, geranyl acetate, terpinolene, isopulegol, trans-bergamotene, and citronellal.

2.3. Cooperative Virulence Index (c.f.) of LCO and LO

Bioassay of the mixture of LCO and LO was carried out, and the c.f. values of the mixtures were determined. The ratio of the mixture LCO–LO was 1:1 (v:v). The mixture was diluted with water X 1500 times, and the final concentration of LCO and LO were both about 66.7 mg/L. Data in Table 3 indicates that the mixture of LCO and LO has a synergistic effect, with a c.f. value of 23.17.

2.4. Confirmation of the Best Proportion of the Mixture

On the basis of the results above, a series of tests were carried out to confirm the optimal proportion of LCO and LO. Table 4 shows that when the LC50 ratios of LCO to LO were 80:20 and 90:10 (3.06:1 and 6.88:1 (w:w), respectively), a relatively high poison ratio of 1.22 and 1.21 was obtained. According to the characteristic of EC preparations, the optimum efficient and effective ratio of L. chuanxiong oil and lemongrass oil was established at 4:1 (w:w).

2.5. CTC Value of L. chuanxiong Oil and Lemongrass Oil

According to the results above, 20% LCO·LO EC (containing 16% LCO and 4% LO) was designed and prepared. Bioassays of 20% LCO EC, 20% LO EC, and 20% LCO·LO EC against A. citricola were conducted. Table 5 shows that, compared with LCO and LO, the control effect of 20% LCO·LO is more significant with a LC50 of 61.09 mg/L, which indicates that this formula has a synergistic effect, with a CTC value >180.

2.6. Preparation and Quality Test of 20% LCO·LO EC

Formulation of 20% LCO·LO EC was confirmed after the screening of solvents and emulsifiers. Then quality tests and bioassays were conducted according to the GB/T1603-79(89) standard. The formulation was a single-phase transparent liquid (pH 6.46), and there was no floating oil or sediment, which satisfied emulsification level II. After cold (0 °C) and thermal storage (54 °C) for 7 and 12 days, respectively, the preparation remained a single-phase transparent liquid. From Table 6, a relatively high activity of 20% LCO·LO EC against A. citricola after the thermal storage treatment was obtained. Moreover, a significant synergy with a CTC value >200 was still determined. This confirmed that thermal storage stability of 20% LCO·LO EC was excellent.

2.7. Field Trials of 20% LCO·LO EC against Aphis citricola

Field trial of 20% LCO·LO EC against A. citricola was carried out in Baishui county (Table 7) and Yangling city (Table 8), Shaanxi province. The EC formula of essential oil mixture were diluted X 500, 1000, and 1500 times, and final applied concentrations of LCO and LO were 200, 100, and 66.7 mg/L, respectively. Table 7 and Table 8 indicate that 20% LCO·LO EC exhibited significant control of A. citricola. The control effects of 500 times dilution were 90.06% (Table 7) and 87.24% (Table 8), which are comparable to 1000 times dilution of 20% imidacloprid EC. Meanwhile, the control at 1000 times dilution of 20% LCO·LO EC was still more than 80% seven days after the treatment.

3. Discussion

This study has confirmed that both LCO and LO have significant bioactivity against Aphis citricola with LC50 values of 128.8 mg/L and 169.6 mg/L, respectively. A mixture of these two essential oils shows a synergistic effect. Based on the field trials, the 20% LCO·CO EC preparation could be used as an alternative to imidacloprid. However, only one species of aphid was tested in this study, and a wider control spectrum needs to be confirmed in field trials.
It has been shown that L. chuanxiong oil and lemongrass oil are promising as pesticides and as activities against various kinds of pests [10]. Kwon found that butylidenephthalide, a main component of LCO, showed significant acaricidal activity against Dermatophagoides farinae with a 24-h LD50 value of 6.77 µg/cm2, which is comparable to that of benzyl benzoate (8.54 µg/cm2) [23]. Chu found that (Z)-ligustilide and 3-butylidenephthalide showed pronounced insecticidal activity against Sitophilus zeamais (LD50 = 10.23 and 15.81 µg/adult, respectively) [24]. Ricci et al. found that lemongrass oil could effectively repel the Russian wheat aphid, Diuraphis noxia (Mordvilko) [25]. Both of these oils could be developed as biopesticides [26]. However, there are few studies that have focused on the combined activities of these two oils against aphids.
Modes of action of these two essential oils and monomers have been investigated for several years. Modern phytochemical studies have shown that (Z)-ligustilide is the main lipophilic component of Danggui [27]. Yan has proved that (Z)-ligustilide is useful in the treatment of neurodegenerative disorders in which oxidative stress and apoptosis are mainly implicated [28]. Wang found that senkyunolide is an active component of L. chuanxiong, traditionally used to treat migraines, and the mechanism is through adjusting the levels of monoamine neurotransmitters and their turnover rates, as well as decreasing nitric oxide levels in the blood and brain [29]. (Z)-Geranial has antimicrobial activity against Cronobacter sakazakii, and it exerts its effect by inducing changes in ATP concentration, cell membrane hyperpolarization, and reduction in cytoplasmic pH [30]. Miron found that (E)-neral showed antifungal activities and an affinity for ergosterol, relating their mechanism of action to cell membrane destabilization [31]. From the pharmaceutical point of view, the synergy mechanism of essential oil was suggested as (1) a multi-target effect in which compounds target different sites; (2) pharmacokinetic or physicochemical effects on improved solubility or bioavailability; or (3) interactions of agents with resistance mechanisms [32]. In this study, we proposed that the synergistic effect of LCO and LO might be caused by a multi-target effect and improved solubility or bioavailability. In field trials, we found that the efficacy of the mixture is increased with time after application. This might be for the reason of slow-release properties of botanical pesticides.
Plant essential oil insecticides have been accepted for their high bioactivities and specific modes of action [10]. Recent investigations indicate that some chemical constituents of essential oils interfere with the octopaminergic nervous system of insects [33]. As this target site is not shared with mammals, these essential oil chemicals have low toxicity to non-target organisms and could be developed as biorational pesticides. This special regulatory status combined with a wide availability of essential oils in the flavor and fragrance industries has enabled the fast-track commercialization of essential oil-based pesticides in USA [34].
The need for chemical standardization and quality control is still a main barrier for the commercialization of essential oil-based pesticides [35,36]. Table 6 confirms the synergistic action that all parameters of LCO·LO EC and the heat stability of the active ingredient act against the target insect in the LCO·LO EC formulation.
Botanical pesticides, especially plant essential oils, would be advantageous in terms of pest resistance and behavior desensitization as they are the mixtures of natural compounds, acting synergistically against pest insects [35,37]. However, quality control is an urgent issue for botanical pesticide registration [26]. In this study, the stability of the bioactive principle in botanical pesticides is another important parameter for botanical pesticide registration.
In conclusion, our study showed that LCO and LO displayed significant bioactivities against A. citricola. Based on this, we have developed an essential oil-based pesticide that effectively controls A. citricola in the field. Thus, these two oils are worthy of development as novel biorational pesticides.

4. Materials and Methods

4.1. Materials

Aphis citricola were collected from apple trees at the Horticulture College of Northwest A & F University.
LCO and LO were purchased from Guangzhou Hengxin Flv. & Frag. Co., Ltd. (Guangzhou, China), and a 20% emulsifiable concentrate formulation (EC) was prepared for this investigation.
Imidacloprid EC with a concentration of 20% was purchased from Henan Planck Bio-Chemical Industry Co., Ltd., (Zhengzhou, China).
All the accessory ingredients, solvents, and other reagents were industrial products, which were purchased from Aladdin Industrial Corporation, Shanghai, China.

4.2. Bioassay

Essential oils were dissolved in acetone to a concentration of 100 mg/mL, and then diluted with 0.05% Tween 80 into stock solutions at a concentration of 10 mg/mL. Working solutions were diluted from stock solutions with water. Final concentrations of LCO and LO prepared for the bioassay were set at 25, 50, 100, 200, and 400 mg/L. Controls were 0.05% Tween 80 solutions with acetone at the same concentration as the treatment solutions. Clean apple leaves were collected and cut into leaf discs (each leaf disc was containing about 15~20 aphids). Each disc (3.5 cm in diameter) was dipped into the working solutions of essential oils for 10 s with each leaf disc receiving >100 μL of the solution. The discs were then air-dried in glass Petri dishes (9 cm in diameter) at room temperature. After the treatment, each leaf disc was placed individually in a covered glass Petri dish, and then incubated at a temperature of 25 °C with 14:10 h light:dark. Mortality was counted after 24 h with three replicates for each treatment.

4.3. Gas Chromatography-Mass Spectrometry (GC-MS) Analysis

The two essential oils—LCO and LO—were analyzed by a capillary GC-MS (Model GCMS-QP2010, Shimadzu, Kyoto, Japan). The gas chromatographic conditions were as follows: GC was oven fitted with a DB-5 MS 30 m capillary column (0.25 mm I.D., 0.25 µm film, thickness, Aglient, Palo Alto, CA, USA) with carrier gas helium at a flow rate of 1.2 mL/min, operating under an initial temperature at 80 °C for 2 min up to 250 °C in ramp rate of 10 °C/min, and then held for 11 min. A 1.0 µL sample solution was injected into the system with a split ratio of 1:50 for analysis. The electron impact ionization mass spectrometer was operated with an ionization voltage of 70 eV and an ion source temperature at 200 °C, using a scan mode and measuring the total ion chromatogram (TIC) under a mass range of 50.0–350.0. The datum analysis was performed on a NIST library [38,39] (Shimadzu, Kyoto, Japan).

4.4. Joint Action of the Two Essential Oils

Mixture of LCO and LO at their respective LC50 (128.78 and 169.59 mg/L) was prepared, and the bioactivity against Aphis citricola was determined using the above-mentioned bioassay method. The joint actions of the two essential oils were measured with the following equation according to Mansour’s method [40]:
c . f .   value = observed   %   mortality expected   %   mortality expected   %   mortality × 100
When the cooperative virulence index (c.f.) of the mixture was >20, the mixture showed a synergistic effect. Similarly, when the c.f. was <−20, an antagonistic effect was shown. In the range of c.f. between −20 and 20, there was only an additive effect.

4.5. Determination of Efficiency Ratio and the Synergistic Effect

Following Zhang’s method [41], serial mixtures were prepared at a LC50 ratio (LCO–LO) of 10:0, 9:1, 8:2, 7:3, 6:4, 5:5, 4:6, 3:7, 2:8, 1:9, or 0:10. The poison ratios were calculated with following equations:
Poison   ratio   of   a   mixture = Actural   mortality Theorotical   mortality × 100
with a poison ratio >1 defined as a synergistic effect, poison ratio <1 as an antagonistic effect. The highest poison ratio value of the two oils indicated the optimum synergistic ratio of LCO–LO. The virulence regression lines and median lethal concentrations (LC50) of the monomers and mixtures were obtained.
The co-toxicity coefficient (CTC) values of the mixtures were calculated by the method of Sun using the following equation [42], with CTC > 120 defined as a synergistic effect, CTC < 80 as an antagonistic effect, while any CTC values that fall into the range of 80–120 indicates additive effects. The ratio of 4:1 (LCO:LO, w:w) was selected for the 20% LCO·LO EC formulation.
CTC of a mixture = Actural Toxicity Index of a mixture Theoretical Toxicity Index of a mixture × 100

4.6. Studies of EC Formulations of 20% LCO·LO

Optimum ratios of oil and surfactant were determined according to Wiwattanapatapee’s method [43]. The most suitable formulation that gave a clear homogeneous liquid with a stable emulsion after 1:20 dilution in water were obtained, and the ones with the best characteristics were selected for the preparation of the LCO·LO 20% EC.
The LCO·LO 20% EC was prepared by simple mixing [43]. The oil mixture (16 g of LCO and 4 g of LO) was mixed with a pesticide emulsifier 1601 (10 mL) using a mortar and pestle to obtain a homogeneous concentrate mixture, and the volume was then brought up to 100 mL with ethyl acetate. Thus, 20% LCO·LO EC (w/v) was prepared. The formulation was stored at room temperature (25 ± 3 °C) and protected from light.
Evaluation of the physical properties of 20% LCO·LO EC was processed according to Wiwattanapatapee’s method [43]. EC (2.5 g) was dispersed in 50 mL of distilled water via stirring with a magnetic stirrer at 500 rpm for 5 min at room temperature (25 ± 3 °C) for emulsification. The pH of the emulsion was also determined with a pH meter (Mettler-Toledo Co., Ltd., Guangzhou, China).
According to the GB/T1603-79(89) standard, the stabilities of the emulsion after cold storage (0 °C, 7 days) and thermal storage (54 °C, 12 days) were determined, respectively.

4.7. Field Trials of the Preparations

In October 2008, the field trials of the preparation against A. citricola were carried out in an apple orchard with a size of about 1 ha in Baishui, Shaanxi. Five-year host plants with heights of 1.2–1.5 m were selected. The field trials were conducted when the A. citricola infestation level was moderate. In June 2012, the field trials were carried out in an apple orchard with a size of about 1 ha in Yangling, Shaanxi. The treated plants were five years old, 1.2–1.6 m high, and highly infested.
Field trials were carried out according to GB/T 17980.9-2000, and trials were designed as follows: The prepared EC formulation was diluted 500, 1000, and 1500 times, and then applied via a constant spraying method (spray volume of 600 L/ha). In addition, 20% imidacloprid EC (1000 times dilution) was applied as a positive control. Each treatment was replicated three times. Water alone was applied as a negative control. Ten apple plants were set as one plot, and the plots were arrayed randomly. In each plot, 2 host plants were selected and marked, on which 5–10 leaves were marked and numbers of aphids on the leaves were recorded (over 200 aphids in every replicate). Numbers of live aphids on the marked leaves on the 1st, 3rd, and 7th days after spraying were counted. Then, the mortality of aphids and the control effect were calculated according to Abbott’s formula [44].

4.8. Statistical Analysis

The corrected control effect was transformed against the negative control and then processed for statistical analysis using the SPSS software (version 19.0, IBM, Armonk, NY, USA). Probit analysis was used to calculate LC50 (concentration causing 50% mortality compared with the control) values and their confidence intervals [45]. Statistical analysis in this study was processed with a SPSS 19.0 one-way ANOVA to assess the significance of difference between groups. The acceptance level of significance was p < 0.05. The results were expressed as mean ± S.D.

Acknowledgments

We are thankful to the reviewers for helpful comments. The study has been supported by the Special Fund for Agro-scientific Research in the Public Interest of the People’s Republic of China (No. 200903052).

Author Contributions

Z.M. and X.Z. conceived and designed the experiments; C.Z. and R.L. performed the experiments; C.Z. and Z.M. analyzed the data; J.H. and X.Z. contributed reagents/materials/analysis tools; C.Z. and Z.M. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dedryver, C.-A.; Le Ralec, A.; Fabre, F. The conflicting relationships between aphids and men: A review of aphid damage and control strategies. C. R. Biol. 2010, 333, 539–553. [Google Scholar] [CrossRef] [PubMed]
  2. Edwards, O.R.; Franzmann, B.; Thackray, D.; Micic, S. Insecticide resistance and implications for future aphid management in australian grains and pastures: A review. Anim. Prod. Sci. 2008, 48, 1523–1530. [Google Scholar] [CrossRef]
  3. Foster, S.; Denholm, I.; Devonshire, A. The ups and downs of insecticide resistance in peach-potato aphids (Myzus persicae) in the UK. Crop Prot. 2000, 19, 873–879. [Google Scholar] [CrossRef]
  4. Strange, R.N.; Scott, P.R. Plant disease: A threat to global food security. Phytopathology 2005, 43. [Google Scholar] [CrossRef] [PubMed]
  5. Hagenbucher, S.; Wäckers, F.L.; Romeis, J. Aphid honeydew quality as a food source for parasitoids is maintained in bt cotton. PLoS ONE 2014, 9, e107806. [Google Scholar] [CrossRef] [PubMed]
  6. Gopal, M.; Mukherjee, I.; Chander, S. Behaviour of β-cyfluthrin and imidacloprid in mustard crop: Alternative insecticide for aphid control. Bull. Environ. Contam. Toxol. 2002, 68, 406–411. [Google Scholar] [CrossRef]
  7. Silva, A.X.; Jander, G.; Samaniego, H.; Ramsey, J.S.; Figueroa, C.C. Insecticide resistance mechanisms in the green peach aphid Myzus persicae (hemiptera: Aphididae) i: A transcriptomic survey. PLoS ONE 2012, 7, e36366. [Google Scholar] [CrossRef] [PubMed]
  8. Moores, G.D.; Gao, X.; Denholm, I.; Devonshire, A.L. Characterisation of insensitive acetylcholinesterase in insecticide-resistant cotton aphids, Aphis gossypiiglover (homoptera: Aphididae). Pestic. Biochem. Physiol. 1996, 56, 102–110. [Google Scholar] [CrossRef]
  9. Gore, J.; Cook, D.; Catchot, A.; Leonard, B.; Stewart, S.; Lorenz, G.; Kerns, D. Cotton aphid (heteroptera: Aphididae) susceptibility to commercial and experimental insecticides in the southern united states. J. Econ. Entomol. 2013, 106, 1430–1439. [Google Scholar] [CrossRef] [PubMed]
  10. Isman, M.B.; Miresmailli, S.; Machial, C. Commercial opportunities for pesticides based on plant essential oils in agriculture, industry and consumer products. Phytochem. Rev. 2011, 10, 197–204. [Google Scholar] [CrossRef]
  11. Gutierrez, J.; Barry-Ryan, C.; Bourke, P. The antimicrobial efficacy of plant essential oil combinations and interactions with food ingredients. Int. J. Food Microbiol. 2008, 124, 91–97. [Google Scholar] [CrossRef] [PubMed]
  12. Daferera, D.J.; Ziogas, B.N.; Polissiou, M.G. The effectiveness of plant essential oils on the growth of Botrytis cinerea, fusarium sp. And clavibacter michiganensis subsp. Michiganensis. Crop Prot. 2003, 22, 39–44. [Google Scholar] [CrossRef]
  13. Konstantopoulou, I.; Vassilopoulou, L.; Mavragani-Tsipidou, P.; Scouras, Z. Insecticidal effects of essential oils. A study of the effects of essential oils extracted from eleven greek aromatic plants on Drosophila auraria. Experientia 1992, 48, 616–619. [Google Scholar] [CrossRef] [PubMed]
  14. Isman, M.B. Plant essential oils for pest and disease management. Crop Prot. 2000, 19, 603–608. [Google Scholar] [CrossRef]
  15. Tunc, I.; Şahinkaya, Ş. Sensitivity of two greenhouse pests to vapours of essential oils. Entomol. Exp. Appl. 1998, 86, 183–187. [Google Scholar] [CrossRef]
  16. Yuan, J.F.; Zhang, Z.Q.; Fan, Z.C.; Yang, J.X. Antioxidant effects and cytotoxicity of three purified polysaccharides from Ligusticum chuanxiong hort. Carbohydr. Polym. 2008, 74, 822–827. [Google Scholar] [CrossRef]
  17. Jeong, J.B.; Ju, S.Y.; Park, J.H.; Lee, J.R.; Yun, K.W.; Kwon, S.T.; Lim, J.-H.; Chung, G.Y.; Jeong, H.J. Antioxidant activity in essential oils of Cnidium officinale makino and Ligusticum chuanxiong hort and their inhibitory effects on DNA damage and apoptosis induced by ultraviolet b in mammalian cell. Cancer Epidemiol. 2009, 33, 41–46. [Google Scholar] [CrossRef] [PubMed]
  18. Yang, K.; Zhou, Y.X.; Wang, C.F.; Du, S.S.; Deng, Z.W.; Liu, Q.Z.; Liu, Z.L. Toxicity of Rhododendron anthopogonoides essential oil and its constituent compounds towards Sitophilus zeamais. Molecules 2011, 16, 7320–7330. [Google Scholar] [CrossRef] [PubMed]
  19. Paranagama, P.; Abeysekera, K.; Abeywickrama, K.; Nugaliyadde, L. Fungicidal and anti-aflatoxigenic effects of the essential oil of Cymbopogon citratus (DC.) Stapf.(lemongrass) against Aspergillus flavus Link. Isolated from stored rice. Lett. Appl. Microbiol. 2003, 37, 86–90. [Google Scholar] [CrossRef] [PubMed]
  20. Tzortzakis, N.G.; Economakis, C.D. Antifungal activity of lemongrass (Cympopogon citratus L.) essential oil against key postharvest pathogens. Innov. Food Sci. Emerg. Technol. 2007, 8, 253–258. [Google Scholar] [CrossRef]
  21. Olivero-Verbel, J.; Nerio, L.S.; Stashenko, E.E. Bioactivity against Tribolium castaneum herbst (coleoptera: Tenebrionidae) of Cymbopogon citratus and Eucalyptus citriodora essential oils grown in colombia. Pest Manag. Sci. 2010, 66, 664–668. [Google Scholar] [PubMed]
  22. Enan, E. Insecticidal activity of essential oils: Octopaminergic sites of action. Comp. Biochem. Physiol. C 2001, 130, 325–337. [Google Scholar] [CrossRef]
  23. Kwon, J.-H.; Ahn, Y.-J. Acaricidal activity of butylidenephthalide identified in Cnidium officinale rhizome against Dermatophagoides farinae and Dermatophagoides pteronyssinus (Acari: Pyroglyphidae). J. Agric. Food Chem. 2002, 50, 4479–4483. [Google Scholar] [CrossRef] [PubMed]
  24. Chu, S.S.; Jiang, G.H.; Liu, Z.L. Insecticidal components from the essential oil of Chinese medicinal herb, ligusticum chuanxiong hort. J. Chem. 2011, 8, 300–304. [Google Scholar]
  25. Ricci, M.; Padín, S.; Ringuelet, J.; Kahan, A. Utilización de aceite esencial de lemongrass (Cymbopogon citratus stapf) como repelente de Diuraphis noxia kurdj. (hemiptera: Aphididae) en trigo. Agric. Tec. 2006, 66, 256–263. [Google Scholar] [CrossRef]
  26. Isman, M.B. Neem and other botanical insecticides: Barriers to commercialization. Phytoparasitica 1997, 25, 339–344. [Google Scholar] [CrossRef]
  27. Kuang, X.; Yao, Y.; Du, J.R.; Liu, Y.X.; Wang, C.Y.; Qian, Z.M. Neuroprotective role of Z-ligustilide against forebrain ischemic injury in ICR mice. Brain Res. 2006, 1102, 145–153. [Google Scholar] [CrossRef] [PubMed]
  28. Yu, Y.; Du, J.-R.; Wang, C.-Y.; Qian, Z.-M. Protection against hydrogen peroxide-induced injury by Z-ligustilide in PC12 cells. Exp. Brain Res. 2008, 184, 307–312. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, Y.-H.; Liang, S.; Xu, D.-S.; Lin, X.; He, C.-Y.; Feng, Y.; Hong, Y.-L. Effect and mechanism of senkyunolide I as an anti-migraine compound from Ligusticum chuanxiong. J. Pharm. Pharmacol. 2011, 63, 261–266. [Google Scholar] [CrossRef] [PubMed]
  30. Shi, C.; Song, K.; Zhang, X.; Sun, Y.; Sui, Y.; Chen, Y.; Jia, Z.; Sun, H.; Sun, Z.; Xia, X. Antimicrobial activity and possible mechanism of action of citral against Cronobacter sakazakii. PLoS ONE 2016, 11, e0159006. [Google Scholar] [CrossRef] [PubMed]
  31. Miron, D.; Battisti, F.; Silva, F.K.; Lana, A.D.; Pippi, B.; Casanova, B.; Gnoatto, S.; Fuentefria, A.; Mayorga, P.; Schapoval, E.E.S. Antifungal activity and mechanism of action of monoterpenes against dermatophytes and yeasts. Rev. Bras. Farmacogn. 2014, 24, 660–667. [Google Scholar] [CrossRef]
  32. Tak, J.H.; Isman, M.B. Enhanced cuticular penetration as the mechanism for synergy of insecticidal constituents of rosemary essential oil in Trichoplusia ni. Sci. Rep. 2015, 5, 12690. [Google Scholar] [CrossRef] [PubMed]
  33. Koul, O.; Walia, S.; Dhaliwal, G. Essential oils as green pesticides: Potential and constraints. Biopestic. Int. 2008, 4, 63–84. [Google Scholar]
  34. Huang, Y.; Pu, F. Studies on the chemical components of the essential oil from the rhizome of Ligusticum sinense Oliv.cv. Chuanxiong hort. Acta Pharm. Sin. 1988, 23, 426–429. [Google Scholar]
  35. Isman, M.; Regnault-Roger, C.; Philogène, B.; Vincent, C. Problems and opportunities for the commercialization of botanical insecticides. In Biopesticides of Plant Origin; Lavoisier: Paris, France, 2005; pp. 283–291. [Google Scholar]
  36. Khater, H.F. Prospects of botanical biopesticides in insect pest management. Pharmacologia 2012, 3, 641–656. [Google Scholar] [CrossRef]
  37. Boukhatem, M.N.; Ferhat, M.A.; Kameli, A.; Saidi, F.; Kebir, H.T. Lemon grass (Cymbopogon citratus) essential oil as a potent anti-inflammatory and antifungal drugs. Libyan J. Med. 2014, 9, 58–62. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, X.; Xiao, H.; Xu, Q.; Li, X.; Wang, J.; Liang, X. Characterization of phthalides in Ligusticum chuanxiong by liquid chromatographic-atmospheric pressure chemical ionization-mass spectrometry. J. Chromatogr. Sci. 2003, 41, 428–433. [Google Scholar] [CrossRef] [PubMed]
  39. Li, H.X.; Ding, M.Y.; Yu, J.Y. Separation and identification of the phthalic anhydride derivatives of Liqusticum chuanxiong hort by GC-MS, TLC, HPLC-DAD, and HPLC-MS. J. Chromatogr. Sci. 2002, 40, 156–161. [Google Scholar] [CrossRef] [PubMed]
  40. Mansour, N.; Eldefrawi, M.; Toppozada, A.; Zeid, M. Toxicological studies on the Egyptian cotton leaf worm, Prodenia litura. VI. Potentiation and antagonism of organophosphorus and carbamate insecticides. J. Econ. Entomol. 1966, 59, 307–311. [Google Scholar] [CrossRef]
  41. Zhang, Z.B. Theories, Methods and Applications of Insecticide Bioassay; Science Press: Beijing, China, 1988; pp. 388–391. [Google Scholar]
  42. Sun, Y.-P.; Johnson, E. Analysis of joint action of insecticides against house flies. J. Econ. Entomol. 1960, 53, 887–892. [Google Scholar] [CrossRef]
  43. Wiwattanapatapee, R.; Sae-Yun, A.; Petcharat, J.; Ovatlarnporn, C.; Itharat, A. Development and evaluation of granule and emulsifiable concentrate formulations containing Derris elliptica extract for crop pest control. J. Agric. Food Chem. 2009, 57, 11234–11241. [Google Scholar] [CrossRef] [PubMed]
  44. Abbott, W. A method of computing the effectiveness of an insecticide. J. Econ. Entomol. 1925, 18, 265–267. [Google Scholar] [CrossRef]
  45. Finney, D.J. Probit analysis. J. Inst. Actuar. 1952, 78, 388–390. [Google Scholar]
  • Sample Availability: Samples of the compounds are not available from the authors.

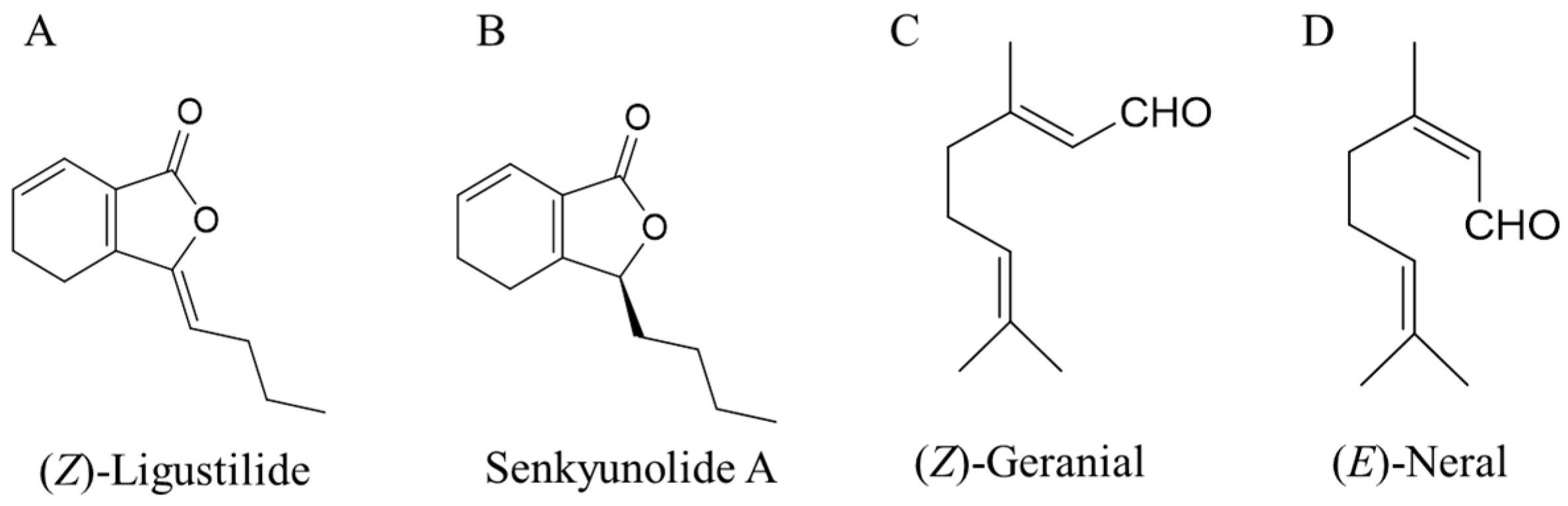

Figure 1. Structures of (Z)-ligustilide and senkyunolide A from Ligusticum chuanxiong oil, and (Z)-Geranial and (E)-Neral from lemongrass oil.
Figure 1. Structures of (Z)-ligustilide and senkyunolide A from Ligusticum chuanxiong oil, and (Z)-Geranial and (E)-Neral from lemongrass oil.
Molecules 21 01359 g001
Table 1. Toxicity of Ligusticum chuanxiong oil (LCO) and lemongrass oil (LO) against Aphis citricola van der Goot (24 h).
Table 1. Toxicity of Ligusticum chuanxiong oil (LCO) and lemongrass oil (LO) against Aphis citricola van der Goot (24 h).
PesticideLC-P (Y=)LC50 (mg/L)rConfidence Interval of LC50 (p < 0.05)χ2
20% LCO EC−5.55 + 4.99x128.780.9822116.44~142.425.45
20% LO EC−6.56 + 5.18x169.590.9922162.75~169.713.71
LC50 value was determined by log-probit analysis.
Table 2. Identification and quantification of principal compounds from Ligusticum Chuanxiong oil and lemongrass oil in gas chromatography–mass spectrometry (GC-MS).
Table 2. Identification and quantification of principal compounds from Ligusticum Chuanxiong oil and lemongrass oil in gas chromatography–mass spectrometry (GC-MS).
Ligusticum chuanxiong OilLemongrass Oil
CompoundRelative Content (%)CompoundRelative Content (%)
(Z)-ligustilide44.58geranial42.16
senkyunolide A26.92neral32.58
neocnidilide6.21β-myrcene4.95
3-n-butylphthalide4.86geranyl acetate4.28
butylidenephthalide2.95terpinolene1.58
β-selinene2.15isopulegol1.38
1,3,5-undecatriene1.83trans-bergamotene0.85
(E)-ligustilide1.56citronellal0.38
Table 3. Cooperative virulence index (c.f.) of the mixture of Ligusticum chuanxiong oil (LCO) and lemongrass oil (LO) against Aphis citricola van der Goot (24 h).
Table 3. Cooperative virulence index (c.f.) of the mixture of Ligusticum chuanxiong oil (LCO) and lemongrass oil (LO) against Aphis citricola van der Goot (24 h).
CombinationsConcentration of ComponentsTheoretical Mortality (%)Actual Mortality (%)c.f.
LCO–LO (ratio 1:1, v:v)66.7 mg/L67.0882.62 ± 3.1823.1727
The blending ratio of LCO and LO was 1:1 (v:v).
Table 4. Toxicity of mixtures with different LC50 ratio of Ligusticum chuanxiong oil (LCO) and lemongrass oil (LO) against Aphis citricola van der Goot (24 h).
Table 4. Toxicity of mixtures with different LC50 ratio of Ligusticum chuanxiong oil (LCO) and lemongrass oil (LO) against Aphis citricola van der Goot (24 h).
LCO LC50 (%)1009080706050403020100
LO LC50 (%)0102030405060708090100
Actual mortality (%)52.1162.562.6256.3151.9454.7649.4651.0948.0248.548.02
Theoretical mortality (%)52.1151.7051.2950.8850.4750.0749.6649.2548.8448.4348.02
Poison ratio11.211.221.111.031.091.001.040.981.001
LC50 values of LCO and LO were 128.78 and 169.59 mg/L, respectively. In this study, the LC50 values of LCO and LO were set at 130 mg/L and 170 mg/L, respectively.
Table 5. Co-toxicity coefficient (CTC) value of 20% LCO·LO EC to Aphis citricola van der Goot.
Table 5. Co-toxicity coefficient (CTC) value of 20% LCO·LO EC to Aphis citricola van der Goot.
PesticideLC-P (Y=)LC50 (mg/L)Confidence Interval of LC50 (p < 0.05)rχ2CTC
20% LCO EC−5.55 + 4.99x128.78116.44~142.420.98225.45-
20% LO EC−6.56 + 5.19x169.59162.75~169.710.99223.71-
20% LCO·LO EC7.42 + 1.99x61.0951.56~72.360.97682.03221.46
LC50 value was determined by log-probit analysis.
Table 6. Toxicity of 20% LCO·LO EC before and after hot storage to Aphis citricola van der Goot (24 h).
Table 6. Toxicity of 20% LCO·LO EC before and after hot storage to Aphis citricola van der Goot (24 h).
PesticideLC-P (Y=)LC50 (mg/L)rConfidence Interval of LC50 (p < 0.05)χ2CTC Value
20% LCO·LO EC After heating storage test0.62 + 2.42x64.320.978455.16~75.012.67210.34
LC50 value was determined by log-probit analysis.
Table 7. The result of field trials of 20% LCO·LO EC on Aphis citricola van der Goot (October 2008, Baishui, Shaanxi).
Table 7. The result of field trials of 20% LCO·LO EC on Aphis citricola van der Goot (October 2008, Baishui, Shaanxi).
PesticideConcentration of Components (mg/L)Corrected Efficacy (%)
1 Day after Application3 Days after Application7 Days after Application
20%LCO·LO EC20046.08 ± 5.01 b60.34 ± 4.32 b90.06 ± 3.23 b
10043.99 ± 3.95 b58.87 ± 3.08 b80.76 ± 5.28 c
66.737.45 ± 4.06 b55.84 ± 5.36 b63.88 ± 4.95 d
20% Imidacloprid EC10099.04 ± 5.36 a100.0 ± 0 a100.0 ± 0 a
Data are the mean of three replicates (50 aphids per replicate) and are represented as mean ± standard deviation. Means in the same column followed by the same lower case letter are not significantly different (p < 0.05) in a Tukey test.
Table 8. The result of field trials of 20% LCO·LO EC on Aphis citricola van der Goot (June 2012, Yangling, Shaanxi).
Table 8. The result of field trials of 20% LCO·LO EC on Aphis citricola van der Goot (June 2012, Yangling, Shaanxi).
PesticideConcentration of Components (mg/L)Corrected Efficacy (%)
1 Day after Application3 Days after Application7 Days after Application
20% LCO·LO EC20050.28 ± 5.63 b63.31 ± 5.39 b87.24 ± 1.62 b
10047.67 ± 4.16 b60.56 ± 4.87 b80.69 ± 2.31 c
66.732.56 ± 4.01 c49.23 ± 3.18 c60.47 ± 4.28 d
20% Imidacloprid EC10097.76 ± 1.05 a100.0 ± 0 a100.0 ± 0 a
Data are the mean of three replicates (50 aphids per replicate) and are represented as mean ± standard deviation. Means in the same column followed by the same lower case letter are not significantly different (p < 0.05) in a Tukey test.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
