Skin Delivery and in Vitro Biological Evaluation of Trans-Resveratrol-Loaded Solid Lipid Nanoparticles for Skin Disorder Therapies

Roberta B. Rigon
Naiara Fachinetti
Patrícia Severino
Maria H. A. Santana
3,† and
Marlus Chorilli
Faculdade de Ciências Farmacêuticas, UNESP—Universidade Estadual Paulista, Campus Araraquara, Departamento de Fármacos e Medicamentos, Araraquara, SP 14800-850, Brazil
Centro de Ciências Biológicas e da Saúde, Universidade Tiradentes, Aracaju, SE 49010-390, Brazil
Faculdade de Engenharia Química, Universidade Estadual de Campinas, Campinas, SP 13083-970, Brazil
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Molecules 2016, 21(1), 116;
Submission received: 10 December 2015 / Revised: 5 January 2016 / Accepted: 11 January 2016 / Published: 20 January 2016
(This article belongs to the Special Issue Pharmaceutical Nanotechnology: Novel Approaches)


The aim of this study was to evaluate the skin delivery and in vitro biological activity of trans-resveratrol (RES)-loaded solid lipid nanoparticles (SLNs). The SLNs were composed of stearic acid, poloxamer 407, soy phosphatidylcholine (SPC), an aqueous phase and 0.1% RES. The particle size, polydispersity index (PdI) and zeta potential were analyzed by dynamic light scattering (DLS). The SLNs were analyzed by scanning electron microscopy (SEM-FEG) and differential scanning calorimetry (DSC). In vitro RES-SLN skin permeation/retention assays were conducted, and their tyrosinase inhibitory activity was evaluated. An MTT reduction assay was performed on HaCat keratinocytes to determine in vitro cytotoxicity. The formulations had average diameter lower than 200 nm, the addition of SPC promoted increases in PdI in the RES-SLNs, but decreases PdI in the RES-free SLNs and the formulations exhibited zeta potentials smaller than −3 mV. The DSC analysis of the SLNs showed no endothermic peak attributable to RES. Microscopic analysis suggests that the materials formed had nanometric size distribution. Up to 45% of the RES permeated through the skin after 24 h. The RES-loaded SLNs were more effective than kojic acid at inhibiting tyrosinase and proved to be non-toxic in HaCat keratinocytes. The results suggest that the investigated RES-loaded SLNs have potential use in skin disorder therapies.

1. Introduction

Exposure to solar ultraviolet radiation can induce the formation of free radicals on the surface of human skin, accelerating skin aging, which can be characterized by hyperpigmentation, and may promoting the occurrence of various skin diseases such as melanoma [1]. Studies have demonstrated that skin cancer is caused by a combination of endogenous and exogenous risk factors like solar exposure [2,3]. Human malignant melanoma skin cancer is the most aggressive skin cancer form [4], with the severity of the disease relating to the degree of reactive oxygen species (ROS) in the melanoma cell line [5]. Melanogenesis can affect tumor progression as it promotes an oxidative environment, which is toxic and mutagenic, causing genetic instability and inhibition of immune cells [6,7]. Furthermore, melanin, the final product of melanogenesis, can produce relative hypoxia in the tumor microenvironment due to increased oxygen consumption. Thus, melanogenesis inhibition could be explored as a valid antitumor therapy [8].
The enzyme tyrosinase is responsible for the first step in melanin production; consequently, it is involved in hyperpigmentation. In pathological states such as melanoma, high levels of tyrosinase in the serum and in tissues promote the overproduction of melanin [9]. Hence, inhibiting tyrosinase activity is a common approach to promote skin whitening, but it could be particularly valuable in the prevention of skin cancers such as melanoma. Resveratrol (trans-3,4′,5-trihydroxystilbene) (RES) (Figure 1) is a natural component of grape skins and is notably present in wine [10]. Studies have demonstrated the cancer chemopreventive activity of RES [11]. Kim and coworkers observed that RES is able to reduce tyrosinase activity by 30% to 45% [12]. However, this drug has a low in vivo bioavailability when administered orally [1]. Therefore, skin administration may be a convenient method of delivering RES to its site of action.

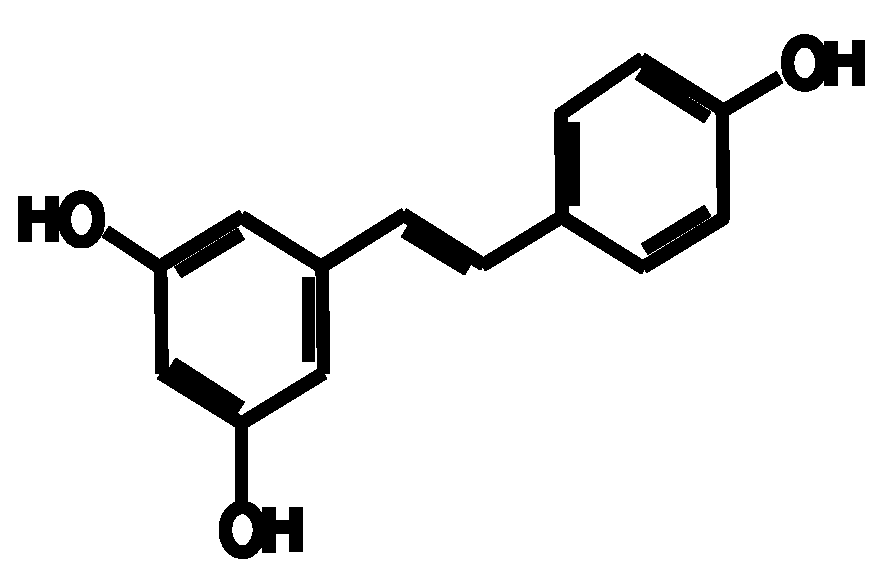

Figure 1. trans-Resveratrol structure.
Figure 1. trans-Resveratrol structure.
Molecules 21 00116 g001
Solid lipid nanoparticles (SLNs) are a new generation of nanoparticulate drug delivery systems, which are attracting attention as innovative colloidal drug carriers for topical applications [13,14], especially in virtue of their interaction with the stratum corneum (SC) and other layers skin. Moreover, SLNS have the ability to protect the drug and control its release [15]. Furthermore, recent studies have shown improved SLN uptake and accumulation in tumor tissue, due to the latter’s physiological characteristics such as abnormalities and dysfunction in the tumor vasculature, which allow SLN to easily permeate the tumor [16]. Moreover, high SLN concentrations are maintained in the tumor for longer periods of time due to low venous return and lymphatic drainage [17,18,19]. The aim of this study was to evaluate the skin delivery and in vitro biological activity of trans-resveratrol-loaded SLNs, to confirm their potential as skin disorder therapies.

2. Results

2.1. Development of SLN

The methodology described by Lim and coworkers [20], and Mehnert and Mäder [21] was adapted to produce SLNs by sonication. The formulations developed were composed of 5.0% lipid phase (stearic acid) and 4.7% surfactants (soy lecithin and poloxamer 407). Methylparaben (0.18%) and propylparaben (0.02%) were used as microbiological preservatives. Table 1 describes the compositions of the different SLNs formulations.
Table 1. SLN constituents.
Table 1. SLN constituents.
Concentration of Raw Material (%)
Stearic Acid (SA)5.005.00
Poloxamer 407 (P407)3.503.50
Soy Lecithin (SL)-1.20
Distilled waterq.s *q.s *
* q.s: indicate quantity sufficient to make 10 mL of formulation. F1.RES and F2.RES have the same lipid formulations as F1 and F2, respectively, but 0.1% of RES was added to the lipid phase.

2.2. Hydrodynamic Size of Particles and Zeta Potential Analysis

Table 2 describes the mean hydrodynamic size (Z-Ave), polydispersity index (PdI) and zeta potential (ZP) of the SNLs developed.
Table 2. Mean hydrodynamic diameter, polydispersity index and zeta potential of the SLNs (n = 3).
Table 2. Mean hydrodynamic diameter, polydispersity index and zeta potential of the SLNs (n = 3).
Z-Ave (d.nm)PdIZP (mV)
F1194.9 ± 1.93 a0.230 ± 0.01−1.54 ± 0.31
F2137.67 ± 1.25 b0.157 ± 0.02−2.22 ± 1.12
F1.RES155.50 ± 0.26 c0.140 ± 0.02−2.60 ± 1.27
F2.RES166.23 ± 0.94 d0.196 ± 0.02−2.66 ± 0.33
a–d Different symbols within a column indicate that the differences between these averages are statistically significant (p < 0.05).
Statistically significant differences were found between the mean hydrodynamic diameter of the different formulations, both before and after addition of RES.

2.3. SLN Morphology

The SLN morphology was obtained using scanning electronic microscopy with a field emission gun (SEM-FEG) as shown in Figure 2.
Figure 2. Photomicrograph of formulations: (a) F1 (magnified 50,000×); (b) F2 (magnified 80,000×) (c) F1.RES (magnified 100,000×) and (d) F2.RES (magnified 150,000×).
Figure 2. Photomicrograph of formulations: (a) F1 (magnified 50,000×); (b) F2 (magnified 80,000×) (c) F1.RES (magnified 100,000×) and (d) F2.RES (magnified 150,000×).
Molecules 21 00116 g002
The photomicrographs demonstrated that SNL solutions presented a low size distribution range, and no crystals were formed. Crystals can be formed when excess compounds that were not entrapped are found in the dispersing medium or because there is a large polydispersity in the particle size.

2.4. Characterization by Differential Scanning Calorimetry (DSC)

Thermoanalytical methods are extensively used to analyze the physical proprieties of drugs, such as melting and vaporization temperatures, enthalpies, and glass transitions points, which permits to analyze the compatibility and stability of pharmaceuticals products [22].
Figure 3 and Figure 4 present the DSC scans of the individual ingredients used in the SLN preparations and of the SNL formulations with or without addition of RES. The formulations were submitted to calorimetric scans in heating, cooling, and reheating modes. The heating mode verifies the melting point and dehydration of samples and the cooling mode allows to observe the reversibility of the melting process. The reheating mode is performed to observe if the recrystallized formulations present the same melting behaviors as they did originally.

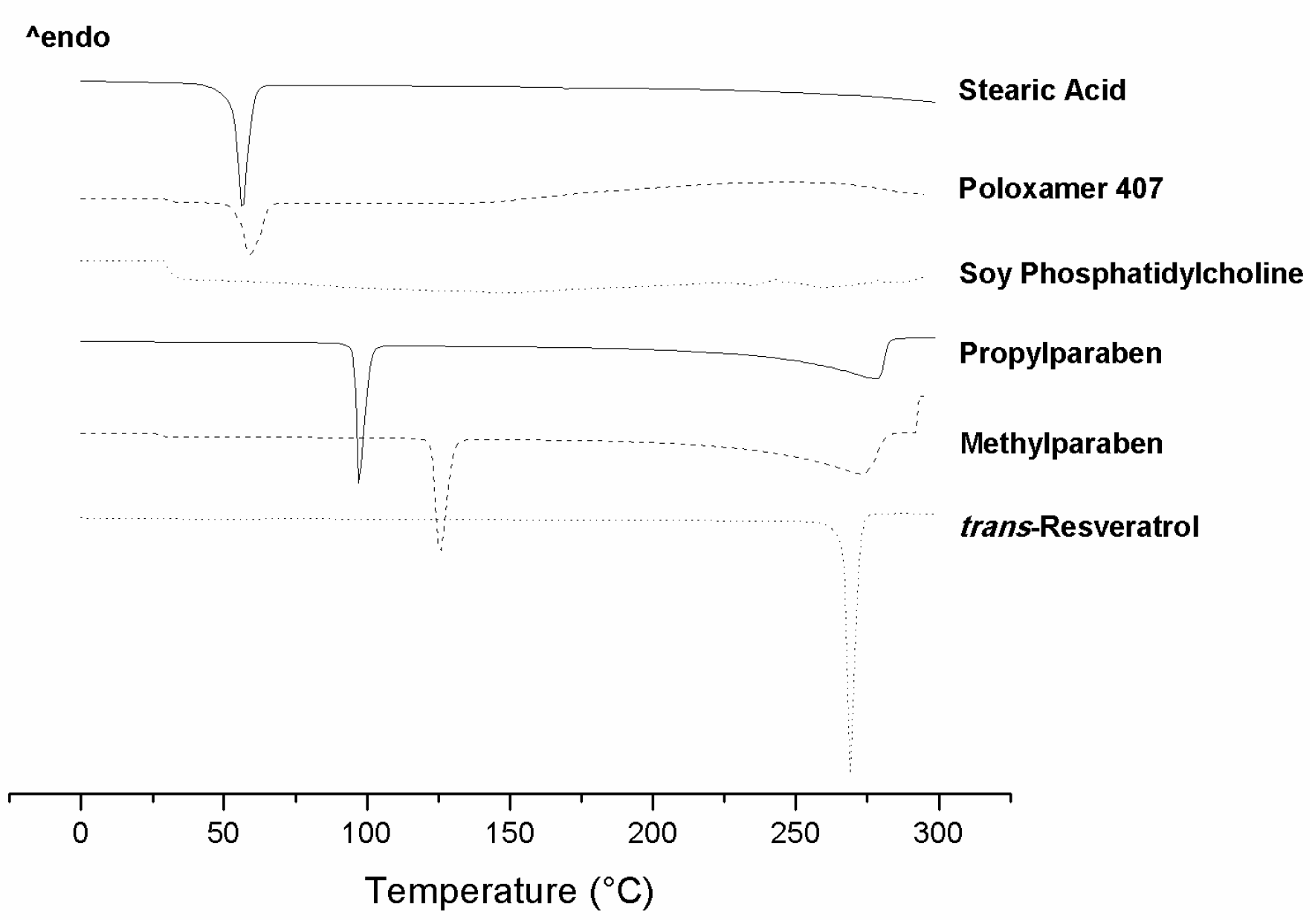

Figure 3. DSC scans of the ingredients used to prepare the SLNs.
Figure 3. DSC scans of the ingredients used to prepare the SLNs.
Molecules 21 00116 g003

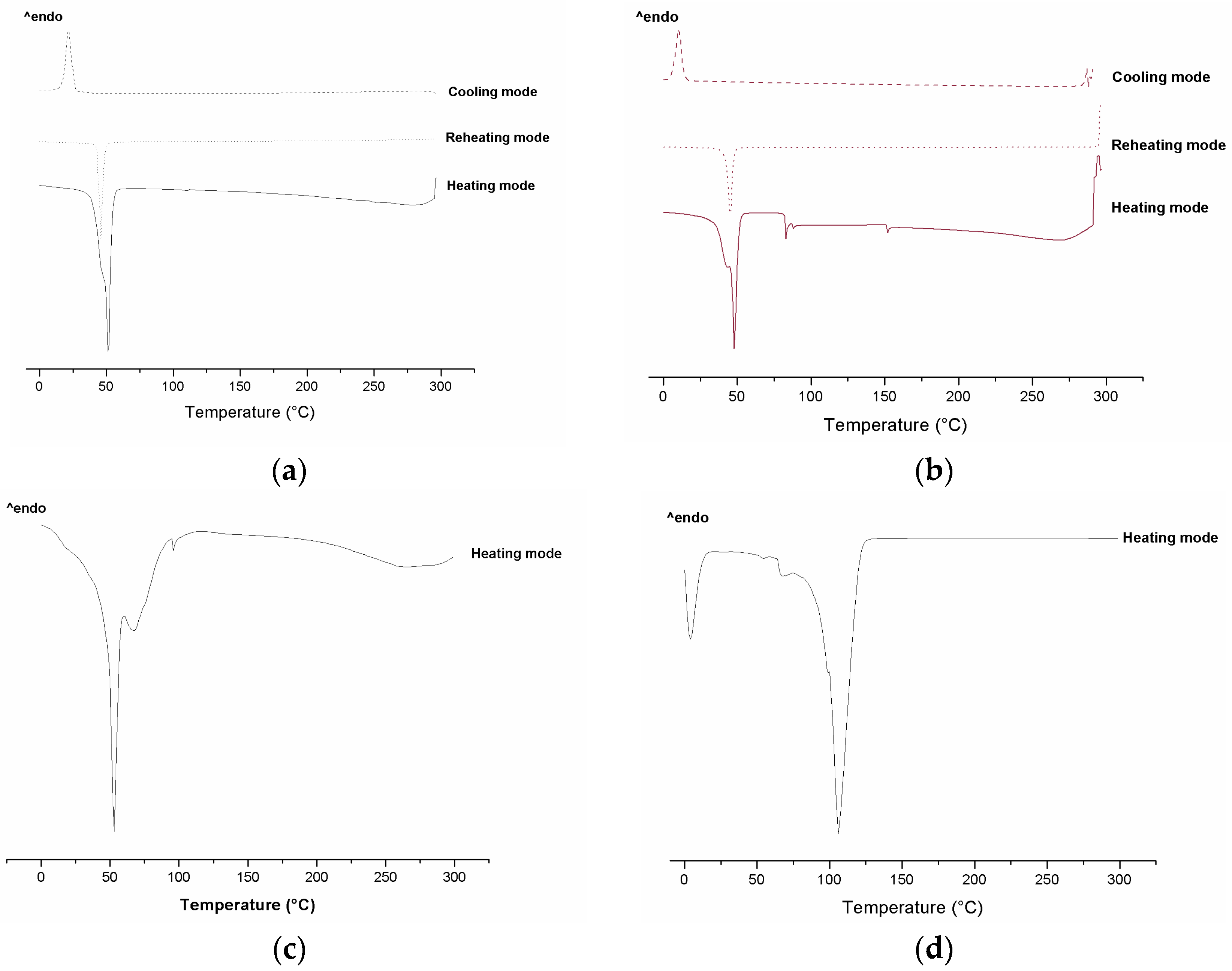

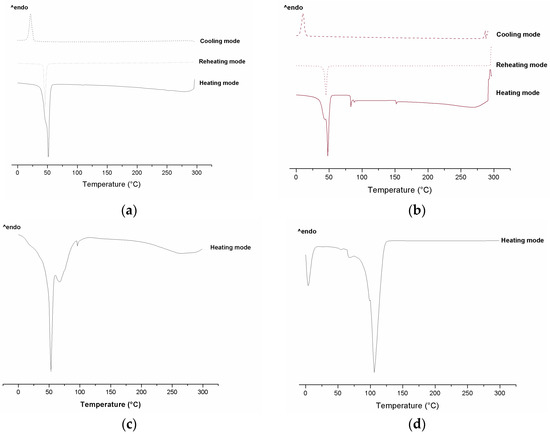

Figure 4. DSC scans of SLNs: (a) F1 and (b) F1.RES (heating from −50 to 270 °C, subsequent cooling from 270 to −50 °C, and reheating from −50 to 270 °C, at a rate of 10 °C·min−1); (c) F2 and (d) F2.RES (heating from −50 to 270 °C). All formulations were tested at all 3 temperature cycles; however, only the cycles with thermal events are shown. Formulations F2 and F2.RES presented thermal events only in the heating mode.
Figure 4. DSC scans of SLNs: (a) F1 and (b) F1.RES (heating from −50 to 270 °C, subsequent cooling from 270 to −50 °C, and reheating from −50 to 270 °C, at a rate of 10 °C·min−1); (c) F2 and (d) F2.RES (heating from −50 to 270 °C). All formulations were tested at all 3 temperature cycles; however, only the cycles with thermal events are shown. Formulations F2 and F2.RES presented thermal events only in the heating mode.
Molecules 21 00116 g004

2.5. In Vitro Skin Permeation of RES

Determining the ability of different substances to cross the skin is the aim of the skin permeation assay. This test utilizes pig ear skin or human skin obtained from plastic surgery [23,24]. The use of pig ear skin is based on its great anatomical, histological and physiological similarity to human skin, more so than any other common laboratory animal [25]. Table 3 presents the cumulative amount of RES, expressed as mean ± standard deviation (n = 6), which permeated through pig skin over 24 h after application of SLN solutions.
Table 3. Cumulative amount of RES permeated through pig skin (1.77 cm2) after 24 h (temperature maintained at 32 ± 2 °C).
Table 3. Cumulative amount of RES permeated through pig skin (1.77 cm2) after 24 h (temperature maintained at 32 ± 2 °C).
Sample NameCumulative Amount (%) after 24 h
F1.RES45.26 ± 34.88 a
F2.RES18.61 ± 16.99 b
a,b Different symbols within a column indicate that the differences between these averages are statistically significant (p < 0.05).

2.6. In Vitro Tyrosinase Inhibition by RES-Loaded SLN

Table 4 presents the tyrosinase inhibitory activity of RES and RES-loaded SLNs.
Table 4. Tyrosinase inhibitory activity of RES and RES-loaded SLNs.
Table 4. Tyrosinase inhibitory activity of RES and RES-loaded SLNs.
Percentage of Inhibitory Activity (IA%)
5 μg·mL−110 μg·mL−1EquationR2IA50
Kojic Acid25.0657.82y = 6.1282x − 3.1020.95958.66
RES solution47.0463.45y = 0.2314x + 58.2080.4001nd *
F1.RES65.4989.78y = 0.9413x + 85.1110.6163nd *
F2.RES55.2758.93y = 0.7520x + 57.0340.8114nd *
IA50 = inhibitory activity at 50%. * nd = not determined.
Kojic acid was adopted as the positive control because it is a potent in vivo tyrosinase inhibitor [26].

2.7. In Vitro MTT Cytotoxicity Assay of SLN

The cells used in this study were HaCat keratinocytes, a standard cell line for evaluating the in vitro cytotoxicity of skin delivery formulations [27,28]. The data are shown as the percentage of cellular growth (Figure 5).

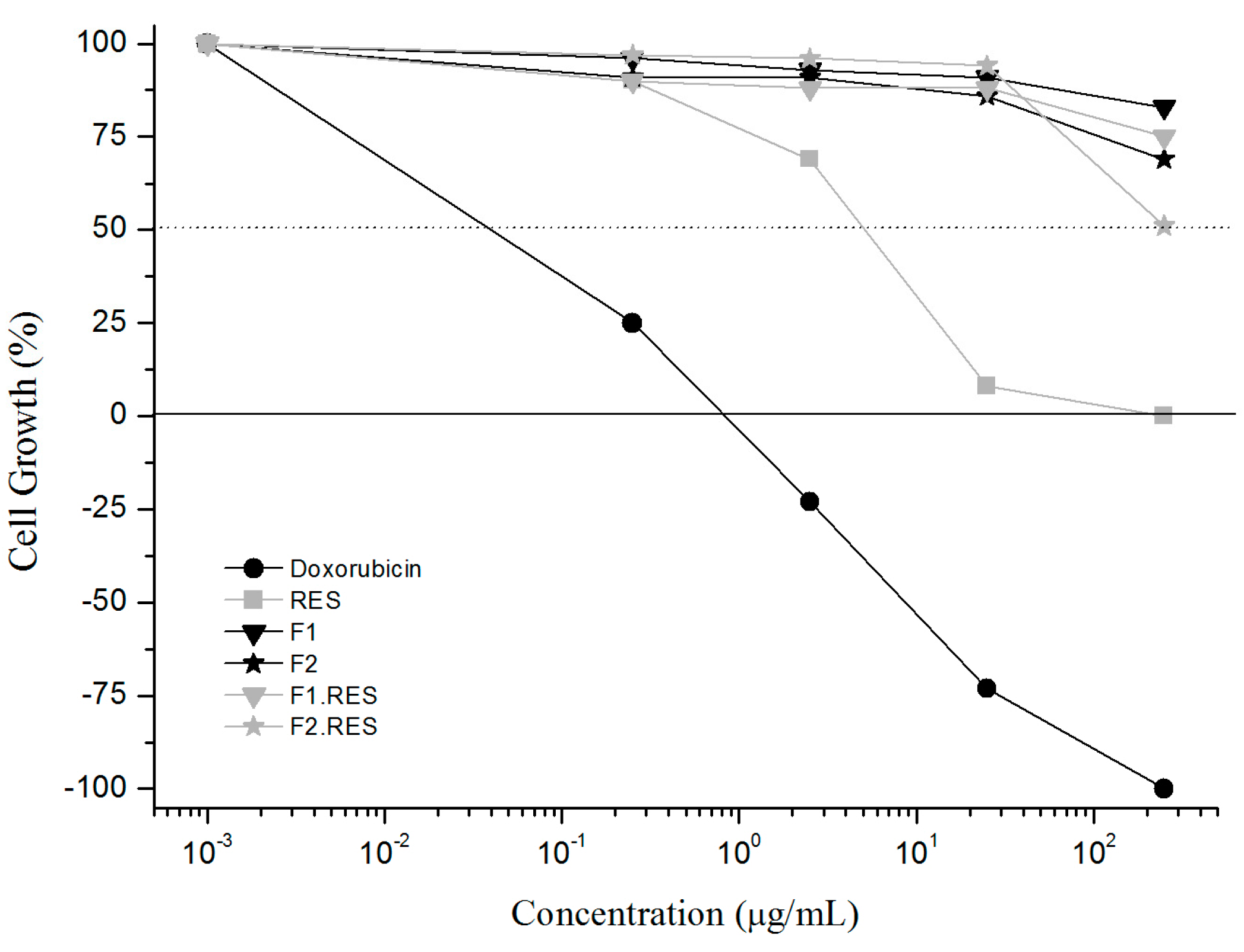

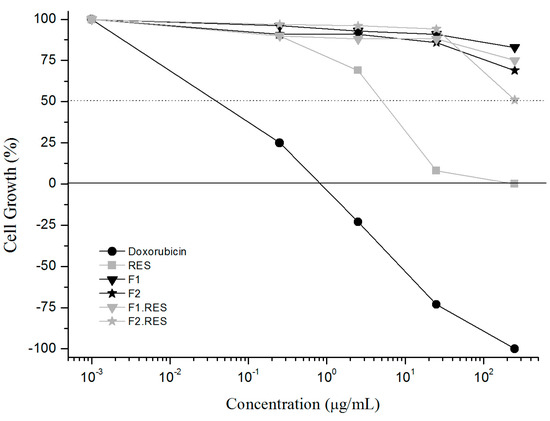

Figure 5. Percentage of cell growth after treatment with positive control (doxorubicin), RES or SLNs.
Figure 5. Percentage of cell growth after treatment with positive control (doxorubicin), RES or SLNs.
Molecules 21 00116 g005

3. Discussion

A particle size of 700 nm is ideal for drug permeation. However, there have been many scientific studies demonstrating that particles with more than 700 nm can also permeate the skin [29]. Schaefer and coworkers [30] demonstrated that polymeric particles with diameters in the range of 3 to 10 μm selectively penetrate through follicular ducts, while particles bigger than 10 μm stay under the skin’s surface. Nevertheless, particles with different sizes can also permeate the skin, such as 20 nm polystyrene particles [29].
Particle size is substantial for skin permeation [31]. Shim and co-authors [32] analyzed the in vitro skin permeation of minoxidil loaded in 40 nm and 130 nm nanoparticles using pig ear skin. Results demonstrated that smaller nanoparticles facilitated minoxidil skin permeation and recovery in the receptor compartment. This probably occurs because nanoparticles of small size form a homogeneous film on the skin surface that reduces transepidermal water loss (TEWL) and promotes skin permeation of the drug [33]. Furthermore, the presence of lipids in the SLNs can increase their solubility within the stratum corneum, improving drug permeation across the skin barrier [34].
The polydispersity index (PdI) is a parameter used to define the size distribution of particles. Samples with a great range in size distribution present PdI > 0.7 [35]. Dispersions with a PdI equal to 0.4 are considered to have heterogeneous distribution, which may indicate the presence of agglomerates within the sample. Dispersions with PdIs of 0.2 are considered to have minor particle polydispersity [36]. All SLN formulations (Table 2) showed PdIs near to 0.2, demonstrating that these colloids were monodisperse in size.
Schwarz and co-authors [37] developed SLNs composed of Dynasan® 112 (trilaurin), Lipoid® S75 (soy lecithin with 68% of phosphatidylcholine) and poloxamer 188, and they observed that increasing the concentration of SPC decreased the mean particle diameter, but promoted an increase in PdI.
Our results showed similarities with those of Schwarz and co-authors [37]. In relation to the hydrodynamic diameter size the addition of SPC (F2) promoted a reduction in the hydrodynamic diameter size, compared to F1 (Table 2). However, for formulation with RES (F1.RES and F2.RES), the mean diameter increased after addition of SPC (F2.RES). In relation to PdI, the results demonstrated that addition of SPC caused an increase in PdI only in formulation with RES (F2.RES). However, formulations without RES (F1 and F2) presented a decrease in PdI when SPC was added (F2). Akhtar and Pathak have also shown that high SPC concentrations promote lower PdI, probably due to the surfactant activity of this substance [37].
SPC can be composed of different concentrations of mono- and polyunsaturated fatty acids. An increase in the monounsaturated fatty acids ration enhances the particle size. However, long chain polyunsaturated fatty acids contribute to decreasing particle size and to increasing the PdI [38].
The results showed that the formulation presented zeta potential equal to −1.54 ± 0.31 mV and −2.22 ± 1.12 mV for F1 and F2, respectively, and −2.60 ± 1.27 mV and −2.66 ± 0.33 mV for F1.RES and F2.RES, respectively (Table 2). Particles with zeta potentials over +30 mV or under −30 mV are typically considered stable [39]. However, in the preparation of our nanoparticles, steric stabilizer (poloxamer 407) was used for to achieve greater stability, explaining the low zeta potential values that indicate low electrostatic repulsion [40].
According to the photomicrographs, the sonication method produced particles with size distributions on the nanometric scale (Figure 2). The mean particle diameter observed on the photomicrographs was about 100 nm, slightly lower than those found in the dynamic light scattering (DLS) analysis. The DLS evaluates the hydrodynamic size of particles, namely the union between the inorganic core and the solvent layer attached to the particle. When estimating the size by SEM-FEG, this hydration layer is not present; hence, the photomicrographs only project information about the inorganic core. Consequently, the particle size analyzed by DLS is greater than the size estimated by SEM-FEG [41].
The melting peak of SPC was not observed (Figure 3), possibly because SPC presents no steep melting point. Nonetheless, when a melting point is not observed in the DSC scans, it indicates that the substance probably remains in its amorphous form [42]. The DSC scan of poloxamer 407 (Figure 3) revealed an endothermic event at 59 °C and thermal degradation at 150 °C, approximately. Poloxamer 407 can reduce the endothermic events of other substances through their solubilization. As such, these substances are in amorphous form making them invisible on DSC scan of poloxamer 407 containing formulations [43]. Methyl and propylparaben showed unique endothermic events at 129 °C and 97 °C, respectively, which was attributed to melting (Figure 3), these values were consistent with values reported in the literature, which are 124 °C for methylparaben and 97.8 °C for propylparaben [44,45].
The endothermic peak of RES was not observed in the formulations’ thermograms (Figure 4), this may be because RES is stored in an amorphous state within the SNL rather than in a crystalline state, or because high concentrations of lipid impede the detection of the RES melting point by DSC, or because the RES has been dissolved by the stearic acid and poloxamer 407 therefore the crystalline state of RES was undetected [46,47].
Figure 4a shows that F1 and F1.RES presented thermal events in all three analyzed cycles; there is an evident endothermic peak (melting point) in the heating mode, an exothermic peak representing recrystallization in the cooling mode and another melting peak in the reheating mode. This indicates that F1 and F1.RES returned to their initial crystalline state after having been submitted to heating and cooling. The F2 and F2.RES formulations did not present thermal events in the cooling and reheating modes (Figure 4c,d).
The addition of RES to formulation F2 produced an exothermic peak displacement from 50 °C to 106 °C (Figure 4c,d). This could be caused by increased crystal structures or decreased structural defects, promoting the displacement of first endothermic transition to higher temperatures.
The addition of SPC in topical formulations has been associated with an increase in drug skin permeation [48,49,50]. However, the cumulative amount of RES permeated after 24 h was 45.26% ± 34.88% for F1.RES and 18.61% ± 16.99% to F2.RES (Table 3). Therefore, the formulation with SPC (F2.RES) showed lower amounts of permeated RES than the formulation without SPC (F1.RES).
Similar results were observed by Ferderber and co-author [51] that demonstrated a reduction in propranolol skin permeation with increased concentrations of SPC. Bentley and coworkers [52] also demonstrated that the addition of SPC as a skin permeation promoter influences the release profile and cutaneous retention of lipophilic drugs from poloxamer 407 gels. They also conducted a study to evaluate the influence of SPC on skin permeation of triamcinolone acetonide in poloxamer 407 gel. Results demonstrated that an increase in the concentration of SPC promotes a decrease in the amount of drug permeation and increases the drug cutaneous retention [53].
These results could be explained by the fact that phospholipids, such as SPC, promote an increase in drug deposition in the skin, as they are constituents of the SC and can form an extra lipid barrier under the skin surface that decreases the drug flux [54].
RES was not detected in the cutaneous retention assay (dermis, epidermis and stratum corneum), signifying that the RES extraction method used on the tape strips and pig skin was not effective. The drug extraction is dependent of the solvent choice. The solvent should not cause drug degradation or solubilize the skin components as this could interfere the analysis [55,56].
The RES solution and formulations F1.RES and F2.RES (5.0 and 10.0 μg·mL−1) showed higher percentages of inhibition than kojic acid solution at the same concentrations. At 5.0 μg·mL−1, the RES solution, F1.RES and F2.RES inhibited tyrosinase 1.87, 2.61 and 2.20 times more than kojic acid, respectively; whilst, at 10.0 μg·mL−1, the RES and F1.RES solutions inhibited tyrosinase 1.10 and 1.55 times more than kojic acid, respectively, while the F2.RES solution had a similar effect to kojic acid (Table 4).
The results demonstrated that formulations F1.RES and F2.RES showed greater tyrosinase inhibition activity than RES solution at both concentrations (5.0 and 10.0 μg·mL−1), demonstrating that incorporating RES into SLNs potentiates the inhibitory activity of RES. Furthermore, F1.RES (5.0 and 10.0 μg·mL−1) was the most effective formulation.
The IA50 values of RES solutions, F1.RES and F2.RES, cannot be calculated because there is no linear relationship between the RES solution, or the SLN solutions, and percentage of inhibition of mushroom tyrosinase activity (R2 < 0.90), as shown in Table 4. However, the IA50 value of kojic acid was calculated to be 8.66 μg·mL−1.
The cytotoxicity of the different SLN formulations was determined by calculating the ratio of viable cells in the SLN-treated wells to those in the untreated control wells (negative control). Results are presented as the percentage of viable cells. Thus, high percentages of cellular viability indicate low toxicity (10%, high toxicity; 11% to 40%, moderate toxicity; 40% to 70%, low toxicity; ≥70% no toxicity) [57].
The RES and doxorubicin (DOX) solutions decreased viability of HaCat cells by 50% at concentrations of 4.4 and 0.6 μg·mL−1, respectively (Figure 5). Figure 5 shows that none of the SLN formulations were cytotoxic up to concentrations of 25.00 μg·mL−1, maintaining 85% of cellular viability. Although at F2 and F2.RES concentrations of 250 μg·mL−1, the cell viability was reduced to 69% and 51%, respectively. F1 and F1.RES presented no cytotoxic effect at high concentrations (250 μg·mL−1), as cell viability remained at 83% and 75%, respectively. During our tests, it was observed that the reduction in cell viability with F2 and F2.RES treatment occurred due to the presence of SPC in these formulations, which increased the viscosity of the media, promoting insufficient oxygen supply and hypoxia. However, no concentration of SLN promoted high toxicity, only low toxicity was observed with F2 and F2.RES.

4. Materials and Methods

4.1. Materials

trans-Resveratrol 99% (Sigma-Aldrich, Steinheim am Albuch, Germany), batch number #030M5216V, was used as standard chemical substance. Stearic acid (Via Farma, Joinville, Brazil), soy phosphatidylcholine (Epikuron® 200, Lucas Meyer, Champlan, France), poloxamer 407 (Pluronic® F127, Sigma-Aldrich, St. Louis, MO, USA), methylparaben (Nipagin® M, PharmaSpecial, Santana de Parnaíba, Brazil), propylparaben (Nipasol® M) and trans-resveratrol 99% (Resveratrol extract 100%, Galena® Química e Farmacêutica, Campinas, Brazil) were used to prepare SLNs. Polysorbate 80 (Sigma-Aldrich), CLAE methanol (J.T. Baker, Center Valley, PA, USA), transparent scotch tape 750 (Scotch® 750, 3 M Brazil, Sumaré, Brazil), L-tyrosine (Sigma-Aldrich) and mushroom tyrosinase (Sigma-Aldrich) were used to conducted the in vitro skin permeation and tyrosinase inhibitory activity assay.

4.2. Methods

4.2.1. Development of SLN

For all formulations, the lipid phase (solid lipid + soy lecithin + trans-resveratrol) was heated to approximately 5–10 °C above its melting point (~70 °C), before being added to the aqueous solution (P407 solution + methylparaben and propylparaben) of the same temperature. The formulations were stirred for 1 min using a magnetic stirrer. Then, the SLN mixture was sonicated using an ultrasonic processor (Branson Sonifier 250, Branson Ultrasonics Corporation, Danbury, CT, USA) for 20 min (amplitude 47%, 500 W power, 1/2 inch probe). During sonication, samples were maintained in a cooling bath. Since the sonication process can eliminate titanium, samples were centrifuged at 5000 rpm for 10 min [58].

4.2.2. Hydrodynamic Size of Particle and Zeta Potential Analysis

The size of the nanoparticles was determined by dynamic light scattering (DLS, Zetasizer Nano NS, Malvern Instruments, Malvern, UK). Prior to evaluating the mean diameter of the particles and the polydispersity index, the samples were diluted in ultra-purified water to attenuate their opalescence. The zeta potential of the lipid nanoparticles was also measured in purified water, adjusting the conductivity (50 μS·cm−1) with a solution of potassium chloride (0.1%). The zeta potential was determined from the electrophoretic mobility using the Helmholtz-Smoluchowski equation. The processing was performed using the software included in the system.

4.2.3. SLNs Morphology

The SLNs morphology was realized by scanning electronic microscopy with field emission gun (SEM-FEG; JSM-7500F, JEOL, Akishima, Tokyo, Japan). A drop of each sample was applied to a silicon substrate and dried in a vacuum desiccator for 12 h. Each sample was coated with carbon (Sputter Coater SCD 050) and analyzed at 10 and 20 kV.

4.2.4. Characterization by Differential Scanning Calorimetry (DSC)

DSC analysis was performed using a Q10 DSC calorimeter (TA Instruments, New Castle, DE, USA) equipped with a liquid nitrogen cooling system (LNCS). The individual components of the SLNs and the SLNs, hermetically sealed in aluminum pans, were submitted to calorimetric scans in heating, cooling and reheating modes. The scans were performed at a temperature range of −50 to 270 °C. The scan rate in the heating and reheating modes was 10 °C·min−1. A nitrogen atmosphere with a flow rate of 50 mL·min−1 was utilized.

4.2.5. High-Performance Liquid Chromatographic (HPLC) Analysis of RES

RES quantification was performed by reversed-phase HPLC with photodiode array (PDA) detection (Waters® 2695 Alliance quaternary pump, Waters® 2996 photodiode array detector, Waters, Milford, MA, USA) and a RP-C18 Luna column (250 mm × 4.6 mm I.D. 5 µm; Phenomenex, Torrance, CA, USA) that was maintained at 24 ± 1 °C. The mobile phase gradient was the following: water: acetonitrile (75:25, v/v) from 0 to 3.5 min; water–methanol–acetonitrile (32.5:30.0:37.5, v/v) from 3.6 to 5.8 min and water–acetonitrile (75:25, v/v) from 5.9 to 10 min. The flow rate was set to 1.0 mL·min−1. RES was detected at the wavelength of 306.6 nm. The mean recovery of RES was 96.84% ± 0.32% and the method was robust for change in the flow rate of mobile phase and column temperature. The intra- and inter-assay coefficients of variation were less than 5%. The drug-free SLN formulation did not exhibit any peak at RES retention time for all formulation studied.

4.2.6. In Vitro Skin Permeation of RES

The in vitro RES skin permeation was measured using a Franz diffusion assembly. Pig ear skin was mounted between the donor and acceptor compartments, wherein the SC was kept in contact with the formulation and the dermis in contact with the receptor solution [59]. The donor medium consisted of 0.3 mL of SNL solution. The receptor medium (7 mL) was an aqueous solution of 2.0% polysorbate 80, which maintained proper skin conditions. The stirring rate and temperature were kept at 300 rpm and 32 ± 2 °C. Samples (1.5 mL) were collected from the receptor compartment at the appropriate intervals (1, 2, 4, 6, 8, 12, 16, 20, and 24 h) and immediately replaced with fresh receptor medium. The permeated amount of RES was determined by HPLC.
After removing the residual formulation on the skin surface, the SC was removed by 15 successive tape strippings using Scotch tape strips (750 Scotch® Transparent Tapes, 3M Brazil). The first strip was discarded and the 15 following strips were collected in tubes containing 5.0 mL of methanol, vortexed for 2 min, and then placed under ultrasound for 30 min. The remaining pig skin was cut into small pieces and placed in a tube containing 5 mL of methanol; these samples were then subjected to the same procedure in order to evaluate SNL retention within the epidermis and dermis [60]. The amount of RES present in the SC and in the remaining pig skin was determined by HPLC.

4.2.7. In Vitro Tyrosinase Inhibition by RES-Loaded SLNs

The enzymatic reaction described by Kobayashi and coworkers [61] was used to analyze the in vitro tyrosinase inhibition [62]. Phosphate buffer (70 μL, pH 6.8), tyrosine solution (500 μL, 0.3 mg·mL−1 in water), tyrosinase solution (5.0 μL, 480 U·mL−1 in phosphate buffer), as well as water (blank, 60 μL), SLNs without RES (control), SLNs with RES (F1.RES and F2.RES) or RES solution (0.312; 0.625; 1.25; 2.5; 3.0; 4.0; 5.0; and 10.0 μg·mL−1), were mixed in a micro-tube. The solution was stirred at 30 ± 1 °C for 60 min. The UV absorbance of the solutions were measured at 490 nm. Each sample was analyzed eight times. The results obtained were compared with 5.0 and 10.0 μg·mL−1 kojic acid. The percentage of tyrosinase inhibition was calculated using Equation (1):
[(A − T0) − (B − T0)/A] × 100
where A: control absorbance; B: sample absorbance; T0: absorbance at time zero. The IA50 value was calculated by varying the concentration of the test substance.

4.2.8. In Vitro SLN Cytotoxicity Assay Using 3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium Bromide (MTT) in HaCat Keratinocytes

In vitro cytotoxicity assays for F1.RES and F2.RES were performed using HaCat keratinocytes as a skin cell model. Cells were cultured in DMEM medium with 10% (v/v) fetal bovine serum (FBS) and penicillin/streptomycin (100 IU/mL/100 μg·mL−1). Cells were seeded in 96-well plates at a density of 103 cells/well and incubated with different concentrations of RES or SLN (0.001, 0.25, 2.5, 25.0 and 250.0 μg·mL−1) at 37 °C and 5.0% of CO2 for 24 h, or with the same concentrations of doxorubicin as a positive control. After removal of the treatment media, the cells were washed with PBS and cell viability was assessed using the MTT reduction assay [60,63]. The MTT test consists of measuring the amount of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) reduced by active mitochondria. Viable cells are able to reduce MTT to insoluble formazan, which is purple in color when dissolved in an appropriate solvent. The coloration intensity is proportional to the number of viable cells and can be measured by spectrophotometry at 570 nm [64].

4.2.9. Statistical Analysis

The analysis of variance (ANOVA) followed by a Tukey test were carried out on parametric data using Origin 12.5 software (OriginPro 8 SRO, OriginLab Corporation, Northampton, MA, USA). Statistical relevance was assumed at p < 0.05.

5. Conclusions

The obtained results suggest that the SLN formulations developed could be used for RES administration, improving their efficacy in skin disorder therapies, as both formulations (F1.RES and F2.RES) showed greater tyrosinase inhibitory activity than RES solution, suggesting that incorporating RES in SLNs potentiates the inhibitory activity of RES. The RES containing SLNs also demonstrated a capacity to inhibit tyrosinase activity, greater than or equal to that of kojic acid. All the formulations were demonstrated to be non-toxic in HaCat keratinocyte; as such, they have potential use in therapies against skin disorders like aging and hyperpigmentation.


Many thanks to Anselmo G. Oliveira, Dra. Maria Palmira Daflon Gremião and Massao Ionashiro for their partnership in the use of equipment. In vitro cytotoxicity facilities were provided by João Ernesto de Carvalho of the Center for Multidisciplinary Research in Chemistry, Biology and Agriculture (CPQBA), State University of Campinas (UNICAMP). FEG-SEM facilities were provided by LMA-IQ. This work was supported by Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES), Fundação de Amparo à Pesquisa do Estado de São Paulo-FAPESP (Grant #2011/16888-5, #2012/19568-4 and #2013/21500-1), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq) and Programa de Apoio ao Desenvolvimento Científico da Faculdade de Ciências Farmacêuticas (PADC-FCF-UNESP).

Author Contributions

Roberta Balansin Rigon conceived, designed and performed the experiments, analyzed the data and wrote the paper, Naiara Fachinetti performed the experiments and analyzed the data, Patrícia Severino analyzed the data, Maria H. A. Santana analyzed the data and Marlus Chorilli conceived and designed the experiments, analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
solid lipid nanoparticle
stearic acid
soy phosphatidylserine
dynamic light scattering
scanning electron microscopy with field emission gun
differential scanning calorimetry
high-performance liquid chromatographic with photodiode array
stratum corneum
mean hydrodynamic size
polydispersity index
transdermal water loss
50% inhibitory activity
Dulbecco’s Modified Eagle's Medium
fetal bovine serum
3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide
analysis of variance


  1. Ndiaye, M.; Philippe, C.; Mukhtar, H.; Ahmad, N. The grape antioxidant resveratrol for skin disorders: Promise, prospects, and challenges. Arch. Biochem. Biophys. 2011, 508, 164–170. [Google Scholar] [CrossRef] [PubMed]
  2. Fagundo, E.; Rodríguez-García, C.; Rodríguez, C.; González, S.; Sánchez, R.; Jiménez, A. Analysis of phenotypic characteristics and exposure to UV radiation in a group of patients with cutaneous melanoma. Actas Dermo Sifiliogr. 2011, 102, 599–604. [Google Scholar] [CrossRef] [PubMed]
  3. Bay, C.; Kejs, A.M.T.; Storm, H.H.; Engholm, G. Incidence and survival in patients with cutaneous melanoma by morphology, anatomical site and TNM stage: A danish population-based register study 1989–2011. Cancer Epidemiol. 2014, 39, 1–7. [Google Scholar] [CrossRef] [PubMed]
  4. Rigon, R.B.; Oyafuso, M.H.; Fujimura, A.T.; Gonçalez, M.L.; do Prado, A.H.; Gremião, M.P.D.; Chorilli, M. Nanotechnology-Based Drug Delivery Systems for Melanoma Antitumoral Therapy: A Review. Biomed. Res. Int. 2015, 2015, 1–22. [Google Scholar] [CrossRef] [PubMed]
  5. De Souza, G.A.; Godoy, L.M.; Teixeira, V.R.; Otake, A.H.; Sabino, A.; Rosa, J.C.; Dinarte, A.R.; Pinheiro, D.G.; Silva, W.A.; Eberlin, M.N. Proteomic and SAGE profiling of murine melanoma progression indicates the reduction of proteins responsible for ROS degradation. Proteomics 2006, 6, 1460–1470. [Google Scholar] [CrossRef] [PubMed]
  6. Slominski, A.; Paus, R.; Mihm, M. Inhibition of melanogenesis as an adjuvant strategy in the treatment of melanotic melanomas: Selective review and hypothesis. Anticancer Res. 1997, 18, 3709–3715. [Google Scholar]
  7. Slominski, A.; Wortsman, J.; Carlson, A.J.; Matsuoka, L.Y.; Balch, C.M.; Mihm, M.C. Malignant melanoma. Arch. Pathol. Lab. Med. 2001, 125, 1295–1306. [Google Scholar] [PubMed]
  8. Slominski, A.; Zbytek, B.; Slominski, R. Inhibitors of melanogenesis increase toxicity of cyclophosphamide and lymphocytes against melanoma cells. Int. J. Cancer 2009, 124, 1470–1477. [Google Scholar] [CrossRef] [PubMed]
  9. Sohn, N.; Gumport, S.L.; Gang, H.; Goldstein, M.; Deppisch, L.M. Generalized melanosis secondary to malignant melanoma. Report of a case with serum and tissue tyrosinase studies. Cancer 1969, 24, 897–903. [Google Scholar] [CrossRef]
  10. Gehm, B.D.; McAndrews, J.M.; Chien, P.Y.; Jameson, J.L. Resveratrol, a polyphenolic compound found in grapes and wine, is an agonist for the estrogen receptor. Proc. Natl. Acad. Sci. USA 1997, 94, 14138–14143. [Google Scholar] [CrossRef] [PubMed]
  11. Shukla, Y.; Singh, R. Resveratrol and cellular mechanisms of cancer prevention. Ann. N. Y. Acad. Sci. 2011, 1215, 1–8. [Google Scholar] [CrossRef] [PubMed]
  12. Kim, A.; Yang, Y.; Lee, M.S.; Yoo, Y.D.; Lee, H.G.; Lim, J.S. NDRG2 gene expression in B16F10 melanoma cells restrains melanogenesis via inhibition of Mitf expression. Pigment Cell Melanoma Res. 2008, 21, 653–664. [Google Scholar] [CrossRef] [PubMed]
  13. Santos, F.K.; Oyafuso, M.H.; Kiill, C.P.; Gremião, M.P.D.; Chorilli, M. Nanotechnology-based drug delivery systems for treatment of hyperproliferative skin diseases—A review. Curr. Nanosci. 2013, 9, 159–167. [Google Scholar]
  14. Souza, A.L.R.; Kiill, C.P.; Santos, F.K.; Luz, G.M.; Chorilli, M.; Gremião, M.P.D. Nanotechnology-based drug delivery systems for dermatomycosis treatment. Curr. Nanosci. 2012, 8, 512–519. [Google Scholar] [CrossRef]
  15. Liu, J.; Hu, W.; Chen, H.; Ni, Q.; Xu, H.; Yang, X. Isotretinoin-loaded solid lipid nanoparticles with skin targeting for topical delivery. Int. J. Pharm. 2007, 328, 191–195. [Google Scholar] [CrossRef] [PubMed]
  16. Wong, H.L.; Bendayan, R.; Rauth, A.M.; Li, Y.; Wu, X.Y. Chemotherapy with anticancer drugs encapsulated in solid lipid nanoparticles. Adv. Drug Deliver. Rev. 2007, 59, 491–504. [Google Scholar] [CrossRef] [PubMed]
  17. Noguchi, Y.; Wu, J.; Duncan, R.; Strohalm, J.; Ulbrich, K.; Akaike, T.; Maeda, H. Early phase tumor accumulation of macromolecules: A great difference in clearance rate between tumor and normal tissues. Jpn. J. Cancer Res. 1998, 89, 307–314. [Google Scholar] [CrossRef] [PubMed]
  18. Iyer, A.K.; Khaled, G.; Fang, J.; Maeda, H. Exploiting the enhanced permeability and retention effect for tumor targeting. Drug Discov. Today 2006, 11, 812–818. [Google Scholar] [CrossRef] [PubMed]
  19. Maeda, H.; Wu, J.; Sawa, T.; Matsumura, Y.; Hori, K. Tumor vascular permeability and the EPR effect in macromolecular therapeutics: A review. J. Control. Release 2000, 65, 271–284. [Google Scholar] [CrossRef]
  20. Lim, S.J.; Lee, M.K.; Kim, C.K. Altered chemical and biological activities of all-trans retinoic acid incorporated in solid lipid nanoparticle powders. J. Control. Release 2004, 100, 53–61. [Google Scholar] [CrossRef] [PubMed]
  21. Mehnert, W.; Mäder, K. Solid lipid nanoparticles: Production, characterization and applications. Adv. Drug Deliver. Rev. 2001, 47, 165–196. [Google Scholar] [CrossRef]
  22. Lira, A.; Araújo, A.; Basílio, I.; Santos, B.; Santana, D.; Macedo, R. Compatibility studies of lapachol with pharmaceutical excipients for the development of topical formulations. Thermochim. Acta 2007, 457, 1–6. [Google Scholar] [CrossRef]
  23. Hawkins, G.S.; Reifenrath, W.G. Influence of skin source, penetration cell fluid, and, partition coefficient on in vitro skin penetration. J. Pharm. Sci. 1986, 75, 378–381. [Google Scholar] [CrossRef] [PubMed]
  24. Wagner, H.; Kostka, K.H.; Lehr, C.M.; Schaefer, U.F. Interrelation of permeation and penetration parameters obtained from in vitro experiments with human skin and skin equivalents. J. Control. Release 2001, 75, 283–295. [Google Scholar] [CrossRef]
  25. Dick, I.P.; Scott, R.C. Pig ear skin as an in vitro model for human skin permeability. J. Pharm. Pharmacol. 1992, 44, 640–645. [Google Scholar] [CrossRef] [PubMed]
  26. Sandoval, B. Tratamiento del melasma con ácido kójico. Folia Dermatol. Peru 1999, 10, 53–56. [Google Scholar]
  27. Benavides, T.; Martinez, V.; Mitjans, M.; Infante, M.A.R.; Moran, C.; Clapés, P.; Clothier, R.; Vinardell, M.A.P. Assessment of the potential irritation and photoirritation of novel amino acid-based surfactants by in vitro methods as alternative to the animal tests. Toxicology 2004, 201, 87–93. [Google Scholar] [CrossRef] [PubMed]
  28. Kyadarkunte, A.; Patole, M.; Pokharkar, V. In Vitro Cytotoxicity and Phototoxicity Assessment of Acylglutamate Surfactants Using a Human Keratinocyte Cell Line. Cosmetics 2014, 1, 159–170. [Google Scholar] [CrossRef]
  29. Schaefer, H.; Watts, F.; Brod, J.; Illel, B. Follicular penetration. In Prediction of Percutaneous Penetration: Methods, Measurements and Modeling; IBC Technical Services: London, UK, 1990; pp. 163–173. [Google Scholar]
  30. Küchler, S.; Abdel-Mottaleb, M.; Lamprecht, A.; Radowski, M.R.; Haag, R.; Schäfer-Korting, M. Influence of nanocarrier type and size on skin delivery of hydrophilic agents. Int. J. Pharm. 2009, 377, 169–172. [Google Scholar] [CrossRef] [PubMed]
  31. Shim, J.; Kang, H.S.; Park, W.S.; Han, S.H.; Kim, J.; Chang, I.S. Transdermal delivery of mixnoxidil with block copolymer nanoparticles. J. Control. Release 2004, 97, 477–484. [Google Scholar] [CrossRef]
  32. De Vringer, T.; de Ronde, H. Preparation and structure of a water-in-oil cream containing lipid nanoparticles. J. Pharm. Sci. 1995, 84, 466–472. [Google Scholar] [CrossRef] [PubMed]
  33. Lee, A.; Tojo, K. Characterization of skin permeation of vitamin C: Theoretical analysis of penetration profiles and differential scanning calorimetry study. Chem. Pharm. Bull. 1998, 46, 174–177. [Google Scholar] [CrossRef] [PubMed]
  34. Nidhin, M.; Indumathy, R.; Sreeram, K.; Nair, B.U. Synthesis of iron oxide nanoparticles of narrow size distribution on polysaccharide templates. Bull. Mater. Sci. 2008, 31, 93–96. [Google Scholar] [CrossRef]
  35. Krause, B.; Mende, M.; Pötschke, P.; Petzold, G. Dispersability and particle size distribution of CNTs in an aqueous surfactant dispersion as a function of ultrasonic treatment time. Carbon 2010, 48, 2746–2754. [Google Scholar] [CrossRef]
  36. Schwarz, C.; Mehnert, W.; Lucks, J.; Müller, R. Solid lipid nanoparticles (SLN) for controlled drug delivery. I. Production, characterization and sterilization. J. Control. Release 1994, 30, 83–96. [Google Scholar] [CrossRef]
  37. Akhtar, N.; Pathak, K. Cavamax w7 composite ethosomal gel of clotrimazole for improved topical delivery: development and comparison with ethosomal gel. AAPS PharmSciTech 2012, 13, 344–355. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, H.; Tehrany, E.A.; Kahn, C.; Ponçot, M.; Linder, M.; Cleymand, F. Effects of nanoliposomes based on soya, rapeseed and fish lecithins on chitosan thin films designed for tissue engineering. Carbohydr. Polym. 2012, 88, 618–627. [Google Scholar] [CrossRef]
  39. Freitas, C.; Müller, R.H. Effect of light and temperature on zeta potential and physical stability in solid lipid nanoparticle (SLN™) dispersions. Int. J. Pharm. 1998, 168, 221–229. [Google Scholar] [CrossRef]
  40. Lourenco, C.; Teixeira, M.; Simões, S.; Gaspar, R. Steric stabilization of nanoparticles: Size and surface properties. Int. J. Pharm. 1996, 138, 1–12. [Google Scholar] [CrossRef]
  41. Dubes, A.; Parrot-Lopez, H.; Abdelwahed, W.; Degobert, G.; Fessi, H.; Shahgaldian, P.; Coleman, A.W. Scanning electron microscopy and atomic force microscopy imaging of solid lipid nanoparticles derived from amphiphilic cyclodextrins. Eur. J. Pharm. Biopharm. 2003, 55, 279–282. [Google Scholar] [CrossRef]
  42. Cides, L.C.; Araújo, A.A.; Santos-Filho, M.; Matos, J. Thermal behaviour, compatibility study and decomposition kinetics of glimepiride under isothermal and non-isothermal conditions. J. Therm. Anal. Calorim. 2006, 84, 441–445. [Google Scholar] [CrossRef]
  43. Nepal, P.R.; Han, H.K.; Choi, H.K. Enhancement of solubility and dissolution of Coenzyme Q10 using solid dispersion formulation. Int. J. Pharm. 2010, 383, 147–153. [Google Scholar] [CrossRef] [PubMed]
  44. Lira, A.A.; Nanclares, D.M.; Neto, A.F.; Marchetti, J. Drug-polymer interaction in the all-trans retinoic acid release from chitosan microparticles. J. Therm. Anal. Calorim. 2007, 87, 899–903. [Google Scholar] [CrossRef]
  45. Rudyanto, M.; Ihara, M.; Takasu, K.; Yoshida, M.; Poerwono, H.; Sudiana, I.K.; Indrayanto, G.; Brittain, H.G. Propylparaben: Physical Characteristics. Profiles Drug Subst. Excip. Relat. Methodol. 2003, 30, 235–269. [Google Scholar] [PubMed]
  46. Newa, M.; Bhandari, K.H.; Li, D.X.; Kwon, T.H.; Kim, J.A.; Yoo, B.K.; Woo, J.S.; Lyoo, W.S.; Yong, C.S.; Choi, H.G. Preparation, characterization and in vivo evaluation of ibuprofen binary solid dispersions with poloxamer 188. Int. J. Pharm. 2007, 343, 228–237. [Google Scholar] [CrossRef] [PubMed]
  47. Bikiaris, D.; Papageorgiou, G.Z.; Stergiou, A.; Pavlidou, E.; Karavas, E.; Kanaze, F.; Georgarakis, M. Physicochemical studies on solid dispersions of poorly water soluble drugs: Evaluation of capabilities and limitations of thermal analysis techniques. Thermochim. Acta 2005, 439, 58–67. [Google Scholar] [CrossRef]
  48. Bonina, F.; Montenegro, L.; Scrofani, N.; Esposito, E.; Cortesi, R.; Menegatti, E.; Nastruzzi, C. Effects of phospholipid based formulations on in vitro and in vivo percutaneous absorption of methyl nicotinate. J. Control. Release 1995, 34, 53–63. [Google Scholar] [CrossRef]
  49. Yokomizo, Y.; Sagitani, H. The effects of phospholipids on the percutaneous penetration of indomethacin through the dorsal skin of guinea pig in vitro. 2. The effects of the hydrophobic group in phospholipids and a comparison with general enhancers. J. Control. Release 1996, 42, 37–46. [Google Scholar] [CrossRef]
  50. Dreher, F.; Walde, P.; Walther, P.; Wehrli, E. Interaction of a lecithin microemulsion gel with human stratum corneum and its effect on transdermal transport. J. Control. Release 1997, 45, 131–140. [Google Scholar] [CrossRef]
  51. Ferderber, K.; Hook, S.; Rades, T. Phosphatidyl choline-based colloidal systems for dermal and transdermal drug delivery. J. Liposome Res. 2009, 19, 267–277. [Google Scholar] [CrossRef] [PubMed]
  52. Bentley, M.V.L.; Kedor, E.R.; Vianna, R.F.; Collett, J.H. The influence of lecithin and urea on the in vitro permeation of hydrocortisone acetate through skin from hairless mouse. Int. J. Pharm. 1997, 146, 255–262. [Google Scholar] [CrossRef]
  53. Bentley, M.V.L.; Marchetti, J.M.; Ricardo, N.; Ali-Abi, Z.; Collett, J.H. Influence of lecithin on some physical chemical properties of poloxamer gels: Rheological, microscopic and in vitro permeation studies. Int. J. Pharm. 1999, 193, 49–55. [Google Scholar] [CrossRef]
  54. Kirjavainen, M.; Urtti, A.; Valjakka-Koskela, R.; Kiesvaara, J.; Mönkkönen, J. Liposome skin interactions and their effects on the skin permeation of drugs. Eur. J. Pharm. Sci. 1999, 7, 279–286. [Google Scholar] [CrossRef]
  55. Escobar-Chavez, J.J.; Merino-Sanjuán, V.; López-Cervantes, M.; Urban-Morlan, Z.; Pinon-Segundo, E.; Quintanar-Guerrero, D.; Ganem-Quintanar, A. The tape-stripping technique as a method for drug quantification in skin. J. Pharm. Pharm. Sci. 2008, 11, 104–130. [Google Scholar] [PubMed]
  56. Herkenne, C.; Alberti, I.; Naik, A.; Kalia, Y.N.; Mathy, F.X.; Préat, V.; Guy, R.H. In vivo methods for the assessment of topical drug bioavailability. Pharm. Res. 2008, 25, 87–103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Shubar, H.M.; Mayer, J.P.; Hopfenmüller, W.; Liesenfeld, O. A new combined flow-cytometry-based assay reveals excellent activity against Toxoplasma gondii and low toxicity of new bisphosphonates in vitro and in vivo. J. Antimicrob. Chemother. 2008, 61, 1110–1119. [Google Scholar] [CrossRef] [PubMed]
  58. Agayan, R.R.; Horvath, T.; McNaughton, B.H.; Anker, J.N.; Kopelman, R. Optical manipulation of metal-silica hybrid nanoparticles. In Optical Science and Technology, Proceedings of the SPIE 49th Annual Meeting, International Society for Optics and Photonics, Denver, CO, USA, 6 August 2004; University of Michigan: Ann Arbor, MI, USA, 2004; pp. 502–513. [Google Scholar]
  59. Primo, F.L.; Bentley, M.V.; Tedesco, A.C. Photophysical studies and in vitro skin permeation/retention of Foscan®/nanoemulsion (NE) applicable to photodynamic therapy skin cancer treatment. J. Nanosci. Nanotechnol. 2008, 8, 340–347. [Google Scholar] [PubMed]
  60. Gonçalez, M.; Corrêa, M.; Chorilli, M. Skin delivery of kojic acid-loaded nanotechnology-based drug delivery systems for the treatment of skin aging. Biomed. Res. Int. 2013, 2013. [Google Scholar] [CrossRef] [PubMed]
  61. Kobayashi, Y.; Kayahara, H.; Tadasa, K.; Nakamura, T.; Tanaka, H. Synthesis of amino acid derivates of kojic acid and their tyrosinase inhibitory activity. Biosci. Biotechnol. Biochem. 1995, 59, 1745–1746. [Google Scholar] [CrossRef]
  62. Oliveira, M.B.; do Prado, A.H.; Bernegossi, J.; Sato, C.S.; Lourenço Brunetti, I.; Scarpa, M.V.; Leonardi, G.R.; Friberg, S.E.; Chorilli, M. Topical Application of Retinyl Palmitate-Loaded Nanotechnology-Based Drug Delivery Systems for the Treatment of Skin Aging. Biomed. Res. Int. 2014, 2014. [Google Scholar] [CrossRef] [PubMed]
  63. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  64. Alvarez-Román, R.; Naik, A.; Kalia, Y.; Guy, R.H.; Fessi, H. Skin penetration and distribution of polymeric nanoparticles. J. Control. Release 2004, 99, 53–62. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Not available.

Share and Cite

MDPI and ACS Style

Rigon, R.B.; Fachinetti, N.; Severino, P.; Santana, M.H.A.; Chorilli, M. Skin Delivery and in Vitro Biological Evaluation of Trans-Resveratrol-Loaded Solid Lipid Nanoparticles for Skin Disorder Therapies. Molecules 2016, 21, 116.

AMA Style

Rigon RB, Fachinetti N, Severino P, Santana MHA, Chorilli M. Skin Delivery and in Vitro Biological Evaluation of Trans-Resveratrol-Loaded Solid Lipid Nanoparticles for Skin Disorder Therapies. Molecules. 2016; 21(1):116.

Chicago/Turabian Style

Rigon, Roberta B., Naiara Fachinetti, Patrícia Severino, Maria H. A. Santana, and Marlus Chorilli. 2016. "Skin Delivery and in Vitro Biological Evaluation of Trans-Resveratrol-Loaded Solid Lipid Nanoparticles for Skin Disorder Therapies" Molecules 21, no. 1: 116.

Article Metrics

Back to TopTop
