Molecules 2016, 21(1), 107; https://doi.org/10.3390/molecules21010107

Article
An Amidochlorin-Based Colorimetric Fluorescent Probe for Selective Cu2+ Detection
Key Laboratory for Photonic and Electronic Bandgap Materials, Ministry of Education, College of Chemistry & Chemical Engineering, Harbin Normal University, Harbin 150025, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Academic Editors: Scott Reed and Marino Resendiz
Received: 5 December 2015 / Accepted: 14 January 2016 / Published: 18 January 2016

Abstract

:
The design and synthesis of selective and sensitive chemosensors for the quantification of environmentally and biologically important ionic species has attracted widespread attention. Amidochlorin p6 (ACP); an effective colorimetric and fluorescent probe for copper ions (Cu2+) in aqueous solution derived from methyl pheophorbide-a (MPa) was designed and synthesized. A remarkable color change from pale yellow to blue was easily observed by the naked eye upon addition of Cu2+; and a fluorescence quenching was also determined. The research of fluorescent quenching of ACP-Cu2+ complexation showed the detection limit was 7.5 × 10−8 mol/L; which suggested that ACP can act as a high sensitive probe for Cu2+ and can be used to quantitatively detect low levels of Cu2+ in aqueous solution. In aqueous solution the probe exhibits excellent selectivity and sensitivity toward Cu2+ ions over other metal ions (M = Zn2+; Ni2+; Ba2+; Ag+; Co2+; Na+; K+; Mg2+; Cd2+; Pb2+; Mn2+; Fe3+; and Ca2+). The obvious change from pale yellow to blue upon the addition of Cu2+ could make it a suitable “naked eye” indicator for Cu2+.
Keywords:
fluorescent probe; copper ions; chlorophyll

1. Introduction

The design and synthesis of selective and sensitive chemosensors for the quantification of environmentally and biologically important ionic species has attracted widespread attention [1]. Among ionic species, copper is one of the important pollution sources [2]. As a common heavy metal existing widely in Nature and all living organisms, an appropriate amount of copper ion is essential to living organisms because it is a key constituent of the respiratory enzyme complex cytochrome c oxidase [3]. However, excess copper ion may cause physical discomfort and sometimes life-threatening illness [4,5,6,7]. Therefore the determination of heavy metal content in living organisms and the environment is particularly important.
Because chromo- or fluoroionophores are highly effective for these determinations, given their easy handling and the simple equipment required, effort has been expended to develop optical chemosensors that selectively respond to the Cu2+ ion. Various methods have been developed in the past decades to determine Cu2+ ion content, such as spectrophotometric [8,9,10], electrochemical (EM) [11,12,13], inductively coupled plasma atomic emission spectrometric (ICP-AES) [14,15,16,17], atomic absorption spectroscopic (AAS) [18,19] and fluorescence methods [20,21,22]. Among them, the fluorescence method utilizes a specific chemical reaction between dosimeter molecules and the target species to form a fluorescent or colored product. Thus, high selectivity toward the probe is an advantage of chemodosimeters, making them useful for detecting Cu2+ ions. Meanwhile, as paramagnetic Cu(II) ion has a strong ability to quench fluorescence, recent years have seen a growing interest in the development of fluorescent probes for Cu2+ with different chemical transducers, such as rhodamine and semiconductor quantum dot-based probes [23,24,25,26,27]. Although rhodamine dyes are widely used as fluorescent probes owing to their high photostabilities, high extinction coefficients, and high fluorescent quantum yields, their structural instability in strong acid or base media (pH < 4 or pH > 9) has limited their applications [28]. Semiconductor quantum dots (QDs) have also emerged as an important class of inorganic nanomaterial that affords promising potential in the ion-detection field, yet QDs probes cannot be applied under alkaline conditions, while the morphology, size and surface defects of the nanocrystals could influence the detection sensitivity [29].
Therefore, the search for new fluorescence probes with sufficient high sensitivity and a wide application range is still an active field as well as a challenge for the analytical chemistry community. Recently, porphyrins have gained widely attention for their good photophysical properties with large Stokes shifts and relatively long excitation (>400 nm) and emission (>600 nm) wavelengths that minimize the effects of the background fluorescence [30]. A newly reported pyro-pheophorbide-a methyl ester (PPME) could selectively complex with Cu2+ ions, leading to a distinct change in its absorption spectrum as well as efficient fluorescence quenching [31]. However, the association rate between PPME and Cu2+ is very slow, and no systematic research on quantitative detection of Cu2+ has been performed. Moreover, the poor water-solubility of PPME had limited its application in sensing Cu2+ in aqueous solution, hence improving the water-solubility is necessary and desirable. In this paper, a new chlorophyll-based Cu2+ fluorescent probe, amidochlorin p6 (ACP), was designed and synthesized. (Scheme 1) Two flexible side chains with hydrophilic hydroxyl groups were introduced to improve the water-solubility of the designed molecule, while the hydroxyl groups may also serve as ligand binding sites to chelate heavy metals. ACP has large absorption, strong fluorescence and a relatively long emission wavelength in visible region, displaying high selectivity for Cu2+ in aqueous solution among the metal ions examined, with a low detection limit in a wide pH range of 1 to 12. Moreover, ACP exhibited marked fluorescence quenching upon the binding of Cu2+ ion, thus it has potential applied value for rapid detection of Cu2+ in aqueous solution.

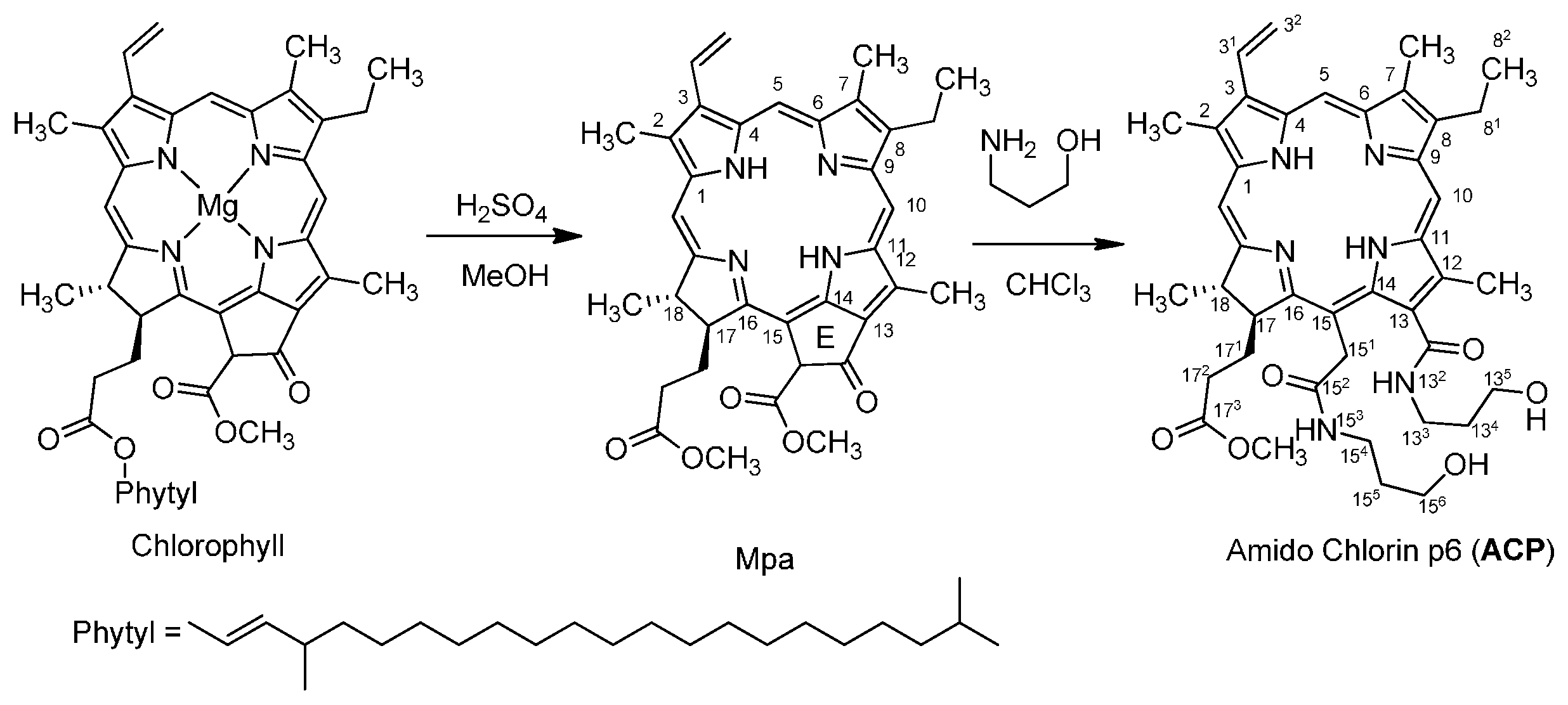

Scheme 1. The proposed synthesis of amidochlorin p6.
Scheme 1. The proposed synthesis of amidochlorin p6.
Molecules 21 00107 g008

2. Results and Discussion

2.1. Chemistry

Methyl pyropheophorbide a (Mpa) was synthesized according to the literature procedure [32]. Then propanolamine (1 mL) was introduced to Mpa through a aminolysis reaction of the methyl ester to give the title compound ACP.

2.2. Recognition of Metal Ion

To verify its metal ion sensing abilities, ACP was titrated over a wide range of metal ions, such as Cu2+, Zn2+, Ni2+, Ba2+, Ag+, Co2+, Na+, K+, Mg2+, Cd2+, Pd2+, Mn2+, Fe3+, and Ca2+. Stock 1 mM solutions of metallic ions were prepared by dissolving the appropriate salts in doubly distilled water, respectively, and then diluting to a lower concentration of 10 µM. Meanwhile, a stock 1 mM solution of ACP was also prepared in ethanol, and then diluted to a lower concentration of 10 µM. In brief, to a 10 mL volumetric flask, 100 µL of the stock solution (1 mM) of ACP was added, followed by addition of 100 µL of different metal ions stock solutions, the mixtures were diluted to lower concentrations by addition of 50% ethanol (v/v) solution. As a control, the same procedure was performed but in the absence of Cu2+.

2.3. Spectral Titration of ACP with Cu2+

Copper is a quenching metal ion and the coordination of ACP with Cu2+ would quench the fluorescence of ACP. The UV-Vis and fluorescence titration experiments of ACP with Cu2+ were performed in 50% ethanol (v/v) solution. Figure 1a shows the UV-visible absorption spectrum of ACP. ACP absorbs throughout the ultraviolet region into the visible region between about 400 and 800 nm with four peaks: a strong Soret absorption peak at 399 nm, two weak absorption peaks at 499 nm and 605.5 nm, and a Qy peak at 660.5 nm. The absorption of ACP is highly affected by the presence of Cu2+ ions. Upon addition of Cu2+ ions, the absorption intensity of Soret peak at 399 nm decreased with a little red shift, and the peak at 499 nm also decreased, with no peak shift. Meanwhile, the Qy peak gradually reduced in intensity with the formation of a new absorption peak at about 632 nm and with the formation of an isosbestic point at 652 nm. When the concentration of Cu2+ increased to the same level as ACP, the Qy peak disappeared yet the absorption intensity at 632 nm reached a maximum. The change of ACP absorption spectra demonstrated the complexation between ACP and Cu2+. The value of the shift is indicative of the degree of the interaction between the fluorophore and the bound Cu2+. To study the binding stoichiometry of ACP and Cu2+, a Job’s plot experiment was carried out by using the UV-Vis absorbance spectrum at 632 nm. Keeping the sum of the initial concentration of Cu2+ and ACP at 10 μM, increasing the concentration of Cu2+ from 0 to 1. The maximum absorbance occurred when the [Cu2+]/{[ACP]+[Cu2+]} reached at 0.5.

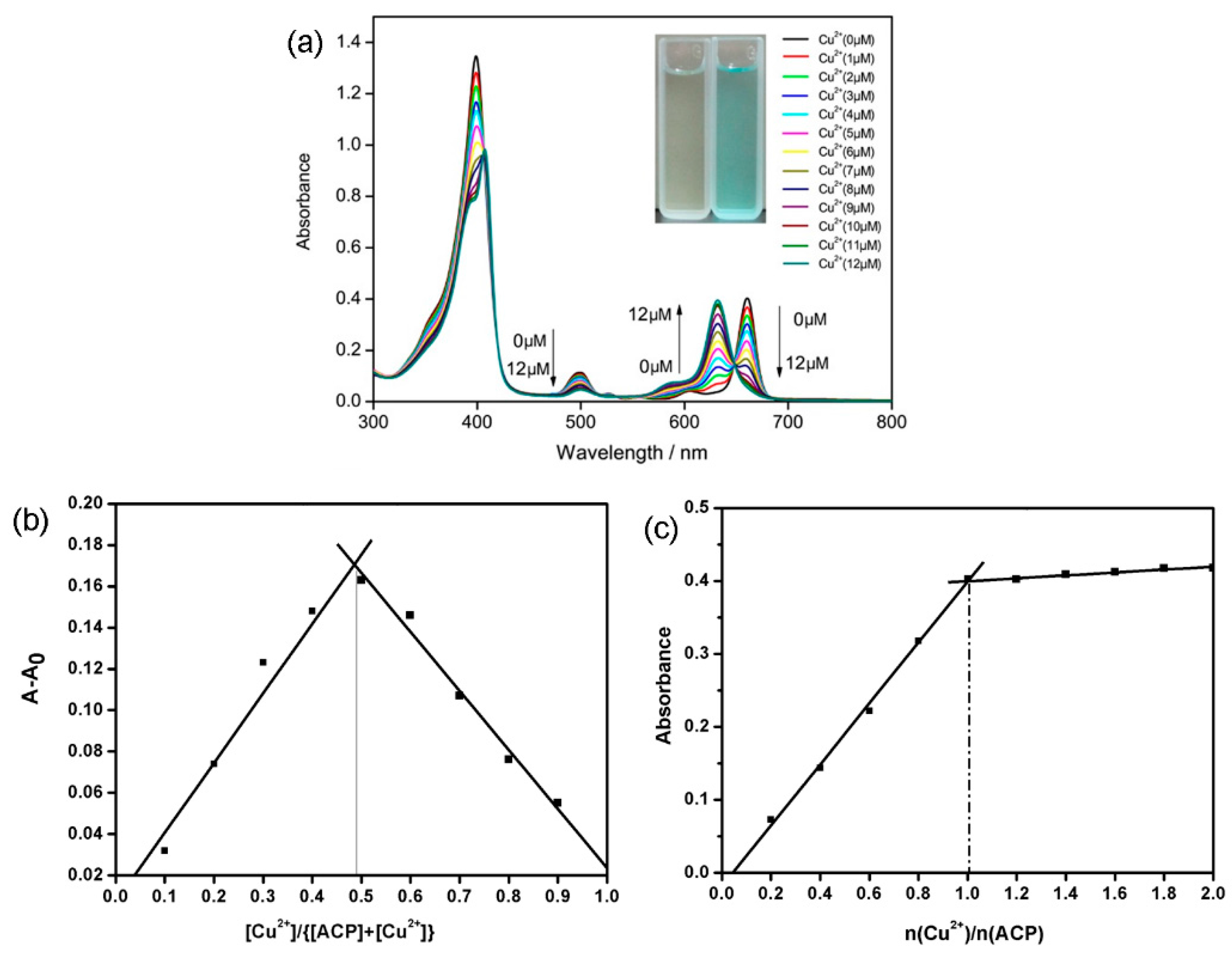

Figure 1. (a) The absorption spectrum of ACP in water/ethanol (v/v = 50/50) solution (10 µM) with added Cu2+; (b) Job’s plot according to the method for continuous variations (the total concentration of ACP and Cu2+ is 10 μM. The absorbance was measured at 632 nm; (c) Mole ratio plot for stoichiometric ratio between ACP (10 μM each) and Cu2+.
Figure 1. (a) The absorption spectrum of ACP in water/ethanol (v/v = 50/50) solution (10 µM) with added Cu2+; (b) Job’s plot according to the method for continuous variations (the total concentration of ACP and Cu2+ is 10 μM. The absorbance was measured at 632 nm; (c) Mole ratio plot for stoichiometric ratio between ACP (10 μM each) and Cu2+.
Molecules 21 00107 g001
This observation indicates that ACP and Cu2+ formed at 1:1 ratio complex. In order to verify this, the mole ratio plot for stoichiometric ratio between ACP (10 μM each) and Cu2+ was measured. As can be seen from Figure 1c, the molar ratio of ACP to Cu2+ was 1:1.
The fluorescence titration of Cu2+ was carried out using a solution of 10 µM ACP in ethanol, using 412 nm as excitation wavelength. As illustrated in Figure 2a, the fluorescence intensity of ACP decreases with increasing concentration of Cu2+, which constitutes the basis for the determination of Cu2+ with the fluorescent probe proposed in this paper. Moreover, it can be seen from Figure 2b that the fluorescence intensity at 632 nm showed a linear quenching with the increasing addition of Cu2+. The fluorescent response of ACP toward Cu2+ was calculated to cover a linear range from 1 to 10 µM. The linear equation was y = −45.66x + 546.27 (R2 = 0.999), where y is the fluorescence intensity at 668 nm measured at a given Cu2+ concentration and x is the concentration of Cu2+ added. The detection limit of Cu2+ is 7.5 × 10−8 mol/L, which is lower than the limit of Cu2+ in drinking water (~20 µM) demanded by U.S. Environmental Protection Agency. This result showed that ACP is sensitive enough to monitor the concentration of Cu2+ in drinking water.

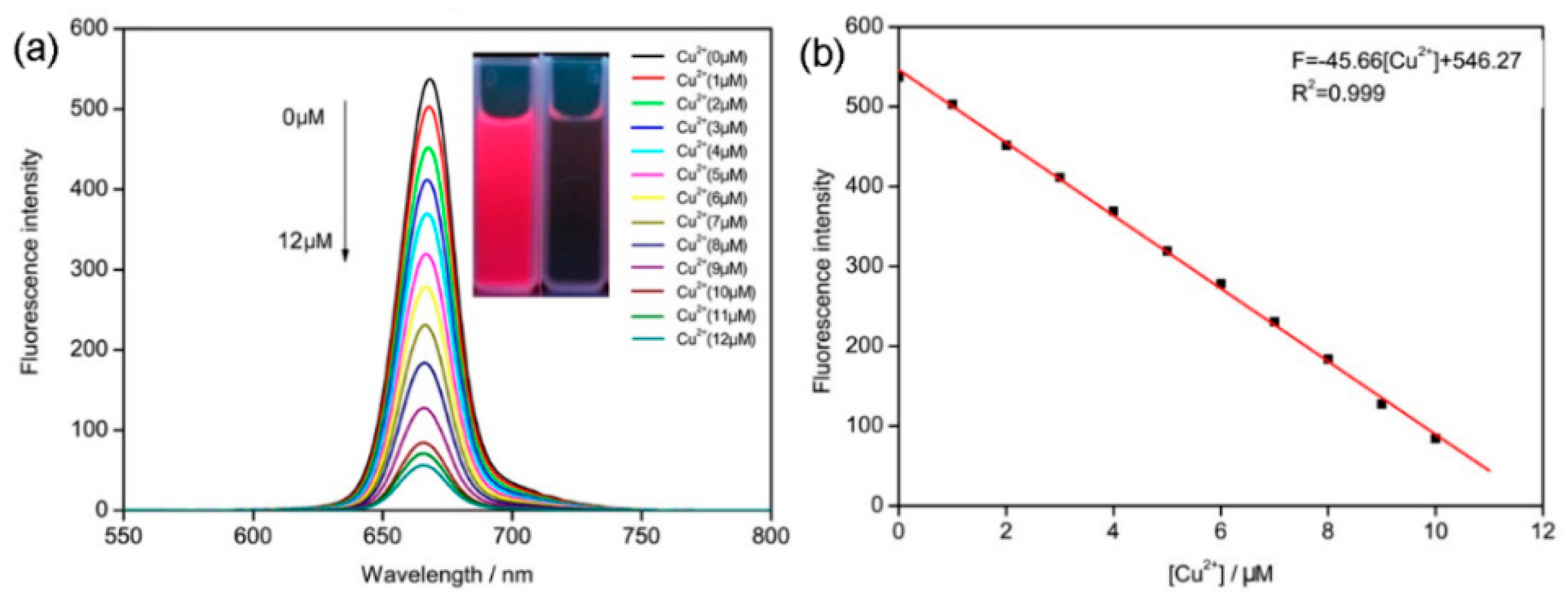

Figure 2. (a) Fluorescence spectra of [ACP-Cu2+] with emission wavelength 668 nm; (b) The relation between ACP fluorescence intensity and the concentration of Cu2+.
Figure 2. (a) Fluorescence spectra of [ACP-Cu2+] with emission wavelength 668 nm; (b) The relation between ACP fluorescence intensity and the concentration of Cu2+.
Molecules 21 00107 g002

2.4. Selectivity and Interference Studies

Selectivity is a very important parameter to evaluate the performance of a probe. Development of chemosensors with “naked eye” capability has an advantage over traditional fluorescence sensors because they do not need cumbersome labor and a sophisticated instruments [33]. The selectivity of ACP toward Cu2+ and the interference of a number of common ions with the determination of Cu2+ were investigated. The experiments were carried out by fixing the concentration of Cu2+ at 10 µM and then recording the change of the UV-Vis absorbance and fluorescence intensity before and after adding the interferent into the Cu2+ solution (Figure 3). In the presence of other tested metal ions (Zn2+, Ni2+, Ba2+, Ag+, Co2+, Na+, K+, Mg2+, Cd2+, Pd2+, Mn2+, Fe3+, and Ca2+), the UV-Vis absorbance spectra showed almost no obvious change relative to the free ligand ACP, and the absorbance of ACP was only slightly influenced by the addition of other ions (Figure 3a). When 1 equiv. of Cu2+ and selected metal ions (10 µM) was added into the solution of ACP (10 µM), many of the investigated metal ions do not interfere with detection of Cu2+. The data in Figure 4 clearly reveals that the addition of other common metal ions can hardly affect the fluorescence response of ACP towards Cu2+. There are only slight interfering effects of Mg2+ and Cd2+. These results clearly suggest that the probe ACP shows a high anti-interference ability against other potentially coexisting metal ions.
Furthermore, upon addition of the same amount of the various metal ions, respectively, only Cu2+ induced a striking color change from pale yellow to blue, as observed by the naked eye (Figure 3a). Those observations indicate that ACP has a high selectivity to Cu2+ and can be a good colorimetric sensor for Cu2+ ions. Moreover, upon addition of Cu2+ and selected metal ions (10 µM), only Cu2+ showed distinct quenching (Figure 3a,b), which suggested that ACP can be a selective fluorescent sensor for Cu2+ ions. It’s worth mentioning that upon addition of Cu2+, the color of ACP changed much faster than PPME that previously reported in the literature [31]. In brief, our proposed probe shows extraordinary selectivity to Cu2+ and could meet the selectivity requirements for biomedical and environmental applications.

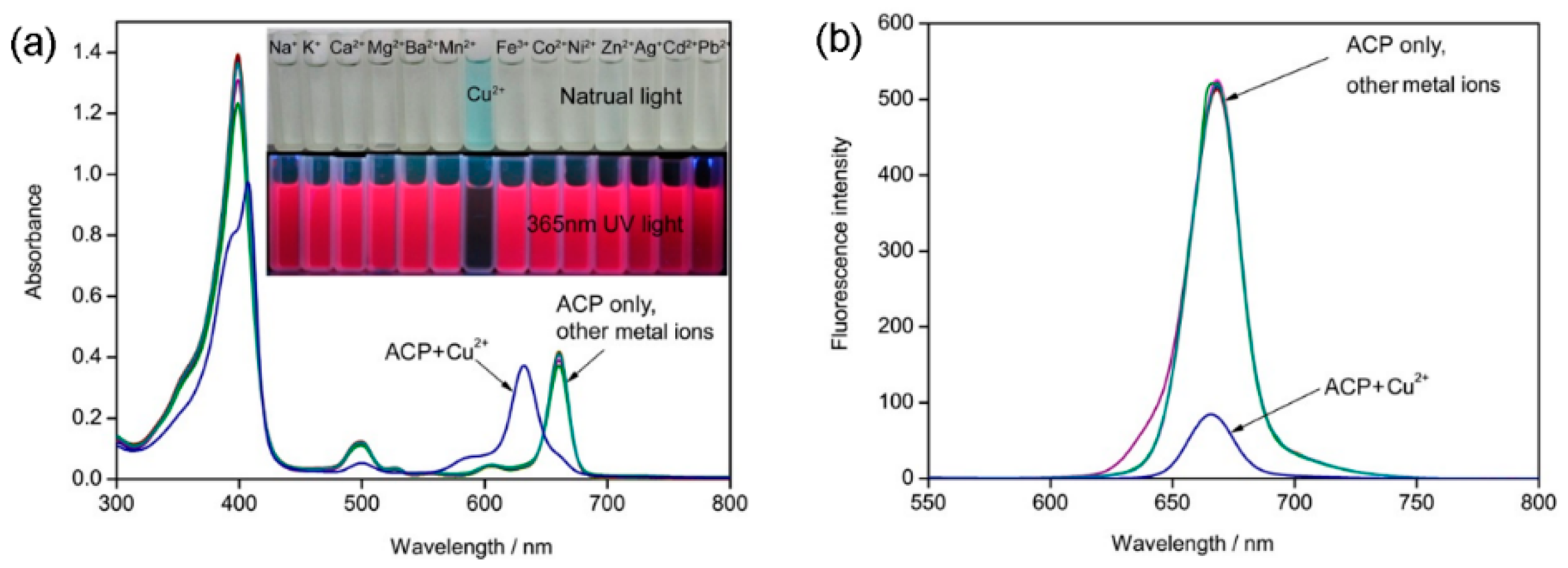

Figure 3. (a) UV-Vis absorption and (b) fluorescence emission spectra of ACP (10 µM) upon addition of various metal ions (10 µM) in water/ ethanol (v/v = 50/50) solution. The color changes of ACP (10 µM) upon addition 1 equiv. of various metal ions under natural light and UV-Vis are also displayed.
Figure 3. (a) UV-Vis absorption and (b) fluorescence emission spectra of ACP (10 µM) upon addition of various metal ions (10 µM) in water/ ethanol (v/v = 50/50) solution. The color changes of ACP (10 µM) upon addition 1 equiv. of various metal ions under natural light and UV-Vis are also displayed.
Molecules 21 00107 g003

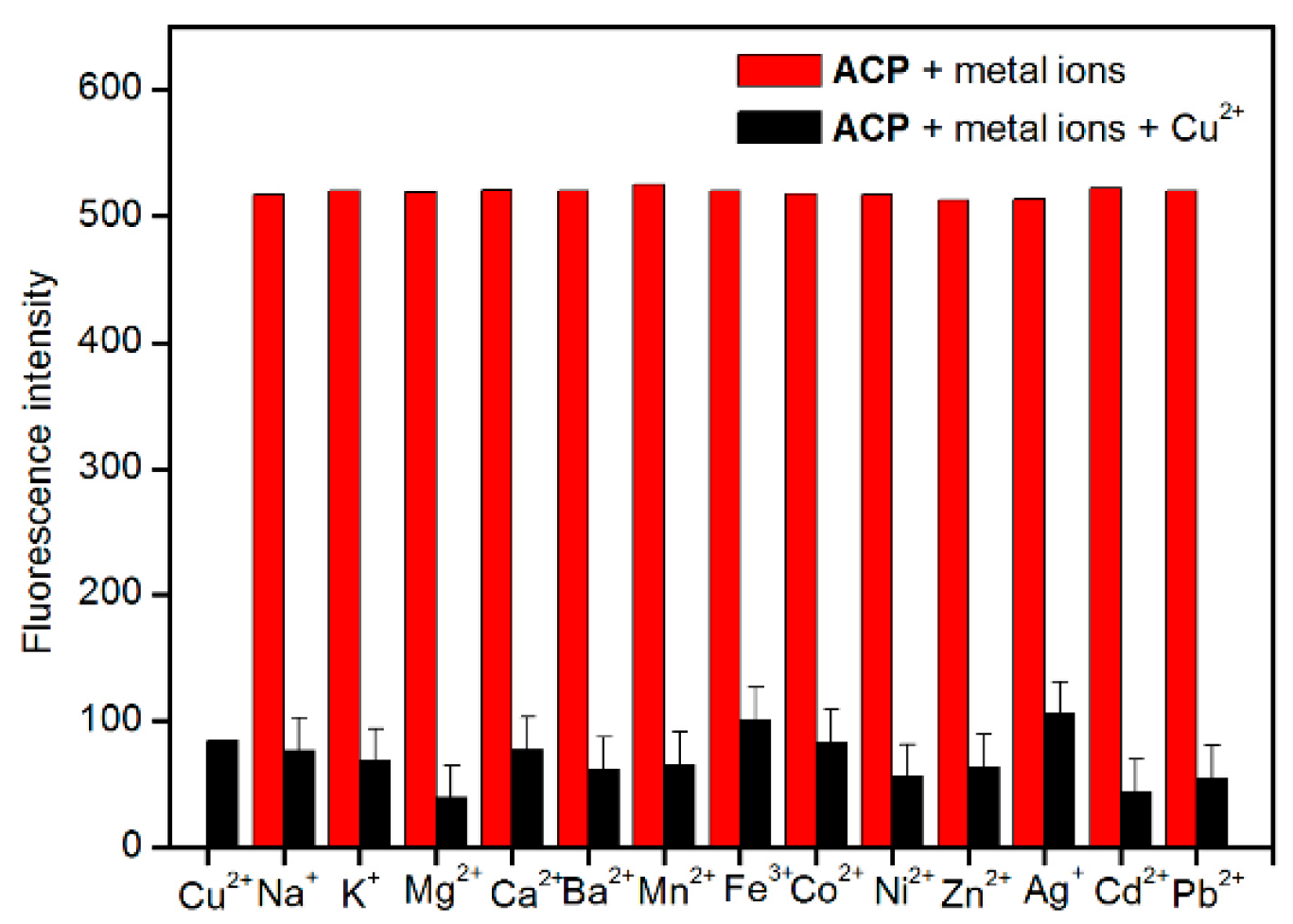

Figure 4. The relative fluorescence intensity diagram of ACP (10 μM) to different metal ions (1 equiv.). Excitation was at 412 nm, and emission was at 668 nm.
Figure 4. The relative fluorescence intensity diagram of ACP (10 μM) to different metal ions (1 equiv.). Excitation was at 412 nm, and emission was at 668 nm.
Molecules 21 00107 g004

2.5. Spike and Recovery Test

Spike and recovery test was conducted in tap water to examine whether there is any positive or negative interference in real drinking water samples. We first examined the effect of tap water on the fluorescence stability and found no quenching effect. The local tap water was filtered first through filter paper to remove any insoluble suspended solids. The recovery study was carried out on a mixture of water and ethanol (1:1, v/v) which was spiked with 2, 5 and 8 μM Cu2+. Each experiment was done in quintuplicate and the average was presented with relative standard deviation. The contents of Cu2+ were recovered using the linear equation obtained in Figure 3. The analysis results for the sample with spiked Cu2+ were given in Table 1. The result showed that the method had a good recovery at the concentration test, suggesting no serious positive or negative interferences for selectively and sensitively determining copper(II) ion in real water samples.
Table 1. Recovery test of Cu2+ in tap water 1.
Table 1. Recovery test of Cu2+ in tap water 1.
Tap Water SampleCu2+ Added (μM)Cu2+ Found (μM)RSD (%, n = 5)Recovery (%)
Sample 122.2423.75112.1
Sample 255.1981.90104.0
Sample 388.4041.43105.1
1 Values shown were the calculated mean Cu2+ for each sample.

2.6. Effect of pH

The spectroscopic characters of the probe were studied in the pH range 2–13 in sodium acetate-acetic acid buffer solution. Figure 5 shows the fluorescence response of ACP toward Cu2+ in the pH range. The fluorescence intensities of the mixture were very high in the pH range 2–4, yet the fluorescence emission (λex/em = 561/580 nm) drastically decreases in pH up to 5 and varies slightly until 11. This may be attributed to the fact that H+ and Cu2+ competitively bind to ACP in acid solutions, consequently the formation of Cu2+-ACP complexes are inhibited, thus the mixture displayed high fluorescence intensities in the pH range 2–4. Moreover, in the pH range 11–13 the mixture possess very high fluorescence emission, which is most probably due to the fact that in strongly alkaline solutions OH and ACP competitively bind to Cu2+. The more alkaline of the buffer solution is, the more liable it is to form Cu(OH)42−, and the more difficult it is to form Cu2+-ACP complexes. Therefore, the Cu2+-ACP complexes are stable only in the pH range 6–11.

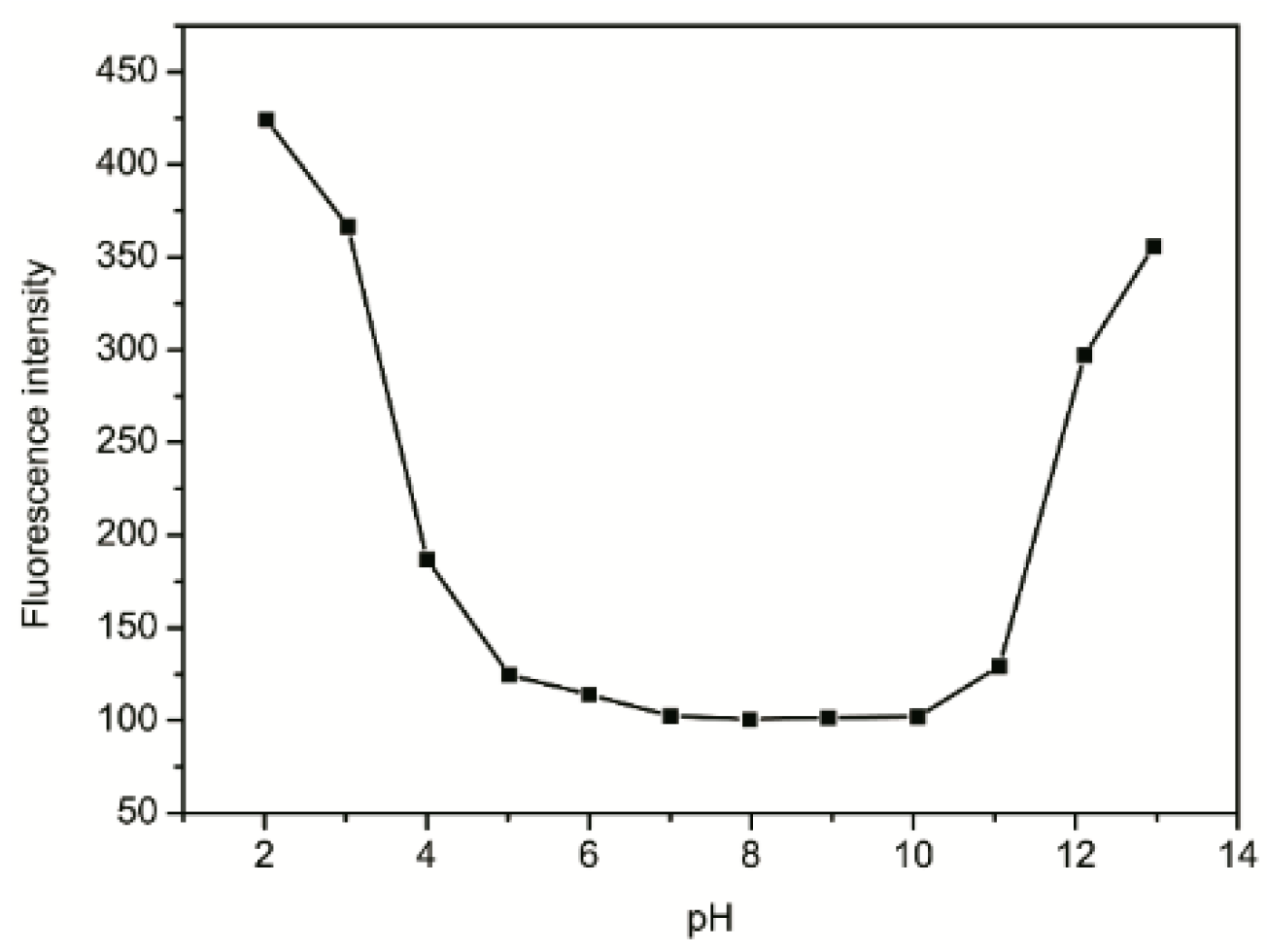

Figure 5. The effect of different pH values on the spectroscopic characteristics of Cu2+-ACP.
Figure 5. The effect of different pH values on the spectroscopic characteristics of Cu2+-ACP.
Molecules 21 00107 g005

2.7. Binding Mechanism

As a new kind of porphyrin, ACP is endowed with a cyclic π-aromatic system and exhibits unique coordination chemistry. Owing to the four pyrrole units of ACP, Cu2+ would coordinate with pyrrole N atoms in a square planar shape. We have simulated the ACP-Cu2+ complex through density functional theory (DFT) calculations with the Becke-3-Lee-Yang-Parr (B3LYP) exchange function using the Gaussian 09 package [34]. The 6-31G (d, p) basis sets were used except for Cu2+, where a LANL2DZ effective core potential (ECP) was employed. Figure 6 represents the molecular geometry optimization according to the 1:1 binding stoichiometry of ACP with the Cu2+ ion. The atom distances of N1-N3 and N2-N4 in ACP were 4.272 and 4.115 Å (Figure 6a), respectively, yet in ACP-Cu2+ complex their distances decreased to 3.999 and 3.776 Å, respectively, which can be attributed to the fact that the electron-donating N atom of pyrrole rings have high affinity to bind to Cu2+ with short bond lengths (shown in Figure 6c). Moreover, the four pyrrole rings in ACP are almost planar, yet during the formation of ACP-Cu2+ complex, the Cu2+ ions occupy the coordination center of ACP and the molecular plane was slightly contorted and metamorphosed due to the formation of coordination bonds and steric strain (Figure 6d). According to the experimental results, the ACP-Cu2+ complex exhibits an absorption at 632 nm compared with the absorption at 660.5 for ACP. This can be easily explained by the above mentioned phenomena: the introduction of Cu2+ distorts the conjugate plane of ACP molecule, and to some extent destroys the coniugated π-bond of the four pyrrole rings, thus leading to a blue-shift in the UV-visible absorption spectrum of ACP-Cu2+.
In addition, we analysed the frontier molecular orbitals (FMO’s) of bare ACP and the ACP-Cu2+ complex. This will help us to understand the quenching phenomenon upon addition of Cu2+ ions. The calculated FMO’s are shown in Figure 7.

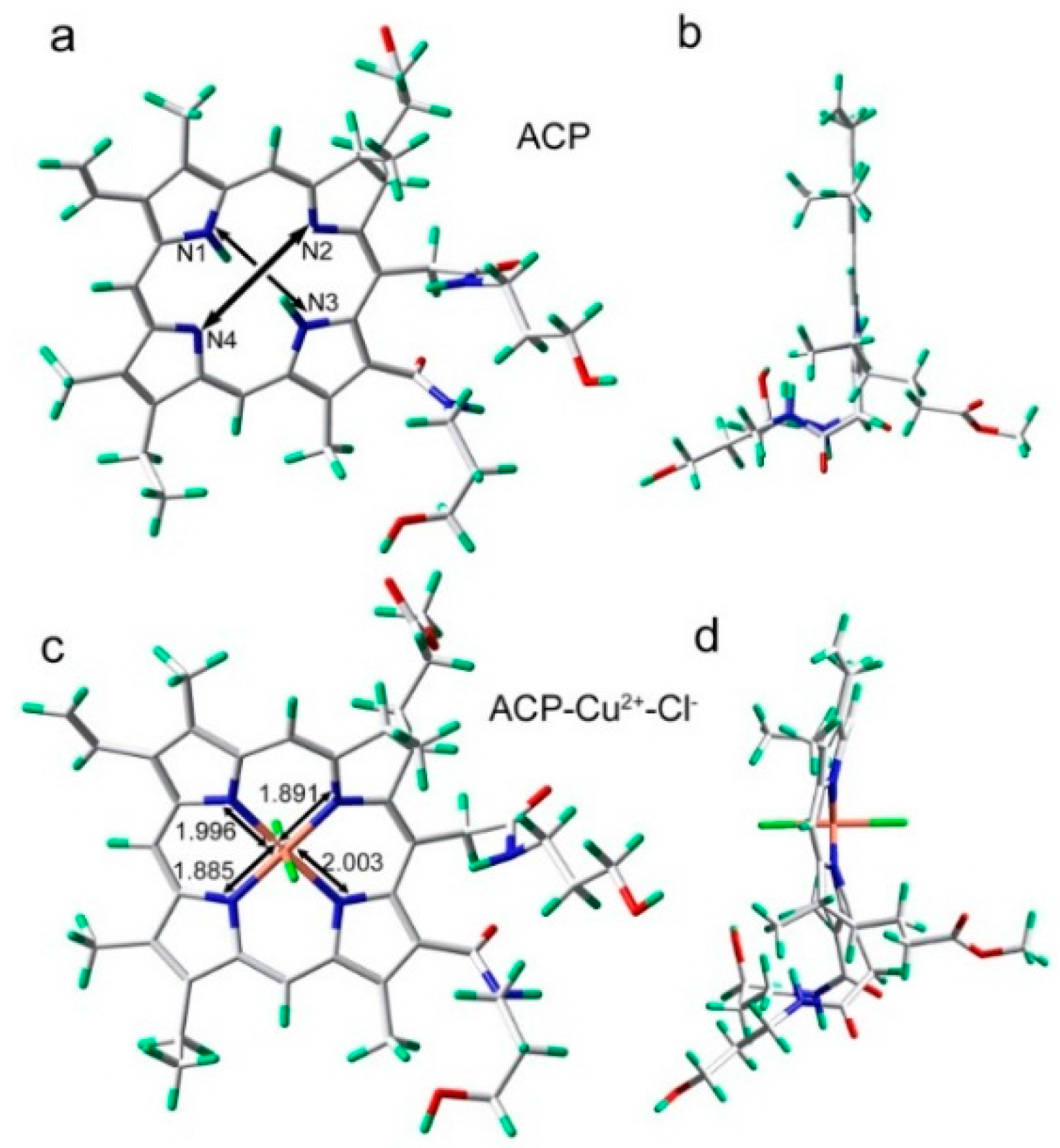

Figure 6. Energy-minimized structures by DFT calculations: (a) viewed from the front for ACP; (b) viewed from the side for ACP; (c) viewed from the front for ACP-Cu2+ complex; (d) viewed from the side for ACP-Cu2+ complex.
Figure 6. Energy-minimized structures by DFT calculations: (a) viewed from the front for ACP; (b) viewed from the side for ACP; (c) viewed from the front for ACP-Cu2+ complex; (d) viewed from the side for ACP-Cu2+ complex.
Molecules 21 00107 g006

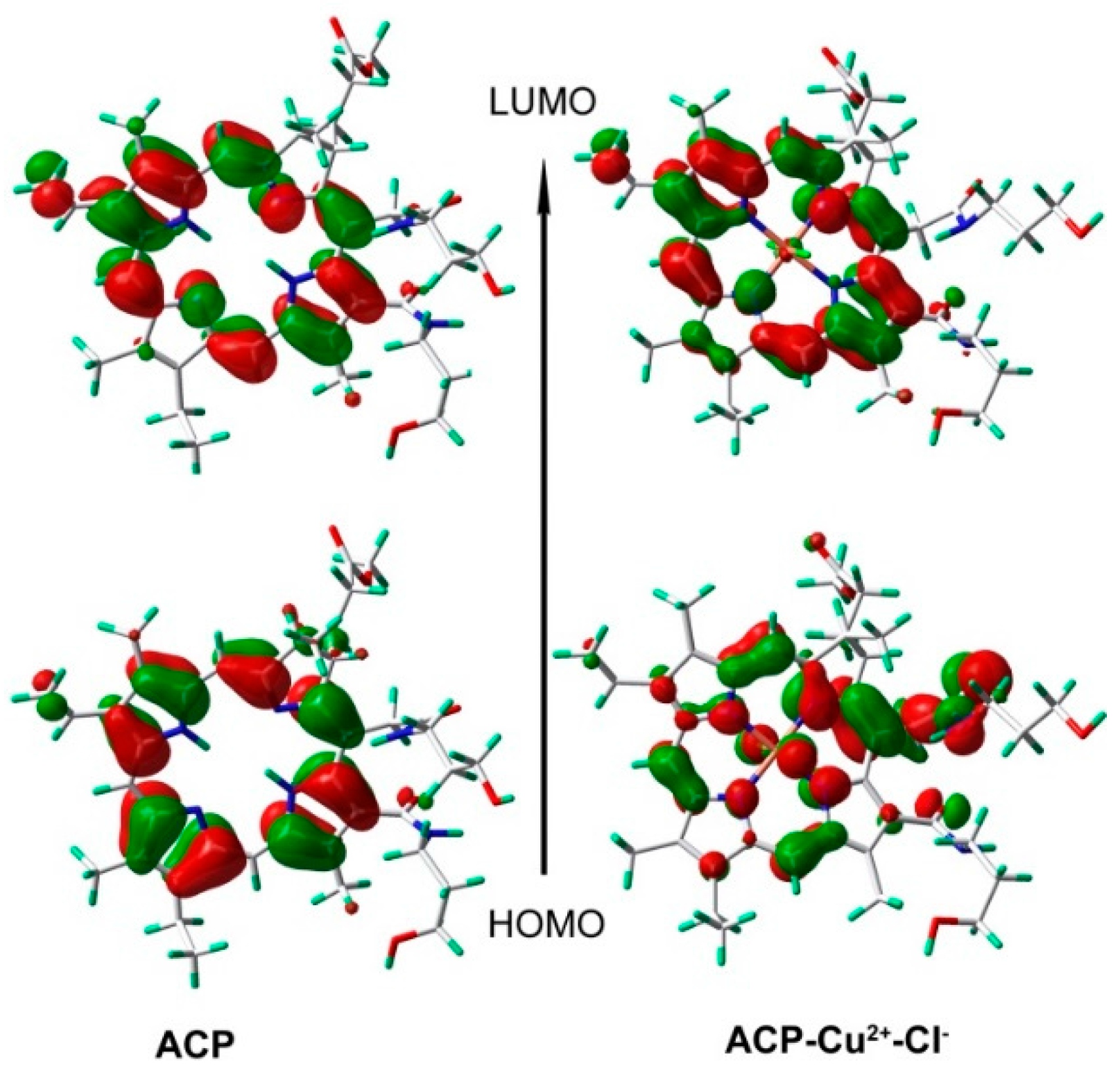

Figure 7. Frontier molecular orbitals of ACP and ACP-Cu2+ complex (1:1) obtained at B3LYP/6-31G(d, p) and B3LYP/LANL2DZ level, respectively.
Figure 7. Frontier molecular orbitals of ACP and ACP-Cu2+ complex (1:1) obtained at B3LYP/6-31G(d, p) and B3LYP/LANL2DZ level, respectively.
Molecules 21 00107 g007
In the absence of Cu2+, the solution of ACP is pale yellow and fluorescent, and from the figure it is seen that the electron density in HOMO and LUMO are both localized on the pyrrole rings, mainly involving the π-π* electronic transitions of conjugated π-bonds. Upon the addition of Cu2+ into the ACP solution, the HOMO of ACP-Cu2+ is distributed over the pyrrole rings, Cu2+ and amide in the side chain, while in the LUMO the electron density is mainly localized on the pyrrole rings. This is mainly involved in the charge-transfer (CT) from Cu2+ and amide in the side chain to the pyrrole rings. Therefore, the quenching phenomenon may be explained by two factors: one is that the coordination of Cu2+ to ACP decreases the electron-donating ability of the nitrogen atoms of ACP, and to some extent the conjugated-π bond, whereby the most important ultraviolet absorption and fluorescence were destroyed, resulting in a colour change and fluorescence quenching; the other because of the paramagnetic nature of Cu2+. These results support our expectation that ACP could serve as a sensitive fluorescent probe as well as a naked-eye probe for Cu2+.

3. Experimental Section

3.1. General Information

All chemicals used in this paper were obtained from commercial suppliers and used without further purification. Ultrapure water was used for aqueous solution preparation. All samples were prepared at room temperature and promptly used for UV-Vis and fluorescence determination. Zinc chloride (98%), copper(II) chloride dihydrate (99%), nickel(II) chloride hexahydrate (98%), barium chloride (99.5%), silver nitrate (99.8%), cobalt(II) chloride hexahydrate (90%), sodium chloride (99.5%), potassium chloride (99.5%), magnesium chloride hexahydrate (98%), cadmium chloride (99%), lead(II) nitrate (99%), ferric chloride hexahydrate (99%) and calcium chloride anhydrous (96%) were obtained from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China). All the chemical reactions were performed under argon protection and away from sunshine. 1H-NMR and 13C-NMR spectra were recorded at 400 and 100 MHz, respectively, on an AMX400 spectrometer (Bruker, Bremen, Germany) with tetramethylsilane (TMS) as an internal standard. Mass spectra were recorded with a VG-7070 spectrometer (Hitachi, Manchester, UK). UV-Vis absorption and emission spectra were recorded using a UV-160A spectrophotometer (Shimadzu, Kyoto, Japan) and spectrofluorophotometer with a 150 W xenon lamp as a visible excitation light source (RF-5301PC, Shimadzu), respectively. All measurements were made at room temperature (about 25 °C). All spectra were obtained in a quartz cuvette (path length = 1 cm). The excitation and emission slit widths were both 10 nm, and PMT voltage of 700 V. The fluorescence intensities/spectra were measured at λ ex/em = 412/668 nm.

3.2. General Procedure for Synthesis of the title Compound

Methyl pyropheophorbide a (Mpa) was synthesized according to the literature procedure [32]. Then propanolamine (1 mL) was added to a solution of Mpa (66.73 mg, 0.11 mmol) in chloroform and the reaction stirred under a nitrogen atmosphere for 24 h at rt. The reaction mixture was then concentrated, and the residue was dispersed in dichloromethane (30 mL), and then washed by water (30 mL) for three times. After drying and evaporation of the solvent, the residue was purified by silica gel chromatography with methanol: dichloromethane (1:15) as the eluent to give pure ACP (76%).1H-NMR (CDCl3) δ (ppm): 1.00~1.10 (m, 2H, 134-CH2), 1.26~1.28 (m, 2H, 155-CH2), 1.67 (t, J = 7.6 Hz, 3H, 82-CH3), 1.68 (d, J = 7.2 Hz, 3H, 18-CH3),1.73~1.81 (m, 2H, 154-CH2), 1.86~1.91 (b, 2H, 133-CH2), 2.22~2.28 (m, 2H, 172-CH2),2.41~2.45 (m, 2H, 171-CH2), 3.27 (s, 3H, 7-CH3), 3.48 (s, 3H, 2-CH3), 3.51 (s, 3H, 12-CH3), 3.68 (s, 3H, 173-OCH3), 3.72 (q, J = 3.76 Hz, 2H, 81-CH2), 3.75~3.88 (m, 4H, 135-CH2. 156-CH2), 4.31 (b, 1H, 17-H), 4.35 (q, J = 7.2 Hz, 1H, 18-H), 4.46 (d, J = 7.2 Hz, 3H, 18-CH3), 5.29 (d, J = 18.5 Hz, 1H, 15-H), 5.39 (d, J = 18.5 Hz, 1H, 15-H), 6.13 (d, J = 2.8 Hz, 1H, 32-H (Z)), 6.33 (d, J = 2.8 Hz, 1H, 32-H (E)), 7.32 (bs, 1H, 132-NH), 8.09 (dd, J1 = 6.0Hz, J2 = 11.6Hz, 1H 31-H)), 8.81 (s, 1H, 20-H), 9.62 (s, 1H, 10-H), 9.64(s, 1H, 5-H); 13C-NMR (MeOD) δ (ppm): 10.0, 11.5, 11.8, 17.8, 19.8, 23.5, 29.5, 31.8, 32.0, 33.2, 33.3, 33.9, 37.4, 38.6, 38.8, 50.4, 52.8, 54.4, 56.0, 60.4, 60.9, 70.5, 94.7, 98.9, 101.8, 103.5, 121.2, 129.5, 130.5, 130.9, 135.1, 135.6, 136.1, 136.8, 139.6, 145.3, 149.8, 154.8, 171.8, 175.1, 175.2. Anal calcd for C41H52N6O6: C 67.93, H 7.23, N 11.59; found C 67.78, H 7.46, N 11.28.

4. Conclusions

In summary, we have prepared ACP, a simple but effective colorimetric and fluorescent probe for Cu2+ detection, from methyl pheophorbide-a. It shows excellent sensitivity and selectivity for Cu2+ over other common metal ions in aqueous media. More importantly, the color change upon the addition of Cu2+ to ACP solutions could make it a suitable “naked eye” indicator for Cu2+. Meanwhile, our study of the fluorescence quenching of ACP-Cu2+ complex showed the detection limit was 7.5 × 10−8 mol/L, which suggested that ACP can act as a highly sensitive probe for Cu2+ and can be used to quantitatively detect low levels of Cu2+ in aqueous solution.

Acknowledgments

This work was supported by the National Nature Science Foundation of China (No. 20972036, 21272048) and the Program for Scientific Technological Innovation Team Construction in Universites of Heilongjiang Province (No. 211TD010). The theoretical calculations were conducted on the ScGrid and Deepcomp7000 the Supercomputing Center, Computer Network Information Center of Chinese Academy of Sciences.

Author Contributions

Yingxue Jin and Zhiqiang Wang conceived and designed the experiments; Guohua Zhu and Wenting Li performed the experiments; Guohua Zhu and Jinghua Li analyzed the data; Yingxue Jin contributed reagents/materials/analysis tools; Zhiqiang Wang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Quang, D.T.; Kim, J.S. Fluoro- and chromogenic chemodosimeters for heavy metal ion detection in solution and biospecimens. Chem. Rev. 2010, 110, 6280–6301. [Google Scholar] [CrossRef] [PubMed]
  2. Duffus, J.H. “Heavy metals” a meaningless term? (IUPAC Technical Report). Pure Appl. Chem. 2002, 74, 793–807. [Google Scholar] [CrossRef]
  3. Malvankar, P.L.; Shinde, V.M. N,N-dibromodiethylbarbituric acid as an analytical reagent. Part 1. Determination of some pharmaceutically important hydrazine derivatives. Analyst 1991, 116, 1081–1085. [Google Scholar] [CrossRef] [PubMed]
  4. Malik, A. Metal bioremediation through growing cells. Environ. Int. 2004, 30, 261–278. [Google Scholar] [CrossRef] [PubMed]
  5. Fatemi, N.; Sarkar, B. Molecular mechanism of copper transport in Wilson disease. Environ. Health Perspect. 2002, 110, 695–698. [Google Scholar] [CrossRef] [PubMed]
  6. Gaggelli, E.; Kozlowski, H.; Valensin, D.; Valensin, G. Copper homeostasis and neurodegenerative disorders (Alzheimer’s, prion, and Parkinson’s diseases and amyotrophic lateral sclerosis. Chem. Rev. 2006, 106, 1995–2044. [Google Scholar] [CrossRef] [PubMed]
  7. Lovell, M.A.; Robertson, J.D.; Teesdale, W.J.; Campbell, J.L.; Markesbery, W.R. Copper, iron and zinc in Alzheimer’s disease senile plaques. J. Neurol. Sci. 1998, 158, 47–52. [Google Scholar] [CrossRef]
  8. Säbel, C.E.; Neureuther, J.M.; Siemann, S. A spectrophotometric method for the determination of zinc, copper, and cobalt ions in metalloproteins using Zincon. Anal. Biochem. 2010, 397, 218–226. [Google Scholar] [CrossRef] [PubMed]
  9. Yamini, Y.; Tamaddon, A. Solid-phase extraction and spectrophotometric determination of trace amounts of copper in water samples. Talanta 1999, 49, 119–124. [Google Scholar] [CrossRef]
  10. DeWitt, R.; Watters, J.I. Spectrophotometric investigation of a mixed complex of copper(II) ion with oxalate ion and ethylenediamine. J. Am. Chem. Soc. 1954, 76, 3810–3814. [Google Scholar] [CrossRef]
  11. Grujicic, D.; Pesic, B. Electrodeposition of copper: the nucleation mechanisms. Electrochim. Acta 2002, 47, 2901–2912. [Google Scholar] [CrossRef]
  12. Bond, A.M.; Wallace, G.G. Simultaneous determination of copper, nickel, cobalt, chromium(VI), and chromium(III) by liquid chromatography with electrochemical detection. Anal. Chem. 1982, 54, 1706–1712. [Google Scholar] [CrossRef]
  13. Etienne, A. Electrochemical method to measure the copper ionic diffusivity in a copper sulfide scale electrochemical science—Technical papers. J. Electrochem. Soc. 1970, 117, 870–874. [Google Scholar] [CrossRef]
  14. Otero, R.J.; Moreda, P.A.; Bermejo, B.A.; Bermejo, B.P. Evaluation of commercial C18 cartridges for trace elements solid phase extraction from seawater followed by inductively coupled plasma-optical emission spectrometry determination. Anal. Chim. Acta 2005, 536, 213–218. [Google Scholar] [CrossRef]
  15. Rao, K.S.; Balaji, T.; Rao, T.P.; Babu, Y.; Naidu, G.R.K. Determination of iron, cobalt, nickel, manganese, zinc, copper, cadmium and lead in human hair by inductively coupled plasma-atomic emission spectrometry. Spectrochim. Acta B 2002, 57, 1333–1338. [Google Scholar]
  16. Murillo, M.; Benzo, Z.; Marcano, E.; Gomez, C.; Garaboto, A.; Marin, C. Determination of copper, iron and nickel in edible oils using emulsified solutions by ICP-AES. J. Anal. At. Spectrom. 1999, 14, 815–820. [Google Scholar] [CrossRef]
  17. Rahil-Khazen, R.; Bolann, B.J.; Myking, A.; Ulvik, R.J. Multi-element analysis of trace element levels in human autopsy tissues by using inductively coupled atomic emission spectrometry technique (ICP-AES). J. Trace Elem. Med. Biol. 2002, 16, 15–25. [Google Scholar] [CrossRef]
  18. Pourreza, N.; Hoveizavi, R. Simultaneous preconcentration of Cu, Fe and Pb as methylthymol blue complexes on naphthalene adsorbent and flame atomic absorption determination. Anal. Chim. Acta 2005, 549, 124–128. [Google Scholar] [CrossRef]
  19. Ghaedi, M.; Ahmadi, F.; Shokrollahi, A. Simultaneous preconcentration and determination of copper, nickel, cobalt and lead ions content by flame atomic absorption spectrometry. J. Hazard. Mater. 2007, 142, 272–278. [Google Scholar] [CrossRef] [PubMed]
  20. Aksuner, N.; Henden, E.; Yilmaz, I.; Cukurovali, A. A highly sensitive and selective fluorescent sensor for the determination of copper(II) based on a schiff base. Dyes Pigments 2009, 83, 211–217. [Google Scholar] [CrossRef]
  21. Li, Y.; Zhang, X.; Zhu, B.; Xue, J.; Zhu, Z.; Tan, W. A simple but highly sensitive and selective colorimetric and fluorescent probe for Cu2+ in aqueous media. Analyst 2011, 136, 1124–1128. [Google Scholar] [CrossRef] [PubMed]
  22. Shao, N.; Zhang, Y.; Cheung, S.M.; Yang, R.H.; Chan, W.H.; Mo, T.; Li, K.A.; Liu, F. Copper ion-selective fluorescent sensor based on the inner filter effect using a spiropyran derivative. Anal. Chem. 2005, 77, 7294–7303. [Google Scholar] [CrossRef] [PubMed]
  23. Dujols, V.; Ford, F.; Czarnik, A.W. A long-wavelength fluorescent chemodosimeter selective for Cu2+ ion in water. J. Am. Chem. Soc. 1997, 119, 7386–7387. [Google Scholar] [CrossRef]
  24. Kumar, M.; Kumar, N.; Bhalla, V.; Sharma, P.R.; Kaur, T. Highly Selective fluorescence turn-on chemodosimeter based on rhodamine for nanomolar detection of copper ions. Org. Lett. 2012, 14, 406–409. [Google Scholar] [CrossRef] [PubMed]
  25. Nose, K.; Fujita, H.; Omata, T. Chemical role of amines in the colloidal synthesis of CaSe quantum dots and their luminescence properties. Luminescence 2007, 126, 21–26. [Google Scholar]
  26. Chen, Y.F.; Rosenzweig, Z. Luminescet Cds quantum sots as selective ion probes. Anal. Chem. 2002, 74, 5132–5138. [Google Scholar] [CrossRef] [PubMed]
  27. Lee, M.H.; Kim, H.; Yoon, S.; Park, N.; Kim, J.S. Metal ion induced FRET OFF-ON in tren/dansyl-appended rhodamine. Org. Lett. 2008, 10, 213–216. [Google Scholar] [CrossRef] [PubMed]
  28. Emaus, R.K.; Grunwald, R.; Lemasters, J.J. Rhodamine 123 as a probe of transmembrane potential in isolated rat-liver mitochondria: Spectral and metabolic properties. Biochim. Biophys. Acta Bioenerg. 1986, 850, 436–448. [Google Scholar] [CrossRef]
  29. Gaponik, N.; Talapin, D.V.; Rogach, A.L.; Hoppe, K.; Shevehenko, E.V.; Kornowski, A.; Eychmuller, A.; Weller, H. Thiol-capping of CaTe nanocrystals: An altemative to organometallic synthetic routes. J. Phys. Chem. B 2002, 106, 7177–7185. [Google Scholar]
  30. Luo, H.-Y.; Zhang, X.-B.; Jiang, J.-H.; Li, C.-Y.; Peng, J.; Shen, G.-L.; Yu, R.-Q. An optode sensor for Cu2+ with high selectivity based on porphyrin derivative appended with bipyridine. Anal. Sci. 2007, 23, 551–555. [Google Scholar] [CrossRef] [PubMed]
  31. Ghosh, I.; Saleh, N.; Nau, W.M. Selective time-resolved binding of copper(II) by pyropheophorbide-amethyl ester. Photochem. Photobiol. Sci. 2010, 9, 649–654. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, J.-J.; Ji, W.-Y.; Han, G.-F.; Wu, X.-R.; Wang, L.M.; Shen, R.J. Synthesis of 3-alkyloyl-3-devinyl-methyl pyropheophorbide-a and the effect of the peripheral carbonyl groups on the 1H-NMR and the visible spectra. Acta Chim. Sin. 2004, 62, 302–311. [Google Scholar]
  33. Caballero, A.; Espinosa, A.; Taŕraga, A.; Molina, P. Ferrocene-based small molecules for dual-channel sensing of heavy- and transition-metal cations. J. Org. Chem. 2008, 73, 5489–5497. [Google Scholar] [CrossRef] [PubMed]
  34. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  • Sample Availability: Samples of the compound ACP are available from the authors.
