Molecules 2015, 20(8), 15122-15146; https://doi.org/10.3390/molecules200815122

Article
Porphyrins as Corrosion Inhibitors for N80 Steel in 3.5% NaCl Solution: Electrochemical, Quantum Chemical, QSAR and Monte Carlo Simulations Studies
1
State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Southwest Petroleum University, Chengdu 610500, Sichuan, China
2
Department of Chemistry, LFTS, Lovely Professional University, Phagwara, Punjab 144402, India
3
Department of Chemistry, Indian Institute of Technology (Banaras Hindu University), Varanasi 221005, India
4
Department of Chemistry, Faculty of Science, Obafemi Awolowo University, Ile-Ife 220005, Nigeria
5
Department of Chemistry, School of Mathematical & Physical Sciences, North-West University (Mafikeng Campus), Private Bag X2046, Mmabatho 2735, South Africa
6
Material Science Innovation & Modelling (MaSIM) Research Focus Area, Faculty of Agriculture, Science and Technology, North-West University (Mafikeng Campus), Private Bag X2046, Mmabatho 2735, South Africa
7
Center of Research Excellence in Corrosion, King Fahd University of Petroleum and Minerals, Dhahran 31261, Saudi Arabia
*
Author to whom correspondence should be addressed.
Academic Editor: Giuseppe Mele
Received: 28 June 2015 / Accepted: 30 July 2015 / Published: 18 August 2015

Abstract

:
The inhibition of the corrosion of N80 steel in 3.5 wt. % NaCl solution saturated with CO2 by four porphyrins, namely 5,10,15,20-tetrakis(4-hydroxyphenyl)-21H,23H-porphyrin (HPTB), 5,10,15,20-tetra(4-pyridyl)-21H,23H-porphyrin (T4PP), 4,4′,4″,4‴-(porphyrin-5,10,15,20-tetrayl)tetrakis(benzoic acid) (THP) and 5,10,15,20-tetraphenyl-21H,23H-porphyrin (TPP) was studied using electrochemical impedance spectroscopy (EIS), potentiodynamic polarization, scanning electrochemical microscopy (SECM) and scanning electron microscopy (SEM) techniques. The results showed that the inhibition efficiency, η% increases with increasing concentration of the inhibitors. The EIS results revealed that the N80 steel surface with adsorbed porphyrins exhibited non-ideal capacitive behaviour with reduced charge transfer activity. Potentiodynamic polarization measurements indicated that the studied porphyrins acted as mixed type inhibitors. The SECM results confirmed the adsorption of the porphyrins on N80 steel thereby forming a relatively insulated surface. The SEM also confirmed the formation of protective films of the porphyrins on N80 steel surface thereby protecting the surface from direct acid attack. Quantum chemical calculations, quantitative structure activity relationship (QSAR) were also carried out on the studied porphyrins and the results showed that the corrosion inhibition performances of the porphyrins could be related to their EHOMO, ELUMO, ω, and μ values. Monte Carlo simulation studies showed that THP has the highest adsorption energy, while T4PP has the least adsorption energy in agreement with the values of σ from quantum chemical calculations.
Keywords:
N80 steel; EIS; polarization; porphyrins; SECM; SEM; QSAR; Monte Carlo simulations; quantum chemical studies

1. Introduction

Corrosion is a major problem in oil and gas industries and many factors have to be taken into account when attempting to solve the corrosion problems facing these industries [1]. Water and carbon dioxide produced or injected into oil wells for secondary recovery purposes can cause severe corrosion of the steels in the oil well. It has been reported that approximately 60% of oilfield failures are related to CO2 corrosion, mainly due to the current inadequate predictive capability for this form of corrosion and the poor resistance of carbon and low alloy steels to this type of corrosive attack [2,3,4,5]. Steel corrosion in a CO2 environment is more worrisome than in other media because, apart from promoting uniform corrosion, CO2 also promotes localized corrosion, which is even more detrimental [1]. N80 casing steel is used for H2S exposure situations in some oil fields around the world; furthermore, the reservoir usually contains CO2, which makes the corrosion situation often more complex. N80 casing steel can resist H2S, but does not resist CO2 effectively in the reservoir. This motivated us to investigate the inhibition of corrosion of N80 casing steel in CO2-containing environments.
Inhibitors are substances which when added in small concentrations to the aggressive solutions used in industries will reduce the rate of metal corrosion [6]. Inhibitors reduce corrosion rate usually by adsorbing on the surface of the metal to form a compact protective or passive film [7]. Organic compounds that contain N, S, and O heteroatoms, especially in conjunction with aromatic or other π-electronic systems, have been found to possess excellent anticorrosion potential [8]. The porphyrin molecule, as a Lewis acid with a network of conjugated π-electron systems and four nitrogen atoms at its core, possesses the molecular frame of a potential corrosion inhibitor. It is a tetradentate chelating agent with strong bonding capability and evident ability to interact with surfaces by several physical and/or chemical mechanisms [9]. Metal-porphyrin complexes are versatile model compounds for metalloenzymes and electron transport in biological systems. Porphyrins also find numerous applications as ligands for the spectrophotometric determination of cations, stationary phases in high-pressure liquid chromatography (HPLC), biosensors, catalysis, photovoltaic cells and membrane components for ion selective electrodes [10,11,12,13]. Their applications as corrosion inhibitors for carbon steel in aqueous mineral acid have also been reported [14,15,16]. A number of reports on the corrosion inhibition properties of different porphyrin molecules have revealed that porphyrin molecules can reconfigure the electron distribution of their conjugated aromatic rings in order to create ordered molecular layers on electrode surfaces. These molecular layers serve as the protective film, which prevents the diffusion of electroactive species towards the metal surface. The adsorption of porphyrin molecules and their corrosion inhibition properties are affected by a number of factors such as peripheral functional groups, steric hindrance and electron density at donor centers [16].
Figure 1. Molecular structures of the studied porphyrins. (a) 4,4,4,4-(porphyrin-5,10,15,20-tetrayl)-tetrakis(benzoic acid (HPTB); (b) 5,10,15,20-tetra(4-pyridyl)-21H,23H-porphyrin (T4PP); (c) 5,10,15,20-tetrakis(4-hydroxyphenyl)-21H,23H-porphyrin (THP); (d) 5,10,15,20-tetraphenyl-21H,23H-porphyrin (TPP).
Figure 1. Molecular structures of the studied porphyrins. (a) 4,4,4,4-(porphyrin-5,10,15,20-tetrayl)-tetrakis(benzoic acid (HPTB); (b) 5,10,15,20-tetra(4-pyridyl)-21H,23H-porphyrin (T4PP); (c) 5,10,15,20-tetrakis(4-hydroxyphenyl)-21H,23H-porphyrin (THP); (d) 5,10,15,20-tetraphenyl-21H,23H-porphyrin (TPP).
Molecules 20 15122 g001
In the present study, four porphyrin compounds namely 4,4′,4″,4‴-(porphyrin-5,10,15,20-tetrayl)tetrakis(benzoic acid) (HPTB), 5,10,15,20-tetra(4-pyridyl)-21H,23H-porphyrin (T4PP), 5,10,15,20-tetrakis(4-hydroxyphenyl)-21H,23H-porphyrin (THP) and 5,10,15,20-tetraphenyl-21H,23H-porphyrin (TPP) were investigated for their inhibition potentials on the corrosion of N80 steel in 3.5 wt. % NaCl solution saturated with CO2. The four compounds have the same porphyrin nucleus but different substituents at positions 5, 10, 15 and 20. Therefore, the effects of benzoic acid, pyridinyl, phenolic and phenyl substituents on the corrosion inhibition properties were examined. Experimental techniques such as electrochemical impedance spectroscopy (EIS), potentiodynamic polarization, scanning electrochemical microscopy (SECM) and scanning electron microscopy (SEM) together with theoretical methods such as quantum chemical calculations, quantitative structure activity relationship (QSAR) and Monte Carlo simulation have been used to study the corrosion inhibition mechanism and determine the inhibition efficiencies of the studied porphyrins. To the best of our knowledge, the set of porphyrin compounds used in the present work has not been considered as corrosion inhibitors in any previous study. The structures of the four porphyrins used as corrosion inhibitors in the present study are shown in Figure 1.

2. Results and Discussion

2.1. EIS Measurements

Impedance spectra for N80 steel in CO2 saturated 3.5% NaCl solution in the absence and presence of different concentrations of the studied porphyrins are shown in the form of Nyquist plots (Figure 2a–d), Bode-modulus plots (Figure 3a–d) and in the phase angle-frequency plots (Figure 4a–d). The Nyquist plots contain depressed semicircles with the center under the real axis. The plots contain one capacitive loop in the high frequency (HF) zone and one inductive loop in the lower frequency (LF) zone. Such behavior is characteristic of solid electrodes often referred to as frequency dispersion and has been attributed to roughness and other inhomogeneities of solid electrode surface [8]. The LF inductive loop may be a consequence of the layer stabilization by-products of the corrosion reaction at the electrode involving inhibitor molecules and their reactive products [8,17]. As far as the inhibition process is concerned, it is generally assumed that the adsorption of the inhibitors at the metal/solution interface is the initial step in the inhibition mechanism. Considering the dependence of inhibition efficiency on inhibitor concentration as represented in Figure 1a–d, it seems likely that the inhibitor molecules adsorb on the steel surface and block the available active sites on the surface. In other words, these inhibitor molecules decrease the number of exposed active sites that could be involved in steel dissolution.

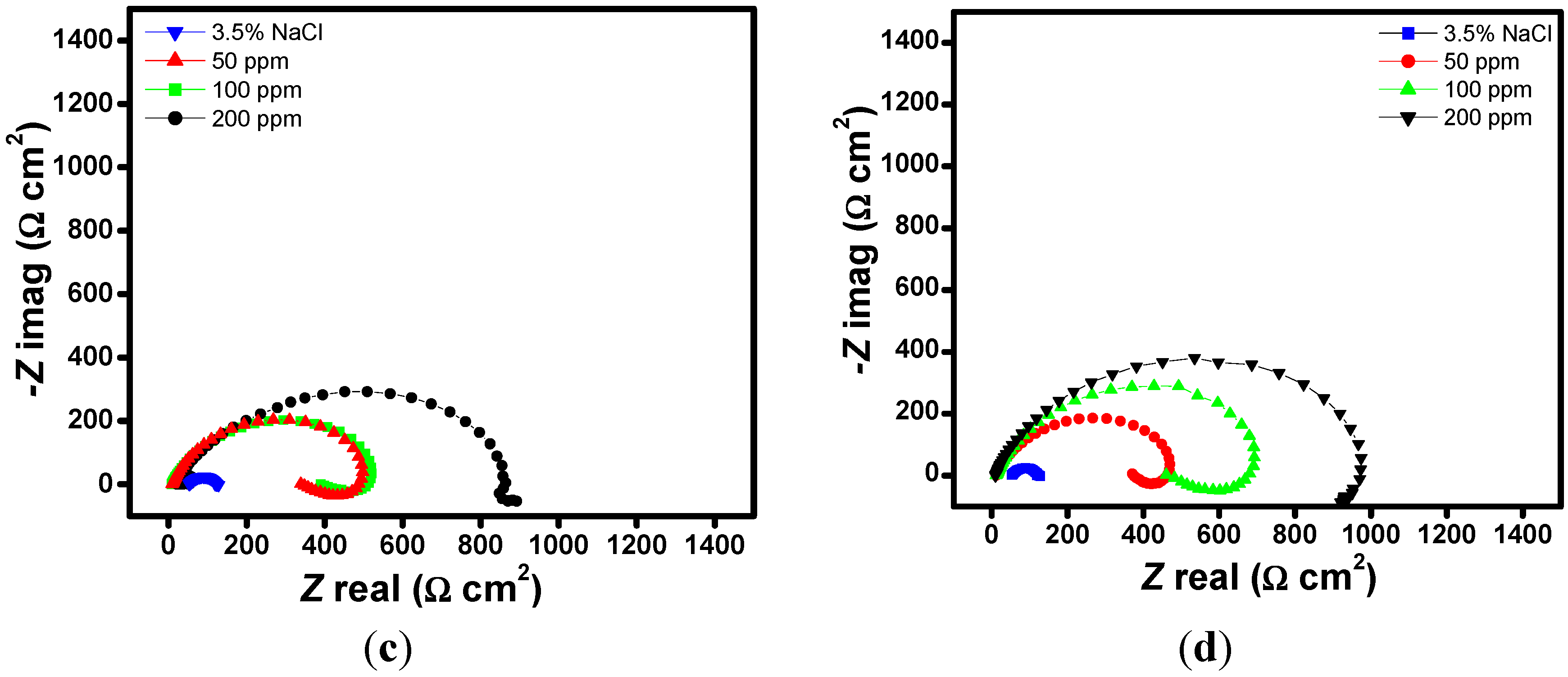

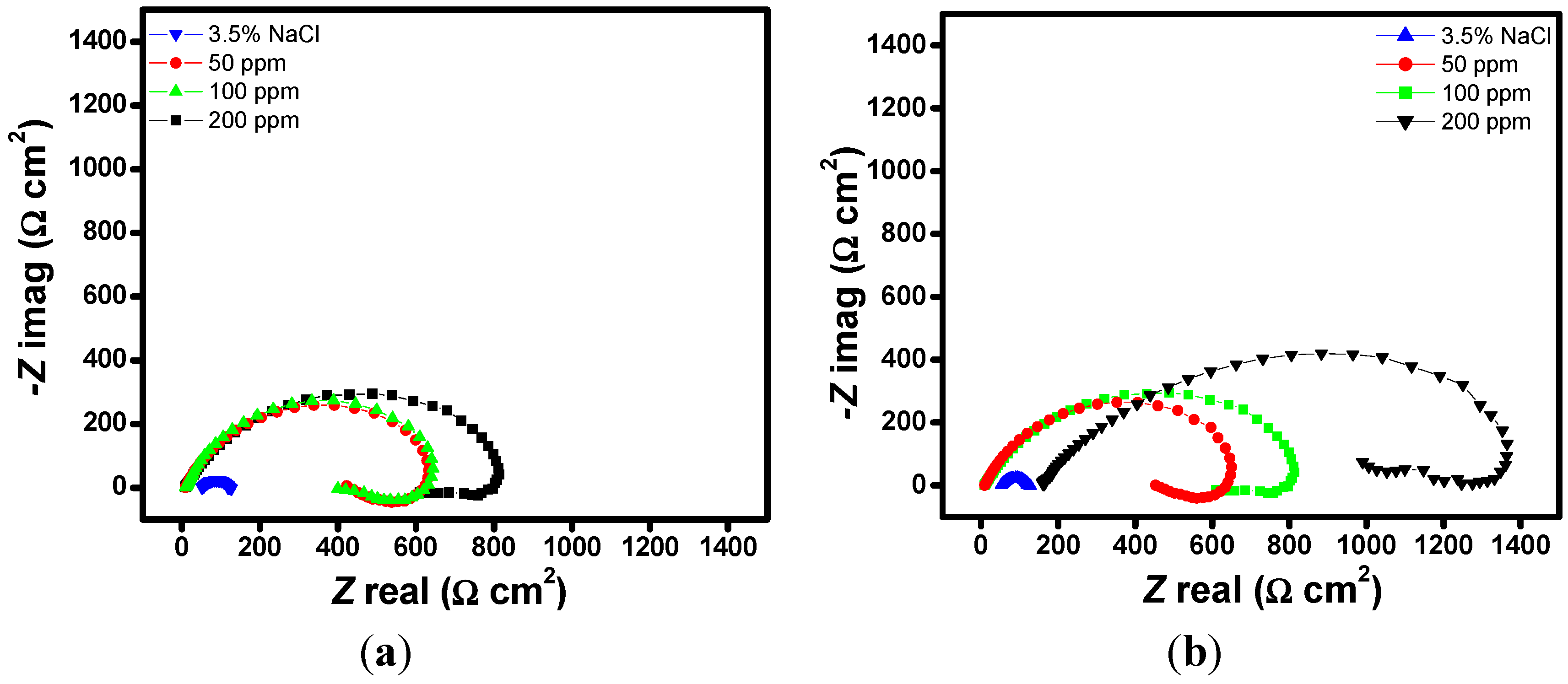

Figure 2. Nyquist plots of N80 steel in 3.5% NaCl saturated with CO2 without and with various concentrations of (a) HPTB; (b) T4PP; (c) THP and (d) TPP.
Figure 2. Nyquist plots of N80 steel in 3.5% NaCl saturated with CO2 without and with various concentrations of (a) HPTB; (b) T4PP; (c) THP and (d) TPP.
Molecules 20 15122 g002aMolecules 20 15122 g002b
Figure 3. Bode modulus plots of N80 steel in 3.5% NaCl saturated with CO2 without and with various concentrations of (a) HPTB; (b) T4PP; (c) THP and (d) TPP.
Figure 3. Bode modulus plots of N80 steel in 3.5% NaCl saturated with CO2 without and with various concentrations of (a) HPTB; (b) T4PP; (c) THP and (d) TPP.
Molecules 20 15122 g003

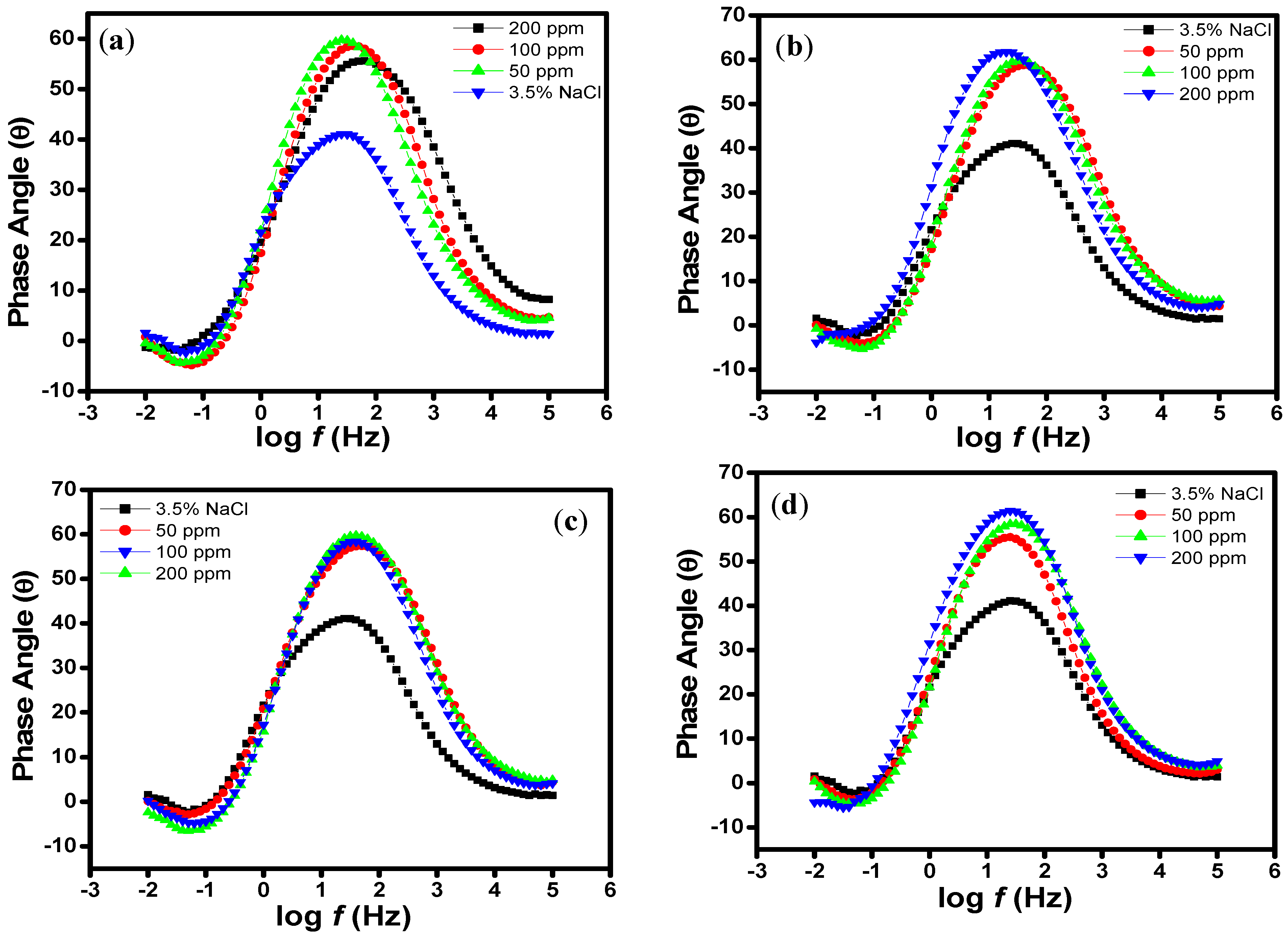

Figure 4. Bode phase angle plots of N80 steel in 3.5% NaCl saturated with CO2 without and with various concentrations of (a) HPTB; (b) T4PP; (c) THP and (d) TPP.
Figure 4. Bode phase angle plots of N80 steel in 3.5% NaCl saturated with CO2 without and with various concentrations of (a) HPTB; (b) T4PP; (c) THP and (d) TPP.
Molecules 20 15122 g004
The Nyquist and Bode plots showed typical one time constants with a single negative slope and single inflection in Bode plots. The impedance spectra for 3.5% NaCl solution was analyzed by fitting to the equivalent circuit model of the form in Figure 5a at one time constant, which has been successfully used elsewhere to describe iron/acid interface [18,19]. In this equivalent circuit, Rs is the solution resistance, Rct is the charge transfer resistance, and CPE is a constant phase element. The Nyquist plots of the inhibitor containing systems were analyzed by another equivalent circuit model having inductance (L) in addition to Rs, Rct and CPE as shown in Figure 5b. The presence of L in the impedance spectra in the presence of investigated inhibitors indicated that the dissolution of iron occurred by direct charge transfer at the inhibitor adsorbed electrode surface. The double-layer capacitance on real cells often behave like a CPE rather than a pure capacitor due to roughness, porosity or inhomogeneity of the surface. The CPE is often used in an equivalent circuit in place of capacitance in order to ensure a more accurate curve fitting [20]. The capacitance associated with the CPE can be expressed as [21,22,23,24]:
Z C P E = ( Y o R c t 1 n ) 1 n
where, Yo is the CPE constant (in Ω−1·sn·cm−2), j is the square root of −1, and n is the phase shift, which can be used as a gauge of the heterogeneity or roughness of the surface. The CPE can be expressed by the values of n, such that for resistance (n = 0, Y = R), capacitance (n = 1, Y = C), inductance (n = −1, Y = L) or Warburg impedance (n = 0.5, Y = W). The low values of the associated chi-square indicate that the circuit was able to fit the experimental data accurately. The impedance parameters such as solution resistance (Rs), charge transfer resistance (Rct), n, L and inhibition efficiency, η% are listed in Table 1. The values of η% were calculated using the equation:
η % = R ct,i R ct,0 R ct,i × 100
where, Rct,i and Rct,0 are charge transfer resistances in the presence and absence of the inhibitor, respectively. The values of the charge transfer resistance in the presence of the inhibitors are generally larger than that of the uninhibited system (Table 1). This implies that the corrosion rate is reduced in the presence of the inhibitors due to decrease in the area of active surface necessary for corrosion reaction [25,26]. It is clear from Table 1 that the greatest inhibition effect was observed at 200 ppm of T4PP with Rct = 1356 Ω·cm2. The decreasing order of the Rct values at 200 ppm is T4PP > TPP > THP > HPTB, which implies that the T4PP shows the highest resistance to the kinetics of charge transfer process associated with the corrosion reaction. For all the porphyrins studied, the inhibition efficiency increases with increasing concentration. In other words, the surface coverage of the inhibitors increases with increasing concentration. The trend of the values on n before and after the addition of the inhibitors also confirms the formation of protective films of the porphyrins on the N80 steel surface. This is because the values of n in the presence of inhibitors are generally higher than that of the uninhibited system. The lower n value for uninhibited solution (n = 0.616) can be attributed to surface inhomogeneity resulting from polishing scratches and/or corrosion products. The values of n lie between 0.722 and 0.864 for the inhibitor containing systems, which implies a reduction in surface inhomogeneity due to the adsorption of inhibitor molecules on the N80 steel surface [27,28,29,30].
The Bode plots also provide information about the capacitive and resistive behaviour of an electrochemical system. At intermediate frequencies (S), log |Z| vs. log f with slope values between −0.487 and −0.812 (close to −1), and the phase angle values for blank 3.5% NaCl (−31.4°), HPTB 200 ppm (−58.4°), T4PP 200 ppm (−57.3°), THP 200 ppm (−59.6°) and TPP 200 ppm (−60.5°) were observed (Table 2). These responses are characteristics of non-ideal capacitive behavior at intermediate frequencies. An ideal capacitive behavior would result in a slope of −1 and a phase angle of −90° [31,32]. Though the initial stage of immersion is usually marked with gradual approach of S and α to the ideal capacitive values, which may be associated with the reduction in the rate of metal dissolution with time. In this work, the faster attainment of steady state of S and α and their closer values to −1 and −90° respectively in the presence of inhibitors is another indication of the adsorption of the inhibitors on the steel surface [33].

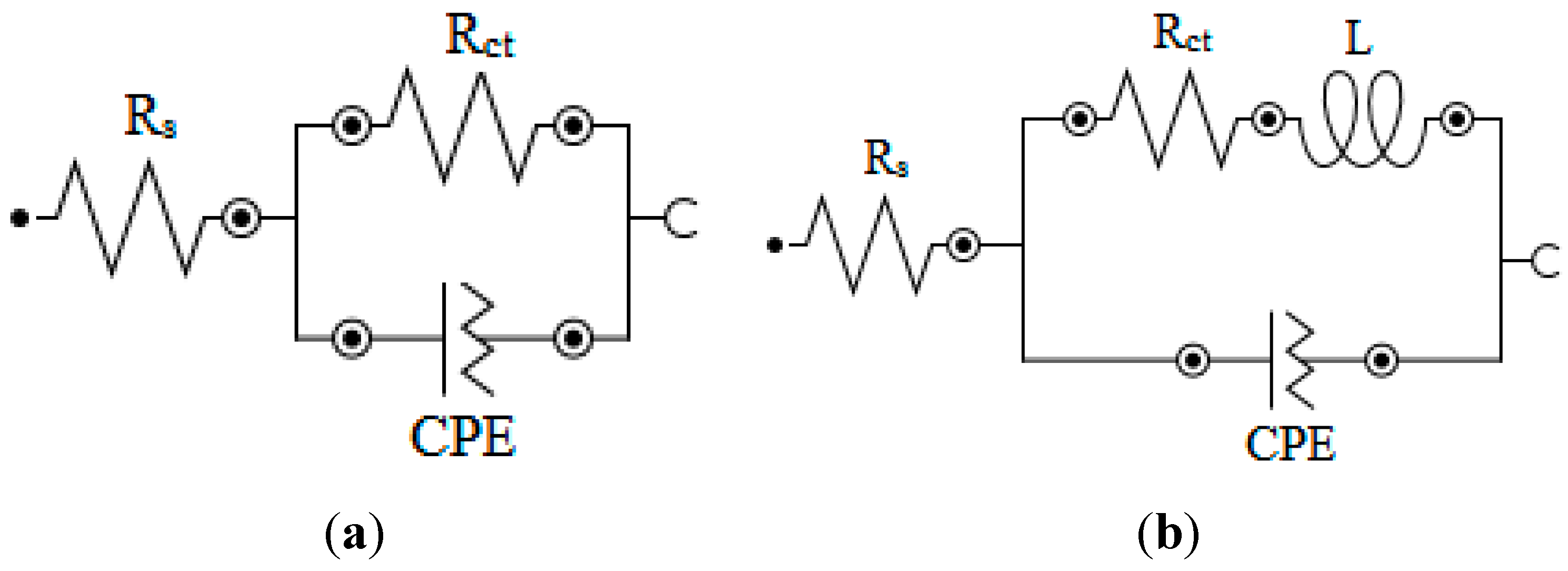

Figure 5. Equivalent circuits employed for the fitting of impedance spectra of N80 steel in 3.5% NaCl saturated with CO2 (a) without the inhibitors (b) with inhibitors.
Figure 5. Equivalent circuits employed for the fitting of impedance spectra of N80 steel in 3.5% NaCl saturated with CO2 (a) without the inhibitors (b) with inhibitors.
Molecules 20 15122 g005
Table 1. Electrochemical impedance parameters for N80 steel in 3.5% NaCl solution saturated with CO2 in without and with various concentrations of the studied porphyrins.
Table 1. Electrochemical impedance parameters for N80 steel in 3.5% NaCl solution saturated with CO2 in without and with various concentrations of the studied porphyrins.
Aggressive SolutionsRs (Ω·cm2)Rct (Ω·cm2)nYo−1·sn·cm-2)L (H·cm2)Chiη%
3.5% NaCl10.01210.616129330.0006-
HPTB 50 ppm1.46000.72895200.001180
HPTB 100 ppm1.16220.81899280.000381
HPTB 200 ppm1.88180.858102220.000785
T4PP 50 ppm1.96120.722116220.000980
T4PP 100 ppm1.37430.82778190.001384
T4PP 200 ppm1.713560.86443240.000791
THP 50 ppm1.74950.78888130.000876
THP 100 ppm1.05250.834101140.000677
THP 200 ppm1.98790.8389400.001286
TPP 50 ppm1.84290.816102140.000872
TPP 100 ppm1.26340.82093270.000881
TPP 200 ppm1.49860.82599210.001488
Table 2. The slopes of the Bode modulus plots at intermediate frequencies (S) and the maximum phase angles (α) of the Bode phase angle plots for N80 steel in 3.5% NaCl solution saturated with CO2 in absence and presence of porphyrins.
Table 2. The slopes of the Bode modulus plots at intermediate frequencies (S) and the maximum phase angles (α) of the Bode phase angle plots for N80 steel in 3.5% NaCl solution saturated with CO2 in absence and presence of porphyrins.
Aggressive SolutionS−α (°)
3.5% NaCl0.48731.4
HPTB (200 ppm)0.80858.4
T4PP (200 ppm)0.74557.3
THP (200 ppm)0.72359.6
TPP (200 ppm)0.81260.5

2.2. Polarization Measurements

Potentiodynamic polarization curves for N80 steel at various concentrations of porphyrins in CO2-saturated 3.5% NaCl solution are shown in Figure 6a–d. Electrochemical kinetic parameters such as the corrosion current density (Icorr), cathodic and anodic Tafel slopes (bc and ba respectively) were calculated by extrapolating the Tafel regions of the curves to the corrosion potential (Ecorr) and the inhibition efficiency, η% was calculated using the equation:
η % = ( I corr 0 I corr i I corr 0 ) × 100
where I°corr and Iicorr are the corrosion current density values without and with inhibitor respectively. The results are listed in Table 3.
It has been reported in the literature that a displacement in Ecorr greater than 85 mV with respect to Ecorr of the blank implies that the inhibitor can act as a cathodic or anodic type, while a displacement in Ecorr less than 85 mV implies that the inhibitor is mixed type in action [34,35]. In the present study, the maximum shift in Ecorr values is ±20 mV with relatively large change in the bc suggesting that porphyrins act as mixed type inhibitors but predominantly cathodic [36,37]. The value of Icorr decreases with increasing concentration of the inhibitors indicating that the inhibition efficiency increases with increase in concentration of the inhibitors.

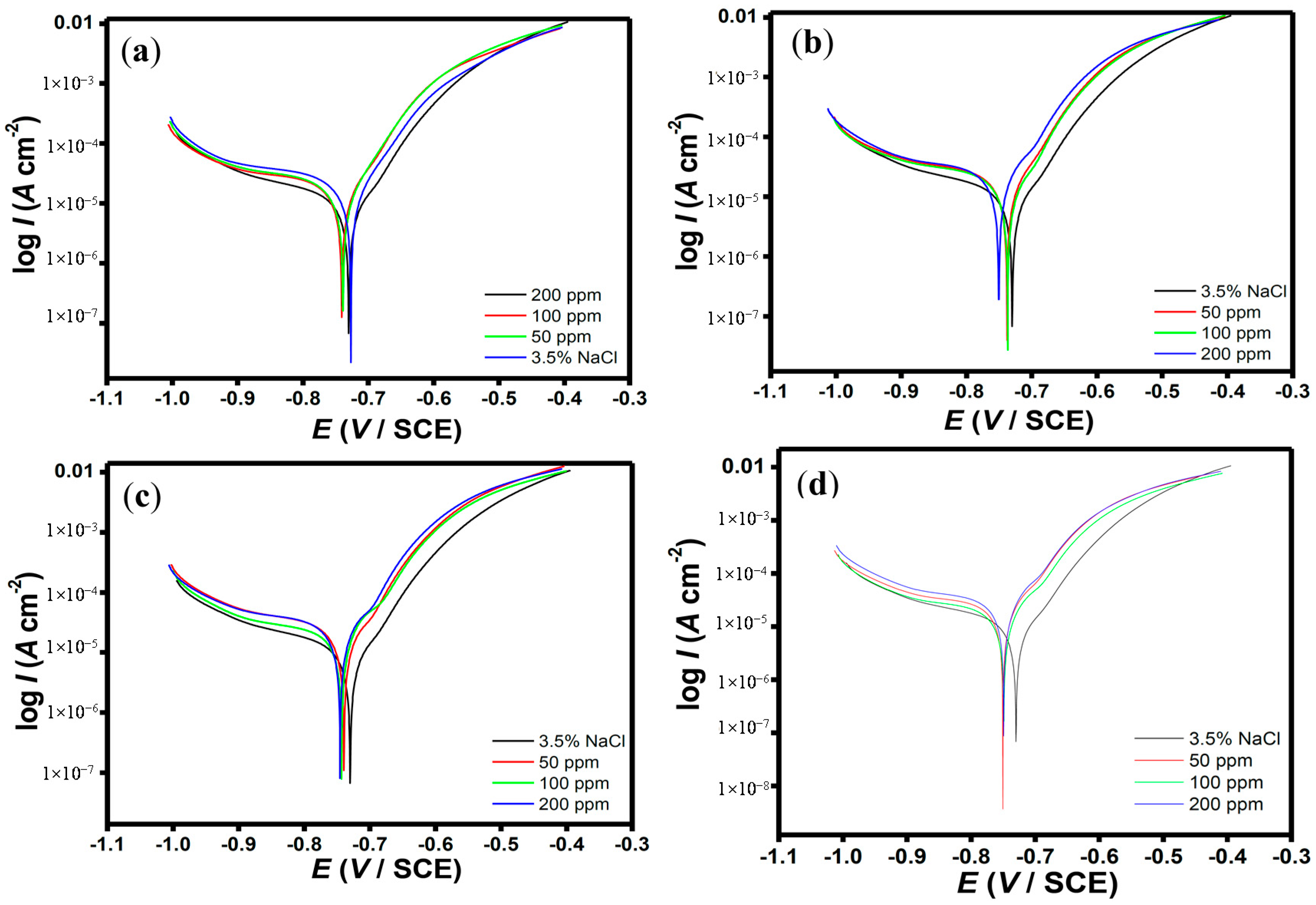

Figure 6. Potentiodynamic polarization curves of N80 steel in 3.5% NaCl saturated with CO2 without and with various concentrations of (a) HPTB; (b) T4PP; (c) THP and (d) TPP.
Figure 6. Potentiodynamic polarization curves of N80 steel in 3.5% NaCl saturated with CO2 without and with various concentrations of (a) HPTB; (b) T4PP; (c) THP and (d) TPP.
Molecules 20 15122 g006
Table 3. Tafel parameters for N80 steel in 3.5% NaCl solution saturated with CO2 in without and with various concentrations of the studied porphyrins.
Table 3. Tafel parameters for N80 steel in 3.5% NaCl solution saturated with CO2 in without and with various concentrations of the studied porphyrins.
Aggressive Solutions−Ecorr (mV vs. SCE)Icorr (µA·cm−2)ba (mV/dec)bc (mV/dec)η%
3.5% NaCl73060.7769214-
HPTB 50 ppm74049.637640318
HPTB 100 ppm74231.199058349
HPTB 200 ppm73211.0810585482
T4PP 50 ppm73844.686728526
T4PP 100 ppm73733.026831946
T4PP 200 ppm7509.136928285
THP 50 ppm73939.286621135
THP 100 ppm74528.776520353
THP 200 ppm74612.177230780
TPP 50 ppm74946.247122424
TPP 100 ppm74938.499048337
TPP 200 ppm75010.0311390884

2.3. Scanning Electrochemical Microscopy (SECM)

The surface morphologies of the specimens visualized by SECM are shown in Figure 7. Prior to each SECM experiment, the distance between the tip and the sample was established by approach curve measurement performed above the insulating part of the sample at −0.70 V. The status of corroded sample was studied by monitoring the probe (tip potential: 0.5 V vs. Ag/AgCl, saturated KCl) and the substrate (tip potential: −0.7 V) in test solutions. Similar approach has been successfully applied and reported elsewhere [38].

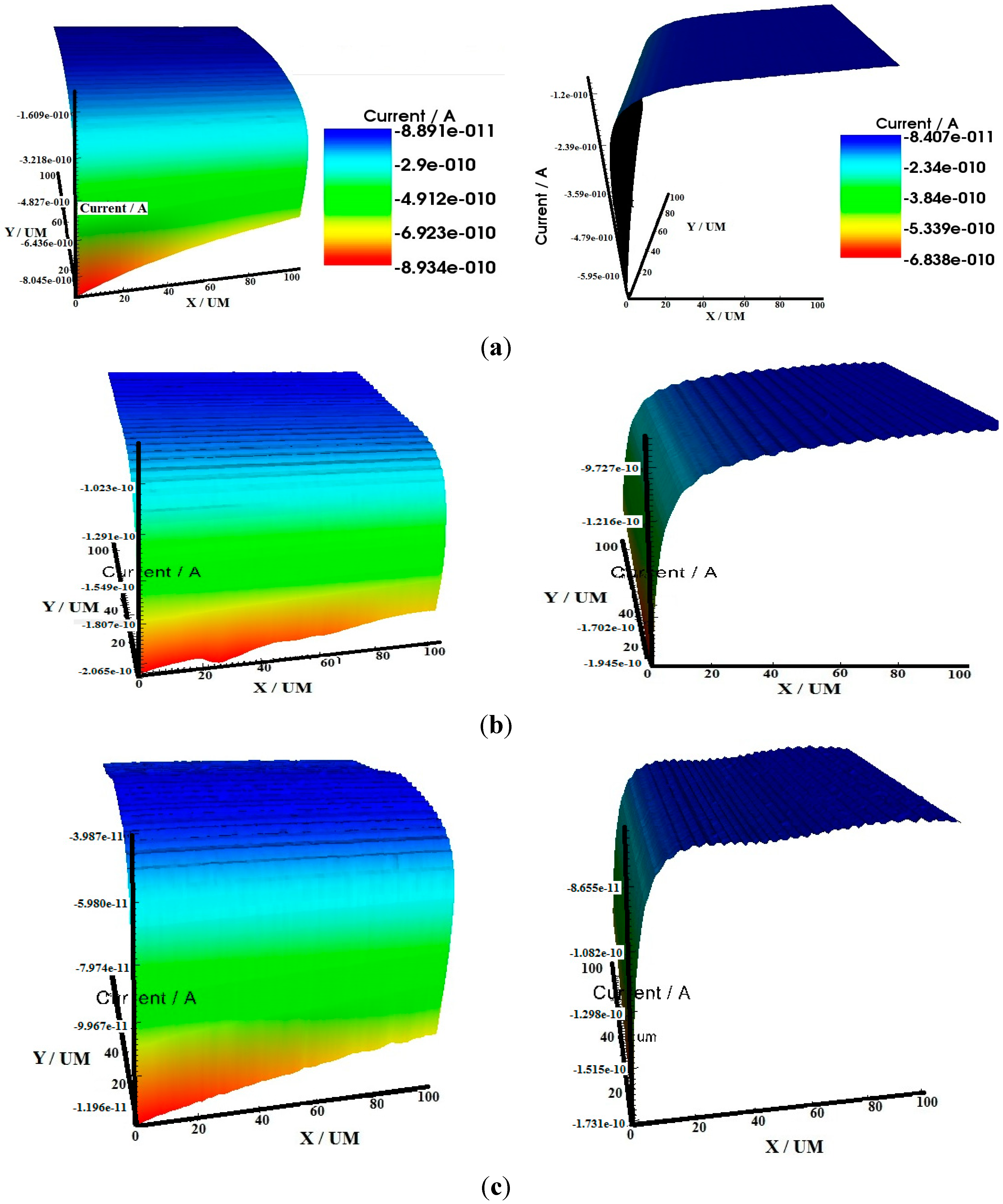

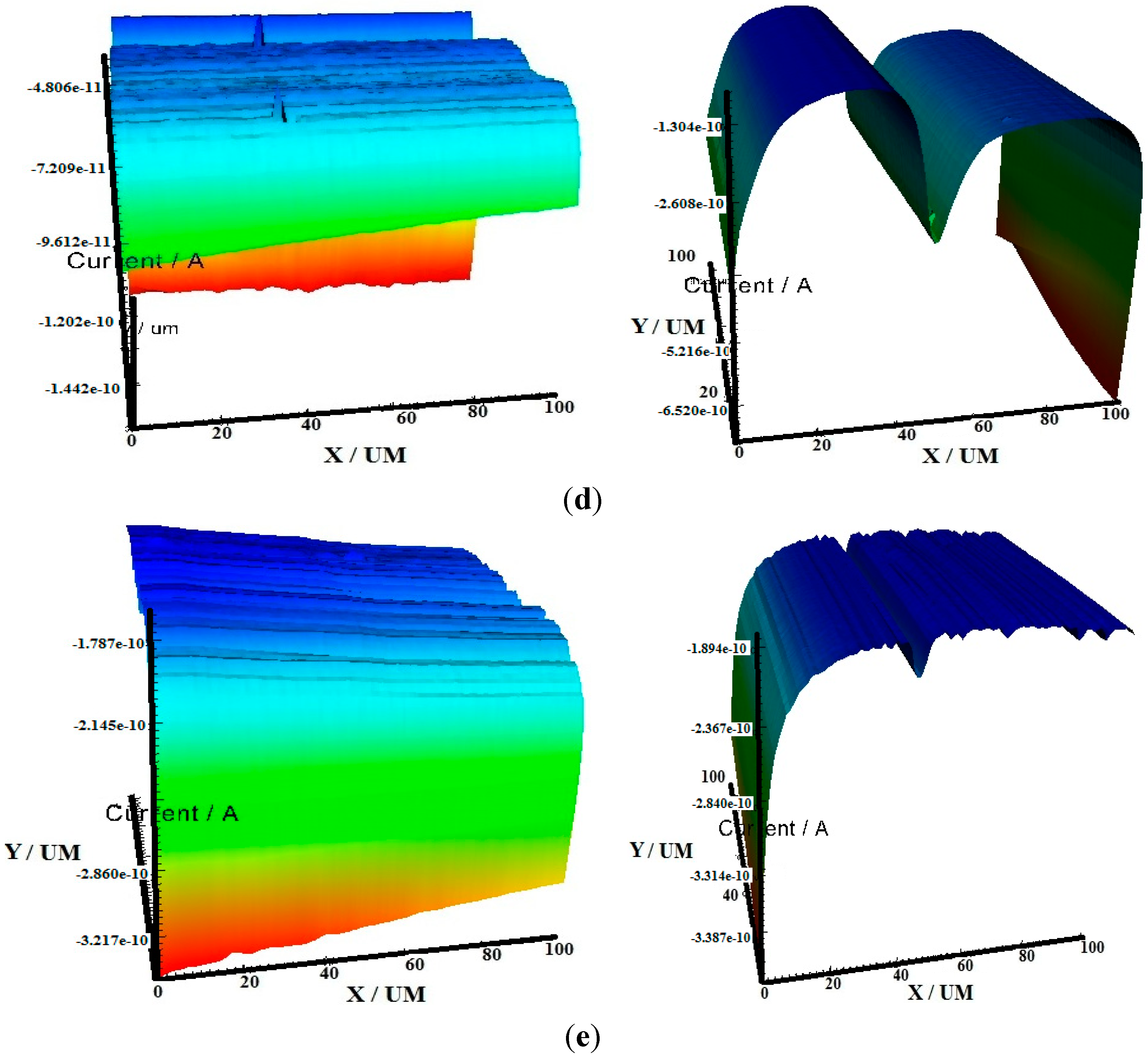

Figure 7. 3D-SECM images (left: x-axis; right: y-axis) of N80 steel in 3.5% NaCl saturated with CO2 (a) without the inhibitors; and with 200 ppm (b) HPTB; (c) T4PP; (d) THP and (e) TPP.
Figure 7. 3D-SECM images (left: x-axis; right: y-axis) of N80 steel in 3.5% NaCl saturated with CO2 (a) without the inhibitors; and with 200 ppm (b) HPTB; (c) T4PP; (d) THP and (e) TPP.
Molecules 20 15122 g007aMolecules 20 15122 g007b
As the tip approaches the surface of the N80 steel in the porphyrin containing aggressive solutions, the diffusion field surrounding the tip is hindered and the tip current decreases (Figure 7). This behaviour is typical of an insulating surface and confirmed that the steel surface is covered with protective film in the presence of the inhibitors [38]. In the absence of the porphyrin inhibitors, the tip current increases as the tip was made to approach the surface indicating that the N80 steel surface in the blank 3.5% NaCl solution is conductive and prone to a faster corrosion process.

2.4. Scanning Electron Microscopy (SEM)

Scanning electron microscopy images were taken to justify that the corrosion inhibition behaviour of the studied porphyrins is due to the formation of protective film on the steel surface. The SEM images of the N80 steel surfaces in 3.5% NaCl saturated with CO2 without and with 200 ppm of the inhibitors are shown in Figure 8. The morphology of the N80 steel surfaces in Figure 8a shows a corroded surface in the absence of inhibitors. There are pits and cracks on the N80 steel surface and the surface is intensely damaged. However, in the presence of the inhibitors, the surface corrosion of N80 steel is remarkably decreased showing less corroded and smoother surfaces as shown in Figure 8b–e. These results prove that the porphyrins used as corrosion inhibitors formed protective film on the N80 steel surface thereby protecting the surface from direct exposure to corrosive environments.
Figure 8. SEM images of N80 steel in 3.5% NaCl saturated with CO2 (a) without the inhibitors; and with 200 ppm (b) HPTB; (c) T4PP; (d) THP and (e) TPP.
Figure 8. SEM images of N80 steel in 3.5% NaCl saturated with CO2 (a) without the inhibitors; and with 200 ppm (b) HPTB; (c) T4PP; (d) THP and (e) TPP.
Molecules 20 15122 g008

2.5. Quantum Chemical Studies

The optimized geometries of the studied porphyrins are shown in Figure 9. All the quantum chemical data that are used for comparison with experimental results relate only to the lowest-energy conformer of each of the studied compounds. According to the frontier molecular orbital theory, chemical reactivity is strongly determined by the interaction of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of the interacting species [39]. The HOMO and LUMO surfaces of the studied compounds are shown in Figure 9 alongside the optimized molecular structures. For all the studied porphyrins, the HOMO density is highest at C5, C10, C15, C20, N22, N24, N21 and N23 around the porphyrin ring. Also it is notable that there is significant HOMO density on the C5a, C5f, C15a and C20a atoms. This means that these atoms are the most likely atoms to donate electrons to the vacant d orbitals of the metal. The main contributing factor to the HOMO is the porphyrin ring because the substituent groups (in all the compounds) appear to have minimal or no HOMO density.

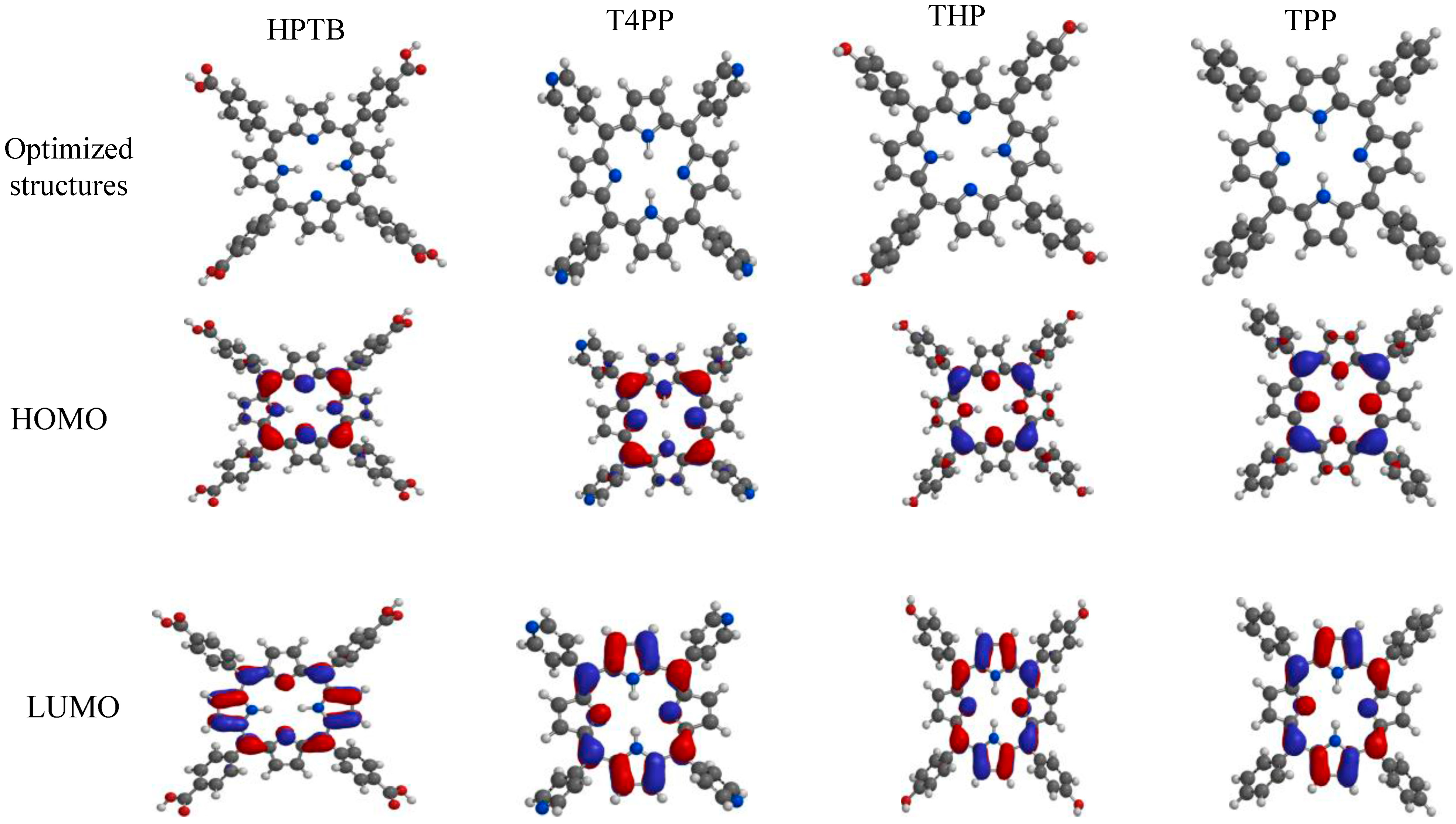

Figure 9. Optimized structures and the corresponding HOMO and LUMO electron density surfaces for the studied porphyrins.
Figure 9. Optimized structures and the corresponding HOMO and LUMO electron density surfaces for the studied porphyrins.
Molecules 20 15122 g009
Other quantum chemical parameters were computed to have more insights into the reactivity and selectivity of the porphyrins. The frontier molecular orbital energies (i.e., EHOMO and ELUMO) provide information on the reactivity of chemical species. The EHOMO is often associated with the electron donating ability of a molecule [40,41,42] and a higher EHOMO value indicates higher tendency of the molecule to donate electron(s) to the appropriate acceptor specie with low energy and empty/partially filled atomic/molecular orbitals. The results in Table 4 show that THP has the highest value of EHOMO while T4PP has the lowest value. These results imply that THP has the highest tendency to donate electrons while T4PP has the lowest tendency to donate electrons. The high tendency of THP to donate electron may be related to the fact that it has the -OH group substituents, which is an electron donor to the attached ring. A -COOH group however is electron withdrawing, which explains why HPTB has lesser tendency to donate electrons than THP. Overall, adsorption of the porphyrins on metal surface is likely to follow the order of the electron donating ability as THP > TPP > HPTB > T4PP.
Table 4. Quantum chemical parameters for the studied porphyrins.
Table 4. Quantum chemical parameters for the studied porphyrins.
InhibitorsEHOMO (eV)ELUMO (eV)ΔE (eV)η (eV)σ (eV)−1ω (eV)μ (Debye)χ (eV)
HPTB−5.31−2.642.671.340.756.002.693.98
T4PP−5.47−2.742.731.370.736.170.114.11
THP−4.74−2.112.631.320.764.504.753.43
TPP−4.90−2.202.701.350.744.670.083.55
Molecules with large value of energy gap, ∆E (∆E = ELUMO − EHOMO) are highly stable (i.e., they have low reactivity to chemical species) while molecules with small values of ∆E have high reactivity. A molecule with a small value of ∆E is easily polarized and can therefore be readily adsorbed on the metal surface, resulting in appreciably good inhibition efficiency. The data reported in Table 4 show that THP has the lowest ∆E followed by HPTB, which means that THP molecule could have better inhibition performance than the other corrosion inhibitors. Global electrophilicity (ω), electronegativity (χ), absolute hardness (η) and softness (σ) are other properties that are also often used to analyze the molecular reactivity and selectivity were calculated according to the equations [43]:
ω = μ 2 2 η
χ = 1 2 ( I + A )
η = 1 2 ( I A )
σ = 1 η
where I = −EHOMO is the ionization potential and A = −ELUMO is the electron affinity in accordance to the Koopman’s theorem [44].
The relationship between these quantum chemical quantities and corrosion inhibition is often based on the Lewis theory of acids and bases and the Pearson’s hard and soft acids and bases (HSAB) formalism [45]. A hard molecule has a large ∆E while a soft molecule has a small ∆E. Soft molecules therefore could easily offer electrons to an acceptor system which makes them more reactive than hard molecules. In this regard, adsorption could occur at the region of the molecule with the highest value of σ [46]. The values of σ reported in Table 4 show that the order of the σ values is THP > HPTB > TPP > T4PP. This trend is however, not entirely in agreement with the observed experimental inhibition efficiencies. The dipole moment (µ) is another index that is often used for the prediction of the trend of corrosion inhibition efficiencies. It is the measure of bond polarity and is related to the distribution of electrons in a molecule [47]. A survey of literature reveals that there are dissenting opinions on the correlation of dipole moments of inhibitor molecules with experimental inhibition efficiencies. One version of the opinions had suggested that inhibitors with high dipole moment tend to form strong dipole-dipole interactions with the metal, resulting in strong adsorption on the surface of the metal thereby leading to greater inhibition efficiency [48], while the other views had reported that low dipole moments will result in high inhibition efficiency due to favourable accumulation of the inhibitor molecules on the surface layer [34]. It has therefore been demonstrated that experimental inhibition efficiencies do not always correlate with dipole moments [49]. The results reported in Table 4 suggest that THP has the highest dipole moment (μ) magnitude, however, it has the lowest inhibition efficiency. Moreover, TPP and T4PP that have very low dipole moments have the highest inhibition efficiency values. These results suggest that for the studied porphyrin derivatives, the lower the dipole moment, the greater the inhibition efficiency, which is in line with the version of the opinions that suggests better adsorption of inhibitor molecules on the steel surface for a low dipole moment molecule [34].
The correlation of individual quantum chemical parameters with the inhibition efficiency of inhibitors is usually less informative because of the possible complexity of the adsorption process. It is therefore essential to combine several quantum chemical parameters to form a composite index that could be correlated to the experimental inhibition efficiency. A correlation between quantum chemical parameters and the observed inhibition efficiency is studied by means of quantitative structure activity relationship (QSAR) approach in which relevant mathematical equations are used to relate quantum chemical parameters to the observed inhibition efficiencies of inhibitors. The derived equations are used to predict the inhibition efficiency (η%) from the concentrations of the inhibitors and to provide theoretical explanations for the effects of different variables studied [39]. In the present work, the linear model proposed by Lukovits et al for the study of interaction of corrosion with metal surface in acidic solutions [50] was tested for the purpose of investigating the relationship between the reactivity parameters and inhibition efficiencies. The linear model equation has the form:
IEtheor = Axi Ci + B
where A and B are the regression coefficients determined through regression analysis, xi is a quantum chemical index characteristic of the molecule i, Ci is the experimental concentration of the inhibitor. The results of the QSAR analysis on the quantum chemical parameters obtained show that a combination of two quantum chemical parameters to form a composite index provides the best correlation with the experimental data. The best three equations obtained are:
η% = 441.39 − 172.707 × ∆N − 26.997 × ω, R2 = 0.965 and RMSE = 1.500
η% = −243.491 − 136.349 × EHOMO + 149.978 × ELUMO, R2 = 0.991 and RMSE = 0.753
η% = 109.931 − 3.107 × ω − 2.153 × μ, R2 = 0.991 and RMSE = 0.783
The Equation (9) suggests that when ΔN and ω parameters are utilized, a lower ΔN and smaller ω result in greater inhibition efficiency. The Equation (10) suggests that a higher ELUMO and lower EHOMO result in greater inhibition efficiency. The Equation (11) suggests that high inhibition efficiencies could be obtained by lowering both ω and μ.

2.6. Monte Carlo Simulations

The values of the total energy, average total energy, van der Waals energy, electrostatic energy and intramolecular energy for the porphyrin/iron systems were calculated by optimizing the whole systems and a typical adsorption energy distribution is shown in Figure 10 for the THP/iron system. The most stable adsorption configurations of THP, HPTB, TPP and T4PP on Fe (110) surface using Monte Carlo simulations are shown in Figure 11. The corresponding values for the outputs and descriptors are listed in Table 5. The parameters include total energy of the substrate–adsorbate configuration, which is defined as the sum of the energies of the adsorbate components, the rigid adsorption energy, and the deformation energy. The substrate energy (i.e., Fe (110) surface) is taken as zero. Moreover, adsorption energy reports the energy released (or required) when the relaxed adsorbate component was adsorbed on the substrate. The adsorption energy is defined as the sum of the rigid adsorption energy and the deformation energy for the adsorbate component. The rigid adsorption energy reports the energy released (or required) when the unrelaxed adsorbate component (before the geometry optimization step) was adsorbed on the substrate. The deformation energy reports the energy released when the adsorbed adsorbate component was relaxed on the substrate surface. Finally, (dEad/dNi) reports the energy of substrate–adsorbate configurations where one of the adsorbate components has been removed.
Figure 10. Total energy distribution for THP/Fe (110) surface.
Figure 10. Total energy distribution for THP/Fe (110) surface.
Molecules 20 15122 g010

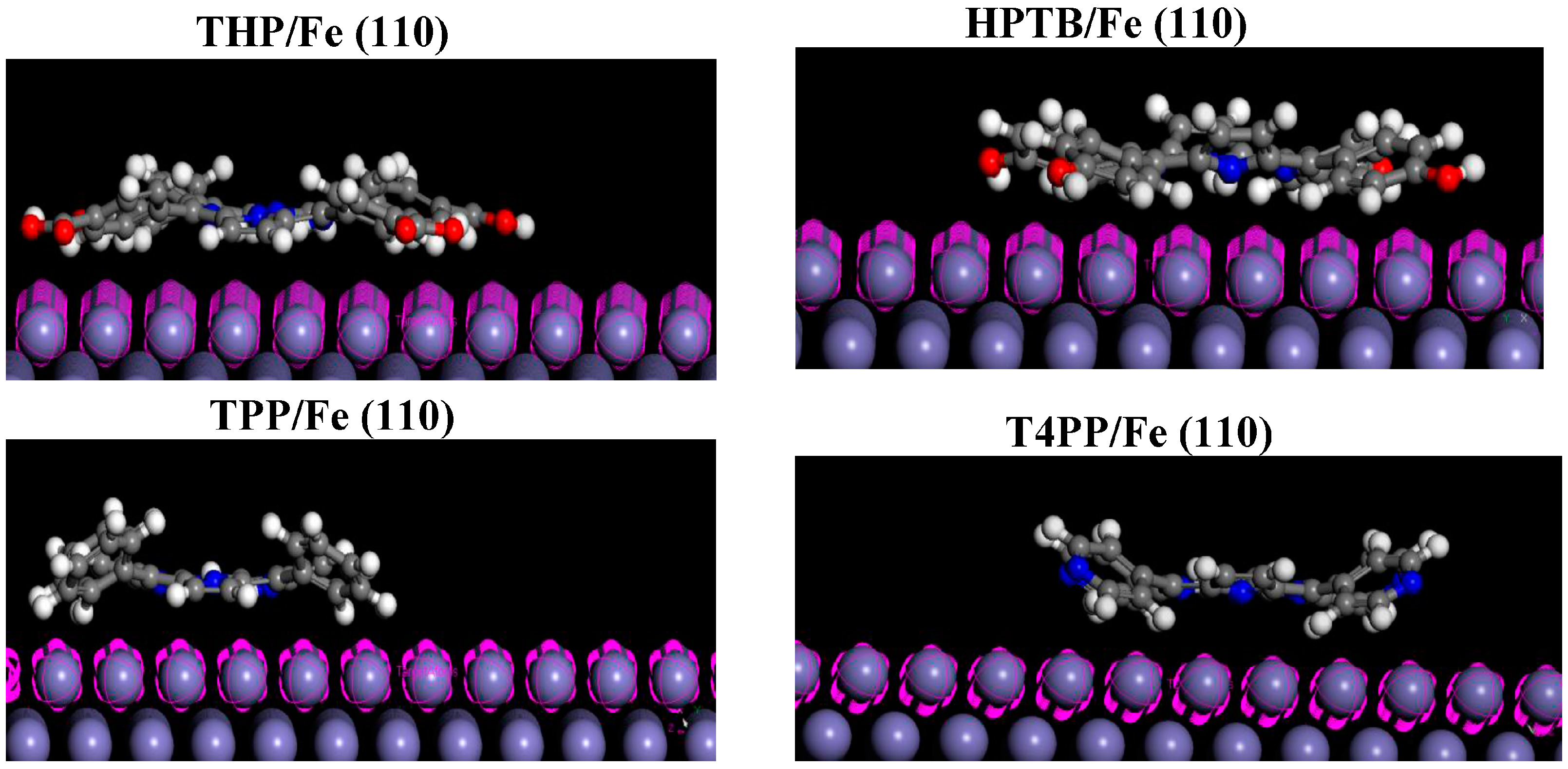

Figure 11. The most stable adsorption configuration of THP, HPTB, TPP and T4PP on Fe (110) surface using Monte Carlo simulations.
Figure 11. The most stable adsorption configuration of THP, HPTB, TPP and T4PP on Fe (110) surface using Monte Carlo simulations.
Molecules 20 15122 g011
It is quite clear from Table 5 that the adsorption energies of the studied inhibitors on iron surface increased in the order: THP < HPTB < TPP < T4PP. Highest negative adsorption energy indicates the system with the most stable and stronger adsorption [51]. This trend is in agreement with the values of global softness (σ) obtained using quantum chemical calculations.
Table 5. Outputs and descriptors calculated by the Monte Carlo simulation for adsorption of THP, HPTB, TPP and T4PP on Fe (110) surface (in kcal/mol).
Table 5. Outputs and descriptors calculated by the Monte Carlo simulation for adsorption of THP, HPTB, TPP and T4PP on Fe (110) surface (in kcal/mol).
InhibitorsTotal EnergyAdsorption EnergyRigid Adsorption EnergyDeformation EnergydEad/dNi
THP259.07−368.11−395.8127.69−368.11
HPTB312.78−301.66−330.9229.25−301.66
TPP395.21−276.84−295.4218.57−276.84
T4PP393.89−274.01−294.1520.14−274.01

2.7. Mechanism of Corrosion Inhibition

The N80 steel inhibition process in the studied environment can be explained by the adsorption of the components of porphyrins on the metal surface. The adsorption of the active constituents of porphyrins on the N80 steel surface reduces the surface area that is available for the attack of the aggressive ion from the CO2 saturated 3.5% NaCl solution. It is impossible to consider a single adsorption mode between inhibitor and metal surface because of the complex nature of adsorption and inhibition of a given inhibitor [52,53,54,55]. The adsorption of main constituents of porphyrins can be attributed to the presence of N and O atoms, aromatic rings and conjugated π-electron systems. Therefore, the possible reaction centres are the unshared electron pair of hetero-atoms and π- electrons of the aromatic rings.
In aqueous solutions, the porphyrins exist either as neutral molecules or in the form of cations (protonated porphyrins). The neutral porphyrins may adsorb on the metal surface by displacing water molecules from the metal surface via the sharing of lone pair of electrons between the N and/or O atoms and iron. The porphyrin molecules can also be adsorbed on the metal surface on the basis of donor–acceptor interactions between the π-electrons and vacant d-orbitals of iron.
The possible mechanism of adsorption of the studied porphyrin molecules on the steel surface is summarized in the schematic diagram as shown in Figure 12.

3. Experimental Section

3.1. Materials and Aggressive Solutions

Porphyrins were obtained commercially from Sigma Aldrich Chemicals (Johannesburg, South Africa) and used without further purification. Corrosion tests were performed on a N80 steel of the percentage composition (wt. %): C (0.31); Si (0.19); Mn (0.92); P (0.010); S (0.008); Cr (0.2) and Fe balance. The N80 steels were metallographically abraded according to ASTM A262 using fine grade emery papers of various grades (600 to 1200). The N80 steel coupons having the dimension 30 mm × 3 mm × 3 mm were used for the EIS and potentiodynamic polarization studies. The test solution of 3.5% NaCl was prepared by diluting the analytical grade NaCl with double distilled water.

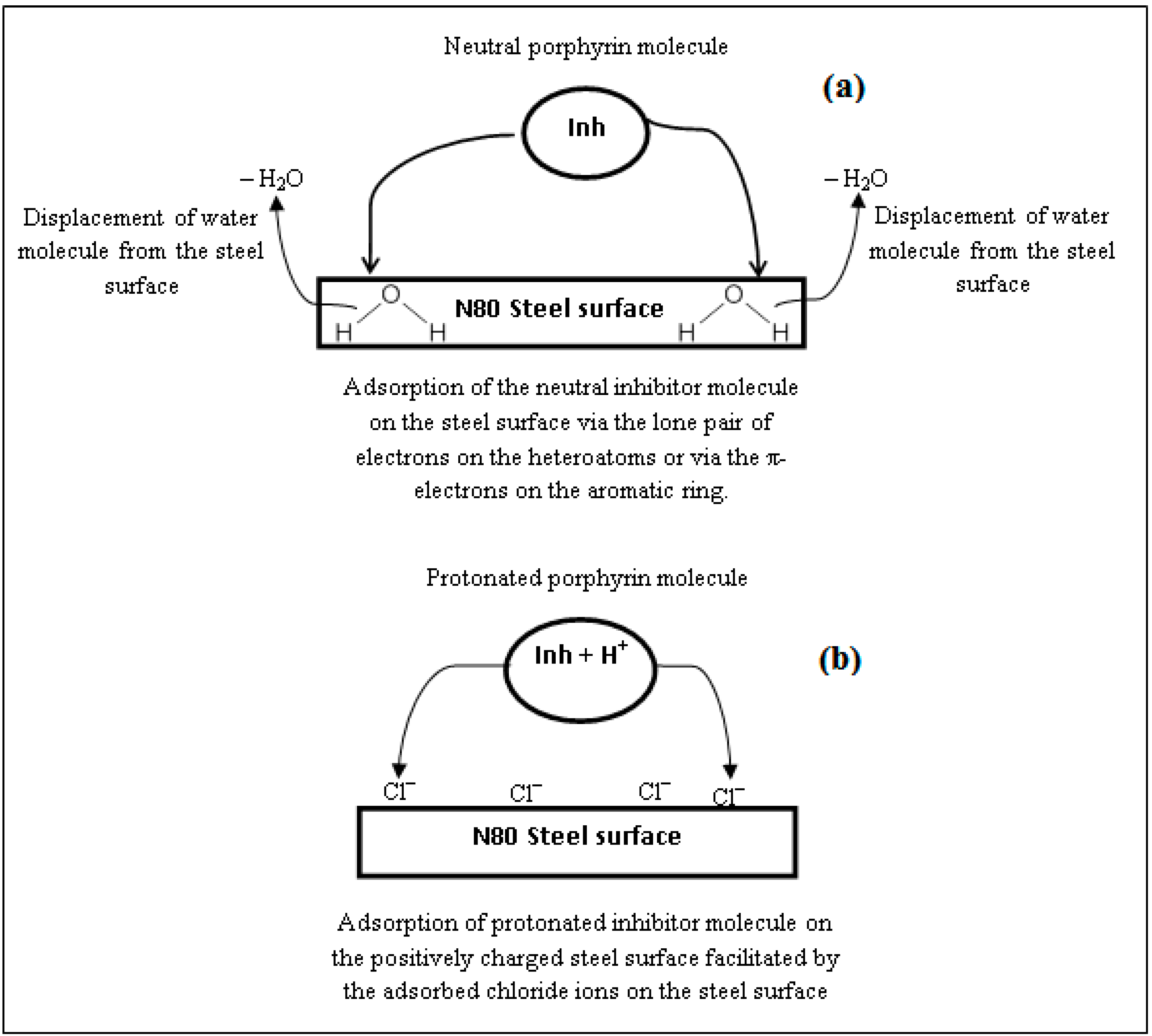

Figure 12. Possible mechanism of adsorption of the studied porphyrin molecules on the N80 steel surface.
Figure 12. Possible mechanism of adsorption of the studied porphyrin molecules on the N80 steel surface.
Molecules 20 15122 g012

3.2. Electrochemical Measurements

The electrochemical studies were conducted using conventional three-electrode cell assembly at room temperature. The freshly polished N80 steel was used as the working electrode, while platinum rod and standard calomel electrode (SCE, Metrohm, Johannesburg, South Africa) were used as auxiliary and reference electrodes respectively. All electrochemical measurements were carried out using Autolab Potentiostat/Galvanostat (Model PGSTAT302N) obtained from Autolab Instruments Inc. (Utrecht, The Netherlands). Prior to the electrochemical measurements, a stabilization period of 1 h was allowed to attain a stable value of corrosion potential (Ecorr).
Potentiodynamic polarization curves were obtained by sweeping the electrode potential from −300 to +300 mV vs. open circuit potential (OCP) at a scan rate of 1 mV·s−1. EIS measurements were carried out in a frequency range from 100 kHz to 0.00001 kHz with amplitude of 10 mV peak-to-peak, which had been adjudged reasonable to ensure linear impedance response that is independent of the perturbation amplitude [56]. The linear Tafel segments of anodic and cathodic curves were extrapolated to the Ecorr to obtain corrosion current densities (Icorr). The inhibition efficiency (η%) was evaluated from the measured Icorr values using the relationship:
η % = I corr 0 I corr ' I corr 0 × 100
where I corr 0 and I corr ' are the corrosion currents in the absence and presence of inhibitor respectively. The charge transfer resistance values were obtained from the diameter of the semi circles of the Nyquist plots. The inhibition efficiency was also calculated from the charge transfer resistance values using the equation:
η % = R ct ' R ct 0 R ct ' × 100
where, R ct ' and R ct 0 are the charge transfer resistance in the presence and absence of inhibitor, respectively.

3.3. Scanning Electrochemical Microscopy (SECM)

SECM analysis was carried out in order to obtain spatial resolution of the electrode surface and to examine the electrochemical behaviour of the system at the inception of corrosion as well as to investigate possible defects on the surface. Since conventional electrochemical systems cannot provide such information, SECM has become one of the most powerful local techniques for corrosion research. It has a wide variety of operation modes, which contributes to its great versatility [57,58]. Freshly polished N80 steel coupon with the dimensions of 30 mm × 3 mm × 3 mm was used as the working electrode for the SECM studies. A 10 μm platinum tip was used as the probe while Ag/AgCl in saturated KCl and platinum rod were used as the reference and counter electrodes respectively. Line scan measurements were carried out by making a tip approach at ~10 μm from the surface of the N80 specimen. All measurements were carried out at the scan rate of 80 μm/step on a model CHI900C (CH Instruments, Inc., Austin, TX, USA) scanning electrochemical microscopy device.

3.4. Scanning Electron Microscopy (SEM)

Freshly polished N80 steel was immersed into the test solution (CO2 saturated 3.5% NaCl) in the absence and presence of the corrosion inhibitors. The N80 steel samples were retrieved from the aggressive solutions after 3 h of immersion, rinse with water and finally dried at an ambient temperature. Micrographs of freshly abraded and corroded N80 steel surfaces without and with inhibitors were taken using a SEM model VEGA II XMH instrument (TESCAN, Kohoutovice, Czech Republic).

3.5. Quantum Chemical Calculations

Gas phase geometry optimizations and vibrational frequency calculations were carried out on the studied porphyrins without symmetry constraint. The Becke three parameter hybrid functional together with the Lee-Yang-Parr correlation functional (B3LYP) was used for all the calculations [59]. The 6-31G (d,p) basis set was selected for the calculations. Optimized structures of the porphyrins were confirmed to correspond to true energy minima with the absence of imaginary frequency. All quantum chemical parameters were derived based on the electronic data of the optimized geometries. The calculated molecular parameters include energy of the highest occupied molecular orbital (EHOMO), energy of the lowest unoccupied molecular orbital (ELUMO), energy gap (∆E), dipole moment (μ), global softness (σ), global hardness (η), electrophilicity (ω), fraction of electrons transferred (∆N), electronegativity (χ), electron affinity (EA) and ionization potential (IE).

3.6. Monte Carlo Simulation Studies

Monte Carlo simulations using the adsorption locator code implemented in the Material Studio 6.0 software from Accelrys (San Diego, CA, USA) was adopted to compute the adsorption energy of the interaction between the inhibitor molecules and clean iron surface. The calculation was carried out using the Condensed-phase Optimized Molecular Potentials for Atomistic Simulation Studies (COMPASS) force field. Before simulations, the clean Fe (110) plane was first cleaved from Fe crystal, the surface was then optimized to the energy minimum. The Fe (110) plane was next enlarged to a (13 × 13) super-cell. After that, a vacuum slab with 5.0 nm thickness was built above the Fe (110) plane. Simulation annealing using Metropolis Monte Carlo method was used to sample possible configurations by carrying out Monte Carlo searches of the configuration space of the additives on the iron surface system as the temperature is gradually decreased.

4. Conclusions

Four porphyrin derivatives were investigated for their corrosion inhibition potential toward N80 steel corrosion in CO2-saturated 3.5% NaCl solution using EIS, polarization, SECM, SEM, quantum chemical calculations, QSAR and Monte Carlo simulation approaches. The follow conclusions can be drawn from the results.
(1)
The studied porphyrins are good inhibitors for N80 steel corrosion in the studied media showing increasing η% with increase in concentration.
(2)
The shift in Ecorr (<85 mV) from polarization measurements indicated that the studied porphyrins acted as mixed type inhibitors.
(3)
EIS data revealed that the porphyrins adsorbed on N80 steel surface and exhibit non-ideal capacitive behaviour.
(4)
The SECM and SEM analyses showed that the porphyrins inhibit N80 steel corrosion by forming protective film on the steel surface.
(5)
Quantum chemical parameters and QSAR analyses showed that the corrosion inhibition performances of the porphyrins could be related to their EHOMO, ELUMO, ω, and μ values.
(6)
Monte Carlo simulation studies showed that THP has the highest adsorption energy, while T4PP has the least adsorption energy in agreement with the values of σ from quantum chemical calculations.

Acknowledgments

The authors are thankful to the post-doctoral fellowship, financial assistance provided by the National Natural Science Foundation of China (No. 51274170) and the research grants from the Colonel Technology Fund of Southwest Petroleum University (Project No.2012XJZ013). I.B.O is grateful to the Center of Research Excellence in Corrosion, King Fahd University of Petroleum and Minerals (KFUPM) for support. E.E.E acknowledges financial support from NRF (South Africa) for incentive funding for rated researchers.

Author Contributions

A. Singh, Y. Lin did the experiments; M. Quraishi, O.E. Fayemi, Y. Sasikumar, B. Ramaganthan, I. Bahadur, A. Adekunle processed all the data; I. Obot and M. Kabanda carried out the quantum chemical and Monte Carlo simulation studies; L. Olasunkanmi and E. Ebenso wrote the whole paper. E. Ebenso also designed and supervised the studies.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rajeev, P.; Surendranathan, A.O.; Murthy, C.S.N. Corrosion mitigation of the oil well steels using organic inhibitors—A review. J. Mater. Environ. Sci. 2012, 3, 856–869. [Google Scholar]
  2. Bai, W.; Yu, J.; Yang, Y.; Ye, Y.; Guo, J.; Zhang, Y. Effect of CO2 saturation on the corrosion behaviour of AZ31B magnesium alloy in Na3PO4 solutions. Int. J. Electrochem. Sci. 2013, 8, 3441–3453. [Google Scholar]
  3. Han, J.; William, C.J.; Zhang, J. Effect of sodium chloride on corrosion of mild steel in CO2-saturated brines. J. Appl. Electrochem. 2011, 41, 741–749. [Google Scholar] [CrossRef]
  4. Abd El-Lateef, H.M.; Aliyeva, L.I.; Abbasov, V.M.; Ismayilov, T.I. Corrosion inhibition of low carbon steel in CO2-saturated solution using anionic surfactant. Adv. Appl. Sci. Res. 2012, 3, 1185–1201. [Google Scholar]
  5. Lopez, D.A.; Perez, T.; Simison, S.N. The influence of microstructure and chemical composition of carbon and low alloy steels in CO2 corrosion- A state of art appraisal. Mater. Des. 2003, 24, 561–575. [Google Scholar] [CrossRef]
  6. Raja, P.B.; Sethuraman, M.G. Natural products as corrosion inhibitor for metals in corrosive media—A review. Mater. Lett. 2008, 62, 113–116. [Google Scholar] [CrossRef]
  7. Ahamad, I.; Prasad, R.; Quraishi, M.A. Thermodynamic, electrochemical and quantum chemical investigation of some Schiff bases as corrosion inhibitors for mild steel in hydrochloric acid solutions. Corros. Sci. 2010, 52, 933–942. [Google Scholar] [CrossRef]
  8. Mashuga, M.E.; Olasunkanmi, L.O.; Adekunle, A.S.; Yesudass, S.; Kabanda, M.M.; Ebenso, E.E. Adsorption, thermodynamics and quantum chemical studies of 1-hexyl-3-methylimidazolium based ionic liquids as corrosion inhibitors for mild steel in HCl. Materials 2015, 8, 3607–3632. [Google Scholar] [CrossRef]
  9. Longo, F.R. Corrosion and anti-corrosives. In Porphyrins as Corrosion Inhibitors; Naval Air Development Center: Warminster, PA, USA, 1984. [Google Scholar]
  10. Lokesh, K.S.; de Keersmaecker, M.; Adriaens, A. Self-assembled films of porphyrins with amine groups at different positions: Influence of their orientation on the corrosion inhibition and the electrocatalytic activity. Molecules 2012, 17, 7824–7842. [Google Scholar] [CrossRef] [PubMed][Green Version]
  11. Biesaga, M.; Pyrzyńska, K.; Trojanowicz, M. Porphyrins in analytical chemistry. A review. Talanta 2000, 51, 209–224. [Google Scholar] [CrossRef]
  12. Xiao, J.; Meyerhoff, M.E. Retention behavior of amino acids and peptides on protoporphyrinsilica stationary phases with varying metal ion centers. Anal. Chem. 1996, 68, 2818–2825. [Google Scholar] [CrossRef] [PubMed]
  13. Shi, Z.; Fu, C. Porphyrins as ligands for trace metal analysis by high-performance liquid chromatography. Talanta 1997, 44, 593–604. [Google Scholar] [CrossRef]
  14. Hettiarachichi, S.; Chan, Y.W.; Wilson, R.B., Jr.; Agarwala, V.S. Macrocyclic corrosion inhibitors for steel in acid chloride environments. Corrosion 1989, 45, 30–34. [Google Scholar] [CrossRef]
  15. Maranhao, S.L.A.; Guedes, I.C.; Anaissi, F.J.; Toma, H.E.; Aoki, I.V. Electrochemical and corrosion studies of poly(nickel-tetraaminophthalocyanine) on carbon steel. Electrochim. Acta 2006, 52, 519–526. [Google Scholar] [CrossRef]
  16. Lokesh, K.S.; de Keersmaecker, M.; Elia, A.; Depla, D.; Dubruel, P.; Vandenabeele, P.; van Vlierberghe, S.; Adriaens, A. Adsorption of cobalt (II) 5,10,15,20-tetrakis(2-aminophenyl)-porphyrin onto copper substrates: Characterization and impedance studies for corrosion inhibition. Corros. Sci. 2012, 62, 73–82. [Google Scholar] [CrossRef]
  17. Bessone, J.; Meyer, C.; Tuttner, K.; Lorenz, W.J. AC-impedance measurements on aluminium barrier type oxide films. Electrochim. Acta 1983, 28, 171–175. [Google Scholar] [CrossRef]
  18. Singh, A.; Ahamad, I.; Singh, V.K.; Quraishi, M.A. Inhibition effect of environmentally benign Karanj (Pongamia pinnata) seed extract on corrosion of mild steel in hydrochloric acid solution. J. Solid State Electrochem. 2011, 15, 1087–1097. [Google Scholar] [CrossRef]
  19. Yadav, D.K.; Chauhan, D.S.; Ahamad, I.; Quraishi, M.A. Electrochemical behavior of steel/acid interface: Adsorption and inhibition effect of oligomeric aniline. RSC. Adv. 2013, 3, 632–646. [Google Scholar] [CrossRef]
  20. Yuce, A.O.; Solmaz, R.; Kardas, G. Investigation of inhibition effect of rhodanine-N-acetic acid on mild steel corrosion in HCl solution. Mater. Chem. Phys. 2012, 131, 615–620. [Google Scholar] [CrossRef]
  21. Perez-Navarrete, J.B.; Olivares-Xometl, C.O.; Likhanova, N.V. Adsorption and corrosion inhibition of amphiphilic compounds on steel pipeline grade API 5L X52 in sulphuric acid 1 M. J. Appl. Electrochem. 2010, 40, 1605–1617. [Google Scholar] [CrossRef]
  22. Bustamante, R.A.; Silve, G.N.; Quijano, M.A.; Hernandez, H.H.; Romo, M.R.; Cuan, A.; Pardave, M.P. Electrochemical study of 2-mercaptoimidazole as a novel corrosion inhibitor for steels. Electrochim. Acta 2009, 54, 5393–5399. [Google Scholar] [CrossRef]
  23. Yadav, D.K.; Quraishi, M.A. Application of some condensed uracils as corrosion inhibitors for mild steel: Gravimetric, electrochemical, surface morphological, UV-visible, and theoretical investigations. Ind. Eng. Chem. Res. 2012, 51, 14966–14979. [Google Scholar] [CrossRef]
  24. Mallaiya, K.; Subramaniam, R.; Srikandan, S.S.; Gowri, S.; Rajasekaran, N.; Selvaraj, A. Electrochemical characterization of the protective film formed by the unsymmetrical Schiff’s base on the mild steel surface in acid media. Electrochim. Acta 2011, 56, 3857–3863. [Google Scholar] [CrossRef]
  25. Musa, A.Y.; Jalgham, R.T.T.; Mohamad, A.B. Molecular dynamic and quantum chemical calculations for phthalazine derivatives as corrosion inhibitors of mild steel in 1 M HCl. Corros. Sci. 2012, 56, 176–183. [Google Scholar] [CrossRef]
  26. Ahamad, I.; Prasad, R.; Quraishi, M.A. Adsorption and inhibitive properties of some new Mannich bases of isatin derivatives on corrosion of mild steel in acidic media. Corros. Sci. 2010, 52, 1472–1481. [Google Scholar] [CrossRef]
  27. Liao, Q.Q.; Yue, Z.W.; Yang, D.; Wang, Z.H.; Li, Z.H.; Ge, H.H.; Li, Y.J. Self-assembled monolayer of ammonium pyrrolidine dithiocarbamate on copper detected using electrochemical methods, surface enhanced Raman scattering and quantum chemistry calculations. Thin Solid Films 2011, 519, 6492–6498. [Google Scholar] [CrossRef]
  28. Raja, P.B.; Fadaeinasab, M.; Qureshi, A.K.; Rahim, A.A.; Osman, H.; Litaudon, M.; Awang, K. Evaluation of green corrosion inhibition by alkaloid extracts of Ochrosia oppositifolia and Isoreserpiline against mild steel in 1 M HCl medium. Ind. Eng. Chem. Res. 2013, 52, 10582–10593. [Google Scholar] [CrossRef]
  29. Lebrini, M.; Lagrenée, M.; Vezin, H.; Traisnel, M.; Bentiss, F. Experimental and theoretical study for corrosion inhibition of mild steel in normal hydrochloric acid solution by some new macrocyclic polyether compounds. Corros. Sci. 2007, 49, 2254–2269. [Google Scholar] [CrossRef]
  30. Khaled, K.F.; Amin, M.A. Corrosion monitoring of mild steel in sulphuric acid solutions in presence of some thiazole derivatives-Molecular dynamics, chemical and electrochemical studies. Corros. Sci. 2009, 51, 1964–1975. [Google Scholar] [CrossRef]
  31. Hassan, H.H. Inhibition of mild steel corrosion in hydrochloric acid solution by triazole derivatives: Part II: Time and temperature effects and thermodynamic treatments. Electrochim. Acta 2007, 53, 1722–1730. [Google Scholar] [CrossRef]
  32. Yadav, D.K.; Quraishi, M.A.; Maiti, B. Inhibition effect of some benzylidenes on mild steel in 1 M HCl: An experimental and theoretical correlation. Corros. Sci. 2012, 55, 254–266. [Google Scholar] [CrossRef]
  33. Naderi, E.; Jafari, A.H.; Ehteshamzadeha, M.; Hosseini, M.G. Effect of carbon steel microstructures and molecular structure of two new Schiff base compounds on inhibition performance in 1 M HCl solution by EIS. Mater. Chem. Phys. 2009, 115, 852–858. [Google Scholar] [CrossRef]
  34. Olasunkanmi, L.O.; Obot, I.B.; Kabanda, M.M.; Ebenso, E.E. Some quinoxalin-6-yl derivatives as corrosion inhibitors for mild steel in hydrochloric acid: Experimental and theoretical studies. J. Phys. Chem. C 2015, 119, 16004–16019. [Google Scholar] [CrossRef]
  35. Murulana, L.C.; Kabanda, M.M.; Ebenso, E.E. Experimental and theoretical studies on the corrosion inhibition of mild steel by some sulphonamides in aqueous HCl. RSC Adv. 2015, 5, 28743–28761. [Google Scholar] [CrossRef]
  36. Riggs, O.L., Jr. Corrosion Inhibitors, 2nd ed.; NACE International: Houston, TX, USA, 1973. [Google Scholar]
  37. Ji, G.; Dwivedi, P.; Sundaram, S.; Prakash, R. Inhibitive Effect of Chlorophytum borivilianum root extract on mild steel corrosion in HCl and H2SO4 solutions. Ind. Eng. Chem. Res. 2013, 52, 10673–10681. [Google Scholar] [CrossRef]
  38. Singh, A.; Lin, Y.; Liu, W.; Kuanhai, D.; Pan, J.; Huang, B.; Ren, C.; Zeng, D. A study on the inhibition of N80 steel in 3.5% NaCl solution saturated with CO2 by fruit extract of Gingko biloba. J. Taiwan Inst. Chem. Eng. 2014, 45, 1918–1926. [Google Scholar] [CrossRef]
  39. Obi-Egbedi, N.O.; Obot, I.B.; El-Khaiary, M.I.; Umoren, S.A.; Ebenso, E.E. Computational simulation and statistical analysis on the relationship between corrosion inhibition efficiency and molecular structure of some phenanthroline derivatives on mild steel surface. Int. J. Electrochem. Sci. 2 2011, 6, 5649–5675. [Google Scholar]
  40. Ebenso, E.E.; Kabanda, M.M.; Murulana, L.C.; Singh, A.K.; Shukla, S.K. Electrochemical and quantum chemical investigation of some azine and thiazine dyes as potential corrosion inhibitors for mild steel in hydrochloric acid solution. Ind. Eng. Chem. Res. 2012, 51, 12940–12958. [Google Scholar] [CrossRef]
  41. Kabanda, M.M.; Shukla, S.K.; Singh, A.K.; Murulana, L.C.; Ebenso, E.E. Electrochemical andquantum chemical studies on calmagite and fast sulphone black F dyes as corrosion inhibitors for mild steel in hydrochloric medium. Int. J. Electrochem. Sci. 2012, 7, 8813–8831. [Google Scholar]
  42. Kabanda, M.M.; Ebenso, E.E. Density functional theory and quantitative structure-activity relationship studies of some quinoxaline derivatives as potential corrosion inhibitors for copper in acidic medium. Int. J. Electrochem. Sci. 2012, 7, 8713–8733. [Google Scholar]
  43. Fu, J.; Zang, H.; Wang, Y.; Li, S.N.; Chen, T.; Liu, X.D. Experimental and theoretical study on the inhibition performance of quinoxaline and its derivatives for the corrosion of mild steel in hydrochloric acid. Ind. Eng. Chem. Res. 2012, 51, 6377–6386. [Google Scholar] [CrossRef]
  44. Koopmans, T. Über die zuordnung von wellenfunktionen und Eigenwerten zu den einzelnen elektronen eines atoms. Physica 1934, 1, 104–113. [Google Scholar] [CrossRef]
  45. Pearson, R.G. Absolute electronegativity and hardness correlated with molecular orbital theory. Proc. Natl. Acad. Sci. USA 1986, 83, 8440–8441. [Google Scholar] [CrossRef] [PubMed]
  46. Kabanda, M.M.; Murulana, L.C.; Ozcan, M.; Karadag, F.; Dehri, I.; Obot, I.B.; Ebenso, E.E. Quantum chemical studies on the corrosion inhibition of mild steel by some triazoles and benzimidazole derivatives in acidic medium. Int. J. Electrochem. Sci. 2012, 7, 5035–5056. [Google Scholar]
  47. Malyszko, J.; Scendo, M. Redox equilibria in the Cu2+-Cu+-Cu system in water-dimethylsulphoxide (DMSO) mixtures. Monatshefte fùr Chem. 1987, 118, 435–443. [Google Scholar] [CrossRef]
  48. Mert, B.D.; Mert, M.E.; Kardaş, G.; Yazici, B. Experimental and theoretical investigation of 3-amino-1,2,4-triazole-5-thiol as a corrosion inhibitor for carbon steel in HCl medium. Corros. Sci. 2011, 53, 4265–4272. [Google Scholar] [CrossRef]
  49. Arslan, T.; Kandemirli, F.; Ebenso, E.E.; Love, I.; Alemu, H. Quantum chemical studies on the corrosion inhibition of some sulphonamides on mild steel in acidic medium. Corros. Sci. 2009, 51, 35–47. [Google Scholar] [CrossRef]
  50. Lukovits, I.; Bakó, I.; Shaban, A.; Kálmán, E. Polynomial model of the inhibition mechanism of thiourea derivatives. Electrochim. Acta 1998, 43, 131–136. [Google Scholar] [CrossRef][Green Version]
  51. Kabanda, M.M.; Obot, I.B.; Ebenso, E.E. Computational study of some amino acid derivatives as potential corrosion inhibitors for different metal surfaces and in different media. Int. J. Electrochem. Sci. 2013, 8, 10839–10850. [Google Scholar]
  52. Gerengi, H. Anticorrosive properties of date palm (Phoenix dactylifera L.) fruit juice on 7075 type aluminum alloy in 3.5% NaCl solution. Ind. Eng. Chem. Res. 2012, 51, 12835–12843. [Google Scholar] [CrossRef]
  53. Singh, A.; Ahamad, I.; Quraishi, M.A. Piper longum extract as Green Corrosion Inhibitor for Aluminium in NaOH Solution. Arab. J. Chem. 2012. Available online: http://dx.doi.org/10.1016/j.arabjc.2012.04.029 (accessed on 23 July 2015). [Google Scholar] [CrossRef]
  54. Kamal, C.; Sethuraman, M.G. Caulerpin-A bis-indole alkaloid as a green inhibitor for the corrosion of mild steel in 1 M HCl solution from the marine alga Caulerpa racemosa. Ind. Eng. Chem. Res. 2012, 51, 10399–10407. [Google Scholar] [CrossRef]
  55. Raja, P.B.; Qureshi, A.K.; Rahim, A.A.; Osman, H.; Awang, K. Neolamarckia cadamba alkaloids as eco-friendly corrosion inhibitors for mild steel in 1 M HCl media. Corros. Sci. 2013, 69, 292–301. [Google Scholar] [CrossRef]
  56. Evgenij, B.; Macdonald, J.R. Impedance Spectroscopy: Theory, Experiment, and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2005. [Google Scholar]
  57. Bard, A.J.; Fan, F.R.F.; Kwak, J.; Lev, O. Scanning electrochemical microscopy. Introduction and principles. Anal. Chem. 1989, 61, 132–138. [Google Scholar] [CrossRef]
  58. Lee, C.; Bard, A.J. Scanning electrochemical microscopy. Application to polymer and thin metal oxide films. Anal. Chem. 1990, 62, 1906–1913. [Google Scholar] [CrossRef]
  59. Becke, A.D. Density functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are available from the authors.
Back to TopTop
