Molecules 2015, 20(7), 12979-12991; https://doi.org/10.3390/molecules200712979

Article
Chloro({2-[mesityl(quinolin-8-yl-κN)boryl]-3,5-dimethyl-phenyl}methyl-κC)palladium(II) as a Catalyst for Heck Reactions
Department of Chemistry, University of South Dakota, 414 E. Clark St., Vermillion, SD 57069, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Derek J. McPhee
Received: 1 May 2015 / Accepted: 15 July 2015 / Published: 17 July 2015

Abstract

:
We recently reported an air and moisture stable 16-electron borapalladacycle formed upon combination of 8-quinolyldimesitylborane with bis(benzonitrile)dichloropalladium(II). The complex features a tucked mesityl group formed upon metalation of an ortho-methyl group on a mesityl; however it is unusually stable due to contribution of the boron pz orbital in delocalizing the carbanion that gives rise to an η4-boratabutadiene fragment coordinated to Pd(II), as evidenced from crystallographic data. This complex was observed to be a highly active catalyst for the Heck reaction. Data of the catalyst activity are presented alongside data found in the literature, and initial comparison reveals that the borapalladacycle is quite active. The observed catalysis suggests the borapalladacycle readily undergoes reductive elimination; however the Pd(0) complex has not yet been isolated. Nevertheless, the ambiphilic ligand 8-quinolyldimesitylborane may be able to support palladium in different redox states.
Keywords:
Heck reaction; catalysis; organometallic; palladium; frustrated Lewis pair; non-classical ligand

1. Introduction

Palladium catalyzed Heck reactions have become an indispensable tool for the synthesis of organic molecules [1,2,3]. The Heck reaction is a C-C coupling, most commonly with an aryl halide and an alkene as reactants (Scheme 1). In the palladium catalyzed reaction, the aryl halide undergoes oxidative addition to a coordinatively unsaturated Pd(0) fragment, followed by 1,2-insertion of the alkene into the Pd-C bond and β-hydride elimination to form the coupled η2-alkene, and finally reductive elimination of H-X to regenerate the active Pd(0) fragment. A stoichiometric amount of base is required to neutralize the H-X product. The first palladium catalysts were simple Pd(II) salts, PdCl2 or Pd(OAc)2. In the course of the reaction, Pd(II) must be reduced to Pd(0) in order to achieve facile oxidative addition of the aryl halide. Ligands could be introduced to stabilize Pd(0) as molecular species and avoid precipitation of the bulk metal. Phosphines are known to stabilize Pd(0), and complexes can be isolated such as Pd(PPh3)4 [4], Pd(P(tBu)3)3 [5], and Pd(PCy3)3 [6]. As a result, phosphines have been a popular choice as a ligand; though, numerous examples of Pd-catalyzed Heck coupling with non-phosphine ligands are known [7,8,9,10,11,12,13,14]. In an effort to arrive at nucleophilic, coordinatively unsaturated Pd(0) centers, the preparation of pre-formed L2Pd catalysts with bulky, basic ligands such as phosphines and N-heterocyclic carbenes have been an active area of work [1,2,3]. The steric and electronic properties of these ligands can be varied upon changing the substituents, and the shape of the ligands can impart stereoselectivity or regioselectivity in the catalysis. Also of interest, bent, low-coordinate, nucleophilic metals are more active towards oxidative addition [15], and this may become a new design strategy for future catalysts.

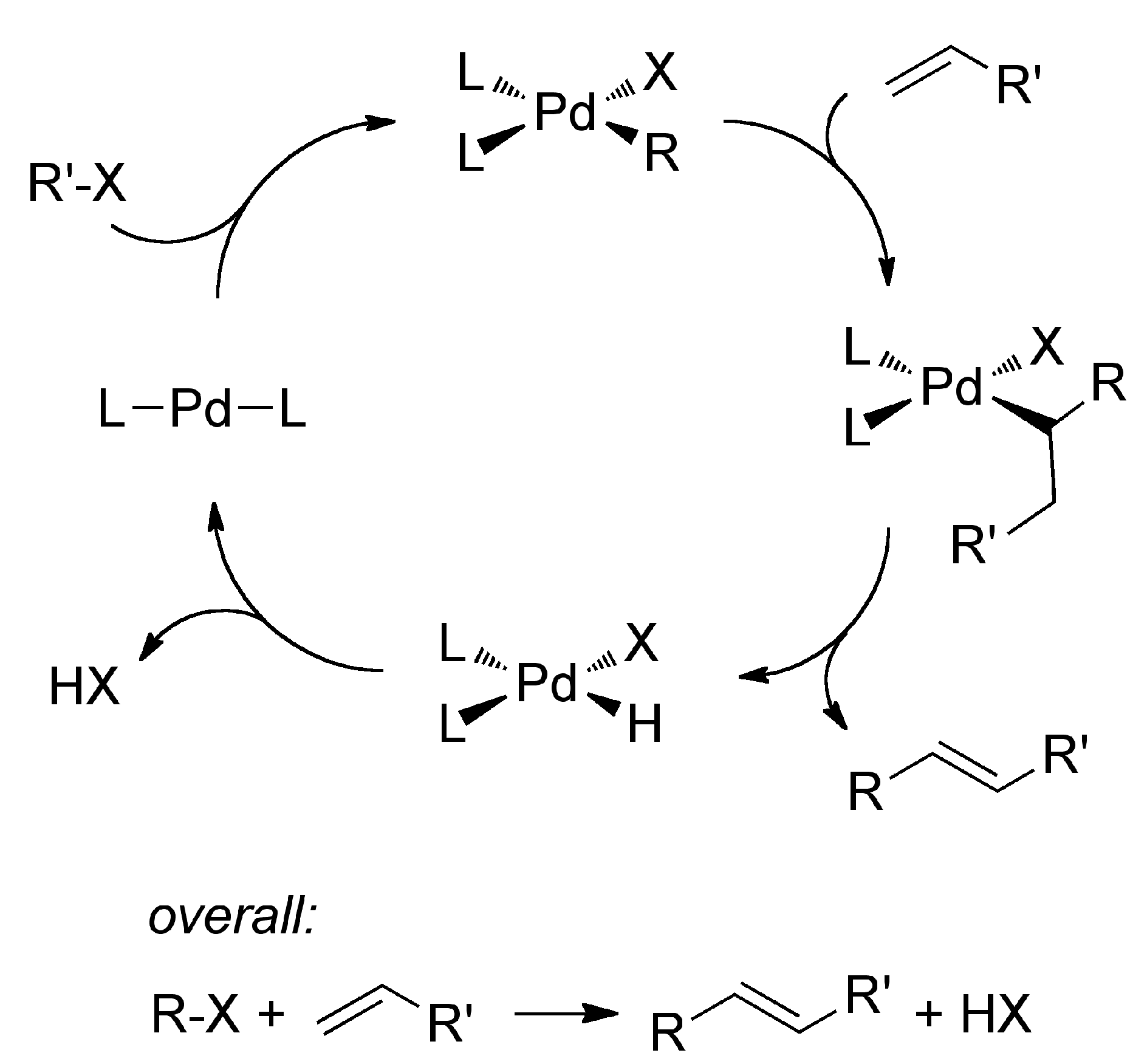

Scheme 1. Mechanism of the palladium-catalyzed Heck reaction.
Scheme 1. Mechanism of the palladium-catalyzed Heck reaction.
Molecules 20 12979 g003
There has been a recent surge of interest in frustrated Lewis pairs (FLPs) that feature Lewis acid-Lewis base combinations that are unable to approach closely to form a strong dative bond to one another [16,17,18]. The frustrated state can be relieved in the presence of appropriate small molecules that undergo heterolytic bond dissociation or ambiphilic molecular fragments (Scheme 2). For example, classic papers from the Stephan lab show that molecular hydrogen undergoes heterolytic cleavage with frustrated phosphine-borane combinations [19,20], and contributed a dramatic increase in interest in the FLP field. Since those findings, it has been shown that several small molecules undergo heterolytic bond dissociation (or severe polarization) in the presence of an FLP, such as CO2 [21,22,23,24,25,26], HX [27], X2 [28,29], M-X [30], RS-SR [31]. The stabilization of ambiphilic molecules or fragments with a FLP is less explored. The most widely studied examples utilize a unimolecular preorganized FLP as an L-Z ligand to stabilize a transition metal in low oxidation state [32,33]. In this configuration, the Lewis base is formally a neutral two-electron donor (L) to the metal and the Lewis acid is a two-electron acceptor (Z). There is only appreciable contribution of electron density from the metal to the Lewis acid if the metal is in low oxidation state.
Scheme 2. Selected examples of reactions that relieve frustration in FLP molecules via heterolytic bond dissociation or complexation with an ambiphilic guest.
Scheme 2. Selected examples of reactions that relieve frustration in FLP molecules via heterolytic bond dissociation or complexation with an ambiphilic guest.
Molecules 20 12979 g004
The use of L-Z ligands to stabilize palladium may be an interesting avenue of investigation, especially considering the potential utility of such complexes for catalysis of C-C coupling reactions. A handful of L-Pd-Z examples exist that will be briefly introduced here with structures represented in Figure 1. The molecule [Me2P(CH2)2]3B was combined with Pd(PPh3)4 and led to formation of a complex (1) with tridentate coordination of the ambiphilic ligand to Pd(0) via phosphorus donor atoms; however the role of boron in stabilizing the Pd(0) center was difficult to establish without structural information [34]. Combination of Pd(OAc)2 with tris(2-mercapto-1-R-imidazolyl)hydroborate gave {[μ-κ13-B(mimtBu)3]Pd}2 (2) [35]. Treatment with PMe3 gave a monomeric [κ4-B(mimtBu)3]Pd(PMe3) complex (3). The dimeric complex 2 features Pd-B bond length of 2.073(4) Å and the monomeric complex 3 has Pd-B bond length of 2.050(8) Å. The triphosphine-borane ligand [o-iPr2P-(C6H4)]3B (tpb) on combination with [Pd(P-tBu3)2] led to formation of (tpb)Pd (4) that features a Pd-B bond length of 2.2535(17) Å [36]. The diphosphine-borane ligand [o-(iPr2P)C6H4]2BPh (dpb) was combined with [PdCl2(COD)] to give [PdCl2(dpb)] (5) with Pd-B distance of 2.650(3) Å [37]. DFT calculations suggest very little donation of electron density from Pd(II)→B and significantly weaker bonding than found for the Pt(II)→B and Rh(I)→B interactions with the same ligand. It is noteworthy that the Pd-B distances in 3 and 4 are substantially shorter than in 5, which is due primarily to the nucleophilicity of the metal. It can be agreed that in the absence of the Pd→B interaction, compounds 3 and 4 are d10 Pd(0) complexes whereas 5 is a d8 Pd(II) complex. However, it has been debated whether the Pd→B interaction should be considered as oxidative addition of the borane to Pdn+ to give Pdn+2 or if the oxidation state is unchanged on formation of the M-Z bond. This discrepancy is not real, and its origins have been described by Hill [38]. Both electron counting methods assume neat, whole numbers of electrons assigned to individual elements, which is an artificial abstraction to help understand chemical bonding. In actuality, as is most easily seen in molecular orbital theory, electron wavefunctions tend to be distributed over multiple atoms. The ambiguity of assigning formal charges and oxidation states as result of wavefunctions that span several atoms can be easily seen. To further illustrate, combination of 2,7-di-tert-butyl-5-diphenylboryl-4-diphenylphosphino-9,9-dimethylthioxanthene (TXPB) with [PdCl2(COD)] followed by reduction led to [Pd(TXPB)] (6). Rather than a direct Pd→B bond, complex 6 features an η3-BCC bonding mode with Pd-B distance of 2.320(5) Å [39]. In order to truly assess the degree of oxidation of the metal, one should use spectroscopic analyses such as near-edge energies of X-ray absorption spectra, X-ray photoelectron spectroscopy, or Mössbauer spectroscopy [40].
Figure 1. Known L-Pd-Z complexes as reported in the literature.
Figure 1. Known L-Pd-Z complexes as reported in the literature.
Molecules 20 12979 g001
Recently, Bourissou and coworkers demonstrated Suzuki–Miyaura couplings were catalyzed by mixtures of Pd(OAc)2, [PdCl2(COD)], Pd2(dba)3, or [Pd(ma)(nbd)] (nbd = norborna-1,4-diene, ma = maleic anhydride) with Ph2P(o-C6H4)BMes2 [41,42]. Interestingly, the product formed from the reaction of [Pd(ma)(nbd)] with the monophosphine-borane was isolated and well characterized as [Ph2P(o-C6H4)BMes2]Pd(ma) (7) (Scheme 3). Single crystal X-ray data show Pd(0) within the cavity of Ph2P(o-C6H4)BMes2. However, instead of the FLP stabilizing Pd(0) via L-Pd-Z coordination, the structure of 7 consists of the monophosphine-borane participating as a bidentate chelating ligand to palladium via donation from the phosphine and η2-C-C coordination from the ipso and ortho carbons of a mesityl group. The preformed complex was shown to be a highly active Suzuki-Miyaura catalyst [41]. Interestingly, 7 was shown to oxidize in the presence of iodobenzene (Scheme 3) to form an η4-boratabutadiene iodophosphinopalladium(II) complex (8) [42]. The structure of 8 is very similar to that of 9 (Figure 2) reported by our group, which formed upon reaction of 8-(BMes2)quinoline with [PdCl2(PhCN)2] [43]. Cyclometalation occurs concomitantly with elimination of HCl to form a borapalladacycle in which the Pd(II) coordination sphere contains a quinolinyl nitrogen donor, chloride donor, and η4-boratabutadiene.

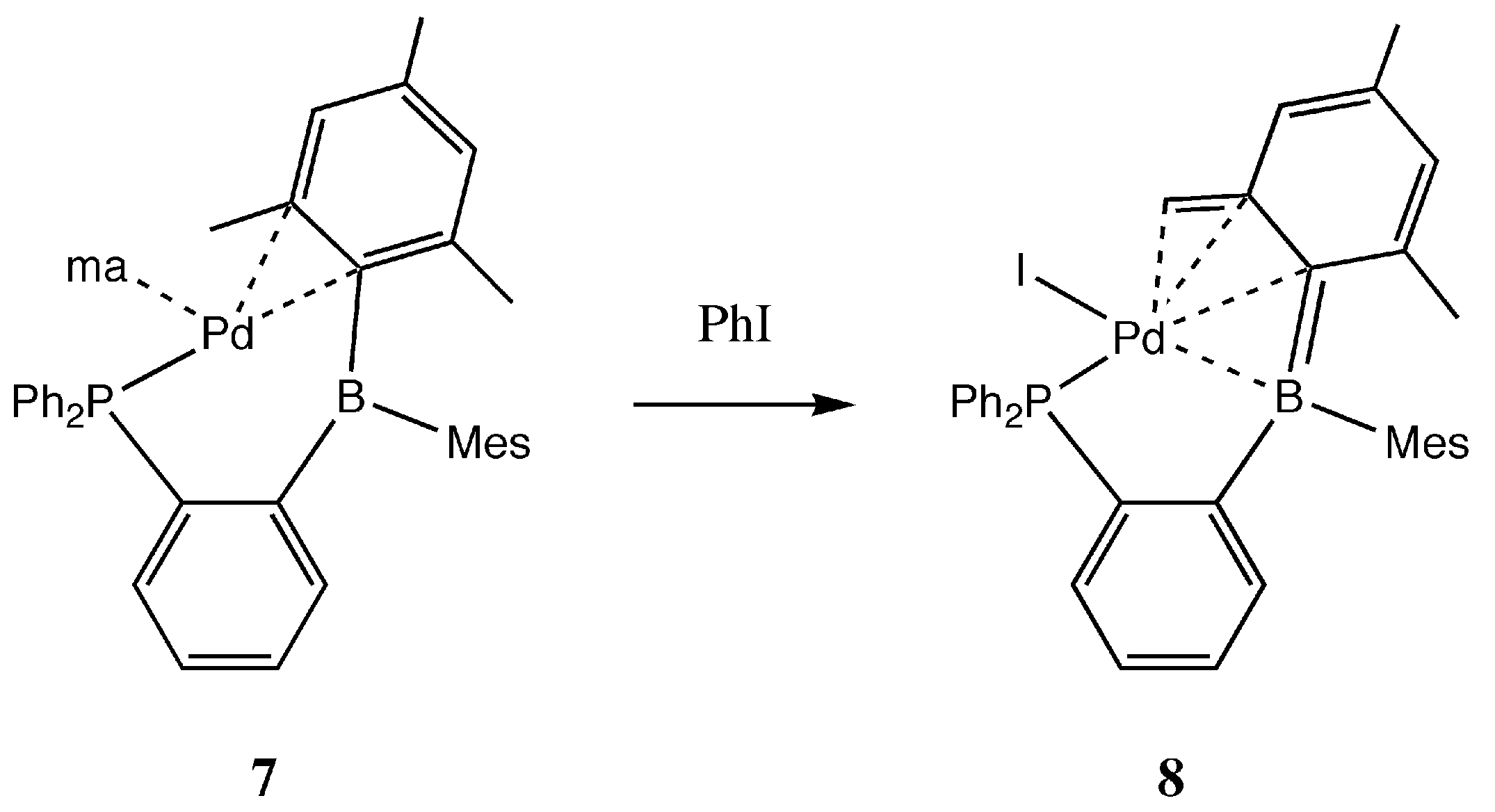

Scheme 3. The [Ph2P(o-C6H4)BMes2]Pd(ma) complex 7 and the product 8 formed upon reaction with iodobenzene.
Scheme 3. The [Ph2P(o-C6H4)BMes2]Pd(ma) complex 7 and the product 8 formed upon reaction with iodobenzene.
Molecules 20 12979 g005
Figure 2. Chloro({2-[mesityl(quinolin-8-yl-κN)boryl]-3,5-dimethylphenyl}methyl-κC)-palladium(II) (9).
Figure 2. Chloro({2-[mesityl(quinolin-8-yl-κN)boryl]-3,5-dimethylphenyl}methyl-κC)-palladium(II) (9).
Molecules 20 12979 g002
It was observed that 8 showed less activity in Suzuki-Miyaura coupling compared to 7. Nevertheless, we were inspired to test the hypothesis that 9 is capable of catalyzing typical Pd-catalyzed C-C couplings. In this report, we present new findings that 9 does indeed show high activity in the Heck reaction.

2. Results and Discussion

Coupling of aryl halides with n-butylacrylate was studied (Scheme 4). The conditions of the reactions were empirically optimized upon comparison of activity in the presence of various bases and solvent systems. Very poor activity was observed with inorganic bases Cs2CO3, K2CO3, or NaOAc. The bulky organic base, Cy2NMe, also gave poor results. However, the reaction proceeded very well with n-Bu3N. The reactions were studied in the DMF/H2O solvent system. The best results (results using other bases/solvents are shown in the Supporting Information) were obtained in DMF without any addition of water; though, no steps were taken to remove water from the DMF reagent. The reactions were generally carried out at 140 °C. In these reaction conditions, the color of the solution was yellow and Pd black was not observed. The results of the coupling of various arylhalides with n-butylacrylate are summarized in Table 1.

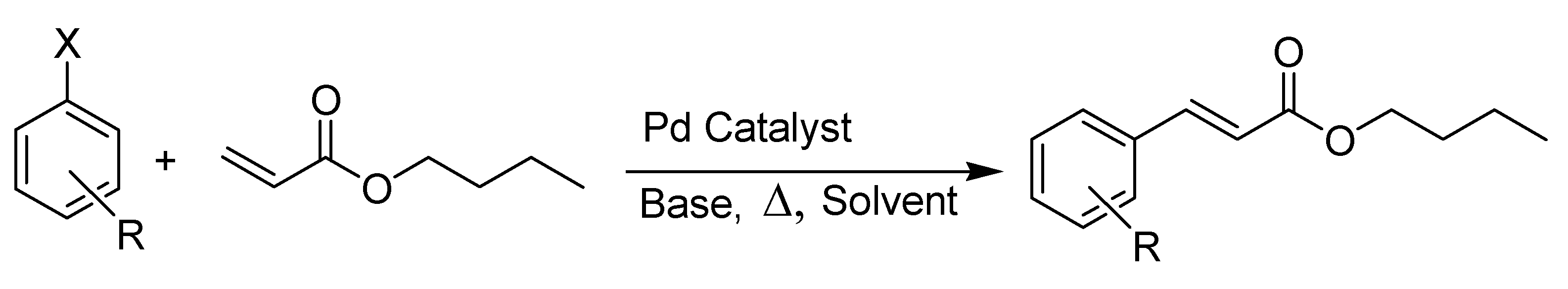

Scheme 4. Coupling of arylhalides with n-butylacrylate.
Scheme 4. Coupling of arylhalides with n-butylacrylate.
Molecules 20 12979 g006
The first entry in Table 1 shows that the coupling of iodobenzene with n-butylacrylate in the presence of 0.05 mol % 9 proceeded quite rapidly, as we isolated the coupled product in 88% yield after only 5 h reaction time. The second through fourth entries show that the catalyst loading could be reduced substantially in order to demonstrate the catalyst turnover number (TON). At 0.001 mol % loading of 9, after 20 h of reaction time a 90% isolated yield of the coupled product was found that corresponds to a TON ~ 90,000. Potentially this figure could be improved with further optimization; though we already show that the catalyst is capable of TON comparable with active Pd-catalysts reported in the literature. For example, a highly active Pd-PCP pincer complex achieved a TON of 143,000 for the coupling of iodobenzene with n-butylacrylate [44]. A heterogeneous catalyst consisting of Pd encapusalated within cross-linked poly(1,3-diethynylbenzene) gave TON ~ 100,000 [45]. For additional comparison, combination of Pd(OAc)2 with a trifunctional N,N,O-terdentate amido/pyridyl/carboxylate ligand produced a catalyst that achieved TON ~ 10,000 for coupling of iodobenzene with n-butylacrylate [46]. We found that combination of PdCl2 with two equivalents of quinoline at 0.01 mol % Pd catalyzed the coupling of iodobenzene with n-butylacrylate with TON ~ 9300, and this result is similar to the initial screening of Pd(quinoline-8-carboxylate)2 at 0.01 mol % loading that gave a TON ~ 8700 [47]. However, with respect to achieving high TON [48] combinations of Pd(OAc)2 with phosphines has been shown to give TON ~ 106 for the coupling of p-bromoacetophenone with n-butylacrylate [49]. Ferrocenylimine palladacycles were shown to achieve TON ~ 3.6 × 106 [50]. Imine-palladacycle catalysts were shown to reach TON ~ 1.4 × 106 for the coupling of iodobenzene with methylacrylate [51]. Oxime-palladacycle catalysts were shown to reach TON ~ 1010 for the coupling of iodobenzene with alkylacrylate [52,53] Catalyst 9 was completely ineffective for the coupling of bromobenzene with n-butylacrylate; however, p-cyanobromobenzene could be utilized as a substrate. At 0.01 mol % loading of 9, the yield was already limited to 58%, corresponding to TON ~ 5800. For comparison, it was shown that mixture of Pd(OAc)2 with phosphines could catalyze coupling of arylbromides with n-butylacrylate with TON ~ 106 [49]. A comparison of the coupling of p-R-C6H4I (R = OCH3, H, NO2) with 9 as catalyst shows the tolerance for the functional groups; however, there was not a clear indication of an electronic effect of the substrate on the rate of the reaction.
Table 1. Heck coupling reaction of aryl halides with n-butylacrylate using 9 as catalyst and comparison with other data from the literature. a Isolated yield (our work).
Table 1. Heck coupling reaction of aryl halides with n-butylacrylate using 9 as catalyst and comparison with other data from the literature. a Isolated yield (our work).
CatalystXRmol % CatalystT (°C)Time/hYield (%) aTON
9IH0.051405881800
9IH0.011405949400
9IH0.005140108918,000
9IH0.001140209090,000
9Ip-NO20.0114010838300
9Ip-OCH30.0114010797900
9Brp-CN0.0114010585800
9BrH0.01140500
Quinoline:PdCl2 = 2:1IH0.011405939300
Pd(OAc)2 [54]IH0.580296192
PR3:Pd(OAc)2 = 2:1 [49]Brp-C(O)CH30.000113024100106
Ref. [47]IH0.0113030878700
Ref. [46]IH0.0114520959500
Ref. [46]Brp-OCH30.0114520939300
Ref. [44]IH0.0007160141001.4 × 105
[email protected] [45]IH0.00110048100105
Ref. [50]IH2.73 × 10−5100145993.6 × 106
Ref. [52]IH10−816072981010
Coupling of aryl halides with styrene was studied as well (Scheme 5). Again, the reaction proceeded poorly in the presence of inorganic bases Cs2CO3, K2CO3, NaOAc, or with the bulky organic base Cy2NMe; whereas, the n-Bu3N gave good activity. The reactions proceeded smoothly in DMF, and addition of water led to substantially lower activity. Again, the solutions remained yellow and homogeneous throughout the reaction and Pd black was not observed. The results of the coupling of various aryl halides with styrene are summarized in Table 2.
Scheme 5. Coupling of arylhalide with styrene.
Scheme 5. Coupling of arylhalide with styrene.
Molecules 20 12979 g007
Table 2. Heck coupling reaction of aryl halides with styrene using 9 as catalyst and comparison with other data from the literature. a Isolated yield (our work).
Table 2. Heck coupling reaction of aryl halides with styrene using 9 as catalyst and comparison with other data from the literature. a Isolated yield (our work).
CatalystXRmol % CatalystT (°C)Time/hYield (%) aTON
9IH0.011405202000
9IH0.0114010373700
9Ip-OCH30.0114010424200
9Brp-CN0.0114010303000
9BrH0.01140500
PPh3:Pd(OAc)2 = 2:1 [49]Brp-C(O)CH30.00011307294940,000
Ref. [46]IH0.0114520969600
Ref. [46]Brp-OCH30.0114520959500
Ref. [44]IH0.00071406093133,000
Ref. [52]Brp-OCH30.001160169797,000
Ref. [51]IH0.00071408074106,000
Ref. [55]Brp-CHO180159595
Ref. [56]Ip-OCH3212089447
Ref. [57]Brp-C(O)CH30.000011806957.55,750,000
Ref. [58]BrH0.00514018316,600
The reactions with styrene were substantially slower than comparable reactions with n-butylacrylate. Interestingly, we again observe no reaction with bromobenzene yet an appreciable reaction with p-cyanobromobenzene. The activity of 9 for coupling of styrene to aryl halides appears to be markedly lower than other catalysts reported in the literature. Even a 2:1 mixture of PPh3 and Pd(OAc)2 has been shown to catalyze coupling of styrene to p-bromoacetophenone with TON ~ 9.4 × 105 [49]. Oxime-palladacycle catalysts were shown to reach TON ~ 105 for the coupling of p-bromoanisole with styrene [52]. Imine-palladacycle catalysts were shown to reach TON ~ 105 for the coupling of iodobenzene with styrene [51]. A Pd-PCP pincer complex achieved a TON of 133,000 for the coupling of iodobenzene with styrene [44]. An orthopalladated triarylphosphite catalyst achieved TON ~ 5.75 × 106 for the coupling of p-bromoacetophenone with styrene [57].
Palladacycles have received much attention as catalysts for C-C coupling reactions [48,49,59,60]. The palladacycle must undergo a chemical change in order to generate the catalytically active Pd(0) species. Hartwig postulated a mechanism that involved a reductive elimination step to form a classical phosphine stabilized Pd(0) species [61]. Conceivably, the palladacycle 9 could undergo reductive elimination of the tucked mesityl and chloride ligands to form a postulated catalyst 10 (Scheme 6). The observation of Heck reactions catalyzed by compound 9 suggests this possibility; however so far we were unable to obtain structural or spectroscopic evidence for this hypothesized intermediate. Such information would be helpful in understanding the catalyst reactivity, for example, whether the Pd(0) stabilization in 10 resembles complex 7 or an example of a bent L-Pd(0)-Z complex. In either case the Pd(0) would be coordinatively unsaturated and have a bent geometry, both of which would enhance the reactivity for oxidative addition reactions. It is important to point out that 8 was reported to be less active than 7 for Suzuki couplings. So far, we could not compare the reactivity of 9 and 10, since we have not found a way to isolate 10.

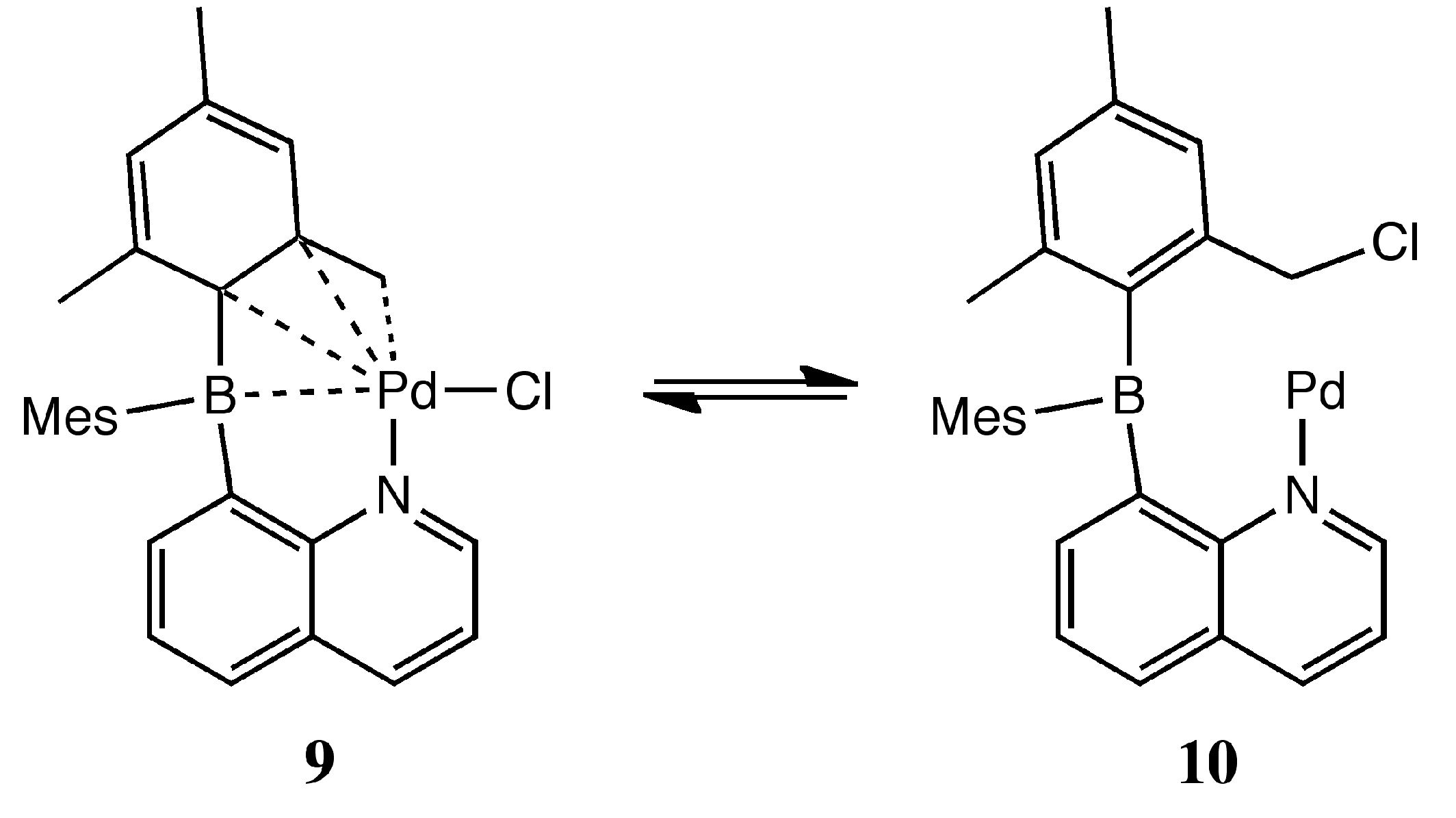

Scheme 6. Postulated molecular catalyst 10 involved in the oxidative addition step.
Scheme 6. Postulated molecular catalyst 10 involved in the oxidative addition step.
Molecules 20 12979 g008
Remarkably, the catalyst 9 was stable in the reaction conditions of elevated temperature for extended time periods without formation of any palladium black precipitate. The reaction solution is a yellow color throughout the entire course of the reaction. Additionally, we note that the onset of catalytic activity is immediate without any induction period. These observations suggest that the catalyst species is molecular rather than a colloidal nanoparticle catalyst.

3. Experimental Section

3.1. General Information

Compound 9 was prepared according to the literature [43]. All organic reagents and solvents were obtained from commercial sources and used without further purification. A GCMS-QP2010SE gas chromatograph-mass spectrometer (Shimadzu Corp., Kyoto, Japan) was used for GCMS analyses. NMR spectra were recorded on an Avance 400 MHz spectrometer (Bruker, Billerica, MA, USA).

3.2. Heck Cross Coupling Reaction

A 50 mL flask was charged with 1 mmol aryl halide, 1.2 mmol olefin, 2 mmol n-Bu3N, 9, and DMF (5 mL). The reaction mixture was then stirred at 140 °C h under N2. The reaction was worked up by extraction with ether and washing with DI H2O. The organic phase was collected and dried over anhydrous sodium sulfate. The residue was purified by flash column chromatography to afford the desired product. NMR spectra of isolated products matched well with the literature [62].

4. Conclusions

To summarize, the molecule chloro({2-[mesityl(quinolin-8-yl-κN)boryl]-3,5-dimethylphenyl}-methyl-κC)palladium(II) was demonstrated to catalyze Heck reactions of n-butylacrylate or styrene with aryl halides. Turnover numbers in the coupling of aryliodides with n-butylacrylate were quite high; however, this was not the case with styrene. We speculate, based on discussion in the chemical literature, that the palladacycle 9 undergoes reductive elimination to form active Pd(0) species. The postulated active catalyst species could potentially be a bent L-Pd(0)-Z species; however, structural or spectroscopic evidence has not been obtained so far. Further work is needed to elucidate the reactive catalyst species, and to determine whether this motif offers advantages in catalysis. The results so far suggest that the preparation of pre-formed bent L-Pd(0)-Z catalysts may be a fruitful avenue for development of active catalyst materials.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/20/07/12979/s1.

Acknowledgments

We acknowledge the support of the National Science Foundation for purchase of the glove box (EPS-0554609), NMR (CHE-1229035), and student support (EPS-0903804 and DGE-0903685).

Author Contributions

S.R.T. performed the synthesis and reactivity studies. S.R.T. and J.D.H. contributed to the design of the experiments and wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
