Open AccessArticle
Molecules 2015, 20(4), 5835-5850;

Anisotropy in Bone Demineralization Revealed by Polarized Far-IR Spectroscopy

Department of Biomaterials, Max Planck Institute of Colloids and Interfaces, Science Park Potsdam-Golm, 14424 Potsdam, Germany
Helmholtz-Zentrum Berlin für Materialien und Energie GmbH, Methoden der Materialentwicklung, D-12489 Berlin, Germany
Author to whom correspondence should be addressed.
Academic Editor: Christian Huck
Received: 25 January 2015 / Revised: 24 March 2015 / Accepted: 25 March 2015 / Published: 2 April 2015
(This article belongs to the Special Issue Advances of Vibrational Spectroscopic Technologies in Life Sciences)
Full-Text   |   PDF [1908 KB, uploaded 2 April 2015]   |

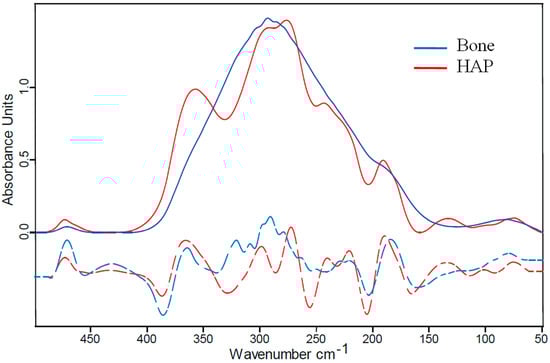

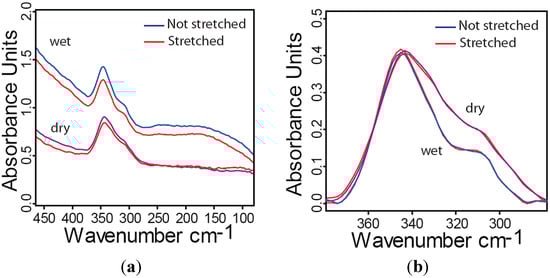

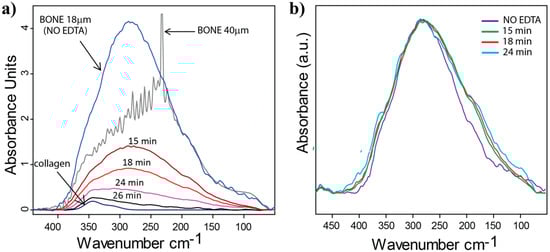

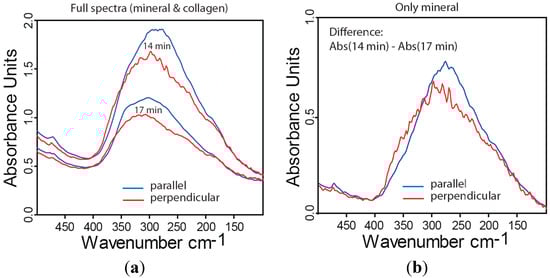

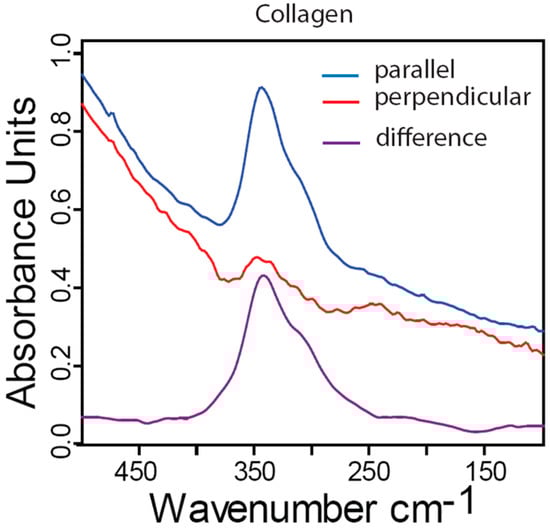

Bone material is composed of an organic matrix of collagen fibers and apatite nanoparticles. Previously, vibrational spectroscopy techniques such as infrared (IR) and Raman spectroscopy have proved to be particularly useful for characterizing the two constituent organic and inorganic phases of bone. In this work, we tested the potential use of high intensity synchrotron-based far-IR radiation (50–500 cm−1) to gain new insights into structure and chemical composition of bovine fibrolamellar bone. The results from our study can be summarized in the following four points: (I) compared to far-IR spectra obtained from synthetic hydroxyapatite powder, those from fibrolamellar bone showed similar peak positions, but very different peak widths; (II) during stepwise demineralization of the bone samples, there was no significant change neither to far-IR peak width nor position, demonstrating that mineral dissolution occurred in a uniform manner; (III) application of external loading on fully demineralized bone had no significant effect on the obtained spectra, while dehydration of samples resulted in clear differences. (IV) using linear dichroism, we showed that the anisotropic structure of fibrolamellar bone is also reflected in anisotropic far-IR absorbance properties of both the organic and inorganic phases. Far-IR spectroscopy thus provides a novel way to functionally characterize bone structure and chemistry, and with further technological improvements, has the potential to become a useful clinical diagnostic tool to better assess quality of collagen-based tissues. View Full-Text
Keywords: spectroscopy; far-IR; THz; fibrolamellar bone; collagen; hydroxyapatite; dicroism; polarization; hydration; demineralization spectroscopy; far-IR; THz; fibrolamellar bone; collagen; hydroxyapatite; dicroism; polarization; hydration; demineralization

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Schuetz, R.; Fix, D.; Schade, U.; Aziz, E.F.; Timofeeva, N.; Weinkamer, R.; Masic, A. Anisotropy in Bone Demineralization Revealed by Polarized Far-IR Spectroscopy. Molecules 2015, 20, 5835-5850.
