Design, Synthesis and Anti-Tobacco Mosaic Virus (TMV) Activity of 5-Chloro-N-(4-cyano-1-aryl-1H-pyrazol-5-yl)-1-aryl-3-methyl-1H-pyrazole-4-carboxamide Derivatives

by
Jin-Jing Xiao
1,†,
Min Liao
1,†,
Ming-Jie Chu
1,
Zi-Li Ren
1,
Xin Zhang
2,
Xian-Hai Lv
1,* and
Hai-Qun Cao
1,*
1
College of Plant Protection, Anhui Agricultural University, Hefei 230036, China
2
State Key Laboratory of Pharmaceutical Biotechnology, Nanjing University, Nanjing 210093, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2015, 20(1), 807-821; https://doi.org/10.3390/molecules20010807
Submission received: 28 October 2014 / Accepted: 29 December 2014 / Published: 7 January 2015
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
A series of novel pyrazole amide derivatives 3a–3p which take TMV PC protein as the target has been designed and synthesized by the reactions of 5-chloro-1-aryl-3-methyl-1H-pyrazole-4-carboxylic acids with 5-amino-1-aryl-1H-pyrazole-4-carbonitriles. All the compounds were characterized by 1H-NMR, mass spectroscopy and elemental analysis. Preliminary bioassays indicated that all the compounds acted against the tobacco mosaic virus (TMV) with different in vivo and in vitro modes at 500 μg/mL and were found to possess promising activity. Especially, compound 3p showed the most potent biological activity against tobacco mosaic virus (TMV) compared to ningnanmycin, and a molecular docking study was performed and the binding model revealed that the pyrazole amide moiety was tightly embedded in the binding sites of TMV PC (PDB code: 2OM3).

Graphical Abstract

1. Introduction

Tobacco mosaic virus (TMV) is one of the most extensively studied among a number of plant viruses. Its infections are very widely distributed [1,2,3] and can cause serious damage and large economic losses. TMV is a growing problem in the contemporary pesticide field, as only a few antiviral agents are currently available in practice, and almost no treatment can control TMV effectively [4], so the identification of new antiviral agent with novel mechanisms of action is critically needed to overcome this viral infections.
Recently, different targets essential to plant viruses that could be new weapons to design and discover new antiviral drugs have been studied and validated. Most antiviral drugs exhibit their activities through interaction with viral proteins [5,6]. Coat protein-mediated resistance to TMV involves mainly two independent mechanisms: (i) interference by transgenic CP with disassembly of challenge virus; and (ii) interference of transgenic CP with formation of replication complexes, thus interfering with virus movement [7]. CP is an important part of the genomic structure of the tobacco mosaic virus (TMV), and its main function not only includes the protection of DNA from degradation, but it also has a close relationship with the long-distance movement of TMV and host symptoms [8]. Therefore, coat protein (PC) is usually used as a molecular target for drug action, and the study of TMV CP mainly focuses on CP-mediated resistance, interference the polymerization of CP by agents and so on. Many small molecule ligands. including pyrazole derivatives, that combine with molecular targets have been reported [9,10,11,12]. Inspired by the above notion, we hope to design a new compound which is able to target TMV PC to inhibit viral assembly through small molecule-coat protein interactions.
Pyrazole derivatives have great importance in the medicinal and pesticide fields [13,14,15], due to their broad range of biological activity [16,17,18]. The molecules of many modern drugs with antiphlogistic, antidiabetic, analgesic, and acaricidal activity in medicine [19] and herbicidal [20,21,22], antibacterial [23,24,25], acaricidal and insecticide [26,27] in the pesticide area contain pyrazole rings as a structural fragment. As shown in Figure 1, several pyrazole derivative products have been launched or announced, and they all contain several common structural features that are essential to their activity, including an amide bond, pyrazole and an aromatic ring attached to the carbonyl of the amide bond.
Molecules 20 00807 g001 550

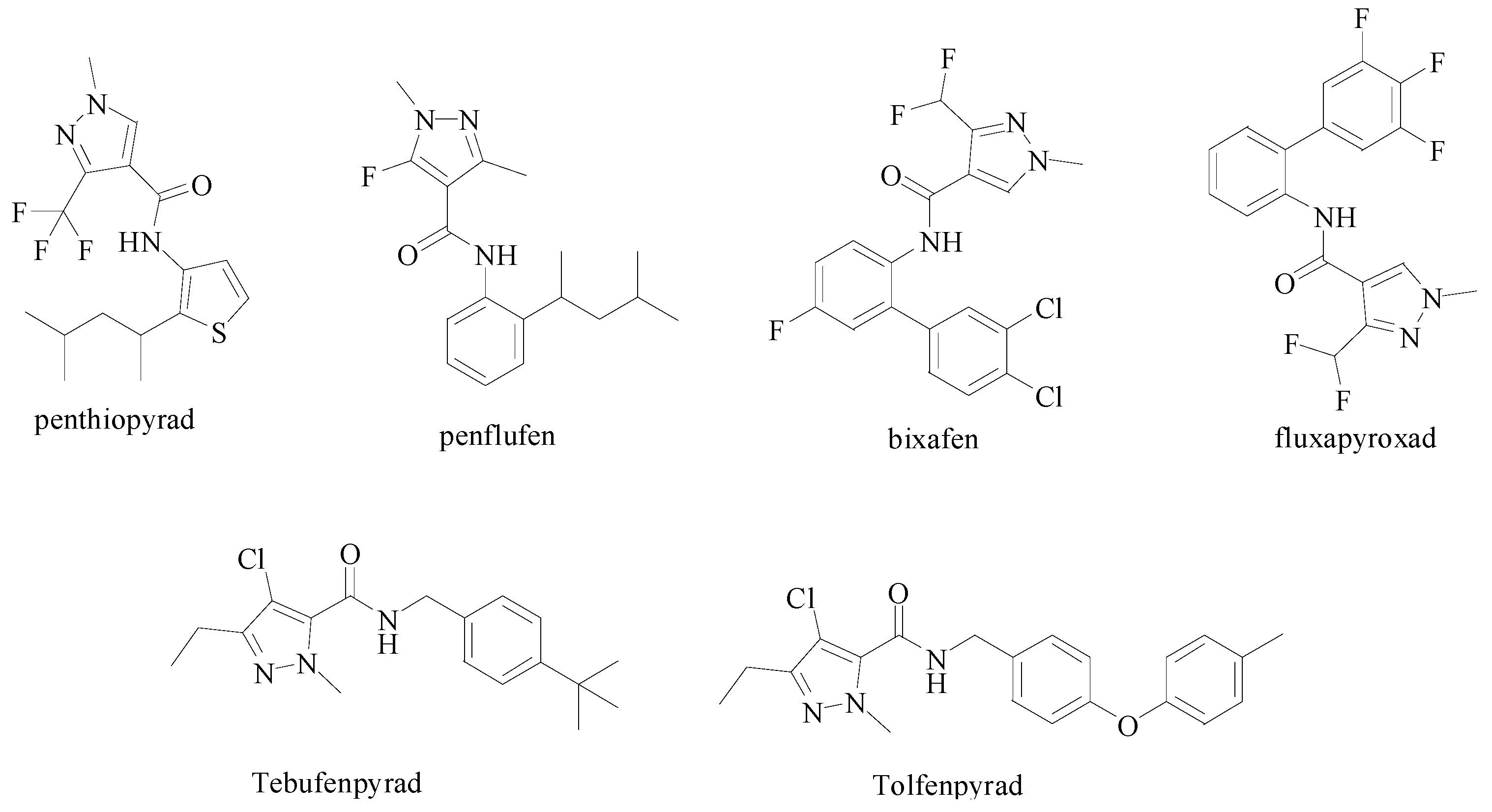

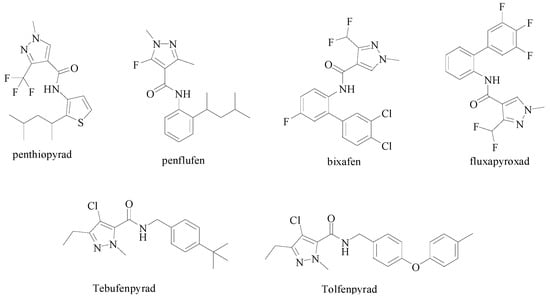

Figure 1. Pyrazole derivative products.
Figure 1. Pyrazole derivative products.
Molecules 20 00807 g001
Modification of the structural profile by the change of substituents at the 1-, 3-, or 4-positions in the pyrazole ring can bring about significant changes in bioactivity [28], and linking the pyrazole group with a structurally diverse side chain is an effective way to obtain new heterocyclic derivatives with high antiviral activities [29]. We assumed that if nitrile-containing pyrazole pharmacophores were introduced into the pyrazole scaffold, thus transforming the structure reported by Ouyang et al. [30], the resulting compounds may be interesting lead structures for antiviral agent development (Figure 2), because the nitrile can modulate the physicochemical and pharmacokinetic properties to improve bioavailability, enhance the selectivity and binding affinity to target proteins by hydrogen bond interactions, covalent interactions, polar interactions, and π-π interactions [31,32,33], and cyano substitution in the design of drugs has become one of the important research strategies in optimizing the structure of lead compounds [34].
Molecules 20 00807 g002 550

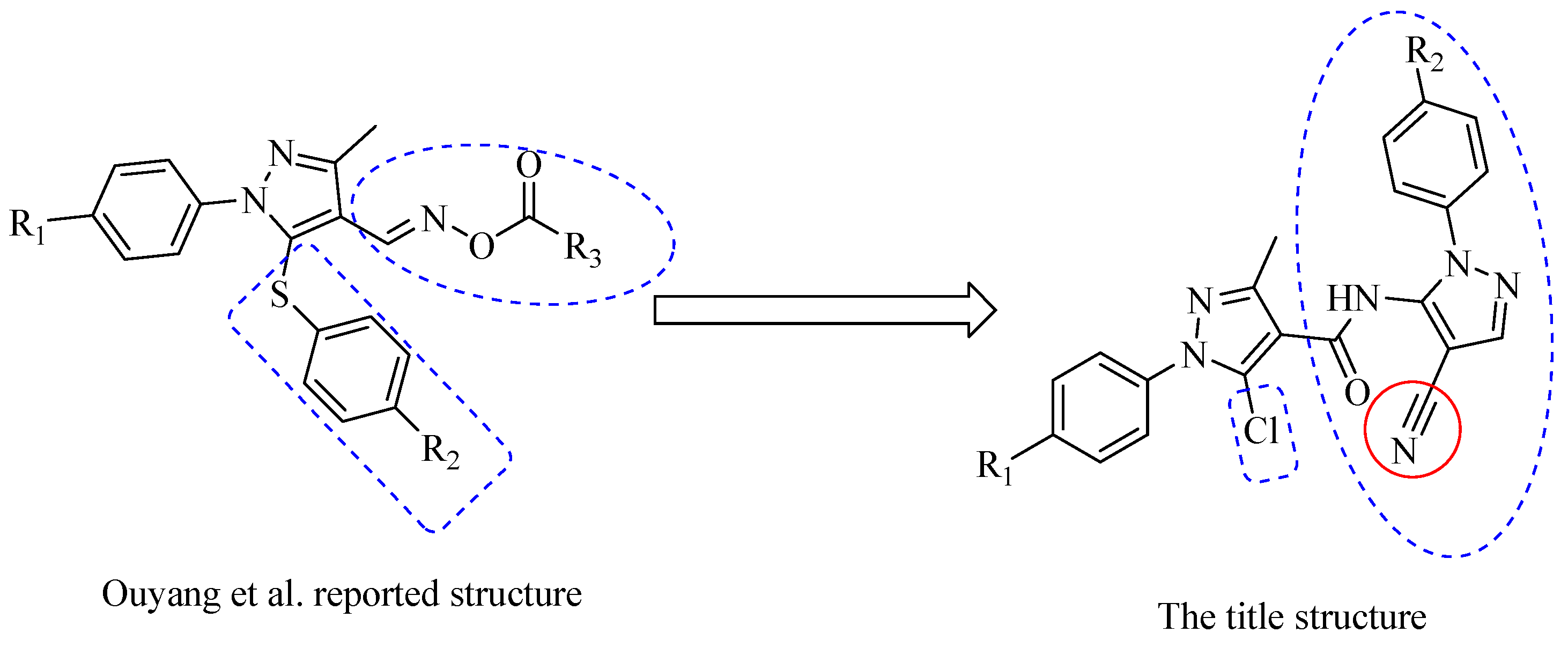

Figure 2. Design of the target compounds.
Figure 2. Design of the target compounds.
Molecules 20 00807 g002
We describe herein the synthesis and antiviral activity of a series of new pyrazole amide derivatives (Figure 3). Molecular docking was performed and the binding model revealed that the title pyrazole amide was tightly embeded in the binding sites of TMV PC (PDB code: 2OM3) (Figure 4). The anti-TMV activities of these compounds were subsequently evaluated, and a structure-activity relationship was established in terms of their anti-TMV activity.
Molecules 20 00807 g003 550
Figure 3. The structure of compounds 3a–3p.
Figure 3. The structure of compounds 3a–3p.
Molecules 20 00807 g003
Compound NO.R1R2
3aHH
3bHCl
3cHCH3
3dHF
3eClH
3fClCl
3gClCH3
3hClF
3iCH3H
3jCH3Cl
3kCH3CH3
3lCH3F
3mFH
3nFCl
3oFCH3
3pFF
Molecules 20 00807 g004 550

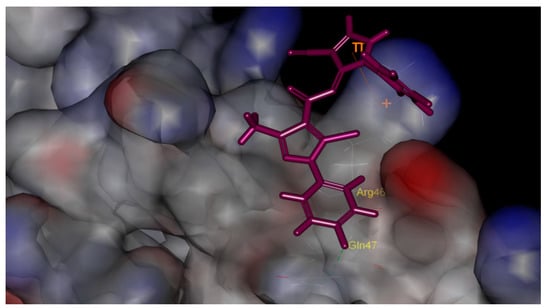

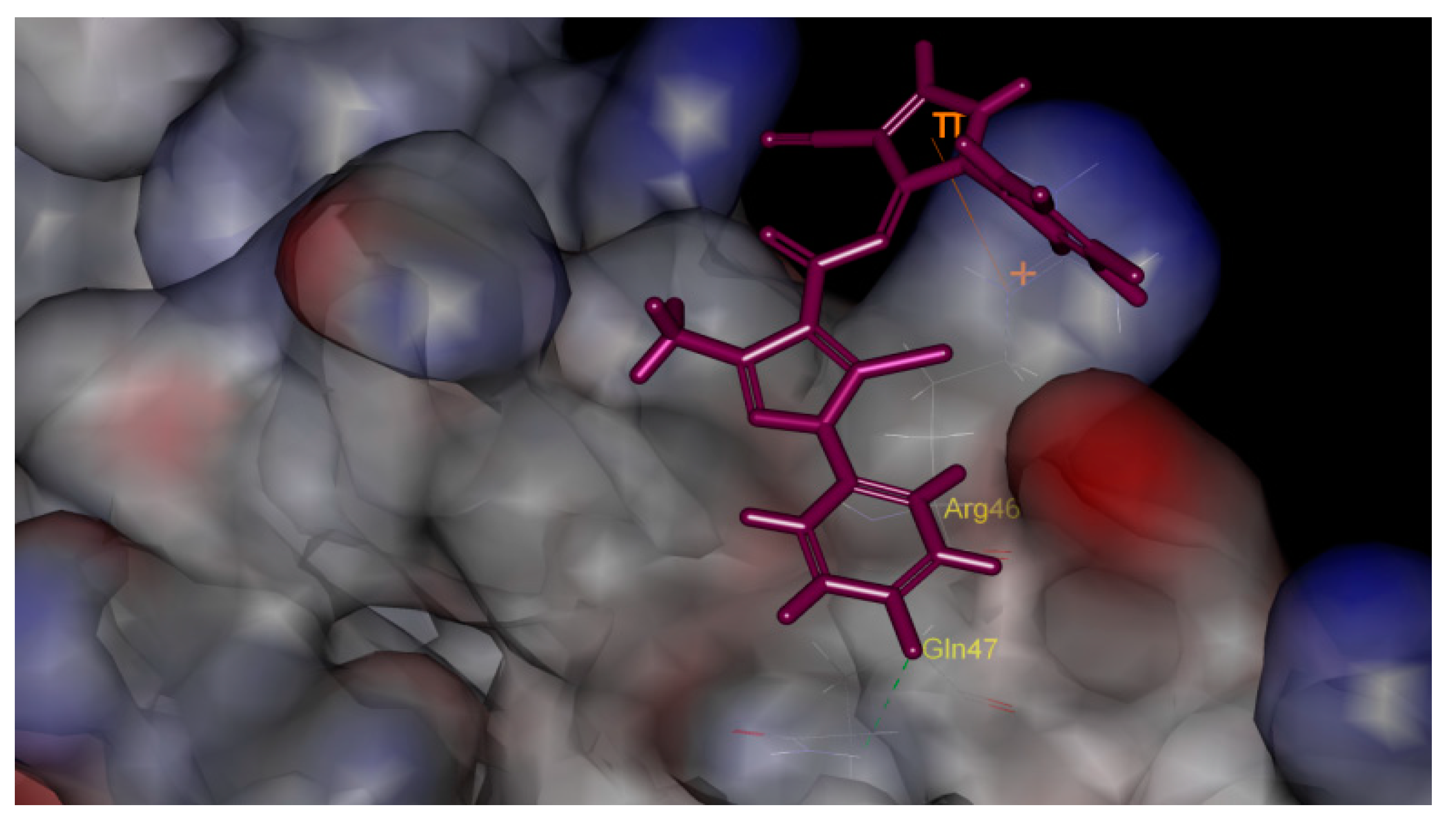

Figure 4. Docking model of compound 3p with TMV PC. It is nicely bound to the TMV PC one H-bond (GIn47-F:2.49 Å, 109.02°) and has a π-cation interaction (4.65 Å).
Figure 4. Docking model of compound 3p with TMV PC. It is nicely bound to the TMV PC one H-bond (GIn47-F:2.49 Å, 109.02°) and has a π-cation interaction (4.65 Å).
Molecules 20 00807 g004

2. Results and Discussion

2.1. Chemistry

The synthetic route is shown in Scheme 1, Scheme 2 and Scheme 3. Compounds 1a–1d were prepared in accordance with the literature procedure [35] from the reactions of substituted phenylhydrazines with ethyl acetoacetate in anhydrous ethanol medium. Then the reaction mixtures was added to a cold solution of DMF and POCl3. Finally, the products were oxidized with KMnO4, to give the 5-chloro-1-aryl-3-methyl-1H-pyrazole-4-carboxylic acids 1 (Scheme 1).
Compounds 2a–2d were obtained from substituted phenyl hydrazine hydrochlorides and 2-(ethoxymethylene) malononitrile in ethanol medium, which was refluxed for 3 h to produce the 5-amino-1-aryl-1H-pyrazole-4-carbonitriles 2a–2d [36] (Scheme 2).
Molecules 20 00807 g006 550

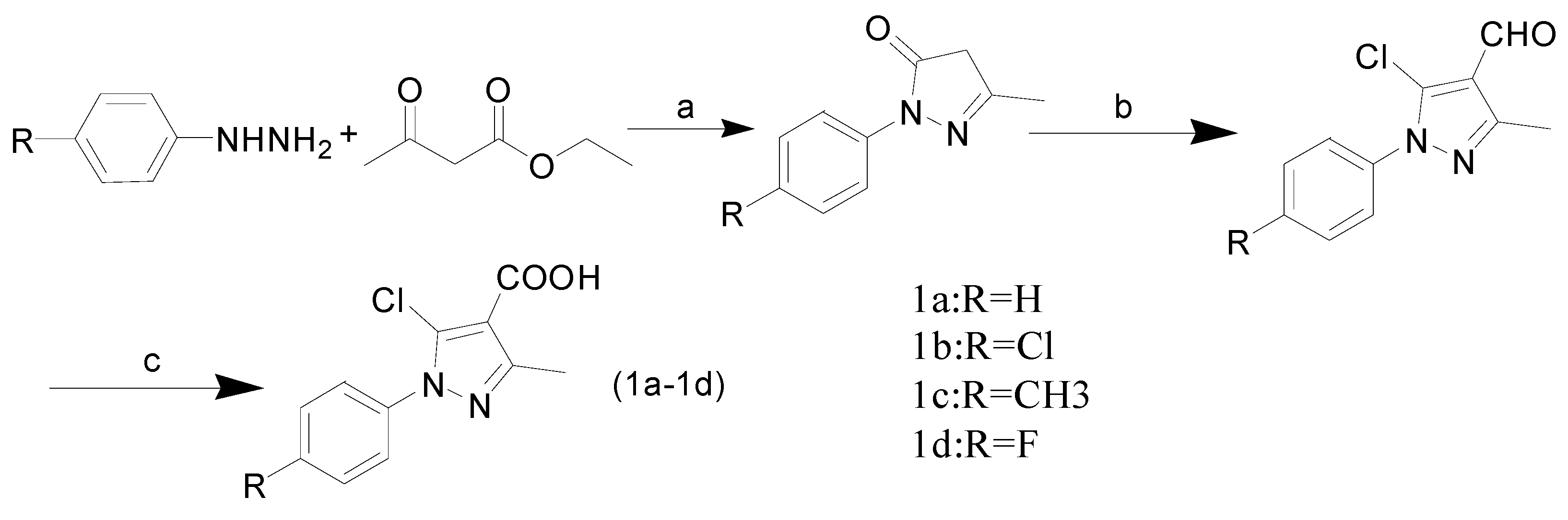

Scheme 1. General synthesis of compounds 1a–1d. (a) H2O, ethanol, 60 °C, TLC; (b) DMF, POCl3, 80–85 °C, TLC; (c) KMnO4, 70–80 °C, TLC.
Scheme 1. General synthesis of compounds 1a–1d. (a) H2O, ethanol, 60 °C, TLC; (b) DMF, POCl3, 80–85 °C, TLC; (c) KMnO4, 70–80 °C, TLC.
Molecules 20 00807 g006
Molecules 20 00807 g007 550

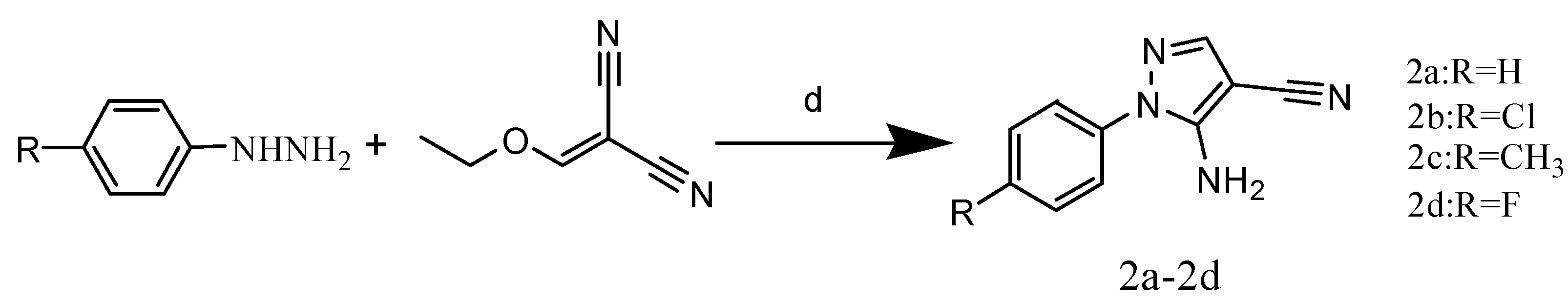

Scheme 2. General synthesis of compounds 2a–2d. (d) H2O, NaOH, ethanol, 3 h, reflux.
Scheme 2. General synthesis of compounds 2a–2d. (d) H2O, NaOH, ethanol, 3 h, reflux.
Molecules 20 00807 g007
The compounds 1 and 2 were reacted using 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide hydrochloride (EDCI) and N-hydroxybenzotriazole (HOBt) in DMF medium in the presence of triethylamine as catalyst at room temperature to produce the 5-chloro-N-(4-cyano-1-aryl-1H-pyrazol-5-yl)-1-aryl-3-methyl-1H-pyrazole-4-carboxamides 3a–3p (Scheme 3).
Molecules 20 00807 g008 550

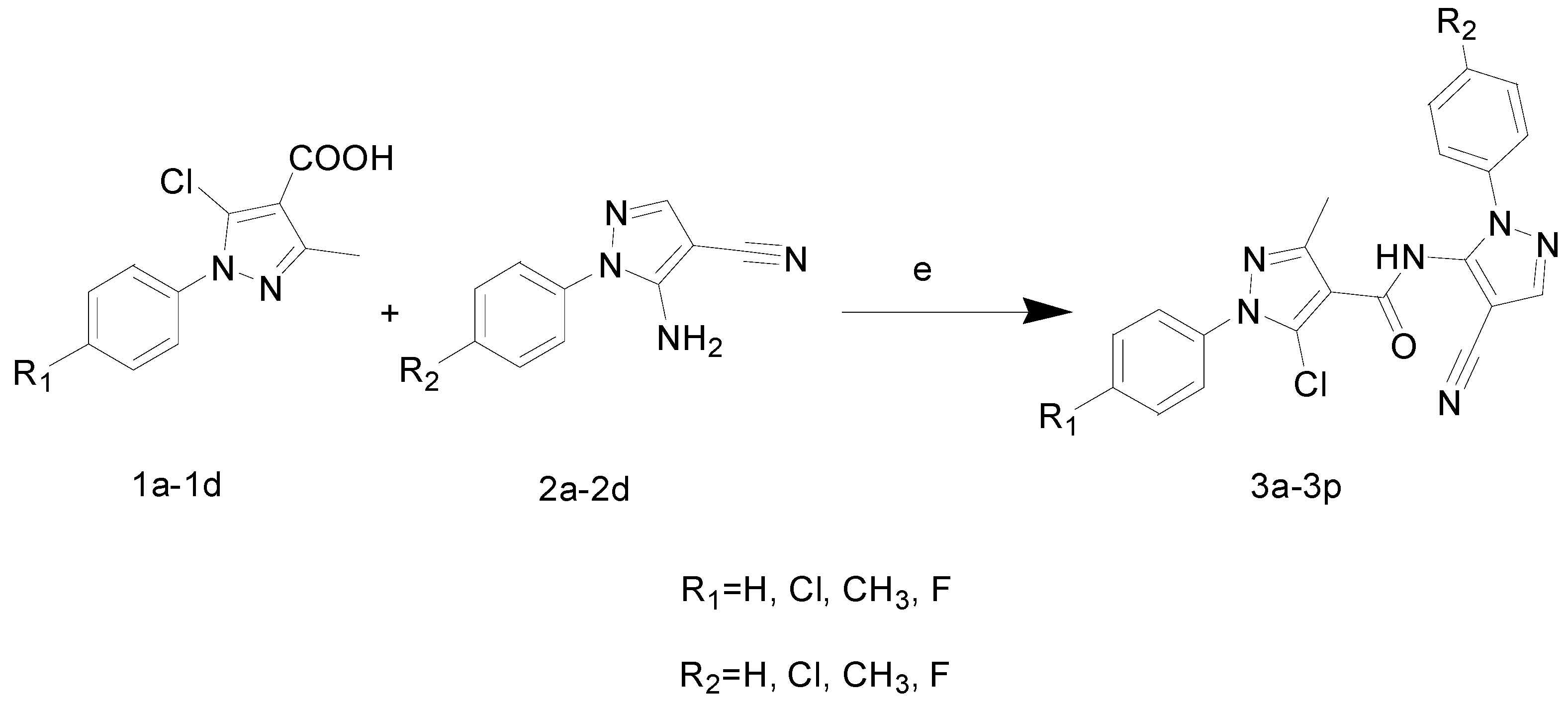

Scheme 3. General synthesis of compounds 3a–3p. (e) DMF, EDCI, HOBt, rt, TLC.
Scheme 3. General synthesis of compounds 3a–3p. (e) DMF, EDCI, HOBt, rt, TLC.
Molecules 20 00807 g008
The structures of the newly synthesized compounds were confirmed by 1H-NMR, mass spectroscopy and elemental analysis. In the 1H-NMR (CDCl3) spectra of the compounds, the N-H proton was hard to distinguish in the spectra. To prove its existence we used DMSO as solvent to dissolve compounds 3e, 3f, 3n and then recorded the NMR spectra, whereupon the signal of compounds 3e, 3n appears at 12.88 ppm and the signal of compounds 3f appears at 12.89 ppm. The NH group of compound 3n appears at 115.11 ppm in the corresponding 13C-NMR spectrum taken in DMSO. The IR spectrum of compound 3b has been investigated in detail to exactly indicate the presence of CN groups and the main observed absorption bands were those located at: 3180.66 cm−1 (N-H), 2230.44 cm−1 (C≡N), 1636.96 cm−1 (C=O), 1560.03 cm−1 (C=O), 1404.77 cm−1 (C-N), 821.27 cm−1 (C-Cl arom), and 587.59 cm−1 (C-Cl pyrazole), which all support the proposed structure.

2.2. Bioactivity

To judgme the antiviral potency of the synthesized compounds 3a–3p, the commercially available plant virucide ningnanmycin was used as the control. The antiviral bioassay against TMV was assayed by the method reported by Thorson et al. [37].
The in vivo and in vitro bioassay results of compounds 3a–3p against TMV are given in Table 1. The results indicated that the title compounds showed curative rates ranging from 22.6%–86.5%. Among them, compound 3p showed the most potent biological activity against TMV and it exhibited slightly higher activities compared to the commercial agent ningnanmycin.
Table
Table 1. Anti-TMV activity of compounds in vitro and in vivo at 500 mg/mL.
Table 1. Anti-TMV activity of compounds in vitro and in vivo at 500 mg/mL.
Compound NO.In Vitro Inhibition Rate (%)In Vivo Inhibition Rate (%)
Protection EffectInactivation EffectCurative Effect
3a54.8 ± 1.1132.4 ± 1.4543.2 ± 4.0147.3 ± 0.88
3b66.4 ± 0.7848.4 ± 0.2354.2 ± 2.1154.5 ± 1.03
3c52.1 ± 1.2043.1 ± 2.3342.6 ± 1.0942.2 ± 2.12
3d68.1 ± 2.3360.2 ± 2.1153.1 ± 2.0955.1 ± 2.15
3e67.2 ± 0.4849.3 ± 1.0358.4 ± 0.9756.5 ± 0.55
3f83.2 ± 1.1676.7 ± 2.5474.2 ± 1.5878.5 ± 0.82
3g64.3 ± 0.6633.8 ± 3.5652.3 ± 3.1241.2 ± 3.20
3h81.6 ± 0.7278.9 ± 1.2166.4 ± 4.2375.3 ± 1.31
3i53.3 ± 0.5122.6 ± 1.3643.3 ± 1.2452.1 ± 2.11
3j42.3 ± 0.4845.2 ± 1.9752.6 ± 0.6544.2 ± 5.12
3k50.2 ± 1.3342.1 ± 1.2922.8 ± 6.0338.9 ± 4.33
3l64.6 ± 4.1141.2 ± 7.0345.3 ± 7.3442.1 ± 1.43
3m74.4 ± 2.0852.1 ± 3.0264.6 ± 0.6345.9 ± 3.32
3n84.3 ± 1.5277.5 ± 3.5174.5 ± 2.1378.9 ± 1.65
3o72.1 ± 1.1861.3 ± 1.3067.8 ± 0.9252.1 ± 2.06
3p86.5 ± 4.9677.2 ± 6.0384.3 ± 0.5281.5 ± 1.03
Ningnanmycin82.1 ± 3.3162.4 ± 7.2078.4 ± 5.1455.2 ± 6.12

2.3. Molecular Docking

Molecular docking of compound 4p into the three dimensional X-ray structure of the TMV PC protein-ligand complex crystal structure (PDB code: 2OM3) was carried out using the Discovery Studio (DS) (version 3.1, NeoTrident Corporation, Beijing, China) software [38] as implemented through the graphical user interface DS-CDOCKER protocol. The three-dimensional structures of the aforementioned compounds were constructed using Chem. 3D ultra 12.0 software (Chemical Structure Drawing Standard, CambridgeSoft Corporation, Cambridge, MA, USA), then they were energetically minimized by using MMFF94 with 5000 iterations and minimum RMS gradient of 0.10. The crystal structures of protein complex were retrieved from the RCSB Protein Data Bank (http://www.rcsb.org/pdb/home/home.do) and prepared by Discovery Studio 3.1 with all bound waters and ligands eliminated from the protein and the polar hydrogen added to the protein. The molecular docking procedure was performed by using CDOCKER protocol for receptor-ligand interactions section of DS 3.1.

2.4. 3D-QSAR

In order to further explain of structure and activity relationships of these compounds, the in vitro antiviral activity data were used to build the 3D-QSAR models, and the 3D-QSAR study was performed by means of the DS 3.5 software. The correlation coefficient r2 between observed and predicted activity of training set was found to be 0.899, which meant the dependability of linear fit. The molecules aligned with the iso-surfaces of the 3D-QSAR model coefficients on electrostatic potential grids (Figure 5a) and van der Waals grids (Figure 5b) are listed.
Molecules 20 00807 g005 550

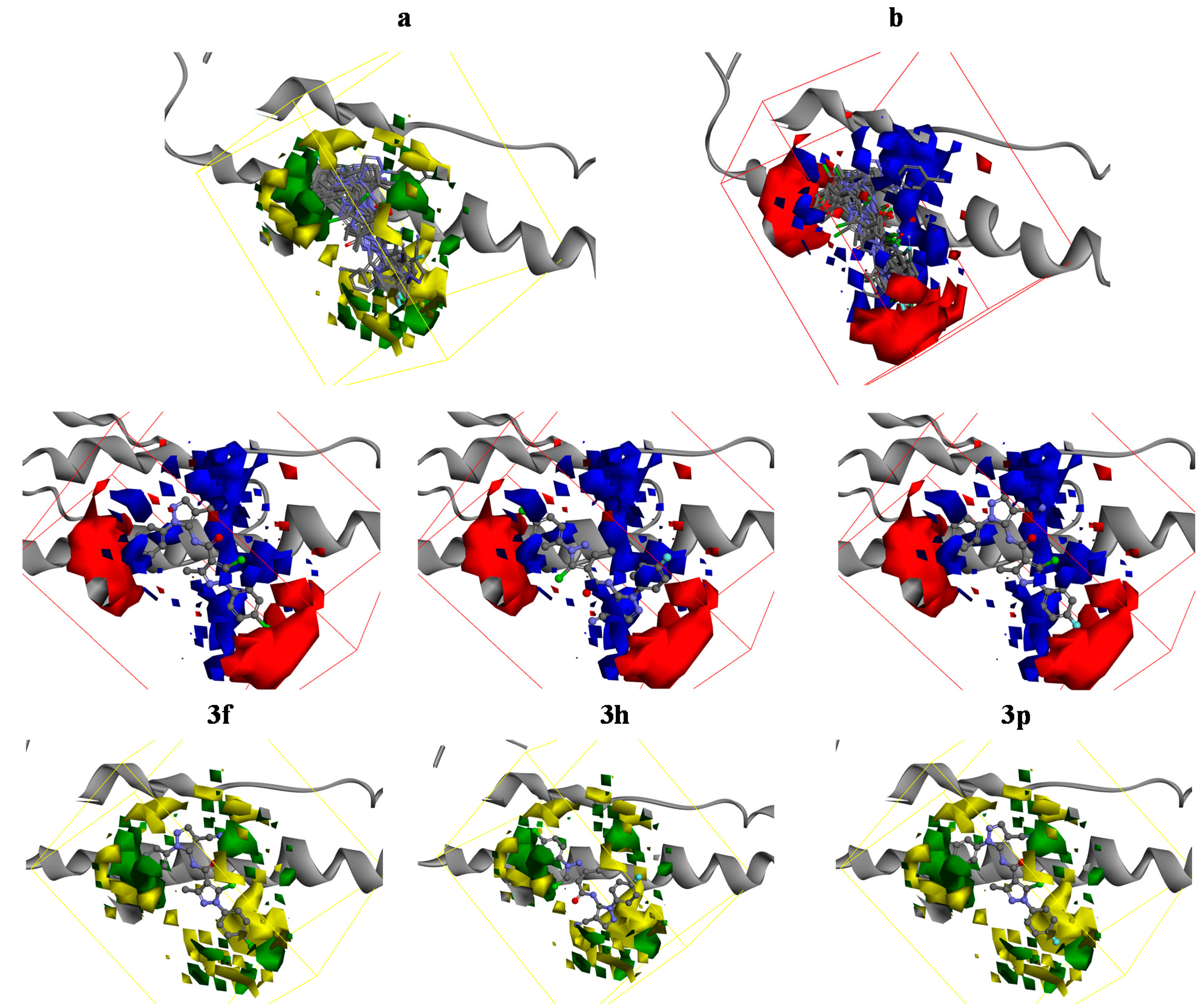

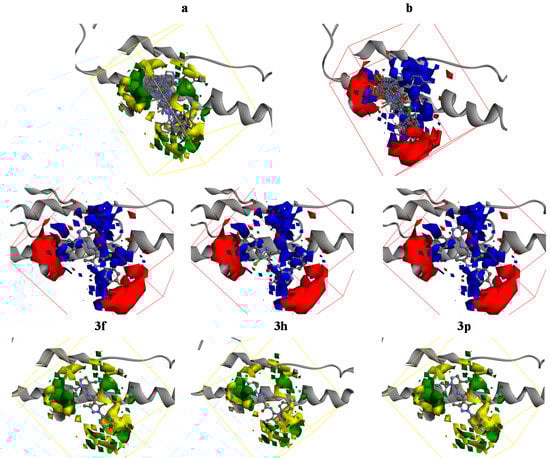

Figure 5. 3D-QSAR of pyrazole amide derivatives for TMV PC (PDB: 2OM3). (a) 3D-QSAR model coefficients on van der Waals grids. Green represents positive coefficients; yellow represents negative coefficients; (b) 3D-QSAR model coefficients on electrostatic potential grids. Blue represents positive coefficients; red represents negative coefficients.
Figure 5. 3D-QSAR of pyrazole amide derivatives for TMV PC (PDB: 2OM3). (a) 3D-QSAR model coefficients on van der Waals grids. Green represents positive coefficients; yellow represents negative coefficients; (b) 3D-QSAR model coefficients on electrostatic potential grids. Blue represents positive coefficients; red represents negative coefficients.
Molecules 20 00807 g005
As shown in Figure 5, compounds with electron-withdrawing atoms not only circumvented the red subregion but also got more close to the favorable green spaces. This figure showed that a halogen substituted group was a better choice than a methyl substituted group and F was a better substituent than Cl, so this QSAR study could predict that electron-withdrawing groupa substituted in the aromatic ring could have good interaction with the protein with nice molecule electrostatic and steric features. However, the chlorine atom is also a strong electron withdrawing-group but its ability is slight weaker than that of a F atom, therefore, the compounds with Cl atom substituted in the aromatic ring (e.g., 3f, 3h) have similar inhibition as 3p. The 3D QSAR models fitted the inhibitory activity well and thus provide us the directions for further modification.

3. Experimental Section

3.1. General Information

Melting points (uncorrected) were determined on an XT4 MP apparatus (Taike Corp., Beijing, China). ESI mass spectra were obtained on a Mariner System 5304 mass spectrometer (Applied Biosystems, Foster City, CA, USA). 1H-NMR spectra were recorded on a Bruker PX400 spectrometer (Bruker Corporation, Rheinstetten, Germany) at 25 °C with TMS and solvent signals assigned as internal references, 13C-NMR spectra and 1H-NMR spectra of compound 3e, 3n were recorded on an Agilent DD2 PX600 spectrometer (Agilent Technologies Corporation, Santa Clara, CA, USA). Chemical shifts were reported in ppm (δ). Elemental analyses were performed on a CHN-O-Rapid instrument (Leco, Tres Cantos, Madrid, Spain) and were within 0.4% of the theoretical values.

3.2. General Procedure for Synthesis of 5-Chloro-1-aryl-3-methyl-1H-pyrazole-4-carboxylic Acids 1a–1d

The intermediate 5-chloro-1-aryl-3-methyl-1H-pyrazole-4-carboxylic acids 1a–1d were synthesized as the following: para-substituted phenylhydrazines (0.025 mol) were reacted with ethyl acetoacetate (0.025 mol) in anhydrous ethanol to form a solid, which was then dissolved in a cold mixed solution of DMF (20 mL) and POCl3 (16 mL), and stirred at 50–60 °C. The resulting mixture was poured into ice-cold water, a saturated solution of sodium hydroxide was added to neutralize the mixture, and the solid precipitate was filtered, and washed with water. Then above product was oxidized by KMnO4 solution, stirred at 70–80 °C. After cooling to room temperature the pH of the reaction mixture was adjusted to pH 7–8 by the dropwise addition of KOH solution, and the solution was filtered, HCl solution was added to the solution and solid 1a–1d eventually separated out. The crude product obtained was recrystallized from DMF to afford the pure product. All the reactions were monitored by TLC.

3.3. General Procedure for Synthesis of 5-Amino-1-aryl-1H-pyrazole-4-carbonitriles 2a–2d

A stirred mixture of para-substituted phenylhydrazine hydrochloride (0.025 mol) was dissolved in H2O (30 mL), then the pH of the mixture was adjusted to pH 7–8 by the dropwise addition of 10% NaOH solution to form the free para-substituted phenyl hydrazines, which were then refluxed for 3 h with ethoxymethylene malononitrile in an ethanol medium. After completion of the reaction, the reaction mixture was allowed to cool at room temperature, and the solid 2a–2d were filtered under vacuum. The crude products obtained were recrystallized from DMF to afford the pure products.

3.4. General Procedure for Synthesis of 5-Chloro-N-(4-cyano-1-aryl-1H-pyrazol-5-yl)-1-aryl-3-methyl-1H-pyrazole-4-carboxamide Derivatives 3a–3p

To a stirred solution of the intermediate compounds 1a–1d (1 mmol) and triethylamine (2 mmol) in DMF (12 mL) medium, a mixture of EDCI (1 mmol) and HOBt (1mmol) was added and the reaction mixture was stirred at room temperature for 30 min, then a mixture of compounds 2a–2d (1 mmol) and DMF (5 mL) was added, the reaction was stirred at room temperature. And the reaction progress was monitored by TLC. After completion of the reaction, the product was added into chloroform, then extracted from chloroform with water, and washed successively with 0.2 mol/L hydrochloric acid, water, 2 mol/L sodium hydroxide, water, saturated sodium chloride, then dried, concentrated and purified by preparative thin layer chromatography (PE:EA = 8:1) followed by recrystallization from ethanol.
5-Chloro-N-(4-cyano-1-phenyl-1H-pyrazol-5-yl)-3-methyl-1-phenyl-1H-pyrazole-4-carboxamide (3a). White crystals, yield 68%, mp: 133–135 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.61–7.43 (m, 10H), 2.66 (s, 3H). MS (ESI): 403.1 (C21H15ClN6O, [M+H]+). Anal. Calcd for C21H15ClN6O: C, 62.61; H, 3.75; N, 20.86; Found: C, 62.82; H, 3.84; N, 21.04.
5-Chloro-1-(4-chlorophenyl)-N-(4-cyano-1-phenyl-1H-pyrazol-5-yl)-3-methyl-1H-pyrazole-4-carbox-amide (3b). White crystals, yield 68%. mp: 171–172 °C, IR (cm−1): 3180.66, 2230.44, 1636.96, 1560.03, 1404.77, 821.27, 587.59. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.55–7.43 (m, 9H), 2.65 (s, 3H). MS (ESI): 437.1 (C21H14Cl2N6O, [M+H]+). Anal. Calcd for C21H14Cl2N6O: C, 57.68; H, 3.23; N, 19.22; Found: C, 57.72; H, 3.31; N, 19.11.
5-Chloro-N-(4-cyano-1-(p-tolyl)-1H-pyrazol-5-yl)-3-methyl-1-phenyl-1H-pyrazole-4-carboxamide (3c). White crystals, yield 62%, mp: 123–125 °C; 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.63–7.41 (m, 9H), 2.66 (s, 3H), 2.42 (s, 3H). MS (ESI): 417.1 (C22H17ClN6O, [M+H]+). Anal. Calcd for C22H17ClN6O: C, 63.39; H, 4.11; N, 20.16; Found: C, 63.71; H, 4.42; N, 20.22.
5-Chloro-N-(4-cyano-1-(4-fluorophenyl)-1H-pyrazol-5-yl)-3-methyl-1-phenyl-1H-pyrazole-4-carbox-amide (3d). White crystal, yield 71%, mp: 181–183 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.51–7.21 (m, 9H), 2.66 (s, 3H). MS (ESI):421.0 (C21H14ClFN6O, [M+H]+). Anal. Calcd for C21H14ClFN6O: C, 59.54; H, 3.35; N, 19.97; Found: C, 59.72; H, 3.41; N, 20.06.
5-Chloro-1-(4-chlorophenyl)-N-(4-cyano-1-phenyl-1H-pyrazol-5-yl)-3-methyl-1H-pyrazole-4-carbox-amide (3e). White crystals, yield 66%, mp: 172–174 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.61–7.43 (m, 9H), 2.65 (s, 3H). 1H-NMR (600 MHz, DMSO-d6) δ: 12.88 (s, 1H), 7.97 (s, 1H), 7.62–7.41 (m, 9H), 2.48 (s, 3H). MS (ESI): 437.1 (C21H14Cl2N6O, [M+H]+). Anal. Calcd for C21H14Cl2N6O: C, 57.68; H, 3.23; N, 19.22; Found: C, 57.74; H, 3.41; N, 19.42.
5-Chloro-1-(4-chlorophenyl)-N-(1-(4-chlorophenyl)-4-cyano-1H-pyrazol-5-yl)-3-methyl-1H-pyrazole-4-carboxamide (3f). White crystals, yield 79%, mp: 178–180 °C. 1H-NMR (400 MHz, DMSO-d6) δ: 12.89 (s, 1H), 7.98 (s, 1H), 7.63–7.42 (m, 8H), 2.65 (s, 3H). MS (ESI): 471.0 (C21H13Cl3N6O, [M+H]+). Anal. Calcd for C21H13Cl3N6O: C, 53.47; H, 2.78; N, 17.82; Found: C, 53.56; H, 2.81; N, 17.91.
5-Chloro-1-(4-chlorophenyl)-N-(4-cyano-1-(p-tolyl)-1H-pyrazol-5-yl)-3-methyl-1H-pyrazole-4-carboxamide (3g). White crystals, yield 69%, mp: 130–132 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.60–7.43 (m, 8H), 2.65 (s, 3H), 2.42 (s, 3H). MS (ESI): 451.1 (C22H16Cl2N6O, [M+H]+). Anal. Calcd for C22H16Cl2N6O: C, 58.55; H, 3.57; N, 18.62; Found: C, 58.58; H, 3.71; N, 18.74.
5-Chloro-1-(4-chlorophenyl)-N-(4-cyano-1-(4-fluorophenyl)-1H-pyrazol-5-yl)-3-methyl-1H-pyrazole-4-carboxamide (3h). White crystals, yield 69%, mp: 177–178 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.53–7.20 (m, 8H), 2.66 (s, 3H). MS (ESI): 455.1 (C21H13Cl2FN6O, [M+H]+). Anal. Calcd for C21H13Cl2FN6O: C, 55.40; H, 2.88; N, 18.46; Found: C, 55.51; H, 2.93; N, 18.48.
5-Chloro-N-(4-cyano-1-phenyl-1H-pyrazol-5-yl)-3-methyl-1-(p-tolyl)-1H-pyrazole-4-carboxamide (3i). White crystals, yield 64%, mp: 124–126 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.62–7.41 (m, 9H), 2.65 (s, 3H), 2.42 (s, 3H). MS (ESI): 417.1 (C22H17ClN6O, [M+H]+). Anal. Calcd for C22H17ClN6O: C, 63.39; H, 4.11; N, 20.16; Found: C, 63.44; H, 4.14; N, 20.18.
5-Chloro-N-(1-(4-chlorophenyl)-4-cyano-1H-pyrazol-5-yl)-3-methyl-1-(p-tolyl)-1H-pyrazole-4-carboxamide (3j). White crystals, yield 77%, mp: 155–157 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.11 (s, 1H), 7.61–7.41 (m, 8H), 2.65 (s, 3H), 2.46 (s, 3H). MS (ESI): 451.1 (C22H16Cl2N6O, [M+H]+). Anal. Calcd for C22H16Cl2N6O: C, 58.55; H, 3.57; N, 18.62; Found: C, 58.58; H, 3.61; N, 18.66.
5-Chloro-N-(4-cyano-1-(p-tolyl)-1H-pyrazol-5-yl)-3-methyl-1-(p-tolyl)-1H-pyrazole-4-carboxamide (3k). White crystals, yield 63%, mp: 133–135 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.61–7.43 (m, 8H), 2.65 (s, 3H), 2.42 (s, 6H). MS (ESI): 431.1 (C23H19ClN6O, [M+H]+). Anal. Calcd for C23H19ClN6O: C, 64.11; H, 4.44; N, 19.50; Found: C, 64.17; H, 4.47; N, 19.56.
5-Chloro-N-(4-cyano-1-(4-fluorophenyl)-1H-pyrazol-5-yl)-3-methyl-1-(p-tolyl)-1H-pyrazole-4-carbox-amide (3l). White crystals, yield 62%, mp: 156–158 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.61–7.22 (m, 8H), 2.65 (s, 3H), 2.42 (s, 3H). MS (ESI): 435.1 (C22H16ClFN6O, [M+H]+). Anal. Calcd for C22H16ClFN6O: C, 60.76; H, 3.71; N, 19.33; Found: C, 60.77; H, 3.74; N, 19.46.
5-Chloro-N-(4-cyano-1-phenyl-1H-pyrazol-5-yl)-1-(4-fluorophenyl)-3-methyl-1H-pyrazole-4-carbox-amide (3m). White crystals, yield 69%, mp: 118–120 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.61–7.23 (m, 9H), 2.65 (s, 3H). MS (ESI): 421.1 (C21H14ClFN6O, [M+H]+). Anal. Calcd for C22H16ClN6O: C, 59.94; H, 3.35; N, 19.97; Found: C, 60.07; H, 3.43; N, 20.04.
5-Chloro-N-(1-(4-chlorophenyl)-4-cyano-1H-pyrazol-5-yl)-1-(4-fluorophenyl)-3-methyl-1H-pyrazole-4-carboxamide (3n). White crystals, yield 81%, mp: 149–151 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.62–7.22 (m, 8H), 2.65 (s, 3H). 1H-NMR (600 MHz, DMSO-d6) δ: 12.88 (s, 1H), 7.97 (s, 1H), 7.62–7.21 (m, 8H), 2.48 (s, 3H). 13C-NMR (151 MHz, DMSO-d6) δ 163.47, 163.14, 151.88, 151.73, 142.43, 136.76, 133.97, 132.68, 131.25, 128.64, 128.58, 116.71, 116.56, 115.11, 110.46, 73.96, 14.86. MS (ESI): 455.1 (C21H13Cl2FN6O, [M+H]+). Anal. Calcd for C21H13Cl2FN6O: C, 55.40; H, 2.88; N, 18.46; Found: C, 55.53; H, 2.91; N, 18.49.
5-Chloro-N-(4-cyano-1-(p-tolyl)-1H-pyrazol-5-yl)-1-(4-fluorophenyl)-3-methyl-1H-pyrazole-4-carbox-amide (3o). White crystals, yield 65%, mp: 127–129 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.61–7.22 (m, 8H), 2.65 (s, 3H), 2.42 (s, 3H). MS (ESI): 435.1 (C22H16ClFN6O, [M+H]+). Anal. Calcd for C22H16ClFN6O: C, 60.76; H, 3.71; N, 19.33; Found: C, 60.80; H, 3.77; N, 19.49.
5-Chloro-N-(4-cyano-1-(4-fluorophenyl)-1H-pyrazol-5-yl)-1-(4-fluorophenyl)-3-methyl-1H-pyrazole-4-carboxamide (3p). White crystals, yield 62%, mp: 182–183 °C. 1H-NMR (400 MHz, CDCl3) δ: 8.12 (s, 1H), 7.61–7.21 (m, 8H), 2.65 (s, 3H). MS (ESI): 439.1 (C21H13ClF2N6O, [M+H]+). Anal. Calcd for C21H13ClF2N6O: C, 57.48; H, 2.99; N, 19.15; Found: C, 57.53; H, 3.03; N, 19.17.

3.5. Antiviral Biological Assay

The anti-TMV activity of the synthesized pure compounds were tested by using the method reported by Thorson et al. [37]. This method is to measure the antiviral activity of compounds in vitro and to test the protective effect, the inactivation effect and the curative effect in vivo against TMV.

3.5.1. Antiviral Activity of Target Compounds in Vitro

Fresh 5–6 growth stage of tobacco leaves (Nicotianatabacum var. XanthiNC) were selected for the test. The tobacco was inoculated by the juice-leaf rubbing method, and the concentration of TMV was 5.88 × 10−2 μg/mL. The leaves was cut into halves along the main vein, and a solution of the compounds with a concentration of 500 μg/mL was smeared on the halves, and then cultured at 25 °C for 72 h. Each compound was tested three times.

3.5.2. Protective Effect of Target Compounds against TMV in Vivo

The test compound solution was smeared on the left side, and the solvent served as control on the right side of growing tobacco (Nicotianatabacum var. XanthiNC). After 12 h, TMV at a concentration of 6.0 μg/mL was inoculated on the leaves which were previously scattered with silicon carbide through the above juice-leaf rubbing method. Then the leaves were again immersed into water and rubbed softly along the nervation once or twice. The local lesion numbers showing 3–4 days after inoculation were counted. Each compound was tested in three replicates.

3.5.3. Inactivate Effect of Target Compounds against TMV in Vivo

The virus was inhibited by mixing with the target compound solution at the same volume for 30 min. Then the mixture was inoculated on the left side of the host tobacco leaves (Nicotianatabacum var. XanthiNC), and a mixture of solvent and the virus was inoculated on the right side to serve as control. The local lesion numbers showing 3–4 days after inoculation were counted. Each compound was tested in three replicates.

3.5.4. Curative Effect of Target Compounds against TMV in Vivo

Host plant tobacco leaves (Nicotianatabacum var. XanthiNC) of the same age growing at the six-leaf stage were selected for the test. TMV at a concentration of 6.0 μg/mL was inoculated on the whole leaves. The leaves were washed with water, and dried in a greenhouse. The target compound solution was smeared on the left side, and the solvent served as control on the right side. The local lesion numbers showing 3–4 days after inoculation were counted. Each compound was tested in three replicates. The inhibition rates of the compound in vitro and in vivo were calculated according to the following formula (controls were not treated with compound):
Inhibition rate (%) = [(average local lesion number of control − average local lesion number of drug treated)/average local lesion number of control] × 100%

4. Conclusions

In conclusion, a series of novel pyrazole amide compounds has been designed and synthesized, based on the skeleton of previously reported pyrazole derivatives. The title compounds 3a–3p were evaluated as potent antiviral agents against TMV and it was proved that compound 3p showed a significant activity.
Structure-activity relationships in these pyrazole amide derivatives were evaluated using the DS approach to proceed with structure optimization, The data demonstrated that compounds with para electron-withdrawing substituents (e.g., 3f, 3h, 3n, 3p) in the A-ring showed more potent activities than those with electron-donating substituents (e.g., 3a, 3d, 3i, 3k). In comparison the activity of compound with para substituents on the phenyl ring showed that an electron-withdrawing group gave slightly improved antiviral activity and the potency order is F > Cl. Among all the compounds, 3p with a para-F group showed more activity, while 3k showed the lowest activity.
For the binding model of compound 3p, an H-bond (2.49 Å and 109.02°) was established between its fluorine atom and Gin47, and it also formed a π-cation interaction (4.65 Å). The result of molecular docking suggests that introduction of a fluorine atom facilitates the adoption of a complementary shape of the designed ligands with TMV PC, and this possibly improves the anti-TMV inhibitory potency.

Acknowledgments

This work was supported by National Natural Science Foundation of China (No. 21302002) and Anhui Natural Science Foundation (1408085QB33).

Author Contributions

Hai-Qun Cao, Xian-Hai Lv, and Jin-Jing Xiao conceived and designed the study. Jin-Jing Xiao, and Zi-Li Ren performed the experiments. Ming-Jie Chu and Xin Zhang analyzed data. Jin-Jing Xiao wrote the manuscript. Min Liao edited and revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ren, Y.P.; Wong, S.M.; Lim, L.Y. Application of plant viruses as nano drug delivery systems. Pharm. Res. 2010, 27, 2509–2513. [Google Scholar] [CrossRef] [PubMed]
  2. Ritzenthaler, C. Resistance to plant viruses: Old issue, news answers? Curr. Opin. Biotechnol. 2005, 16, 118–122. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, Z.; Wei, P.; Wang, L.; Wang, Q. Design, synthesis, and anti-tobacco mosaic virus (TMV) activity of phenanthroindolizidines and their analogues. J. Agric. Food Chem. 2012, 60, 10212–10219. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Z.; Wei, P.; Xizhi, X.; Liu, Y.; Wang, L.; Wang, Q. Design, synthesis, and antiviral activity evaluation of phenanthrene-based antofine derivatives. J. Agric. Food Chem. 2012, 60, 8544–8551. [Google Scholar] [CrossRef] [PubMed]
  5. Whiting, M.; Muldoon, J.; Lin, Y.C.; Silverman, S.M.; Lindstrom, W.; Olson, A.J.; Kolb, H.C.; Finn, M.G.; Sharpless, K.B.; Elder, J.H.; et al. Inhibitors of HIV-1 protease by using in situ click chemistry. Angew. Chem. Int. Ed. 2006, 45, 1435–1439. [Google Scholar] [CrossRef]
  6. Ghosh, A.K.; Chapsal, B.D.; Weber, I.T.; Mitsuya, H. Design of HIV protease inhibitors targeting protein backbone: An effective strategy for combating drug resistance. Acc. Chem. Res. 2008, 41, 78–86. [Google Scholar] [CrossRef] [PubMed]
  7. Bendahmane, M.; Chen, I.; Asurmendi, S.; Bazzini, A.A.; Szecsi, J.; Beachy, R.N. Coat protein-mediated resistance to TMV infection of Nicotiana tabacum involves multiple modes of interference by coat protein. Virology 2007, 366, 107–116. [Google Scholar] [CrossRef] [PubMed]
  8. Matthews, R. Plant Virology; Elsevier: Amsterdam, The Netherlands, 1991; p. 864. [Google Scholar]
  9. Ko, H.C.; Wei, B.L.; Chiou, W.F. The effect of medicinal plants used in Chinese folk medicine on RANTES secretion by virus-infected human epithelial cells. J. Ethnopharmacol. 2006, 107, 205–210. [Google Scholar] [CrossRef] [PubMed]
  10. Song, B.; Jin, L.; Yang, S.; Bhadury, P.S. Environment-Friendly Antiviral Agents for Plants, 1st ed.; Chemical Industry Press: Beijing, China, 2010. [Google Scholar]
  11. Gao, S.; Zhang, R.Y.; Yu, Z.H.; Xi, Z. Antofine analogues can inhibit tobacco mosaic virus assembly through small-molecule-RNA interactions. Chembiochem 2012, 13, 1622–1627. [Google Scholar] [CrossRef] [PubMed]
  12. Thomas, J.R.; Hergenrother, P.J. Targeting RNA with small molecules. Chem. Rev. 2008, 108, 1171–1224. [Google Scholar] [CrossRef] [PubMed]
  13. Graillot, V.; Tomasetig, F.; Cravedi, J.-P.; Audebert, M. Evidence of the in vitro genotoxicity of methyl-pyrazole pesticides in human cells. Mutat. Res. 2012, 748, 8–16. [Google Scholar] [CrossRef] [PubMed]
  14. Giornal, F.; Pazenok, S.; Rodefeld, L.; Lui, N.; Vors, J.-P.; Leroux, F.R. Synthesis of diversely fluorinated pyrazoles as novel active agrochemical ingredients. J. Fluorine Chem. 2013, 152, 2–11. [Google Scholar] [CrossRef]
  15. Xue, N.; Zhou, Y.; Wang, G.; Miao, W.; Qu, J. Syntheses and herbicidal activity of pyrazolyl benzoxazole derivatives. ChemInform 2010, 41, 15–21. [Google Scholar]
  16. Mali, J.R.; Pratap, U.R.; Jawale, D.V.; Mane, R.A. Water-mediated one-pot synthetic route for pyrazolo[3,4-b]quinolines. Tetrahedron Lett. 2010, 51, 3980–3982. [Google Scholar] [CrossRef]
  17. Al-Masoudi, I.A.; Al-Souda, Y.A.; Al-Salihi, N.J.; Al-Masoudi, N.A. 1,2,4-Triazoles: Synthetic approaches and pharmacological importance. Chem. Heterocycl. Comp. 2006, 42, 1377–1403. [Google Scholar] [CrossRef]
  18. Kumari, S.; Paliwal, S.; Chauhan, R. Synthesis of pyrazole derivatives possessing anticancer activity: Current status. Synth. Commun. 2014, 44, 1521–1578. [Google Scholar] [CrossRef]
  19. Rida, S.M.; Ashour, F.A.; El-Hawash, S.A.M.; Elsemary, M.M.; Badr, M.H.; Shalaby, M.A. Synthesis of some novel benzoxazole derivatives as anticancer, anti-HIV-1 and antimicrobial agents. Eur. J. Med. Chem. 2005, 40, 949–959. [Google Scholar] [CrossRef] [PubMed]
  20. Siddall, T.L.; Ouse, D.G.; Benko, Z.L.; Garvin, G.M.; Jackson, J.L.; McQuiston, J.M.; Ricks, M.J.; Thibault, T.D.; Turner, J.A.; Vanheertum, J.C.; et al. Synthesis and herbicidal activity of phenyl-substituted benzoylpyrazoles. Pest Manag. Sci. 2002, 58, 1175–86. [Google Scholar] [CrossRef] [PubMed]
  21. Meazza, G.; Bettarini, F.; La Porta, P.; Piccardi, P.; Signorini, E.; Portoso, D.; Fornara, L. Synthesis and herbicidal activity of novel heterocyclic protoporphyrinogen oxidase inhibitors. Pest Manag. Sci. 2004, 60, 1178–1188. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, M.Y.; Shi, D.Q. Synthesis and herbicidal activity of 2-aroxy-propanamides containing pyrimidine and 1,3,4-thiadiazole rings. J. Heterocycl. Chem. 2014, 51, 432–435. [Google Scholar] [CrossRef]
  23. Satasia, S.P.; Kalaria, P.N.; Raval, D.K. Catalytic regioselective synthesis of pyrazole based pyrido[2,3-d]pyrimidine-diones and their biological evaluation. Org. Biomol. Chem. 2014, 12, 1751–1758. [Google Scholar] [CrossRef] [PubMed]
  24. Rahmouni, A.; Romdhane, A.; Ben Said, A.; Majouli, K.; Ben Jannet, H. Synthesis of new pyrazole and antibacterial pyrazolopyrimidine derivatives. Turk. J. Chem. 2014, 38, 210–221. [Google Scholar] [CrossRef]
  25. Darwish, E.S.; Fattah, A.M.A.; Attaby, F.A.; Al-Shayea, O.N. Synthesis and antimicrobial evaluation of some novel thiazole, pyridone, pyrazole, chromene, hydrazone derivatives bearing a biologically active sulfonamide moiety. Int. J. Mol. Sci. 2014, 15, 1237–1254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Lamberth, C. Pyrazole chemistry in crop protection. Heterocycles 2007, 71, 1467–1502. [Google Scholar] [CrossRef]
  27. Jiang, D.X.; Zheng, X.H.; Shao, G.; Ling, Z.; Xu, H.H. Discovery of a novel series of phenyl pyrazole inner salts based on fipronil as potential dual-target insecticides. J. Agric. Food Chem. 2014, 62, 3577–3583. [Google Scholar] [CrossRef] [PubMed]
  28. Ouyang, G.P.; Cai, X.J.; Chen, Z.; Song, B.A.; Bhadury, P.S.; Yang, S.; Jin, L.H.; Xue, W.; Hu, D.Y.; Zeng, S. Synthesis and antiviral activities of pyrazole derivatives containing an oxime moiety. J. Agric. Food Chem. 2008, 56, 10160–10167. [Google Scholar] [CrossRef] [PubMed]
  29. Li, Y.; Zhang, H.Q.; Liu, J.; Yang, X.P.; Liu, Z.J. Stereoselective synthesis and antifungal activities of (E)-alpha-(methoxyimino)benzeneacetate derivatives containing 1,3,5-substituted pyrazole ring. J. Agric. Food Chem. 2006, 54, 3636–3640. [Google Scholar] [CrossRef] [PubMed]
  30. Ouyang, G.P.; Chen, Z.; Cai, X.J.; Song, B.A.; Bhadury, P.S.; Yang, S.; Jin, L.H.; Xue, W.; Hu, D.Y.; Zeng, S. Synthesis and antiviral activity of novel pyrazole derivatives containing oxime esters group. Bioorganic Med. Chem. 2008, 16, 9699–9707. [Google Scholar] [CrossRef]
  31. Reid, T.S.; Beese, L.S. Crystal structures of the anticancer clinical candidates R1 15777 (Tipifarnib) and BMS-214662 complexed with protein farnesyltransferase suggest a mechanism of FTI selectivity. Biochemistry 2004, 43, 6877–6884. [Google Scholar] [CrossRef] [PubMed]
  32. Hunt, J.T.; Ding, C.Z.; Batorsky, R.; Bednarz, M.; Bhide, R.; Cho, Y.; Chong, S.; Chao, S.; Gullo-Brown, J.; Guo, P.; et al. Discovery of (R)-7-cyano-2,3,4,5-tetrahydro-1-(1H-imidazol-4-ylmethyl)-3-(phenylmethyl)-4-(2-thienylsulfonyl)-1H-1,4-benzodiazepine (BMS-214662), a farnesyltransferase inhibitor with potent preclinical antitumor activity. J. Med. Chem. 2000, 43, 3587–3595. [Google Scholar] [CrossRef] [PubMed]
  33. Das, K.; Clark, A.D.; Lewi, P.J.; Heeres, J.; de Jonge, M.R.; Koymans, L.M.H.; Vinkers, H.M.; Daeyaert, F.; Ludovici, D.W.; Kukla, M.J.; et al. Roles of conformational and positional adaptability in structure-based design of TMC125-R165335 (etravirine) and related non-nucleoside reverse transcriptase inhibitors that are highly potent and effective against wild-type and drug-resistant HIV-1 variants. J. Med. Chem. 2004, 47, 2550–2560. [Google Scholar] [CrossRef] [PubMed]
  34. Fleming, F.F.; Yao, L.H.; Ravikumar, P.C.; Funk, L.; Shook, B.C. Nitrile-containing pharmaceuticals: Efficacious roles of the nitrile pharmacophore. J. Med. Chem. 2010, 53, 7902–7917. [Google Scholar] [CrossRef] [PubMed]
  35. Wu, J.; Shi, Q.; Chen, Z.; He, M.; Jin, L.H.; Hu, D.Y. Synthesis and bioactivity of pyrazole acyl thiourea derivatives. Molecules 2012, 17, 5139–5150. [Google Scholar] [CrossRef] [PubMed]
  36. Kornienko, A.N.; Pil’o, S.G.; Kozachenko, A.P.; Prokopenko, V.M.; Rusanov, E.B.; Brovarets, V.S. Reaction of 2-aryl-4-cyano-1,3-oxazole-5-sulfonyl chlorides with 5-amino-1H-pyrazoles and 5-amino-1H-1,2,4-triazole. Chem. Heterocycl. Comp. 2014, 50, 76–86. [Google Scholar] [CrossRef]
  37. Thorson, J.S.; Hosted, T.J.; Jiang, J.; Biggins, J.B.; Ahlert, J. Natures carbohydrate chemists the enzymatic glycosylation of bioactive bacterial metabolites. Curr. Org. Chem. 2001, 5, 139–167. [Google Scholar] [CrossRef]
  38. Wu, G.; Robertson, D.H.; Brooks, C.L.; Vieth, M. Detailed analysis of grid-based molecular docking: A case study of CDOCKER—A CHARMm-based MD docking algorithm. J. Comput. Chem. 2003, 24, 1549–1562. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the title compounds 3a–3p are available from the authors.

Share and Cite

MDPI and ACS Style

Xiao, J.-J.; Liao, M.; Chu, M.-J.; Ren, Z.-L.; Zhang, X.; Lv, X.-H.; Cao, H.-Q. Design, Synthesis and Anti-Tobacco Mosaic Virus (TMV) Activity of 5-Chloro-N-(4-cyano-1-aryl-1H-pyrazol-5-yl)-1-aryl-3-methyl-1H-pyrazole-4-carboxamide Derivatives. Molecules 2015, 20, 807-821. https://doi.org/10.3390/molecules20010807

AMA Style

Xiao J-J, Liao M, Chu M-J, Ren Z-L, Zhang X, Lv X-H, Cao H-Q. Design, Synthesis and Anti-Tobacco Mosaic Virus (TMV) Activity of 5-Chloro-N-(4-cyano-1-aryl-1H-pyrazol-5-yl)-1-aryl-3-methyl-1H-pyrazole-4-carboxamide Derivatives. Molecules. 2015; 20(1):807-821. https://doi.org/10.3390/molecules20010807

Chicago/Turabian Style

Xiao, Jin-Jing, Min Liao, Ming-Jie Chu, Zi-Li Ren, Xin Zhang, Xian-Hai Lv, and Hai-Qun Cao. 2015. "Design, Synthesis and Anti-Tobacco Mosaic Virus (TMV) Activity of 5-Chloro-N-(4-cyano-1-aryl-1H-pyrazol-5-yl)-1-aryl-3-methyl-1H-pyrazole-4-carboxamide Derivatives" Molecules 20, no. 1: 807-821. https://doi.org/10.3390/molecules20010807

APA Style

Xiao, J.-J., Liao, M., Chu, M.-J., Ren, Z.-L., Zhang, X., Lv, X.-H., & Cao, H.-Q. (2015). Design, Synthesis and Anti-Tobacco Mosaic Virus (TMV) Activity of 5-Chloro-N-(4-cyano-1-aryl-1H-pyrazol-5-yl)-1-aryl-3-methyl-1H-pyrazole-4-carboxamide Derivatives. Molecules, 20(1), 807-821. https://doi.org/10.3390/molecules20010807

Article Metrics

Back to TopTop
