Bioevaluation of Novel Anti-Biofilm Coatings Based on PVP/Fe3O4 Nanostructures and 2-((4-Ethylphenoxy)methyl)-N- (arylcarbamothioyl)benzamides

Carmen Limban
Alexandru Vasile Missir
Alexandru Mihai Grumezescu
Alexandra Elena Oprea
Valentina Grumezescu
Bogdan Ștefan Vasile
Gabriel Socol
Roxana Trușcă
Miron Teodor Caproiu
Mariana Carmen Chifiriuc
Bianca Gălățeanu
Marieta Costache
Laurențiu Morușciag
Grațiela Pîrcălăbioru
8,* and
Diana Camelia Nuță
Department of Pharmaceutical Chemistry, "Carol Davila" University of Medicine and Pharmacy, Traian Vuia No. 6, 020956 Bucharest, Romania
Department of Science and Engineering of Oxide Materials and Nanomaterials, Faculty of Applied Chemistry and Materials Science, University Politehnica of Bucharest, Polizu Street No. 1–7,011061 Bucharest, Romania
National Institute for Lasers, Plasma & Radiation Physics, Lasers Department, P.O. Box MG-36, Bucharest-Magurele, Romania
Metav-CD S.A., 31Rosetti Str., 020015 Bucharest, Romania
The Organic Chemistry Center of Romanian Academy "Costin C.D. Nenitescu" Bucharest, Splaiul Independentei, 202B, 77208 Bucharest, Romania
Department of Microbiology, Faculty of Biology, University of Bucharest, Research Institute ofUniversity of Bucharest, Aleea Portocalelor No. 1–3, 060101 Bucharest, Romania
Department of Biochemistry and Molecular Biology, University of Bucharest, 91-95 Splaiul Independenței, 050095 Bucharest, Romania
Conway Institute, University College Dublin, Dublin 4, Dublin, Ireland
Author to whom correspondence should be addressed.
Molecules 2014, 19(8), 12011-12030;
Submission received: 11 June 2014 / Revised: 24 July 2014 / Accepted: 25 July 2014 / Published: 12 August 2014
(This article belongs to the Special Issue Bio and Nanomaterials Based on Fe3O4)


Novel derivatives were prepared by reaction of aromatic amines with 2-(4-ethylphenoxymethyl)benzoyl isothiocyanate, affording the N-[2-(4-ethylphenoxymethyl)benzoyl]-N'-(substituted phenyl)thiourea. Structural elucidation of these compounds was performed by IR, NMR spectroscopy and elemental analysis. The new compounds were used in combination with Fe3O4 and polyvinylpyrrolidone (PVP) for the coating of medical surfaces. In our experiments, catheter pieces were coated by Matrix Assisted Pulsed Laser Evaporation (MAPLE) technique. The microbial adherence ability was investigated in 6 multi-well plates by using culture based methods. The obtained surfaces were also assessed for their cytotoxicity with respect to osteoblast cells, by using fluorescence microscopy and MTT assay. The prepared surfaces by advanced laser processing inhibited the adherence and biofilm development ability of Staphylococcus aureus and Pseudomonas aeruginosa tested strains while cytotoxic effects on the 3T3-E1 preosteoblasts embedded in layer shaped alginate hydrogels were not observed. These results suggest that the obtained medical surfaces, based on the novel thiourea derivatives and magnetic nanoparticles with a polymeric shell could represent a promising alternative for the development of new and effective anti-infective strategies.

Graphical Abstract

1. Introduction

In the recent years, thiourea derivatives have gained extensive applications in medicine, agriculture, and also as ligands in coordination chemistry [1]. Specialized literature reveals that thiourea derivatives show a broad spectrum of biological activities. The thiourea skeleton can be effectively used to prepare a large number of new compounds with biological activities such as antiviral [2], anticancer [3], anti-inflammatory [4], antimicrobial [5,6], anticonvulsant [7] and anti-helmintic activities [8]. Thiourea derivatives are used as corrosion inhibitors [9] and as intermediates to obtain a great variety of heterocyclic compounds [10]. The crystal X-ray diffraction study of thiourea derivatives allowed a better understanding of the nature of binding of these compounds and a valuable insight into their conformation [11].
Although antibiotics have saved countless millions of lives, over the last decades, the emergence of antimicrobial resistance has limited their efficiency, becoming a serious global health problem that requires the development of new antimicrobial agents effective against pathogenic microorganisms resistant to currently available treatments [12].
Taking into account the drawback of potential drug candidates to reach their targets, the concept of drug delivery, especially by means of nanoscale carriers has become a focus of modern medicine. Iron oxide nanoparticles exhibit plenty of advantages through which they can be recommended for targeted biomedical applications [13,14,15,16,17,18,19,20,21,22].
The purpose of this study was to obtain novel N-[2-(4-ethylphenoxymethyl)benzoyl]-N'-(substituted phenyl)thiourea derivatives (1ac) and to combine them with magnetic nanoparticles in order to obtain polyvinylpyrrolidone (PVP)/Fe3O4/1ac nanostructures in the form of anti-biofilm coatings for medical devices, such as catheters.

2. Results and Discussion

2.1. Synthesis of New 2-((4-Ethylphenoxy)methyl)-N-(arylcarbamothioyl)benzamides 1ac

The synthetic route to the target compounds, 2-((4-ethylphenoxy)methyl)-N-(arylcarbamothioyl)benzamides (1ac), is shown in Scheme 1.

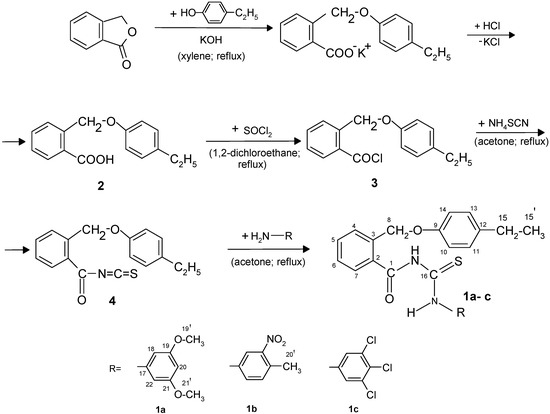

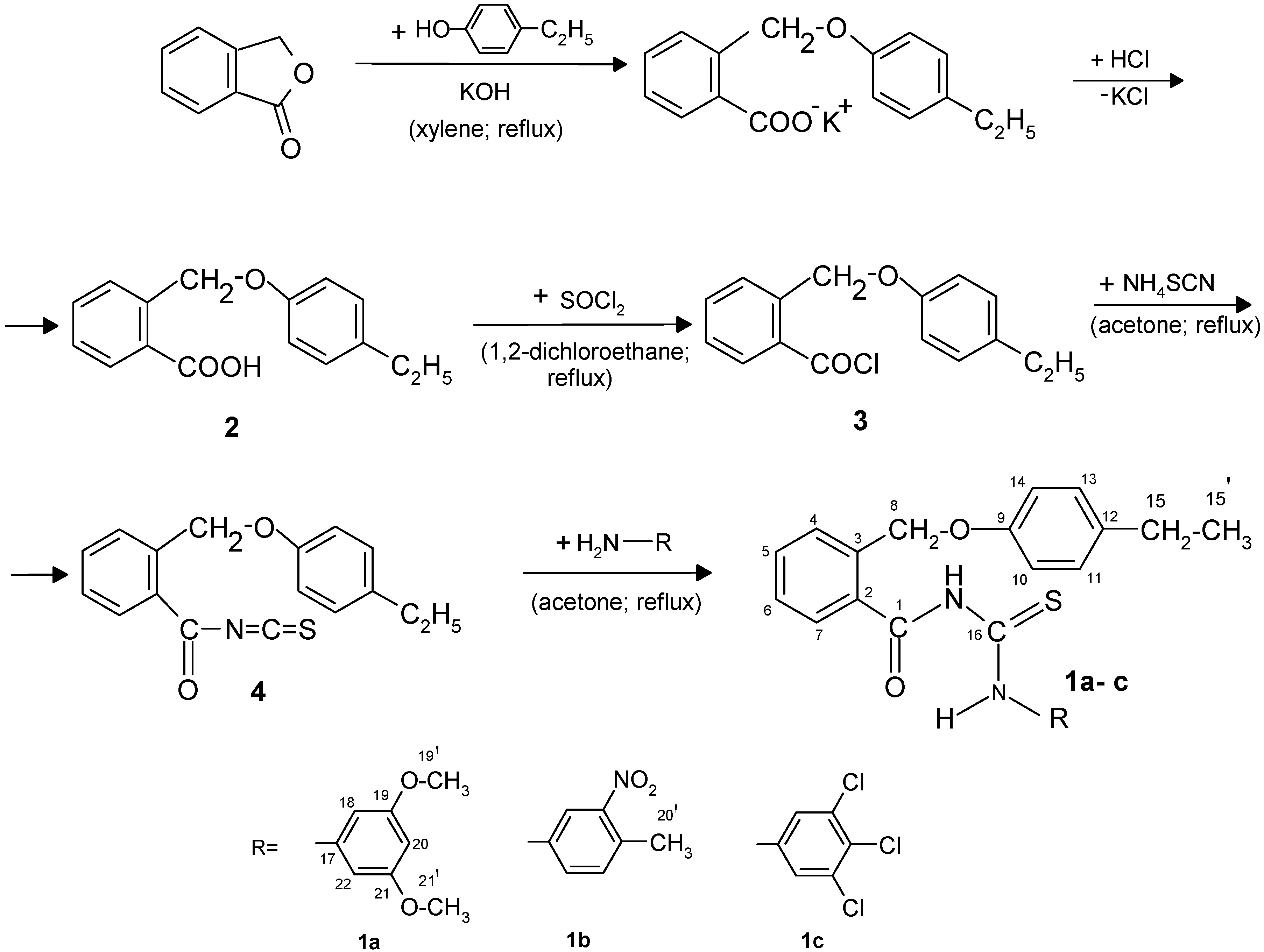

Scheme 1. Synthetic pathway for the new N-phenylcarbamothioylbenzamides (1ac).
Scheme 1. Synthetic pathway for the new N-phenylcarbamothioylbenzamides (1ac).
Molecules 19 12011 g015
The new thioureides are white or light yellow crystalline solids, soluble at room temperature in acetone and chloroform, on heating in lower alcohols, benzene, toluene and xylene but insoluble in water.
The melting points are sharp, indicating the purity of these compounds.
The elemental analyses results were in good agreement with those calculated for the suggested formula, and the accuracy of experimental values in respect to the theoretical values was ±0.4%.
The IR and NMR spectra confirmed the identity of the products while the IR bands were given as w—weak, m—medium, s—strong, vs—very strong. In the IR spectra, some significant stretching bands due to νN-H of amide and thioamide groups and νC=O were observed at 3279–3025 cm−1 and 1686–1673 cm−1, respectively.
Characteristic for νC-H of methyl and methylene groups, the anti-symmetric stretching vibrations were calculated in the frequency range of 2969–2958 cm−1 and respectively, 2930–2929 cm−1.
The νC=S stretching vibrations were identified in the range of 1167–1153 cm−1 which is in agreement with data reported in the literature [23].
The δN-H amide group stretching band appeared in the region 1511–1508 cm−1.
These compounds also show typical alkyl-aryl ether at 1258–1235 cm−1, for the anti-symmetric vibration, and 1041–1015 cm−1 for the symmetric one.
The structure of compounds is also supported by NMR measurements.
The spectra were registered in hexadeuteriodimethyl sulphoxide (dmso-d6) at 298 K and the chemical shifts values, expressed in parts per million (ppm) were referenced downfield to tetramethylsilane, for 1H-NMR and 13C-NMR and the constants (J) values in Hertz.
The bidimensional correlations spectra (Heteronuclear Multiple Bond Correlation-HMBC, Heteronuclear Single-Quantum Coherence-HSQC and Correlation spectroscopy-COSY spectra) were run for complete attribution of chemical shifts.
In the 1H-NMR spectra the apparent resonance multiplicity is described as: s (singlet), d (doublet),t (triplet), q (quartet), m (multiplet), dd (double doublet), td (triple doublet), and br (broad) signal.
The ethyl group exhibited a characteristic quartet at δ 2.51–2.49 ppm and triplet at δ 1.14–1.10 ppm. The methylene group attached to the oxygen atom showed a singlet at δ 5.26–5.27 ppm.
The NH protons exhibited two characteristic broad singlets or singlets at δ 12.04–11.80 ppm andδ 12.46–12.39 ppm.
For the 1H-NMR data the following order is: chemical shifts, multiplicity, the coupling constants, number of protons and signal/atom attribution.
13C-NMR signals of the carbonyl group at δ 170.84–169.94 ppm showed the values in the NMR spectra due to the existence of the intra-molecular hydrogen bond related to the carbonyl oxygen atom. Carbon atom of the thiocarbonyl group at δ 179.67–179.28 ppm showed the highest values.
For the 13C-NMR data the following order is: chemical shifts and signal/atom attribution (Cq-quaternary carbon) [24].

2.2. PVP/Fe3O4/1a–c Characterization

Nanostructures, based on PVP, Fe3O4 and the new compounds 1ac, were characterized by transmission electron microscopy. The PVP/Fe3O4/1a sample was selected for our discussion, while data for PVP/Fe3O4/1b and PVP/Fe3O4/1c are not shown. The results of TEM analysis are plotted in Figure 1. According to Figure 1a the dimension of prepared PVP/Fe3O4/1a was estimated at 80 nm, while magnetite particles have a diameter around 15 nm (Figure 1b). EDX analysis confirms the presence of Fe, S, N and O as main elements of the analyzed sample.

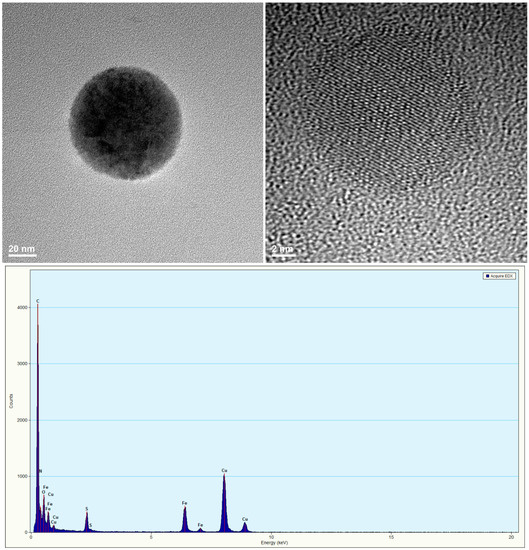

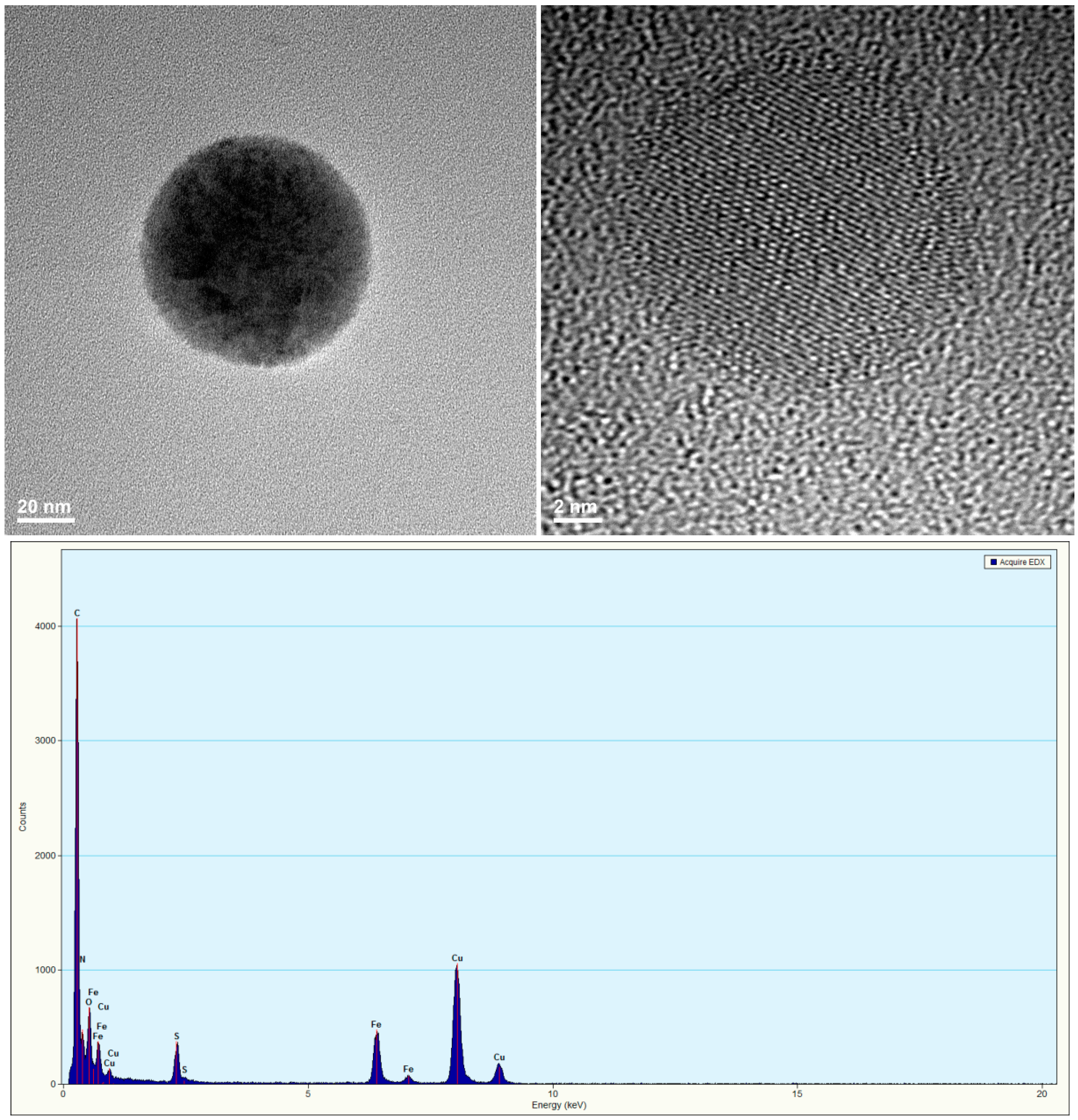

Figure 1. Transmission electron microscopy (TEM) image, HR-TEM image and EDX pattern of PVP/Fe3O4/1a.
Figure 1. Transmission electron microscopy (TEM) image, HR-TEM image and EDX pattern of PVP/Fe3O4/1a.
Molecules 19 12011 g001

2.3. Thin Films Characterization

2.3.1. IR

Figure 2, Figure 3, Figure 4 and Figure 5 show the infrared mappings of PVP/Fe3O4/1ac dropcast and thin coatings. Infrared microscopy allows a non-destructive, quick, easy and reproducible method in order to evaluate the structural integrity of functional groups related to a surface [25]. Absorbance intensities of IR spectra maps are proportional to color changes starting with blue (the lowest intensity) and gradually increasing through green, yellow to finally red (the highest intensity). Approximately 250 spectra were analyzed for each sample [15].
One absorption band known as being characteristic for the PVP was selected as spectral marker for prepared PVP/Fe3O4/1ac (Figure 2, Figure 3, Figure 4 and Figure 5). Selected IR absorption was at 1639 cm−1 due to the presence of amide carbonyl groups.
Analyzing the intensity distribution of 1639 cm−1 on the surface of dropcast it can be concluded that there is no uniformity in this type of coating. By comparing the IR maps from Figure 3, Figure 4 and Figure 5 it can be concluded that thin coatings prepared by MAPLE present a uniform distribution of 1639 cm−1 on the entire scanned surface. Also, different intensities of the 1639 cm−1 band are observed. Correlated with the IR spectra obtained from IRM analysis (Figure 6), only the thin coating deposited at F = 600 mJ/cm2 is suitable for further analyses due to the low degree of degradation of functional groups.

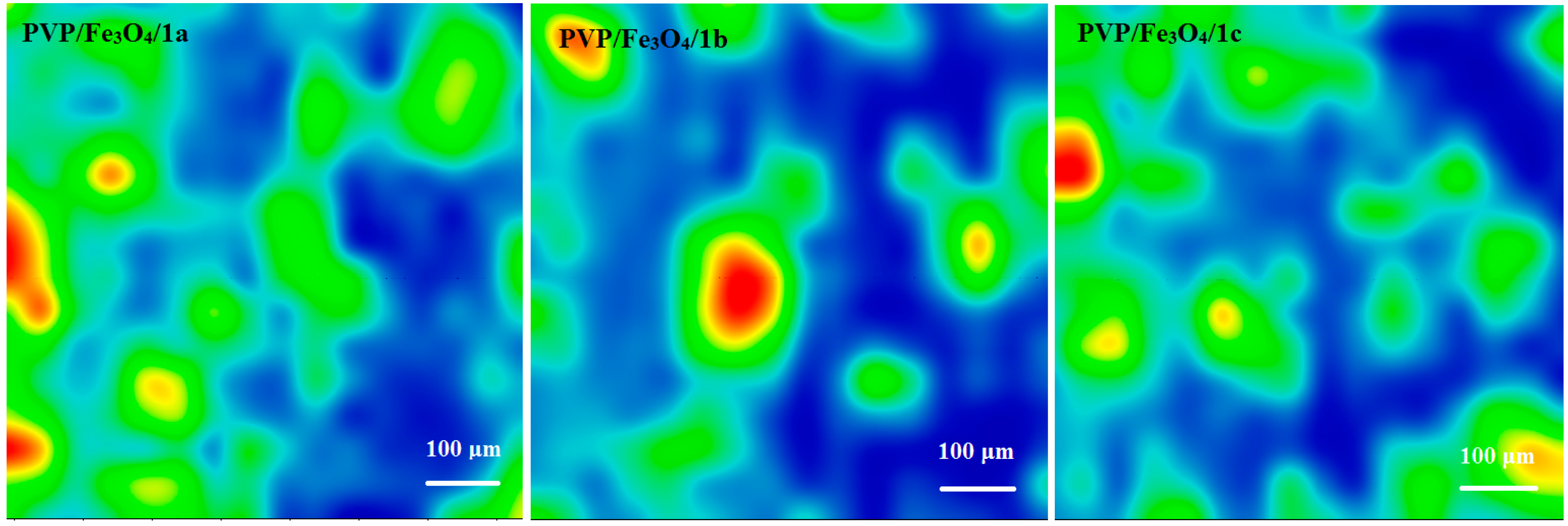

Figure 2. IR mapping of PVP/Fe3O4/1ac dropcast: Intensity distribution of 1639 cm−1.
Figure 2. IR mapping of PVP/Fe3O4/1ac dropcast: Intensity distribution of 1639 cm−1.
Molecules 19 12011 g002

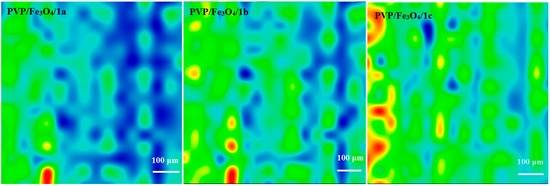

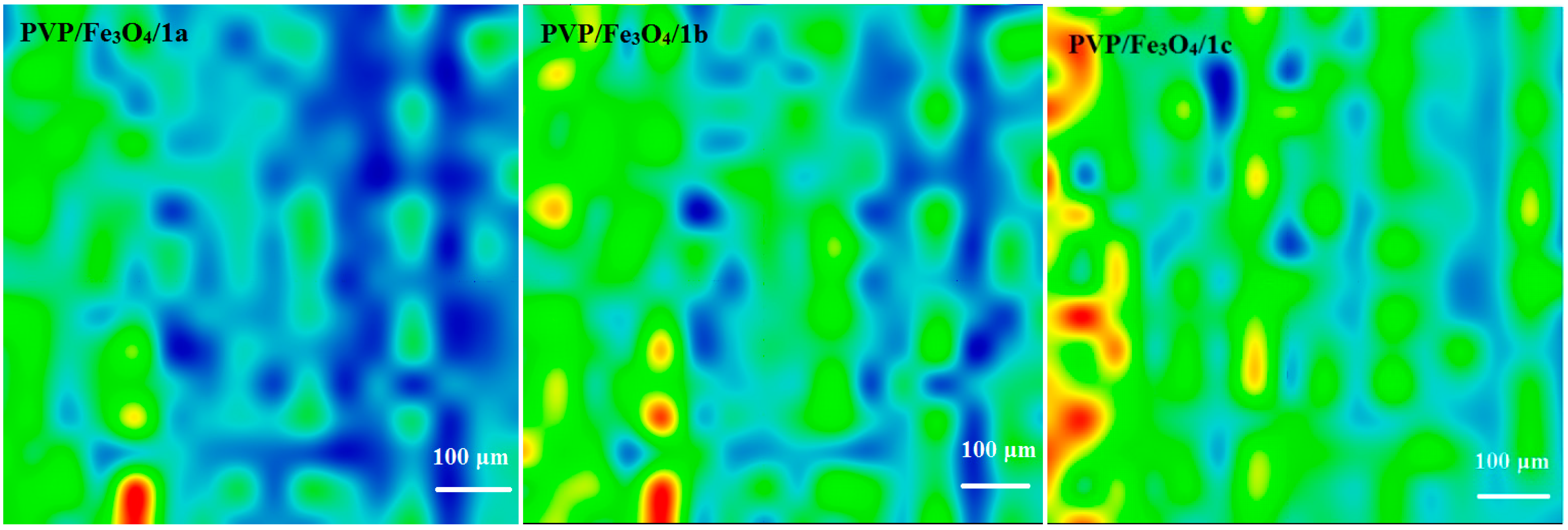

Figure 3. IR mapping of PVP/Fe3O4/1ac thin coatings (F = 400 mJ/cm2): Intensity distribution of 1639 cm−1.
Figure 3. IR mapping of PVP/Fe3O4/1ac thin coatings (F = 400 mJ/cm2): Intensity distribution of 1639 cm−1.
Molecules 19 12011 g003

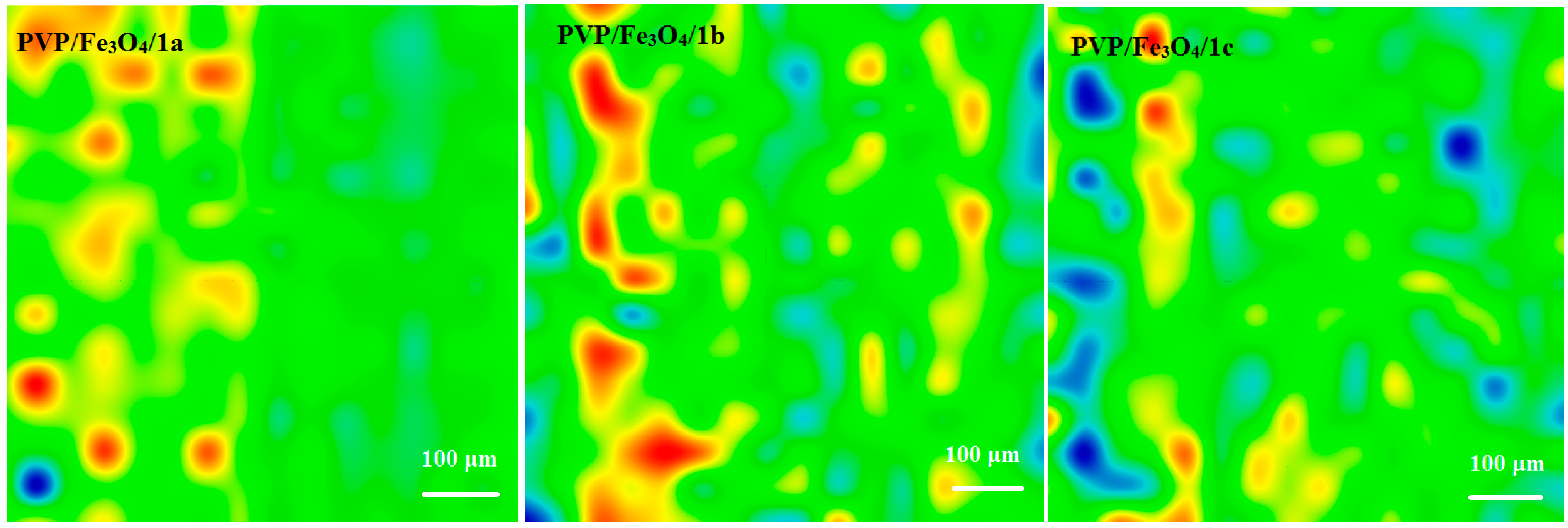

Figure 4. IR mapping of PVP/Fe3O4/1ac thin coatings (F = 500 mJ/cm2): Intensity distribution of 1639 cm−1.
Figure 4. IR mapping of PVP/Fe3O4/1ac thin coatings (F = 500 mJ/cm2): Intensity distribution of 1639 cm−1.
Molecules 19 12011 g004

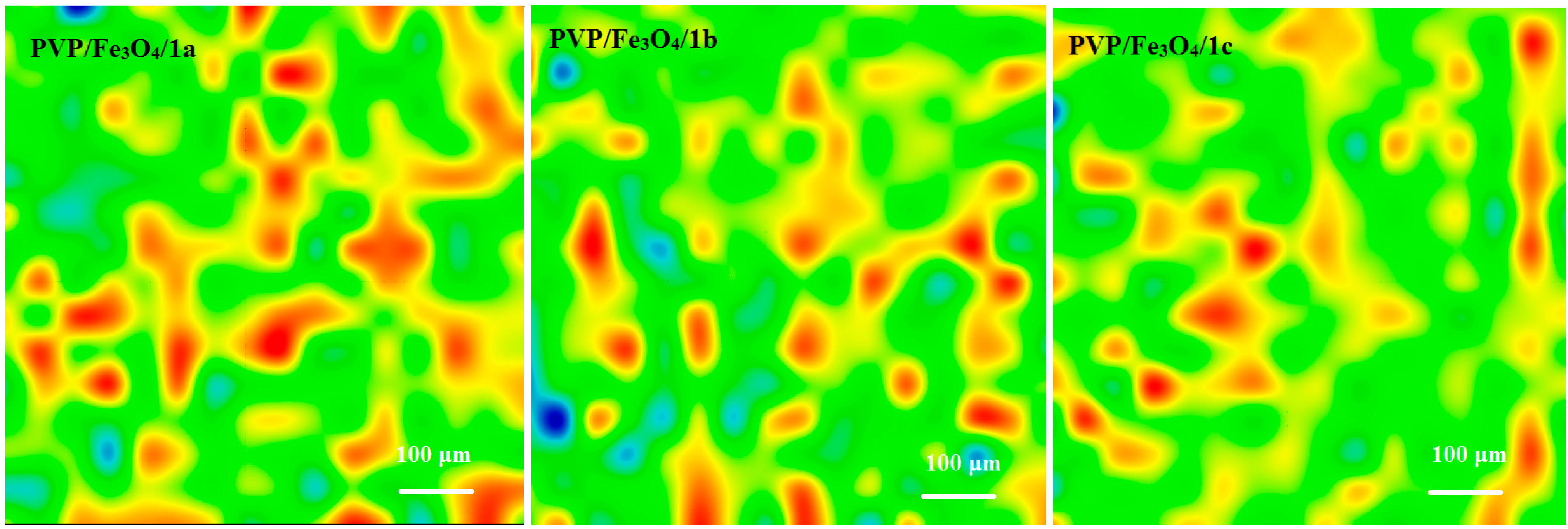

Figure 5. IR mapping of PVP/Fe3O4/1ac thin coatings (F = 600 mJ/cm2): Intensity distribution of 1639 cm−1.
Figure 5. IR mapping of PVP/Fe3O4/1ac thin coatings (F = 600 mJ/cm2): Intensity distribution of 1639 cm−1.
Molecules 19 12011 g005

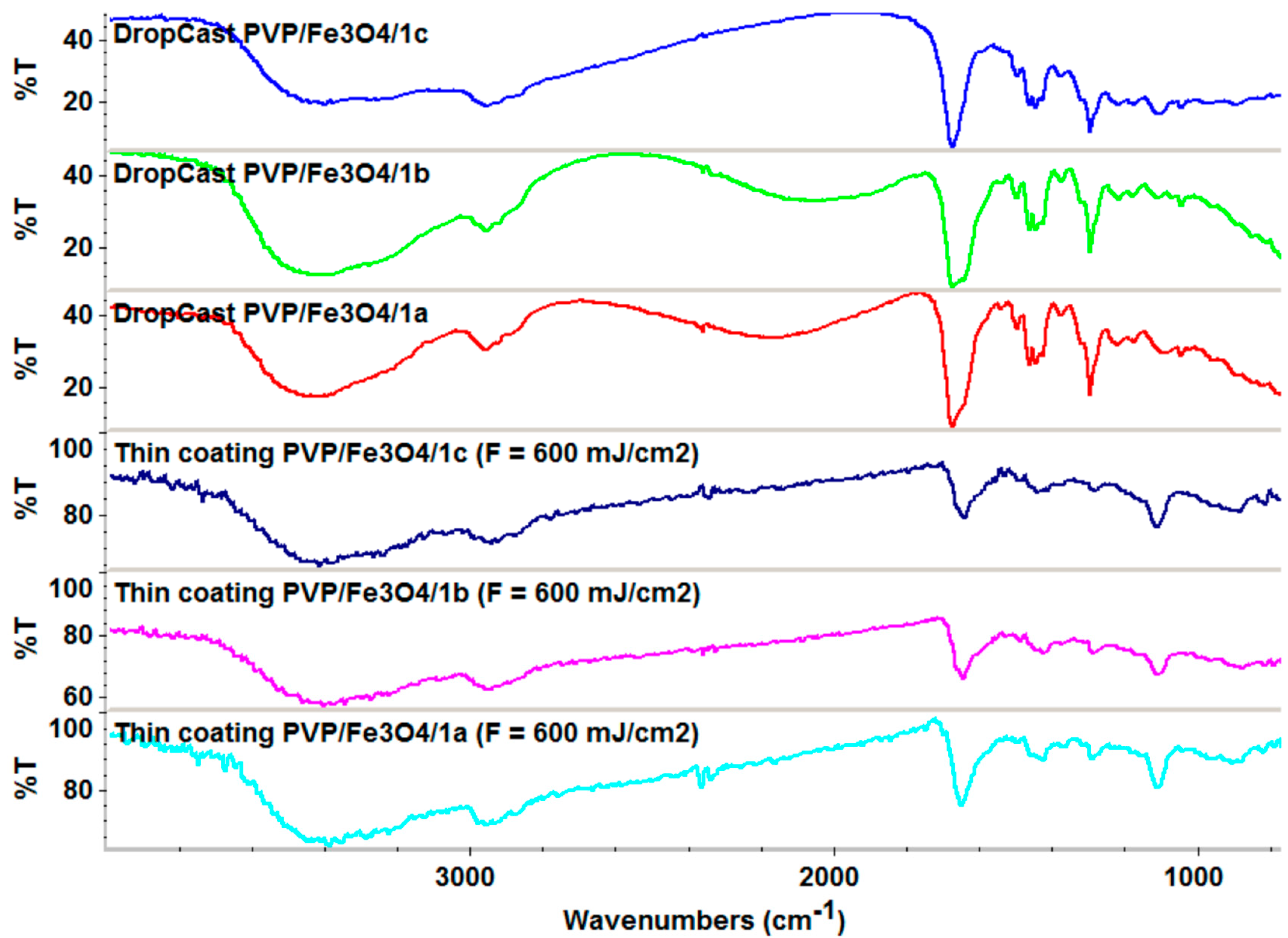

Figure 6. IR spectra of PVP/Fe3O4/1ac dropcast and thin coatings (F = 600 mJ/cm2).
Figure 6. IR spectra of PVP/Fe3O4/1ac dropcast and thin coatings (F = 600 mJ/cm2).
Molecules 19 12011 g006

2.3.2. SEM

Figure 7 show the SEM micrographs of prepared thin coatings. At 60,000×, it can be observed that the coatings surface is relatively uniform, however at higher magnification (100,000×), aggregates of Fe3O4 with a diameter between 18–40 nm are observed. Also, some flaws interrupt the pellicle surface.

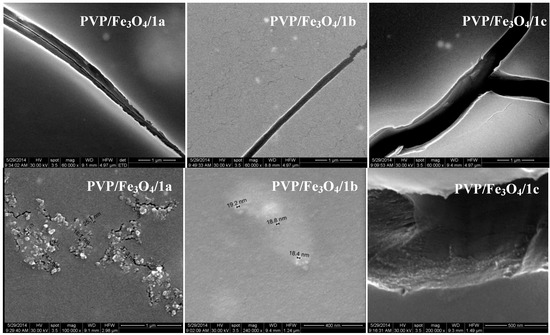

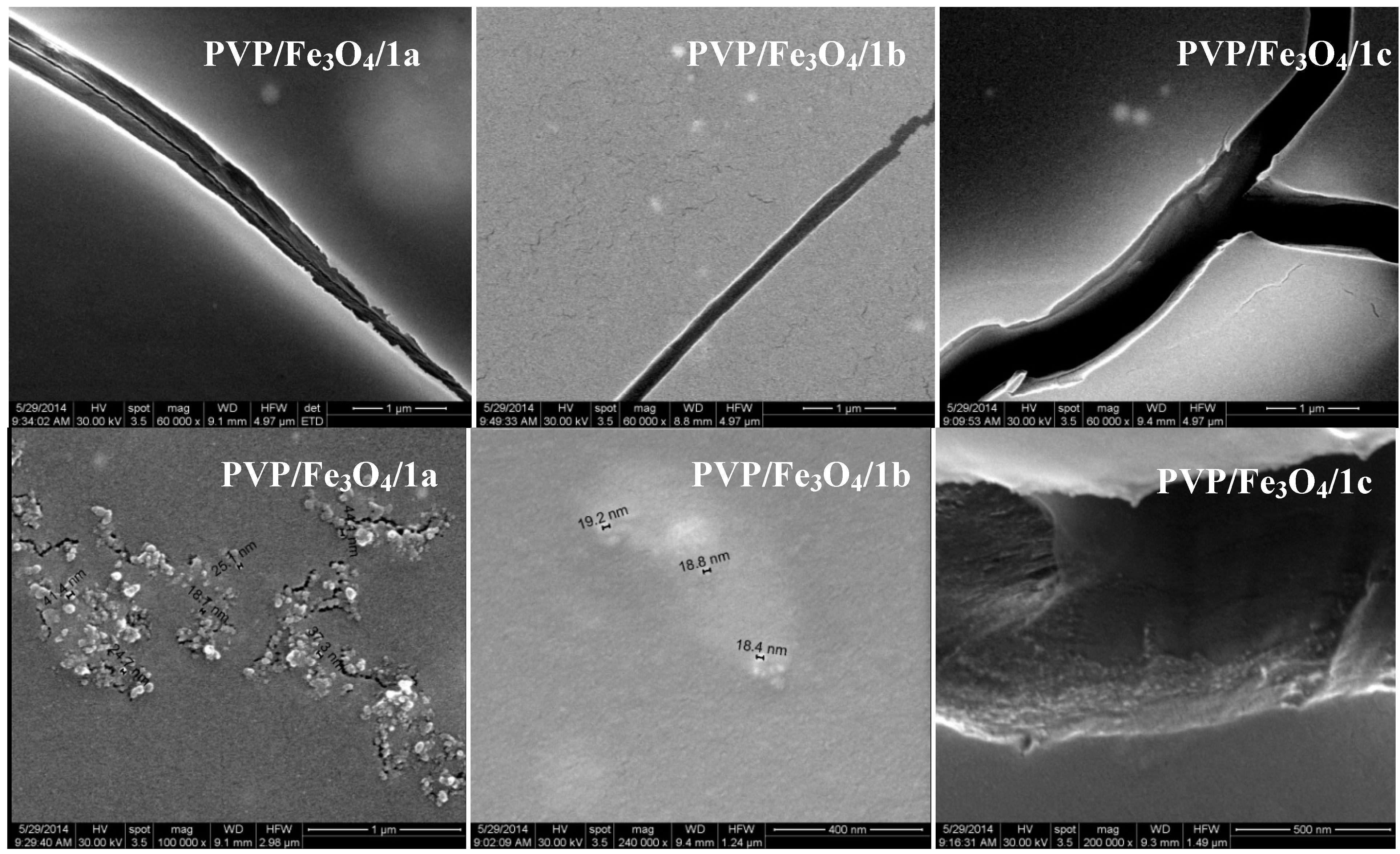

Figure 7. .Scanning electron microscopy (SEM) micrographs of PVP/Fe3O4/1ac thin coatings.
Figure 7. .Scanning electron microscopy (SEM) micrographs of PVP/Fe3O4/1ac thin coatings.
Molecules 19 12011 g007

2.4. Biological Assays

2.4.1. Viability and Cell Proliferation

In order to examine the cell survival, the viability of the 3T3-E1 preosteoblasts was assessed after 48 h of exposure to the tested compounds by fluorescence microscopy (Figure 8), based on the simultaneous detection of the live (green labeled) and dead (red labeled) cells inside the 3D hydrogels.
As shown in Figure 8, 3T3-E1/AlgH-1a displayed a similar cellular density as compared to the 3T3-E1/AlgH control, although the amount of dead cells in these samples was found to be increased in comparison to the reference. These findings could suggest that 1a does not interfere with cellular proliferation, but could induce an increase of cellular death rate. Interestingly, although the ratio between live and dead cells in 3T3-E1/AlgH-1b and 3T3-E1/AlgH-1c is positive, the overall cellular density was found to be lower in these samples than in the reference system. These findings could suggest that 1b and 1c could inhibit cellular proliferation, but without increasing cellular death rate. To confirm 3T3-E1 preosteoblasts viability observed by fluorescence microscopy, MTT assay was employed as a more accurate approach. In this context, 3T3-E1/AlgH-1a, 3T3-E1/AlgH-1b and3T3-E1/AlgH-1c were subjected to MTT spectrophotometric assay at 48 h of exposure to 1a, 1b and 1c compounds respectively. 3T3-E1/AlgH was subjected to the same procedure at 72 h post seeding (Figure 9).

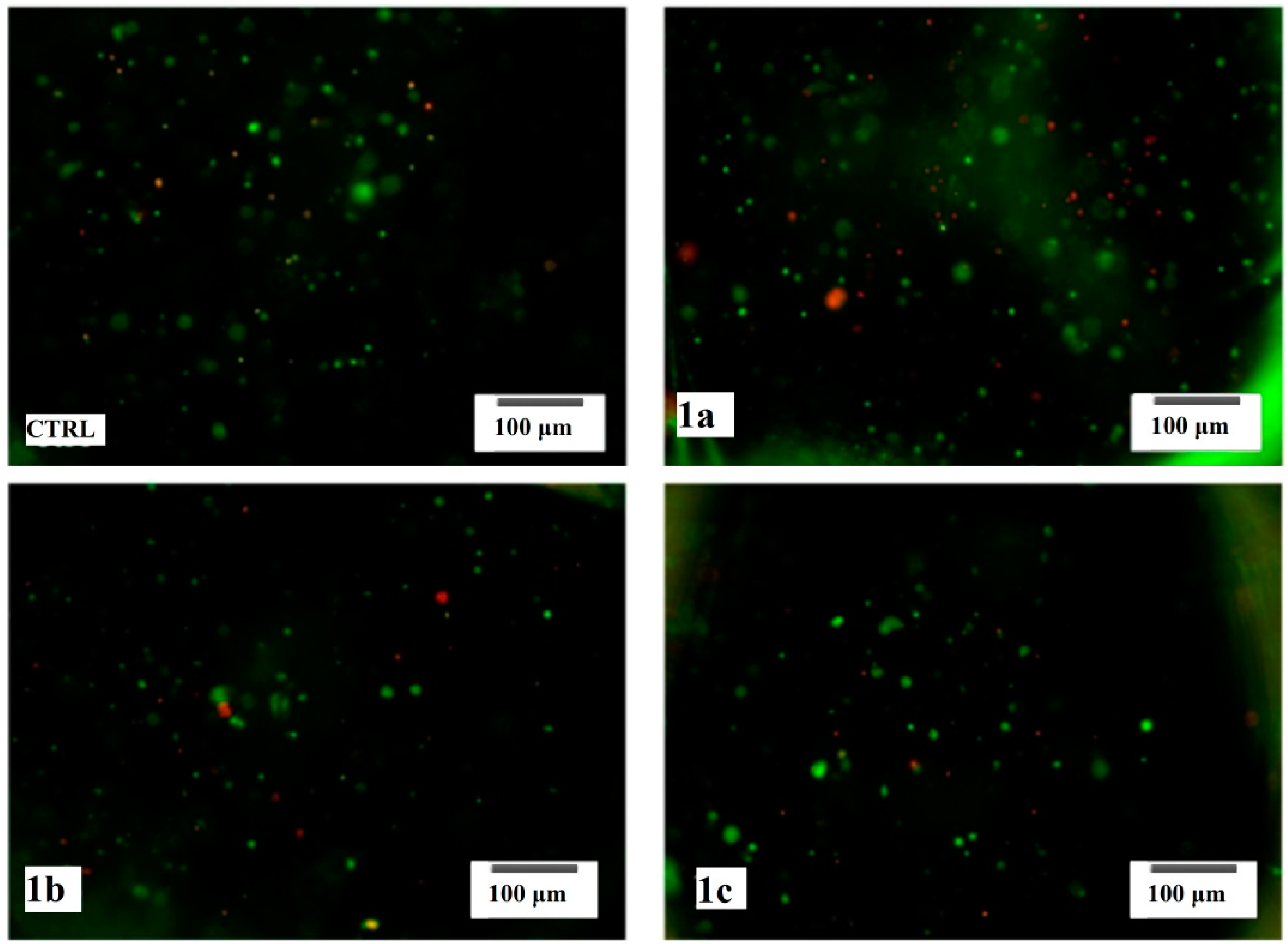

Figure 8. Fluorescence microscopy micrographs of 3T3-E1 preosteoblasts embedded in layer shaped alginate hydrogels, in plain culture medium (control) and exposed to 1a, 1b and 1c compounds, stained with calcein AM (green fluorescence) and ethidium bromide (red fluorescence).
Figure 8. Fluorescence microscopy micrographs of 3T3-E1 preosteoblasts embedded in layer shaped alginate hydrogels, in plain culture medium (control) and exposed to 1a, 1b and 1c compounds, stained with calcein AM (green fluorescence) and ethidium bromide (red fluorescence).
Molecules 19 12011 g008

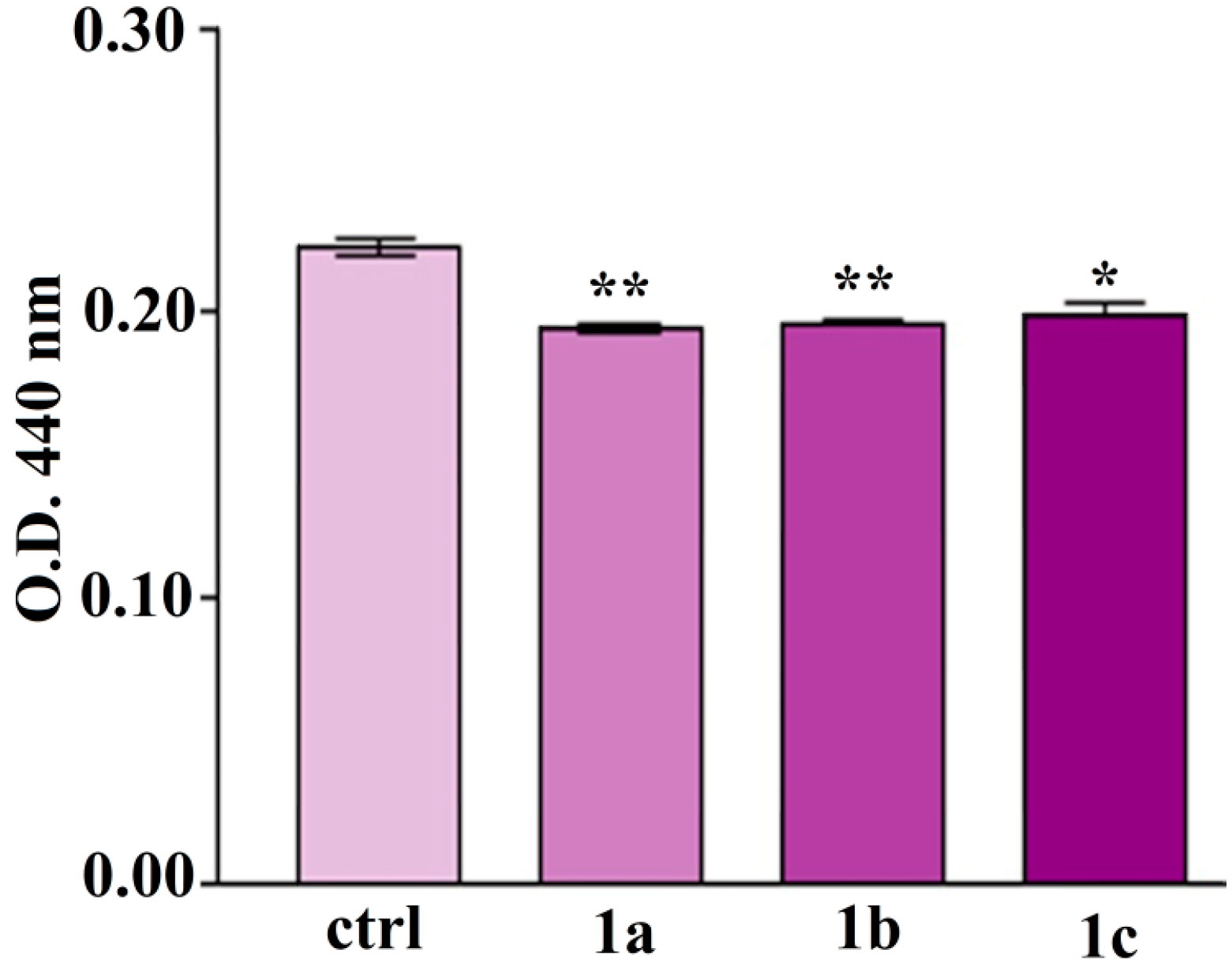

Figure 9. MTT spectrophotometric quantification of 3T3-E1 preosteoblasts viability after 48 h exposure to 1a, 1b and 1c, as compared to the reference (ctrl). (** p < 0.001 3T3-E1/AlgH-1a bioconstruct vs. ctrl, 3T3-E1/AlgH-1b bioconstruct vs. ctrl, * p < 0.013T3-E1/AlgH-1c bioconstruct vs. ctrl).
Figure 9. MTT spectrophotometric quantification of 3T3-E1 preosteoblasts viability after 48 h exposure to 1a, 1b and 1c, as compared to the reference (ctrl). (** p < 0.001 3T3-E1/AlgH-1a bioconstruct vs. ctrl, 3T3-E1/AlgH-1b bioconstruct vs. ctrl, * p < 0.013T3-E1/AlgH-1c bioconstruct vs. ctrl).
Molecules 19 12011 g009
Our results showed that 3T3-E1 viability after 48 h of exposure to 1a and 1b decreased with approx. 12.5% (p < 0.001) as compared to the control bioconstruct. The 3T3-E1 preosteoblasts exposed to 1c for 48 h displayed a lower decrease (approx. 10.7%) in cell viability (p < 0.01) as compared to the reference. No significant differences were noticed when comparing the samples.

2.4.2. In Vitro Microbial Biofilm Development

Microbial biofilms, defined as sessile microbial communities composed of cells embedded in a extracellular polymeric matrix [26], are highly resistant to limiting environmental conditions and antimicrobial agents, causing chronic, persistent and hard to treat infections [27,28].
The prevention of catheter associated infections could be achieved by using coatings of biomaterials with increased resistance to microbial colonization, by releasing compounds with antimicrobial activity [29,30,31,32]. Hydrophilic polymers such as polyvinylpyrrolidone are used for nanoparticle coatings, liposomes, polymeric micelles, lipoplexes and polyplexes drug carrier systems, in order to prolong bloodstream circulation, acting by reducing opsonization of blood proteins and uptake by macrophages [33].
Taking into consideration the significant antimicrobial activity of thiourea derivatives and using an interdisciplinary approach, we designed a new nanosystem combining new 2-((4-ethylphenoxy)methyl)-N-(arylcarbamothioyl)benzamides and a PVP/Fe3O4 nanostructure in order to obtain a catheter surface coating, with an improved resistance to S. aureus ATCC 25923 and P. aeruginosa ATCC 27853 colonization and subsequent in vitro biofilm development.
In the present study, the development of both S. aureus and P. aeruginosa biofilms was drastically inhibited on the coated catheter specimens, particularly at 24 h and 48 h (Figure 10, Figure 11 and Figure 12). The behavior of the Gram positive and Gram negative strains was similar, concerning the dynamics of biofilm development in the presence of different substrates.
Overall, the compound 1a (bearing two methoxy groups) exhibited the best anti-biofilm activity at 24 h, thus inhibiting the initial phase of bacterial adherence to the surface, while the compound 1c (bearing three Cl atoms) proved to be the most active biofilm (quantified at 48 h and 72 h).

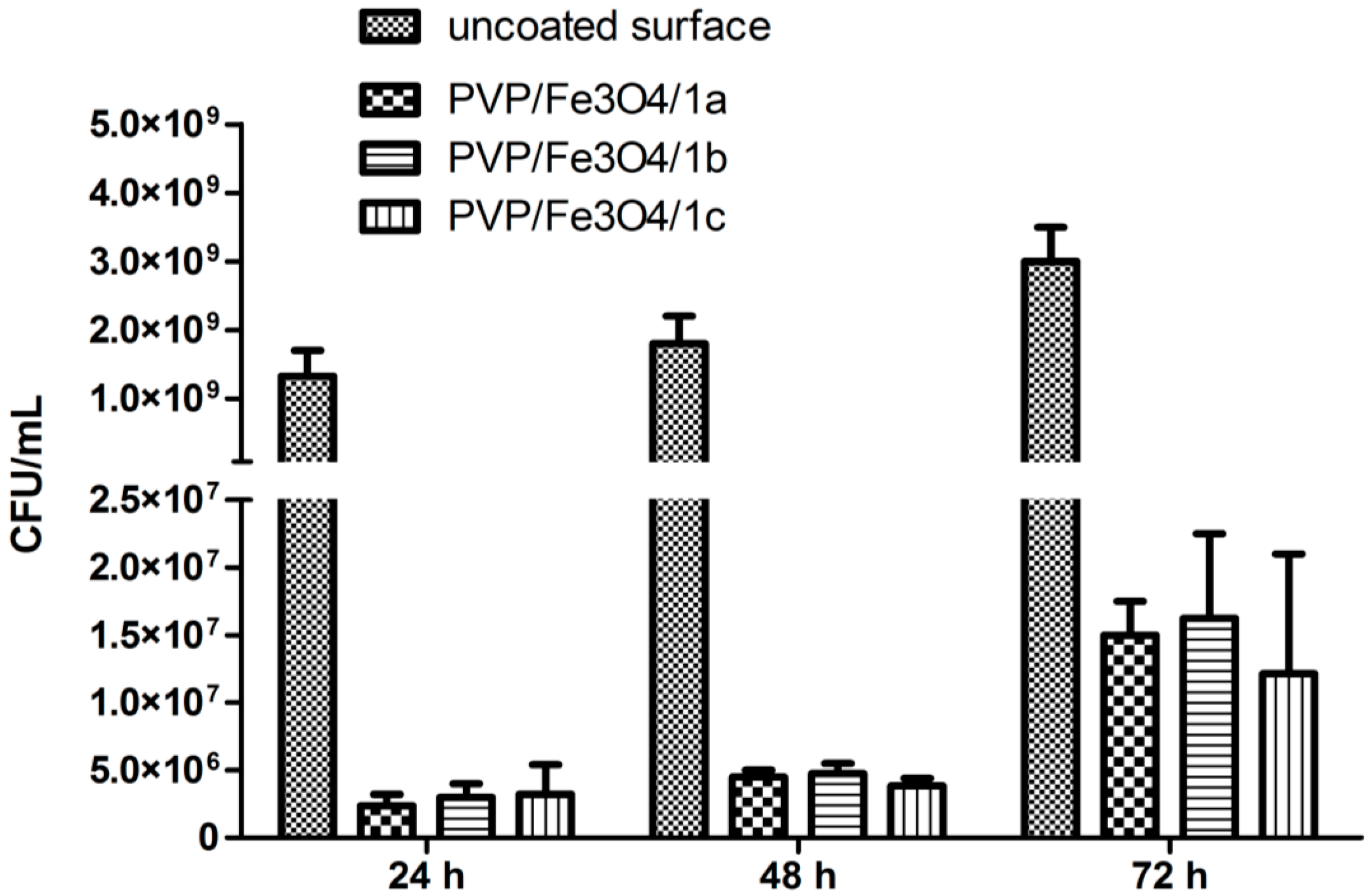

Figure 10. The viable cell counts (VCCs) of S. aureus cells embedded in biofilms developed on different catheter sections.
Figure 10. The viable cell counts (VCCs) of S. aureus cells embedded in biofilms developed on different catheter sections.
Molecules 19 12011 g010

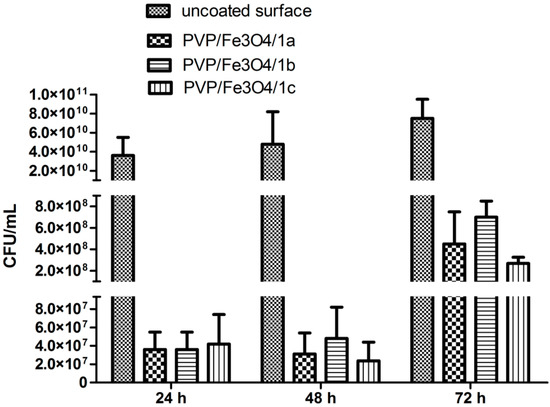

Figure 11. The VCCs of P. aeruginosa cells embedded in biofilms developed on different catheter sections.
Figure 11. The VCCs of P. aeruginosa cells embedded in biofilms developed on different catheter sections.
Molecules 19 12011 g011

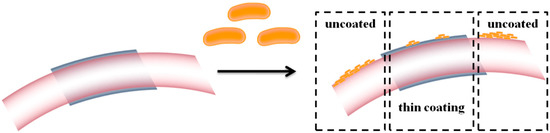

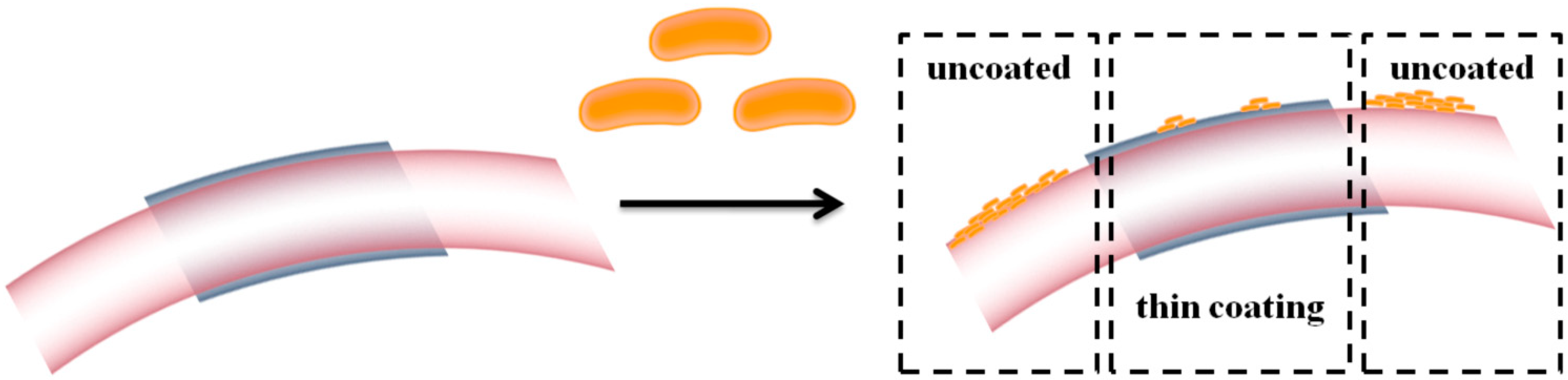

Figure 12. Schematic representation of microbial biofilm formation on the (un)coated surfaces.
Figure 12. Schematic representation of microbial biofilm formation on the (un)coated surfaces.
Molecules 19 12011 g012

3. Experimental

3.1. Materials

Polyvinylpyrrolidone (PVP), FeCl3 (anhydrous, ≥98%), FeSO4 (≥99.0%), NH4OH (25%) and DMSO were purchased from Sigma-Aldrich. General-use catheter sections, both side polished (100) silicon and glass were provided from a local supplier and used as substrates for the MAPLE coatings.

3.2. Preparation of Thiourea Functionalized Magnetite Nanoparticles

New thiourea derivates functionalized magnetite nanoparticles were synthesized according to the previously described protocol [34,35]. Experimentally, FeCl3, FeSO4 × 7H2O (molar ratio 2:1) and 200 mL water were mixed in a 500 mL flask. The prepared iron salt solution was added dropwise into 200 mL of aqueous solution of NH4OH, under vigorous stirring. Prepared Fe3O4 was separated with 100 Kgf NdFeB magnet and washed several times.
The procedure of the PVP/Fe3O4/1ac nanoparticle synthesis is shown in Figure 13. First, in order to prepare Fe3O4/1ac, 5 mL aqueous solution of 1ac (10%) was added dropwise in 95 mL of as prepared Fe3O4 solution (1%) under sonication for 30 min. In the next step, the excess of 1ac was removed by centrifugation at 6,000 rpm for 10 min while the precipitate was redispersed in 10 mL of deionized water. Subsequently, it was added dropwise to 10 mL of PVP (50 mg/mL) aqueous solution under sonication for another 30 min. After this step, the excess PVP was removed by centrifugation at 6,000 rpm for 10 min and the precipitate was redispersed in 20 mL of DMSO for further processing by MAPLE.

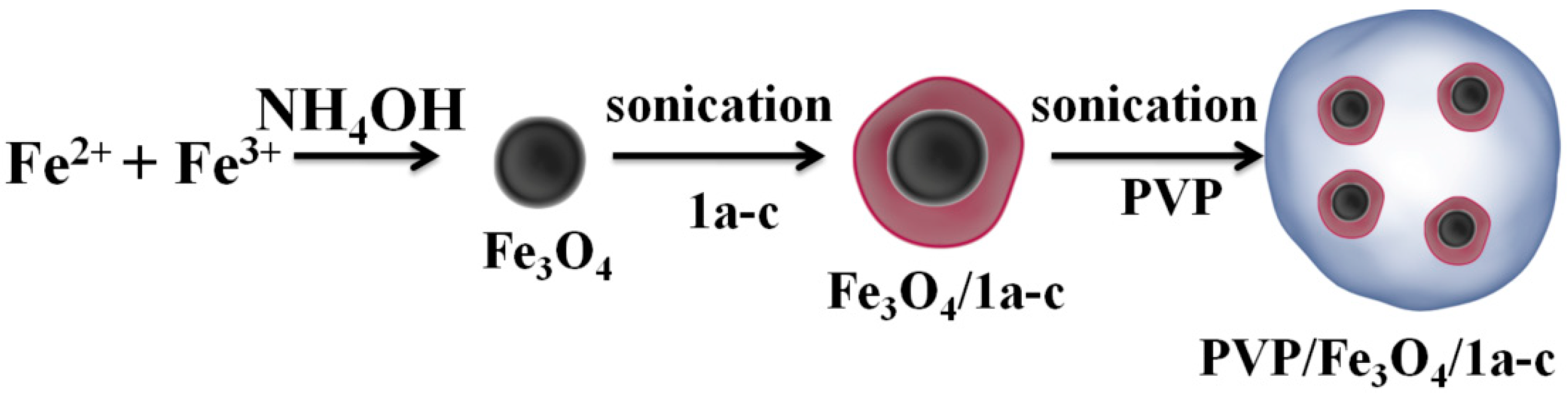

Figure 13. Schematic representation of PVP/Fe3O4/1ac preparation.
Figure 13. Schematic representation of PVP/Fe3O4/1ac preparation.
Molecules 19 12011 g013

3.3. MAPLE Thin Coating Deposition

A suspension of 1.5% (w/v) PVP/Fe3O4/1ac in DMSO was prepared. All MAPLE solutions were poured into a pre-cooled target holder and subsequently immersed in liquid nitrogen for 30 min. MAPLE depositions were performed using a KrF* (λ = 248 nm and τFWHM = 25 ns) laser source COMPexPro 205 model, Lambda Physics-Coherent, that operated at the repetition rate of 10 Hz. The laser fluence was within the range of 400–600 mJ/cm2 whereas the laser spot area was set at 36 mm2. A laser beam homogenizer was used to improve the energy distribution of the laser spot. In order to avoid the target heating and subsequent drilling, the frozen target was rotated at a rate of 0.4 Hz during coating deposition. All depositions were conducted at room temperature at a background pressure of 1 Pa. All films were grown at a target-substrate separation distance of 4 cm by applying20,000–70,000 subsequent laser pulses. During deposition, the target was kept at a temperature of~173 K by active liquid nitrogen cooling. Thin films were deposited onto catheter sections and both sides polished (100) silicon for IRM, SEM and biological assays. Prior to introduction inside the deposition chamber, the substrates were successively cleaned in an ultrasonic bath with acetone, ethanol and deionized water for 15 min, dried in a jet of high purity nitrogen and then plasma-cleaned in an oxygen atmosphere for 15 min with a plasma system model “FEMTO” from Diener electronic GmbH. During the deposition, the substrates were continuously rotated. Thus, the PVP/Fe3O4/1ac nanosystems (Figure 14) were uniformly spread over the surface of the substrates. For comparison data, a control set of films was prepared by drop casting on the (100) silicon.

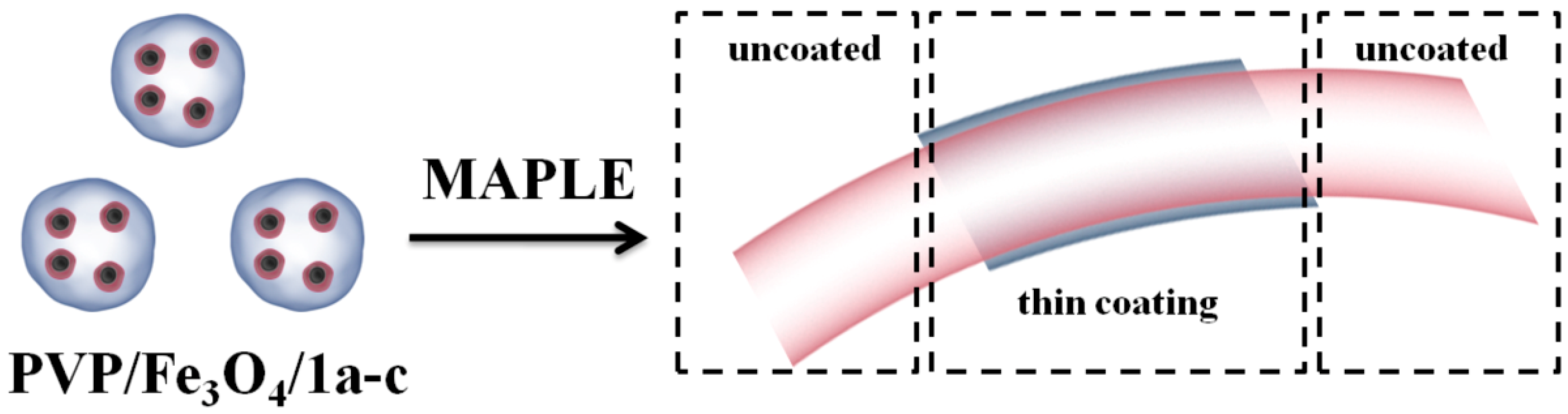

Figure 14. Schematic representation of PVP/Fe3O4/1ac thin coating on the surface of the prosthetic device.
Figure 14. Schematic representation of PVP/Fe3O4/1ac thin coating on the surface of the prosthetic device.
Molecules 19 12011 g014

3.4. Synthesis of 2-((4-Ethylphenoxy)methyl)-N-(arylcarbamothioyl)benzamides 1ac

All the reagents and solvents were obtained from commercial sources (Aldrich-Steinheim, Germany; Merck-Darmstadt, Germany) and used as received, except for the solvents which were purified by distillation. Acetone and 1,2-dichloroethane were dried over calcium chloride before use. Ammonium thiocyanate was dried by heating at 100 °C and then used in the reactions.
Melting points were obtained by means of an Electrothermal 9,100 capillary melting point apparatus (Bibby Scientific Ltd, Stone, UK) in open capillary tubes; the values reported herein are uncorrected.
Elemental analysis was performed on a PerkinElmer 2400 Series II CHNS/O Elemental Analyzer (Waltham, MA, USA).
The Fourier-transform infrared (FT-IR) spectra of the all synthesized compounds were performed on a Bruker Vertex 70 FT-IR spectrometer (Bruker Corporation, Billerica, MA, USA).
1H-NMR and 13C-NMR spectra were recorded on a Bruker Fourier 300 and a Varian 2,000 apparatus, both operated at 300 MHz for 1H and 75 MHz for 13C, respectively.
The 2-(4-ethylphenoxymethyl)benzoic acid (2) (0.01 mol) was refluxed with thionyl chloride in 1,2-dichloroethane. The isothiocyanation of obtained 2-(4-ethylphenoxymethyl)benzoyl chloride (3) (0.01 mol) solubilized in acetone (15 mL) was carried out with ammonium thiocyanate (0.01 mol) in acetone (5 mL) followed by heating for 1 h and then cooling at the room temperature. Arylisothiocyanate (4) was coupled with primary amines (0.01 mol) in acetone (2 mL) to give the new compounds (1ac) in good yields.
2-((4-Ethylphenoxy)methyl)-N-(3,5-dimethoxyphenylcarbamothioyl)benzamide (1a). Yield 74%; mp 135–136.7 °C; 1H-RMN (dmso-d6, δ ppm): 12.43 (s, 1H, NH, deuterable); 11.80 (br s, 1H, NH, deuterable); 7.61 (br d, J = 7.4 Hz, 1H, H-7); 7.58 (dd, J = 1.6 Hz, J = 7.4 Hz, 1H, H-4); 7.55 (td, J = 1.4 Hz, J = 7.4 Hz, 1H, H-5); 7.46 (td, J = 1.4 Hz, J = 7.8 Hz, 1H, H-6); 7.05 (d, J = 8.6 Hz, 2H, H-11-13); 6.89 (d, J = 8.6 Hz, 2H, H-10-14); 6.88 (d, J = 2.2 Hz, 2H, H-18, H-22); 6.42 (t, J = 2.2 Hz, 1H, H-20); 5.26 (s, 2H, H-8); 3.75 (s, 6H, H-19' and H-21'); 2.51 (q, J = 7.6 Hz, 2H, H-15); 1.12 (t, J = 7.6 Hz, 3H, H-15’). 13C-RMN (dmso-d6, δ ppm): 179.28 (C-16); 170.84 (C-1); 160.97 (C-19, C-21); 156.97 (C-9); 140.09 (Cq); 136.92 (Cq); 136.48 (Cq); 133.96 (Cq); 131.72 (C-5); 129.28 (C-11, C-13); 129.15 (C-4); 129.06 (C-7); 128.43 (C-6); 115.30 (C-10, C-14); 102.85 (C-18, C-22); 98.93 (C-20); 68.23 (C-8); 56.03 (C-19', C-21'); 27.92 (C-15); 16.37 (C-15'). FT-IR (solid in ATR, ν cm−1): 3279 w; 3025 w; 2958 w; 2930 w; 2836 w; 1673 w; 1574 s; 1511 vs; 1456 m; 1360 w; 1328 s; 1235 s; 1196 m; 1153 vs; 1120 m; 1041 m; 892 w; 816 m; 741 w; 684 m; 596 w. Anal. Calcd for C25H26N2O4S (450.55): C, 66.65; H, 5.82; N, 6.22; S, 7.12%; Found: C, 66.51; H, 5.89; N, 6.31; S 7.18%.
2-((4-Ethylphenoxy)methyl)-N-(3-nitro-4-methylphenylcarbamothioyl)benzamide (1b). Yield 81%; mp 126.3–127.6 °C; 1H-RMN (dmso-d6, δ ppm): 12.46 (s, 1H, NH, deuterable); 11.97 (br s, 1H, NH, deuterable); 8.38 (d, J = 2.2Hz, 1H, H-18); 7.74 (dd, J = 2.2 Hz, J = 8.2 Hz, 1H, H-22); 7.61 (br d, J = 7.4 Hz, 1H, H-7); 7.58 (dd, J = 1.6 Hz, J = 7.4 Hz, 1H, H-4); 7.55 (td, J = 1.4 Hz, J = 7.4 Hz, 1H, H-5); 7.54 (d, J = 8.2 Hz, 1H, H-21); 7.47 (td, J = 1.4 Hz, J = 7.8 Hz, 1H, H-6); 7.05 (d, J = 8.6 Hz, 2H, H-11-13); 6.88 (d, J = 8.6 Hz, 2H, H-10, H-14); 5.27 (s, 2H, H-8); 2.50 (s, 3H, H-20’); 2.49 (q, J = 7.6 Hz, 2H, H-15); 1.10 (t, J = 7.6 Hz, 3H, H-15). 13C-RMN (dmso-d6, δ ppm): 179.56 (C-16); 169.99 (C-1); 156.23 (C-9); 148.16 (C-19); 136.73 (Cq); 136.19 (Cq); 135.79 (Cq); 133.19 (Cq); 132.75 (C-21); 131.00 (C-5); 130.57 (Cq); 129.44 (C-22); 128.52 (C-11, C-13); 128.38 (C-4); 128.31 (C-7); 127.70 (C-6); 120.06 (C-18); 114.50 (C-10, C-14); 67.48 (C-8); 27.18 (C-15); 19.19 (C-20'); 15.63 (C-15'). FT-IR (solid in ATR, ν cm−1): 3182 m; 3027 m; 2969 m; 2929 m; 2871 w; 1686 m; 1583 m; 1506 vs; 1451 s; 1379 m; 1337 s; 1258 m; 1213 m; 1155 vs; 1068 m; 1015 m; 880 w; 828 m; 692 m; 657 m; 597 w; 547 w. Anal. Calcd for C24H23N3O4S (449.52): C, 64.13; H, 5.16; N, 9.35; S, 7.13%; Found: C, 64.41; H, 5.25; N, 9.49; S 7.14%.
2-((4-Ethylphenoxy)methyl)-N-(3,4,5-trichlorophenylcarbamothioyl)benzamide (1c). Yield 74%; mp 152–153.2 °C; 1H-NMR (dmso-d6, δ ppm): 12.39 (br s, 1H, NH); 12.04 (br s, 1H, NH); 7.92 (s, 2H, H-18, H-22); 7.60 (br d, J = 7.4 Hz, 1H, H-7); 7.59 (m, 1H, H-4); 7.57 (td, J = 1.4 Hz, J = 7.4 Hz, 1H, H-5); 7.46 (td, J = 1.4 Hz, J = 7.5 Hz, 1H, H-6); 7.08 (d, J = 8.6 Hz, 2H, H-11, H-13); 6.89 (d, J = 8.6 Hz, 2H, H-10, H-14); 5.26 (s, 2H, H-8); 2.51 (q, J = 7.5 Hz, 2H, H-15); 1.14 (t, J = 7.5 Hz, 3H, H-15’). 13C-NMR (dmso-d6, δ ppm): 179.67 (C-16); 169.94 (C-1); 156.25 (C-9); 137.97; 136.17; 135.85; 133.14; 132.35; 131.07 (C-5); 128.52 (C-11, C-13); 128.38 (C-4); 128.35 (C-7); 127.73 (C-6); 126.85; 125.16 (C-18, C-22); 114.48 (C-10, C-14); 67.45 (C-8); 27.22 (C-15); 15.68 (C-15'). FT-IR (solid in ATR, ν cm−1): 3249 w; 3073 w; 2961 w; 1679 m; 1559 m; 1508 vs; 1435 m; 1384 w; 1305 m; 1244 s; 1167 m; 1040 m; 859 w; 817 m; 698 w; 666 m; 613 w. Anal. Calcd for C23H19Cl3N2O2S (493.83): C, 55.94; H, 3.88; Cl 21.54; N, 5.67; S, 6.49%; Found: C, 55.81; H, 3.97; N, 5.58; S, 6.54%.

3.5. Characterization

3.5.1. X-ray Diffraction

X-ray diffraction analysis was performed on a Shimadzu XRD 6,000 diffractometer at room temperature. In all the cases, Cu Kα radiation from a Cu X-ray tube (run at 15 mA and 30 kV) was used. The samples were scanned in the Bragg angle 2θ range of 10–80°.

3.5.2. Infrared Microscopy

IR mapping were recorded on a Nicolet iN10 MX FT-IR Microscope with a MCT liquid nitrogen cooled detector in the measurement range 4,000–725 cm−1. Spectral collection was made in reflection mode at 4 cm−1 resolution. For each spectrum, 32 scans were co-added and converted to absorbance using OmincPicta software (Thermo Scientific). Approximately 250 spectra were analyzed for each coating and dropcast. Two absorptions peaks known as characteristic for the PVP/Fe3O4/1ac were selected as spectral markers of nanoparticles presence in the prepared coatings.

3.5.3. Scanning Electron Microscopy

Scanning electron microscopy (SEM) analysis was performed on a FEI electron microscope, using secondary electron beams with energies of 30 keV, on samples covered with a thin gold layer.

3.5.4. TransmissionElectronMicroscopy

The transmission electron microscopy (TEM) images were obtained on finely powdered samples using a TecnaiTM G2 F30 S-TWIN high-resolution transmission electron microscope from the FEI Company (Hillsboro, OR, USA) equipped with EDS and SAED. The microscope was operated in transmission mode at 300 kV with TEM point resolution of 2 A° and line resolution of 1 A°. The fine powder was dispersed in pure ethanol and ultrasonicated for 15 min. After that, the diluted sample was distributed onto a holey carbon-coated copper grid and left to dry before TEM analysis.

3.6. Biological Characterization

3.6.1. Viability and Cell Proliferation Cell Culture

In this study 3T3-E1 murine pre-osteoblasts cell line was used. To prepare the 3D culture system, 7 × 105 cells/mL were mixed with sterile 1.5% (w/v) low viscosity sodium alginate (Sigma Aldrich, Co.) in saline solution. The cell-alginate suspension was distributed into the wells of a 24-multiwell culture plate (Nunc) and subjected to the cross-linking process as previously described by Galateanu et al. (2012) [36]. Briefly, to produce the 3D bioconstructs, sterile discs of filter paper were soaked with the calcium gluconate (CG) solution (Zentiva) and placed above the cell suspension in each well. An equal volume of cross-linking agent was placed above the disk, and allowed to produce 3D alginate hydrogels (AlgH) for 10–15 min in standard conditions of culture. The resulting thin layer 3T3-E1/AlgH were sequentially washed with saline solution and placed in DMEM culture medium (Sigma Aldrich, Co.) supplemented with 10% fetal bovine serum (FBS) and 1% antibiotic/antimycotic. After 24 h of culture, the culture medium was supplemented with the compounds 1a, 1b or 1c at a final concentration of 1 mg/mL. The reference 3T3-E1/AlgH bioconstruct was not exposed to any of the tested compounds during the experimental period and was maintained in plain culture medium.
For further simplicity, the following abridgements are introduced to designate the studied 3D bioconstructs: 3T3-E1 cells embedded in AlgH and exposed to DMEM culture medium supplemented with 1 mg/mL: (i) 3T3-E1/AlgH-1a; (ii) 3T3-E1/AlgH-1b; and (iii) 3T3-E1/AlgH-1c. The control bioconstruct was maintained in plain culture medium during the experimental time and is further referred to as 3T3-E1/AlgH. Cell Viability

3T3-E1/AlgH-1a, 3T3-E1/AlgH-1b and 3T3-E1/AlgH-1c bioconstructs were subjected to cellular viability tests after 48 h of exposure to 1a, 1b and respectively 1c compounds, as compared to the 3T3-E1/AlgH reference system.
Live/Dead Fluorescence Microscopy Assay. The viability of 3T3-E1 cells within 3T3-E1/AlgH-1a, 3T3-E1/AlgH-1b, 3T3-E1/AlgH-1c and 3T3-E1/AlgH bioconstructs was evaluated by fluorescence microscopy using Live/Dead Kit (Invitrogen, Life Technologies, Foster City, CA, USA). This method allows the simultaneous detection of both live and dead cells with calcein acetoxymethyl (calcein AM) and ethidium bromide dyes provided in the kit. Calcein AM is a non-fluorescent and permeable reagent, which is converted by the intracellular esterases to the intensely green fluorescent calcein (ex/em: ~495 nm/~515 nm). Ethidium bromide enters the cells with damaged membranes, producing a bright red fluorescence when binding to nucleic acids (ex/em: ~495 nm/~635 nm). Briefly, at 48 h post seeding, all the bioconstructs were incubated with a staining solution prepared according to the manufacturer’s instructions for 15 min. Next, the stained 3D cultures were analyzed by fluorescence microscopy using an Olympus IX71 inverted microscope, and images were captured with Cell F Imaging Software (Olympus, Hamburg, Germany, 2008).
MTT Spectrophotometric Test. The viability of the 3T3-E1 cells within the alginate hydrogels was quantitatively assessed by MTT assay at 48 h post exposure to 1 mg/mL of the 1a, 1b and 1c compounds. This test is based on the reduction of a tetrazolium salt solution (MTT) to purple formazan by metabolically active cells. All the three samples were incubated for 2 h in 1 mg/mL MTT solution (Sigma Aldrich Co., Steinheim, Germany). The concentration of the formazan produced by the metabolically active cells was spectrophotometrically quantified at 550 nm (Appliskan Thermo Scientific, Waltham, MA, USA), after solubilization in DMSO. The result was a sensitive assay with a colorimetric signal proportional to the viable cell number.

3.6.2. In Vitro Microbial Biofilm Development

Staphylococcus aureus ATCC 25923 and Pseudomonas aeruginosa ATCC 27853 strains were purchased from American Type Cell Collection (ATCC). For assessing the biofilm formation, fresh bacteria cultures were obtained in Luria Broth and diluted as mentioned below.
Biofilm formation was assessed using 6 multi-well plates (Nunc), in a static model for monospecific biofilm development. Coated and uncoated substrates (i.e., 0.5 cm samples of uncoated and coated catheters) were distributed in the plates containing 2 mL of microbial inoculum diluted to 104–105 CFU/mL in Luria Broth. Samples were incubated for 24 h at 37 °C.
After 24 h incubation time, the culture medium was removed and the samples were washed with sterile PBS, in order to remove the unattached bacteria. Coated and uncoated substrates were placed in fresh medium and incubated for additional 24 h, 48 h and 72 h. After the incubation time, the samples were gently washed with sterile PBS to remove the non-adherent cells and placed in 1.5 mL micro-centrifuge tubes (Eppendorf) containing 750 μL PBS. In order to disperse biofilm cells into the suspension, the samples were vigorously mixed by vortexing for 30 s and sonicated for 10 s. Serial ten-fold dilutions were achieved and plated on LB Agar for viable cell counts (VCC) [37]. Experiments were performed in triplicate and repeated on three separate occasions [38].

3.6.3. Statistical Analysis

The statistical significance of the obtained results was analyzed using GraphPad Prism version 5.04 for Windows, GraphPadSoftware, San Diego, CA, USA. For comparison, we used the number of CFU (colony forming units) mL−1 as revealed by the readings of three values/experimental variants. Two-way ANOVA and Tukey’s multiple comparison tests were used for revealing significant differences among the analyzed groups.

4. Conclusions

New thiourea derivatives were synthesized by the reaction between 2-(4-ethylphenoxymethyl)benzoyl isothiocyanate obtained in situ and aromatic amines. The novel compounds were characterized using IR, NMR and elemental analysis and evaluated for their cytotoxicicity on 3T3-E1 preosteoblasts. The results of cellular viability and proliferation demonstrated that the compounds 1a, 1b and 1c did not display cytotoxic effects on the cells embedded in layer shaped alginate hydrogels and therefore they could be used for developing biomedical applications. The incorporation of the novel 1a, 1b and 1c compounds in a core-shell nanosystem represented by magnetic nanoparticles with polymeric shell and the pelliculisation of the obtained nanofluid on catheter samples led to the achievement of an optimized anti-biofilm coating, efficient against S. aureus and P. aeruginosa biofilms, both in the early and maturation phase. Taken together, these results suggest that the obtained nano-coatings containing the novel thiourea derivatives could represent a promising alternative for the development of modified surfaces with increased resistance to bacterial adherence and biofilm development.


The work has been funded by the Sectorial Operational Programme Human Resources Development 2007–2013 of the Ministry of European Funds through the Financial Agreement POSDRU/159/1.5/S/132397 (ExcelDOC).

Author Contributions

C.L., A.M., D.C.N., M.T.C., L.M. synthesized and characterized the compounds, A.M.G., A.O., V.G., G.S., R.T., B.Ș.V. obtained and characterized the nanocomposites, M.C.C. and A.M.G. designed the study, M.C.C. interpreted the biological tests results, B.G., M.C. performed the viability tests, G.P. drafted the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Saeed, A.; Flörke, U.; Erben, M.F. A review on the chemistry, coordination, structure and biological properties of 1-(acyl/aroyl)-3-(substituted) thioureas. J. Sulfur Chem. 2013, 34, 318–355. [Google Scholar]
  2. Struga, M.; Kossakowski, J.; Koziol, A.E.; Kedzierska, E.; Fidecka, S.; La Colla, P.; Ibba, C.; Collu, G.; Sanna, G.; Secci, B.; et al. Synthesis, pharmacological and antiviral activity of 1,3-thiazepine derivatives. Eur. J. Med. Chem. 2009, 44, 4960–4969. [Google Scholar] [CrossRef]
  3. Saeed, S.; Rashid, N.; Jones, G.P.; Ali, M.; Hussain, R. Synthesis, characterization and biological evaluation of some thiourea derivatives bearing benzothiazole moiety as potential antimicrobial and anticancer agents. Eur. J. Med. Chem. 2010, 45, 1323–1331. [Google Scholar] [CrossRef]
  4. Liu, W.; Zhou, J.; Zhang, T.; Zhu, H.; Qian, H.; Zhang, H.; Huang, W.; Gust, R. Design and synthesis of thiourea derivatives containing a benzo[5,6]cyclohepta[1,2-b]pyridine moiety as potential antitumor and anti-inflammatory agents. Bioorg. Med. Chem. Lett. 2012, 22, 2701–2704. [Google Scholar] [CrossRef]
  5. Vega-Pérez, J.M.; Periñán, I.; Argandoña, M.; Vega-Holm, M.; Palo-Nieto, C.; Burgos-Morón, E.; López-Lázaro, M.; Vargas, C.; Nieto, J.J.; Iglesias-Guerra, F. Isoprenyl-thiourea and urea derivatives as new farnesyl diphosphate analogues: Synthesis and in vitro antimicrobial and cytotoxic activities. Eur. J. Med. Chem. 2012, 58, 591–612. [Google Scholar] [CrossRef]
  6. Saeed, A.; Abbas, N.; Ashraf, Z.; Bolte, M. Synthesis, characterization and antibacterial activity of new 1,2- and 1,4-bis(N'-substituted thioureido)benzene derivatives. S. Afr. J. Chem. 2013, 66, 273–278. [Google Scholar]
  7. Masereel, B.; Wouters, J.; Pochet, L.; Lambert, D. Design, synthesis and anticonvulsant activity of 1-(pyrid-3-ylsulfonamido)-2-nitroethylenes. J. Med. Chem. 1998, 41, 3239–3244. [Google Scholar] [CrossRef]
  8. Walchshofer, N.; Delabre-Defayolle, I.; Paris, J.; Petavy, A.F. In vivo morphological damage induced by a new benzimidazole prodrug in Echinococcus multilocularis metacestodes. J. Pharm. Sci. 1990, 79, 606–608. [Google Scholar] [CrossRef]
  9. Loto, R.T.; Loto, C.A.; Popoola, A.P.I. Corrosion inhibition of thiourea and thiadiazole derivatives: A Review. J.Mater. Environ. Sci. 2012, 3, 885–894. [Google Scholar]
  10. Kachhadia, V.V.; Patel, M.R.; Joshi, H.S. Heterocyclic systems containing S/N regioselective nucleophilic competition: facile synthesis, antitubercular and antimicrobial activity of thiohydantoins and iminothiazolidinone containing the benzo[b]thiophene moiety. J. Serb. Chem. Soc. 2005, 70, 153–161. [Google Scholar] [CrossRef]
  11. Saeed, A.; Erben, M.F.; Bolte, M. Synthesis, structural and vibrational properties of 1-(adamantane-1-carbonyl)-3-halophenyl thioureas. Spectrochim. ActaA 2013, 102, 408–413. [Google Scholar] [CrossRef]
  12. Kotb, E.R.; Anwar, M.M.; Abbas, H.A.; Abd El-Moez, S.I. A concise synthesis and antimicrobial activity of a novel series of naphthylpyridine-3-carbonitrile compounds. Acta Pol. Pharm. 2013, 70, 667–679. [Google Scholar]
  13. Laurent, S.; Saei, A.A.; Behzadi, S.; Panahifar, A.; Mahmoudi, M. Superparamagnetic iron oxide nanoparticles for delivery of therapeutic agents: Opportunities and challenges. Expert Opin. Drug Deliv. 2014, 29, 1–22. [Google Scholar]
  14. Ladj, R.; Bitar, A.; Eissa, M.M.; Fessi, H.; Mugnier, Y.; Le Dantec, R.; Elaissari, A. Polymer encapsulation of inorganic nanoparticles for biomedical applications. Int. J. Pharm. 2013, 458, 230–241. [Google Scholar]
  15. Grumezescu, A.M.; Andronescu, E.; Holban, A.M.; Ficai, A.; Ficai, D.; Voicu, G.; Grumezescu, V.; Balaure, P.C.; Chifiriuc, C.M. Water dispersible cross-linked magnetic chitosan beads for increasing the antimicrobial efficiency of aminoglycoside antibiotics. Int. J. Pharm. 2013, 454, 233–240. [Google Scholar]
  16. Mazor, L.P.; Dakwar, G.R.; Popov, M.; Kolusheva, S.; Shames, A.; Linder, C.; Greenberg, S.; Heldman, E.; Stepensky, D.; Jelinek, R. Bolaamphiphilic vesicles encapsulating iron oxide nanoparticles: New vehicles for magnetically targeted drug delivery. Int. J. Pharm. 2013, 450, 241–249. [Google Scholar]
  17. Filippousi, M.; Papadimitriou, S.; Bikiaris, D.N.; Pavlidou, E.; Angelakeris, M.; Zamboulis, D.; Tian, H.; van Tendeloo, G. Novel core–shell magnetic nanoparticles for Taxol encapsulation in biodegradable and biocompatible block copolymers: Preparation, characterization and release properties. Int. J. Pharm. 2013, 448, 221–230. [Google Scholar]
  18. David, S.; Marchais, H.; Hervé-Aubert, K.; Bedin, D.; Garin, A.S.; Hoinard, C.; Chourpa, I. Use of experimental design methodology for the development of new magnetic siRNA nanovectors (MSN). Int. J. Pharm. 2013, 454, 660–667. [Google Scholar]
  19. Kim, M.H.; Park, D.H.; Yang, J.H.; Choy, Y.B.; Choy, J.H. Drug-inorganic-polymer nanohybrid for transdermal delivery. Int. J. Pharm. 2013, 444, 120–127. [Google Scholar]
  20. Ahmad, H. Magnetic Polyaniline Composites: Recent Developments in preparation, properties and applications. J. Colloid Sci. Biot. 2013, 2, 155–170. [Google Scholar]
  21. Medeiros, S.F.; Lara, B.R.; Oliveira, P.F.M.; Moraes, R.M.; Alves, G.M.; Elaissari, A.; Santos, A.M. Stimuli-Responsive and Biocompatible Poly(N-vinylcaprolactam-co-acrylic acid)-coated iron oxide nanoparticles by nanoprecipitation technique. J. Colloid Sci. Biot. 2013, 2, 180–194. [Google Scholar]
  22. Roveimiab, Z.; Mahdavian, A.R.; Biazar, E.; Heidari, K.S. Preparation of magnetic chitosan nanocomposite particles and their susceptibility for cellular separation applications. J. Colloid Sci. Biot. 2012, 1, 82–88. [Google Scholar]
  23. Mary, Y.S.; Jojo, P.J.; Panicker, C.Y.; van Alsenoy, C.; Ataei, S.; Yildiz, I. Quantum mechanical and spectroscopic (FT-IR, FT-Raman, 1H NMR and UV) investigations of 2-(phenoxymethyl)benzimidazole. Spectrochim. Acta A 2014, 125, 12–24. [Google Scholar] [CrossRef]
  24. Limban, C.; Vasile, A.; Chirita, I.C.; Nitulescu, G.M.; Caproiu, M.T. Synthesis of new thiourea scaffold compounds. Rev. Chim.-Bucharest 2011, 62, 685–688. [Google Scholar]
  25. Byler, D.M.; Wilson, R.M.; Randall, C.S.; Sokoloski, T.D. Second derivative infrared spectroscopy as a nondestructive tool to assess the purity and structural integrity of proteins. Pharm. Res. 1995, 12, 446–450. [Google Scholar]
  26. Donlan, R.M.; Costerton, J.W. Biofilms: Survival mechanisms of clinically relevant microorganisms. Clin. Microbiol. Rev. 2002, 15, 167–193. [Google Scholar] [CrossRef]
  27. Lazar, V.; Chifiriuc, M.C. Mechanisms and experimental models for the assessment of biofilms phenotypic resistance/tolerance. In Science against Microbial Pathogens: Communicating Current Research and Technological Advances; Méndez-Vilas, A., Ed.; Formatex: Badajoz, Spain, 2011; pp. 906–911. [Google Scholar]
  28. Lazãr, V.; Chifiriuc, M.C. Medical significance and new therapeutical strategies for biofilm associated infections. Rom. Arch. Microbiol. Immunol. 2010, 69, 121–127. [Google Scholar]
  29. Anghel, I.; Holban, A.M.; Grumezescu, A.M.; Andronescu, E.; Ficai, A.; Anghel, A.G.; Maganu, M.; Laz, R.V.; Chifiriuc, M.C. Modified wound dressing with phyto-nanostructured coating to prevent staphylococcal and pseudomonal biofilm development. Nanoscale Res. Lett. 2012, 7, 1–8. [Google Scholar] [CrossRef]
  30. Anghel, I.; Limban, C.; Grumezescu, A.M.; Anghel, A.G.; Bleotu, C.; Chifiriuc, M.C. In vitro evaluation of anti-pathogenic surface coating nanofluid, obtained by combining Fe3O4/C12nanostructures and 2-((4-ethylphenoxy)methyl)-N-(substituted-phenylcarbamothioyl)-benzamides. Nanoscale Res. Lett. 2012, 7, 513. [Google Scholar] [CrossRef]
  31. Anghel, I.; Grumezescu, A.M.; Andronescu, E.; Anghel, A.G.; Ficai, A.; Saviuc, C.; Grumezescu, V.; Vasile, B.S.; Chifiriuc, M.C. Magnetite nanoparticles for functionalized textile dressing to prevent fungal biofilms development. Nanoscale Res. Lett. 2012, 7, 501. [Google Scholar] [CrossRef]
  32. Grumezescu, A.M.; Chifiriuc, M.C.; Saviuc, C.; Grumezescu, V.; Hristu, R.; Mihaiescu, D.E.; Stanciu, G.A.; Andronescu, E. Hybrid Nanomaterial for Stabilizing the Antibiofilm Activity of Eugenia carryophyllata Essential Oil. IEEE T. Nanobiosci. 2012, 11, 360–365. [Google Scholar] [CrossRef]
  33. Romberg, B.; Hennink, W.E.; Storm, G. Sheddable coatings for long-circulating nanoparticles. Pharm. Res. 2008, 25, 55–71. [Google Scholar] [CrossRef]
  34. Anghel, I.; Grumezescu, A.M.; Holban, A.M.; Ficai, A.; Anghel, A.G.; Chifiriuc, M.C. Biohybrid nanostructured iron oxide nanoparticles and Satureja hortensis to prevent fungal biofilm development. Int. J. Mol. Sci. 2013, 14, 18110–18123. [Google Scholar] [CrossRef]
  35. Holban, A.M.; Grumezescu, A.M.; Andronescu, E.; Grumezescu, V.; Chifiriuc, C.M.; Radulescu, R. Magnetite-usnic acid nanostructured bioactive material with antimicrobial activity. Rom. J. Mater. 2013, 43, 402–407. [Google Scholar] [CrossRef]
  36. Galateanu, B.; Dimonie, D.; Vasile, E.; Nae, S.; Cimpean, A.; Costache, M. Layer-shaped alginate hydrogels enhance the biological performance of human adipose-derived stem cells. BMC Biotech. 2012, 12, 35. [Google Scholar] [CrossRef]
  37. Saviuc, C.; Grumezescu, A.M.; Oprea, E.A.; Radulescu, V.; Dascalu, L.; Chifiriuc, C.; Bucur, M.; Banu, O.; Lazar, V. Antifungal activity of some vegetal extracts on Candida biofilms developed on inert substratum. Bioint. Res. Appl. Chem. 2011, 1, 15–23. [Google Scholar]
  38. Saviuc, C.; Grumezescu, A.M.; Holban, A.; Chifiriuc, C.; Mihaiescu, D.; Lazar, V. Hybrid nanostructurated material for biomedical applications. Bioint. Res. Appl. Chem. 2011, 1, 64–71. [Google Scholar]
  • Sample Availability: Samples of the compounds PVP/Fe3O4/1ac are available from the authors.

Share and Cite

MDPI and ACS Style

Limban, C.; Missir, A.V.; Grumezescu, A.M.; Oprea, A.E.; Grumezescu, V.; Vasile, B.Ș.; Socol, G.; Trușcă, R.; Caproiu, M.T.; Chifiriuc, M.C.; et al. Bioevaluation of Novel Anti-Biofilm Coatings Based on PVP/Fe3O4 Nanostructures and 2-((4-Ethylphenoxy)methyl)-N- (arylcarbamothioyl)benzamides. Molecules 2014, 19, 12011-12030.

AMA Style

Limban C, Missir AV, Grumezescu AM, Oprea AE, Grumezescu V, Vasile BȘ, Socol G, Trușcă R, Caproiu MT, Chifiriuc MC, et al. Bioevaluation of Novel Anti-Biofilm Coatings Based on PVP/Fe3O4 Nanostructures and 2-((4-Ethylphenoxy)methyl)-N- (arylcarbamothioyl)benzamides. Molecules. 2014; 19(8):12011-12030.

Chicago/Turabian Style

Limban, Carmen, Alexandru Vasile Missir, Alexandru Mihai Grumezescu, Alexandra Elena Oprea, Valentina Grumezescu, Bogdan Ștefan Vasile, Gabriel Socol, Roxana Trușcă, Miron Teodor Caproiu, Mariana Carmen Chifiriuc, and et al. 2014. "Bioevaluation of Novel Anti-Biofilm Coatings Based on PVP/Fe3O4 Nanostructures and 2-((4-Ethylphenoxy)methyl)-N- (arylcarbamothioyl)benzamides" Molecules 19, no. 8: 12011-12030.

Article Metrics

Back to TopTop
