Molecules 2014, 19(8), 11487-11504; https://doi.org/10.3390/molecules190811487

Article
Influence of Vinegar and Wine Processing on the Alkaloid Content and Composition of the Traditional Chinese Medicine Corydalis Rhizoma (Yanhusuo)
1
Institute of Chinese Materia Medica, China Academy of Chinese Medical Sciences, Dong Nei Nan Xiao Jie 16, Beijing 100700, China
2
Department of Pharmacognosy, University of Vienna, Althanstrasse 14, Vienna A-1090, Austria
3
College of Sciences, Central South University of Forestry and Technology, 498 South Shaoshan Road, Changsha 410004, China
*
Author to whom correspondence should be addressed.
Received: 18 June 2014; in revised form: 10 July 2014 / Accepted: 14 July 2014 / Published: 4 August 2014

Abstract

:
Corydalis Rhizoma is the dried tuber of Corydalis yanhusuo W.T. Wang which is used in traditional Chinese medicine for pain relief and blood activation. Before being used in the clinics, C. yanhusuo is traditionally processed through dry-frying or frying with vinegar, wine or salt. In this study, eleven alkaloids from Corydalis Rhizoma, namely protopine (1), α-allocryptopine (2), tetrahydrocolumbamine (3), coptisine (4), palmatine (5), berberine (6), dehydrocorydaline (7), d,l-tetrahydropalmatine (8), tetrahydroberberine (9), corydaline (10) and tetrahydrocoptisine (11) were simultaneously quantified using a newly developed high performance liquid chromatography-diode array detector (HPLC-DAD) method. The influence of vinegar and wine processing on the content of the main alkaloids of Corydalis Rhizoma was investigated. For this purpose, two common formulations with clinical application, namely the water decoction of Corydalis Rhizoma and its formula Jin Ling Zi San (combination of Corydalis Rhizoma and Toosendan Fructus) were studied. In the two water decoctions, wine and vinegar processing increased the amount of tertiary alkaloids. The differences were more pronounced for Jin Ling Zi San, in which case the content of all tertiary alkaloids (compounds 1, 2, 3, 8, 9, 10, 11) was increased by wine processing.
Keywords:
Corydalis Rhizoma; Yanhusuo; alkaloids; processing; traditional Chinese medicine

1. Introduction

Corydalis Rhizoma, known as Yanhusuo in China, is prepared from the dried tuber of Corydalis yanhusuo W.T. Wang. In traditional Chinese medicine C. yanhusuo is believed to have the function of activating blood, moving “Qi” (vital energy) and relieving pain. Therefore, Corydalis Rhizoma is used in clinics as a herbal medicine for the treatment of chest impediments, heart pain, amenorrhea and dysmenorrhea, postpartum stasis and obstruction [1].
To date, the chemical constituents of Yanhusuo have been isolated and identified as tertiary and quaternary alkaloids which are responsible for the biological activities of the crude drug [2]. Alkaloids such as tetrahydropalmatine exert their pharmaceutical effect by interfering with neurotransmitters in the central nervous system [3,4,5,6]. Other biological activities of the alkaloids or crude extract from Corydalis Rhizoma were also found, such as anti-tumor activity [7,8,9], anti-inflammatory and analgesic activity [10,11,12], hepatoprotective effects [13], and antiplasmodial activity [14]. Several high performance liquid chromatography (HPLC) methods have been reported for the analysis of alkaloids in C. yanhusuo. Quantification is typically performed using ultraviolet (UV) detection while diode array detector (DAD) and mass spectrometry are often employed for the identification [15,16].
Prior to their usage in clinics, crude drugs are subjected to traditional Chinese processing techniques (PaoZhi) such as cleaning, cutting and stir-baking with various excipients. Only processed slices are used for decoctions in clinics and as raw material for pharmaceutical manufacturing. In the Materia Medica, Bensky et al. [17] mention four methods of preparation for Corydalis Rhizoma, namely dry-, vinegar-, wine- and salt-frying, and point out that there are large differences in the alkaloid content between the processed products. As first documented in Lei’s Treatise on Processing of Drugs (Leigong PaoZhi Lun) in the Tang Dynasty of China (618–907 AD) [18], Corydalis Rhizoma has been used mainly in vinegar and wine processed form. The preparation deepens the external color of the tubers and is believed to promote blood activation and pain relief. The difference between vinegar and wine processing is given by the processing adjuvants, yellow wine and rice vinegar, respectively. The function of yellow wine is to improve the pain relief effect, while rice vinegar increases the efficacy of the herbal drug [17]. Previous reports showed that vinegar processing can improve the analgesic effect of Yanhusuo and can also change the pharmacokinetics of the main alkaloids [19,20]. With regard to the associated changes in composition, only a few of the main compounds of Yanhusuo have been studied. For example, vinegar processing was shown to cause an increase in tetrahydropalmatine and a decrease in berberine and protopine [21,22].
In the clinic, the plant is often used as a water decoction of Corydalis Rhizoma alone or in combination with fruits of Melia toosendan Sieb. et Zucc. (Toosendan Fructus). The latter formulation is known under the name of Jin Ling Zi San (JLZS) and has been used to relieve chest impediments caused by “liver fire”, according to the medicinal book Suwen Bingji Qiyi Baoming Ji from the Jing Dynasty of China (1186 AD) [23]. Bensky et al. [17] report that Toosendan Fructus is used to alleviate pain in the flank and upper right quadrant and acts synergistically with Corydalis Rhizoma. The main constituents of Toosendan Fructus have been identified as tetracyclic triterpenes, polysaccharides and phenolic acids [24].
Despite the frequent use of Corydalis Rhizoma and JLZS in clinics, there are few reports concerning the influence of processing on their alkaloid composition. Hence, a thorough analysis of the influence of wine and vinegar processing on the alkaloid content of Rhizoma Corydalis and its common formulations is missing.
In this study, a HPLC method was developed for the simultaneous analysis of 11 main alkaloids from the tubers of Corydalis Rhizoma: protopine (1), α-allocryptopine (2), tetrahydrocolumbamine (3), coptisine (4), palmatine (5), berberine (6), dehydrocorydaline (7), d,l-tetrahydropalmatine (8), tetrahydroberberine (9), corydaline (10) and tetrahydrocoptisine (11) (Figure 1). The method was then employed to determine the alkaloid content and composition of the methanol extract of Corydalis Rhizoma. Using the methanol extract as a point of comparison, the influence of vinegar and wine processing on the alkaloid content and composition was evaluated for two common formulations with clinical application: the water decoction of Corydalis Rhizoma and its formula JLZS.
Figure 1. Chemical structures of the main alkaloids detected in Corydalis Rhizoma. Protopine (1), α-allocryptopine (2), tetrahydrocolumbamine (3), coptisine (4), palmatine (5), berberine (6), dehydrocorydaline (7), d,l-tetrahydropalmatine (8), tetrahydroberberine (9), corydaline (10), tetrahydrocoptisine (11).
Figure 1. Chemical structures of the main alkaloids detected in Corydalis Rhizoma. Protopine (1), α-allocryptopine (2), tetrahydrocolumbamine (3), coptisine (4), palmatine (5), berberine (6), dehydrocorydaline (7), d,l-tetrahydropalmatine (8), tetrahydroberberine (9), corydaline (10), tetrahydrocoptisine (11).
Molecules 19 11487 g001

2. Results and Discussion

2.1. Method Development and Validation

For the simultaneous determination of the main alkaloids of Yanhusuo, a HPLC-DAD method was developed and validated. Three columns-Agilent TC-C18, Phenomenex Gemini C18 and Dikma Diamonsil II C18-were tested for the separation process, of which the Phenomenex Gemini C18 one gave the best chromatographic resolution. The pH value of the mobile phase influenced the shapes of the peaks and also changed the elution order of the detected alkaloids. A solution of 0.2% acetic acid adjusted with triethylamine to pH 5.0 was found to give symmetric peak shapes. To avoid errors caused by batch to batch variation, all samples of unprocessed and processed Corydalis Rhizoma originated from the same batch. Powdered plant material was used for methanol extraction. Slices of unprocessed and processed Corydalis Rhizoma were used for the water decoctions. The methanol extract served as a standard for comparison of the alkaloid content and composition with the water decoctions used in traditional Chinese medicine. The methanol was evaporated at 40 °C and the water decoctions were dried by lyophilization to avoid degradation of the alkaloids caused by high temperature.
Figure 2 shows that all 11 alkaloids were successfully separated by the method. In order to identify the alkaloids in the methanol extract of Corydalis Rhizoma, the samples and reference compounds were further analyzed by liquid chromatography-mass spectrometry (LC-MS).

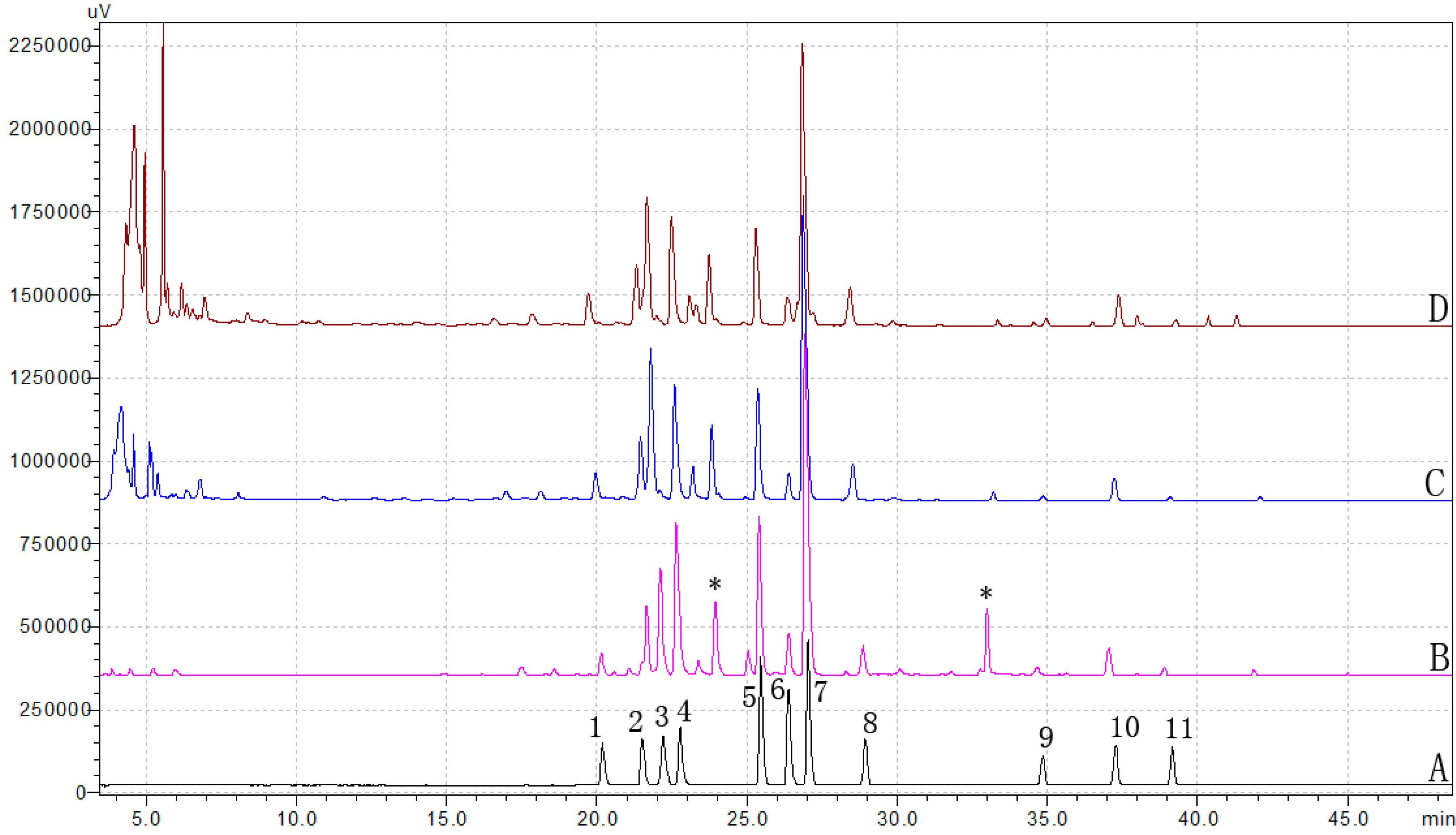

Figure 2. Representative HPLC chromatograms of Corydalis Rhizoma samples and reference compounds. Mixture of reference compounds (A); methanol extract of Corydalis Rhizoma (B); water decoction of Corydalis Rhizoma (C); water decoction of JLZS (D). Protopine (1), α-allocryptopine (2), tetrahydrocolumbamine (3), coptisine (4), palmatine (5), berberine (6), dehydrocorydaline (7), DL-tetrahydropalmatine (8), tetrahydroberberine (9), corydaline (10), tetrahydrocoptisine(11); two additional abundant compounds of B which were not quantified (see main text) are indicated with an asterisk (*).
Figure 2. Representative HPLC chromatograms of Corydalis Rhizoma samples and reference compounds. Mixture of reference compounds (A); methanol extract of Corydalis Rhizoma (B); water decoction of Corydalis Rhizoma (C); water decoction of JLZS (D). Protopine (1), α-allocryptopine (2), tetrahydrocolumbamine (3), coptisine (4), palmatine (5), berberine (6), dehydrocorydaline (7), DL-tetrahydropalmatine (8), tetrahydroberberine (9), corydaline (10), tetrahydrocoptisine(11); two additional abundant compounds of B which were not quantified (see main text) are indicated with an asterisk (*).
Molecules 19 11487 g002
According to the retention time, UV and mass spectra, the presence of each of the 11 alkaloids in the samples was confirmed (Table 1). Two additional abundant peaks were detected in the methanol extract of Corydalis Rhizoma (indicated with an asterisk in Figure 2). The compound eluting at ~24 min yielded an M+ ion at m/z 352.2 Da and an UV spectrum typical for the quaternary protoberberine-type alkaloids. By comparison of the MSn spectra and elution order to literature data, this compound can be assigned as pseudopalmatine [25].
The constituent that eluted after ~33 min yielded an [M+H]+ or M+ ion at m/z 352.1 Da, but could not be identified based on the available data. However, the abundance of this compound in the water decoctions, which are more relevant to the way Yanhusuo is used in the clinic, is very low.
Table 1. HPLC-DAD and LC-MS data for alkaloids of Corydalis Rhizoma.
Table 1. HPLC-DAD and LC-MS data for alkaloids of Corydalis Rhizoma.
CompoundRetention Time (min) aPrecursor Ion (m/z)Main MS2 Fragment Ions (>10% rel. int.) (m/z)λmax (nm)
120.2354.1 [M+H]+336.4 (21), 323.3 (11), 275.3 (33), 247.3 (16), 206.3 (11),
189.3 (67), 188.3 (100), 149.3 (79), 119.4 (17)
211, 239, 288
221.5370.1 [M+H]+352.4 (42), 291.3 (12), 290.3 (25), 206.3 (12), 188.3 (100)209, 229, 284
322.2342.2 [M+H]+178.3 (100)211, 226, 282
422.8320.1 M+292.3 (100), 260.8 (13)228, 238, 266, 358, 460
525.4352.2 M+337.4 (100), 336.4 (55), 308.3 (64)226, 265, 272, 345, 423
626.4336.1 M+321.3 (100), 320.3 (48), 292.3 (47)230, 264, 347, 427
727.0366.2 M+351.4 (100), 350.4 (76), 322.4 (51)230, 263, 336, 417
828.9356.2 [M+H]+192.3 (100), 165.3 (23)211, 230, 281
934.8340.1 [M+H]+176.3 (100)208, 231, 285
1037.3370.2 [M+H]+218.3 (12), 205.3 (16), 192.3 (93), 179.3 (16), 165.3 (100),
151.3 (14), 150.3 (39), 136.3 (12), 135.4 (12)
211, 229, 282
1139.2324.1 [M+H]+176.3 (100), 149.3 (54)201, 237, 289
a The given retention times refer to the HPLC-DAD method (see 3.5.). The compounds eluted 2–3 min earlier on the LC-MS system (see Section 3.6).
The linearity of the detector response at 280 nm for each compound was examined using a dilution series of a mixture of reference compounds. A calibration curve was constructed using the linear regression of the peak area versus the concentration of the analyte. The equations, linear ranges, limits of detection (LOD) and quantification (LOQ) for the 11 compounds are summarized in Table 2. The intra- and inter-day relative standard deviations (RSD) were 0.92%–2.19% and 2.18%–4.91%, respectively (Table 3).
Table 2. Calibration data for the alkaloids of Corydalis Rhizoma.
Table 2. Calibration data for the alkaloids of Corydalis Rhizoma.
CompoundRegression Equationr2Linear Range (μg)LOQ (μg)LOD (μg)
1y = 1062369x + 140160.99974.120–0.0080.0080.004
2y = 799236x + 127250.99986.260–0.0120.0120.006
3y = 838091x + 261010.99946.600–0.0130.0130.006
4y = 2514102x + 115710.99982.630–0.0050.0050.003
5y = 3704272x + 513200.99973.400–0.0070.0070.003
6y = 2483438x + 319250.99974.040–0.0080.0080.004
7y = 3483721x + 577300.99974.100–0.0080.0080.004
8y = 931781x + 181500.99975.200–0.0100.0100.005
9y = 1029317x + 68720.99983.040–0.0060.0060.003
10y = 809393x + 230460.99965.500–0.0110.0110.005
11y = 665716x + 144230.99975.600–0.0110.0110.005
Peak area (y); amount of injected compound (x), μg; Limits of quantification (LOQ); Limits of detection (LOD).
Table 3. Precision, repeatability and recovery data for alkaloids of Corydalis Rhizoma.
Table 3. Precision, repeatability and recovery data for alkaloids of Corydalis Rhizoma.
CompoundPrecisionRepeatability (n = 6)Recovery (n = 6)
Intra-Day (n = 3)Inter-Day (n = 9)Mean (mg/g)RSD (%)Mean (%)RSD (%)
Mean (mg/mL)RSD (%)Mean (mg/mL)RSD (%)
10.1161.260.1213.350.310.8699.74.01
20.1691.500.1692.711.191.70102.31.50
30.1732.170.1814.911.873.3897.11.53
40.0572.190.0583.200.850.5994.12.92
50.0851.050.0893.540.552.0296.93.91
60.1351.060.1403.310.292.6397.52.77
70.1310.950.1373.692.091.78100.13.71
80.1370.920.1433.360.411.9697.21.80
90.0821.760.0832.180.121.4499.42.21
100.1451.110.1513.260.512.0297.33.18
110.1481.040.1532.940.162.8999.64.35
To confirm the repeatability, six parallel methanol extracted samples of Corydalis Rhizoma were analyzed. The RSD of the 11 alkaloids detected were 0.59%–3.38%. The measured recoveries of compounds 111 ranged from 94.1% to 102.3% with an RSD between 1.5% and 4.3%. Due to the varying size of prepared plant material, the RSD for alkaloids detected in the two water decoctions (obtained from tuber slices) was higher than the RSD provided by the methanol extract (obtained from powdered tuber).

2.2. Influence of Vinegar and Wine Processing on the Total Alkaloid Content of Corydalis Rhizoma

Analysis of the total alkaloid content showed significantly lower values for vinegar processed versus unprocessed or wine processed Corydalis Rhizoma in the methanol extract (Figure 3, Table 4). Of the two water decoctions, only JLZS showed significant changes in the alkaloid content which increased when using wine processed drug. Hence, the results are consistent with the traditional experience of using wine processed Corydalis Rhizoma for the JLZS decoction. The results also indicate that the alkaloid content in the water decoction is influenced not only by processing, but also by the plant material added to Corydalis Rhizoma.
Comparison of the chromatograms of processed and unprocessed Yanhusuo (not shown) revealed no obvious new peaks, which indicated that processing mainly caused quantitative changes. Usage of pulverized material (processed and unprocessed) led to an increase in the alkaloid content in the methanol extract when compared to the water decoctions obtained from tuber slices.
According to Bensky et al. [17], of the total alkaloids (100%) the availability is as follows: decoction of unprocessed drug (25.06%), decoction of vinegar processed drug (49.33%), decoction of wine processed drug (22.66%) [17]. However, our study yielded different values. When the total alkaloids in the methanol extract were considered 100%, the alkaloid availability in the decoction of unprocessed drug was 48.44%, of vinegar processed 56.44% and of wine processed 49.58%.

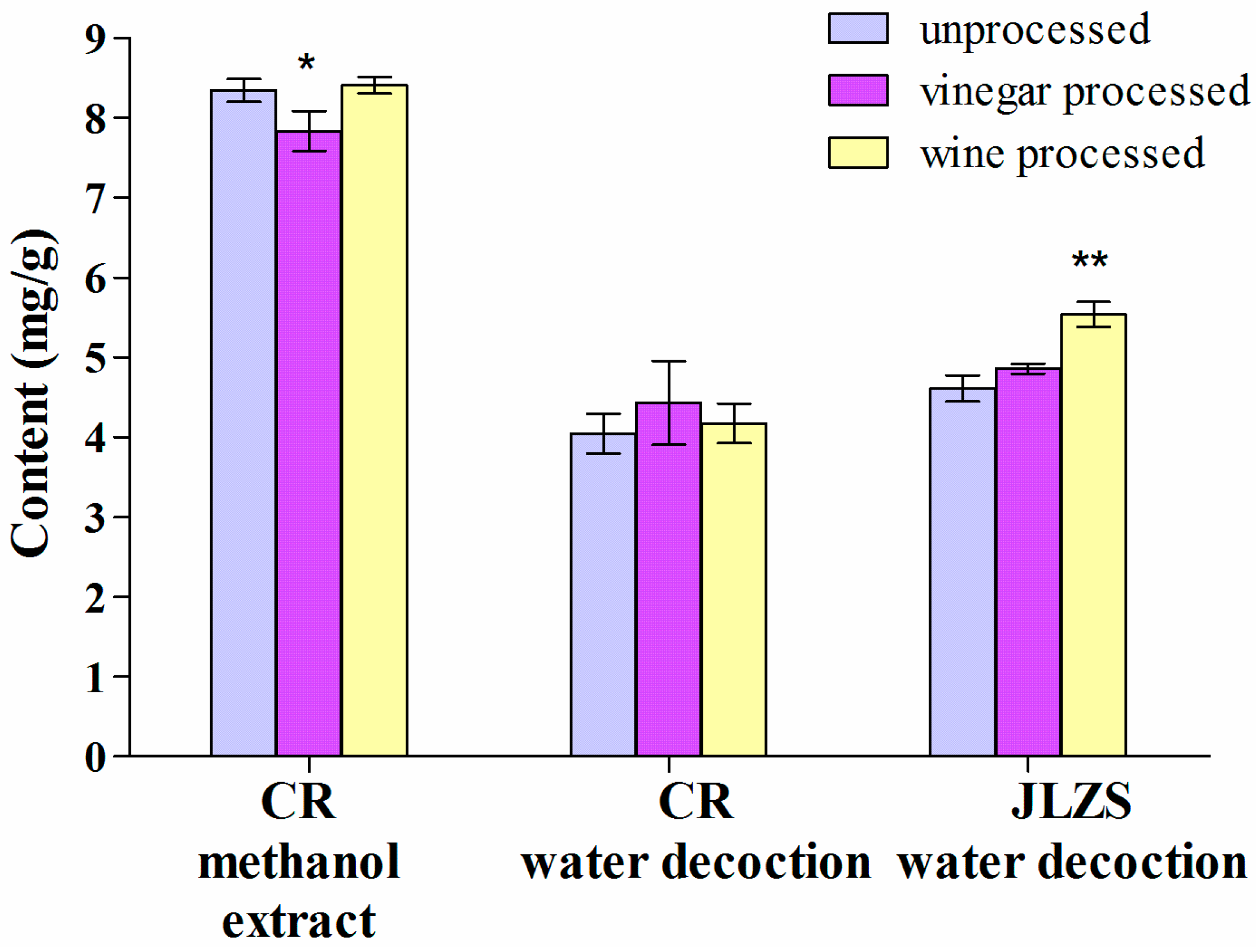

Figure 3. Alkaloid content in processed and unprocessed Corydalis Rhizoma. Corydalis Rhizoma (CR), Jin Ling Zi San (JLZS). Values are mean ± SD, n = 3, RSD < 6%. ** p < 0.01, * p < 0.05 of processed against unprocessed Corydalis Rhizoma.
Figure 3. Alkaloid content in processed and unprocessed Corydalis Rhizoma. Corydalis Rhizoma (CR), Jin Ling Zi San (JLZS). Values are mean ± SD, n = 3, RSD < 6%. ** p < 0.01, * p < 0.05 of processed against unprocessed Corydalis Rhizoma.
Molecules 19 11487 g003
Table 4. Alkaloid content of unprocessed and processed Corydalis Rhizoma.
Table 4. Alkaloid content of unprocessed and processed Corydalis Rhizoma.
Compound1234567891011Total amount
Methanolextract (mg/g)UP0.310 ± 0.0031.191 ± 0.0201.866 ± 0.0630.851 ± 0.0050.548 ± 0.0110.286 ± 0.0082.093 ± 0.0370.406 ± 0.0080.120 ± 0.0020.511 ± 0.0100.162 ± 0.0058.342 ± 0.141
VP0.301 ± 0.0101.133 ± 0.0401.826 ± 0.0360.752 ± 0.030 **0.504 ± 0.010 **0.248 ± 0.014 *1.889 ± 0.087 *0.397 ± 0.0150.122 ± 0.0030.513 ± 0.0060.157 ± 0.0047.833 ± 0.250 *
WP0.296 ± 0.007 *0.997 ± 0.007 **2.268 ± 0.035 **0.724 ± 0.005 **0.381 ± 0.004 **0.203 ± 0.003 **1.614 ± 0.025 **0.701 ± 0.016 **0.169 ± 0.002 **0.806 ± 0.015 **0.248 ± 0.002 **8.406 ± 0.106
Water decoction (mg/g)UP0.216 ± 0.0020.559 ± 0.0131.340 ± 0.1230.290 ± 0.0190.180 ± 0.0130.084 ± 0.0060.800 ± 0.0590.321 ± 0.0060.032 ± 0.0030.189 ± 0.0120.033 ± 0.0044.040 ± 0.251
VP0.249 ± 0.0240.644 ± 0.0721.473 ± 0.1790.300 ± 0.0370.204 ± 0.0170.092 ± 0.0020.851 ± 0.1140.381 ± 0.023 **0.040 ± 0.0040.233 ± 0.018 *0.044 ± 0.0064.430 ± 0.526
WP0.241 ± 0.010 *0.585 ± 0.0321.379 ± 0.0500.281 ± 0.0230.177 ± 0.0140.078 ± 0.0050.797 ± 0.0630.339 ± 0.0260.036 ± 0.0030.224 ± 0.0250.036 ± 0.0034.170 ± 0.245
Jin Ling Zi Sandecoction(mg/g)UP0.260 ± 0.0210.599 ± 0.0301.448 ± 0.0770.344 ± 0.0320.199 ± 0.0140.102 ± 0.0060.859 ± 0.0500.434 ± 0.0020.053 ± 0.0000.301 ± 0.0260.056 ± 0.0024.610 ± 0.164
VP0.267 ± 0.0230.596 ± 0.0301.632 ± 0.015 *0.316 ± 0.0270.189 ± 0.0110.092 ± 0.0060.832 ± 0.0440.415 ± 0.0200.057 ± 0.0010.326 ± 0.0030.066 ± 0.0064.860 ± 0.064
WP0.305 ± 0.023 *0.658 ± 0.026 *1.878 ± 0.008 **0.344 ± 0.0140.212 ± 0.0110.103 ± 0.0060.924 ± 0.0290.523 ± 0.025 **0.069 ± 0.005 **0.427 ± 0.006 **0.091 ± 0.005 **5.530 ± 0.158 **
Unprocessed (UP), vinegar processed (VP), wine processed (WP); Values are mean ± SD, n = 3; ** p < 0.01, * p < 0.05 of processed versus unprocessed.

2.3. Influence of Vinegar and Wine Processing on the Alkaloid Content of the Methanol Extract of Corydalis Rhizoma

As shown in Figure 4, vinegar and wine processing both caused a significant decrease in the content of the quaternary alkaloids 4, 5, 6, and 7 when compared to unprocessed Yanhusuo. This could be due to the weak basic properties of quaternary alkaloids that are known to form unstable salts in acidic medium [26]. In addition, wine processing also caused changes in the amount of tertiary alkaloids as follows: the content of compounds 1, and 2 decreased and that of 3, 8, 9, 10, and 11 increased.
Figure 4. Alkaloid content of the methanol extract of Corydalis Rhizoma. Values are mean ± SD, n = 3, RSD < 4%. ** p < 0.01, * p < 0.05 of processed against unprocessed Corydalis Rhizoma.
Figure 4. Alkaloid content of the methanol extract of Corydalis Rhizoma. Values are mean ± SD, n = 3, RSD < 4%. ** p < 0.01, * p < 0.05 of processed against unprocessed Corydalis Rhizoma.
Molecules 19 11487 g004

2.4. Influence of Vinegar and Wine Processing on the Alkaloid Content of the Water Decoctions of Corydalis Rhizoma and JLZS

Previous studies of the water decoction of Yanhusuo reported that vinegar processing can improve the solubility of 1 and 8 [27]. In our study only the amount of compounds 8 and 10 was significantly higher in the water decoction after vinegar processing, while the content of compound 1 was increased by wine processing (Figure 5). The results for the water decoction of JLZS indicated that the contents of all tertiary alkaloids, 1, 2, 3, 8, 9, 10, and 11 were significantly increased by wine processing (Figure 6). Vinegar processing led to a significant increase only for compound 3.
Previously, improved solubility of alkaloids from Corydalis Rhizoma in the water decoction has been observed after processing. During stir-frying in vinegar, acetic acid can interact with alkaloids, which leads to the formation of water-soluble salts [28]. Yellow rice wine contains phenolic acids [29] that could interact in the same way with alkaloids from Yanhusuo thus, increasing their solubility.

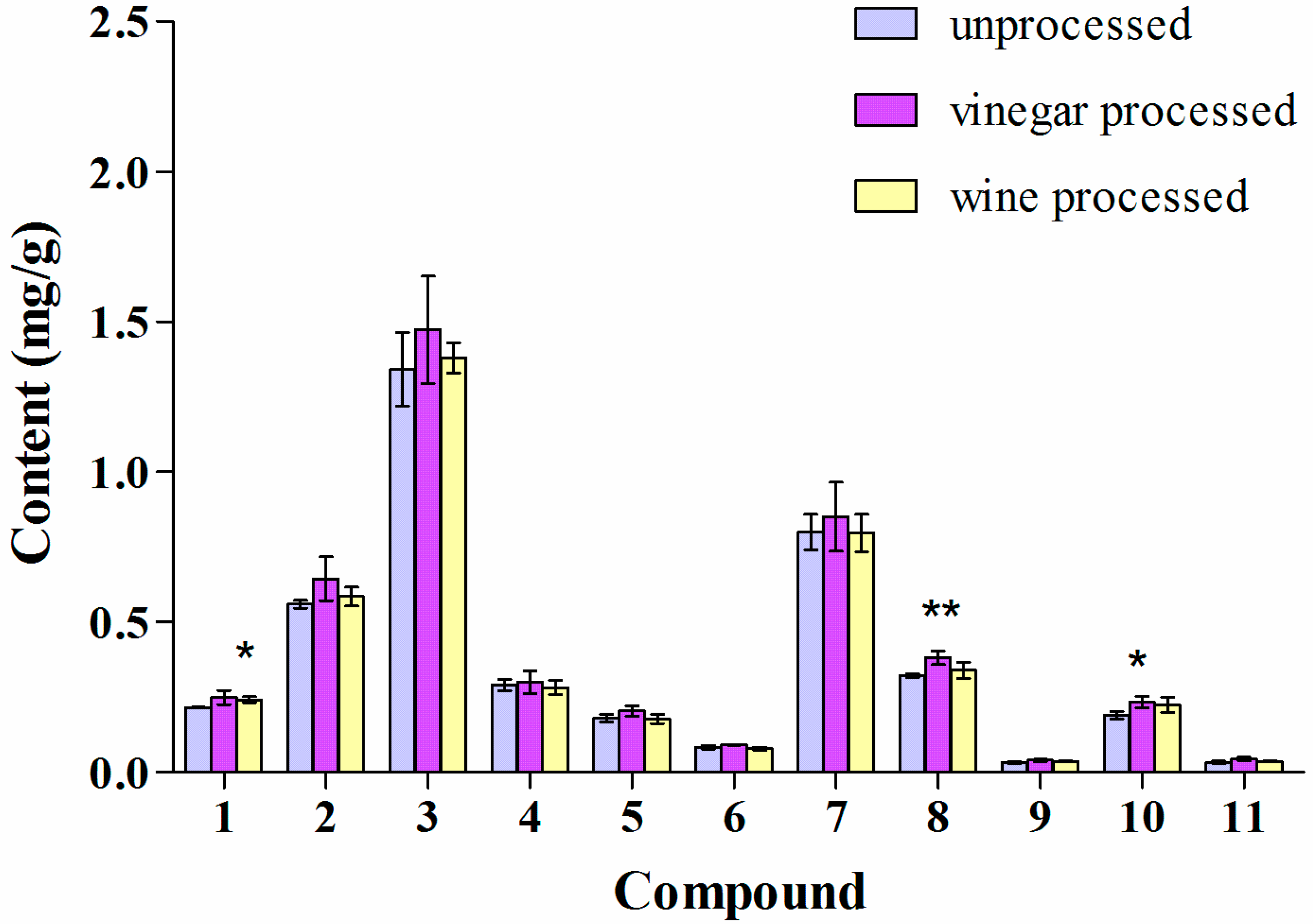

Figure 5. Alkaloid content of the water decoction of Corydalis Rhizoma. Values are mean ± SD, n = 3, RSD < 13%. ** p < 0.01, * p < 0.05 of processed against unprocessed Corydalis Rhizoma.
Figure 5. Alkaloid content of the water decoction of Corydalis Rhizoma. Values are mean ± SD, n = 3, RSD < 13%. ** p < 0.01, * p < 0.05 of processed against unprocessed Corydalis Rhizoma.
Molecules 19 11487 g005

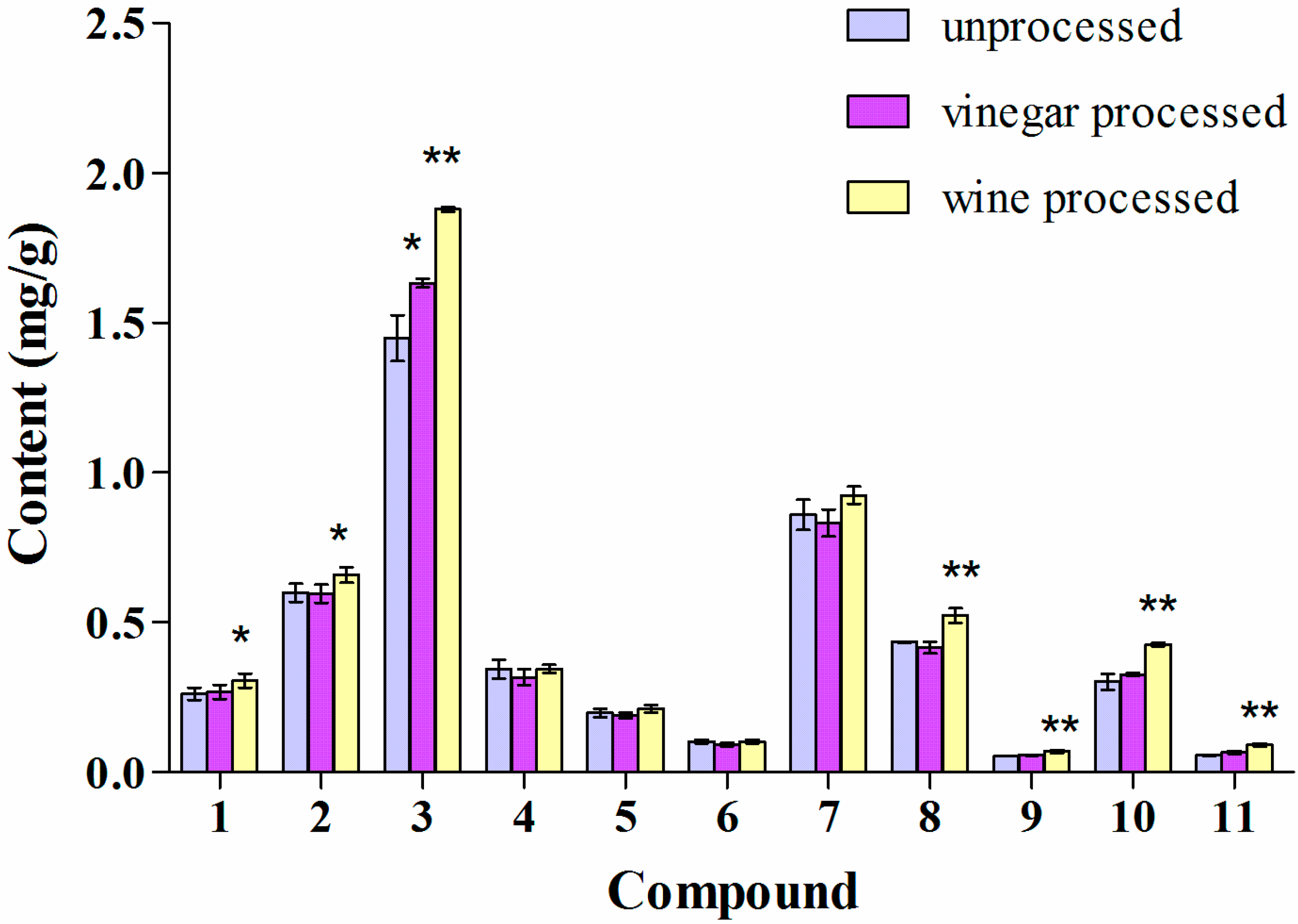

Figure 6. Alkaloid content of the water decoction of JLZS. Values are mean ± SD, n = 3, RSD < 10%. ** p < 0.01, * p < 0.05 of processed against unprocessed Corydalis Rhizoma.
Figure 6. Alkaloid content of the water decoction of JLZS. Values are mean ± SD, n = 3, RSD < 10%. ** p < 0.01, * p < 0.05 of processed against unprocessed Corydalis Rhizoma.
Molecules 19 11487 g006
Vinegar and wine processing increased the amount of tertiary alkaloids in the water decoctions, with more pronounced differences for JLZS. In addition, a higher amount of alkaloids was extracted in JLZS when compared to the Corydalis Rhizoma water decoction even when using unprocessed material. This indicated that the solubility of alkaloids in the water decoction can be influenced by the presence of Toosendan Fructus next to Corydalis Rhizoma. The traditional Chinese medicine practice of co-extraction of two or more herbal drugs has been previously shown to increase the concentration of active substances in joint decoctions [30]. A recent example is that of the formula Danggui Buxue Tang which consists of Astragali Radix and Angelicae Sinensis Radix. Ferulic acid from the composition of Angelicae Sinensis Radix, itself an inactive compound, was shown to increase the solubility of active substances from Astragali Radix during the process of co-decoction [31]. It is known that molecules of plant origin such as amino acids, organic acids and sugars can improve the extraction yield and solubility of other compounds [32].
Although changes in the alkaloid content were present, the relative content of each alkaloid in unprocessed and processed Corydalis Rhizoma was similar. The two most abundant alkaloids were tetrahydrocolumbamine (3) and dehydrocorydaline (7). Together, the two alkaloids accounted for 46%–53% of the total alkaloid content in the three analyzed extracts.
According to the Chinese Pharmacopoeia, the quality marker for Corydalis Rhizoma is tetrahydropalmatine (8) [1] and our study showed that the amount of the compound was increased by processing. Wine processing elevated the content of tetrahydropalmatine (8) in the water decoction of JLZS, while vinegar processing increased its content in the water decoction of Corydalis Rhizoma. Tetrahydropalmatine (8) is one of the main alkaloids responsible for the pharmacological properties of Yanhusuo which include analgesic, anxiolytic and cardiovascular effects [33,34,35].
The results also pointed out that in addition to tetrahydropalmatine (8) the content of other alkaloids was also increased by processing. For example, vinegar processing caused an elevation of the amount of tetrahydrocolumbamine (3) in JLZS and tetrahydropalmatine (8) and corydaline (10) in the water decoction of Corydalis Rhizoma. Tetrahydropalmatine (8) and corydaline (10) have been reported to promote a strong antinociceptive effect through the blockade of the D2 dopaminergic receptors in the brain [36]. In addition, tetrahydrocolumbamine (3) was shown to be a ligand of the dopamine receptor, which plays a role in the perception of pain [37]. Vinegar processed Yanhusuo showed the best analgesic effect in clinical trials and has been used mainly for the treatment of gynecological disorders with particular applications in dysmenorrhea [17]. Hence, the traditional use of the vinegar processed product is in line with the observed increase in the amount of alkaloids with analgesic activity.
According to Bensky et al. [17], processing with wine was traditionally believed to contribute to the efficacy of Yanhusuo. Wine processing caused an increase in all tertiary alkaloids [protopine (1), α-allocryptopine (2), tetrahydrocolumbamine (3), tetrahydropalmatine (8), tetrahydroberberine (9), corydaline (10), tetrahydrocoptisine (11)] in the water decoction of JLZS. These compounds reported bioactivities such as antinociceptive, antithrombotic, antifibrillatory and antiinflammatory effects [38,39,40]. Hence, the claimed positive influence of wine processing on the properties of the drug could be justified.

3. Experimental Section

3.1. Chemicals and Reagents

The reference compounds protopine (1), α-allocryptopine (2), tetrahydrocolumbamine (3), coptisine (4), palmatine (5), berberine (6), DL-tetrahydropalmatine (8), tetrahydroberberine (9), corydaline (10), and tetrahydrocoptisine (11), were purchased from the National Institute for the Control of Pharmaceutical and Biological Products (Beijing, China) and Chengdu Herbpurify Co. (Chengdu, China). Dehydrocorydalin (7) was purchased from Cfm Oskar Tropitzsch GmbH (Marktredwitz, Germany). The purity of the compounds was assessed to be over 95% by reverse-phase HPLC.
Standard stock solutions were prepared by dissolving reference compounds in methanol. A volume of 10 μL was injected into HPLC for analysis. Acetonitrile of HPLC grade was from VWR International (Vienna, Austria). Distilled water was prepared in the laboratory. Triethylamine was supplied by Sigma-Aldrich (St. Louis, MO, USA). Other chemicals, including acetic acid and methanol were of analytical grade (VWR International, Vienna, Austria).

3.2. Plant Material

Tubers of C. yanhusuo W. T. Wang were purchased from Dongjiaying Country, Hanzhong City, Shanxi Province, China. Dried rhizomes were washed clean, immersed in water until softened, sliced into pieces and dried at 25 °C (“unprocessed Corydalis Rhizoma”).

3.3. Processing of Corydalis Rhizoma According to the Pharmacopoeia [1]

Dried slices were mixed with rice vinegar (20 mL vinegar per 100 g rhizome) or yellow rice wine (20 mL wine per 100 g rhizome) and the slices allowed to completely absorb the vinegar or wine. The soaked slices were then stir-fried over a low flame until they were completely dry (“vinegar processed Corydalis Rhizoma”; “wine processed Corydalis Rhizoma”).

3.4. Extraction

For the HPLC analysis all extractions were carried out in triplicate. Prior to analysis, all extract solutions were centrifuged for 30 min at 13,000 rpm.

3.4.1. Methanol Extract

Prepared slices of Corydalis Rhizoma were powdered to a homogeneous size by milling and sieving through No. 3 sieve [1]. Five grams of powder were extracted 3 times with 100 mL methanol for 60 min by hot reflux extraction in a water bath. After filtration, the extracts were combined and concentrated by vacuum evaporation at 40 °C to a volume of 25 mL. A 10 μL volume was injected into the HPLC.

3.4.2. Water Decoction

Ten grams of prepared Corydalis Rhizoma slices were soaked in water (100 mL) for 60 min and then boiled slightly for a further 40 min. After cooling and filtering, the slices were boiled for a second time in water (100 mL) for 25 min. The two decoctions were combined, and the extract was dried by lyophilization. Finally, the extract was dissolved in water and adjusted to a volume of 25 mL. A 10 μL volume was injected into the HPLC.

3.4.3. JLZS Decoction

Ten grams of prepared Corydalis Rhizoma slices and ten grams of prepared Fructus Meliae Toosendan slices were soaked in 200 mL water for 60 min and then boiled slightly for a further 40 min. After cooling and filtering, the slices were boiled for a second time in 200 mL water for 25 min. The two decoctions were combined and dried by lyophilization. Finally, the extract was dissolved in water and adjusted to a constant volume of 25 mL. A 10 μL volume was injected into the HPLC.

3.5. Quantitative Analysis of the Alkaloid Content of Corydalis Rhizoma and Its Formulations by HPLC-DAD

Quantitative analysis was performed using a Shimadzu HPLC system (Shimadzu, Kyoto, Japan) equipped with an LC-10AD VP binary pump, an SPD-M10A VP diode array detector, an SCL-10A VP system controller, an auto-sampler, and a DGU-14A degasser.
Chromatographic separation, modified from Ding et al. [16], was carried out on a Phenomenex (250 × 4.6 mm, Gemini 5 μm, C18, 110A, SN: 289246-5). The mobile phase consisted of A (0.2% aqueous acetic acid, adjusted with triethylamine to pH 5.0) and B (acetonitrile), using a gradient elution of 20% B holding for 8 min, 20%–36% B within 8–23 min, 36%–80% B within 23–40 min, 80%–95% B within 40–41 min, and 95%–95% B within 41–45 min. The re-equilibration time of the gradient elution was 10 min. The column temperature was 25 °C. The flow rate was 1.0 mL/min. Alkaloids were detected at 280 nm. The alkaloid content for each alkaloid was calculated by comparing the peak area with the standard curve. The total alkaloid content was calculated as the sum of the content of the 11 individual alkaloids.
The method validation was conducted under the above described conditions. The validation included calibration curves, limits of detection, precision, repeatability and accuracy. The stock solution of the mixture of the 11 reference compounds was prepared by dissolving the standards in methanol in a 10 mL volumetric flask. The range of concentrations of each compound in the stock solution was 0.26–0.66 mg/mL. The stock solution was further diluted to the desired concentration. The calibration curve was established with at least six appropriate concentrations measured in triplicate. The limits of detection (LOD) and quantification (LOQ) were determined with the corresponding standard solution at a signal-to-noise (S/N) ratio of ~3 and ~10, respectively.
The intra- and inter-day precisions were determined by analyzing the standard solution containing the 11 marker compounds, with three repetitions daily over three consecutive days. To confirm the repeatability, six different working solutions prepared from the same sample were analyzed. The RSD was taken as a measure of precision and repeatability. The accuracy of the method was estimated by means of recovery experiments with all 11 alkaloids. The recovery was determined by spiking a selected sample. First, the contents of the 11 analytes in the sample were calculated according to their respective calibration curves, before spiking six sample aliquots with identical amounts of the reference compound mixture. Then, the thus fortified samples were extracted and analyzed as described above. The average recoveries were estimated using the formula: recovery (%) = (amount found − original amount) × 100%/amount spiked.

3.6. Qualitative Analysis of Typical Samples by LC-MS

To confirm the presence of the 11 alkaloids in the samples, the mixed standards and typical samples were analyzed by LC-MS. These analyses were carried out using a HCT quadrupole ion trap mass spectrometer (Bruker Daltonics, Bremen, Germany) connected to an UltiMate 3000 RSLC-series system (Dionex, Germering, Germany). As triethylamine has a persistent memory effect [41], the buffer was changed to 10 mM ammonium acetate (adjusted to pH 5.0 with acetic acid), while the other HPLC conditions were the same as those described in Section 3.4. After passing the DAD, the eluate flow was split 1:4 before the ESI ion source, which was operated as follows: capillary voltage: −3.7 kV, nebulizer: 26 psi (N2), dry gas flow: 9 L/min (N2), and dry temperature: 340 °C. MSn spectra (n = 2–4) were obtained in an automated data-dependent acquisition mode (collision gas: He, isolation window: 4 Th, fragmentation amplitude: 1.0 V).

3.7. Statistical Analysis

All experiments were carried out in triplicate. Data were expressed as the mean value ± SD. Data analysis between unprocessed and processed Corydalis Rhizoma groups were conducted by two-way analysis of the t-test using Microsoft Office Excel 2003. The alkaloid content of each sample was expressed as mg/g of Corydalis Rhizoma dry weight.

4. Conclusions

The present study shows that wine and vinegar processing of Corydalis Rhizoma cause significant changes, not only to the content of the quality marker tetrahydropalmatine, but also of ten other main alkaloids that show pharmacological effects. Processing can increase the amount of alkaloids in the two common formulations used in clinics, namely the water decoctions of Corydalis Rhizoma and its formula Jin Ling Zi San. The differences between the use of processed and unprocessed Yanhusuo are more pronounced for Jin Ling Zi San, in which case the content of all of the studied tertiary alkaloids is increased by processing.

Acknowledgments

This research was supported by the Sino-Austria Project (China-TCM-Cluster Project PP06). The first author thanks Eurasia Pacific Uninet for providing a postdoctoral scholarship. We acknowledge support by the Open Access Publishing Fund of University of Vienna.

Author Contributions

Participated in research design: Wu Hongwei, Xie Lianwu, McKinnon Ruxandra, Zehl Martin, Kopp Brigitte. Conducted experiments: Wu Hongwei, Waldbauer Katharina, Tang Liying, Zehl Martin, Yang Hongjun, Xu Haiyu. Performed data analysis: Wu Hongwei. Wrote or contributed to the writing of the manuscript: Wu Hongwei, McKinnon Ruxandra, Zehl Martin, Kopp Brigitte.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Editorial Committee for the Pharmacopoeia of the People’s Republic of China. Pharmacopoeia of the People’s Republic of China 2010; Chemical Industry Press: Beijing, China, 2010; Volume 1, p. 133. [Google Scholar]
  2. Wang, X.L.; Zheng, Z.; Hong, Z.; Fan, G. Advancements on chemical components and quality control of rhizoma corydalis. Lishizhen Med. Mater. Med. Res. 2011, 22, 227–229. [Google Scholar]
  3. Adsersen, A.; Kjølbye, A.; Dall, O.; Jäger, A.K. Acetylcholinesterase and butyrylcholinesterase inhibitory compounds from Corydalis Cava Schweigg. & Kort. J. Ethnopharmacol. 2007, 113, 179–182. [Google Scholar] [CrossRef]
  4. Chang, C.K.; Lin, M.T. DL-tetrahydropalmatine may act through inhibition of amygdaloid release of dopamine to inhibit an epileptic attack in rats. Neurosci. Lett. 2001, 307, 163–166. [Google Scholar] [CrossRef]
  5. Lin, M.T.; Wang, J.J.; Young, M.S. The protective effect of DL-tetrahydropalmatine against the development of amygdala kindling seizures in rats. Neurosci. Lett. 2002, 320, 113–116. [Google Scholar] [CrossRef]
  6. Yue, K.; Ma, B.; Ru, Q.; Chen, L.; Gan, Y.; Wang, D.; Jin, G.; Li, C. The dopamine receptor antagonist levo-tetrahydropalmatine attenuates heroin self-administration and heroin-induced reinstatement in rats. Pharmacol. Biochem. Behav. 2012, 102, 1–5. [Google Scholar] [CrossRef]
  7. An, H.J.; Rim, H.K.; Chung, H.S.; Choi, I.Y.; Kim, N.H.; Kim, S.J.; Moon, P.D.; Myun, N.Y.; Jeong, H.J.; Jeong, C.H.; et al. Epression of inducible nitric oxide synthase by Corydalis turtschaninovii on interferon-γ stimulated macrophages. J. Ethnopharmacol. 2009, 122, 573–578. [Google Scholar] [CrossRef]
  8. Lei, Y.; Tan, J.; Wink, M.; Ma, Y.; Li, N.; Su, G. An isoquinoline alkaloid from the Chinese herbal plant Corydalis yanhusuo W.T. Wang inhibits P-glycoprotein and multidrug resistance-associate protein 1. Food Chem. 2013, 136, 1117–1121. [Google Scholar] [CrossRef]
  9. Kim, Y.A.; Kong, C.S.; Yea, S.S.; Seo, Y. Constituents of Corydalis heterocarpa and their anti-proliferative effects on human cancer cells. Food Chem. Toxicol. 2010, 48, 722–728. [Google Scholar] [CrossRef]
  10. Kang, K.H.; Kong, C.S.; Seo, Y.; Kim, M.M.; Kim, S.K. Anti-inflammatory effect of coumarins isolated from Corydalis heterocarpa in HT-29 human colon carcinoma cells. Food Chem. Toxicol. 2009, 47, 2129–2134. [Google Scholar] [CrossRef]
  11. Yun, K.J.; Shin, J.S.; Choi, J.H.; Back, N.I.; Chung, H.G.; Lee, K.T. Quaternary alkaloid, pseudocoptisine isolated from tubers of Corydalis turtschaninovi inhibits LPS-induced nitric oxide, PGE(2), and pro-inflammatory cytokines production via the down-regulation of NF-KappaB in RAW 264.7 murine macrophage cells. Int. Immunopharmacol. 2009, 9, 1323–1331. [Google Scholar] [CrossRef]
  12. Cao, F.L.; Shang, G.W.; Wang, Y.; Yang, F.; Li, C.L.; Chen, J. Antinociceptive effects of intragastric dl-tetrahydropalmatine on Visceral and somatic persistent nociception and pain hypersensitivity in rats. Pharmacol. Biochem. Behav. 2011, 100, 199–204. [Google Scholar] [CrossRef]
  13. Wang, T.; Sun, N.L.; Zhang , W.D.; Li, H.L.; Lu, G.C.; Yuan, B.J.; Jiang, H.; She, J.H.; Zhang, C. Protective effects of dehydrocavidine on carbon tetrachloride-induced acute hepatotoxicity in rats. J. Ethnopharmacol. 2008, 117, 300–308. [Google Scholar] [CrossRef]
  14. Wangchuk, P.; Keller, P.A.; Pyne, S.G.; Willis, A.C.; Kamchonwongpaisan, S. Antimalarial alkaloids from a bhutanese traditional medicinal plant Corydalis dubia. J. Ethnopharmacol. 2012, 143, 310–313. [Google Scholar] [CrossRef]
  15. Cheng, X.Y.; Shi, Y.; Zhen, S.L.; Sun, H.; Jin, W. HPLC-MS Analysis of ethanol extract of Corydalis yanhusuo and simultaneous determination of eight protoberberine quaternary alkaloids by HPLC–DAD. J. Chromatogr. Sci. 2010, 48, 441–444. [Google Scholar] [CrossRef]
  16. Ding, B.; Zhou, T.; Fan, G.; Hong, Z.; Wu, Y. Qualitative and quantitative determination of ten alkaloids in traditional Chinese medicine Corydalis yanhusuo W.T. Wang by LC-MS/MS and LC-DAD. J. Pharm. Biomed. Anal. 2007, 45, 219–226. [Google Scholar] [CrossRef]
  17. Bensky, D.; Steven, C.; Stöger, E. Chinese Herbal Medicine. Materia. Medica, 3rd ed.; Eastland Press Inc.: Seattle, WA, USA, 2004; p. 606. [Google Scholar]
  18. Editorial Committee of Zhonghuabencao of State Administration of Traditional Chinese Medicine of People’s Republic of China. Zhonghuabencao; Shanghai Science and Technology Press: Shanghai, China, 1999; Volume 9, pp. 3–643. [Google Scholar]
  19. Dou, Z.Y.; Li, K.F.; Wang, P.; Cao, L. Effect of wine and vinegar processing of rhizoma corydalis on the tissue distribution of tetrahydropalmatine, protopine and dehydrocorydaline in rats. Molecules 2012, 17, 951–970. [Google Scholar] [CrossRef]
  20. Zhang, X.; Li, T.; Mao, C. Analgesic and anti-inflammatory effects of different kinds of Corydalis yanhusuo. Shizhen Guoyi Guoyao 2009, 20, 449–450. [Google Scholar]
  21. Chen, X.; Lu, T.; Zhang, X.H. Determination of tetrahydropalmatine of different processed products of rhizoma corydalis by HPLC. Chin. Traditional Patent Med. 2003, 25, 726–727. [Google Scholar]
  22. Zhang, X.Y.; Zhang, X.D.; Liu, X.P. Effect of vinegar processing on contents of 3 alkaloids in rhizoma Corydalis yanhusuo. J. Nanjing Univ. Traditional Chin. Med. 2008, 24, 410–411. [Google Scholar]
  23. Wang, P.; Wang, Y.; Cao, Y.; Dou, Z.Y. Research progress of Jin Ling Zi San. Her. Med. 2011, 30, 1179–1181. [Google Scholar]
  24. Li, F.; Zhu, X.; Chen, M.; Zhou, Y. Study on the chemical constituents from fructus toosendan. J. Chin. Med. Mater. 2010, 33, 910–912. [Google Scholar]
  25. Jeong, E.K.; Lee, S.Y.; Yu, S.M.; Park, N.H.; Lee, H.S.; Yim, Y.H.; Hwang, G.S.; Cheong, C.; Jung, J.H.; Hong, J. Identification of structurally diverse alkaloids in Corydalis species by liquid chromatography/electrospray ionization tandem mass spectrometry. Rapid Commun. Mass Spectrom. 2012, 26, 1661–1674. [Google Scholar] [CrossRef]
  26. Hänsel, R.; Sticher, O.; Steinegger, E. Pharmacognosie–Phytopharmazie; Springer-Verlag: Heidelberg, Germany, 1999; p. 950. [Google Scholar]
  27. Cao, L.; Dou, Z.Y.; Wang, P.; Tian, Y.L. Effect of different processes on the contents of active ingredients in corydalis. Chin. J. Inf. Traditional Chin. Med. 2009, 16, 42–44. [Google Scholar]
  28. Zhu, Y.P. Chinese Materia Medica: Chemistry, Pharmacology and Applications; CRC Press LLC: Florida, FL, USA, 1998; p. 18. [Google Scholar]
  29. Zhai, X.; Chi, J.; Tang, W.; Ji, Z.; Zhao, F.; Jiang, C.; Lv, H.; Guo, H. Yellow wine polyphenolic compounds inhibit matrix metalloproteinase-2, -9 expression and improve atherosclerotic plaque in LDL-receptor-knockout mice. J. Pharm. Sci. 2014, 125, 132–141. [Google Scholar] [CrossRef]
  30. Choi, R.C.Y.; Gao, Q.T.; Cheung, A.W.H.; Zhu, J.T.T.; Lau, F.T.C.; Li, J.; Li, W.Z.M.; Chu, G.K.Y.; Duan, R.; Cheung, J.K.H.; et al. A Chinese herbal decoction, Danggui Buxue Tang, stimulates proliferation, differentiation and gene expression of cultured osteosarcoma cells: Genomic approach to reveal specific gene activation. Evid. Based Complement. Alternat. Med. 2011. [Google Scholar] [CrossRef]
  31. Zheng, K.Y.Z.; Zhang, Z.X.; Du, C.Y.Q.; Zhang, W.L.; Bi, C.W.C.; Choi, R.C.Y.; Dong, T.T.; Tsim, K.W. Ferulic acid enhances the chemical and biological properties of astragali radix: A stimulator for Danggui Buxue Tang, an ancient Chinese herbal decoction. Planta Med. 2014, 80, 159–164. [Google Scholar] [CrossRef]
  32. Dai, Y.; van Spronsen, J.; Witkamp, G.J.; Verpoorte, R.; Choi, Y.H. Natural deep eutectic solvents as new potential media for green technology. Anal. Chim. Acta 2013, 766, 61–68. [Google Scholar] [CrossRef]
  33. Zhu, X.Z. Development of natural products as drugs acting on central nervous system. Mem. Inst. Oswaldo. Cruz 1991, 86, 173–175. [Google Scholar] [CrossRef]
  34. Wang, T.; Cao, X.B.; Sun, C.M.; Sun, S.G. Experimental study of protective effect of l-tetrahydropalmatine on cerebral ischemia/reperfusion injury. Chin. J. Rehabil. 2003, 18, 135–138. [Google Scholar]
  35. Han, Y.; Zhang, W.; Tang, Y.; Bai, W.; Yang, F.; Xie, L.; Li, X.; Zhou, S.; Pan, S.; Chen, Q.; et al. L-Tetrahydropalmatine, an active component of Corydalis yanhusuo W.T. Wang, protects against myocardial ischaemia-reperfusion injury in rats. PLoS One 2012, 7, e38627. [Google Scholar] [CrossRef]
  36. Wang, C.; Wang, S.; Fan, G.; Zou, H. Screening of antinociceptive components in Corydalis yanhusuo W.T. Wang by comprehensive two-dimensional liquid chromatography/tandem mass spectrometry. Anal. Bioanal. Chem. 2010, 396, 1731–1740. [Google Scholar] [CrossRef]
  37. Shen, X.L.; Witt, M.R.; Dekermendjian, K.; Nielsen, M. Isolation and identification of tetrahydrocolumbamine as a dopamine receptor ligand from Polygala tenuifolia willd. Yao Xue Xue Bao 1994, 29, 887–890. [Google Scholar]
  38. Xuan, B.; Wang, W.; Li, D.X. Inhibitory Effect of tetrahydroberberine on platelet aggregation and thrombosis. Zhongguo Yao Li Xue Bao 1994, 15, 133–135. [Google Scholar]
  39. Sun, A.Y.; Li, D.X. Antifibrillatory effect of tetrahydroberberine. Zhongguo Yao Li Xue Bao 1993, 14, 301–305. [Google Scholar]
  40. Li, W.; Huang, H.; Niu, X.; Fan, T.; Mu, Q.; Li, H. Protective effect of tetrahydrocoptisine against ethanol-induced gastric ulcer in mice. Toxicol. Appl. Pharmacol. 2013, 272, 21–29. [Google Scholar] [CrossRef]
  41. Rütters, H.; Möhring, T.; Rullkötter, J.; Griep-Raming, J.; Metzger, J.O. The persistent memory effect of triethylamine in the analysis of phospholipids by liquid chromatography/mass spectrometry. Rapid Commun. Mass Spectrom. 2000, 14, 122–123. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds protopine, α-allocryptopine, tetrahydrocolumbamine, coptisine, palmatine, berberine, dehydrocorydaline, d,l-tetrahydropalmatine, tetrahydroberberine, corydaline and tetrahydrocoptisine are available from the authors.
Back to TopTop
