New Short Strategy for the Synthesis of the Dibenz[b,f]oxepin Scaffold

by
David R. R. Moreno
1,
Giorgio Giorgi
2,
Cristian O. Salas
1 and
Ricardo A. Tapia
1,*
1
Departamento de Química Orgánica, Facultad de Química, Pontificia Universidad Católica de Chile, Santiago 7820436, Chile
2
Departamento de Química Orgánica y Farmacéutica, Facultad de Farmacia, Universidad Complutense, Madrid 28040, Spain
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(12), 14797-14806; https://doi.org/10.3390/molecules181214797
Submission received: 14 November 2013 / Revised: 26 November 2013 / Accepted: 26 November 2013 / Published: 29 November 2013
(This article belongs to the Section Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
In this report a short and efficient synthesis of the dibenz[b,f]oxepin framework through intramolecular SNAr and McMurry reactions is described. The diaryl ethers required for the McMurry reaction have been obtained in good yields under microwave-assisted conditions of the reaction of salicylaldehydes with fluorobenzaldehydes without catalysts. Application of an intramolecular McMurry reaction to the synthesized diarylethers using TiCl4/Zn in THF gave the target dibenzo[b,f]oxepin system in 53%–55% yields.

Graphical Abstract

1. Introduction

The dibenz[b,f]oxepin scaffold is an important synthetic target because a large number of compounds having this skeleton present relevant biological activities; such as antidepressant [1], anxiolytic [2], antipsychotic [3,4], angiotensin-II-receptor-antagonist [5], and anti-inflammatory properties [6]. Additionally, a number of natural occurring dibenz[b,f]oxepins have been isolated from plants of the genus Bauhinia (fam. Fabaceae) and many of them also exhibit important biological activities [7]. For example, bauhinoxepin A isolated from Bauhinia saccocalyx Pierre (Figure 1), shows antimycobacterial activity [8]. Pettit et al. isolated bauhiniastatin 1 from Bauhinia purpurea L., which exhibits significant growth inhibition activity against several human cancer lines [9]. From the same plant, Kittakoop et al. have described bauhinoxepin J, which shows potent antimycobacterial and antimalarial activities, as well as tumor growth inhibitory activity, against KB cells [10]. Bulbophylol B is another interesting example isolated from Bulbophyllum kwangtungense Schlecht (fam. Orchidaceae), which displays significant cytotoxicity against human epithelial carcinoma (HeLa) and human erythromyeloblastoid leukemia (K562) cell lines [11].
Molecules 18 14797 g001 550

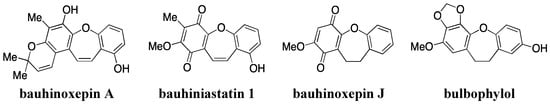

Figure 1. Structure of some natural dibenz[b,f]oxepins.
Figure 1. Structure of some natural dibenz[b,f]oxepins.
Molecules 18 14797 g001
Synthetic approaches to natural dibenzo[b,f]oxepins have been directed mainly to the preparation of dihydro derivatives. For example, the total synthesis of bauhinoxepin J using an intramolecular persulfate-mediated radical addition to a quinone was described by Krauss and Kim [12]. Furthermore, Katoh et al. [13] have also recently described their synthesis using the reaction of an aryllithium derivative with a phenylacetaldehyde and subsequent internal nucleophilic addition/elimination sequences as key steps. Yao et al. have described the synthesis of bulbophylol employing Wittig, selective reduction and intramolecular Ullmann reactions as key steps (18% overall yield over 12 steps) [14]. It is noteworthy that the synthesis of bauhinoxepin A and bauhiniastatin 1 are not reported, probably because the described routes to dibenzo[b,f]oxepins are multi-step procedures or require the preparation of complex starting materials [15]. Some interesting approaches have been described recently, but they are limited to the synthesis of dibenz[b,f]oxepincarboxylic acid derivatives [16,17]. In connection with our interest on the synthesis of bioactive heterocyclic quinones [18,19], herein we describe a convenient procedure for the preparation of the dibenzo[b,f]oxepin scaffold.
Retrosynthetic analysis of the tricyclic system I led us to consider two strategies (Scheme 1). Approach A, is via an intramolecular Ullmann, or nucleophilic aromatic substitution (SNAr) reaction [20]. Path B, was envisaged through an intramolecular McMurry reaction, which has been used successfully in the synthesis of natural products [21], but there are no precedents for the preparation of dibenzo[b,f]oxepins using it, except for sulfur and selenium analogues [22].
Molecules 18 14797 g002 550
Scheme 1. Strategies for the synthesis of dibenzo[b,f]oxepin scaffold.
Scheme 1. Strategies for the synthesis of dibenzo[b,f]oxepin scaffold.
Molecules 18 14797 g002

2. Results and Discussion

First, we focused our research on the synthesis of a Z-stilbene. To achieve our objective, we planned to apply the Wittig reaction that gives high Z selectivity when both the ylide and benzaldehyde incorporate ortho-halo and ortho-alkoxy substituents [23,24]. Thus, Wittig reaction of o-bromobenzyl-triphenylphosphonium salt 1 [23] with 2-formylphenyl-4-methylbenzene sulfonate (2) in the presence of potassium t-butoxide gave stilbene 3 (87%) as a single isomer. Attempts to obtain dibenzo[b,f]oxepin 5a directly from compound 3, by applying an intramolecular palladium-catalyzed biaryl ether formation using Pd(OAc)2 and tri(o-tolyl)phosphine as described by Harayama et al. for an aza-analog [25] were unsuccessful. Cleavage of the p-toluenesulfonate group under standard basic conditions (KOH/EtOH-H2O) gave phenol 4 which was directly converted to dibenzo[b,f]oxepin 5a (72%) by treatment with cesium carbonate in DMSO at 180 °C under microwave irradiation (Scheme 2).
Molecules 18 14797 g003 550

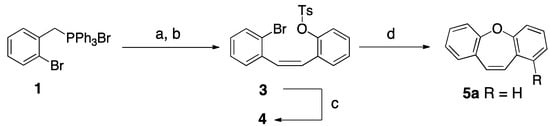

Scheme 2. Synthesis of dibenzoxepin 5a by intramolecular SNAr reaction.
Scheme 2. Synthesis of dibenzoxepin 5a by intramolecular SNAr reaction.
Molecules 18 14797 g003
Reagents and conditions: (a) t-BuOK, THF, 0 °C, 30 min; (b) 2, THF, 18 h, rt; (c) KOH, EtOH-H2O, 1 h reflux; (d) DMSO, Cs2CO3, MW, 180 °C,15 min.
Considering the low synthetic efficiency of the Wittig process, we focused our attention on the intramolecular McMurry reaction. Therefore, we concentrated our attention on the preparation of suitable diaryl ether precursors. The synthesis of o-phenoxybenzaldehydes by Ullmann or SNAr nucleophilic aromatic substitution reactions of salicylaldehydes with aryl halides normally requires harsh conditions, long reaction times and often gives low yields [26,27,28]. Considering the successful application of microwave irradiation to improve the nucleophilic SNAr reaction of activated aryl halides with phenols [29], we decided to use this methodology to obtain diaryl ethers 8. Therefore, preliminary experiments were carried out in order to determine the optimal conditions for the synthesis of 8a using highly polar solvents such as DMSO or DMA and K2CO3 or Cs2CO3 as bases [20]. The reaction of 1.2 equivalents of 2-hydroxybenzaldehyde (6a) with 1.0 equivalent of 2-fluoro-benzaldehyde (7a) and K2CO3 (2 equiv.) in DMSO using microwave irradiation over a wide temperature range was examined. The best result was obtained when the reaction was carried out at 120 °C (Table 1, entry 3) with a 73% yield of dialdehyde 8a and at higher temperatures a progressive degradation of compound 8a was observed. Similar results were obtained using DMA and Cs2CO3 as solvent and base, respectively (Table 1, entry 14). Using the optimized conditions, 2-fluoro-6-(2-formylphenoxy)-benzaldehyde (8b) and 2-(2-formylphenoxy)-6-methoxybenzaldehyde (8c) were obtained in 80% and 82% yield. Finally, the treatment of dialdehyde 8a with TiCl4 (3.0 equiv.) and Zn (6.0 equiv.) in THF at reflux for 2.5 h gave compound 5a in 55% yield through an intramolecular McMurry coupling reaction. Similarly, dialdehydes 8b and 8c underwent intramolecular McMurry coupling to give dibenzoxepins 5b and 5c (53%–55%) (Scheme 3).
Table
Table 1. Optimization of microwave-induced synthesis of 2,2'-oxybis(benzaldehyde)8a.
Table 1. Optimization of microwave-induced synthesis of 2,2'-oxybis(benzaldehyde)8a.
Molecules 18 14797 i001
EntryTemp. (°C)BaseSolventTime (min)Yields (%)
1100 °CK2CO3DMSO3048%
2110 °CK2CO3DMSO3067%
3120 °CK2CO3DMSO3073%
4130 °CK2CO3DMSO3072%
5140 °CK2CO3DMSO3055%
6160 °CK2CO3DMSO303% a
7100 °CCs2CO3DMSO3050%
8110 °CCs2CO3DMSO3065%
9120 °CCs2CO3DMSO3073%
10130 °CCs2CO3DMSO3070%
11140 °CCs2CO3DMSO3045%
12160 °CK2CO3DMA300% a
13120 °CK2CO3DMA3072%
14120 °CCs2CO3DMA3073%
15120 °CK2CO3DMA24 h71% b
a The decomposition of the product was observed; b Reaction performed without microwave irradiation.
Molecules 18 14797 g004 550

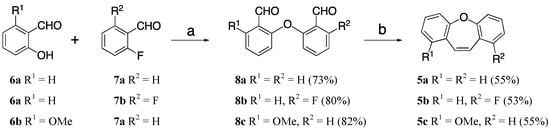

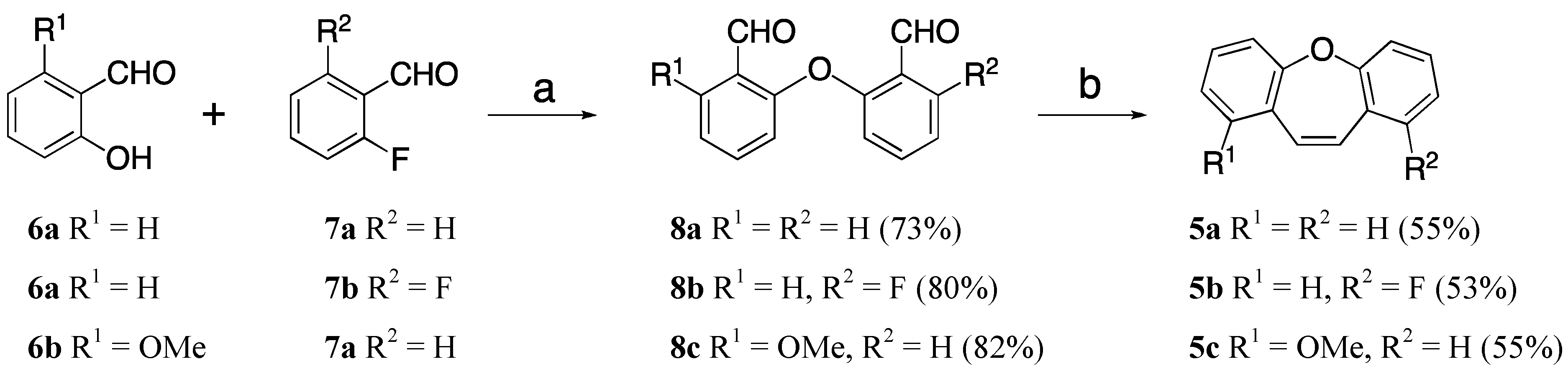

Scheme 3. Synthesis of dibenzo[b,f]oxepin scaffold via McMurry reaction.
Scheme 3. Synthesis of dibenzo[b,f]oxepin scaffold via McMurry reaction.
Molecules 18 14797 g004
Reagents and conditions: (a) DMSO, MW, 120 °C 30 min; (b) Zn, TiCl4, THF, 12 h rt.
The mechanism of the McMurry reaction is still under debate, but new evidences suggest participation of a metallopinacol intermediate formed by dimerization of ketyl radicals [30,31,32,33]. A possible mechanism for our route is shown in Scheme 4.
Molecules 18 14797 g005 550

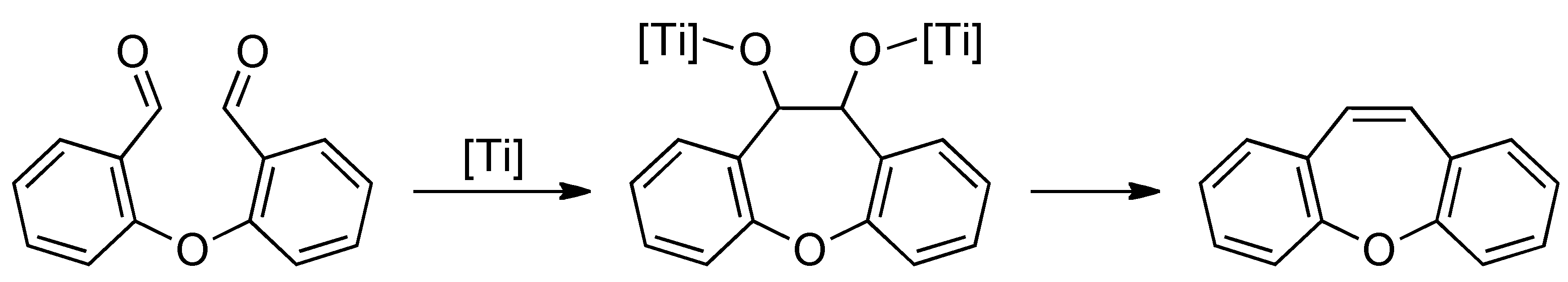

Scheme 4. Possible mechanism for the McMurry reaction formation of dibenzo[b,f]oxepins.
Scheme 4. Possible mechanism for the McMurry reaction formation of dibenzo[b,f]oxepins.
Molecules 18 14797 g005

3. Experimental

3.1. General

Melting points were measured on a Stuart Scientific SMP3 apparatus (Stuart Scientific, Manchester, UK) and are uncorrected. Infrared (IR) spectra ( Molecules 18 14797 i002max) were recorded on a Bruker Model Vector 22 spectrophotometer (Bruker Optik GmbH, Bremen, Germany). 1H- (400 MHz) and 13C-NMR (100 MHz) spectra were obtained on a Bruker AM-400 instrument (Bruker BioSpin GmbH, Rheinstetten, Germany), using tetramethylsilane as internal reference. Column chromatography was performed on silica gel Merck 60 (70–230 mesh) (Merck, Darmstadt, Germany). High-resolution mass spectrum was obtained using a Thermo Finnigan mass spectrometer Model MAT 95XP (Thermo Finnigan, San Jose, CA, USA). Microwave-assisted reactions were carried out in an Anton Paar Monowave 300 Microwave Synthesis Reactor (Anton Paar GmbH, Graz, Austria) in 30 mL sealed vials. THF was freshly distilled over sodium. DMSO and DMA were dried over 4 Å molecular sieves prior to use. Cs2CO3 and K2CO3 were dried overnight at 200 °C prior to use. All other reagents were used without further purification.
(Z)-2-(2-Bromostyryl)phenyl 4-methylbenzenesulfonate (3). t-BuOK (157 mg, 1.4 mmol) was added to a suspension of phosphonium salt 1 (615 mg, 1.2 mmol) in THF (15 mL), at 0 °C and under a nitrogen atmosphere. The mixture was stirred at 0 °C for 30 min and a solution of aldehyde 2 (276.3 mg, 1.0 mmol) in THF (10 mL) was added via syringe. The reaction mixture was allowed to warm to room temperature and stirred for 18 h. The cooled reaction mixture was poured into water (30 mL) and extracted with EtOAc (3 × 20 mL). The combined organic layers were washed with brine, dried with MgSO4 and concentrated under reduced pressure. The crude product was purified by silica gel flash chromatography (CH2Cl2-hexane, 1:9) to give stilbene 3 (375 mg, 87%) as colorless oil. IR (KBr): Molecules 18 14797 i002max 3061, 1597, 1444, 1366, 1262, 1025, 810, 722, 671 cm−1. 1H-NMR (CDCl3): δ 2.39 (s, 3H), 6.56 (d, J = 12 Hz, 1H), 6.61 (d, J = 12 Hz, 1H), 6.75 (d, J = 8 Hz, 1H), 6.90–7.10 (m, 6H), 7.29 (d, J = 8 Hz, 2H), 7.54 (d, J = 8 Hz, 1H), 7.80 (d, J = 8 Hz, 2H). 13C-NMR (acetone-d6): δ 22.1, 124.0, 124.8, 126.7, 128.0, 128.4, 130.0 (2C), 130.3, 130.6, 131.4 (2C), 131.7, 131.9, 132.1, 132.6, 133.9, 134.2, 138.3, 147.3, 149.0. HRMS (EI): m/z [M+] calcd for C21H17BrO3S: 428.0082; found: 428.0077.
Dibenz[b,f]oxepin (5a). Stilbene 3 (215 mg, 0.5 mmol) was added to a solution of KOH (900 mg, 16 mmol) in a mixture of EtOH (15 mL) and H2O (15 mL) and the suspension was heated under reflux for 1 h. After cooling, the reaction mixture was acidified with aqueous HCl (10%) to pH 4 and extracted with CH2Cl2 (3 × 25 mL). The combined organic extracts were washed with saturated aqueous NaHCO3, dried, and filtered through a short column of silica gel. After the removal of the solvent, the residue was dissolved in DMSO (5.0 mL) and Cs2CO3 (651.6 mg, 2.0 mmol) was added. The reaction mixture was heated in a microwave reactor at 180 °C for 15 min. After cooling, the solvent was evaporated under reduced pressure and the crude product was purified by flash column chromatography (silica gel, EtOAc-hexanes; 1:9) to afford 5a (70 mg, 72%), mp 108.5–109.5 °C (Lit. 106–108 °C [34], 110–111 °C [35]). IR (KBr): Molecules 18 14797 i002 max 3069, 3044, 1483, 798 cm−1. 1H-NMR (acetone-d6) δ 6.82 (s, 2H), 7,19 (t, J = 7,8 Hz, 2H), 7.25 (d, J = 7.8 Hz, 2H), 7.30 (d, J = 7.8 Hz, 2H), 7.38 (t, J = 7.8 Hz, 2H). 13C-NMR (acetone-d6) δ 122.9, 126.6, 131.1, 131.6, 131.7, 132.3, 159.1.

3.2. General Procedure for the Preparation of Diarylethers 8

A mixture of hydroxybenzaldehyde 6a (1.2 mmol), fluorobenzaldehyde 7 (1.0 mmol), cesium carbonate (1.30 g, 4.0 mmol) and DMSO (4.0 mL) in a 30 mL microwave vial was irradiated at 120 °C for 30 min under nitrogen. The reaction mixture was diluted with dichloromethane (20 mL), washed with brine (3 × 10 mL), dried (MgSO4) and evaporated. The residue was purified by flash column chromatography (EtOAc-hexanes, 1:9).
2,2'-Oxybis(benzaldehyde) (8a). Following general procedure, from 2-hydroxybenzaldehyde (146.5 mg, 1.2 mmol) and 2-fluorobenzaldehyde (124.1 mg, 1.0 mmol) compound 8a was obtained (168 mg, 74%), mp 76–77 °C (Lit. 74 °C [36], 77.0–77.5 °C [37]). IR (KBr): Molecules 18 14797 i002 max 1686, 1574, 1473, 1454, 1393, 1301, 1224, 760 cm−1. 1H-NMR (acetone-d6): δ 7.11 (d, J = 8.3 Hz, 2H), 7.39 (t, J = 7.7 Hz, 2H), 7.72 (m, 2H), 7.96 (dd, J = 7.7, 1.5 Hz, 2H), 10.53 (s, 2H), 13C-NMR (acetone-d6): δ 121.6, 126.7, 129.6, 131.0, 138.4, 161.2, 190.9.
2-Fluoro-6-(2-formylphenoxy)benzaldehyde (8b). Following the general procedure, from 2-hydroxybenzaldehyde (146.5 mg, 1.2 mmol) and 2,6-difluorobenzaldehyde (142.1 mg, 1.0 mmol) compound 8b was obtained (196 mg, 80%), mp 80–81 °C. IR (KBr): Molecules 18 14797 i002 max 1685, 1611, 1598, 1577, 1396, 787 cm−1. 1H-NMR (CDCl3) δ 6.73 (d, J = 8.3 Hz, 1H), 6.99 (m, 2H), 7.33 (t, J = 7.5 Hz, 1H), 7.54 (m, 1H), 7.62 (ddd, J = 8.3, 7.5, 1.5 Hz, 1H), 7.99 (dd, J = 7.5, 1.5 Hz, 1H), 10.44 (s, 1H), 10.51 (s, 1H), 10.43 (s, 1H). 13C-NMR (CDCl3) δ 112.5, 112.7, 115.0, 115.1, 119.7, 125.3, 127.7, 129.8, 136.4, 136.5, 158.5, 159.0, 186.2, 188.9. HRMS (EI): m/z [M+] calcd for C14H9FO3: 244.0536; found: 244.0532.
2-Hydroxy-6-methoxybenzaldehyde (6b). A solution of 2,6-dimethoxybenzaldehyde (2.0 g, 12 mmol) in CH2Cl2 (20 mL) was added dropwise to a stirred suspension of AlCl3 (2.4 g, 18 mmol) in CH2Cl2 (30 mL) at −20 °C. The reaction mixture was allowed to warm to room temperature and then stirred for 6 h. After the addition of 6 M HCl (20 mL) the biphasic mixture was stirred vigorously for 12 h and the aqueous solution was extracted with CH2Cl2 (3 × 20 mL) The combined organic extracts were washed with water, brine, dried (MgSO4) and evaporated under reduced pressure. Purification of the residue by flash chromatography on silica gel (EtOAc-hexanes; 1:9) gave compound 6b (1.7 g, 93%), mp 72–74 °C (Lit. 73–75 °C [38]).
2-(2-Formylphenoxy)-6-methoxybenzaldehyde (8c). Following general procedure, from 2-hydroxy-6-methoxybenzaldehyde (182.6 mg, 1.2 mmol) and 2-fluorobenzaldehyde (124.1 mg, 1.0 mmol) compound 8a was obtained (210 mg, 82%), mp 116–117 °C. IR (KBr): Molecules 18 14797 i002 max 2914, 2862, 2762, 1687, 1600, 1279, 1236, 758, 737 cm−1. 1H-NMR (CDCl3) δ 3.97 (s, 3H), 6.54 (d, J = 8.4 Hz, 1H), 6.83 (d, J = 8.4 Hz, 1H), 6.86 (dd, J = 8.4, 1.8 Hz, 1H), 7.22 (tt, J = 7.8, 1.8 Hz, 1H), 7.48 (t, J = 8.4 Hz, 1H), 7,52 (ddd, J = 8.4, 7.8, 1.8 Hz, 1H), 7.95 (dd, J = 7.8, 1.8 Hz, 1H), 10.48 (s, 1H), 10.52 (s, 1H). 13C-NMR (CDCl3) δ 56.7, 108.0, 112.5, 117.4, 118.8, 124.3, 127.4, 129.1, 136.1, 136.2, 158.3, 159.7, 163.1, 188.4, 189.5. HRMS (EI): m/z [M+] calcd for C15H12O4: 256.0736; found: 256.0733.

3.3. General Procedure for the McMurry Reaction

To a stirred suspension of zinc powder (98.1 mg, 3.0 mmol) in anhydrous THF (40 mL) cooled to −5 °C under an argon atmosphere, TiCl4 (284.5 mg, 1.5 mmol) was slowly added via syringe keeping the temperature under 0 °C. The reaction mixture was allowed to warm to room temperature and then heated at reflux for 2.5 h. The reaction was quenched with saturated NH4Cl solution and extracted with CH2Cl2 (3 × 20 mL). The combined organic layers were dried (MgSO4) and concentrated. The crude material was purified by flash chromatography (hexanes) to give the desired product.
Dibenzo[b,f]oxepin (5a). Following the general procedure, from 2,2'-oxybis(benzaldehyde) (8a) (226.2 mg, 1.0 mmol) compound 5a was obtained (107 mg, 55%), mp 108.5–109.5 °C.
1-Fluorodibenzo[b,f]oxepin (5b). Following general procedure, from 2-fluoro-6-(2-formylphenoxy)-benzaldehyde (8b) (244.2 mg, 1.0 mmol) compound 5a was obtained (115 mg, 54%), mp 40.5–41.5 °C. IR (KBr): Molecules 18 14797 i002max 3051, 1613, 1571, 1442, 1259, 1007, 774 cm−1. 1H-NMR (acetone-d6) δ 6.93 (d, J = 11.5 Hz, 1H), 6.97 (d, J = 11.5 Hz, 1H), 7.03 (ddd, J = 9.6, 8.4, 1.2 Hz, 1H), 7.13 (dt, J = 8.4, 1.2 Hz, 1H), 7.23 (dd, J = 7.6, 1.2 Hz, 1H), 7.35 (dd, J = 7.6, 1.7 Hz, 1H). 13C-NMR (acetone-d6) δ 112.3, 117.4, 120.0, 121.8, 122.6, 126.6, 129.9, 130.4, 130.5, 130.9, 131.4, 157.7, 159.5, 161.5. HRMS (EI): m/z [M+] calcd for C14H9FO: 212.0637; found: 212.0640.
1-methoxydibenzo[b,f]oxepin (5c). Following general procedure, from 2-(2-formylphenoxy)-6-methoxybenzaldehyde (8c) (256.3 mg, 1.0 mmol) compound 5c was obtained (124 mg, 55%), mp 63–64 °C. IR (KBr): Molecules 18 14797 i002max 1599, 1570, 1464, 1075, 778 cm−1. 1H-NMR (acetone-d6) δ 3.90 (s, 3H), 6.84 (d, J = 11.6 Hz, 1H), 6.89 (d, J = 8.3 Hz, 1H), 7.06 (d, J = 11.6 Hz, 1H), 7.20 (td, J = 7.4, 1.6 Hz, 1H), 7.24 (m, 1H), 7.30 (dd, J = 7.6, 1.6 Hz, 2H), 7.35 (t, J = 8.4 Hz, 1H), 7.38 (ddd, J = 8.4, 7.4, 1.6 Hz, 1H). 13C-NMR (CDCl3) δ 56.2, 107.3, 114.1, 120.1, 121.6, 125.1, 125.2, 129.4, 129.5, 129.9, 130.3, 131.5, 157.5, 157.8, 159.53. HRMS (EI): m/z [M+] calcd for C15H12O2: 224.0837; found: 224.0831.

4. Conclusions

In conclusion, we have developed a short synthesis of dibenzo[b,f]oxepin derivatives using SNAr and intramolecular McMurry reactions. An efficient process to obtain diarylethers through SNAr reaction of salicylaldehydes with fluorobenzaldehydes using microwave irradiation is described. McMurry reaction of diarylethers using TiCl4 and Zn in THF afforded the target tricyclic system in reasonable yields (53%–55%). Further work on the synthesis of natural and pharmacologically active dibenzo[b,f]oxepins are under way.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/18/12/14797/s1.

Acknowledgments

Financial support from FONDECYT (Research Grant 1110749), and Millenium Nucleus CILIS, ICM-P10-003-F is gratefully acknowledged. D.M. is also grateful to CONICYT for a PhD fellowship and Research Grant AT-24121514. G. G. thanks to Latin American Scholarship Santander Universities Program, for a young researcher scholarship.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ong, H.H.; Profitt, J.A.; Anderson, V.B.; Spaulding, T.C.; Wilker, J.C.; Geyer, H.M., 3rd; Kruse, H. Tricyclics with analgesic and antidepressant activity. 1. [[(Alkylamino)ethyl]thio]dibenz[b,f]oxepins and 10,11-dihydro derivatives. J. Med. Chem. 1980, 23, 494–501. [Google Scholar] [CrossRef]
  2. Trabanco, A.A.; Alonso, J.M.; Andres, J.I.; Cid, J.M.; Fernandez, J.; Iturrino, L.; Megens, A. Synthesis of 2-N,N-dimethylaminomethyl-2,3,3a,12b-tetrahydrodibenzo-[b,f]furo[2,3-d]oxepin derivatives as potential anxiolytic agents. Chem. Pharm. Bull. 2004, 52, 262–265. [Google Scholar] [CrossRef]
  3. Harris, T.W.; Smith, H.E.; Mobley, P.L.; Manier, D.H.; Sulser, F. Affinity of 10-(4-methylpiperazino)dibenz[b,f]oxepins for clozapine and spiroperidol binding sites in rat brain. J. Med. Chem. 1982, 25, 855–858. [Google Scholar] [CrossRef]
  4. Phillips, S.T.; de Paulis, T.; Neergaard, J.R.; Baron, B.M.; Siegel, B.W.; Seeman, P.; van Tol, H.H.; Guan, H.C.; Smith, H.E. Binding of 5H-dibenzo[a,d]cycloheptene and dibenz[b,f]oxepin analogues of clozapine to dopamine and serotonin receptors. J. Med. Chem. 1995, 38, 708–714. [Google Scholar] [CrossRef]
  5. Kiyama, R.; Honma, T.; Hayashi, K.; Ogawa, M.; Hara, M.; Fujimoto, M.; Fujishita, T. Novel angiotensin II receptor antagonists. Design, synthesis, and in vitro evaluation of dibenzo[a,d]cycloheptene and dibenzo[b,f]oxepin derivatives. Searching for bioisosteres of biphenylyltetrazole using a three-dimensional search technique. J. Med. Chem. 1995, 38, 2728–2741. [Google Scholar] [CrossRef]
  6. Nagai, Y.; Irie, A.; Nakamura, H.; Hino, K.; Uno, H.; Nishimura, H. Nonsteroidal antiinflammatory agents. 1. 10,11-Dihydro-11-oxodibenz[b,f]oxepinacetic acids and related compounds. J. Med. Chem. 1982, 25, 1065–1070. [Google Scholar] [CrossRef]
  7. Filho, V.C. Chemical composition and biological potential of plants from the genus Bauhinia. Phytother. Res. 2009, 23, 1347–1354. [Google Scholar] [CrossRef]
  8. Kittakoop, P.; Nopichai, S.; Thongon, N.; Charoenchai, P.; Thebtaranonth, Y. Bauhinoxepins A and B: New antimycobacterial dibenzo[b,f]oxepins from Bauhinia saccocalyx. Helv. Chim. Acta 2004, 87, 175–179. [Google Scholar] [CrossRef]
  9. Pettit, G.R.; Numata, A.; Iwamoto, C.; Usami, Y.; Yamada, T.; Ohishi, H.; Cragg, G.M. Antineoplastic agents. 551. Isolation and structures of bauhiniastatins 1–4 from Bauhinia purpurea. J. Nat. Prod. 2006, 69, 323–327. [Google Scholar] [CrossRef]
  10. Boonphong, S.; Puangsombat, P.; Baramee, A.; Mahidol, C.; Ruchirawat, S.; Kittakoop, P. Bioactive compounds from Bauhinia purpurea possessing antimalarial, antimycobacterial, antifungal, anti-inflammatory, and cytotoxic activities. J. Nat. Prod. 2007, 70, 795–801. [Google Scholar] [CrossRef]
  11. Wu, B.; He, S.; Pan, Y.J. New dihydrodibenzoxepins from Bulbophyllum kwangtungense. Planta Med. 2006, 72, 1244–1247. [Google Scholar] [CrossRef]
  12. Kraus, G.A.; Thite, A.; Liu, F. Intramolecular radical cyclizations onto quinones. A direct synthesis of Bauhinoxepin J. Tetrahedron Lett. 2009, 50, 5303–5304. [Google Scholar] [CrossRef]
  13. Narita, K.; Nakamura, K.; Abe, Y.; Katoh, T. Total synthesis of bauhinoxepin J: A biologically active dibenzo[b,f]oxepin isolated from Bauhinia purpurea. Eur. J. Org. Chem. 2011, 2011, 4985–4988. [Google Scholar]
  14. Lin, J.S.; Zhang, W.; Jiang, N.; Niu, Z.; Bao, K.; Zhang, L.; Liu, D.L.; Pan, C.; Yao, X.S. Total synthesis of Bulbophylol-B. J. Nat. Prod. 2008, 71, 1938–1941. [Google Scholar] [CrossRef]
  15. Olivera, R.; SanMartin, R.; Churruca, F.; Dominguez, E. Dibenzo[b,f]oxepines: Syntheses and applications. A review. Org. Prep. Proced. Int. 2004, 36, 297–330. [Google Scholar] [CrossRef]
  16. Choi, Y.L.; Lim, H.S.; Lim, H.J.; Hee, J.N. One-pot transition-metal-free synthesis of dibenzo[b,f]oxepins from 2-halobenzaldehydes. Org. Lett. 2012, 14, 5102–5105. [Google Scholar] [CrossRef]
  17. Arnold, L.A.; Luo, W.C.; Guy, R.K. Synthesis of medium ring heterocycles using an intramolecular Heck reaction. Org. Lett. 2004, 6, 3005–3007. [Google Scholar] [CrossRef]
  18. Salas, C.; Tapia, R.A.; Ciudad, K.; Armstrong, V.; Orellana, M.; Kemmerling, U.; Ferreira, J.; Maya, J.D.; Morello, A. Trypanosoma cruzi: Activities of lapachol and alpha- and beta-lapachone derivatives against epimastigote and trypomastigote forms. Bioorg. Med. Chem. 2008, 16, 668–674. [Google Scholar] [CrossRef]
  19. Salas, C.O.; Faundez, M.; Morello, A.; Maya, J.D.; Tapia, R.A. Natural and synthetic naphthoquinones active against Trypanosoma cruzi: An initial step towards new drugs for Chagas disease. Curr. Med. Chem. 2011, 18, 144–161. [Google Scholar] [CrossRef]
  20. Pitsinos, E.N.; Vidali, V.P.; Couladouros, E.A. Diaryl ether formation in the synthesis of natural products. Eur. J. Org. Chem. 2011, 2011, 1207–1222. [Google Scholar]
  21. Mcmurry, J.E. Carbonyl-coupling reactions using low-valent titanium. Chem. Rev. 1989, 89, 1513–1524. [Google Scholar] [CrossRef]
  22. Shirani, H.; Bergman, J.; Janosik, T. New syntheses of unsymmetrical thiepins and their selenium analogues. Tetrahedron 2009, 65, 8350–8353. [Google Scholar] [CrossRef]
  23. Harrowven, D.C.; Guy, I.L.; Howell, M.; Packham, G. The synthesis of a combretastatin A-4 based library and discovery of new cooperative ortho-effects in Wittig reactions leading to (Z)-stilbenes. Synlett 2006, 18, 2977–2980. [Google Scholar] [CrossRef]
  24. Radix, S.; Barret, R. Total synthesis of two natural phenanthrenes: Confusarin and a regioisomer. Tetrahedron 2007, 63, 12379–12387. [Google Scholar] [CrossRef]
  25. Serban, G.; Abe, H.; Takeuchi, Y.; Harayama, T. A new approach to the benzopyridoxepine core by metal mediated intramolecular biaryl ether formation. Heterocycles 2008, 75, 2949–2958. [Google Scholar] [CrossRef]
  26. Manske, R.H.F.; Ledingham, A.E. Synthesis and reactions of some dibenzoxepins. J. Am. Chem. Soc. 1950, 72, 4797–4799. [Google Scholar] [CrossRef]
  27. Ramana, C.V.; Mondal, M.A.; Puranik, V.G.; Gurjar, M.K. A carbohydrate based approach towards the synthesis of aspercyclide C. Tetrahedron Lett. 2007, 48, 7524–7527. [Google Scholar] [CrossRef]
  28. Maiti, D.; Buchwald, S.L. Cu-Catalyzed arylation of phenols: Synthesis of sterically hindered and heteroaryl diaryl ethers. J. Org. Chem. 2010, 75, 1791–1794. [Google Scholar] [CrossRef]
  29. Li, F.; Wang, Q.R.; Ding, Z.B.; Tao, F.G. Microwave-assisted synthesis of diaryl ethers without catalyst. Org. Lett. 2003, 5, 2169–2171. [Google Scholar] [CrossRef]
  30. McMurry, J.E. Titanium-induced dicarbonyl-coupling reactions. Acc. Chem. Res. 1983, 16, 405–411. [Google Scholar] [CrossRef]
  31. Dieguez, H.R.; Lopez, A.; Domingo, V.; Arteaga, J.F.; Dobado, J.A.; Herrador, M.M.; del Moral, J.F.Q.; Barrero, A.F. Weakening C-O bonds: Ti(III), a new reagent for alcohol deoxygenation and carbonyl coupling olefination. J. Am. Chem. Soc. 2010, 132, 254–259. [Google Scholar] [CrossRef]
  32. Stahl, M.; Pidun, U.; Frenking, G. On the mechanism of the McMurry reaction. Angew. Chem. Int. Ed. Engl. 1997, 36, 2234–2237. [Google Scholar] [CrossRef]
  33. Ephritikhine, M. A new look at the McMurry reaction. Chem. Commun. 1998. [Google Scholar] [CrossRef]
  34. Xia, Y.; Liu, Z.X.; Xiao, Q.; Qu, P.Y.; Ge, R.; Zhang, Y.; Wang, J.B. Rhodium(II)-catalyzed cyclization of bis(N-tosylhydrazone)s: An efficient approach towards polycyclic aromatic compounds. Angew. Chem. Int. Ed. Engl. 2012, 51, 5714–5717. [Google Scholar] [CrossRef]
  35. Matsuda, T.; Sato, S. Synthesis of dibenzoheteropines of group 13-16 elements via ring-closing metathesis. J. Org. Chem. 2013, 78, 3329–3335. [Google Scholar] [CrossRef]
  36. Osuka, A.; Kobayashi, F.; Maruyama, K. Synthesis of dimeric and trimeric porphyrins based on intramolecular macrocyclization reactions. Chem. Lett. 1990, 19, 1521–1524. [Google Scholar]
  37. Yang, Z.; Wong, H.N.C.; Hon, P.M.; Chang, H.M.; Lee, C.M. A novel synthesis of the dibenz[b,f]oxepin ring-system: 10,11-dihydro-11-hydroxydibenz[b,f]oxepin-10(11H)-one. J. Org. Chem. 1992, 57, 4033–4034. [Google Scholar] [CrossRef]
  38. Zacharie, B.; Attardo, G.; Barriault, N.; Penney, C. Regioselective synthesis of 6-substituted 2-hydroxybenzaldehyde: Efficient synthesis of the immunomodulator tucaresol and related analogues. J. Chem. Soc. Perkin Trans. 1997. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of all compounds are available from the authors.
