Article

Cytotoxic and Antioxidant Compoundsfrom the Stem Bark of Goniothalamus tapisoides Mat Salleh

1
Department of Chemistry, University of Malaya, 50603 Kuala Lumpur, Malaysia
2
Faculty of Applied Sciences, MARA University of Technology, 40450 Shah Alam, Selangor, Malaysia
3
Department of Pharmacy, University of Malaya, 50603 Kuala Lumpur, Malaysia
4
Institute of Biological Sciences, Faculty of Sciences Building, University of Malaya, 50603 Kuala Lumpur, Malaysia
5
Faculty of Resource Science and Technology, Universiti Malaysia Sarawak, 94300 Kota Samarahan, Sarawak, Malaysia
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(1), 128-139; https://doi.org/10.3390/molecules18010128
Received: 8 November 2012 / Revised: 16 December 2012 / Accepted: 19 December 2012 / Published: 21 December 2012

Abstract

:
Eleven compounds: goniomicin A (1), goniomicin B (2), goniomicin C (3), goniomicin D (4), tapisoidin (5), goniothalamin (6), 9-deoxygoniopypyrone (7), pterodondiol (8), liriodenine (9), benzamide (10) and cinnamic acid (11), were isolated from the stem bark of Goniothalamus tapisoides. All compounds were identified by spectroscopic analysis and, for known compounds, by comparison with published data. Goniothalamin (6) exhibited mild cytotoxic activity towards a colon cancer cell line (HT-29), with an IC50 value of 64.17 ± 5.60 µM. Goniomicin B (2) give the highest antioxidant activity in the DPPH assay among all compounds tested, with an IC50 of 0.207 µM.

1. Introduction

The genus Goniothalamus (Annonaceae) comprises about 160 species of shrubs and trees native to tropical and subtropical Asia [1]. Goniothalamus tapisoides Mat Salleh, locally known as “selada” or “semukau”, is endemic to Borneo, especially the Southern part of Sarawak. This species is a small tree of about 5 m in height and is used by the native folks as an abortifacient and to cure poisonous animal bites such as snake, scorpion or insect bites. It is also used to relieve stomachaches [2].
In recent years, Goniothalamus species have been receiving considerable attention because of their reputation for producing styryl lactones and acetogenins which possessre markable cytotoxic and antitumor properties against various human tumor cell lines such as A-549 (lung carcinoma), HL-60 (promyelocytic leukemia), and SGC-7901 (stomach cancer) [1,3]. Previous studies on the mechanism of action of (R)-goniothalamin have shown that it is able to induce apoptosis in MCF-7 (breast cancer) and HL-60 human cancer cells [3,4,5,6].
In our continuous effort to search for new and bioactive compounds from the Malaysian flora [7,8,9,10], we have embarked on a chemical study of the cytotoxic stem bark extracts of G. tapisoides Mat Salleh. To the knowledge of the authors, such a phytochemical study of this planthas never been reported. From this study, the eleven compounds shown in Figure 1 were isolated, of which five are new: goniomicin A (1), goniomicin B (2), goniomicin C (3), goniomicin D (4) and tapisoidin (5). The known compounds are goniothalamin (6), 9-deoxygoniopypyrone (7), pterodondiol (8), liriodenine (9), benzamide (10) and cinnamic acid (11). Compounds 16 were tested for cytotoxic activity against eight cancer cell lines and for antioxidant activity.

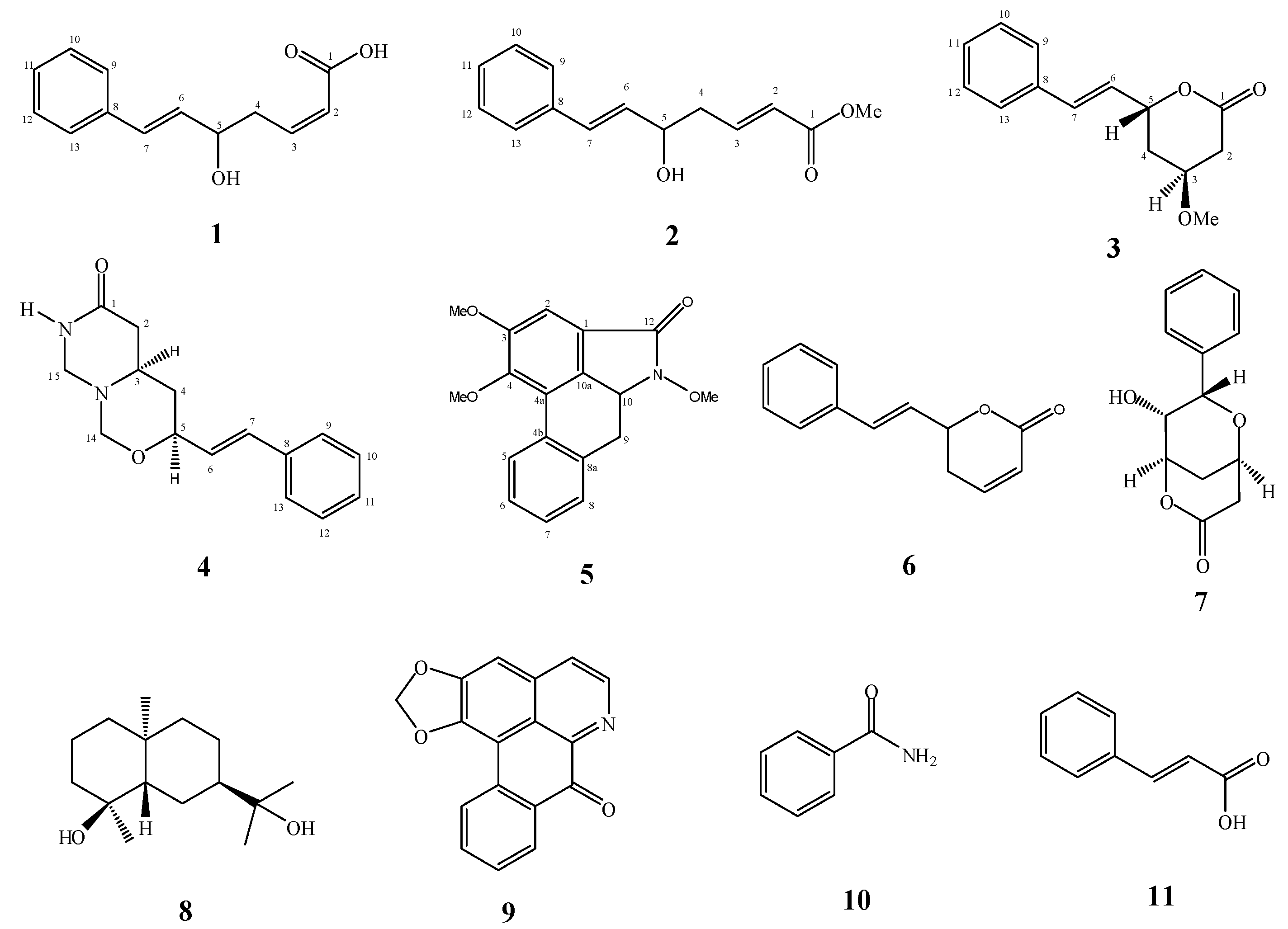

Figure 1. Structure of compounds 111.
Figure 1. Structure of compounds 111.
Molecules 18 00128 g001

2. Results and Discussion

2.1. Isolation and Chemistry

Goniomicin A (1) was obtained as a pale yellowish amorphous powder, Molecules 18 00128 i002+2.5° (c 0.0239, MeOH). A molecular formula of C13H14O3 was deduced from the ESI-TOF-MS spectrum, that showed a strong fragmentation peak at m/z 199.1020 [M−H−H2O] (calc. 199.0759) corresponding to the loss of a water molecule, thus indicating the presence of a hydroxyl group. This is in agreement with the 13C-NMR and HSQC spectra which confirmed the presence of thirteen carbons. The UV spectrum (λmax 206 and 251 nm) suggested the presence of a phenyl group [11]. The IR spectrum showed absorptions of hydroxyl (νmax 3344 cm−1) and carbonyl (νmax 1668 cm−1) functionalities.
The 1H-NMR spectrum (Table 1) revealed downfield signals at δ 5.96, δ 6.12, δ 6.20 and δ 6.59 assignable to H-2, H-3, H-6 and H-7, respectively, thereforeindicating the presence of four olefinic protons. The coupling constant between H-2 and H-3 is 11.5 Hz which is indicative of a cis- configuration [11]. On the other hand, H-6 and H-7 assumed a trans-configuration, with a J coupling value of 16.0 Hz.
Table 1. 1H-NMR, 13C-NMR and HMBC (400 MHz) data of 1 and 2 (CDCl3, δ in ppm, J in Hz).
Table 1. 1H-NMR, 13C-NMR and HMBC (400 MHz) data of 1 and 2 (CDCl3, δ in ppm, J in Hz).
Atom 12
No.δ 13Cδ 1HHMBCδ 13Cδ 1HHMBC
1169.6- 166.8-
2125.35.96 (1H, d, J = 11.5)C-1, C-3, C-4123.95.94 (1H, d, J = 15.6)C-1, C-4
3140.66.12 (1H, dt, J = 8.6, 11.5) C-1, C-4, C-5144.77.00 (1H, m)C-1, C-4
36.62.76 (1H, m) C-2, C-3, C-5, C-640.22.54 (2H, m)C-2, C-3, C-5, C-6
2.81 (1H, m)
571.54.41 (1H, m) C-3, C-4, C-771.64.44 (1H, dd, J = 6.6, 13.3)C-3, C-7
6131.96.20 (1H, dd, J = 16.0, 6.7) C-4, C-5, C-8130.96.22 (1H, dd, J = 16.0, 6.6)C-5, C-8
7129.96.59 (1H, d, J = 16.0)C-5, C-8, C-9, C-13131.36.61 (1H, d, J = 16.0)C-5, C-9, C-13
8136.7- 136.3-
9,13126.57.19–7.34 (m) 126.57.24–7.38 (m)
10,12128.67.19–7.34 (m)C-8128.67.24–7.38 (m)C-8
11127.67.19–7.34 (m) 128.07.24–7.38 (m)
1-OH-6.27 (OH, br s)C-2--
5-OH-6.57 (OH, br s)C-5--
1-OMe-- 51.63.72 (3H, s)C-1
The 13C-NMR spectrum (Table 1) showed the presence of one methylene, ten methines, one quaternary carbon and one carbonyl. The carbonyl carbon (C-1) resonated at δ 169.6. The adjacent C-2 and C-3 carbons gave signals at δ 125.3 and δ 140.6, respectively. The downfield shift of C-3 is due to the resonance effect of the α-β unsaturated carboxylic acid moiety [11]. In addition, a deshielded oxymethine signal attributable to C-5 was apparent at δ 71.5.
The 1H-1H COSY spectrum and 1H-13C HSQC spectrum confirmed the connectivities between C-2–C-3–C-4–C-5–C-6–C-7. The HMBC correlations indicated the linkage of the C-2 to carbonyl C-1 and C-7 to the phenyl ring C-8 (Table 1). Thus, the structure of goniomicin A (1) was elucidated as illustrated in Figure 1. The occurrence of compound 1 in Goniothalamus tapisoides is of interest since it may be a precursor of goniothalamin (6). A plausible biogenetic pathway for the formation of 6 from 1 is illustrated in Scheme 1. Compound 1 undergoes a dehydration and cyclization reaction to form 6.

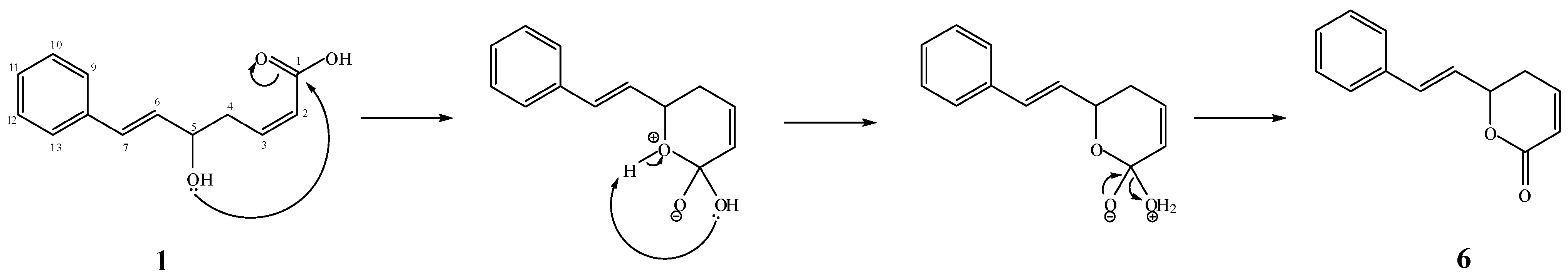

Scheme 1. Dehydration and cyclization of 1 to 6.
Scheme 1. Dehydration and cyclization of 1 to 6.
Molecules 18 00128 g003
Goniomicin B (2) was isolated as pale yellowish amorphous powder, Molecules 18 00128 i003+2.4° (c 0.0082, CH2Cl2). Its molecular formula, C14H16O3, was deduced from the ESI-TOF-MS (m/z 231.1201, [M−H]; calc. 231.1021). The IR spectrum showed a strong absorptionfora conjugated carbonyl group of an ester at 1718 cm−1, while the UV absorption bands at 207 and 251 nmindicated the presence of a phenyl group [11].
The 1H-NMR and 13C-NMR spectra of 1 and 2 (Table 1) are very similar to each other, except for the existence of a three proton singlet at δ 3.72 and a methyl carbon at δ 51.6 in the 1H- and 13C-NMR spectra, respectively. This observation suggested the presence of an additional methoxyl group, which is attached to the C-1 carbonyl group. A noticeable difference was also observed in the coupling constant value (15.6 Hz) of protons H-2 and H-3, suggesting a trans-configuration. From the 1H-NMR, 13C-NMR, 1H–1H COSY, HSQC and HMBC spectra analyses, the complete assignment ofgoniomicin B (2) was established.
Goniomicin C (3) was obtained as pale yellowish amorphous powder, Molecules 18 00128 i004−4.9° (c 0.0122, CH2Cl2). The ESI-TOF-MS spectrum gave a prominent peak at m/z 231.1077, [M−H]; (calc. 231.1021), corresponding to the molecular formula C14H16O3. The IR spectrum showed a C=O stretching absorption bands at 1731 cm−1 and C-O stretching ones at 1241 and 1090 cm−1. The UV absorptions at 206 and 251 nmsuggested the existence of a phenyl group [11].
The 1H-NMR spectrumof 3 is relatively similar to that of goniothalamin (6). However, the olefinic proton signals of the lactone ring are absent. Instead two methylene proton signals and one oxymethine proton signal appeared at δ 2.73 and δ 3.82, corresponding to H2-2 and H-3, respectively. Another oxymethine signal, assignable to H-5, appeared at δ 5.20 as a ddd with coupling constants of 11.0, 6.4 and 3.5 Hz respectively (Table 2). In addition, one singlet corresponding to three protons of a methoxyl group was apparent at δ 3.36. The 13C-NMR spectrum showed the expected fourteen carbons: one methyl, two methylene, nine methines and two quaternary carbons. The oxymethine carbons, C-3 and C-5, resonated at δ 71.4 and δ 76.2, respectively. In the HMBC spectrum (Table 2), the carbonyl carbon (C-1) signal (δ 169.7) correlated with the protons signal at δ 2.73 (H2-2), while the carbon at δ 71.4 (C-3) correlated with the proton at δ 5.20 (H-5). Thus it can be deduced that the methoxy group is attached to C-3.
Table 2. 1H-NMR, 13C-NMR and HMBC (400 MHz) data of 3 (CDCl3, δ in ppm, J in Hz).
Table 2. 1H-NMR, 13C-NMR and HMBC (400 MHz) data of 3 (CDCl3, δ in ppm, J in Hz).
Atom no.δ 13Cδ 1HHMBCAtom no.δ 13Cδ 1HHMBC
1169.7- 7132.56.68 (1H, d, J = 16.0)C-5, C-9, C-13
235.72.73 (2H, td, J = 4.3, 1.4)C-18136.0-
371.43.82 (1H, m) 9,13126.77.24–7.37 (m)
33.71.87 (1H, ddd, J = 14.8, 11.0, 3.5) 10,12128.87.24–7.37 (m)
2.18 (1H, m)11128.37.24–7.37 (m)
576.25.20 (1H, ddd, J = 11.0, 6.4, 3.5)C-33-OMe56.33.36 (3H, s)C-3
6126.66.18 (1H, dd, J = 16.0, 6.4)C-5, C-8
The relative stereochemistry of 3 was established by the NOESY spectrum. H-5α, which is axially oriented, correlated with H-4, therefore suggesting that H-4 adopts an α spatial orientation [12]. H-6 showed correlation to H-5β thus implyingthat H-6 is β oriented.With the aid of the 1H-NMR, 13C-NMR, 1H-1H COSY, HSQC and HMBC spectra analyses, the full assignment of goniomicin C (3) was determined.
Goniomicin D (4) was crystalisedfrom a solution of hexane-dicholoromethane as white rod crystals (mp. 240–243 °C), Molecules 18 00128 i005+37.17° (c 0.0191, MeOH). Its molecular formula was determined to be C15H18O2N2 by ESI-TOF-MS (m/z 281.1278, [M+Na]+; calc. 281.1266). The IR spectrum showed absorption peaks of N-H stretching at 3413.15 cm−1 and a C=O group at 1662 cm−1 [11]. The UV spectrum revealed maxima at 206 and 252 nm, suggesting the presence of a phenyl group [11].
The 1H-NMR spectrum showed four methylene signals at δ 2.28/2.64 (H2-2), δ 1.74 (H2-4), δ 4.13/4.64 (H2-14) and δ 3.82/4.34 (H2-15) (Table 3). The downfield shift of H2-14 and H2-15 were due to the neighboring nitrogen and oxygen. The 13C-NMR showed signals corresponding to fifteen carbons: four methylenes, nine methines, one quaternary and one carbonyl carbon. The methylene carbons C-14 and C-15 resonated downfield at δ 82.9 and δ 58.9, respectively. The carbonyl carbon (C-1) gave a peak at δ 168.9. The HMBC spectrum (Figure 1) revealed cross peaks betweenthe methylene at δ 4.13/4.64 (H2-14) and C-3 (δ 54.1), C-5 (δ 77.3) and C-15 (δ 58.9). Two methylene signals of H2-2 (δ 2.28/2.64) and H2-15 (δ 3.82/4.34) were correlated to the carbonyl C-1. From a 1H–1H COSY experiment, the entire sequence C-2–C-3–C-4–C-5–C-6 was identified.Thorough analyses of 1D and 2D NMR data analyses allowed the full assignment of all protons and carbons as listed in Table 3.
Table 3. 1H-NMR, 13C-NMR and HMBC (400 MHz) data of 4 (CDCl3, δ in ppm, J in Hz).
Table 3. 1H-NMR, 13C-NMR and HMBC (400 MHz) data of 4 (CDCl3, δ in ppm, J in Hz).
Atom no.δ 13Cδ 1HHMBCAtom no.δ 13Cδ 1HHMBC
1168.9- 9,13126.67.19–7.34 (m)
37.22.28 (1H, dd, J = 17.6, 7.8)C-1, C-3, C-410,12128.77.19–7.34 (m)
2.64 (1H, dd, J = 17.6, 5.5)C-111128.07.19–7.34 (m)
354.12.98 (1H, m) 14α82.94.13 (1H, d, J = 9.2)C-15, C-3, C-5
435.61.74 (2H, m)C-3, C-514β 4.64 (1H, d, J = 9.2)C-3, C-5
577.34.17 (1H, m) 15α58.93.82 (1H, d, J = 8.7)C-1, C-3
6128.36.20 (1H, dd, J = 16.0, 6.0)C-5, C-815β 4.34 (1H, dd, J = 8.7, 2.7)
7131.36.63 (1H, d, J = 16.0)C-5, C-9, C-13N-H-6.41 (NH, br s)
8136.4-
The relative stereochemistry of 4 was established with the aid of the NOESY spectrum. H-15α which is axially oriented showed a NOESY correlation with H-3, which in turn showed correlation with H-5, therefore suggesting that both H-3 and H-5 assume an α-spatial orientation. The structure and relative stereochemistry was further confirmed using single-crystal X-ray diffraction analysis CCDC 912021 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; fax: +44 1223 336033; e-mail: [email protected]). An ORTEP drawing of 4 is shown in Figure 2.

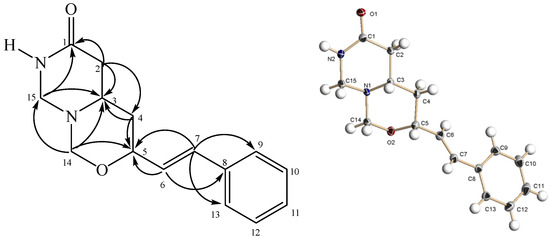

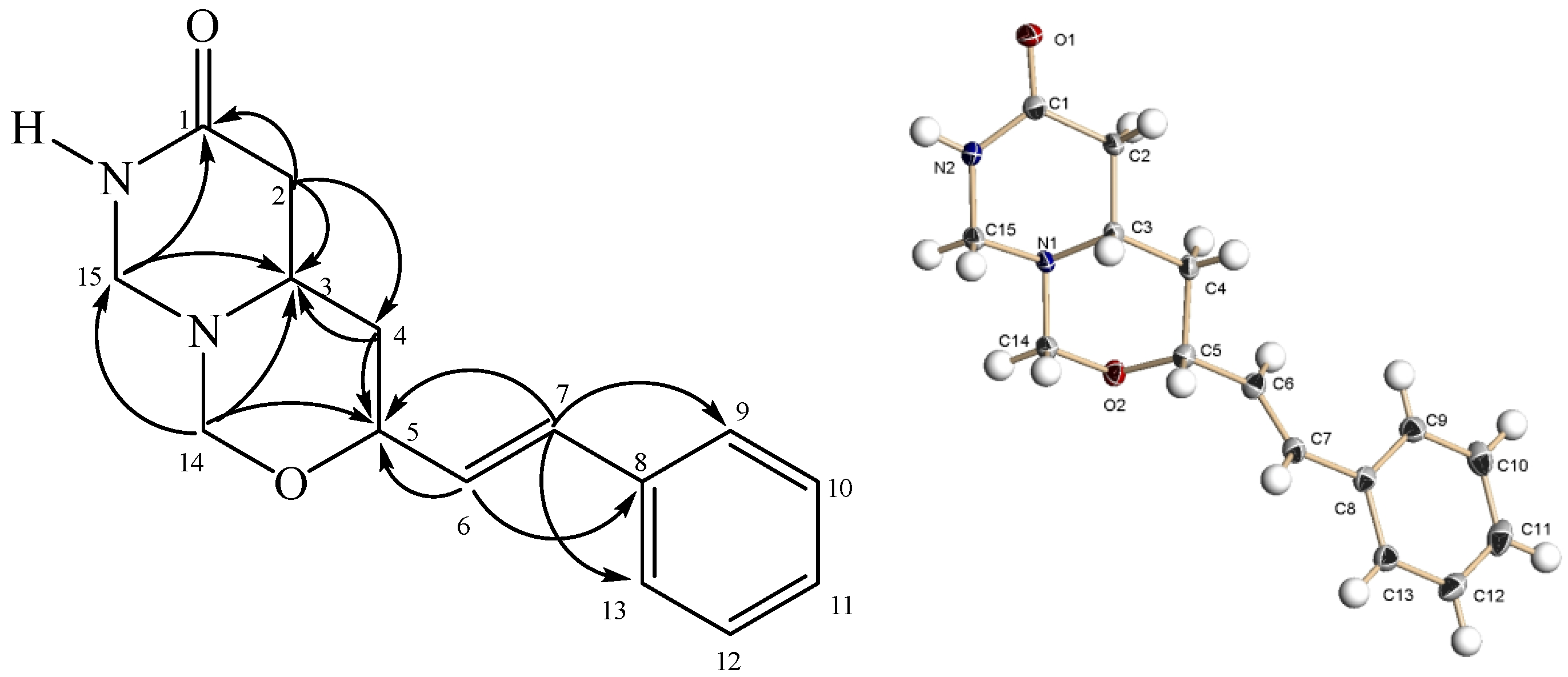

Figure 2. HMBC correlations and ORTEP diagram of 4.
Figure 2. HMBC correlations and ORTEP diagram of 4.
Molecules 18 00128 g002
Tapisoidin (5) was obtained as pale yellowish amorphous powder, Molecules 18 00128 i006−25.9° (c 0.0058, CH2Cl2). Its molecular formula was determined to be C18H17O4N by ESI-TOF-MS (m/z 334.1074, [M+Na]+; calc. 334.1055). The IR spectrum displayed a band at 1715 cm−1 representing the C=O group of the molecule. The UV spectrum (λmax 209, 251, 277 and 322 nm) indicated the presence of a basic aristolactam alkaloid structure [11]. The 1H-NMR spectrum (Table 4) showed signals for four adjacent aromatic protons at δ 8.35 (H-5, dd, J = 7.9, 1.4), δ 7.40 (H-6, m), δ 7.44 (H-7, m) and δ 7.35 (H-8, dd, J = 7.9, 1.4). Signals for three methyl groups at δ 3.96, δ 3.89 and δ 4.00 were assigned to the methoxyl groups at N-11, C-3 and C-4, respectively. The positions of the methoxyl groups were established from the NOESY and HMBC spectra. In the NOESY spectrum, the methyl protons of the methoxyl group at C-3 showed correlations with H-2. In the HMBC spectrum, the proton signal at δ 7.23 (H-2) correlated with the carbons signal at δ 59.7 (3-OCH3) and δ 56.0 (4-OCH3), thereby confirmed the assignments of the methoxyl groups.
Table 4. 1H-NMR, 13C-NMR and HMBC (400 MHz) data of 5 (CDCl3, δ in ppm, J in Hz).
Table 4. 1H-NMR, 13C-NMR and HMBC (400 MHz) data of 5 (CDCl3, δ in ppm, J in Hz).
Atom no.δ 13Cδ1HHMBCAtom no.δ 13Cδ1HHMBC
1123.1- 8a131.3-
2105.97.23 (1H, s)C-3, C-4, C-10a, C-1234.82.73 (1H, t, J = 13.8)C-8a, C-10, C-10a
3150.5- 3.49 (1H, dd, J = 13.8, 6.0)C-10a
4155.7- 1057.34.60 (1H, dd, J = 13.8, 6.0)C-10a
4a123.8- 10a134.4-
4b135.1- 12167.9-
5127.78.35 (1H, dd, J = 7.9, 1.4)C-4a, C-4b3-OCH359.73.89 (3H, s)C-3
6127.97.40 (1H, dd, J = 7.9, 1.4)C-74-OCH356.04.00 (3H, s)C-4
7130.07.44 (1H, dd, J = 7.9, 1.4)C-6, C-8aN-OCH363.73.96 (3H, s)
8128.77.35 (1H, dd, J = 7.9, 1.4)C-6, C-4b
The 1H NMR spectrum of 5 also showed signals at δ 2.73 (H-9α, t, J = 13.8), δ 3.49 (H-9β, dd, J = 14.2, 6.0), δ 4.60 (H-10, dd, J = 13.8, 6.0), indicating that C-9 and C-10 are hydrogenated. To the knowledge of the authors, this is the first occurrence of a 9,10-dihydroaristolactam alkaloid. The 13C-NMR spectrum (Table 4) showed the presence of eighteen carbons; three methyl, one methylene, six methine, seven quaternary and one carbonyl. The carbonyl carbon (C-12) resonated at δ 167.9. Thus, taking into consideration all the NMR data and analyses, the structure of tapisoidin (5) was elucidated as illustrated in Figure 1. Identification of the known compounds was done by comparison of 1H- and 13C-NMR data with reported values [13,14,15,16,17,18].

2.2. Bioactivity

The result of cytotoxicity tests on the hexane, CH2Cl2 and MeOH crudes of G. tapisoides against lung cancer (A549), breast cancer (MCF-7) and prostate cancer (DU-145) cell lines are shown in Table 5. Hexane and CH2Cl2crude extractsexhibited cytotoxicity against the three cancer cell lines.
Table 5. Cytotoxicity of crude extracts from G. tapisoides against selected cancer cells at 100 µg/mL.
Table 5. Cytotoxicity of crude extracts from G. tapisoides against selected cancer cells at 100 µg/mL.
ExtractsCell Viability (%)
A549MCF-7DU-145
Hexane2.96.29.4
CH2Cl22.96.48.3
Methanol87.294.882.3
Among the isolated compounds, compounds 16 were evaluated for their cytotoxicity (Table 6). Onlycompound 6 exhibited cytotoxic activity against all the eight cell lines. No cytotoxic activity was found for compounds 15, most probably due tolack of pharmacophoric groups responsible for the high antiproliferative activity [3].
Table 6. Biological activitiesof theisolated compounds (IC50, µM, mean ± s.d., n = 3).
Table 6. Biological activitiesof theisolated compounds (IC50, µM, mean ± s.d., n = 3).
Cmpd.Antioxidant activityCytotoxicity
A549 1DU-145 2SK-MEL-5 3BxPC-3 4Hep G2 5HT-29 6MCF-7 7MDA-MB-231 8
10.328>150>150>150>150>150>150>150>150
20.207>150>150>150>150>150>150>150>150
31.748>150>150>150>150>150>150>150>150
40.252>150>150>150>150>150>150>150>150
50.772>150>150>150>150>150>150>150>150
62.024107.62 ± 4.6771.79 ± 1.61100.14 ± 11.84130.48 ± 7.69128.73 ± 1.8164.17 ± 5.60120.37 ± 11.11>150
Cisplatin-37.37 ± 3.0015.18 ± 0.4931.82 ± 0.2320.10 ± 1.2122.07 ± 0.6477.24 ± 3.2391.49 ± 6.54276.53 ± 1.29
Ascorbic acid0.075--------
1 human lung carcinoma; 2 human prostate carcinoma; 3skin cancer cell line; 4 human pancreatic carcinoma; 5 human liver carcinoma; 6 human colon carcinoma; 7,8 human breast carcinomas.
Compound 6 is the most potentagainstthe colon cancer cell line (HT-29). It exhibitedan IC50 of 64.17 ± 5.60 µM, which is comparable to that of cisplatin (77.24 ± 3.23 µM). Therefore the cytotoxicity of both hexane and dichloromethane extracts may be attributed to the presence of compound 6, which has been previously reported to exhibit cytotoxicity against variouscancer cell lines [13,19]. In addition, reports have shown that the antiproliferative activity of 6 is selective for cancer cell lines with no significant cytotoxicity toward non-malignant cells [13,20].
Since free radicals are associated with DNA damage and protein modifications, including apoptotic modulators which could lead to carcinogenesis [21], we have also evaluated the antioxidant activity using a DPPH radical scavenging assay. Compound 2 gave the highest antioxidant activity, with an IC50 of 0.207 µM, followed by compounds 4 (IC50 = 0.252 μM) and 1 (IC50 = 0.328 μM). The high antioxidant effect of compounds 2, 4 and 1 may be attributed to the presence of the hydroxyl group adjacent to the conjugated double bond that could donate electron to the DPPH free radical. Carotenes and xanthophyll which possess hydroxyl groups and conjugated double bonds have been reported to show high antioxidant activity [22,23]. Compounds 3 (IC50 = 1.748 μM), 5 (IC50 = 0.772 μM) and 6 (IC50 = 2.024 μM) which lack hydroxyl groups in their structures showed very low antioxidant activity.

3. Experimental

3.1. General

Melting points were determined by a Fargo MD-1D melting point apparatus. The specific rotations were measured on a Jasco P-1020 polarimeter. UV spectra were recorded on a Shimadzu 1650 PC ultraviolet-visible spectrometer, and IR spectra on a Perkin Elmer Spectrum 400 FT-IR/FT-FIR spectrometer. 1D and 2D NMR spectra were measured with a JEOL ECA 400 spectrometer (400 MHz). The mass spectra were obtained on an Agilent Technologies 6530 Accurate-Mass-Q-TOF LC/MS. Column chromatography was performed on silica gel Merck 60 (230-400 mesh). X-ray data collection was obtained from a Bruker APEX2 unit; cell refinement: SMART; data reduction: SAINT; program(s) used to solve the structure: SHELXTL; program(s) used to refine structure: SHELXTL.

3.2. Plant Material

The stem bark of G. tapisoides was collected from Sarawak and identified by Prof. Fasihuddin bin Ahmad, Faculty of Resource Science and Technology, Universiti Malaysia Sarawak. A voucher specimen (HUMS 000108) is deposited at the Herbarium of Universiti Malaysia Sarawak, Kota Samarahan, Sarawak, Malaysia.

3.3. Extraction and Isolation

The dried and milled stem barks of G. tapisoides (1.5 kg) were extracted successively with hexane, dichloromethane (CH2Cl2) and MeOH (15 L) to give 25 g of hexane extract, 43 g of CH2Cl2 extract and 24 g of MeOH extract, respectively, after removal of the solvents. The hexane extract (10 g) was subjected to silica gel column chromatography (CC), using hexane and CH2Cl2 with increasing polarity to give 6 (2.5 g). Then, the CH2Cl2 extract (20 g) was fractionated using CC with a gradient system of hexane/CH2Cl2 and CH2Cl2/MeOH to afford 11 fractions (F1-F11). F8 (CH2Cl2/MeOH, 90:10) was separated on a column of silica gel using CH2Cl2/MeOH (97:3) as the eluent to give 1 (12.3 mg). F9 (CH2Cl2/MeOH, 80:20) was further chromatographed on a silica gel column eluting with 100% CH2Cl2 to give 2. F10 (CH2Cl2/MeOH, 50:50) was then purified by CC, using CH2Cl2/MeOH (99:1) to yield 3 (14.8 mg) and CH2Cl2/MeOH (96:4) to yield 4 (18.9 mg). F6 (CH2Cl2/MeOH, 98:2) was applied to a column of silica gel, eluted with CH2Cl2/MeOH (98:2) gave 5 (3.2 mg). F3 (Hex/CH2Cl2, 50:50) was further purified by silica gel CC using hexane/CH2Cl2 (50:50) as eluting solvent to afford 6 (1.3 g). F6 was subjected to silica gel CC, using 100% CH2Cl2 as eluent to yield 7 (4.8 mg). F7 (CH2Cl2/MeOH, 95:5) was separated on column of silica gel using CH2Cl2/MeOH (95:5) as developing solvent to yield 8 (1.1 g). Compounds 9 (1.2 mg), 10 (4.4 mg) and 11 (4.0 mg) were obtained from further purification of F6 (CH2Cl2/MeOH, 98:2) by CC using silica gel with a solvent system of CH2Cl2/MeOH (98:2).

3.4. Cytotoxicity Assay

Cytotoxicity of the compounds were evaluated against eight types of cancer cell lines; lung (A549), prostate (DU-145), skin (SK-MEL-5), pancreatic (BxPC-3), liver (Hep G2), colon (HT-29), breast cancer (MCF-7), and (MDA-MB-231). Cell lines were cultured in Dulbecco’s Modified Eagle medium (DMEM) with 10% foetal bovine serum. Cells were plated into 96-well microplates and 24 hour later, 100 µL of samples and cisplatin standard were introduced in triplicate. Cells were further incubated for 48 h and cell viability was determined using the MTS reagent (Promega Corp., Madison, WI, USA). Microplates were returned to the incubator for 1 h and absorbance was read on a microplate reader at 490 nm (Infinite 200, Tecan, Männedorf, Swizerland). The concentration required causing 50% cell death (IC50) by the samples and drug standards were determined using dose-response curves in Prism 5.02 software [24].

3.5. Antioxidant Assay

The DPPH antioxidant assay was determined as described by Shimada et al. [25]. Briefly, 0.1 mM DPPH (1 mL) dissolved in ethanol was added to an ethanol solution (3 mL) of the tested compound at different concentrations (0, 50, 100, 150, 200 µg/mL). An equal volume of ethanol was added in the control test. The mixture was shaken vigorously and allowed to stand at room temperature for 30 min. Then the absorbance at 517 nm was measured with a UV–VIS spectrophotometer. The percentage of scavenging of DPPH was calculated using the following equation:
Molecules 18 00128 i001
where Ao is the absorbance of the control reaction and A1 is the absorbance in the presence of the sample.

4. Conclusions

The CH2Cl2 extract of the stem bark of G. tapisoides yielded eleven compounds, of which five are new;goniomicins A-D (compounds 14), and tapisoidin (5). The latter, tapisoidin (5), represents the first report of the occurence of a 9,10-dihydroaristolactam alkaloid. From this study, the compound responsible for the cytotoxicity of the extracts is goniothalamin (6), which showed the highest potency against the colon cancer cell line (HT-29) withan IC50 of 64.17 ± 5.60 µM. Goniomicin A (1), goniomicin B (2) and goniomicin D (4) displayed high antioxidant activity, which may be due to the presence of conjugated hydroxyl groups that could donate electrons to scavenge radicals [22,23].

Acknowledgments

This work was supported by grant from the Institute of Research Management and Monitoring (IPPP) of University Malaya (No. PS339/2010A), FRGS of University Teknologi Mara (600-RMI/ST/FRGS5/3/Fst(135/2010)), 02(DPI02)/792/2011(02) of UNIMAS, UMRG Program (RP001/2012A) and (RP001/2012B).

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/18/1/128/s1.
  • Sample Availability: Samples of the compounds are available from the authors.

References

  1. Wiart, C. Goniothalamus species: A source of drugs for the treatment of cancers and bacterial infections? Evid. Based Complement. Alternat. Med. 2007, 4, 299–311. [Google Scholar] [CrossRef]
  2. Ahmad, F.; Moharm, B.A.; Jantan, I. A comparative study of the constituents of the essential oils of Goniothalamus tapis Miq. and G. tapisoides Mat Salleh from Borneo. J. Essent. Oil Res. 2010, 22, 499–502. [Google Scholar] [CrossRef]
  3. Fátima, Â.; Modolo, L.V.; Conegero, L.S.; Pilli, R.A.; Ferreira, L.K.; Kohn, L.K.; Carvalho, J.E. Styryl lactones and their derivatives: Biological activities, mechanisms of action and potential leads for drug design. Curr. Med. Chem. 2006, 13, 3371–3384. [Google Scholar] [CrossRef]
  4. Inayat-Hussain, S.H.; Osman, A.B.; Din, L.B.; Ali, A.M.; Snowden, R.T.; MacFarlane, M.; Cain, K. Caspases-3 and -7 are activated in goniothalamin-induced apoptosis in human Jurkat T-cells. FEBS Lett. 1999, 456, 379–383. [Google Scholar] [CrossRef]
  5. Lee, A.T.C.; Azimahtol, H.L.P.; Tan, A.N. Strylpyrone Derivative (SPD) induces apoptosis in a capase-7-dependent manner in the human breast cancer cell line MCF-7. Cancer Cell Int. 2003, 3, 16–23. [Google Scholar] [CrossRef][Green Version]
  6. Inayat-Hussain, S.H.; Osman, A.B.; Din, L.B.; Ali, A.M.; Ross, D. Loss of mitochondrial transmembrane potential and caspase-9 activation during apoptosis induced by the novel styryl-lactone goniothalamin in HL-60 leukemia cells. Toxicol. In Vitro 2003, 17, 433–439. [Google Scholar] [CrossRef]
  7. Litaudon, M.; Guéritte, F.; Bousserouel, H.; Awang, K.; Nosjean, O.; Martin, M.T.; Tran Huu Dau, M.E.; Sévenet, T. A dimeric sesquiterpenoid from a Malaysian Meiogyne as a new inhibitor of Bcl-xL/BakBH3 domain peptide interaction. J. Nat. Prod. 2009, 72, 480–483. [Google Scholar] [CrossRef]
  8. Mohamad, K.; Hirasawa, Y.; Litaudon, M.; Awang, K.; Hadi, A.H.A.; Takeya, K.; Ekasari, W.; Morita, H. Ceramicines B–D, new antiplasmodial limonoids from Chisocheton ceramicus. Bioorg. Med. Chem. 2009, 17, 727–730. [Google Scholar] [CrossRef]
  9. Mohamad, K.; Hirasawa, Y.; Lim, C.S.; Awang, K.; Hadi, A.H.A.; Takeya, K.; Morita, H. Ceramicine A and walsogyne A, novel limonoids from two species of Meliaceae. Tetrahedron Lett. 2008, 49, 4276–4278. [Google Scholar] [CrossRef]
  10. Mukhtar, M.R.; Martin, M.T.; Domansky, M.; Pais, M.; Hadi, A.H.A.; Awang, K. Phoebegrandines A and B, proaporphine-tryptamine dimmers, from Phoebe grandis. Phytochemistry 1997, 45, 1543–1546. [Google Scholar] [CrossRef]
  11. Anderson, R.J.; Bendell, D.J.; Groundwater, P.W. Organic Spectroscopic Analysis; Royal Society of Chemistry: Cambridge, UK, 2004; pp. 13–80. [Google Scholar]
  12. Desai, S.J.; Charturvedi, R.N.; Badheka, L.P.; Mulchandani, N.P. Aristolactams and 4,5 dioxoaporphines from Indian PIPER species. Indian J. Chem. 1989, 28, 775–777. [Google Scholar]
  13. Fátima, Â.; Kohn, L.K.; Antônio, M.A.; Carvalho, J.E.; Pilli, R.A. (R)-Goniothalamin: Total syntheses and cytotoxic activity against cancer cell lines. Bioorg. Med. Chem. 2005, 13, 2927–2933. [Google Scholar] [CrossRef]
  14. Tai, B.H.; HuYen, V.T.; Huong, T.T.; Nhiem, N.X.; Choi, E.M. New prano–pyrone from Goniothalamus tamirensis Enchances the Proliferation and Differentiation of Osteoblastic MC3T3-E1 Cells. Chem. Pharm. Bull. 2010, 58, 521–525. [Google Scholar] [CrossRef]
  15. Zhu, W.M.; Zhao, Q.; Li, S.L.; Hao, X.J. Sesquiterpenoids from Hedychium yunnanense and Porana discifera, and the structural revision of two sesquiterpenoids from Laggera pterodonta. J. Asian Nat. Prod. Res. 2007, 9, 277–283. [Google Scholar] [CrossRef]
  16. Bick, I.R.C.; Douglas, G.K. Yellow alkaloids of Atherosperma moschatum. Tetrahedron Lett. 1964, 25, 1629–1633. [Google Scholar]
  17. Aires-de-Sousa, J.; Hemmer, M.C.; Gasteiger, J. Prediction of 1H-NMR chemical shifts using nueral networks. Anal. Chem. 2002, 74, 80–90. [Google Scholar] [CrossRef]
  18. Hanai, K.; Kuwae, A.; Takai, T.; Senda, H.; Kunimoto, K. A comparative vibrational and NMR study of cis-cinnamic acid polymorphs and trans-cinnamic acid. Spectrochim. Acta A 2001, 57, 513–519. [Google Scholar] [CrossRef]
  19. Wattanapiromsakul, C.; Wangsintaweekul, B.; Sangprapan, P.; Itharat, A.; Keawpradub, N. Goniothalamin, a cytotoxic compound, isolated from Goniothalamus macrophyllus (Blume) Hook. f. & Thomson var. macrophyllus. Songklanakarin J. Sci. Technol. 2005, 27, 479–487. [Google Scholar]
  20. Pihie, A.H.L.; Stanslas, J.; Bin, D.L. Non-steroid receptor-mediated antiproliferative activity of styrylpyrone derivative in human breast cancer cell lines. Anticancer Res. 1998, 18, 1739–1744. [Google Scholar]
  21. Hussain, S.P.; Hofseth, L.J.; Harris, C.C.M. Radical causes of cancer. Nat. Rev. Cancer 2003, 3, 276–285. [Google Scholar] [CrossRef]
  22. Miller, N.J.; Sampson, J.; Candeias, L.P.; Bramley, P.M.; Rice-Evans, C.A. Antioxidant activities ofcarotenes and xanthophylls. FEBS Lett. 1996, 384, 240–242. [Google Scholar] [CrossRef]
  23. Tian, B.; Xu, Z.; Sun, Z.; Lin, J.; Hua, Y. Evaluation of the antioxidant effects of carotenoids from Deinococcus radiodurans through targeted mutagenesis, chemiluminescence, and DNA damage analyses. Biochim. Biophys. Acta 2007, 1770, 902–911. [Google Scholar] [CrossRef]
  24. Prism, 5.0 software; GraphPad Software Inc.: La Jolla, CA, USA, 2009.
  25. Shimada, K.; Fujikawa, K.; Yahara, K.; Nakamura, T. Antioxidative properties of xanthin onautoxidation of soybean oil in cyclodextrin emulsion. J. Agric. Food Chem. 1992, 40, 945–948. [Google Scholar] [CrossRef]
