Molecules 2012, 17(3), 3539-3546; doi:10.3390/molecules17033539

Article
A New Norisoprenoid and Other Compounds from Fuzhuan Brick Tea
1
Key Laboratory of Tea Biochemical and Biotechnology of Ministry of Education and Ministry of Agriculture, Anhui Agricultural University, Hefei 230036, China
2
State Key Laboratory of Phytochemistry and Plant Resources in West China, Kunming Institute of Botany, Chinese Academy of Sciences, Kunming 650204, China
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed.
Received: 20 December 2011; in revised form: 8 March 2012 / Accepted: 14 March 2012 / Published: 19 March 2012

Abstract

:
Fuzhuan brick tea, a kind of dark tea consumed mainly in the border regions of Southwestern and Northwestern China since the 1860s, is produced from the leaves of Camellia sinensis var. sinensis by microbial fermentation. From this special fermented tea, a new norisoprenoid, 3R,9R-oxido-5-megastigmene, was isolated, together with α-linolenic acid, strictin, isovitexin, astragalin, (+)-catechin, (−)-epicatechin, (−)-epicatechin gallate, (+)-gallocatechin, (−)-epigallocatechin, (−)-epigallocatechin gallate and gallic acid. The structures of the compounds were identified by spectroscopic means. The new compound didn’t show any inhibition activity against the tested enteric pathogenic microorganisms at a concentration of 800 μg/mL by the hole plate diffusion method.
Keywords:
Fuzhuan brick tea; norisoprenoid; 3R,9R-oxido-5-megastigmene; antimicrobial activity; enteric pathogenic microorganisms

1. Introduction

Chinese commercial teas are classified into six categories: i.e., green tea, oolong tea, black tea, white tea, yellow tea and dark tea, according to the different manufacturing process. Among them, dark tea is the only one that involves microbial fermentation in its manufacturing process [1]. Fuzhuan brick tea is one of the major brands of dark tea. It is mainly produced in Hunan province of China, and has been consumed by ethnic groups in the border regions of Southwestern and Northwestern China since the 1860s.
Fuzhuan brick tea is produced from the leaves of Camellia sinensis var. sinensis. The entire manufacturing process of the tea has been described in detail by Mo et al. and Xu et al. [2,3]. The fresh tea leaves are first pretreated to be raw dark green tea, which was then softened with steam and pressed into brick shapes before being placed in a fungal fermentation workshop for about 15-17 days. The “fungal fermentation” stage is unique to the manufacturing process of Fuzhuan brick tea. In the fermentation stage, many fungi grow within the tea leaves under controlled temperature and moisture conditions. The fungi growing during this stage were characterized as a mixture of several microorganisms with Eurotium spp., Debaryomyces spp. and Aspergillus spp. predominating [3]. Fungal growth is the key stage responsible for the unique functions of Fuzhuan brick tea, including anti-dysentery, anti-hyperlipidemia and anti-hyperglycemia [4,5,6]. Furthermore, it is interesting that the anti-dysentery activity of the tea is increased with the course of the fermentation [2,7]. Therefore, the bioactive compounds in the tea were implied to be formed by fermentation of these microbes [3,6,8]. Some rare 6-hydroxy-7-one oleanolic triterpenoids, and a epicatechin derivative with a 3,6-dihydro-6-oxo-2H-pyran-2-carboxylic acid moiety, were previously reported from Fuzhuan brick tea [9,10]. In our continuing research for the bioactive compounds from Fuzhuan brick tea, a new norisoprenoid was discovered, along with other 11 known compounds. We report herein the isolation and structural elucidation of these compounds.

2. Results and Discussion

The 70% aqueous acetone extract of Fuzhuan brick tea was fractionated successively by partitioning with petroleum ether, CHCl3 and n-BuOH. The CHCl3 and n-BuOH fractions were separated by silica gel, Sephadex LH-20, ODS, polyamide and MCI-gel CHP20P column chromatrography (CC) to afford a new norisoprenoid (1) and 11 other known compounds, which were identified as α-linolenic acid (2) [11], strictin (3) [12,13], isovitexin (4) [14], astragalin (5) [15], (+)-catechin (6) [16], (−)-epicatechin (7) [16], (−)-epicatechin gallate (8) [16], (+)-gallocatechin (9) [16], (−)-epigallocatechin (10) [16], (−)-epigallocatechin gallate (11) [16], and gallic acid (12) (Figure 1), respectively, on the basis of their spectroscopic data and by comparison with the reference values and by authentic samples.
Figure 1. Structures of 112 and 1a.
Figure 1. Structures of 112 and 1a.
Molecules 17 03539 g001
Compound 1 was obtained as a colorless gum. The molecular formula of 1 was determined as C13H22O by the HRTOF-MS signal at m/z 194.1659 (calcd. 194.1671). The 1H-NMR of 1 showed two proton signals of oxygen bearing methine groups at δ 5.144 (1H, m) and 4.947 (1H, m), as well as the signals of one vinyl methyl at δ 1.490 (3H, s), one doublet methyl at 1.518 (3H, d, J = 4.8 Hz), and two quaternary methyls at 0.974 (6H, s). Its 13C-NMR and DEPT spectral data of 137.55 (s) and 124.58 (s) indicated the presence of olefinic group, which was supported by the IR spectral signal of 1,634 cm−1. The remaining 11 carbon signals were assigned by DEPT and HSQC as four methyls, four methylenes, two oxygen bearing methines, and one quaternary carbon. The 1H-1H COSY spectrum of 1 showed cross peaks between δ 2.26 (H-2a), 1.675 (H-2b) and δ 5.144 (H-3). The latter proton signal also showed COSY correlations with δ 2.727 (H-4a) and 2.337 (H-4b). These spectral features indicated a structural fragment of a (Figure 2). Similarly, another fragment b (Figure 2) could be determined by analysis of the COSY correlations between δ 2.337 (H-7a), 2.182 (H-7b), 1.861 (H-8a), 1.675 (H-8b), 4.947 (H-9), and 1.518 (H3-10). The HMBC spectrum of 1 showed correlations from δ 2.260 (H-2a), 1.675 (H-2b) and 0.974 (H3-11 and 12) to δ 37.97 (C-1) and 137.55 (C-6), as well as from δ 2.337 (H-7a), 2.182 (H-7b) to δ 37.97 (C-1), 124.58 (C-5) and 137.55 (C-6) (Figure 3). On the other hand, the HMBC correlations between the two olefinic carbon signals and δ 2.727 (H-4a) and 2.337 (H-4b), as well as δ 1.490 (H3-13) were observed. A further analysis of the ROESY correlation between H2-4 and H3-13 allowed the establishment of structural fragment c (Figure 2 and Figure 3). By combined analysis of the above evidences, 1 was indicated as a derivative of 3-hydroxy-7,8-dihydro-β-ionol [17,18,19]. The downfield shifts of 13C-NMR signals for C-3 and C-9 to δ 72.14 and 75.31 respectively, suggested an ether linkage between C-3 and C-9. There was no valuable information for stereochemistry of C-3 and C-9 in the ROESY spectrum. The stereochemistry of C-3 and C-9 were tentatively assigned to be R by comparison of the 13C-NMR data with those of the 3R or 9R-O-glycosylated 3-hydroxy-7,8-dihydro-β-ionol derivatives [20,21,22]. This was also supported by the presence of (3R,9R)-3-hydroxy-7,8-dihydro-β-ionyl 6-O-β-D-apiofuranosyl-β-D-glucopyranoside (1a), which was supposed to be the precursor of 1 in fresh tea leaves [19]. On the basis of these evidences, 1 was identified as 3R,9R-oxido-5-megastigmene.
Compound 1a was reported as an aroma precursor from the fresh tea leaves [19], while compound 1 was the C-3/C-9 ether derivative of 1a after the sugar moiety was removed. It is interesting that 1 may be formed by microbial fermentation of Fuzhuan brick tea with dehydration of 3-OH and 9-OH on 3-hydroxy-7,8-dihydro-β-ionol, which is liberated from its precursor (1a) by endogenous enzymes during the manufacturing process of fresh tea leaves [19].

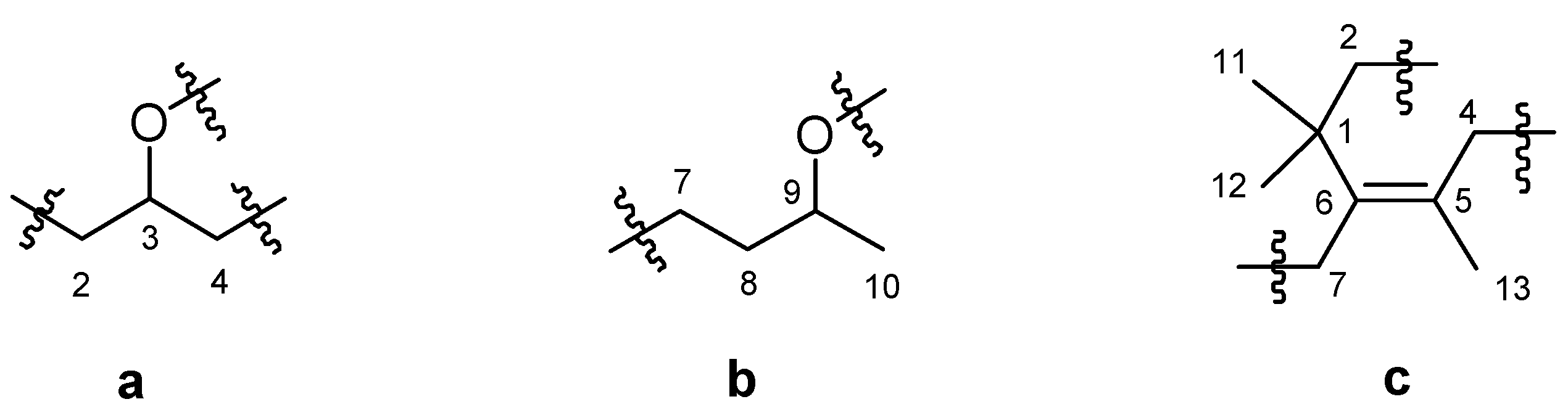

Figure 2. Structural fragments ac of compound 1.
Figure 2. Structural fragments ac of compound 1.
Molecules 17 03539 g002

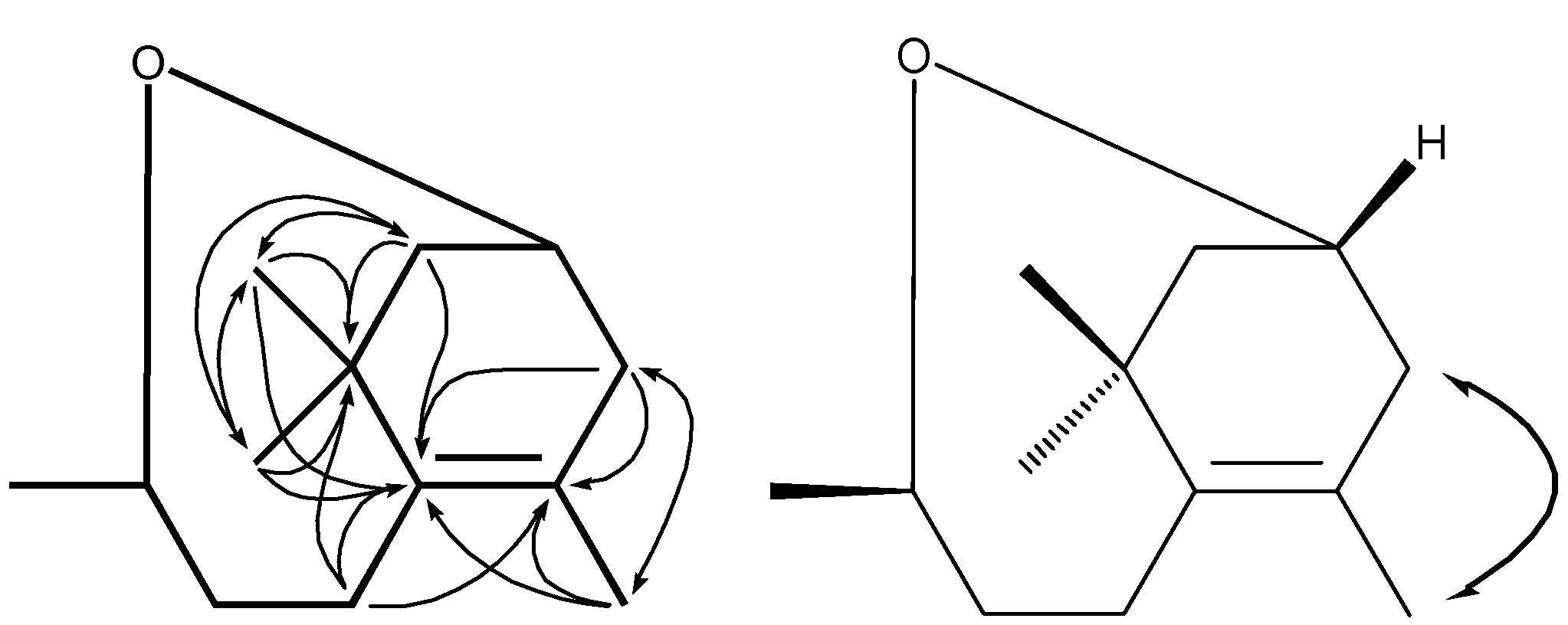

Figure 3. Key HMBC (1H→13C) and ROESY ( Molecules 17 03539 i001) correlations of compound 1.
Figure 3. Key HMBC (1H→13C) and ROESY ( Molecules 17 03539 i001) correlations of compound 1.
Molecules 17 03539 g003
Since Fuzhuan brick tea is produced by microbe fermentation, the isolated new compound 1 was evaluated for its antibacterial activity against four enteric pathogenic microorganisms, i.e., enteropathogenic Escherichia coli (EPEC), Staphyloccocus aureus, Shigella dysenteriae, and Salmonella typhi, by the hole plate diffusion method [9]. However, the compound did not exhibit any activity against the above microorganisms.

3. Experimental

3.1. General

Optical rotation was measured on a P-1020 Polarimeter (Jasco, Tokyo, Japan). IR spectra were measured on an IR-450 spectrometer (Shimadzu, Kyoto, Japan). 1H- and 13C-NMR, 1H-1H COSY, HSQC, HMBC and ROESY spectra were recorded with DRX-500 and Bruker AM-400 spectrometers operating at 500 and 400 MHz for 1H, and 125 and 100 MHz for 13C, respectively. Coupling constants were expressed in Hz. The high resolution time-of-flight-mass spectrometry (HRTOF-MS) was recorded on a GCT-MS instrument (Micromass Ltd., Manchester, UK) by direct inlet. Silica gel 60 (200–300 mesh, Qingdao Marine Chemical CO. Ltd., Qingdao, China), Sephadex LH-20 (25–100 μm, Pharmacia Fine Chemical Co., Ltd., Uppsala, Sweden), YMC GEL ODS-A (50 μm, YMC Co. Ltd., Kyoto, Japan), polyamide (100–200 mesh, Luqiaosijia Biochemical Co., Ltd., Zhejiang, China), and MCI-gel CHP20P (20–100 μm, Mitsubishi Chemical Co., Ltd., Tokyo, Japan) were used for CC. Aqueous MeOH from 0 to 100% (v/v) in increments of 10% was used as eluant for all Sephadex LH-20 and MCI-gel CC. TLC was performed on precoated kieselgel 60 F254 plates (Merck, Darmstadt, Germany), with chloroform/methanol/H2O (14:3:0.5, v/v), or benzene/ethyl formate/formoic acid (3:6:1 or 2:7:1, v/v), and detected by spraying with 2% ethanolic FeCl3 or 5% ethanolic H2SO4 reagent followed by heating.

3.2. Materials

Fuzhuan brick tea (produced in December, 2006) was purchased from Yiyang Fu Cha Industry Development Co. Ltd. (Yiyang, Hunan Province, China). Ampicillin sodium was purchased from Sigma Chemical Co. Ltd. (St. Louis, Missouri, USA). The test microorganisms were obtained from School of Basic Medical Sciences, Anhui Medical University (Hefei, China).

3.3. Extraction and Isolation

Fuzhuan brick tea (3.6 kg) was processed as described before [9] to obtain petroleum ether and chloroform fractions. The remaining aqueous solution was fractionated with n-BuOH. The chloroform solution was concentrated to afford a dark green residue (460 g), which was separated by silica gel and ODS CC to give 2 (55 mg). The n-BuOH solution was concentrated under reduced pressure to afford a brown residue (500 g). This residue was applied to a Sephadex LH-20 CC, yielding three subfractions (S1-S3). S1 was separated by combination of MCI-gel and ODS CC to give 1 (12 mg). S2 was subjected to a Sephadex LH-20 CC and a polyamide CC to yield 4 (30 mg) and 5(25 mg). S3 was separated by repeated Sephadex LH-20 and MCI-gel CC, yielding 3 (15 mg), 6 (110 mg), 7 (120 mg), 8 (50 mg), 9 (85 mg), 10 (95 mg), 11 (100 mg), and 12 (3 g).

3.4. 3,9-Oxido-5-megastigmene

Colorless gum, [α]−3.6 (c 0.09, MeOH). IR (KBr) νmax (cm−1): 2959, 2925, 1634, 1465, 1379, 1339, 1280, 1174, 1144, 611. EI-MS m/z (%): 194 (3.9), 176 (12.4), 161 (21.6), 121 (45.6), 119 (100.0), 105 (52.5), 91 (51.8), 79 (24.3), 65 (11.6), 55 (47.2), 41 (25.4). HRTOF-MS: m/z 194.1659 (M+, calcd. for C13H22O+, 194.1671). 1H- and 13C-NMR data, see Table 1.
Table 1. NMR data of 1 (in CDCl3, δ in ppm, J in Hz).
Table 1. NMR data of 1 (in CDCl3, δ in ppm, J in Hz).
PositionsδHδCHMBC (1H to 13C)
137.97
22.260 (1H, br d, 9.6, H-2a)46.37C-1, 3, 4, 6, 11, 12
1.675 (1H, m, H-2b) a C-1, 3, 4, 6, 11, 12
35.144 (1H, m)72.14
42.727 (1H, dd, 12.8, 3.6, H-4a)40.44C-2, 3, 5, 6, 13
2.337 (1H, m, H-4b) b C-2, 3, 5, 6, 13
5124.58
6137.55
72.337 (1H, m, H-7a) b24.56C-1, 5, 6, 8, 9
2.182 (1H, ddd, 10.4, 10.4, 3.6, H-7b) C-1, 5, 6, 8, 9
81.861 (1H, m, H-8a)38.22C-7, 9, 10
1.675 (1H, m, H-8b) a C-7, 9, 10
94.947 (1H, m)75.31C-7, 8
101.518 (3H, d, 4.8)21.39C-8, 9
110.974 (3H, s) c28.53 dC-1, 2, 6, 12
120.974 (3H, s) c29.81 dC-1, 2, 6, 11
131.490 (3H, s)19.84C-4, 5, 6
a b c Signals were overlapped; d Signals may be interchanged.

3.5. Antibacterial Assays

The antibacterial activity of 1 against four enteric pathogenic microorganisms, i.e., enteropathogenic E . coli (EPEC), S. aureus, S. dysenteriae, and S. typhi were evaluated by the hole plate diffusion method as described before [9]. Compound 1 and ampicillin sodium (positive control) were individually dissolved and diluted with DMSO to obtain serial concentrations of 800, 400, 200, 100, 50, 25 μg/mL. DMSO was used as the negative control. Three 6 mm wide holes were bored with a sterilized steel borer into the Nutrient Agar Media (beef extract 3 g, peptone 10 g, agar 17 g, NaCl 5 g, H2O 1,000 mL, pH 7.2) in each Petri dish inoculated with the test microorganism. The solution of the compound (60 μL) at a specific concentration was added into each of the holes. DMSO was used as the negative control. The plates were then incubated at 37 °C for 24 h. The inhibition zones around the holes were measured and the minimal inhibitory concentration (MIC), which was defined as the lowest concentration able to inhibit any visible bacterial growth, was recorded. The assays were performed three times in order to guarantee reproducibility of results. Compound 1 did not exhibit any activity against the four tested microorganisms at a concentration of 800 μg/mL.
Fungal aroma, which is typical of Fuzhuan brick tea, is produced by a fungal growth stage in the production process [23]. Given the different odors of norisoprenoids and their ethers, the generation and occurrence of compound 1 may partially contribute to the unique aroma property of the tea [24,25,26]. Fuzhuan brick tea has remarkable anti-dysentery activity, which is increased with the course of the microbial fermentation [2,7]. Since the amount of polyphenolics decreased during fermentation, there should be some non-phenolic anti-microbial compounds produced by the dominant fungi in this tea [27]. Though some compounds with interesting structures have been discovered by now, the unique bio-functions of the tea have not been explained yet. Therefore, more phytochemical and bioassay works need to be performed on Fuzhuan brick tea.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/3/3539/s1.

Acknowledgements

We thank Yi-Neng He, Kunming Institute of Botany, Chinese Academy of Sciences, for NMR measurements. This work was supported by the Earmarked Fund for Modern Agro-Industry Technology Research System, Ministry of Agriculture & Ministry of Finance, People’s Republic of China, and Natural Science Foundation of Anhui Province (Grant No. 10040606Q19), as well as National Natural Science Foundation of China (Grant No. 31101335 and 21172224).
  • Samples Availability: Samples of the compounds 112 are available from the authors.

References and Notes

  1. Wan, X.C. Tea Biochemistry (in Chinese), 3rd ed; China Agriculture Press: Beijing, China, 2003; pp. 268–275. [Google Scholar]
  2. Mo, H.Z.; Zhu, Y.; Chen, Z.M. Microbial fermented tea-A potential source of natural food preservatives. Trends Food Sci. Tech. 2008, 19, 124–130. [Google Scholar] [CrossRef]
  3. Xu, A.Q.; Wang, Y.L.; Wen, J.Y.; Liu, P.; Liu, Z.Y.; Li, Z.J. Fungal community associated with fermentation and storage of Fuzhuan brick-tea. Int. J. Food Microbiol. 2011, 146, 14–22. [Google Scholar] [CrossRef]
  4. Yu, Z.Y.; Huang, J.A.; Yang, M.Z.; Zhang, Y.; Ou-Yang, M.; Fu, D.H. Research of the anti-diarrhea function of Fuzhuan Tea (in Chinese). Tea Sci. 2009, 29, 465–469. [Google Scholar]
  5. Fu, D.H.; Ryan, E.P.; Huang, J.A.; Liu, Z.H.; Weir, T.L.; Snook, R.L.; Ryan, T.P. Fermented Camellia sinensis, Fu Zhuan Tea, regulates hyperlipidemia and transcription factors involved in lipid catabolism. Food Res. Int. 2011, 44, 2999–3005. [Google Scholar] [CrossRef]
  6. Wu, Y.Y.; Ding, L.; Xia, H.L.; Tu, Y.Y. Analysis of the major chemical compositions in Fuzhuan brick-tea and its effect on activities of pancreatic enzymes in vitro. Afr. J. Biotechnol. 2010, 9, 6748–6754. [Google Scholar]
  7. Mo, H.Z.; Zhang, H.; Li, Y.Q.; Zhu, Y. Antimicrobial activity of the indigenously microbial fermented Fuzhuan brick-tea. J. Biotechnol. 2008, 136 (Suppl. 1), S722. [Google Scholar]
  8. Huang, Y.H.; Chen, J.H.; Zhou, Y.; Chen, X.Y. Differences in sensory quality and chemical composition of Fuzhuan Tea of different storage ages (in Chinese). Food Sci. 2010, 31, 228–232. [Google Scholar]
  9. Ling, T.J.; Wan, X.C.; Ling, W.W.; Zhang, Z.Z.; Xia, T.; Li, D.X.; Hou, R.Y. New triterpenoids and other constituents from a special microbial-fermented tea-Fuzhuan Brick Tea. J. Agric. Food Chem. 2010, 58, 4945–4950. [Google Scholar]
  10. Jiang, H.Y.; Shii, T.; Matsuo, Y.; Tanaka, T.; Jiang, Z.H.; Kouno, I. A new catechin oxidation product and polymeric polyphenols of post-fermented tea. Food Chem. 2011, 129, 830–836. [Google Scholar] [CrossRef]
  11. Sandri, J.; Viala, J. Direct preparation of (Z,Z)-1,4-dienic units with a new C6 homologating agent: Synthesis of α-linolenic acid. Synthesis 1995, 3, 271–275. [Google Scholar] [CrossRef]
  12. Yoshida, T.; Hatano, T.; Okuda, T.; Memon, M.U.; Shigu, T.; Inoue, K. Spectral and chromatographic analysis of tannins. I. 13C nuclear magnetic resonance spectra of hydrolysable tannins. Chem. Pharm. Bull. 1984, 32, 1790–1799. [Google Scholar] [CrossRef]
  13. Jia, Z.S.; Zhou, B.; Yang, L.; Wu, L.M.; Liu, Z.L. 2D NMR study on tea polyphenols (in Chinese). Chin. J. Magn. Reson. 1998, 15, 23–30. [Google Scholar]
  14. Ramarathnam, N.; Osawa, T.; Namiki, M.; Kawakishi, S. Chemical studies on novel rice hull antioxidants. 2. Identification of isovitexin, a C-glycosyl flavonoid. J. Agric. Food Chem. 1989, 37, 316–319. [Google Scholar]
  15. Li, J.B.; Ding, Y. Studies on the chemical constituents from Myristica yunnanensis (in Chinese). Zhongguo Zhong Yao Za Zhi 2001, 26, 479–481. [Google Scholar]
  16. Davis, A.L.; Cai, Y.; Davis, A.P.; Lewis, J.R. 1H and 13C-NMR assignments of some green tea polyphenols. Magn. Reson. Chem. 1996, 34, 887–890. [Google Scholar]
  17. Achenbach, H.; Lottes, M.; Waibel, R.; Karikas, G.A.; Correa, A.M.D.; Gupta, M.P. Alkaloids and other compounds from Psychotria correae. Phytochemistry 1995, 38, 1537–1545. [Google Scholar]
  18. Lin, T.C.; Fang, J.M.; Cheng, Y.S. Terpenes and lignans from leaves of Chamaecyparis formosensis. Phytochemistry 1999, 51, 793–801. [Google Scholar]
  19. Ma, S.J.; Watanabe, N.; Yagi, A.; Sakata, K. The (3R,9R)-3-hydroxy-7,8-dihydro-β-ionol disaccharide glycoside is an aroma precursor in tea leaves. Phytochemistry 2001, 56, 819–825. [Google Scholar]
  20. Otsuka, H.; Zhong, X.N.; Hirata, E.; Shinzato, T.; Takeda, Y. Myrsinionosides A-E: Megastigmane glycosides from the leaves of Myrsine seguinii. Chem. Pharm. Bull. 2001, 49, 1093–1097. [Google Scholar] [CrossRef]
  21. Otsuka, H.; Tamaki, A. Platanionosides D-J: Megastigmane glycosides from the leaves of Alangium platanifolium (Sieb. Et Zucc.) Harms var. platanifolium Sieb. Et Zucc. Chem. Pharm. Bull. 2002, 50, 390–394. [Google Scholar]
  22. Otsuka, H. Linarionosides A-C and acyclic monoterpene diglucosides from Linaria japonica. Phytochemistry 1994, 37, 461–465. [Google Scholar]
  23. Xu, X.Q.; Mo, H.Z.; Yan, M.C.; Zhu, Y. Analysis of characteristic aroma of fungal fermented Fuzhuan brick-tea by gas chromatography/mass spectrophotometry. J. Sci. Food Agric. 2007, 87, 1502–1504. [Google Scholar] [CrossRef]
  24. Winterhalter, P.; Schreier, P. Free and bound C13 norisoprenoids in quince (Cydonia oblonga, Mill.) fruit. J. Agric. Food Chem. 1988, 36, 1251–1256. [Google Scholar]
  25. Humpf, H.U.; Wintoch, H.; Schreier, P. 3,4-dihydroxy-7,8-dihydro-β-ionol β-D-glucopyranoside: Natural precursor of isomeric vitispiranes form Gooseberry (Ribes uva crispa L.) and Whitebeam (Sorbus aria) leaves. J. Agric. Food Chem. 1992, 40, 2060–2062. [Google Scholar]
  26. Winterhalter, P.; Schreier, P. C13-norisoprenoid glycosides in plant tissues: An overview on their occurrence, composition and role as flavour precursors. Flavour. Fragr. J. 1994, 9, 281–287. [Google Scholar] [CrossRef]
  27. Lin, L.Z.; Chen, P.; Harnly, J.M. New phenolic components and chromatographic profiles of green and fermented teas. J. Agric. Food Chem. 2008, 56, 8130–8140. [Google Scholar] [CrossRef]
