Studies on the Synthesis of DMAP Derivatives by Diastereoselective Ugi Reactions

Division of Chemistry and Biochemistry, Graduate School of Natural Science and Technology, Okayama University, 3-1-1 Tsushima-naka, Kita-ku, Okayama 700-8530, Japan
*
Authors to whom correspondence should be addressed.
Molecules 2011, 16(10), 8815-8832; https://doi.org/10.3390/molecules16108815
Submission received: 17 August 2011 / Revised: 11 October 2011 / Accepted: 12 October 2011 / Published: 20 October 2011
(This article belongs to the Special Issue Multicomponent Reaction)

Abstract

:
Diastereoselective Ugi reactions of DMAP-based aldehydes with α-amino acids and tert-butyl isocyanide were examined. The reactions of 4-(dimethylamino)-2-pyridine-carboxaldehyde with various α-amino acids afforded 2-substituted DMAP derivatives with low diastereoselectivity. On the contrary, reactions with 4-(dimethylamino)-3-pyridine-carboxaldehyde delivered 3-substituted DMAP derivatives with moderate to high diastereoselectivity. The combination of α-amino acid and DMAP-based aldehyde is thus important to achieve high diastereoselectivity. Kinetic resolution of a secondary alcohol using a chiral DMAP derivative obtained through these reactions was also examined.

1. Introduction

Multicomponent reactions are highly efficient in atom economical transformations in synthetic organic chemistry [1]. They can be used for constructing various libraries of compounds in medicinal chemistry. Among the multicomponent reactions, Ugi reaction, known as a four-component reaction, combines a carbonyl compound, an amine, a carboxylic acid, and an isonitrile to afford highly functionalized molecules [2,3]. In general, no activator is required and one-pot synthesis is possible. Asymmetric variants of the Ugi reaction [4] have been reported using chiral α-methylbenzylamines [5,6,7,8], ferrocenylamines [9,10,11,12], glycosylamines [13,14], α-amino acids [15,16,17,18,19,20,21,22] and β-amino acids [23] to deliver the Ugi adducts with good to high diastereoselectivity. However, the use of a chiral isocyanide [24,25] or carboxylic acid [26,27,28] as the chiral inducer usually confers no asymmetric induction in the Ugi reaction.
In the course of our research, we have been interested in utilizing an asymmetric Ugi reaction for the synthesis of chiral nucleophilic organocatalysts [29]. Among these catalysts, the chiral molecule 4-(dimethylamino)pyridine (DMAP) [30] is known as a versatile catalyst for various asymmetric transformations, such as kinetic resolution of racemic alcohols [31], desymmetrization of anhydrides [32], and inter or intramolecular reactions of oxazolones [33]. However, incorporating a chiral environment in the DMAP structure is still a challenging issue because of long synthetic steps required to obtain optically pure catalysts. We anticipated that by developing an efficient protocol for the diastereoselective Ugi reactions of DMAP-based aldehydes, one-pot synthesis of diverse chiral DMAP structures may be easily carried out simply by changing substrate combinations. Furthermore, highly functionalized and easily tunable chiral DMAP derivatives are attractive as potential highly active, enantioselective catalysts for asymmetric transformation. In this paper, we describe the synthetic studies of diastereoselective Ugi reactions using DMAP-based aldehydes and the use of the Ugi products as chiral nucleophilic catalysts.

2. Results and Discussion

2.1. Diastereoselective Ugi Reaction of 4-(Dimethylamino)-2-pyridinecarboxaldehyde (1)

We carried out the Ugi reaction of 4-(dimethylamino)-2-pyridinecarboxaldehyde (1), L-valine, and tert-butyl isocyanide in MeOH as the solvent and an external nucleophile (U-5C-4CR). We speculated that the formation of the new stereogenic center could be controlled by L-valine to afford the product as a single diastereomer through simple purification; the product could then be utilized directly as a chiral nucleophilic catalyst (chiral DMAP). Because the Ugi reactions of DMAP-based aldehydes were not reported, we proceeded with the optimization of the Ugi reaction conditions.
Because the Ugi reaction is a condensation reaction between organic components, the concentration of substrates may be important for obtaining the desired product in reasonable yield. Thus, we examined different substrate concentrations for the Ugi reaction (Table 1). The reaction of DMAP-based aldehyde 1, L-valine, and tert-butyl isocyanide in MeOH was carried out at room temperature for 15 h. Lower concentrations (0.1 and 0.2 M) of 1 delivered the desired product 2a in which MeOH was incorporated, even though almost no diastereoselectivity was observed (79% and 84% yields; entries 1 and 2, respectively). At 0.5 M concentration, the reaction was accelerated sufficiently to afford 2a in 98% isolated yield with a 63:37 diastereomeric ratio (d.r.) (entry 3). Higher concentration (1.0 M) afforded a yield slightly inferior to that achieved by 0.5 M concentration (91%, 60:40 d.r.). On the basis of these results, 0.5 M substrate concentration was determined to be optimal for the model reaction.
To improve the diastereoselectivity of the Ugi product, we carried out reactions with various α-amino acids under the aforementioned conditions. The structure of the α-amino acid side chain might be important to control the newly formed stereogenic center.
Table 1. Ugi reaction of 1 using various substrate concentrations. Molecules 16 08815 i001
Table 1. Ugi reaction of 1 using various substrate concentrations. Molecules 16 08815 i001
EntryConcentration (M)Yield (%) aD.r. b
10.17955:45
20.28462:38
30.59863:37
41.09160:40
a Yield of the mixture of diastereomers after column chromatography; b Diastereomeric ratio was determined by 1H-NMR analysis of unpurified products.
As shown in Table 2, we tested various commercially available α-amino acids. Reaction with L-t-leucine gave the desired product 2b in 70% isolated yield with a 62:38 d.r., thus suggesting that the sterically congested side chain of the α-amino acid did not improve diastereoselectivity (entry 2 vs. 1). Other chiral sources, L-isoleucine, L-phenylalanine, and L-phenylglycine also showed similar diastereoselectivities (54%, 57%, 59% yield; 60:40, 55:45, 55:45 d.r.; entries 35, respectively).
Table 2. Ugi reaction of 1 with various α-amino acids. Molecules 16 08815 i002
Table 2. Ugi reaction of 1 with various α-amino acids. Molecules 16 08815 i002
Entryα-Amino acidProductYield (%) aD.r. b
1L-Valine 2a9863:37
2L- t-Leucine 2b7062:38
3L-Isoleucine2c5460:40
4L-Phenylalanine 2d5755:45
5L-Phenylglycine 2e5955:45
6L-Threonine 2f7750:50
7L-Serine 2g8553:47
8L-Proline2h1951:49
a Yield of the mixture of diastereomers after column chromatography; b Diastereomeric ratio was determined by 1H-NMR analysis of unpurified products.
Furthermore, the reactions with L-threonine and L-serine, both having a hydroxyl group in the side chain, delivered 1:1 mixtures of diastereomers 2f and 2g in good yields. L-Proline, which can generate a cyclic iminium intermediate, did not affect diastereotopic selection (19% yield, 51:49 d.r.). Unfortunately, the structure of α-amino acid had no definite effect on diastereoselectivity of the Ugi products derived from 1. Thus, we decided to use 3-formyl DMAP, a related aldehyde component with the intent of improving diastereoselectivity.

2.2. Diastereoselective Ugi Reaction of 4-(Dimethylamino)-3-pyridinecarboxaldehyde (3)

Next, we used 4-(dimethylamino)-3-pyridinecarboxaldehyde (3) in the diastereoselective Ugi reaction. As shown in Table 3, the Ugi reaction of 3 with L-valine and tert-butyl isocyanide in MeOH at 20 °C afforded the Ugi product 4a in 37% isolated yield with an 84:16 d.r. The low yield of 4a is assumed to be due to the presence of an adjacent bulky dimethyl amino group, which encumbers the formation of the imine or iminium species derived from 3 and L-valine. However, because of the reaction of DMAP-based aldehyde 3 and L-valine, large dimethyl amino group might fix imine or iminium configuration (E or Z isomer) to avoid steric repulsion against dimethyl amino group. Accordingly, a high d.r. could be observed when 3 was used instead 1. To enhance the formation of the imine or iminium species, we next carried out the reactions under various reaction temperatures. The reaction at 40 °C proceeded to 79% conversion and afforded 4a in 53% yield with a 90:10 d.r. (entry 2). Higher conversion (>90%) was achieved at 50 and 60 °C delivering 4a in 57% and 48% isolated yields with 89:11 and 85:15 d.r., respectively. According to these results, the reaction at 50 °C is preferred considering the yield and diastereoselectivity of the product. Although most of the aldehyde was consumed (92% conversion; entry 3), the isolated yield of 4a remained moderate. Owing to this, we considered the determination of appropriate substrate ratio of the reaction components (aldehyde, α-amino acid, and tert-butyl isocyanide) to improve the efficiency of the reaction.
Table 3. Ugi reaction of 3 at various reaction temperatures. Molecules 16 08815 i003
Table 3. Ugi reaction of 3 at various reaction temperatures. Molecules 16 08815 i003
EntryTemperature (°C)Conversion (%) aYield (%) bD.r. a
120503784:16
240795390:10
350925789:11
460974885:15
a Conversion and diastereomeric ratio were determined by 1H-NMR analysis of unpurified products; b Yield of the mixture of diastereomers after column chromatography.
To address the aforementioned issue, the substrate ratio was screened under the previously mentioned conditions (Table 4). Although all reactions proceeded in >90% conversion with excess L-valine (1.3 and 1.5 equiv.; entries 2 and 3, respectively) and excess tert-butyl isocyanide (1.3 and 1.5 equiv.; entries 4 and 5), the isolated yield was almost same as that of the control reaction (entry 1). The reason for the relatively low isolated yield of the Ugi products with respect to consumption of the starting aldehyde is unclear.
Table 4. Substrate ratios for diastereoselective Ugi reaction of 3. Molecules 16 08815 i004
Table 4. Substrate ratios for diastereoselective Ugi reaction of 3. Molecules 16 08815 i004
EntryXYConversion (%) aYield (%) bD.r. a
11.11.1915491:9
21.31.1945589:11
31.51.1975589:11
41.11.3965989:11
51.11.5955785:15
a Conversion and diastereomeric ratio were determined by 1H-NMR analysis of unpurified products; b Yield of the mixture of diastereomers after column chromatography.
Considering a relatively effective diastereoselective Ugi reaction of DMAP-based aldehyde 3, various α-amino acids were investigated under the optimized reaction conditions (Table 5). Reactions with α-amino acids bearing alkyl side chains led to the corresponding products in moderate yield with good to high diastereoselectivity (45%–63%; 59:41–93:7 d.r; entries 1 and 4–8). Ciufolini reported that Ugi reactions of aromatic aldehydes, α-amino acids and t-BuNC in MeOH with TiCl4 as a catalystshowed improved isolated yields of Ugi product [22]. TiCl4 was thus added to the reaction mixture, however the result was almost identical to that obtained under the uncatalyzed reaction (entry 2 vs. 1). Furthermore, using MgSO4 as a dehydrating agent resulted in slightly decreasing in isolated yield and diastereoselectivity (entry 3 vs. 1). Side chains having a heteroatom also showed the same results as those of their alkyl counterparts (entries 9–16). It is surprising that the d.r. of the Ugi products was not dramatically changed by modifying the structure of α-amino acid. Furthermore, the reaction proceeding through the cyclic iminium intermediate derived from L-proline and aldehyde 3 did not improve both yield and diastereoselectivity (51% yield; 74:26 d.r.; entry 17). The stereochemistry of major diastereomer 4a was determined by X-ray structure analysis, showing R configuration at newly formed stereogenic center (Figure 1). The absolute configuration of the major product was different from related reaction reported by Ciufolini [22].
Table 5. Ugi reaction of 3 with various α-amino acids. Molecules 16 08815 i005
Table 5. Ugi reaction of 3 with various α-amino acids. Molecules 16 08815 i005
Entryα-Amino acidProductYield aD.r. b
1L-Valine 4a5592:8
2 cL-Valine4a5788:12
3 dL-Valine4a4685:15
4L-Leucine4b6386:14
5L- t-Leucine4c5289:11
6L-Isoleucine4d5593:7
7L-Phenylalanine4e6088:12
8L-Phenylglycine4f4559:41
9L-Serine4g4377:23
10L-Methionine4h5883:17
11O-t-Butyl L-threonine4i6382:18
12γ-Methyl L-glutamate4j4783:17
134-Benzyl L-aspartate4k5279:21
14O-Benzyl L-serine4l5475:25
15L-Histidine 4m4477:23
16 eN-Benzyl L-valine4n1892:8
17L-Proline4o5174:26
a Yield of the mixture of diastereomer after column chromatography; b Diastereomeric ratio was determined by 1H-NMR analysis of unpurified products; c 20 mol % of TiCl4 was added; d The suspension of the aldehyde, α-amino acid, and MgSO4 were stirred for 3 h at room temperature before the addition of t-BuNC; e Reaction time was 48 h. Molecules 16 08815 i006

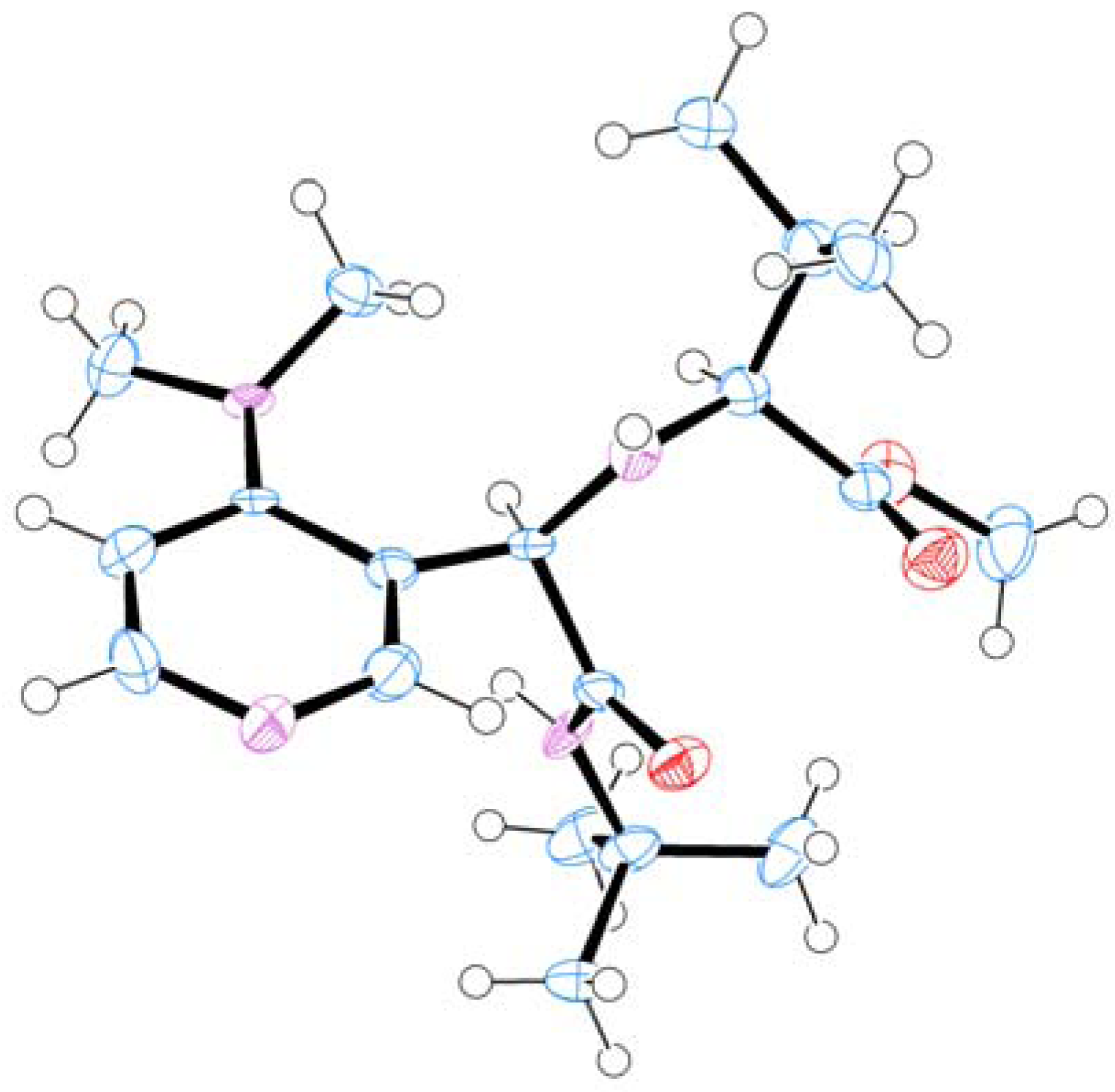

Figure 1. X-ray structure of major diastereomer of 4a; disordered atoms omitted for clarity.
Figure 1. X-ray structure of major diastereomer of 4a; disordered atoms omitted for clarity.
Molecules 16 08815 g001

2.3. Kinetic Resolution of a Racemic Alcohol by Chiral DMAP Derivatives

Next, we explored the possibility of using Ugi products as chiral nucleophilic catalysts. The kinetic resolution of racemic alcohol was selected as a model study. A major diastereomer of Ugi product 4a, which can be easily obtained by column chromatography, was utilized as the catalyst in toluene at −60 °C ( Scheme 1). The selectivity factor [34], which was estimated by ee of acetylated product 6 and unreacted alcohol 5 [35], was indicated to be 2.33. It was noted that the Ugi product 4a was capable of catalyzing the acylation reaction, although the selectivity was not satisfied at the moment. Further study to develop more efficient catalysts is now under way.

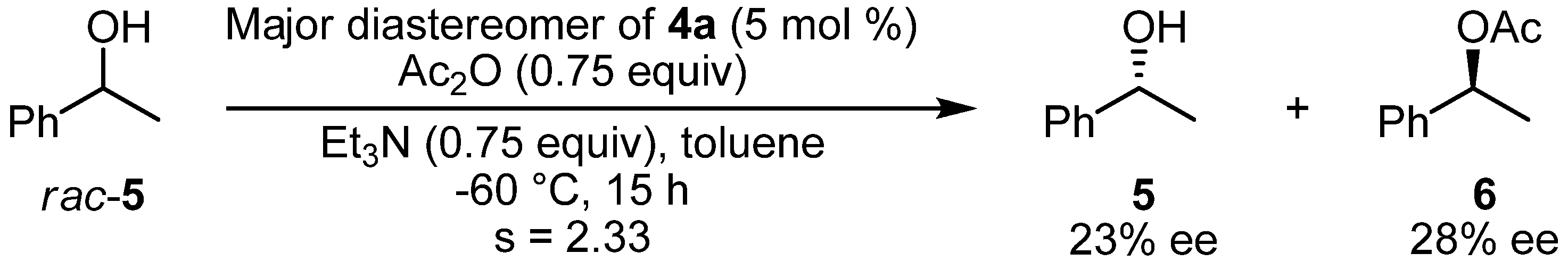

Scheme 1. Kinetic resolution of rac-5 using major diastereomer of 4a.
Scheme 1. Kinetic resolution of rac-5 using major diastereomer of 4a.
Molecules 16 08815 g002

3. Experimental

3.1. General

All melting points were determined using a Yanaco micro melting point apparatus MP-S3 and are uncorrected. Solvents were generally distilled and dried by standard literature procedures prior to use. The IR spectra were recorded on a JASCO FT/IR-4100 spectrometer. NMR spectra were recorded on a Varian VNMRS-400 spectrometer at SC-NMR Laboratory (Okayama University), operating at 400 MHz for 1H-NMR and 100 MHz for 13C-NMR. Chemical shifts in CDCl3 were reported in the δ scale relative to CHCl3 (7.26 ppm) as an internal reference for 1H-NMR. For 13C-NMR, chemical shifts were reported in the δ scale relative to CHCl3 (77.0 ppm) as an internal reference. Column chromatography was performed with silica gel 60 N (spherical, neutral, 4050 μm) purchased from Kanto Chemical. Optical rotations were measured on a Horiba Model SEPA-300 High-sensitive polarimeter. FAB mass spectra (for HRMS) were measured on a JEOL JMS-700 MStation at the Mass Spectrometry Facility (Okayama University). The enantiomeric excess (ee) was determined by HPLC analysis. HPLC was performed on Shimadzu HPLC systems consisting of the following: pump, LC-10AD; detector, SPD-10A, 254 nm; column, Daicel Chiracel OD-H; mobile phase, hexane/2-propanol.

3.2. General Procedure for the Ugi Reaction of 4-(Dimethylamino)-2-pyridinecarboxaldehyde (1)

To a suspension of L-valine (23.1 mg, 0.20 mmol) and aldehyde 1 (36.6 mg, 0.24 mmol) in dry methanol (0.4 mL) in a screw-cap test tube, tert-butyl isocyanide (17.2 mg, 0.21 mmol) was added and the reaction mixture was stirred for 15 h at room temperature. The solvent was evaporated in vacuo and the resulting residue was purified by silica gel column chromatography (EtOAc/Et3N = 97:3, v/v) to give (1R) N-(1-(N-tert-butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-2-yl)methyl)-L-valine methyl ester (2a) as a brown gummy oil (70.5 mg, 98% yield, d.r. 63:37). For mixture of two diastereomers: IR (neat) υ = 3327, 2964, 1738, 1681, 1603 cm1; 1H-NMR (CDCl3, major diastereomer) δ 1.03 (d, J = 6.0 Hz, 6H), 1.32 (s, 9H), 2.03 (sext, J = 6.8 Hz, 1H), 2.03 (br, 1H), 2.97 (s, 6H), 3.023.07 (m, 1H), 3.60 (s, 3H), 3.90 (s, 1H), 6.39 (dd, J = 2.6, 6.0 Hz, 1H), 6.69 (d, J = 2.6 Hz, 1H), 7.60 (br, 1H), 8.14 (d, J = 6.0 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 18.4, 19.9, 28.6, 31.5, 39.1, 50.5, 51.5, 65.8, 66.8, 105.1, 105.8, 148.6, 154.6, 156.8, 171.0, 174.9; HRMS-FAB (m/z): [M+H]+ calcd. for C19H33N4O3 365.2553, found 365.2535.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-2-yl)methyl)-L-t-leucine methyl ester (2b): A pale yellow oil (53.6 mg, 70% yield, d.r. 62:38); For mixture of two diastereomers: IR (neat) υ = 3337, 2965, 1732, 1674, 1604 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.04 (s, 9H), 1.32 (s, 9H), 2.57 (br, 1H), 2.95 (br, 1H), 2.97 (s, 6H), 3.58 (s, 3H), 3.81 (s, 1H), 6.38 (dd, J = 2.4, 6.0 Hz, 1H), 6.66 (d, J = 2.4 Hz, 1H), 7.57 (br, 1H), 8.15 (d, J = 6.0 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 26.9, 28.6, 34.2, 39.1, 50.5, 51.1, 67.4, 70.1, 105.1, 105.8, 148.6, 154.6, 156.7, 170.8, 174.5; HRMS-FAB (m/z): [M+H]+ calcd. for C20H35N4O3 379.2709, found 379.2739.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-2-yl)methyl)-L-isoleucine methyl ester (2c): A pale yellow oil (40.5 mg, 54% yield, d.r. 60:40); For mixture of two diastereomers: IR (neat) υ = 2967, 1733, 1673, 1604 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 0.91 (t, J = 7.4 Hz, 3H), 0.97 (d, J = 6.8 Hz, 3H), 1.31 (s, 9H), 1.55–1.67 (m, 1H), 1.74–1.84 (m, 1H), 2.35 (br, 1H), 2.97 (s, 6H), 3.02–3.06 (m, 1H), 3.15 (d, J = 6.0 Hz, 1H), 3.59 (s, 3H), 3.90 (s, 1H), 6.38 (dd, J = 2.4, 6.0 Hz, 1H), 6.68 (d, J = 2.4 Hz, 1H), 7.60 (br, 1H), 8.14 (d, J = 6.0 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 11.4, 16.2, 25.2, 28.6, 38.2, 39.1, 50.5, 51.5, 65.5, 67.2, 105.1, 105.8, 148.5, 154.6, 156.8, 171.0, 174.8; HRMS-FAB (m/z): [M+H]+ calcd. for C20H35N4O3 379.2709, found 379.2703.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-2-yl)methyl)-L-phenylalanine methylester (2d): A pale yellow oil (45.6 mg, 57% yield, d.r. 55:45); For mixture of two diastereomers: IR (neat) υ = 2964, 1739, 1676, 1604 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.09 (s, 9H), 2.81–2.92 (m, 1H), 2.96 (s, 6H), 3.01–3.08 (m, 2H), 3.48–3.54 (m, 1H), 3.57 (s, 3H), 3.95 (s, 1H), 6.38 (dd, J = 2.4, 5.6 Hz, 1H), 6.67 (d, J = 2.4 Hz, 1H), 7.12 (br, 1H), 7.14–7.31 (m, 5H), 8.14 (d, J = 5.6 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.3, 39.1, 39.8, 50.2, 51.7, 62.6, 66.5, 105.0, 105.7, 126.6, 128.5, 129.3, 137.9, 148.5, 154.6, 156.7, 170.6, 174.5; HRMS-FAB (m/z): [M+H]+ calcd. for C23H33N4O3 413.2553, found 413.2551.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-2-yl)methyl)-L-phenylglycine methyl ester (2e): A pale yellow oil (47.6 mg, 59% yield, d.r. 55:45); For mixture of two diastereomers: IR (neat) υ = 2916, 1739, 1673, 1604 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.22 (s, 9H), 2.04 (s, 1H), 3.02 (s, 6H), 3.65 (s, 3H), 4.10 (br, 1H), 4.36 (s, 1H), 6.42 (dd, J = 2.8, 6.0 Hz, 1H), 6.74 (d, J = 2.8 Hz, 1H), 7.25–7.38 (m, 5H), 7.46 (br, 1H), 8.15 (d, J = 6.0 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.5, 39.2, 50.7, 52.3, 64.3, 65.5, 105.1, 105.7, 127.8, 128.2, 128.8, 129.8, 137.9, 155.1, 157.0, 170.0, 172.8; HRMS-FAB (m/z): [M+H]+ calcd. for C22H31N4O3 399.2396, found 399.2409.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-2-yl)methyl)-L-threonine methyl ester (2f): A pale yellow oil (61.7 mg, 77% yield, d.r. 50:50); For mixture of two diastereomers: IR (neat) υ = 3329, 2972, 1737, 1673, 1604 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.17 (d, J = 6.4 Hz, 3H), 1.30 (s, 9H), 1.98 (br, 1H), 3.01 (s, 6H), 3.14 (d, J = 6.4 Hz, 1H), 3.65 (s, 3H), 3.95 (quin, J = 6.4 Hz, 1H), 4.19 (s, 1H), 4.54 (br, 1H), 6.41 (dd, J = 2.4, 6.0 Hz, 1H), 6.68 (d, J = 2.4 Hz, 1H), 7.48 (br, 1H), 8.14 (d, J = 6.0 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 19.7, 22.7, 28.5, 39.2, 50.9, 52.0, 66.3, 68.0, 105.1, 105.8, 147.3, 155.2, 156.2, 169.8, 173.5; HRMS-FAB (m/z): [M+H]+ calcd. for C18H31N4O4 367.2345, found 367.2319.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-2-yl)methyl)-L-serine methyl ester (2g): A pale yellow oil (60.3 mg, 85% yield, d.r. 53:47); For mixture of two diastereomers: IR (neat) υ = 3329, 2969, 1739, 1671, 1604 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.30 (s, 9H), 2.99 (s, 6H), 3.43 (br, 1H), 3.47–3.50 (m, 1H), 3.66 (s, 3H), 3.75–3.78 (m, 1H), 3.82 (d, J = 4.2 Hz, 1H), 4.21 (s, 1H), 4.38 (br, 1H), 6.39 (dd, J = 2.8, 6.0 Hz, 1H), 6.70 (d, J = 2.8 Hz, 1H), 7.52 (br, 1H), 8.10 (d, J = 6.0 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.4, 39.1, 50.8, 52.1, 61.8, 62.3, 65.1, 104.9, 105.6, 147.7, 155.2, 156.8, 170.3, 172.8; HRMS-FAB (m/z): [M+H]+ calcd. for C17H29N4O4 353.2189, found 353.2200.

Procedure for the Synthesis of 2h

To the mixture of L-proline (33.9 mg, 0.29 mmol) and aldehyde 1 (39.8 mg, 0.27 mmol) in dry methanol (0.4 mL) in a screw-cap test tube, tert-butyl isocyanide (30.4 μL, 0.27 mmol) was added and the reaction mixture was stirred for 24 h at room temperature. The solvent was evaporated in vacuo. To a solution of the crude product in MeOH (4 mL) was added NaBH4 (31.6 mg, 0.84 mmol) at 0 °C owing to reduction of unreacted aldehyde 1. The reaction mixture was stirred at the same temperature for one hour before being quenched with saturated aq. NH4Cl (4 mL). The resulting solution was warmed to room temperature and extracted with Et2O (3 × 4 mL). The combined organic phase was washed with brine (15 mL), dried over MgSO4, filtered, and concentrated in vacuo to give (1SR) N-(1-(N-tert-butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-2-yl)methyl)-L-proline methyl ester (2h) as a pale yellow oil (18.0 mg, 19% yield, d.r. 51:49). For mixture of two diastereomers: IR (neat) υ = 2967, 1737, 1671, 1603 cm–1; 1H-NMR (CDCl3) δ 1.31 (s, 9H), 1.37 (s, 9H), 1.78–1.89 (m, 6H), 2.07–2.17 (m, 2H), 2.68–2.81 (m, 2H), 2.98 (s, 6H), 2.99 (s, 6H), 3.09–3.15 (m, 2H), 3.57 (s, 3H), 3.63 (s, 3H), 3.65–3.69 (m, 2H), 4.22 (s, 2H), 6.38 (dd, J = 2.8, 6.0 Hz, 1H), 6.39 (dd, J = 2.8, 6.0 Hz, 1H), 6.51 (d, J = 2.8 Hz, 1H), 6.54 (d, J = 2.8 Hz, 1H), 7.38 (br, 1H), 7.93 (br, 1H), 8.15 (d, J = 6.0 Hz, 1H), 8.17 (d, J = 6.0 Hz, 1H); 13C-NMR (CDCl3) δ 23.6, 23.7, 28.5, 28.6, 29.9, 30.4, 39.1, 39.1, 50.6, 50.7, 50.9, 51.4, 51.5, 52.7, 61.6, 62.9, 74.2, 74.8, 105.6, 105.7, 106.6, 107.1, 149.0, 149.1, 154.7, 154.8, 156.5, 157.1, 170.0, 170.2, 175.4, 175.9; HRMS-FAB (m/z): [M+H]+ calcd. for C19H31N4O3 363.2396, found 363.2391.

3.3. General Procedure for the Ugi Reaction of 4-(Dimethylamino)-3-pyridinecarboxaldehyde (3)

To the suspension of aldehyde 3 (75.1 mg, 0.50 mmol) and L-valine (64.4 mg, 0.55 mmol) in dry methanol (1.0 mL) in a screw-cap test tube, tert-butyl isocyanide (62.0 μL, 0.55 mmol) was added and the reaction mixture was stirred for 15 hours at 50 °C. The solvent was evaporated in vacuo and the resulting residue was purified by silica gel column chromatography on SiO2 (EtOAc/toluene = 4:1, v/v) to give (1R) N-(1-(N-tert-butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-valine methyl ester (4a) as a colorless solid (99.7 mg, 55% yield, d.r. 92:8, Table 5, entry 1). For the major diastereomer: m.p. 119 °C; IR (KBr) υ = 3200, 2963, 1737, 1673 cm1; 1H-NMR (CDCl3) δ 0.85 (d, J = 6.7 Hz, 3H), 0.90 (d, J = 6.7 Hz, 3H), 1.34 (s, 9H), 1.92 (sext, J = 6.7 Hz, 1H), 2.40 (br, 1H), 2.79 (br, 1H), 2.85 (s, 6H), 3.70 (s, 3H), 4.58 (s, 1H), 6.88 (d, J = 5.6 Hz, 1H), 7.26 (br, 1H), 8.36 (d, J = 5.6 Hz, 1H), 8.48 (s, 1H); 13C-NMR (CDCl3) δ 18.4, 19.1, 28.6, 31.3, 44.3, 50.8, 51.5, 58.8, 64.8, 113.6, 127.9, 149.8, 150.3, 159.4, 170.9, 174.6; HRMS-FAB (m/z): [M+H]+ calcd. for C19H33N4O3 365.2553, found 365.2554; [α]D25137 (c 0.715, MeOH).
(1R) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-leucine methyl ester (4b): A colorless solid (118.6 mg, 63% yield, d.r. 86:14); For the major diastereomer: m.p. 139–141 °C; IR (KBr) υ = 3372, 3210, 2952, 1734, 1666 cm–1; 1H-NMR (CDCl3) δ 0.72 (d, J = 6.6 Hz, 3H), 0.85 (d, J = 6.6 Hz, 3H), 1.35 (s, 9H), 1.42–1.45 (m, 2H), 1.61 (sext, J = 6.6 Hz, 1H), 2.13 (br, 1H, 2.84 (s, 6H), 3.03–3.07 (m, 1H), 3.68 (s, 3H), 4.58 (s, 1H), 6.87 (d, J = 5.5 Hz, 1H), 7.37 (br, 1H), 8.35 (d, J = 5.5 Hz, 1H), 8.42 (s, 1H); 13C-NMR (CDCl3) δ 21.7, 22.9, 24.7, 28.6, 42.3, 44.3, 50.9, 51.8, 57.8, 59.0, 113.6, 128.3, 149.9, 150.1, 159.4, 171.0, 175.3; HRMS-FAB (m/z): [M+H]+ calcd. for C20H35N4O3 379.2709, found 379.2702; [α]D25 –148 (c 0.205, MeOH).
(1R) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-t-leucine methyl ester (4c): A colorless solid (39.6 mg, 52% yield, d.r. 89:11); For the major diastereomer: m.p. 165–166 °C; IR (KBr) υ = 3353, 3214, 2965, 1737, 1677 cm–1; 1H-NMR (CDCl3) δ 0.91 (s, 9H), 1.32 (s, 9H), 2.57–2.66 (m, 2H), 2.84 (s, 6H), 3.68 (s, 3H), 4.49 (s, 1H), 6.89 (d, J = 5.5 Hz, 1H), 7.07 (br, 1H), 8.37 (d, J = 5.5 Hz, 1H), 8.50 (s, 1H); 13C-NMR (CDCl3) δ 26.7, 28.7, 34.0, 44.3, 50.8, 51.2, 58.8, 67.7, 113.7, 127.5, 149.9, 150.5, 159.6, 170.8, 174.5; HRMS-FAB (m/z): [M+H]+ calcd. for C20H35N4O3 379.2709, found 379.2733; [α]D25 –146 (c 0.270, MeOH).
(1R) N-(1-(N-tert-butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-isoleucine methyl ester (4d): A colorless solid (104.3 mg, 55% yield, d.r. 93:7); For the major diastereomer: m.p. 97–100 °C; IR (KBr) υ = 3333, 3204, 2967, 1739, 1676 cm–1; 1H-NMR (CDCl3) δ 0.79 (d, J = 7.7 Hz, 3H), 0.80 (t, J = 7.7 Hz, 3H), 1.06–1.17 (m, 1H), 1.32 (s, 9H), 1.43–1.49 (m, 1H), 1.63–1.69 (m, 1H), 2.37 (br, 1H), 2.83 (s, 6H), 2.86 (d, J = 6.0 Hz, 1H), 3.68 (s, 3H), 4.55 (s, 1H), 6.87 (d, J = 5.6 Hz, 1H), 7.25 (br, 1H), 8.34 (d, J = 5.6 Hz, 1H), 8.45 (s, 1H); 13C-NMR (CDCl3) δ 11.2, 15.5, 25.2, 28.6, 37.9, 44.3, 50.8, 51.5, 58.9, 63.8, 113.7, 128.0, 149.8, 150.3, 159.4, 170.9, 174.6; HRMS-FAB (m/z): [M+H]+ calcd. for C20H35N4O3 379.2709, found 379.2713; [α]D25 –115 (c 0.325, MeOH).
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-phenylalanine methyl ester (4e): A colorless solid (123.3 mg, 60% yield, d.r. 88:12); For mixture of two diastereomers: m.p. 128–129 °C; IR (KBr) υ = 3319, 3202, 2962, 1739, 1673 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.31 (s, 9H), 2.27 (br, 1H), 2.74 (s, 6H), 2.83 (dd, J = 7.9, 13.7 Hz, 1H), 2.97 (dd, J = 5.9, 13.7 Hz, 1H), 3.32–3.36 (m, 1H), 3.64 (s, 3H), 4.58 (s, 1H), 6.81 (d, J = 5.6 Hz, 1H), 7.02–7.04 (m, 2H), 7.18–7.26 (m, 3H), 7.41 (br, 1H), 8.20 (s, 1H), 8.31 (d, J = 5.6 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.6, 38.9, 44.3, 50.7, 51.8, 58.8, 60.7, 113.6, 126.8, 127.9, 128.5, 128.9, 136.6, 149.8, 150.0, 159.2, 170.8, 173.9; HRMS-FAB (m/z): [M+H]+ calcd. for C23H33N4O3 413.2553, found 413.2532.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-phenylglycine methyl ester (4f): A colorless solid (90.0 mg, 45% yield, d.r. 59:41); For mixture of two diastereomers: m.p. 146–149 °C; IR (KBr) υ = 3195, 2995, 1738, 1666 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.39 (s, 9H), 1.75 (br, 1H), 2.62 (s, 6H), 3.69 (s, 3H), 4.29 (br, 1H), 4.43 (s, 1H), 6.79 (d, J = 5.6 Hz, 1H), 7.30–7.40 (m, 5H), 7.43 (br, 1H), 8.31 (d, J = 5.6 Hz, 1H), 8.40 (s, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.7, 43.9, 51.0, 52.4, 57.9, 64.0, 113.6, 127.8, 128.5, 128.7, 128.9, 137.2, 149.7, 149.8, 158.9, 170.6, 172.4; HRMS-FAB (m/z): [M+H]+ calcd. for C22H31N4O3 399.2396, found 399.2382.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-serine methyl ester (4g): A yellowish solid (76.2 mg, 43% yield, d.r. 77:23); For mixture of two diastereomers: m.p. 121 °C; IR (KBr) υ = 3451, 3202, 2959, 1722, 1666 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.35 (s, 9H), 2.86 (br, 1H), 2.86 (s, 6H), 3.29 (dd, J = 4.4, 5.3 Hz, 1H), 3.70–3.72 (m, 1H), 3.74 (s, 3H), 3.79–3.85 (m, 1H), 4.71 (s, 1H), 6.92 (d, J = 5.6 Hz, 1H), 7.28 (br, 1H), 8.36 (d, J = 5.6 Hz, 1H), 8.43 (s, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.6, 44.5, 51.1, 52.2, 58.5, 61.0, 62.5, 114.0, 128.5, 149.7, 149.8, 159.3, 170.7, 172.7; HRMS-FAB (m/z): [M+H]+ calcd. for C17H29N4O4 353.2189, found 353.2175.
(1R) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-methionine methyl ester (4h): A colorless solid (115.0 mg, 58% yield, d.r. 83:17). For the major diastereomer: m.p. 98–100 °C; IR (KBr) υ = 3203, 2971, 1735, 1671 cm–1; 1H-NMR (CDCl3) δ 1.26 (s, 9H), 1.70–1.79 (m, 1H), 1.83–1.91 (m, 1H), 1.95 (s, 3H), 2.34–2.49 (m, 2H), 2.35 (br, 1H), 2.77 (s, 6H), 3.14 (br, 1H), 3.63 (s, 3H), 4.57 (s, 1H), 6.82 (d, J = 5.5 Hz, 1H), 7.18 (br, 1H), 8.28 (d, J = 5.5 Hz, 1H), 8.39 (s, 1H); 13C-NMR (CDCl3) δ 15.2, 28.5, 30.3, 32.2, 44.2, 50.7, 51.8, 58.0, 58.4, 113.6, 128.0, 149.8, 150.0, 159.1, 170.6, 174.2; HRMS-FAB (m/z): [M+H]+ calcd. for C19H33N4O3S 397.2273, found 397.2245; [α]D25 −156 (c 0.420, MeOH).
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl) O-t-butyl L-threonine methyl ester (4i): A colorless solid (132.6 mg, 63% yield, d.r. 82:18); For mixture of two diastereomers: m.p. 136 °C; IR (KBr) υ = 3387, 3249, 2977, 1732, 1675 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.05 (s, 9H), 1.08 (d, J = 6.2 Hz, 3H), 1.35 (s, 9H), 2.20 (br, 1H), 2.54 (br, 1H), 2.84 (s, 6H), 3.68 (s, 3H), 3.86 (td, J = 6.2, 10.7 Hz, 1H), 4.65 (s, 1H), 6.84 (d, J = 5.6 Hz, 1H), 7.55 (br, 1H), 8.31 (d, J = 5.6 Hz, 1H), 8.40 (s, 1H); 13C-NMR (CDCl3, major diastereomer) δ 20.5, 28.3, 28.6, 44.4, 50.8, 51.7, 59.1, 65.5, 68.2, 74.0, 113.5, 128.2, 149.7, 149.9, 159.5, 171.3, 173.5; HRMS-FAB (m/z): [M+H]+ calcd. for C22H39N4O4 423.2971, found 423.2973.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl) L-glutamic acid dimethyl ester (4j): A colorless solid (94.9 mg, 47% yield, d.r. 83:17); For the major diastereomer: m.p. 89–90 °C; IR (KBr) υ = 3202, 2970, 1740, 1672 cm–1; 1H-NMR (CDCl3) δ 1.34 (s, 9H), 1.82–2.02 (m, 2H), 2.30 (br, 1H), 2.35 (t, J = 7.6 Hz, 2H), 2.84 (s, 6H), 3.04 (dd, J = 5.8, 7.6 Hz, 1H), 3.63 (s, 3H), 3.70 (s, 3H), 4.64 (s, 1H), 6.88 (d, J = 5.6 Hz, 1H), 7.11 (br, 1H), 8.36 (d, J = 5.6 Hz, 1H), 8.43 (s, 1H); 13C-NMR (CDCl3) δ 27.9, 28.7, 30.2, 44.4, 51.0, 51.7, 52.0, 58.2, 58.3, 113.7, 127.9, 149.9, 150.0, 159.5, 170.7, 173.2, 174.2; HRMS-FAB (m/z): [M+H]+ calcd. for C20H33N4O5 409.2451, found 409.2426; [α]D25 −156 (c 0.120, MeOH).
(1SR) -Benzyl N-(1-(N-tert-butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-aspartic acid methyl ester (4k): A colorless solid (122.5 mg, 52% yield, d.r. 79:21); For mixture of two diastereomers: m.p. 105 °C; IR (KBr) υ = 3334, 3202, 2971, 1739, 1668 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.34 (s, 9H), 1.98 (br, 1H), 2.75 (dd, J = 3.0, 6.1 Hz, 2H), 2.81 (s, 6H), 3.52 (br, 1H), 3.66 (s, 3H), 4.67 (s, 1H), 5.06 (dd, J =12.2, 18.4 Hz, 2H), 6.87 (d, J = 5.5 Hz, 1H), 7.27–7.36 (m, 5H), 7.40 (br, 1H), 8.36 (d, J = 5.5 Hz, 1H), 8.41 (s, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.6, 36.9, 44.4, 50.9, 52.2, 56.0, 58.4, 66.6, 113.9, 128.3, 128.3, 128.4, 128.5, 135.4, 150.0, 150.0, 159.2, 170.4, 170.7, 172.8; HRMS-FAB (m/z): [M+H]+ calcd. for C25H35N4O5 471.2607, found 471.2593.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl) O-benzyl L-serine methyl ester (4l): A colorless solid (120.2 mg, 54% yield, d.r. 75:25); For mixture of two diastereomers: m.p. 145 °C; IR (KBr) υ = 3203, 2969, 1743, 1667 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.36 (s, 9H), 1.74 (br, 1H), 2.80 (s, 6H), 3.33 (br, 1H), 3.52–3.65 (m, 2H), 3.71 (s, 3H), 4.41 (dd, J = 12.2, 14.3 Hz, 2H), 4.69 (s, 1H), 6.86 (d, J = 5.6 Hz, 1H), 7.17–7.19 (m, 2H), 7.24–7.37 (m, 3H), 7.57 (br, 1H), 8.35 (d, J = 5.6 Hz, 1H), 8.41 (s, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.7, 44.4, 50.9, 52.1, 59.0, 59.6, 70.1, 73.1, 113.8, 127.6, 127.8, 128.4, 128.5, 137.5, 149.8, 150.0, 159.4, 171.0, 172.4; HRMS-FAB (m/z): [M+H]+ calcd. for C24H35N4O4 443.2658, found 443.2681.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-histidine methyl ester (4m): A colorless solid (88.1 mg, 44% yield, d.r. 77:23); For mixture of two diastereomers: m.p. 110–113 °C; IR (KBr) υ = 3320, 3206, 2960, 1741, 1676 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.33 (s, 9H), 2.55 (br, 1H), 2.81 (s, 6H), 2.86–3.06 (m, 2H), 3.42 (dd, J = 5.1, 7.6 Hz, 1H), 3.70 (s, 3H), 4.65 (s, 1H), 6.67 (s, 1H), 6.86 (d, J = 5.6 Hz, 1H), 7.44 (s, 1H), 7.46 (br, 1H), 8.23 (s, 1H), 8.29 (d, J = 5.6 Hz, 1H); 13C-NMR (CDCl3, major diastereomer) δ 28.6, 28.6 30.1, 44.3, 44.4, 50.9, 52.1, 58.7, 59.7, 113.7, 128.5, 135.1, 149.5, 149.6, 159.4, 171.0, 174.0; HRMS-FAB (m/z): [M+H]+ calcd. for C20H31N6O3 403.2458, found 403.2460.
(1SR) N-Benzyl-(1-(N-tert-butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-valine methyl ester (4n): A colorless syrup (15.9 mg, 18% yield, d.r. 92:8); For mixture of two diastereomers: IR (KBr) υ = 3362, 2966, 1732, 1673 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 0.65 (d, J = 6.6 Hz, 3H), 0.75 (d, J = 6.6 Hz, 3H), 1.37 (s, 9H), 1.89–2.05 (m, J = 6.6 Hz, 1H), 2.74 (s, 6H), 2.84 (s, 1H), 3.70 (d, J = 14.4 Hz, 1H), 3.79 (s, 3H), 4.30 (d, J = 14.4 Hz, 1H), 5.18 (s, 1H), 6.85 (d, J = 5.6 Hz, 1H), 6.90 (br, 1H), 7.19–7.28 (m, 5H), 8.28 (d, J = 5.6 Hz, 1H), 8.47 (s, 1H); 13C-NMR (CDCl3, major diastereomer) δ 19.7, 20.4, 28.7, 44.2, 51.1, 51.3, 53.4, 60.8, 68.7, 113.3, 127.1, 128.2, 128.6, 139.4, 149.1, 149.8, 150.3, 152.1, 159.4, 170.3, 174.8; HRMS-FAB (m/z): [M+H]+ calcd. for C26H39N4O3 455.3022, found 455.3043.
(1SR) N-(1-(N-tert-Butylcarbamoyl)-1-(4-(dimethylamino)pyridyn-3-yl)methyl)-L-proline methyl ester (4o): A yellowish solid (93.5 mg, 51% yield, d.r. 74:26); For mixture of two diastereomers: m.p. 105–109 °C; IR (KBr) υ = 3276, 2967, 1734, 1663 cm–1; 1H-NMR (CDCl3, major diastereomer) δ 1.38 (s, 9H), 1.69–1.87 (m, 3H), 1.99–2.09 (m, 1H), 2.27–2.33 (m, 1H), 2.76–2.81 (m, 1H), 2.87 (s, 6H), 3.46 (dd, J = 3.6, 9.5 Hz, 1H), 3.69 (s, 3H), 4.89 (s, 1H), 6.86 (d, J = 5.6 Hz, 1H), 7.50 (br, 1H), 8.32 (d, J = 5.6 Hz, 1H), 8.41 (s,1H); 13C-NMR (CDCl3, major diastereomer) δ 23.7, 28.7, 29.6, 44.6, 50.0, 50.9, 51.7, 63.1, 63.9, 113.6, 125.4, 149.4, 151.3, 160.4, 170.7, 175.1; HRMS-FAB (m/z): [M+H]+ calcd. for C19H31N4O3 363.2396, found 363.2399.

3.4. Kinetic Resolution of a Racemic Alcohol by Chiral DMAP Derivative

To a solution of major diastereomer of 4a (3.6 mg, 0.01 mmol), 1-phenylethanol (5, 25.4 μL, 0.21 mmol) and triethylamine (21.0 μL, 0.15 mmol) in toluene (0.4 mL) at –60 °C, was added acetic anhydride (14.0 μL, 0.15 mmol) and the reaction mixture was stirred at the same temperature for 15 h. The reaction was quenched with methanol and concentrated in vacuo. The resulting residue was filtered through a short plug of silica gel (hexane/Et2O = 3:1, v/v), affording a 28% ee of (S) acetate and a 23% ee of unreacted (R) alcohol at 43% conversion determined by 1H-NMR analysis. The ee values indicate s = 2.33 at 43% conversion. HPLC (DAICEL CHIRALCEL OD-H, 0.46 cm × 25 cm, hexane/isopropanol = 19:1; 0.3 mL/min; 30 °C): Rt 14.5 min (minor ester), 15.3 min (major ester), 27.9 min (major alcohol), and 31.8 min (minor alcohol).

3.5 X-ray Structure Report for (S,R)-4a

CCDC 833504 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html.

3.5.1. Data Collection

A colorless prism crystal of C19H32N4O3 having approximate dimensions of 0.600 × 0.080 × 0.060 mm was mounted on a glass fiber. All measurements were made on a Rigaku Saturn724 diffractometer using multi-layer mirror monochromated Mo-Ka radiation. The data were collected at a temperature of −179 ± 1 °C to a maximum 2q value of 55.0°. A total of 1440 oscillation images were collected. A sweep of data was done using w oscillations from −110.0 to 70.0° in 0.5° steps. The exposure rate was 20.0 [s/°]. The detector swing angle was −19.76°. A second sweep was performed using w oscillations from −110.0 to 70.0° in 0.5° steps. The exposure rate was 20.0 [s/°]. The detector swing angle was −19.76°. Another sweep was performed using w oscillations from −110.0 to 70.0° in 0.5° steps. The exposure rate was 20.0 [s/°]. The detector swing angle was −19.76°. Another sweep was performed using w oscillations from −110.0 to 70.0° in 0.5° steps. The exposure rate was 20.0 [s/°]. The detector swing angle was −19.76°. The crystal-to-detector distance was 44.98 mm. Readout was performed in the 0.141 mm pixel mode (Table 6).
Table 6. Crystal data and structure refinement for ydkr.
Table 6. Crystal data and structure refinement for ydkr.
Empirical formula C19 H32 N4 O3
Formula weight 364.49
Crystal Color, Habitcolorless, needle
Temperature 93(2) K
Wavelength 0.71075 Å
Crystal system orthorhombic
Space group P21212 (#18)
Unit cell dimensionsa = 17.791(6) Åa = 90°
b = 17.955(6) Åb = 90°
c = 6.363(2) Åg = 90°
Volume2032.6(11) Å3
Z4
Density (calculated)1.191 Mg/m3
Absorption coefficient0.082 mm−1
F(000)792
Crystal size0.60 × 0.08 × 0.06 mm3
Theta range for data collection3.22 to 27.49°.
Index ranges−23 ≤ h ≤ 23, −23 ≤ k ≤ 23, −8 ≤ l ≤ 8
Reflections collected31451
Independent reflections4665 [R(int) = 0.0603]
Completeness to theta = 27.49°99.60%
Refinement methodFull-matrix least-squares on F2
Data / restraints / parameters4665 / 816 / 487
Goodness-of-fit on F20.966
Final R indices [I > 2sigma(I)]R1 = 0.0471, wR2 = 0.1109
R indices (all data)R1 = 0.0619, wR2 = 0.1202
Absolute structure parameter0.1(12)
Extinction coefficient0.024(3)
Largest diff. peak and hole0.228 and −0.238 e.Å−3

3.5.2. Data Reduction

Of the 31,451 reflections that were collected, 4,665 were unique (Rint= 0.0603); equivalent reflections were merged. Data were collected and processed using CrystalClear (Rigaku) [36].

3.5.3. Structure Solution and Refinement

The structure was solved by direct methods [37] and expanded using Fourier techniques. The non-hydrogen atoms were refined anisotropically. Hydrogen atoms were refined using the riding model. The final cycle of full-matrix least-squares refinement [38] on F [39] was based on 4665 observed reflections and 236 variable parameters and converged (largest parameter shift was 0.00 times its esd) with unweighted and weighted agreement factors of:
R1 = S ||Fo| − |Fc|| / S |Fo| = 0.0471
wR2 = [S(w (Fo2 – Fc2)2)/ S w(Fo2)2]1/2 = 0.1109
The standard deviation of an observation of unit weight [40] was 1.50. Unit weights were used. The maximum and minimum peaks on the final difference Fourier map corresponded to 1.48 and −0.80 e/Å3, respectively. The absolute structure was deduced based on Flack parameter, −2(4), using 1983 Friedel pairs [41].
Neutral atom scattering factors were taken from Cromer and Waber [42]. Anomalous dispersion effects were included in Fcalc [43]; the values for Df' and Df" were those of Creagh and McAuley [44]. The values for the mass attenuation coefficients are those of Creagh and Hubbell [45]. All calculations were performed using the Yadokari-XG 2009 [46] crystallographic software package except for refinement, which was performed using SHELXL-97 [47].

4. Conclusions

We have studied the diastereoselective Ugi reactions of DMAP-based aldehydes with α-amino acids and tert-butyl isocyanide. The reactions of 4-(dimethylamino)-2-pyridinecarboxaldehyde (1) with various α-amino acids as a chiral source proceeded to afford the desired Ugi products 2ah in moderate to high yield (19%–98%) with low diastereoselectivity ratio (50:50–63:37; d.r.), even though various α-amino acids structures were investigated. On the other hand, the reactions of 4-(dimethylamino)-3-pyridinecarboxaldehyde (3) with various α-amino acids delivered the desired Ugi products 4ao in moderate yield (18%–63%) with high diastereoselectivity (up to 93:7 d.r.). The fact that the combination of α-amino acid and 3-formyl DMAP is critical to achieve high diastereoselectivity is noteworthy. We also demonstrated that the kinetic resolution of racemic alcohol 5 using a major diastereomer of the Ugi product 4a as a catalyst afforded enantioenriched acetylated product 6 and unreacted alcohol 5 with a selectivity factor of 2.33. The result indicated that the Ugi products are potential chiral nucleophilic catalysts. Further optimization of the catalyst structure and the application of these catalysts to other important asymmetric transformations are currently in progress.

Acknowledgements

Financial support was provided by Grant-in-Aid for Young Scientists (Start-up, No. 21850020) from Japan Society for the Promotion of Science (JSPS), Okayama Foundation for Science and Technology, Wesco Scientific Promotion, and Okayama University. We are grateful to the SC-NMR Laboratory of Okayama University for the measurement of NMR spectra.

References and Notes

  1. Zhu, J.; Bienaymé, H. Muticomponent Reactions; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2005. [Google Scholar]
  2. Dömling, A. Recent developments in isocyanide based multicomponent reactions in applied chemistry. Chem. Rev. 2006, 106, 17–89. [Google Scholar] [CrossRef]
  3. El Kaim, L.; Grimaud, L. Beyond the Ugi reaction: Less conventional interactions between isocyanides and iminium species. Tetrahedron 2009, 65, 2153–2171. [Google Scholar] [CrossRef]
  4. Ramón, D.J.; Yus, M. Asymmetric multicomponent reactions (AMCRs): The new frontier. Angew. Chem. Int. Ed. 2005, 44, 1602–1634. [Google Scholar] [CrossRef]
  5. Kelly, C.L.; Lawrie, K.W.M.; Morgan, P.; Willis, C.L. Ugi four component condensations using aldehydes with an asymmetric centre at C-2. Tetrahedron Lett. 2000, 41, 8001–8005. [Google Scholar]
  6. Ahmadian, H.; Nielsen, B.; Bräuner-Osborne, H.; Johansen, T.N.; Stensbøl, T.B.; Sløk, F.A.; Sekiyama, N.; Nakanishi, S.; Krogsgaard-Larsen, P.; Madsen, U. (S)-Homo-AMPA, a specific agonist at the mGlu6 subtype of metabotropic glutamic acid receptors. J. Med. Chem. 1997, 40, 3700–3705. [Google Scholar]
  7. Madsen, U.; Frydenvang, K.; Ebert, B.; Johansen, T.N.; Brehm, L.; Krogsgaard-Larsen, P. N-Methyl-D-aspartic acid receptor agonists: Resolution, absolute stereochemistry, and pharmacology of the enantiomers of 2-amino-2-(3-hydroxy-5-methyl-4-isoxazolyl)acetic acid. J. Med. Chem. 1996, 39, 183–190. [Google Scholar] [CrossRef]
  8. Hebach, C.; Kazmaier, U. Via Ugi reactions to conformationally fixed cyclic peptides. Chem. Commun. 2003, 596–597. [Google Scholar] [CrossRef]
  9. Marquarding, D.; Hoffmann, P.; Heitzer, H.; Ugi, I. Stereoselective syntheses. V. Isonitriles. XXIV. Stereoselective four-component condensations of a-ferrocenylethylamine and its absolute configuration. J. Am. Chem. Soc. 1970, 92, 1969–1971. [Google Scholar] [CrossRef]
  10. Urban, R.; Ugi, I. Asymmetrically induced four component condensation with extremely high stereoselectivity and multiplication of stereoselectivity. Angew. Chem. Int. Ed. Engl. 1975, 14, 61–62. [Google Scholar] [CrossRef]
  11. Herrmann, R.; Hübener, G.; Siglmüller, F.; Ugi, I. Chirale a-ferrocenylalkylamine. Liebigs Ann. Chem. 1986, 251–268. [Google Scholar]
  12. Siglmüller, F.; Herrmann, R.; Ugi, I. Chiral ferrocenylalkylamines from (−)-menthone. Tetrahedron 1986, 42, 5931–5940. [Google Scholar] [CrossRef]
  13. Kunz, H.; Pfrengle, W. Asymmetric synthesis on carbohydrate templates: Stereoselective Ugi-synthesis of a-amino acid derivatives. J. Am. Chem. Soc. 1988, 110, 651–652. [Google Scholar] [CrossRef]
  14. Kunz, H.; Pfrengle, W. Carbohydrates as chiral templates: Asymmetric Ugi-synthesis of alpha-amino acids using galactosylamines as the chiral matrices. Tetrahedron 1988, 44, 5487–5494. [Google Scholar] [CrossRef]
  15. Szardenings, A.K.; Burkoth, T.S.; Lu, H.H.; Tien, D.W.; Campbell, D.A. A simple procedure for the solid phase synthesis of diketopiperazine and diketomorpholine derivatives. Tetrahedron 1997, 53, 6573–6593. [Google Scholar] [CrossRef]
  16. Yamada, T.; Motoyama, N.; Taniguchi, T.; Kazuta, Y.; Miyazawa, T.; Kuwata, S.; Matsumoto, K.; Sugiura, M. Synthesis of peptides containing a,a'-iminodicarboxylic acids. Chem. Lett. 1987, 723–726. [Google Scholar]
  17. Faggi, C.; Marcaccini, S.; Pepino, R.; Cruz Pozo, M. Studies on isocyanides and related compounds; Synthesis of 1,4-benzodiazepine-2,5-diones via Ugi four-component condensation. Synthesis 2002, 2756–2760. [Google Scholar]
  18. Demharter, A.; Hörl, W.; Herdtweck, E.; Ugi, I. Synthesis of chiral 1,1'-iminodicarboxylic acid derivatives from a-amino acids, aldehydes, isocyanides, and alcohols by the diastereoselective five-center-four-component reaction. Angew. Chem. Int. Ed. Engl. 1996, 35, 173–175. [Google Scholar] [CrossRef]
  19. Dyker, G. Amino acid derivatives by multicomponent reactions. Angew. Chem. Int. Ed. Engl. 1997, 36, 1700–1702. [Google Scholar] [CrossRef]
  20. Dyker, G.; Breitenstein, K.; Henkel, G. Synthesis of novel chiral ligands from amino acids by the Ugi reaction. Tetrahedron: Asymmetry 2002, 13, 1929–1936. [Google Scholar] [CrossRef]
  21. Park, S.J.; Keum, G.; Kang, S.B.; Koh, H.Y.; Kim, Y.; Lee, D.H. A facile synthesis of N-carbamoylmethyl-a-aminobutyrolactones by the Ugi multicomponent condensation reaction. Tetrahedron Lett. 1998, 39, 7109–7112. [Google Scholar] [CrossRef]
  22. Godet, T.; Bonvin, Y.; Vincent, G.; Merle, D.; Thozet, A.; Ciufolini, M.A. Titanium catalysis in the Ugi reaction of a-amino acids with aromatic aldehydes. Org. Lett. 2004, 6, 3281–3284. [Google Scholar] [CrossRef]
  23. Basso, A.; Banfi, L.; Riva, R. A marriage of convenience: Combining the power of isocyanide-based multicomponent reactions with the versatility of (hetero)norbornene chemistry. Eur. J. Org. Chem. 2010, 1831–1841. [Google Scholar]
  24. Ziegler, T.; Kaisers, H.-J.; Schlömer, R.; Koch, C. Passerini and Ugi reactions of benzyl and acetyl protected isocyanoglucoses. Tetrahedron 1999, 55, 8397–8408. [Google Scholar] [CrossRef]
  25. Gulevich, A.V.; Zhdanko, A.G.; Orru, R.V.A.; Nenajdenko, V.G. Isocyanoacetate derivatives: synthesis, reactivity, and application. Chem. Rev. 2010, 110, 5235–5331. [Google Scholar] [CrossRef]
  26. Floyd, C.D.; Harnett, L.A.; Miller, A.; Patel, S.; Saroglou, L.; Whittaker, M. Rapid synthesis of matrix metalloproteinase inhibitors via Ugi four-component condensation. Synlett 1998, 637–639. [Google Scholar]
  27. Golebiowski, A.; Klopfenstein, S.R.; Shao, X.; Chen, J.J.; Colson, A.-O.; Grieb, A.L.; Russell, A.F. Solid-supported synthesis of a peptide b-turn mimetic. Org. Lett. 2000, 2, 2615–2617. [Google Scholar] [CrossRef]
  28. Nenajdenko, V.G.; Reznichenko, A.L.; Balenkova, E.S. Diastereoselective Ugi reaction without chiral amines: the synthesis of chiral pyrroloketopiperazines. Tetrahedron 2007, 63, 3031–3041. [Google Scholar] [CrossRef]
  29. France, S.; Guerin, D.J.; Miller, S.J.; Lectka, T. Nucleophilic chiral amines as catalysts in asymmetric synthesis. Chem. Rev. 2003, 103, 2985–3012. [Google Scholar] [CrossRef]
  30. Wurz, R.P. Chiral dialkylaminopyridine catalysts in asymmetric synthesis. Chem. Rev. 2007, 107, 5570–5595. [Google Scholar] [CrossRef]
  31. Vedejs, E.; Jure, M. Efficiency in nonenzymatic kinetic resolution. Angew. Chem. Int. Ed. 2005, 44, 3974–4001. [Google Scholar] [CrossRef]
  32. Chen, Y.; McDaid, P.; Deng, L. Asymmetric alcoholysis of cyclic anhydrides. Chem. Rev. 2003, 103, 2965–2984. [Google Scholar] [CrossRef]
  33. Alba, A.-N.R.; Rios, R. Oxazolones in organocatalysis, new tricks for an old reagent. Chem. Asian J. 2011, 6, 720–734. [Google Scholar] [CrossRef]
  34. Kagan, H.B.; Fiaud, J.C. Kinetic Resolution. In Topics in Stereochemistry; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 1988; pp. 249–330. [Google Scholar]
  35. Díez, D.; Gil, M.J.; Moro, R.F.; Garrido, N.M.; Marcos, I.S.; Basabe, P.; Sanz, F.; Broughton, H.B.; Urones, J.G. Chemistry of sulfones: Synthesis of a new chiral nucleophilic catalyst. Tetrahedron: Asymmetry 2005, 16, 2980–2985. [Google Scholar] [CrossRef]
  36. Pflugrath, J.W. CrystalClear: Rigaku Corporation, 1999. CrystalClear Software User's Guide, Molecular Structure Corporation, 2000. Acta Cryst. 1999, D55, 1718–1725. [Google Scholar]
  37. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; De Caro, L.; Giacovazzo, C.; Polidori, G.; Spagna, R. SIR2004: An improved tool for crystal structure determination and refinement. J. Appl. Cryst. 2005, 38, 381–388. [Google Scholar] [CrossRef]
  38. Least Squares function minimized: (SHELXL97) Sw(Fo2 − Fc2)2 where w = Least Squares weights.
  39. Larson, A.C. Crystallographic Computing; Ahmed, F.R., Ed.; Munksgaard: Copenhagen, Denmark, 1970; pp. 291–294, (equation 22, with V replaced by the cell volume). [Google Scholar]
  40. Standard deviation of an observation of unit weight: [Sw(Fo2 − Fc2)2/(No-Nv)]1/2. where: No = number of observations Nv = number of variables.
  41. Flack, H.D. On enantiomorph-polarity estimation. Acta Cryst. 1983, A39, 876–881. [Google Scholar]
  42. Cromer, D.T.; Waber, J.T. International Tables for X-ray Crystallography; The Kynoch Press: Birmingham, UK, 1974; Volume IV, Table 2.2 A. [Google Scholar]
  43. Ibers, J.A.; Hamilton, W.C. Dispersion corrections and crystal structure refinements. Acta Cryst. 1964, 17, 781–782. [Google Scholar] [CrossRef]
  44. Creagh, D.C.; McAuley, W.J. International Tables for Crystallography; Wilson, A.J.C., Ed.; Kluwer Academic Publishers: Boston, MA, USA, 1992; Volume C, pp. 219–222, Table 4.2.6.8. [Google Scholar]
  45. Creagh, D.C.; Hubbell, J.H. International Tables for Crystallography; Wilson, A.J.C., Ed.; Kluwer Academic Publishers: Boston, MA, USA, 1992; Volume C, pp. 200–206, Table 4.2.4.3. [Google Scholar]
  46. Kabuto, C.; Akine, S.; Nemoto, T.; Kwon, E. Release of software (Yadokari-XG 2009) for crystal structure analyses. J. Cryst. Soc. Jpn. 2009, 51, 218–224. [Google Scholar] [CrossRef]
  47. Sheldrick, G.M. A short history of SHELX. Acta Cryst. 2008, A64, 112–122. [Google Scholar]
  • Sample Availability: Samples of the compounds are available from the authors.

Share and Cite

MDPI and ACS Style

Mandai, H.; Irie, S.; Mitsudo, K.; Suga, S. Studies on the Synthesis of DMAP Derivatives by Diastereoselective Ugi Reactions. Molecules 2011, 16, 8815-8832. https://doi.org/10.3390/molecules16108815

AMA Style

Mandai H, Irie S, Mitsudo K, Suga S. Studies on the Synthesis of DMAP Derivatives by Diastereoselective Ugi Reactions. Molecules. 2011; 16(10):8815-8832. https://doi.org/10.3390/molecules16108815

Chicago/Turabian Style

Mandai, Hiroki, Shunsuke Irie, Koichi Mitsudo, and Seiji Suga. 2011. "Studies on the Synthesis of DMAP Derivatives by Diastereoselective Ugi Reactions" Molecules 16, no. 10: 8815-8832. https://doi.org/10.3390/molecules16108815

Article Metrics

Back to TopTop
