Tomato Derived Polysaccharides for Biotechnological Applications: Chemical and Biological Approaches

Istituto di Chimica Biomolecolare, Consiglio Nazionale delle Ricerche (C.N.R.), Via Campi Flegrei, 34 80078 Pozzuoli (Napoli), Italy
Author to whom correspondence should be addressed.
Molecules 2008, 13(6), 1384-1398;
Submission received: 30 May 2008 / Revised: 17 June 2008 / Accepted: 17 June 2008 / Published: 19 June 2008


Recent studies concerning the isolation and purification of exopolysaccharides from suspension-cultured tomato (Lycopersicon esculentum L. var. San Marzano) cells and the description of a simple, rapid and low environmental impact method with for obtaining polysaccharides from solid tomato-processing industry wastes are reported. Their chemical composition, rheological properties and partial primary structure were determined on the basis of spectroscopic analyses (UV, IR, GC-MS, 1H-, 13C-NMR). Moreover, the anticytotoxic activities of exopolysaccharides obtained from cultured tomato cells were tested in a brine shrimp bioassay and the preparation of biodegradable film by chemical processing of polysaccharides from solid tomato industry waste was also reported.

1. Introduction

Polysaccharides from natural sources have generated remarkable interest as biotechnological products due to their commercial uses in a wide range of industrial applications. Some of them, for example, showing strong antigenic and pathogenic activities, and are employed successfully by the pharmaceutical industry for the formulation of vaccines, while others are utilised as industrial food additives taking advantage of their useful physico-chemical (emulsifying, viscoelasticity, polyelectrolyte, adherence, bio-compatible, stabilizer, etc.) properties [1,2,3,4,5].
Polysaccharides, for their unusual multiplicity and structural complexity, contain many biological messages and accordingly they may perform several functions. Moreover, these biopolymers have the ability to interact with other polymers, such as proteins, lipids, as well as other polysaccharides [6,7,8].
Vegetables are the most important sources of polysaccharides (cellular walls or stock products). More recently, it has been seen that many microorganisms (bacteria and cyanobacteria) are also able to produce polysaccharides. The microbial polysaccharides are located in the cell wall (LPS), attached to the cells forming capsules (CPS) or secreted into the extracellular environment in the form of slime (exopolysaccharide, EPS) [9,10,11], but few data are available in literature regarding the polysaccharides from the cell cultures of Solanaceae [12]. We have previously reported the isolation and chemical characterization of the water-soluble bioactive polysaccharides from suspension-cultured cells of tomato (Lycopersicon esculentum L. var. San Marzano), and their anticytotoxic activities tested in a brine shrimp bioassay [13].
Furthermore we have reported our results concerning a rapid method conceived to recover high grade polysaccharides in high yields from solid tomato (Lycopersicon esculentum variety “Hybrid Rome”) processing industry wastes. The polysaccharides obtained from this natural and renewable source were characterised and used to prepare useful biodegradable film [14] and to obtain cheaper bacterial biomasses [15].
Waste management is a very important issue for the food industry, which is an important sector of the world economy. Besides the manipulation of fresh products, the new biotechnologies allow the recycling of wastes in order to obtain bio-products with high added value [16]. Tons of tomatoes are processed annually in the world by the food processing industry and the desiccation of the solid tomato waste produced represents an important approach to produce fertilizers; the goal of recovering biopolymers from such solid wastes (harmful to the environment and economically disadvantageous for the industry) represents an excellent alternative for their exploitation according to the new philosophies concerning sustainable industrial development [17].

2. Bioproducts from vegetal biomasses

Advances in genetics, biotechnology, process chemistry and engineering are leading to a new manufacturing concept for converting renewable biomass to valuable fuels and products, generally referred to as the 'biorefinery' [18].
Vegetables and their residual biomass enter the green biorefinery to be converted, by means of mechanical and biotechnological methods, into useful materials such as food and feed products and additives. Mediterranean plants are usually successfully extracted to give essential oils, resins and terpenes, by different methods, depending on the physico-chemical properties of the desired compounds, i.e. solubility, polarity, hydrophobicity, thermal stability and so on. These methods typically comprise water or organic solvent extraction (percolation, infusion, steam distillation, Soxhlet extraction), supercritical CO2 extraction, pressurized liquid extraction and microwave assisted extraction.
Potatoes and tomatoes, members of the Solanaceae plant family, serve as major, inexpensive low-fat food sources providing energy, high-quality protein, fiber, vitamins, pigments, as well as other nutrients. These crops also produce biologically active secondary metabolites, which may have both adverse and beneficial effects in the diet [19]. Nevertheless, other interesting bioproducts can be recovered from vegetable wastes, which are high value products employed in the agricultural, chemical and pharmaceutical fields. Current biotechnologies promote the use of solid wastes from vegetables to recover noble raw materials, thus avoiding sending them to the dump or to thermal destruction and thus allowing the recovery of high value added products, ecologically in line with the new philosophies concerning sustainable industrial development. Among the numerous biotechnological products recovered from vegetable wastes, the polysaccharides hold remarkable interest for their chemical-physical properties and for their wide range of biotechnological applications. Some of them, for example, are successfully employed by the pharmaceutical industry for the formulation of vaccines and for their anti-inflammatory and antioxidant activities. Moreover, the preparation of biodegradable and thermoplastic materials from these biopolymers using chemical processes is possible [14, 20]. Other interesting bioproducts potentially recoverable from vegetable wastes are antioxidant compounds (carotenoids, vitamins, polyphenols, etc), known for their ability to delay or to prevent the production of free radicals or to protect from their harmful effects [21]. In addition, vegetable wastes are useful as a substrate for bacterial growth, so cellular proteins could be recovered, indicating an alternative cheaper way to obtain microbial biomasses.

2. Exopolysaccharides from tomato cell culture

The cell culture of Lycopersicon esculentum L. var. San Marzano produced two main water soluble exopolysaccharides and the presence of extracellular polysaccharides was observed from the high viscosity of the culture media. The callus was induced from a sterile plant explant of L. esculentum cultured on MS basal medium, as reported by De Rosa et al. [22]. Suspension cultures were obtained from the 4th generation callus by transferring callus (ca. 3 g) into liquid medium 100 mL). Cultures were maintained at 24°C, 150 rpm, under continuous light. The polysaccharide fraction was collected from the culture medium of tomato suspension cells (1 L) after four weeks of growth. The cell suspension was filtered and the exopolysaccharide fraction (260 mg) was obtained by EtOH precipitation of cell free culture broth. The raw material, tested for sugar content (70%), protein content (10%) and nucleic acid content (1 %), was purified by gel chromatography (Sepharose CL-6B DEAE) with a yield of 89%; the resulting compounds comprised three different fractions EPS(1) 9%, EPS(2) 60% and EPS(3) 31%, all containing less than trace amounts of protein and nucleic acids. EPS(1), representing the neutral fraction, was eluted in H2O, while EPS(2) and EPS(3), representing the acidic fractions, were eluted at different salt concentrations (0.3 and 0.4 M NaCl, respectively).
The mixtures of sugars (native and carboxyl reduced) in each fraction were identified by High Pressure Anion Exchange-Pulsed Amperometric Detection (HPAE-PAD) of the hydrolysed polysaccharides and by GLC and GC-MS of the corresponding alditol acetates and methyl glycoside acetates. The sugar analysis of the native EPSs indicated that EPS(1) was composed of arabinose/galactose/glucose/mannose in a relative ratio of 0.7:1.0:0.4:0.9; EPS(2) was composed of arabinose/galactose in a relative ratio of 0.3:1.0, and EPS(3) was composed of arabinose/mannose in a relative ratio of 1.0:0.5, respectively. The sugar analyses results of the methyl glycoside acetates indicated that EPS(2) was constituted of L-arabinose/D-galactose/L-arabinuronic acid (0.5:1.0:0.2, respectively) and EPS(3) of L-arabinose/D-mannose/L-arabinuronic acid (0.5:0.3:1.0, respectively).

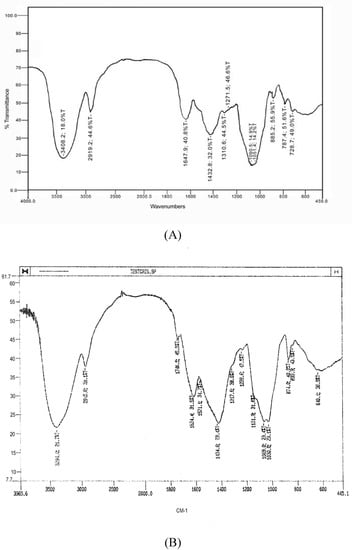

Figure 1. Infrared spectra of EPS(2) (A) and EPS(3) (B).
Figure 1. Infrared spectra of EPS(2) (A) and EPS(3) (B).
Molecules 13 01384 g001
* The Fourier Transform Infrared spectrum was recorded using a Perkin-Elmer Paragon 500 single-beam spectrophotometer. The powdered sample was ground with KBr, the resulting disk placed under the beam and the spectrum was collected after 16 scans under nitrogen.
Only EPS(2) and EPS(3) were further analysed because EPS(1) was less pure and was recovered in a low yield. EPS(2) and EPS(3) were analysed by chemical and spectroscopic analysis. The quantities of uronic acid [23] varied with different preparations, reaching 170 μg/mg [EPS(2)] and 240 μg/mg [EPS(3)], respectively The specific rotations ([α]25D, concentration of 5 mg/mL H2O) of EPS(2) and EPS(3) were –50.40 and –60.80, respectively. The absolute configurations of the carbohydrates, determined by GLC of their acetylated (+)-2-butyl glycosides using optically active (+)-2-butanol, as described by Leontein et al. [24], was shown to be D-Gal and L-Ara for EPS(2) and D-Man and L-Ara for EPS(3).
The molecular weights of the EPSs were estimated from a dextrans standard calibration curve obtained by gel filtration on Sepharose CL-6B and also by density gradient centrifugation. In both methods, the molecular weights were approximately 8.0 x 105 Da for EPS(2) and 9.0 x 105 Da for EPS(3).
The infrared (IR) spectra of EPSs were similar to those of bacterial polysaccharides [25]. A broad absorption band attributable to OH was observable at 3400 cm-1. The absence of sulfate groups in EPS(2) as well as in EPS(3) was confirmed by IR spectra and also by a negative colour reaction with sodium rhodizonate (Figure 1).
Analysis of the partially methylated alditol acetates, obtained from the permethylated EPSs after acid hydrolysis, showed the presence in both polysaccharides of hexose chains linked on C1-C2, C1-C3 and C1-C6 and side chains on C1-C2-C6 (Table 1)
Table 1. GC-MS of EPS(2) and EPS(3) from tomato cells of Lycopersicon esculentum var. San Marzano.
Table 1. GC-MS of EPS(2) and EPS(3) from tomato cells of Lycopersicon esculentum var. San Marzano.
tr(min)Sugar% areaLink position
9.82,3,4,6-tetra-OMe hexose17.43Terminal hexose bonds at C1
11.983,4,6-tri-OMe hexose27.96Internal hexose bonds at C1 and C2
12.442,4,6-tri-OMe hexose7.08Internal hexose bonds at C1 and C3
12.902,3,4-tri-OMe hexose17.37Internal hexose bonds at C1 and C6
15.43,4-di-OMe hexose27.96Branching hexose bonds at C1,C2 and C6
tr(min)Sugar% areaLink position
9.82,3,4,6-tetra-OMe hexose39.23Terminal hexose bonds at C1
12.03,4,6-tri-OMe hexose18.91Internal hexose bonds at C1 and C2
12.42,4,6-tri-OMe hexose7.36Internal hexose bonds at C1 and C3
12.902,3,4-tri-OMe hexose5.70Internal hexose bonds at C1 and C6
15.43,4-di-OMe hexose28.8Branching hexose bonds at C1,C2 and C6
Methylation of the polysaccharides was carried out according to Manca et al. [25]. The methylated material (0.5 mg) was hydrolysed with 2 M trifluoroacetic acid (TFA) at 120°C for 2 hr and then transformed in partially methylated alditol acetates by reduction with NaBH4, followed by acetylation with Ac2O-pyridine (1:1) at 120°C for 3 hr. Unambiguous identification of sugars was obtained by Gas-Chromatography Mass Spectroscopy (GC-MS) using sugar standards. GC-MS was performed on a Hewlett-Packard 5890-5970 instrument equipped with an HP-5-MS column and with an N2 flow of 50 mL min-1; the programme temperature was: 170°C (1 min), from 170° to 250°C at 3° C min-1; tr = retention time.
The 1H- and 13C-NMR spectra (δ chemical shifts are expressed in part per million, ppm, Figure 2) recorded in H2O at 70°C were quite complex. In the non anomeric proton region, several overlapping spin systems were evident. The 1H-NMR spectrum of EPS(2) showed, in the anomeric region, four major signals at δ 5.26 (1H, d, J = 3.0 Hz), 4.71 (1H, d, J = 1.5 Hz), 4.52 (1H, d, J = 8.0 Hz) and 4.49 (1H, d, J = 8.3 Hz) (Table 2). The 1H-NMR spectrum of EPS(3) showed five major anomeric signals at δ 5.47 (1H, d, J = 2.9 Hz), 5.44 (1H, d, J = 1.5 Hz), 5.39 (1H, d, J = 2.0 Hz), 5.32 (1H, d, J = 3.9 Hz) and 4.55 (1H, d, J = 7.8 Hz) (Table 2). The 13C-NMR spectrum of EPS(2) showed four signals at δ 111.9, 106.0, 106.3 and 106.4 in the anomeric region, confirming the presence of four residues in the repeating unit, and a small signal at δ 178.4 (COOH), due to the presence of uronic acid in minute quantities. The 13C-NMR spectrum of EPS(3) showed the presence of five signals at δ 111.5, 110.7, 105.1, 105.0 and 100.9, confirming the presence of five residues in the repeating unit, and an intense signal at δ 176.9 (COOH), indicative of the presence of uronic acid.

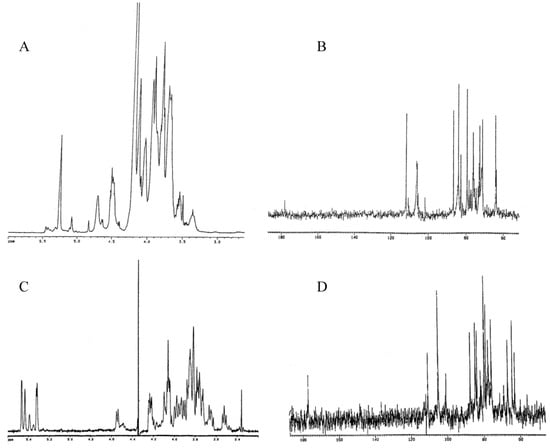

Figure 2. 1H-NMR spectra of EPS(2) and EPS(3), panels A and C, respectively. 13C-NMR spectra of EPS(2) and EPS(3), panels B and D, respectively.
Figure 2. 1H-NMR spectra of EPS(2) and EPS(3), panels A and C, respectively. 13C-NMR spectra of EPS(2) and EPS(3), panels B and D, respectively.
Molecules 13 01384 g002
NMR spectra were recorded at 70°C on a Bruker AMX spectrometer (at 500 and 125 MHz for 1H- and 13C-, respectively). Samples were exchanged twice with D2O with intermediate lyophilization and then dissolved in 500 μL of D2O to a final concentration of 40 mg/mL. Chemical shifts are reported in ppm relative to sodium 2,2,3,3-d4-(trimethylsilyl)propanoate for 1H- and CDCl3 for 13C-NMR spectra.
The 1H- and 13C-NMR chemical shifts and the C-H coupling constants of each anomeric carbon were assigned by HMQC experiments [26]. Sugar residues were labelled from A to D for EPS(2) and from A to E for EPS(3), in decreasing order of proton chemical shifts. The comparison of these values (Table 2) gave information about the anomeric configuration of some residues. In the 1H-NMR spectrum of EPS(2) the signal of the residue B at δ 4.71 was a β-manno (J = 1.5 Hz) while the signals at δ 4.52 and 4.49 of the residues C and D were typical of a β-gluco/galacto (J = 8.0-8.3 Hz) configuration. In the 1H-NMR spectrum of EPS(3) an α-manno configuration (J = 1.5 Hz) for residue B at δ 5.44, an α-gluco/galacto one at δ 5.32 for residue D (J = 3.9 Hz) and a β-gluco/galacto (J = 7.8 Hz) configuration at δ 4.55 for residue E were observed. The downfield 13C chemical shift observed for residues A of both EPS(2) and EPS(3) and residue C of EPS(3) may be indicative of a furanosidic form instead of a pyranosidic one. This was also confirmed by the presence of signals belonging to ring carbons in the region at δ 88-80 ppm, attributable to an arabino furanosidic residue present in both exopolysaccharides.
From these data, both polysaccharides showed a very complex primary structure. EPS(2) resulted to be a heteropolysaccharide with a tetrasaccharide repeating sugar unit whose residue configurations are α-manno, β-manno and β-gluco/galacto (1, 1 and 2, respectively); EPS(3) was a heteropolysaccharide with a pentasaccharide repeating sugar unit having α-manno, α-gluco/galacto and β-gluco/galacto residue configurations (3, 1, 1, respectively).
Table 2. Chemical shiftsa and coupling constantsb of anomeric signals in the 1H- and 13C-NMR spectra of EPSs from tomato cells of Lycopersicon esculentum var. San Marzano.
Table 2. Chemical shiftsa and coupling constantsb of anomeric signals in the 1H- and 13C-NMR spectra of EPSs from tomato cells of Lycopersicon esculentum var. San Marzano.
Residueaδ H-1/C-1bJH-1,H-2bJH-1,C-2aδ H-1/C-1bJH-1,H-2bJH-1,C-2
E 4.55/1057.8170.6
NMR spectra were recorded at 70°C on a Bruker AMX spectrometer (at 500 and 125 MHz for 1H and 13C, respectively). Samples were exchanged twice with D2O with intermediate lyophilization and then dissolved in 500 μL of D2O to a final concentration of 40 mg/mL. a Chemical shifts are reported in parts per million (ppm) relative to sodium 2,2,3,3-d4-(trimethylsilyl) propanoate for 1H- and CDCl3 for 13C-NMR spectra. Sugar components of EPS(2) are labelled from A to D, and those of EPS(3) are labelled from A to E, in both cases with decreasing chemical shifts. b Coupling constants are in Hz. n.d. = not detected.
We have also studied the effect of the exopolysaccharides produced by tomato suspension cultures on the inhibition of the cytotoxic effects produced by avarol. The ability of the exopolysaccharides obtained in this study to induce inhibition of avarol (10 μg/mL) toxicity was tested in the brine shrimp (Artemia salina) bioassay. Avarol is a sesquiterpene hydroquinone which showed strong toxicity (LC50 0.18 μg/mL or 0.57 nM) in brine shrimp bioassay, which gives results that correlate well with cytotoxicity in cancer cell lines such as KB, P388, L5178y and L1210 [27]. EPS(2) was a potent anticytotoxic compound in this bioassay; in fact, the inhibition of avarol toxicity of 50% (IC50) was observed at a concentration of 3 and 11 μg/mL for EPS(2) and EPS(3), respectively.

3. Polysaccharides from solid tomato processing industry wastes

The extraction of polysaccharides from solid tomato processing industry wastes, produced by mechanical tomato pressing for the production of pulp and puree, was performed as described by Strazzullo et al. [14]. Starting from 20 g of tomato raw material (peels and seeds, rotten and unripe tomatoes), 1.5 g of sample A was obtained and chemically characterized.
The HPAE-PAD analysis performed on sample A, after hydrolysis with 2N TFA, (120°C for 2 hr), showed the following neutral sugar composition: glucose/xylose/galactose/galactosamine/ glucosamine/fucose in a relative molar ratio of 1:0.9:0.5:0.4:0.2:tr; its carbohydrate content was 100 % and the uronic acid content was 20 %, with galacturonic acid being the major uronic acid detected in the sample. Moreover, the sample was protein free. The chromatographic elution profile of the polysaccharides on Sepharose CL-6B, using a calibration curve of standard dextrans, indicated a molecular weight of 1 x106 Da; Sample A has [α]25D values of – 0.18 at concentration of 1 mg mL-1 in H2O.
Table 3. 1H-NMR dataa for the anomeric region of the spectrum of tomato waste Sample A.
Table 3. 1H-NMR dataa for the anomeric region of the spectrum of tomato waste Sample A.
A5.30pseudo s0.5-1 Hzmanno
B5.27D3.8-4.0 Hzgluco-galacto
C5.26D3.8-4.0 Hzgluco-galacto
D5.18pseudo s0.5-1 Hzmanno
E5.09D3.8-4.0 Hzgluco-galacto
F5.07pseudo s0.5-1 Hzmanno
G5.06D3.8-4.0 Hzgluco-galacto
H4.94D3.8-4.0 Hzgluco-galacto
a Bruker AVANCE 400 MHz; sample was exchanged twice with D2O with intermediate lyophilization and then dissolved in 500 μL of D2O to a final concentration of 30 mg/mL, δ values (ppm) referred to sodium 2,2,3,3-d4-(trimethylsilyl) propanoate. b Labels refer to different monosaccharides, regarding type of glycosidic linkage position. c Coupling constant.
The 1H-NMR spectrum of sample A (Table 3) showed a complex profile. The anomeric region of the spectrum (from δ 4.5 to δ 5.5) exhibited eight peaks; five of them well resolved doublets (d) with the same coupling constant value of J1-2 (3.8-4.0 Hz), probably due to a gluco-galacto sugar configuration; three other anomeric peaks, almost singlets with a small J1-2 (0.5-1 Hz), indicated the occurrence of a manno configuration; the upfield region of the spectrum showed a doublet peak at δ 1.20 indicative of the presence of deoxy-sugars in the polysaccharide. The eight anomeric signals indicated the presence of eight different monosaccharides, with regards to type or glycosidic linkage position. These monosaccharides were labelled A to H with respect to increasing δ. On the base of the chemical shifts and coupling constant data residues A, D, F have an α-manno configuration; B, C, E, G, an α-gluco-galacto configuration and the H residue a β-gluco-galacto one.
The rheological properties were also characterized. The specific viscosity (η) of biopolymer A was measured for the aqueous solutions of polysaccharide at different concentration and pH values and resulted to be influenced by the size and number of macromolecules in solution. The specific viscosity was calculated by applying the following formula:
η = (t - t0 /t0)/C
where t is the time (s) employed from the polysaccharide solution to cover an established distance in the viscometer, t0 is the time (s) employed from the distilled water to cover an established distance in the viscometer, and C is the concentration (%) of the polysaccharide solution. As concentration increases coils start to overlap and become entangled, with viscosity showing a more marked dependence on concentration reaching η=1.7 at 4% of concentration (Figure 3). The viscosity does not change drastically respect to the increase of pH and its maximum value was obtained at pH 3.0 for a 1% polysaccharide solution in 50 mM citrate buffer (η=3.29).

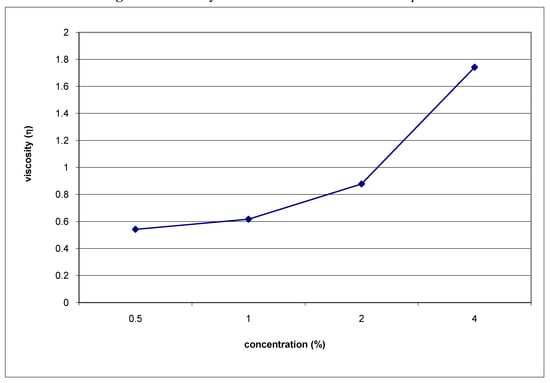

Figure 3. Viscosity/concentration correlation of Sample A.
Figure 3. Viscosity/concentration correlation of Sample A.
Molecules 13 01384 g003
The viscosity determination of aqueous solution of waste tomato polysaccharide at different concentration values were carried out using Cannon-Ubbelohde 75 suspended level viscometer at 25°C.
The degradation temperature of sample A (10 mg) was 250° C in 20 min, leaving a residue of about 5 mg (Figure 4A). Moreover, the infrared spectrum of this biopolymer showed the characteristic peak signals of polysaccharides: OH stretching at 3.400 cm-1, CH and C=O stretching at 2929 cm-1 and 1730-1660 cm-1 respectively. A SO group was absent, in fact no signals were detected at 1240 cm-1 (Figure 4B).

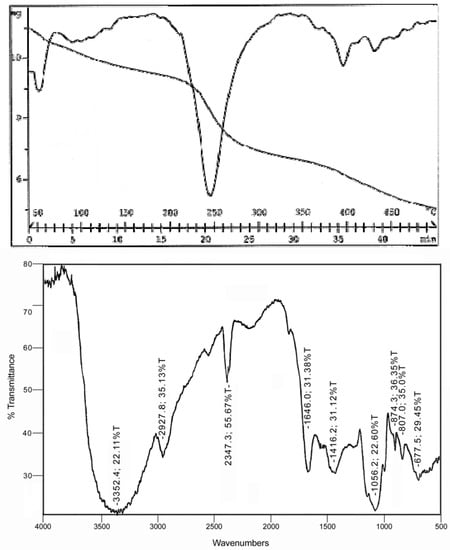

Figure 4. Thermogravimetric analysis (top) and Fourier Transform Infrared spectrum (bottom) of Sample A.
Figure 4. Thermogravimetric analysis (top) and Fourier Transform Infrared spectrum (bottom) of Sample A.
Molecules 13 01384 g004
Top: Thermogravimetric analysis of waste tomato sample A was performed using Mettler Toledo Star System equipped with a thermo analytical balance over a temperature range of 50° to 450°C with a temperature program of 10 min at 50°C followed by a 10°C/min ramp. Bottom: Fourier Transform Infrared spectrum of sample A recorded using a Perkin-Elmer Paragon 500 single-beam spectrophotometer. The powdered sample was ground with KBr, placed under the beam as a disk and the spectrum was collected after 16 scans under nitrogen.
Sample A was used for the preparation of biodegradable films by solubilizing 50 mg of polysaccharide in 5 mL of distilled water at room temperature and adding 5 mg of glycerol as plasticizer [28]. Films thus obtained were clear and elastic; solid and durable when recovered from small static deformations produced by the applied tensile stress.

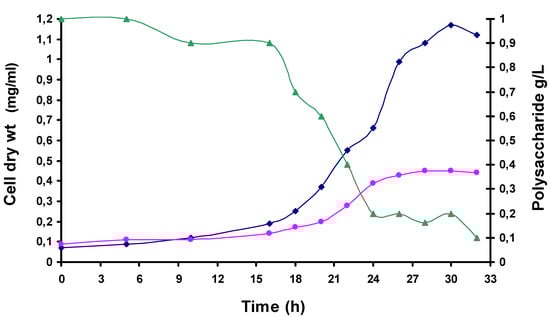

Figure 5. Biodegradability test of Sample A using thermohalophilic Thermus thermophilus strain.
Figure 5. Biodegradability test of Sample A using thermohalophilic Thermus thermophilus strain.
Molecules 13 01384 g005
Strain Samu-SA1 cell growth (expressed as dry cell weight for mL of culture broth, mg/mL) on polysaccharide medium (■-■-■) and on TH medium (●-●-●) at 75°C. The growth was followed by measuring absorbance at 540 nm and converted to the cell dry weight by an appropriate calibration. The depletion of polysaccharide reported as g/L followed using Dubois method (▲-▲-▲).
Finally, in order to verify the biodegradability of sample A, a growth test using a new thermohalophilic Thermus thermophilus strain (Samu-Sa1 strain) isolated from hot springs of the Mount Grillo (Baia, Naples, Italy) was performed [15]. This strain was grown on M162 medium [29] modified with 0.2% NaCl at pH 7.2 and using as sole carbon source 0.1% of tomato polysaccharide. After 30 h of batch incubation at 75°C (the optimal temperature of Samu-Sa1strain) the tomato polysaccharide was completely hydrolysed as resulted from phenol/sulphuric acid method tested on cell free cultural broth [30] (Figure 5). Moreover, the growth curves of strain on polysaccharide medium was 2.6 fold higher than that obtained in TH medium (standard medium) with a yield of 1.2 g of dry cells/L (Figure5).

4. Conclusions

Three exopolysaccharides EPS(1), EPS(2), EPS(3) were isolated from suspension-cultured Lycopersicon esculentum (var. San Marzano) cells. The partial primary structures, hypothesized on the basis of spectroscopic analyses, resulted in a peculiar complex primary structure for all exopolysaccharides. In particular EPS(2) was a heteropolysaccharide characterized by a tetrasaccharide repeating unit and EPS(3) was a heteropolysaccharide characterized by a pentasaccharide repeating unit. The anticytotoxic activities of exopolysaccharides, tested in a brine shrimp bioassay, showed a potential role in a host defense mechanisms and further studies are necessary to test other biological activities.
Food canning industries represent an important area of the Italian economy, in particular the industrial conversion of tomatoes into tomato purée, pulp and tomato minced from seed-firms. One of the main problems of food industry is the management of wastes and their conversion into higher added value products. Contemporary eco-compatible technologies promote the use of food waste to obtain biopolymers that can be re-used in the same sector as the raw materials.
We have established that the method herein described is a rapid procedure affording high yield cell-wall polysaccharide production (7.5 %), with very low environmental impact. The sugar analysis of the polymers revealed the presence of glucose and xylose as major components, and a low level of uronic acids, in contrast to that of the cell-wall pectic polysaccharides that contain arabinose in large amounts and higher contents of uronic acids. These unusual findings are due to the different minor polysaccharides extracted by the use of these new methods. The data we have presented are appropriate for obtaining of minor polysaccharides with interesting chemical-physical properties such as high viscosity, high thermal resistance and high molecular weight from tomato waste material in high yield and therefore, they can be used in a better way than commercially available sources. The structure of the sample A was very complex and presented eight monosaccharides as repeating unit, three of them with a probable α-manno configuration, four residues with an α-gluco-galacto configuration and one residue showing a β-gluco-galacto configuration.
The main point of interest was the formation of biodegradable films on addition of glycerol using these bio-polymers. The film formed from sample A was durable and elastic and could be used in different fields such as agriculture, i.e., for protected cultivation in mulching operation techniques. In fact, the plastic material usually used for mulching and solarization have optimum mechanical characteristics and low cost but they are not biodegradable, not reusable, and their residues are discarded as a special waste.
An additional biotechnological use of the tomato polysaccharide could be as a cheaper substrate to obtain microbial biomasses. Thermus thermophilus strain Samu-SA1 possesses many hydrolytic enzymes with potential biotechnological applications and was able to grow on very cheap medium. In fact 1.2 g/L of dry cells were obtained when waste polysaccharide, extracted from discarded industrial tomato processing, was used as sole carbon source with a biomass yield of 2.6 fold higher than that obtained with standard medium [31].


This work was financed by Regione Campania.


  1. Gross, K. C. Composition of ethanol-insoluble polysaccharides in water extracts of ripening tomatoes. Phytochemistry 1986, 25, 373–376. [Google Scholar] [CrossRef]
  2. Tong, C.B.S.; Gross, K.C. Stimulation of ethylene production by a cell wall component from mature green tomato fruit. Physiol. Plant 1990, 80, 500–506. [Google Scholar] [CrossRef]
  3. MacDougall, A.J.; Needs, P.W.; Rigby, N.M.; Ring, S.G. Calcium gelation of pectic polysaccharides isolated from unripe tomato fruit. Carbohydr. Res. 1996, 923, 235–249. [Google Scholar] [CrossRef]
  4. Maugeri, T.L.; Gugliandolo, C.; Caccamo, D.; Panico, A.; Lama, L.; Gambacorta, A.; Nicolaus, B. A halophilic thermotolerant Bacillus isolated from a marine hot spring able to produce a new exopolysaccharide. Biotechnol. Lett. 2002, 24, 515–519. [Google Scholar] [CrossRef]
  5. Arena, A.; Maugeri, T.L.; Pavone, B.; Iannello, D.; Gugliandolo, C.; Bisognano, G. Antiviral and immunoregulatory effect of a novel exopolysaccharide from a marine thermo tolerant Bacillus licheniformis. Int. Immunopharmacol. 2006, 6, 8–13. [Google Scholar] [CrossRef]
  6. Pazur, J.H. Neutral polysaccarides. In Carbohydrate Analysis. The Practical Approach Series; Chaplin, M.F., Kennedy, J.F., Eds.; Irl Press: Oxford, UK, 1994; pp. 73–124. [Google Scholar]
  7. Steele, N.M.; McCann, M.C.; Roberts, K. Pectin modification in cell walls of ripening tomatoes occurs in distinct domains. Plant Physiol. 1997, 114, 373–381. [Google Scholar]
  8. Koch, J.L.; Nevis, D.J. Tomato fruit cell wall. Plant Physiol. 1989, 91, 816–822. [Google Scholar] [CrossRef]
  9. Nicolaus, B.; Panico, A.; Lama, L.; Romano, I.; Manca, M.C.; De Giulio, A.; Gambacorta, A. Chemical composition and production of exopolysaccharide from representative members of heterocystous and non-heterocystous cyanobacteria. Phytochemistry 1999, 52, 639–647. [Google Scholar] [CrossRef]
  10. Nicolaus, B.; Lama, L.; Panico, A.; Schiano Moriello, V.; Romano, I.; Gambacorta, A. Production and characterization of exopolysaccharides excreted by thermophilic bacteria from shallow, marine hydrothermal vents of flegrean areas (Italy). Syst. Appl. Microbiol. 2002, 25, 319–325. [Google Scholar] [CrossRef]
  11. Poli, A.; Schiano Moriello, V.; Esposito, E.; Lama, L.; Gambacorta, A.; Nicolaus, B. Exopolysaccharide production by a new Halomonas strain CRSS isolated from saline lake Cape Russell in Antarctica growing on complex and defined media. Biotechnol. Lett. 2004, 26, 1635–1638. [Google Scholar] [CrossRef]
  12. Walker-Simmons, M.; Ryan, C.A. Proteinase Inhibitor I Accumulation in Tomato Suspension Cultures : Induction by Plant and Fungal Cell Wall Fragments and an Extracellular Polysaccharide Secreted into the Medium. Plant Physiol. 1986, 80, 68–71. [Google Scholar] [CrossRef] [Green Version]
  13. Poli, A.; Manca, M.C.; De Giulio, A.; Strazzullo, G.; De Rosa, S.; Nicolaus, B. Bioactive exopolysaccharides from the cultured cells of tomato Lycopersicon esculentum L. var. San Marzano. J. Nat. Prod. 2006, 69, 658–661. [Google Scholar] [CrossRef]
  14. Strazzullo, G.; Schiano Moriello, V.; Poli, A.; Immirzi, B.; Amazio, P.; Nicolaus, B. Solid wastes of tomato-processing industry (Lycopersicon esculentum “Hybride Rome”) as renewable sources of polysaccharides. J. Food Technol. 2003, 1, 102–105. [Google Scholar]
  15. Romano, I.; Lama, L.; Schiano Moriello, V.; Poli, A.; Gambacorta, A.; Nicolaus, B. Isolation of a new thermohalophilic Thermus thermophilus strain from hot spring, able to grow on a renewable source of polysaccharides. Biotechnol. Lett. 2004, 26, 45–49. [Google Scholar] [CrossRef]
  16. Rosales, E.; Rodriguez Couto, S.; Sanroman, A. New uses of food waste: application to laccase production by Trametes hirsuta. Biotechnol. Lett. 2002, 24, 701–704. [Google Scholar] [CrossRef]
  17. Leoni, C. “Scarti” in the tomato processing industry: a contribution to disentanglement among culls rejected tomatoes. Production rejected and processing waste. Indust. Conserve 1997, 73, 278–290. [Google Scholar]
  18. Ragauskas, A.J.; Williams, C.K.; Davison, B.H.; Britovsek, G.; Cairney, J.; Eckert, C.A.; Frederick, W.J.; Hallett, J.P.; Leak, D.J.; Liotta, C.L.; Mielenz, J.R.; Murphy, R.; Templer, R.; Tschaplinski, T. The Path Forward for Biofuels and Biomaterials. Science 2006, 311, 484–489. [Google Scholar] [CrossRef]
  19. Friedman, M. Analysis of biologically active compounds in potatoes (Solanum tuberosum), tomatoes (Lycopersicon esculentum), and jimson weed (Datura stramonium) seeds. J. Chromotogr. A 2004, 1054, 143–155. [Google Scholar] [CrossRef]
  20. Tommonaro, G.; Segura Rodriguez, C.S.; Santillana, M.; Immirzi, B.; De Prisco, R.; Nicolaus, B.; Poli, A. Chemical Composition, Biotechnological Properties of a Novel Polysaccharide from Peels and Antioxidative Content from Pulp of Passiflora liguralis Fruits. J. Agric. Food Chem. 2007, 55, 7427–7433. [Google Scholar] [CrossRef]
  21. Strazzullo, G.; De Giulio, A.; Tommonaro, G.; La Pastina, C.; Poli, A.; Nicolaus, B.; De Prisco, R. Anti-oxidative activity and lycopene and β-carotene contents in different cultivars of tomato (Lycopersicon esculentum). Int. J. Food Prop. 2007, 10, 321–329. [Google Scholar] [CrossRef]
  22. De Rosa, S.; De Giulio, A.; Tommonaro, G. Aliphatic and aromatic glycosides from the cell cultures of Lycopersicon esculentum. Phytochemistry 1996, 42, 1031–1034. [Google Scholar] [CrossRef]
  23. Jansson, P.E.; Lindberg, B.; Manca, M.C.; Nimmich, W.; Widmalm, G. Structural studies of the capsular polysaccharide from Klebsiella type 38: a reinvestigation. Carbohyd. Res. 1994, 261, 111–118. [Google Scholar] [CrossRef]
  24. Leontein, K.; Lindberg, B.; Lonngren, J. Assignment of absolute configuration of sugars by g.l.c. of their acetylated glycosides formed from chiral alcohols. Carbohyd. Res. 1978, 62, 359–362. [Google Scholar] [CrossRef]
  25. Manca, M.C.; Lama, L.; Improta, R.; Esposito, E.; Gambacorta, A.; Nicolaus, B. Chemical composition of two exopolysaccharides from Bacillus thermoantarticus. Appl. Environ. Microb. 1996, 62, 3265–3269. [Google Scholar]
  26. Perlin, A.S.; Casu, B. The Polysaccharides. Vol 1; Aspinal, G.O., Ed.; Academic Press Ltd: London, UK, 1982; pp. 133–193. [Google Scholar]
  27. De Rosa, S.; De Giulio, A.; Iodice, C. Biological effects of prenylated hydroquinones: structure-activity relationship studies in antimicrobial, brine shrimp, and fish lethality assays. J. Nat. Prod. 1994, 57, 1711–1716. [Google Scholar] [CrossRef]
  28. Strazzullo, G.; Poli, A.; Lama, L.; De Prisco, R.; La Pastina, C.; Nicolaus, B. Chemical identification of polysaccharides from solid wastes of tomato processing. ISHS Acta Horticulturae 724: IX International Symposium on the Processing Tomato. 2005. [Google Scholar]
  29. Degryse, E.; Glansdorff, N.; Pierard, A. A comparative analysis of extreme thermophilic bacteria belonging to the genus Thermus. Arch. Microbiol. 1978, 117, 189–196. [Google Scholar] [CrossRef]
  30. Dubois, M.; Gilles, K.A.; Hamilton, J.K.; Rebers, P.A.; Smith, F. Colorimetric methods for determination of sugars and related substances. Anal. Chem. 1956, 28, 350–356. [Google Scholar] [CrossRef]
  31. Tommonaro, G.; De Giulio, A.; Strazzullo, G.; De Rosa, S.; Nicolaus, B.; Poli, A. Bioactive Polysaccharides from Tomato. In Tomatoes and Tomato Products: nutritional, medicinal and therapeutic properties; Preedy, V.R., Watson, R.R., Eds.; Science Publishers: Enfield, NH, USA, 2008; in press. [Google Scholar]
  • Sample availability: Contact the authors.
