Synthesis of 5-Dialkyl(aryl)aminomethyl-8-hydroxyquinoline Dansylates as Selective Fluorescent Sensors for Fe3+

The Key Laboratory of Bioorganic Phosphorous Chemistry and Chemical Biology, Department of Chemistry, Tsinghua University, Beijing 100084, P. R. China
Author to whom correspondence should be addressed.
Molecules 2007, 12(5), 1191-1201;
Received: 4 April 2007 / Revised: 21 May 2007 / Accepted: 29 May 2007 / Published: 31 May 2007


A series of 5-dialkyl(aryl)aminomethyl-8-hydroxyquinoline dansylates were synthesized and their fluoroionophoric properties toward representative alkali ions, alkaline earth ions and transition metal ions were investigated. Among the selected ions, Fe3+ caused considerable quenching of the fluorescence, while Cr3+ caused quenching to some extent. The absence of any significant fluorescence quenching effects of the other ions examined, especially Fe2+, renders these compounds highly useful Fe3+-selective fluorescent sensors.


A variety of metal ions are known to play vital roles in the structural, catalytic and regulatory aspects of biological systems [1a], therefore, sensitive and selective detection of these metal ions is of great importance. A large number of fluorescent sensors have been reported in recent years [1b-f].
Iron is one of the most important trace elements in the human body [2a]. Increased iron availability in serum or tissues is associated with an increased risk of several tumors and may promote carcinogenesis [2b]. Moreover, hereditary hemochromatosis is characterized by excess iron that causes tissue damage and fibrosis with irreversible damage to various organs [2c]. Iron homeostasis is an important factor involved in neuroinflammation and progression of Alzheimer’s disease [2d]. Compared to the number of fluorescent sensors for other transition metal ions, such as Hg2+ [3] and Zn2+ [4], Fe3+-specific fluorescent sensors are comparatively rare.

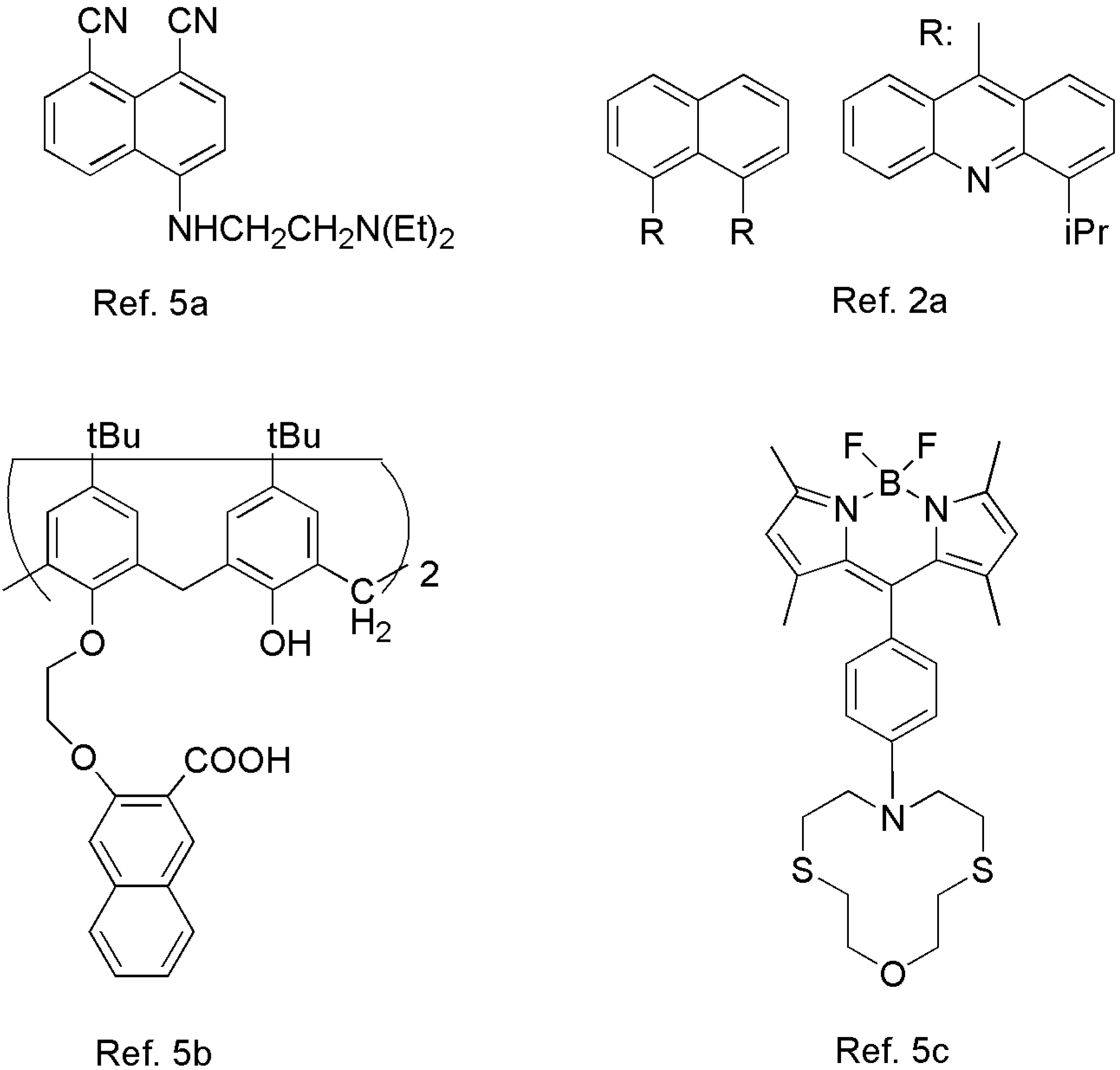

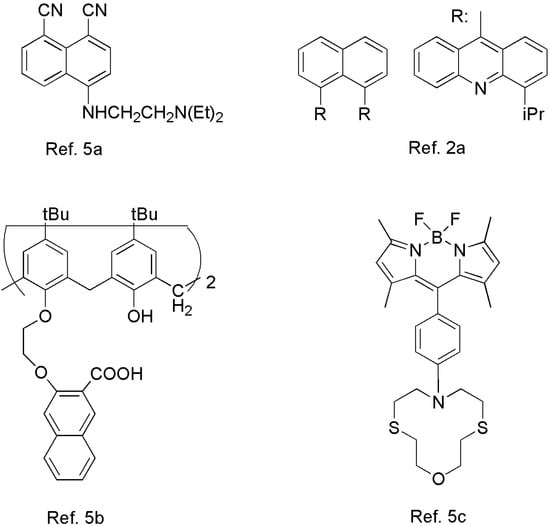

Regarding the Fe3+ sensors reported up to date (Figure 1), their detection of Fe3+ is always accompanied by interference from Cu2+ and Cr3+, which affects their selectivity. For example, 4-amino-1,8-dicyanonaphthalene derivatives exhibit considerable fluorescence enhancement by both Fe3+ and Cr3+, with a Fe3+:Cr3+ amplification ratio of 1:0.84 [5a]. Another naphthalene-derived fluorescent sensor showed a Fe3+:Cr3+ fluorescence-quenching ratio of 1:0.83 [2a]. A calix[4]arene-derived fluorescent sensor could selectively detect Fe3+ and Cu2+ [5b] with a Fe3+:Cu2+ fluorescence-quenching ratio of 1:1.17, depending on the pH. The best sensor reported so far is a derivative of 1-oxa-4,10-dithia-7-aza-cyclododecane, which displayed significant Fe3+-amplified fluorescence with slight interference from Cu2+ [5c]. However, the test for its interaction with Cr3+ was not undertaken.
Figure 1. Reference Fe3+ sensors.
Figure 1. Reference Fe3+ sensors.
Molecules 12 01191 g001
With an aim of developing more selective fluorescent sensors for Fe3+, we noticed that most fluorescent sensors are composed of metal-binding sites and a proximal fluorophore, and function via a photo-induced electron transfer (PET) mechanism [2a,3a,3j]. Herein, we report the investigation of the 8-hydroxyquinoline dansylate structure as a fluorescent sensor. The dansyl group is a commonly used fluorophore that emits strong fluorescence [6], while 8-hydroxyquinoline is an excellent chelator of metal ions and has many significant applications [7]. The sulfonic group in the dansylate group and the nitrogen in the quinoline could cooperatively chelate metal ions. In the predicted chelation process, concerted changes in the distances and angles between the two ligands are required. The structural limitations of such conformational changes could lead to ion selection. Therefore, a series of 8-hydroxyquinoline dansylate derivatives were synthesized and found to be highly sensitive and more selective for Fe3+.

Results and Discussion

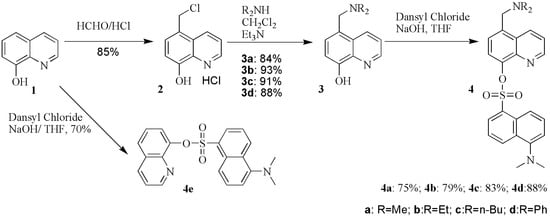

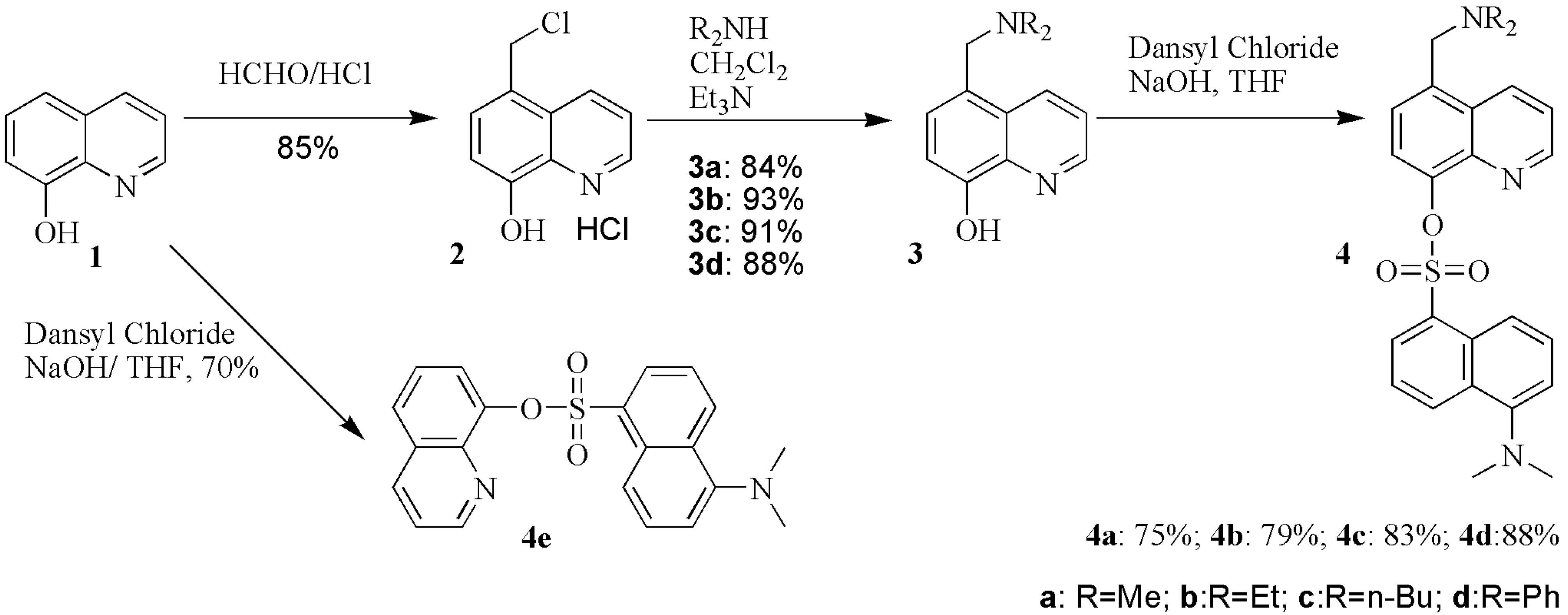

The synthesis of the title compounds is shown in Scheme 1. First, 8-hydroxyquinoline (1) was chloromethylated to give crude 5-chloromethyl-8-hydroxyquinoline (2). High purity products were obtained by washing with concentrated hydrochloric acid (37%) instead of acetone [8]. The residual 8-hydroxyquinoline was not removed completely by washing with acetone and a substitution reaction occurred during the crystallization in ethanol. Next, 2 was reacted with different secondary amines in dichloromethane at room temperature to give 3a-3d in high yields. Triethylamine was used as the base. The use of inorganic bases, such as sodium carbonate, sodium hydrogen carbonate and sodium hydroxide, led to either a very slow reaction rates or many unexpected byproducts. The final products, 4a-4d, were prepared by reaction of 3a-3d with dansyl chloride in tetrahydrofuran in good yield. 4e was prepared by direct dansylation of 1. The structures were identified by 1H-NMR, 13C-NMR, elemental analysis and ESI-MS.
Scheme 1.
Scheme 1.
Molecules 12 01191 g007
The absorption spectra of representative compounds 4c and 4e are shown in Figure 2. When excited at 360 nm, 4a-4e showed similar emission patterns. The maximum emission wavelengths were 466, 468, 465, 466 and 463 nm, respectively, for 4a-4e. Their fluoroionophoric properties toward representative alkali ions (K+), alkaline earth ions (Mg2+, Ca2+, Ba2+) and transition metal ions (Fe3+, Fe2+, Co2+, Ni2+, Cu2+, Ag+, Zn2+, Cd2+ Pb2+, Mn2+, Cr3+) were investigated in methanol solutions. The results (Table 1) revealed that only Fe3+ and Cr3+ caused considerable fluorescence quenching, similar to levels previously described in the literature [2a,5b]. However, there were differences in the sensitivities of 4a-4e. The best result was obtained with 4e, which showed a quenching percentage (calculated by [(I0-I)/I0] × 100%) of 91.2% for Fe3+. Compound 4d behaved in the same way as 4e, while 4a-4c behaved similarly, but showed slightly poorer selectivity.

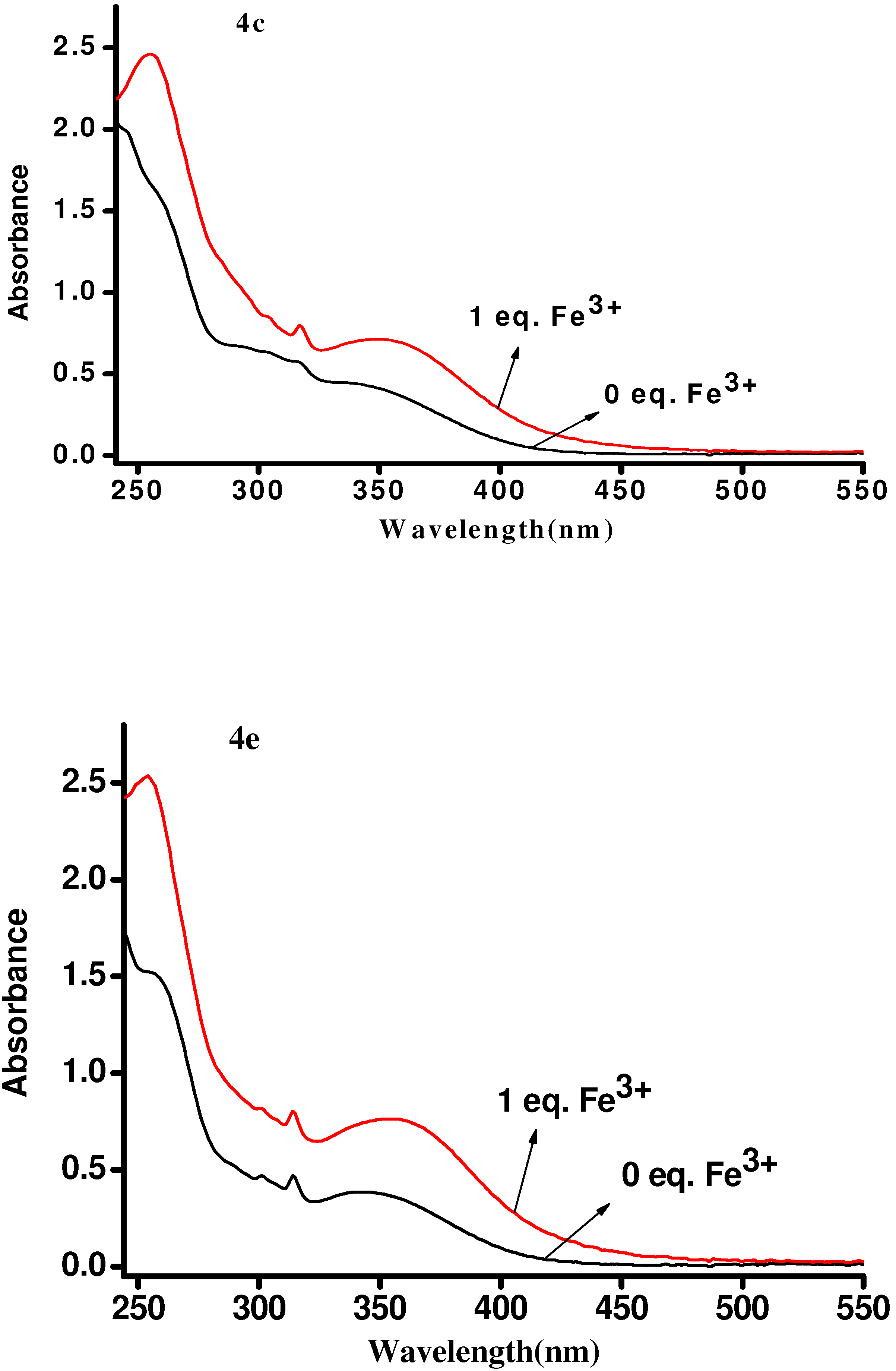

Figure 2. Absorption spectra of 4c and 4e (100 μM) upon adding 1.0 equiv of Fe3+ in methanol.
Figure 2. Absorption spectra of 4c and 4e (100 μM) upon adding 1.0 equiv of Fe3+ in methanol.
Molecules 12 01191 g002
Table 1. Fluorescence quenching of 4a-4e by 1.0 equiv of Fe3+.
Table 1. Fluorescence quenching of 4a-4e by 1.0 equiv of Fe3+.
Compd.λmax(nm)Relevant intensityQuenching percent. of Fe3+(%)Quenching percent. of Cr3+(%)Quenching ratio(Fe3+:Cr3+)
The fluorescence quenching data for sensors 4c and 4e are shown in Figure 3. Fe3+ caused the highest level of fluorescence quenching, while Cr3+ caused quenching to some extent. The other ions showed little fluorescence quenching. However, the selectivity between Fe3+ and Cr3+ was improved comparative with previously reported Fe3+ sensors. For example, the best quenching ratio was 1:0.58 (Fe3+:Cr3+) for 4e, which is better than the previously reported ratio of 1:0.83 for a naphthalene-derived fluorescent sensor [5b]. Furthermore, the absence of any significant fluorescence quenching effects by Cu2+, Mn2+, Co2+, Ni2+ and especially Fe2+ renders these derivatives highly useful Fe3+-selective sensors.

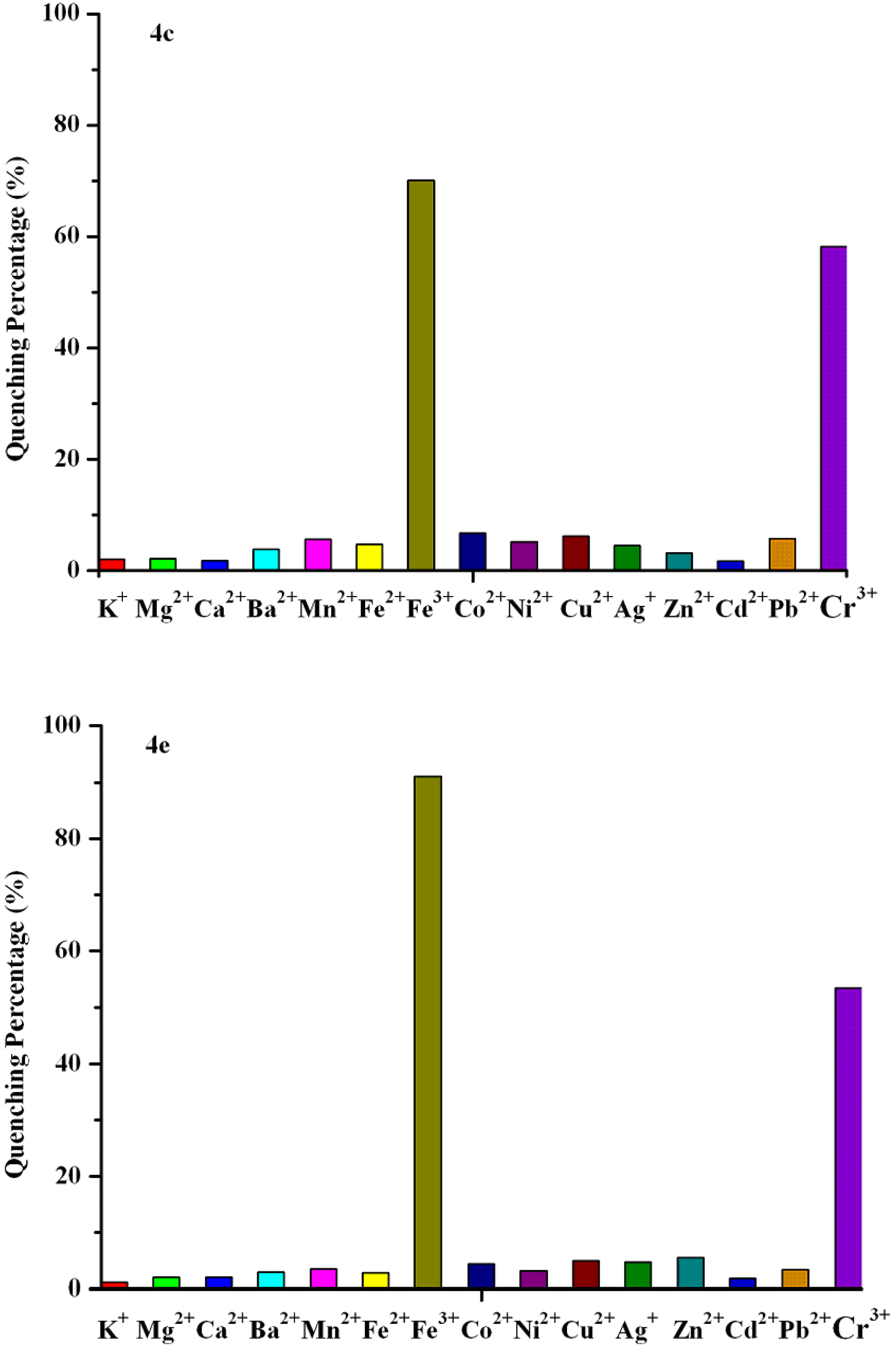

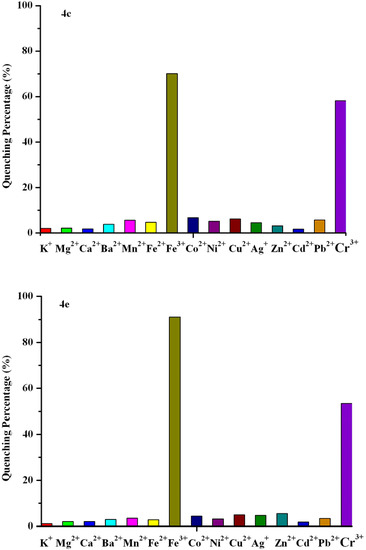

Figure 3. Quenching percentages [(I0-I)/ I0]×100% of the fluorescence intensities of 4c and 4e (100 μM) upon the addition of 1.0 equiv of metal ions in methanol.
Figure 3. Quenching percentages [(I0-I)/ I0]×100% of the fluorescence intensities of 4c and 4e (100 μM) upon the addition of 1.0 equiv of metal ions in methanol.
Molecules 12 01191 g003
In order to gain further insights into the analytical possibilities, fluorescence titration of 4e by Fe3+ was performed and the obtained curves are shown in Figure 4. The quenching was very effective and a quenching efficiency of 91.2% was obtained at a ratio of 1:1. The break around 1.0 equiv of Fe3+ suggested a 1:1 stoichiometry for the 4e-Fe3+ complex system [3j]. By working on the Stern-Volmer equation [9,3a], the association constant was calculated to be about 1.1×105 M-1.

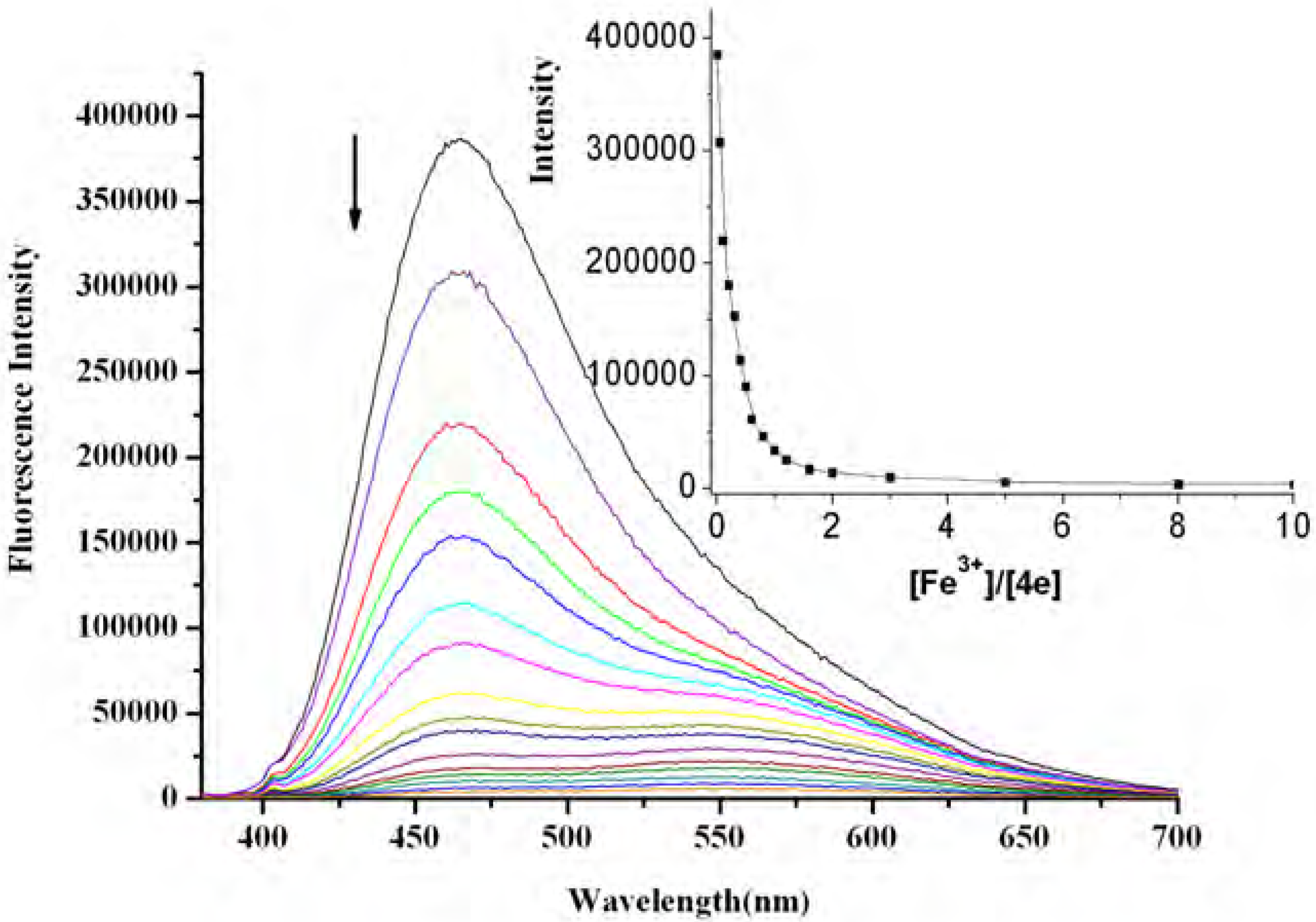

Figure 4. Fluorescence titration curves of 4e with Fe3+ in methanol. [4e]=100 μM. The inset shows a plot of the fluorescence intensities against [Fe3+]/[4e].
Figure 4. Fluorescence titration curves of 4e with Fe3+ in methanol. [4e]=100 μM. The inset shows a plot of the fluorescence intensities against [Fe3+]/[4e].
Molecules 12 01191 g004

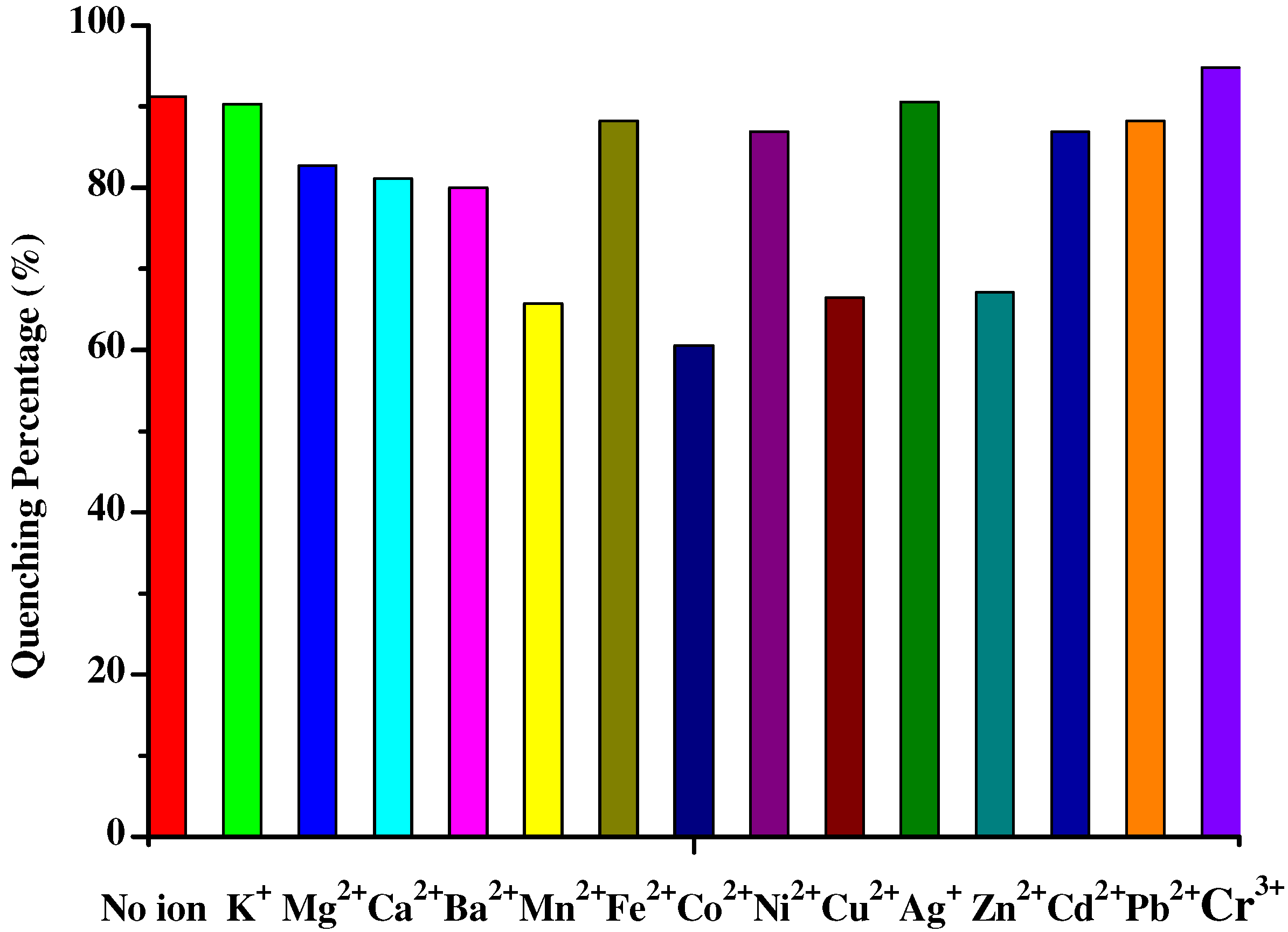

Next, a competition experiment was carried out in the presence of 4.0 equiv of background metal ions in order to confirm the practical applicability of 4e as a Fe3+ sensor (Figure 5). Most of the metal ions, including Cr3+, did not show any obvious interference with the detection of Fe3+, while Cu2+, Co2+, Zn2+ and Mn2+ showed only moderate interference. Therefore, 4e is a potential Fe3+-selective fluorescent chemosensor.
Figure 5. Fluorescence quenching percentages [(I0-I)/I0]×100% of 4e (100 μM) upon the addition of 1.0 equiv of Fe3+ and 4.0 equiv of background metal ions in methanol.
Figure 5. Fluorescence quenching percentages [(I0-I)/I0]×100% of 4e (100 μM) upon the addition of 1.0 equiv of Fe3+ and 4.0 equiv of background metal ions in methanol.
Molecules 12 01191 g005

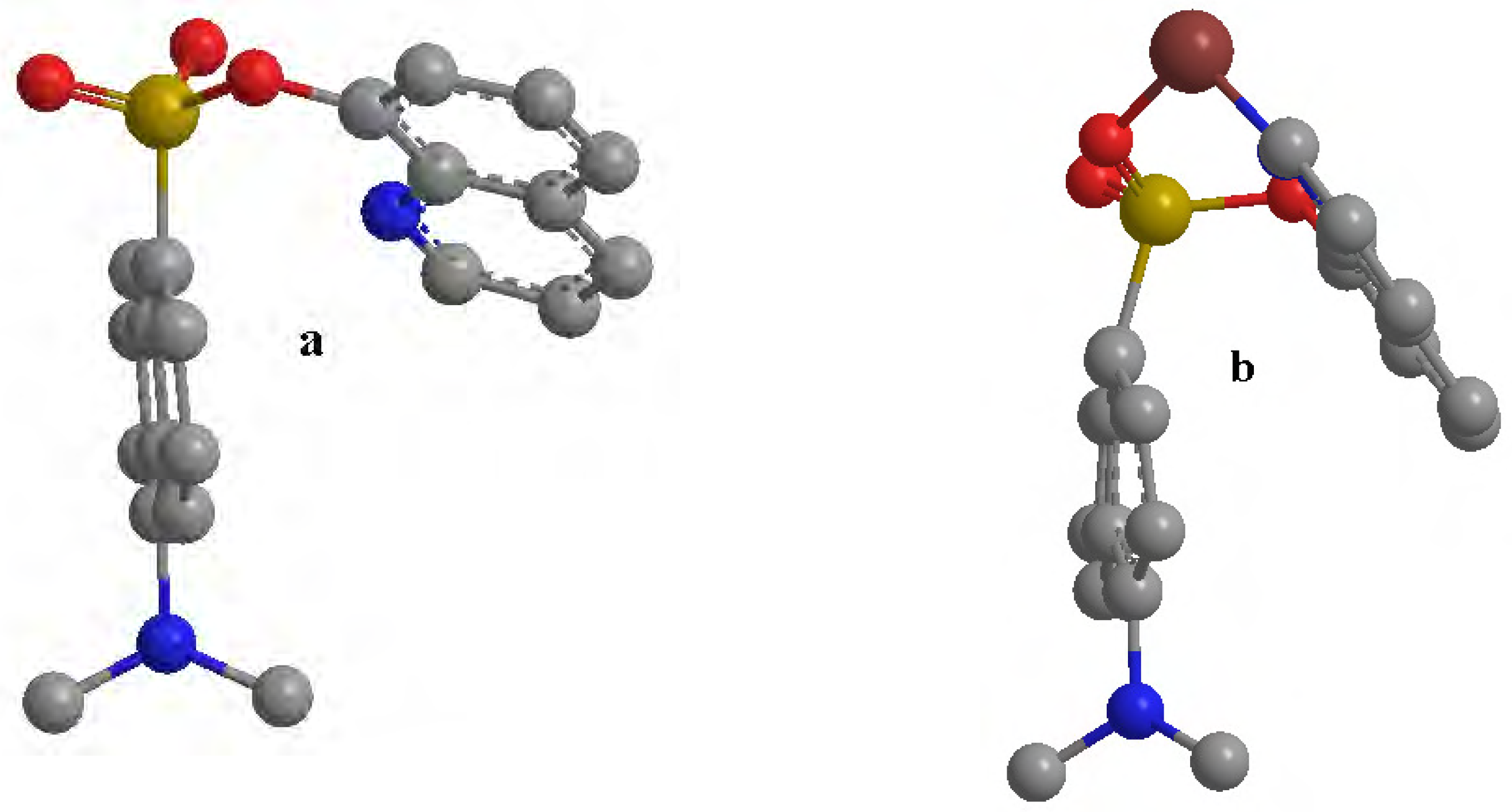

In order to gain further insights into the interaction between Fe3+ and designed sensors, related conformations were simulated using the MM2 method as implemented in Chem3D. The optimized conformation of 4e is shown in Figure 4e and the 4e-Fe3+ complex in Figure 6. Among the changes, the most important would be the naphthyl conformation. It actually changed from a plane form to a twisted one. Therefore the conjugation system of dansyl moiety has been severely damaged and this may be the actual cause of the observed fluorescence quenching.
Figure 6. Computer simulated conformation of 4e(a) and 4e-Fe3+ complex(b).
Figure 6. Computer simulated conformation of 4e(a) and 4e-Fe3+ complex(b).
Molecules 12 01191 g006


A series of novel Fe3+ fluorescent sensors based on 8-hydroxyquinoline and the dansyl group were synthesized and their fluoroionophoric properties toward K+, Mg2+, Ca2+, Ba2+, Fe3+, Fe2+, Co2+, Ni2+, Cu2+, Ag+, Zn2+, Cd2+, Pb2+, Mn2+ and Cr3+ were investigated in methanol solutions. Only Fe3+ caused considerable quenching of the fluorescence emission, and the other metal ions showed little interference with the detection of Fe3+. Among these potential metal ion fluorescent sensors, 4e showed the best efficiency and selectivity toward Fe3+.



All solvents and reagents were purchased from Aldrich and used without further purification. 1H-NMR (300 MHz) and 13C-NMR (75 MHz) spectra were recorded on a JOEL JNM-ECA300 spectrometer. Chemical shifts (δ) are reported in parts per million (ppm) relative to tetramethylsilane (TMS) as an internal standard, and coupling constants (J) are given in hertz (Hz). Elemental analyses were carried out on an Elementar Vario EL CHN element analysis instrument. All ESI-MS experiments were undertaken on a Bruker ESQUIRE-LC. Fluorescence intensity was measured using a HORABA Fluoromax 3.

General procedure for the preparation of 5-chloromethyl-8-hydroxyquinoline hydrogen chloride 2

A stream of hydrogen chloride gas was blown through a solution of 8-hydroxyquinoline 1 (0.1 mol) and formaldehyde (20 mL, 37%) in 37% hydrochloric acid (50 mL) for 8 hours at 50°C. After filtration, the product was washed with 37% hydrochloric acid and dried to afford 2 in 85% yield.

General procedure for the preparation of 5-dialkyl(aryl)aminomethyl-8-hydroxyquinoline 3a-3d

To a solution of 2 (10 mmol) and triethylamine (30 mmol) in dichloromethane (50 mL) was added dropwise a solution of the appropriate dialkyl(aryl)amine (10 mmol) in dichloromethane (50 mL) at room temperature over 30 minutes. After a further 15 minute of reaction, the solution was washed thoroughly with brine, dried over magnesium sulfate and concentrated to afford 3a-3d without further purification (yields are listed in Scheme 1).

General procedure for the preparation of 5-dialkylaminomethyl-8-hydroxyquinoline dansylate 4a-4e

To a solution of 3a-3d or 1 (1 mmol) in THF (10 mL) was added sodium hydroxide (5 mmol), followed by stirring for 5 minutes. Next, a solution of dansyl chloride (1 mmol) in THF (10 mL) was added dropwise at room temperature over 5 minutes. The reaction was kept at room temperature for a further 10 minutes and then filtered. The filtrate was evaporated under vacuum and the crude product was purified by silica gel column chromatography (EtOAc-Petroleum Ether).
5-Dimethylaminomethyl-8-hydroxyquinoline dansylate (4a). 1H-NMR (CDCl3) δ 8.68-8.71 (m, 2H), δ 8.53-8.60 (m, 2H), 8.17 (d, 1H, J=7.20), 7.58-7.63 (m, 1H), 7.44 (t, 1H, J=7.89), 7.31-7.35 (m, 2H), 7.17-7.25 (m, 2H), 3.70 (s, 2H), 2.87 (s, 6H), 2.21 (s, 6H); 13C-NMR (CDCl3) δ 151.7, 150.5, 145.6, 142.1, 134.6, 133.1, 132.5, 131.8, 130.7, 130.5, 129.9, 128.9, 128.8, 127.0, 123.0, 121.7, 121.0, 120.4, 115.6, 61.7, 45.6, 37.5; ESI-MS: calcd for (M+H)/z: 436.2. Found: (M+H)/z: 436.2. Anal. Calcd for C24H25N3O3S: C 66.18, H 5.19, N 9.65; found C 65.92, H 5.36, N 9.55.
5-Diethylaminomethyl-8-hydroxyquinoline dansylate (4b). 1H-NMR (CDCl3) δ 8.70-8.73 (m, 2H), δ 8.57-8.66 (m, 2H), 8.18 (d, 1H, J=7.23), 7.58-7.63 (m, 1H), 7.44 (t, 1H, J=7.89), 7.31-7.36 (m, 2H), 7.17-7.21 (m, 2H), 3.87 (s, 2H), 2.87 (s, 6H), 2.51 (q, 4H, J=6.84), 1.00 (t, 6H, J=6.84); 13C-NMR (CDCl3) δ 151.7, 150.4, 145.3, 142.1, 133.1, 132.5, 131.8, 130.7, 130.5, 129.9, 128.9, 128.8, 126.8, 125.6, 123.0, 121.4, 121.0, 120.4, 115.6, 55.5, 46.8, 45.6, 11.4; ESI-MS: calcd for (M+H)/z: 464.2. Found: (M+H)/z: 464.1. Anal. Calcd for C26H29N3O3S: C 67.36, H 6.31, N 9.06; found C 67.13, H 6.44, N 9.31.
5-Di-n-butylaminomethyl-8-hydroxyquinoline dansylate (4c). 1H-NMR (CDCl3) δ 8.75 (d, 1H, J=8.58), 8.70 (d, 1H, J=3.78), 8.64 (d, 1H, J=8.58), 8.59 (d, 1H, J=8.58), 8.17 (d, 1H, J=7.56), 7.60-7.66 (m, 1H), 7.43 (t, 1H, J=7.92), 7.30-7.34 (m, 2H), 7.19-7.23 (m, 2H), 3.84 (s, 2H), 2.88 (s, 6H), 2.38 (d, 4H, J=7.20), 1.35-1.42 (m, 4H), 1.15-1.22 (m, 4H), 0.77 (t, 6H, J=7.23); 13C-NMR (CDCl3) δ 151.7, 150.4, 145.2, 142.1, 136.0, 133.3, 132.6, 131.8, 130.7, 130.6, 129.9, 128.9, 128.7, 126.6, 122.9, 121.2, 121.1, 120.5, 115.6, 57.1, 53.7, 45.6, 28.9, 20.7, 14.1; ESI-MS: calcd for (M+H)/z: 520.3. Found: (M+H)/z: 520.3. Anal. Calcd for C30H37N3O3S: C 69.33, H 7.18, N 8.09; found C 69.23, H 7.04, N 8.27.
5-Diphenylaminomethyl-8-hydroxyquinoline dansylate (4d). 1H-NMR (CDCl3) δ 8.62-8.83 (m, 3H), δ 8.20-8.31 (m, 2H), 7.61-7.66 (m, 1H), 7.39-7.50 (m, 3H), 7.22-7.26 (m, 6H), 6.95-7.17 (m, 6H), 5.34 (s, 2H), 2.91 (s, 6H); 13C-NMR (CDCl3) δ 151.7, 150.6, 147.8, 145.2, 142.3, 133.4, 132.6, 131.9, 130.9, 130.7, 130.5, 130.0, 129.5, 129.4, 128.9, 127.3, 123.1, 122.0, 121.8, 121.0, 120.8, 120.4, 115.7, 53.6, 45.6; ESI-MS: calcd for (M+H)/z: 560.2. Found: (M+H)/z: 560.3. Anal. Calcd for C34H29N3O3S: C 72.96, H 5.22, N 7.51; found C 72.70, H 5.05, N 7.68.
8-Hydroxyquinoline dansylate (4e). 1H-NMR (CDCl3) δ 8.71-8.75 (m, 2H), 8.60 (d, 1H, J=8.58), 8.18 (d, 1H, J=7.56), 8.06 (d, 1H, J=8.22), 7.60-7.67 (m, 2H), 7.45 (t, 1H, J=7.89), 7.31-7.40 (m, 2H), 7.20-7.25 (m, 2H), 2.88 (s, 6H); 13C-NMR (CDCl3) δ151.7, 150.9, 145.9, 141.9, 135.7, 132.4, 131.9, 130.7, 130.5, 129.9, 129.7, 128.8, 127.0, 125.9, 123.0, 122.0, 121.9, 120.4, 115.7, 45.6; ESI-MS: calcd for (M+H)/z: 379.1. Found: (M+H)/z: 379.0. Anal. Calcd for C21H18N2O3S: C 66.65, H 4.79, N 7.40; found C 66.88, H 5.26, N 7.38.


  1. Ngwendson, J.N.; Amiot, C.L.; Srivastava, D.K.; Banerjee, A. Design of a zinc(II) ion specific fluorescence sensor. Tetrahedron Lett. 2006, 47, 2327–2330. [Google Scholar] [CrossRef] Baruah, M.; Qin, W.W.; Valle´e, R.A.L.; Beljonne, D.; Rohand, T.; Dehaen, W.; Boens, N. Highly Potassium-Selective Ratiometric Fluorescent Indicator Based on BODIPY Azacrown Ether Excitable with Visible Light. Org. Lett 2005, 7, 4377–4380. [Google Scholar] [CrossRef] Kim, S.H.; Choi, J.K.; Kim, S.K.; Sim, W.; Kim, J.S. On/off fluorescence switch of a calix[4]arene by metal ion exchange. Tetrahedron Lett. 2006, 47, 3737–3741. [Google Scholar] [CrossRef] Prodi, L.; Bolletta, F.; Montalti, M.; Zaccheroni, N.; Savage, P.B.; Bradshaw, J.S.; Izatt, R.M. A fluorescent sensor for magnesium ions. Tetrahedron Lett. 1998, 39, 5451–5454. [Google Scholar] Behannaa, H.A.; Stupp, S.I. Synthesis of stilbene carboxylic acids as scaffolds for calcium sensors. Chem. Commun. 2005, 4845–4847. [Google Scholar] [CrossRef] Kondo, S.I.; Kinjo, T.; Yano, Y. Barium ion sensing by a 2,2'-binaphthalene derivative bearing two monoaza-15-crown-5 ethers. Tetrahedron Lett. 2005, 46, 3183–3186. [Google Scholar] [CrossRef]
  2. Wolf, C.; Mei, X.F.; Rokadia, H.K. Selective detection of Fe(III) ions in aqueous solution with a 1,8-diacridylnaphthalene-derived fluorosensor. Tetrahedron Lett. 2004, 45, 7867–7871. [Google Scholar] [CrossRef] Weiss, G.; Gordeuk, V.R. Benefits and risks of iron therapy for chronic anaemias. Eur. J. Clin. Invest. 2005, 35, 36–45. [Google Scholar] [CrossRef] Franchini, M. Hereditary iron overload: update on pathophysiology, diagnosis, and treatment. Am. J. Hematol. 2006, 81, 202–209. [Google Scholar] [CrossRef] Ong, W.Y.; Farooqui, A.A. Iron, neuroinflammation, and Alzheimer's disease. J. Alzheimers Dis. 2005, 8, 183–200. [Google Scholar]
  3. Chen, Q.Y.; Chen, C.F. A new Hg2+-selective fluorescent sensor based on a dansyl amide-armed calix[4]-aza-crown. Tetrahedron Lett. 2005, 46, 165–168. [Google Scholar] [CrossRef] Hennrich, G.; Walther, W.; Resch-Genger, U.; Sonnenschein, H. Cu(II)- and Hg(II)-Induced Modulation of the Fluorescence Behavior of a Redox-Active Sensor Molecule. Inorg. Chem. 2001, 40, 641–644. [Google Scholar] [CrossRef] Rurack, K.; Resch-Genger, U.; Bricks, J.L.; Spieles, M. Cation-triggered "switching on" of the red/near infra-red (NIR) fluorescence of rigid fluorophore-spacer-receptor ionophores. Chem. Commun. 2000, 2, 2103–2104. [Google Scholar] Yoon, J.Y.; Ohler, N.E.; Vance, D.H.; Aumiller, W.D.; Czarnik, A.W. A fluorescent chemosensor signaling only Hg(II) and Cu(II) in water. Tetrahedron Lett. 1997, 38, 3845–3848. [Google Scholar] [CrossRef] Chan, W.H.; Yang, R.H.; Wang, K.M. Development of a mercury ion-selective optical sensor based on fluorescence quenching of 5,10,15,20-tetraphenylporphyrin. Anal. Chim. Acta. 2001, 444, 261–269. [Google Scholar] [CrossRef] Prodi, L.; Bargossi, C.; Montalti, M.; Zaccheroni, N.; Su, N.; Bradshaw, J.S.; Izatt, R.M.; Savage, P.B. An Effective Fluorescent Chemosensor for Mercury Ions. J. Am. Chem. Soc. 2000, 122, 6769–6770. [Google Scholar] [CrossRef] Descalzo, A.B.; Martinez-Manez, R.; Radeglia, R.; Rurack, K.; Soto, J. Coupling Selectivity with Sensitivity in an Integrated Chemosensor Framework: Design of a Hg2+-Responsive Probe, operating above 500 nm. J. Am. Chem. Soc. 2003, 125, 3418–3419. [Google Scholar] [CrossRef] Moon, S.Y.; Cha, N.R.; Kim, Y.H.; Chang, S.K. New Hg2+-selective chromo- and fluoroionophore based upon 8-hydroxyquinoline. J. Org. Chem. 2004, 69, 181–183. [Google Scholar] [CrossRef] Rurack, K.; Kollmannsberger, M.; Resch-Genger, U.; Daub, J. A Selective and Sensitive Fluoroionophore for HgII, AgI, and CuII with Virtually Decoupled Fluorophore and Receptor Units. J. Am. Chem. Soc. 2000, 122, 968–969. [Google Scholar] [CrossRef] Kim, S.H.; Song, K.C.; Ahn, S.; Kang, Y.S.; Chang, S.K. Hg2+-selective fluoroionophoric behavior of pyrene appended diazatetrathia- crown ether. Tetrahedron Lett. 2006, 47, 497–500. [Google Scholar] [CrossRef]
  4. Meng, X.M.; Zhu, M.Z.; Liu, L.; Guo, Q.X. Novel highly selective fluorescent chemosensors for Zn(II). Tetrahedron Lett. 2006, 47, 1559–1562. [Google Scholar] [CrossRef] Dessingou, J.; Joseph, R.; Rao, C.P. A direct fluorescence-on chemo-sensor for selective recognition of Zn(II) by a lower rim 1,3-di-derivative of calix[4]arene possessing bis-{N-(2-hydroxynaphthyl-1-methylimine)} pendants. Tetrahedron Lett. 2005, 46, 7967–7971. [Google Scholar] [CrossRef] Song, L.Q.; Hou, Y.J.; Wang, X.S.; Zhang, B.W.; Xie, P.H.; Ma, C.Q.; Cao, Y. Zn2+ recognition by two new bipyridine ligands. Chin. J. Chem. 2003, 21, 505–509. [Google Scholar] Henary, M.M.; Wu, Y.; Fahrni, C.J. Zinc(II)-selective ratiometric fluorescent sensors based on inhibition of excited-state intramolecular proton transfer. Eur. J. Chem. 2004, 10, 3015–3025. [Google Scholar] [CrossRef] Woodroofe, C.C.; Won, A.C.; Lippard, S.J. Esterase-activated two-fluorophore system for ratiometric sensing of biological zinc(II). Inorg. Chem. 2005, 44, 3112–3120. [Google Scholar] [CrossRef] Komatsu, K.; Kukuchi, K.; Kojima, H.; Urano, Y.; Nagano, T. Selective Zinc Sensor Molecules with Various Affinities for Zn2+, Revealing Dynamics and Regional Distribution of Synaptically Released Zn2+ in Hippocampal Slices. J. Am. Chem. Soc. 2005, 127, 10197–10204. [Google Scholar] [CrossRef] Fan, J.L.; Wu, Y.K.; Peng, X.J. A naphthalimide fluorescent sensor for Zn2+ based on photo-induced electron transfer. Chem. Lett. 2004, 33, 1392–1393. [Google Scholar] [CrossRef] Wu, Y.K.; Peng, X.; Guo, B.; Fan, J.; Zhang, Z.; Wang, J.; Cui, A.; Gao, Y. Boron dipyrromethene fluorophore based fluorescence sensor for the selective imaging of Zn(II) in living cells. Org. Biomol. Chem. 2005, 3, 1387–1392. [Google Scholar] [CrossRef] Jia, L.H.; Guo, X.F.; Liu, Y.; Qian, X.H. Anthracylmethyl benzoazacrown ether as selective fluorescence sensors for Zn2+. Chin. Chem. Lett. 2004, 15, 118–120. [Google Scholar] Chen, Y.; Zeng, D.X. A selective, fluorescent sensor for Zn2+. Chem. Phys. Chem. 2004, 5, 564–566. [Google Scholar]
  5. Qian, X.H.; Xiao, Y. 4-Amino-1,8-dicyanonaphthalene derivatives as novel fluorophore and fluorescence switches: efficient synthesis and fluorescence enhancement induced by transition metal ions and protons. Tetrahedron Lett. 2002, 43, 2991–2994. [Google Scholar] [CrossRef] Liu, J.M.; Zheng, Q.Y.; Yang, J.L.; Chen, C.F.; Huang, Z.T. A new fluorescent chemosensor for Fe3+ and Cu2+ based on calix[4]arene. Tetrahedron Lett. 2002, 43, 9209–9212. [Google Scholar] [CrossRef] Bricks, J.L.; Kovalchuk, A.; Trieflinger, C.; Nofz, M.; Büschel, M.; Tolmachev, A.I.; Daub, J.; Rurack, K. On the Development of Sensor Molecules that Display FeIII-amplified Fluorescence. J. Am. Chem. Soc. 2005, 127, 13522–13529. [Google Scholar] [CrossRef]
  6. Kavallieratos, K.; Rosenberg, J.M.; Chen, W.Z.; Ren, T. Fluorescent Sensing and Selective Pb(II) Extraction by a Dansylamide Ion-Exchanger. J. Am. Chem. Soc. 2005, 127, 6514–6515. [Google Scholar] [CrossRef] [Green Version]Chen, C.F.; Chen, Q.Y. A tetra-sulfonamide derivative bearing two dansyl groups designed as a new fluoride selective fluorescent chemosensor. Tetrahedron Lett. 2004, 45, 3957–3960. [Google Scholar] [CrossRef] [Green Version]Prodi, L.; Bolletta, F.; Montalti, M.; Zaccheroni, N. Searching for new luminescent sensors. Synthesis and photophysical properties of a tripodal ligand incorporating the dansyl chromophore and of its metal complexes. Eur. J. Inorg. Chem. 1999, 455–460. [Google Scholar] [Green Version]Walkup, G. K.; Imperiali, B. Exploiting Polypeptide Motifs for the Design of Selective Cu(II) Ion Chemosensors. J. Am. Chem. Soc. 1998, 120, 609–610. [Google Scholar] [CrossRef] [Green Version]Zheng, Y.; Orbulescu, J.; Ji, X.; Andreopoulos, F.M.; Pham, S.M.; Leblanc, R.M. Development of Fluorescent Film Sensors for the Detection of Divalent Copper. J. Am. Chem. Soc. 2003, 125, 2680–2686. [Google Scholar] [CrossRef] [Green Version]
  7. Zhang, H.; Han, L.F.; Zachariasse, K.A.; Jiang, Y.B. 8-Hydroxyquinoline benzoates as highly sensitive fluorescent chemosensors for transition metal ions. Org. Lett 2005, 7, 4217–4220. [Google Scholar] [CrossRef] Shen, L.; Li, F.Y.; Sha, Y.W.; Hong, X.; Huang, C. Synthesis of fluorescent dendritic 8-hydroxyquinoline ligands and investigation on their coordinated Zn(II) complexes. Tetrahedron Lett. 2004, 45, 3961–3964. [Google Scholar] [CrossRef] Sha, Y.W.; Shen, L.; Hong, X.Y. A divergent synthesis of new aliphatic poly(ester-amine) dendrimers bearing peripheral hydroxyl or acrylate groups. Tetrahedron Lett. 2002, 43, 9417–9419. [Google Scholar] [CrossRef] Prodi, L.; Montalti, M.; Zaccheroni, N.; Bradshaw, J.S.; Izatt, R.M.; Savage, P.B. Characterization of 5-chloro-8-methoxyquinoline appended diaza-18-crown-6 as a chemosensor for cadmium. Tetrahedron Lett. 2001, 42, 2941–2944. [Google Scholar] Bronson, R. T.; Montalti, M.; Prodi, L.; Zaccheroni, N.; Lamb, R.D.; Dalley, N.K.; Izatt, R.M.; Bradshaw, J.S.; Savage, P.B. Origins of on-off fluorescent behavior of 8-hydroxyquinoline containing chemosensors. Tetrahedron 2004, 60, 11139–11144. [Google Scholar] [CrossRef] Bronson, R.T.; Bradshaw, J.S.; Savage, P.B.; Fuangswasdi, S.; Lee, S.C.; Krakowiak, K.E.; Izatt, R.M. Bis-8-hydroxyquinoline- Armed Diazatrithia-15-crown-5 and Diazatrithia-16-crown-5 Ligands: Possible Fluorophoric Metal Ion Sensors. J. Org. Chem. 2001, 66, 4752–4758. [Google Scholar] [CrossRef]
  8. Mei, Q.B.; Du, N.Y.; Lv, M.G. Synthesis and Characterization of High Molecular Weight Polymer Containing Tris( 8-hydroxyquinoline) Aluminum( III) Complexes. Acta. Chimica. Sinica. 2004, 62, 2113–2117. [Google Scholar]
  9. Andrade, S.M.; Costa, S.M.B. Spectroscopic studies on the interaction of a water soluble porphyrin and two drug carrier proteins. Biophys. J. 2002, 82, 1607–1619. [Google Scholar] [CrossRef] [Green Version]
  • Sample Availability: Compound 4e is available from the authors.
