C(aryl)-O Bond Formation from Aryl Methanesulfonates via Consecutive Deprotection and SNAr Reactions with Aryl Halides in an Ionic Liquid

College of Science, Northwest A and F University, Yangling 712100, P.R. China
Author to whom correspondence should be addressed.
Molecules 2007, 12(4), 861-867;
Submission received: 28 March 2007 / Revised: 19 April 2007 / Accepted: 20 April 2007 / Published: 30 April 2007


An efficient K3PO4-mediated synthesis of unsymmetrical diaryl ethers using the ionic liquid [Bmim]BF4 (1-butyl-3-methylimidazolium tetrafluoroborate) as solvent has been developed. The procedure involves consecutive deprotection of aryl methane-sulfonates and a nucleophilic aromatic substitution (SNAr) with activated aryl halides.


In recent years, in the search for green alternatives for traditional organic solvents in chemistry, ionic liquids have generated considerable interest as environmentally benign reaction media, due to their unique properties such as ease of recyclability, ability to dissolve a variety of organic, inorganic and metal complex materials, non-volatile and non-flammable nature and high thermal stability [1]. A growing number of chemical reactions in these media, such as Kabachnik-Fields reaction [2], polymerizations [3], hydrogenations [4], Diels-Alder reactions [5], Michael reactions [6], C-P cross-coupling reactions [7], and Beckmann rearrangements [8], have been reported. Diaryl ethers are very important intermediates in organic synthesis and are known to be present in a variety of natural compounds of biological interest, such as vancomycin and riccardin [9]. The classical Ullmann reaction for diaryl ether synthesis often requires extremely harsh reaction conditions, i.e. high temperatures (200-300 oC), strong polar and toxic solvents and the use of stoichiometric quantities of copper, and generally gives low yields [10], so a number of other methodologies for the synthesis of diaryl ethers have been developed in recent years [11]. Meanwhile, the fact that the strategic use of protective groups is a necessary and time-consuming tactic in organic synthesis is well-known, so a merging of protective group chemistry with other transformations that can shorten a reaction sequence and improve synthetic efficiency and convenience is always of great interest. The methanesulfonyl group, as a useful protective group for phenols due to its robust behavior, has been widely used in a variety of reactions [12,13]. On the other hand, aryl methanesulfonates have been used as latent phenols in the nucleophilic aromatic substitution (SNAr) reaction to prepare diaryl ethers [12], but unfortunately, the reported method requires the use of an excess of expensive Cs2CO3 and toxic organic solvents, and is applicable to a only a narrow range of substrates [12], therefore the development of a simpler, greener, cheaper and more efficient route for the synthesis of unsymmetrical diaryl ethers directly from aryl methanesulfonates and aryl halides that would be useful for a wide range of substrates is highly desirable. As part of our program directed at developing efficient and new methodologies for constructing bioactive molecules [14], herein we report a simple and environmentally benign synthesis of unsymmetrical diaryl ethers via a tandem deprotection of aryl methanesulfonates/SNAr reaction with activated aryl halides using the ionic liquid [Bmim]BF4 (1-butyl-3-methylimidazolium tetrafluoroborate ) as a solvent (Scheme 1).

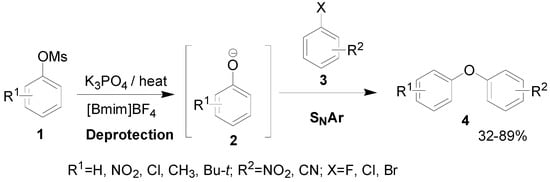

Scheme 1. The route of synthesis of unsymmetrical diaryl ethers.
Scheme 1. The route of synthesis of unsymmetrical diaryl ethers.
Molecules 12 00861 g001

Results and Discussion

As shown in Scheme 1, the C-O bond cross-coupling of phenoxides 2, generated in situ from aryl methanesulfonates 1, with aryl halides 3 to produce diaryl ethers 4 can be effected in the ionic liquid [Bmim]BF4 in the presence of anhydrous K3PO4. The results for different unsymmetric diaryl ethers are summarized in Table 1. A wide range of aryl methanesulfonates, including those having electron-deficient and electron-rich groups (R1=H, NO2, Cl, CH3, t-Bu) were effective for this C-O cross-coupling SNAr reaction with activated aromatic halides (R2= NO2, CN; X=F, Cl, Br) and moderate to good yields (32-89 %) were obtained.
Moreover, it should be recalled that aryl methanesulfonates with electron-withdrawing groups typically behave poorly or are completely inert toward diaryl ether formation, but in our reactions such electron-poor aryl methanesulfonates reacted smoothly with the corresponding aryl halides (X=F, Cl, Br), mediated by anhydrous K3PO4, to give the expected products (compounds 4a, 4c, 4e, 4g, 4i, 4l). Particularly good yields were obtained for compounds 4g, 4i and 4c (85 %, 89 % and 88 %, respectively). When 4-fluoronitrobenzene was reacted with the extremely electron-poor 4’-nitrophenyl methanesulfonate, 4-(4’-nitrophenoxy)nitrobenzene (4e) was obtained in 42% yield after being stirred in the presence of anhydrous K3PO4 at 110 oC for 24.5 h. When 2’-chlorophenyl methanesulfonate was reacted with 4-fluoronitro- or 4-bromonitrobenzene and 2-fluoronitro- or 2-chloronitrobenzene, the corresponding compounds 4-(2’-chlorophenoxy)nitrobenzene (4c) and 2-(2’-chlorophenoxy)nitroben-zene (4i) were obtained in 72 %/88 % and 89 %/66 % yields, respectively. These results showed that fluoro derivatives may be replaced by the corresponding bromo or chloro derivatives without causing a significant decrease in the yields.
Table 1. Synthesis of diaryl ethers in [Bmim]BF4 a
Table 1. Synthesis of diaryl ethers in [Bmim]BF4 a
Molecules 12 00861 i001
R1R2XTemp. (oC) bTime (h)ProductYield (%) c
a All reactions were carried out with 1 (1.5 mmol), 3 (1.0 mmol) and K3PO4 (2 mmol) in [Bmim]BF4 (3 mL) at the appropriate temperature; b Reaction temperature; c Isolated yield.
Next, we also investigated the reusability and the recycling of the ionic liquid [Bmim]BF4, and found that it could be easily recovered after the completion of the reaction and reused in the subsequent reactions without any noticeable loss of efficiency. For this purpose the reaction of 2-fluoronitro-benzene with 2’-chlorophenyl methanesulfonate mediated by anhydrous K3PO4 in [Bmim]BF4 was investigated as a model reaction. When the reaction was complete after 11 h at 105 oC, as checked by TLC, the reaction mixture was extracted three times with ethyl ether, then the ionic liquid left in the reaction vessel was dissolved with acetone, filtered and washed by acetone to remove the solid, and finally the combined acetone extract was evaporated under reduced pressure to give the recycled ionic liquid, which was reused as the reaction solvent for the next reaction. The ionic liquid activity did not show any significant decrease after 3 runs and the yields were 88%, 89%, and 89% for runs 1-3, respectively.


In summary, we have developed an efficient procedure for the synthesis of unsymmetrical diaryl ethers via a tandem deprotection of aryl methanesulfonates and SNAr reactions with activated aryl halides mediated by anhydrous K3PO4 and using the ionic liquid [Bmim]BF4 as solvent. The advantages of this method are as follows: 1) moderate to good yields are obtained using a wide range of substrates; 2) a deprotection step is obviated; 3) separation of the products from the ionic liquid during work-up is very easy; 4) the ionic liquid can be recycled without loss of efficiency, making the procedure quite simple, convenient and environmentally benign.



All the solvents were of analytical grade and the reagents were used as purchased. Thin-layer chromatography (TLC) and preparative thin-layer chromatography (PTLC) were performed with silica gel plates using silica gel 60 GF254 (Qingdao Haiyang Chemical Co., Ltd.). Melting points were determined on a digital melting-point apparatus and were uncorrected. 1H-NMR spectra were recorded on a Bruker Avance DMX 400 MHz instrument using TMS as internal standard and CDCl3 as solvent. HRMS and EIMS were carried out with APEX II Bruker 4.7T AS and Thermo DSQ GC/MS instrument respectively. Elemental analysis was executed on Carlo-Erba 1106 CHN microanalyzer.

General procedure for the preparation of unsymmetrical diaryl ethers 4

The aryl halide (3, X=F, Cl, Br, 1 mmol), the aryl methanesulfonate (1, 1.5 mmol) and anhydrous K3PO4 (2 mmol) were added to [Bmim]BF4 (3 mL). The reaction mixture was stirred for a given time at the appropriate temperature and monitored by thin-layer chromatography (TLC). After completion of the reaction, the reaction mixture was cooled to room temperature and extracted with ethyl ether (3 x 40 mL). Then the extracts were combined and evaporated under reduced pressure to give a residue which was purified by using PTLC to obtain the pure diaryl ether. All compounds were characterized by 1H-NMR, HRMS or elemental analysis, EI-MS and m.p.
4-(4’-Chlorophenoxy)nitrobenzene (4a). White solid; m.p. 75.8-76.1 oC; 1H-NMR: δ = 7.00 (4H, m), 7.38 (2H, dd, J = 6.8, 2.4 Hz), 8.20 (2H, dd, J = 7.2, 2.4 Hz); HRMS-FAB: m/z [M+NH4]+ Calcd. for C12H12N2O3Cl: 267.0531; found: 267.0532.
4-(3’-Methylphenoxy)nitrobenzene (4b). White solid; m.p. 61.9-62.2 oC; 1H-NMR: δ = 2.78 (3H, s), 6.88 (2H, m), 6.99 (2H, d, J = 9.2 Hz), 7.05 (1H, d, J = 8.0 Hz), 7.29 (1H, t, J = 8.0 Hz), 8.18 (2H, d, J = 9.2 Hz); HRMS-FAB: m/z [M+NH4]+ Calcd. for C13H15N2O3: 230.0812; found: 230.0811.
4-(2’-Chlorophenoxy)nitrobenzene (4c). White solid; m.p. 76.8-77.0 oC; 1H-NMR: δ = 6.93 (2H, m), 7.16 (1H, dd, J = 8.0, 1.6 Hz), 7.23 (1H, dt, J = 8.0, 1.6 Hz), 7.33 (1H, dt, J = 8.0, 1.6 Hz), 7.51 (1H, dd, J = 8.0, 1.6 Hz), 8.19 (2H, m); HRMS-FAB: m/z [M+NH4]+ Calcd. for C12H12N2O3Cl: 267.0531; found: 267.0529.
4-(4’-tert-Butylphenoxy)nitrobenzene (4d). White solid; m.p. 61.2-61.6 oC; 1H-NMR: δ = 1.35 (9H, s), 6.99 (4H, m), 7.41 (2H, m), 8.18 (2H, d, J = 8.8 Hz); HRMS-FAB: m/z [M+NH4]+ Calcd. for C16H21N2O3: 289.1547; found: 289.1546.
4-(4’-Nitrophenoxy)nitrobenzene (4e). Pale yellow solid; m.p. 144.5-144.9 oC; 1H-NMR: δ = 7.15 (4H, m), 8.28 (4H, m); GC/MS (EI, 70eV): m/z (%) = 260 (M+, 100), 230 (40), 139 (65.1); Anal. calcd. for C12H8N2O5: C, 55.39; H, 3.10; N, 10.77. Found: C, 55.21; H, 3.36; N, 10.66.
4-(Phenoxy)nitrobenzene (4f). White solid; m.p. 55.9-56.3 oC; 1H-NMR: δ = 6.99 (2H, d, J = 12 Hz), 7.08 (2H, d, J = 8.4 Hz), 7.24 (1H, t, J = 6.8 Hz), 7.41 (2H, t, J = 8.4 Hz), 8.18 (2H, d, J = 12 Hz); GC/MS (EI, 70eV): m/z (%) = 215 ( M+, 100 ), 185 (24.9), 77(62.2); Anal. calcd. for C12H9NO3: C, 66.97; H, 4.18; N, 6.51. Found: C, 66.75; H, 4.36; N, 6.58.
2-(4’-Chlorophenoxy)nitrobenzene (4g). Pale yellow liquid; 1H-NMR: δ = 6.96 (3H, m), 7.21 (1H, t, J = 8.0 Hz), 7.31 (2H, m), 7.51 (1H, dt, J = 8.4, 1.6 Hz), 7.95 (1H, dd, J = 8.4, 1.6 Hz); GC/MS (EI, 70eV): m/z (%) = 251 (M+, 10.8), 249 (M+, 32.5), 122 (100); Anal. calcd. for C12H8NO3Cl: C, 57.73; H, 3.23; N, 5.61. Found: C, 57.62; H, 3.29; N, 5.54.
2-(4’-tert-Butylphenoxy)nitrobenzene (4h). Yellow liquid; 1H-NMR: δ = 1.32 (9H, s), 6.97 (2H, d, J = 8.8 Hz), 6.99 (1H, d, J = 8.0 Hz), 7.14 (1H, t, J = 7.6 Hz), 7.37 (2H, d, J = 8.8 Hz), 7.45 (1H, m), 7.92 (1H, d, J = 8.0 Hz); HRMS-FAB: m/z [M+NH4]+ Calcd. for C16H21N2O3: 289.1547; found: 289.1552.
2-(2’-Chlorophenoxy)nitrobenzene (4i). Pale yellow liquid; 1H-NMR: δ = 6.83 (1H, dd, J = 8.4, 1.2 Hz), 7.07 (1H, dd, J = 8.0, 1.6 Hz ), 7.16 (3 H, m), 7.47 (2H, m), 7.97 (1H, dd, J = 8.0, 1.6 Hz); HRMS-FAB: m/z [M+NH4]+ Calcd. for C12H12N2O3Cl: 267.0531; found: 267.0535.
2-(3’-Methylphenoxy)nitrobenzene (4j). Pale yellow liquid; 1H-NMR: δ = 2.34 (3H, s), 6.83 (2H, m), 6.99 (2H, m), 7.15 (1H, t, J =7.6 Hz), 7.23 (1H, t, J = 8.0 Hz), 7.46 (1H, dt, J = 8.0, 1.6 Hz), 7.93 (1H, dd, J = 7.6, 1.6 Hz ); HRMS-FAB: m/z [M+NH4]+ Calcd. for C13H15N2O3: 247.1077; found: 247.1080.
2-(4’-tert-Butylphenoxy)benzonitrile (4k). White liquid; 1H-NMR: δ = 1.33 (9H, s), 6.84 (1H, d, J = 8.8 Hz), 7.00 (2H, m), 7.08 (1H, t, J = 7.2 Hz), 7.39 (3H, m), 7.63 (1H, dd, J = 7.6, 1.6 Hz); HRMS-FAB: m/z [M+NH4]+ Calcd. for C17H21N2O: 269.1648; found: 269.1648.
2-(4’-Chlorophenoxy)benzonitrile (4l). White solid; m.p. 85.0-85.7 oC; 1H-NMR: δ = 6.85 (1H, d, J = 8.8 Hz), 7.01 (2H, m), 7.14 (1H, t, J = 7.2 Hz), 7.35 (2H, m), 7.47 (1H, m ), 7.66 (1H, dd, J = 8.0, 2.0 Hz); HRMS-FAB: m/z [M+NH4]+ Calcd. for C13H12N2OCl: 247.0627; found: 247.0633.


This work was supported by the program for New Century Excellent University Talents (NCET), State Education Ministry of China, the Scientific Research Foundation for Returned Overseas Chinese Scholars, State Education Ministry of China (No.14110101), the Key Project of Chinese Ministry of Education (No.107105) and the Science & Technology Research Plan in Shaanxi Province of China (No.2006K01-G31-04). We also acknowledge Northwest A&F University for the financial assistance within the Program for Excellent Young Talents (No. 01140301 and 01140402).

References and Notes

  1. Huddleston, J. G.; Visser, A. E.; Reichert, W. M.; Willauer, H. D.; Broker, G. A.; Rogers, R. D. Characterization and comparison of hydrophilic and hydrophobic room temperature ionic liquids incorporating the imidazolium cation. Green Chem. 2001, 3, 156–164. [Google Scholar] [CrossRef]
  2. Lee, S.; Park, J. H.; Kang, J.; Lee, J. K. Lanthanide triflate-catalyzed three-component synthesis of α-amino phosphonates in ionic liquids. A catalyst reactivity and reusability study. Chem. Commun. 2001, 1698–1699. [Google Scholar]
  3. Csihony, S.; Fischmeister, C.; Bruneau, C.; Horvath, I. T.; Dixneuf, P. H. First ring-opening metathesis polymerization in an ionic liquid. Efficient recycling of a catalyst generated from a cationic ruthenium allenylidene complex. New J. Chem. 2002, 11, 1667–1670. [Google Scholar]
  4. Fischer, T.; Sethi, A.; Welton, T.; Woolf, J. Diels-alder reactions in room temperature ionic liquids. Tetrahedron Lett. 1999, 40, 793–796. [Google Scholar] Baan, Z.; Finta, Z.; Keglevich, G.; Hermecz, I. Application of ionic liquids in Palladium(II) catalyzed homogeneous transfer hydrogenation. Tetrahedron Lett. 2005, 46, 6203–6204. [Google Scholar]
  5. Aggarwal, A.; Lancaster, N. L.; Sethi, A. R.; Welton, T. The role of hydrogen bonding in controlling the selectivity of Diels-Alder reactions in room-temperature ionic liquids. Green Chem. 2002, 5, 517–520. [Google Scholar]
  6. Zhang, F. Y.; Corey, E. J. Highly enantioselective Michael reactions catalyzed by a chiral quaternary ammonium salt. Illustration by asymmetric syntheses of (S)-ornithine and chiral 2-cyclohexenones. Org. Lett. 2000, 2, 1097–1100. [Google Scholar] [CrossRef]
  7. Vallette, H.; Pican, S.; Boudou, C.; Levillain, J.; Plaquevent, J. C.; Gaumont, A. C. Palladium catalyzed C-P cross-coupling reactions in ionic liquids. Tetrahedron Lett. 2006, 47, 5191–5193. [Google Scholar]
  8. Guo, S.; Du, Z.Y.; Zhang, S. G.; Li, D. M.; Li, Z. P.; Deng, Y. Q. Clean Beckmann rearrangement of cyclohexanone oxime in caprolactam-base Bronsted acidic ionic liquids. Green Chem. 2006, 3, 296–300. [Google Scholar]
  9. Evans, D. A.; Wood, M. R.; Trotter, B. W.; Richardson, T. I.; Barrow, J. C.; Katz, J. L. Total synthesis of vancomycin and eremomycin aglycons. Angew. Chem. Int. Ed. 1998, 37, 2700–2704. [Google Scholar] [CrossRef]
  10. Ullmann, F. Uber eine neue darstellungsweise von Phenylathersalicylsaure. Chem. Ber. 1904, 37, 853–854. [Google Scholar] [CrossRef]
  11. He, H.; Wu, Y. J. Synthesis of diaryl ethers through the copper-catalyzed arylation of phenols with aryl halides using microwave heating. Tetrahedron Lett. 2003, 44, 3445–3446. [Google Scholar] Sagar, A. D.; Tale, R. H.; Adude, R. N. Synthesis of symmetrical diaryl ethers from arylboronic acids mediated by copper(II) acetate. Tetrahedron Lett. 2003, 44, 7061–7063. [Google Scholar] Decicco, C. P.; Song, S.; Evans, D. A. Intramolecular O-arylation of phenols with phenylboronic acids: Application to the synthesis of macrocyclic metalloproteinase inhibitors. Org. Lett. 2001, 3, 1029–1032. [Google Scholar] Marcoux, J.; Doye, S.; Buchwald, S. L. A general copper-catalyzed synthesis of diaryl ethers. J. Am. Chem. Soc. 1997, 119, 10539–10540. [Google Scholar] Cui, S. L.; Jiang, Z. Y.; Wang, Y. G. A general and efficient protocol for the synthesis of biaryl ethers from aryl silyl ethers using Cs2CO3. Synlett 2004, 1829–1831. [Google Scholar]
  12. Dinsmore, C. J.; Zartman, C. B. Arylmethanesulfonates are convenient latent phenols in the nucleophilic aromatic substitution reaction. Tetrahedron Lett. 1999, 40, 3989–3990. [Google Scholar] [CrossRef]
  13. Ritter, T.; Stanek, K., Larrosa; Carreira, E. M. Mild cleavage of aryl mesylates: Methanesulfonate as potent protecting group for phenols. Org. Lett. 2004, 6, 1513–1514. [Google Scholar] [CrossRef]
  14. Xu, H.; Wang, Y. G. One-pot construction 3,4-dihydropyrimidin-2(1H)-ones catalysed by samarium(III). J. Chem. Research (S) 2003, 6, 377–379. [Google Scholar] Xu, H.; Wang, Y. G. A rapid and efficient Biginelli reaction catalyzed by zinc triflate. Chin. J. Chem. 2003, 21, 327–331. [Google Scholar] Xu, H.; Liao, W. M.; Li, H. F. A mild and efficient ultrasound-assisted synthesis of diaryl ethers without any catalyst. Ultrason. Sonochem. 2007, in press, available online 31 January 2007. [Google Scholar]
  • Sample Availability: Samples of the compounds are available from the authors.
