Some Considerations about the Anodic Limit of Ionic Liquids Obtained by Means of DFT Calculations
Abstract
:1. Introduction

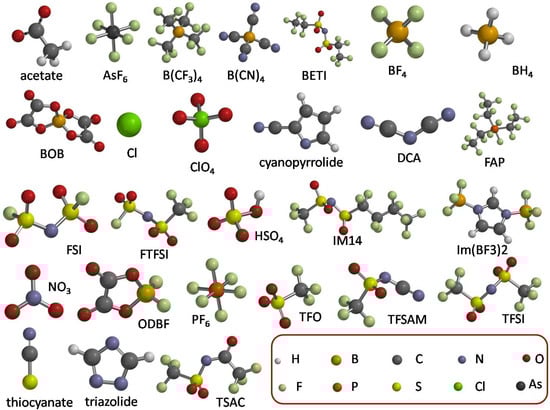

2. Materials and Methods
3. Results and Discussion
3.1. QSAR and Anodic Limit of Different Anions

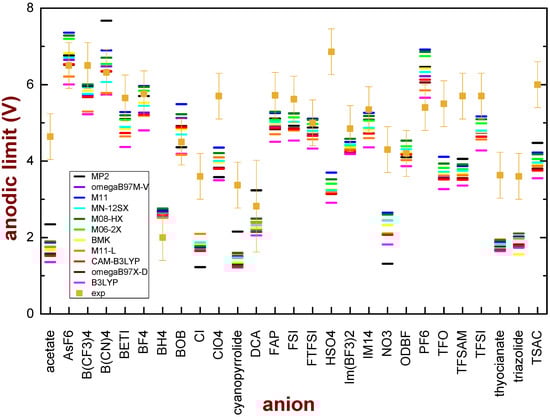

3.2. Ab-Initio and DFT Calculation of the Anodic Limit

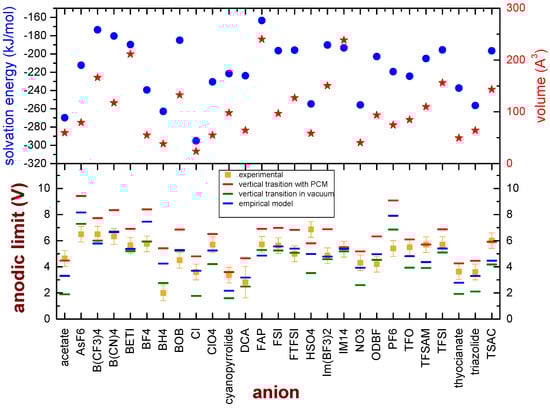

3.3. Development of an Empirical Model
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Guo, K.; Qi, S.; Wang, H.; Huang, J.; Wu, M.; Yang, Y.; Li, X.; Ren, Y.; Ma, J. High-Voltage Electrolyte Chemistry for Lithium Batteries. Small Sci. 2022, 2, 2100107. [Google Scholar] [CrossRef]
- Navarra, M.A. Ionic Liquids as Safe Electrolyte Components for Li-Metal and Li-Ion Batteries. MRS Bull. 2013, 38, 548–553. [Google Scholar] [CrossRef]
- Liu, K.; Wang, Z.; Shi, L.; Jungsuttiwong, S.; Yuan, S. Ionic Liquids for High Performance Lithium Metal Batteries. J. Energy Chem. 2021, 59, 320–333. [Google Scholar] [CrossRef]
- Paul, A.; Muthukumar, S.; Prasad, S. Review—Room-Temperature Ionic Liquids for Electrochemical Application with Special Focus on Gas Sensors. J. Electrochem. Soc. 2020, 167, 037511. [Google Scholar] [CrossRef]
- Rüther, T.; Bhatt, A.I.; Best, A.S.; Harris, K.R.; Hollenkamp, A.F. Electrolytes for Lithium (Sodium) Batteries Based on Ionic Liquids: Highlighting the Key Role Played by the Anion. Batter. Supercaps 2020, 3, 793–827. [Google Scholar] [CrossRef]
- Xu, W.; Shusterman, A.J.; Marzke, R.; Angell, C.A. LiMOB, an Unsymmetrical Nonaromatic Orthoborate Salt for Nonaqueous Solution Electrochemical Applications. J. Electrochem. Soc. 2004, 151, A632. [Google Scholar] [CrossRef]
- Ue, M.; Murakami, A.; Nakamura, S. Anodic Stability of Several Anions Examined by Ab Initio Molecular Orbital and Density Functional Theories. J. Electrochem. Soc. 2002, 149, A1572–A1577. [Google Scholar] [CrossRef]
- Johansson, P. Intrinsic Anion Oxidation Potentials. J. Phys. Chem. 2006, 110, 12077–12080. [Google Scholar] [CrossRef]
- Johansson, P. Erratum: Intrinsic Anion Oxidation Potentials (Journal Physical Chemistry A (2006) 110A (12077)). J. Phys. Chem. 2007, 111, 1378. [Google Scholar] [CrossRef]
- Ong, S.P.; Ceder, G. Investigation of the Effect of Functional Group Substitutions on the Gas-Phase Electron Affinities and Ionization Energies of Room-Temperature Ionic Liquids Ions Using Density Functional Theory. Electrochim. Acta 2010, 55, 3804–3811. [Google Scholar] [CrossRef]
- Carboni, M.; Spezia, R.; Brutti, S. Perfluoroalkyl-Fluorophosphate Anions for High Voltage Electrolytes in Lithium Cells: DFT Study. J. Phys. Chem. C 2014, 118, 24221–24230. [Google Scholar] [CrossRef]
- Haskins, J.B.; Bauschlicher, C.W.; Lawson, J.W. Ab Initio Simulations and Electronic Structure of Lithium-Doped Ionic Liquids: Structure, Transport, and Electrochemical Stability. J. Phys. Chem. B 2015, 119, 14705–14719. [Google Scholar] [CrossRef] [PubMed]
- Karu, K.; Ruzanov, A.; Ers, H.; Ivaništšev, V.; Lage-Estebanez, I.; García de la Vega, J. Predictions of Physicochemical Properties of Ionic Liquids with DFT. Computation 2016, 4, 25. [Google Scholar] [CrossRef]
- Cheng, L.; Assary, R.S.; Qu, X.; Jain, A.; Ong, S.P.; Rajput, N.N.; Persson, K.; Curtiss, L.A. Accelerating Electrolyte Discovery for Energy Storage with High-Throughput Screening. J. Phys. Chem. Lett. 2015, 6, 283–291. [Google Scholar] [CrossRef] [PubMed]
- Kazemiabnavi, S.; Zhang, Z.; Thornton, K.; Banerjee, S. Electrochemical Stability Window of Imidazolium-Based Ionic Liquids as Electrolytes for Lithium Batteries. J. Phys. Chem. B 2016, 120, 5691–5702. [Google Scholar] [CrossRef] [PubMed]
- Ong, S.P.; Andreussi, O.; Wu, Y.; Marzari, N.; Ceder, G. Electrochemical Windows of Room-Temperature Ionic Liquids from Molecular Dynamics and Density Functional Theory Calculations. Chem. Mater. 2011, 23, 2979–2986. [Google Scholar] [CrossRef]
- Zhang, Y.; Shi, C.; Brennecke, J.F.; Maginn, E.J. Refined Method for Predicting Electrochemical Windows of Ionic Liquids and Experimental Validation Studies. J. Phys. Chem. B 2014, 118, 6250–6255. [Google Scholar] [CrossRef]
- Lian, C.; Liu, H.; Li, C.; Wu, J. Hunting ionic liquids with large electrochemical potential windows. AIChE J. 2019, 65, 804–810. [Google Scholar] [CrossRef]
- Maftoon-Azad, L. Electrochemical stability windows of Ali-cyclic ionic liquids as lithium metal battery Electrolytes: A computational approach. J. Mol. Liq. 2021, 343, 117589. [Google Scholar] [CrossRef]
- Piatti, E.; Guglielmero, L.; Tofani, G.; Mezzetta, A.; Guazzelli, L.; D’Andrea, F.; Roddaro, S.; Pomelli, C.S. Ionic liquids for electrochemical applications: Correlation between molecular structure and electrochemical stability window. J. Mol. Liq. 2022, 364, 120001. [Google Scholar] [CrossRef]
- Lethesh, K.C.; Bahaa, A.; Abdullah, M.; Bamgbopa, M.O.; Susantyoko, R.A. Temperature-Dependent Electrochemical Stability Window of Bis(trifluoromethanesulfonyl) imideand Bis (fluorosulfonyl) imide Anion Based Ionic Liquids. Front. Chem. 2022, 10, 859304. [Google Scholar] [CrossRef] [PubMed]
- Paolone, A.; Brutti, S. Comparison of the performances of different computational methods to calculate the electrochemical stability of selected ionic liquids. Materials 2021, 14, 3221. [Google Scholar] [CrossRef]
- Paolone, A.; Brutti, S. Performances of different DFT functionals to calculate the anodic limit of fluorinated sulphonyl-imide anions for lithium cells. J. Phys. Conf. Ser. 2021, 2090, 012078. [Google Scholar] [CrossRef]
- Li, Q.; Jiang, J.; Li, G.; Zhao, W.; Zhao, X.; Mu, T. The electrochemical stability of ionic liquids and deep eutectic solvents. Sci. China Chem. 2016, 59, 571–577. [Google Scholar] [CrossRef]
- Brutti, S.; Simonetti, E.; de Francesco, M.; Sarra, A.; Paolone, A.; Palumbo, O.; Fantini, S.; Lin, R.; Falgayrat, A.; Choi, H.; et al. Ionicliquidelectrolytes for high-voltage, lithium-ionbatteries. J. Power Sources 2020, 479, 228791. [Google Scholar] [CrossRef]
- Shao, Y.; Molnar, L.F.; Jung, Y.; Kussmann, J.; Ochsenfeld, C.; Brown, S.T.; Gilbert, A.T.B.; Slipchenko, L.V.; Levchenko, S.V.; O’Neill, D.P.; et al. Advances in methods and algorithms in a modern quantum chemistry program package. Phys. Chem. Chem. Phys. 2006, 8, 3172–3191. [Google Scholar] [CrossRef] [PubMed]
- Huber, B.; Roling, B. Development of a Ag/Ag+ micro-reference electrode for electrochemical measurements in ionic liquids. Electrochim. Acta 2011, 56, 6569–6572. [Google Scholar] [CrossRef]
- Sonoda, K.; Ueda, A.; Iwamoto, K. Non-Aqueous Electrolyte and Electrochemical Device Comprising the Same. EP 1 174 941 A2, 23 January 2002. [Google Scholar]
- Seki, S.; Serizawa, N.; Hayamizu, K.; Tsuzuki, S.; Umebayashi, Y.; Takei, K.; Miyashiro, H. Physicochemical and electrochemicalproperties of 1-ethyl-3-methylimidazolium tris(pentafluoroethyl)trifluorophosphate and 1-ethyl-3-methylimidazolium tetracyanoborate. J. Electrochem. Soc. 2012, 159, A967. [Google Scholar] [CrossRef]
- Ignat–ev, N.V.; Finze, M. Cyanoborates. Eur. J. Inorg. Chem. 2019, 2019, 3539–3560. [Google Scholar] [CrossRef]
- Reiter, J.; Paillard, E.; Grande, L.; Winter, M.; Passerini, S. Physicochemical properties of N-methoxyethyl-N-methylpyrrolidinum ionic liquids with perfluorinated anions. Electrochim. Acta 2013, 91, 101–107. [Google Scholar] [CrossRef]
- O’Mahony, A.M.; Silvester, D.S.; Aldous, L.; Hardacre, C.; Compton, R.G. Effect of water on the electrochemical window and potential limits of room-temperature ionic liquids. J. Chem. Eng. Data 2008, 53, 2884–2891. [Google Scholar] [CrossRef]
- Namazian, M.; Lin, C.Y.; Coote, M.L. Benchmark Calculations of Absolute Reduction Potential of Ferricinium/Ferrocene Couple in Nonaqueous Solutions. J. Chem. Theory Comput. 2010, 6, 2721–2725. [Google Scholar] [CrossRef] [PubMed]
- Xue, Z.; Qin, L.; Jiang, J.; Mu, T.; Gao, G. Thermal, electrochemical and radiolytic stabilities of ionic liquids. Phys. Chem. Chem. Phys. 2018, 20, 8382–8402. [Google Scholar] [CrossRef] [PubMed]
- Asakura, R.; Duchêne, L.; Kühnel, R.-S.; Remhof, A.; Hagemann, H.; Battaglia, C. Electrochemical Oxidative Stability of Hydroborate-Based Solid-State Electrolytes. ACS Appl. Energy Mater. 2019, 2, 6924–6930. [Google Scholar] [CrossRef]
- Xu, W.; Angell, C.A. Weakly coordinating anions, and the exceptional conductivity of their nonaqueous solutions. Electrochem. Solid-State Lett. 2001, 4, E1. [Google Scholar] [CrossRef]
- Grishina, E.P.; Kudryakova, N.O. Conductivity and electrochemical stability of concentrated aqueous choline chloride solutions. Russ. J. Phys. A 2017, 91, 2024–2028. [Google Scholar] [CrossRef]
- Chen, S.; Lan, R.; Humphreys, J.; Tao, S. Perchlorate Based “Oversaturated Gel Electrolyte” for an Aqueous Rechargeable Hybrid Zn–Li Battery. ACS Appl. Energy Mater. 2020, 3, 2526–2536. [Google Scholar] [CrossRef]
- Shi, C.; Quiroz-Guzman, M.; DeSilva, A.; Brennecke, J.F. Physicochemical and electrochemical properties of ionic liquids containing aprotic heterocyclic anions doped with lithium salts. J. Electrochem. Soc. 2013, 160, A1604. [Google Scholar] [CrossRef]
- Shaplov, A.S.; Lozinskaya, E.I.; Vlasov, P.S.; Morozova, S.M.; Antonov, D.Y.; Aubert, P.-H.; Armand, M.; Vygodskii, Y.S. New family of highlyconductive and low viscousionicliquids with asymmetric 2,2,2-trifluoromethylsulfonyl-N-cyanoamide anion. Electrochim. Acta 2015, 175, 254–260. [Google Scholar] [CrossRef]
- Sun, W.; Guo, Y.; Lu, Y.; Hu, A.; Shi, F.; Li, T.; Sun, Z. Electrochemical biosensor based on graphene, Mg2Al layered double hydroxide and hemoglobin composite. Electrochim. Acta 2013, 91, 130–136. [Google Scholar] [CrossRef]
- Palumbo, O.; Appetecchi, G.B.; Maresca, G.; Brubach, J.-B.; Roy, P.; Di Muzio, S.; Trequattrini, F.; Bordignon, D.; Legrand, F.; Falgayrat, A.; et al. Synthesis, PhysicalProperties and Electrochemical Applications of Two Ionic Liquids Containing the Asymmetric (Fluoromethylsulfonyl)(Trifluoromethylsulfonyl)imideAnion. Appl. Sci. 2022, 12, 4524. [Google Scholar] [CrossRef]
- Wu, F.; Schür, A.R.; Kim, G.-T.; Dong, X.; Kuenzel, M.; Diemant, T.; D–Orsi, G.; Simonetti, E.; De Francesco, M.; Bellusci, M.; et al. A novel phosphonium ionic liquid electrolyte enabling high-voltage and high-energy positive electrode materials in lithium-metal batteries. Energy Storage Mater. 2021, 42, 826–835. [Google Scholar] [CrossRef]
- Barbarich, T.J.; Driscoll, P.F. A lithium salt of a Lewis acid-base complex ofiImidazolide for lithium-ion batteries. Electrochem. Solid-State Lett. 2003, 6, A113. [Google Scholar] [CrossRef]
- Zhang, S.S. An unique lithium salt for the improved electrolyte of Li-ion battery. Electrochem. Commun. 2006, 8, 1423–1428. [Google Scholar] [CrossRef]
- Sun, G.H.; Li, K.X.; Sun, C.G. Application of 1-ethyl-3-methylimidazolium thiocyanate to the electrolyte of electrochemical double layer capacitors. J. Power Sources 2006, 162, 1444–1450. [Google Scholar] [CrossRef]
- Kozyrev, Y.N.; Mendkovich, A.S.; Kokorekin, V.A.; Luzhkov, V.B.; Rusakov, A.I. Integrated Study of the Thiocyanate Anion Electrooxidation by Electroanalytical and Computational Methods. J. Electrochem. Soc. 2021, 168, 125501. [Google Scholar] [CrossRef]
- Wakai, C.; Oleinikova, A.; Ott, M.; Weingartner, H. How Polar Are Ionic Liquids? Determination of the Static Dielectric Constant of an Imidazolium-based Ionic Liquid by Microwave Dielectric Spectroscopy. J. Phys. Chem. B 2005, 109, 17028–17030. [Google Scholar] [CrossRef] [PubMed]
- Singh, T.; Kumar, A. Static Dielectric Constant of Room Temperature Ionic Liquids: Internal Pressure and Cohesive Energy Density Approach. J. Phys. Chem. B 2008, 112, 12968–12972. [Google Scholar] [CrossRef] [PubMed]
- Weingärtner, H. The static dielectric permittivity of ionic liquids. J. Mol. Liq. 2014, 192, 185–190. [Google Scholar] [CrossRef]
- Shock, C.J.; Stevens, M.J.; Frischknecht, A.L.; Nakamura, I. Solvation Energy of Ions in a Stockmayer Fluid. J. Phys. Chem. B 2020, 124, 4598–4604. [Google Scholar] [CrossRef]

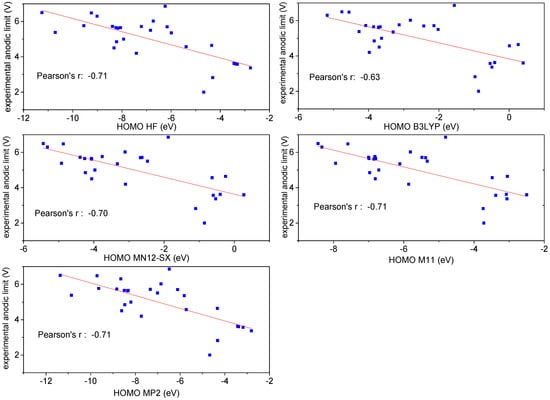

MP2 eV | HF eV | B3LYP eV | MN-12SX eV | M11 eV | Experimental Anodic Limit V | |
---|---|---|---|---|---|---|
acetate | −4.33 | −4.35 | 0.26 | −0.25 | −3.05 | 4.64 [24,27] |
AsF6 | −11.36 | −11.25 | −4.76 | −5.44 | −8.44 | 6.5 [7] |
B(CF3)4 | −9.71 | −9.24 | −4.56 | −4.87 | −7.59 | 6.48 [28] |
B(CN)4 | −8.65 | −9.01 | −5.18 | −5.32 | −8.33 | 6.30 [29,30] |
BETI | −8.49 | −8.24 | −3.86 | −4.26 | −6.99 | 5.65 [31] |
BF4 | −9.64 | −9.55 | −3.13 | −3.76 | −6.82 | 5.76 [24,30,32,33,34] |
BH4 | −4.67 | −4.67 | −0.87 | −0.85 | −3.72 | 2.0 [35] |
BOB | −8.61 | −8.32 | −3.7 | −4.06 | −6.81 | 4.5 [36] |
Cl | −3.38 | −3.38 | 0.4 | 0.27 | −2.5 | 3.60 [24,32,34,37] |
ClO4 | −7.33 | −7.21 | −2.14 | −2.63 | −5.48 | 5.71 [24,38] |
cyanopyrrolide | −2.81 | −2.77 | −0.49 | −0.53 | −3.06 | 3.37 [39] |
DCA | −4.32 | −4.31 | −0.97 | −1.1 | −3.74 | 2.82 [24,40] |
FAP | −8.83 | −8.38 | −4.08 | −4.39 | −7.00 | 5.72 [29,32] |
FSI | −8.34 | −8.16 | −3.72 | −4.06 | −6.85 | 5.62 [40,41] |
FTFSI | −8.2 | −7.93 | −3.63 | −3.97 | −6.71 | 5.00 [42] |
HSO4 | −6.48 | −6.24 | −1.56 | −1.88 | −4.81 | 6.86 [24] |
IM14 | −8.47 | −8.22 | −3.84 | −4.24 | −6.97 | 4.85 [31,43] |
Im(BF3)2 | −5.81 | −5.99 | −3.3 | −3.33 | −6.11 | 5.35 [44] |
NO3 | −5.72 | −5.39 | 0.01 | −0.63 | −3.48 | 4.57 [24] |
ODFB | −7.73 | −7.41 | −3.98 | −3.1 | −5.86 | 4.2 [45] |
PF6 | −10.86 | −10.71 | −4.27 | −4.92 | −7.94 | 5.38 [32,34] |
TFO | −7.01 | −6.84 | −2.02 | −2.47 | −5.33 | 5.50 [24,32,34] |
TFSAM | −6.11 | −6.16 | −2.43 | −2.67 | −5.38 | 5.70 [40] |
TFSI | −8.32 | −8.06 | −3.67 | −4.07 | −6.8 | 5.65 [24,29,32,34,40] |
thiocyanate | −3.42 | −3.44 | −0.41 | −0.4 | −3.08 | 3.65 [46,47] |
triazolide | −3.18 | −3.31 | −0.54 | −0.6 | −3.38 | 3.57 [39] |
TSAC | −6.85 | −6.72 | −2.81 | −3.11 | −5.81 | 6.02 [40] |
Functional | Type of Approximation | MSE (V2) |
---|---|---|
M08-HX | GH-mGGA | 1.61 |
M11 | RSH-mGGA | 1.64 |
M06-2X | GH-mGGA | 1.81 |
MN-12SX | RSH-mGGA | 1.81 |
MP2 | -- | 1.87 |
M11-L | mGGA | 1.97 |
BMK | mGGA | 2.00 |
ωB97X-D | RSH-GGA | 2.18 |
ωB97M-V | RSH-mGGA | 2.22 |
CAM-B3LYP | RSH-GGA | 2.27 |
B3LYP | GH-GGA | 2.78 |
