Memory Effects in Quantum Dynamics Modelled by Quantum Renewal Processes

Abstract

Simple, controllable models play an important role in learning how to manipulate and control quantum resources. We focus here on quantum non-Markovianity and model the evolution of open quantum systems by quantum renewal processes. This class of quantum dynamics provides us with a phenomenological approach to characterise dynamics with a variety of non-Markovian behaviours, here described in terms of the trace distance between two reduced states. By adopting a trajectory picture for the open quantum system evolution, we analyse how non-Markovianity is influenced by the constituents defining the quantum renewal process, namely the time-continuous part of the dynamics, the type of jumps and the waiting time distributions. We focus not only on the mere value of the non-Markovianity measure, but also on how different features of the trace distance evolution are altered, including times and number of revivals.

1. Introduction

Quantum phenomena are deemed to be the main ingredients of the next technological breakthroughs. Quantum correlations, quantum coherences and quantum non-Markovianity are the key resources to outperform classical protocols in many tasks, within the contexts of, for example, communication [1,2], teleportation [3], cryptography [4], metrology [5] and thermodynamics [6], thus providing the pillars for future progress in quantum technology [7]. Even though developments in quantum theory started at the beginning of the last century, a deep and thorough understanding of the above-mentioned features in view of their operational exploitation is still being developed [5,8,9]. This is why simple, controllable models play an important role in learning how to manipulate and control the quantum resources.

In this article, we focus on the analysis of a Markov property in the quantum setting and on the description of a class of open quantum system dynamics featuring memory effects and allowing for a phenomenological treatment. The Markov property is a concept from the theory of classical stochastic processes, where a clear definition of the Markov process can be introduced in terms of conditional probability distributions. This notion is connected with the memorylessness of the process, i.e., the fact that the future of the process is independent of its history. As stochastic processes are used to model reality in many different fields of research, such as finance, biology, chemistry and social science, this is a highly relevant and often recurring concept [10]. Stochastic processes naturally appear in the description of (open) classical systems where, at least in principle, the stochasticity can be always traced back to the lack of knowledge on the underlying total Hamiltonian and the initial conditions [10,11]. The extension of the classical formalism to the theory of open quantum systems is not straightforward, due to the invasive nature of the quantum measurements. As a consequence, many different, nonequivalent definitions of the quantum Markov process have been introduced, all of them aimed at revealing the occurrence of memory effects in quantum evolutions. In this respect, the notion of memory in the quantum realm still calls for a full physical interpretation. Some hints in this direction come from the framework of quantum thermodynamics, where, for example, the connection between non-Markovianity and irreversible entropy production was explored [12,13].

We point out how the class of quantum renewal processes can be used as a phenomenological tool to describe dynamics with different non-Markovian behaviours. Our study complements other approaches, whose starting point is rather a microscopic description specifying a reference total Hamiltonian, although some exceptions exist [14]. In particular, strategies aimed at controlling the non-Markovianity of the dynamics explored the manipulation of system–environmental coupling [15,16,17], or modification of the reduced system itself [18,19]. The possibility of delaying the occurrence of non-Markovianity [20] and enhancing it by means of feedback control [21] was also investigated.

The existence of an underlying microscopical description of the evolution ensures that the reduced dynamics is indeed physical, i.e., the corresponding dynamical map ${\mathrm{\Lambda }}_t$, which maps the initial reduced density operator $\rho \left(0\right)$ to a density operator at later time t: $\rho \left(t\right)={\mathrm{\Lambda }}_t\left[\rho \left(0\right)\right]$, is completely positive and trace preserving (CPTP). This follows from the assumption that, initially, the reduced system and its environment are not correlated, i.e., the initial total state is factorised: ${\rho }_{tot}\left(0\right)=\rho \left(0\right)\otimes {\rho }_E\left(0\right)$. The density operator yields the probability distributions in quantum physics, so that trace preservation of the dynamics keeps the correct normalisation of the probabilities, while complete positivity takes into account the possible entanglement of the system state with other, otherwise not involved, degrees of freedom [22], ensuring that joint probabilities are properly defined. On the other hand, if one chooses a more phenomenological approach and fixes the form of the dynamical map or of the corresponding evolution equation for $\rho \left(t\right)$, the so-called master equation, the CPTP property of ${\mathrm{\Lambda }}_t$ needs to be warranted. For Markovian semigroups, this issue is well under control, i.e., one can specify the general structure of the corresponding master equation of the so-called Gorini–Kossakowski–Sudarshan–Lindblad (GKSL) form [23,24], which describes any proper quantum evolution obeying a semigroup composition law. Its generalisation to the case of the so-called CP-divisible dynamics satisfying a more general composition law: ${\mathrm{\Lambda }}_t={\mathrm{\Lambda }}_{t,s}{\mathrm{\Lambda }}_s$, with ${\mathrm{\Lambda }}_{t,s}$ being a CPTP map, is also known [25,26]. However, a comparable result is still missing for general non-Markovian evolutions, although the topic has attracted a lot of interest [27,28,29,30,31,32,33,34,35,36,37,38,39,40]. Remarkably, in the case of the quantum renewal processes that we analyse here, CPTP of the dynamical map is guaranteed by construction. This makes this class of open quantum system dynamics a valuable tool for the phenomenological description of reduced dynamics. In addition, despite their simplicity, quantum renewal processes can show a wide range of non-Markovian behaviours, which we analyse in details in the following.

The rest of the article is organized as follows. In Section 2, we introduce the concept of non-Markovianity for stochastic processes. After this, we describe a possible definition of quantum non-Markovianity based on the monotonicity of the trace distance between two reduced states, which we adopt in the whole article. In Section 3, we continue with the presentation of the renewal processes in the classical and the quantum domain, while Section 4 is devoted to the trajectory picture of the reduced dynamics and to the description of the different elements that influence the non-Markovianity of the quantum renewal process: the time-continuous part of the dynamics, the type of jumps and the waiting time distributions governing the whole stochasticity of the jump times. In Section 5, we analyse the impact on the non-Markovianity measure and, more generally, on the main features of the trace distance evolution, such as the number and instants of its revivals. Finally, we summarise our findings in Section 6.

2. Memory Effects in Quantum Dynamics

We say that a stochastic process $X\left(t\right)$, $t\ge 0$, taking values in a discrete set ${\left\{x_i\right\}}_{i\in \mathbb{N}}$, is Markov if the corresponding conditional probability distributions satisfy for any finite n the following inequalities:

$$\begin{array}{c}\hfill p_{1|n}(x_{n+1},t_{n+1}|x_n,t_n;\dots ;x_1,t_1)=p_{1|1}(x_{n+1},t_{n+1}|x_n,t_n),\end{array}$$

(1)

where the times are ordered: $t_{n+1}\ge t_n\ge \dots \ge t_1\ge 0$, i.e., once we know the value $x_n$ of the stochastic process at time $t_n$, the past history prior to $t_n$ does not affect the predictions about the value of the process at any future time $t_{n+1}$. Due to the invasive nature of quantum measurements, the extension of this definition to the quantum regime is not straightforward [41], and many different, non-equivalent definitions of quantum Markovianity have been introduced [9,42,43]. In most of them Markovianity is a property of the dynamical map ${\mathrm{\Lambda }}_t$ itself, such as (C)P-divisibility [26,44,45], the change of the volume of accessible states [46] and monotonicity of the trace distance as a quantifier of state distinguishability [47,48]; the latter is the one we will adopt here. On the other hand, other approaches, such as the process matrix formalism [49,50], ground the notion of quantum Markovianity on conditional probabilities associated with sequences of measurements, going beyond the single-time description of the open system dynamics and calling for multi-time correlations.

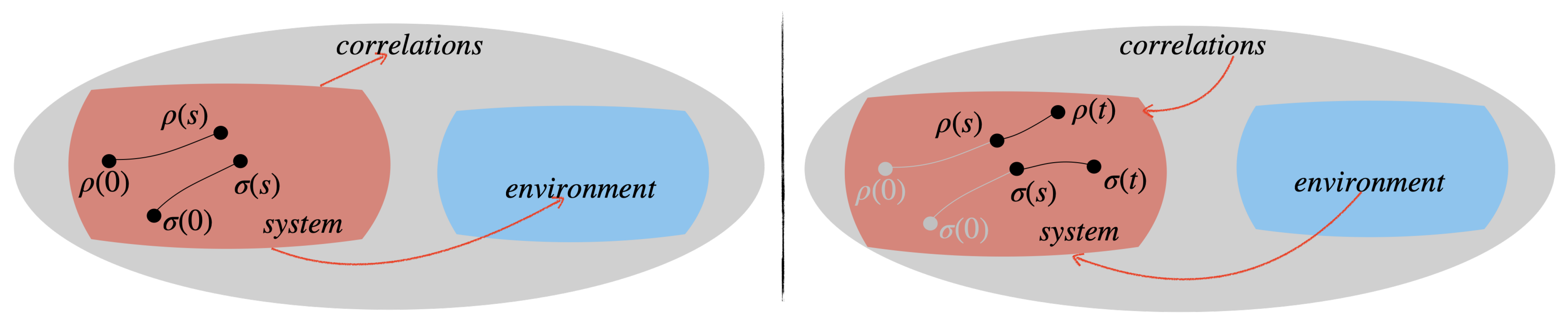

The definition of non-Markovianity we use here is based on the change in distinguishability between system states, quantified in the original paper [47] by means of the trace distance between two reduced states in the course of the evolution. The trace distance between two quantum states $\rho$, $\sigma$ is defined as follows:

$$\begin{array}{c}\hfill \mathcal{D}(\rho ,\sigma )=\frac{1}{2}\mathrm{Tr}|\rho -\sigma |=\frac{1}{2}\sum _i\left|v_i\right|,\end{array}$$

(2)

where $v_i$ are the eigenvalues of the operator $\rho -\sigma$. The quantum dynamics fixed by the map ${\mathrm{\Lambda }}_t$ is non-Markovian if and only if the trace distance is not a monotonous function of time, i.e., there exists a couple of initial states $\rho \left(0\right)$ and $\sigma \left(0\right)$ and a time $t>0$ for which the following holds:

$$\begin{array}{c}\hfill \frac{d}{dt}\mathcal{D}(\rho \left(t\right),\sigma \left(t\right))>0,\end{array}$$

(3)

where $\rho \left(t\right)={\mathrm{\Lambda }}_t\left[\rho \left(0\right)\right]$ and $\sigma \left(t\right)={\mathrm{\Lambda }}_t\left[\sigma \left(0\right)\right]$.

Importantly, since the trace distance is contractive under the action of any (C)PTP map $\varphi$,

$$\begin{array}{c}\hfill \mathcal{D}\left(\varphi \right(\rho ),\varphi (\sigma \left)\right)<\mathcal{D}(\rho ,\sigma ),\end{array}$$

(4)

(C)P-divisibility [26,44,45,51] implies monotonicity of the trace distance and thus Markovianity according to the definition above, while the inverse does not hold [48]. The trace-distance-based definition of non-Markovianity provides a clear-cut interpretation in terms of the information flow between the open quantum system and the environment as the key element, possibly leading to the occurrence of memory effects in the dynamics. In addition, this picture allows us to trace back the exchange of information between the open system and the environment to the correlations established by their mutual interaction [52,53,54,55,56,57]; see Figure 1. Initially, the whole information is contained in the reduced system; however, due to the system–environment interaction, some information gets transferred to external degrees of freedom over the course of the evolution. Such information can be stored both in the environment and in the system–environmental correlations. In Markovian dynamics, the information flow is unidirectional, i.e., the information is always flowing from the open system to the outside world and any couple of reduced states get closer and closer with the passing of time. On the other hand, for non-Markovian evolutions, some information backflow occurs, which is witnessed by an increase in the distance between pairs of reduced states on certain intervals of time. Let us stress that this viewpoint was recently strengthened, as it was shown that also different distinguishability measures between two quantum states, including entropic quantities, can be used to quantify the information flow; it appears in particular that the quantum Jensen–Shannon divergence is a natural entropic quantifier of information backflow [58]. Additionally, a connection between the monotonic contractivity of a generalisation of the trace distance and P-divisibility exists [51,59], providing a common background to these approaches to non-Markovianity, which, however, goes beyond the scope of this work. Note that, even though the definition of non-Markovianity used here has an interpretation in terms of information flow between the system and environment as explained above, it can be directly used at the level of the reduced evolution without the necessity to specify an underlying microscopical model. With this, it can also be applied to our phenomenological approach, where we construct the proper dynamical maps without directly starting from the total Hamiltonian, although realisations—for example, with collisional models—are possible [60,61].

Relying on the trace distance, it is then possible to define a measure of the degree of non-Markovianity of quantum dynamics. The idea is to integrate all the revivals of the trace distance over the duration of the dynamics, i.e., to quantify the overall amount of information flown back to the reduced system. In addition, since we want the non-Markovianity measure to be a property of the dynamical map, while the change in the trace distance, Equation (3), generally depends on the chosen initial states $\rho \left(0\right)$ and $\sigma \left(0\right)$, the non-Markovianity measure involves optimisation over all the possible couples of initial states [47]:

$$\begin{array}{c}\hfill \mathcal{N}=\underset{\rho \left(0\right),\sigma \left(0\right)}{max}\underset{d\mathcal{D}\left(\rho \right(s),\sigma (s\left)\right)/ds>0}{\int }\frac{d}{ds}\mathcal{D}(\rho \left(s\right),\sigma \left(s\right))ds.\end{array}$$

(5)

It was shown in [65] that the optimal pair of states, i.e., the one achieving the maximum in the non-Markovianity measure, lies on the boundary of the states space and is made of orthogonal states. In particular, for qubit states, this means that the optimal pair consists of pure states that can be represented as a pair of antipodal points on the Bloch sphere.

3. Renewal Processes: Classical and Quantum

Here, we investigate a class of open quantum system dynamics, quantum renewal processes, which are a generalisation of a classical concept. Firstly, we briefly review semi-Markov processes of which renewal processes are a subset, and then provide a formulation of the relevant notions in the quantum realm [66,67].

As discussed in Section 1, the characterization of a Markovian time evolution is essentially fixed by the GKSL theorem, determining the expression of the generator of the dynamics. An equivalent result for an arbitrary dynamics featuring non-Markovian effects is not known, and only very specific results have been obtained. The main difficulty lies in providing evolution equations whose solutions are indeed CPTP maps. These so-called master equations can be recast in two forms, either time local, i.e., with the following functional expression [22]:

$$\frac{d}{dt}\rho \left(t\right)=\mathcal{L}\left(t\right)\left[\rho \left(t\right)\right],$$

(6)

or time non-local, that is in the following form [68,69]:

$$\frac{d}{dt}\rho \left(t\right)=\underset{0}{\overset{t}{\int }}\mathcal{K}(t-s)\left[\rho \left(s\right)\right].$$

(7)

The superoperators $\mathcal{L}\left(t\right)$ and $\mathcal{K}\left(t\right)$ are generally related [70,71,72,73], though in a highly non-trivial way. Moreover general conditions on their expression warranting CPTP are not known, except for special cases. In this contribution, we make reference to a large class of well-defined evolutions obtained by building on an analogy with classical non-Markovian stochastic processes, which we shortly recapitulate below for the reader’s convenience.

A semi-Markov process is a continuous time random jump process between sites identifying system states for which the jump probabilities are possibly site dependent but independent from each other. In a quantum semi-Markov process, the jumps are implemented by the application of CPTP maps on the reduced density operators; see Equation (11). The probability distribution of the time between the jumps is called waiting time distribution (WTD) and provides a probability density over the positive real line as follows:

$$f\left(s\right)\ge 0,\underset{0}{\overset{\infty }{\int }}dsf\left(s\right)=1.$$

(8)

If the WTD is exponentially distributed, then the semi-Markov process reduces to a continuous time Markov chain. Otherwise, for general distributions, the memory about the time already spent in the state affects the subsequent statistics of the process, which is then non-Markovian.

The transition probabilities $T_{nm}\left(t\right)$ from the site m to the site n in a semi-Markov process can be written in the following form [34]:

$$\begin{array}{c}\hfill T_{nm}\left(t\right)=n_{nm}\left(t\right)+{(n\ast \underline{\mathrm{\Pi }}f)}_{nm}\left(t\right)+{(n\ast \underline{\mathrm{\Pi }}f\ast \underline{\mathrm{\Pi }}f)}_{nm}\left(t\right)+\cdots ,\end{array}$$

(9)

where the matrix $n_{nm}\left(t\right)={\delta }_{nm}{g}_n\left(t\right)$ is a diagonal matrix fixed by the survival probabilities $g_n\left(t\right)$ defined by the following:

$$\begin{array}{c}\hfill g_n\left(t\right)=1-\underset{0}{\overset{t}{\int }}ds{f}_n\left(s\right),\end{array}$$

(10)

corresponding to possibly site dependent WTDs $f_n\left(t\right)$; the entries of the semi-Markov matrix $\underline{\mathrm{\Pi }}$ are the jump probabilities between sites. This expression for the transition probabilities $T_{nm}\left(t\right)$ has a quantum analogue in terms of a corresponding expansion for the reduced density operator, Equation (11). Moreover, note that a semi-Markov process can also be seen as the merging of a renewal process and a Markovian jump process. In a renewal process, the events, here the transitions among sites, occur randomly in time, and the time intervals between successive events are independent. Accordingly, the evolution depends only on the current site and the time elapsed since arriving at it. In the case of the standard renewal process, all waiting times are identical, while for a so-called modified process, the first k waiting time distributions are different.

The notion of trajectory is one of the basic concepts in the description of classical stochastic processes. Indeed, in abstract terms a stochastic process can always be characterized by a suitable measure over a sample space of trajectories. Recovering a notion of trajectory is less straightforward in the quantum case, where the object of interest is the reduced density matrix $\rho \left(t\right)$, but this can actually be done in the context of open quantum systems [22,74]. More specifically, the dynamics we are considering allow for an interpretation in terms of an average over trajectories in the space of operators. All the trajectories start in the same initial state $\rho \left(0\right)$, and then for each trajectory the times at which the system state undergoes discontinuous changes, the so-called jumps, are random variables. Accordingly, the reduced density operator of the open quantum system can be obtained by a weighted sum of all possible trajectories, corresponding to fixed jump times. We see that this point of view also helps us understand the dependence of non-Markovianity on the specific parameters.

Quantum renewal processes are a subclass of quantum semi-Markov processes [28,31,32,41,72], for which the time evolution reads as follows:

$$\begin{array}{cc}\hfill \rho \left(t\right)=& p_0\left(t\right){\mathcal{F}}_0\left(t\right)\rho \left(0\right)+\hfill \\ & \sum _{n=0}^{\infty }\underset{0}{\overset{t}{\int }}d{t}_n\dots \underset{0}{\overset{t_2}{\int }}d{t}_1{p}_n(t;t_n,\dots ,t_1){\mathcal{F}}_n(t-t_n){\mathcal{E}}_n\dots .{\mathcal{F}}_2(t_2-t_1){\mathcal{E}}_1{\mathcal{F}}_1\left(t_1\right)\rho \left(0\right),\hfill \end{array}$$

(11)

where the CPTP maps ${\mathcal{E}}_n$ describe the jumps, while the CPTP maps ${\mathcal{F}}_n\left(t\right)$ give the time-continuous evolutions between the jumps, and $p_n(t;t_n;\dots ,t_1)d{t}_n\dots d{t}_1$ is the probability that the jumps occur (solely) around fixed times $t_1,\dots ,t_n$. Note the close analogy to the classical description recalled above. In the case of the standard process the jump times are independent and identically distributed, i.e., each waiting time has the same probability distribution and they are all mutually independent. In a modified process, instead, the probability distributions for the first jumps can differ from each other and the following ones.

To obtain the quantum renewal processes from the general quantum semi-Markov processes, one fixes the time evolution between the jumps to be of GKSL form [33]. What is more, one also introduces only two kinds of jumps: anterior $\mathcal{J}$ and subsequent $\mathcal{E}$ with respect to the time continuous evolution. Consequently, in quantum renewal processes one focuses on the stochastic distribution of the jumps, as in the case of classical renewal processes. Accordingly, we obtain the following form of the open quantum system density operator at time t:

$$\begin{array}{cc}\hfill \rho \left(t\right)=& p_0\left(t\right)e^{\mathcal{L}t}\rho \left(0\right)+\hfill \\ & \sum _{n=0}^{\infty }\underset{0}{\overset{t}{\int }}d{t}_n\dots \underset{0}{\overset{t_2}{\int }}d{t}_1{p}_n(t;t_n,\dots ,t_1)e^{\mathcal{M}(t-t_n)}\mathcal{E}{e}^{\mathcal{L}(t_n-t_{n-1})}\mathcal{J}\dots \mathcal{E}{e}^{\mathcal{L}(t_2-t_1)}\mathcal{J}\mathcal{E}{e}^{\mathcal{L}{t}_1}\mathcal{J}\rho \left(0\right).\hfill \end{array}$$

(12)

Here, we use a “left-ordering”, as explained in [31], since a particular ordering of the operators has to be chosen in order to construct the quantum evolution from the classical counterpart. We also set in the following $\mathcal{M}=\mathcal{L}$ (the time continuous evolution is always the same) and $\mathcal{J}=\mathbb{1}$. With this, the above mentioned trajectories correspond to the dynamical maps $e^{\mathcal{L}(t-t_n)}\mathcal{E}{e}^{\mathcal{L}(t_n-t_{n-1})}\dots \mathcal{E}{e}^{\mathcal{L}{t}_1}$, which contribute to the overall evolution with weights $p_n(t;t_n,\dots ,t_1)d{t}_n\dots d{t}_1$.

For the standard quantum renewal process, the same WTD $f\left(t\right)$ governs the whole stochasticity of the jumps’ times as follows:

$$\begin{array}{c}\hfill p_n(t;t_n,\dots ,t_1)=g(t-t_n)\dots f(t_2-t_1)f\left(t_1\right),\end{array}$$

(13)

where $g\left(t\right)$ is the corresponding survival probability. When the renewal process is modified, the first k WTDs can be different.

$$\begin{array}{cccc}\hfill p_n(t;t_n,\dots ,t_1)& =g_{n+1}(t-t_n)f_n(t_n-t_{n-1})\dots f_1\left(t_1\right),\hfill & \hfill & n\le k\hfill \end{array}$$

(14)

$$\begin{array}{cccc}\hfill p_n(t;t_n,\dots ,t_1)& =g(t-t_n)f(t_n-t_{n-1})\dots f(t_{k+1}-t_k)f_k(t_k-t_{k-1})\dots f_1\left(t_1\right),\hfill & \hfill & n>k.\hfill \end{array}$$

(15)

Here, we investigate how the non-Markovianity of the dynamics, in terms of the monotonicity of the trace distance, depends on the choice of the involved operators, describing intermediate continuous evolutions and jumps as well as the chosen probability distribution for the jumps. We observe a rich variety of possible behaviours and analyse the influence of particular parameters to control the strength, time of occurrence and precise manifestation of quantum non-Markovianity.

4. Trajectory Picture

In general, there exist infinitely different decompositions of reduced dynamics, i.e., different ways to write the reduced density operator in the form

$$\begin{array}{c}\hfill \rho \left(t\right)=\underset{\ell \in I}{⨋}{p}_{\ell }\left(t\right){\rho }_{\ell }\left(t\right),\end{array}$$

(16)

where I can be a countable or uncountable set. In this representation the prefactors $p_{\ell }\left(t\right)$ can be interpreted as probabilities or probabilities densities, i.e., they are positive and normalized, and the operators ${\rho }_{\ell }\left(t\right)$ are themselves proper density operators, i.e., trace one and positive semi-definite. If the operators can be obtained by the action of CPTP maps ${\mathrm{\Lambda }}_t^{\ell }$ applied on the very same initial state $\rho \left(0\right)$, each ${\rho }_{\ell }\left(t\right)$ can be associated to a different trajectory, whose occurrence probability is indeed given by the corresponding $p_{\ell }\left(t\right)$. There exist two main types of decompositions directly linked to a trajectory picture of the dynamics: time-continuous, as exemplified by quantum state diffusion [75,76,77], and so called jump unravelings [78,79]. As recalled above, also quantum renewal processes have direct decomposition in terms of trajectories, which are defined at the level of the density operators; see, in particular, Equation (12). Finally, note that an important question still far from being completely answered is the connection between the trajectory description of the reduced dynamics and the existence of a continuous measurement interpretation associated with it [74,80,81,82,83,84].

The construction of a particular trajectory can take place in two different ways. In the first method, one firstly fixes the time interval $[0,T]$ of interest and then draws the jumps’ times according to the WTDs. After each drawing, if the sum of waiting times exceeds T, one terminates the process. Then, the generation of the trajectory is obtained by inserting the jumps at the given times. In the second method, the generation of the trajectory and drawing of the jump times take place in parallel. The time interval $[0,T]$ is divided into small intervals of length $\mathsf{\Delta }t$, and at each intermediate midpoint, one determines randomly if the jump takes place or not, with the probability fixed by the corresponding waiting time distribution. In this second approach, fixing the time interval $[0,T]$ in advance is in principle not necessary, as one can decide along the trajectory when to stop the evolution. Note that, for a modified renewal process, only the first method is applicable for the case in which the last k waiting time distributions are different, a situation which was introduced in [33] under the name of inverse time operator ordering. The same is true when the last time-continuous evolution is different from the preceding ones, $\mathcal{M}\ne \mathcal{L}$ in Equation (12), or in processes starting with a jump rather than with a time continuous evolution, $\mathcal{J}\ne \mathbb{1}$ in Equation (12). In all these situations one has to know beforehand, i.e., before one starts to generate the trajectory, how many jumps occur in the investigated time interval $[0,T]$ to know which waiting time distribution or which time evolution has to be used to generate the trajectory at a particular point of time. In this paper, for simplicity, we restrict ourselves to cases where both methods to generate the trajectory can be implemented. We see that the trajectory point of view in describing the evolution lets us better understand the influence of the particular parameters on the non-Markovianity of the corresponding dynamical map.

The quantum renewal processes, due to the non-trivial interplay between the operatorial and stochastic contributions, can manifest a wide range of non-Markovian behaviours. However, if one assumes that all WTDs coincide, i.e., the quantum renewal process is unmodified, and are given by an exponential distribution

$$\begin{array}{c}\hfill f\left(t\right)=\mu e^{-\mu t},\end{array}$$

(17)

where $\mu$ is the corresponding rate, the issue simplifies significantly. In this case, a simple connection between the WTD $f\left(t\right)$ and the associated survival probability $g\left(t\right)$ exists: $f\left(t\right)=\mu g\left(t\right)$. As shown in [33], the corresponding memory kernel in the Laplace picture reads as follows:

$$\begin{array}{c}\hfill \tilde{\mathcal{K}}\left(u\right)=\mathcal{L}+(\mathcal{E}-1)\tilde{f}(u-\mathcal{L}){\tilde{g}}^{-1}(u-\mathcal{L}).\end{array}$$

(18)

Accordingly, in time domain we obtain for this case the following:

$$\begin{array}{c}\hfill \mathcal{K}\left(t\right)=\delta \left(t\right)[\mathcal{L}+\mu (\mathcal{E}-1\left)\right],\end{array}$$

(19)

no matter what the generator $\mathcal{L}$ and the jump operator $\mathcal{E}$ are. This memory kernel corresponds to a quantum dynamical semigroup, and, accordingly, the underlying evolution is Markovian.

To go beyond this case, we analyse how the time continuous dynamics, type of jumps and waiting time distributions influence qualitatively and quantitatively the non-Markovianity of the corresponding process. We focus on qubit evolutions, so that the trace distance between two quantum states equals the half of the Euclidian distance of these states when depicted on the Bloch ball. Recall that any qubit state can be written as follows:

$$\begin{array}{c}\hfill \rho =\frac{1}{2}(\mathbb{1}+\overrightarrow{r}·\overrightarrow{\sigma }),\end{array}$$

(20)

with the vector $\overrightarrow{\sigma }$ consisting of the Pauli matrices, ${\overrightarrow{\sigma }}^T=({\sigma }_1,{\sigma }_2,{\sigma }_3)$, and ${\overrightarrow{r}}^T=(x,y,z)$ defining the Bloch vector representation of the state $\rho$. Accordingly, the trace distance between two qubit states evolving via a quantum renewal process reads:

$$\begin{array}{c}\hfill \mathcal{D}({\rho }^1\left(t\right),{\rho }^2\left(t\right))=\frac{1}{2}\underset{N\to \infty }{lim}\sqrt{{\left(\frac{1}{N}\sum _{n=1}^N{\mathsf{\Delta }}_n^x\left(t\right)\right)}^2+{\left(\frac{1}{N}\sum _{n=1}^N{\mathsf{\Delta }}_n^y\left(t\right)\right)}^2+{\left(\frac{1}{N}\sum _{n=1}^N{\mathsf{\Delta }}_n^z\left(t\right)\right)}^2},\end{array}$$

(21)

where the sums are running over realisations of the stochastic process governed by the associated WTDs, and ${\mathsf{\Delta }}_n^i\left(t\right)$ corresponds to difference of the i-coordinates in n-th realisation, e.g., the following:

$$\begin{array}{c}\hfill {\mathsf{\Delta }}_n^x\left(t\right)=x_n^1\left(t\right)-x_n^2\left(t\right),\end{array}$$

(22)

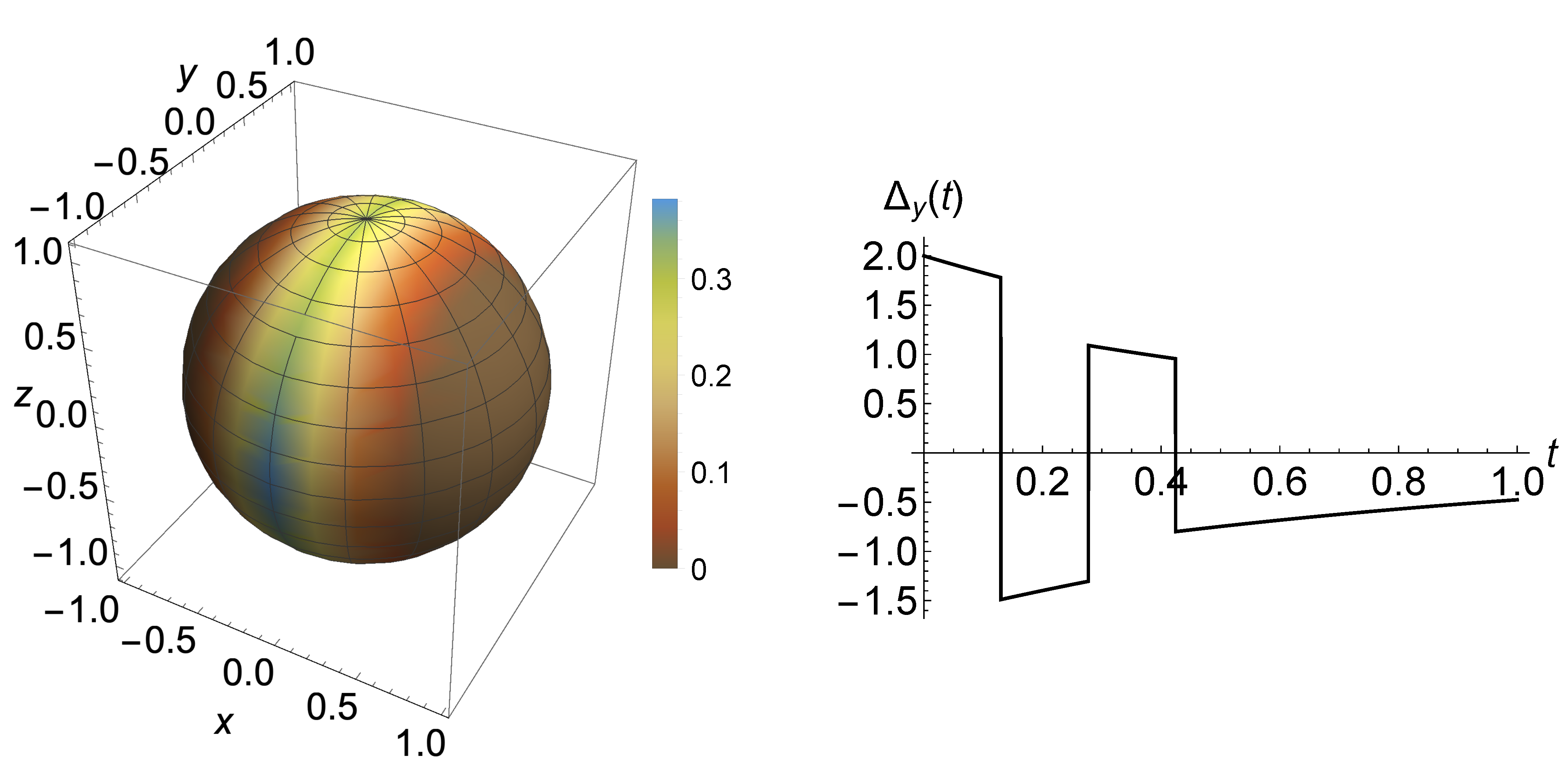

which we call an x-trajectory. Each of these trajectories has an equal weight $1/N$, and in principle some of them can be equal. Consequently, the trace distance between two states is not an average trace distance between the corresponding random trajectories, and one has to calculate the trace distance after generating the whole set of trajectories. Note that to have non-monotonicity in the trace distance, a non-monotonicity of the absolute value of at least one of the i-trajectory ${\mathsf{\Delta }}_n^i\left(t\right)$ is necessary. This is the case not only when one of the trajectories is non-monotonous, but also when it changes its sign. These are, however, not sufficient conditions as we will see in the following.

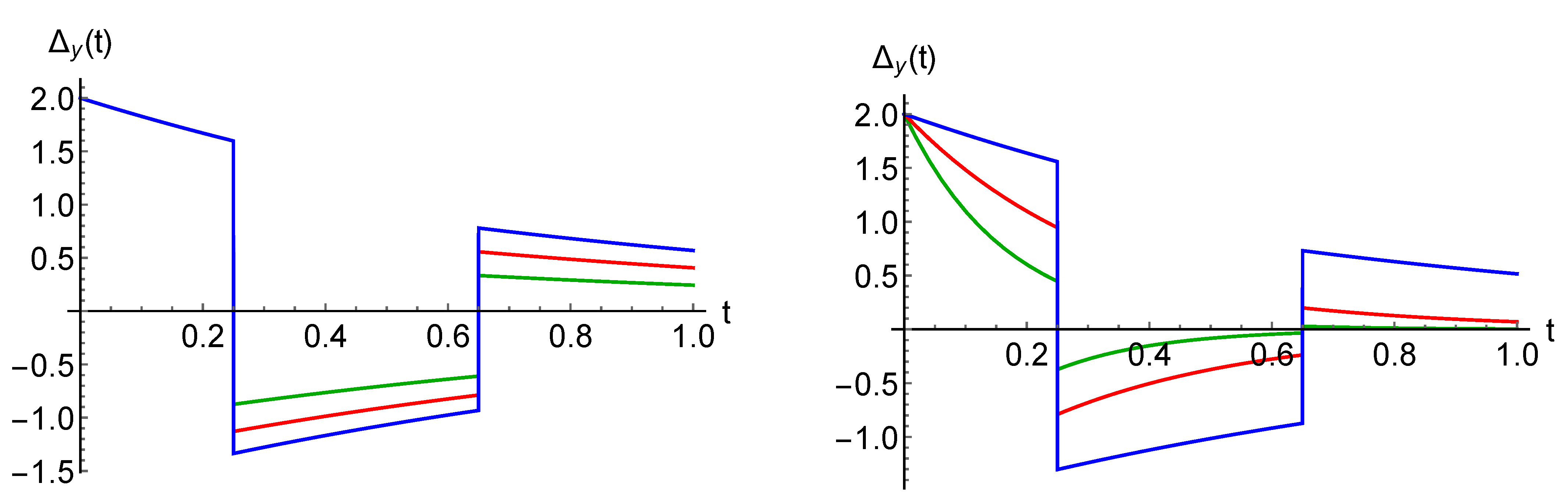

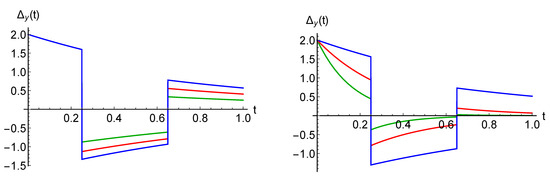

We now set the different elements of the quantum renewal processes fixing the resulting trajectories and average dynamics.

4.1. Intermediate Evolutions

We choose the time continuous evolution to be unital:

$$\begin{array}{c}\hfill \mathcal{L}\left[\rho \right]=\sum _{k=1}^3\frac{1}{2}{\gamma }_k({\sigma }_k\rho {\sigma }_k-\rho ),\end{array}$$

(23)

with ${\gamma }_j\ge 0$ and

$$\begin{array}{ccccc}\hfill e^{\mathcal{L}t}\left[{\sigma }_i\right]=e^{-t{\lambda }_i}{\sigma }_i& \hfill & \hfill {\lambda }_i={\gamma }_j+{\gamma }_k,& \hfill & \hfill \mathrm{for}i\ne j\ne k.\end{array}$$

(24)

Choosing a unital dynamical map does not affect the trace distance measure of non-Markovianity, which is insensitive to translations [42,58,85]. As the time-continuous evolution introduced above describes a monotonic contraction of the Bloch sphere, we do not expect that it introduces any memory effects. Indeed, the dynamical map $e^{\mathcal{L}t}$ is not only Markovian, according to the distinguishability criterion introduced in [47], but it is a CP-divisible semigroup. We see that a greater “strength” of this dephasing evolution—corresponding to larger values of the $\lambda$’s introduced in Equation (24)—results in smaller non-Markovianity of the associated quantum renewal process.

4.2. Jumps

As said above, the quantum non-Markovianity does not occur if for all realisations of the stochastic process, the coordinates, Equation (22), are monotonic and do not change sign. Accordingly, a jump channel that only consists of a contraction (and possibly translation, which, however, cannot be detected by the trace distance condition; see comment above) necessarily leads to Markovian dynamics. An example of such a channel is the amplitude damping (AD) channel ${\mathcal{E}}_{\mathrm{AD}}$, with Kraus operators as follows:

$$\begin{array}{ccc}\hfill K_0=\left(\begin{array}{cc}1& 0\\ 0& \sqrt{1-\gamma }\end{array}\right),& \hfill & \hfill K_1=\left(\begin{array}{cc}0& \sqrt{\gamma }\\ 0& 0\end{array}\right),\end{array}$$

(25)

which shrinks the Bloch ball and translates it along the z-axis by factors determined by the decay rate $\gamma$. The amplitude damping channel can model, among others, the qubit transmission across a spin chain [86] and is widely used in the literature. Consequently, no non-Markovianity is detected, no matter what probability distribution drives the stochasticity of the jump times. In particular, also for a choice of classically non-Markovian waiting time distributions, such as the Erlang distributions introduced later, one still obtains Markovian evolution, according to the trace distance criterion. This strengthens the results obtained in [87], where it was observed that the classical lack of memory in the stochastic process driving the evolution of a qubit cannot be directly linked to quantum non-Markovianity.

Consequently, the next step is to choose a jump channel that results in changing the sign of the trajectories. We have chosen the x-Pauli channel composed with AD:

$$\begin{array}{c}\hfill {\mathcal{E}}_{x-\mathrm{AD}}={\mathcal{E}}_x\circ {\mathcal{E}}_{\mathrm{AD}},\end{array}$$

(26)

with

$$\begin{array}{c}\hfill {\mathcal{E}}_x\left[\rho \right]={\sigma }_x\rho {\sigma }_x.\end{array}$$

(27)

The Pauli channels describe a $\pi$ rotation about the corresponding axis and are, among others, typically used to model the noise for quantum error correction [88]. In particular, we focus here on the composition of the AD channel with the x-PC. For this jump channel we, indeed, manage to detect non-Markovianity, depending on the choice of parameters determining the dynamics.

Note that, as the superoperators ${\mathcal{E}}_x$ and ${\mathcal{E}}_{\mathrm{AD}}$ do not commute, the jump channels ${\mathcal{E}}_{x-\mathrm{AD}}$ and ${\mathcal{E}}_{\mathrm{AD}-x}={\mathcal{E}}_{\mathrm{AD}}\circ {\mathcal{E}}_x$ are different. Generally speaking, the latter possibility leads to a slightly greater non-Markovianity measure, as the jumps occur before the disruptive AD channel. Nonetheless, the qualitative behaviour for both of the choices is similar, and for simplicity, we restrict here to ${\mathcal{E}}_{x-\mathrm{AD}}$.

4.3. Waiting Time Distributions

As noticed earlier, when the underlying WTDs are exponentials and the process is unmodified, i.e., all WTDs are the same, the evolution is Markovian, independent of the choice of the jump channel. This is the case, even if the trajectories are non-monotonic and the sign changes take place, so, in particular, for the channel ${\mathcal{E}}_{x-\mathrm{AD}}$ investigated by us. However, the situation drastically changes if we allow for a modified quantum renewal process. Even if all the WTDs are exponentials, but the first k-th of them have different rates, we can observe a high variety of different behaviours. In particular, the number of revivals strongly depends on the choice of the rates.

There is, however, no need to restrict our choice of WTDs to exponentials. To go beyond this case, we also analyse the quantum renewal process dynamics, where the stochasticity of the jumps is governed by the Erlang WTD (also called the special Erlangian distribution), which reads in the Laplace domain [89]:

$$\begin{array}{c}\hfill {\tilde{f}}_r\left(u\right)={\left(\frac{\mu }{\mu +u}\right)}^r,\end{array}$$

(28)

from which one can see that it is the convolution of r exponential distributions with the same rate parameter $\mu$. The ratio $r/\mu$ fixes the mean waiting time while the variance reads $r/{\mu }^2$. Accordingly, for the Erlang WTDs the mean value and the variance can be independently varied, as contrasted with the exponential WTD, where the mean waiting time $1/\mu$ fixes the variance.

We see that in the case of Erlang WTDs, even the unmodified process can lead to non-Markovianity.

5. Non-Markovianity of Quantum Renewal Processes

As mentioned in Section 2, the occurrence and strength of memory effects depend on the chosen pair of initial states. This is clarified in Figure 2, left, where the value of the non-Markovianity measure for the case of the jump operator ${\mathcal{E}}_{x-\mathrm{AD}}$ is plotted as a function of the direction identifying a pair of pure orthogonal states, corresponding to points on the Bloch sphere. It clearly appears that the maximum is attained for states $|{\varphi }_{1/2}\rangle =\frac{1}{\sqrt{2}}\left(\right|0\rangle \pm i|1\rangle )$. We, therefore, in the following consider always this pair of initial states lying on the y-axis. Note that for this choice ${\mathsf{\Delta }}_x\left(t\right)={\mathsf{\Delta }}_z\left(t\right)=0$, corresponding to the fact that the x and z components of the Bloch vector of the two evolving states remain equal so that the only relevant parameter in the continuous time evolution is the rate ${\lambda }_2$. This behaviour is due to our particular choice in the jump channel, leading to a rotation about the x-axis. A typical trajectory of the y-component of the Bloch vector is depicted in Figure 2, right, characterized by sign changes, which determine the possible non-monotonicity of the trace distance obtained, such as in Equation (21). In our analysis, we not only investigate the mere change of the non-Markovianity measure, but also the way that the trace distance evolution is altered, with the number of revivals, times of revivals and other qualitative features.

5.1. Exponential WTD—General Results

Here, we focus on the behaviour of the trace distance in the case of exponential WTDs, which are investigated with numerical methods. Accordingly, beside the dependence on the dephasing rate of the continuous time evolution ${\lambda }_2$ and the decay rate $\gamma$ corresponding to the strength of AD jumps, the non-Markovianity is also influenced by the rates ${\mu }_i$ fixing the exponential WTDs.

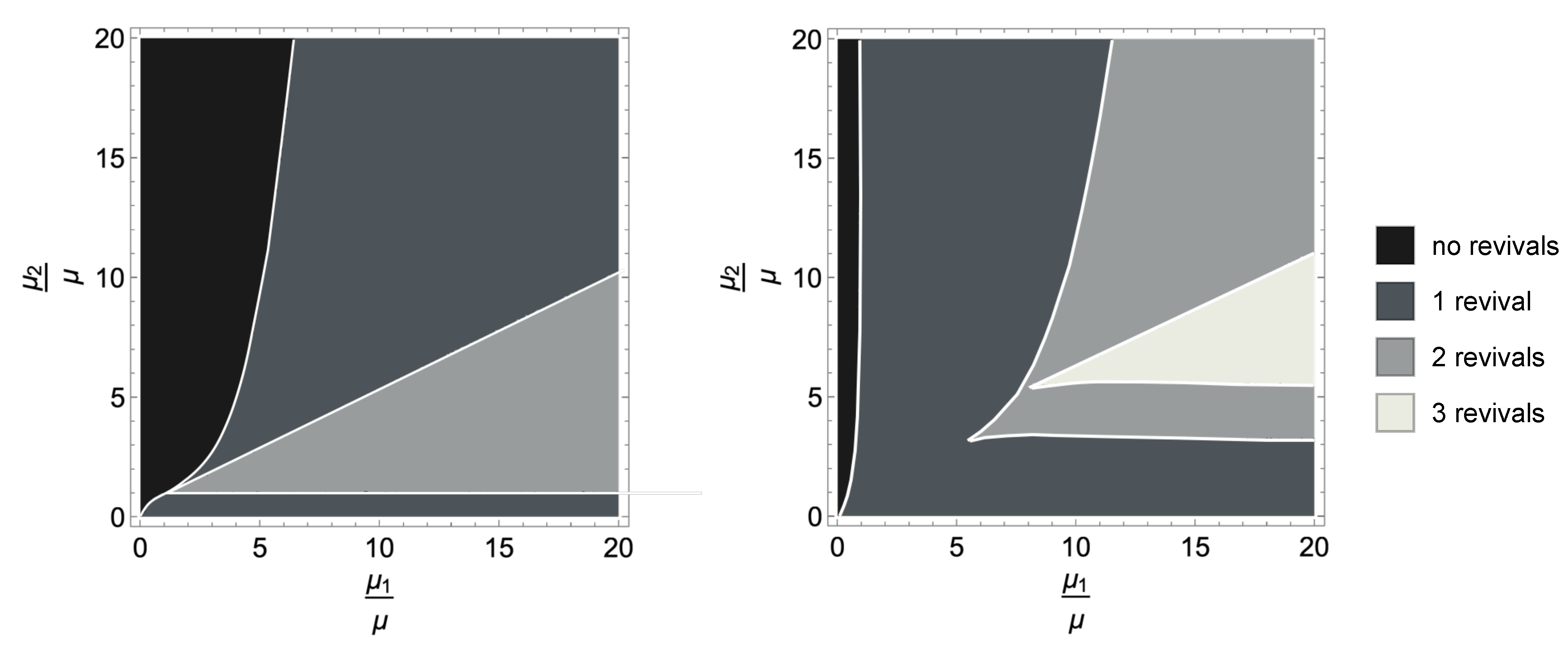

The number of revivals, i.e., time intervals where the trace distance grows, strongly depends on the number of different WTDs and on the corresponding rates. It can be observed that for a process with k-WTDs, the maximal number of revivals is $k-1$ and can only be reached if the following relation between the rates is satisfied:

$$\begin{array}{c}\hfill {\mu }_1>{\mu }_2>\dots >{\mu }_{k-1}>\mu .\end{array}$$

(29)

Note that this ordering corresponds to the opposite ordering in terms of the mean waiting times given by the inverse of the rates. The numerical observations are strengthened by the analytical results in Section 5.2, where a case of purely jump dynamics without amplitude damping is elaborated. This fact is investigated in Figure 3, where we report the number of revivals for a modified process with ${\mathcal{E}}_x$ jump channel and with 3 WTDs (left) or 4 WTDs (right) in dependence on the rate values. Note that throughout the manuscript, we work in arbitrary units. The different coloured areas correspond to different numbers of revivals, clearly growing with the number of WTDs and depending on the corresponding rates. The presence of amplitude damping in the jump decreases the parameter range corresponding to higher number of revivals. At the same time, the AD reduces the value of the non-Markovianity measure. This is put into evidence in Figure 4, left, where the behaviour of the trace distance is plotted together with the estimate for the associated non-Markovianity measure, corresponding to the sum of the revival heights. A similar effect is obtained by increasing the strength of the dephasing rate ${\lambda }_2$ describing the time continuous dynamics, as shown in Figure 4, middle, where only ${\mathcal{E}}_x$ determines the jumps.

We further stress that a higher number of revivals does not necessarily lead to a higher non-Markovianity measure; see Figure 4, right. Non-Markovianity is enhanced when the rate of the first WTD is much larger than the rate of the following one, ${\mu }_1\gg {\mu }_2$, allowing for a larger revival. Subsequent rates play a less relevant role since, on average, the dephasing becomes more effective by the time the corresponding jump occurs.

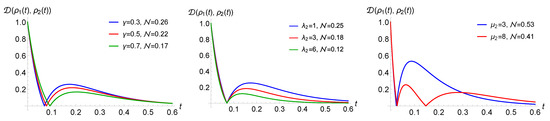

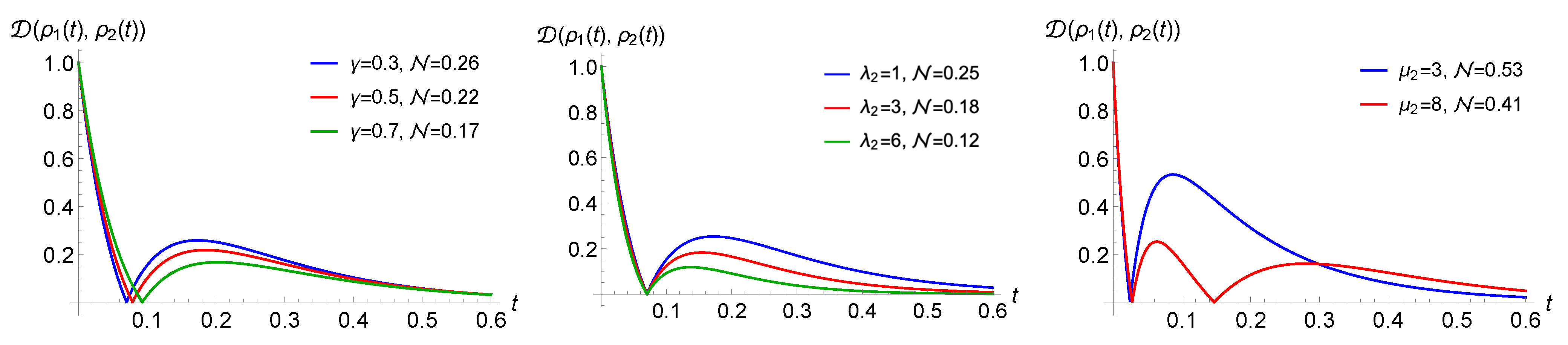

The different role of $\gamma$ and ${\lambda }_2$ is visible by comparing Figure 4 left and Figure 4 middle, noticing that only $\gamma$ affects the value of the (first) revival time. Their different influence at the level of the trajectories is visualised in Figure 5. As one can observe, an increase in the decay rate implies that the height of the jumps decreases, while it does not affect the previous time continuous dynamics. This is different in the case of varying ${\lambda }_2$, where both the extension and the starting point of the jumps is changed, and the influence on the revival time after averaging over all trajectories is wiped out.

One can also understand the necessity of the hierarchy given in (29) to have the maximal number of revivals, as well as their maximum number $k-1$. When the condition is satisfied, then (approximately) the first, second, …, $k-1$ jumps do not influence each other. With this, we mean that the n-th jump occurs when $n-1$ jumps have already taken place in most of the trajectories. Accordingly, the $k-1$ first jumps are connected with the revival of the trace distance, while the following jumps do not result in the revivals. The reason is that for the exponential WTDs, the mean value and the variance cannot be modified independently and are such that for an unmodified process, the trace distance is monotonically decreasing as was shown in Section 4. This is different in the case of Erlang WTD, which we discuss in Section 5.3 and Section 5.4. When the condition (29) is not satisfied, the number of the revivals for a modified process with k different WTDs is smaller than $k-1$.

All revivals depicted until now are started when the trace distance assumes value zero, i.e., when at the associated time, the evolved states are the same. This can be seen as a special realization of non-Markovian behaviour since in this case, the dynamical map is neither invertible nor divisible. This is, however, not always the case. We observe that a revival occurs for larger values of the trace distance when the condition ${\mu }_2⪆{\mu }_1\gg \mu$ (3-WTDs process) is satisfied; see Figure 6, left, where the ${\mu }_2$ is varied, and right, where $\mu$ is altered. The mean waiting time of the second jump is small enough with respect to the first jump to prevent the trace distance to reach zero, and the following third jumps occur too late to change this tendency. Note that, in this case, the maximal number of revivals, $k-1$, cannot be reached.

5.2. Exponential WTD—Purely Jump Dynamics

As already elaborated, in the considered case, the time continuous dynamics between the jumps does not strongly affect the qualitative picture of non-Markovianity. It is, therefore, of interest to consider the effect of jumps and modified waiting time distributions alone, setting $\mathcal{L}\left(t\right)=0$; see Equation (12). In this case, the density operator follows the following evolution:

$$\begin{array}{c}\hfill \rho \left(t\right)=\sum _{n=0}^{\infty }{p}_n\left(t\right){\mathcal{E}}^n\rho \left(0\right),\end{array}$$

(30)

where $p_n\left(t\right)$ is the probability of having exactly n jumps till time t, i.e., no statements about the times of the particular jumps are made as contrasted with $p_n(t;t_n,\dots ,t_1)$ in Equation (12). As the influence of the AD jump is also mainly in decreasing the non-Markovianity measure, with the same argument, we take $\mathcal{E}\to {\mathcal{E}}_x$ so that we have idempotency of the jump transformation ${\mathcal{E}}_x^2=\mathbb{1}$. Accordingly, the sum in Equation (30) can be split in two terms, one with even n and one with odd n (see [41]) for an analogous discussion with the z-Pauli channel as follows:

$$\begin{array}{c}\hfill \rho \left(t\right)=(p_{even}\left(t\right)+p_{odd}\left(t\right){\mathcal{E}}_x)\rho \left(0\right).\end{array}$$

(31)

The difference between the matrices ${\rho }_1\left(t\right)$ and ${\rho }_2\left(t\right)$ then simply becomes the following:

$$\begin{array}{c}\hfill {\rho }_1\left(t\right)-{\rho }_2\left(t\right)=\left(\begin{array}{cc}{\mathsf{\Delta }}_{11}& p_{even}\left(t\right){\mathsf{\Delta }}_{10}-p_{odd}\left(t\right){\mathsf{\Delta }}_{10}^{\ast }\\ p_{even}\left(t\right){\mathsf{\Delta }}_{10}^{\ast }-p_{odd}\left(t\right){\mathsf{\Delta }}_{10}& -{\mathsf{\Delta }}_{11}\end{array}\right),\end{array}$$

(32)

where ${\mathsf{\Delta }}_{ij}$ gives the difference of the associated components of the operators ${\rho }_1\left(t\right)$ and ${\rho }_2\left(t\right)$ in the ${\sigma }_z$ basis. With the choice of the optimal states, $|{\varphi }_{1/2}\rangle =\frac{1}{\sqrt{2}}\left(\right|0\rangle \pm i|1\rangle )$, we obtain for the trace distance the following:

$$\begin{array}{c}\hfill \mathcal{D}({\rho }_1\left(t\right),{\rho }_2\left(t\right))=|p_{even}\left(t\right)-p_{odd}\left(t\right)|=|q\left(t\right)|,\end{array}$$

(33)

which is the absolute value of the difference between the probability of the even number of jumps and odd number of jumps. Distinct from investigations in [41], here we take into account also the case of modified processes, where first k WTDs are different from the following one. The quantities $p_{even}\left(t\right)$ and $p_{odd}\left(t\right)$ take then, in Laplace picture, the following form:

$$\begin{array}{cc}\hfill {\tilde{p}}_{even}\left(u\right)& ={\tilde{g}}_1\left(u\right)+{\tilde{f}}_1\left(u\right){\tilde{f}}_2\left(u\right){\tilde{g}}_3\left(u\right)+\dots \hfill \end{array}$$

$$\begin{array}{cc}\hfill & +{\tilde{f}}_1\left(u\right)\dots {\tilde{f}}_k\left(u\right)\left(\frac{1+\tilde{f}\left(u\right)}{2}-{(-)}^k\frac{1-\tilde{f}\left(u\right)}{2}\right)\frac{1}{1-{\tilde{f}}^2\left(u\right)}\tilde{g}\left(u\right),\hfill \\ \hfill {\tilde{p}}_{odd}\left(u\right)& ={\tilde{f}}_1\left(u\right){\tilde{g}}_2\left(u\right)+{\tilde{f}}_1\left(u\right){\tilde{f}}_2\left(u\right){\tilde{f}}_3\left(u\right){\tilde{g}}_4\left(u\right)+\dots \hfill \end{array}$$

(34)

$$\begin{array}{cc}\hfill & +{\tilde{f}}_1\left(u\right)\dots {\tilde{f}}_k\left(u\right)\left(\frac{1+\tilde{f}\left(u\right)}{2}+{(-)}^k\frac{1-\tilde{f}\left(u\right)}{2}\right)\frac{1}{1-{\tilde{f}}^2\left(u\right)}\tilde{g}\left(u\right).\hfill \end{array}$$

(35)

In the case of the exponential WTDs, we can accordingly go beyond the Markovian case of an exponential distribution corresponding to $q\left(t\right)=e^{-2\mu t}$. For the simplest case of 2 WTDs, one obtains the following:

$$\begin{array}{cc}\hfill q\left(t\right)& =\frac{2(\mu -{\mu }_1)e^{-t{\mu }_1}+{\mu }_1{e}^{-2\mu t}}{2\mu -{\mu }_1}.\hfill \end{array}$$

(36)

The expression of $q\left(t\right)$ for a larger number of WTDs retains the same form, i.e., a weighted sum of k exponentials $e^{-2t\mu }$, $e^{-t{\mu }_1}$,…, $e^{-t{\mu }_k}$. Non-monotonicity of the absolute value of the function $q\left(t\right)$ can arise in two ways: non-monotonicity of $q\left(t\right)$ itself or its sign change. Note that these are not independent, as $q\left(t\right)$ convergences to zero for $t\to \infty$. Accordingly, with every sign change, at least one local maximum or minimum has to follow. On the other hand, a local maximum (minimum) can occur without a sign change, but then needs to be followed by a minimum (maximum).

For the case of two waiting time distributions, one can analytically verify that the maximal number of revivals is one, and that revivals take place at the following:

$$\begin{array}{c}\hfill t=-\frac{1}{2\mu -{\mu }_1}ln\frac{2({\mu }_1-\mu )}{{\mu }_1},\end{array}$$

(37)

where the condition ${\mu }_1>\mu$ has to be satisfied. This corresponds to the requirement obtained for the dynamics considered in Section 5.1, Equation (29), which, however, could feature an intermediate time continuous evolution and a jump transformation containing AD. Note that the time t is smaller than the mean jump time of the first jump $1/{\mu }_1$ for ${\mu }_1>2\mu$; otherwise, it is larger. For larger k, in general, no closed-form formula for the number or the times of revivals can be given, as the exponential function is transcendental. Nonetheless, thanks to the Descartes’ rule of signs, the maximal number of revivals ($q\left(t\right)=0$) equals the number of sign changes of the prefactors of the exponential functions, where the rates are put in ascending (or descending) order [90]. The sign change can happen maximally $k-1$ times for k-terms, which explains the observation we made earlier in Section 5.1. Note that the same argument could be used for the derivative of $q\left(t\right)$, connected with the occurrence of the local maxima/minima. However, the maximal number of revivals $k-1$ can only happen when all of the revivals are at zero distance, as the non-monotonicity of $q\left(t\right)$ without sign change involves one minimum and one maximum per revival. Note that consequently for a process with 2 WTDs, the revival can only occur because of the sign change of $q\left(t\right)$, i.e., at zero trace distance.

5.3. Erlang WTD—General Results

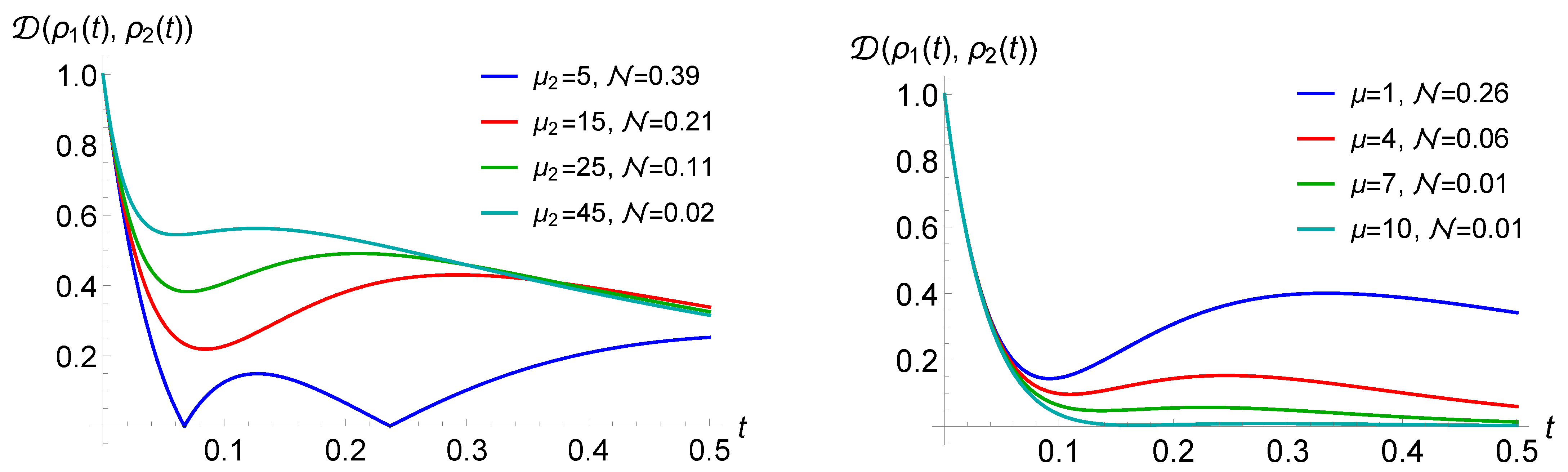

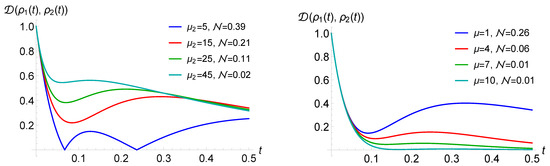

Considering WTDs that can lead to non-Markovianity for unmodified processes, the maximal possible number of revivals can become larger. This can be observed by taking into account an Erlang distribution, whose WTD is given by Equation (28), governing the randomness of the jump times, while here, we focus on numerical results; see Section 5.4 for analytical findings. For Erlang distributions with fixed mean value, the higher the shape parameter r or the larger the rate $\mu$, the narrower the distribution. Accordingly, with growing r or $\mu$, the revivals of the trace distance can be seen to be more and more like independent phenomena. In this case, the jumps do not “destructively interfere” with each other, and the time intervals of the jumps are almost disjointed. This explains the increase in the non-Markovianity measure with higher shape parameter r or larger rate $\mu$, as one can see in the simulations in Figure 7, left. This slightly influences also the time of the revivals, and the higher the shape parameter, the closer this time is to the mean value of the first WTD.

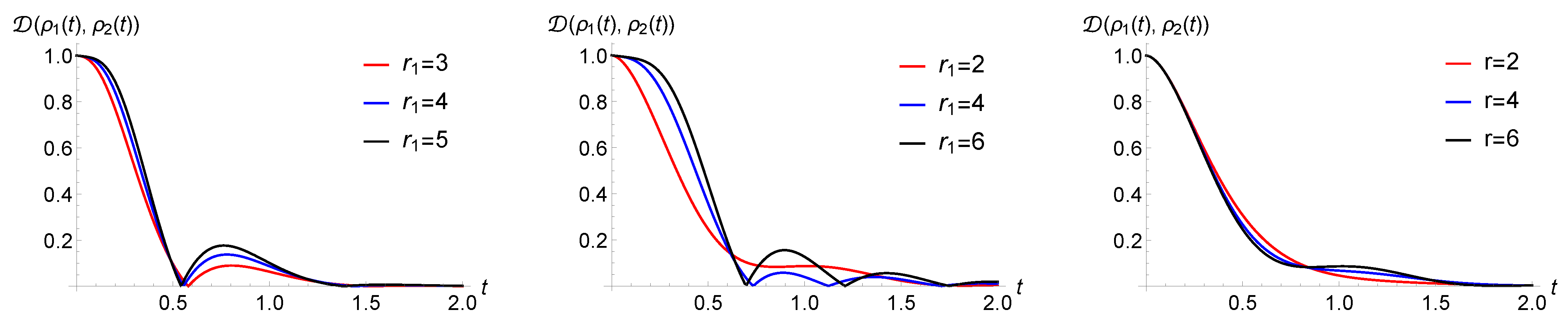

Additionally, in the case of the Erlang WTDs, the trace distance revivals do not necessarily occur when the trace distance takes the value zero. This behaviour was observed for modified renewal processes. The small r of the first WTD and the large r of the subsequent WTD boost the phenomenon; see Figure 7, middle and right. Note that, contrary to the case of the exponential WTDs, here, the revival can occur at non-zero trace distance also for the simplest modified process, i.e., with two distinct WTDs.

5.4. Erlang WTD–Purely Jump Dynamics

For the limiting case of no time continuous evolution in between the jumps ${\mathcal{E}}_x$, relying on Equation (33) for the trace distance between the optimal pair of states, one can analytically show that an infinite number of revivals is possible. The difference of the probability of the even and odd number of jumps for an unmodified process is given in Laplace domain by:

$$\begin{array}{c}\hfill \tilde{q}\left(u\right)=\frac{{(\mu +u)}^r-{\mu }^r}{u\left({\mu }^r+{(\mu +u)}^r\right)}.\end{array}$$

(38)

In particular, for $r=2$, so for WTD given by a convolution of two exponential functions with the same rate, we obtain:

$$\begin{array}{c}\hfill q\left(t\right)=e^{-\mu t}(sin\left(\mu t\right)+cos\left(\mu t\right)),\end{array}$$

(39)

which obviously leads to an infinite number of revivals, always occurring at the zero trace distance. For the modified process, with two different WTD and when both shape parameters equal two, $r=r_1=2$, one gets:

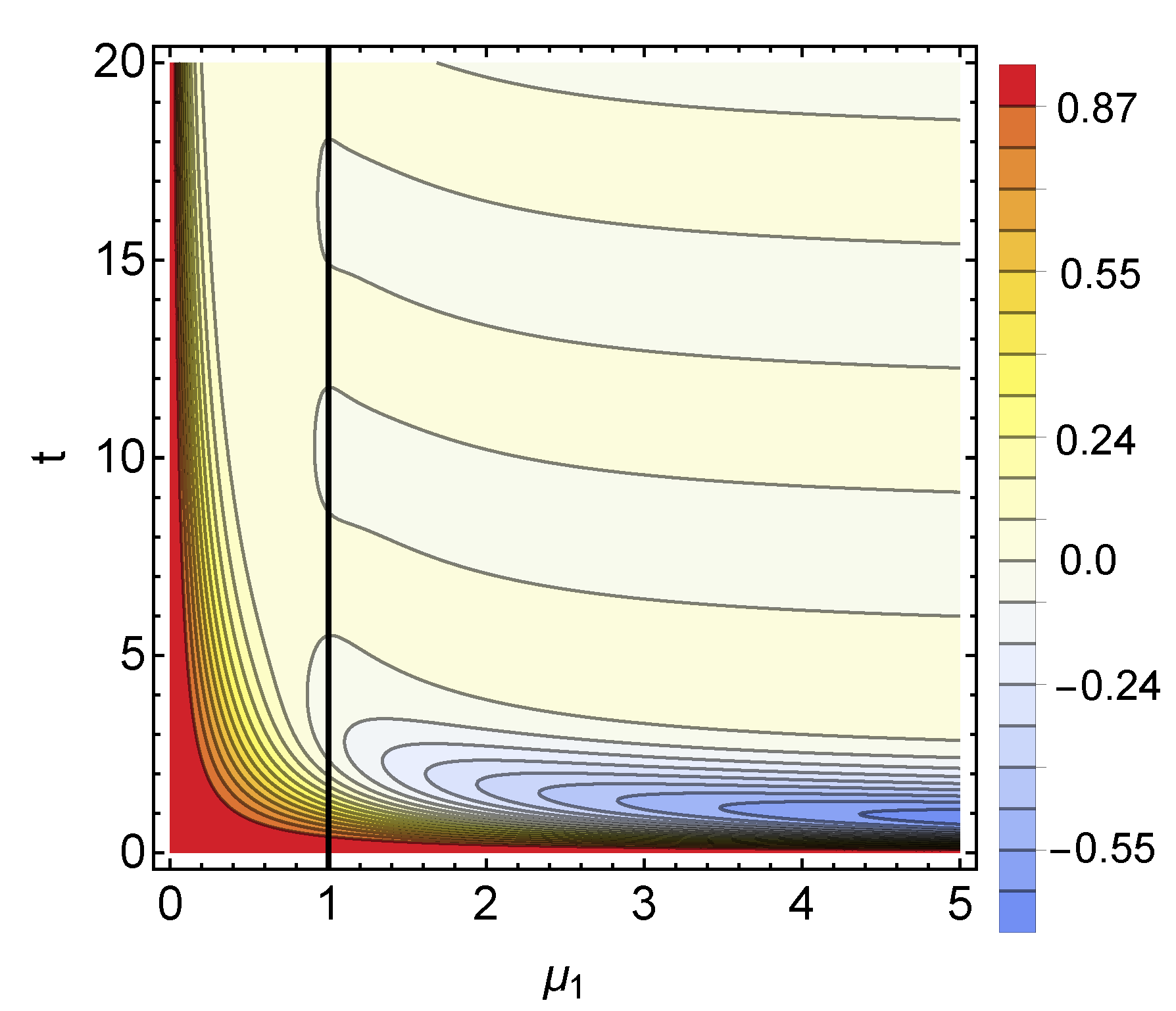

$$\begin{array}{c}q\left(t\right)=\kappa (\mu ,{\mu }_1)\left[2\left({\mu }_1-\mu \right)e^{-{\mu }_{1}t}\left({\mu }_1^3-3{\mu }_1^2\mu +2{\mu }_1{\mu }^2-2{\mu }^3+t{\mu }_1\left({\mu }_1^3-3{\mu }_1^2\mu +4{\mu }_1{\mu }^2-2{\mu }^3\right)\right)\right.\\ \left.-{\mu }_1^2{e}^{-\mu t}\left(({(2\mu -{\mu }_1)}^2-2{\mu }^2)cos\left(\mu t\right)-(2{\mu }^2-{\mu }_1^2)sin\left(\mu t\right)\right)\right],\end{array}$$

(40)

with a prefactor $\kappa (\mu ,{\mu }_1)={\left(2{\mu }^2-2{\mu }_1\mu +{\mu }_1^2\right)}^{-2}$. Accordingly, we have a term characterised by an oscillation, which is damped with a damping rate $\mu$, and a polynomial of the first order in t, damped with a damping rate ${\mu }_1$. From Figure 8, we see that for $\mu =1$ and $r=r_1=2$, if the rate of the first waiting time distribution ${\mu }_1$ is between zero and a value close to one, no revivals take place. This can be understood from Equation (40) since if the rate $\mu$ is larger than the rate of the first WTD, the oscillatory part is strongly suppressed. However, for this regime, the polynomial part stays always positive, and no revivals occur. Otherwise, we have an infinite number of revivals.

6. Conclusions and Outlooks

In this work, we analysed a simple and versatile class of quantum dynamics—the quantum renewal processes—focusing on the different kinds of non-Markovian behaviours that can be obtained by controlling their defining properties.

Quantum renewal processes naturally allow for a representation of the dynamics in terms of an average over stochastic trajectories, and we have here investigated the influence that the time-continuous part of the trajectories, the type of jumps and the waiting time distributions have on the quantitative and qualitative features of the trace distance evolution. In particular, we focused not only on the measure of non-Markovianity, but also on relevant modifications of the trace distance evolution as the number, times of occurrence and extension of the revivals. Among others, the revivals of the trace distance can be significantly altered or even enhanced when dealing with modified renewal processes, where there is a difference between a certain number of initial waiting time distributions and the subsequent ones, or if one considers Erlang waiting time distributions, which are classically non-Markovian and can lead to higher number of revivals than the exponential ones.

Our analysis shows that the trajectory picture of quantum renewal processes yields further insights into how to manipulate the trace distance evolution for a varied class of dynamics built on the analogy with classical stochastic processes. Indeed, it will be of interest to explore to what extent the trajectory viewpoint can be a convenient starting point to engineer non-Markovianity in more complex and general quantum dynamics, pointing to different features of the evolution that can be addressed to enhance or suppress the presence of memory effects.
