# Exploring Nonlinear Diffusion Equations for Modelling Dye-Sensitized Solar Cells

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

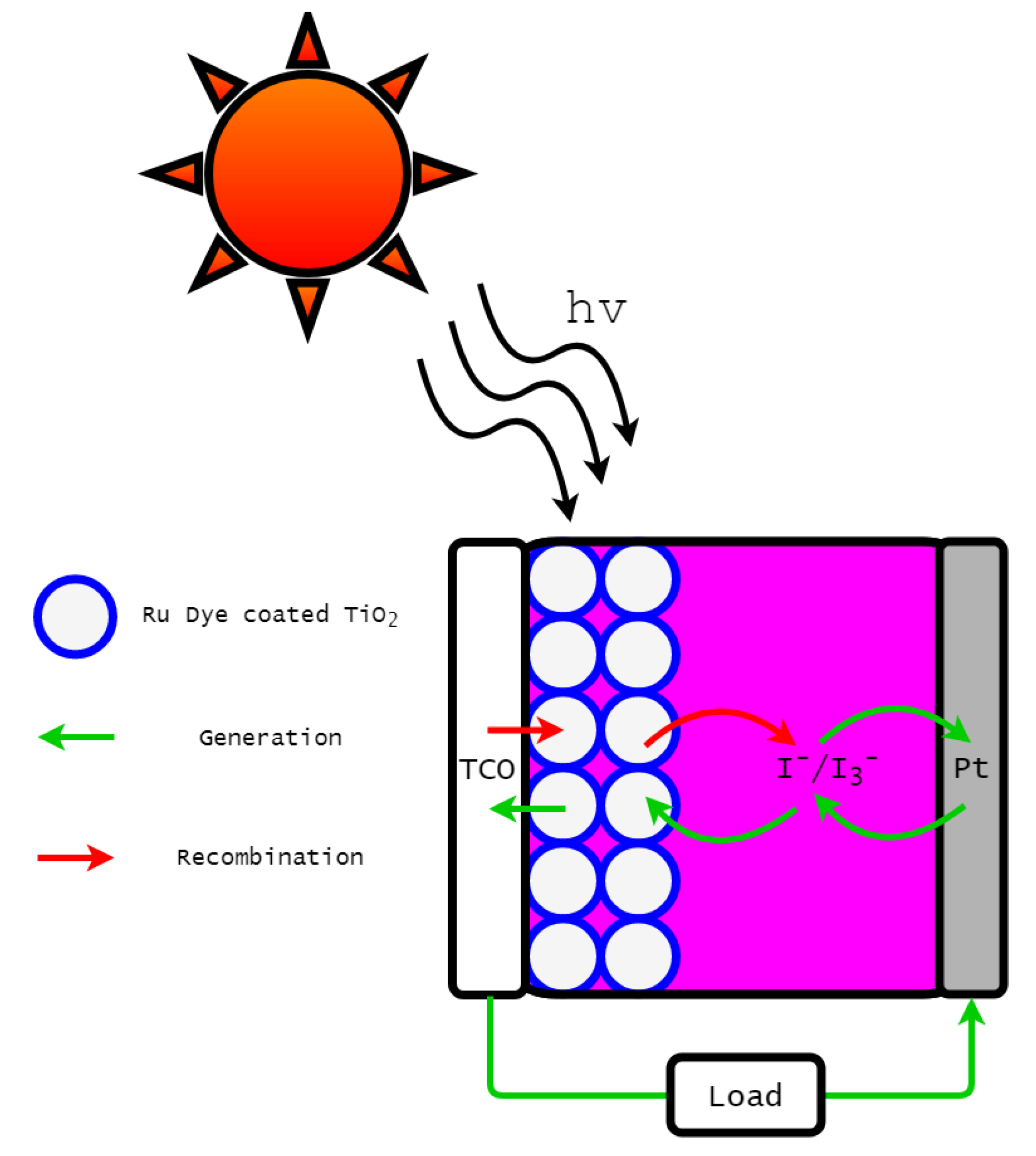

## 1. Introduction

#### 1.1. Diffusion Equation

#### 1.2. Current-Voltage Characteristics

#### 1.3. Efficiency

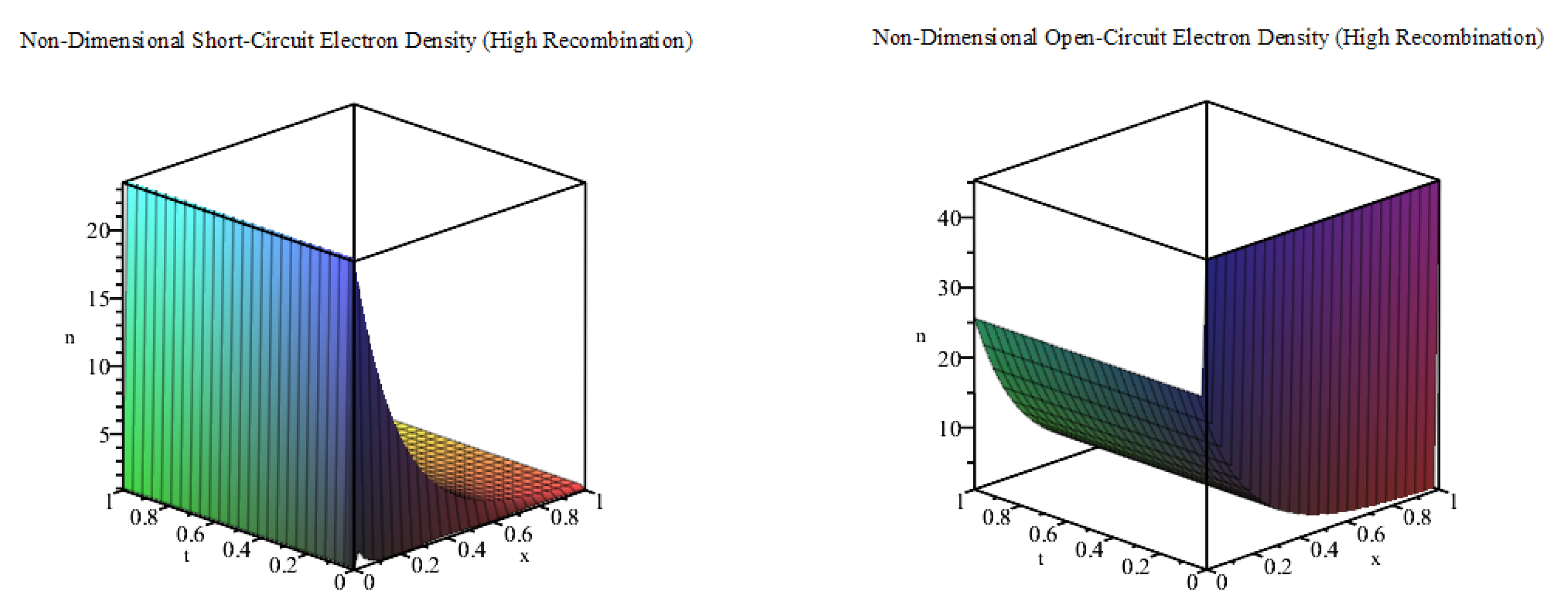

## 2. Analytical Solution for the Linear Electron Diffusion Equation

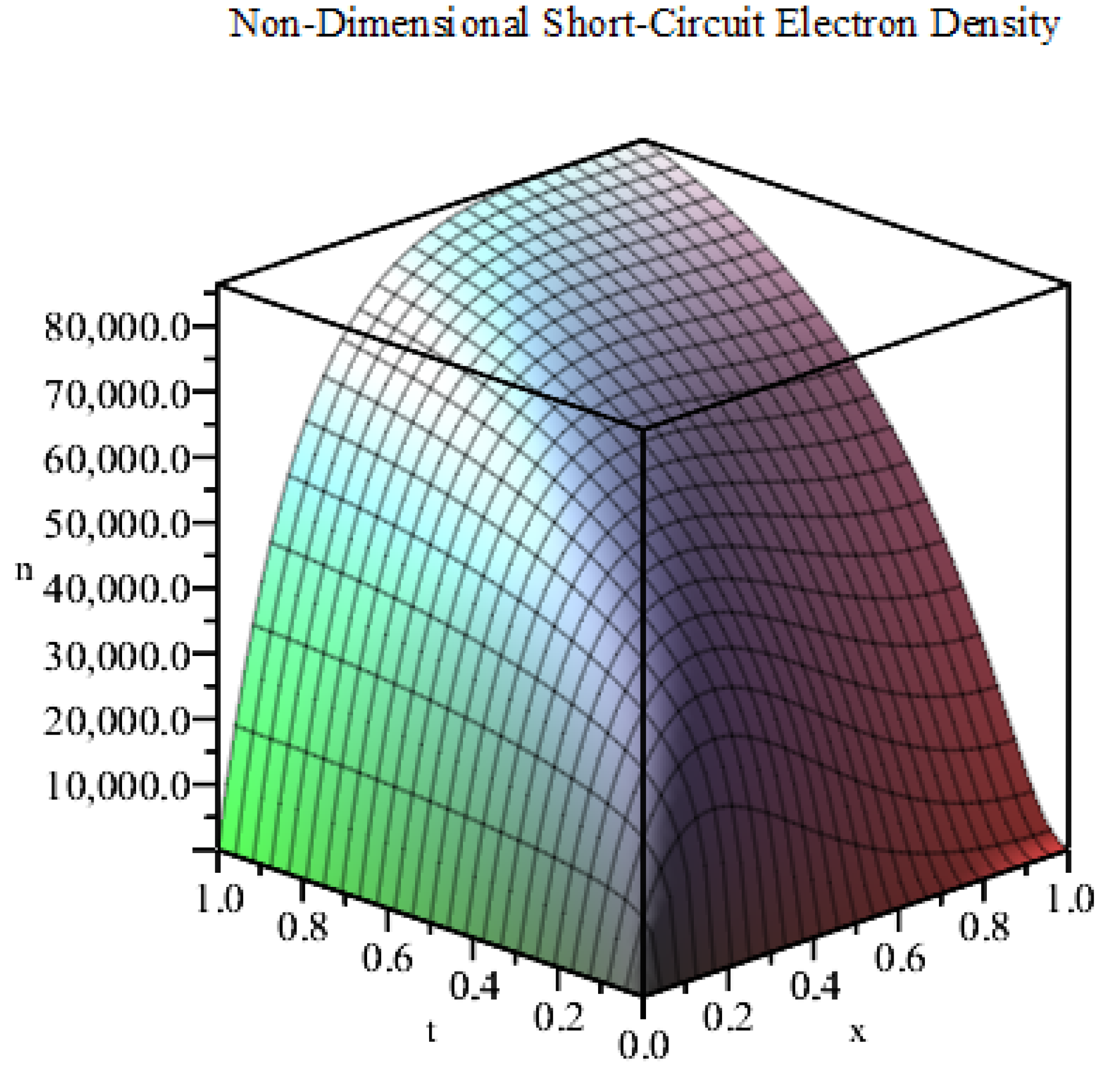

#### 2.1. Short-Circuit Conditions

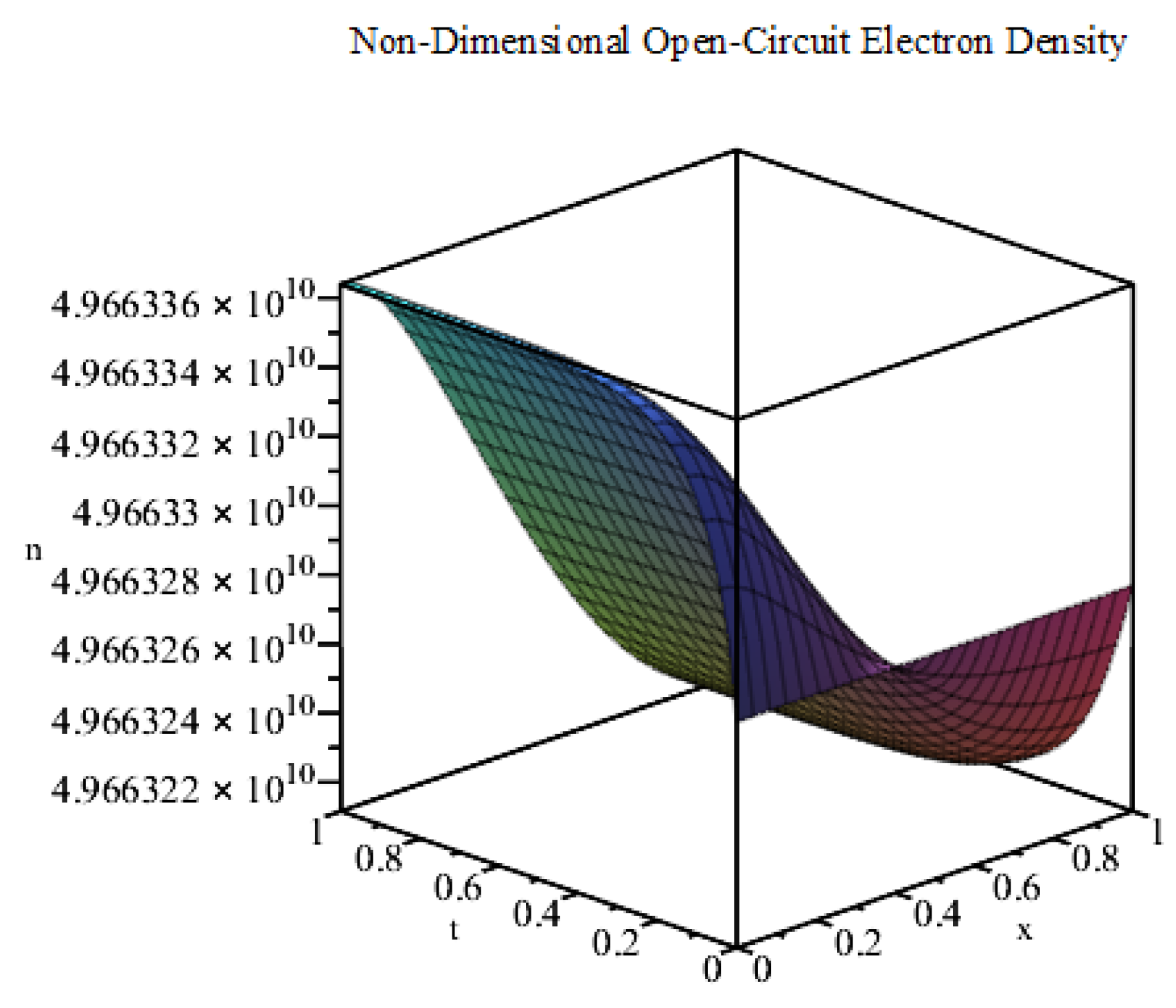

#### 2.2. Open-Circuit Model

## 3. Classical Lie Symmetry for the Nonlinear Electron Diffusion Equation

#### 3.1. Classical Lie Symmetry

- $D\left(n\right)=0$,
- $\frac{dD}{dn}=0$,
- $\frac{{d}^{3}D}{d{n}^{3}}\frac{dD}{dn}D\left(n\right)-2{\left(\frac{{d}^{2}D}{d{n}^{2}}\right)}^{2}D\left(n\right)+\frac{{d}^{2}D}{d{n}^{2}}{\left(\frac{dD}{dn}\right)}^{2}=0$,
- $x\frac{dG}{dx}+2G\left(x\right)+2R\left(n\right)=0$,
- The set $\{x\frac{dG}{dx},\frac{dG}{dx},G,1\}$ is linearly dependent, or
- $R\left(n\right)=0$.

#### 3.1.1. Constant Diffusion Coefficient

- The set $\{n\frac{\partial R}{\partial n},\frac{\partial R}{\partial n},R,n,1\}$ is linearly dependent or
- G is a constant.

- $R\left(n\right)={c}_{1}{(n+{c}_{2})}^{{c}_{3}}+{c}_{4}n+{c}_{5}$,
- $R\left(n\right)={c}_{1}{e}^{{c}_{2}n}+{c}_{3}n+{c}_{4}$,
- $R\left(n\right)={c}_{1}ln(n+{c}_{2})+{c}_{3}n+{c}_{4}$, or
- $R\left(n\right)={c}_{1}(n+{c}_{2})ln(n+{c}_{2})+{c}_{3}n+{c}_{4}$,

#### 3.1.2. Particular Diffusion Coefficient

- $G\left(x\right)=A{(x+B)}^{C}$,
- $G\left(x\right)=A{e}^{Bx}$, or
- $G\left(x\right)=Aln(x+B)$,

#### 3.1.3. Particular Source Term

#### 3.2. Summary

## 4. Nonclassical Lie Symmetry for the Nonlinear Electron Diffusion Equation

#### 4.1. Nonclassical Symmetry Analysis for $D\left(n\right)={n}^{m}$

#### 4.2. Nonclassical Symmetry Analysis for $D\left(n\right)={e}^{mn}$

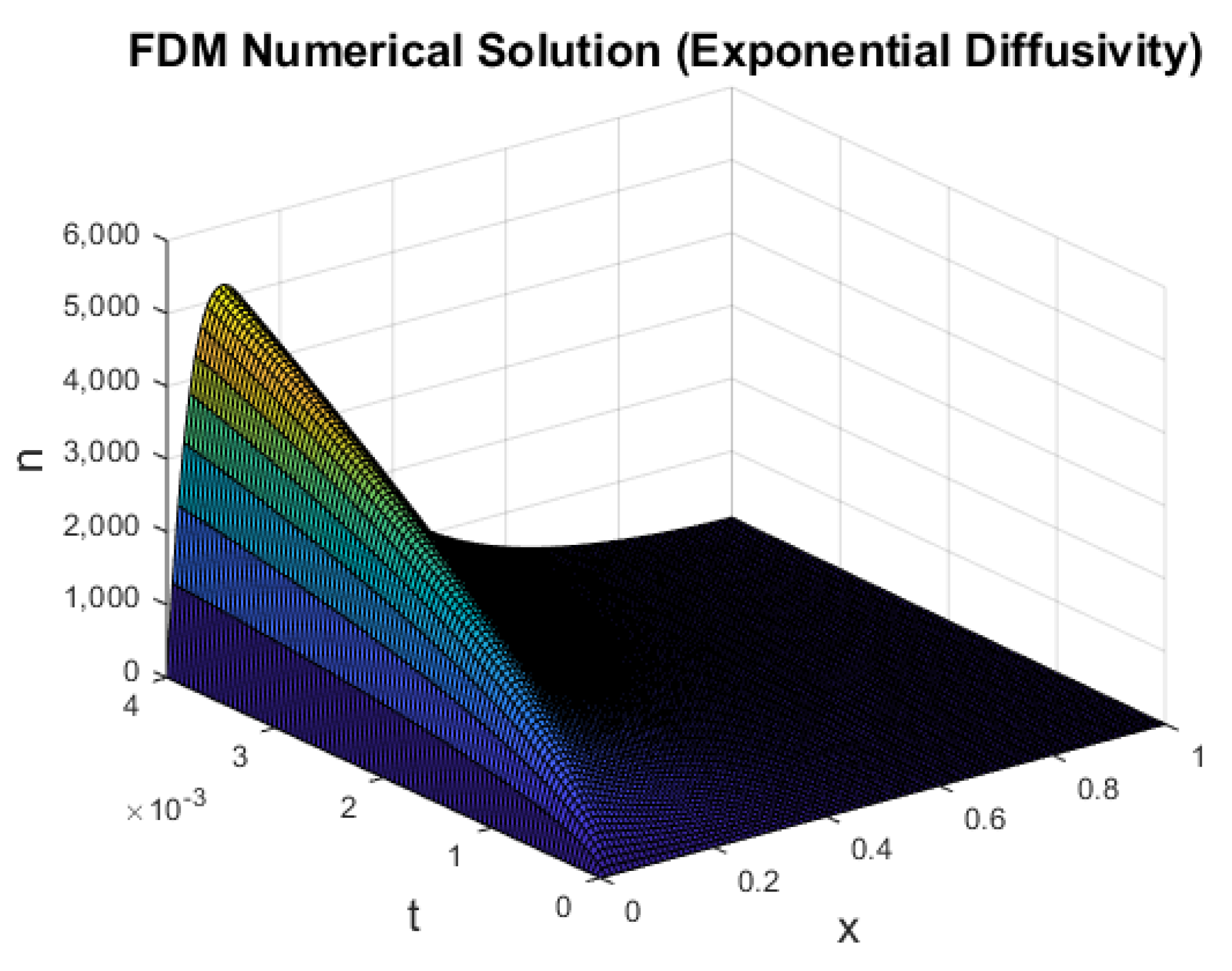

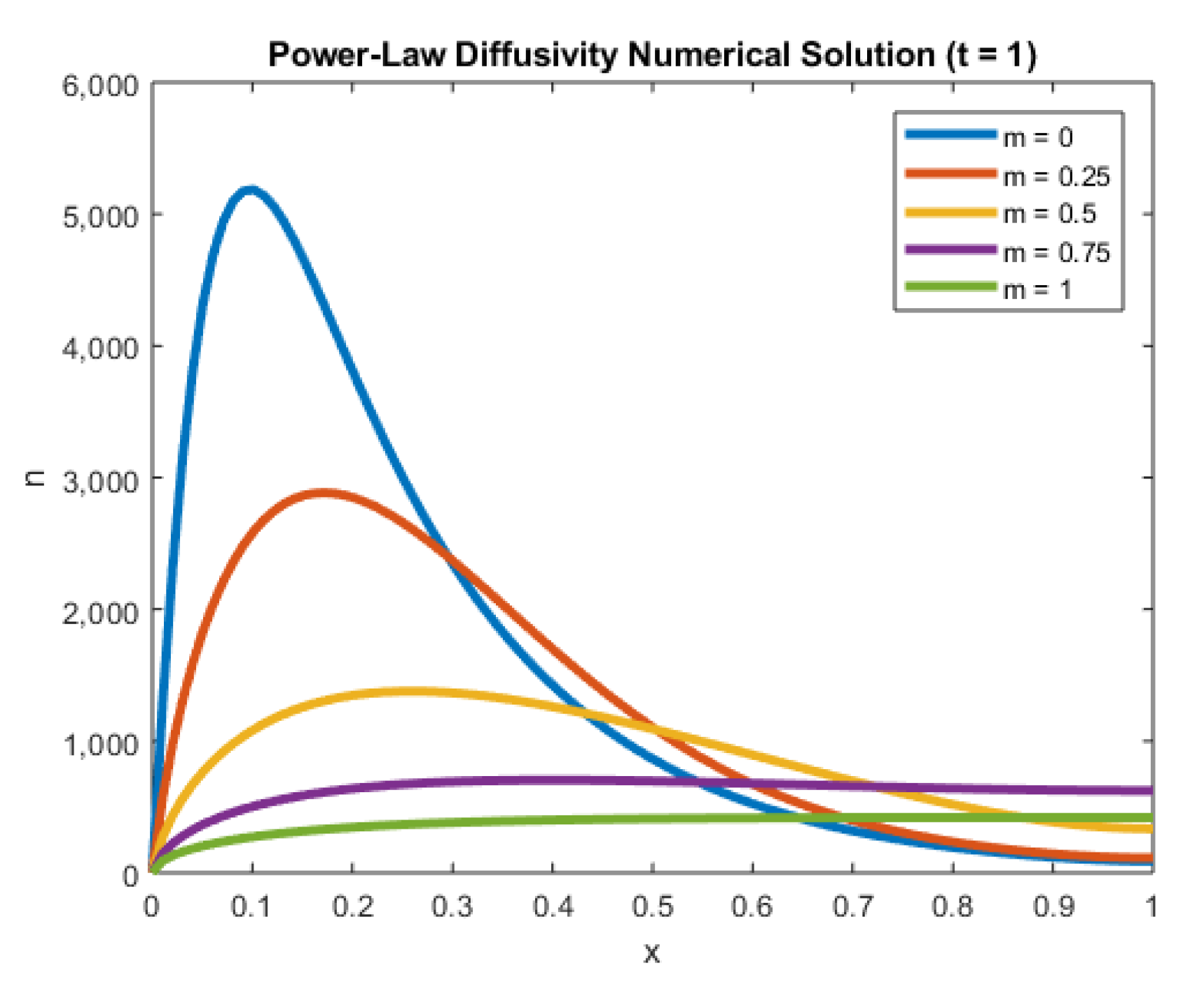

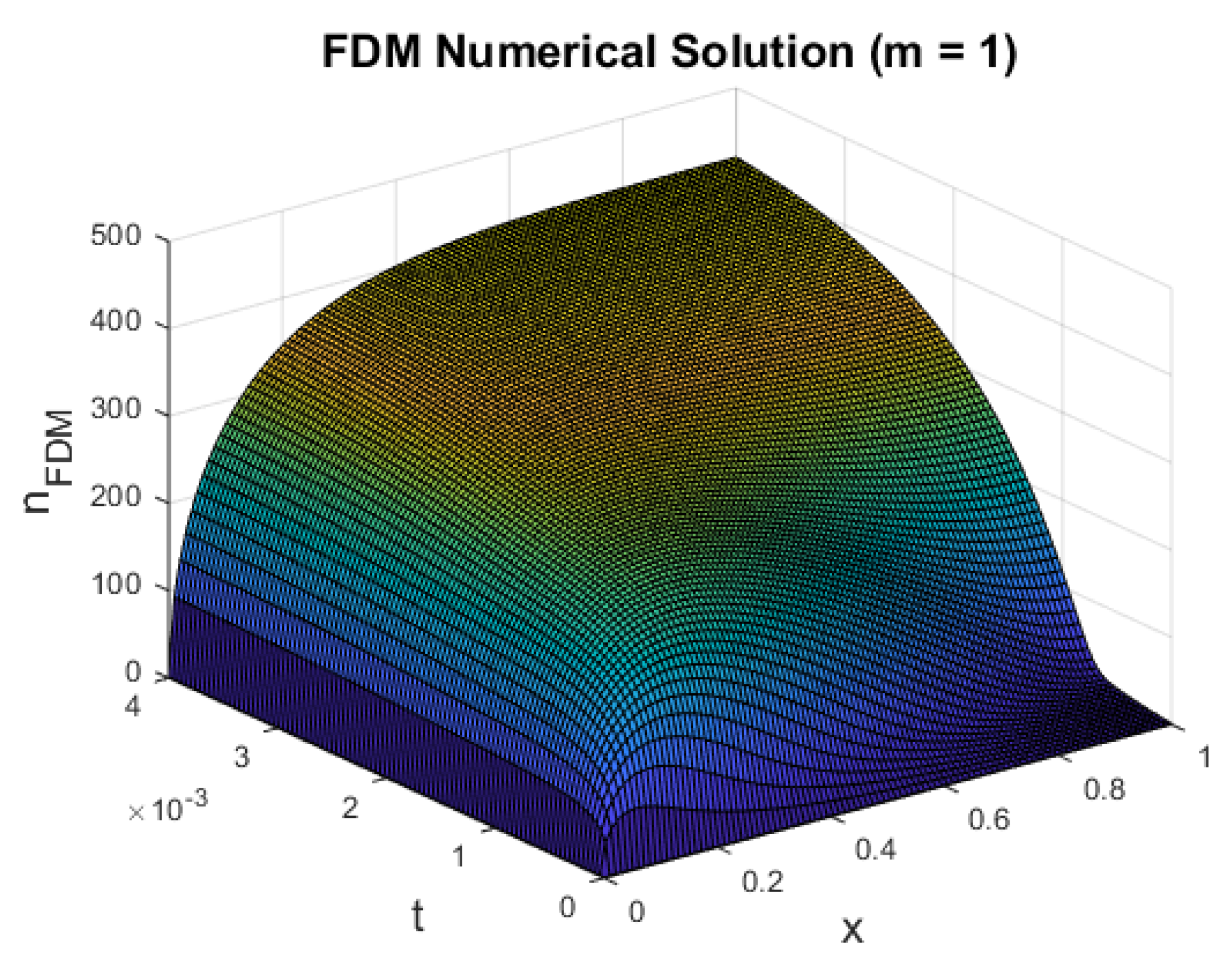

## 5. Numerical Results and Discussion

#### Efficiency Calculations

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

DSSC | Dye-sensitized solar cell |

IPCE | Incident photon to current efficiency |

PDE | Partial differential equation |

## References

- O‘Regan, B.; Grätzel, M. A low-cost, high-efficiency solar cell based on dye-sensitized colloidal TiO
_{2}films. Nature**1991**, 353, 737–740. [Google Scholar] [CrossRef] - Södergren, S.; Hagfeldt, A.; Olsson, J.; Lindquist, S. Theoretical Models for the Action Spectrum and the Current-Voltage Characteristics of Microporous Semiconductor Films in Photoelectrochemical Cells. J. Phys. Chem.
**1994**, 98, 5552–5556. [Google Scholar] [CrossRef] - Ferber, J.; Stangl, R.; Luther, J. An electrical model of the dye-sensitized solar cell. Sol. Energy Mater. Sol. Cells
**1998**, 53, 29–54. [Google Scholar] [CrossRef] - Ferber, J.; Luther, J. Modeling of photovoltage and photocurrent in dye-sensitized titanium dioxide solar cells. J. Phys. Chem. B
**2001**, 105, 4895–4903. [Google Scholar] [CrossRef] - Gregg, B.A. Comment on “Diffusion impedance and space charge capacitance in the nanoporous dye-sensitized electrochemical solar cell” and “Electronic transport in dye-sensitized nanoporous TiO
_{2}solar cells—comparison of electrolyte and solid-state devices”. J. Phys. Chem. B**2003**, 107, 13540. [Google Scholar] [CrossRef] - Cao, F.; Oskam, G.; Meyer, G.J.; Searson, P.C. Electron Transport in Porous Nanocrystalline TiO
_{2}Photoelectrochemical Cells. J. Phys. Chem.**1996**, 100, 17021–17027. [Google Scholar] [CrossRef] - Papageorgiou, N.; Grätzel, M.; Infelta, P.P. On the relevance of mass transport in thin layer nanocrystalline photoelectrochemical solar cells. Sol. Energy Mater. Sol. Cells
**1996**, 44, 405–438. [Google Scholar] [CrossRef] - Anta, J.A.; Casanueva, F.; Oskam, G. A numerical model for charge transport and recombination in dye-sensitized solar cells. J. Phys. Chem. B
**2006**, 110, 5372–5378. [Google Scholar] [CrossRef] - Barnes, P.R.F.; O‘Regan, B.C. Electron Recombination Kinectics and the Analysis of Collection Efficiency and Diffusion Length Measurements in Dye Sensitized Solar Cells. J. Phys. Chem. C
**2010**, 114, 19134–19140. [Google Scholar] [CrossRef] - Bisquert, J.; Mora-Seró, I. Simulation of Steady-State Characteristics of Dye-Sensitized Solar Cells and the Interpretation of the Diffusion Length. J. Phys. Chem. Lett.
**2010**, 1, 450–456. [Google Scholar] [CrossRef] - Andrade, L.; Sousa, J.; Ribeiro, H.A.; Mendes, A. Phenomenological modeling of dye-sensitized solar cells under transient conditions. Sol. Energy
**2011**, 85, 781–793. [Google Scholar] [CrossRef] - Gacemi, Y.; Cheknane, A.; Hilal, H.S. Simulation and modelling of charge transport in dye-sensitized solar cells based on carbon nano-tube electrodes. Phys. Scr.
**2013**, 87, 035703–035714. [Google Scholar] [CrossRef] - Lee, J.J.; Coia, G.M.; Lewis, N.S. Current density versus potential characteristics of dye-sensitized nanostructured semiconductor photoelectrodes. 1. Analytical expressions. J. Phys. Chem. B
**2004**, 108, 5269–5281. [Google Scholar] [CrossRef] - Ni, M.; Leung, M.K.H.; Leung, D.Y.C.; Sumathy, K. Theoretical Modeling of TiO
_{2}/TCO Interfacial Effect on Dye-Sensitized Solar Cell Performance. Sol. Energy Mater. Sol. Cells**2006**, 90, 2000–2009. [Google Scholar] [CrossRef] - Ameri, M.; Mohajeri, E.; Samavat, F. A Modeling Recipe to Optimize the Nanostructure Excitonic Dye Sensitized Solar Cells (DSSCs). J. Optoelectron. Adv. Mater.
**2017**, 19, 38–47. [Google Scholar] - Ni, M.; Leung, M.K.H.; Leung, D.Y.C.; Sumathy, K. An analytical study of the porosity effect on dye-sensitized solar cell performance. Sol. Energy Mater. Sol. Cells
**2006**, 90, 1331–1344. [Google Scholar] [CrossRef] - Gómez, R.; Salvador, P. Photovoltage Dependence on Film Thickness and Type of Illumination in Nanoporous Thin Flim Electrodes According to a Simple Diffusion Model. Sol. Energy Mater. Sol. Cells
**2005**, 88, 377–388. [Google Scholar] [CrossRef] - Ni, M.; Leung, M.K.H.; Leung, D.Y.C. Theoretical modelling of the electrode thickness effect on maximum power point of dye-sensitized solar cell. Can. J. Chem. Eng.
**2008**, 86, 35–42. [Google Scholar] [CrossRef] - Maldon, B.; Thamwattana, N. An Analytical Solution for Charge Carrier Densities in Dye-Sensitized Solar Cells. J. Photochem. Photobiol. A Chem.
**2019**, 370, 31–50. [Google Scholar] [CrossRef] - Lie, S. Theorie der Transformationsgruppen; Teubner: Leipzig, Germany, 1888. [Google Scholar]
- Ibragimov, N.H. CRC Handbook of Lie Group Analysis of Differential Equations; CRC Press: Boca Raton, FL, USA, 1994; Volume 1. [Google Scholar]
- Dorodnitsyn, V.A. On Invariant Solutions of the Equation of Nonlinear Heat Conduction With a Source. USSR Comput. Math. Math. Phys.
**1982**, 22, 115–122. [Google Scholar] [CrossRef] - Arrigo, D.J.; Hill, J.M. Nonclassical Symmetries for Nonlinear Diffusion and Absorption. Stud. Appl. Math.
**1995**, 94, 21–39. [Google Scholar] [CrossRef] - Sherring, J. DIMSYM Users Manual; La Trobe University: Melbourne, Australia, 1993. [Google Scholar]
- Edwards, M. Exact Solutions of Nonlinear Diffusion-Convection Equations. Ph.D. Thesis, The University of Wollongong, Wollongong, Australia, 1997. [Google Scholar]
- Broadbridge, P.; Bradshaw-Hajek, B.H.; Triadis, D. Exact Non-Classical Symmetry Solutions of Arrhenius Reaction-Diffusion. Proc. R. Soc. A
**2015**, 471, 20150580. [Google Scholar] [CrossRef] [Green Version] - Clarkson, P.A.; Mansfield, E.L. Symmetry Reductions and Exact Solutions of a Class of Nonlinear Heat Equations. Phys. D
**1993**, 70, 250–288. [Google Scholar] [CrossRef] [Green Version] - Bluman, G.W.; Cole, J.D. Similarity Methods for Differential Equations; Springer: Heidelberg/Berlin, Germany, 1974. [Google Scholar]
- Arrigo, D.J.; Beckham, J.R. Nonclassical Symmetries of Evolutionary Partial Differential Equations and Compatibility. J. Math. Anal. Appl.
**2004**, 289, 55–65. [Google Scholar] [CrossRef] [Green Version] - Bradshaw-Hajek, B.; Moitsheki, R.J. Symmetry Solutions for Reaction–Diffusion Equations With Spatially Dependent Diffusivity. Appl. Math. Comput.
**2015**, 254, 30–38. [Google Scholar] [CrossRef] - Pliukhin, O. Q-Conditional Symmetries and Exact Solutions of Nonlinear Reaction-Diffusion Systems. Symmetry
**2015**, 7, 1841–1855. [Google Scholar] [CrossRef] [Green Version] - Nucci, M.C. Nonclassical Symmetries and Bäcklund Transformations. J. Math. Anal. Appl.
**1993**, 178, 294–300. [Google Scholar] [CrossRef] [Green Version] - Bradshaw-Hajek, B. Nonclassical Symmetry Solutions for Non-Autonomous Reaction-Diffusion Equations. Symmetry
**2019**, 11, 208. [Google Scholar] [CrossRef] [Green Version] - Joshi, N.; Morrison, T. New Exact Solutions of Spatially and Temporally Varying Reaction-Diffusion Equations. Anal. Appl.
**2008**, 6, 371–381. [Google Scholar] [CrossRef] [Green Version] - Arrigo, D.J.; Hill, J.M.; Broadbridge, P. Nonclassical Symmetry Reductions of the Linear Diffusion Equation with a Nonlinear Source. IMA J. Appl. Math.
**1994**, 52, 1–24. [Google Scholar] [CrossRef] - Maldon, B.; Lamichhane, B.P.; Thamwattana, N. Numerical solutions for nonlinear partial differential equations arising from modelling dye-sensitized solar cells. ANZIAM J.
**2019**, 60, C231–C326. [Google Scholar] [CrossRef] - Nelson, J. Continuous-Time Random-Walk Model of Electron Transport in Nanocrystalline TiO
_{2}Electrodes. Phys. Rev. B**1999**, 59, 15374–15380. [Google Scholar] [CrossRef]

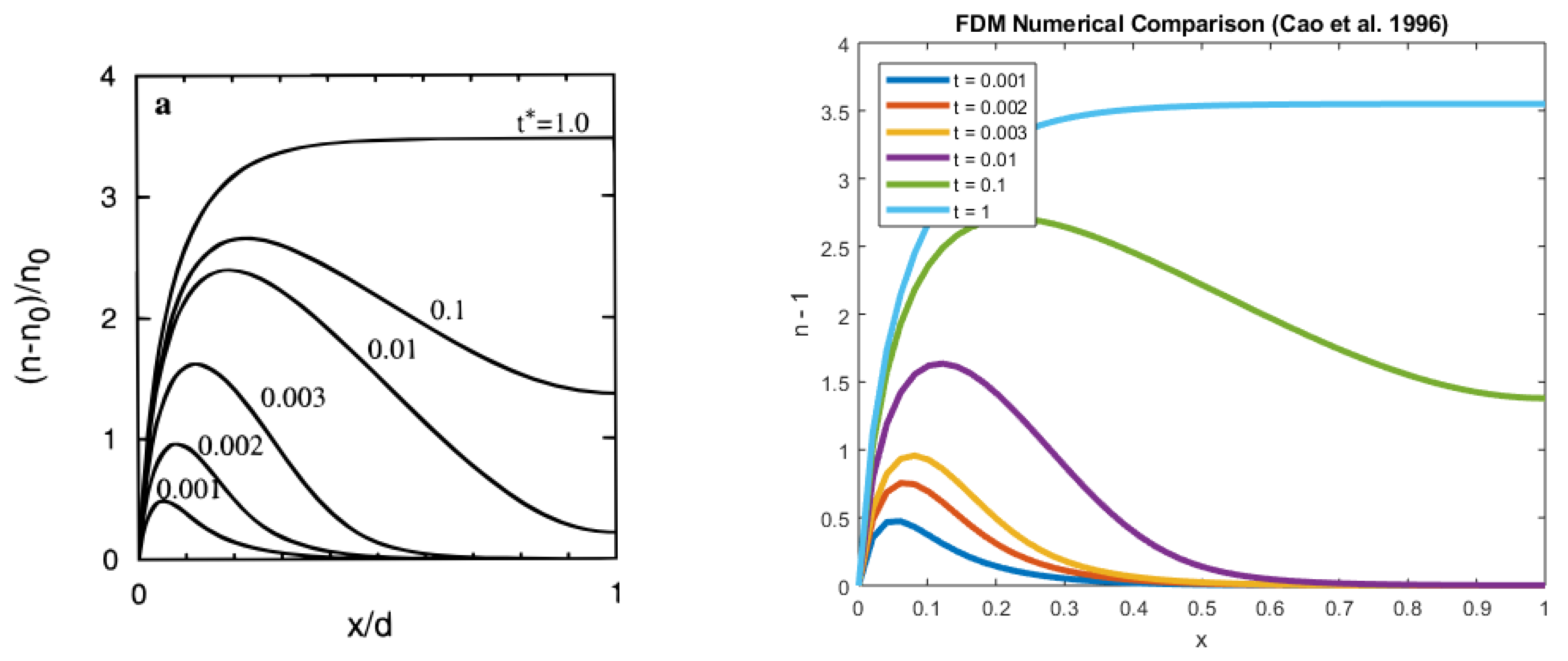

**Figure 8.**Comparison of the results with Cao et al. [6] (Reprinted with permission from (Cao, F., Oskam, G., Meyer, G.J. and Searson, P.C., 1996. Electron transport in porous nanocrystalline ${\mathrm{TiO}}_{2}$ photoelectrochemical cells. The Journal of Physical Chemistry, 100(42), pp.17021-17027.). Copyright 1996 American Chemical Society).

Parameter | Value | Reference |
---|---|---|

${D}_{0}$ | ${10}^{-11}\phantom{\rule{3.33333pt}{0ex}}{\mathrm{m}}^{2}\xb7{\mathrm{s}}^{-1}$ | [8] |

${\alpha}_{ab}$ | ${10}^{5}\phantom{\rule{3.33333pt}{0ex}}{\mathrm{m}}^{-1}$ | [12] |

d | $5\times {10}^{-5}\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}$ | [8] |

${k}_{R}$ | $4\times {10}^{-8}\phantom{\rule{3.33333pt}{0ex}}{\mathrm{s}}^{-1}$ | [8] |

${n}_{eq}$ | ${10}^{22}\phantom{\rule{3.33333pt}{0ex}}{\mathrm{m}}^{-3}$ | [16] |

$\phi $ | ${10}^{21}\phantom{\rule{3.33333pt}{0ex}}{\mathrm{m}}^{-2}\xb7{\mathrm{s}}^{-1}$ | [17] |

$\mu $ | $2.5\times {10}^{6}$ | |

$\nu $ | 5 | |

$\xi $ | ${10}^{-5}$ |

**Table 2.**Classical Lie symmetries found for special cases of Equation (4).

$\mathit{D}\left(\mathit{n}\right)$ | $\mathit{G}\left(\mathit{x}\right)$ | $\mathit{R}\left(\mathit{n}\right)$ | X | T | N |
---|---|---|---|---|---|

1 | $Ax+B$ | ${n}^{\frac{1}{3}}$ | x | $2t$ | $3n$ |

1 | $A{x}^{-2}$ | $\alpha {e}^{\beta n}$ | $\frac{x}{2}$ | t | $-\frac{n}{\beta}$ |

1 | $-2\alpha ln(x+B)+C$ | $\alpha ln(n+\beta )$ | $x+B$ | $2t$ | $2(n+\beta )$ |

1 | $A{e}^{B{x}^{2}+Cx}$ | $\alpha nln\left(n\right)+\gamma n$ | $\frac{1}{C{e}^{4Bt}}$ | 0 | $-\frac{(C+2Bt)}{C{e}^{4Bt}}$ |

1 | $A{x}^{-4}$ | $\alpha {n}^{2}$ | x | $2t$ | $-2n$ |

${n}^{m}$ | $A{(x+B)}^{C}$ | $\alpha {n}^{\frac{C}{(C+2)}}$ | $(m+1)(x+B)$ | $(2-Cm)t$ | $(C+2)n$ |

${n}^{m}$ | $A{e}^{Bx}$ | $\alpha {n}^{m+1}$ | $\frac{(m+1)}{Bm}$ | $-t$ | $\frac{n}{m}$ |

${n}^{m}$ | $Aln(x+B)+C$ | $-\frac{A(m+1)}{2}ln\left(n\right)$ | $(m+1)(x+B)$ | $2t$ | $2n$ |

${e}^{mn}$ | $A{x}^{B}$ | $\alpha {e}^{\frac{Bmn}{B+2}}$ | x | $-Bt$ | $\frac{B+2}{m}$ |

${e}^{mn}$ | $A{e}^{Bx}$ | $\alpha {e}^{mn}$ | 1 | $-Bt$ | $\frac{B}{m}$ |

${e}^{mn}$ | $Aln(x+B)+C$ | $-\frac{Amn}{2}$ | $x+B$ | 0 | $\frac{2}{m}$ |

$D\left(n\right)$ | $A{x}^{-2}$ | 0 | x | $2t$ | 0 |

$\mathit{D}\left(\mathit{n}\right)$ | $\mathit{\eta}$ | ${\mathit{J}}_{\mathbf{sc}}\left({\mathbf{Am}}^{-2}\right)$ | ${\mathit{V}}_{\mathbf{oc}}\left(\mathbf{V}\right)$ |
---|---|---|---|

1 | $7.0569$ | $133.8545$ | $0.6322$ |

$\sqrt{n}$ | $0.5054$ | $10.8597$ | $0.5673$ |

n | $0.1247$ | $2.8818$ | $0.5330$ |

${n}^{2}$ | $0.0298$ | $0.7452$ | $0.4980$ |

${e}^{\frac{ln\left({n}_{eq}\right)}{{n}_{eq}}n}$ | $7.0569$ | $133.8545$ | $0.6322$ |
