# Time-Shift Multi-scale Weighted Permutation Entropy and GWO-SVM Based Fault Diagnosis Approach for Rolling Bearing

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Algorithm of TSMWPE

#### 2.1. MPE method

- (1)
- For a given maximum scale factor ${\tau}_{\mathrm{max}}$, the coarse-grained time series can be constructed from the original time series $\left\{x\right(i),i=1,2,\dots ,N\}$ by using formula (1)$${y}_{j}^{(\tau )}=\frac{1}{\tau}{\displaystyle \sum _{i=(j-1)\tau +1}^{j\tau}{x}_{i}},\hspace{1em}\hspace{1em}1\le j\le N/\tau $$
- (2)
- For the scale factor $\tau \ge 2$, permutation entropy of each coarse-grained time series is calculated. Finally, the entropy values of all scales are obtained and seen as a function of the scale factor.

#### 2.2. Algorithm of TSMPE

- (1)
- For a given time series $\left\{x\right(i),i=1,2,\cdots ,N\}$, there are$${y}_{k,\beta}=({x}_{k},{x}_{\beta +k},{x}_{2\beta +k},\dots ,{x}_{{\Delta}_{(\beta ,k)}\beta +k})$$
- (2)
- For scale factor $\tau \ge 2$, the PEs of each time-shift coarse-grained time series are calculated. The obtained different PEs of each time-shift coarse-grained time series are averaged by$$TSMPE(X,\tau ,m,\lambda )=\frac{1}{\tau}{\displaystyle \sum _{k=1}^{\tau}\mathrm{TS}PE({y}_{k,\beta}^{(\tau )},m,\lambda )}$$

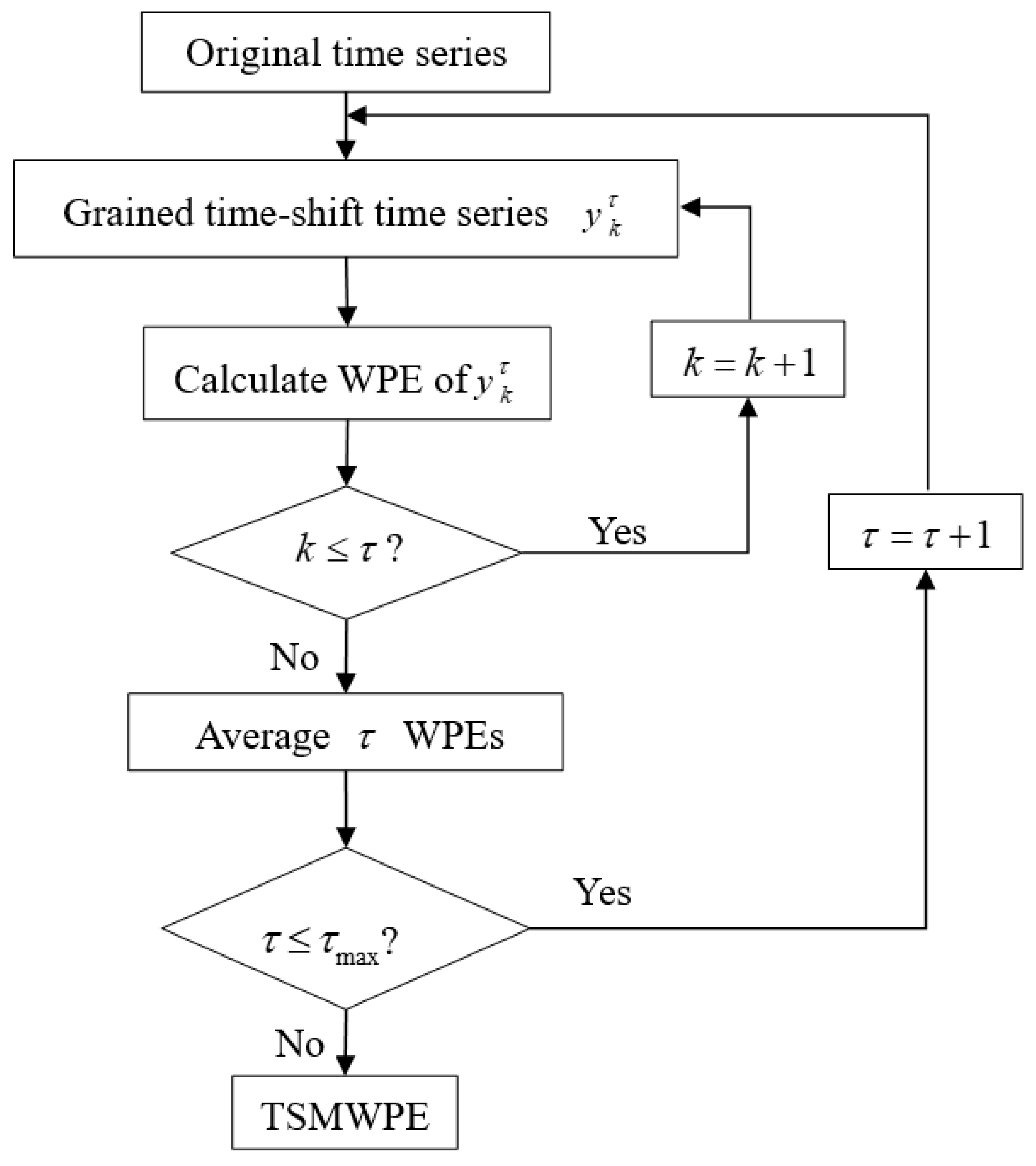

#### 2.3. Algorithm of TSMWPE

- For the original time series $\left\{x\right(i),i=1,2,\cdots ,N\}$, the process of time-shift coarse-grained time series ${y}_{k,\beta}$ can be obtained by Equation (2).
- Each row in this matrix is regarded as a state vector and each state vector is mapped into $m!$ possible sorting mode ${\mathsf{\pi}}_{r}$, ${f}_{\omega}({\mathsf{\pi}}_{r})$ represents the frequency of the r-th permutation in the time series.$${f}_{\omega}{\mathsf{\pi}}_{r}={\displaystyle \sum _{s=1}^{S}f({\mathsf{\pi}}_{r}(s))}\cdot {\omega}_{r}(s),s=1,2,\cdots ,S$$
- The weighted relative probability of each state vector ${p}_{\omega}({\mathsf{\pi}}_{r})$ can be concluded by$${p}_{w}({\mathsf{\pi}}_{r})=\frac{{f}_{\omega}({\mathsf{\pi}}_{r})}{{\displaystyle {\sum}_{i=1}^{m!}{f}_{\omega}({\mathsf{\pi}}_{r})}}$$
- For $\tau $ time-shift coarse-grained time series, the weighted permutation entropy of each time-shift coarse-grained time series (TSMPE) can be defined as ${H}_{w}^{k}$ according to Shannon entropy as$${H}_{\omega}^{k}=-{\displaystyle \sum _{\Pi}^{}{p}_{\omega}({\mathsf{\pi}}_{r})\mathrm{ln}{p}_{\omega}}({\mathsf{\pi}}_{r})\hspace{1em}\hspace{1em}1\le k\le \tau $$
- Finally, $\tau $ ${H}_{w}^{k}$ are obtained and final TSMWPE of original time series is described as$$TSMWPE(x,\tau ,m,\lambda )=\frac{1}{\tau}{\displaystyle \sum _{k=1}^{\tau}{H}_{w}^{k}({y}_{k,\beta},m,\lambda )}$$

## 3. Analysis of Parameter Selection

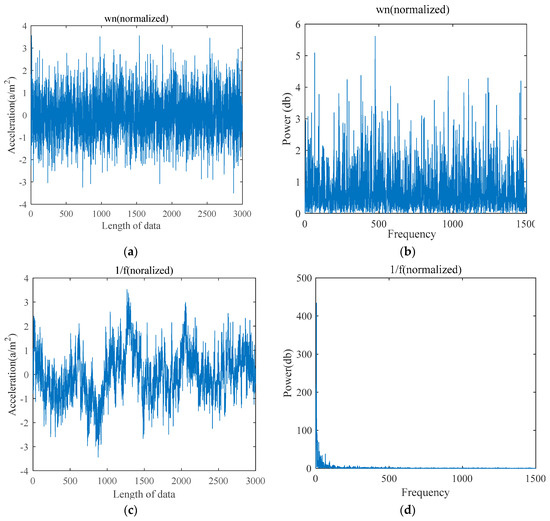

#### 3.1. Selection of Parameter m

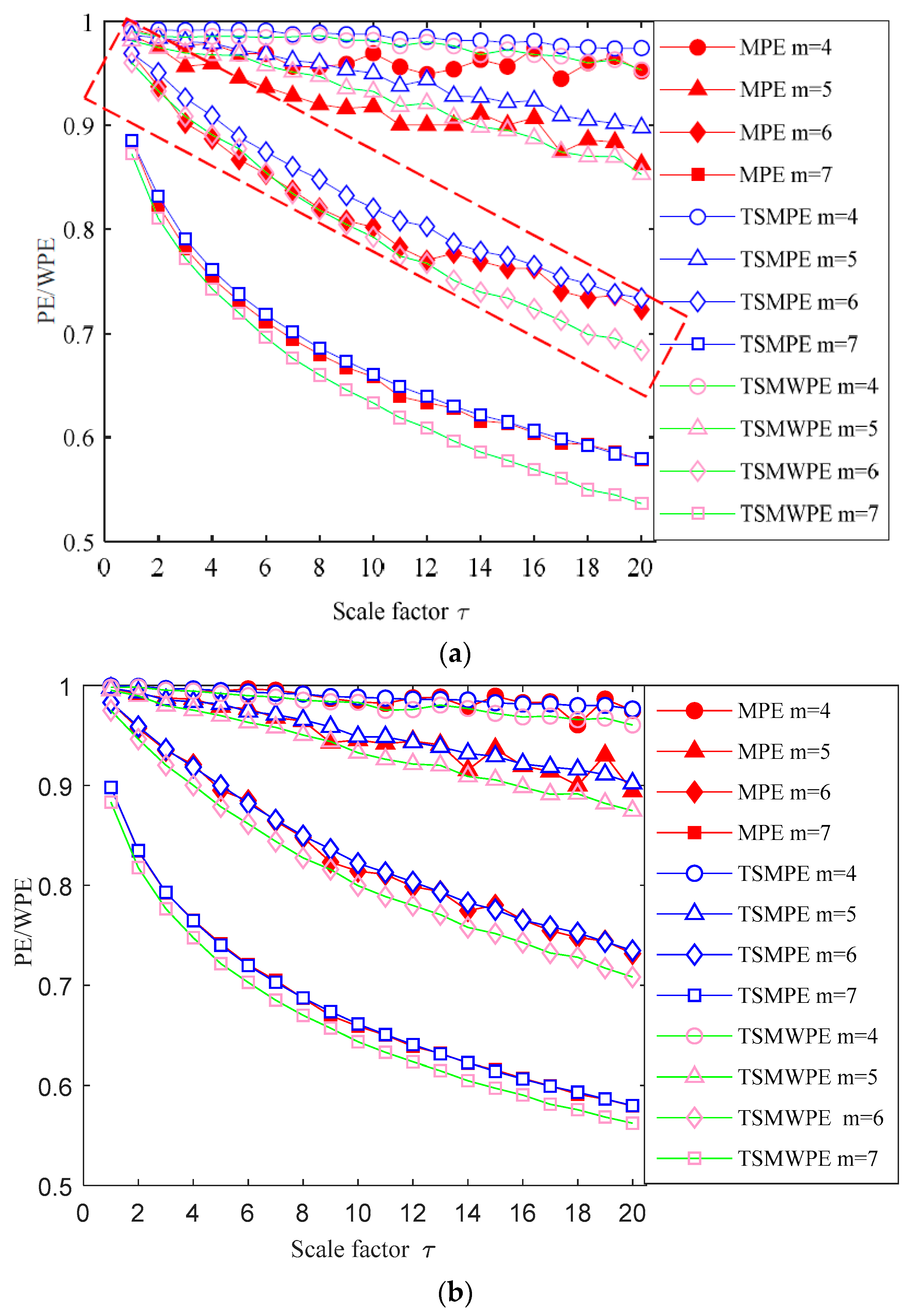

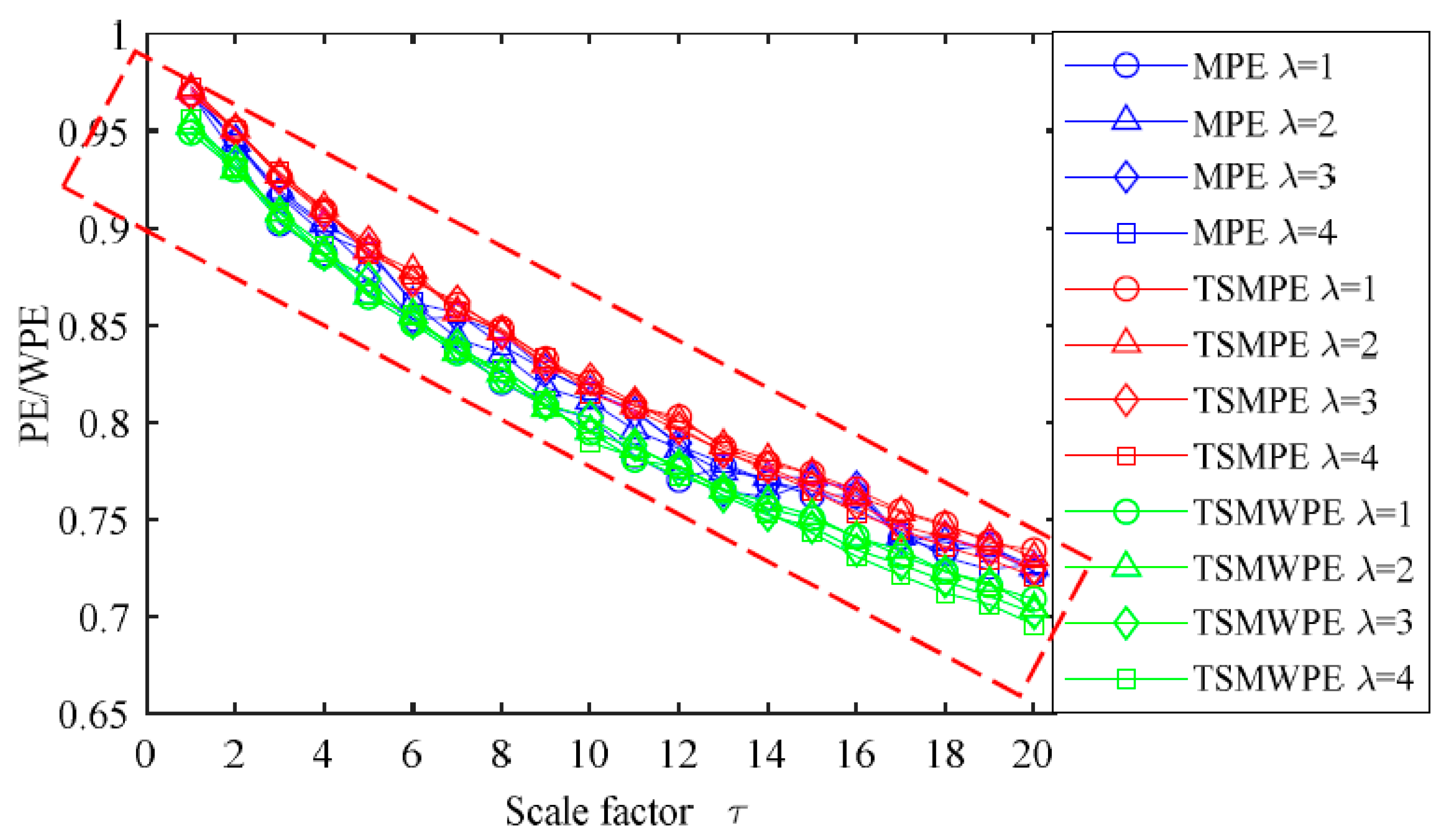

#### 3.2. Selection of Parameter $\lambda $

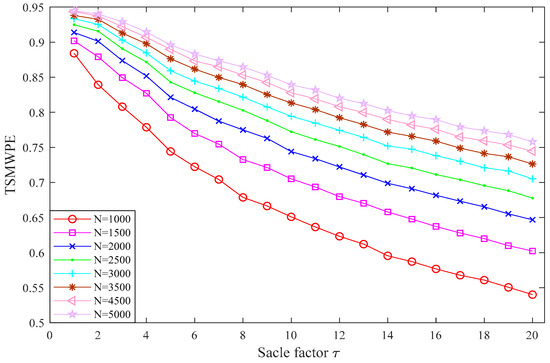

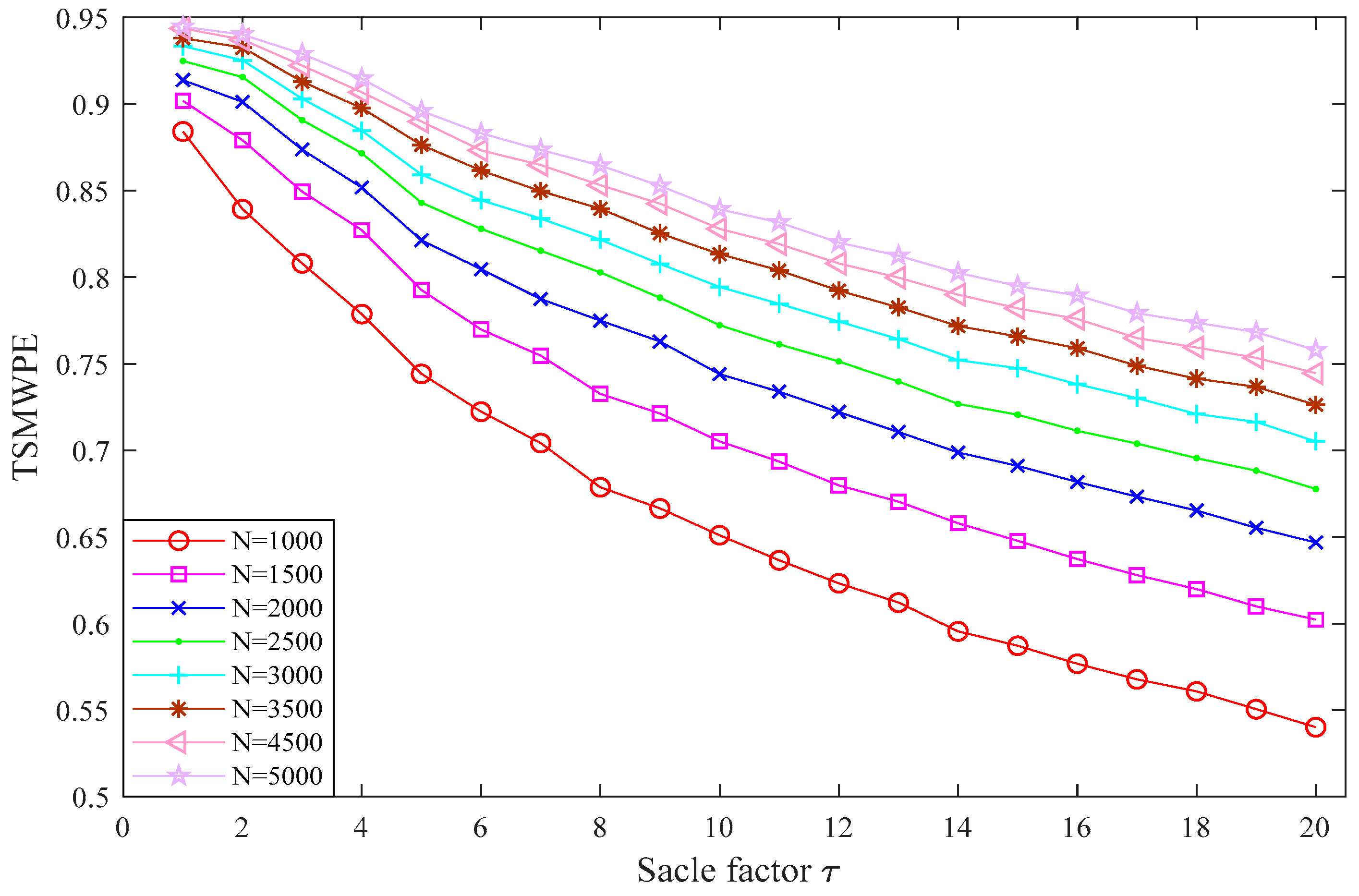

#### 3.3. Selection of Parameter N

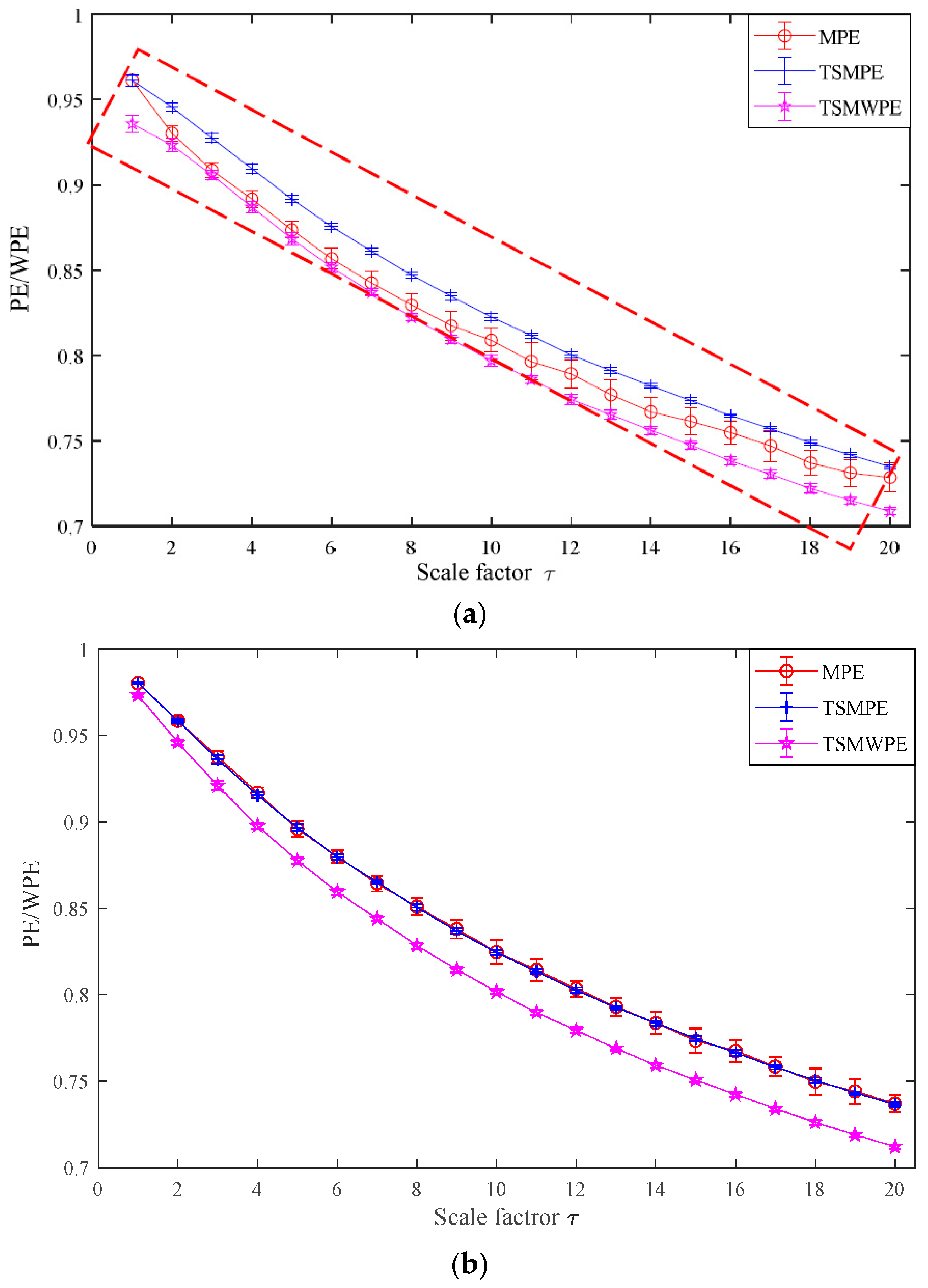

#### 3.4. Stability Analysis

## 4. TSMWPE and GWO-SVM Based Fault Diagnosis Method for Rolling Bearing

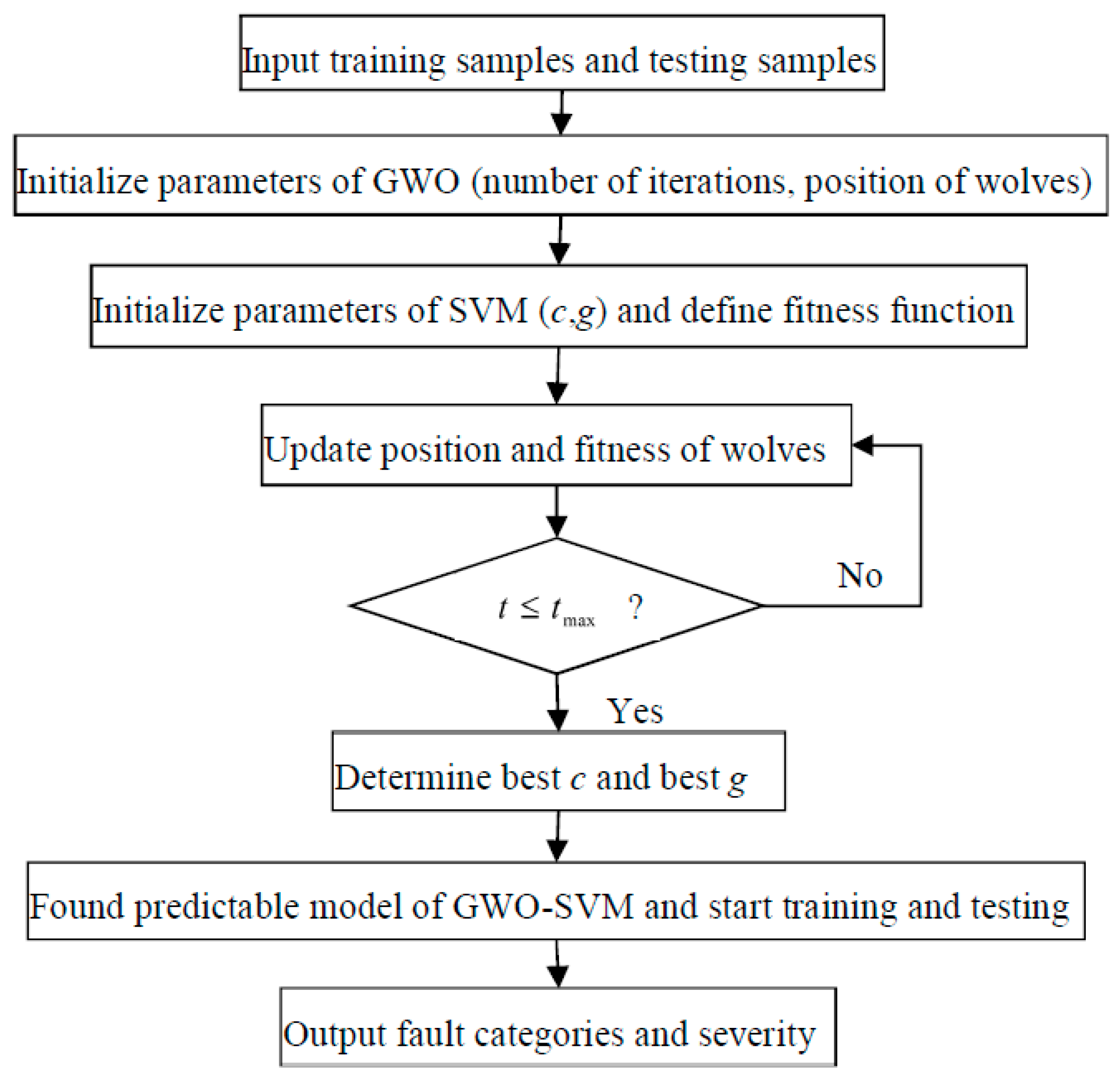

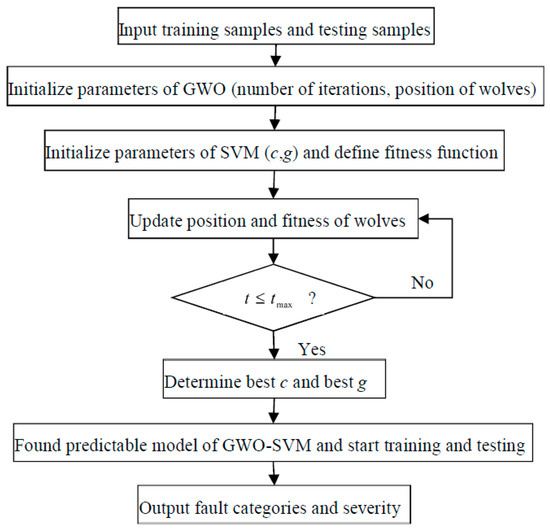

#### 4.1. GWO-SVM

_{a}represents current location of wolves A, X

_{b}represents current location of wolves B, ${\mathrm{X}}_{c}$ represents current location of wolves C. ${C}_{1}$, ${C}_{2}$ and ${C}_{3}$ are random variables. $X(t)$ is the current location of the wolf species. The step lengths and directions of wolves E to wolves A, B and C are defined by formulas (13)–(15) and the final position of wolves E are defined by formulas (16).

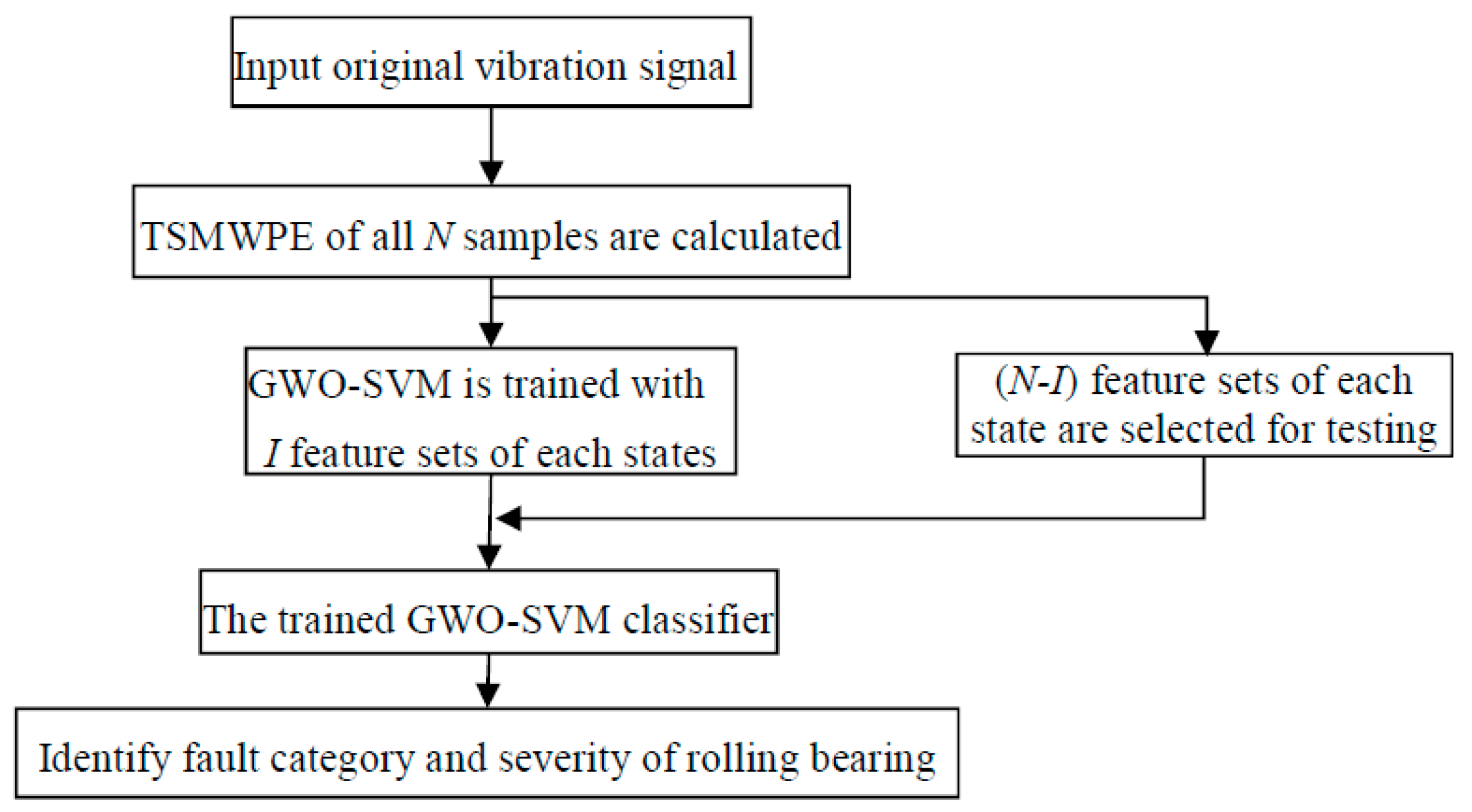

#### 4.2. The Proposed Fault Diagnosis Approach

- (1)
- Let the rolling bearing contains K class work conditions, N sets of samples are collected for each state. TSMWPE is computed for all samples of each state of rolling bearing in M scales. The TSMWPE values obtained are used as the sample feature information to form the original feature vector matrix ${\mathrm{R}}^{K\times N\times M}$.
- (2)
- For each state of rolling bearing, N samples are collected and I samples are selected from the N ones as training samples to form a feature training set (${\mathrm{R}}^{K\times I\times M}$) and the rest (N−I) ones are seen as testing samples to form the testing feature set (${\mathrm{R}}^{K\times (N-I)\times M}$).
- (3)
- The training model feature set is employed to train the GWO-SVM based multi-classifier.
- (4)
- The testing sample feature set is inputting to the trained multi-classifier for prediction. The fault categories and severity of rolling bearing are judged according to the output of GWO-SVM multi-fault classifier. The flowchart of proposed method of fault diagnosis is shown in Figure 8.

#### 4.3. Experimental Analysis of Rolling Bearing

#### 4.3.1. Case 1

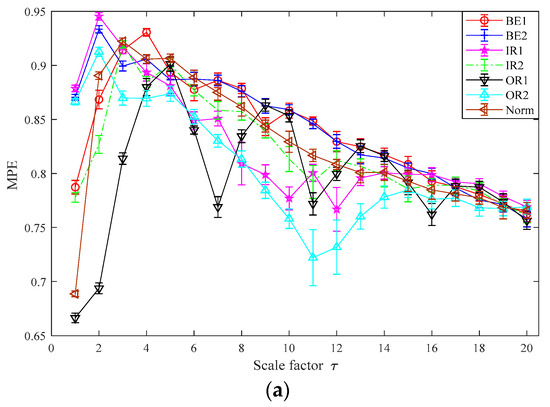

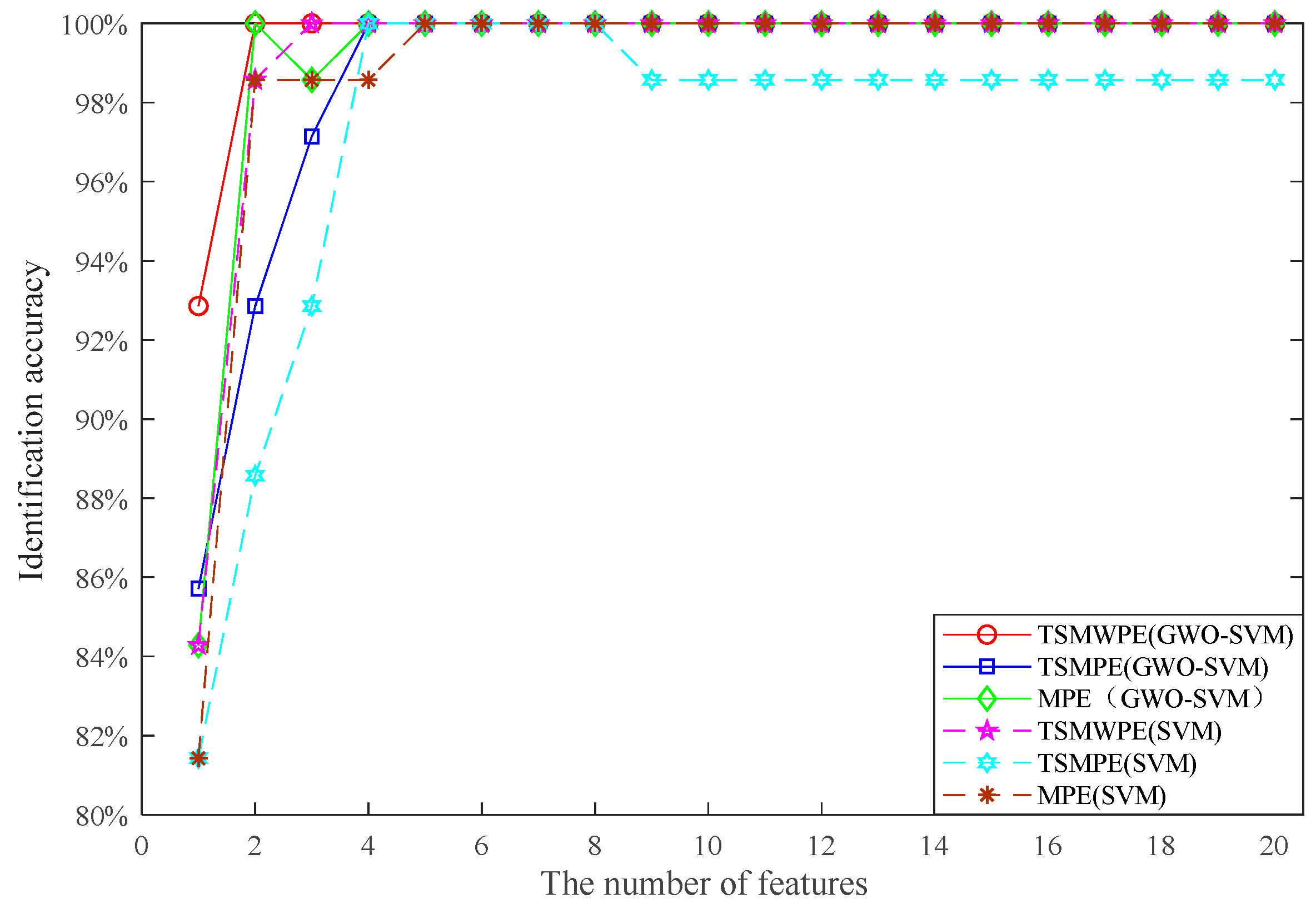

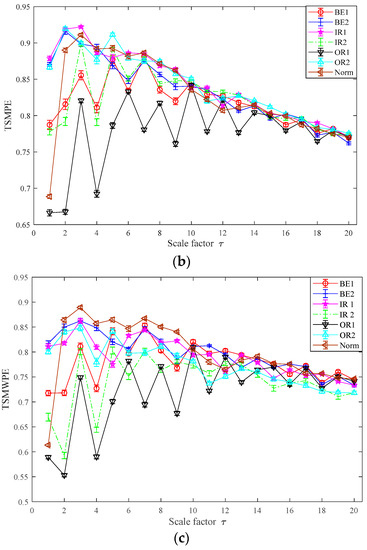

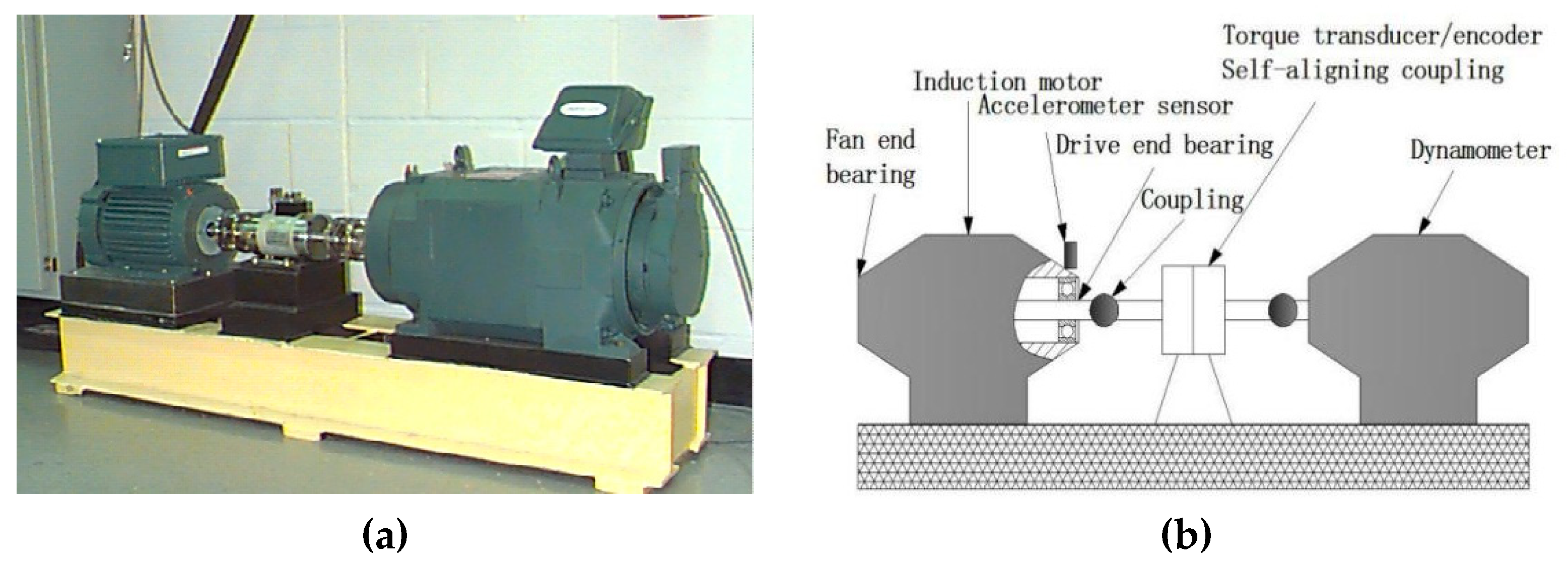

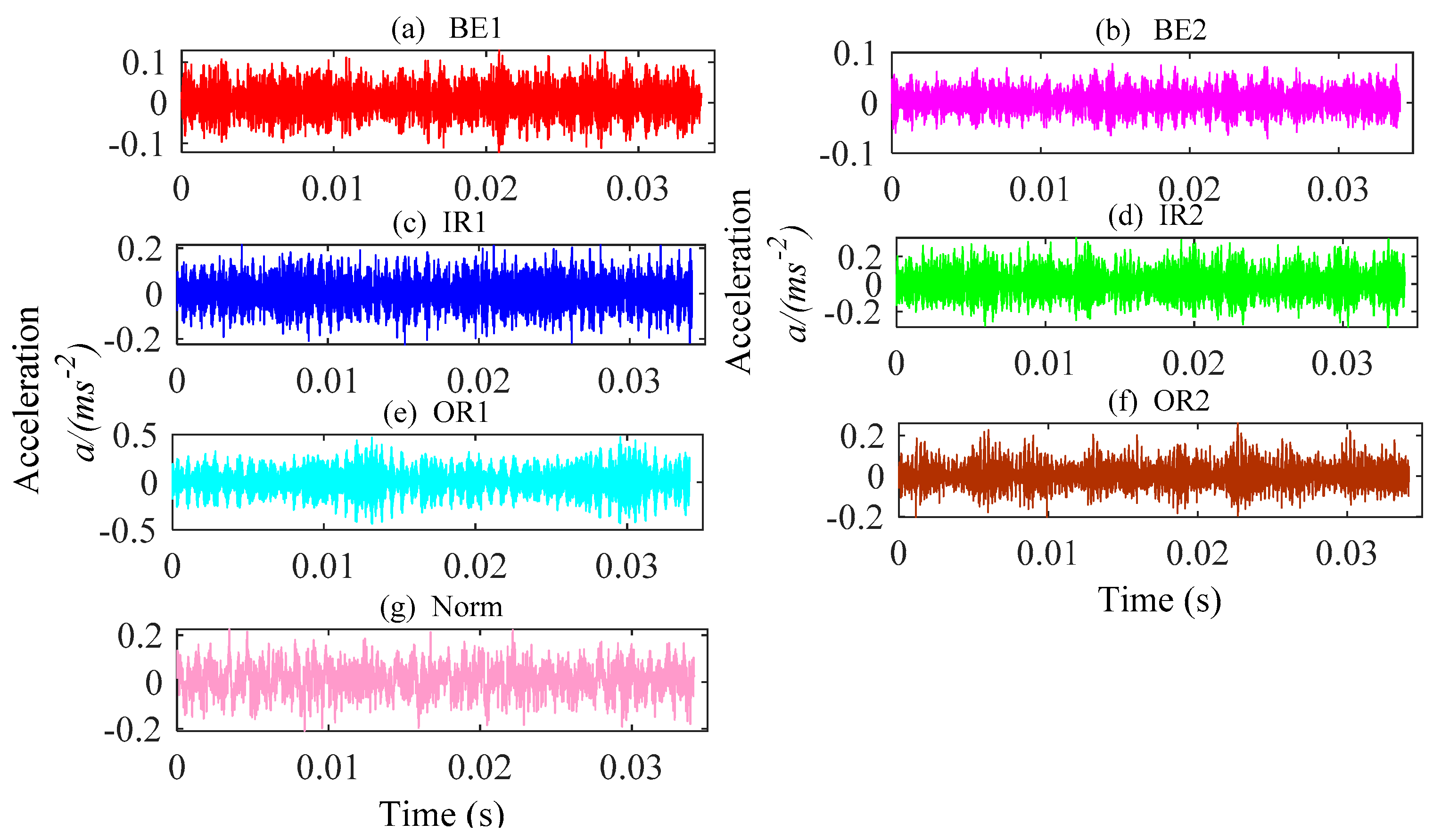

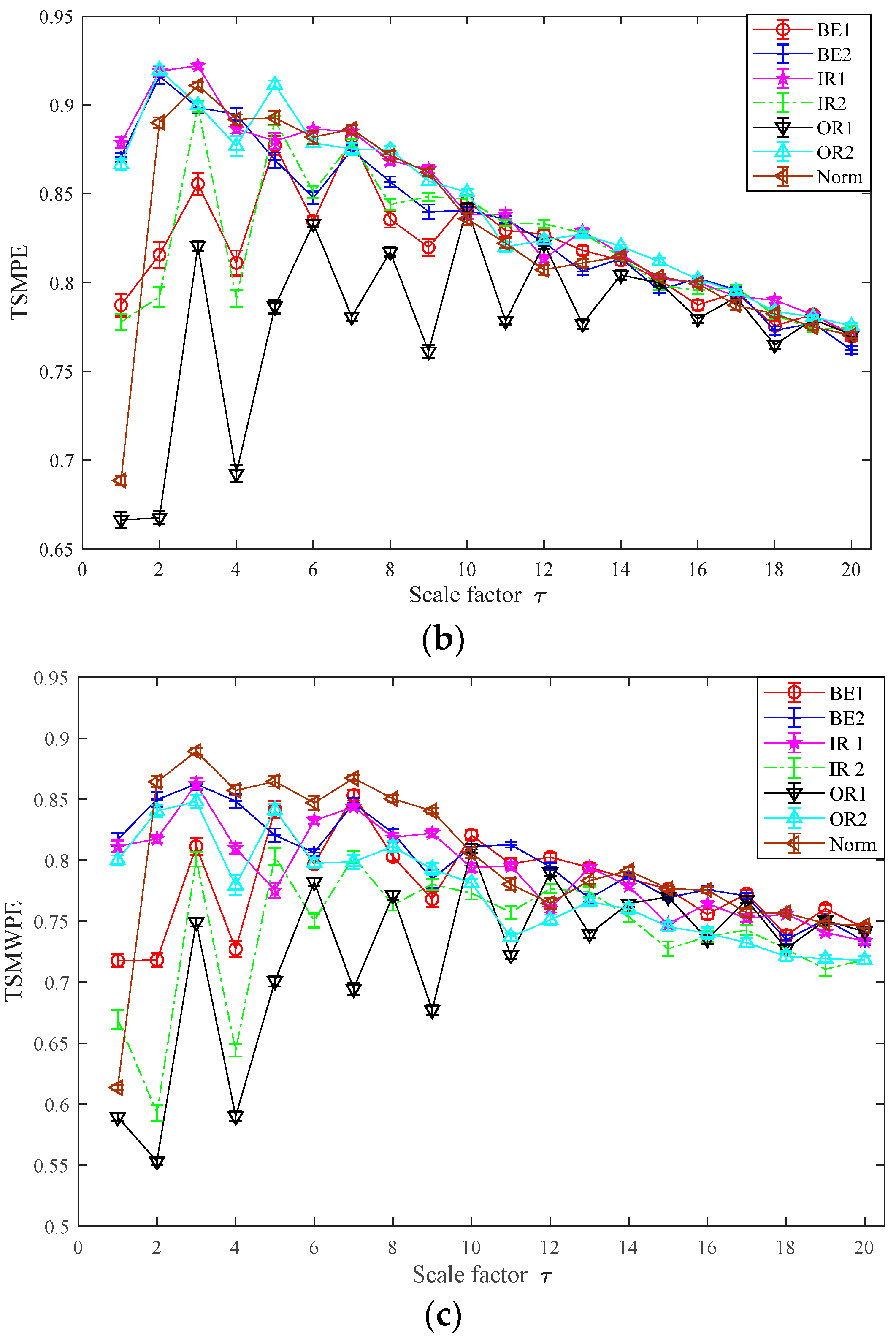

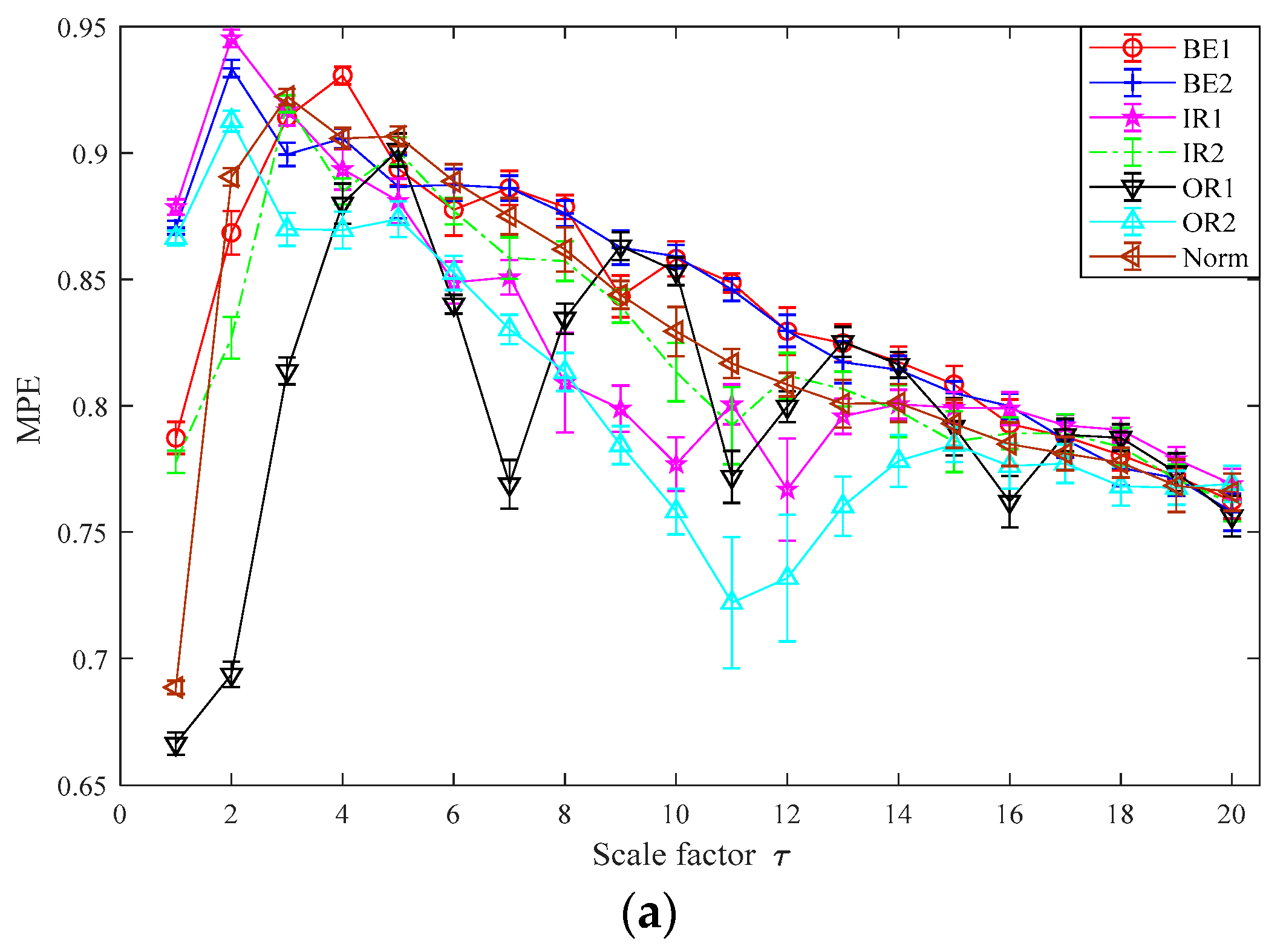

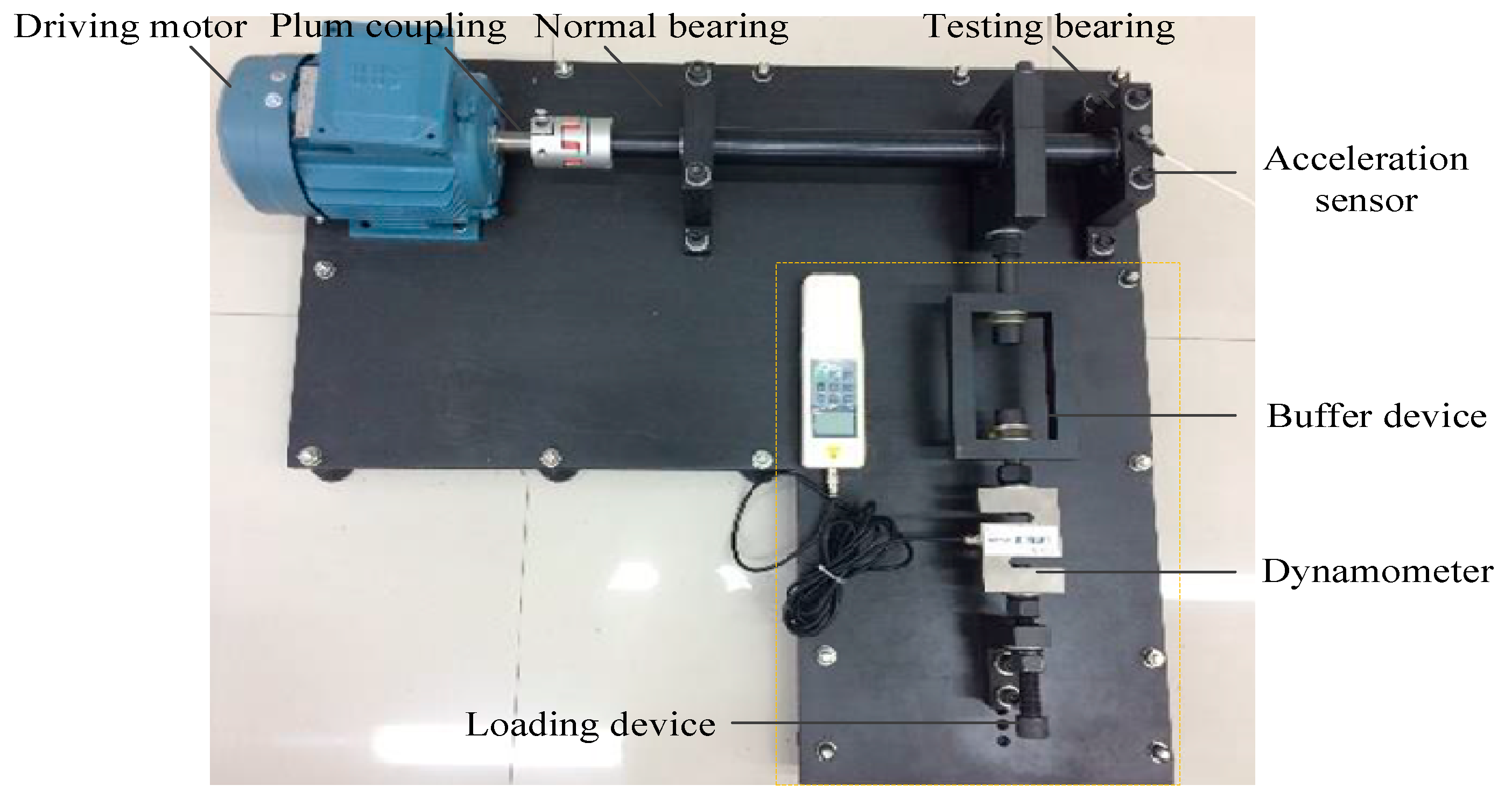

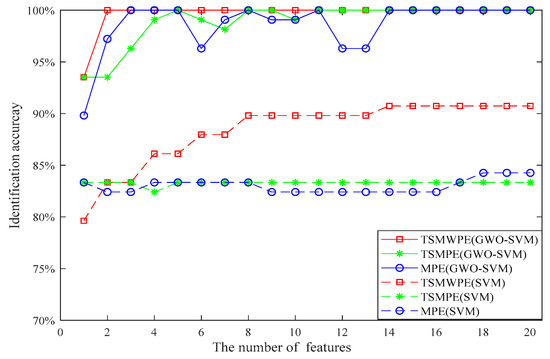

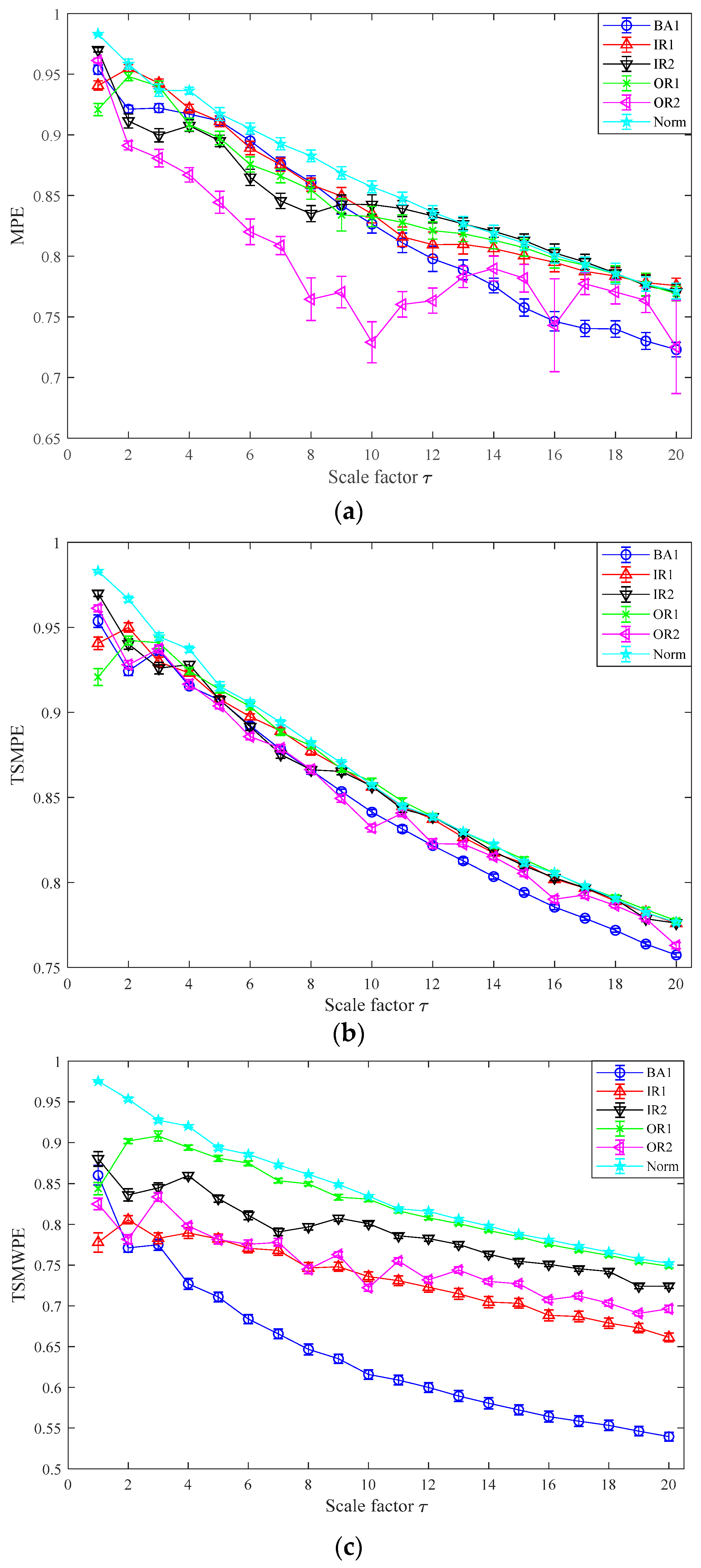

#### 4.3.2. Case 2

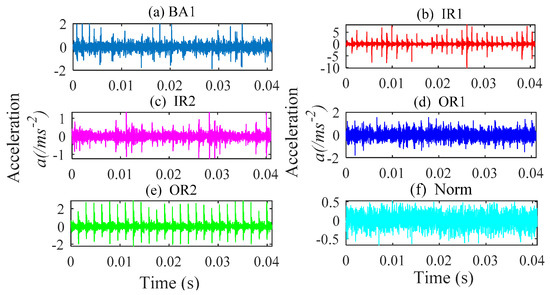

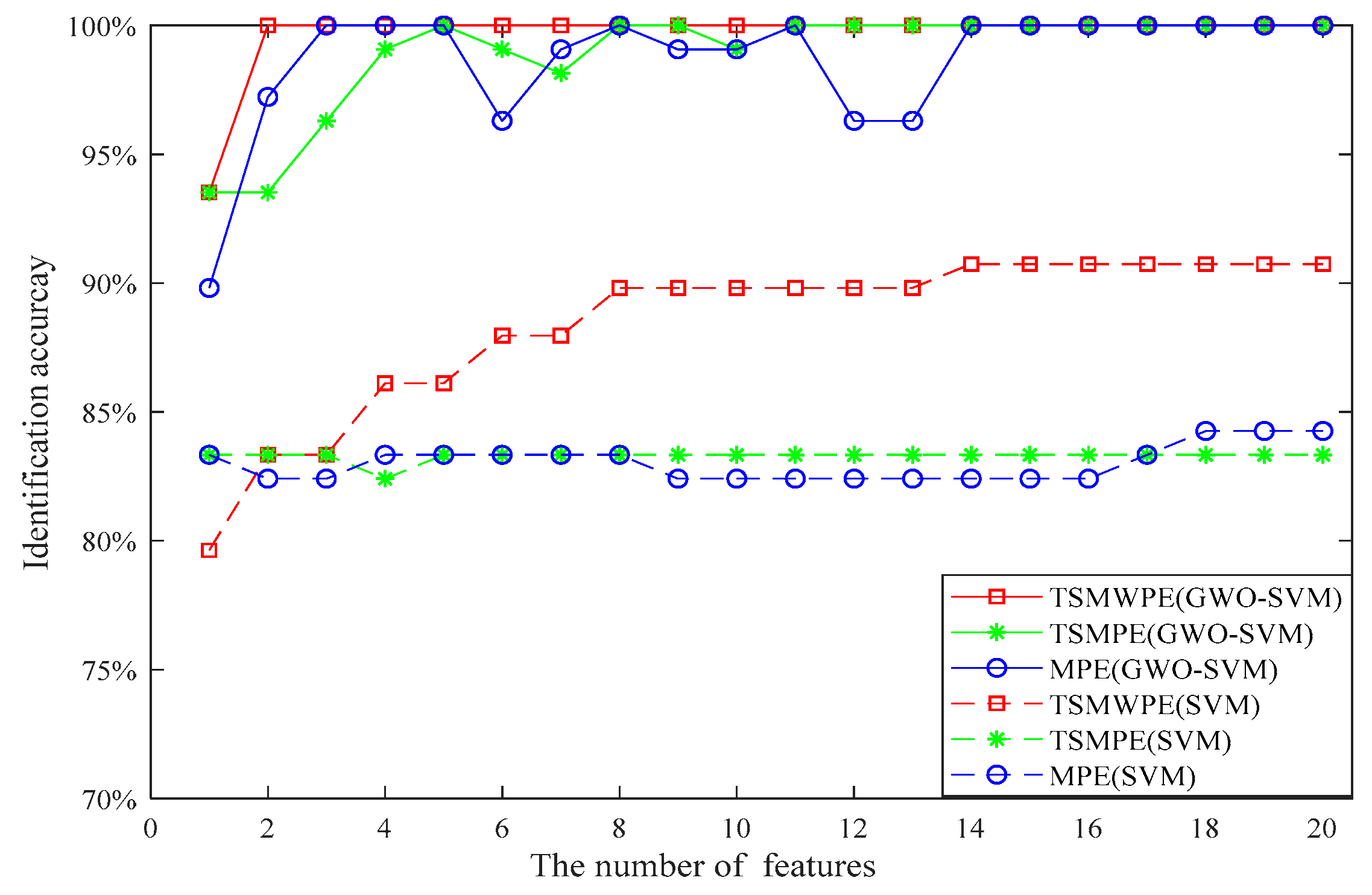

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References
