Effects of Nitrogen Content on the Structure and Mechanical Properties of (Al0.5CrFeNiTi0.25)Nx High-Entropy Films by Reactive Sputtering

1
State Key Laboratory for Advanced Metals and Materials, University of Science and Technology Beijing, Beijing 100083, China
2
College of Physics and Energy, Shenzhen University, Shenzhen 518060, China
3
Department of Physics, School of Science, Hebei University of Science and Technology, Shijiazhuang 050000, China
*
Author to whom correspondence should be addressed.
Entropy 2018, 20(9), 624; https://doi.org/10.3390/e20090624
Received: 9 July 2018 / Revised: 10 August 2018 / Accepted: 19 August 2018 / Published: 21 August 2018
(This article belongs to the Special Issue New Advances in High-Entropy Alloys)

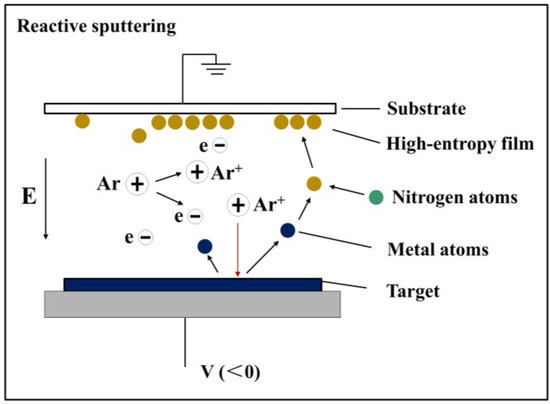

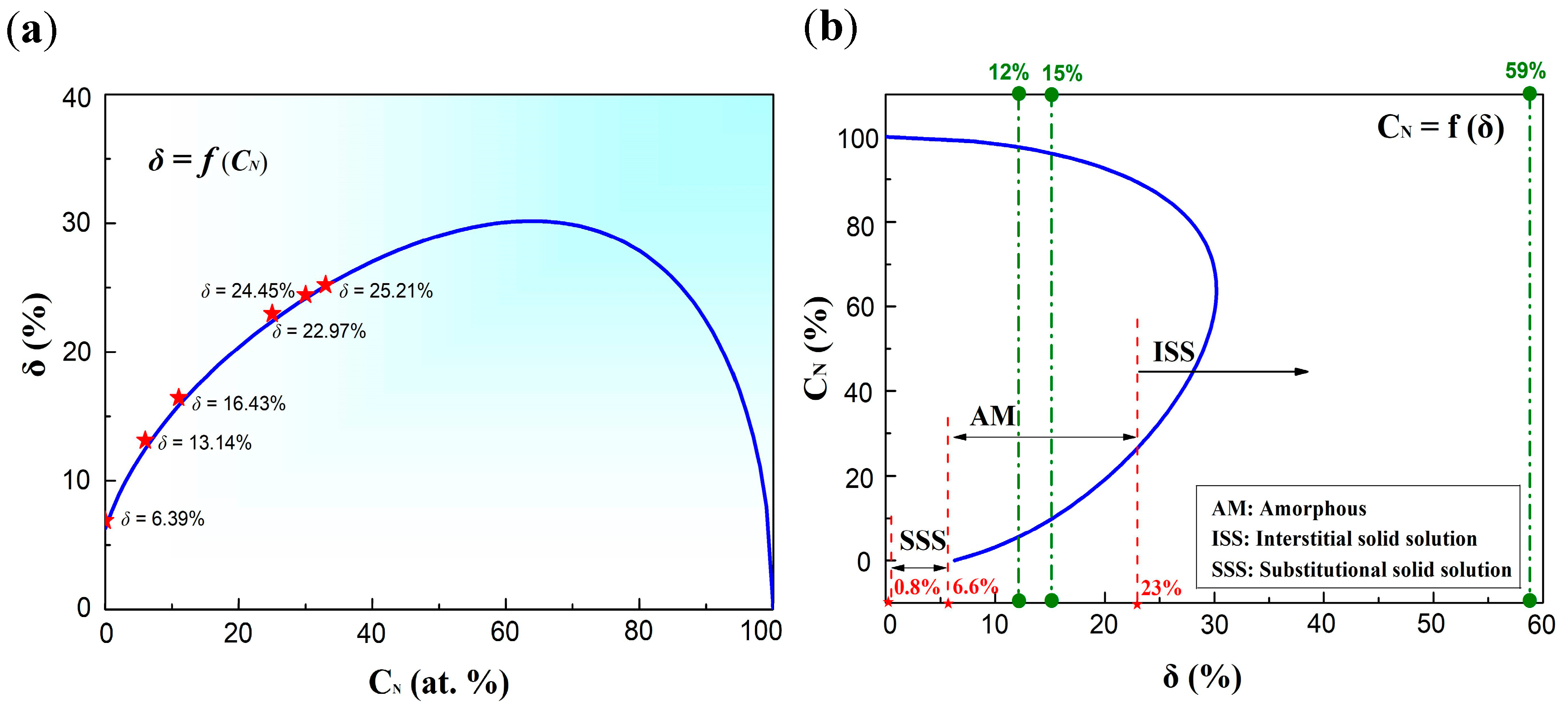

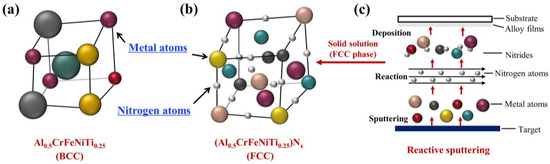

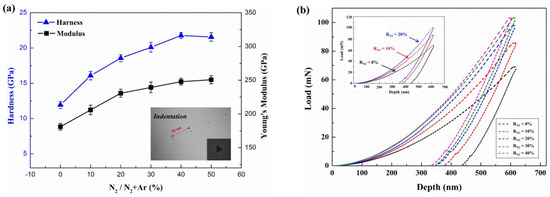

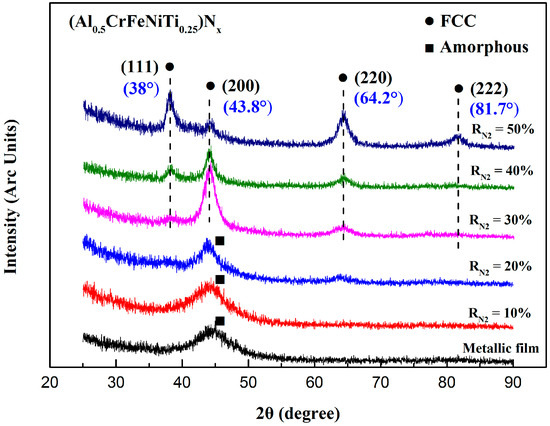

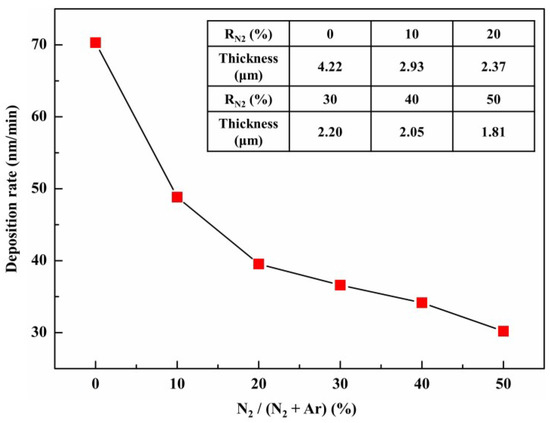

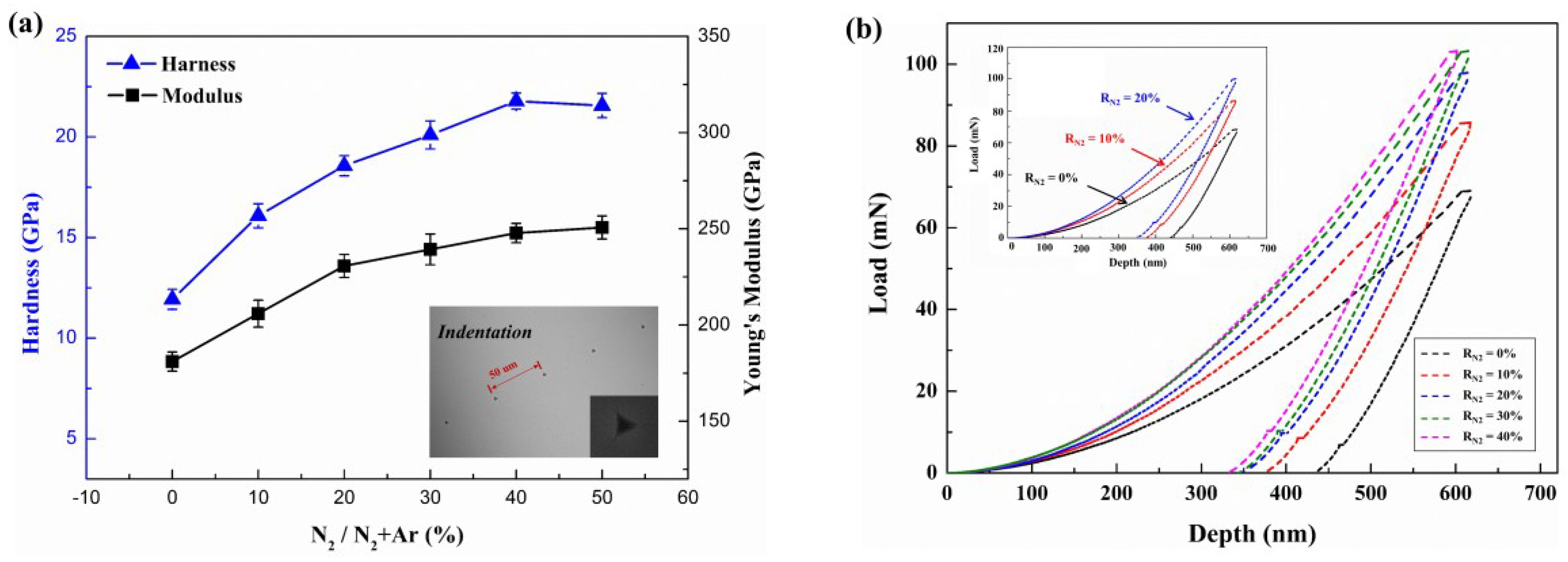

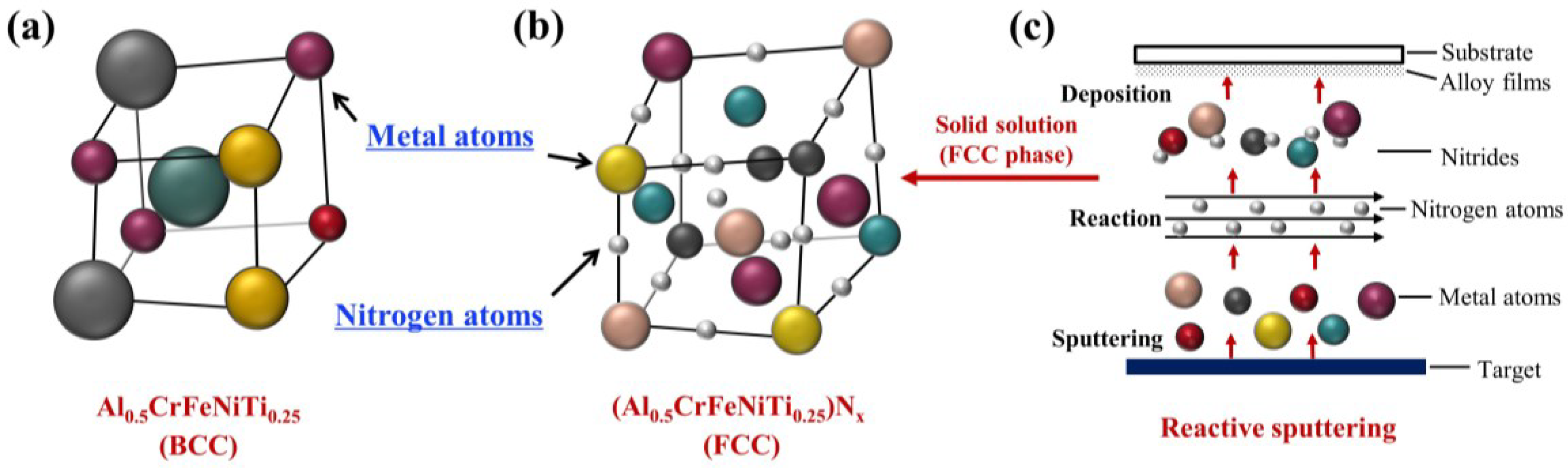

In this study, (Al0.5CrFeNiTi0.25)Nx high-entropy films are prepared by a reactive direct current (DC) magnetron sputtering at different N2 flow rates on silicon wafers. It is found that the structure of (Al0.5CrFeNiTi0.25)Nx high-entropy films is amorphous, with x = 0. It transforms from amorphous to a face-centered-cubic (FCC) structure with the increase of nitrogen content, while the bulk Al0.5CrFeNiTi0.25 counterpart prepared by casting features a body-centered-cubic (BCC) phase structure. The phase formation can be explained by the atomic size difference (δ). Lacking nitrogen, δ is approximately 6.4% for the five metal elements, which is relatively large and might form a BCC or ordered-BCC structure, while the metallic elements in this alloy system all have a trend to form nitrides like TiN, CrN, AlN, and FeN. Therefore, nitride components are becoming very similar in size and structure and solve each other easily, thus, an FCC (Al-Cr-Fe-Ni-Ti)N solid solution forms. The calculated value of δ is approximately 23% for this multicomponent nitride solid solution. The (Al0.5CrFeNiTi0.25)Nx films achieve a pronounced hardness and a Young’s modulus of 21.45 GPa and 253.8 GPa, respectively, which is obviously much higher than that of the as-cast Al0.5CrFeNiTi0.25 bulk alloys. View Full-Text
Keywords: high-entropy films; phase structures; hardness; solid-solution; interstitial phase high-entropy films; phase structures; hardness; solid-solution; interstitial phase
Show Figures

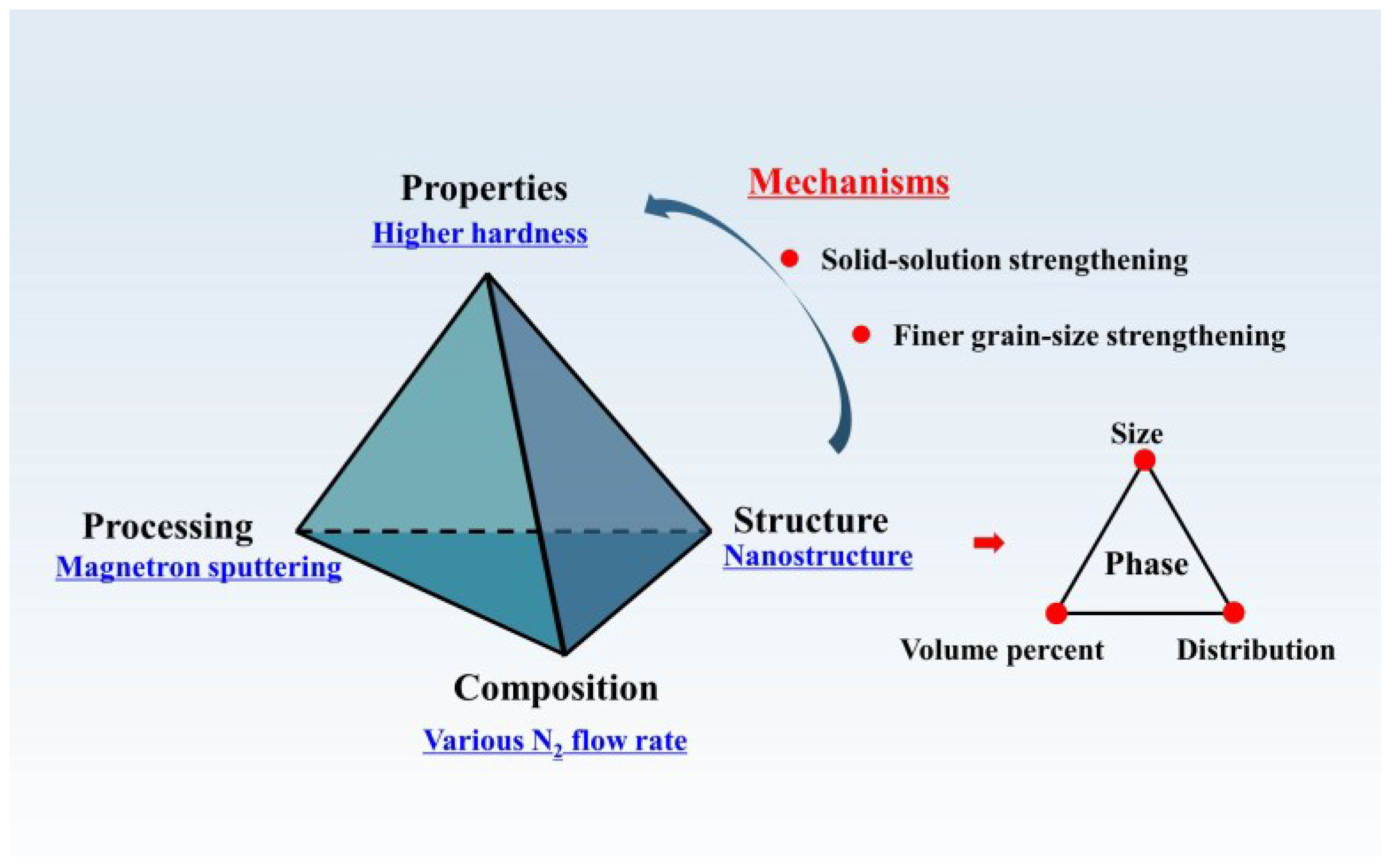

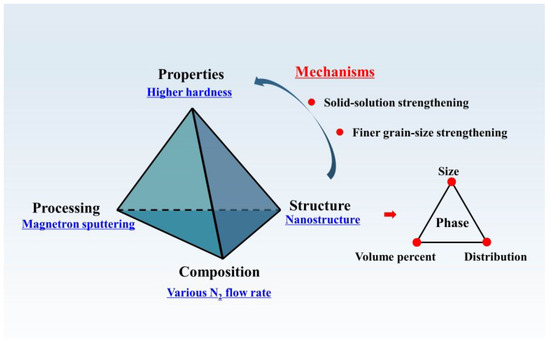

Graphical abstract
