# Multiscale Distribution Entropy and t-Distributed Stochastic Neighbor Embedding-Based Fault Diagnosis of Rolling Bearings

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Algorithms of DE and MDE

#### 2.1. Definition of DistEn

_{i,j}= max(|u(i + k)− u(j + k)|, 0 ≤ k ≤ m − 1) are computed for all $1\le i,j\le N-m$. The distance matrix is defined as D = {d

_{i,j}}.

_{t}(t = 1, 2,…, M) is frequency and the estimated value are not included in the distance matrix D while i = j.

#### 2.2. DistEn Parameter Selection

#### 2.3. Multiscale Distribution Entropy

## 3. Comparison Analysis of MSE and MDE

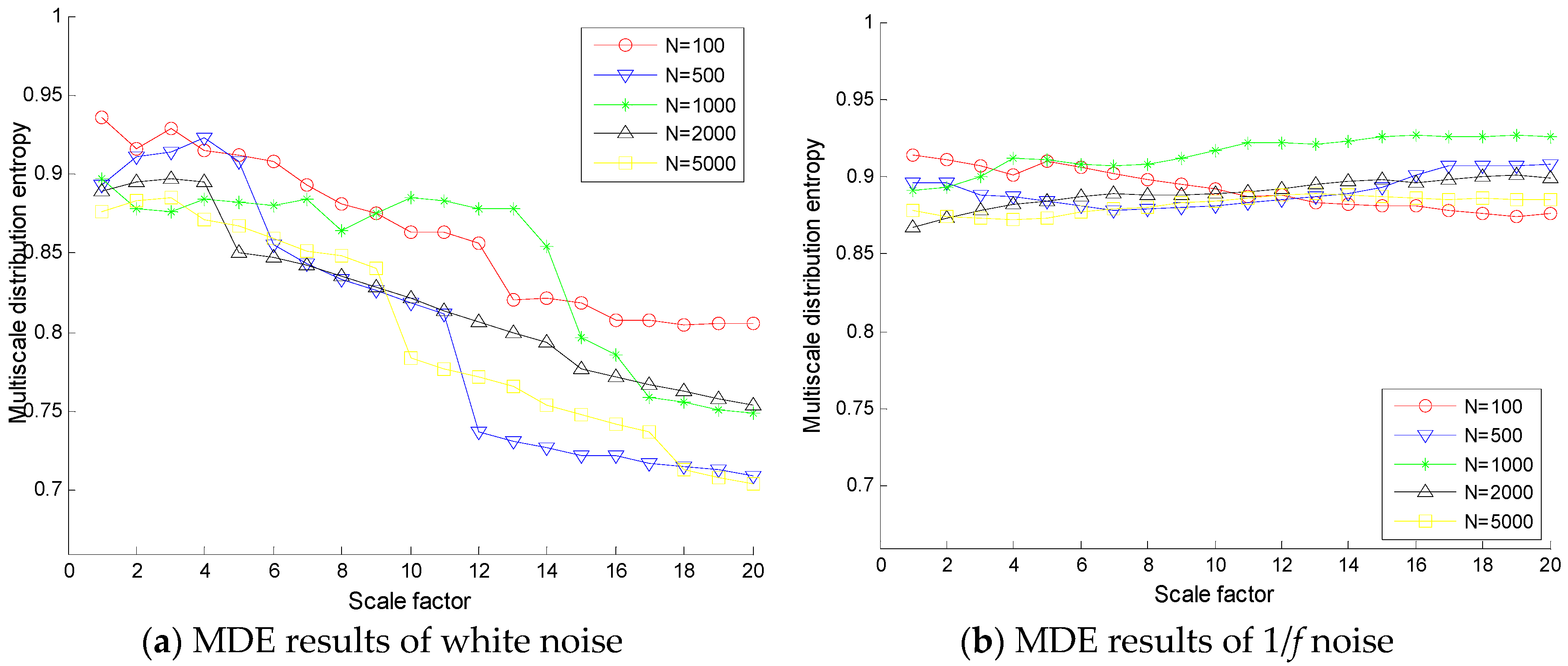

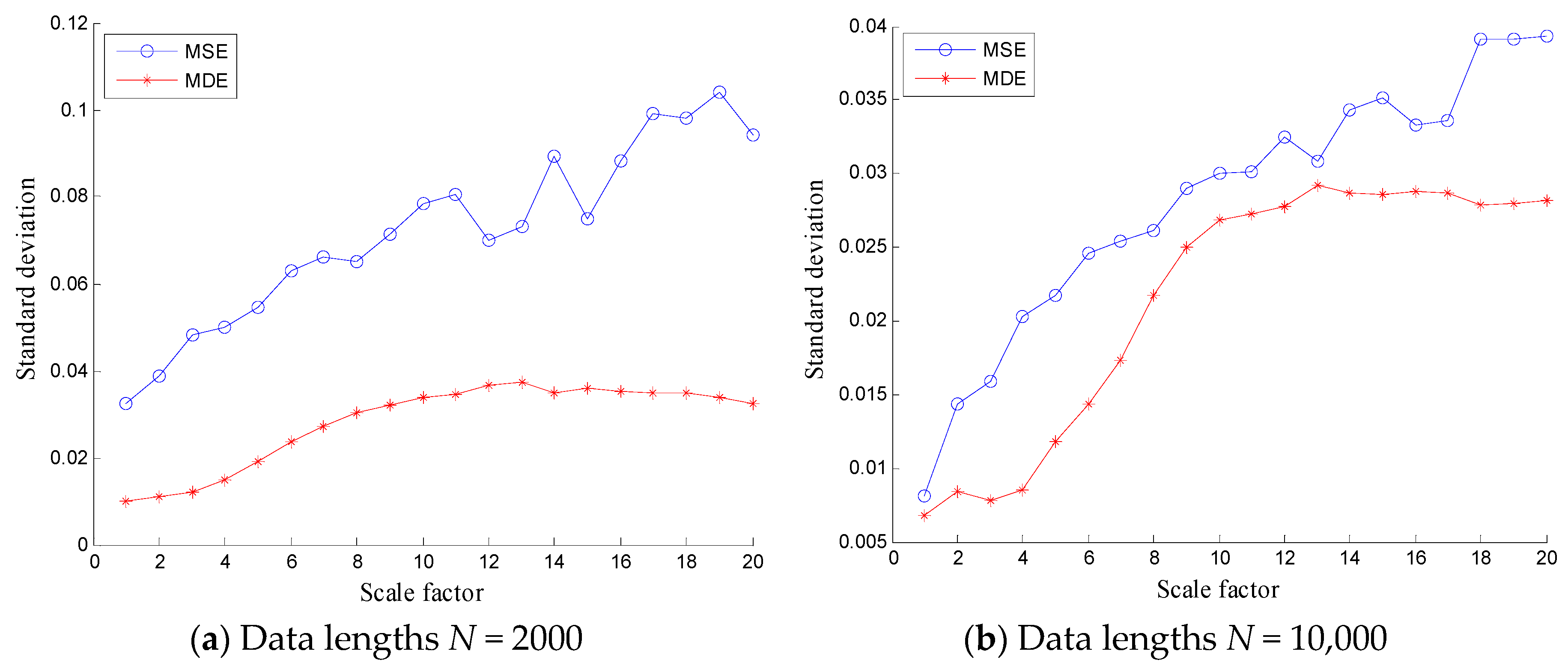

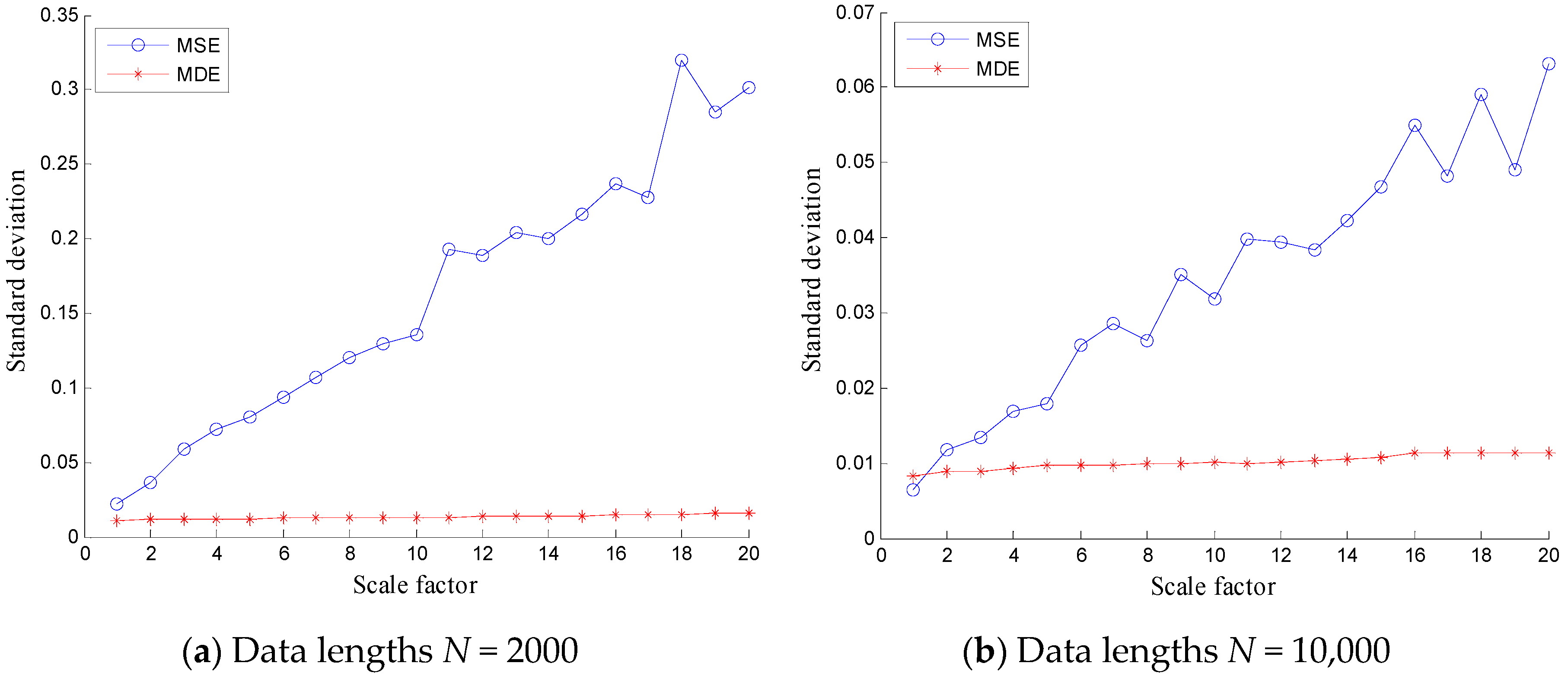

#### Simulation Tests

## 4. The Proposed Fault Diagnosis Approach and Its Applications

#### 4.1. t-SNE Algorithm

^{(T)}= {y

_{1}, y

_{2},…, y

_{n}} are obtained.

#### 4.2. KVPMCD

#### 4.2.1. Basic Concepts and Frameworks of KVPMCD

#### 4.2.2. Kriging Model-Based KVPMCD Method

- (1)
- For g class classification problem, n training samples are collected and each sample number is ${n}_{1},{n}_{2},\dots ,{n}_{g}$. The feature X = [${x}_{1},{x}_{2},\dots ,{x}_{p}$] is extracted from all training samples and the size of each feature is ${n}_{1}\times p,{n}_{2}\times p,\dots ,{n}_{g}\times p$ respectively.
- (2)
- The feature ${X}_{i}$ (i = 1, 2, …, p) of the kth (1 ≤ k ≤ g) training sample is selected as the predicted variable and the remaining p-1 feature ${X}_{j}$ (j ≠ i) is seen as predictive variables.
- (3)
- Let the regression model type z = 1 (1 ≤ z ≤ Z) (zero, one and two order polynomial. Three models are marked as 1, 2, and 3, respectively). The model category of the relevant models is h = 1 (1 ≤ h ≤ H) (exponential, generalized exponential, Gaussian, linear, spherical, cubic, spline, respectively, is marked as 1, 2, 3, 4, 5, 6 and 7), and then a mathematical model is established.
- (4)
- Set h = h + 1 and z = z + 1, respectively, until h = H, z = Z. The combination of predictive variables is common to H × Z species. Therefore, ${n}_{k}$ = H × Z mathematical equations can be established.
- (5)
- ${n}_{k}$ equations can be established for each feature set ${X}_{i}$. The feature of each training sample in the kth class can be obtained. The predicted value ${X}_{ipred}$ of the feature ${X}_{i}$ can be obtained by the Kriging model.
- (6)
- To calculate the prediction error square sum $SS{E}_{l}={\displaystyle \sum _{v=1}^{{n}_{k}}{({X}_{iv}-{X}_{ivpred})}^{2}}$ of the ${n}_{k}$ variable prediction model respectively, where v represents the vth training sample and $l=1,2,\dots ,{n}_{k}$. The variable prediction model corresponding to the minimum value of $SS{E}_{l}$ is selected as the variable prediction model $VP{M}_{\mathrm{i}}^{k}(i=1,2,\dots ,p)$ of the feature ${X}_{\mathrm{i}}(i=1,2,\dots ,p)$ in the kth class training sample. Then save the corresponding model parameters and predictive variables.
- (7)
- Let k = k + 1, repeat steps (3)~(6) until k = g. At this point, in the case the variable prediction model $VP{M}_{i}^{k}$ are established for all the feature of g categories respectively, where k (k = 1, 2, …, g) denotes category label and i (i = 1, 2, …, p) represents the feature. These variable predictive models form a VPM matrix with size of g × p.
- (8)
- All training samples are constructed as a test sample set to perform a return classification test for each VPM matrix. The regression model type and the relevant model type corresponding to the VPM matrix with the highest correct classification rate are selected as the type of the best variable prediction model.
- (9)
- The feature X = [${x}_{1},{x}_{2},\dots ,{x}_{p}$] are extracted for the selected test sample set. For all the feature values ${X}_{i}(i=1,2,\dots ,p)$ of the test sample, respectively, the variable prediction model $VP{M}_{i}^{k}$ is employed to predict it, and the predicted value $VP{M}_{ipred}^{k}$ is obtained.
- (10)
- The squared sum $SS{E}^{k}={\displaystyle \sum _{i=1}^{p}{({X}_{i}-{X}_{ipred}^{k})}^{2}}$ of the predicted errors is calculated for all features in the same category. And the minimum $SS{E}^{k}$ is used as the discriminant function to classify the test samples.

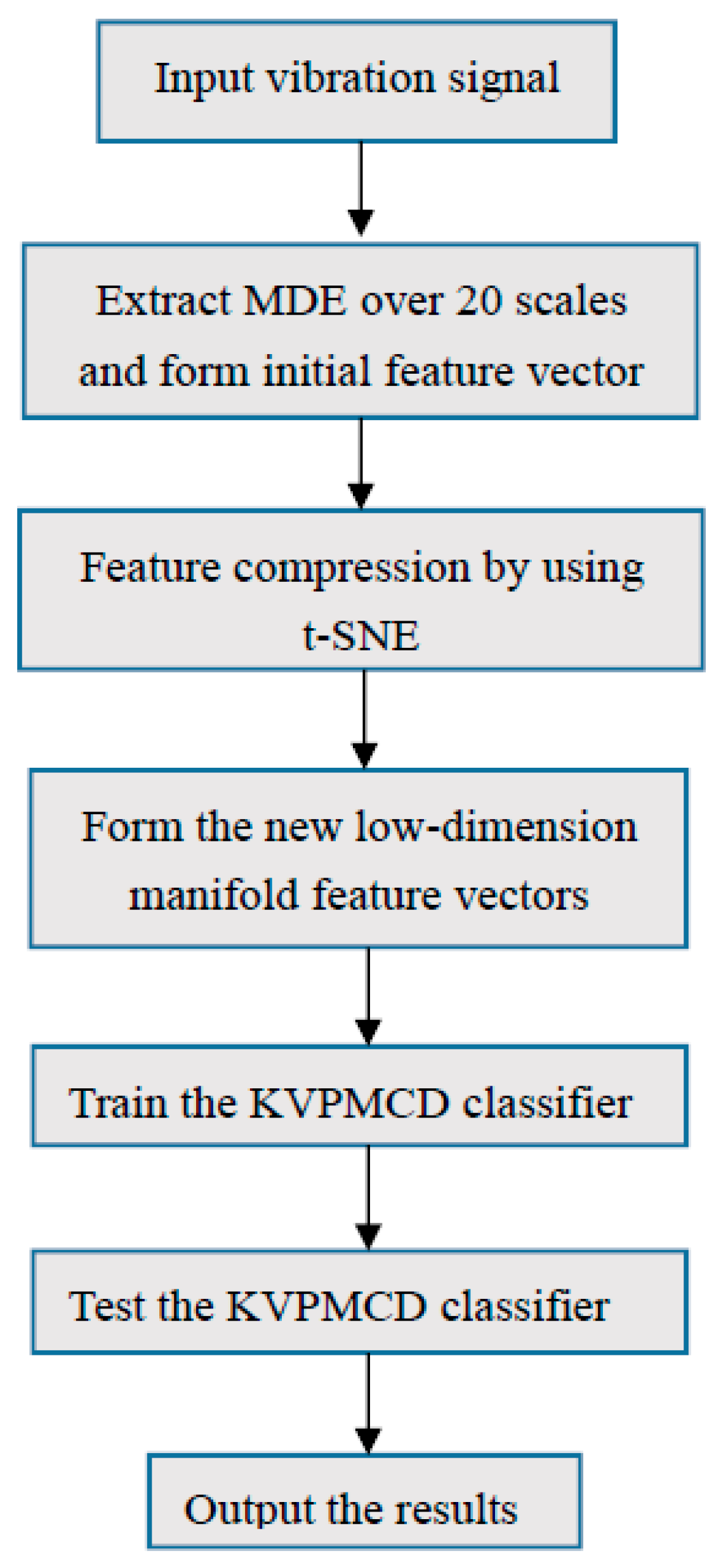

#### 4.3. The Proposed Fault Diagnosis Method

- (1)
- Assume that the states of rolling bearing contain K classes and each state is collected by N groups. MDE of each vibration signal is computed with parameters m = 2, δ = 1, M = 512 and the maximum scale factor ${\tau}_{\mathrm{max}}$. ${\tau}_{\mathrm{max}}$ eigenvalues were obtained to represent the fault information of the vibration signals of rolling bearing in each group and the feature vector matrix ${R}^{N\times {\tau}_{\mathrm{max}}}$ is constituted, which can adequately digs out the characteristics information of different complex time series.
- (2)
- t-SNE is used to reduce the dimension of feature vector matrix and a low dimensional sensitive feature set R
^{N×i}can be obtained, where N represents the number of samples and i represent the dimensions after dimensionality reduction. - (3)
- Training samples are composed of the selected 1/2 N group of each state randomly, the rest as test samples. The training samples are input to the KVPMCD based multi-classifier for training. The predictive model ${KVPM}_{i}^{k}$. is established, where k (k = 1, 2, …, g) represents different categories, i (i = 1, 2, …, p) represents different characteristic values.
- (4)
- The outputs of classifier are used to diagnose the fault types of rolling bearing.

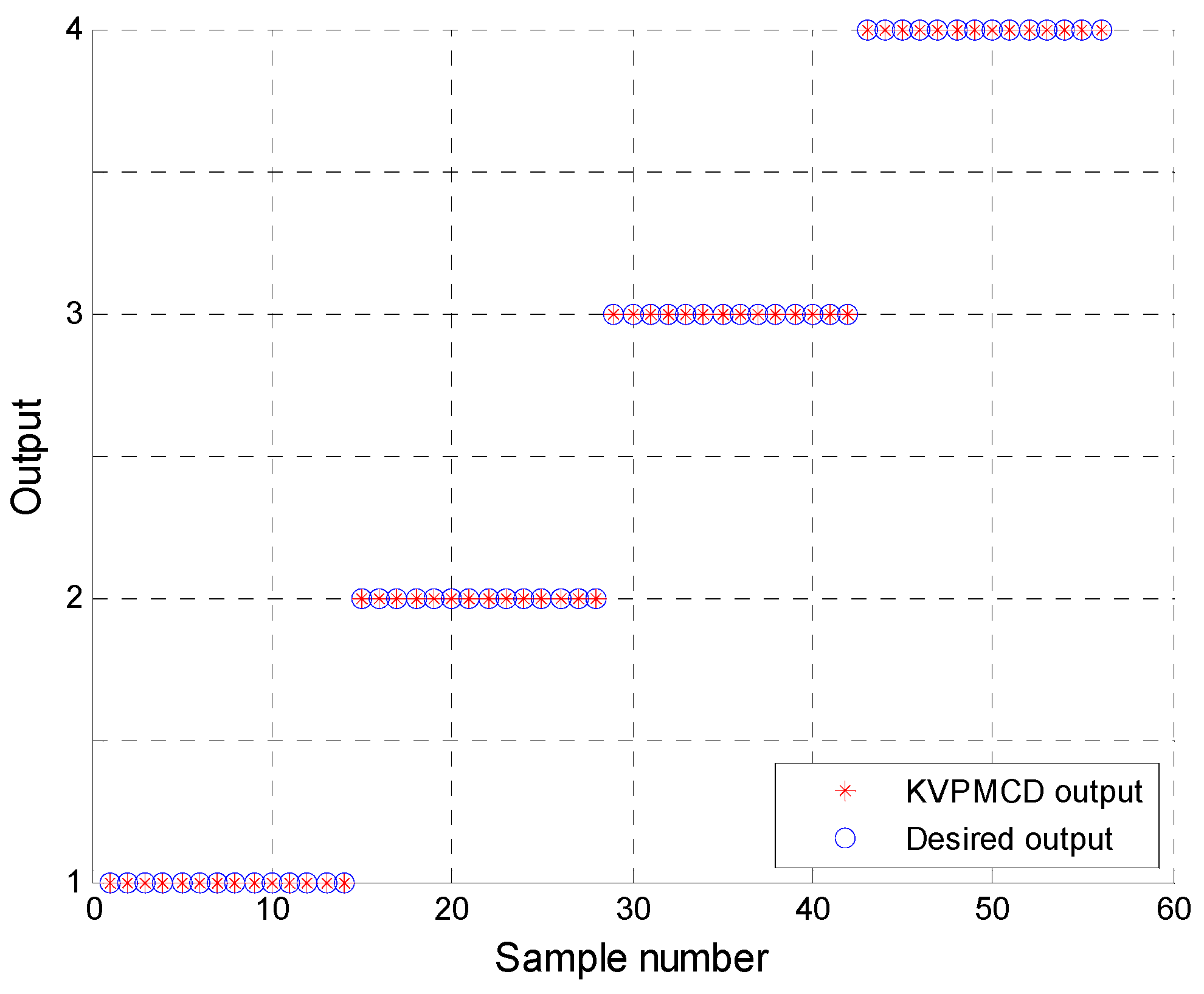

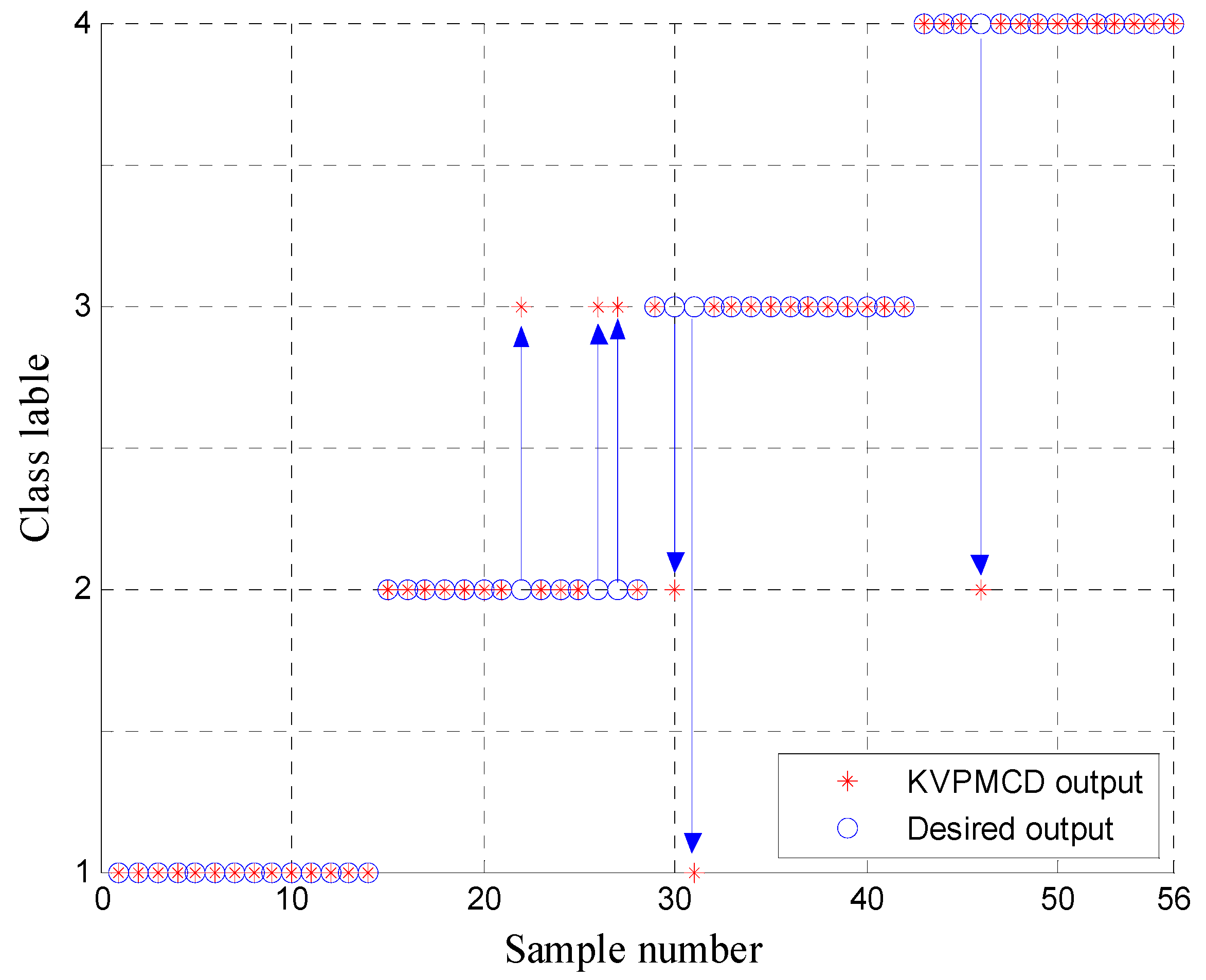

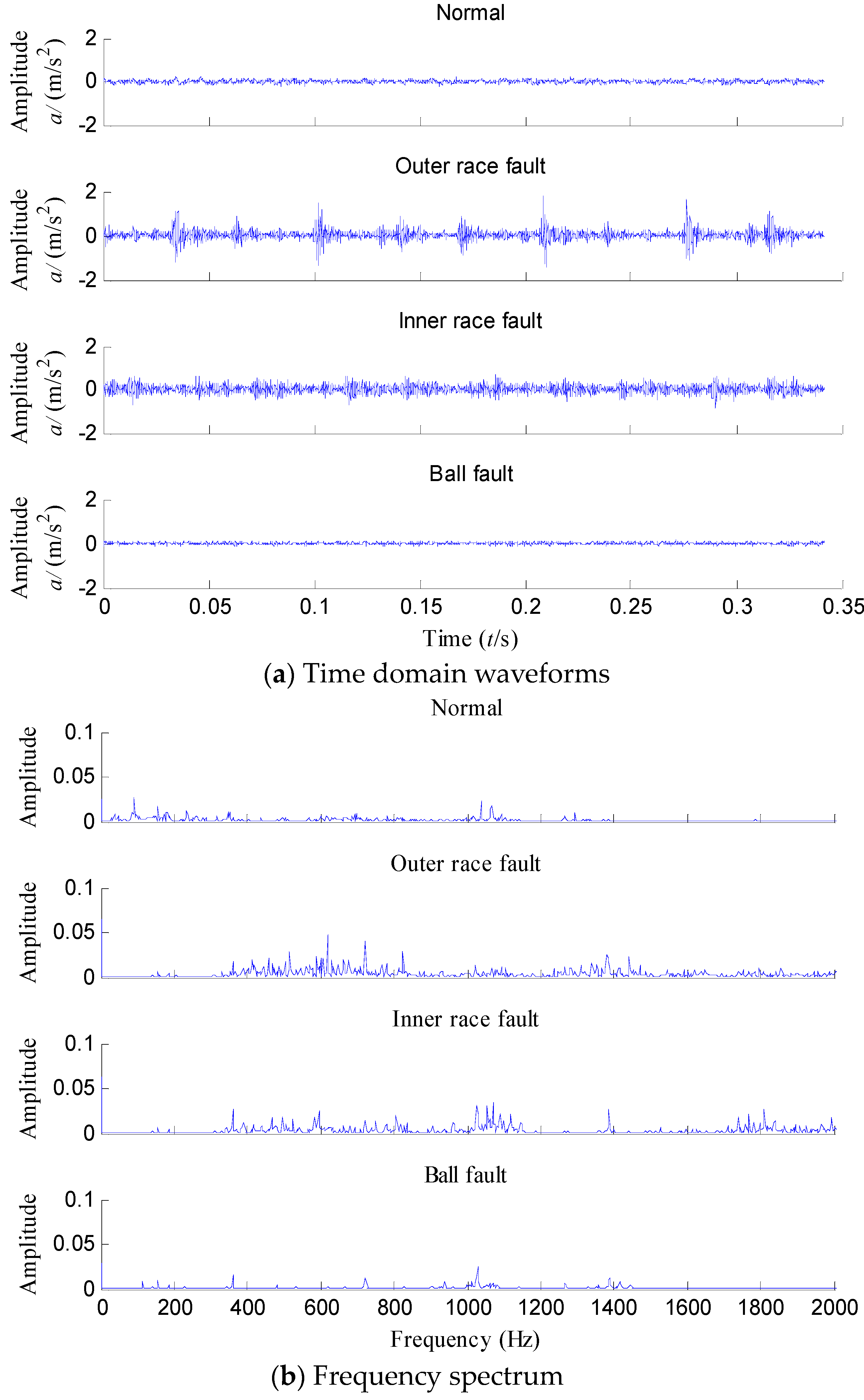

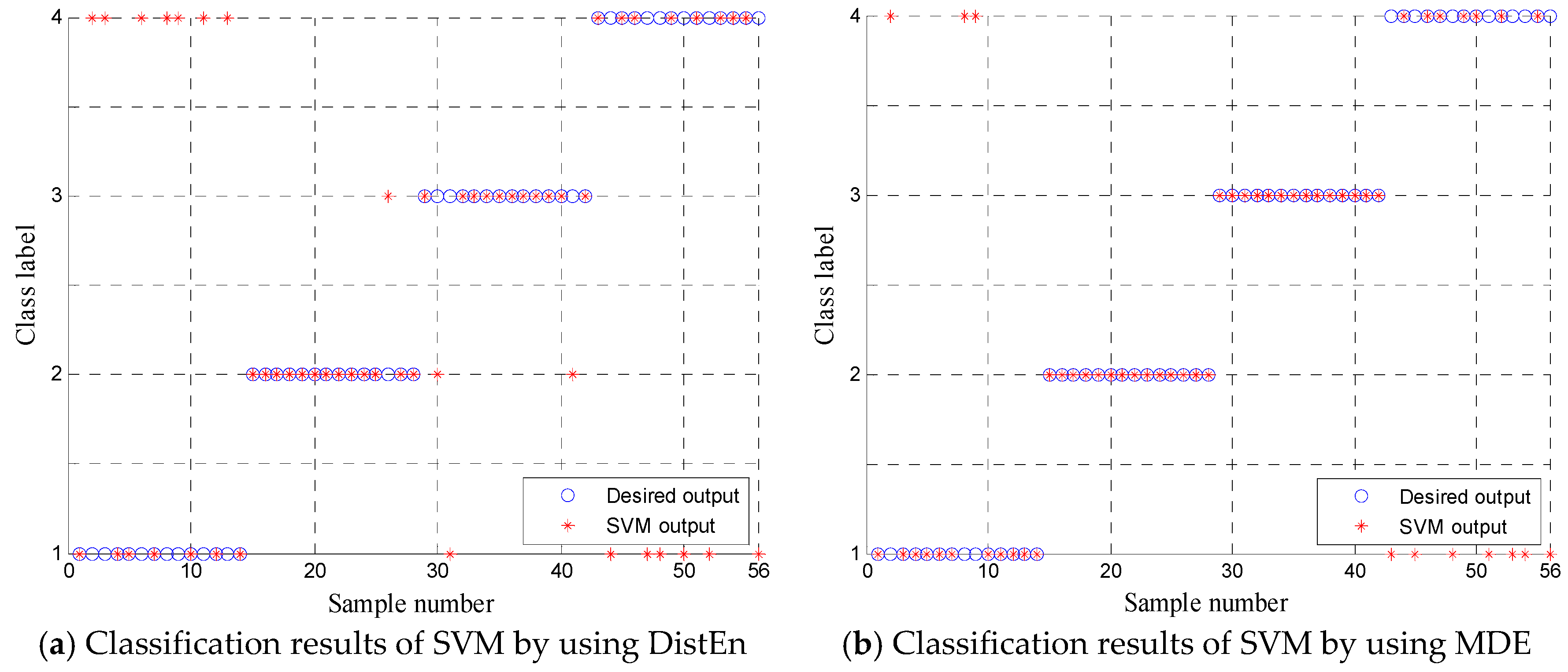

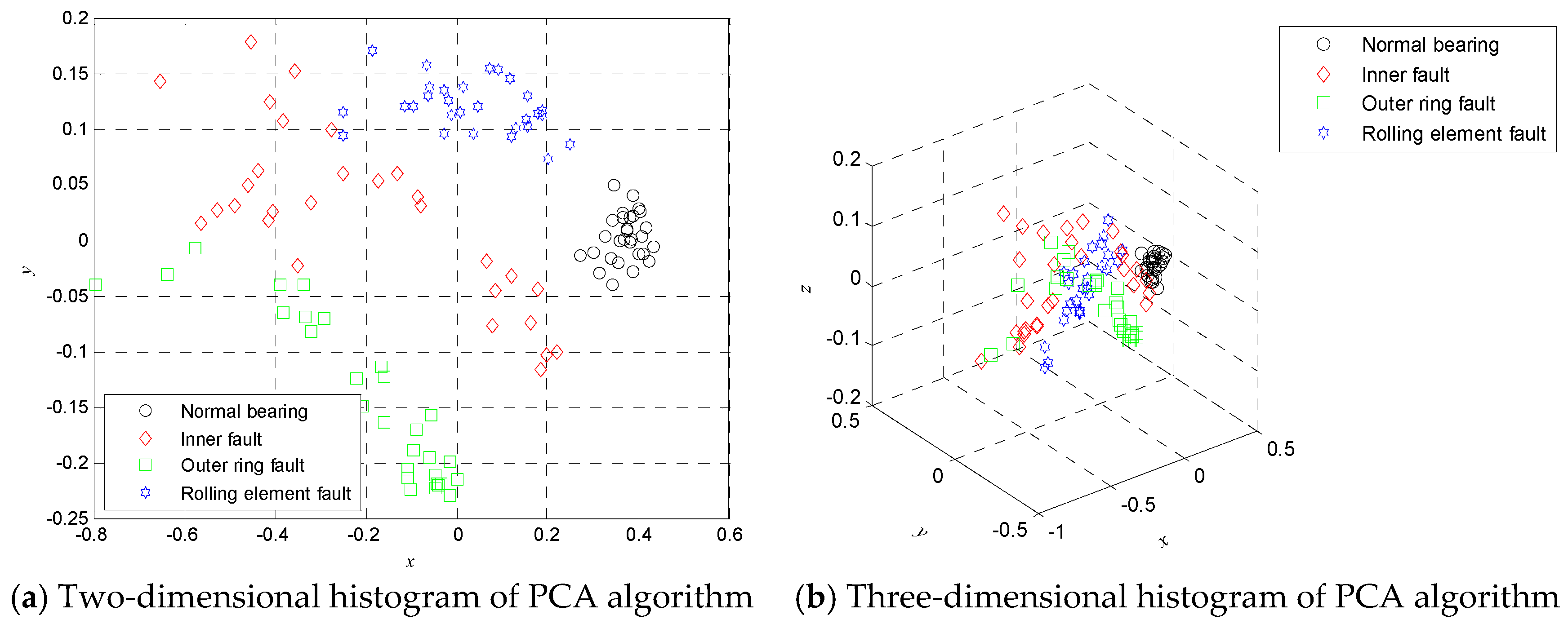

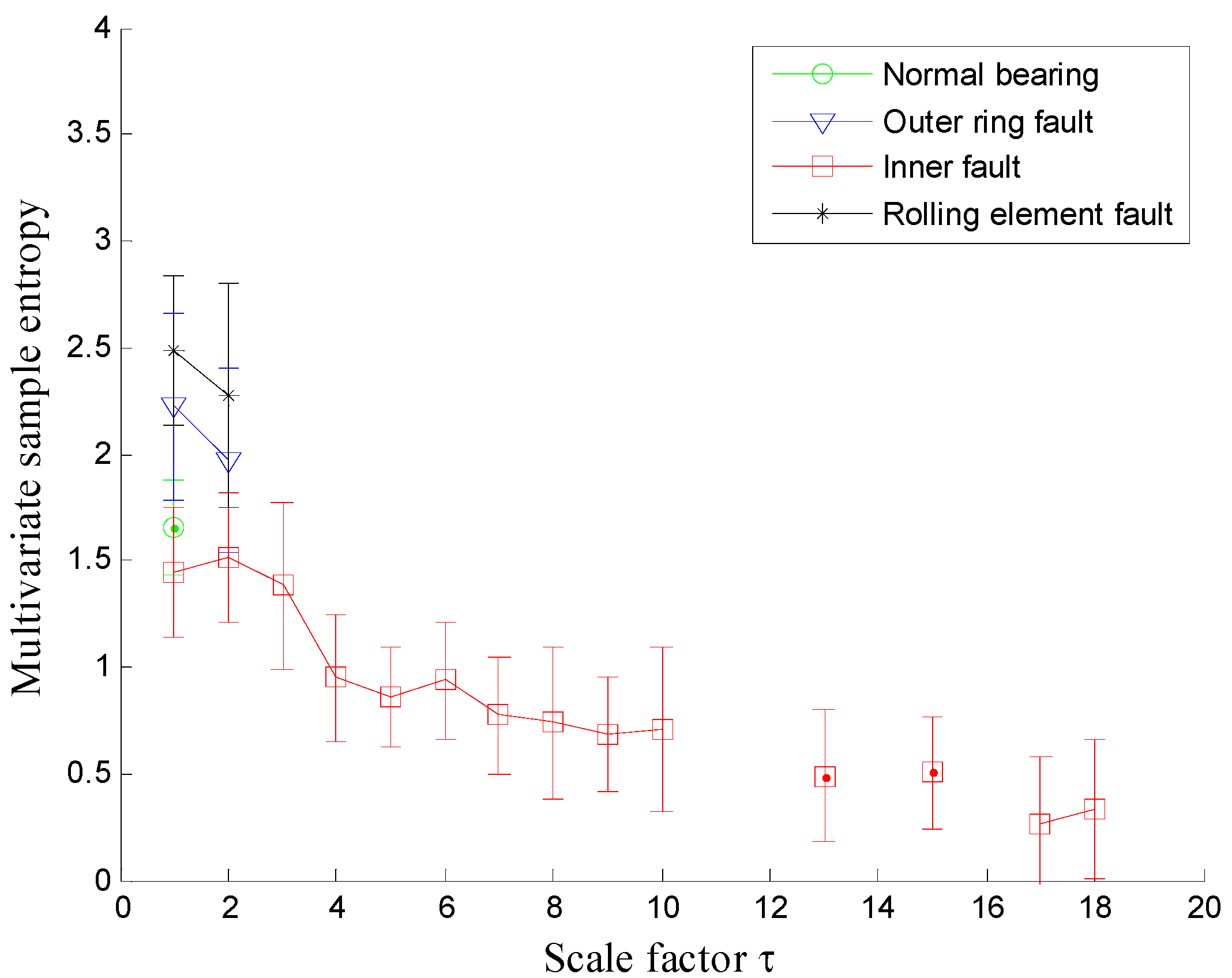

#### 4.4. Experimental Data Analysis
