# Adaptive Waveform Design for Cognitive Radar in Multiple Targets Situation

^{*}

## Abstract

**:**

## 1. Introduction

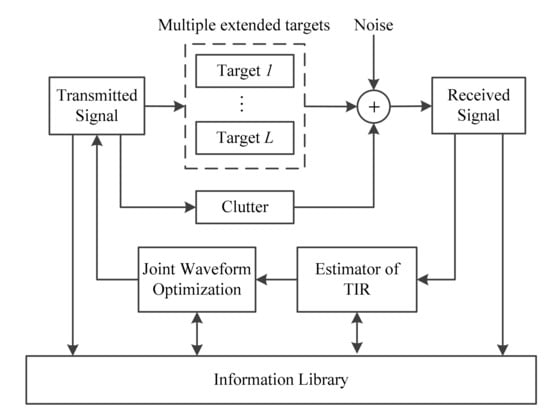

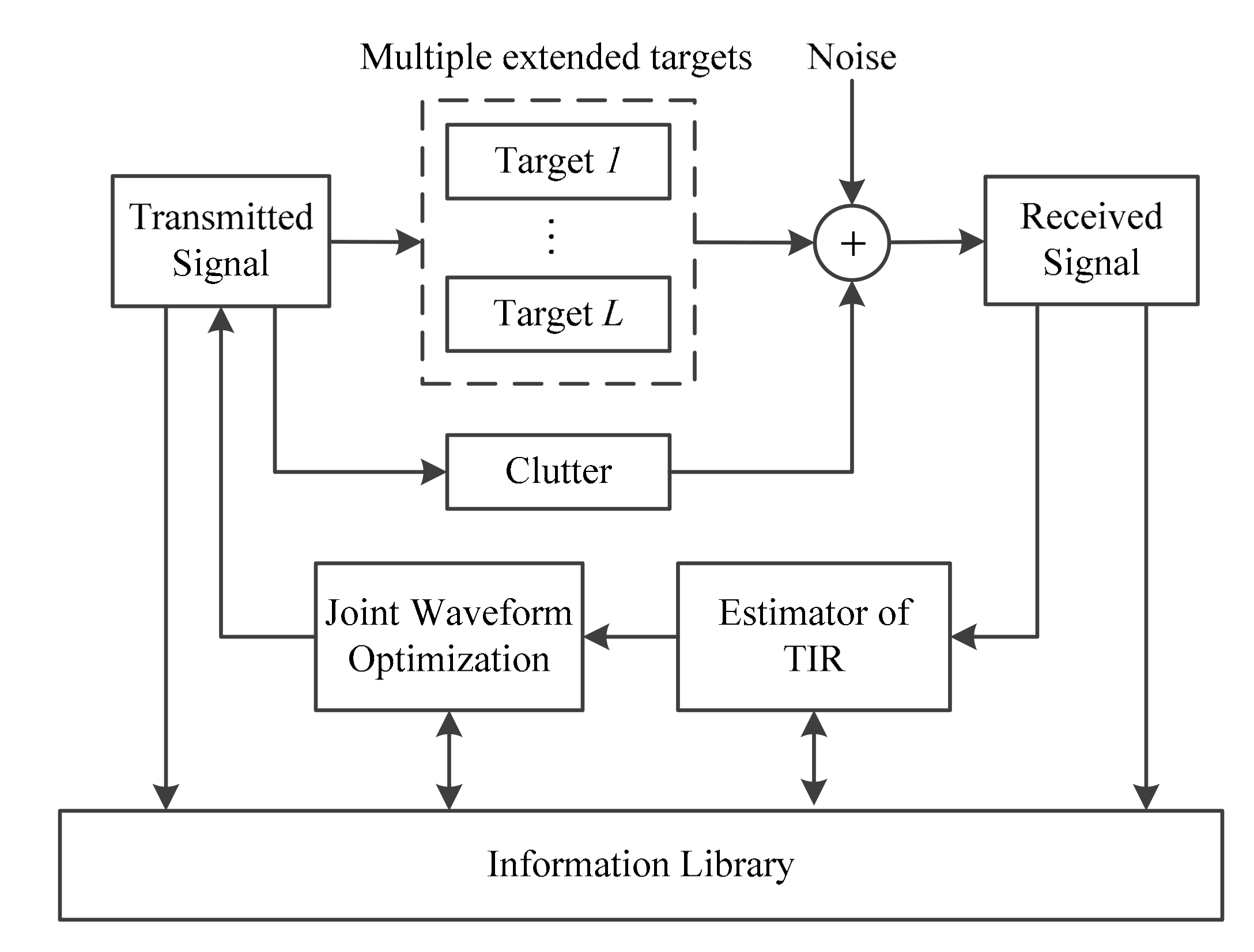

## 2. System Model

_{s}is the energy of transmitted waveform. Let ${\mathit{g}}_{i,k}$ represent the TIR of the i-th target in the k-th cycle. According to [28,30,31], the extended target behaves as a linear time-invariant filter with random complex impulse response, where the complex amplitude of every cell is a zero-mean complex Gaussian variable. When the target backscattering surface is assumed to be rough compared with the wavelength of the radar carrier, the variables of different range cells are unrelated to each other. We assume ${\mathit{g}}_{i,k}$ is a zero-mean Gaussian random vector with full rank covariance matrix ${\Sigma}_{i,\mathit{g}}$. The extended targets are described by the wide sense stationary uncorrelated scattering (WSSUS) model [28], and the TIR of the i-th target is:

## 3. Optimization of Waveform Design

#### 3.1. Target Impulse Response Tracking

#### 3.2. Maximum Detection Probability-Based Waveform Optimization Design

#### 3.3. Maximum MI-Based Waveform Optimization Design

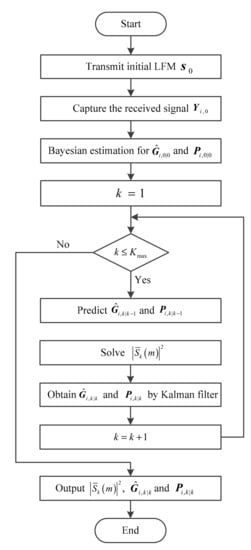

Algorithm 1: The proposed waveform optimization design algorithm. |

S1: Transmit initial LFM signal ${\mathit{s}}_{0}$, where ${\overline{\mathit{S}}}_{0}=\mathit{F}{\mathit{s}}_{0}$, ${\mathit{S}}_{0}=diag\left({\overline{\mathit{S}}}_{0}\right)$. |

S2: Capture the signal reflected from the target and interference. The received waveform vector is ${\mathit{Y}}_{i,0}=\left({\mathit{S}}_{0}{\hat{\mathit{G}}}_{i,0|0}+{\mathit{S}}_{0}{\mathit{C}}_{0}+{\mathit{N}}_{0}\right){\mathit{H}}_{0}$. |

S3: Estimate the initialize the estimated TSC and MSE matrix of the target as ${\hat{\mathit{G}}}_{i,0|0}$ and ${\mathit{P}}_{i,0|0}$ by the received waveform vector ${\mathit{Y}}_{0}$ and transmit waveform matrix ${\mathit{S}}_{i,0}$. |

S4: Set the iteration index $k=1$, and the maximal number of iteration as ${K}_{\mathrm{max}}$. |

S5: while $k\le {K}_{\mathrm{max}}$ do |

S6: Predict the estimated TSC ${\hat{\mathit{G}}}_{i,k|k-1}$ according to ${\hat{\mathit{G}}}_{i,k-1|k-1}$ by (10). |

S7: Update the MSE matrix ${\mathit{P}}_{i,k|k-1}$ according to ${\mathit{P}}_{i,k-1|k-1}$ by (11). |

S8: Define ${\hat{\mathit{G}}}_{i,k}=dia\mathit{g}\left({\hat{\mathit{G}}}_{i,k|k-1}\right)$, solve for ${\left|{\overline{S}}_{k}\left(m\right)\right|}^{2}$. |

S9: Obtain ${\hat{\mathit{G}}}_{i,k|k}$ and ${\mathit{P}}_{i,k|k}$ with ${\mathit{S}}_{k}$, ${\mathit{Y}}_{i,k}$, ${\hat{\mathit{G}}}_{i,k|k-1}$ and ${\mathit{P}}_{i,k|k-1}$ by Kalman filter. |

S10: Let $k=k+1$. |

S11: end while |

## 4. Numerical Results

## 5. Conclusions

## Author Contributions

## Conflicts of Interest

## References

- Haykin, S. Cognitive radar: A way of the future. IEEE Signal Process. Mag.
**2006**, 23, 30–40. [Google Scholar] [CrossRef] - Guerci, J. Cognitive radar: Acknowledge-aided fully adaptive approach. In Proceedings of the 2010 IEEE Radar Conference, Washington, DC, USA, 10–14 May 2010. [Google Scholar]
- Zhang, J.; Zhu, D.; Zhang, G. Adaptive compressed sensing radar oriented toward cognitive detection in dynamic sparse target scene. IEEE Trans. Signal Process.
**2012**, 60, 1718–1729. [Google Scholar] [CrossRef] - Dudczyk, J. Radar Emission Sources Identification Based on Hierarchical Agglomerative Clustering for Large Data Sets. J. Sens.
**2016**, 2016, 1–9. [Google Scholar] [CrossRef] - Dudczyk, J. A method of feature selection in the aspect of specific identification of radar signals. Bull. Pol. Acad. Sci. Tech. Sci.
**2017**, 65, 113–119. [Google Scholar] [CrossRef] - Blunt, S.D.; Yatham, P.; Stiles, J. Intrapulse radar-embedded communications. IEEE Trans. Aerosp. Electron. Syst.
**2010**, 46, 1185–1200. [Google Scholar] [CrossRef] - Ciuonzo, D.; De Maio, A.; Foglia, G.; Piezzo, M. Intrapulse radar-embedded communications via multiobjective optimization. IEEE Trans. Aerosp. Electron. Syst.
**2015**, 51, 2960–2974. [Google Scholar] [CrossRef] - Vespe, M.; Jones, G.; Baker, C.J. Lessons for radar. IEEE Signal Process. Mag.
**2009**, 26, 65–75. [Google Scholar] [CrossRef] - Bell, M.R. Information theory and radar waveform design. IEEE Trans. Inf. Theory
**1993**, 39, 1578–1597. [Google Scholar] [CrossRef] - Scharf, L.L.; Friedlander, B. Matched subspace detectors. IEEE Trans. Signal Process.
**1994**, 42, 2146–2157. [Google Scholar] [CrossRef] - Ciuonzo, D.; Orlando, D.; Pallotta, L. On the maximal invariant statistic for adaptive radar detection in partially homogeneous disturbance with persymmetric covariance. IEEE Signal Process. Lett.
**2016**, 23, 1830–1834. [Google Scholar] [CrossRef] - Ciuonzo, D.; Maio, A.D.; Orlando, D. On the Statistical Invariance for Adaptive Radar Detection in Partially Homogeneous Disturbance Plus Structured Interference. IEEE Trans. Signal Process.
**2016**, 65, 1222–1234. [Google Scholar] [CrossRef] - Pillai, S.U.; Youla, D.C.; Oh, H.S.; Guerci, J.R. Optimum transmit-receiver design in the presence of signal-dependent interference and channel noise. IEEE Trans. Inf. Theory
**2000**, 46, 577–584. [Google Scholar] [CrossRef] - Romero, R.; Bae, J.; Goodman, N. Theory and application of SNR and mutual information matched illumination waveforms. IEEE Trans. Aerosp. Electron. Syst.
**2011**, 47, 912–927. [Google Scholar] [CrossRef] - Chen, C.Y.; Vaidyanathan, P.P. MIMO Radar Waveform Optimization with Prior Information of the Extended Target and Clutter. IEEE Trans. Signal Process.
**2009**, 57, 3533–3544. [Google Scholar] [CrossRef] - Cheng, X.; Aubry, A.; Ciuonzo, D.; Maio, A.D.; Wang, X. Robust waveform and filter bank design of polarimetric radar. IEEE Trans. Aerosp. Electron. Syst.
**2017**, 53, 370–384. [Google Scholar] [CrossRef] - Garren, D.A.; Odom, A.C.; Osborn, M.K.; Goldstein, J.S. Full-polarization matched-illumination for target detection and identification. IEEE Trans. Aerosp. Electron. Syst.
**2002**, 38, 824–837. [Google Scholar] [CrossRef] - Kay, S.; Michels, J.H.; Chen, H.; Varshney, P.K. Reducing probability of decision error using stochastic resonance. IEEE Signal Process. Lett.
**2006**, 13, 695–698. [Google Scholar] [CrossRef] - Kay, S. Optimal signal design for detection of Gaussian point targets in stationary Gaussian clutter/reverberation. IEEE J. Sel. Top. Signal Process.
**2007**, 1, 31–41. [Google Scholar] [CrossRef] - Kay, S. Optimum radar signal for detection in clutter [Correspondence]. IEEE Trans. Aerosp. Electron. Syst.
**2007**, 43, 1059–1065. [Google Scholar] [CrossRef] - Chen, H.; Varshney, P.K.; Kay, S.M.; Michels, J.H. Theory of the stochastic resonance effect in signal detection: Part I—fixed detectors. IEEE Trans. Signal Process.
**2007**, 55, 3172–3184. [Google Scholar] [CrossRef] - Calderbank, R.; Howard, S.; Moran, B. Waveform diversity in radar signal processing. IEEE Signal Process. Mag.
**2009**, 26, 32–41. [Google Scholar] [CrossRef] - Delong, D.; Hofstetter, E. On the design of optimum radar waveforms for clutter rejection. IEEE Trans. Inf. Theory
**1967**, 13, 454–463. [Google Scholar] [CrossRef] - Naghibi, T.; Behnia, F. MIMO radar waveform design in the presence of clutter. IEEE Trans. Aerosp. Electron. Syst.
**2011**, 47, 770–781. [Google Scholar] [CrossRef] - Leshem, A.; Naparstek, O.; Nehorai, A. Information theoretic adaptive radar waveform design for multiple extended targets. IEEE J. Sel. Top. Signal Process.
**2007**, 1, 42–55. [Google Scholar] [CrossRef] - Goodman, N.A.; Venkata, P.R.; Neifeld, M.A. Adaptive waveform design and sequential hypothesis testing for target recognition with active sensors. IEEE J. Sel. Top. Signal Process.
**2007**, 1, 105–113. [Google Scholar] [CrossRef] - Haykin, S.; Zia, A.; Arasaratnam, I.; Xue, Y. Cognitive tracking radar. In Proceedings of the 2010 IEEE Radar Conference, Washington, DC, USA, 10–14 May 2010. [Google Scholar]
- Dai, F.Z.; Liu, H.W.; Wang, P.H.; Xia, S.Z. Adaptive waveform design for range-spread target tracking. Electron. Lett.
**2010**, 46, 793–794. [Google Scholar] [CrossRef] - Zhang, X.; Cui, C. Signal detection for cognitive radar. Electron. Lett.
**2013**, 49, 559–560. [Google Scholar] [CrossRef] - Chen, P.; Wu, L. Waveform design for multiple extended targets in temporally correlated cognitive radar system. IET Radar Sonar Navig.
**2015**, 10, 398–410. [Google Scholar] [CrossRef] - Van Trees, H.L. Detection, Estimation, and Modulation Theory: Radar-Sonar Signal Processing and Gaussian Signals in Noise; John Wiley & Sons: New York, NY, USA, 2001. [Google Scholar]
- Yang, Y.; Blum, R.S.; Behnia, F. MIMO radar waveform design based on mutual information and minimum mean-square error estimation. IEEE Trans. Aerosp. Electron. Syst.
**2007**, 43, 330–343. [Google Scholar] [CrossRef] - Golub, G.H.; Van Loan, C.F. Matrix Computations, 3rd ed.; Johns Hopkins University Press: Baltimore, MD, USA, 1996. [Google Scholar]

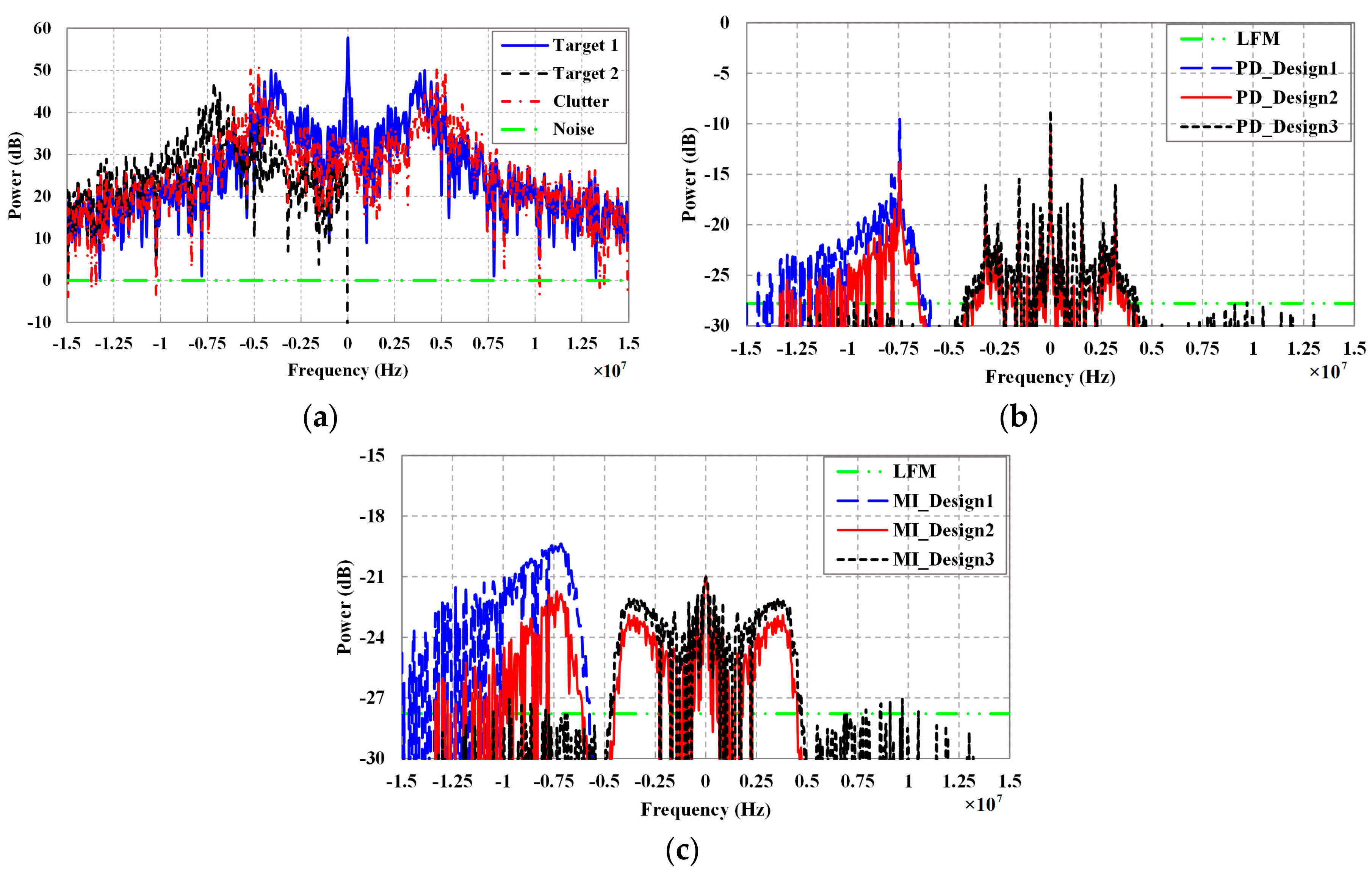

**Figure 3.**Power spectra: (

**a**) Power spectra of targets, clutter, and noise; (

**b**) Power spectra of detection probability-based waveforms; (

**c**) Power spectra of MI-based waveforms.

Waveform | ${\mathit{\alpha}}_{1}$ | ${\mathit{\alpha}}_{2}$ |

Design1 | 0 | 1 |

Design2 | 0.5 | 0.5 |

Design3 | 1 | 0 |

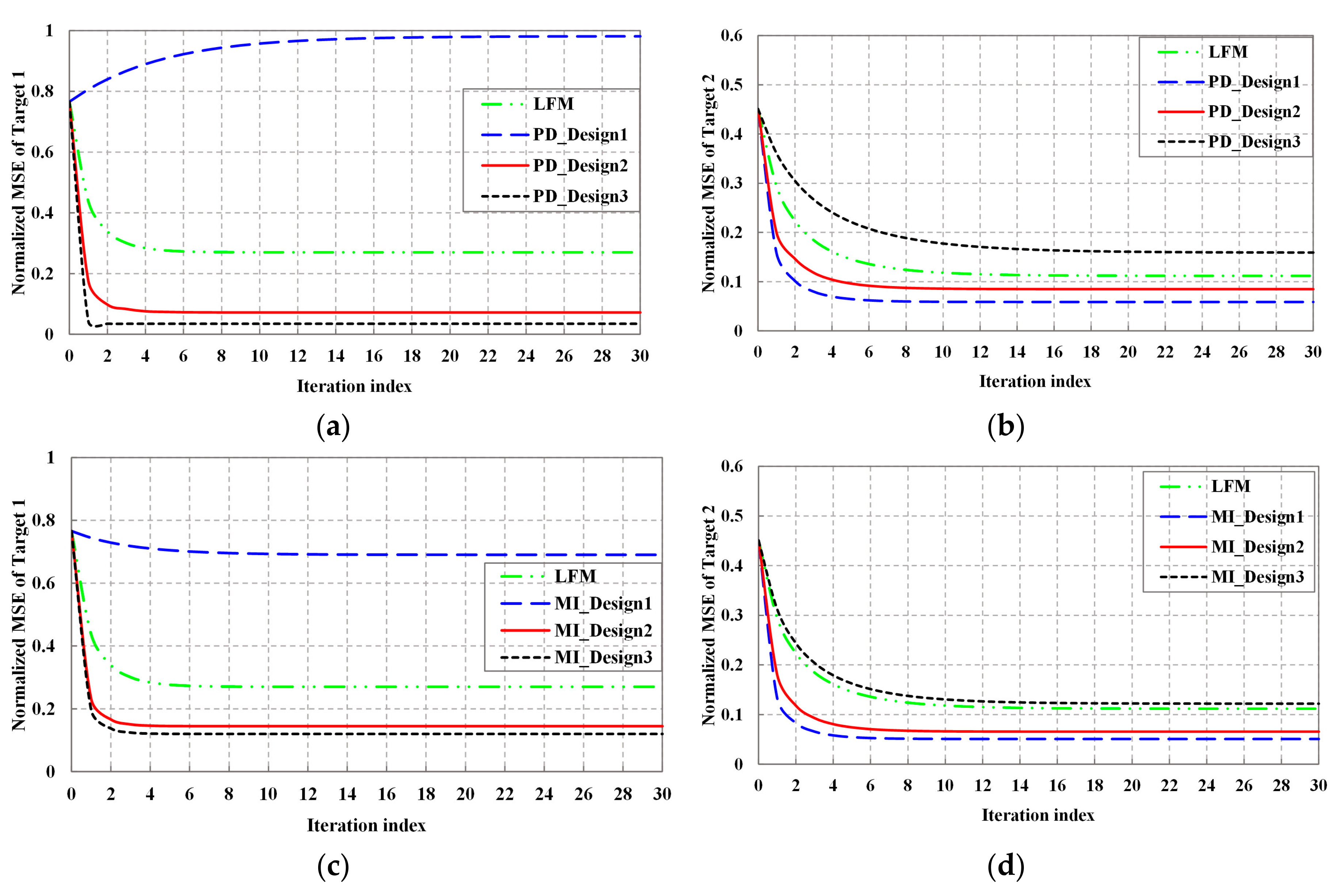

**Figure 4.**Normalized MSE performance: (

**a**) Normalized MSE performance of detection probability-based waveform of Target1; (

**b**) Normalized MSE performance of detection probability-based waveform of Target2; (

**c**) Normalized MSE performance of MI-based waveform of Target1; (

**d**) Normalized MSE performance of MI-based waveform of Target2.

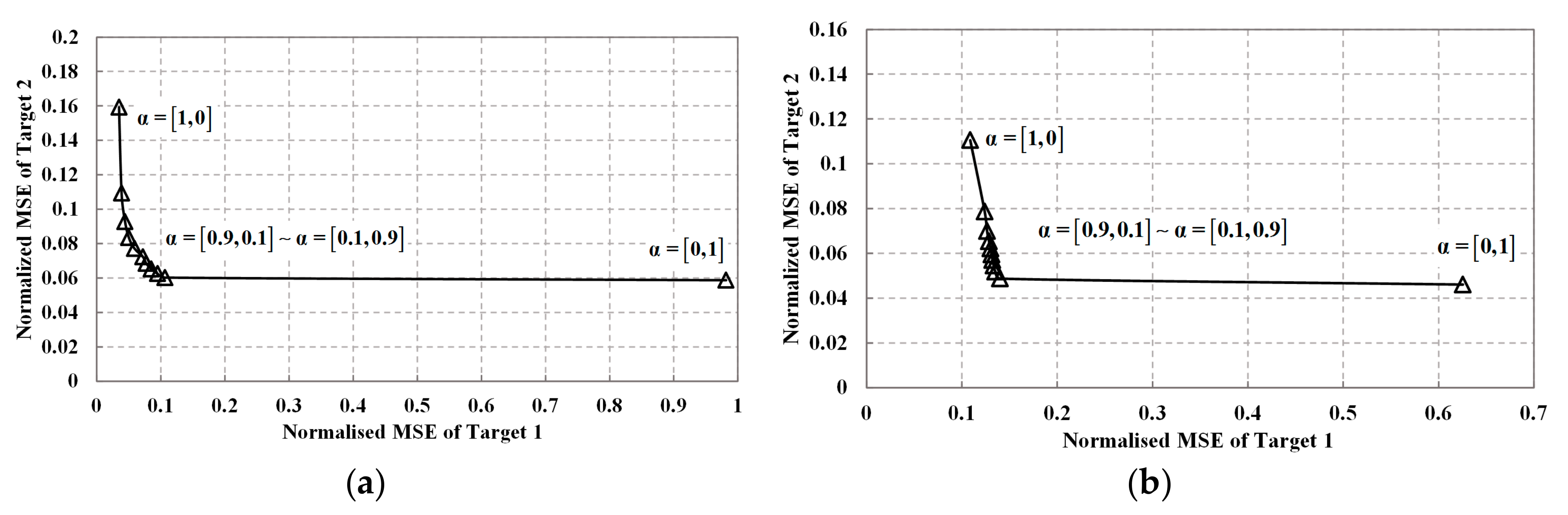

**Figure 5.**Joint normalized MSE performance: (

**a**) Joint normalized MSE performance of detection probability-based waveform; (

**b**) Joint normalized MSE performance of MI-based waveform.

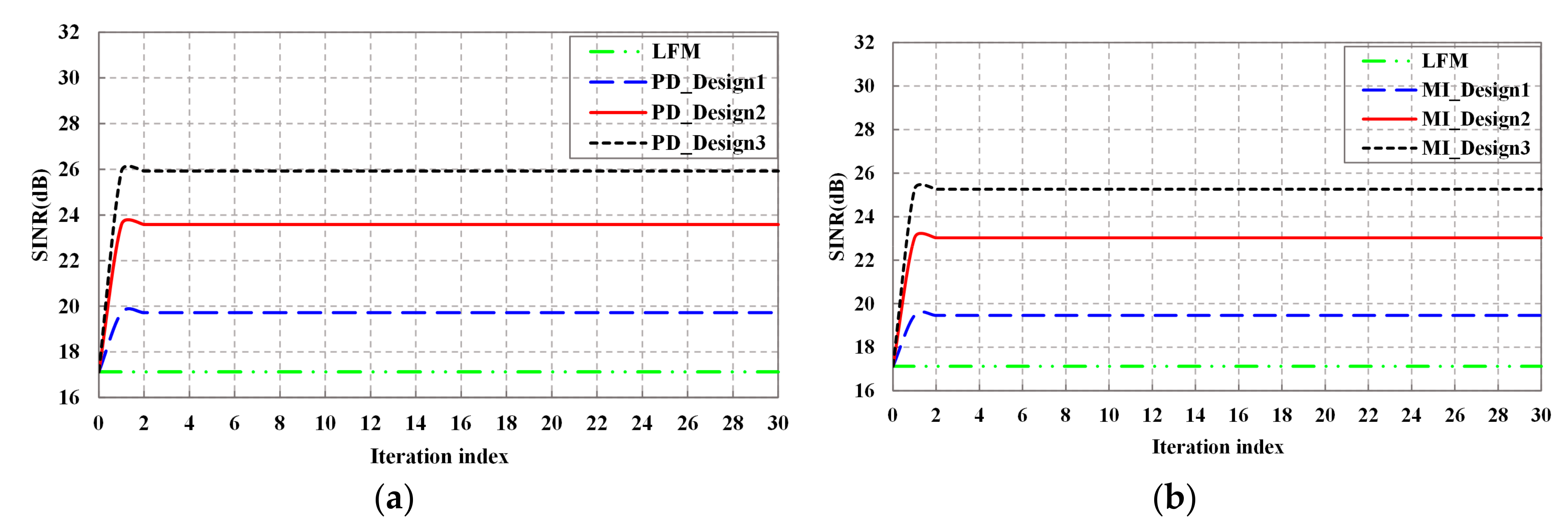

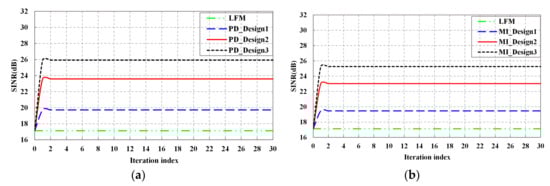

**Figure 6.**SINR performance: (

**a**) SINR performance of detection probability-based waveform; (

**b**) SINR performance of MI-based waveform.

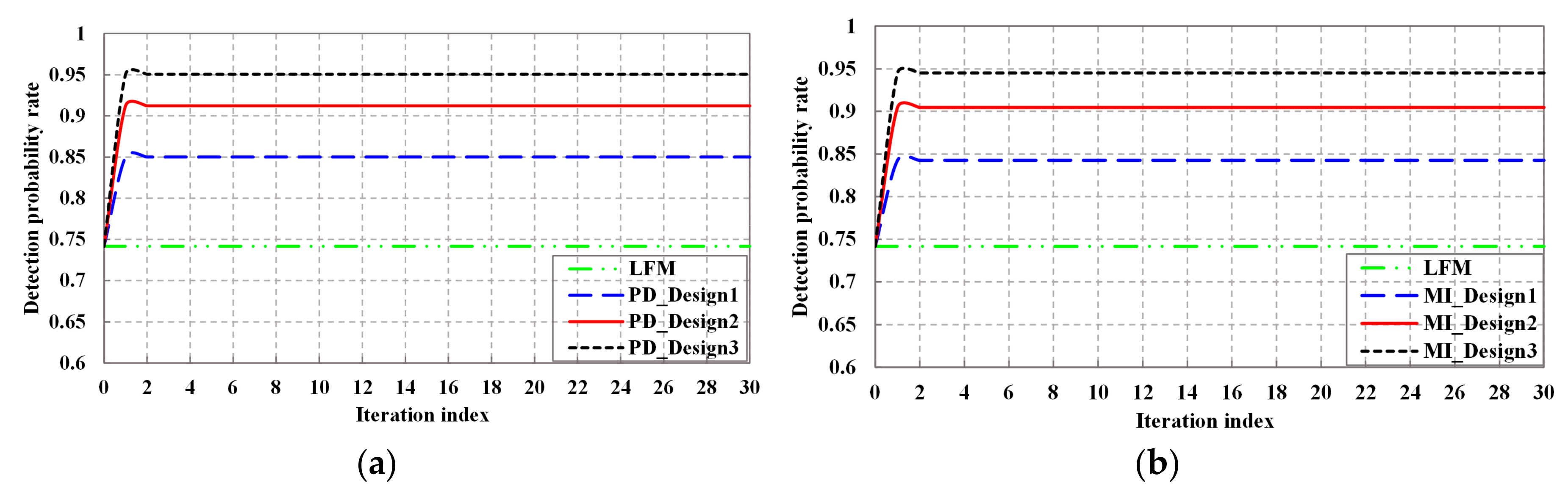

**Figure 7.**Detection performance: (

**a**) Detection performance of detection probability-based waveform; (

**b**) Detection performance of MI-based waveform.

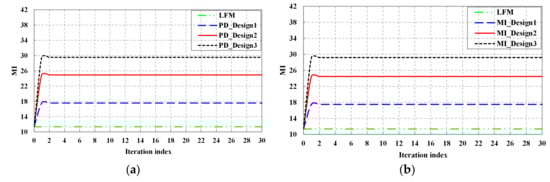

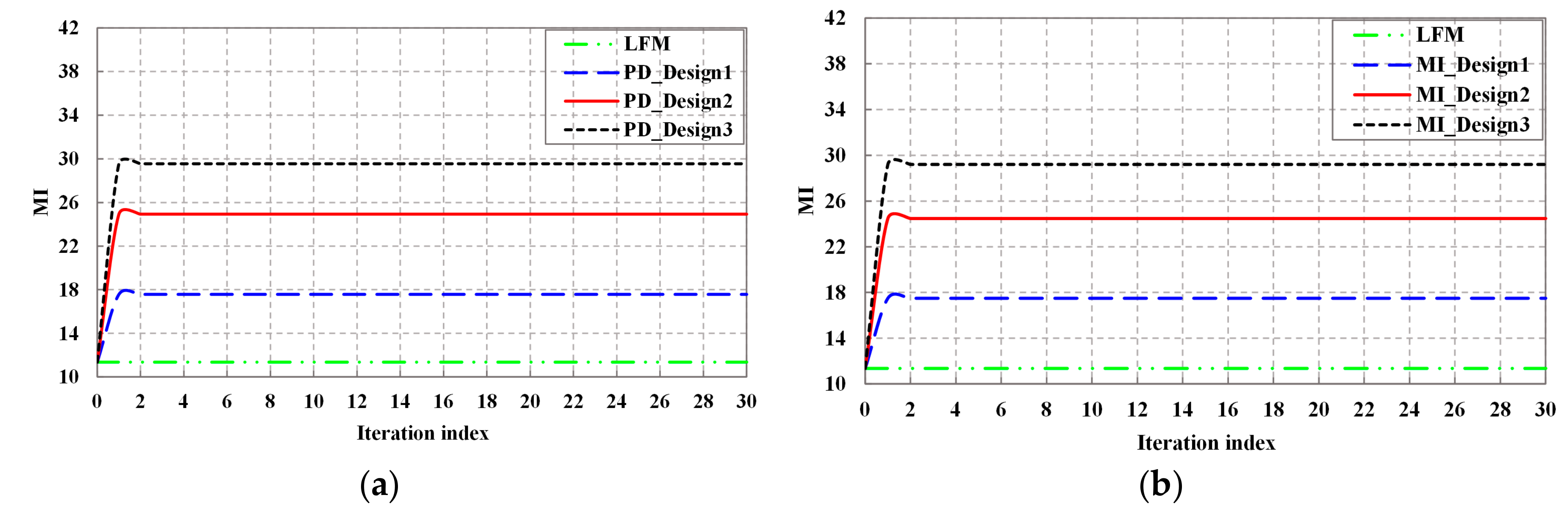

**Figure 8.**MI performance: (

**a**) MI performance of detection probability-based waveform; (

**b**) MI performance of MI-based waveform.

Waveform | ${\mathit{\alpha}}_{1}$ | ${\mathit{\alpha}}_{2}$ |

Design1 | 0 | 1 |

Design2 | 0.5 | 0.5 |

Design3 | 1 | 0 |
