# Tunable-Q Wavelet Transform Based Multivariate Sub-Band Fuzzy Entropy with Application to Focal EEG Signal Analysis

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Bern–Barcelona EEG Dataset

## 3. Multivariate Fuzzy Entropy (mvFE)

- Step 1: Generation of the multivariate composite embedded reconstruction from the s-variate time-series ${\left\{{x}_{k,j}\right\}}_{j=1}^{N}$ where $k=1,\dots ,s$, based on the Takens embedding theorem as follows [23,25]:$${X}_{m}\left(j\right)=[{x}_{1,\phantom{\rule{3.33333pt}{0ex}}j},\phantom{\rule{3.33333pt}{0ex}}{x}_{1,\phantom{\rule{3.33333pt}{0ex}}j+{\tau}_{1}},\dots ,{x}_{1,\phantom{\rule{3.33333pt}{0ex}}j+({m}_{1}-1){\tau}_{1}},\phantom{\rule{3.33333pt}{0ex}}{x}_{2,\phantom{\rule{3.33333pt}{0ex}}j},\phantom{\rule{3.33333pt}{0ex}}{x}_{2,\phantom{\rule{3.33333pt}{0ex}}j+{\tau}_{2}},\dots ,{x}_{2,\phantom{\rule{3.33333pt}{0ex}}j+({m}_{2}-1){\tau}_{2}},\dots ,{x}_{s,\phantom{\rule{3.33333pt}{0ex}}j},\phantom{\rule{3.33333pt}{0ex}}{x}_{s,\phantom{\rule{3.33333pt}{0ex}}j+{\tau}_{s}},\dots ,{x}_{s,\phantom{\rule{3.33333pt}{0ex}}j+({m}_{s}-1){\tau}_{s}}],$$
- Step 2: Formation of $(N-n)$ composite delay vectors ${X}_{m}\left(j\right)$ $\in {\Re}^{m}$, where $j=1,2,\dots ,N-n$ and $n=\mathrm{max}\left\{M\right\}\times \mathrm{max}\left\{\tau \right\}$.
- Step 3: Defining the distance as the maximum norm and computed between two composite delay vectors such as ${X}_{m}\left(j\right)$ and ${X}_{m}\left(i\right)$.
- Step 4. Defining the fuzzy membership function as [33]:$$\theta (d,r)=\mathrm{exp}\left(-{\left(d\right)}^{{f}_{s}}/r\right),$$
- Step 5. Define the global quantity ${\psi}^{m}\left(r\right)$ for a chosen fuzzy power ${f}_{s}$ and threshold r as [33]:$$\begin{array}{c}\hfill {\displaystyle {\psi}^{m}\left(r\right)=\frac{1}{N-n}\sum _{j=1}^{N-n}\frac{{\displaystyle \sum _{i=1,j\ne i}^{N-n}\mathrm{exp}\left(\frac{-{\left(d[{X}_{m}\left(i\right),{X}_{m}\left(j\right)]\right)}^{{f}_{s}}}{r}\right)}}{N-n-1}.}\end{array}$$
- Step 6. Increment of the dimensionality from m to $m+1$ in such a way so that the dimensionality of the other variables do not change, which is possible in s different ways, such as from $[{m}_{1},{m}_{2},\dots ,{m}_{h},\dots ,{m}_{s}]$ to $[{m}_{1},{m}_{2},\dots ,{m}_{h+1},\dots ,{m}_{s}]$ for $h=1,\dots ,s$.
- Step 7. Computation of ${\psi}^{(m+1)}\left(r\right)$ by considering the increased dimensionality.
- Step 8. Finally, the computation of the mvFE can be expressed as follows [33]:$$\mathrm{mvFE}(X,\tau ,r,M,{f}_{s})=-\mathrm{ln}\left(\frac{{\psi}^{(m+1)}\left(r\right)}{{\psi}^{m}\left(r\right)}\right).$$

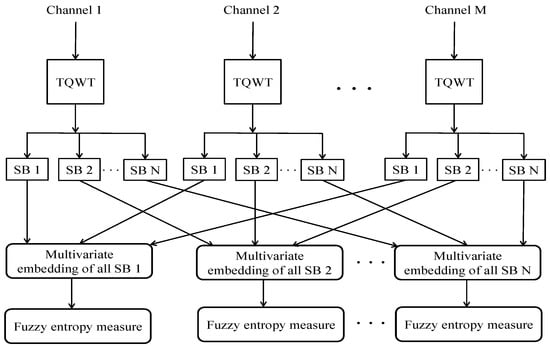

## 4. TQWT Based Multivariate Sub-Band Fuzzy Entropy

- All of the EEG signals corresponding to different channels are decomposed with the same input parameters $(Q,R,J)$ using TQWT. The sub-band signals are reconstructed by performing inverse TQWT operation. This results in the same number of sub-band signals denoted by ${S}_{j}^{s}\left(n\right)$ for every individual channel. The indexes j and s correspond to decomposition level and channel number, respectively.
- The mvFE described in the previous section has been computed for the sub-band signals of the same oscillatory levels belonging to different channels. As an example, sub-band 1 of different channels are used to compute mvFE and so on.

## 5. Results and Discussion

## 6. Conclusions

## Author Contributions

## Conflicts of Interest

## References

- Witte, H.; Iasemidis, L.D.; Litt, B. Special issue on epileptic seizure prediction. IEEE Trans. Biomed. Eng.
**2003**, 50, 537–539. [Google Scholar] [CrossRef] - Acharya, U.R.; Sree, S.V.; Swapna, G.; Martis, R.J.; Suri, J.S. Automated EEG analysis of epilepsy: A review. Knowl. Based Syst.
**2013**, 45, 147–165. [Google Scholar] [CrossRef] - Pati, S.; Alexopoulos, A.V. Pharmacoresistant epilepsy: From pathogenesis to current and emerging therapies. Cleve Clin. J. Med.
**2010**, 77, 457–467. [Google Scholar] [CrossRef] [PubMed] - Savic, I.; Thorell, J.O.; Roland, P. [
^{11}C] Flumazenil positron emission tomography visualizes frontal epileptogenic regions. Epilepsia**1995**, 36, 1225–1232. [Google Scholar] [CrossRef] [PubMed] - Seeck, M.; Lazeyras, F.; Michel, C.M.; Blanke, O.; Gericke, C.; Ives, J.; Delavelle, J.; Golay, X.; Haenggeli, C.A.; De Tribolet, N.; et al. Non-invasive epileptic focus localization using EEG-triggered functional MRI and electromagnetic tomography. Electroencephalogr. Clin. Neurophysiol.
**1998**, 106, 508–512. [Google Scholar] [CrossRef] - Woermann, F.G.; Vollmar, C. Clinical MRI in children and adults with focal epilepsy: A critical review. Epilepsy Behav.
**2009**, 15, 40–49. [Google Scholar] [CrossRef] [PubMed] - Newton, M.R.; Berkovic, S.F.; Austin, M.C.; Rowe, C.C.; McKay, W.J.; Bladin, P.F. SPECT in the localisation of extratemporal and temporal seizure foci. J. Neurol. Neurosurg. Psychiatry
**1995**, 59, 26–30. [Google Scholar] [CrossRef] [PubMed] - Andrzejak, R.G.; Schindler, K.; Rummel, C. Nonrandomness, nonlinear dependence, and nonstationarity of electroencephalographic recordings from epilepsy patients. Phys. Rev. E
**2012**, 86, 046206. [Google Scholar] [CrossRef] [PubMed] - Pachori, R.B.; Sircar, P. EEG signal analysis using FB expansion and second-order linear TVAR process. Signal Process.
**2008**, 88, 415–420. [Google Scholar] [CrossRef] - Gutiérrez, J.; Alcántara, R.; Medina, V. Analysis and localization of epileptic events using wavelet packets. Med. Eng. Phys.
**2001**, 23, 623–631. [Google Scholar] [CrossRef] - Panet-Raymond, D.; Gotman, J. Asymmetry in delta activity in patients with focal epilepsy. Electroencephalogr. Clin. Neurophysiol.
**1990**, 75, 474–481. [Google Scholar] [CrossRef] - Marciani, M.G.; Stefanini, F.; Stefani, N.; Maschio, M.C.; Gigli, G.L.; Roncacci, S.; Caltagirone, C.; Bernardi, G. Lateralization of the epileptogenic focus by computerized EEG study and neuropsychological evaluation. Int. J. Neurosci.
**1992**, 66, 53–60. [Google Scholar] [CrossRef] [PubMed] - Worrell, G.A.; Parish, L.; Cranstoun, S.D.; Jonas, R.; Baltuch, G.; Litt, B. High-frequency oscillations and seizure generation in neocortical epilepsy. Brain
**2004**, 127, 1496–1506. [Google Scholar] [CrossRef] [PubMed] - Bhattacharyya, A.; Sharma, M.; Pachori, R.B.; Sircar, P.; Acharya, U.R. A novel approach for automated detection of focal EEG signals using empirical wavelet transform. Neural Comput. Appl.
**2016**, 1–11. [Google Scholar] [CrossRef] - Gilles, J. Empirical wavelet transform. IEEE Trans. Signal Process.
**2013**, 61, 3999–4010. [Google Scholar] [CrossRef] - Zhu, G.; Li, Y.; Wen, P.P.; Wang, S.; Xi, M. Epileptogenic focus detection in intracranial EEG based on delay permutation entropy. AIP Conf. Proc.
**2013**, 1559, 31–36. [Google Scholar] - Sharma, R.; Pachori, R.B.; Gautam, S. Empirical mode decomposition based classification of focal and non-focal EEG signals. In Proceedings of the 2014 International Conference on Medical Biometrics, Shenzhen, China, 30 May–1 June 2014; pp. 135–140.
- Sharma, R.; Pachori, R.B.; Acharya, U.R. Application of entropy measures on intrinsic mode functions for the automated identification of focal electroencephalogram signals. Entropy
**2015**, 17, 669–691. [Google Scholar] [CrossRef] - Sharma, R.; Pachori, R.B.; Acharya, U.R. An integrated index for the identification of focal electroencephalogram signals using discrete wavelet transform and entropy measures. Entropy
**2015**, 17, 5218–5240. [Google Scholar] [CrossRef] - Das, A.B.; Bhuiyan, M.I.H. Discrimination and classification of focal and non-focal EEG signals using entropy-based features in the EMD-DWT domain. Biomed. Signal Process. Control
**2016**, 29, 11–21. [Google Scholar] [CrossRef] - Sharma, M.; Dhere, A.; Pachori, R.B.; Acharya, U.R. An automatic detection of focal EEG signals using new class of time-frequency localized orthogonal wavelet filter banks. Knowl. Based Syst.
**2017**, 118, 217–227. [Google Scholar] [CrossRef] - Huang, N.E.; Shen, Z.; Long, S.R.; Wu, M.C.; Shih, H.H.; Zheng, Q.; Yen, N.C.; Tung, C.C.; Liu, H.H. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proc. R. Soc. Lond. A
**1998**, 454, 903–995. [Google Scholar] [CrossRef] - Ahmed, M.U.; Mandic, D.P. Multivariate multiscale entropy: A tool for complexity analysis of multichannel data. Phys. Rev. E
**2011**, 84, 061918. [Google Scholar] [CrossRef] [PubMed] - Ahmed, M.U.; Mandic, D.P. Multivariate multiscale entropy analysis. IEEE Signal Process. Lett.
**2012**, 19, 91–94. [Google Scholar] [CrossRef] - Cao, L.; Mees, A.; Judd, K. Dynamics from multivariate time series. Physica D
**1998**, 121, 75–88. [Google Scholar] [CrossRef] - Richman, J.S.; Moorman, J.R. Physiological time-series analysis using approximate entropy and sample entropy. Am. J. Physiol. Heart Circ. Physiol.
**2000**, 278, H2039–H2049. [Google Scholar] [PubMed] - Chen, W.; Wang, Z.; Xie, H.; Yu, W. Characterization of surface EMG signal based on fuzzy entropy. IEEE Trans. Neural Syst. Rehabil. Eng.
**2007**, 15, 266–272. [Google Scholar] [CrossRef] [PubMed] - Chen, W.; Zhuang, J.; Yu, W.; Wang, Z. Measuring complexity using FuzzyEn, ApEn, and SampEn. Med. Eng. Phys.
**2009**, 31, 61–68. [Google Scholar] [CrossRef] [PubMed] - Liu, C.; Li, K.; Zhao, L.; Liu, F.; Zheng, D.; Liu, C.; Liu, S. Analysis of heart rate variability using fuzzy measure entropy. Comput. Biol. Med.
**2013**, 43, 100–108. [Google Scholar] [CrossRef] [PubMed] - Kumar, M.; Pachori, R.B.; Acharya, U.R. An efficient automated technique for CAD diagnosis using flexible analytic wavelet transform and entropy features extracted from HRV signals. Expert Syst. Appl.
**2016**, 63, 165–172. [Google Scholar] [CrossRef] - Zhao, L.; Wei, S.; Zhang, C.; Zhang, Y.; Jiang, X.; Liu, F.; Liu, C. Determination of sample entropy and fuzzy measure entropy parameters for distinguishing congestive heart failure from normal sinus rhythm subjects. Entropy
**2015**, 17, 6270–6288. [Google Scholar] [CrossRef] - Zheng, J.; Cheng, J.; Yang, Y. A rolling bearing fault diagnosis approach based on LCD and fuzzy entropy. Mech. Mach. Theory
**2013**, 70, 441–453. [Google Scholar] [CrossRef] - Azami, H.; Escudero, J. Refined composite multivariate generalized multiscale fuzzy entropy: A tool for complexity analysis of multichannel signals. Physica A
**2017**, 465, 261–276. [Google Scholar] [CrossRef] - Azami, H.; Smith, K.; Escudero, J. MEMD-enhanced multivariate fuzzy entropy for the evaluation of complexity in biomedical signals. In Proceedings of the 2016 IEEE 38th Annual International Conference of the Engineering in Medicine and Biology Society (EMBC), Orlando, FL, USA, 16–20 August 2016; pp. 3761–3764.
- Zhao, L.; Wei, S.; Tang, H.; Liu, C. Multivariable fuzzy measure entropy analysis for heart rate variability and heart sound amplitude variability. Entropy
**2016**, 18, 430. [Google Scholar] [CrossRef] - Selesnick, I.W. Wavelet transform with tunable Q-factor. IEEE Trans. Signal Process.
**2011**, 59, 3560–3575. [Google Scholar] [CrossRef] - Patidar, S.; Pachori, R.B.; Upadhyay, A.; Acharya, U.R. An integrated alcoholic index using tunable-Q wavelet transform based features extracted from EEG signals for diagnosis of alcoholism. Appl. Soft Comput.
**2017**, 50, 71–78. [Google Scholar] [CrossRef] - Patidar, S.; Pachori, R.B.; Acharya, U.R. Automated diagnosis of coronary artery disease using tunable-Q wavelet transform applied on heart rate signals. Knowl. Based Syst.
**2015**, 82, 1–10. [Google Scholar] [CrossRef] - Patidar, S.; Pachori, R.B.; Garg, N. Automatic diagnosis of septal defects based on tunable-Q wavelet transform of cardiac sound signals. Expert Syst. Appl.
**2015**, 42, 3315–3326. [Google Scholar] [CrossRef] - Patidar, S.; Pachori, R.B. Segmentation of cardiac sound signals by removing murmurs using constrained tunable-Q wavelet transform. Biomed. Signal Process. Control
**2013**, 8, 559–567. [Google Scholar] [CrossRef] - Patidar, S.; Pachori, R.B. Classification of cardiac sound signals using constrained tunable-Q wavelet transform. Expert Syst. Appl.
**2014**, 41, 7161–7170. [Google Scholar] [CrossRef] - Luo, J.; Yu, D.; Liang, M. A kurtosis-guided adaptive demodulation technique for bearing fault detection based on tunable-Q wavelet transform. Meas. Sci. Technol.
**2013**, 24, 055009. [Google Scholar] [CrossRef] - Wang, H.; Chen, J.; Dong, G. Feature extraction of rolling bearing’s early weak fault based on EEMD and tunable Q-factor wavelet transform. Mech. Syst. Signal Process.
**2014**, 48, 103–119. [Google Scholar] [CrossRef] - Pachori, R.B.; Nishad, A. Cross-terms reduction in the Wigner–Ville distribution using tunable-Q wavelet transform. Signal Process.
**2016**, 120, 288–304. [Google Scholar] [CrossRef] - Freund, R.J.; Wilson, W.J. Statistical Methods; Academic Press: San Diego, CA, USA, 1993. [Google Scholar]
- Pachori, R.B. Discrimination between ictal and seizure-free EEG signals using empirical mode decomposition. J. Res. Lett. Signal Process.
**2008**, 2008. [Google Scholar] [CrossRef] - Adeli, H.; Ghosh-Dastidar, S.; Dadmehr, N. A wavelet-chaos methodology for analysis of EEGs and EEG subbands to detect seizure and epilepsy. IEEE Trans. Biomed. Eng.
**2007**, 54, 205–211. [Google Scholar] [CrossRef] [PubMed] - Kohavi, R.; John, G.H. Wrappers for feature subset selection. Artif. Intell.
**1997**, 97, 273–324. [Google Scholar] [CrossRef] - Hall, M.; Frank, E.; Holmes, G.; Pfahringer, B.; Reutemann, P.; Witten, I.H. The WEKA data mining software: An update. ACM SIGKDD Explor. Newsl.
**2009**, 11, 10–18. [Google Scholar] [CrossRef] - Breiman, L. Random forests. Mach. Learn.
**2001**, 45, 5–32. [Google Scholar] [CrossRef] - Suykens, J.A.; Vandewalle, J. Least squares support vector machine classifiers. Neural Process. Lett.
**1999**, 9, 293–300. [Google Scholar] [CrossRef] - Zhang, L.; Zhou, W.; Jiao, L. Wavelet support vector machine. IEEE Trans. Syst. Man Cybern. Part B Cybern.
**2004**, 34, 34–39. [Google Scholar] [CrossRef] - Kohavi, R. A study of cross-validation and bootstrap for accuracy estimation and model selection. In Proceedings of the International Joint Conference on Artificial Intelligence (IJCAI), Montreal, QC, Canada, 20–25 August 1995; pp. 1137–1145.
- Bhattacharyya, A.; Pachori, R.B. A multivariate approach for patient specific EEG seizure detection using empirical wavelet transform. IEEE Trans. Biomed. Eng.
**2017**. [Google Scholar] [CrossRef] [PubMed] - Azar, A.T.; El-Said, S.A. Performance analysis of support vector machines classifiers in breast cancer mammography recognition. Neural Comput. Appl.
**2014**, 24, 1163–1177. [Google Scholar] [CrossRef]

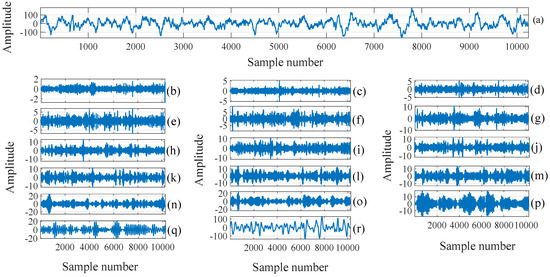

**Figure 2.**(

**a**) Plot of F type EEG signal (channel “x”); (

**b**–

**r**) Plot of reconstructed sub-band signals obtained using TQWT.

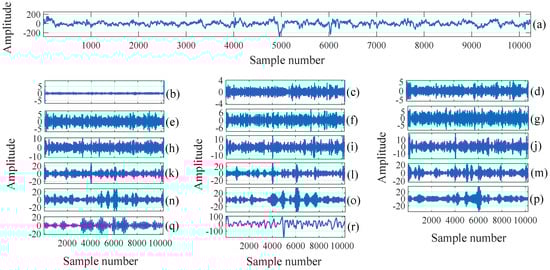

**Figure 3.**(

**a**) Plot of NF type EEG signal (channel “x”); (

**b**–

**r**) Plot of reconstructed sub-band signals obtained using TQWT.

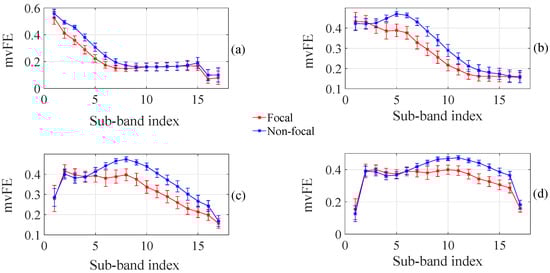

**Figure 4.**Confidence interval plot of proposed TQWT based multivariate sub-band fuzzy entropy with 99% confidence for 20 s signal duration. (

**a**) For $Q=1;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**b**) For $Q=2;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**c**) For $Q=3;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**d**) For $Q=4;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$.

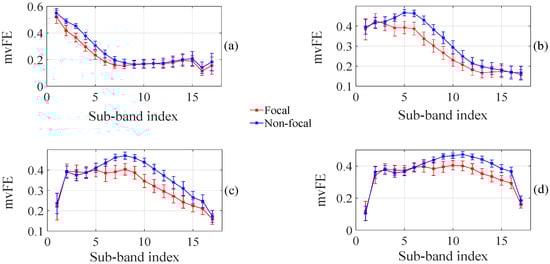

**Figure 5.**Confidence interval plot of proposed TQWT based multivariate sub-band fuzzy entropy with 99% confidence for 10 s signal duration. (

**a**) For $Q=1;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**b**) For $Q=2;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**c**) For $Q=3;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**d**) For $Q=4;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$.

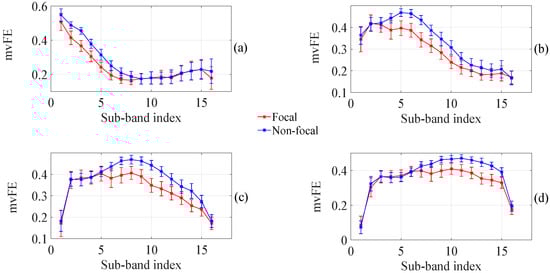

**Figure 6.**Confidence interval plot of proposed TQWT based multivariate sub-band fuzzy entropy with 99% confidence for 5 s signal duration. (

**a**) For $Q=1;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**b**) For $Q=2;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**c**) For $Q=3;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**d**) For $Q=4;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=15$.

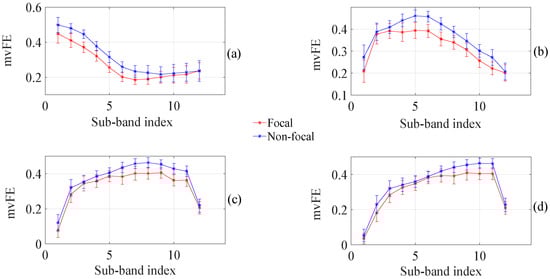

**Figure 7.**Confidence interval plot of proposed TQWT based multivariate sub-band fuzzy entropy with 99% confidence for 2 s signal duration. (

**a**) For $Q=1;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**b**) For $Q=2;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**c**) For $Q=3;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=16$; (

**d**) For $Q=4;\phantom{\rule{3.33333pt}{0ex}}R=3;\phantom{\rule{3.33333pt}{0ex}}J=11$.

**Table 1.**Statistical analysis results of the proposed TQWT based multivariate sub-band fuzzy entropy computed for 20 s and 10 s duration segments.

Q | 20 s | 10 s | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

1 | SB number | SB 3 | SB 4 | SB 5 | SB 6 | SB 2 | SB 3 | SB 4 | SB 5 | SB 2 | SB 6 |

F: Mean (SD) | 0.359 (0.086) | 0.288 (0.083) | 0.223 (0.076) | 0.174 (0.065) | 0.412 (0.100) | 0.366 (0.086) | 0.296 (0.085) | 0.233 (0.081) | 0.417 (0.102) | 0.185 (0.071) | |

p-value | 1.29 × ${10}^{-11}$ | 3.92 × ${10}^{-8}$ | 1.55 × ${10}^{-6}$ | 7.43 × ${10}^{-6}$ | 1.28 × ${10}^{-5}$ | 4.22 × ${10}^{-10}$ | 3.63 × ${10}^{-7}$ | 1.50 × ${10}^{-5}$ | 1.38 × ${10}^{-4}$ | 2.95 × ${10}^{-4}$ | |

NF: Mean (SD) | 0.455 (0.039) | 0.380 (0.068) | 0.307 (0.081) | 0.2417 (0.073) | 0.4931 (0.04) | 0.452 (0.048) | 0.378 (0.072) | 0.306 (0.085) | 0.488 (0.048) | 0.242 (0.078) | |

2 | SB number | SB 6 | SB 7 | SB 5 | SB 8 | SB 9 | SB 7 | SB 6 | SB 8 | SB 5 | SB 9 |

F: Mean (SD) | 0.377 (0.083) | 0.329 (0.084) | 0.389 (0.081) | 0.295 (0.082) | 0.256 (0.08) | 0.338 (0.086) | 0.387 (0.084) | 0.301 (0.083) | 0.392 (0.081) | 0.266 (0.086) | |

p-value | 3.64 × ${10}^{-11}$ | 4.59 × ${10}^{-11}$ | 3.22 × ${10}^{-8}$ | 6.74 × ${10}^{-8}$ | 1.26 × ${10}^{-6}$ | 3.93 × ${10}^{-9}$ | 1.29 × ${10}^{-8}$ | 1.24 × ${10}^{-7}$ | 1.44 × ${10}^{-7}$ | 8.73. × ${10}^{-6}$ | |

NF: Mean (SD) | 0.464 (0.032) | 0.431 (0.049) | 0.471 (0.032) | 0.384 (0.063) | 0.341 (0.074) | 0.43 (0.054) | 0.463 (0.043) | 0.382 (0.066) | 0.467 (0.042) | 0.341 (0.079) | |

3 | SB number | SB 9 | SB 10 | SB 8 | SB 11 | SB 7 | SB 10 | SB 8 | SB 9 | SB 11 | SB 12 |

F: Mean (SD) | 0.374 (0.081) | 0.337 (0.083) | 0.397 (0.078) | 0.314 (0.083) | 0.388 (0.086) | 0.346 (0.085) | 0.403 (0.074) | 0.387 (0.084) | 0.321 (0.087) | 0.295 (0.085) | |

p-value | 7.63 × ${10}^{-11}$ | 8.36 × ${10}^{-11}$ | 3.32 × ${10}^{-9}$ | 3.32 × ${10}^{-9}$ | 7.70 × ${10}^{-7}$ | 4.83 × ${10}^{-9}$ | 2.75 × ${10}^{-8}$ | 3.77 × ${10}^{-8}$ | 6.00 × ${10}^{-8}$ | 1.66 × ${10}^{-6}$ | |

NF: Mean (SD) | 0.459 (0.034) | 0.438 (0.047) | 0.474 (0.033) | 0.405 (0.057) | 0.465 (0.035) | 0.438 (0.055) | 0.471 (0.045) | 0.459 (0.044) | 0.405 (0.063) | 0.373 (0.069) | |

4 | SB number | SB 13 | SB 12 | SB 11 | SB 14 | SB 10 | SB 13 | SB 11 | SB 14 | SB 12 | SB 15 |

F: Mean (SD) | 0.343 (0.081) | 0.372 (0.080) | 0.393 (0.079) | 0.326 (0.082) | 0.399 (0.076) | 0.352 (0.084) | 0.401 (0.081) | 0.334 (0.089) | 0.383 (0.084) | 0.311(0.081) | |

p-value | 1.15 × ${10}^{-10}$ | 1.32 × ${10}^{-10}$ | 1.5 × ${10}^{-10}$ | 4.09 × ${10}^{-9}$ | 5.78 × ${10}^{-8}$ | 6.45 × ${10}^{-9}$ | 1.10 × ${10}^{-7}$ | 2.91 × ${10}^{-7}$ | 3.49 × ${10}^{-7}$ | 7.98 × ${10}^{-7}$ | |

NF: Mean (SD) | 0.441 (0.046) | 0.457 (0.038) | 0.473 (0.034) | 0.414 (0.053) | 0.468 (0.032) | 0.441 (0.056) | 0.473 (0.048) | 0.415 (0.059) | 0.457 (0.048) | 0.384 (0.066) |

**Table 2.**Statistical analysis results of the proposed TQWT based multivariate sub-band fuzzy entropy computed for 5 s and 2 s duration segments.

Q | 5 s | 2 s | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

1 | SB number | SB 3 | SB 4 | SB 2 | SB 5 | SB 6 | SB 3 | SB 2 | SB 4 | SB 5 | SB 6 |

F: Mean (SD) | 0.367 (0.084) | 0.306 (0.083) | 0.414 (0.104) | 0.243 (0.077) | 0.195 (0.073) | 0.370 (0.079) | 0.410 (0.104) | 0.322 (0.081) | 0.255 (0.075) | 0.202 (0.069) | |

p-value | 6.83 × ${10}^{-10}$ | 2.95 × ${10}^{-6}$ | 2.04 × ${10}^{-5}$ | 2.30 × ${10}^{-5}$ | 5.82 × ${10}^{-4}$ | 4.24 × ${10}^{-8}$ | 1.13 × ${10}^{-4}$ | 1.63 × ${10}^{-4}$ | 1.77 × ${10}^{-4}$ | 3.20 × ${10}^{-4}$ | |

NF: Mean (SD) | 0.455 (0.051) | 0.3789 (0.069) | 0.489 (0.051) | 0.315 (0.084) | 0.251 (0.076) | 0.446 (0.064) | 0.480 (0.069) | 0.377 (0.071) | 0.315 (0.081) | 0.259 (0.079) | |

2 | SB number | SB 6 | SB 7 | SB 5 | SB 8 | SB 10 | SB 6 | SB 7 | SB 5 | SB 8 | SB 10 |

F: Mean (SD) | 0.387 (0.085) | 0.343 (0.088) | 0.396 (0.089) | 0.316 (0.083) | 0.239 (0.077) | 0.392 (0.079) | 0.355 (0.083) | 0.394 (0.095) | 0.339 (0.081) | 0.256 (0.081) | |

p-value | 2.35 × ${10}^{-8}$ | 5.35 × ${10}^{-8}$ | 1.72 × ${10}^{-6}$ | 1.90 × ${10}^{-6}$ | 3.53 × ${10}^{-5}$ | 3.73 × ${10}^{-6}$ | 1.06 × ${10}^{-5}$ | 5.19 × ${10}^{-5}$ | 2.3 × ${10}^{-3}$ | 4.3 × ${10}^{-3}$ | |

NF: Mean (SD) | 0.464 (0.049) | 0.433 (0.056) | 0.468 (0.047) | 0.386 (0.064) | 0.307 (0.083) | 0.457 (0.064) | 0.424 (0.073) | 0.461 (0.069) | 0.387 (0.068) | 0.301 (0.076) | |

3 | SB number | SB 10 | SB 11 | SB 9 | SB 8 | SB 12 | SB 10 | SB 8 | SB 9 | SB 7 | SB 11 |

F: Mean (SD) | 0.349 (0.085) | 0.333 (0.087) | 0.389 (0.083) | 0.407 (0.078) | 0.312 (0.082) | 0.362 (0.084) | 0.402 (0.084) | 0.406 (0.081) | 0.402 (0.105) | 0.363 (0.092) | |

p-value | 1.64 × ${10}^{-8}$ | 1.39 × ${10}^{-7}$ | 4.84 × ${10}^{-7}$ | 3.38 × ${10}^{-6}$ | 2.38 × ${10}^{-5}$ | 1.45 × ${10}^{-5}$ | 4.62 × ${10}^{-5}$ | 1.8 × ${10}^{-3}$ | 2.0 × ${10}^{-3}$ | 5.5 × ${10}^{-3}$ | |

NF: Mean (SD) | 0.442 (0.059) | 0.413 (0.061) | 0.462 (0.049) | 0.469 (0.054) | 0.377 (0.070) | 0.429 (0.077) | 0.464 (0.074) | 0.453 (0.069) | 0.458 (0.073) | 0.415 (0.080) | |

4 | SB number | SB 13 | SB 14 | SB 12 | SB 11 | SB 10 | SB 11 | SB 10 | SB 9 | SB 8 | SB 2 |

F: Mean (SD) | 0.354 (0.084) | 0.345 (0.088) | 0.386 (0.087) | 0.401 (0.089) | 0.410 (0.081) | 0.405 (0.090) | 0.405 (0.091) | 0.409 (0.108) | 0.391 (0.112) | 0.183 (0.136) | |

p-value | 1.58 × ${10}^{-8}$ | 4.58 × ${10}^{-8}$ | 9.51 × ${10}^{-7}$ | 8.73 × ${10}^{-6}$ | 1.06 × ${10}^{-5}$ | 2.95 × ${10}^{-4}$ | 5.82 × ${10}^{-4}$ | 3.15 × ${10}^{-2}$ | 6.27 × ${10}^{-2}$ | 7.09 × ${10}^{-2}$ | |

NF: Mean (SD) | 0.447 (0.064) | 0.427 (0.055) | 0.460 (0.049) | 0.471 (0.055) | 0.466 (0.052) | 0.461 (0.076) | 0.463 (0.078) | 0.455 (0.078) | 0.441 (0.081) | 0.228 (0.135) |

**Table 3.**Evaluated classification performance parameters using the proposed multivariate sub-band fuzzy entropy features.

Q | Random Forest | LS-SVM (Morlet Wavelet Kernel) | LS-SVM (RBF Kernel) | ||||||
---|---|---|---|---|---|---|---|---|---|

Acc (%) | Sens (%) | Spec (%) | Acc (%) | Sens (%) | Spec (%) | Acc (%) | Sens (%) | Spec (%) | |

1 | 83.20 | 85.10 | 81.30 | 83.37 | 83.14 | 83.60 | 82.81 | 81.62 | 84 |

2 | 83.1 | 84.6 | 81.6 | 84.67 | 83.86 | 85.46 | 84.11 | 82.64 | 85.57 |

3 | 81.9 | 82.6 | 81.1 | 82.88 | 82.45 | 83.31 | 82.65 | 81.41 | 83.89 |

4 | 80.9 | 81.8 | 80.1 | 83.48 | 83.20 | 83.76 | 82.80 | 81.28 | 84.32 |
