# A Robust Planning Algorithm for Groups of Entities in Discrete Spaces

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Planning for Multiple Autonomous Beings

## 3. Definition of the Planning Problem

#### 3.1. Formal Model of the Considered Problem

## 4. A-Star and Wavefront Algorithms for Multi-Entity Planning

#### 4.1. Important Assumptions

#### 4.2. The Complexity of Multi-Dimensional Planning

#### 4.3. Multi-Entity A-Star

- $V=\{{v}_{1},{v}_{2},\dots ,{v}_{n}\}$ is a set of vertices,
- $E=\{{e}_{1},{e}_{2},\dots ,{e}_{m}\}$ is a set of edges, each indicating a pair of vertices $v\in V$: ${e}_{i}=({v}_{j},{v}_{k})$,
- $c:E\to {\mathbb{R}}^{+}\cup \left\{0\right\}$ is a function that assigns a weight to every edge $e\in E$.

- states are represented by vertices $v\in V$ (each state has $n\ast k$ components),
- actions are represented by edges $e\in E$: if an action of changing state from state ${v}_{j}$ to state ${v}_{k}$ is possible, ${e}_{i}=({v}_{j},{v}_{k})\in E$.

- Ƒ denotes the fringe, i.e., the set of vertices, which are the possible candidates for the next move;
- V denotes the set of vertices, which have already been visited.

- ${\u01a4}_{E}$ is a sequence of edges, indicating the optimal path from start to goal;
- ${\u01a4}_{V}$ is a sequence of vertices corresponding to ${\u01a4}_{E}$.

- (1)
- Initially assume: $V\leftarrow \varnothing $, $\u0191\leftarrow \left\{{v}_{s}\right\}$, $g\left({v}_{s}\right)=0$.
- (2)
- Choose the node ${v}^{\prime}\in \u0191$ to be expanded:$$\underset{{v}^{\prime}}{arg\; min}f\left({v}^{\prime}\right)=g\left({v}^{\prime}\right)+h\left({v}^{\prime}\right)$$
- (3)
- If ${v}^{\prime}={v}_{g}$, go to Step 5.Otherwise, expand node ${v}^{\prime}$. $\forall {v}^{\u2033}\in V:\phantom{\rule{0.166667em}{0ex}}{e}^{\u2033}=({v}^{\prime},{v}^{\u2033})\in E{,}^{\prime},{v}^{\u2033}\notin V$, and do the following:
- calculate the value of function g: $g\left({v}^{\u2033}\right)=g\left({v}^{\prime}\right)+c\left({e}^{\u2033}\right)$,
- add ${v}^{\u2033}$ to the fringe: $\u0191=\u0191\cup \left\{{v}^{\u2033}\right\}$.

- (4)
- Remove ${v}^{\prime}$ from the fringe after expansion and move it to the visited set:$$\u0191=\u0191\setminus \left\{{v}^{\prime}\right\},\phantom{\rule{0.222222em}{0ex}}V=V\cup \left\{{v}^{\prime}\right\}.$$
- (5)
- Reconstruct the optimal path:
- (a)
- Let ${e}_{p}=\pi \left({v}_{g}\right)$.
- (b)
- Let ${\u01a4}_{E}={(}^{\prime},),{\u01a4}_{V}={(}^{\prime},)$ (empty sequences).
- (c)
- Append ${e}_{p}$ to the beginning of ${\u01a4}_{E}$: ${\u01a4}_{E}=({e}_{p},{\u01a4}_{\varepsilon})$.Append ${p}_{v}$ to the beginning of ${\u01a4}_{V}$: ${\u01a4}_{V}=({v}_{p},{\u01a4}_{V})$.
- (d)
- Let ${v}_{\pi}=v:\pi \left({v}_{p}\right)=(v,{v}_{p})$.
- (e)
- Let ${e}_{p}=\pi \left({v}_{\pi}\right)$.
- (f)
- If ${e}_{p}\ne 0$, go to Step 5c.Otherwise, STOP.

#### 4.4. Multi-Entity Wavefront

- (1)
- vertex labeling;
- (2)
- selecting a path.

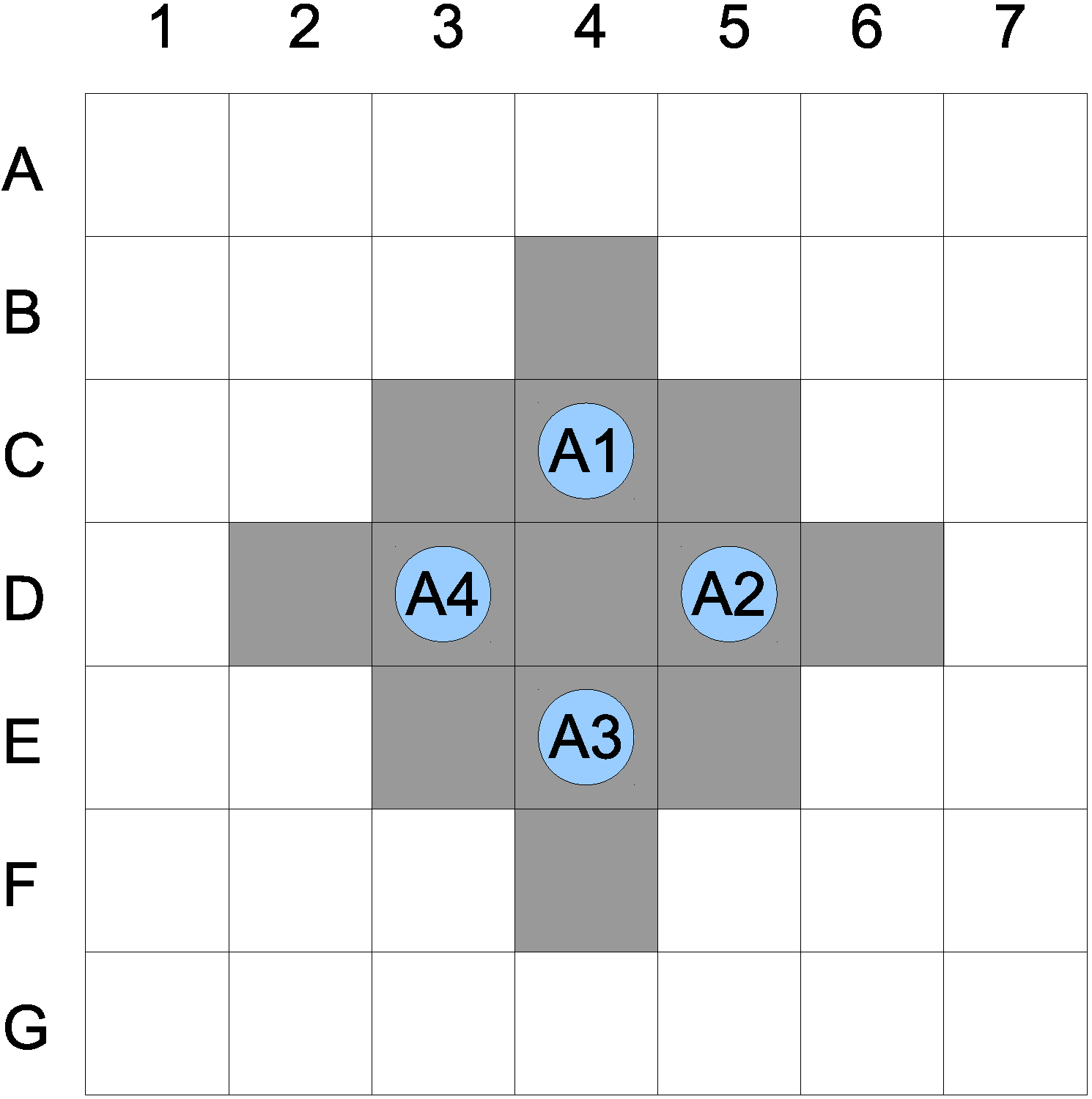

## 5. A-Star-Wavefront Hybrid Algorithm

- there is a global plan provided by the A-star algorithm;
- sub-spaces of a possible collision in the search space are identified; they called collision sub-spaces;
- for the above sub-spaces, the wavefront algorithm is used to give the optimal path to exit the sub-space, thus to return to the original A-star-based path.

- (1)
- the number of neighborhoods (N) that might result in collisions, either among agents or obstacles: ${d}_{c}$;
- (2)
- the size of the collision sub-space (S): ${r}_{c}$.

## 6. Experimental Results

## 7. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Russell, S.J.; Norvig, P. Artificial Intelligence: A Modern Approach, 2nd ed.; Prentice Hall: Upper Saddle River, NJ, USA, 2002. [Google Scholar]
- Turek, W.; Cetnarowicz, K.; Zaborowski, W. Software Agent Systems for Improving Performance of Multi-Robot Groups. Fundam. Inf.
**2011**, 112, 103–117. [Google Scholar] - Blaszczyk, P.; Turek, W.; Cetnarowicz, K. Formal Model for Micro-scale Traffic Simulation and Control. In Proceedings of the 2013 18th International Conference on Methods and Models in Automation and Robotics (MMAR), Miedzyzdroje, Poland, 26–29 August 2013; pp. 305–310.
- Wilkins, D.E. Domain-Independent Planning: Representation and Plan Generation. Artif. Intell.
**1984**, 22, 269–301. [Google Scholar] [CrossRef] - Gerevini, A.; Kuter, U.; Nau, D.S.; Saetti, A.; Waisbrot, N. Combining Domain-Independent Planning and HTN Planning: The Duet Planner. Available online: http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.144.6460&rep=rep1&type=pdf (accessed on 27 July 2015).
- Bonet, B. Planning as Heuristic Search. Artif. Intell.
**2001**, 129, 5–33. [Google Scholar] [CrossRef] - Keyder, E.; Geffner, H. Trees of Shortest Paths vs. Steiner Trees: Understanding and Improving Delete Relaxation Heuristics. In Proceedings of the 21st International Joint Conference on Artificial Intelligence (IJCAI 2009), Pasadena, CA, USA, 11–17 July 2009; pp. 1734–1749.
- Mula, J.; Poler, R.; García-Sabater, J.; Lario, F. Models for Production Planning under Uncertainty: A Review. Int. J. Prod. Econ.
**2006**, 103, 271–285. [Google Scholar] [CrossRef] - Balch, T.; Arkin, C. Behavior-Based Formation Control for Multi-robot Teams. IEEE Trans. Robot. Autom.
**1997**, 14, 926–939. [Google Scholar] [CrossRef] - Trevai, C.; Fujii, N.; Ota, J.; Arai, T. Multiple Mobile Robot Exploration and Patrol Strategy Using a Self-Organizing Planner Based on a Reaction-Diffusion Equation on a Graph. J. Robot. Mechatron.
**2008**, 20, 24–37. [Google Scholar] - Klimek, R.; Wojnicki, I.; Ernst, S. State-Space Reduction through Preference Modeling. In Artificial Intelligence and Soft Computing; Rutkowski, L., Korytkowski, M., Scherer, R., Tadeusiewicz, R., Zadeh, L.A., Zurada, J.M., Eds.; Springer: Berlin, Germany, 2013; Volume 7895, pp. 363–374. [Google Scholar]
- Kotulski, L.; Sedziwy, A. On the Effective Distribution and Maintenance of Knowledge Represented by Complementary Graphs. Trans. Comput. Collectiv. Intell.
**2012**, 6, 105–120. [Google Scholar] - Hart, P.; Nilsson, N.; Raphael, B. A Formal Basis for the Heuristic Determination of Minimum Cost Paths. IEEE Trans. Syst. Sci. Cybern.
**1968**, 4, 100–107. [Google Scholar] [CrossRef] - Dechter, R.; Pearl, J. Generalized Best-First Search Strategies and the Optimality of A*. J. ACM
**1985**, 32, 505–536. [Google Scholar] [CrossRef]
