# Entropy Generation of Desalination Powered by Variable Temperature Waste Heat

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Derivation of Performance Parameters for Desalination

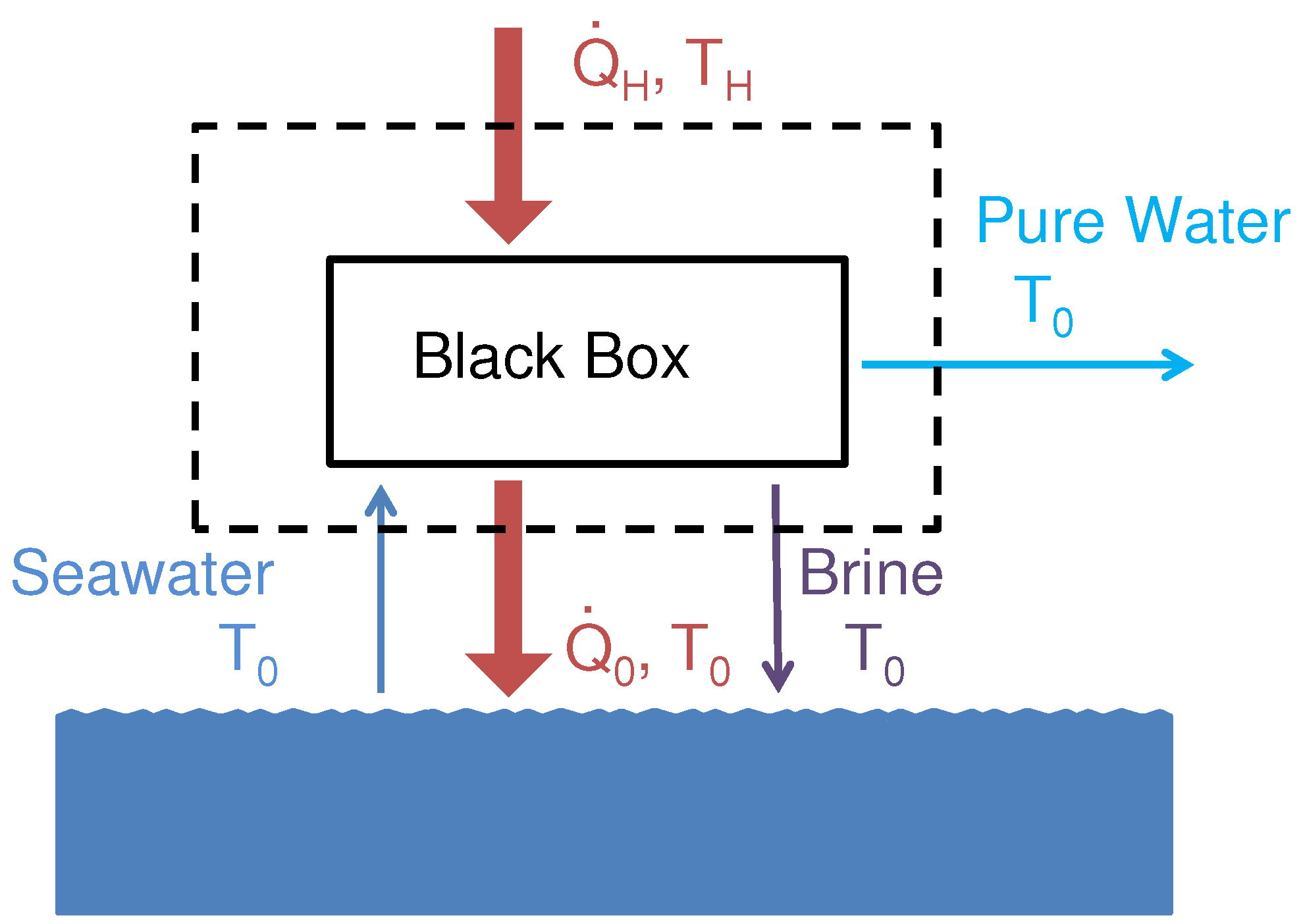

**Figure 1.**A control volume is selected around a black-box, waste heat driven desalination system such that the seawater (sw), product (p) and brine (b) streams are all at the environmental temperature, ${T}_{0}$, and pressure ${p}_{0}$.

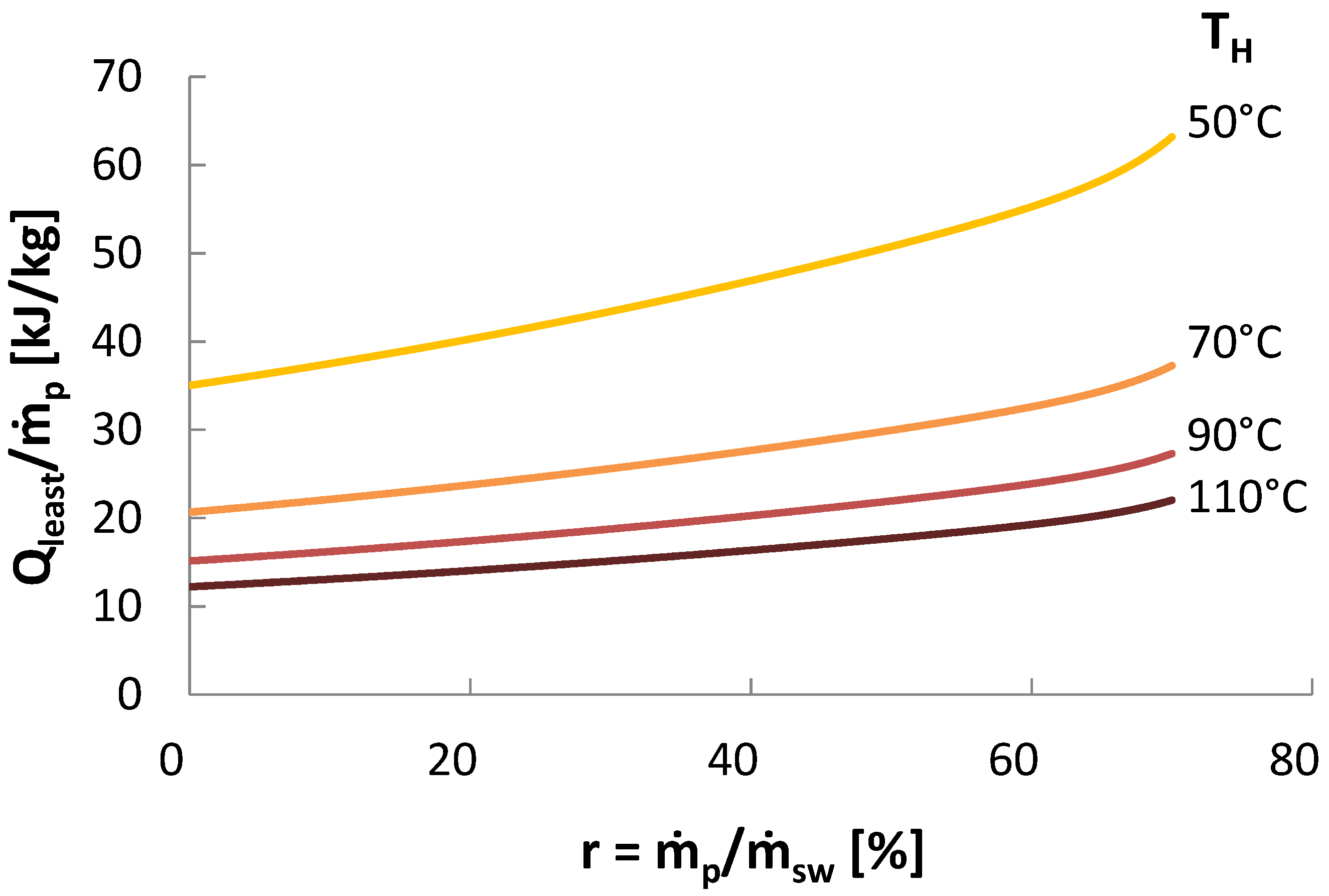

**Figure 2.**Least heat of separation, ${\dot{Q}}_{\mathrm{least}}$ is a function of recovery ratio and source temperature. Results are shown for environmental temperature of 25 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.

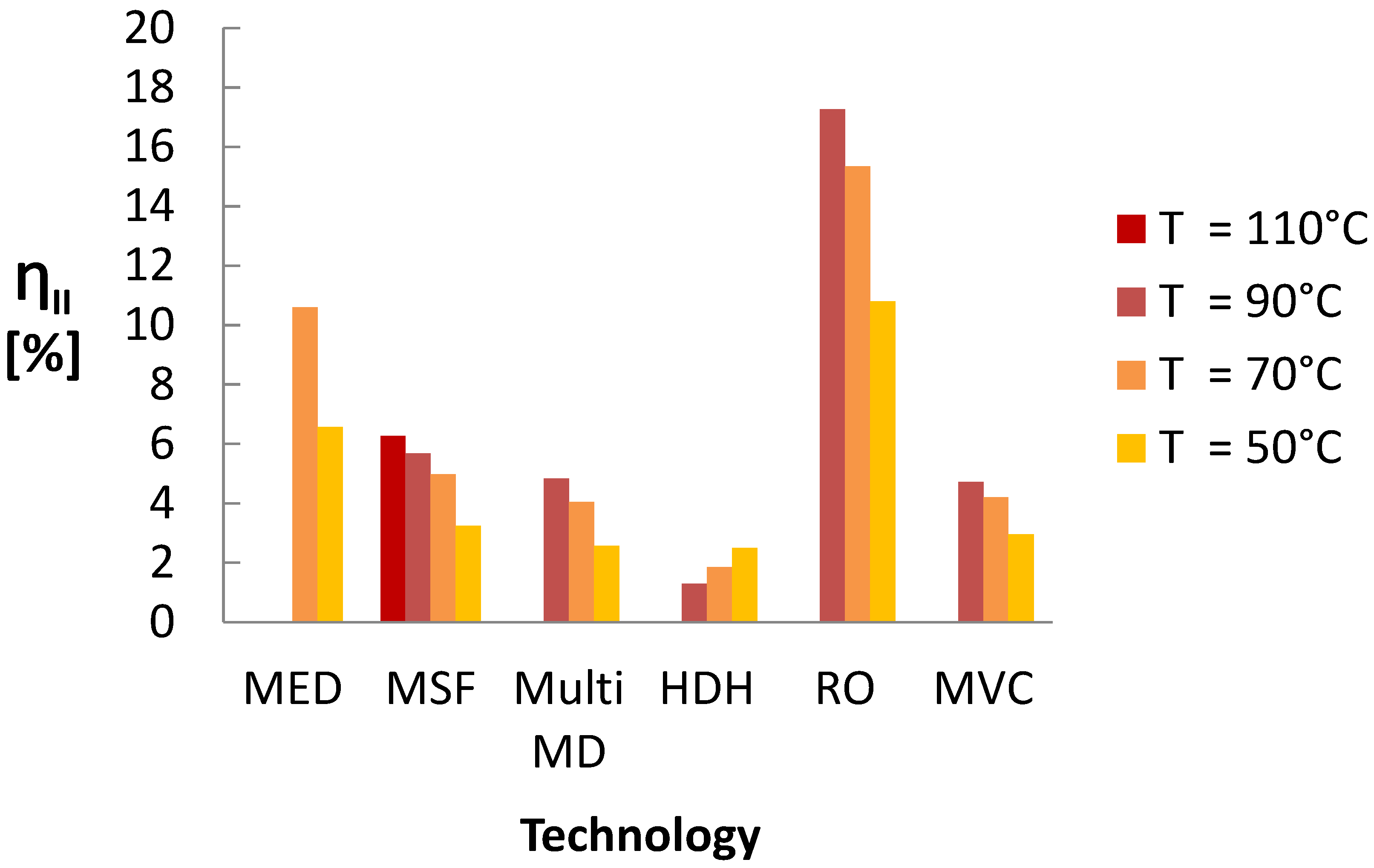

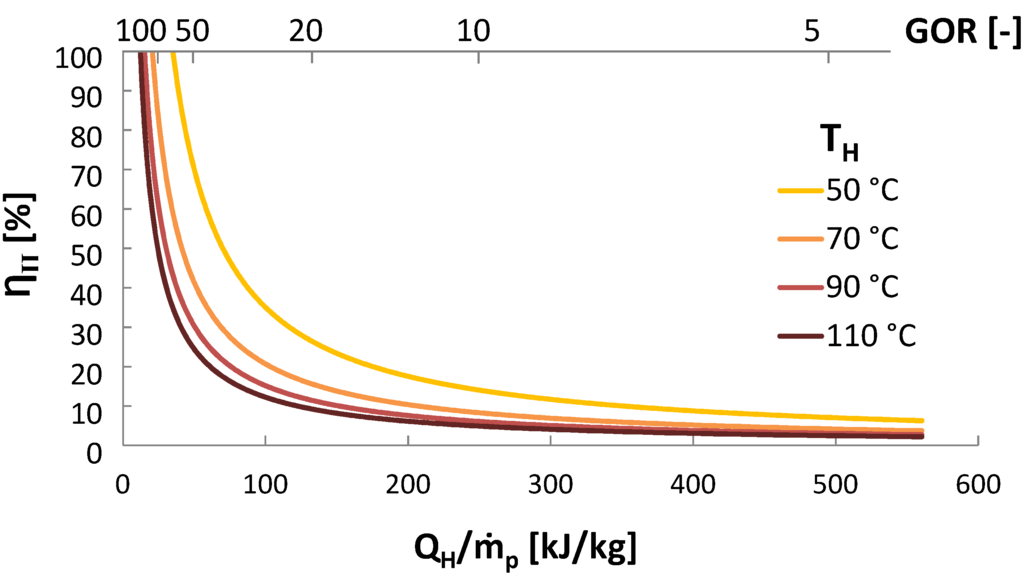

**Figure 3.**Second Law Efficiency ${\eta}_{II}$ for seawater desalination with an environmental temperature at 25 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.

## 3. Entropy Generation Mechanisms

**Table 1.**Entropy Generation for Different Processes in Desalination, Partly Organized by Largest Total Contribution to the Technologies Modeled [16].

Entropy Generation | Occurrence | Equation |
---|---|---|

${S}_{\mathrm{gen}}^{\mathrm{HeatExchanger}}$ | unbalanced heat exchangers | ${\left(\right)}_{\dot{m}}\text{stream}\phantom{\rule{4.pt}{0ex}}\text{1}+{\left(\right)}_{\dot{m}}\text{stream}\phantom{\rule{4.pt}{0ex}}\text{2}$ |

${\dot{s}}_{\mathrm{gen}}^{\text{T}\phantom{\rule{4.pt}{0ex}}\text{gradient}}$ | heat transfer across $\Delta T$ | $\dot{Q}(\frac{1}{{T}_{C}}-\frac{1}{{T}_{H}})$ |

${s}_{\mathrm{gen}}^{\text{R}ankine}$ | attainable Rankine Cycle losses | $\frac{{\dot{W}}_{\text{sep}}(1-{\eta}_{\mathit{II}})}{{T}_{0}}$ |

${\dot{s}}_{\mathrm{gen}}^{\text{Q}\phantom{\rule{4.pt}{0ex}}\text{lost}\phantom{\rule{4.pt}{0ex}}\text{to}\phantom{\rule{4.pt}{0ex}}\text{environment}}$ | heat lost to environment | $\dot{m}cln\frac{{T}_{out}}{{T}_{in}}$ |

${s}_{\mathrm{gen}}^{T\phantom{\rule{4.pt}{0ex}}\text{disequilibrium}}$ | $\Delta T$ between output and environment | ${c}_{i}\left(\right)open="["\; close="]">ln\left(\right)open="("\; close=")">\frac{{T}_{0}}{{T}_{i}}+\frac{{T}_{i}}{{T}_{0}}-1$ |

${s}_{\mathrm{gen}}^{\text{flashing}}$ | flashing: evaporation from rapid pressure drop (throttling) | $cln\frac{{T}_{2}}{{T}_{1}}+x\left(\right)open="\{"\; close="\}">({c}_{p}-c)ln{T}_{2}-Rln{p}_{2}$ $+x\left(\right)open="\{"\; close="\}">\left(\right)open="["\; close="]">{s}_{\mathrm{ref}}^{\mathrm{IG}}-{s}_{\mathrm{ref}}^{\mathrm{IF}}-({c}_{p}-c)ln{T}_{\mathrm{ref}}+Rln{p}_{\mathrm{ref}}$ |

${s}_{\mathrm{gen}}^{\text{expansion,IF}}$ | reverse osmosis pressure recovery | $cln\left(\right)open="["\; close="]">1+\frac{v}{c{T}_{1}}({p}_{1}-{p}_{2})\left(\right)open="("\; close=")">1-{\eta}_{e}$ $\approx \frac{v}{{T}_{1}}({p}_{1}-{p}_{2})\left(\right)open="("\; close=")">1-{\eta}_{e}$ |

${s}_{\mathrm{gen}}^{\text{expansion,IG}}$ | turbines | ${c}_{p}ln\left(\right)open="\{"\; close="\}">1+{\eta}_{e}\left(\right)open="["\; close="]">{\left(\right)}^{\frac{{p}_{2}}{{p}_{1}}}R/{c}_{p}-1$ |

${s}_{\mathrm{gen}}^{\Delta p,\mathrm{IF}}$ | throttling (valves) for fluids | $cln\left(\right)open="["\; close="]">1+\frac{v}{c{T}_{1}}({p}_{1}-{p}_{2})\approx \frac{v}{{T}_{1}}({p}_{1}-{p}_{2})$ |

${s}_{\mathrm{gen}}^{\Delta p,\mathrm{IG}}$ | throttling (valves) for gases | $-Rln\frac{{p}_{2}}{{p}_{1}}$ |

${s}_{\mathrm{gen}}^{\text{compression}}$ | compressors, e.g., in MVC | ${c}_{p}ln\left(\right)open="\{"\; close="\}">1-\frac{1}{{\eta}_{p}}\left(\right)open="["\; close="]">1-{\left(\right)}^{\frac{{p}_{2}}{{p}_{1}}}R/{c}_{p}$ |

${s}_{\mathrm{gen}}^{\text{pumping}}$ | pump efficiency for fluids | $cln\left(\right)open="["\; close="]">1+\frac{v}{c{T}_{1}}({p}_{2}-{p}_{1})\left(\right)open="("\; close=")">\frac{1}{{\eta}_{p}}-1$ $\approx \frac{v}{{T}_{1}}({p}_{2}-{p}_{1})\left(\right)open="("\; close=")">\frac{1}{{\eta}_{p}}-1$ |

${\dot{s}}_{\mathrm{gen}}^{\text{Chem}\phantom{\rule{4.pt}{0ex}}\text{disequilibrium}}$ | salinity difference between environment and output stream | $\frac{1}{{T}_{0}}\left(\right)open="["\; close="]">{\dot{W}}_{\text{least}}-{\dot{W}}_{\text{least}}^{\text{min}}$ |

## 4. Unused Temperature Reduction of Waste Heat Sources

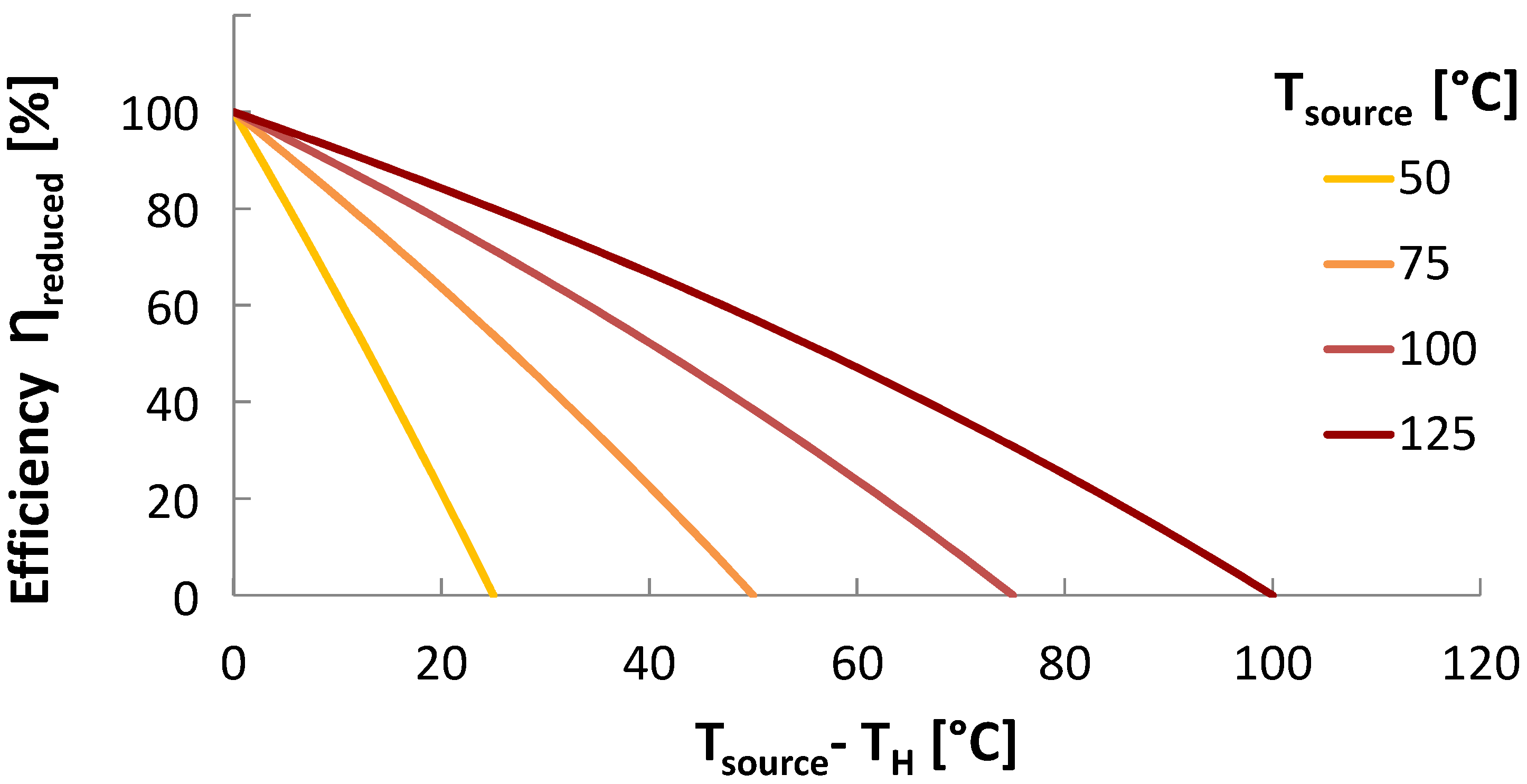

**Figure 4.**Efficiency factor ${\eta}_{\mathrm{reduced}}$ versus temperature reduction (${T}_{source}-{T}_{H}$) for various source temperatures. All results shown for environmental temperature at 25 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.

## 5. Entropy Generation Analysis of Seawater Desalination Technologies

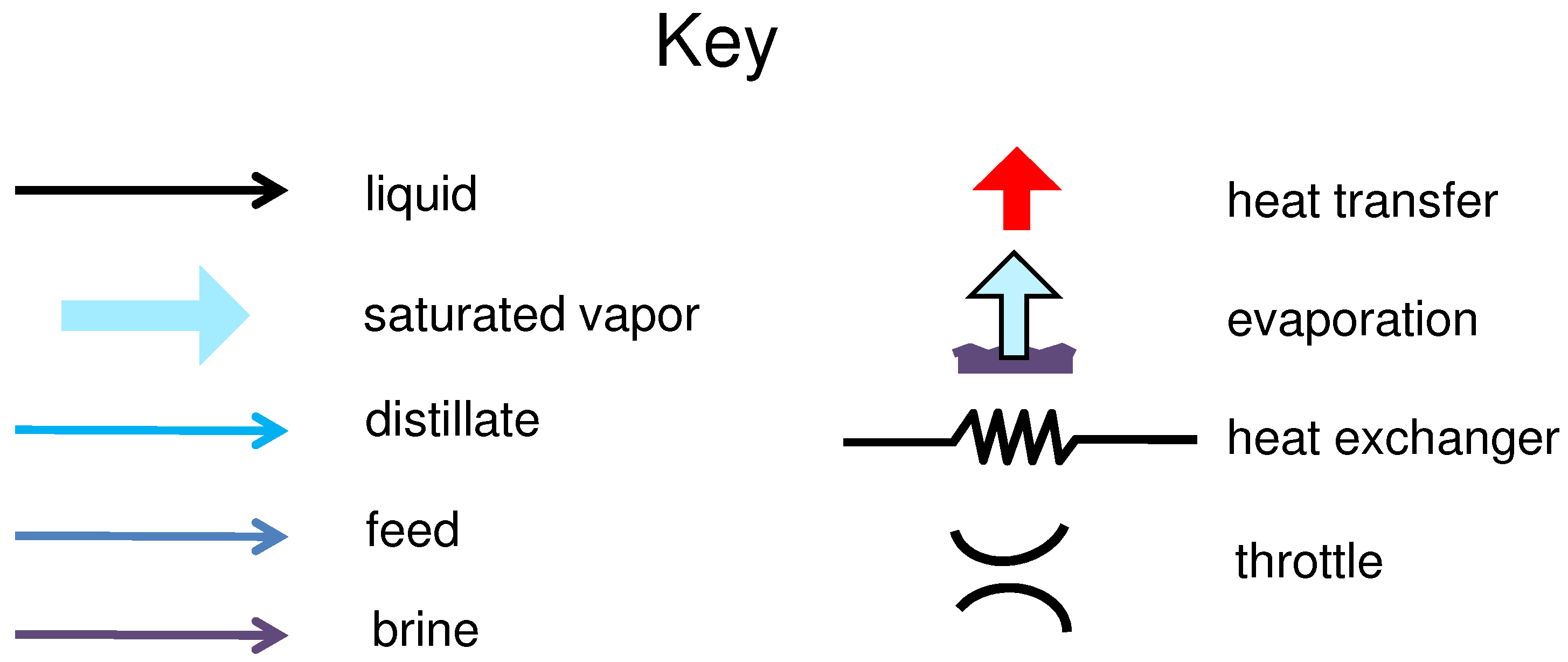

#### 5.1. Modeling Approximations and Assumptions

**Table 2.**Standard input conditions used for desalination system models. Note, ${T}_{stage}^{last}$ is only applicable to thermal technologies.

Input and Output Streams for All Systems | ||||
---|---|---|---|---|

${T}_{H1}$ | 50 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | ${T}_{sw}$ | 25 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | |

${T}_{H2}$ | 70 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | ${T}_{stage}^{last}$ | 35 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | |

${T}_{H3}$ | 90 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | ${S}_{p}$ | 0 $\mathrm{g}/\mathrm{kg}$ | |

${T}_{H4}$ | 110 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | ${S}_{sw}$ | 35 $\mathrm{g}/\mathrm{kg}$ |

- (1)
- All processes are modeled as steady state.
- (2)
- Heat transfer to the environment is negligible.
- (3)
- All streams are considered well mixed and bulk physical properties are used.
- (4)
- Heat transfer coefficients are constant within a given heat exchanger.
- (5)
- Seawater properties can be calculated using correlations from Sharqawy et al. [19].
- (6)
- Product water is pure (zero salinity).
- (7)
- In systems with multiple stages, the number of stages was proportionally reduced for lower waste heat temperature.
- (8)
- In systems with multiple stages, the recovery in each remaining stage stays roughly the same for lower temperatures.
- (9)
- Pumping power may be neglected in thermal systems.
- (10)
- Temperature drop across heat exchangers is between 2.5 and $3.3$ ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$

#### 5.2. Multistage Flash

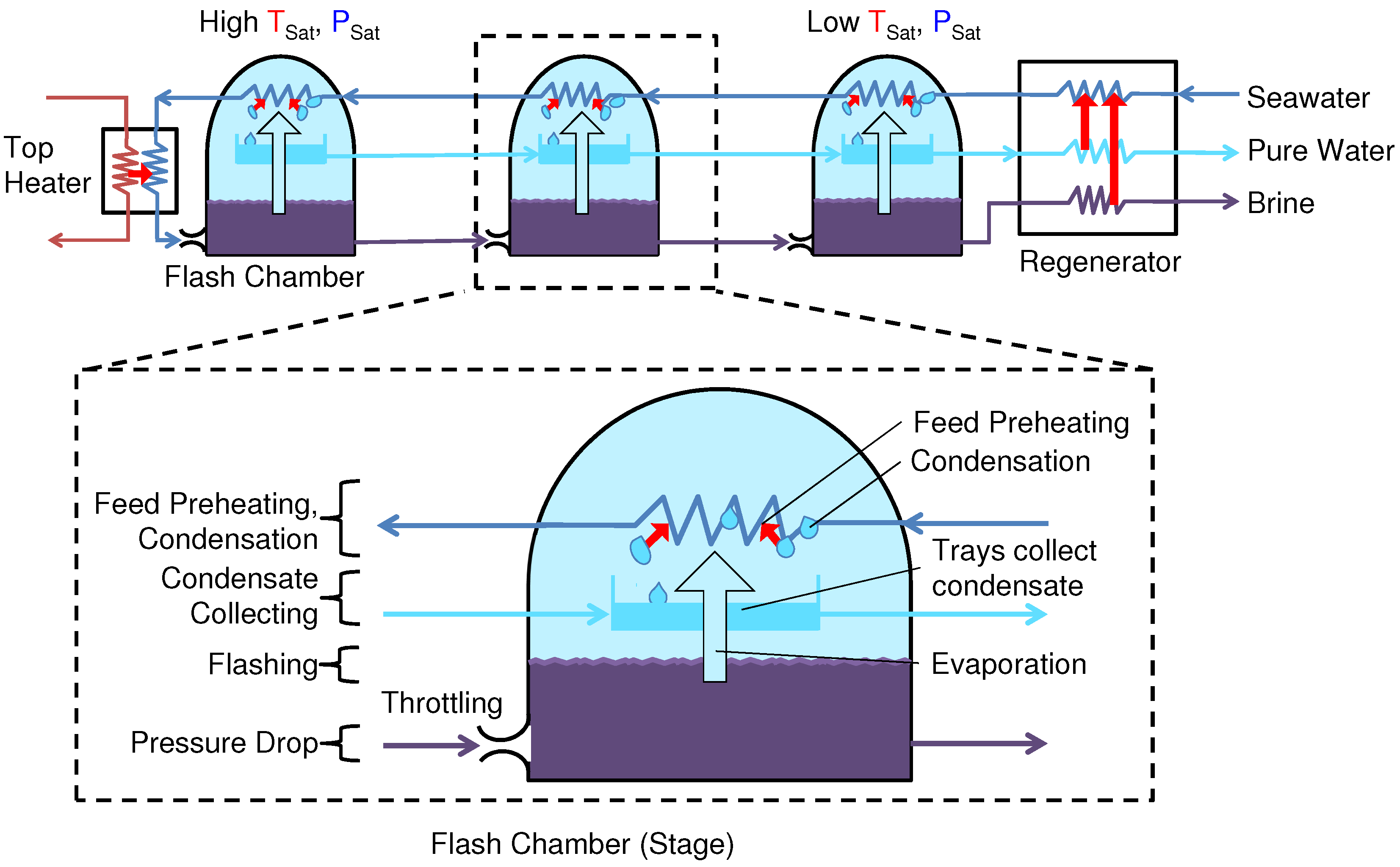

- In systems with multiple stages, the $\Delta T$ across each stage is constant.
- $\Delta {T}_{\text{exchanger}}^{heat}=3$ ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ and $\Delta {T}_{\text{stages}}=$ $2.85$ ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$, where the latter sets the number of stages [16].

Parameter | ${T}_{H}$ | |||||
---|---|---|---|---|---|---|

Output | $110{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | $90{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | $70{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | $50{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | ||

Number of stages | n | (-) | 24 | 17 | 11 | 4 |

Gained output ratio | GOR | (-) | 10.3 | 7.3 | 4.4 | 1.4 |

Recovery ratio | RR | (-) | 11.1% | 7.7% | 4.3% | 1.3% |

Steam flow rate | ${\dot{m}}_{s}$ | (kg/s) | 0.0983 | 0.137 | 0.222 | 0.674 |

Brine salinity | ${y}_{n}$ | (g/kg) | 39.4 | 37.9 | 36.6 | 35.5 |

Second Law efficiency | ${\eta}_{II}$ | (%) | 6.28% | 5.67% | 4.98% | 3.25% |

Entropy generation | ${\mathcal{S}}_{\text{gen}}$ | (J/kgK) | 182.6 | 203.2 | 233.2 | 364.5 |

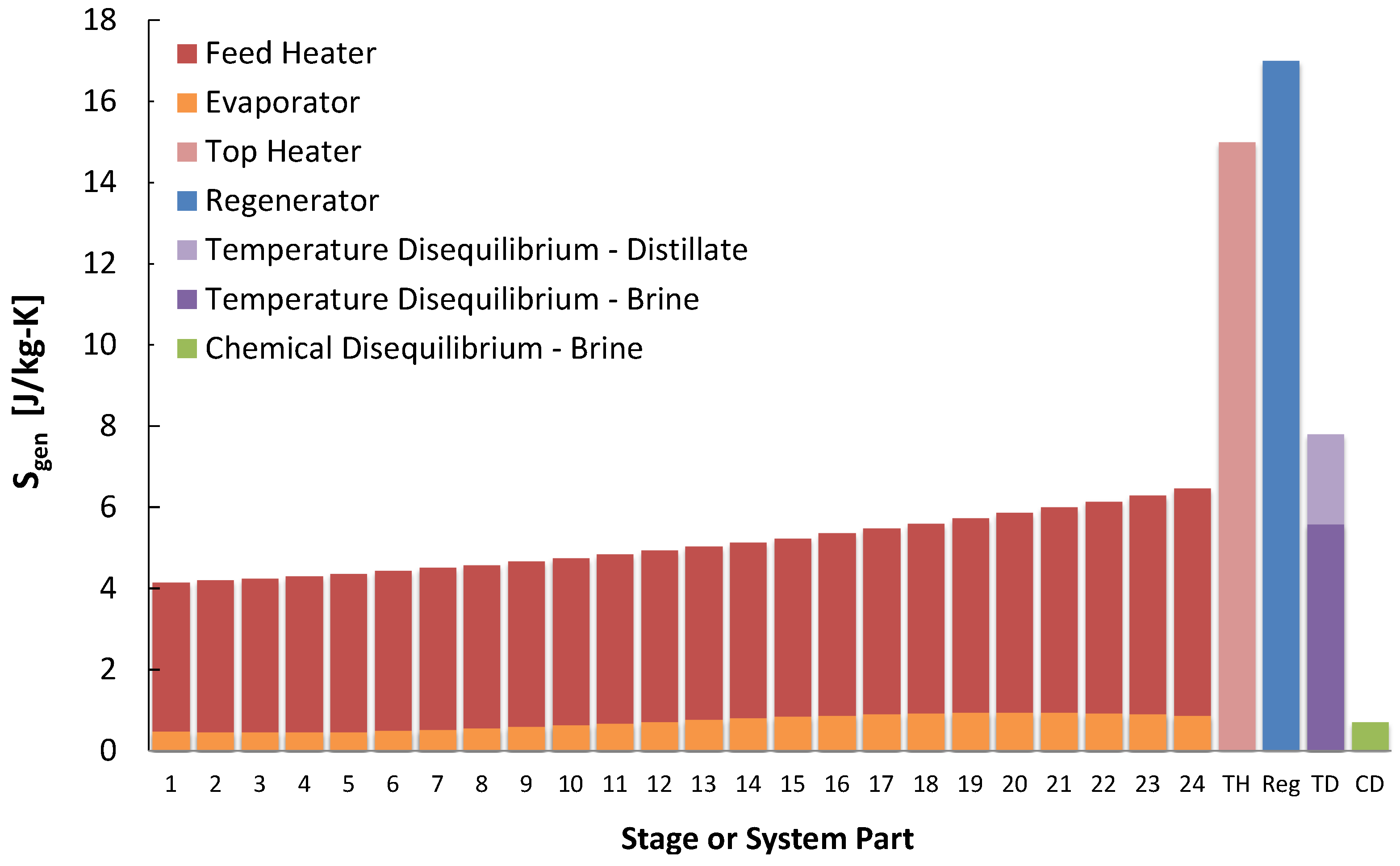

**Figure 7.**Entropy generation per kilogram product water produced in each multistage flash (MSF) component at a heat source temperature of 110 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.

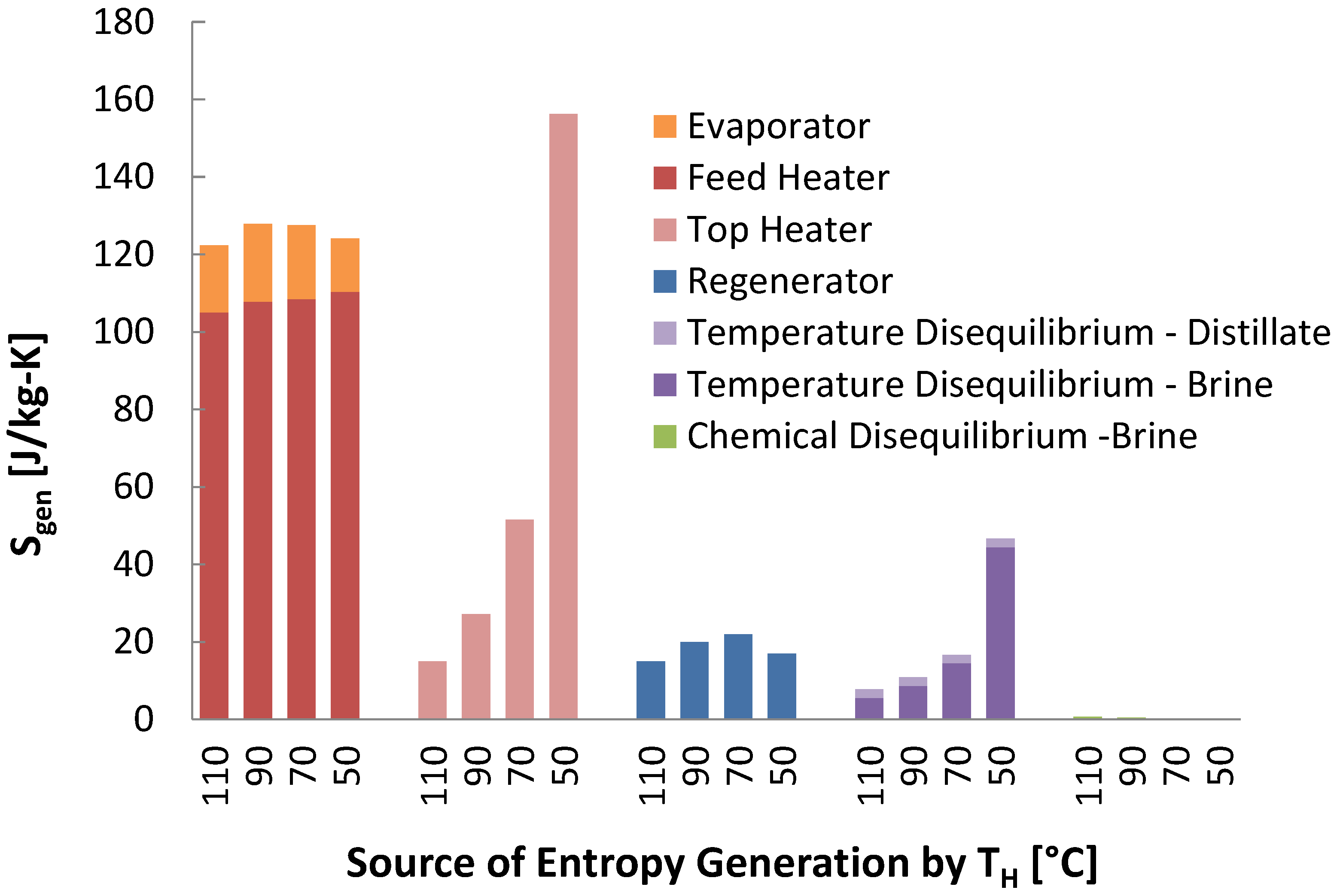

**Figure 8.**Entropy generation per kilogram product water produced in each multistage flash (MSF) component for all four temperatures modeled.

#### 5.3. Multiple Effect Distillation

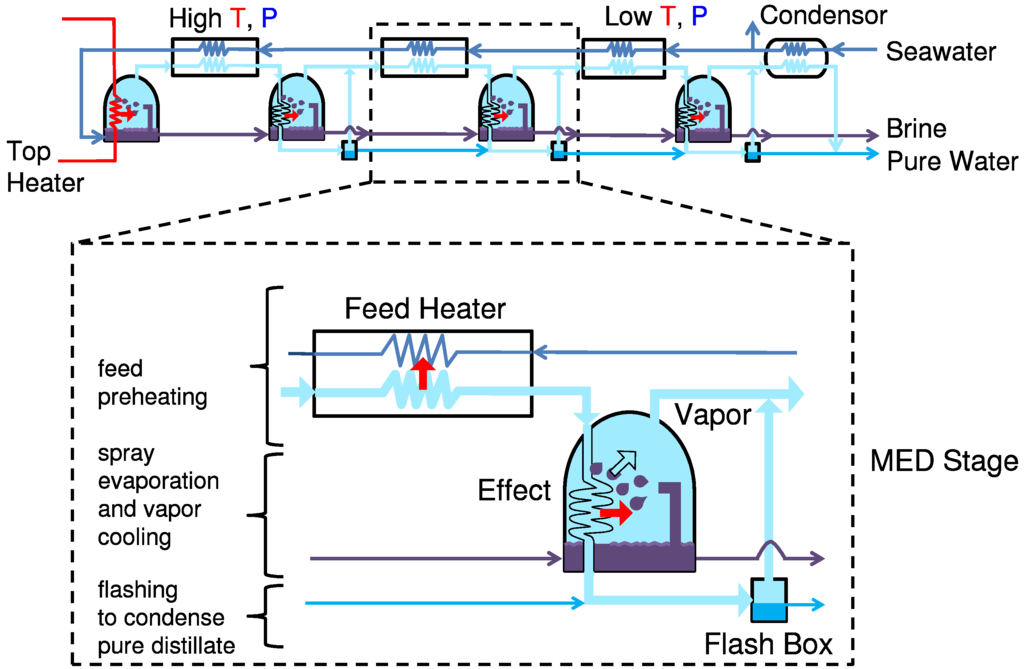

- Exchanger area in the effects is just large enough to condense vapor to saturated liquid (i.e., $x=0$) at the previous effect’s pressure.
- Seawater is an incompressible liquid and the properties are only a function of temperature and salinity.
- Non-equilibrium allowance (NEA) is negligible [9].
- Brine (liquid) and distillate (vapor) streams leave each effect at that effect’s temperature. Distillate vapor is slightly superheated.
- The overall heat transfer coefficient in each effect, feed heater, and condenser is a function of temperature only [9].

**Table 4.**Summary of results for a forward feed multi-effect distillation system operating at 50 and 70 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.

Parameter | ${T}_{H}$ | |||
---|---|---|---|---|

Output | $70{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | $50{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | ||

Number of stages | n | (-) | 12 | 5 |

Gained output ratio | GOR | (-) | 9.349 | 4.048 |

Recovery ratio | RR | [%] | 40% | 17.5% |

Steam flow rate | ${\dot{m}}_{s}$ | (kg/s) | 0.1119 | 0.2526 |

Brine salinity | ${y}_{n}$ | (g/kg) | 58.3 | 42.4 |

Second Law efficiency | ${\eta}_{II}$ | (%) | 10.59 | 6.58 |

Entropy generation | ${\mathcal{S}}_{\text{gen}}$ | (J/kgK) | 102.4 | 139.1 |

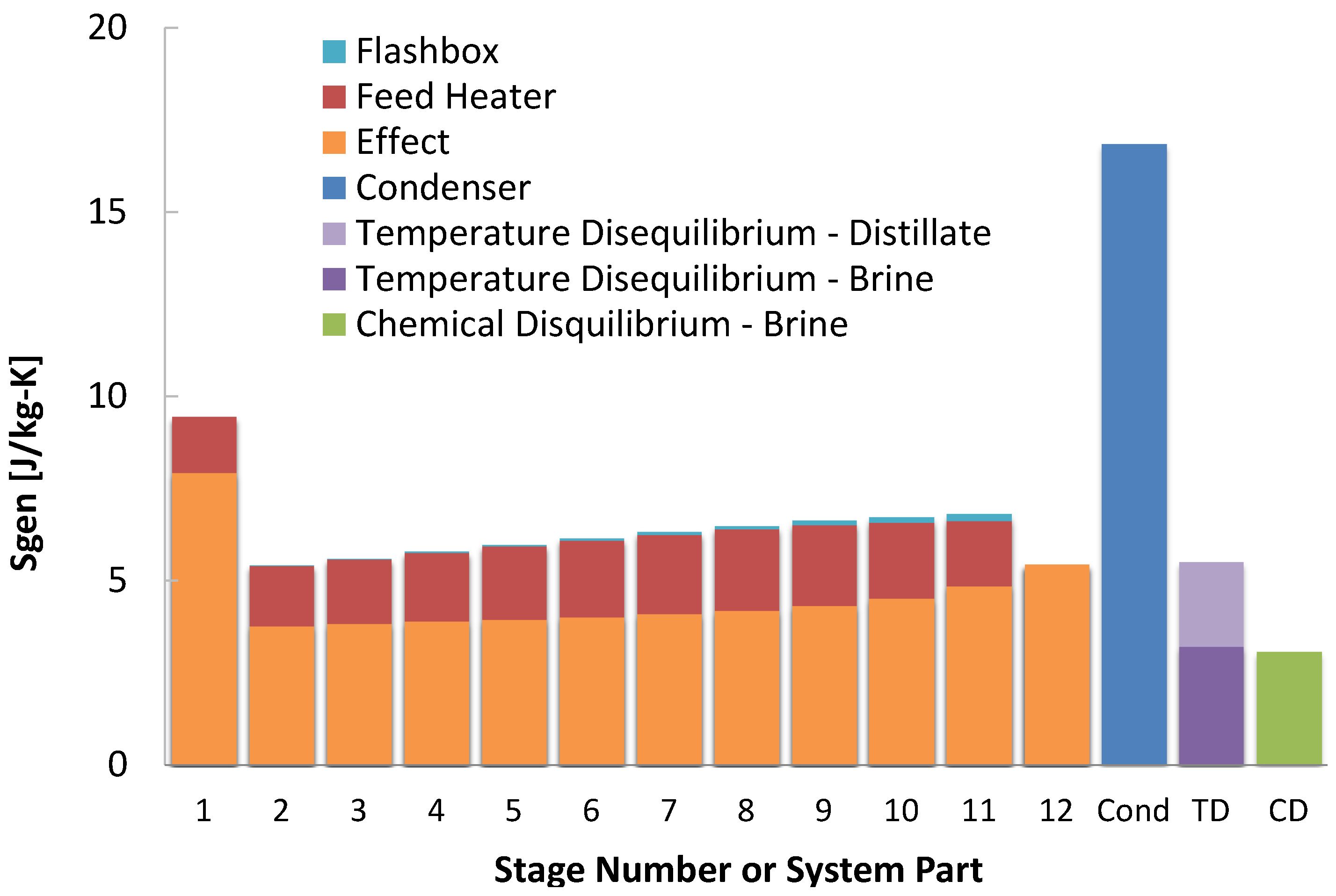

**Figure 10.**Entropy generation per kilogram product water produced in each multi-effect distillation component at a heat source temperature of 110 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.

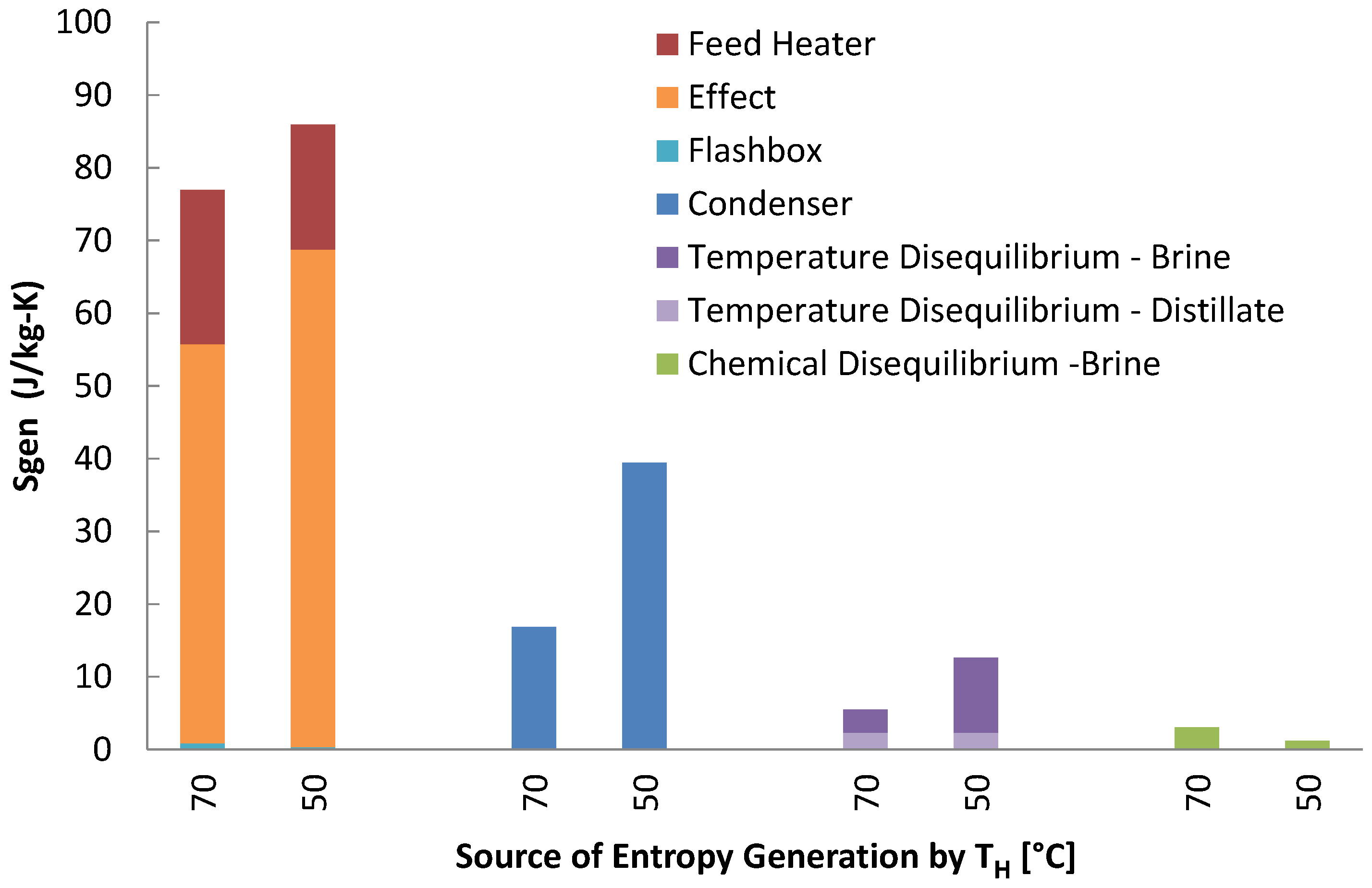

**Figure 11.**Entropy generation per kilogram product water produced in each multi-effect distillation component for all temperatures modeled.

#### 5.4. MSVMD

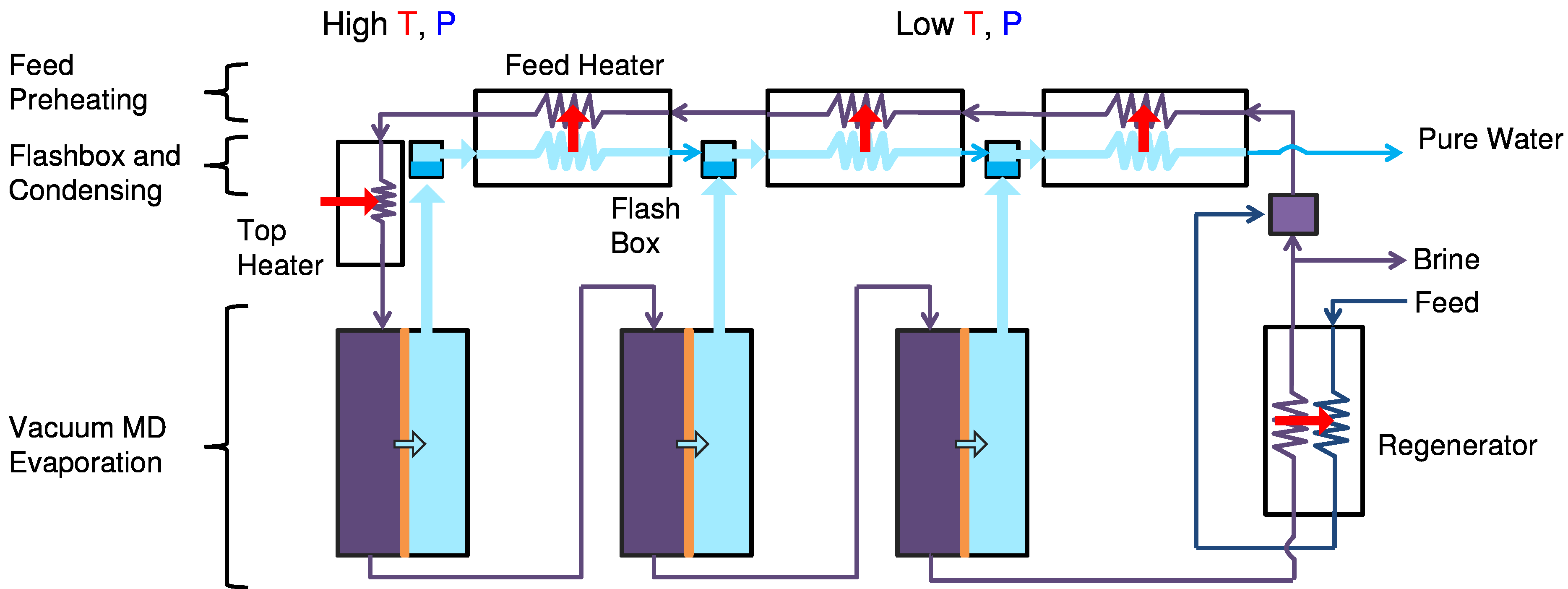

- Heat exchanger area is just enough to fully condense the vapor; saturated liquid leaves the exchanger.
- Smallest temperature difference between any heat exchanging streams are set to be 3 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.
- Heat transfer coefficient and mass transfer coefficient are calculated using pure water properties.

Parameter | ${T}_{H}$ | ||||
---|---|---|---|---|---|

Output | $90{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | $70{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | $50{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | ||

Number of stages | n | [-] | 18 | 11 | 4 |

Gained output ratio | GOR | [-] | 7.8 | 4.8 | 1.8 |

Recovery ratio | RR | [%] | 8.48 | 5.25 | 1.97 |

Second Law efficiency | ${\eta}_{II}$ | [%] | 4.84 | 4.05 | 2.57 |

Entropy generation | ${\mathcal{S}}_{\text{gen}}$ | [J/kgK] | 178.7 | 215.5 | 344.1 |

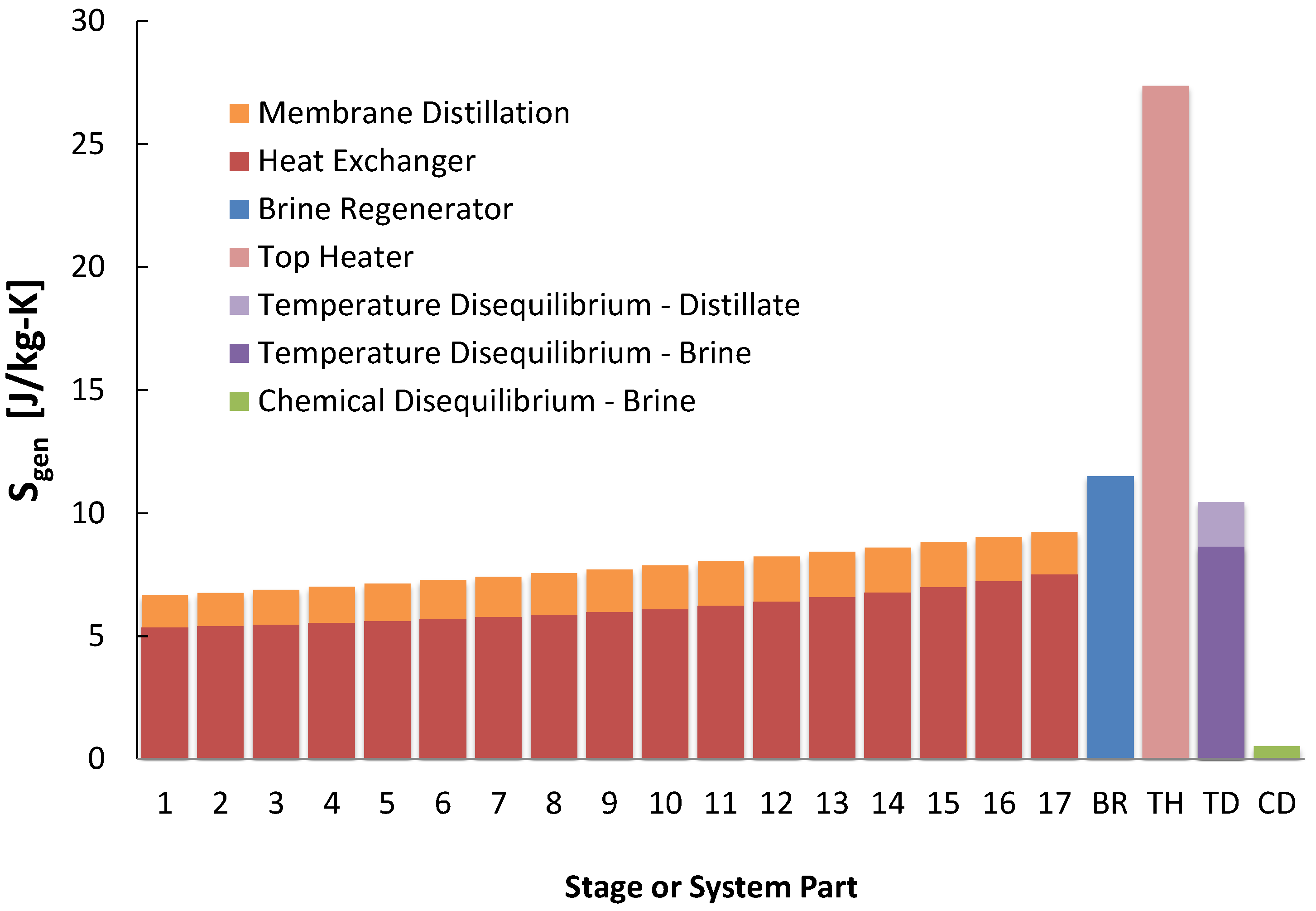

**Figure 13.**Entropy generation per kilogram product water produced for each component in multistage vacuum membrane distillation (MSVMD) for a heat source temperature of 90 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.

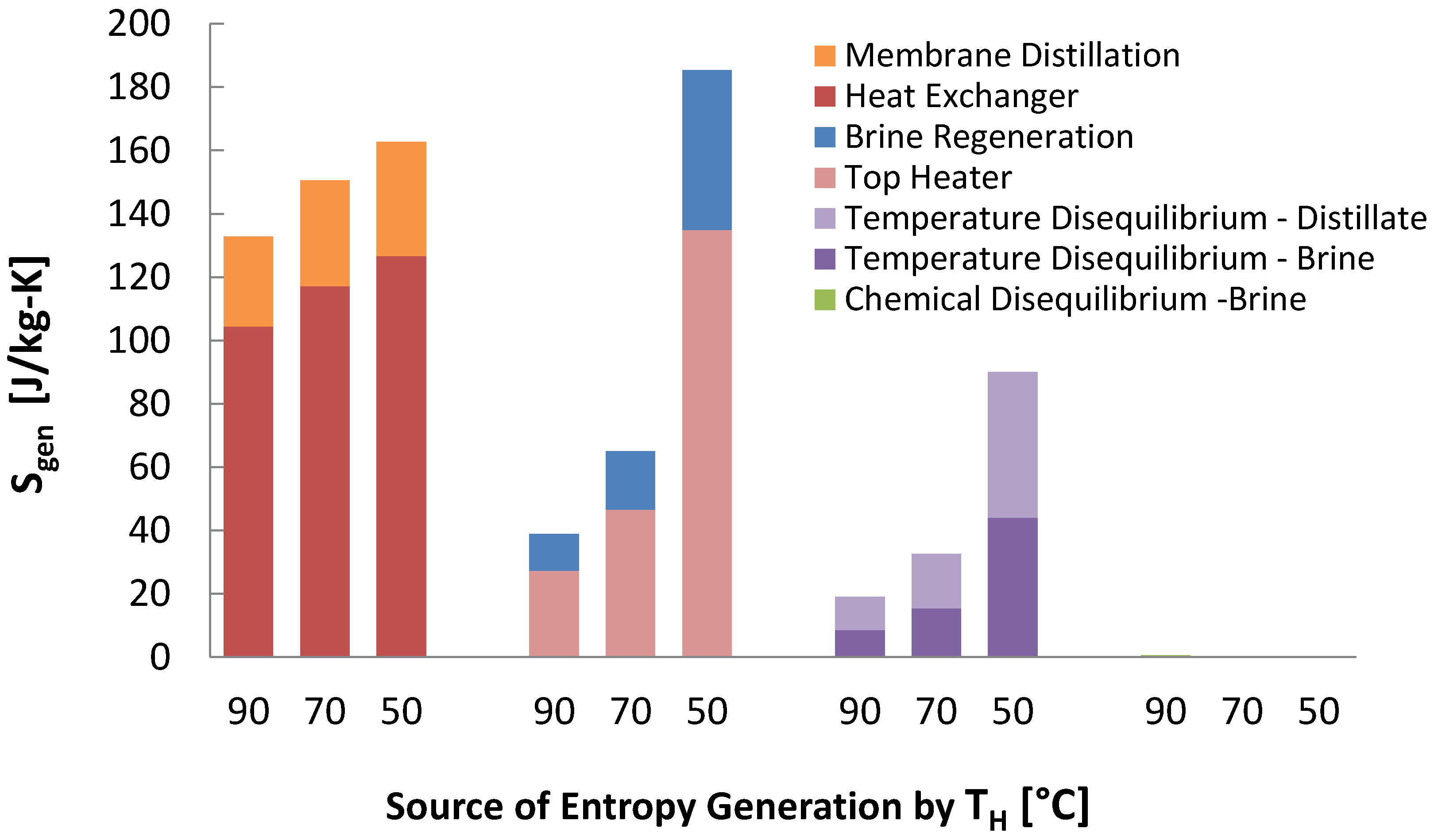

**Figure 14.**Entropy generation per kilogram product water produced for each component in multistage vacuum membrane distillation (MSVMD) for all 3 temperatures modeled.

#### 5.5. Humidification-Dehumidification

Parameter | |||
---|---|---|---|

Input | Symbol | Units | Value |

Temperature pinch | $\Delta {T}_{\mathrm{pinch}}$ | (${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$) | 3 |

Dehumidifier Heat Capacity Ratio | $HC{R}_{\text{d}}$ | (-) | 1 |

Moist Air Relative Humidity | $R{H}_{\mathrm{ma}}$ | (%) | 100 |

**Table 7.**Summary of results for a Humidification-dehumidification system operating at 50, 70 and 90 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$.

Parameter | ${T}_{\mathrm{H}}$ | ||||
---|---|---|---|---|---|

Output | Symbol | Units | $90{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | $70{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ | $50{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\text{C}$ |

Gained output ratio | GOR | (-) | 2.1 | 2.2 | 1.7 |

Recovery ratio | RR | (%) | 7.1 | 4.8 | 2.4 |

Heat input | ${Q}_{H}$ | (kJ/kg) | 1173 | 1118 | 1405 |

Water-air mass flow rate ratio | MR | (-) | 4.1 | 2.5 | 1.6 |

Brine salinity | ${y}_{b}$ | (g/kg) | 37.7 | 36.8 | 35.8 |

Entropy generation | ${S}_{gen}$ | (J/kgK) | 564 | 414 | 325 |

Second Law efficiency | ${\eta}_{II}$ | (%) | 1.29 | 1.85 | 2.49 |

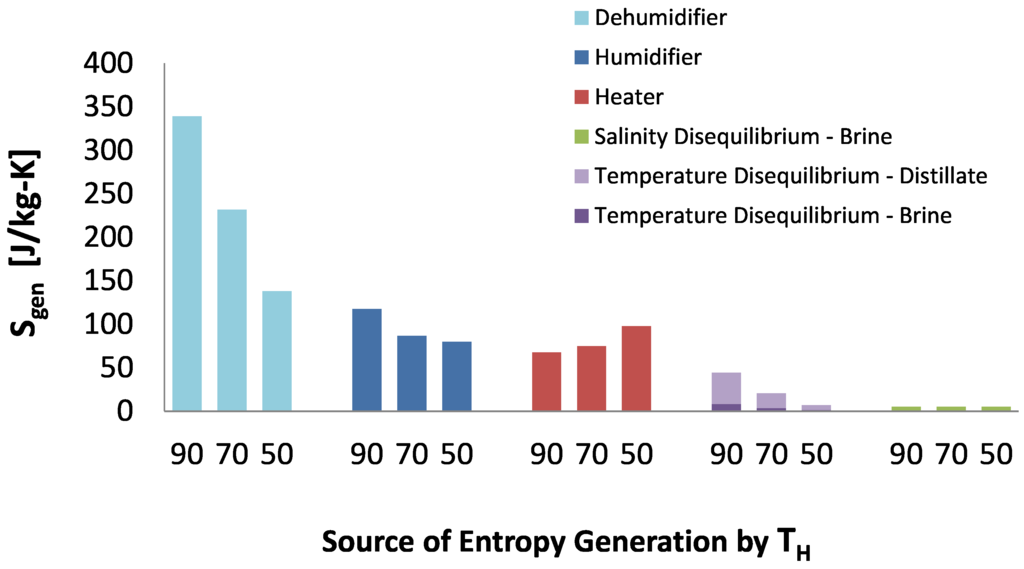

**Figure 16.**Entropy generation per kilogram product water produced in each humidification-dehumidification component for all 3 temperatures modeled.

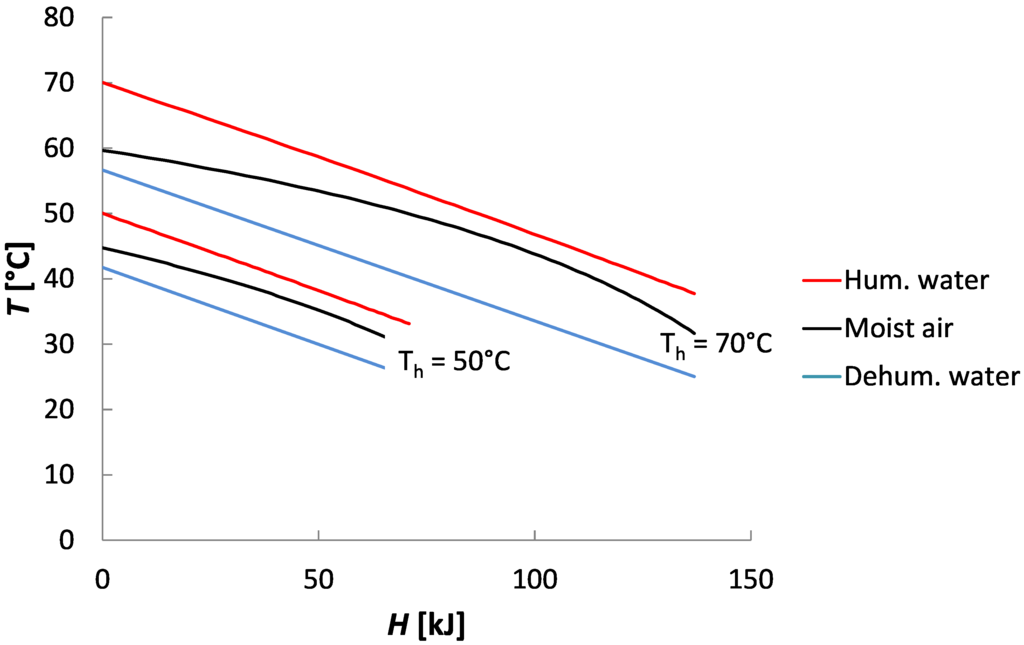

**Figure 17.**Temperature-enthalpy profiles for water and moist air streams in Humidification Dehumidification Desalination. The dehumidifier and humidifier T-H curves for ${T}_{\mathrm{H}}$ = 50 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ and 90 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ are shown. The minimum temperature pinch is set between cases. The larger curvature in the 70 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ case increased the average temperature gradient for heat exchange, and is the reason humidification-dehumidification (HDH) efficiency decreases at higher temperature, unlike other technologies.

#### 5.6. Organic Rankine Cycle

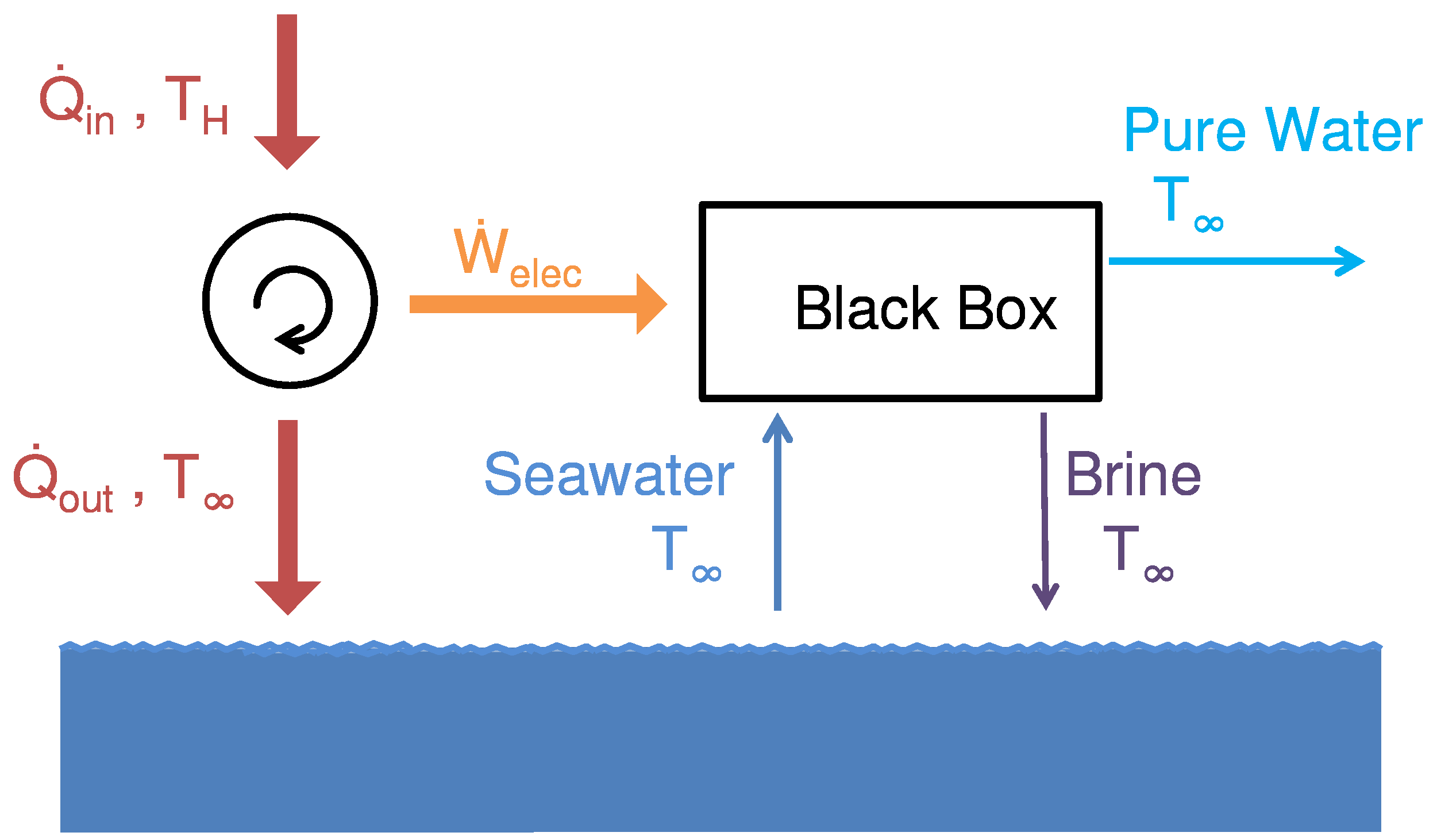

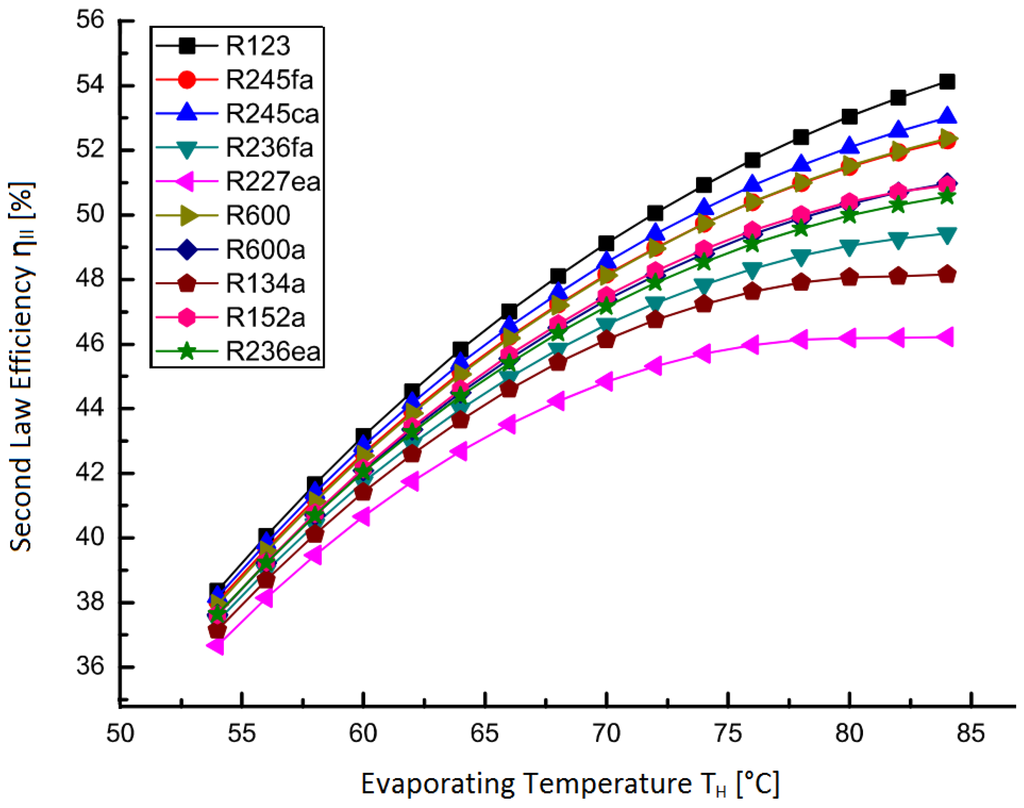

**Figure 19.**Organic Rankine cycle Second Law efficiency vs. evaporating temperature with ${T}_{0}=26{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ from Shengjun et al. [13].

#### 5.7. Mechanical Vapor Compression

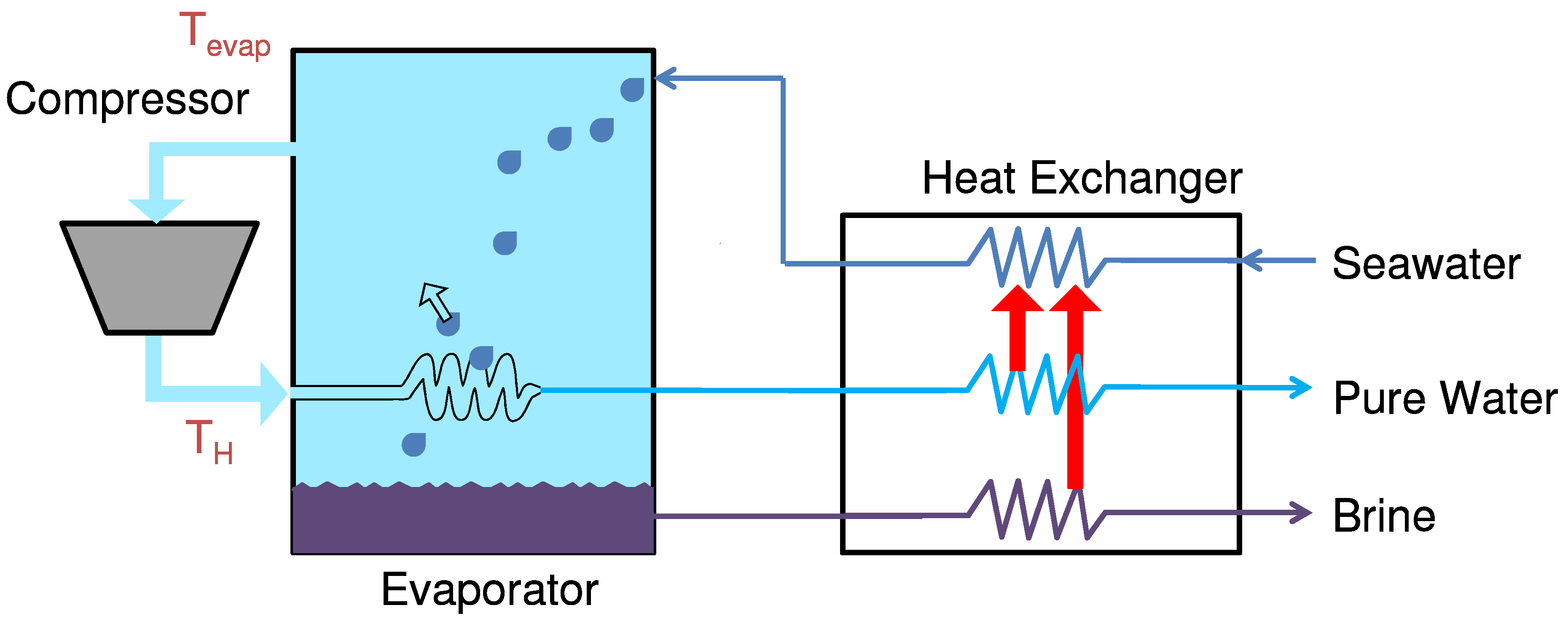

Input | Symbol | Value |
---|---|---|

Top brine temperature | ${T}_{b}$ | 60 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ |

Pinch: evaporator-condenser | $\Delta {T}_{evap}$ | $2.5$ ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ |

Pinch: regenerator | $\Delta {T}_{regen}$ | 3 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ |

Compressor inlet pressure | ${P}_{c,in}$ | 19.4 kPa |

Recovery ratio | RR | 40% |

Isentropic compressor efficiency | ${\eta}_{c}$ | 70% |

Output | Symbol | Value |
---|---|---|

Specific electricity consumption | ${\dot{W}}_{elec}$ | 8.84 kWh/m^{3} |

Discharged brine temperature | ${T}_{b}$ | 27.2 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ |

Product water temperature | ${T}_{p}$ | 29.7 ${\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ |

Compression ratio | $CR$ | 1.15 |

Second Law efficiency | ${\eta}_{\mathit{II}}$ | 8.5% |

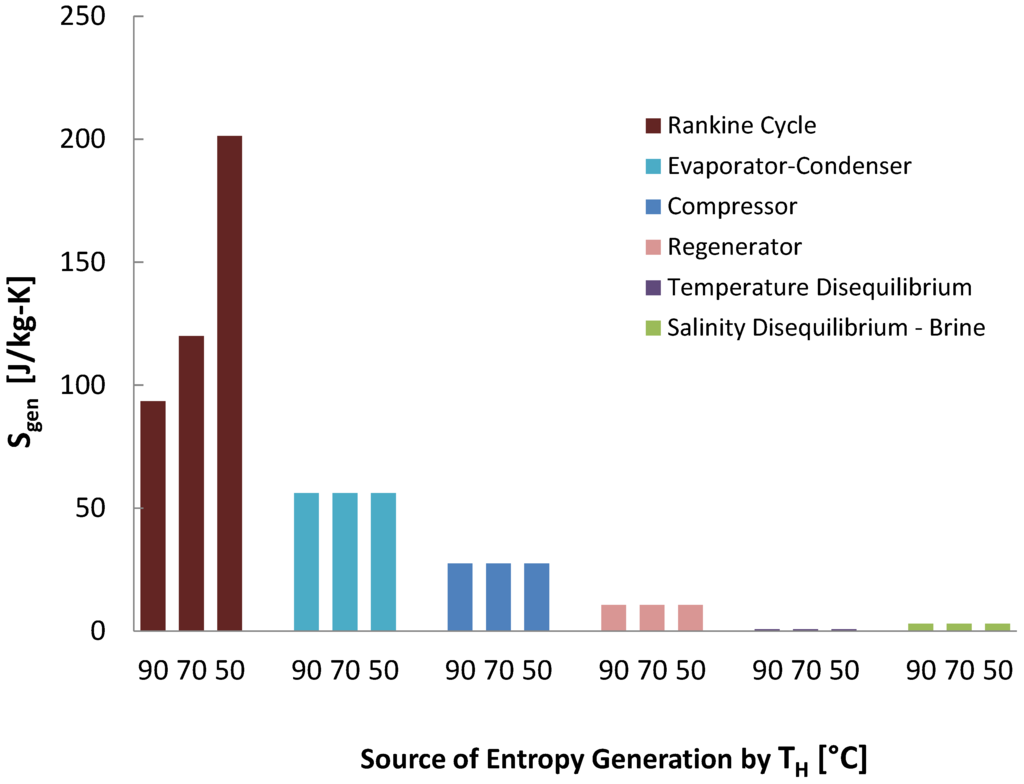

**Figure 21.**Entropy generation per kilogram product water produced in each mechanical vapor compression component for all three temperatures modeled.

#### 5.8. Reverse Osmosis

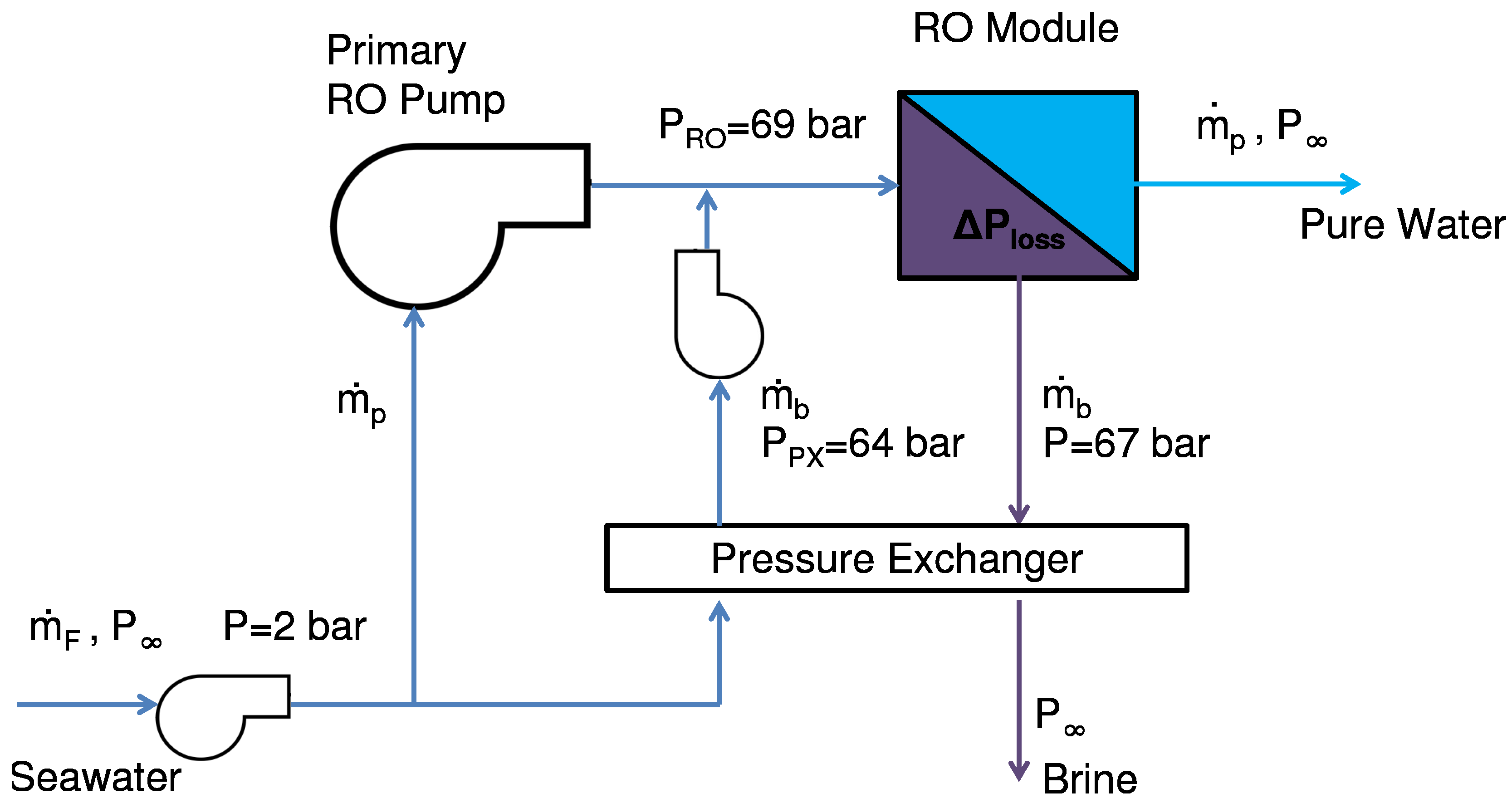

Input | Symbol | Value |
---|---|---|

Pump efficiency | ${\eta}_{pump}$ | 85% |

Pressure exchanger efficiency | ${\eta}_{PX}$ | 96% |

Feed pressure | ${P}_{feed}$ | 2 bar |

RO pressure | ${P}_{RO}$ | 69 bar |

Recovery ratio | RR | 40% |

Output | Symbol | Value |
---|---|---|

Specific electricity consumption | ${\dot{W}}_{elec}$ | 2.35 kWh/m^{3} |

RO unit Second Law efficiency | ${\eta}_{II,RO}$ | 31.9% |

Total Second Law efficiency, ${T}_{H}=90{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | ${\eta}_{II,90}$ | 17.3% |

Total Second Law efficiency, ${T}_{H}=70{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | ${\eta}_{II,70}$ | 15.3% |

Total Second Law efficiency, ${T}_{H}=50{\phantom{\rule{0.166667em}{0ex}}}^{\circ}\mathrm{C}$ | ${\eta}_{II,50}$ | 10.8% |

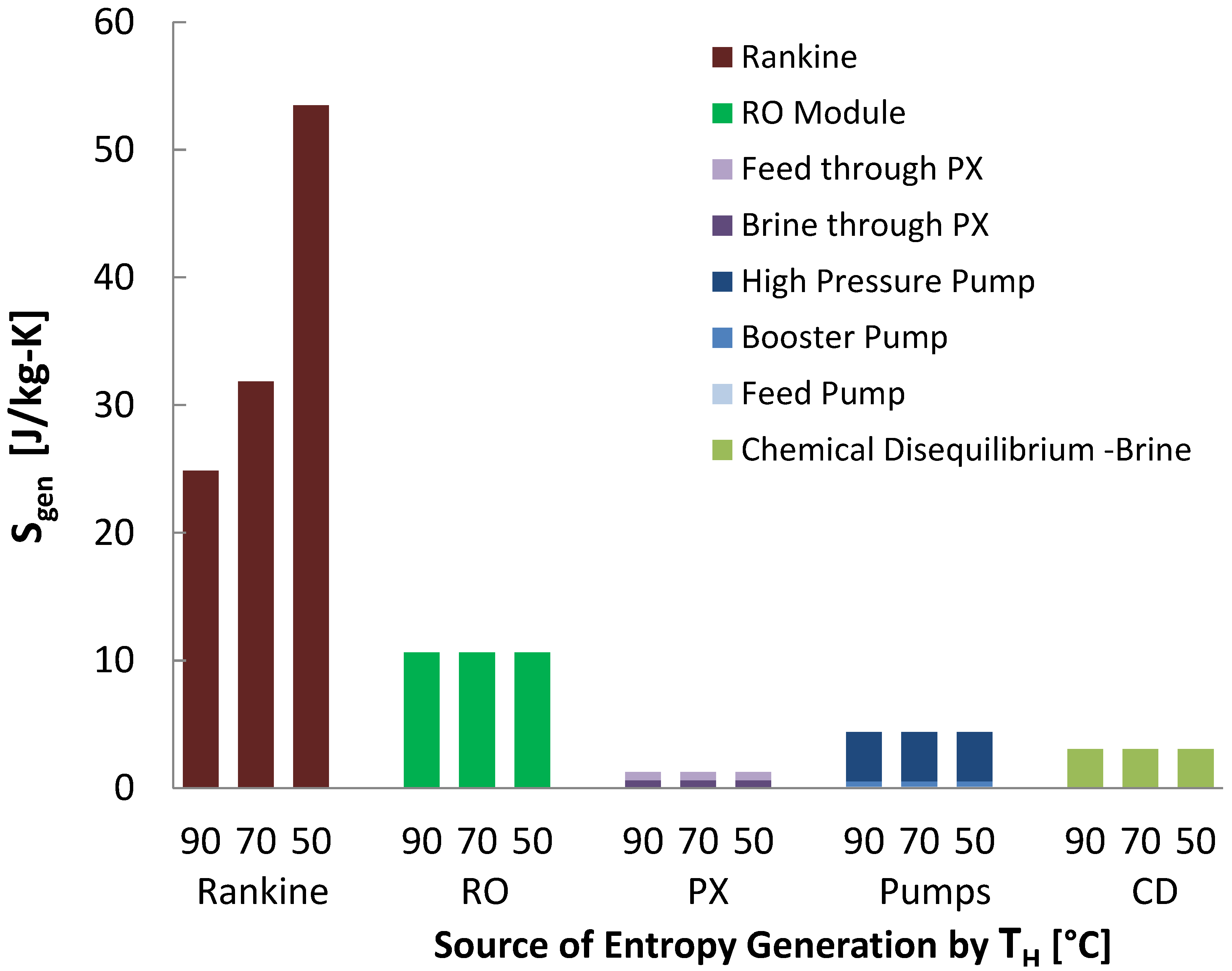

**Figure 23.**Entropy generation per kilogram product water produced in each reverse osmosis component for all four temperatures modeled.

## 6. Applicability of Analysis to Systems of Different Costs and Sizes

## 7. Technology Comparison

## 8. Comparison of Entropy Generation in Desalination System Components at Different Temperatures

- (1)
- Temperature Gradients Across Heat Exchangers (In order from most to least ${\mathcal{S}}_{\text{gen}}$: Feed Heaters, Stages or Effects, Top Heaters, Condensers, Regenerators,).
- (2)
- Rankine Cycle Losses.
- (3)
- Temperature Disequilibrium of Product and Brine
- (4)
- Compressors (MVC)
- (5)
- Phase Change (Flashing etc.)
- (6)
- RO Module
- (7)
- Throttling/Expansion
- (8)
- Pumping Losses (RO)
- (9)
- Chemical Disequilibrium of Brine

## 9. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Nomenclature

Roman symbols | Units | |

B | membrane permeability | ${\mathrm{m}}^{2}$s/kg |

c | specific heat | kJ/kg-K |

${c}_{p}$ | specific heat at constant pressure | kJ/kg-K |

g | specific Gibbs free energy | kJ/kg |

h | specific enthalpy | kJ/kg |

h | specific enthalpy | kJ/kg |

h_{fg} | latent heat of vaporization | kJ/kg |

$\dot{m}$ | mass flow rate | kg/s |

J | membrane flux | kg/ ${\mathrm{m}}^{2}$s |

n | number of effects or stages | |

p | pressure | kPa |

P | vapor pressure | kPa |

$\dot{Q}$ | heat transfer | kW |

${\dot{Q}}_{\mathrm{least}}$ | least heat of separation | kW |

${\dot{Q}}_{\mathrm{least}}^{\mathrm{min}}$ | minimum least heat of separation (zero recovery) | kW |

${\dot{Q}}_{H}$ | heat of separation, kW, added at ${T}_{H}$ | |

${\dot{Q}}_{0}$ | heat rejected to environment, kW, exiting at ${T}_{0}$ | |

R | ideal gas constant | kJ/kg-K |

r | recovery ratio | (kg/s product)/(kg/s feed) |

${\dot{S}}_{\mathrm{gen}}$ | entropy generation rate | kW/K |

s | specific entropy | kJ/kg-K |

${s}_{\mathrm{gen}}$ | specific entropy generation per unit flow | kJ/kg-K |

${\mathcal{S}}_{\mathrm{gen}}$ | specific entropy generation per unit water produced | kJ/kg-K |

T | temperature | K |

${T}_{0}$ | ambient (dead state) temperature | K |

${T}_{H}$ | temperature of heat reservoir | K |

v | specific volume | m^{3}/kg |

${\dot{W}}_{\mathrm{least}}$ | least work of separation | kW |

${\dot{W}}_{\mathrm{least}}^{\mathrm{min}}$ | minimum least work of separation | kW |

${\dot{W}}_{\mathrm{sep}}$ | work of separation | kW |

x | vapor quality | |

Greek | ||

Δ | change in a variable | |

${\eta}_{e}$ | isentropic efficiency of expander | (-) |

${\eta}_{p}$ | isentropic efficiency of pump/compressor | (-) |

${\eta}_{\mathit{II}}$ | Second Law/exergetic efficiency | (-) |

${\eta}_{reduced}$ | efficiency reduction from decreasing ${T}_{H}$ | (-) |

${\eta}_{p}$ | pump or compressor efficiency | (-) |

ρ | density | (kg/m^{3}) |

$\dot{\Xi}$ | Exergy flow rate | kW |

${\dot{\Xi}}_{H}$ | Exergy input | kW |

ρ | density | (kg/m^{3}) |

Subscripts | ||

∞ | environment | |

b | brine | |

flash | flashing | |

f | feed | |

i | state | |

p | product | |

$\mathrm{sw}$ | feed seawater | |

ref | reference value | |

1 | initial value | |

2 | final value | |

Superscripts | ||

IF | incompressible fluid | |

IG | ideal gas | |

${}^{\prime}$ | stream before exiting CV | |

$\Delta p$ | Pressure Change | |

Acronyms | ||

CD | chemical disequilibrium | |

GOR | gained output ratio | |

HD | humidification-dehumidification | |

MED | multiple effect distillation | |

MSF | multistage flash | |

MSVMD | Ms multistage vacuum membrane distillation | |

MVC | mechanical vapor compression | |

ORC | organic Rankine cycle | |

RO | reverse osmosis | |

## References

- UN-Water. The United Nations World Water Development Report 2015, Water for a Sustainable World; the United Nations Educational, Scientific and Cultural Organization: Paris, France, 2015. [Google Scholar]
- Miller, J.E. Review of Water Resources and Desalination Technologies; Technical Report SAND 2003-0800; Sandia National Laboratories: Livermore, CA, USA, 2003.
- Committee on Advancing Desalination Technology; National Research Council. Desalination: A National Perspective; The National Academies Press: Washington, DC, USA, 2008. [Google Scholar]
- Warsinger, D.; Swaminathan, J.; Maswadeh, L.; Lienhard V, J.H. Superhydrophobic condenser surfaces for air gap membrane distillation. J. Membr. Sci.
**2015**, 492, 578–587. [Google Scholar] [CrossRef] - Al-Weshahi, M.A.; Anderson, A.; Tian, G. Organic Rankine cycle recovering stage heat from MSF desalination distillate water. Appl. Energy
**2014**, 130, 738–747. [Google Scholar] [CrossRef] - Ghaffour, N.; Lattemann, S.; Missimer, T.; Ng, K.C.; Sinha, S.; Amy, G. Renewable energy-driven innovative energy-efficient desalination technologies. Appl. Energy
**2014**, 136, 1155–1165. [Google Scholar] [CrossRef] - Johnson, I.; Choate, W.; Davidson, A. Waste heat recovery: technology and opportunities in U.S. Industry. US Department of Energy, Office of Energy Efficiency and Renewable Energy, Industrial Technologies Program, 2008. [Google Scholar]
- Bejan, A. Advanced Engineering Thermodynamics, 3rd ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2006. [Google Scholar]
- El-Dessouky, H.T.; Ettouney, H.M. Fundamentals of Salt Water Desalination; Elsevier: Amsterdam, The Netherlands, 2002. [Google Scholar]
- Mistry, K.H.; Antar, M.A.; Lienhard V, J.H. An improved model for multiple effect distillation. Desalination Water Treat.
**2013**, 51, 807–821. [Google Scholar] [CrossRef] - Chung, H.W.; Swaminathan, J.; Warsinger, D.; Lienhard V, J.H. Design study of multistage vacuum membrane distillation (MSVMD) system for high salinity application. J. Membr. Sci.
**2016**, 497, 128–141. [Google Scholar] [CrossRef] - Mistry, K.H.; Lienhard V, J.H.; Zubair, S.M. Effect of entropy generation on the performance of humidification-dehumidification desalination cycles. Int. J. Ther. Sci.
**2010**, 49, 1837–1847. [Google Scholar] [CrossRef] - Shengjun, Z.; Huaixin, W.; Tao, G. Performance comparison and parametric optimization of subcritical Organic Rankine Cycle (ORC) and transcritical power cycle system for low-temperature geothermal power generation. Appl. Energy
**2011**, 88, 2740–2754. [Google Scholar] [CrossRef] - Energy Recovery Inc. Technology Overview. Available online: http://www.energyrecovery.com/index.cfm/0/0/33-Overview.html (accessed on 1 February 2014).
- Mistry, K.H.; Mitsos, A.; Lienhard V, J.H. Optimal operating conditions and configurations for humidification-dehumidification desalination cycles. Int. J. Ther. Sci.
**2011**, 50, 779–789. [Google Scholar] [CrossRef] - Mistry, K.H.; McGovern, R.K.; Thiel, G.P.; Summers, E.K.; Zubair, S.M.; Lienhard V, J.H. Entropy generation analysis of desalination technologies. Entropy
**2011**, 13, 1829–1864. [Google Scholar] [CrossRef] [Green Version] - Mistry, K.H.; Lienhard V, J.H. An economics-based second law efficiency. Entropy
**2013**, 15, 2736–2765. [Google Scholar] [CrossRef] [Green Version] - Mistry, K.H.; Lienhard V, J.H. Generalized least energy of separation for desalination and other chemical separation processes. Entropy
**2013**, 15, 2046–2080. [Google Scholar] [CrossRef] - Sharqawy, M.H.; Lienhard V, J.H.; Zubair, S.M. Thermophysical properties of seawater: A review of existing correlations and data. Desalination Water Treat.
**2010**, 16, 354–380. [Google Scholar] [CrossRef] - Alasfour, F.; Darwish, M.; Amer, A.B. Thermal analysis of ME – TVC + MEE desalination systems. Desalination
**2005**, 174, 39–61. [Google Scholar] [CrossRef] - Klein, S.A. Engineering Equation Solver Version 9. Available online: http://www.fchart.com/ees/ (accessed on 1 March 2014).
- Antar, M.A.; Zubair, S.M. Multi Stage Flash (MSF) Evaporation Desalination Systems; Mechanical Engineering Department, King Fahd University of Petroleum and Minerals (KFUPM): Dhahran, Saudi Arabia, 2009. [Google Scholar]
- El-Sayed, Y.M.; Silver, R.S. Principles of Desalination; Academic Press: New York, NY, USA, 1980; Volume A, pp. 55–109. [Google Scholar]
- Darwish, M.; Al-Juwayhel, F.; Abdulraheim, H.K. Multi-effect boiling systems from an energy viewpoint. Desalination
**2006**, 194, 22–39. [Google Scholar] [CrossRef] - Ng, K.C.; Thu, K.; Oh, S.J.; Ang, L.; Shahzad, M.W.; Ismail, A.B. Recent developments in thermally-driven seawater desalination: Energy efficiency improvement by hybridization of the MED and AD cycles. Desalination
**2015**, 356, 255–270. [Google Scholar] [CrossRef] - Wagner, W.; Pruss, A. The IAPWS formulation 1995 for the thermodynamic properties of ordinary water substance for general and scientific use. J. Phys. Chem. Ref. Data
**2002**, 31, 387–535. [Google Scholar] [CrossRef] - Summers, E.K.; Arafat, H.A.; Lienhard V, J.H. Energy efficiency comparison of single-stage membrane distillation (MD) desalination cycles in different configurations. Desalination
**2012**, 290, 54–66. [Google Scholar] [CrossRef] - Warsinger, D.E.M.; Swaminathan, J.; Lienhard V, J.H. Effect of module inclination angle on air gap membrane distillation. In Proceedings of the 15th International Heat Transfer Conference, IHTC-15, Paper No. IHTC15-9351, Kyoto, Japan, 10–15 August 2014.
- Hou, S. Two-stage solar multi-effect humidification dehumidification desalination process plotted from pinch analysis. Desalination
**2008**, 222, 572–578. [Google Scholar] [CrossRef] - Narayan, G.P.; Sharqawy, M.H.; Lienhard V, J.H.; Zubair, S.M. Thermodynamic analysis of humidification dehumidification desalination cycles. Desalination Water Treat.
**2010**, 16, 339–353. [Google Scholar] [CrossRef] [Green Version] - Thiel, G.; Lienhard V, J.H. Entropy generation in condensation in the presence of high concentrations of noncondensable gases. Int. J. Heat. Mass. Tran.
**2012**, 55, 5133–5147. [Google Scholar] [CrossRef] - Chehayeb, K.M.; Cheaib, F.; Lienhard V, J.H. A numerical solution algorithm for a heat and mass transfer Model of a desalination system based on packed-bed humidification and bubble column dehumidificaton. In Proceedings of the 15th International Heat Transfer Conference, Kyoto, Japan, 10–15 August 2014; Volume 290, pp. 1–15.
- Chehayeb, K.M.; Narayan, G.P.; Zubair, S.M.; Lienhard V, J.H. Use of multiple extractions and injections to thermodynamically balance the humidification dehumidification desalination system. Int. J. Heat Mass Transf.
**2014**, 68, 422–434. [Google Scholar] [CrossRef] - Vélez, F.; Segovia, J.J.; Martín, M.C.; Antolín, G.; Chejne, F.; Quijano, A. A technical, economical and market review of organic Rankine cycles for the conversion of low-grade heat for power generation. Renew. Sustain. Energy Rev.
**2012**, 16, 4175–4189. [Google Scholar] [CrossRef] - Hung, T.; Shai, T.; Wang, S. A review of organic Rankine cycles (ORCs) for the recovery of low-grade waste heat. Energy
**1997**, 22, 661–667. [Google Scholar] [CrossRef] - Li, C.; Besarati, S.; Goswami, Y.; Stefanakos, E.; Chen, H. Reverse osmosis desalination driven by low temperature supercritical organic Rankine cycle. Appl. Energy
**2013**, 102, 1071–1080. [Google Scholar] [CrossRef] - Tchanche, B.F.; Lambrinos, G.; Frangoudakis, A.; Papadakis, G. Low-grade heat conversion into power using organic Rankine cycles–a review of various applications. Renew. Sustain. Energy Rev.
**2011**, 15, 3963–3979. [Google Scholar] [CrossRef] - Wang, X.; Christ, A.; Regenauer-Lieb, K.; Hooman, K.; Chua, H.T. Low grade heat driven multi-effect distillation technology. Int. J. Heat Mass Transf.
**2011**, 54, 5497–5503. [Google Scholar] [CrossRef] - Veza, J.M. Mechanical vapour compression desalination plants—A case study. Desalination
**1995**, 101, 1–10. [Google Scholar] [CrossRef] - Aly, S.E. Gas turbine total energy vapour compression desalination system. Energy Convers. Manag.
**1999**, 40, 729–741. [Google Scholar] [CrossRef] - Lara, J.; Noyes, G.; Holtzapple, M. An investigation of high operating temperatures in mechanical vapor-compression desalination. Desalination
**2008**, 227, 217–232. [Google Scholar] [CrossRef] - Lukic, N.; Diezel, L.L.; Fröba, A.; Leipertz, A. Economical aspects of the improvement of a mechanical vapour compression desalination plant by dropwise condensation. Desalination
**2010**, 264, 173–178. [Google Scholar] [CrossRef] - Nafey, A.; Fath, H.; Mabrouk, A. Thermoeconomic design of a multi-effect evaporation mechanical vapor compression (MEE-MVC) desalination process. Desalination
**2008**, 230, 1–15. [Google Scholar] [CrossRef] - Elimelech, M.; Phillip, W.A. The Future of Seawater Desalination: Energy, Technology, and the Environment. Science
**2011**, 333, 712–717. [Google Scholar] [CrossRef] [PubMed] - Desalitech Ltd. Doing away with RO energy-recovery devices. Desalination Water Reuse
**2010**, 20, 26–28. [Google Scholar] - Desportes, C. MED Industrial System Present Status and Future Directions. In Proceedings of Desalination: An Energy Solution, Huntington Beach, CA, USA, 2 November 2010.
- Ettouney, H.M.; El-Dessouky, H.T.; Faibish, R.S.; Gowin, P.J. Evaluating the economics of desalination. Chem. Eng. Prog.
**2002**, 98, 32–40. [Google Scholar] - Global Water Intelligence, Plants. Global Water Intelligence and Water Desalination Report. 2014. Available online: http://desaldata.com/projects (accessed on 12 November 2014).
- Sadhukhan, H.K.; Tewari, P.K. Small Desalination Plants (SDPS), Thermal Desalination Processes; Bhabha Atomic Research Centre: Mumbai, India, 2010. [Google Scholar]
- Zhao, K.; Heinzl, W.; Wenzel, M.; Büttner, S.; Bollen, F.; Lange, G.; Heinzl, S.; Sarda, N. Experimental study of the Memsys vacuum-multi-effect-membrane-distillation (V-MEMD) module. Desalination
**2013**, 323, 150–160. [Google Scholar] [CrossRef] - Chehayeb, K.M.; Narayan, G.P.; Zubair, S.M.; Lienhard V, J.H. The Thermodynamic Balancing of a Fixed-Area Two-Stage Humidification-Dehumidification Desalination System. Desalination
**2015**, 369, 125–139. [Google Scholar] [CrossRef] - Warsinger, D.M.; Swaminathan, J.; Guillen-Burrieza, E.; Arafat, H.A.; Lienhard V, J.H. Scaling and fouling in membrane distillation for desalination applications: A review. Desalination
**2014**, 356, 294–313. [Google Scholar] [CrossRef]

© 2015 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Warsinger, D.M.; Mistry, K.H.; Nayar, K.G.; Chung, H.W.; Lienhard, J.H., V.
Entropy Generation of Desalination Powered by Variable Temperature Waste Heat. *Entropy* **2015**, *17*, 7530-7566.
https://doi.org/10.3390/e17117530

**AMA Style**

Warsinger DM, Mistry KH, Nayar KG, Chung HW, Lienhard JH V.
Entropy Generation of Desalination Powered by Variable Temperature Waste Heat. *Entropy*. 2015; 17(11):7530-7566.
https://doi.org/10.3390/e17117530

**Chicago/Turabian Style**

Warsinger, David M., Karan H. Mistry, Kishor G. Nayar, Hyung Won Chung, and John H. Lienhard, V.
2015. "Entropy Generation of Desalination Powered by Variable Temperature Waste Heat" *Entropy* 17, no. 11: 7530-7566.
https://doi.org/10.3390/e17117530
